- 1. BackMatrix LED-Module forlight boxes, advertising and illuminated ceilings Bright Light for large areas made in germany

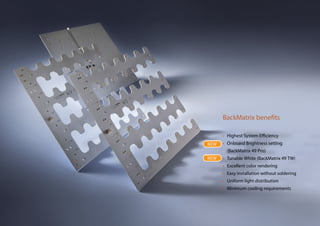

- 2. BackMatrix benefits • HighestSystem Efficiency • Onboard Brightness setting (BackMatrix 49 Pro) • Tunable White (BackMatrix 49 TW) • Excellent color rendering • Easy installation without soldering • Uniform light distribution • Minimum cooling requirements NEW NEW
- 3. 3 BackMatrix – 3strong Product Lines optimum solutions for uniform area lighting The powerful BackMatrix LED modules are designed to provide optimum illumination to large areas. Luminous ceilings, walls or 3D elements will have a uniform lighting in color and intensity, with high spectrum quality and sufficient brightness. Optimum illumination in guaranteed by using high performance Nichia LEDs that deliver up 37.500 lumens per square meter. For freedom of design the modules are available in three versions with various options involving viewing angle, color temperature and brightness. BackMatrix 49 Pro The light that makes a difference With 3-step brightness BackMatrix 49 Tunable White For Human Centric Lighting High quality, adjustable light BackMatrix 49 Efficient and Cost Effective For large surface illumination LED-Model 49 Nichia LEDs 757 2 x 49 Nichia LEDs T02 49 Nichia LEDs T02 Luminous Flux per unit* 3130 lm 1150 /1250 lm 1300 lm Luminous Flux per sqm* No cooling required Tunable White – 2700 - 6500 K – Brightness setting 3-Step Onboard – – Plug&Play Installation Warranty 5 Years 3 Years 3 Years 37500 / 23000 LM 11150 / 12500 LM 13800 LM

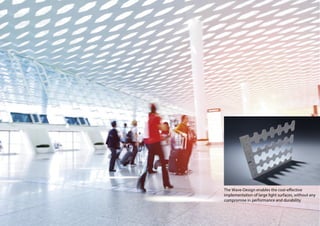

- 4. Die definierte Leitungsführungmit Kabelbindern erfolgt völlig schattenfrei The Wave-Design enables the cost-effective implementation of large light surfaces, without any compromise in performance and durability

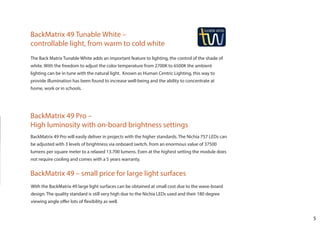

- 5. 5 BackMatrix 49 Pro– High luminosity with on-board brightness settings BackMatrix 49 – small price for large light surfaces BackMatrix 49 Tunable White – controllable light, from warm to cold white The Back Matrix Tunable White adds an important feature to lighting, the control of the shade of white. With the freedom to adjust the color temperature from 2700K to 6500K the ambient lighting can be in tune with the natural light. Known as Human Centric Lighting, this way to provide illumination has been found to increase well-being and the ability to concentrate at home, work or in schools. BackMatrix 49 Pro will easily deliver in projects with the higher standards. The Nichia 757 LEDs can be adjusted with 3 levels of brightness via onboard switch, from an enormous value of 37500 lumens per square meter to a relaxed 13.700 lumens. Even at the highest setting the module does not require cooling and comes with a 5 years warranty. With the BackMatrix 49 large light surfaces can be obtained at small cost due to the wave-board design. The quality standard is still very high due to the Nichia LEDs used and their 180 degree viewing angle offer lots of flexibility as well.
- 6. Die definierte Leitungsführungmit Kabelbindern erfolgt völlig schattenfrei

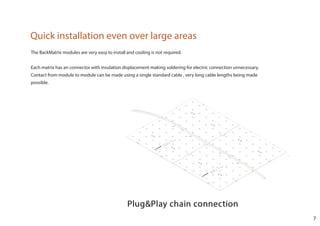

- 7. 7 Quick installation evenover large areas Plug&Play chain connection The BackMatrix modules are very easy to install and cooling is not required. Each matrix has an connector with insulation displacement making soldering for electric connection unnecessary. Contact from module to module can be made using a single standard cable , very long cable lengths being made possible.

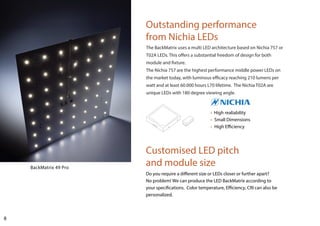

- 8. 8 Customised LED pitch andmodule size Do you require a different size or LEDs closer or further apart? No problem! We can produce the LED BackMatrix according to your specifications. Color temperature, Efficiency, CRI can also be personalized. Outstanding performance from Nichia LEDs • High realiability • Small Dimensions • High Efficiency BackMatrix 49 Pro The BackMatrix uses a multi LED architecture based on Nichia 757 or T02A LEDs. This offers a substantial freedom of design for both module and fixture. The Nichia 757 are the highest performance middle power LEDs on the market today, with luminous efficacy reaching 210 lumens per watt and at least 60.000 hours L70 lifetime. The Nichia T02A are unique LEDs with 180 degree viewing angle.

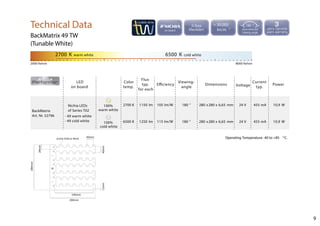

- 9. 9 LED on board Color temp. Flux typ. for each Efficiency Viewing- angle DimensionsVoltage Current typ. Power BackMatrix Art. Nr. 52796 Nichia LEDs of Series T02 - 49 warm white - 49 cold white 100% warm white 2700 K 1150 lm 105 lm/W 180 ° 280 x280 x 6,65 mm 24 V 455 mA 10,9 W 100% cold white 6500 K 1250 lm 115 lm/W 180 ° 280 x280 x 6,65 mm 24 V 455 mA 10,9 W Technical Data BackMatrix 49 TW (Tunable White) 2000 Kelvin 8000 Kelvin 2700 K warm white 6500 K cold white 280mm 240mm 40mm screw hole ø 4mm 40mm12mm 28mm 280mm BackMatrix 49TW Operating Temperature -40 to +85 0 C. 180 0> 30.000 lm/m 2

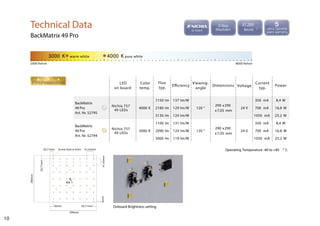

- 10. LED on board Color temp. Flux typ. Efficiency Viewing- angle Dimensions Voltage Current typ. Power 10 2000Kelvin 8000 Kelvin 3000 K warm white 4000 K pure white Technical Data BackMatrix 49 Pro BackMatrix 49 Pro Art. Nr. 52795 Nichia 757 49 LEDs 4000 K 1150 lm 137 lm/W 120 ° 290 x290 x7,05 mm 24 V 350 mA 8,4 W 2180 lm 129 lm/W 700 mA 16,8 W 3130 lm 124 lm/W 1050 mA 25,2 W BackMatrix 49 Pro Art. Nr. 52794 Nichia 757 49 LEDs 3000 K 1100 lm 131 lm/W 120 ° 290 x290 x7,05 mm 24 V 350 mA 8,4 W 2090 lm 124 lm/W 700 mA 16,8 W 3000 lm 119 lm/W 1050 mA 25,2 W Operating Temperature -40 to +85 0 C. Onboard Brightness setting 290mm 20mm 20,71mm 41,43mm20,71mm 41,43mm Screw hole ø 3mm 6mm 20,71mm 290mm BackMatrix 49Pro 37.200 lm/m 2

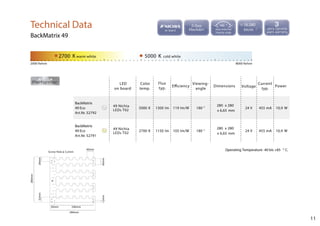

- 11. LED on board Color temp. Flux typ. Efficiency Viewing- angle Dimensions Voltage Current typ. Power 11 2000Kelvin 8000 Kelvin 2700 K warm white 5000 K cold white Technical Data BackMatrix 49 BackMatrix 49 Eco Art.Nr. 52792 49 Nichia LEDs T02 5000 K 1300 lm 119 lm/W 180 ° 280 x 280 x 6,65 mm 24 V 455 mA 10,9 W BackMatrix 49 Eco Art.Nr. 52791 49 Nichia LEDs T02 2700 K 1150 lm 105 lm/W 180 ° 280 x 280 x 6,65 mm 24 V 455 mA 10,9 W Operating Temperature -40 bis +85 0 C. 280mm 240mm30mm 40mm 40mm12mm 28mm32mm 280mm BackMatrix 49Eco Screw Hole ø 3,2mm > 16.580 lm/m 2 180 0
- 12. Custom made LEDmodules can be developed and manufactured according to your specifications. You can choose the module design, color temperature, power, brightness and even the type of Nichia LED. Thus, your application will receive the right hi-tech solution. Do you need a personalized solution? Production center in Germany with certified quality
