NexPCB make for makers
The document discusses NexPCB and how they help hardware makers with product development and manufacturing. It outlines NexPCB's services like PCB fabrication, assembly, sourcing components, and supply chain management to help makers focus on design while NexPCB handles production. The document also mentions NexPCB has facilities in China, Boston, and Hong Kong to serve a global customer base.
NexPCB make for makers
- 1. NexPCB Make ForMakers
- 2.

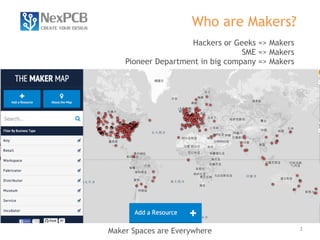

- 3. 3 Who areMakers? Hackers or Geeks => Makers SME => Makers Pioneer Department in big company => Makers Maker Spaces are Everywhere

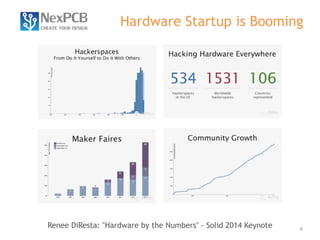

- 4. Hardware Startup isBooming 4 Renee DiResta: "Hardware by the Numbers" - Solid 2014 Keynote

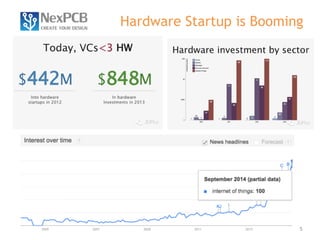

- 5. Hardware Startup isBooming 5

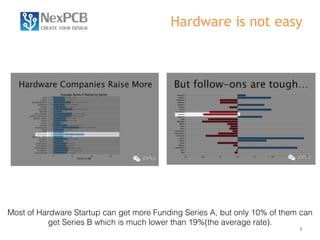

- 6. Hardware is noteasy Most of Hardware Startup can get more Funding Series A, but only 10% of them can 6 get Series B which is much lower than 19%(the average rate).
- 7. 7 Tags ofSuccess Makers Great “Know How” in it’s own market Quality focus and ExpressTime to Market Globalization Team Work Abilities

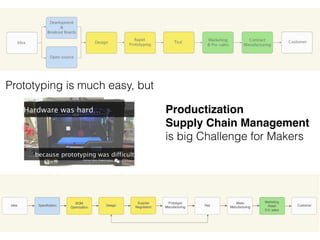

- 8. 8 Prototyping ismuch easy, but Productization Supply Chain Management is big Challenge for Makers

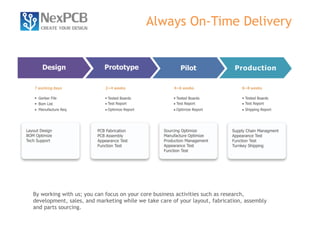

- 9. Productization By workingwith us; you can focus on your core business activities such as research, development, sales, and marketing while we take care of your layout, fabrication, assembly and parts sourcing.

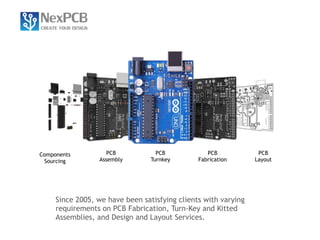

- 10. Components Sourcing PCB Assembly Supply Chain Management PCB Turnkey PCB Fabrication Since 2005, we have been satisfying clients with varying requirements on PCB Fabrication, Turn-Key and Kitted Assemblies, and Design and Layout Services. PCB Layout
- 11. 11 PCB Layout • Board layout from a Schematic diagram • Controlled impedance design • Assembly drawing, fabrication drawing • Multi-layer boards, split ground planes, differential pairs, high speed rules • Layout for RF designs • DFT audit, test point placement, test probe clearance per customer rules, testability report NexPCB are able to draw on years of experience at the forefront of PCB design using the most powerful CAD tools.
- 12. 12 • 2to 40 layers • 61cm x 110cm Max Board Dimensions • 0.2 ~ 8.0mm Thickness (±10%) • 0.5 ~ 13oz Copper Weight (±0.25 oz) • Min Trace/Space 3 mil & Min Drill hole dameter 6 mil • Controlled Impedance & Blind & Buried Vias • Rigid, Flex, Rigid Flex • Immersion sliver/gold Deep gold,Pb-free, HASL, OSP etc • ROHS, IPC-A-600F, ISO9001 PCB Fabrication Whether your design is simple or complex, NexPCB's Printed Circuit Board Fabrication service is ready to meet your requirements.
- 13. 13 PCB Assembly • Passives down to 0201 • Reels, Cut tape, Tube, Loose parts • 50 * 50mm ~ 500 * 500mm Board dimensions • Fine Pitch to 8mil • BGA 0.3mm ball size, 0.4mm ball pitch • Single or double sided SMT, Mixed assembly • Leadless Chip Carriers/SCP • Visual Inspection & X-ray Inspection • AOI and Function Testing • ROHS, IPC-610D Class II, ISO9001 We offer turn-key (just send us the Gerber and BOM files), consignment (you supply all parts), and various components purchase options to help you reduce cost and wait time.

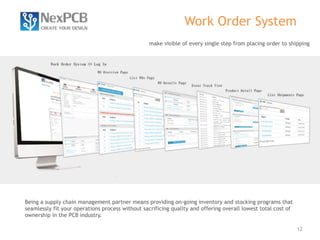

- 14. make visible ofevery single step from placing order to shipping 14 Work Order System Being a supply chain management partner means providing on-going inventory and stocking programs that seamlessly fit your operations process without sacrificing quality and offering overall lowest total cost of ownership in the PCB industry.
- 15. 15 Online Shop It is very important verify the function of your design ASAP! The service packages are comprehensive hence you do not have to input each of the parameters line by line, but only need to select the right service package that meets your specification. This in turn helps you create enough time for marketing or other related income generating activities.
- 16. 16 Facilities Allthe facilities are ISO9001 certified
- 17. 17 Core Team Professional and Trustworthy
- 19. 19 As anEMS (Electronic Manufacturing Service) provider, we are able to manage the supply chain and production process, to turn your design into product, and then you can focus on fulfill the market demands.
- 20. China Ningbo Office Phone: +86-574-8790-7331 Level 2, Building #1, 1177 Lingyun Road, Ningbo Zhejiang, China Boston Office: Phone: 919-413-5459 288 Norfolk St., Cambridge, 02139, Massachusetts, United States Hong Kong Office: Phone: +852-2543-0881 Room 19C, Lockhart Ctr, 301-307 Lockhart Rd, Wan Chai, Hong Kong Email: info@nexpcb.com Web: www.nexpcb.com
