Nujay was established in 2001 to provide printed circuit boards (PCBs) and liquid crystal displays (LCDs) to customers. It has 40 years of combined industry experience and certifications in quality management. Nujay works with suppliers in North America and Asia to offer customers competitive pricing, quality inspection, and supply chain management for their PCB and LCD needs.

1. Capabilities
Presentation
Your End-to-End Resource
for PCBs and LCDs

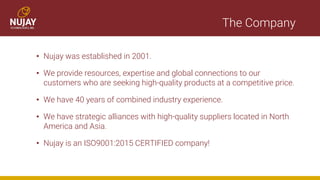

2. The Company
• Nujay was established in 2001.
• We provide resources, expertise and global connections to our
customers who are seeking high-quality products at a competitive price.
• We have 40 years of combined industry experience.
• We have strategic alliances with high-quality suppliers located in North
America and Asia.
• Nujay is an ISO9001:2015 CERTIFIED company!

3. Products
All Types of
Printed Circuit Boards
Liquid Crystal Displays,
Modules and TFT

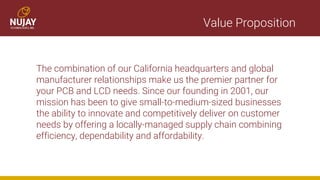

4. Value Proposition
The combination of our California headquarters and global
manufacturer relationships make us the premier partner for
your PCB and LCD needs. Since our founding in 2001, our
mission has been to give small-to-medium-sized businesses
the ability to innovate and competitively deliver on customer
needs by offering a locally-managed supply chain combining
efficiency, dependability and affordability.

5. Value Proposition
We identify, survey and qualify suppliers
• No hassle supply chain management.
• We have qualified suppliers in USA, China, Taiwan, India and South Korea to start
your sourcing today.
We offer Vendor-Managed Inventory programs like JIT and KANBAN
• “Best of both worlds”: low offshore pricing + local stocking
We inspect all products before shipping/stocking
• All products are inspected by our certified inspectors to the IPC and other industry
standards before shipment or stocking
• We handle quality issues, if there are any, with our suppliers

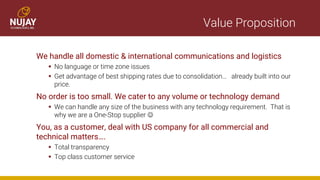

6. Value Proposition
We handle all domestic & international communications and logistics
▪ No language or time zone issues
▪ Get advantage of best shipping rates due to consolidation… already built into our
price.
No order is too small. We cater to any volume or technology demand
▪ We can handle any size of the business with any technology requirement. That is
why we are a One-Stop supplier ☺
You, as a customer, deal with US company for all commercial and
technical matters….
▪ Total transparency
▪ Top class customer service

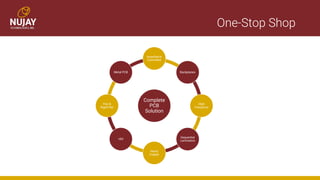

7. One-Stop Shop
Complete
PCB
Solution
Impedance
Controlled
Backplanes
High
Frequency
Sequential
Lamination
Heavy
Copper
HDI
Flex &
Rigid-Flex
Metal PCB

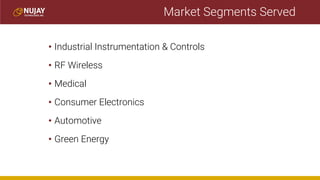

8. Market Segments Served
• Industrial Instrumentation & Controls
• RF Wireless
• Medical
• Consumer Electronics
• Automotive
• Green Energy

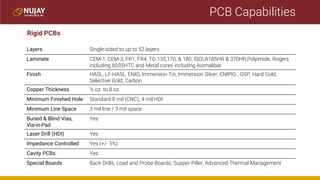

9. PCB Capabilities
Rigid PCBs
Layers Single-sided to up to 52 layers
Laminate CEM-1, CEM-3, FR1, FR4, TG 135,170, & 180, ISOLA185HR & 370HR,Polyimide, Rogers
including 6035HTC and Metal cores including Aismalibar
Finish HASL, LF-HASL, ENIG, Immersion Tin, Immersion Silver, ENIPIG , OSP, Hard Gold,
Selective Gold, Carbon
Copper Thickness ½ oz. to 8 oz.
Minimum Finished Hole Standard 8 mil (CNC), 4 mil HDI
Minimum Line Space 3 mil line / 3 mil space
Buried & Blind Vias,
Via-in-Pad
Yes
Laser Drill (HDI) Yes
Impedance Controlled Yes (+/- 5%)
Cavity PCBs Yes
Special Boards Back Drills, Load and Probe Boards, Supper Piller, Advanced Thermal Management

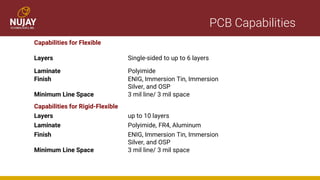

10. PCB Capabilities
Capabilities for Flexible
Layers Single-sided to up to 6 layers
Laminate Polyimide
Finish ENIG, Immersion Tin, Immersion
Silver, and OSP
Minimum Line Space 3 mil line/ 3 mil space
Capabilities for Rigid-Flexible
Layers up to 10 layers
Laminate Polyimide, FR4, Aluminum
Finish ENIG, Immersion Tin, Immersion
Silver, and OSP
Minimum Line Space 3 mil line/ 3 mil space

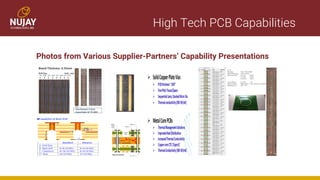

11. High Tech PCB Capabilities
Photos from Various Supplier-Partners’ Capability Presentations

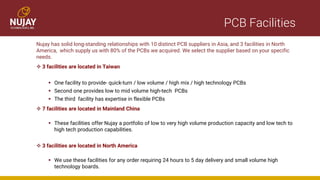

12. PCB Facilities
Nujay has solid long-standing relationships with 10 distinct PCB suppliers in Asia, and 3 facilities in North
America, which supply us with 80% of the PCBs we acquired. We select the supplier based on your specific
needs.
❖ 3 facilities are located in Taiwan
▪ One facility to provide- quick-turn / low volume / high mix / high technology PCBs
▪ Second one provides low to mid volume high-tech PCBs
▪ The third facility has expertise in flexible PCBs
❖ 7 facilities are located in Mainland China
▪ These facilities offer Nujay a portfolio of low to very high volume production capacity and low tech to
high tech production capabilities.
❖ 3 facilities are located in North America
▪ We use these facilities for any order requiring 24 hours to 5 day delivery and small volume high
technology boards.

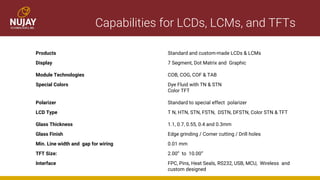

13. Capabilities for LCDs, LCMs, and TFTs
Products Standard and custom-made LCDs & LCMs
Display 7 Segment, Dot Matrix and Graphic
Module Technologies COB, COG, COF & TAB
Special Colors Dye Fluid with TN & STN
Color TFT
Polarizer Standard to special effect polarizer
LCD Type T N, HTN, STN, FSTN, DSTN, DFSTN, Color STN & TFT
Glass Thickness 1.1, 0.7, 0.55, 0.4 and 0.3mm
Glass Finish Edge grinding / Corner cutting / Drill holes
Min. Line width and gap for wiring 0.01 mm
TFT Size: 2.00” to 10.00”
Interface FPC, Pins, Heat Seals, RS232, USB, MCU, Wireless and
custom designed

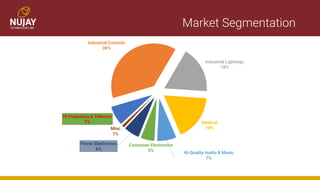

14. Market Segmentation
Hi Frequency & Telecom
7%
Industrial Controls
38%
Industrial Lightings
18%
Medical
18%
Hi-Quality Audio & Music
7%
Consumer Electronics
5%
Power Electronics
6%
Misc
1%

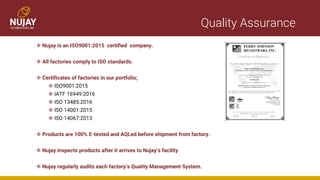

15. Quality Assurance
❖ Nujay is an ISO9001:2015 certified company.
❖ All factories comply to ISO standards.
❖ Certificates of factories in our portfolio;
❖ ISO9001:2015
❖ IATF 16949:2016
❖ ISO 13485:2016
❖ ISO 14001:2015
❖ ISO 14067:2013
❖ Products are 100% E-tested and AQLed before shipment from factory.
❖ Nujay inspects products after it arrives to Nujay’s facility
❖ Nujay regularly audits each factory’s Quality Management System.

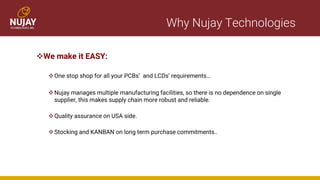

16. Why Nujay Technologies
❖We make it EASY:
❖One stop shop for all your PCBs’ and LCDs’ requirements…
❖Nujay manages multiple manufacturing facilities, so there is no dependence on single
supplier, this makes supply chain more robust and reliable.
❖Quality assurance on USA side.
❖Stocking and KANBAN on long term purchase commitments..

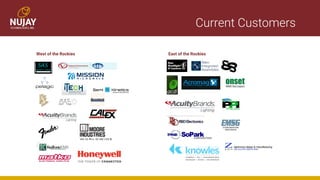

17. Current Customers
West of the Rockies East of the Rockies

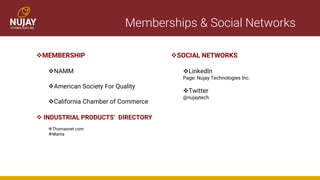

18. Memberships & Social Networks
❖MEMBERSHIP
❖NAMM
❖American Society For Quality
❖California Chamber of Commerce
❖SOCIAL NETWORKS
❖LinkedIn
Page: Nujay Technologies Inc.
❖Twitter
@nujaytech
❖ INDUSTRIAL PRODUCTS’ DIRECTORY
❖Thomasnet.com
❖Manta

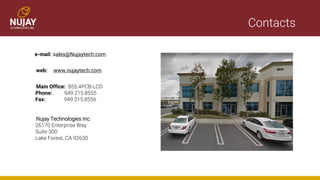

19. Contacts
e-mail: sales@Nujaytech.com
web: www.nujaytech.com
Main Office: 855.4PCB-LCD
Phone: 949.215.8555
Fax: 949.215.8556
Nujay Technologies Inc.
26170 Enterprise Way
Suite 300
Lake Forest, CA 92630
