1. 12/15/21 Heiko Paulheim 1
New Adventures in RDF2vec
Heiko Paulheim
University of Mannheim
Heiko Paulheim

2. 12/15/21 Heiko Paulheim 2
Brief Introduction
2006 2008 2011 2013 2014 2017
Pre PhD Years PhD Years PostDoc Years Assistant Prof. Full Prof.
SDType
rdf2vec
ReNewRS
Kare§KoKI
MELT

3. 12/15/21 Heiko Paulheim 3
Knowledge Graphs: At a Glance
• Graph shaped knowledge representation
– nodes: entities
– edges: relations
University of Mannheim
Mannheim
Baden-
Württemberg
Germany
Heiko Paulheim
DWS Group
employer
a
f
f
il
i
a
t
io
n
part of
residence
s
t
a
t
e
part of

4. 12/15/21 Heiko Paulheim 4
Knowledge Graphs in Organizations
• Knowledge Graphs are used…
• …in companies and
organizations
– collect, organize,
and integrate knowledge
– link isolated
information sources
– make information
searchable and findable
Masuch et al., 2016

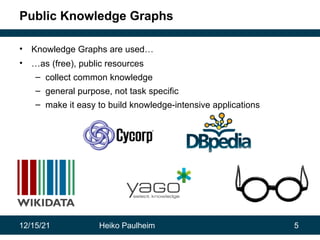

5. 12/15/21 Heiko Paulheim 5
Public Knowledge Graphs
• Knowledge Graphs are used…
• …as (free), public resources
– collect common knowledge
– general purpose, not task specific
– make it easy to build knowledge-intensive applications

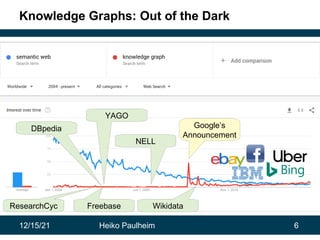

6. 12/15/21 Heiko Paulheim 6
Knowledge Graphs: Out of the Dark
Google’s
Announcement
DBpedia
YAGO
ResearchCyc Wikidata
Freebase
NELL

7. 12/15/21 Heiko Paulheim 7
Usage of Public Knowledge Graphs
OK, Google, when will the final
season of Money Heist be on Netflix?
The fifth season of Money Heist
will be released on September 3rd
.

8. 12/15/21 Heiko Paulheim 8
Usage of Public Knowledge Graphs
2021-09-03
2020-04-03
release date
release date
has part
h
a
s
p
a
r
t
OK, Google, when will the final season
Money Heist be on Netflix?
.
.
.

9. 12/15/21 Heiko Paulheim 9

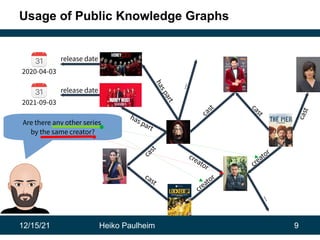

Usage of Public Knowledge Graphs
2021-09-03
2020-04-03
release date
release date
creator
has part
h
a
s
p
a
r
t
cast
c
a
s
t
creator
c
a
s
t
Are there any other series
by the same creator?
creator
cast
cast .
.
.
.
.
.

10. 12/15/21 Heiko Paulheim 10

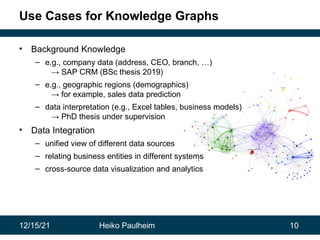

Use Cases for Knowledge Graphs
• Background Knowledge
– e.g., company data (address, CEO, branch, …)
→ SAP CRM (BSc thesis 2019)
– e.g., geographic regions (demographics)
→ for example, sales data prediction
– data interpretation (e.g., Excel tables, business models)
→ PhD thesis under supervision
• Data Integration
– unified view of different data sources
– relating business entities in different systems
– cross-source data visualization and analytics

11. 12/15/21 Heiko Paulheim 11

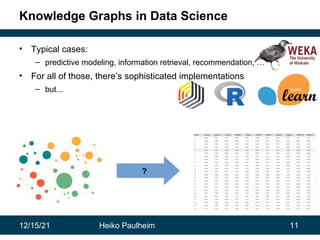

Knowledge Graphs in Data Science
• Typical cases:
– predictive modeling, information retrieval, recommendation, …
• For all of those, there’s sophisticated implementations
– but...
?

12. 12/15/21 Heiko Paulheim 12
Wanted: A Bridge between Both Worlds

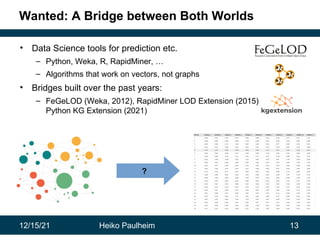

13. 12/15/21 Heiko Paulheim 13
Wanted: A Bridge between Both Worlds
• Data Science tools for prediction etc.
– Python, Weka, R, RapidMiner, …
– Algorithms that work on vectors, not graphs
• Bridges built over the past years:
– FeGeLOD (Weka, 2012), RapidMiner LOD Extension (2015),
Python KG Extension (2021)
?

14. 12/15/21 Heiko Paulheim 14

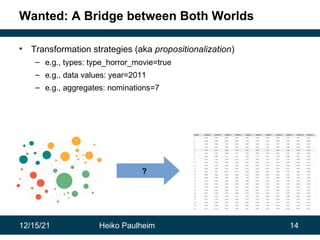

Wanted: A Bridge between Both Worlds
• Transformation strategies (aka propositionalization)
– e.g., types: type_horror_movie=true
– e.g., data values: year=2011
– e.g., aggregates: nominations=7
?

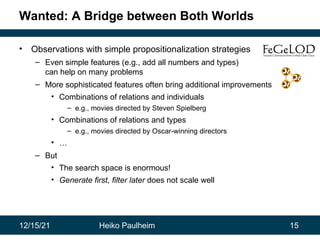

15. 12/15/21 Heiko Paulheim 15
Wanted: A Bridge between Both Worlds
• Observations with simple propositionalization strategies
– Even simple features (e.g., add all numbers and types)
can help on many problems
– More sophisticated features often bring additional improvements
• Combinations of relations and individuals
– e.g., movies directed by Steven Spielberg
• Combinations of relations and types
– e.g., movies directed by Oscar-winning directors
• …
– But
• The search space is enormous!
• Generate first, filter later does not scale well

16. 12/15/21 Heiko Paulheim 16

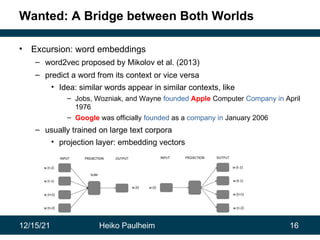

Wanted: A Bridge between Both Worlds
• Excursion: word embeddings
– word2vec proposed by Mikolov et al. (2013)
– predict a word from its context or vice versa
• Idea: similar words appear in similar contexts, like
– Jobs, Wozniak, and Wayne founded Apple Computer Company in April
1976
– Google was officially founded as a company in January 2006
– usually trained on large text corpora
• projection layer: embedding vectors

17. 12/15/21 Heiko Paulheim 17

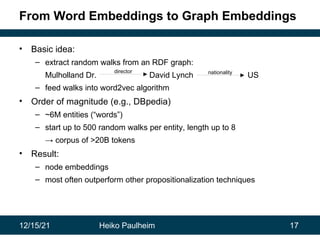

From Word Embeddings to Graph Embeddings
• Basic idea:
– extract random walks from an RDF graph:
Mulholland Dr. David Lynch US
– feed walks into word2vec algorithm
• Order of magnitude (e.g., DBpedia)
– ~6M entities (“words”)
– start up to 500 random walks per entity, length up to 8
→ corpus of >20B tokens
• Result:
– node embeddings
– most often outperform other propositionalization techniques
director nationality

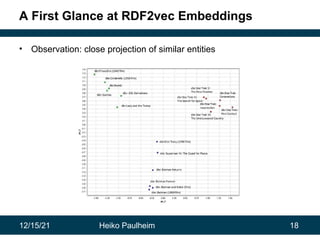

18. 12/15/21 Heiko Paulheim 18
A First Glance at RDF2vec Embeddings
• Observation: close projection of similar entities

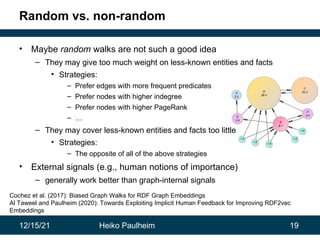

19. 12/15/21 Heiko Paulheim 19
Random vs. non-random
• Maybe random walks are not such a good idea
– They may give too much weight on less-known entities and facts
• Strategies:
– Prefer edges with more frequent predicates
– Prefer nodes with higher indegree
– Prefer nodes with higher PageRank
– …
– They may cover less-known entities and facts too little
• Strategies:
– The opposite of all of the above strategies
• External signals (e.g., human notions of importance)
– generally work better than graph-internal signals
Cochez et al. (2017): Biased Graph Walks for RDF Graph Embeddings
Al Taweel and Paulheim (2020): Towards Exploiting Implicit Human Feedback for Improving RDF2vec
Embeddings

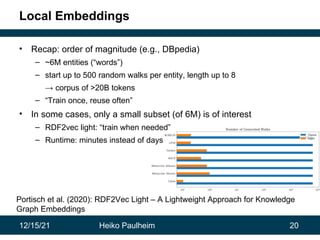

20. 12/15/21 Heiko Paulheim 20
Local Embeddings
• Recap: order of magnitude (e.g., DBpedia)
– ~6M entities (“words”)
– start up to 500 random walks per entity, length up to 8
→ corpus of >20B tokens
– “Train once, reuse often”
• In some cases, only a small subset (of 6M) is of interest
– RDF2vec light: “train when needed”
– Runtime: minutes instead of days
Portisch et al. (2020): RDF2Vec Light – A Lightweight Approach for Knowledge
Graph Embeddings

21. 12/15/21 Heiko Paulheim 21

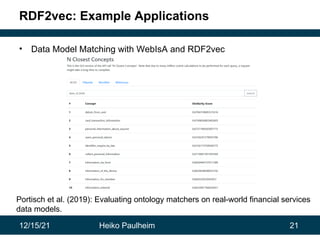

RDF2vec: Example Applications
• Data Model Matching with WebIsA and RDF2vec
Portisch et al. (2019): Evaluating ontology matchers on real-world financial services
data models.

22. 12/15/21 Heiko Paulheim 22
RDF2vec: Example Applications
• Entity disambiguation: linking texts to a knowledge graph
Türker et al. (2019): Knowledge-Based Short Text Categorization
Using Entity and Category Embedding

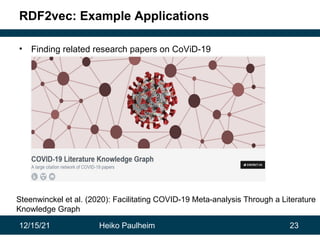

23. 12/15/21 Heiko Paulheim 23
RDF2vec: Example Applications
• Finding related research papers on CoViD-19
Steenwinckel et al. (2020): Facilitating COVID-19 Meta-analysis Through a Literature
Knowledge Graph

24. 12/15/21 Heiko Paulheim 24
RDF2vec: Example Applications

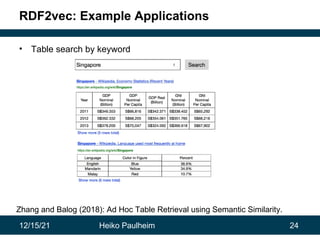

• Table search by keyword
Zhang and Balog (2018): Ad Hoc Table Retrieval using Semantic Similarity.

25. 12/15/21 Heiko Paulheim 25

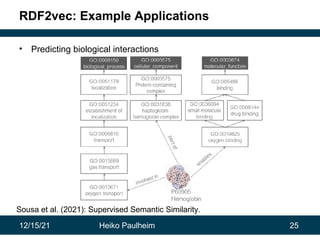

RDF2vec: Example Applications
• Predicting biological interactions
Sousa et al. (2021): Supervised Semantic Similarity.

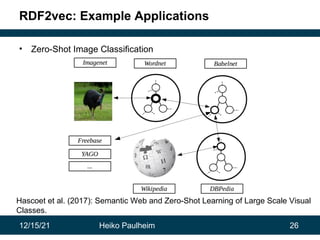

26. 12/15/21 Heiko Paulheim 26
RDF2vec: Example Applications
• Zero-Shot Image Classification
Hascoet et al. (2017): Semantic Web and Zero-Shot Learning of Large Scale Visual
Classes.

27. 12/15/21 Heiko Paulheim 27

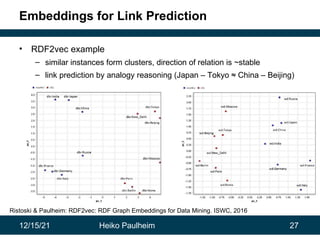

Embeddings for Link Prediction
• RDF2vec example
– similar instances form clusters, direction of relation is ~stable
– link prediction by analogy reasoning (Japan – Tokyo ≈ China – Beijing)
Ristoski & Paulheim: RDF2vec: RDF Graph Embeddings for Data Mining. ISWC, 2016

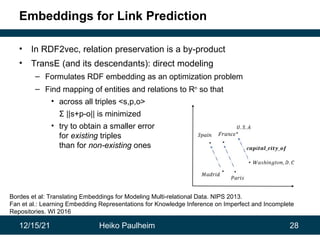

28. 12/15/21 Heiko Paulheim 28
Embeddings for Link Prediction
• In RDF2vec, relation preservation is a by-product
• TransE (and its descendants): direct modeling
– Formulates RDF embedding as an optimization problem
– Find mapping of entities and relations to Rn
so that
• across all triples <s,p,o>
Σ ||s+p-o|| is minimized
• try to obtain a smaller error
for existing triples
than for non-existing ones
Bordes et al: Translating Embeddings for Modeling Multi-relational Data. NIPS 2013.
Fan et al.: Learning Embedding Representations for Knowledge Inference on Imperfect and Incomplete
Repositories. WI 2016

29. 12/15/21 Heiko Paulheim 29

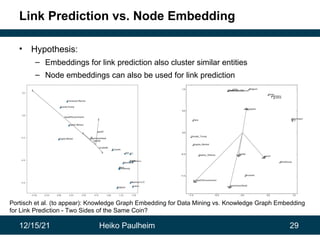

Link Prediction vs. Node Embedding
• Hypothesis:
– Embeddings for link prediction also cluster similar entities
– Node embeddings can also be used for link prediction
Portisch et al. (to appear): Knowledge Graph Embedding for Data Mining vs. Knowledge Graph Embedding
for Link Prediction - Two Sides of the Same Coin?

30. 12/15/21 Heiko Paulheim 30

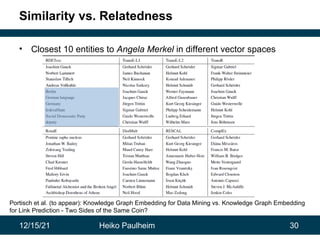

Similarity vs. Relatedness
• Closest 10 entities to Angela Merkel in different vector spaces
Portisch et al. (to appear): Knowledge Graph Embedding for Data Mining vs. Knowledge Graph Embedding
for Link Prediction - Two Sides of the Same Coin?

31. 12/15/21 Heiko Paulheim 31

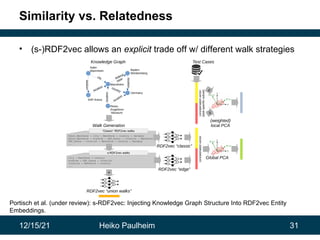

Similarity vs. Relatedness
• (s-)RDF2vec allows an explicit trade off w/ different walk strategies
Mannheim
Baden-
Württemberg
Germany
Adler
Mannheim
SAP Arena
Reiss-
Engelhorn
-Museum
location
location
location
federal
state
country
location
city
stadium
Knowledge Graph
Walk Generation
Adler_Mannheim → city → Mannheim → country → Germany
Adler_Mannheim → stadium → SAP_Arena → location → Mannheim
SAP_Arena → location → Mannheim → country → Germany
...
“Classic” RDF2vec walks
city → Mannheim → country
stadium → SAP_Arena → location
location → Mannheim → country
...
s-RDF2vec walks
+
RDF2vec “union walks”
RDF2vec “classic”
RDF2vec “edge”
concatenated
vector
Global PCA
Test Cases
concatenated
vector
(task-specific
subset)
w
2
w
1
(weighted)
local PCA
Portisch et al. (under review): s-RDF2vec: Injecting Knowledge Graph Structure Into RDF2vec Entity
Embeddings.

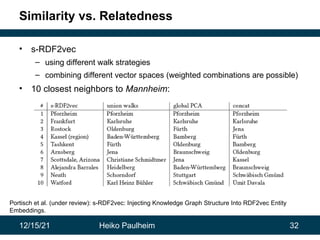

32. 12/15/21 Heiko Paulheim 32
Similarity vs. Relatedness
• s-RDF2vec
– using different walk strategies
– combining different vector spaces (weighted combinations are possible)
• 10 closest neighbors to Mannheim:
Portisch et al. (under review): s-RDF2vec: Injecting Knowledge Graph Structure Into RDF2vec Entity
Embeddings.

33. 12/15/21 Heiko Paulheim 33

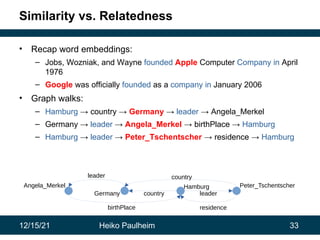

Similarity vs. Relatedness
• Recap word embeddings:
– Jobs, Wozniak, and Wayne founded Apple Computer Company in April
1976
– Google was officially founded as a company in January 2006
• Graph walks:
– Hamburg → country → Germany → leader → Angela_Merkel
– Germany → leader → Angela_Merkel → birthPlace → Hamburg
– Hamburg → leader → Peter_Tschentscher → residence → Hamburg
Germany
Angela_Merkel Hamburg
birthPlace
country
leader
Peter_Tschentscher
leader
residence
country

34. 12/15/21 Heiko Paulheim 34

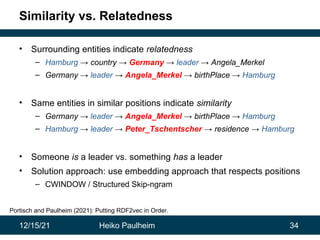

Similarity vs. Relatedness
• Surrounding entities indicate relatedness
– Hamburg → country → Germany → leader → Angela_Merkel
– Germany → leader → Angela_Merkel → birthPlace → Hamburg
• Same entities in similar positions indicate similarity
– Germany → leader → Angela_Merkel → birthPlace → Hamburg
– Hamburg → leader → Peter_Tschentscher → residence → Hamburg
• Someone is a leader vs. something has a leader
• Solution approach: use embedding approach that respects positions
– CWINDOW / Structured Skip-ngram
Portisch and Paulheim (2021): Putting RDF2vec in Order.

35. 12/15/21 Heiko Paulheim 35

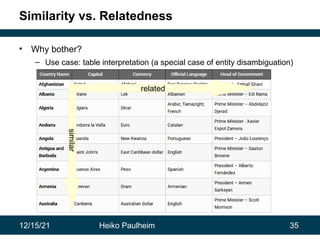

Similarity vs. Relatedness
• Why bother?
– Use case: table interpretation (a special case of entity disambiguation)
related
similar

36. 12/15/21 Heiko Paulheim 36
Back to Interpretability
• Hot topic: Explainable AI
– Knowledge Graphs are a favorable ingredient
– Human/machine interpretable knowledge → explainable systems
• However:
– Embeddings replace interpretable axioms
with numeric vectors over non-interpretable dimensions
– Where did the semantics go?
Paulheim (2018): Make Embeddings Semantic Again!

37. 12/15/21 Heiko Paulheim 37

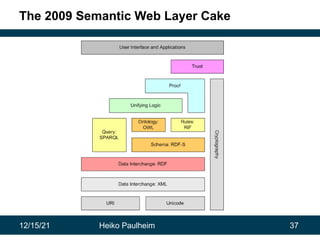

The 2009 Semantic Web Layer Cake

38. 12/15/21 Heiko Paulheim 38

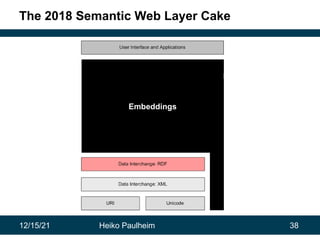

The 2018 Semantic Web Layer Cake
Embeddings

39. 12/15/21 Heiko Paulheim 39

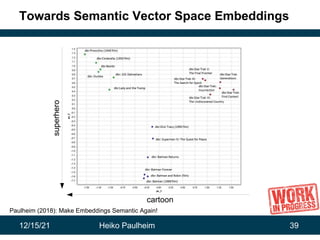

Towards Semantic Vector Space Embeddings
cartoon
superhero
Paulheim (2018): Make Embeddings Semantic Again!

40. 12/15/21 Heiko Paulheim 40

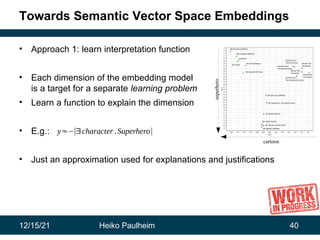

Towards Semantic Vector Space Embeddings
cartoon
superhero
• Approach 1: learn interpretation function
• Each dimension of the embedding model
is a target for a separate learning problem
• Learn a function to explain the dimension
• E.g.:
• Just an approximation used for explanations and justifications
y≈−|∃character .Superhero|

41. 12/15/21 Heiko Paulheim 41

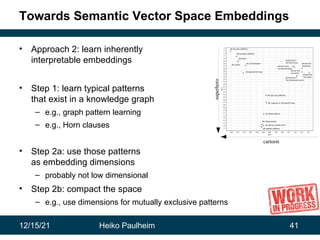

Towards Semantic Vector Space Embeddings
cartoon
superhero
• Approach 2: learn inherently
interpretable embeddings
• Step 1: learn typical patterns
that exist in a knowledge graph
– e.g., graph pattern learning
– e.g., Horn clauses
• Step 2a: use those patterns
as embedding dimensions
– probably not low dimensional
• Step 2b: compact the space
– e.g., use dimensions for mutually exclusive patterns

42. 12/15/21 Heiko Paulheim 42

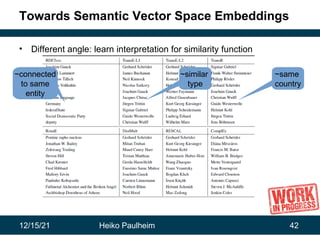

Towards Semantic Vector Space Embeddings
• Different angle: learn interpretation for similarity function
~similar
type
~same
country
~connected
to same
entity

43. 12/15/21 Heiko Paulheim 43
Summary
• Knowledge Graphs are a versatile ingredient for AI
– Integrated view on data
– Large-scale free source of background knowledge
• Knowledge Graph Embeddings
– Effective processing of large-scale knowledge sources
– Encoding of similarity and/or relatedness
• RDF2vec: explicit trade-off is possible!
– Additional insights that are not explicit in the graph
• aka latent semantics

44. 12/15/21 Heiko Paulheim 44

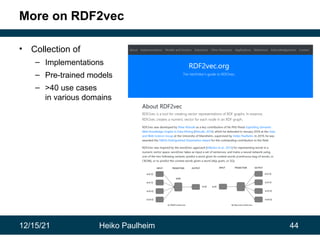

More on RDF2vec
• Collection of
– Implementations
– Pre-trained models
– >40 use cases
in various domains

45. 12/15/21 Heiko Paulheim 45
Thank you!
http://www.heikopaulheim.com
@heikopaulheim

46. 12/15/21 Heiko Paulheim 46
New Adventures in RDF2vec
Heiko Paulheim
University of Mannheim
Heiko Paulheim
