NDN SIM (Named Data Networking Simulator)

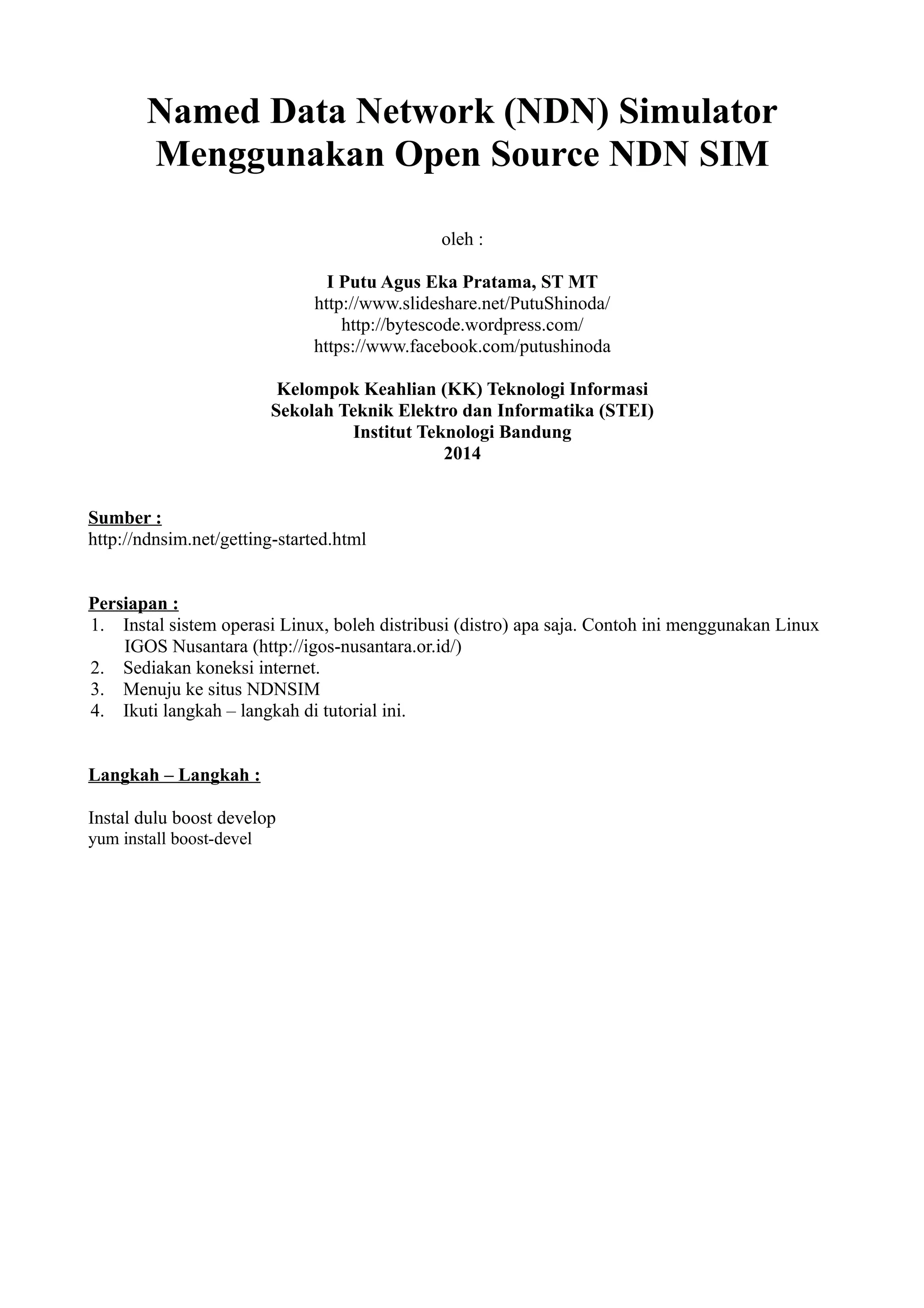

1. Named Data Network (NDN) Simulator
Menggunakan Open Source NDN SIM
oleh :
I Putu Agus Eka Pratama, ST MT
http://www.slideshare.net/PutuShinoda/
http://bytescode.wordpress.com/
https://www.facebook.com/putushinoda
Kelompok Keahlian (KK) Teknologi Informasi
Sekolah Teknik Elektro dan Informatika (STEI)
Institut Teknologi Bandung
2014
Sumber :
http://ndnsim.net/getting-started.html
Persiapan :
1. Instal sistem operasi Linux, boleh distribusi (distro) apa saja. Contoh ini menggunakan Linux
IGOS Nusantara (http://igos-nusantara.or.id/)
2. Sediakan koneksi internet.
3. Menuju ke situs NDNSIM
4. Ikuti langkah – langkah di tutorial ini.
Langkah – Langkah :
Instal dulu boost develop
yum install boost-devel

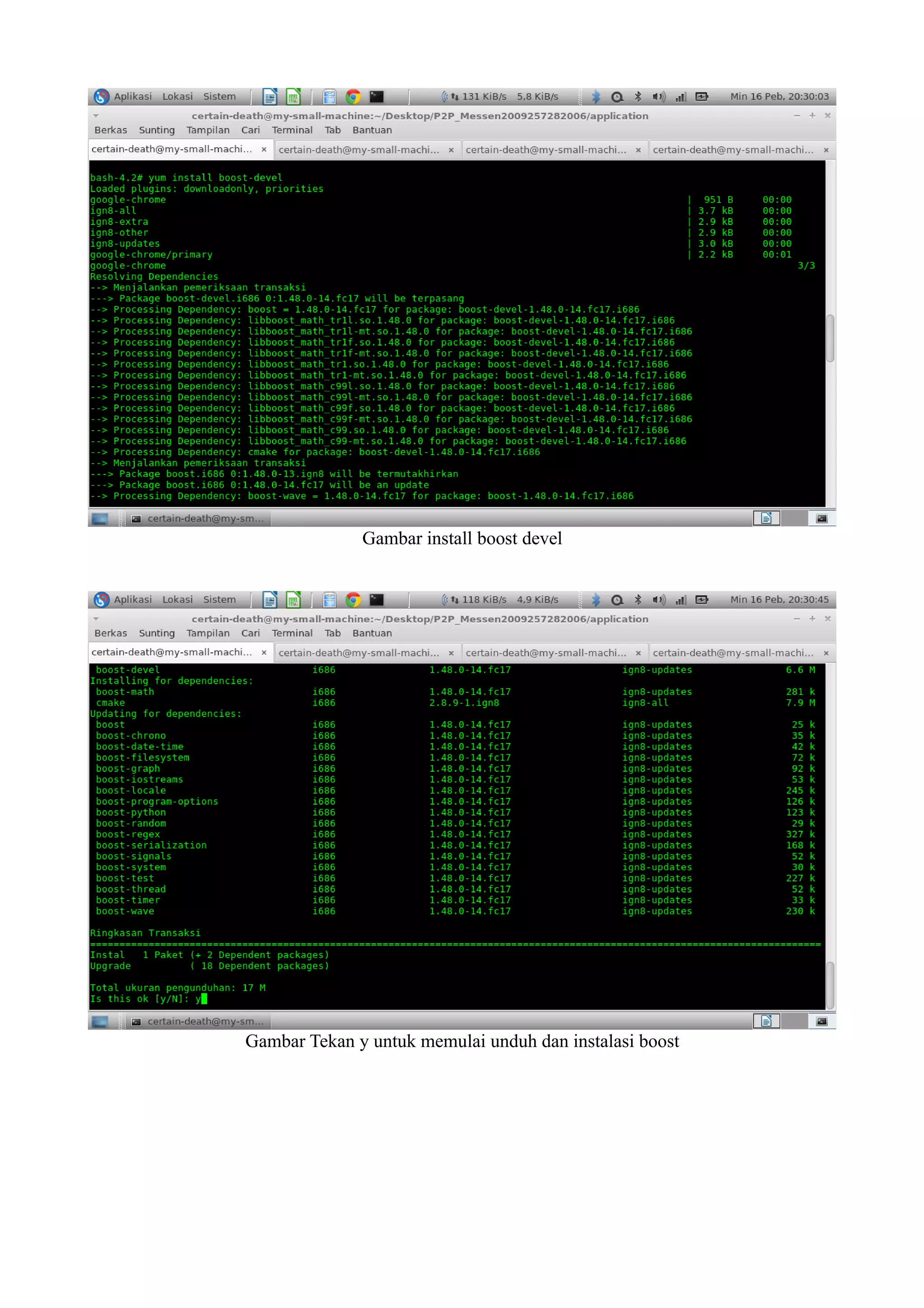

2. Gambar install boost devel
Gambar Tekan y untuk memulai unduh dan instalasi boost
4. Gambar Instalasi boost selesai
Instal komponen lainnya
yum install pygoocanvas python-kiwi graphviz-python
Jika sudah terinstal, maka sistem akan memberitahukan beserta dengan versi terbarunya (latest
version)
Gambar Sudah terinstal di sistem
Tambahkan lagi paket lainnya :
yum install graphviz-devel
15. Gambar Compile selesai dengan baik
Catatan :
For more configuration options, please refer to ./waf --help
Kini jalankan ns 3 dulu
./waf --run=ndn-simple
Gambar Run ndn simple
./waf --run=ndn-grid
16. Gambar run ndn grid
Dengan simulasi visual
./waf --run=ndn-simple --vis
Hasil
Gambar Simulasi visual
17. Gambar Proses di terminal Linux
./waf --run=ndn-grid --vis
Gambar Menjalankan ns 3 grid
18. Gambar Simulasi grid ns 3
Gambar Tampilan di terminal
kemudian lakukan simulasi ndn sim dengan melakukan clone lagi dari github. Untuk
itu pindahlah dulu ke lokasi ndn sim di /home/certain-death/ndnSIM. Kemudian
pindah ke lokasi ns 3, lalu ke sub direktori scratch
Lalu buat kembali direktori ndnSIM
20. Gambar Membuat lagi ndnSIM
git clone git://github.com/cawka/ns-3-dev-ndnSIM.git ns-3
Gambar Proses clone ns3-dev cawka selesai
akan terbentuk sub folder ns 3
git clone git://github.com/cawka/pybindgen.git pybindgen
21. Gambar Clone pybindgen selesai
akan terbentuk sub folder pybindgen
git clone git://github.com/NDN-Routing/ndnSIM.git ns-3/src/ndnSIM
Gambar clone ndnsim selesai
Pindah ke ns 3 yg ada di /home/certain-death/ndnSIM/ns-3/scratch/ndnSIM/ns-3
22. Gambar Pindah ke ns 3
./waf configure -d optimized
Gambar Proses optimisasi
28. Gambar Clone scenario
cd scenario
Gambar cd scenario
lakukan eksport
export PKG_CONFIG_PATH=/usr/local/lib/pkgconfig
export LD_LIBRARY_PATH=/usr/local/lib:$LD_LIBRARY_PATH
30. Gambar Configure selesai
mkdir ns-dev
cd ns-dev
Gambar cd
git clone git://github.com/cawka/ns-3-dev-ndnSIM.git -b ns-3.16-ndnSIM ns-3
git clone git://github.com/cawka/ndnSIM-scenario-template.git my-simulations
