N610i-new-brochure
- 1. Scan the codeto find more about Domino N610i Combines the productivity associated with flexo with the flexibility offered by rapid job change digital technology The N610i digital label press High print quality at flexo speeds
- 2. How we printlabels is changing For label printers, the Domino N610i, with up to seven colours including opaque white, 600dpi ‘native’ print resolution and operating speeds up to 75m/min (246ft/ min), is the only label press that combines the productivity of flexo printing with the flexibility offered by rapid job change digital technology. This means an investment that provides added potential for greater sales growth and increased profitability, whilst reducing production cost and complexity. *Subject to an effective migration barrier being in place. Greener credentials Domino’s commitment and investment in sound environmental practices means we frequently exceed the increasingly demanding governmental, industry and company standards and regulations. We are committed to minimising the consumption of natural resources and energy and the creation of waste. Our products are RoHS and WEEE compliant so that they are recyclable. N610i The N610i is supplied with UV curable inks representing an efficient use of our natural resources. Although UV curable inks are chemicals and need to be used correctly, they offer significant environmental benefits compared to solvent alternatives. Solvent inks include up to 95% volatile solvents that evaporate into the environment and require regular print head cleaning. N610i UV curable inks contain 1% volatile solvents. Applications The N610i uses vibrant UV curable inks designed for a range of industry standard self-adhesive label stocks including coated paper, polypropylene and polyethylene, normally without the need to prime. Applications include industrial, security, health and safety, automotive, chemical, personal care, pharmaceutical, food* and beverage*.
- 3. The highest digitalproductivity Facts and figures Print over 100,000 10cm2 (4in2 ) labels in an hour, not just one label design but multiple different labels. In the time to set up a flexo machine, the N610i may already be printing the fourth or fifth job planned for the day and generating far less material waste. Can you run in-line finishing to its capacity? The N610i has been designed with the option for in-line finishing. A standard interface exists for AB Graphic and GM finishing lines; interfaces for other manufacturers finishing lines can be reviewed on request.With the N610i, high speed finishing lines can now operate at speeds close to their capacity. Large roll capacity To manage this productivity, the N610i will accept 340mm (13.4”) wide media with 1m (39”) diameter input and output rolls. It is all about ‘native’ resolution The N610i uses Kyocera print heads that provide the highest UV curable ink jet native print resolution of 600dpi (drops per inch).The higher native resolution means that more smaller drops are printed (as small as 6 picolitres) in order to create greater details for images as well as small point size text. The best digital ink jet quality Our colour gamut Even with four colours,the N610i far exceeds the common industry standard colour gamut specifications. Now with one of the most opaque white inks and up to seven colours, a very wide range of customer requirements can be met without the complexity of mixing spot colours. Stitching! All industry standard ink jet solutions require the ability to accurately position multiple print heads in order to enable the printing of seamless images. The Domino i-Tech StitchLink micro-motor controller technology automates this perfectly… easy, accurate, rapid set-up for printing high quality images without white stitch lines.
- 4. Low maintenance andDomino support Few daily tasks With i-Tech CleanCap automated print head maintenance, there are few manual tasks… changing the web cleaner papers, changing the 10 litre ink bottles, the simplicity and automated functions means more time is spent printing. Make it quick With all aspects of the N610i design, consideration has been given to rapid replacement of consumable and failed parts, we recognise the importance of minimal downtime. Most parts, including the quick release print heads, can be changed in less than one hour. Domino at your service Domino has more than 35 years of ink jet technology experience. Today more than 600 service technicians provide support for Domino’s solutions across the globe.The Domino Service Standard helps to ensure a consistent high level of performance is achieved in every region. The most consistent print results It is just so simple Ink jet technology is non-contact, with few moving parts, no printing plates, no drums, no blankets and no complex maintenance programmes.The first N600i system installed operated up to 18 hours a day for six months without a service visit.The time to change from printing one job to another is instantaneous with limited media waste. Jets that keep jetting Domino’s innovative i-Tech ActiFlow ink circulating system ensures that ink is always moving around the print head, even when stopped. ActiFlow helps to degas the ink, preventing air bubbles forming that can impact nozzle performance. A controlled process The revolutionary i-Tech CleanCap automated print head cleaning and capping technology means the N610i almost maintains itself. CleanCap is a clean and consistent controlled process. The risk of print nozzle blockages are dramatically reduced, which all adds up to being able to run more production.

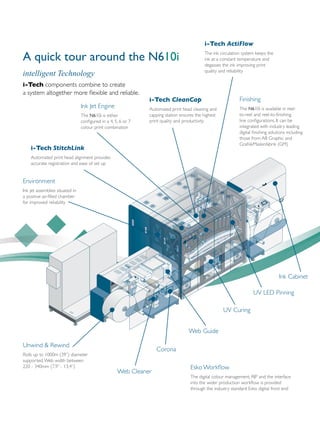

- 5. A quick touraround the N610i i-Tech StitchLink Automated print head alignment provides accurate registration and ease of set up Web Cleaner Environment Ink jet assemblies situated in a positive air-filled chamber for improved reliability Corona Web Guide UV Curing UV LED Pinning Ink Cabinet Unwind & Rewind Rolls up to 1000m (39”) diameter supported.Web width between 220 - 340mm (7.9” - 13.4”) Ink Jet Engine The N610i is either configured in a 4, 5, 6 or 7 colour print combination i-Tech CleanCap Automated print head cleaning and capping station ensures the highest print quality and productivity Finishing The N610i is available in reel- to-reel and reel-to-finishing line configurations. It can be integrated with industry leading digital finishing solutions including those from AB Graphic and GrafiskMaskinfabrik (GM) Esko Workflow The digital colour management, RIP and the interface into the wider production workflow is provided through the industry standard Esko digital front end i-Tech ActiFlow The ink circulation system keeps the ink at a constant temperature and degasses the ink improving print quality and reliability intelligent Technology i-Tech components combine to create a system altogether more flexible and reliable.
- 6. Dimensions in mm(inches) Technical Specification: N610i/0913 We reserve the right to change the design or specification of our products without notice. Some of the information contained in this brochure is general in nature and customers should check that it is applicable to their individual circumstances. www.domino-printing.com Technology • Piezo Drop on Demand ink jet Printing Speed • Up to 75m/min (246ft/min) rapid mode • Up to 50m/min (164ft/min) high quality mode Image Resolution • 600dpi native including 4 greyscales (nominal 1340dpi) Image Format • 333mm (13.11”) maximum print width Web Width • 200mm (7.87”) to 340mm (13.4”) Media Type • A range of polyethylene, polypropylene and paper self adhesive label stock Inks • UV curable Cyan,Magenta,Yellow,Black andWhite (Orange andViolet in 2014) Unwind /Rewind • 1000mm (39”) diameter • Servo driven tension control Workflow • Esko DFE Options • In-line finishing interface • In-lne inspection •Variable data printing 1444 964 1735 80 11155614 80 1925 Z011850 Copyright © by encom GmbH 43 E F D C B F E D C B A 1 2 A 5 76 8 1 86 752 3 4 13924156.55 g3 3 A3/ MBlatt Ursprung Index 1:25 Schutzvermerk ISO 16016 Z010339 design. LabelCube-2 N610i with UNW/REW ASSY System Material Material-Nr. Erstellt Geändert Geprüft Freigegeben Allgemeintoleranzen ISO 2768-mK Benennung / Beschreibung Zeichnungs-Nr. Copying of this document, and giving it to others and the use or communication of the contents thereof, are forbidden without expressauthority. Offenders are liable to the payment of damages. All rights are reserved in the event of the grant of a patent or the registration of a utility model or 00 1772 1110 1972 1444 964 1735 80 1115 5614 80 1925 Z011850 Copyright © by encom GmbH 43 E F D C B F E D C B A 1 2 A 5 76 8 1 86 752 3 4 13924156.55 g3 3 A3/ MBlatt Ursprung Index 1:25 Schutzvermerk ISO 16016 Z010339 design. LabelCube-2 N610i with UNW/REW ASSY System Material Material-Nr. Erstellt Geändert Geprüft Freigegeben Allgemeintoleranzen ISO 2768-mK Benennung / Beschreibung Zeichnungs-Nr. Copying of this document, and giving it to others and the use or communication of the contents thereof, are forbidden without expressauthority. Offenders are liable to the payment of damages. All rights are reserved in the event of the grant of a patent or the registration of a utility model or 00 1772 1110 1972 Central Print Module • Corona treatment module • Web cleaning • Anti-static control • Web guide module • 4-colour print section (CMYK standard), 5th , 6th and 7th colours (optional) • UV curing module Dimensions • 5.7m (L) x 1.8m (H) x 2.0m (W) (1.0m minimum clearance required) • 18.7ft (L) x 5.9ft (H) x 6.6ft (W) (3.3ft minimum clearance required) • Ink cabinet: 1202mm (L) x 807mm (H) x 520mm (W) 47.3” (L) x 31.8” (H) x 20.5” (W) Weight • Unwind: 600kg (1323lbs) • Printing section: Nominal 1500kg (3307lbs) • Rewind: 400kg (882lbs) • Power cabinet: 350kg (772lbs) • Ink supply unit: 200kg (441lbs) Services •Three phase power - one 380-420V drop • Compressed air - one drop @ 6-8 bar, clean and dry Environment • Optimal temperature range 21˚C +/- 1˚C (70°F +/- 2°F) • Optimum humidity range 40-60% • Dust controlled environment preferred 5614 (18’5”) 1115(3’8”) 1735(5’9”) 964 (3’2”)80 (3”)80 (3”) 1925 (6’4”) 1444 (4’9”) 1972(6’6”) 1772(5’10”) 1110(3’8”)
