This presentation discusses MySQL administration and monitoring. It covers basic command line tools for MySQL, internal schemas like mysql and information_schema, backup and recovery options like mysqldump and replication. GUI tools like MySQL Workbench are presented for administration. MySQL Enterprise Monitor is discussed for distributed monitoring of MySQL environments.

1. Copyright © 2013, Oracle and/or its affiliates. All rights reserved. Insert Information Protection Policy Classification from Slide 12 of the corporate presentation template1

2. Copyright © 2013, Oracle and/or its affiliates. All rights reserved. Insert Information Protection Policy Classification from Slide 12 of the corporate presentation template2
Insert Picture Here
MySQL Administration and
Monitoring
Mark Leith
Senior Software Development Manager @
Oracle

3. Copyright © 2013, Oracle and/or its affiliates. All rights reserved. Insert Information Protection Policy Classification from Slide 12 of the corporate presentation template3

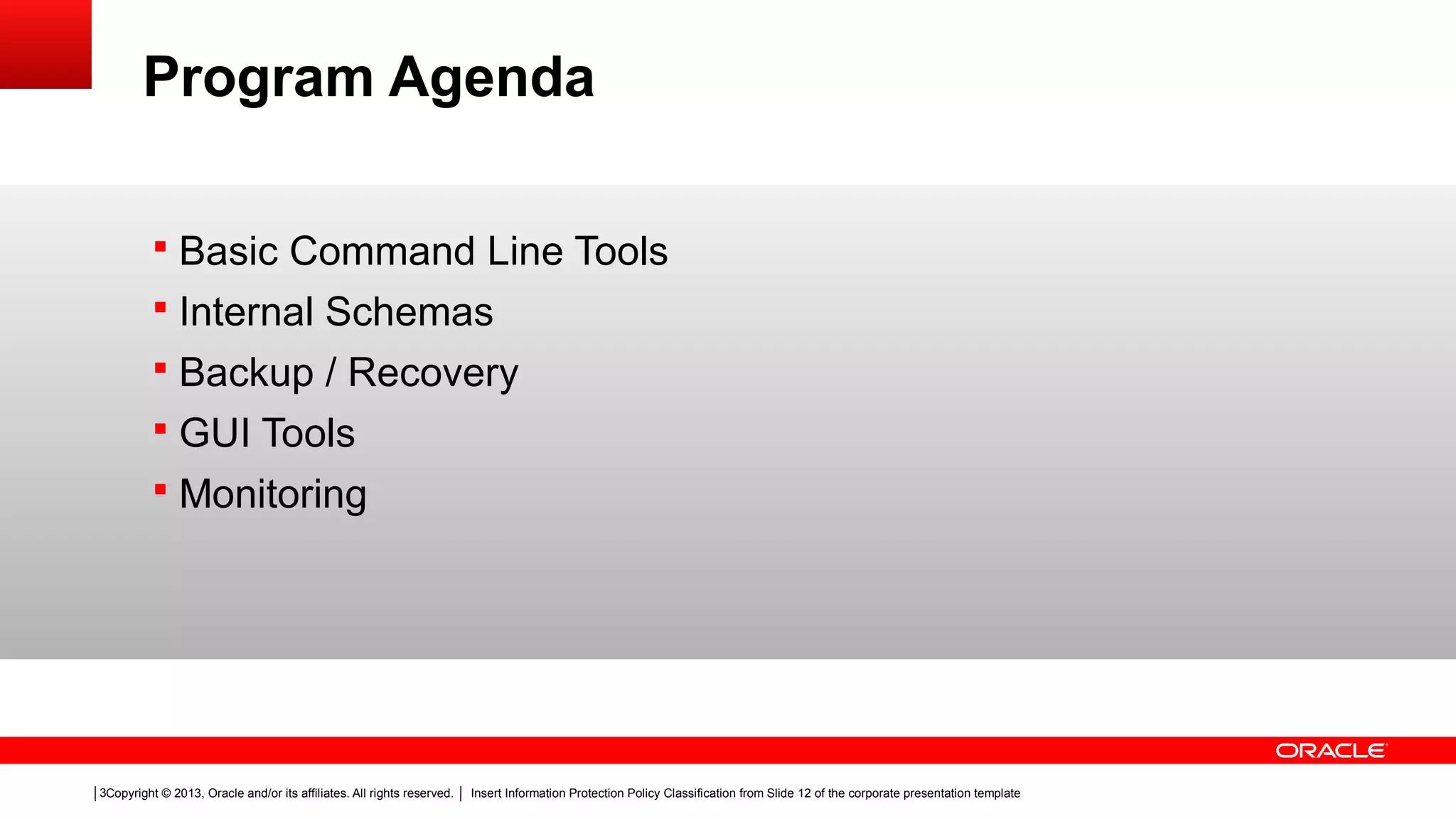

Program Agenda
§ Basic Command Line Tools
§ Internal Schemas
§ Backup / Recovery
§ GUI Tools
§ Monitoring

4. Copyright © 2013, Oracle and/or its affiliates. All rights reserved. Insert Information Protection Policy Classification from Slide 12 of the corporate presentation template4

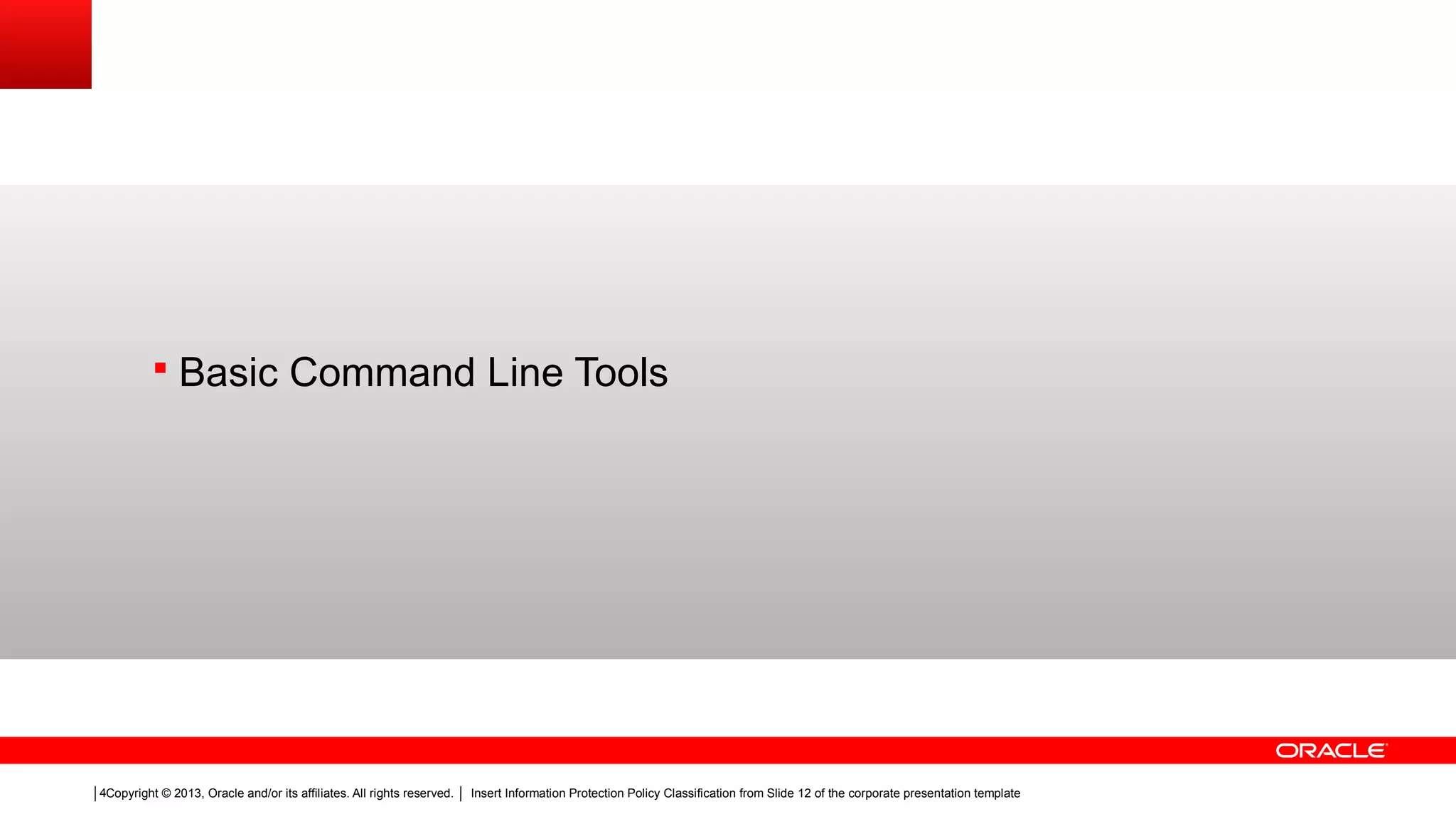

§ Basic Command Line Tools

5. Copyright © 2013, Oracle and/or its affiliates. All rights reserved. Insert Information Protection Policy Classification from Slide 12 of the corporate presentation template5

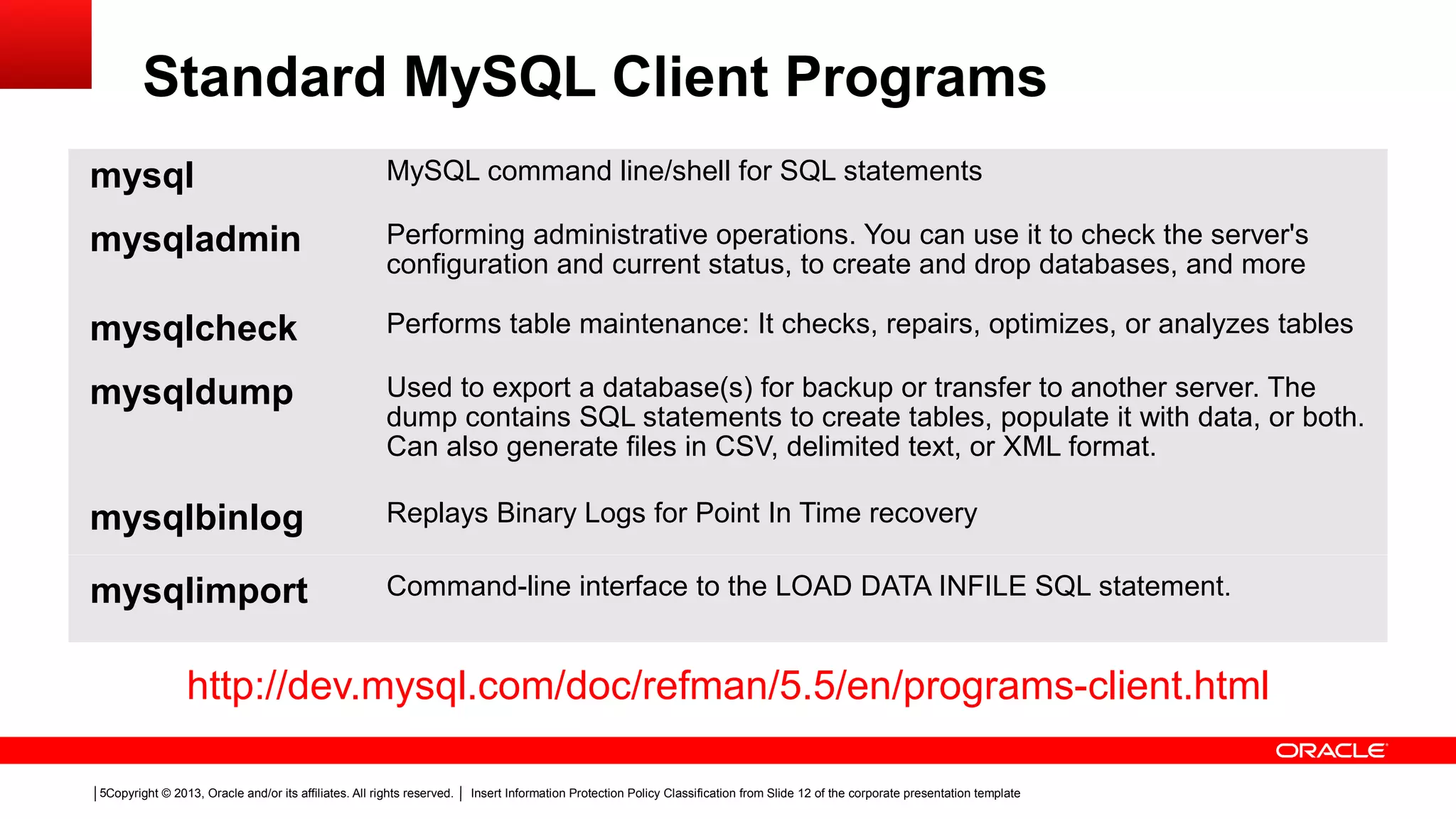

Standard MySQL Client Programs
mysql MySQL command line/shell for SQL statements
mysqladmin Performing administrative operations. You can use it to check the server's
configuration and current status, to create and drop databases, and more
mysqlcheck Performs table maintenance: It checks, repairs, optimizes, or analyzes tables
mysqldump Used to export a database(s) for backup or transfer to another server. The
dump contains SQL statements to create tables, populate it with data, or both.
Can also generate files in CSV, delimited text, or XML format.
mysqlbinlog Replays Binary Logs for Point In Time recovery
mysqlimport Command-line interface to the LOAD DATA INFILE SQL statement.
http://dev.mysql.com/doc/refman/5.5/en/programs-client.html

6. Copyright © 2013, Oracle and/or its affiliates. All rights reserved. Insert Information Protection Policy Classification from Slide 12 of the corporate presentation template6

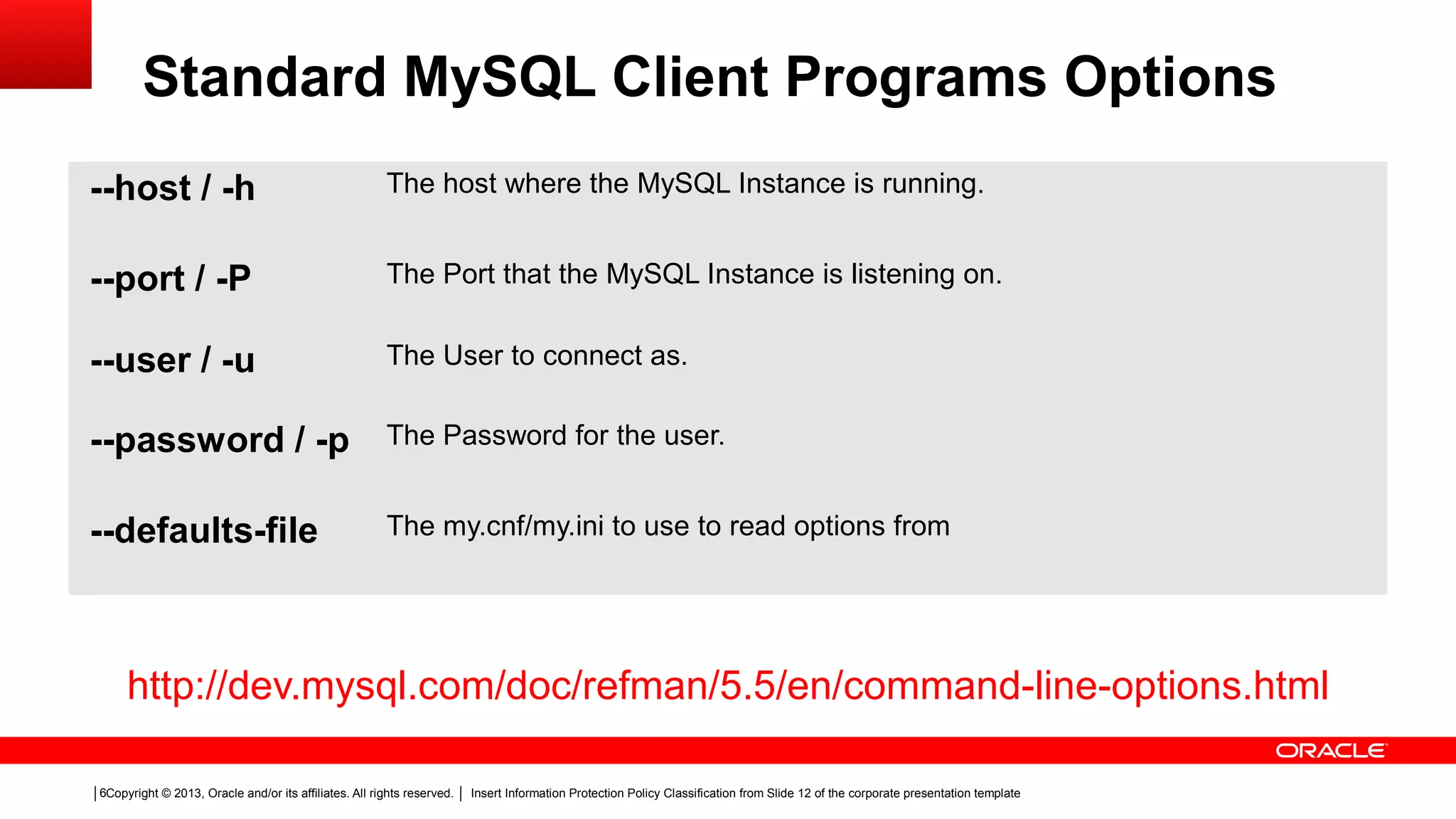

Standard MySQL Client Programs Options
--host / -h The host where the MySQL Instance is running.
--port / -P The Port that the MySQL Instance is listening on.
--user / -u The User to connect as.
--password / -p The Password for the user.
--defaults-file The my.cnf/my.ini to use to read options from
http://dev.mysql.com/doc/refman/5.5/en/command-line-options.html

7. Copyright © 2013, Oracle and/or its affiliates. All rights reserved. Insert Information Protection Policy Classification from Slide 12 of the corporate presentation template7

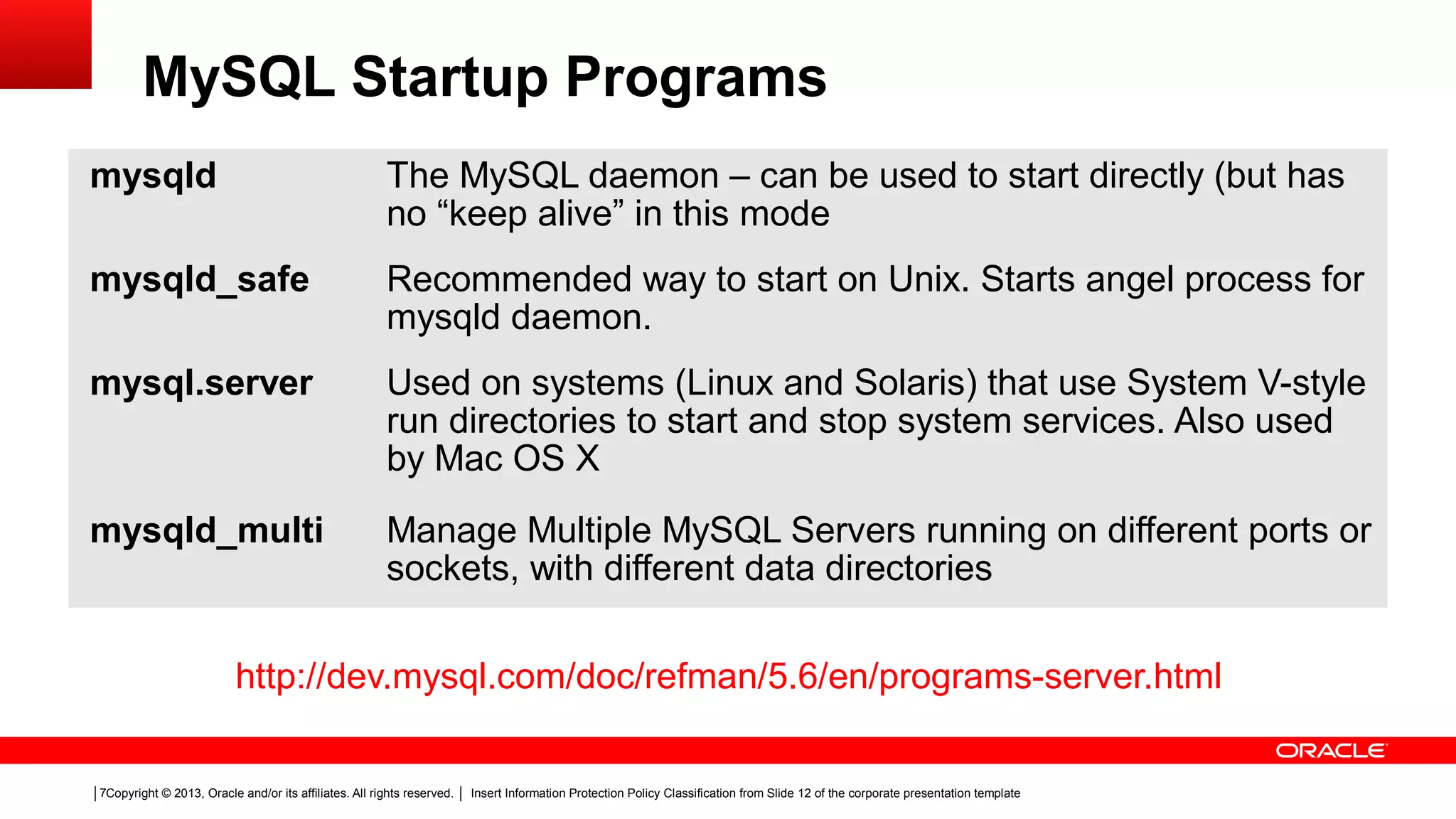

MySQL Startup Programs
mysqld The MySQL daemon – can be used to start directly (but has
no “keep alive” in this mode
mysqld_safe Recommended way to start on Unix. Starts angel process for
mysqld daemon.
mysql.server Used on systems (Linux and Solaris) that use System V-style
run directories to start and stop system services. Also used
by Mac OS X
mysqld_multi Manage Multiple MySQL Servers running on different ports or
sockets, with different data directories
http://dev.mysql.com/doc/refman/5.6/en/programs-server.html

8. Copyright © 2013, Oracle and/or its affiliates. All rights reserved. Insert Information Protection Policy Classification from Slide 12 of the corporate presentation template8

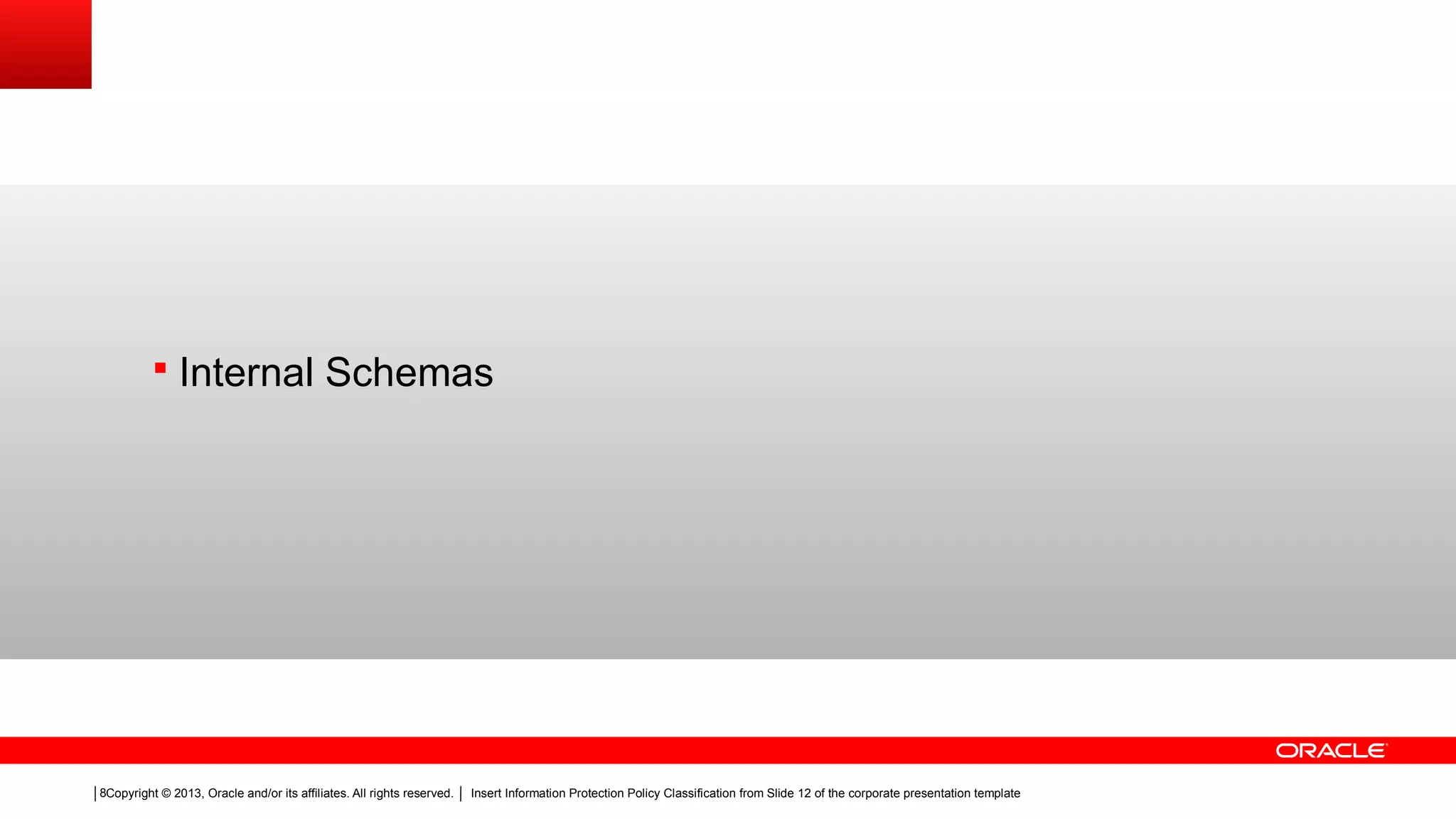

§ Internal Schemas

9. Copyright © 2013, Oracle and/or its affiliates. All rights reserved. Insert Information Protection Policy Classification from Slide 12 of the corporate presentation template9

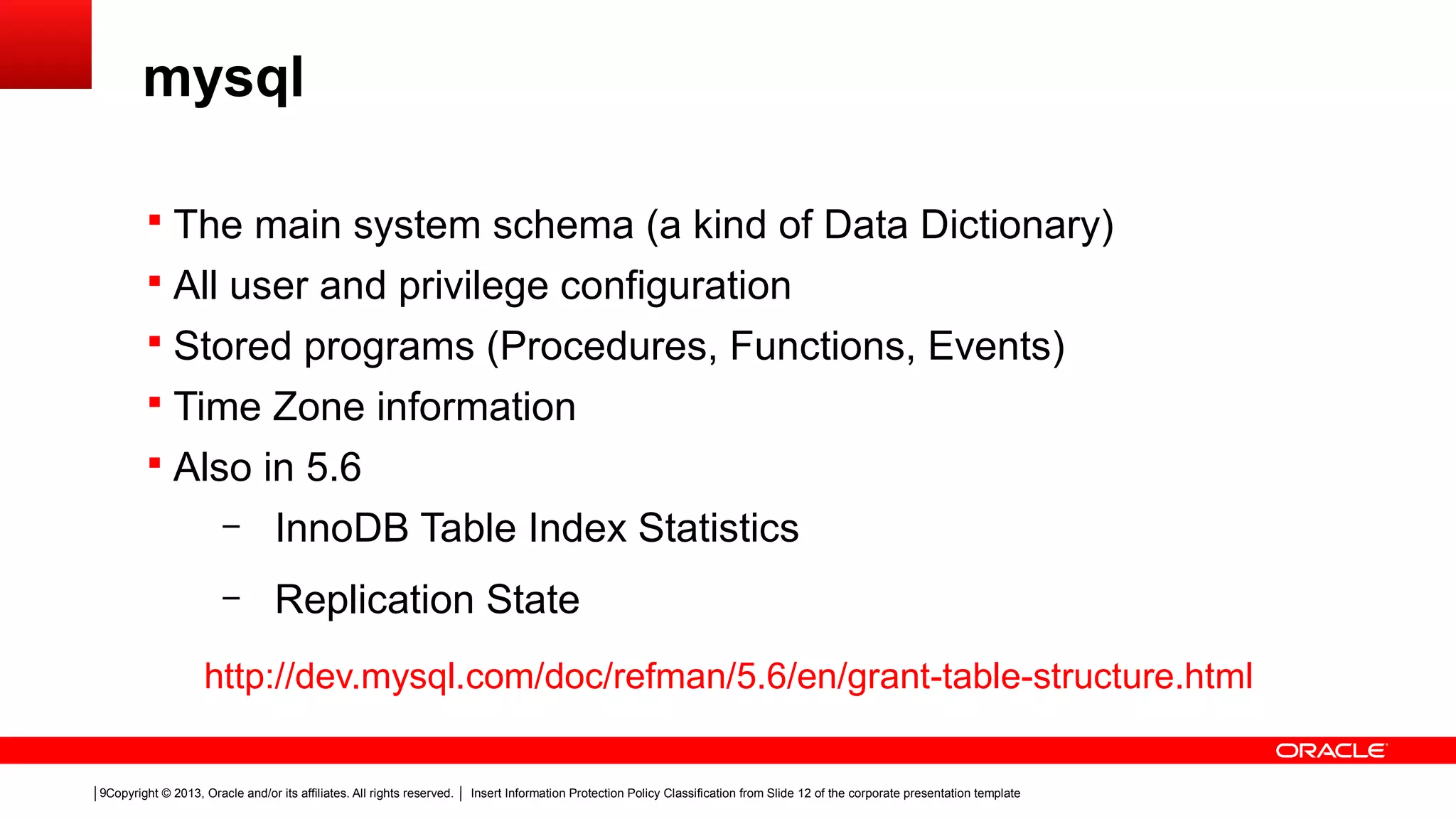

mysql
§ The main system schema (a kind of Data Dictionary)
§ All user and privilege configuration
§ Stored programs (Procedures, Functions, Events)
§ Time Zone information
§ Also in 5.6
– InnoDB Table Index Statistics
– Replication State
http://dev.mysql.com/doc/refman/5.6/en/grant-table-structure.html

10. Copyright © 2013, Oracle and/or its affiliates. All rights reserved. Insert Information Protection Policy Classification from Slide 12 of the corporate presentation template10

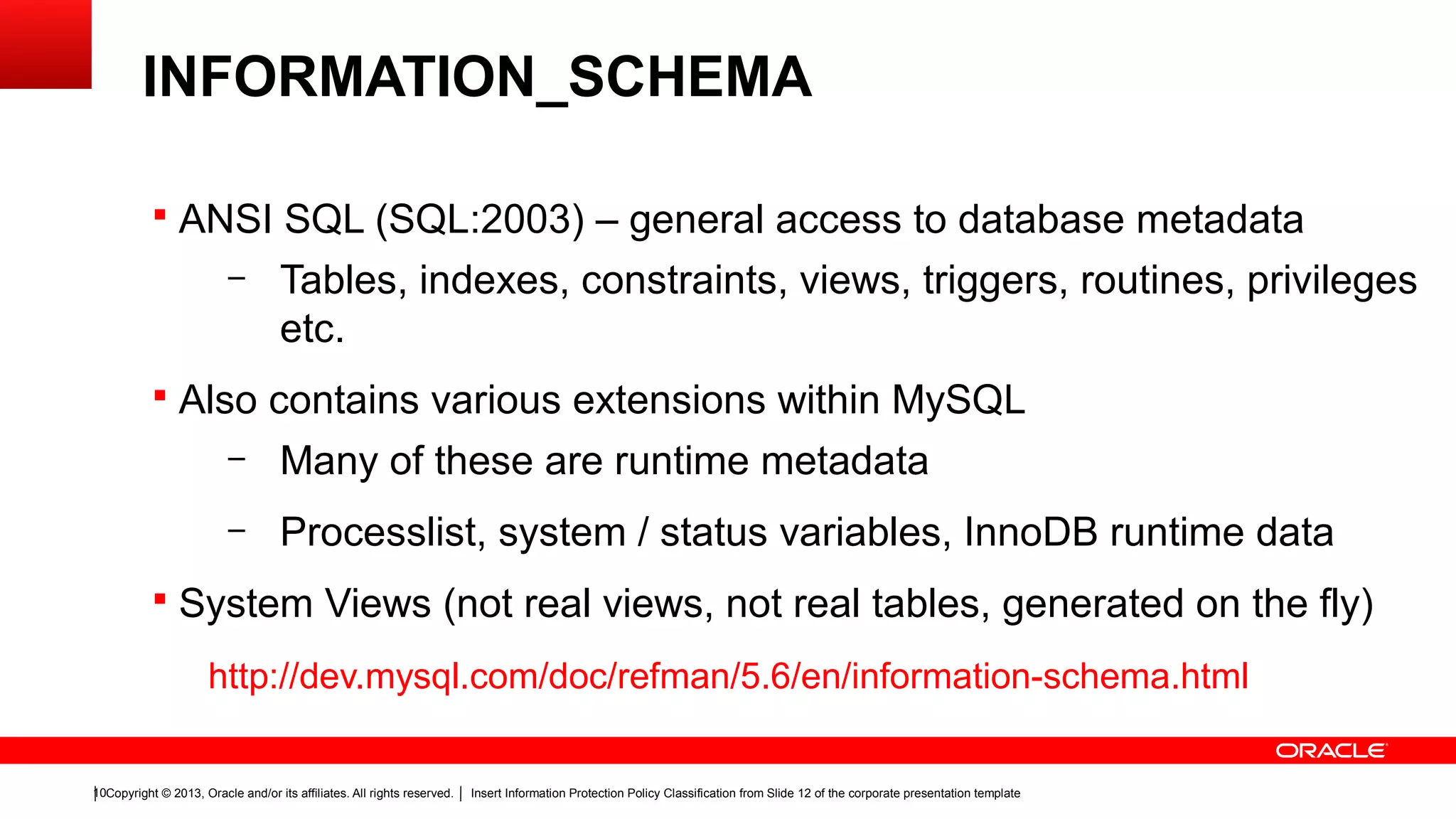

INFORMATION_SCHEMA
§ ANSI SQL (SQL:2003) – general access to database metadata
– Tables, indexes, constraints, views, triggers, routines, privileges
etc.
§ Also contains various extensions within MySQL
– Many of these are runtime metadata
– Processlist, system / status variables, InnoDB runtime data
§ System Views (not real views, not real tables, generated on the fly)
http://dev.mysql.com/doc/refman/5.6/en/information-schema.html

11. Copyright © 2013, Oracle and/or its affiliates. All rights reserved. Insert Information Protection Policy Classification from Slide 12 of the corporate presentation template11

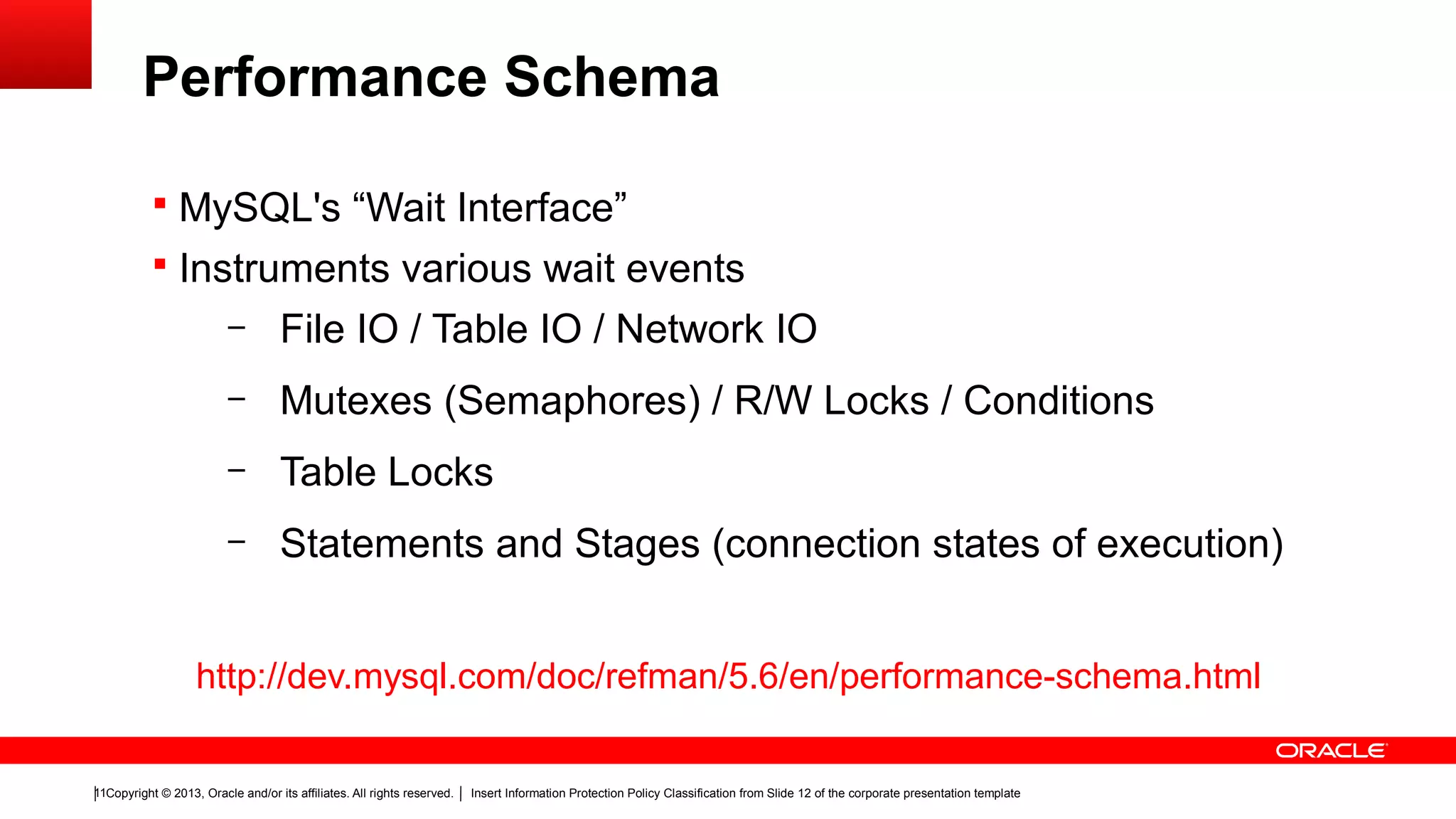

Performance Schema
§ MySQL's “Wait Interface”
§ Instruments various wait events
– File IO / Table IO / Network IO
– Mutexes (Semaphores) / R/W Locks / Conditions
– Table Locks
– Statements and Stages (connection states of execution)
http://dev.mysql.com/doc/refman/5.6/en/performance-schema.html

12. Copyright © 2013, Oracle and/or its affiliates. All rights reserved. Insert Information Protection Policy Classification from Slide 12 of the corporate presentation template12

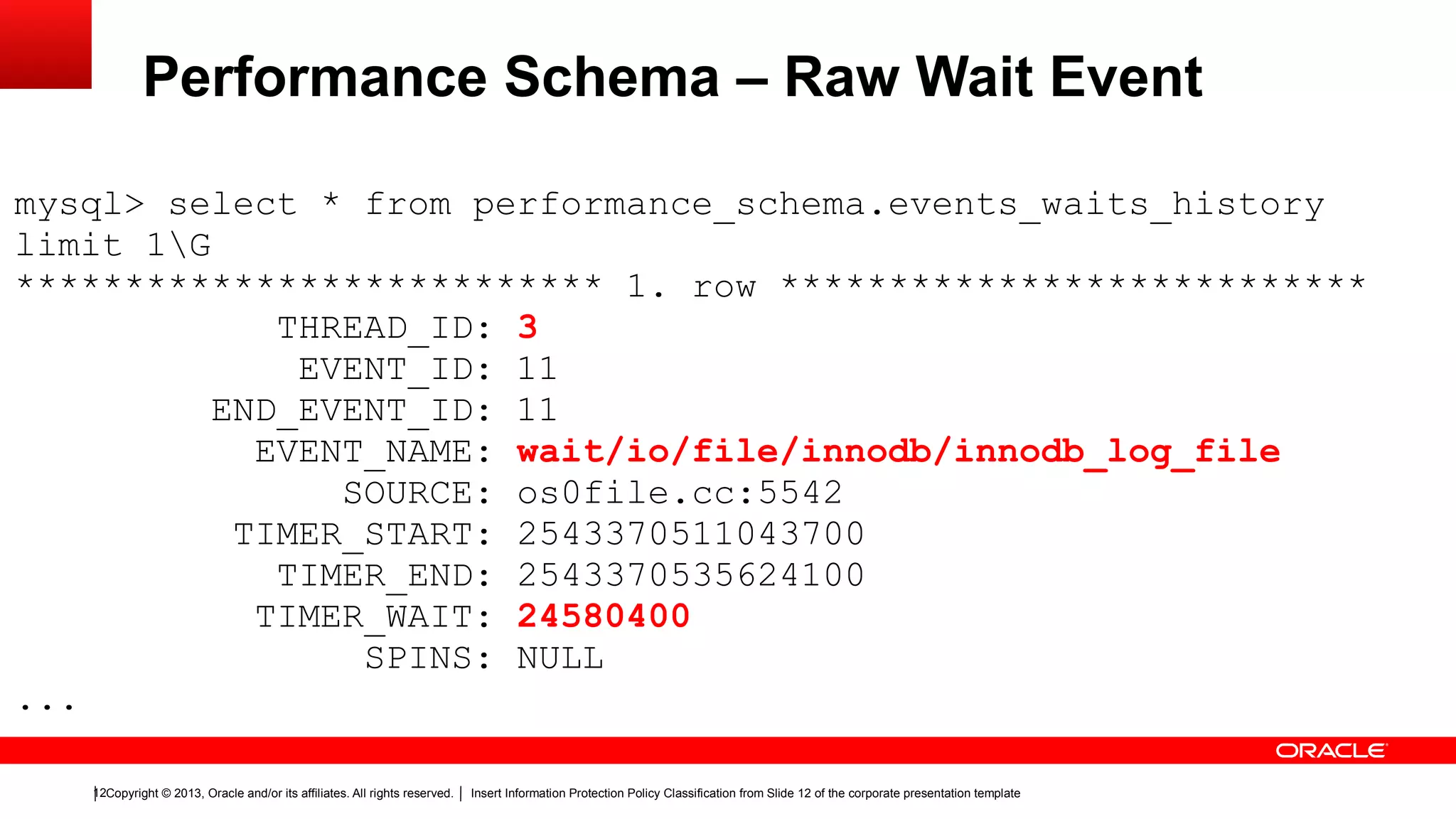

Performance Schema – Raw Wait Event
mysql> select * from performance_schema.events_waits_history
limit 1G
*************************** 1. row ***************************
THREAD_ID: 3
EVENT_ID: 11
END_EVENT_ID: 11
EVENT_NAME: wait/io/file/innodb/innodb_log_file
SOURCE: os0file.cc:5542
TIMER_START: 2543370511043700
TIMER_END: 2543370535624100
TIMER_WAIT: 24580400
SPINS: NULL
...

13. Copyright © 2013, Oracle and/or its affiliates. All rights reserved. Insert Information Protection Policy Classification from Slide 12 of the corporate presentation template13

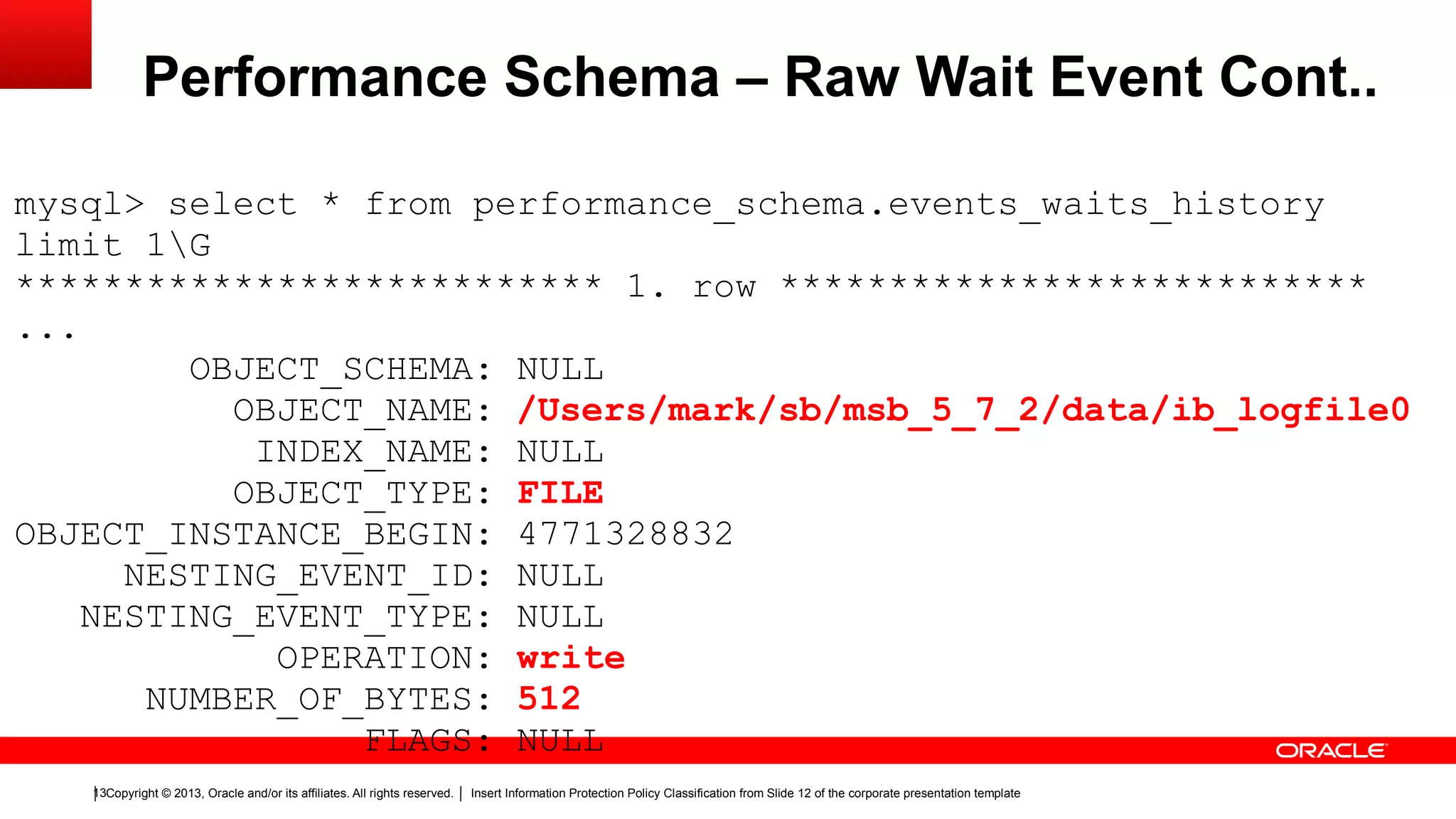

Performance Schema – Raw Wait Event Cont..
mysql> select * from performance_schema.events_waits_history
limit 1G
*************************** 1. row ***************************
...
OBJECT_SCHEMA: NULL
OBJECT_NAME: /Users/mark/sb/msb_5_7_2/data/ib_logfile0
INDEX_NAME: NULL
OBJECT_TYPE: FILE
OBJECT_INSTANCE_BEGIN: 4771328832
NESTING_EVENT_ID: NULL
NESTING_EVENT_TYPE: NULL
OPERATION: write
NUMBER_OF_BYTES: 512
FLAGS: NULL

14. Copyright © 2013, Oracle and/or its affiliates. All rights reserved. Insert Information Protection Policy Classification from Slide 12 of the corporate presentation template14

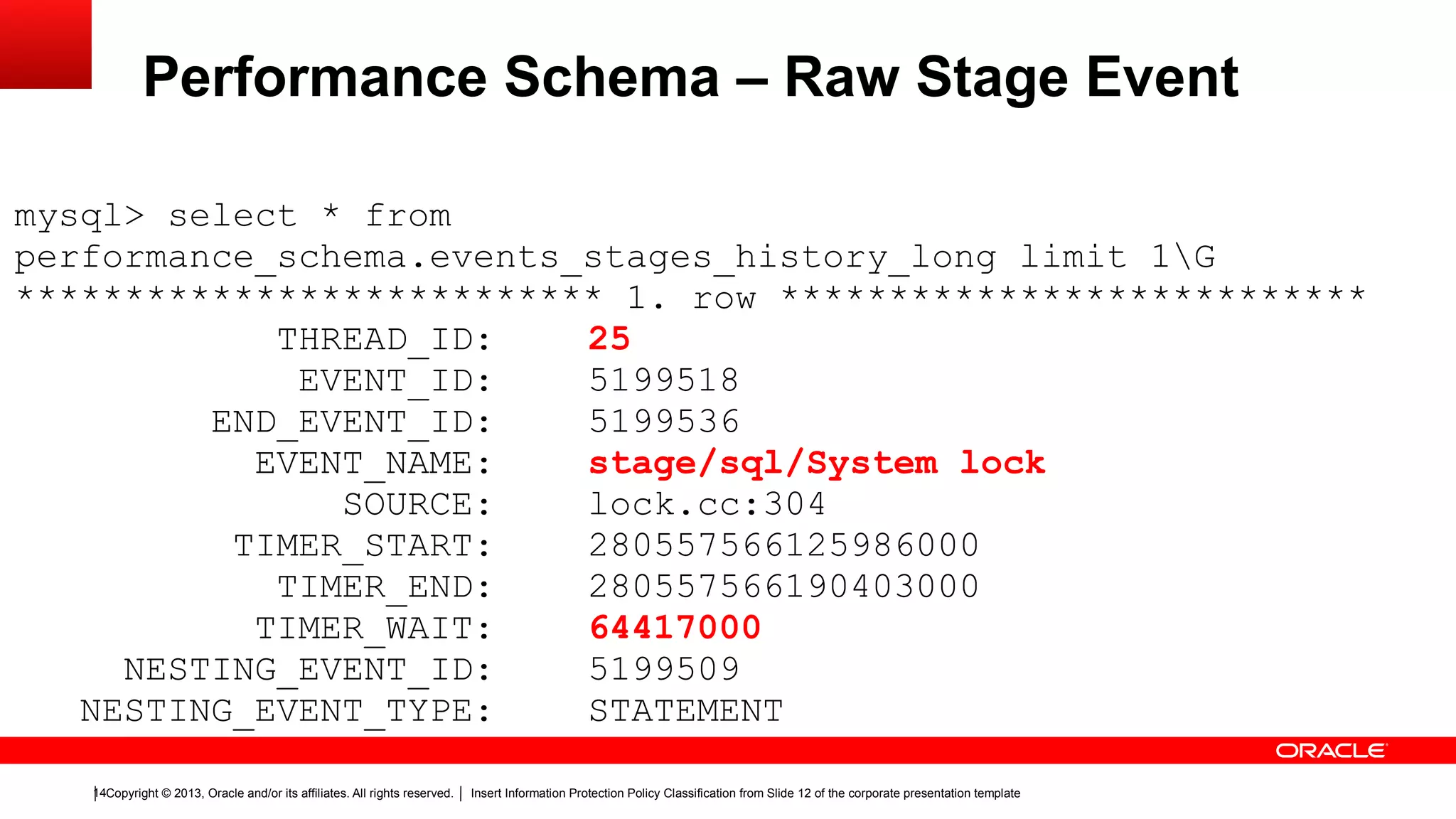

Performance Schema – Raw Stage Event
mysql> select * from
performance_schema.events_stages_history_long limit 1G
*************************** 1. row ***************************
THREAD_ID: 25
EVENT_ID: 5199518
END_EVENT_ID: 5199536
EVENT_NAME: stage/sql/System lock
SOURCE: lock.cc:304
TIMER_START: 280557566125986000
TIMER_END: 280557566190403000
TIMER_WAIT: 64417000
NESTING_EVENT_ID: 5199509
NESTING_EVENT_TYPE: STATEMENT

15. Copyright © 2013, Oracle and/or its affiliates. All rights reserved. Insert Information Protection Policy Classification from Slide 12 of the corporate presentation template15

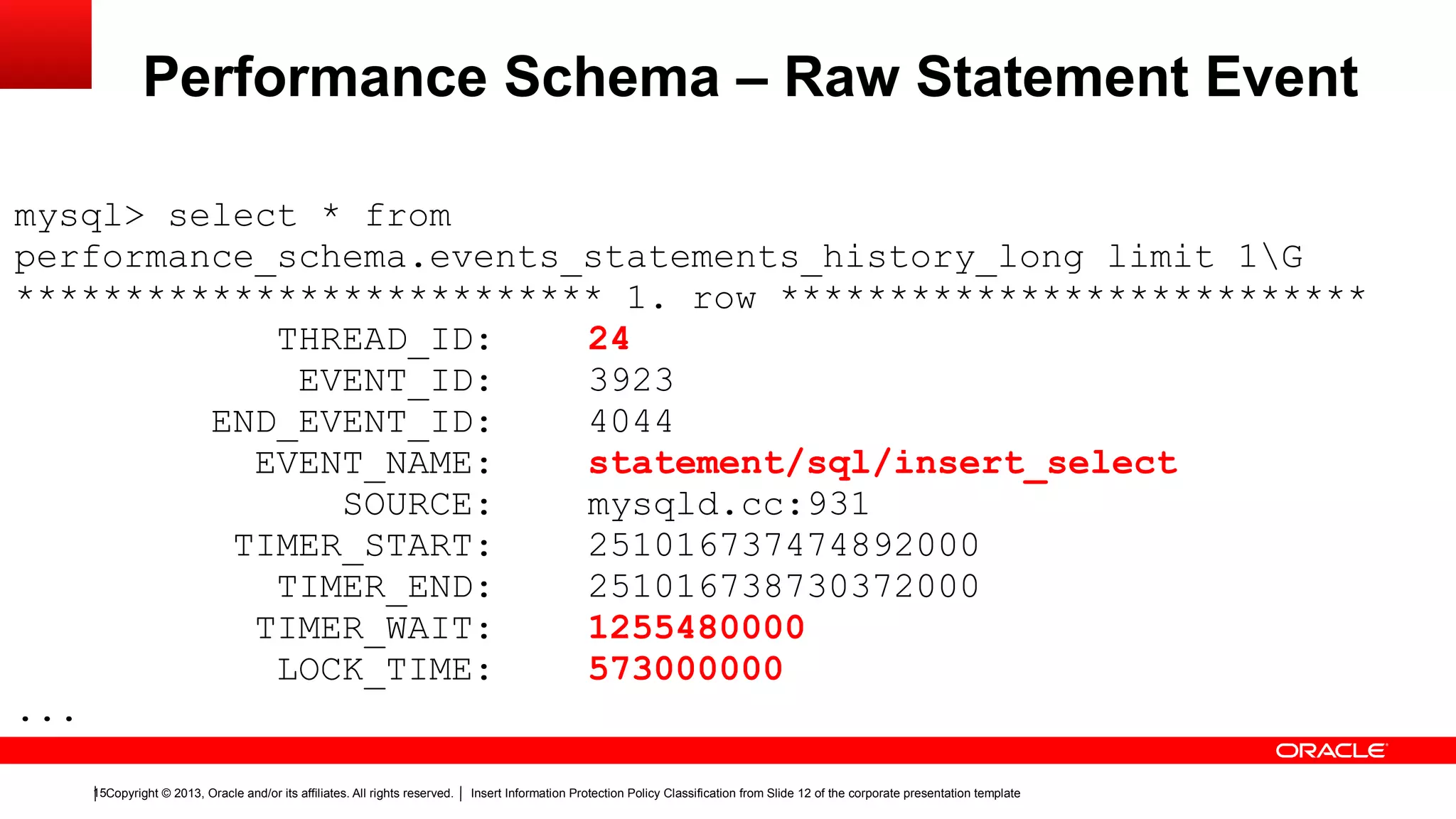

Performance Schema – Raw Statement Event
mysql> select * from
performance_schema.events_statements_history_long limit 1G
*************************** 1. row ***************************
THREAD_ID: 24
EVENT_ID: 3923
END_EVENT_ID: 4044
EVENT_NAME: statement/sql/insert_select
SOURCE: mysqld.cc:931
TIMER_START: 251016737474892000
TIMER_END: 251016738730372000
TIMER_WAIT: 1255480000
LOCK_TIME: 573000000
...

16. Copyright © 2013, Oracle and/or its affiliates. All rights reserved. Insert Information Protection Policy Classification from Slide 12 of the corporate presentation template16

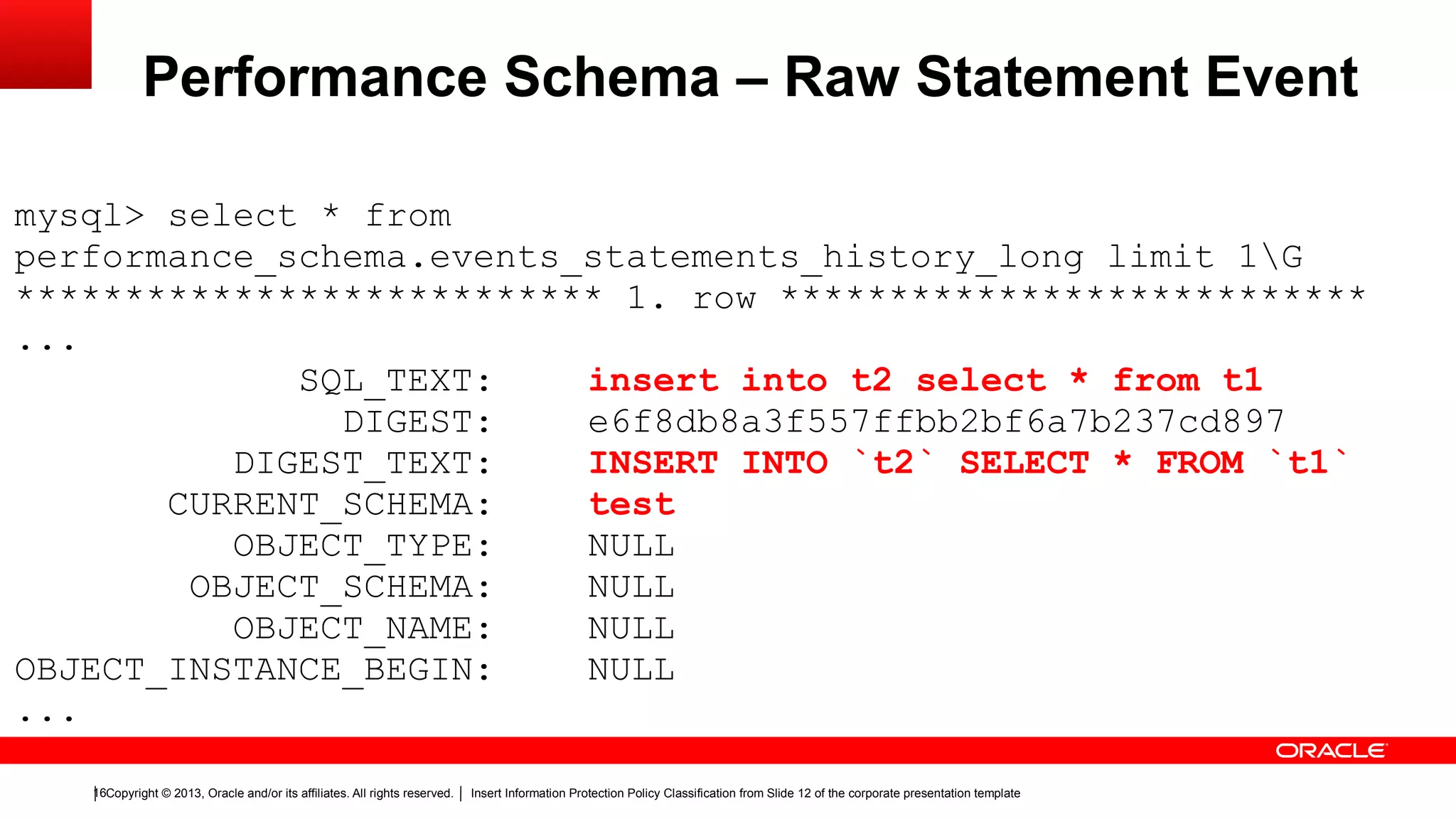

Performance Schema – Raw Statement Event
mysql> select * from
performance_schema.events_statements_history_long limit 1G
*************************** 1. row ***************************
...
SQL_TEXT: insert into t2 select * from t1
DIGEST: e6f8db8a3f557ffbb2bf6a7b237cd897
DIGEST_TEXT: INSERT INTO `t2` SELECT * FROM `t1`
CURRENT_SCHEMA: test
OBJECT_TYPE: NULL
OBJECT_SCHEMA: NULL
OBJECT_NAME: NULL
OBJECT_INSTANCE_BEGIN: NULL
...

17. Copyright © 2013, Oracle and/or its affiliates. All rights reserved. Insert Information Protection Policy Classification from Slide 12 of the corporate presentation template17

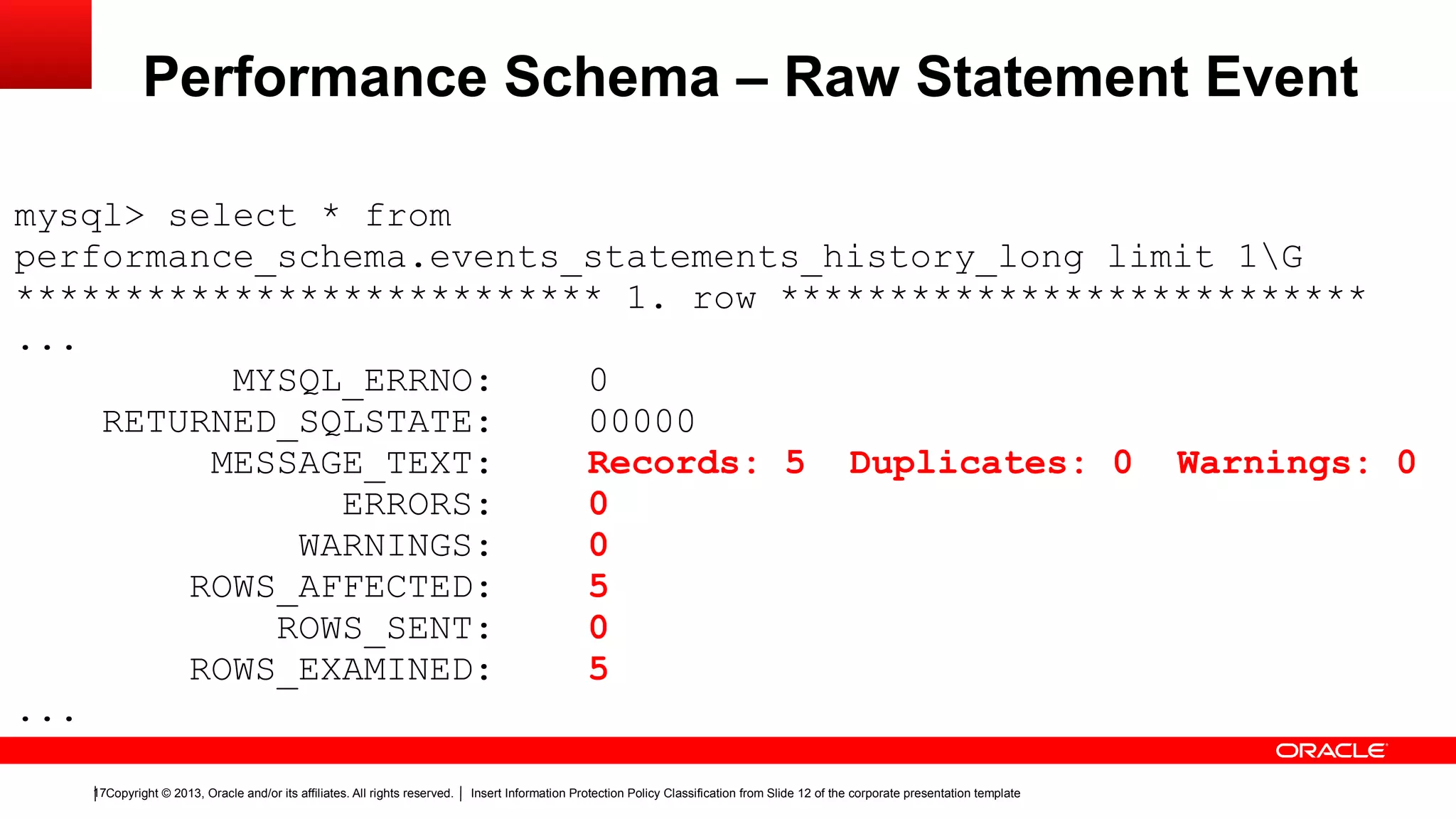

Performance Schema – Raw Statement Event
mysql> select * from
performance_schema.events_statements_history_long limit 1G
*************************** 1. row ***************************
...
MYSQL_ERRNO: 0
RETURNED_SQLSTATE: 00000
MESSAGE_TEXT: Records: 5 Duplicates: 0 Warnings: 0
ERRORS: 0
WARNINGS: 0
ROWS_AFFECTED: 5
ROWS_SENT: 0
ROWS_EXAMINED: 5
...

18. Copyright © 2013, Oracle and/or its affiliates. All rights reserved. Insert Information Protection Policy Classification from Slide 12 of the corporate presentation template18

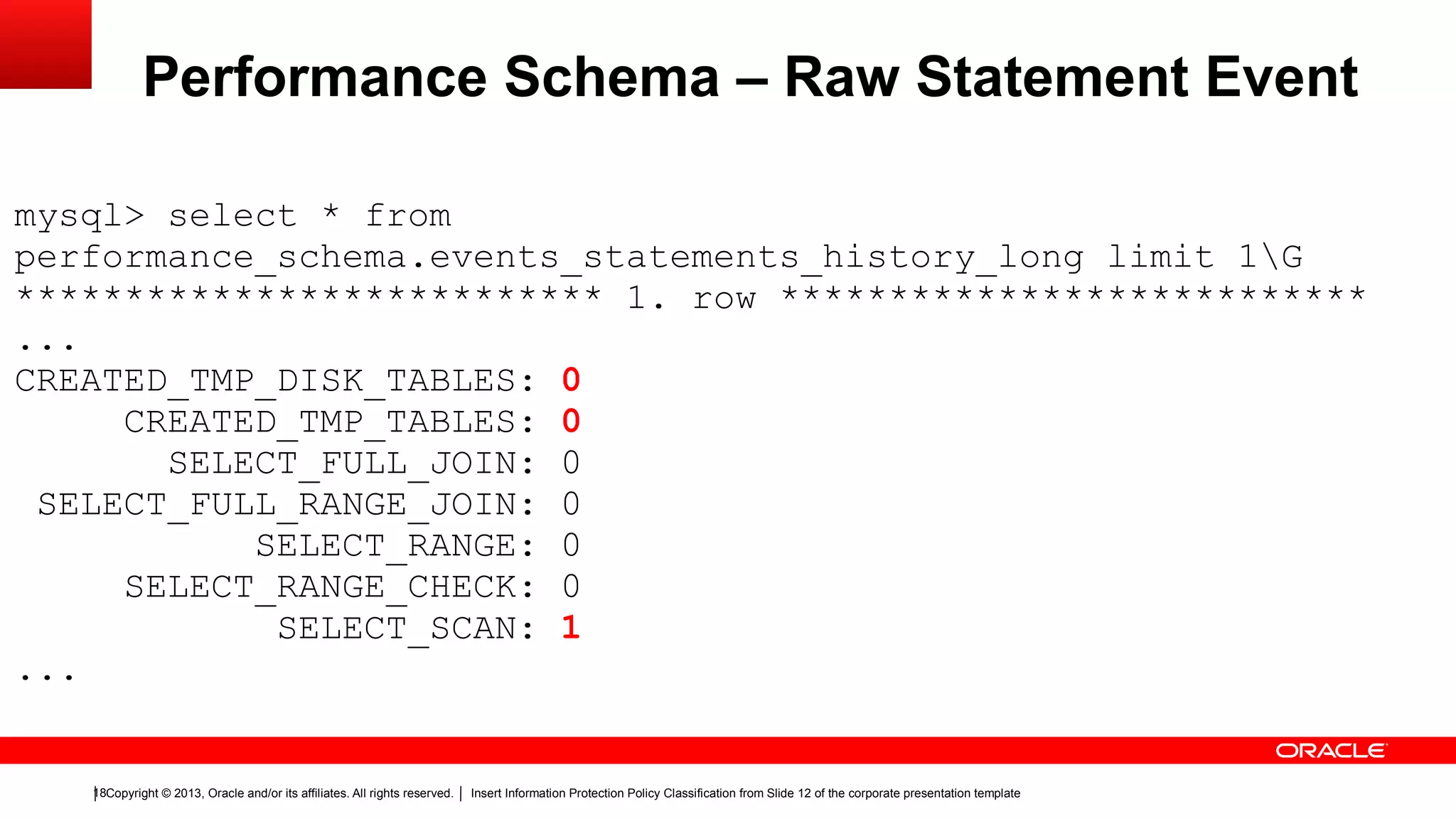

Performance Schema – Raw Statement Event
mysql> select * from
performance_schema.events_statements_history_long limit 1G
*************************** 1. row ***************************
...
CREATED_TMP_DISK_TABLES: 0
CREATED_TMP_TABLES: 0
SELECT_FULL_JOIN: 0
SELECT_FULL_RANGE_JOIN: 0
SELECT_RANGE: 0
SELECT_RANGE_CHECK: 0
SELECT_SCAN: 1
...

19. Copyright © 2013, Oracle and/or its affiliates. All rights reserved. Insert Information Protection Policy Classification from Slide 12 of the corporate presentation template19

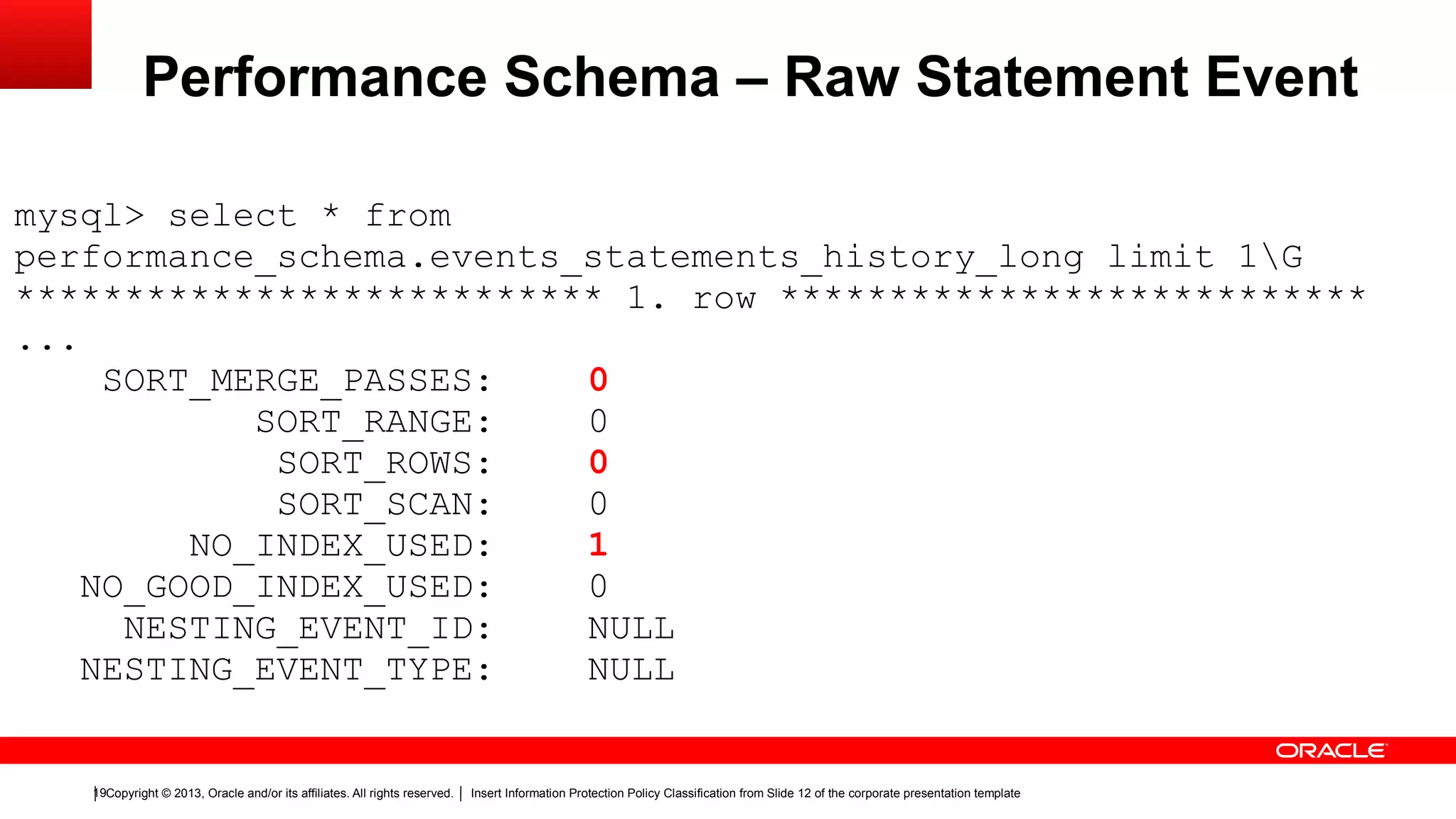

Performance Schema – Raw Statement Event
mysql> select * from
performance_schema.events_statements_history_long limit 1G
*************************** 1. row ***************************
...
SORT_MERGE_PASSES: 0
SORT_RANGE: 0
SORT_ROWS: 0
SORT_SCAN: 0
NO_INDEX_USED: 1
NO_GOOD_INDEX_USED: 0
NESTING_EVENT_ID: NULL
NESTING_EVENT_TYPE: NULL

20. Copyright © 2013, Oracle and/or its affiliates. All rights reserved. Insert Information Protection Policy Classification from Slide 12 of the corporate presentation template20

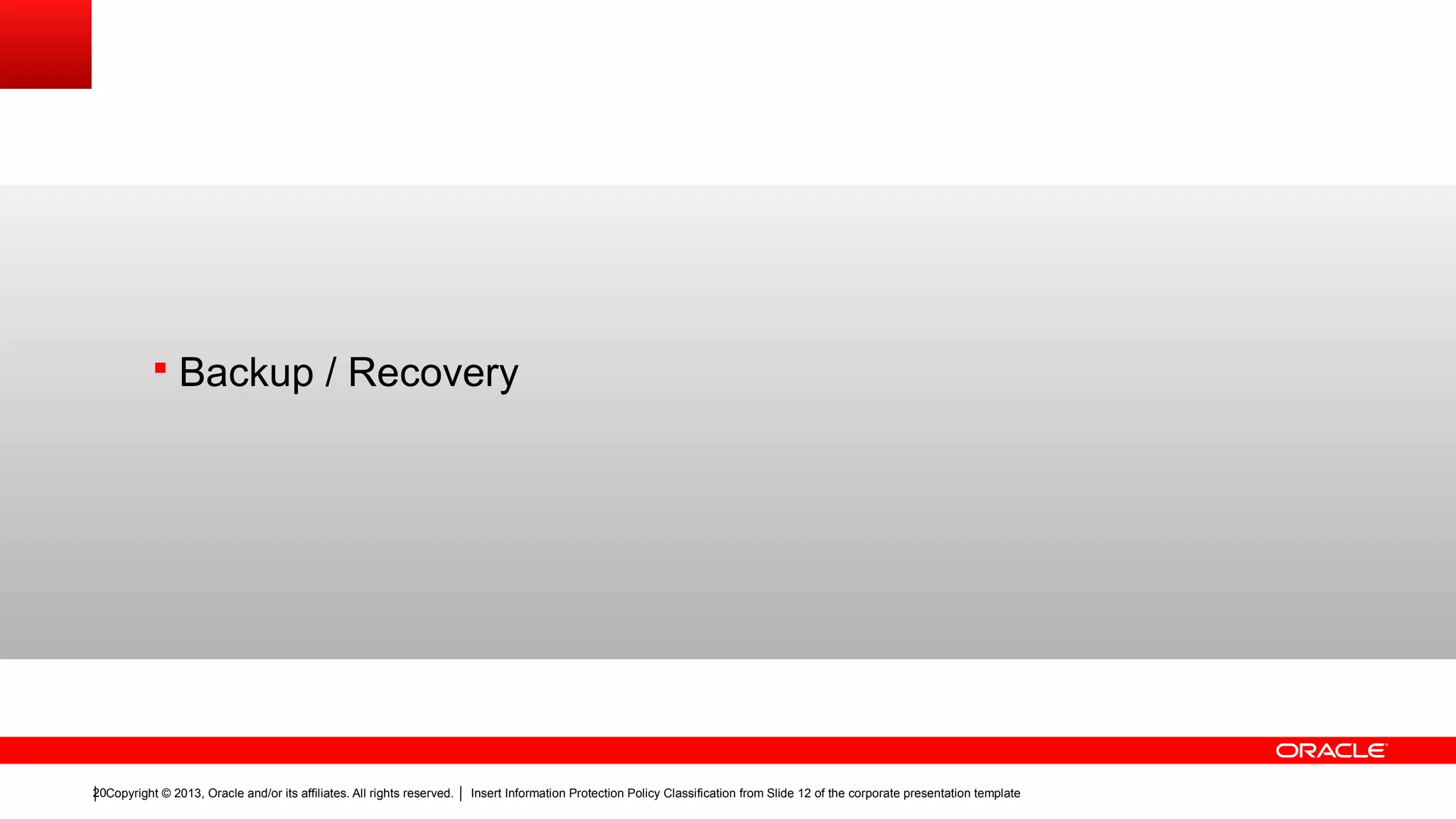

§ Backup / Recovery

21. Copyright © 2013, Oracle and/or its affiliates. All rights reserved. Insert Information Protection Policy Classification from Slide 12 of the corporate presentation template21

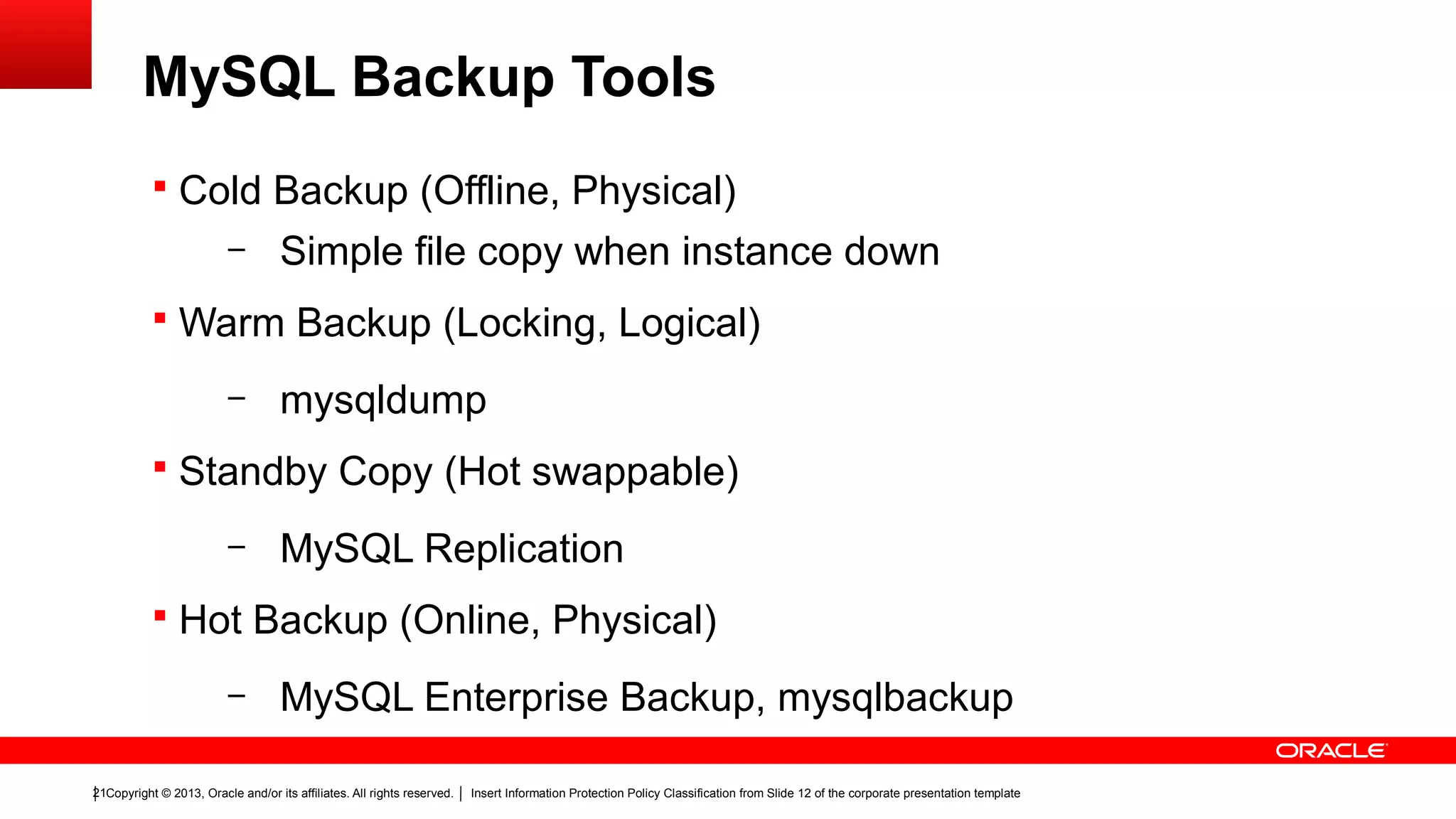

MySQL Backup Tools
§ Cold Backup (Offline, Physical)
– Simple file copy when instance down
§ Warm Backup (Locking, Logical)
– mysqldump
§ Standby Copy (Hot swappable)
– MySQL Replication
§ Hot Backup (Online, Physical)
– MySQL Enterprise Backup, mysqlbackup

22. Copyright © 2013, Oracle and/or its affiliates. All rights reserved. Insert Information Protection Policy Classification from Slide 12 of the corporate presentation template22

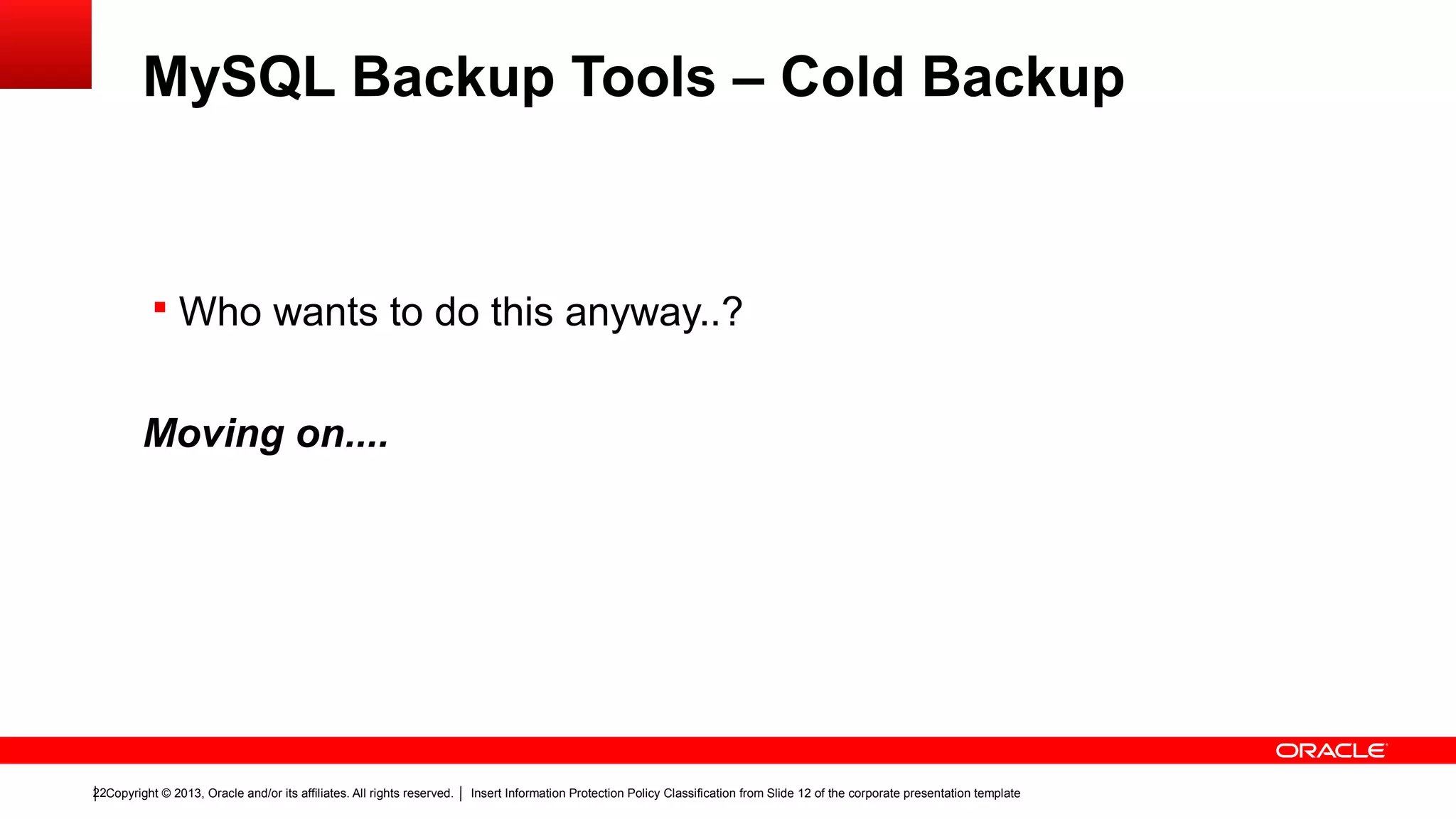

MySQL Backup Tools – Cold Backup
§ Who wants to do this anyway..?
Moving on....

23. Copyright © 2013, Oracle and/or its affiliates. All rights reserved. Insert Information Protection Policy Classification from Slide 12 of the corporate presentation template23

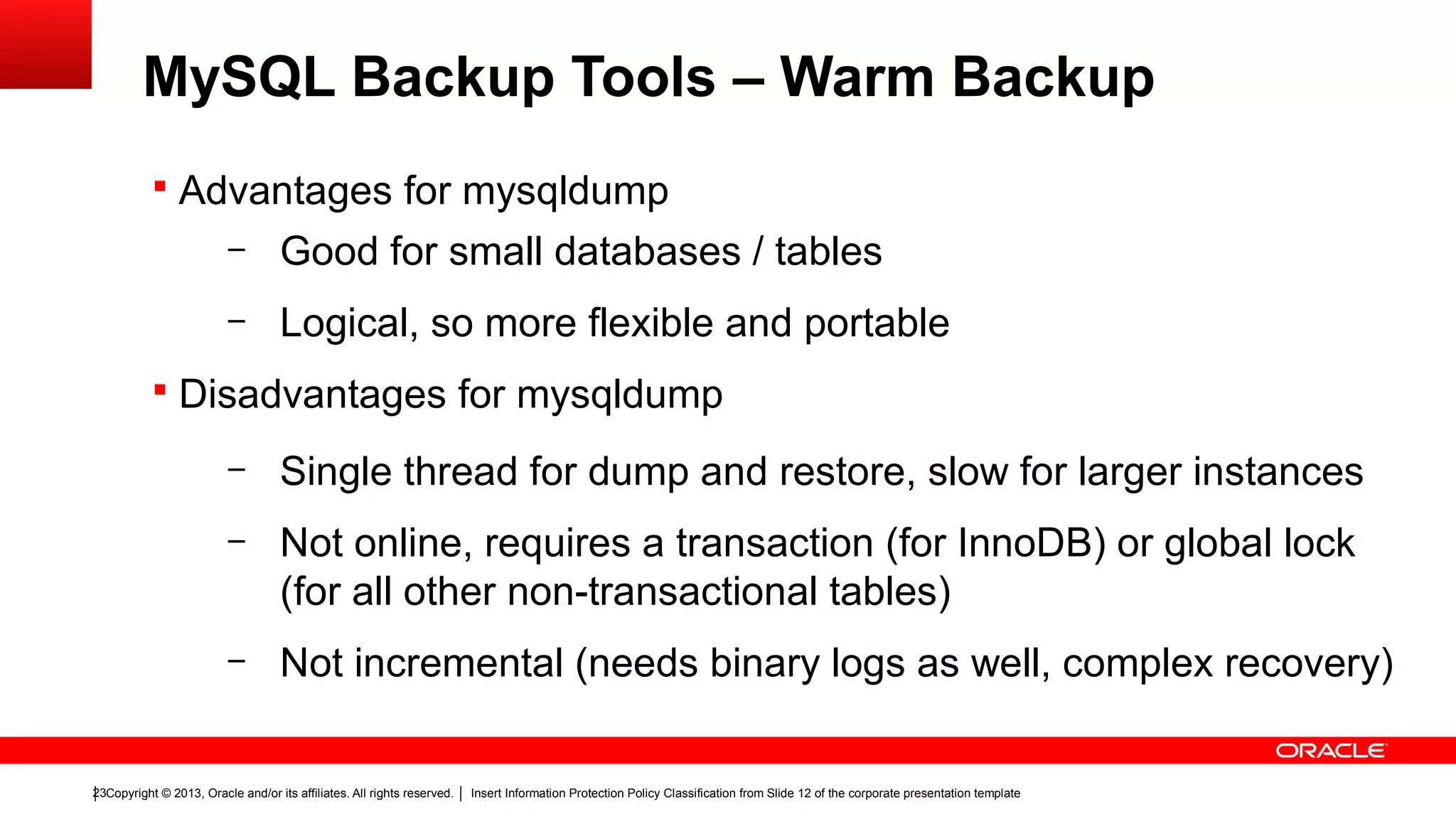

MySQL Backup Tools – Warm Backup
§ Advantages for mysqldump
– Good for small databases / tables
– Logical, so more flexible and portable
§ Disadvantages for mysqldump
– Single thread for dump and restore, slow for larger instances
– Not online, requires a transaction (for InnoDB) or global lock
(for all other non-transactional tables)
– Not incremental (needs binary logs as well, complex recovery)

24. Copyright © 2013, Oracle and/or its affiliates. All rights reserved. Insert Information Protection Policy Classification from Slide 12 of the corporate presentation template24

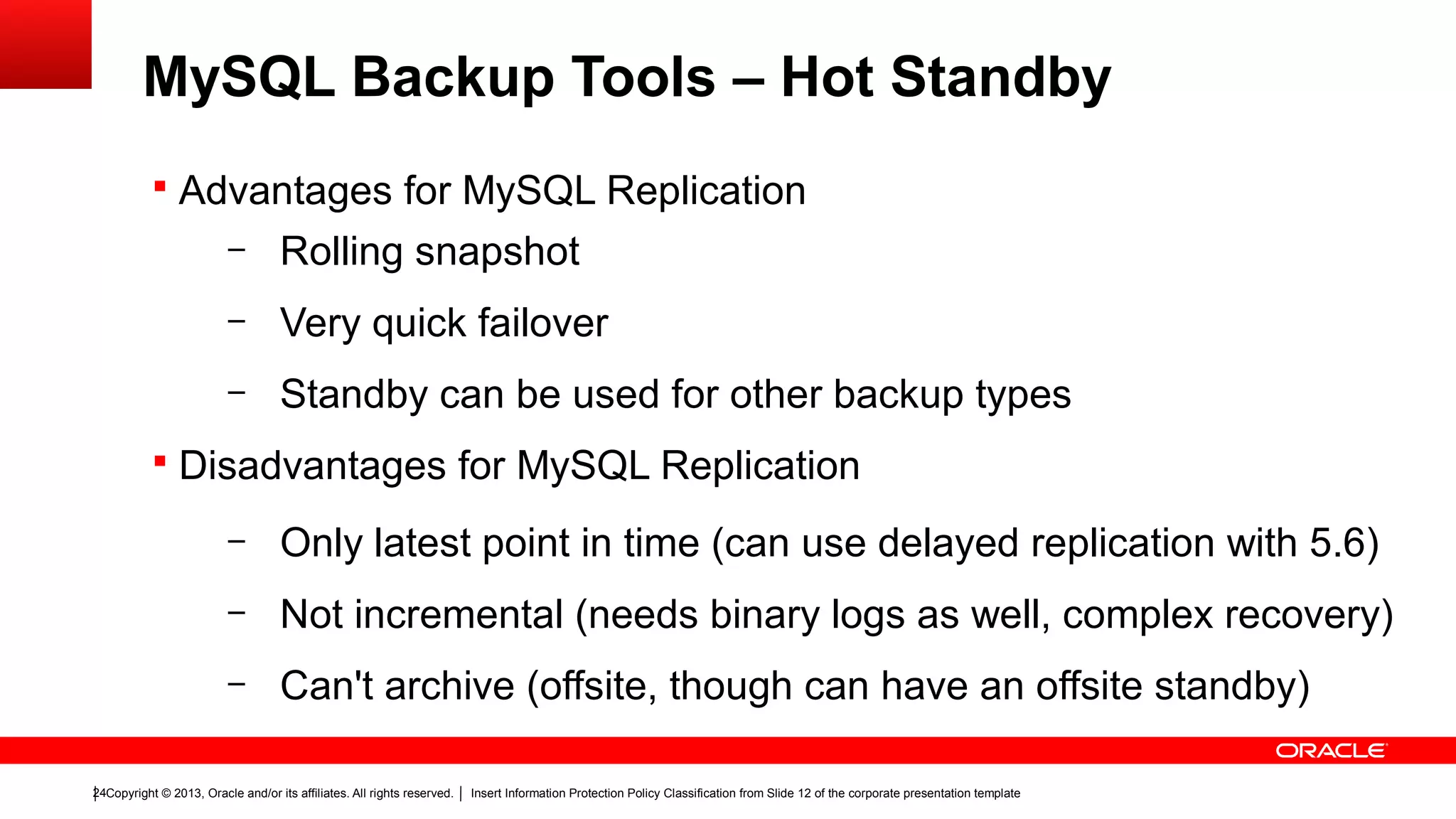

MySQL Backup Tools – Hot Standby
§ Advantages for MySQL Replication
– Rolling snapshot
– Very quick failover
– Standby can be used for other backup types
§ Disadvantages for MySQL Replication
– Only latest point in time (can use delayed replication with 5.6)
– Not incremental (needs binary logs as well, complex recovery)
– Can't archive (offsite, though can have an offsite standby)

25. Copyright © 2013, Oracle and/or its affiliates. All rights reserved. Insert Information Protection Policy Classification from Slide 12 of the corporate presentation template25

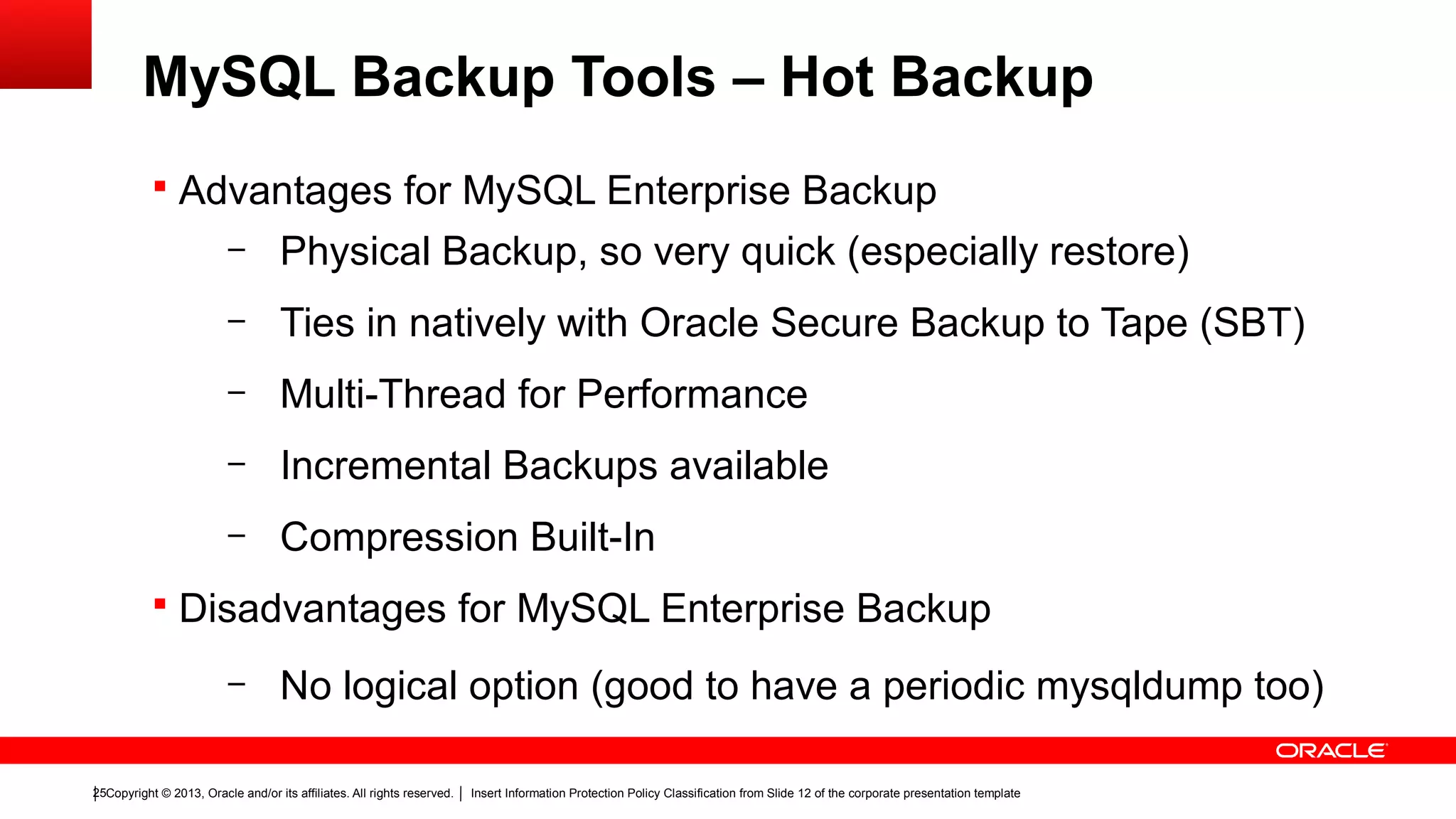

MySQL Backup Tools – Hot Backup
§ Advantages for MySQL Enterprise Backup
– Physical Backup, so very quick (especially restore)
– Ties in natively with Oracle Secure Backup to Tape (SBT)
– Multi-Thread for Performance
– Incremental Backups available
– Compression Built-In
§ Disadvantages for MySQL Enterprise Backup
– No logical option (good to have a periodic mysqldump too)

26. Copyright © 2013, Oracle and/or its affiliates. All rights reserved. Insert Information Protection Policy Classification from Slide 12 of the corporate presentation template26

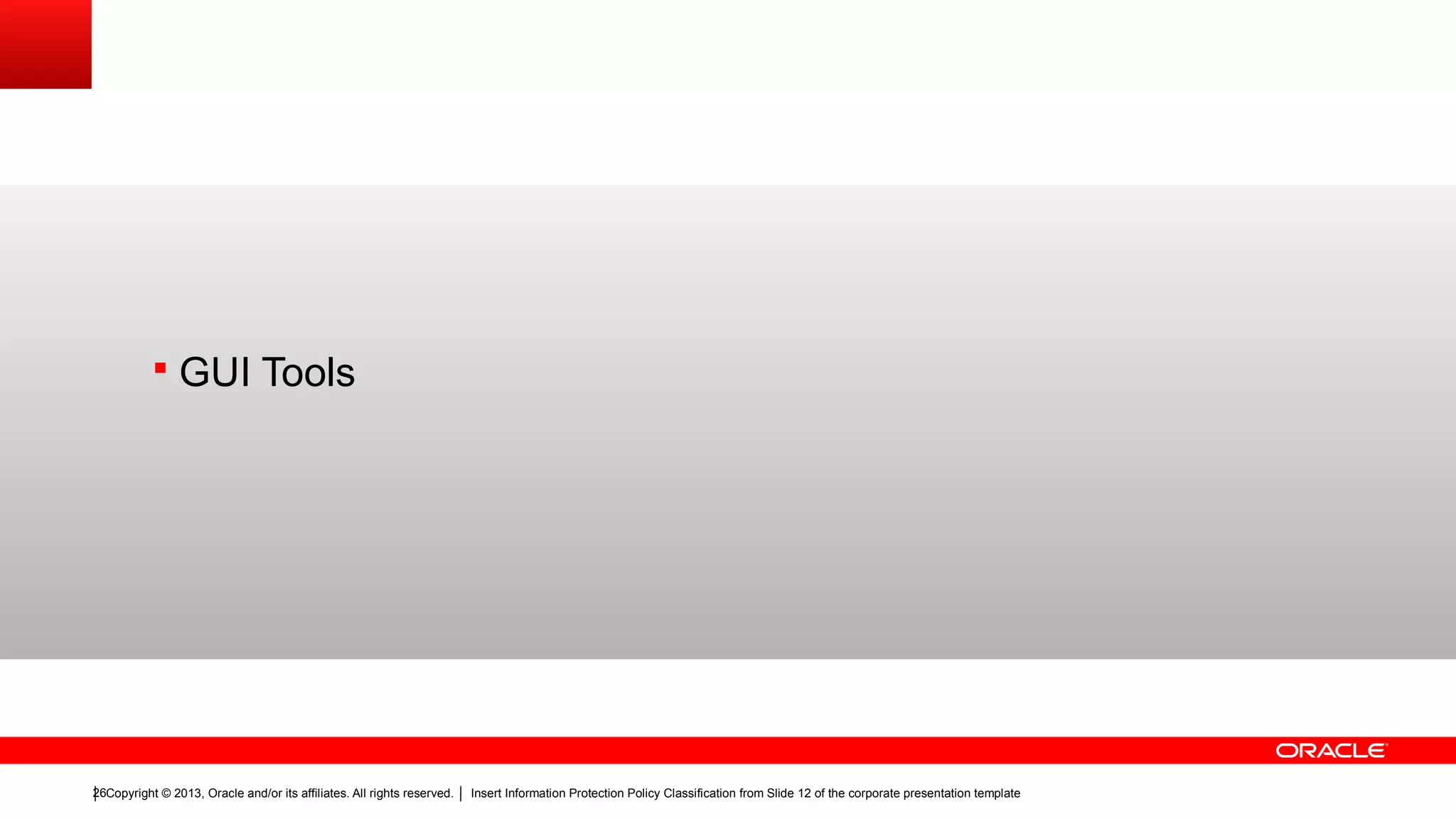

§ GUI Tools

27. Copyright © 2013, Oracle and/or its affiliates. All rights reserved. Insert Information Protection Policy Classification from Slide 12 of the corporate presentation template27

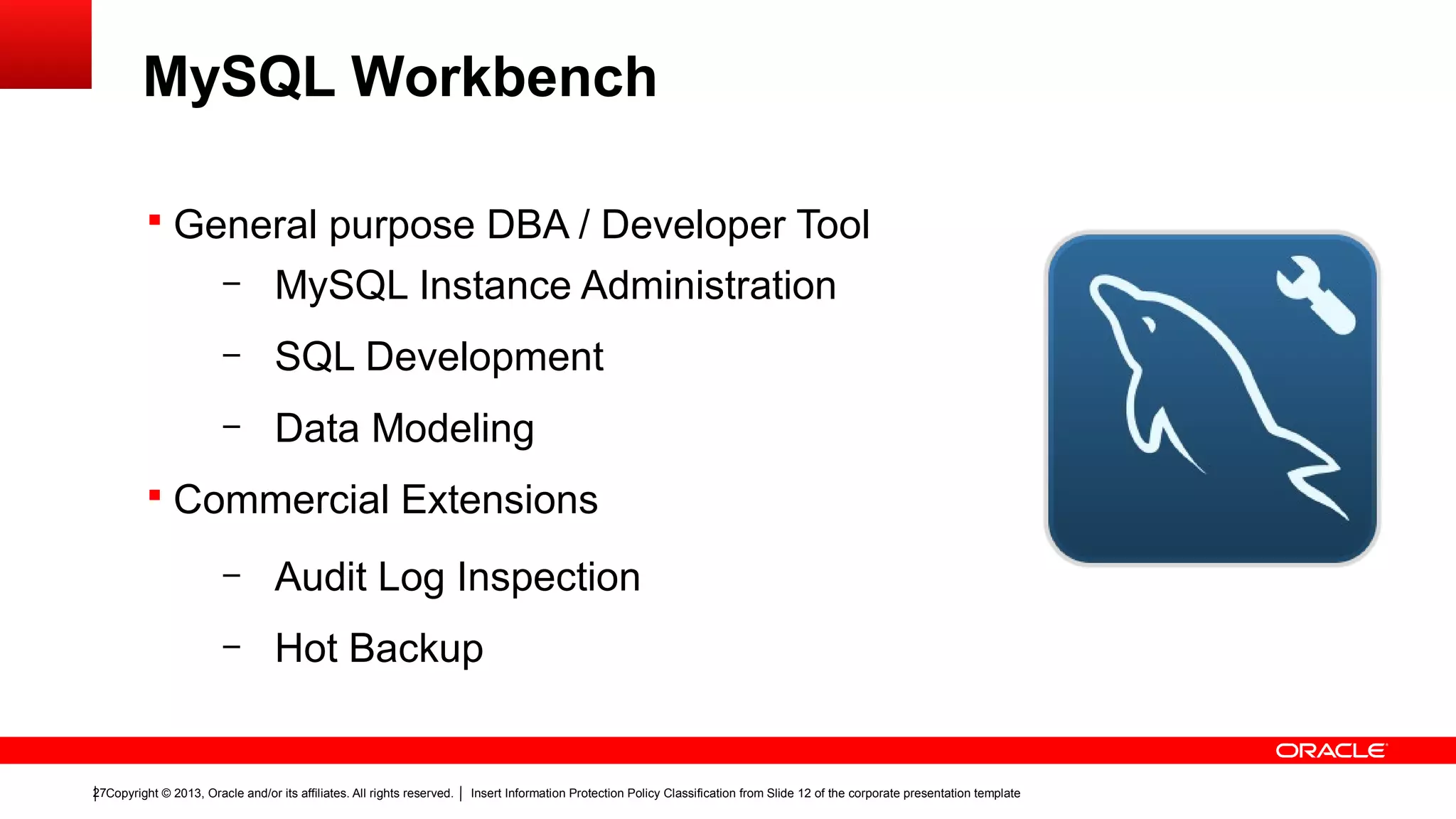

MySQL Workbench
§ General purpose DBA / Developer Tool
– MySQL Instance Administration
– SQL Development
– Data Modeling
§ Commercial Extensions
– Audit Log Inspection
– Hot Backup

28. Copyright © 2013, Oracle and/or its affiliates. All rights reserved. Insert Information Protection Policy Classification from Slide 12 of the corporate presentation template28

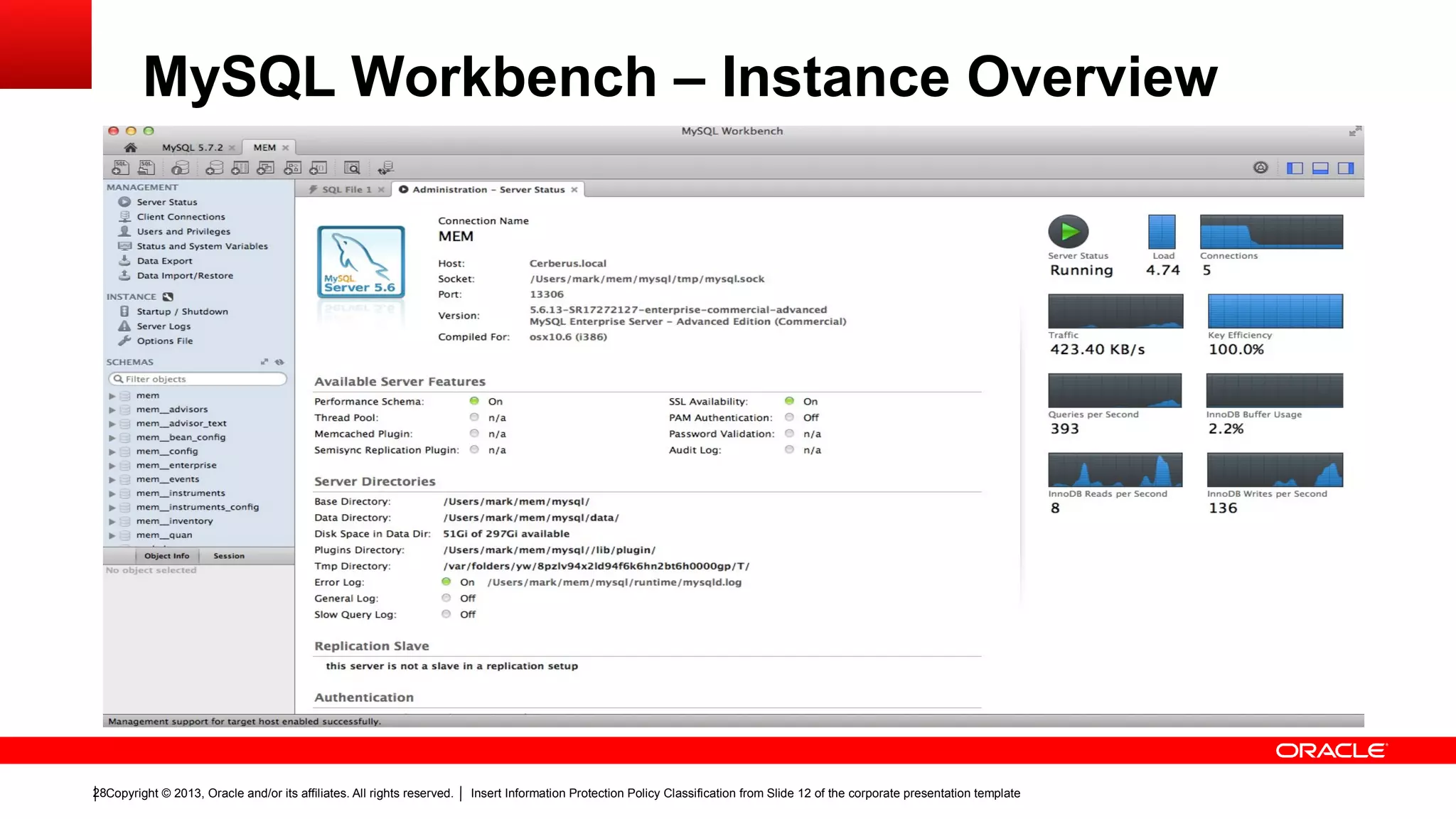

MySQL Workbench – Instance Overview

29. Copyright © 2013, Oracle and/or its affiliates. All rights reserved. Insert Information Protection Policy Classification from Slide 12 of the corporate presentation template29

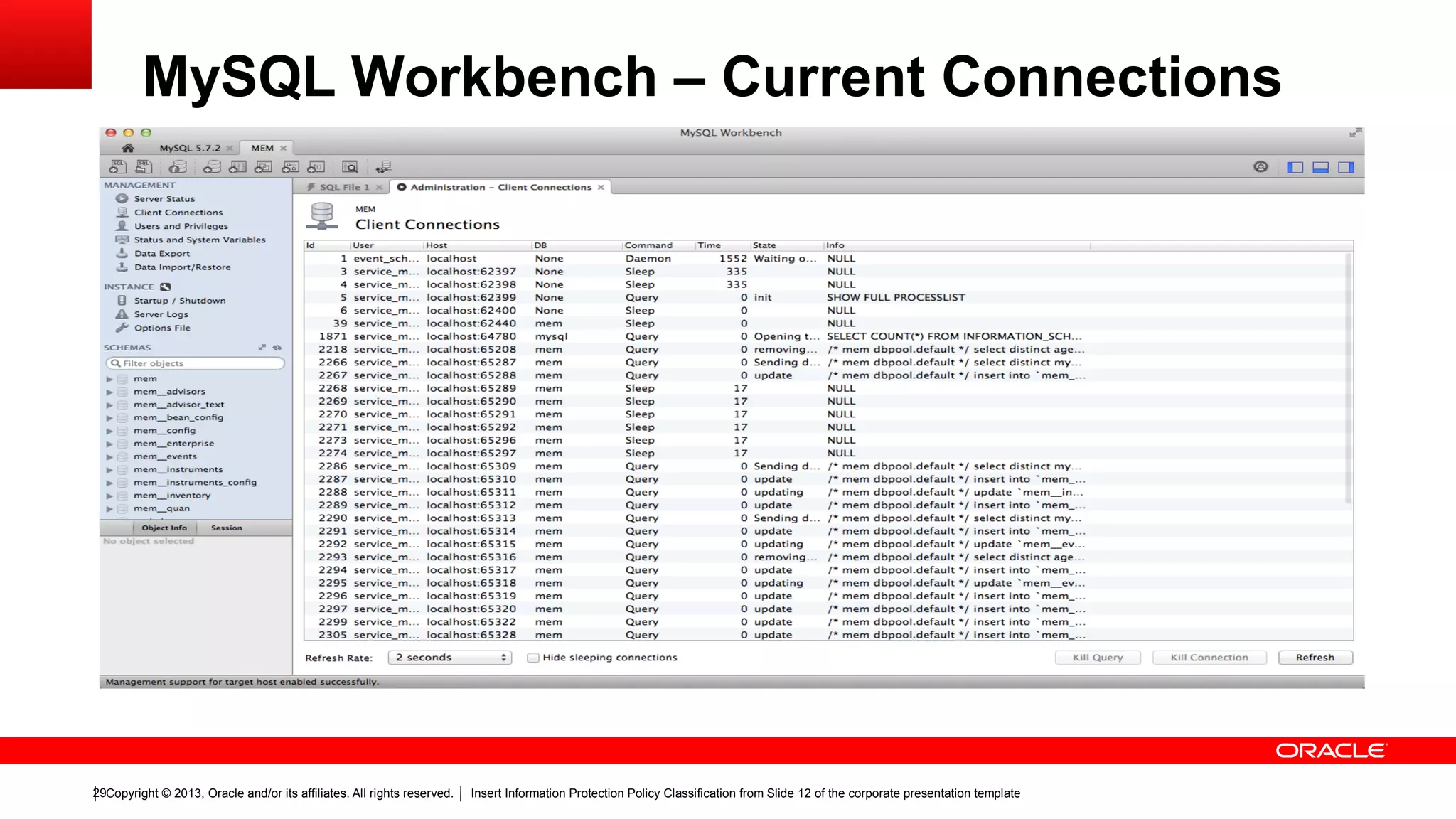

MySQL Workbench – Current Connections

30. Copyright © 2013, Oracle and/or its affiliates. All rights reserved. Insert Information Protection Policy Classification from Slide 12 of the corporate presentation template30

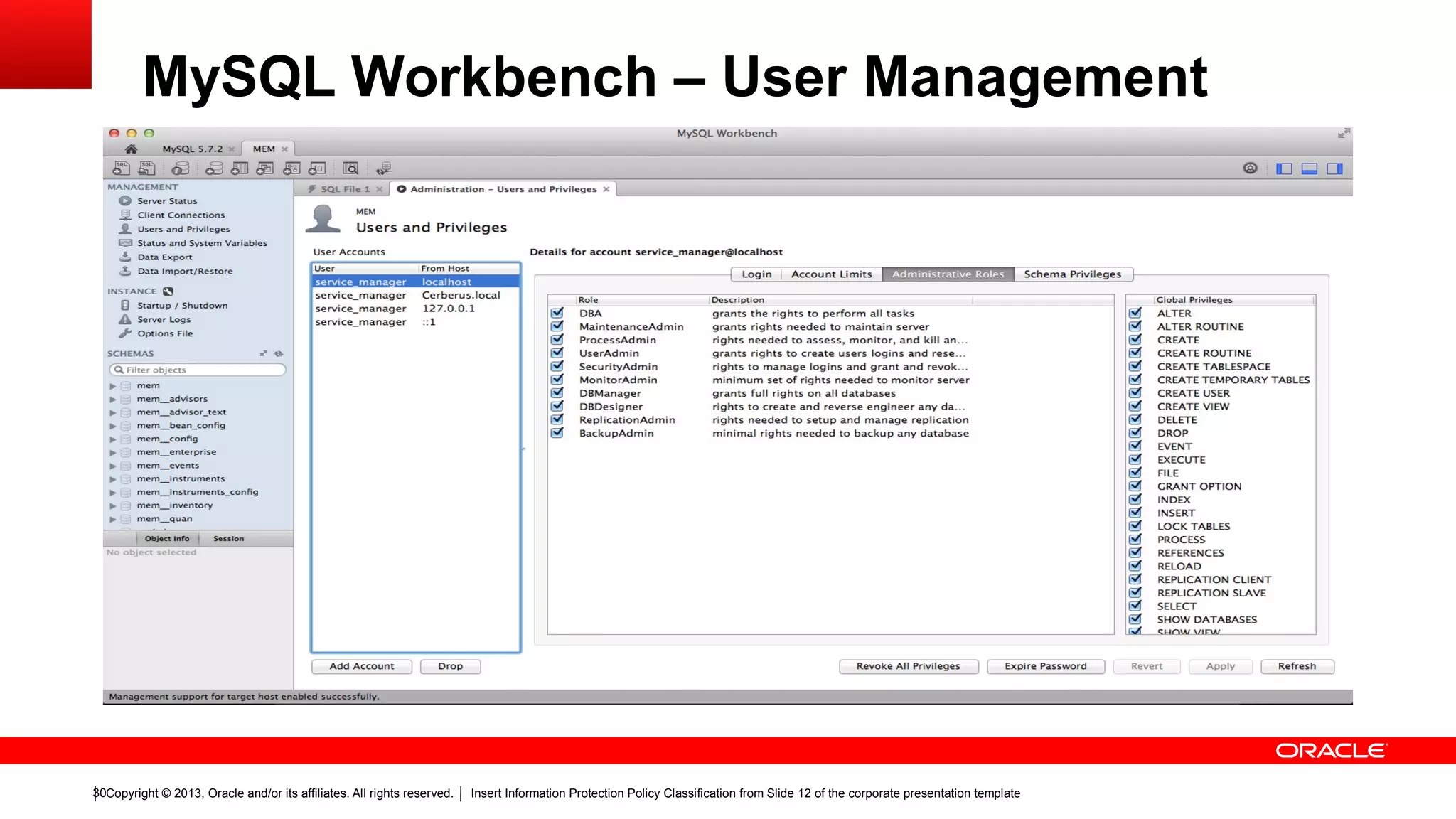

MySQL Workbench – User Management

31. Copyright © 2013, Oracle and/or its affiliates. All rights reserved. Insert Information Protection Policy Classification from Slide 12 of the corporate presentation template31

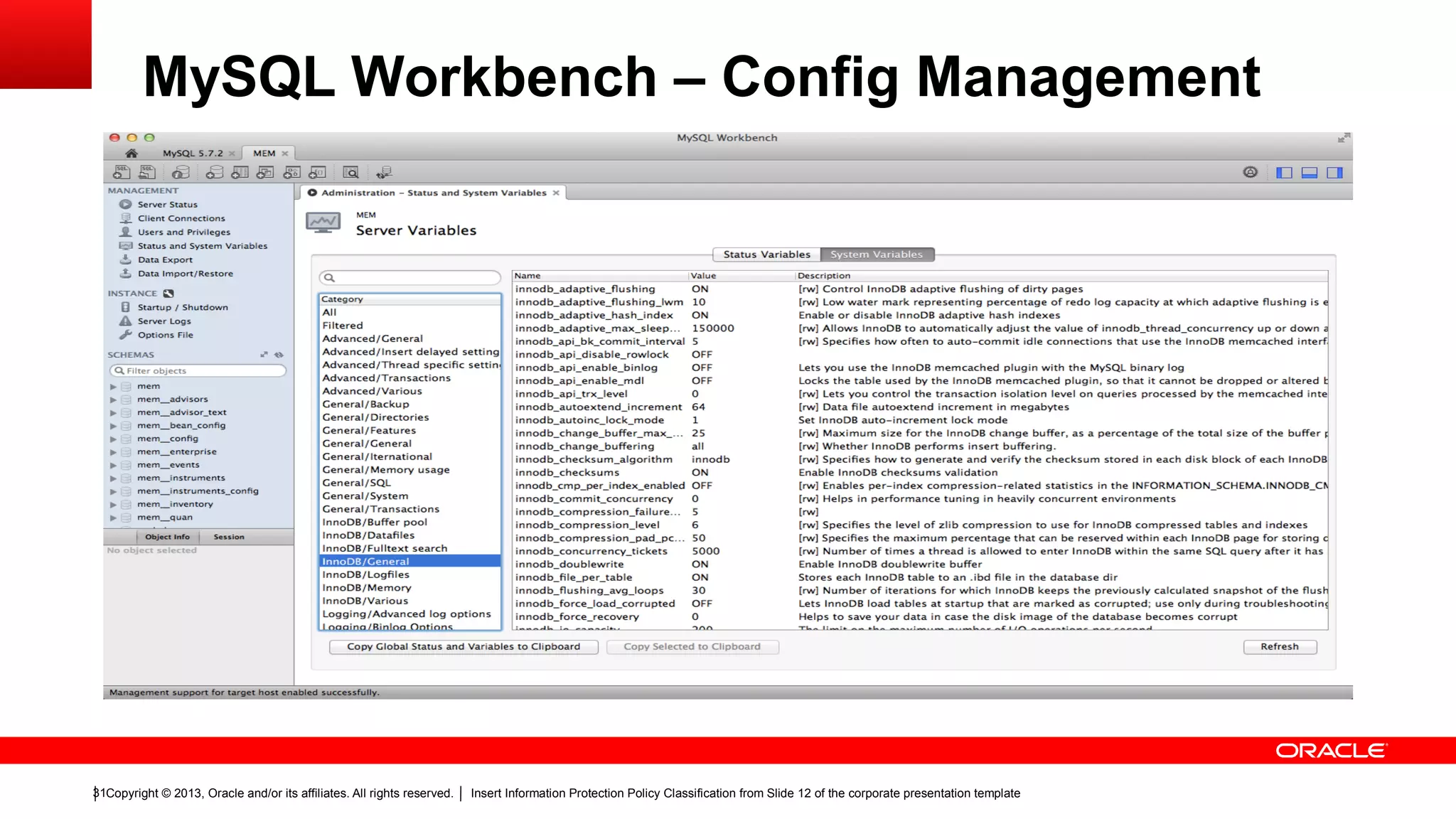

MySQL Workbench – Config Management

32. Copyright © 2013, Oracle and/or its affiliates. All rights reserved. Insert Information Protection Policy Classification from Slide 12 of the corporate presentation template32

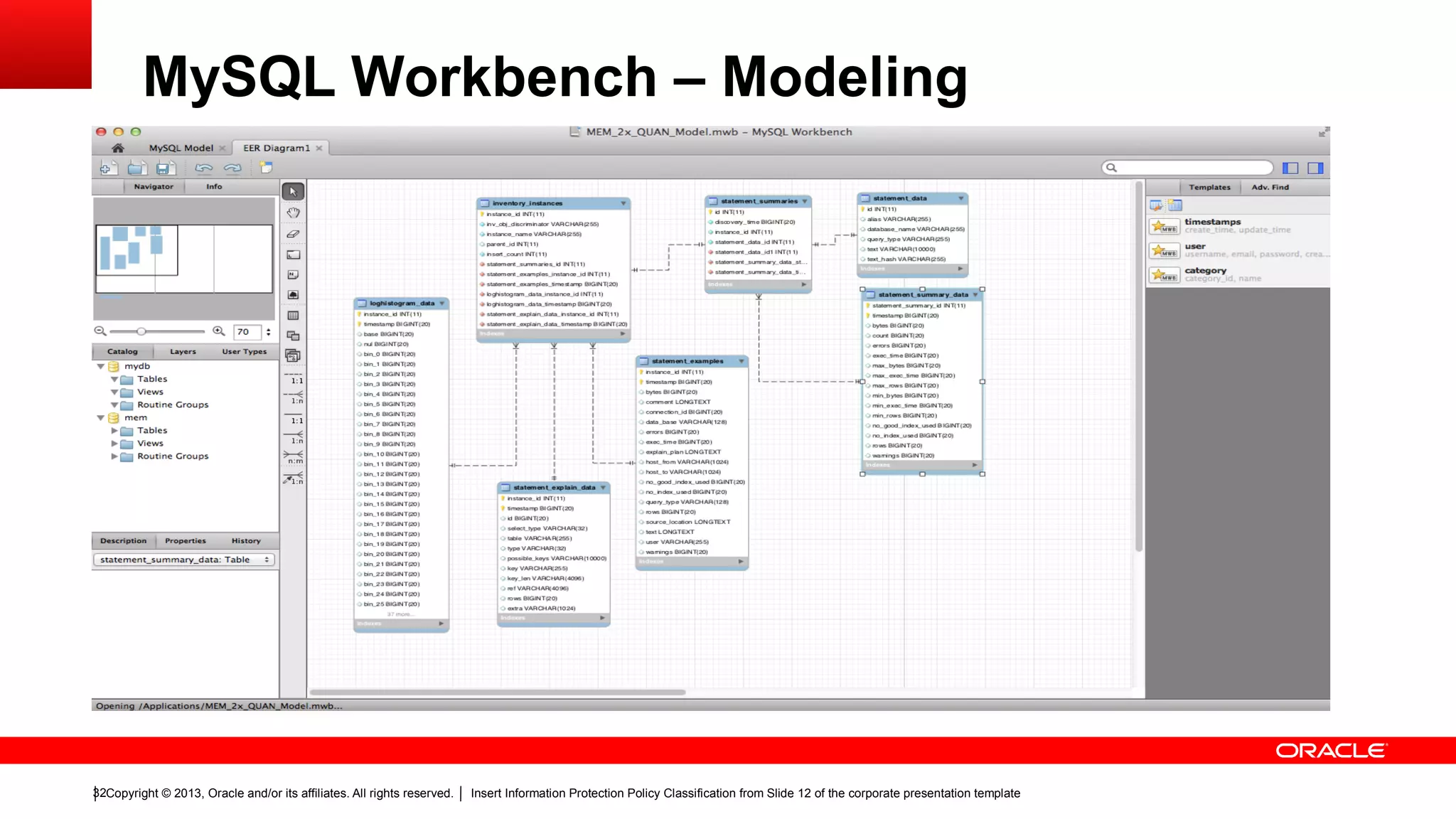

MySQL Workbench – Modeling

33. Copyright © 2013, Oracle and/or its affiliates. All rights reserved. Insert Information Protection Policy Classification from Slide 12 of the corporate presentation template33

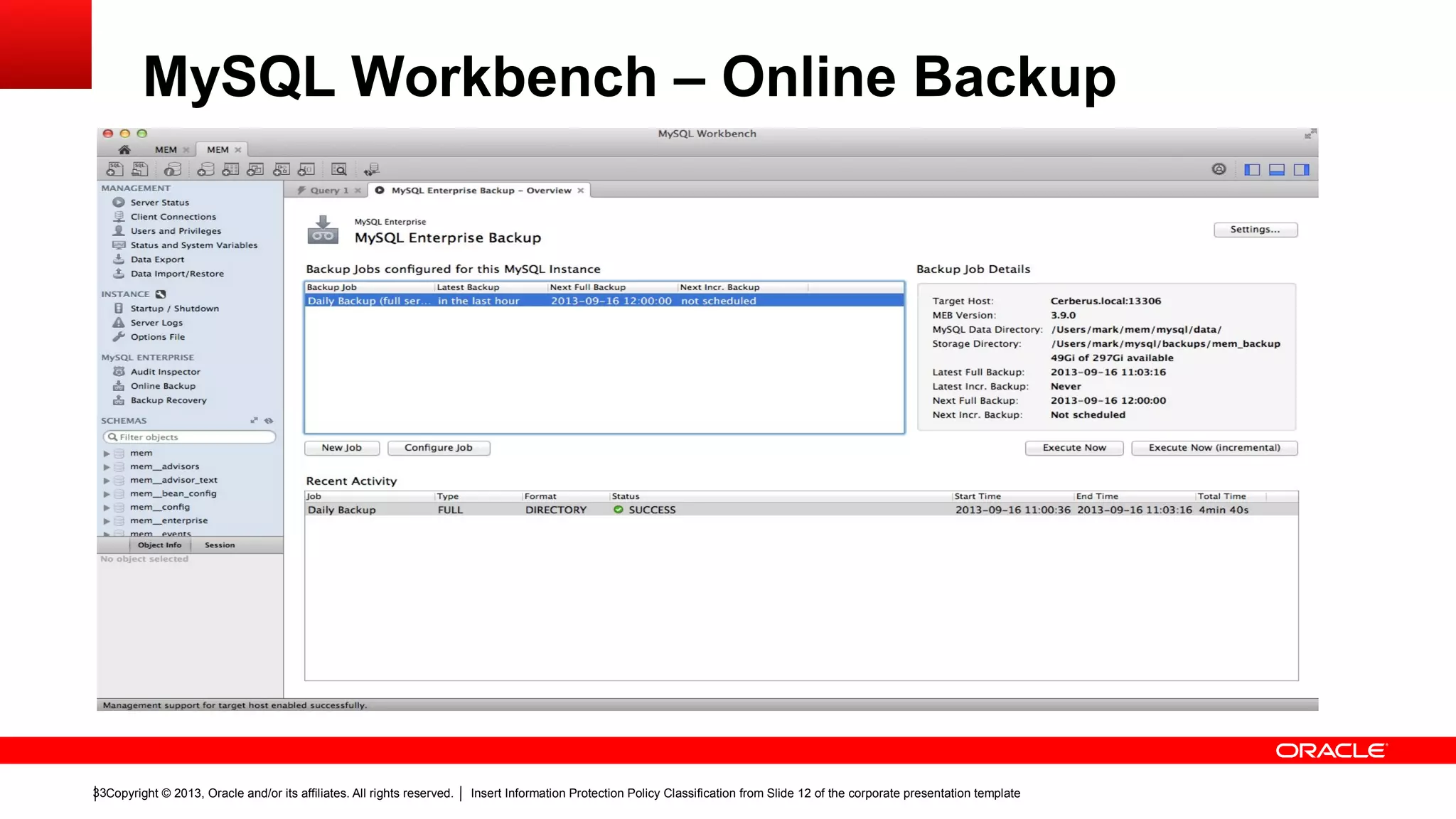

MySQL Workbench – Online Backup

34. Copyright © 2013, Oracle and/or its affiliates. All rights reserved. Insert Information Protection Policy Classification from Slide 12 of the corporate presentation template34
§ Monitoring

35. Copyright © 2013, Oracle and/or its affiliates. All rights reserved. Insert Information Protection Policy Classification from Slide 12 of the corporate presentation template35

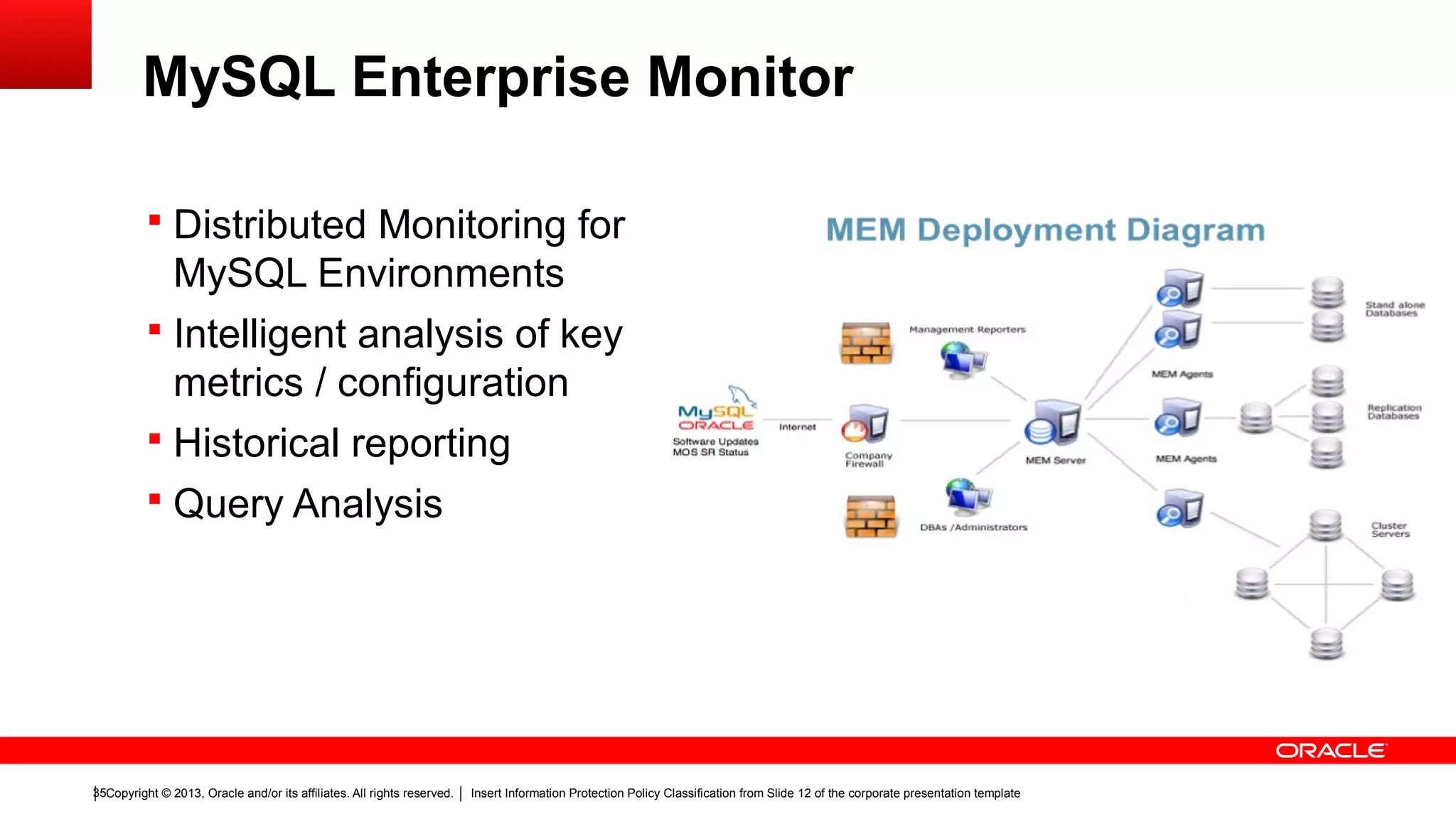

MySQL Enterprise Monitor
§ Distributed Monitoring for
MySQL Environments
§ Intelligent analysis of key
metrics / configuration
§ Historical reporting
§ Query Analysis

36. Copyright © 2013, Oracle and/or its affiliates. All rights reserved. Insert Information Protection Policy Classification from Slide 12 of the corporate presentation template36

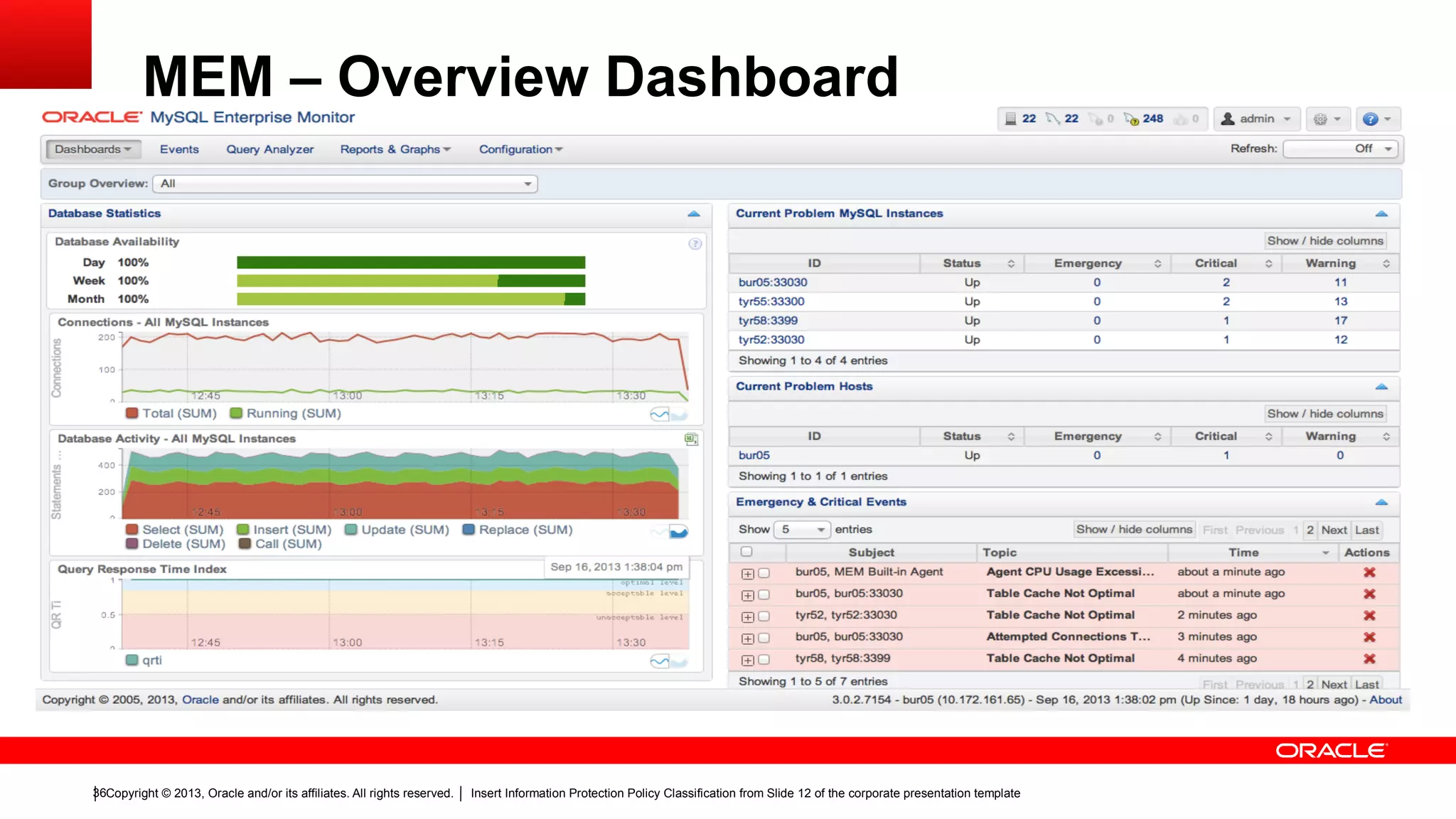

MEM – Overview Dashboard

37. Copyright © 2013, Oracle and/or its affiliates. All rights reserved. Insert Information Protection Policy Classification from Slide 12 of the corporate presentation template37

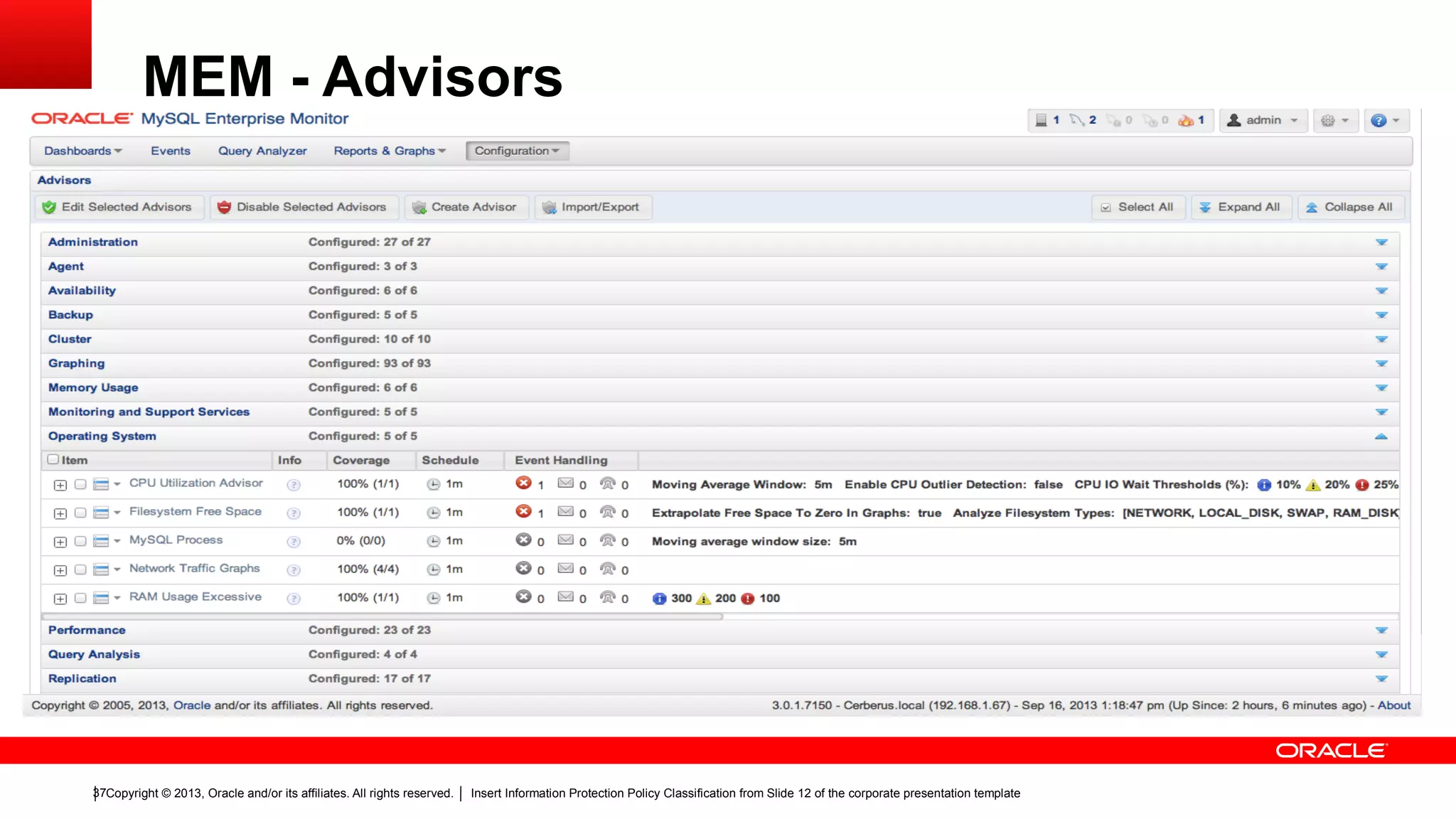

MEM - Advisors

38. Copyright © 2013, Oracle and/or its affiliates. All rights reserved. Insert Information Protection Policy Classification from Slide 12 of the corporate presentation template38

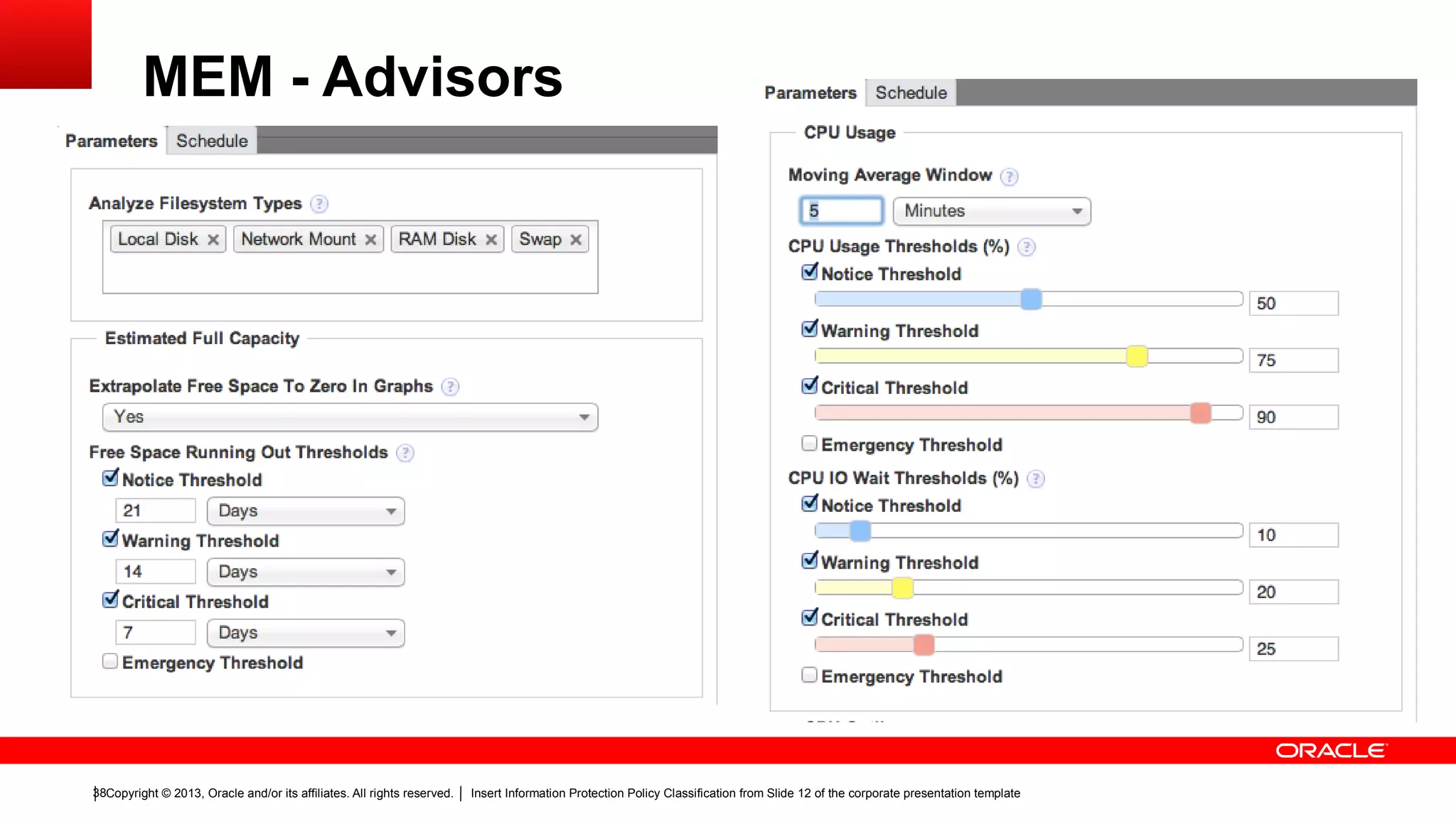

MEM - Advisors

39. Copyright © 2013, Oracle and/or its affiliates. All rights reserved. Insert Information Protection Policy Classification from Slide 12 of the corporate presentation template39

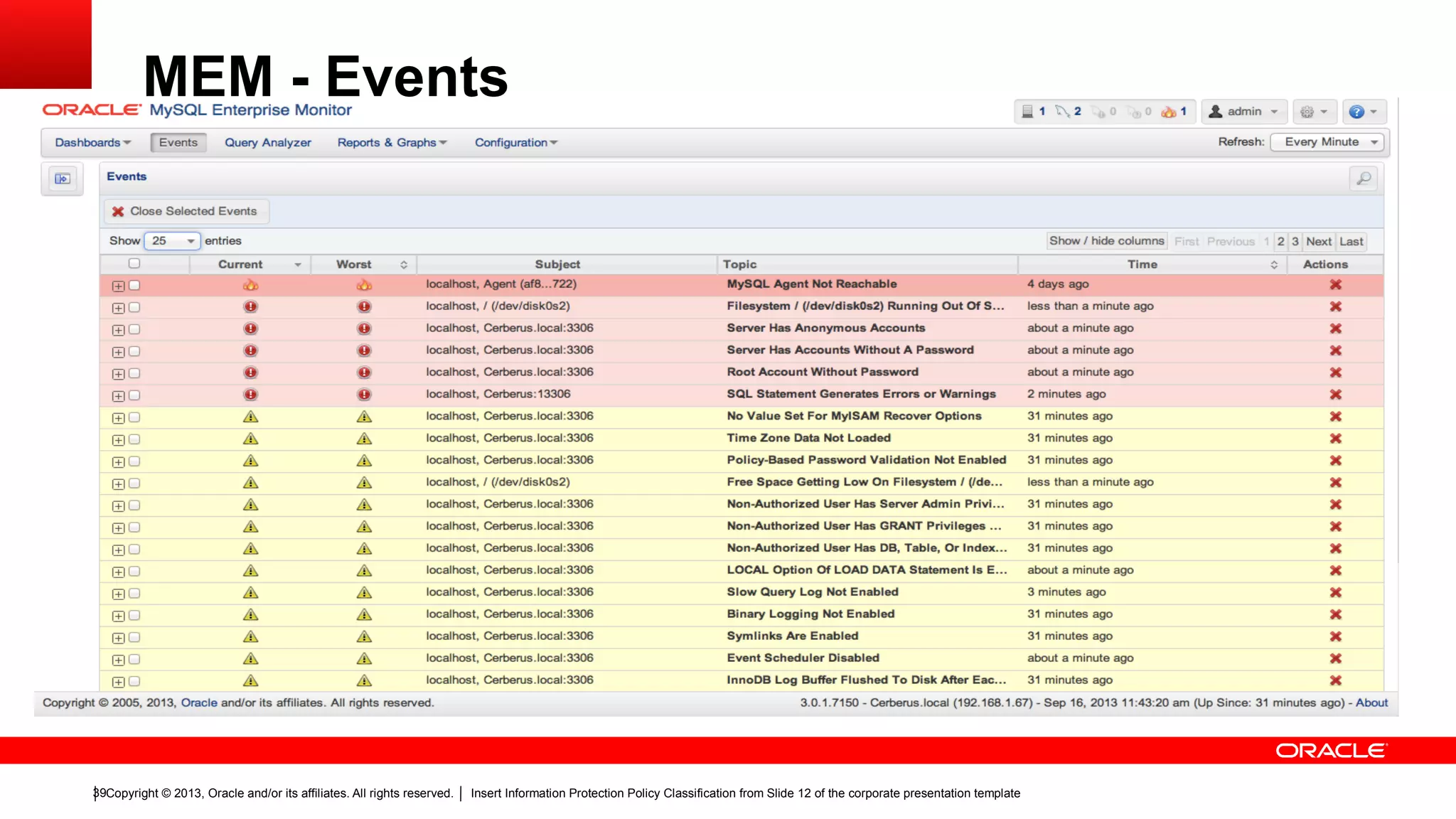

MEM - Events

40. Copyright © 2013, Oracle and/or its affiliates. All rights reserved. Insert Information Protection Policy Classification from Slide 12 of the corporate presentation template40

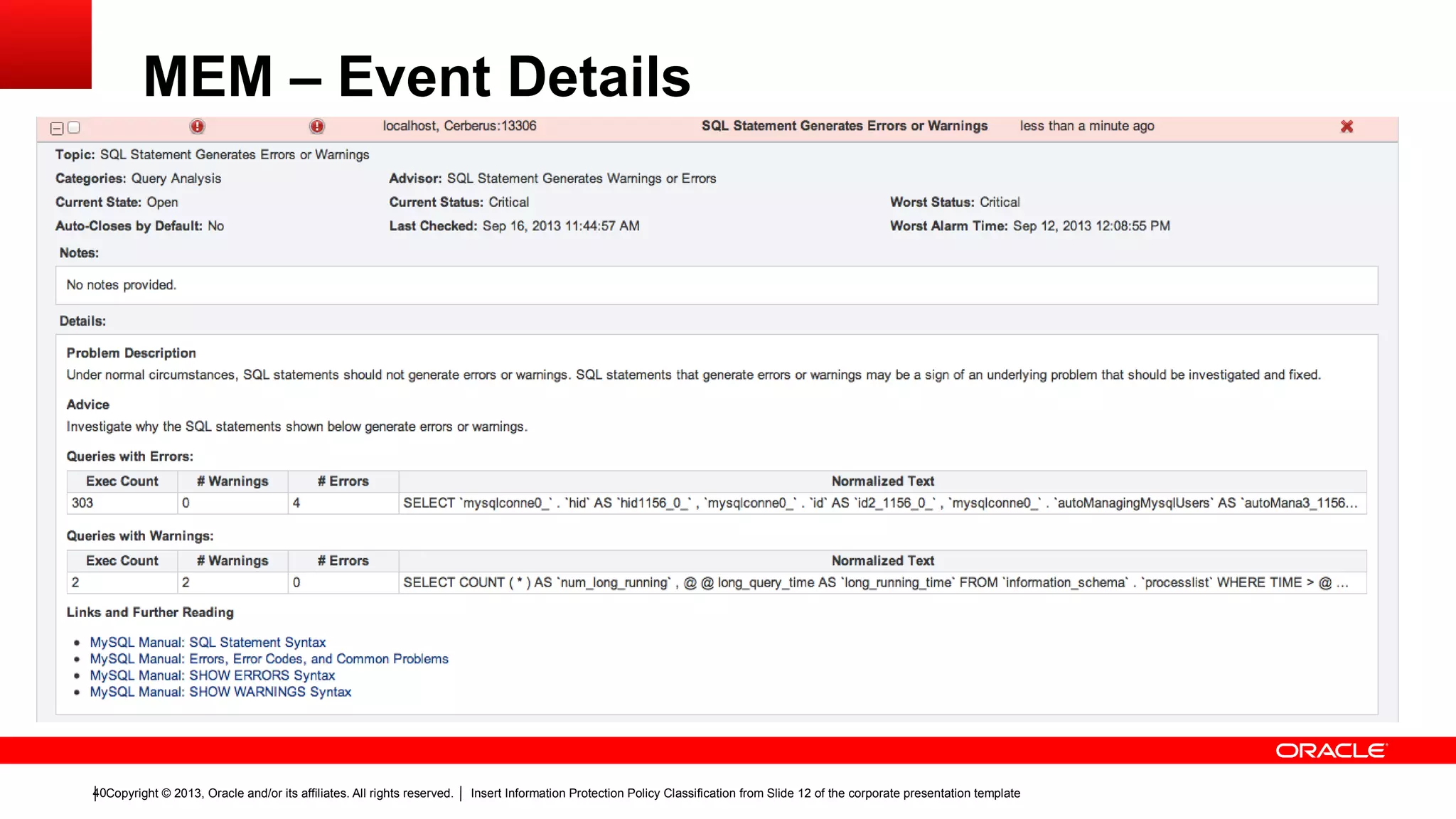

MEM – Event Details

41. Copyright © 2013, Oracle and/or its affiliates. All rights reserved. Insert Information Protection Policy Classification from Slide 12 of the corporate presentation template41

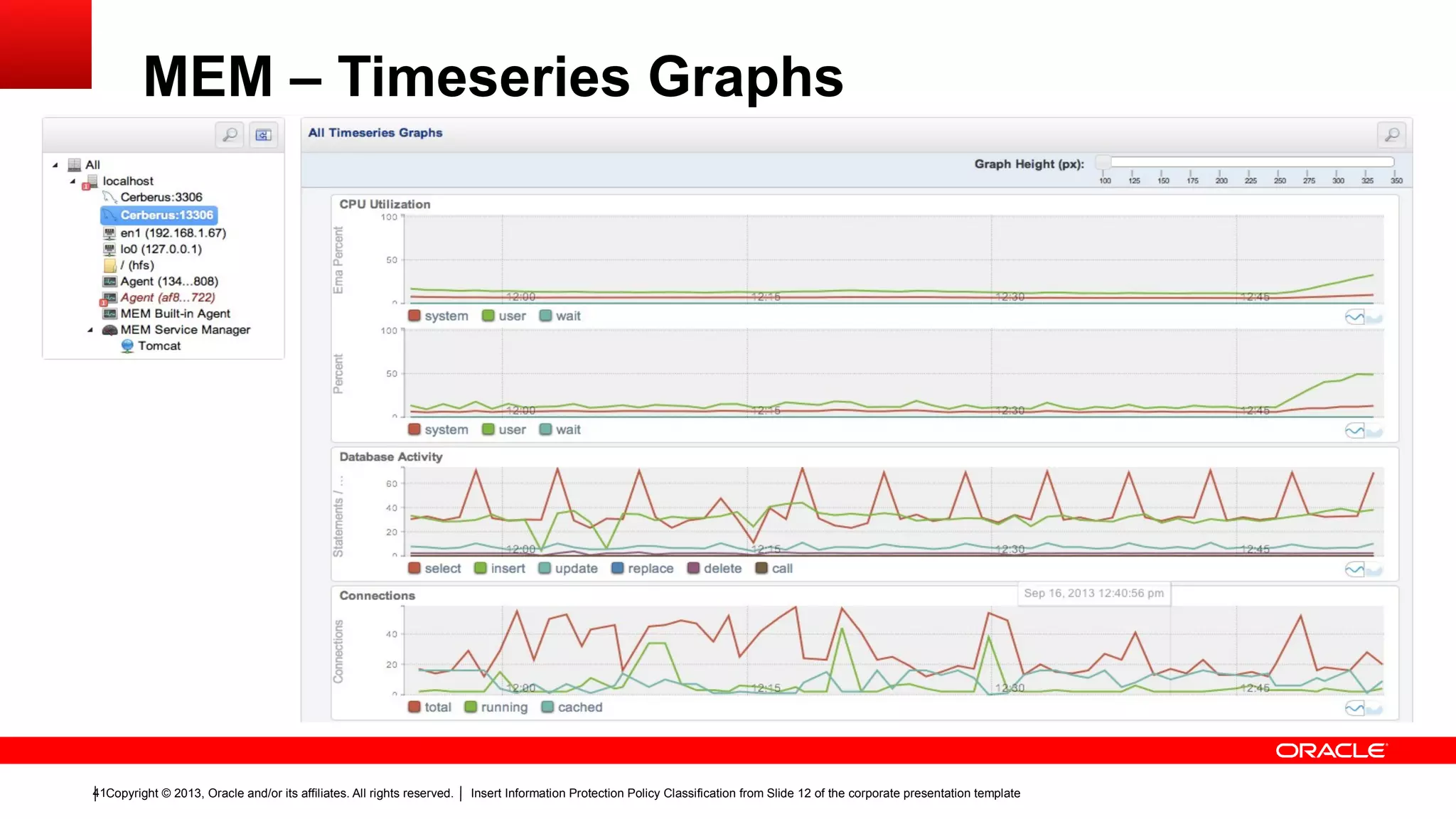

MEM – Timeseries Graphs

42. Copyright © 2013, Oracle and/or its affiliates. All rights reserved. Insert Information Protection Policy Classification from Slide 12 of the corporate presentation template42

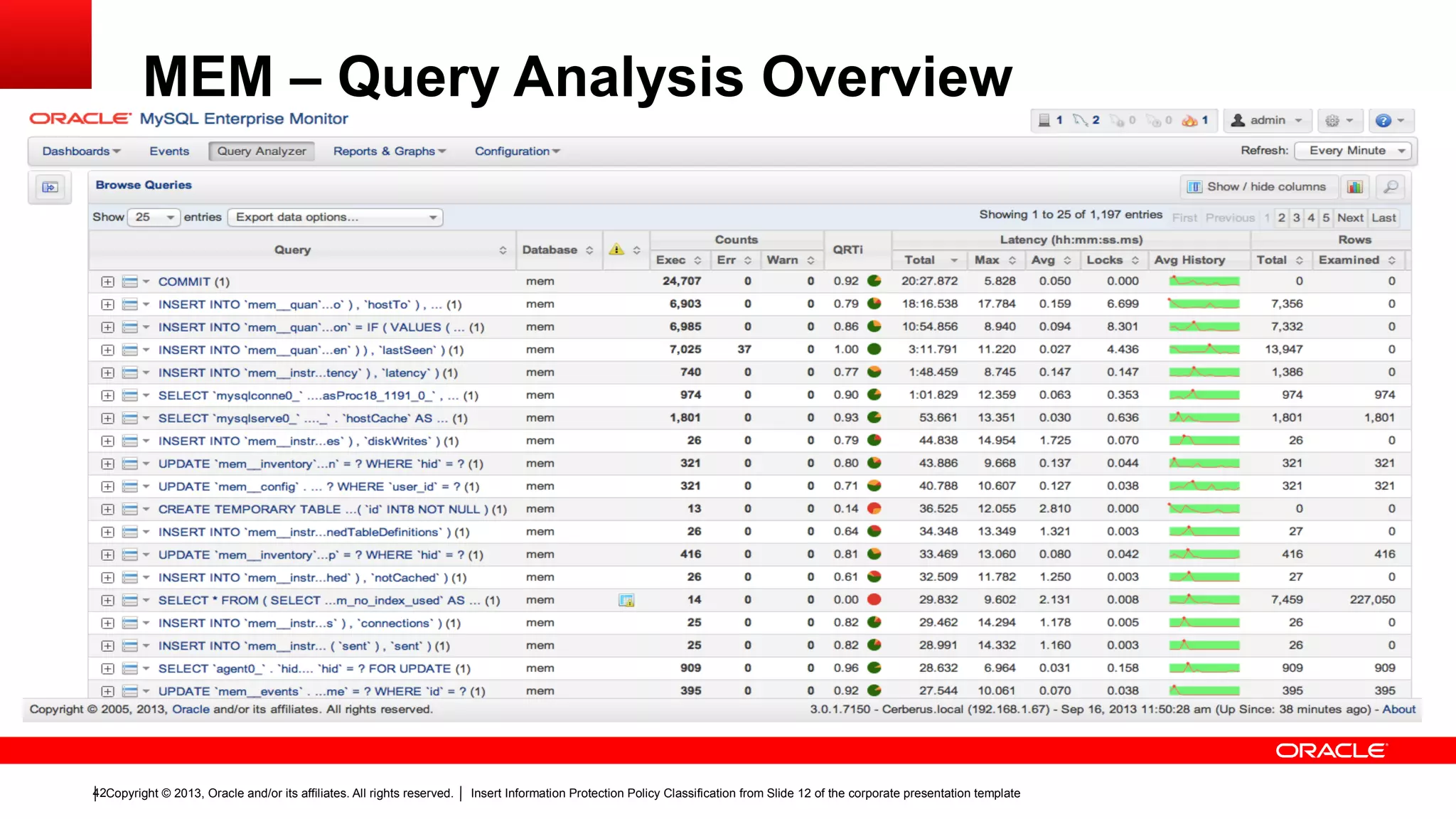

MEM – Query Analysis Overview

43. Copyright © 2013, Oracle and/or its affiliates. All rights reserved. Insert Information Protection Policy Classification from Slide 12 of the corporate presentation template43

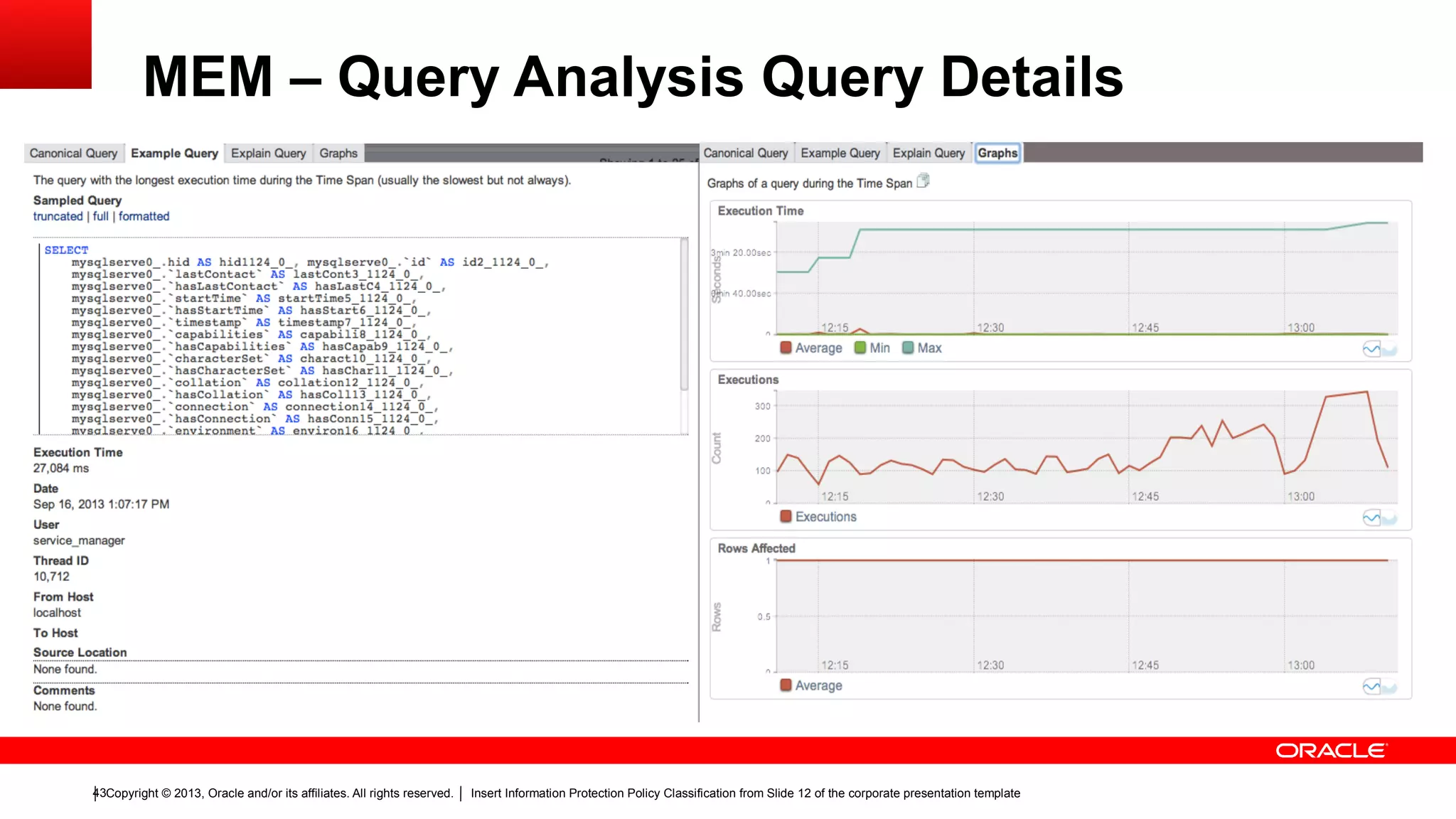

MEM – Query Analysis Query Details

44. Copyright © 2013, Oracle and/or its affiliates. All rights reserved. Insert Information Protection Policy Classification from Slide 12 of the corporate presentation template44
§ Questions?

45. Copyright © 2013, Oracle and/or its affiliates. All rights reserved. Insert Information Protection Policy Classification from Slide 12 of the corporate presentation template45

46. Copyright © 2013, Oracle and/or its affiliates. All rights reserved. Insert Information Protection Policy Classification from Slide 12 of the corporate presentation template46
