MySQL is a relational database management system written in C and C++. It works across many platforms and is designed to be fully multi-threaded to take advantage of multiple CPUs. It supports large databases with flexible security and has over a dozen data types including numeric, date/time, and string types. MySQL uses storage engines like MyISAM and InnoDB to store and retrieve data, with InnoDB being the default and most widely used as it supports transactions and row-level locking. MySQL also includes many built-in mathematical, aggregate, string, and date/time functions to manipulate data.

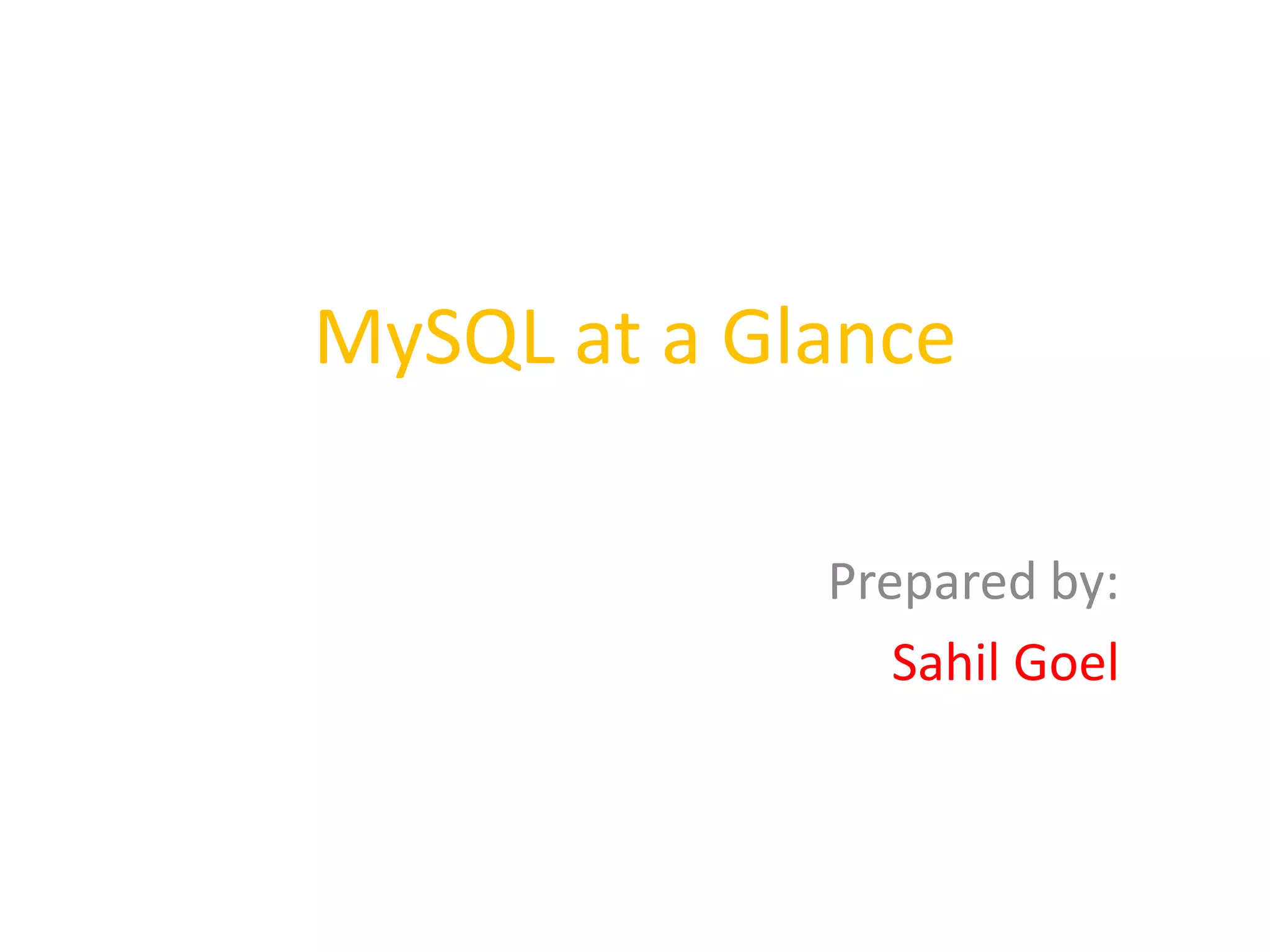

1. MySQL at a Glance
Prepared by:
Sahil Goel

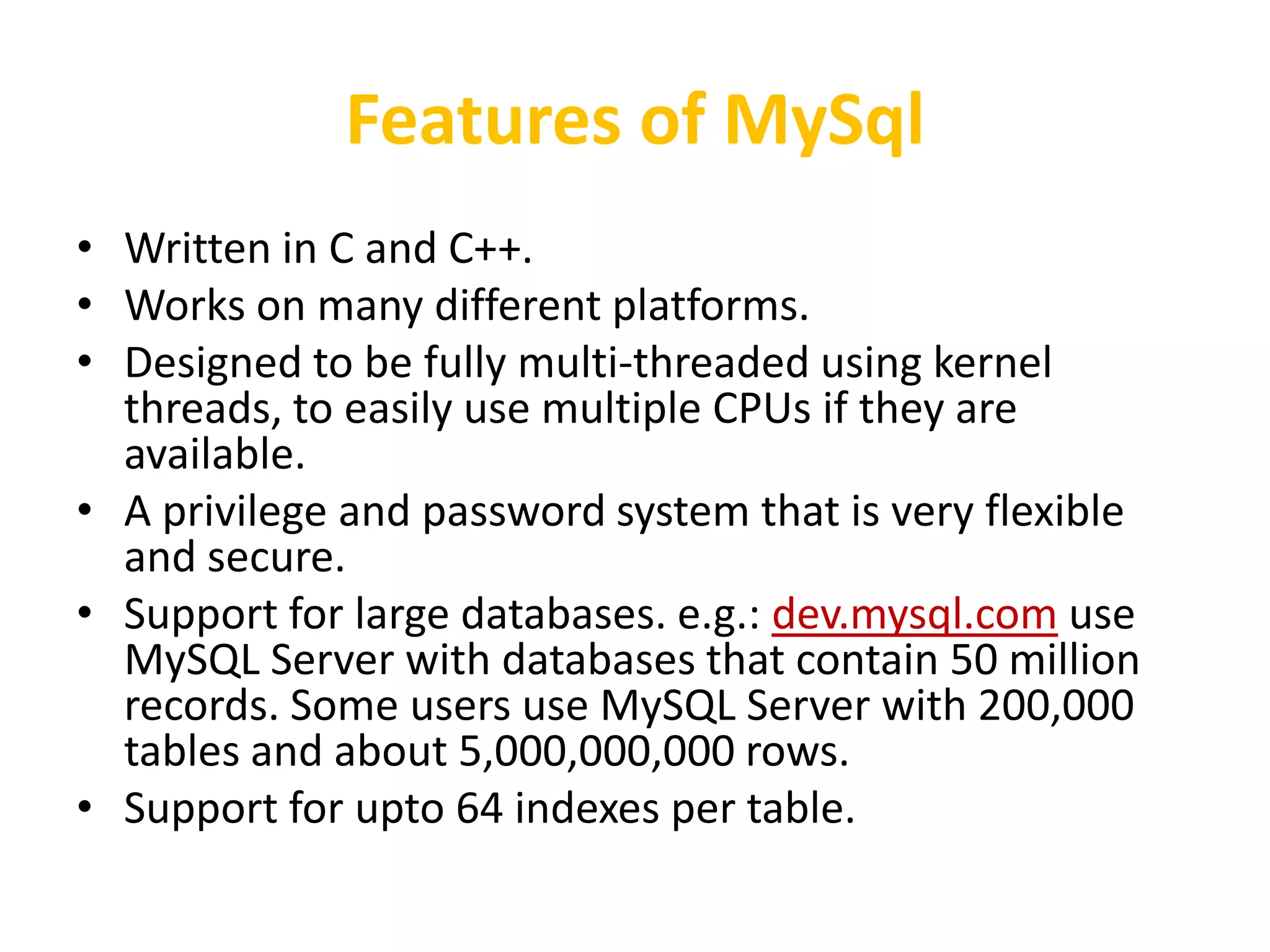

2. Features of MySql
• Written in C and C++.
• Works on many different platforms.
• Designed to be fully multi-threaded using kernel
threads, to easily use multiple CPUs if they are
available.
• A privilege and password system that is very flexible
and secure.
• Support for large databases. e.g.: dev.mysql.com use
MySQL Server with databases that contain 50 million
records. Some users use MySQL Server with 200,000
tables and about 5,000,000,000 rows.
• Support for upto 64 indexes per table.

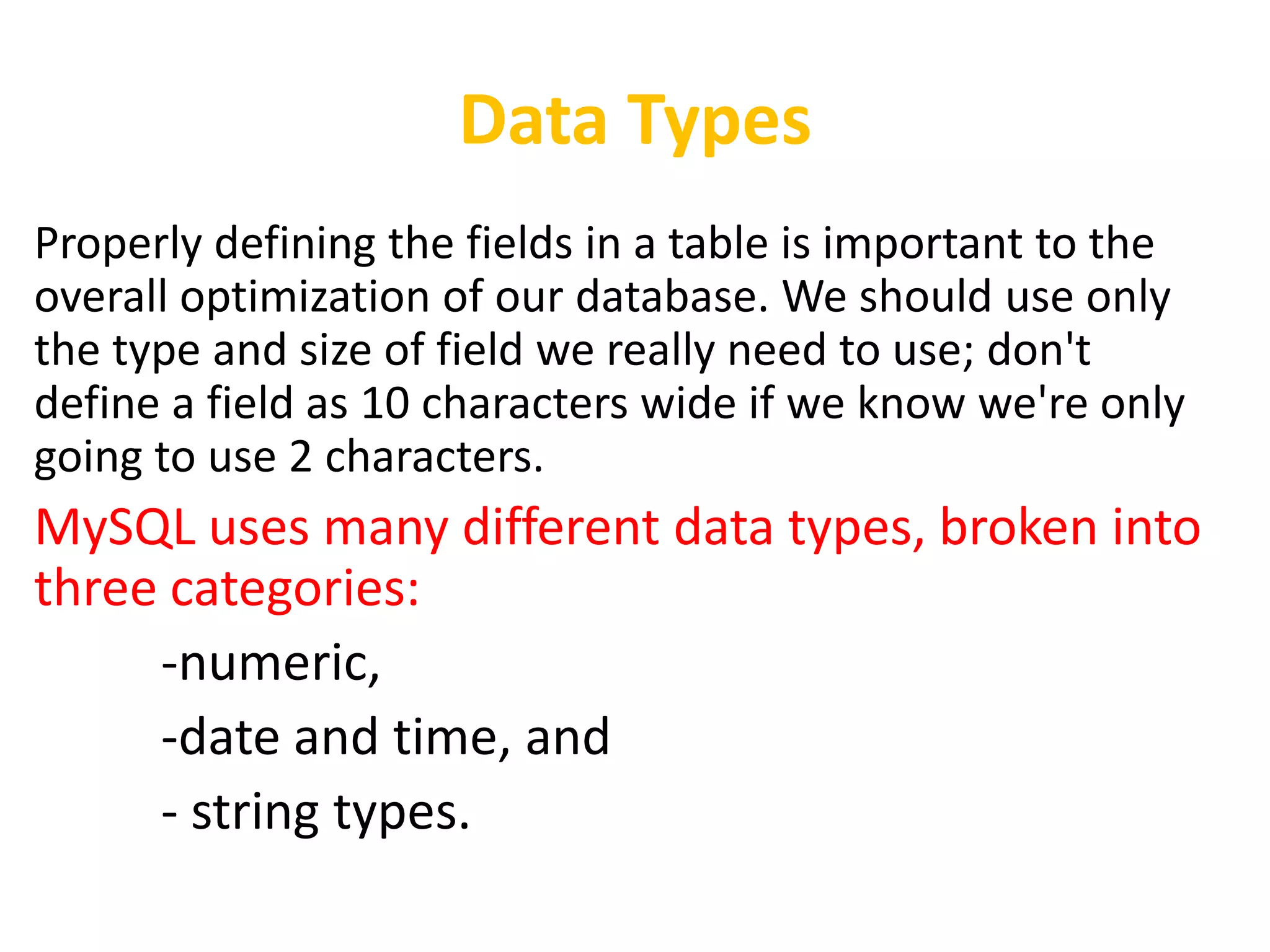

3. Data Types
Properly defining the fields in a table is important to the
overall optimization of our database. We should use only
the type and size of field we really need to use; don't
define a field as 10 characters wide if we know we're only
going to use 2 characters.
MySQL uses many different data types, broken into
three categories:
-numeric,
-date and time, and
- string types.

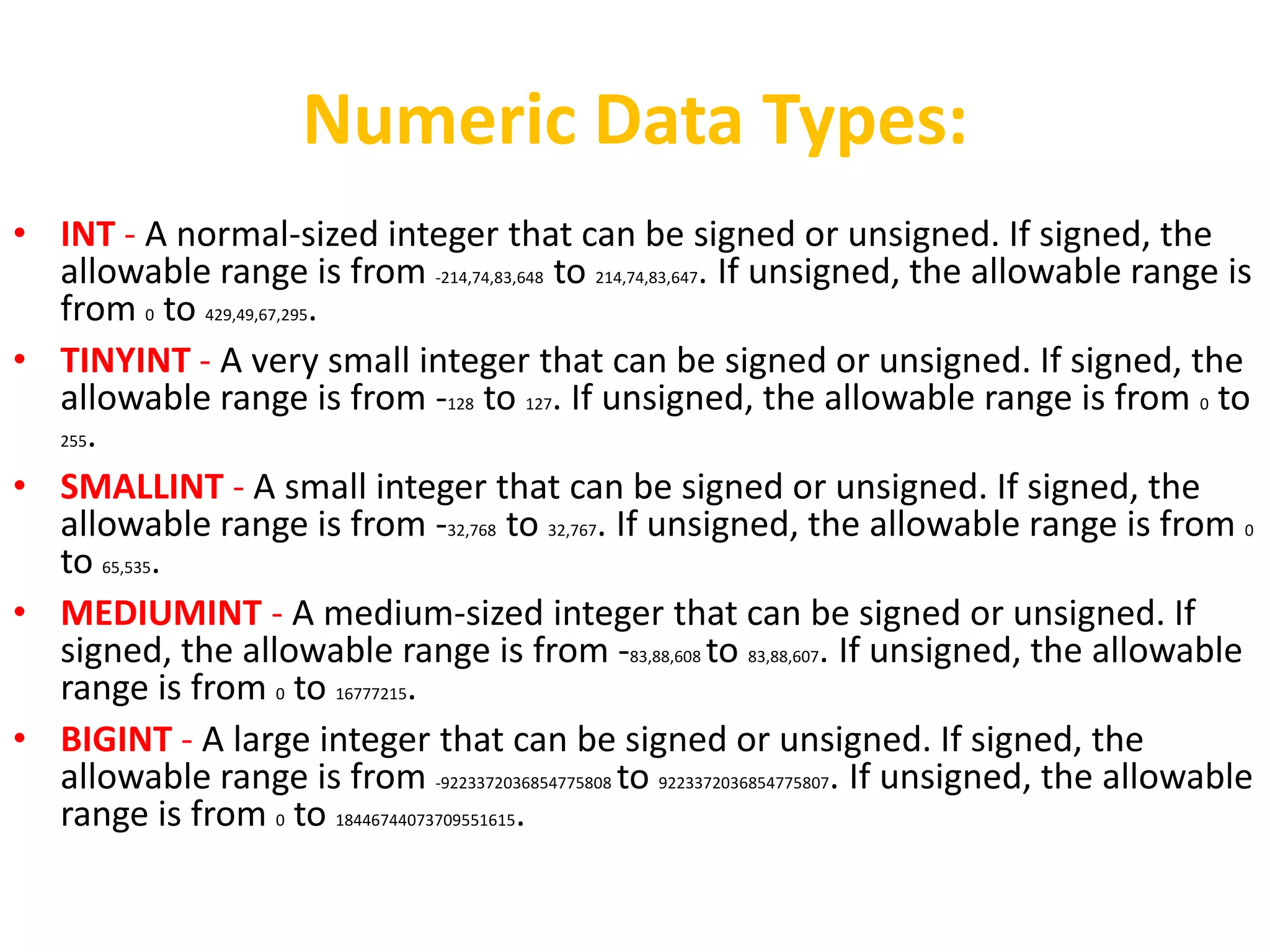

4. Numeric Data Types:
• INT - A normal-sized integer that can be signed or unsigned. If signed, the
allowable range is from -214,74,83,648 to 214,74,83,647. If unsigned, the allowable range is
from 0 to 429,49,67,295.
• TINYINT - A very small integer that can be signed or unsigned. If signed, the
allowable range is from -128 to 127. If unsigned, the allowable range is from 0 to
255.
• SMALLINT - A small integer that can be signed or unsigned. If signed, the
allowable range is from -32,768 to 32,767. If unsigned, the allowable range is from 0
to 65,535.
• MEDIUMINT - A medium-sized integer that can be signed or unsigned. If
signed, the allowable range is from -83,88,608 to 83,88,607. If unsigned, the allowable
range is from 0 to 16777215.
• BIGINT - A large integer that can be signed or unsigned. If signed, the
allowable range is from -9223372036854775808 to 9223372036854775807. If unsigned, the allowable
range is from 0 to 18446744073709551615.

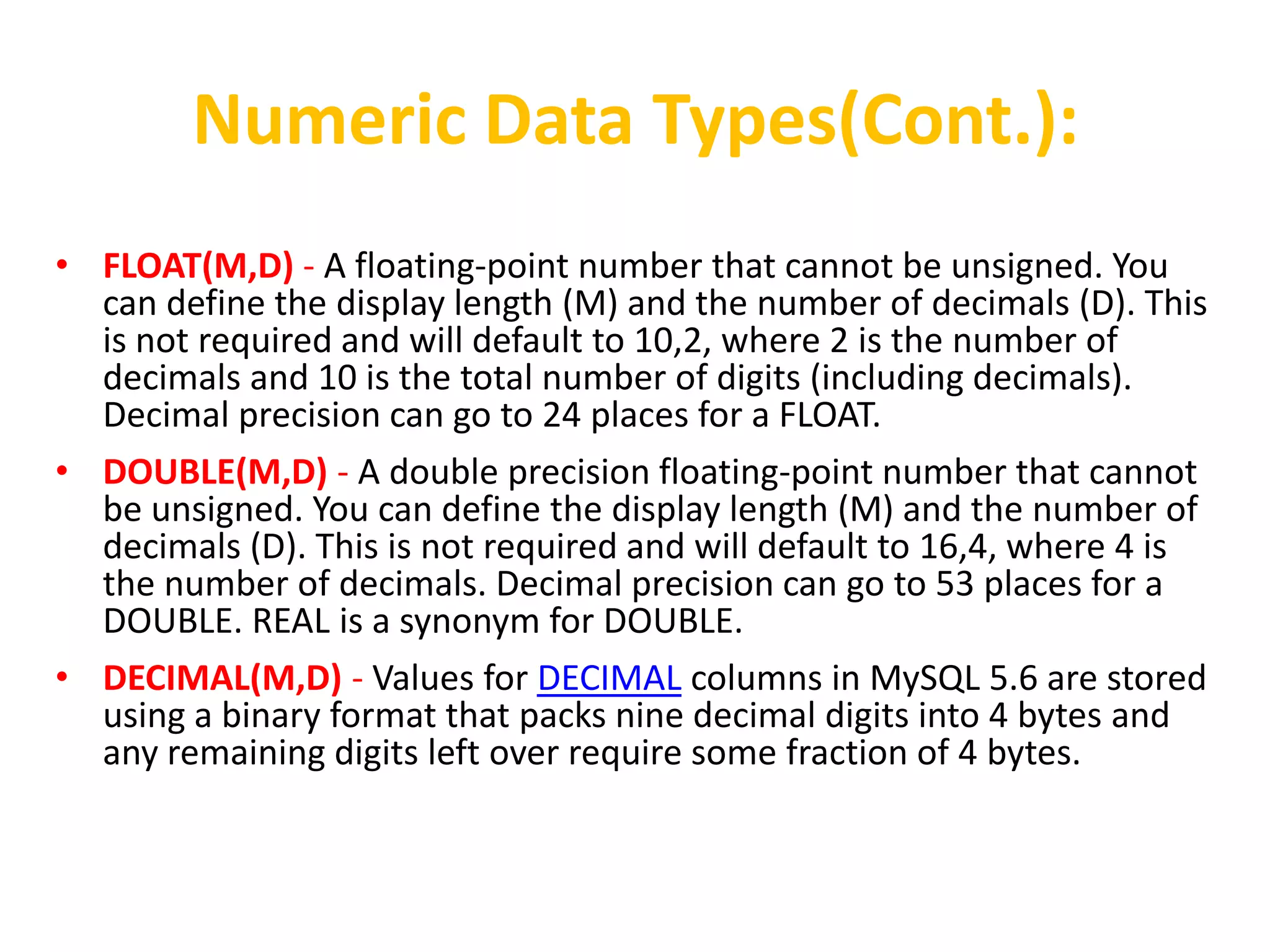

5. Numeric Data Types(Cont.):
• FLOAT(M,D) - A floating-point number that cannot be unsigned. You
can define the display length (M) and the number of decimals (D). This
is not required and will default to 10,2, where 2 is the number of
decimals and 10 is the total number of digits (including decimals).
Decimal precision can go to 24 places for a FLOAT.
• DOUBLE(M,D) - A double precision floating-point number that cannot
be unsigned. You can define the display length (M) and the number of
decimals (D). This is not required and will default to 16,4, where 4 is
the number of decimals. Decimal precision can go to 53 places for a
DOUBLE. REAL is a synonym for DOUBLE.
• DECIMAL(M,D) - Values for DECIMAL columns in MySQL 5.6 are stored
using a binary format that packs nine decimal digits into 4 bytes and
any remaining digits left over require some fraction of 4 bytes.

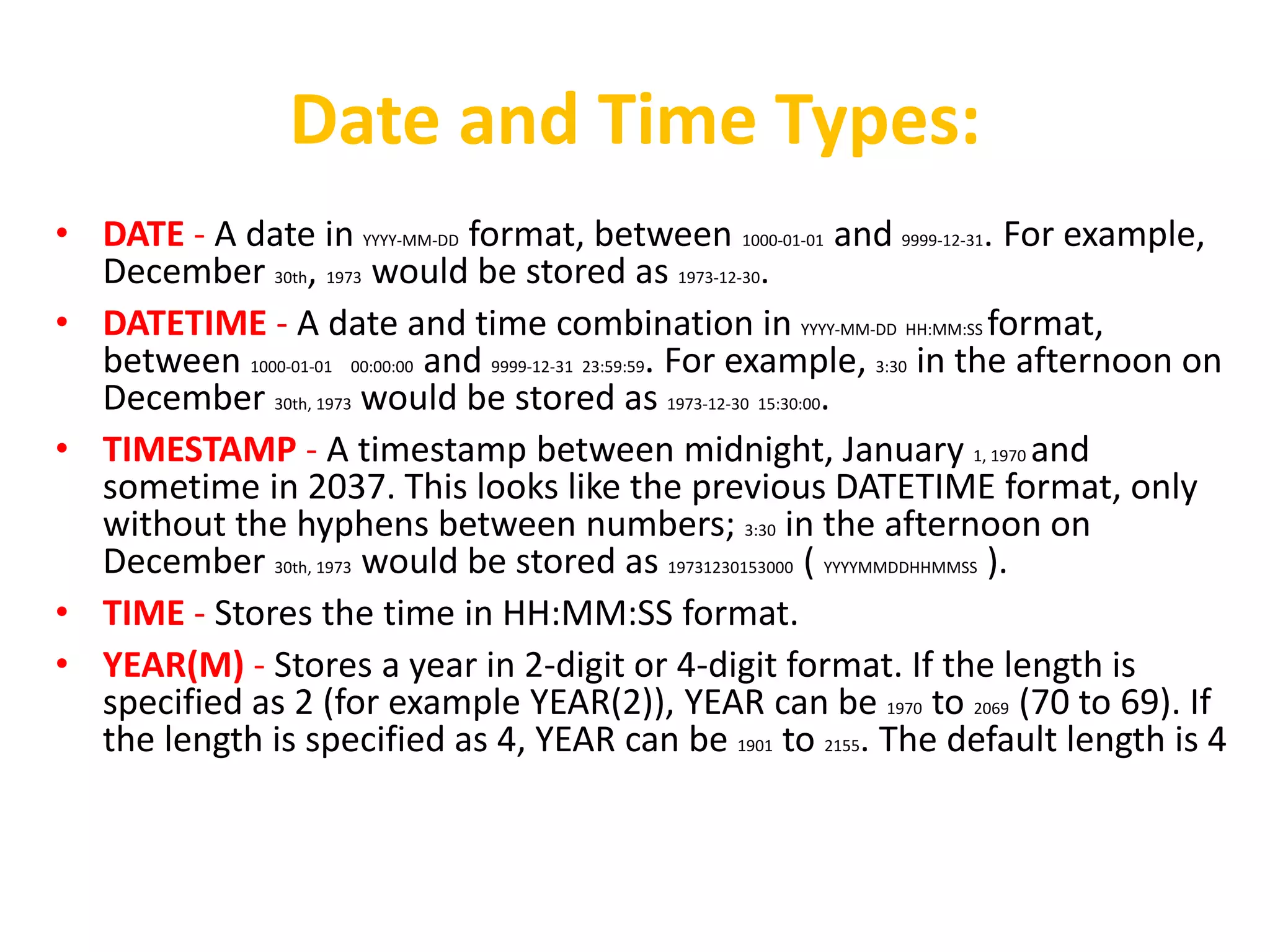

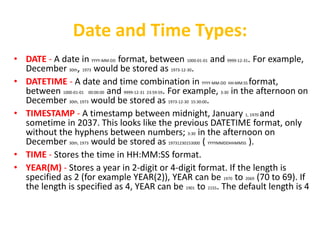

6. Date and Time Types:
• DATE - A date in YYYY-MM-DD format, between 1000-01-01 and 9999-12-31. For example,
December 30th, 1973 would be stored as 1973-12-30.
• DATETIME - A date and time combination in YYYY-MM-DD HH:MM:SS format,
between 1000-01-01 00:00:00 and 9999-12-31 23:59:59. For example, 3:30 in the afternoon on
December 30th, 1973 would be stored as 1973-12-30 15:30:00.
• TIMESTAMP - A timestamp between midnight, January 1, 1970 and
sometime in 2037. This looks like the previous DATETIME format, only
without the hyphens between numbers; 3:30 in the afternoon on
December 30th, 1973 would be stored as 19731230153000 ( YYYYMMDDHHMMSS ).
• TIME - Stores the time in HH:MM:SS format.
• YEAR(M) - Stores a year in 2-digit or 4-digit format. If the length is
specified as 2 (for example YEAR(2)), YEAR can be 1970 to 2069 (70 to 69). If
the length is specified as 4, YEAR can be 1901 to 2155. The default length is 4

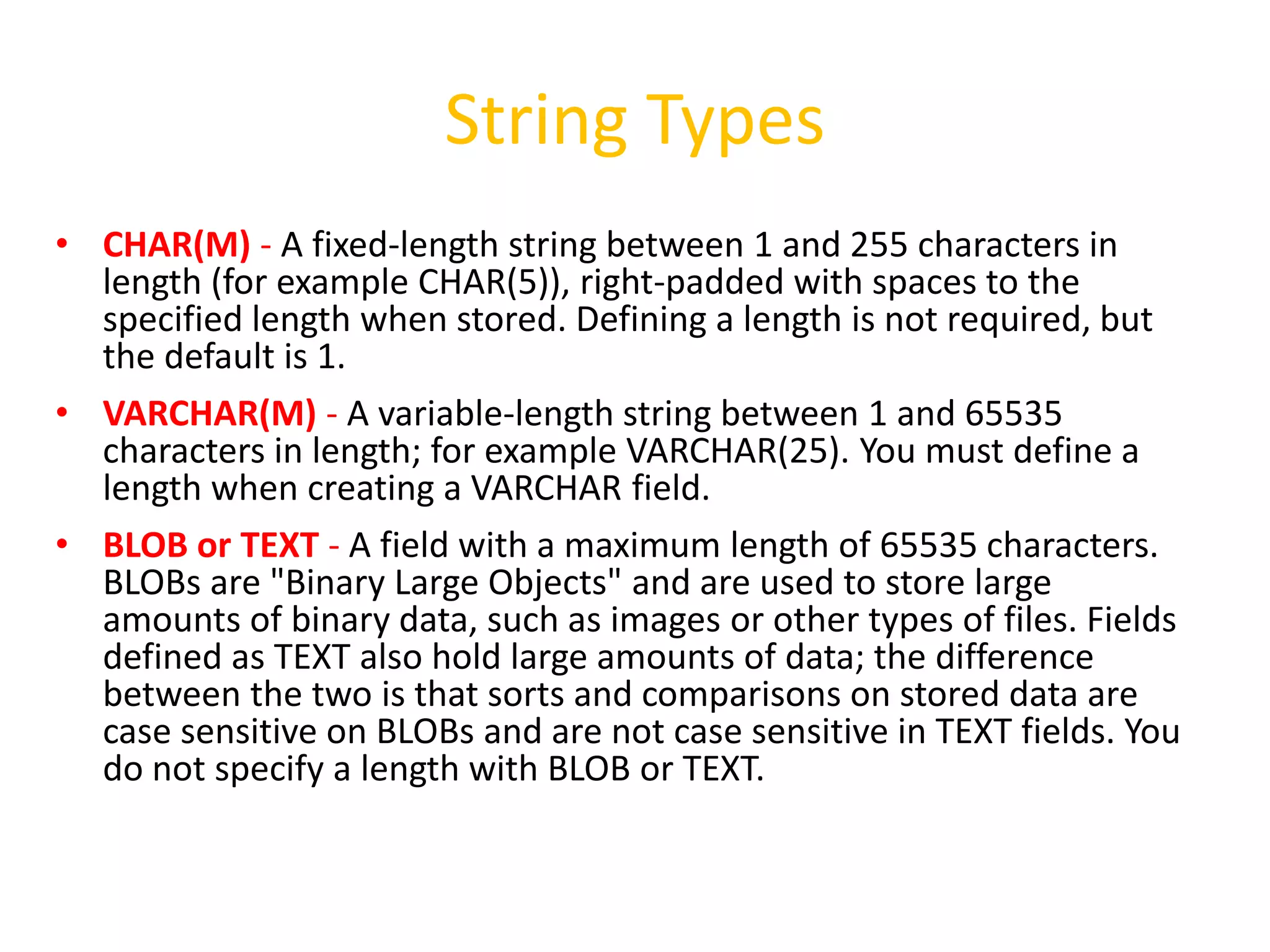

7. String Types
• CHAR(M) - A fixed-length string between 1 and 255 characters in
length (for example CHAR(5)), right-padded with spaces to the
specified length when stored. Defining a length is not required, but
the default is 1.
• VARCHAR(M) - A variable-length string between 1 and 65535
characters in length; for example VARCHAR(25). You must define a
length when creating a VARCHAR field.
• BLOB or TEXT - A field with a maximum length of 65535 characters.
BLOBs are "Binary Large Objects" and are used to store large
amounts of binary data, such as images or other types of files. Fields
defined as TEXT also hold large amounts of data; the difference
between the two is that sorts and comparisons on stored data are
case sensitive on BLOBs and are not case sensitive in TEXT fields. You
do not specify a length with BLOB or TEXT.

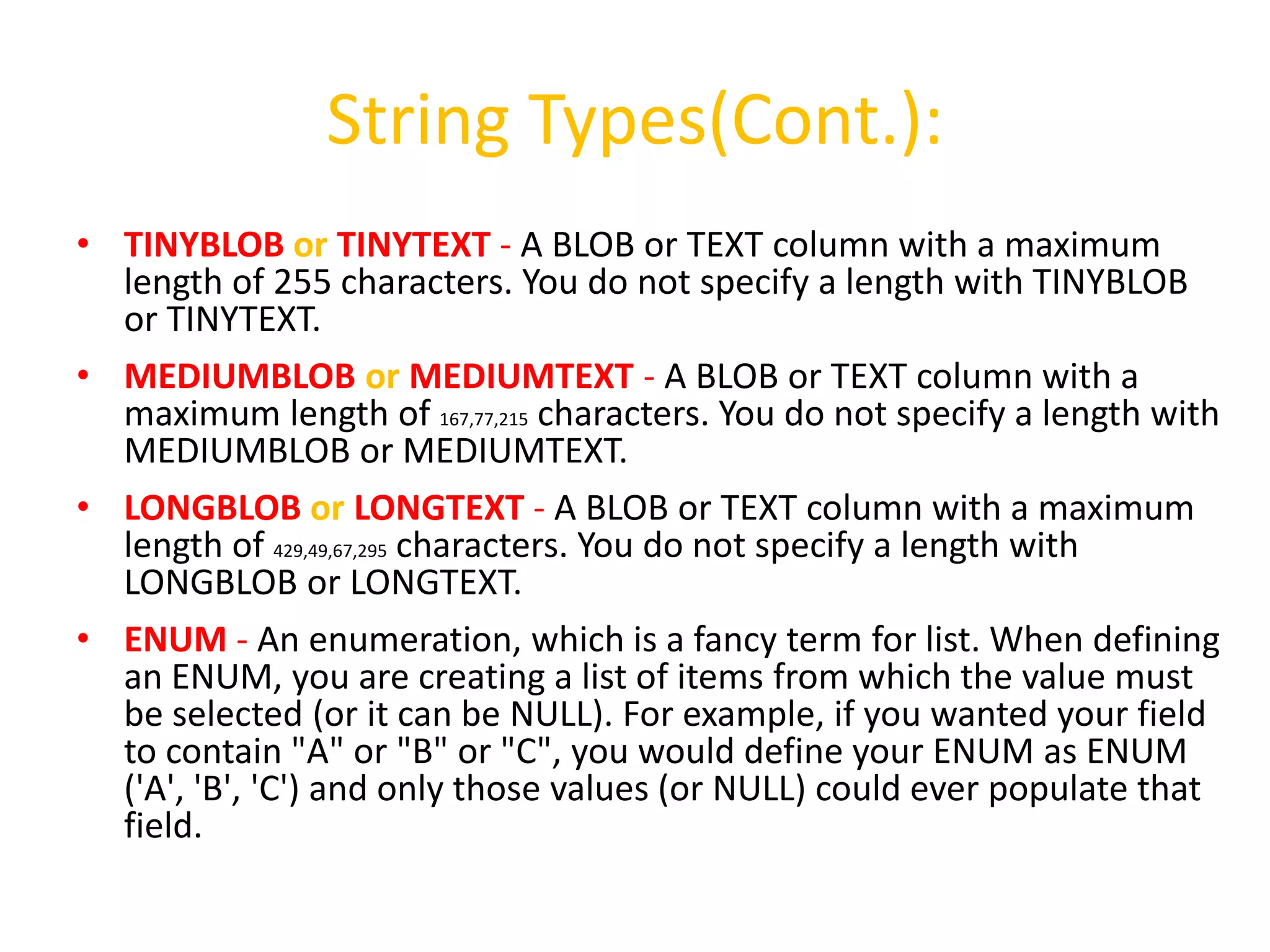

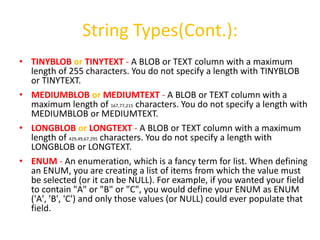

8. String Types(Cont.):
• TINYBLOB or TINYTEXT - A BLOB or TEXT column with a maximum
length of 255 characters. You do not specify a length with TINYBLOB
or TINYTEXT.
• MEDIUMBLOB or MEDIUMTEXT - A BLOB or TEXT column with a
maximum length of 167,77,215 characters. You do not specify a length with
MEDIUMBLOB or MEDIUMTEXT.
• LONGBLOB or LONGTEXT - A BLOB or TEXT column with a maximum
length of 429,49,67,295 characters. You do not specify a length with
LONGBLOB or LONGTEXT.
• ENUM - An enumeration, which is a fancy term for list. When defining
an ENUM, you are creating a list of items from which the value must
be selected (or it can be NULL). For example, if you wanted your field
to contain "A" or "B" or "C", you would define your ENUM as ENUM
('A', 'B', 'C') and only those values (or NULL) could ever populate that
field.

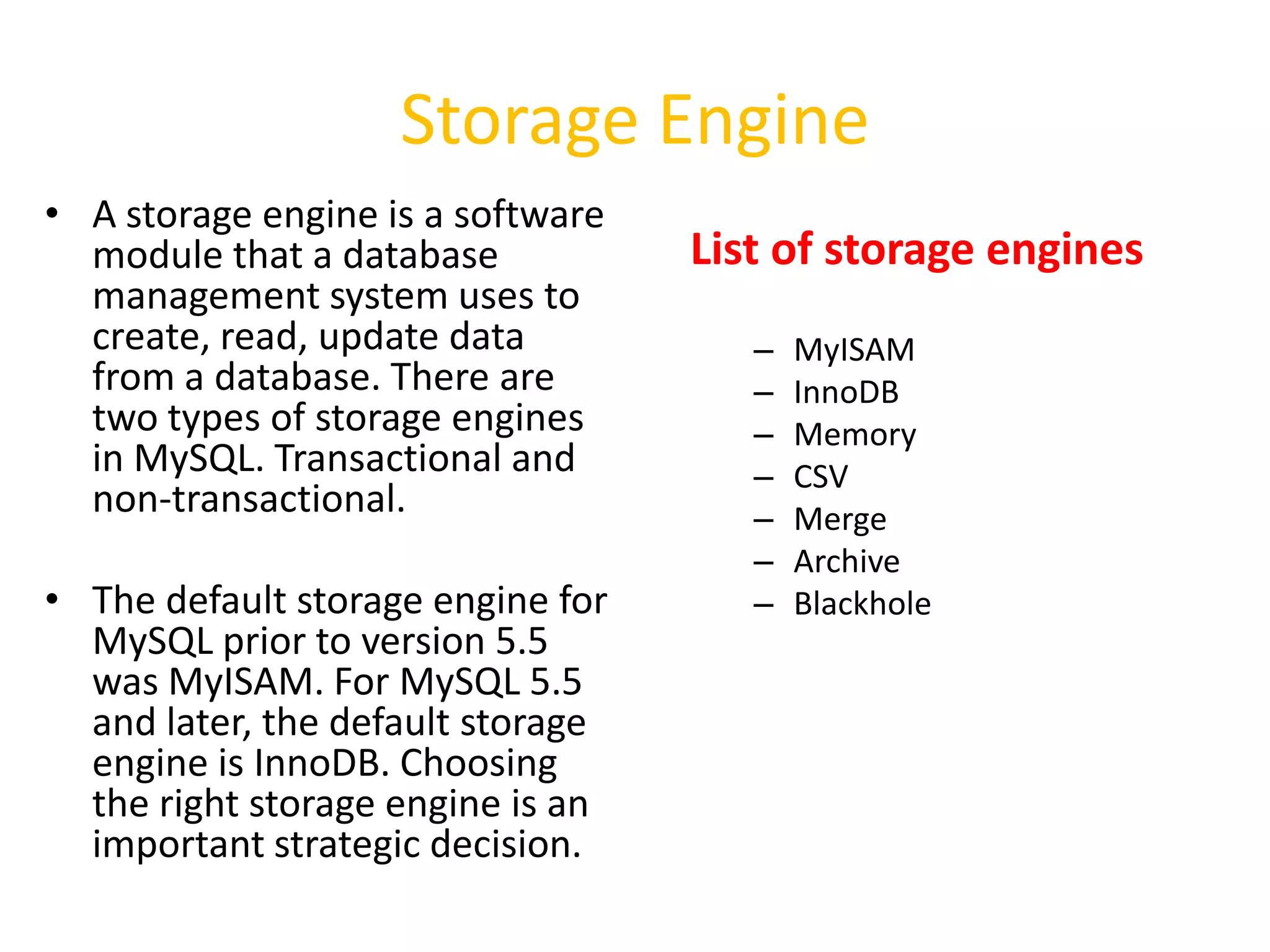

9. Storage Engine
• A storage engine is a software
module that a database List of storage engines
management system uses to
create, read, update data – MyISAM
from a database. There are – InnoDB
two types of storage engines – Memory
in MySQL. Transactional and – CSV
non-transactional. – Merge
– Archive
• The default storage engine for – Blackhole
MySQL prior to version 5.5
was MyISAM. For MySQL 5.5
and later, the default storage
engine is InnoDB. Choosing
the right storage engine is an
important strategic decision.

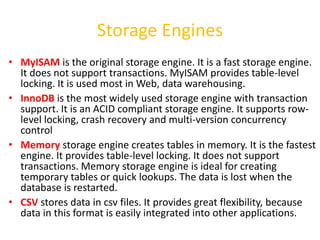

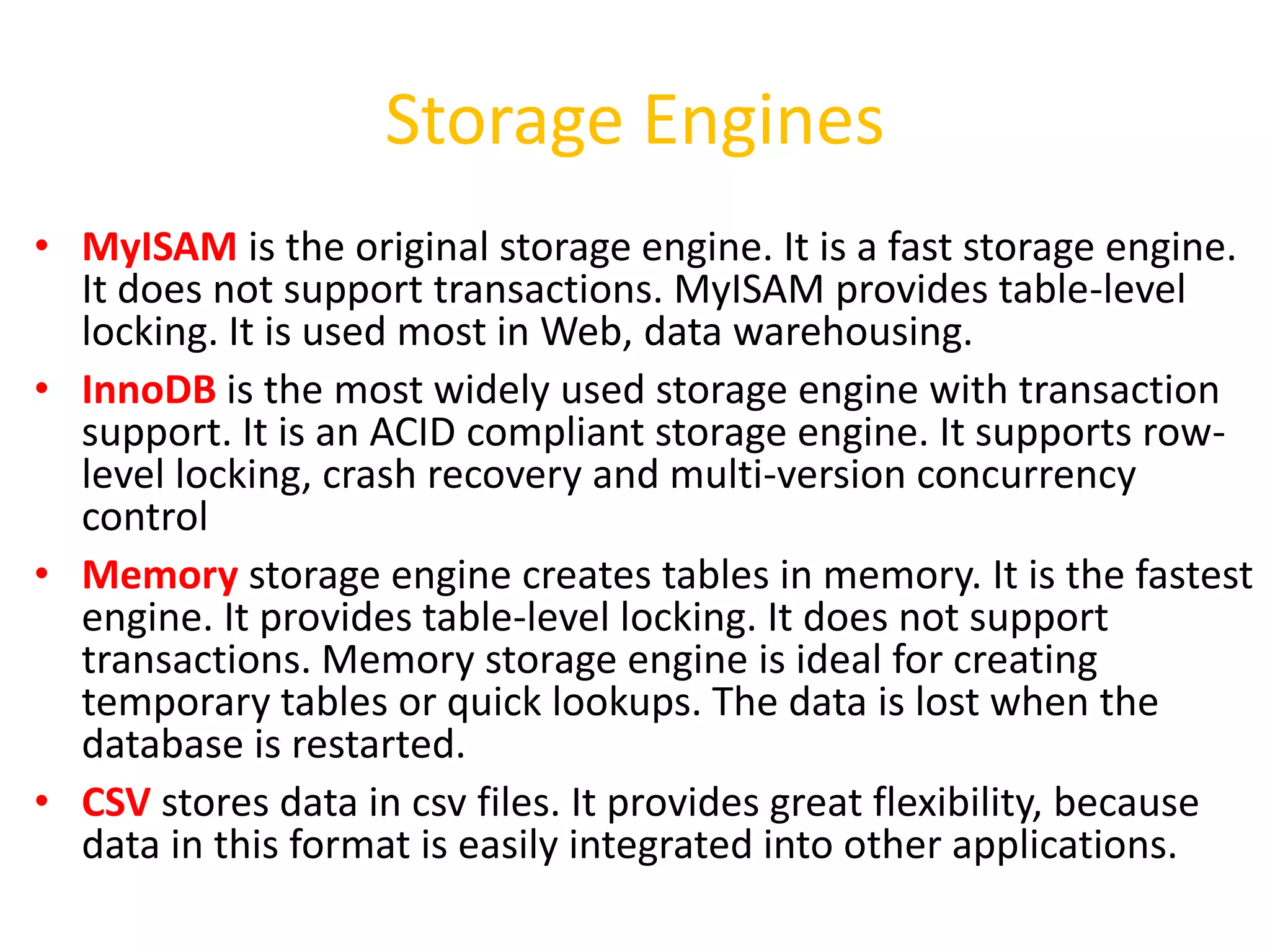

10. Storage Engines
• MyISAM is the original storage engine. It is a fast storage engine.
It does not support transactions. MyISAM provides table-level
locking. It is used most in Web, data warehousing.
• InnoDB is the most widely used storage engine with transaction
support. It is an ACID compliant storage engine. It supports row-
level locking, crash recovery and multi-version concurrency
control
• Memory storage engine creates tables in memory. It is the fastest
engine. It provides table-level locking. It does not support
transactions. Memory storage engine is ideal for creating
temporary tables or quick lookups. The data is lost when the
database is restarted.
• CSV stores data in csv files. It provides great flexibility, because
data in this format is easily integrated into other applications.

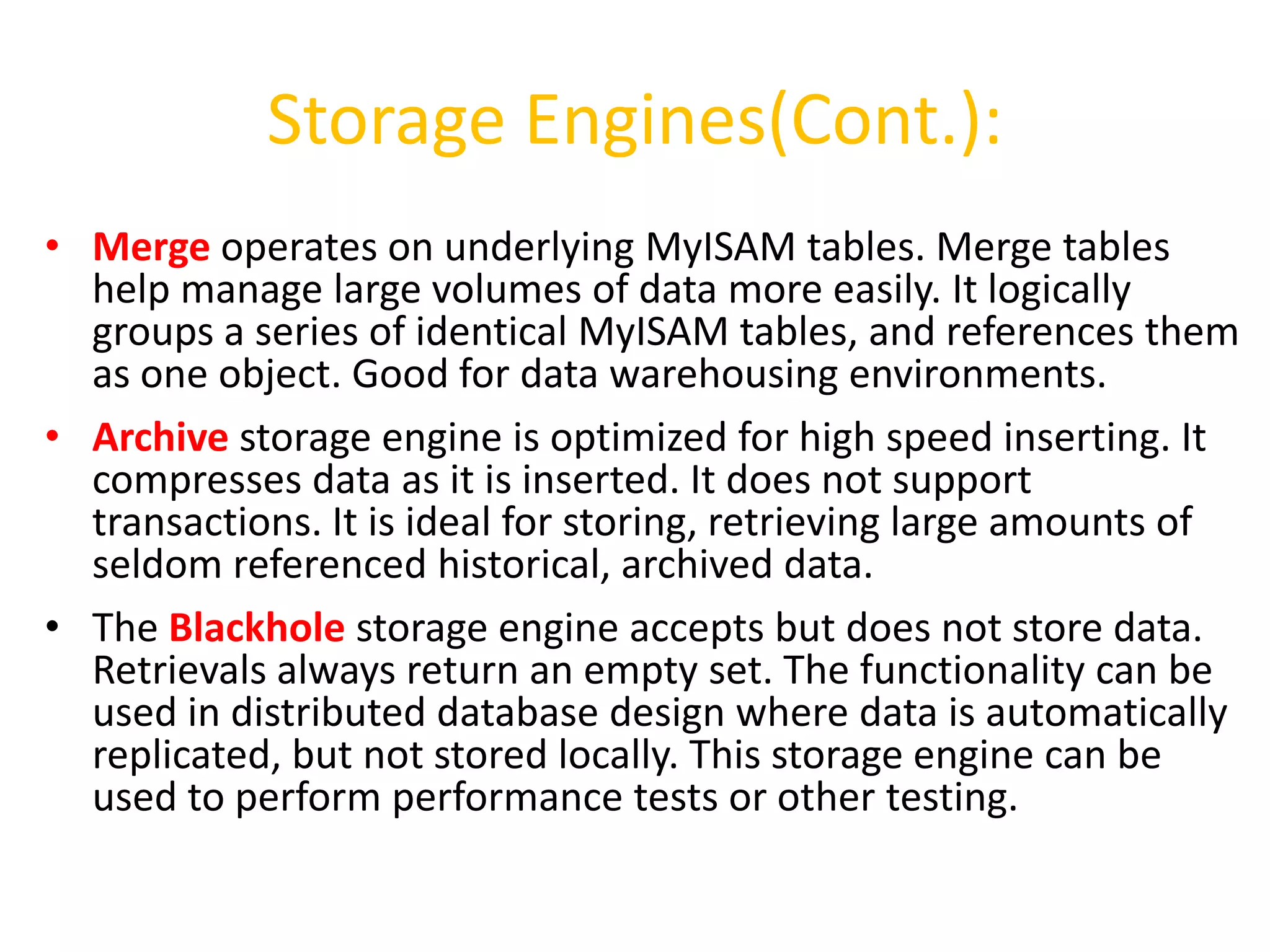

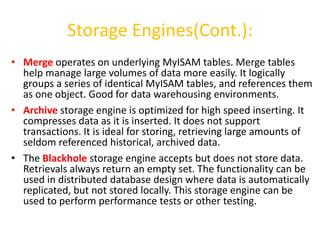

11. Storage Engines(Cont.):
• Merge operates on underlying MyISAM tables. Merge tables
help manage large volumes of data more easily. It logically
groups a series of identical MyISAM tables, and references them
as one object. Good for data warehousing environments.
• Archive storage engine is optimized for high speed inserting. It
compresses data as it is inserted. It does not support
transactions. It is ideal for storing, retrieving large amounts of
seldom referenced historical, archived data.
• The Blackhole storage engine accepts but does not store data.
Retrievals always return an empty set. The functionality can be
used in distributed database design where data is automatically
replicated, but not stored locally. This storage engine can be
used to perform performance tests or other testing.

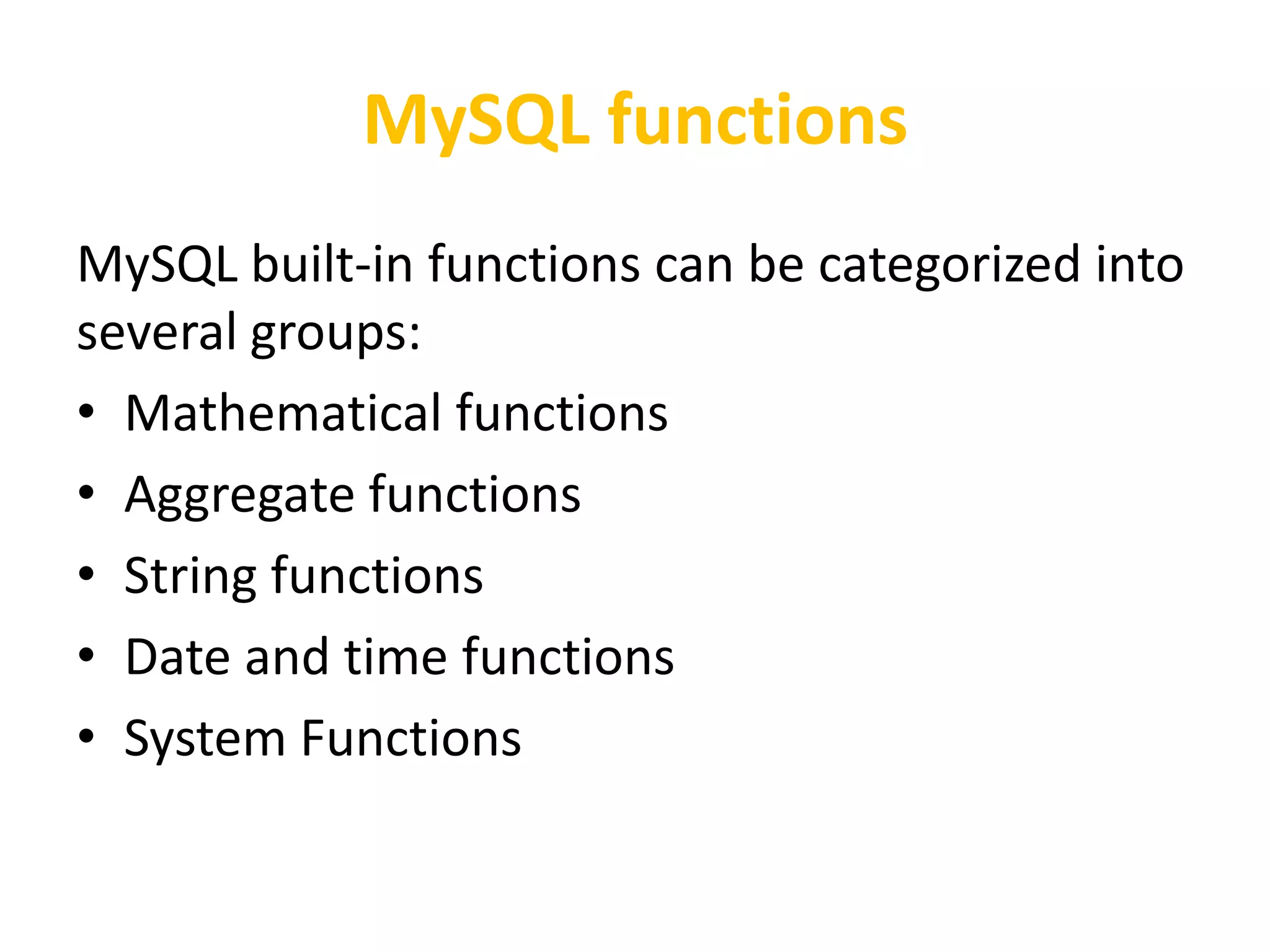

12. MySQL functions
MySQL built-in functions can be categorized into
several groups:
• Mathematical functions
• Aggregate functions
• String functions
• Date and time functions
• System Functions

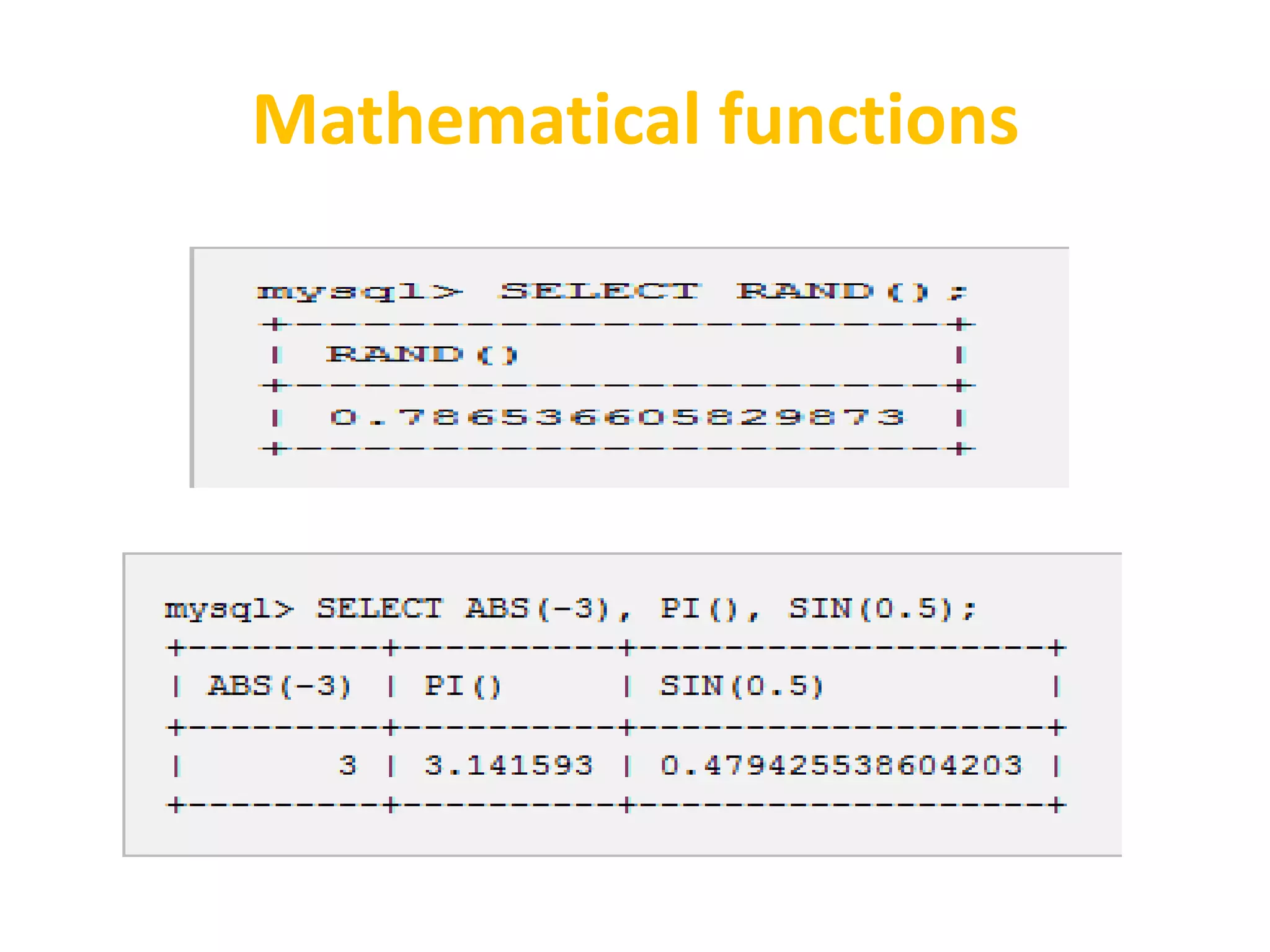

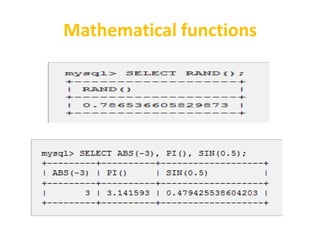

13. Mathematical functions

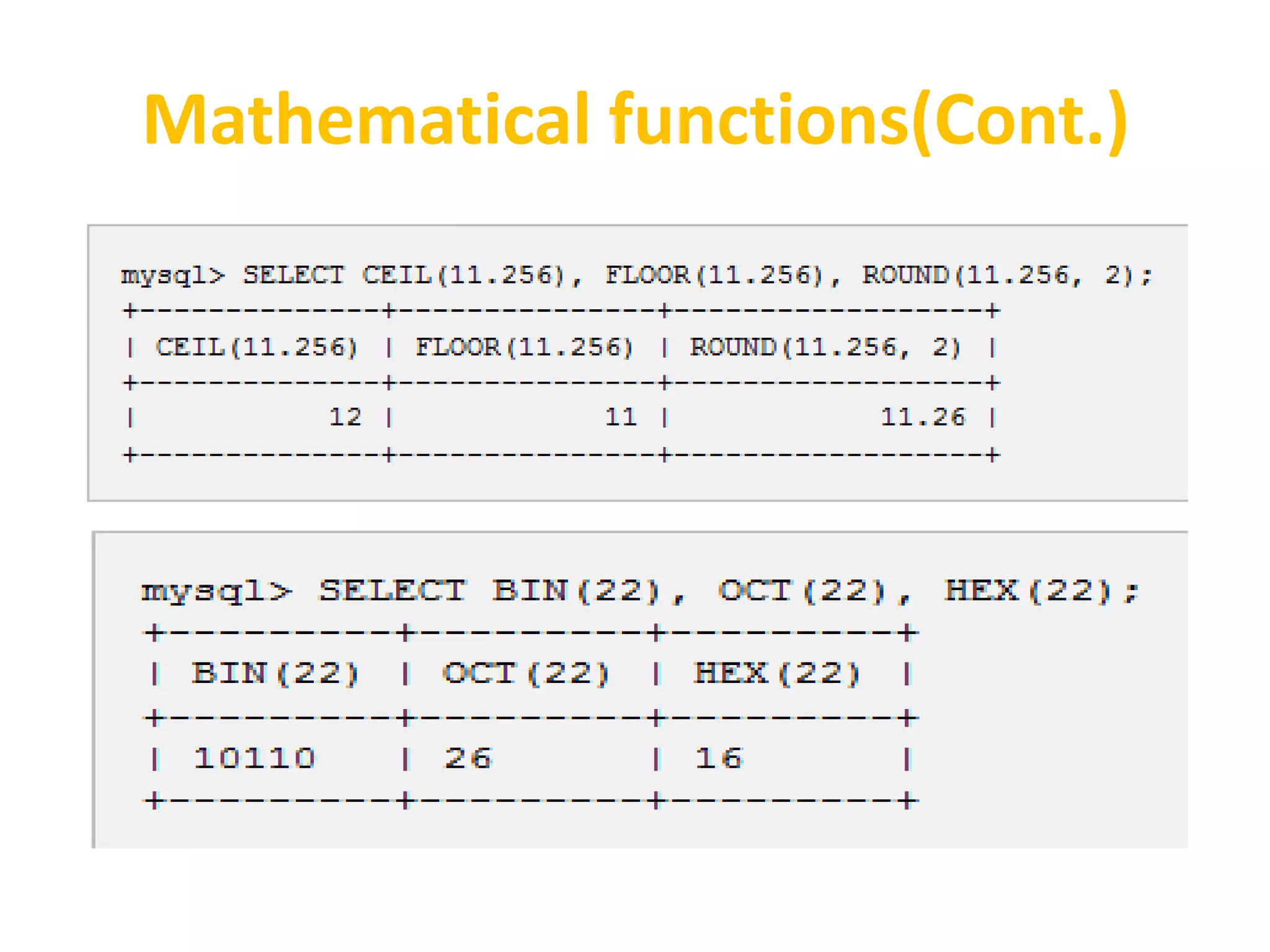

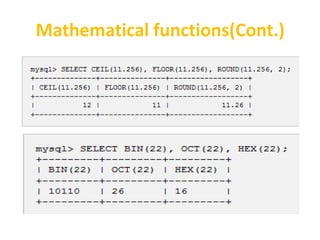

14. Mathematical functions(Cont.)

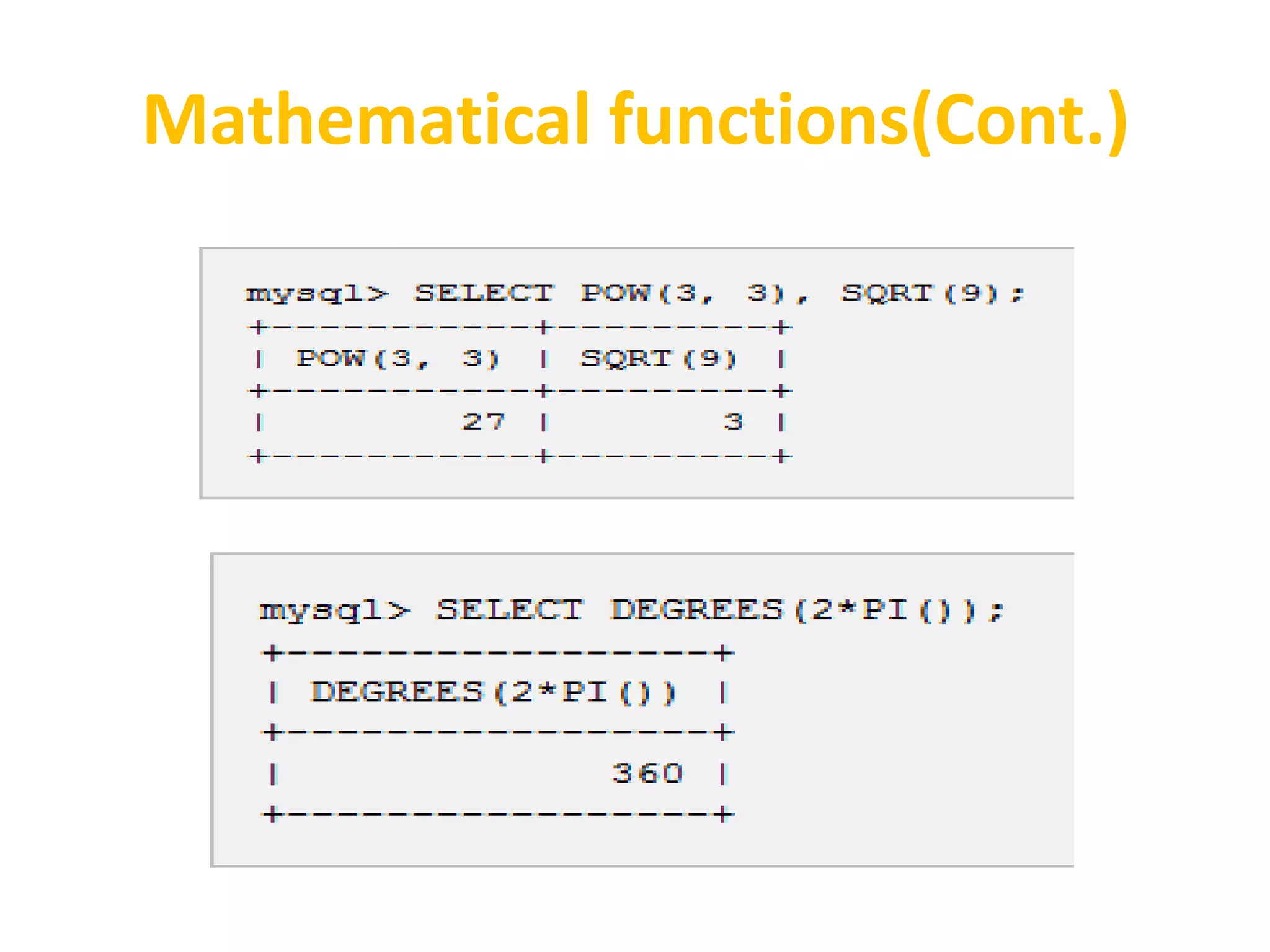

15. Mathematical functions(Cont.)

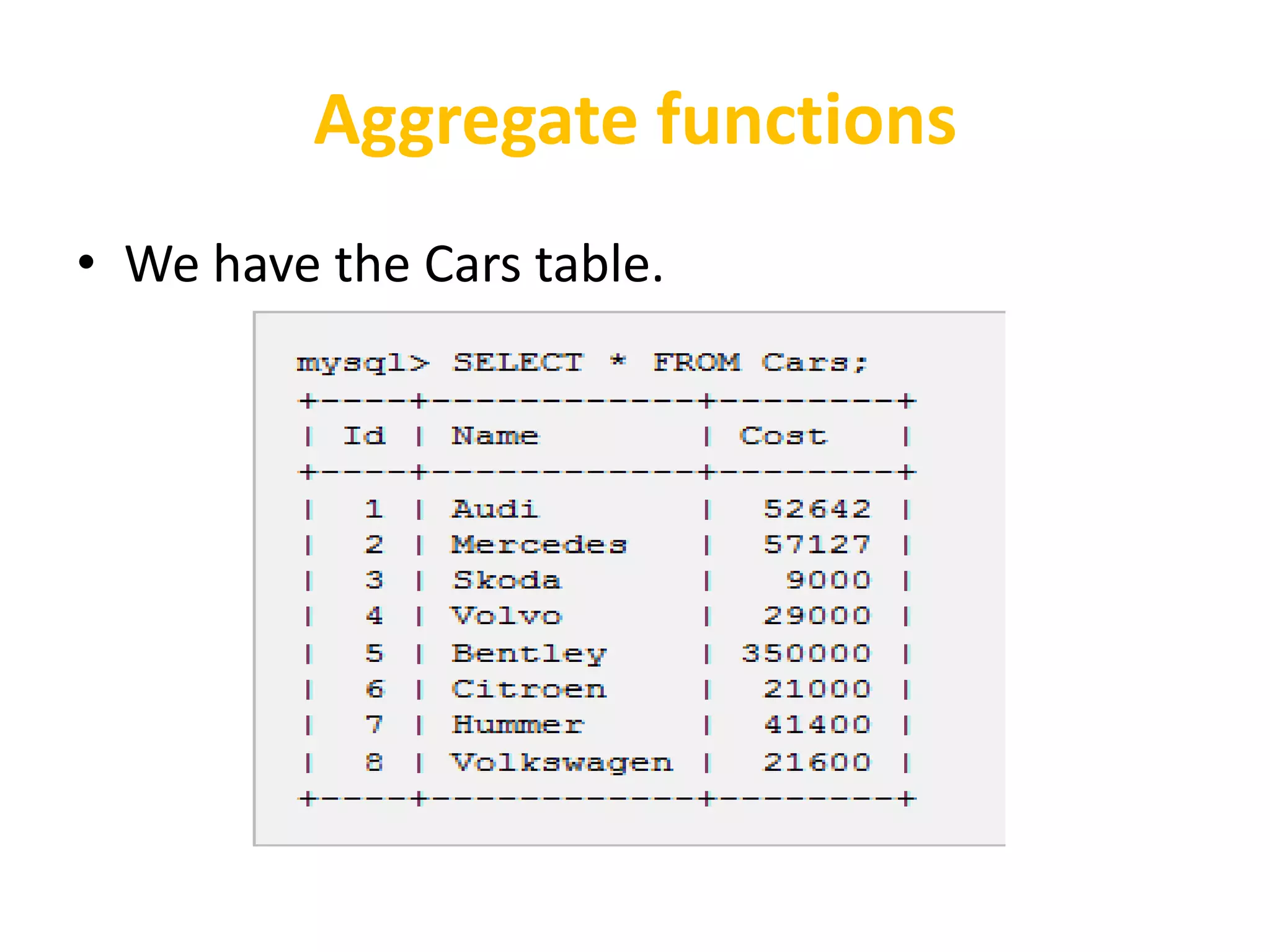

16. Aggregate functions
• We have the Cars table.

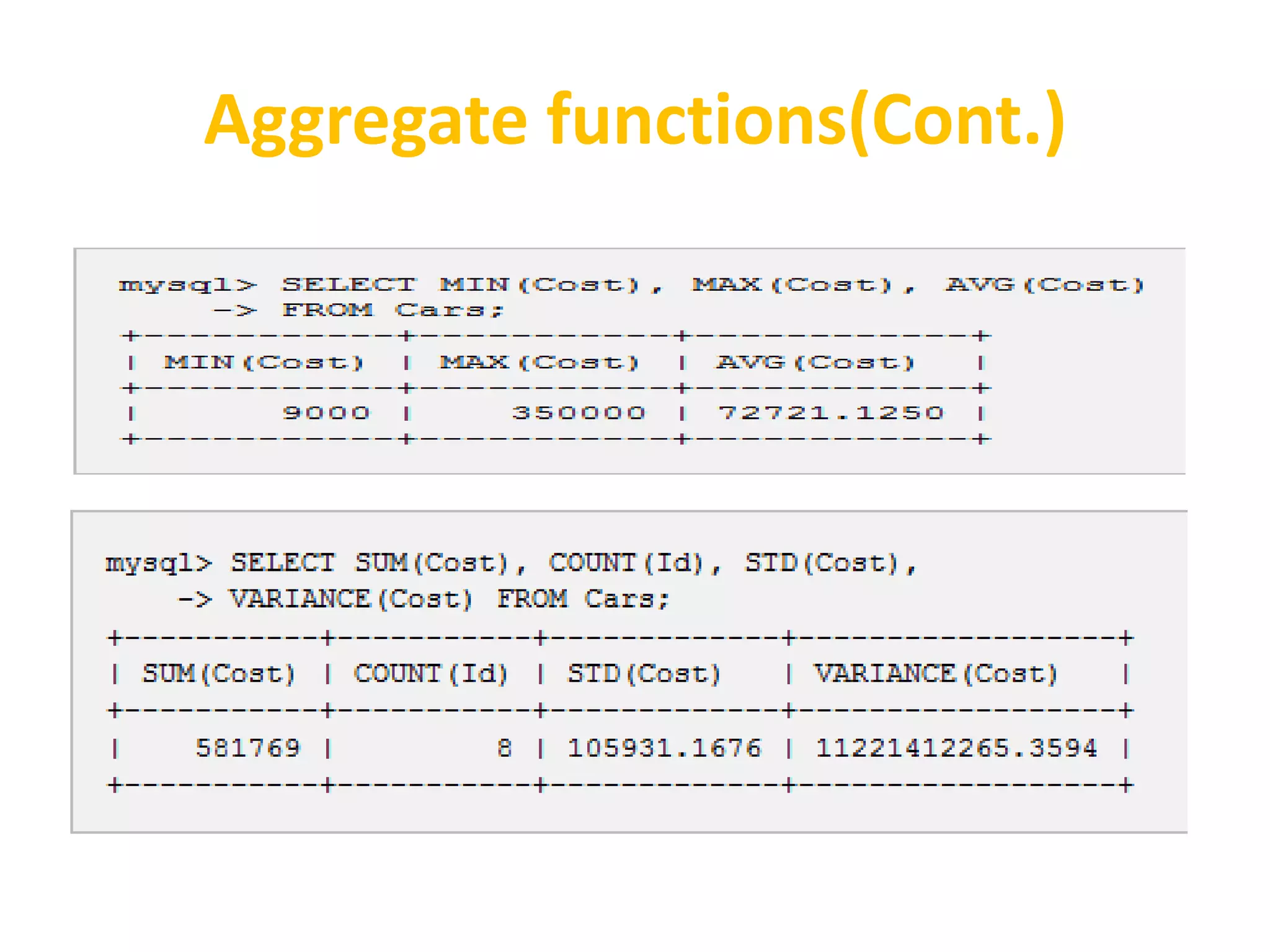

17. Aggregate functions(Cont.)

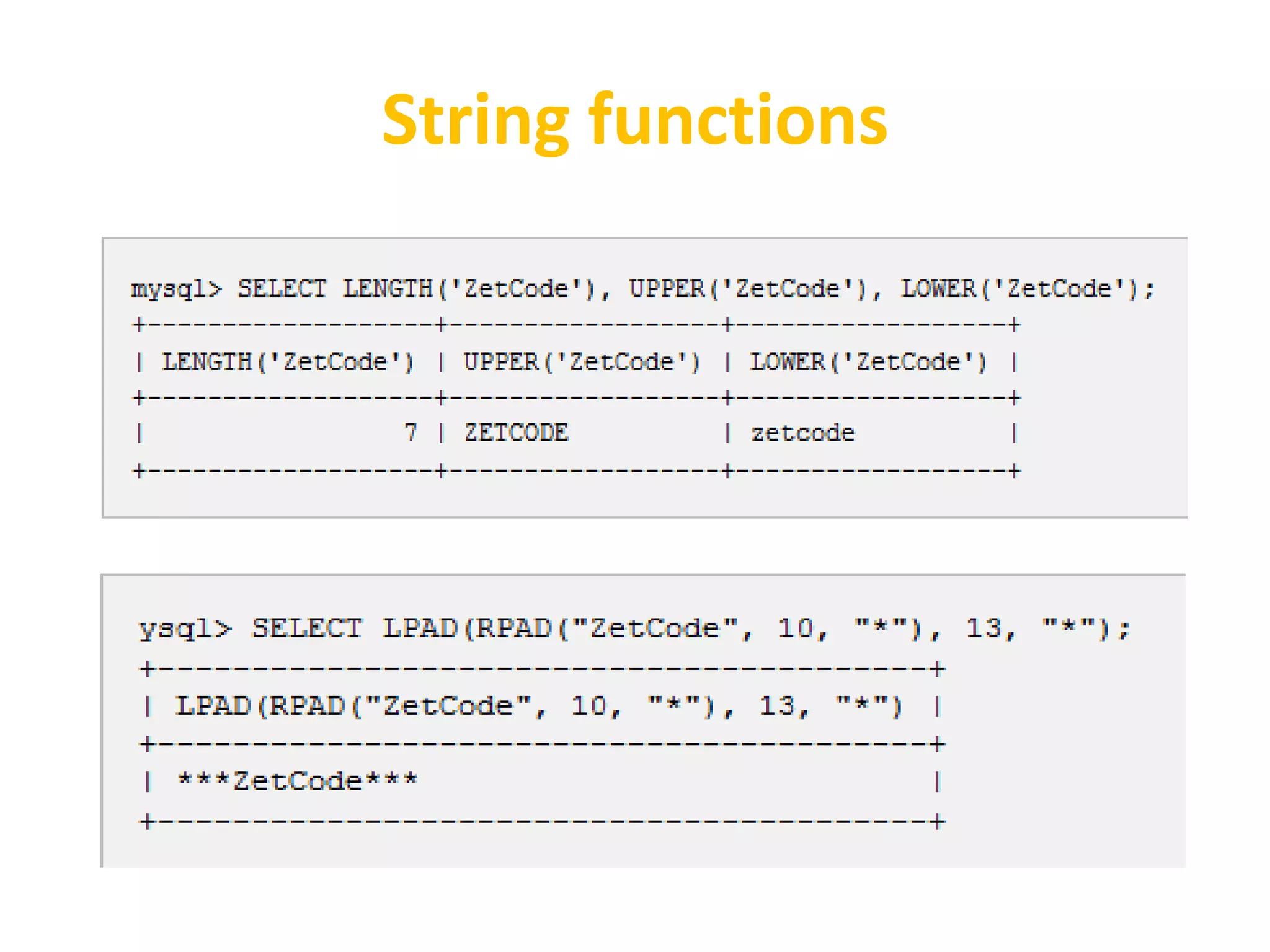

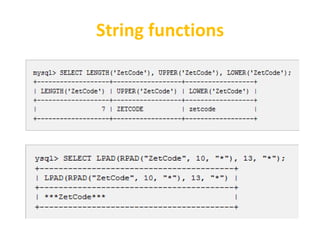

18. String functions

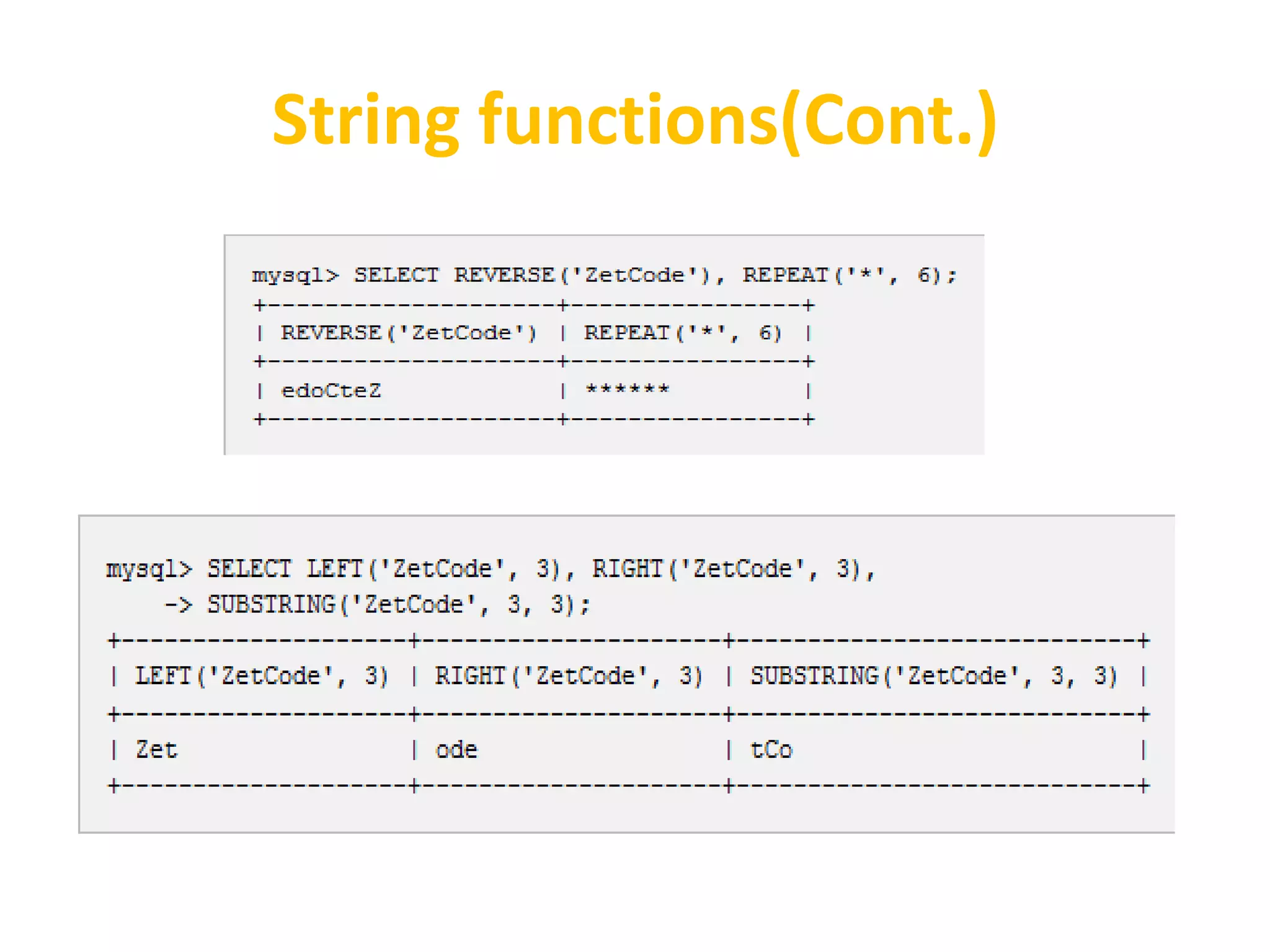

19. String functions(Cont.)

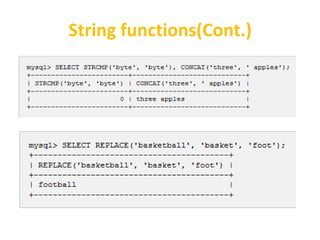

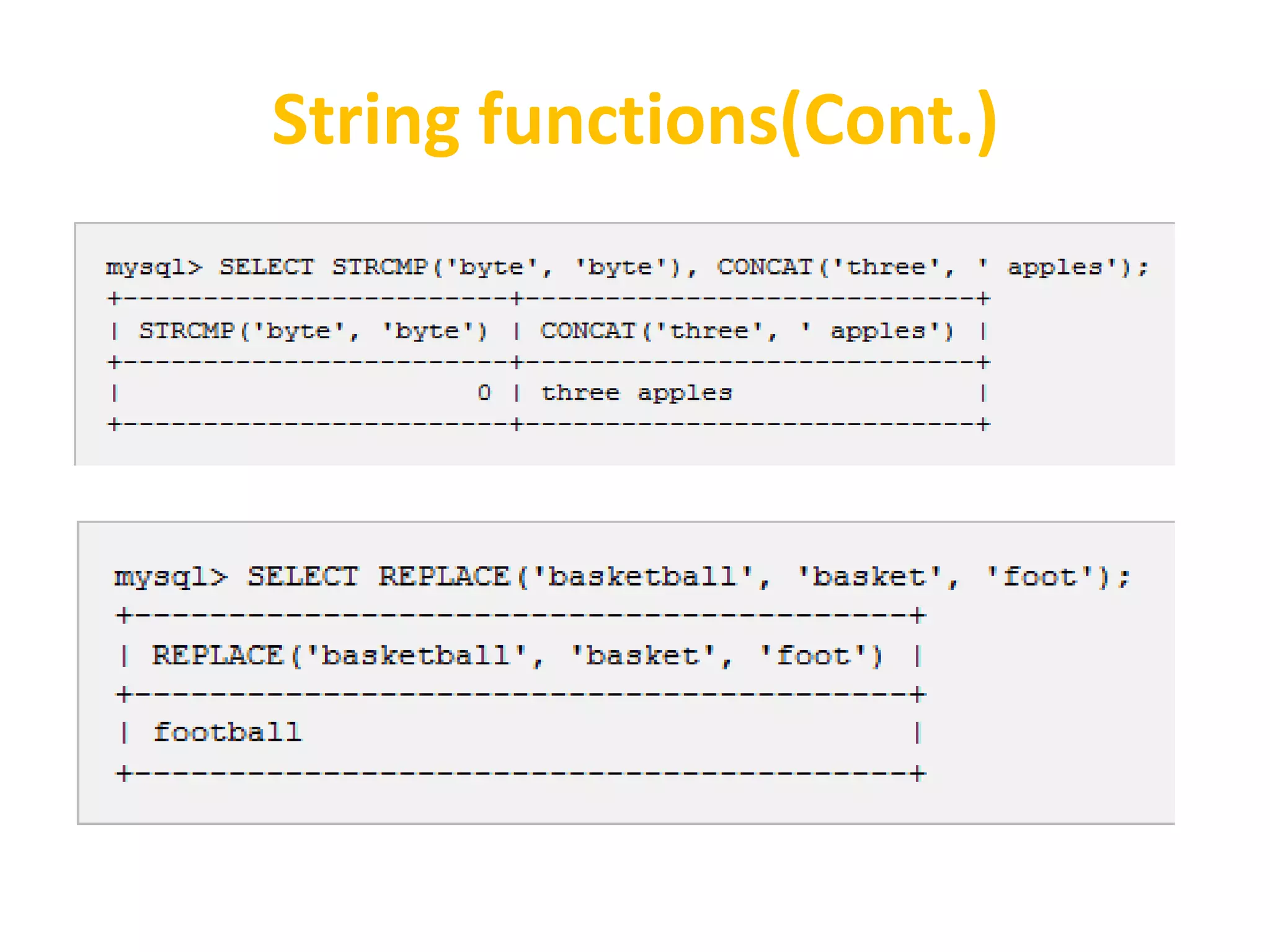

20. String functions(Cont.)

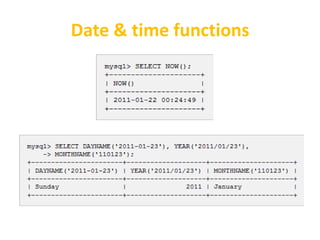

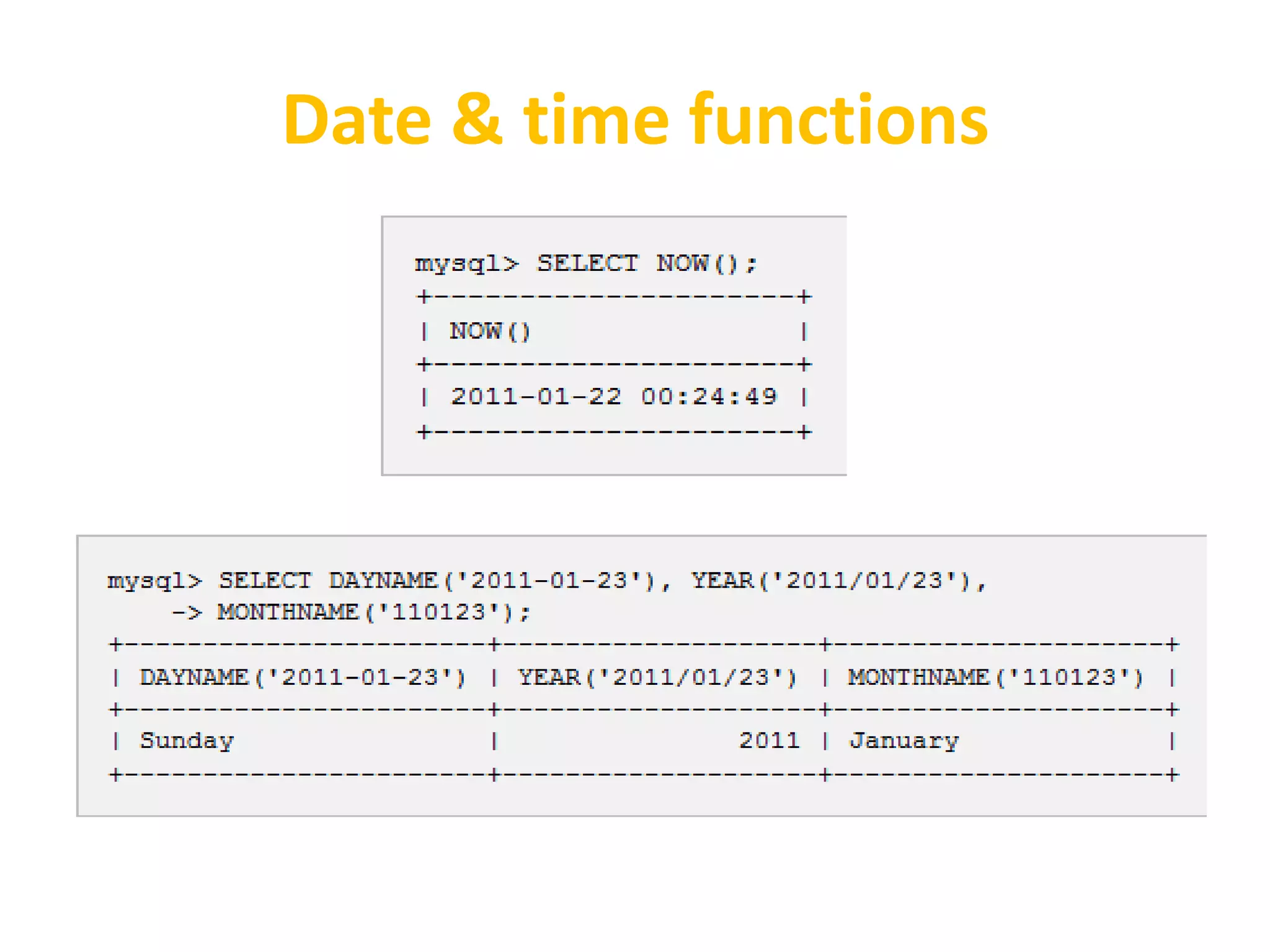

21. Date & time functions

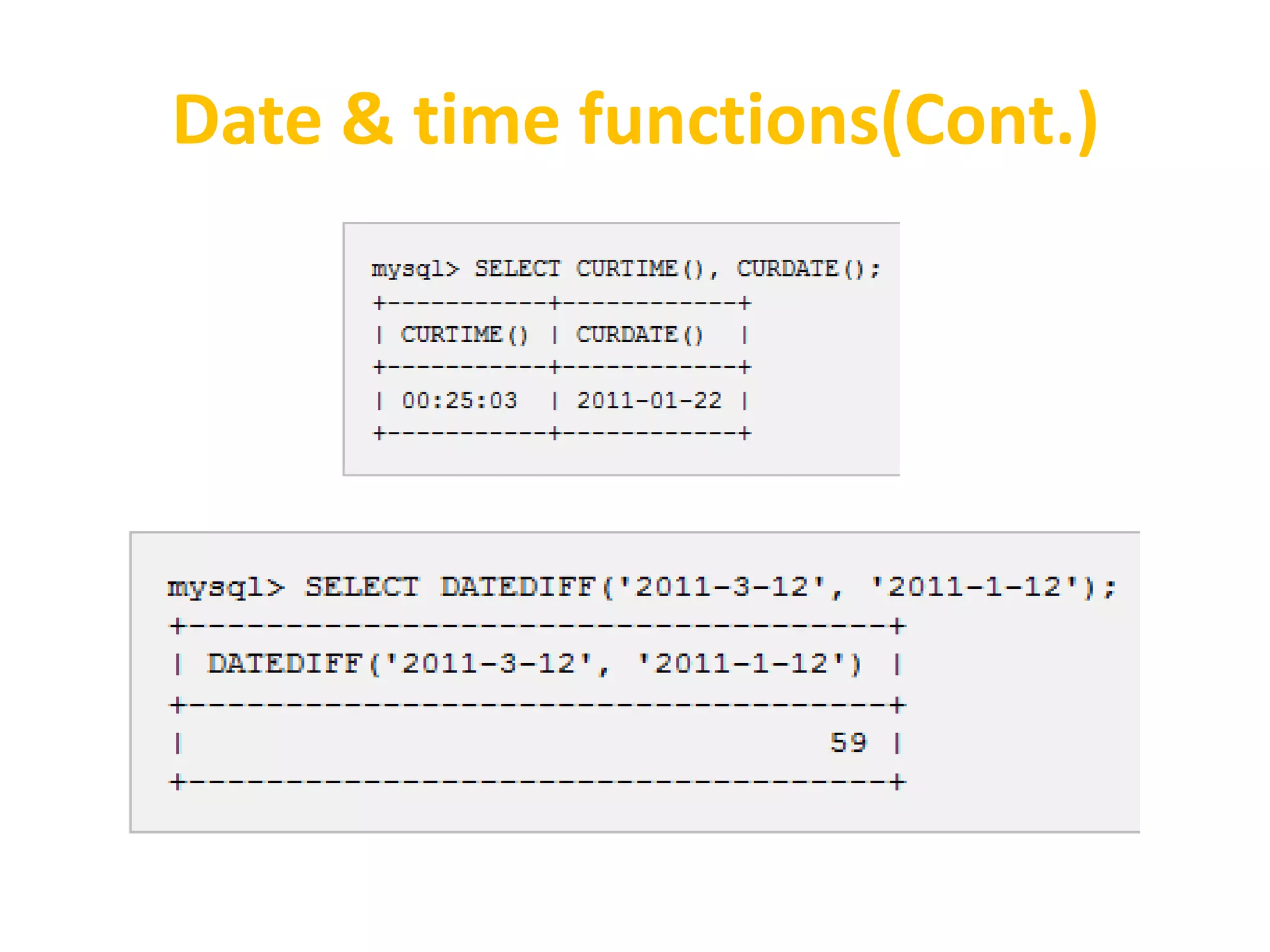

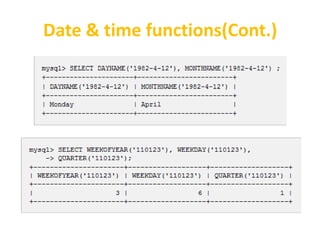

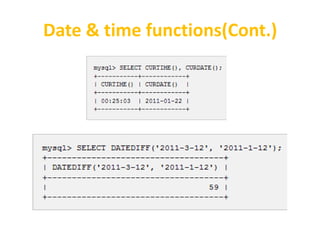

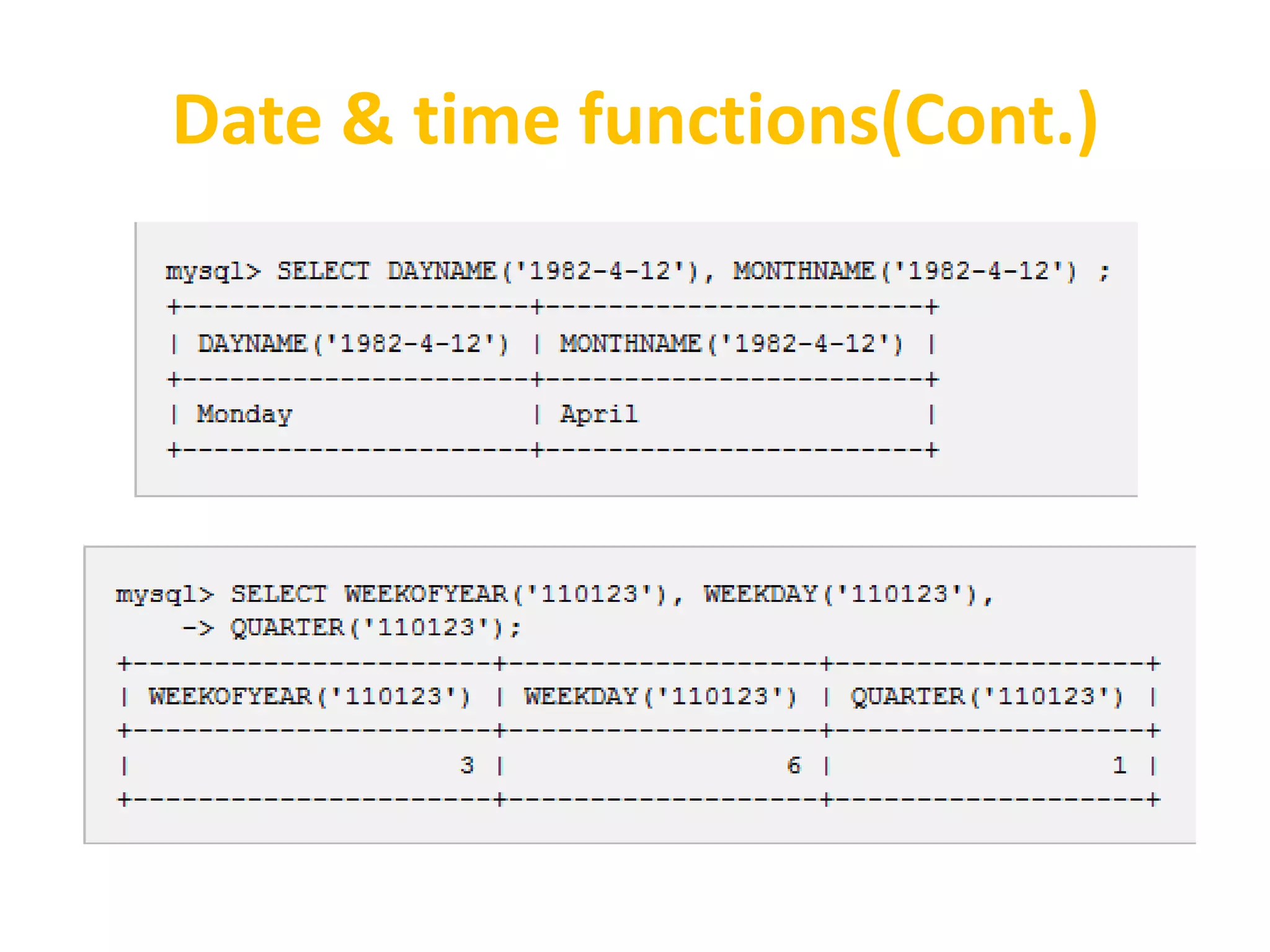

22. Date & time functions(Cont.)

23. Date & time functions(Cont.)

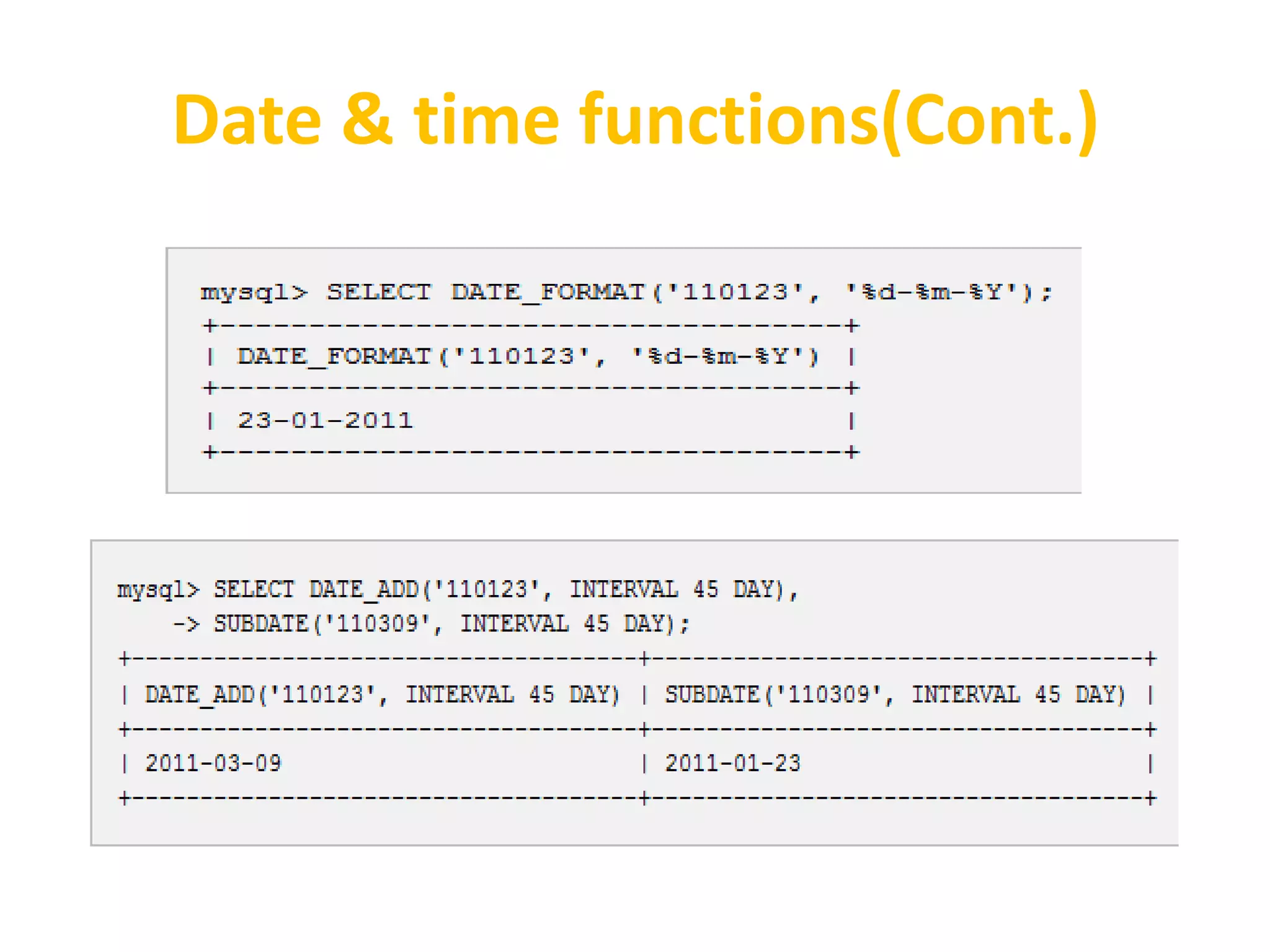

24. Date & time functions(Cont.)

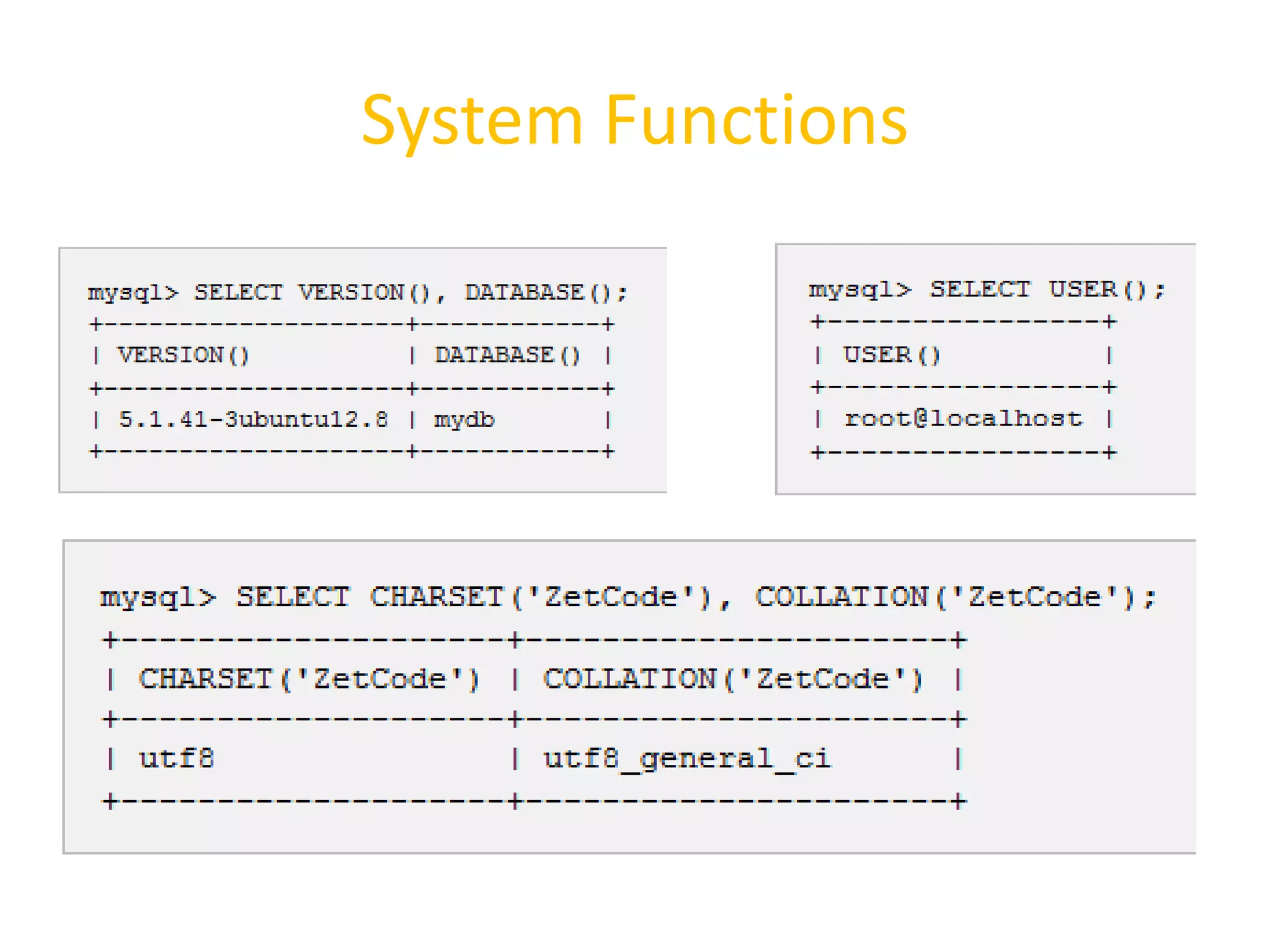

25. System Functions

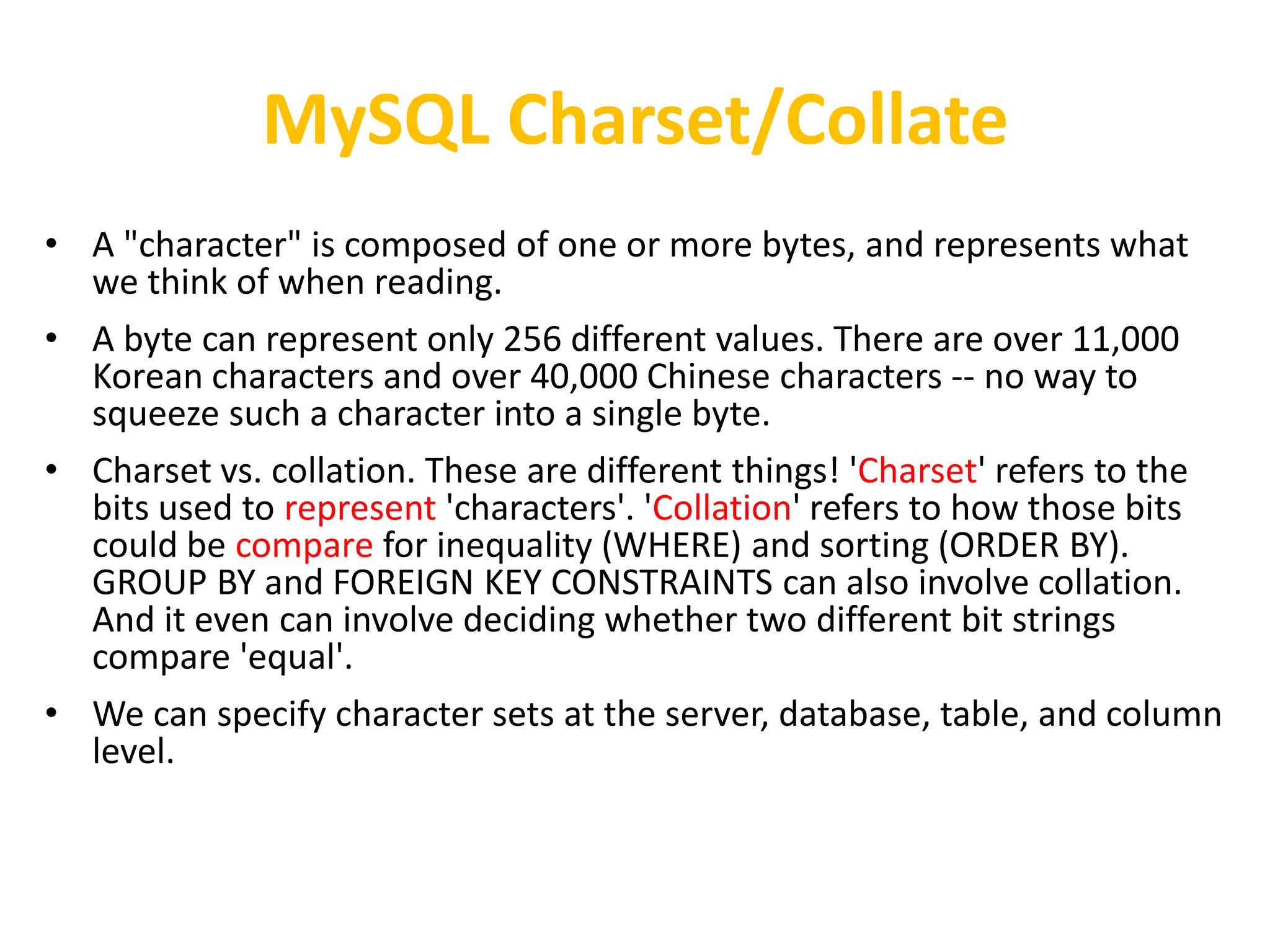

26. MySQL Charset/Collate
• A "character" is composed of one or more bytes, and represents what
we think of when reading.
• A byte can represent only 256 different values. There are over 11,000
Korean characters and over 40,000 Chinese characters -- no way to
squeeze such a character into a single byte.
• Charset vs. collation. These are different things! 'Charset' refers to the
bits used to represent 'characters'. 'Collation' refers to how those bits
could be compare for inequality (WHERE) and sorting (ORDER BY).
GROUP BY and FOREIGN KEY CONSTRAINTS can also involve collation.
And it even can involve deciding whether two different bit strings
compare 'equal'.
• We can specify character sets at the server, database, table, and column
level.

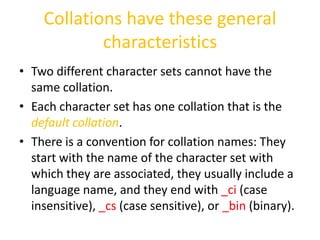

27. Collations have these general
characteristics
• Two different character sets cannot have the
same collation.
• Each character set has one collation that is the
default collation.
• There is a convention for collation names: They
start with the name of the character set with
which they are associated, they usually include a
language name, and they end with _ci (case
insensitive), _cs (case sensitive), or _bin (binary).

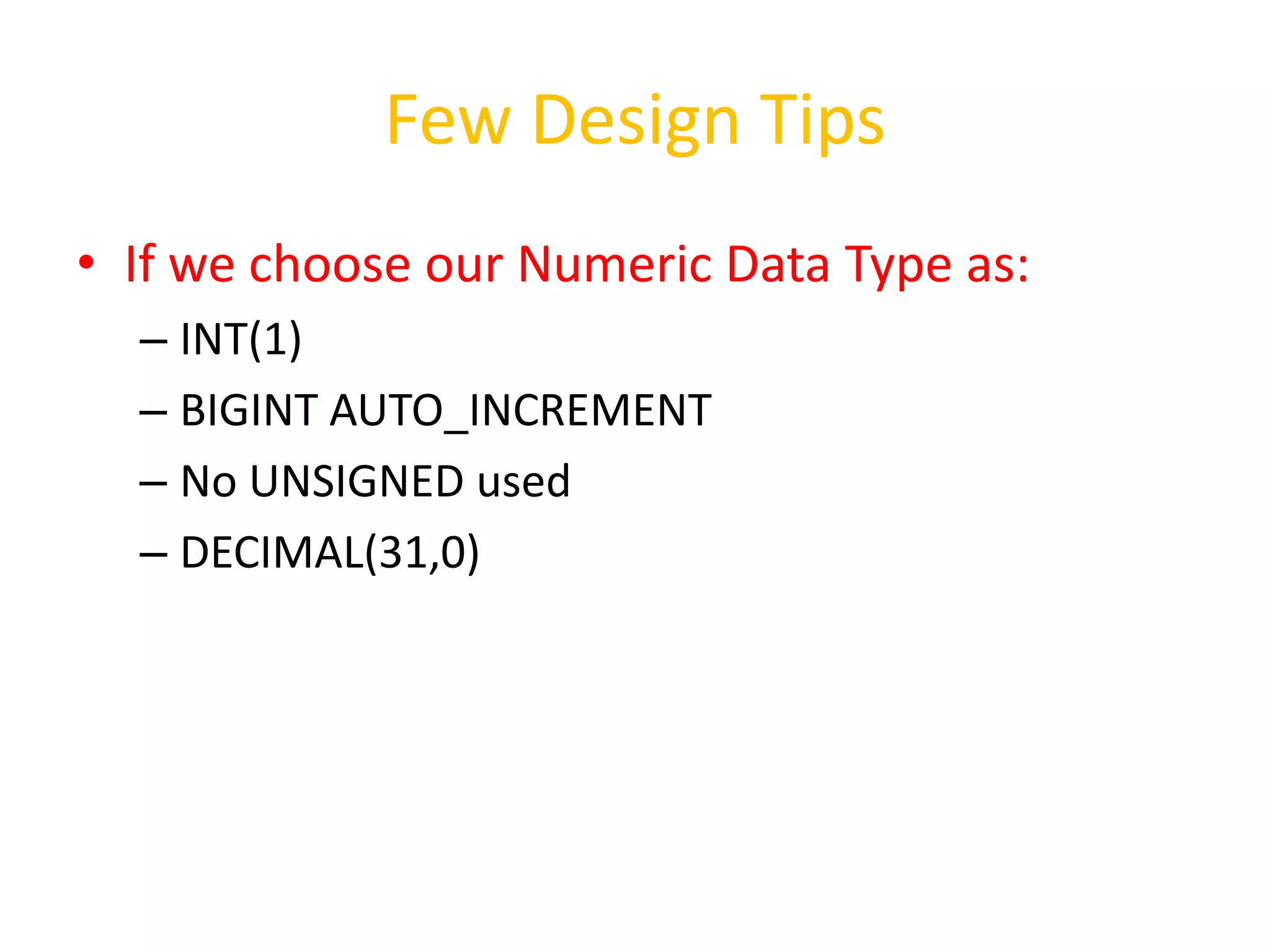

28. Few Design Tips
• If we choose our Numeric Data Type as:
– INT(1)
– BIGINT AUTO_INCREMENT
– No UNSIGNED used
– DECIMAL(31,0)

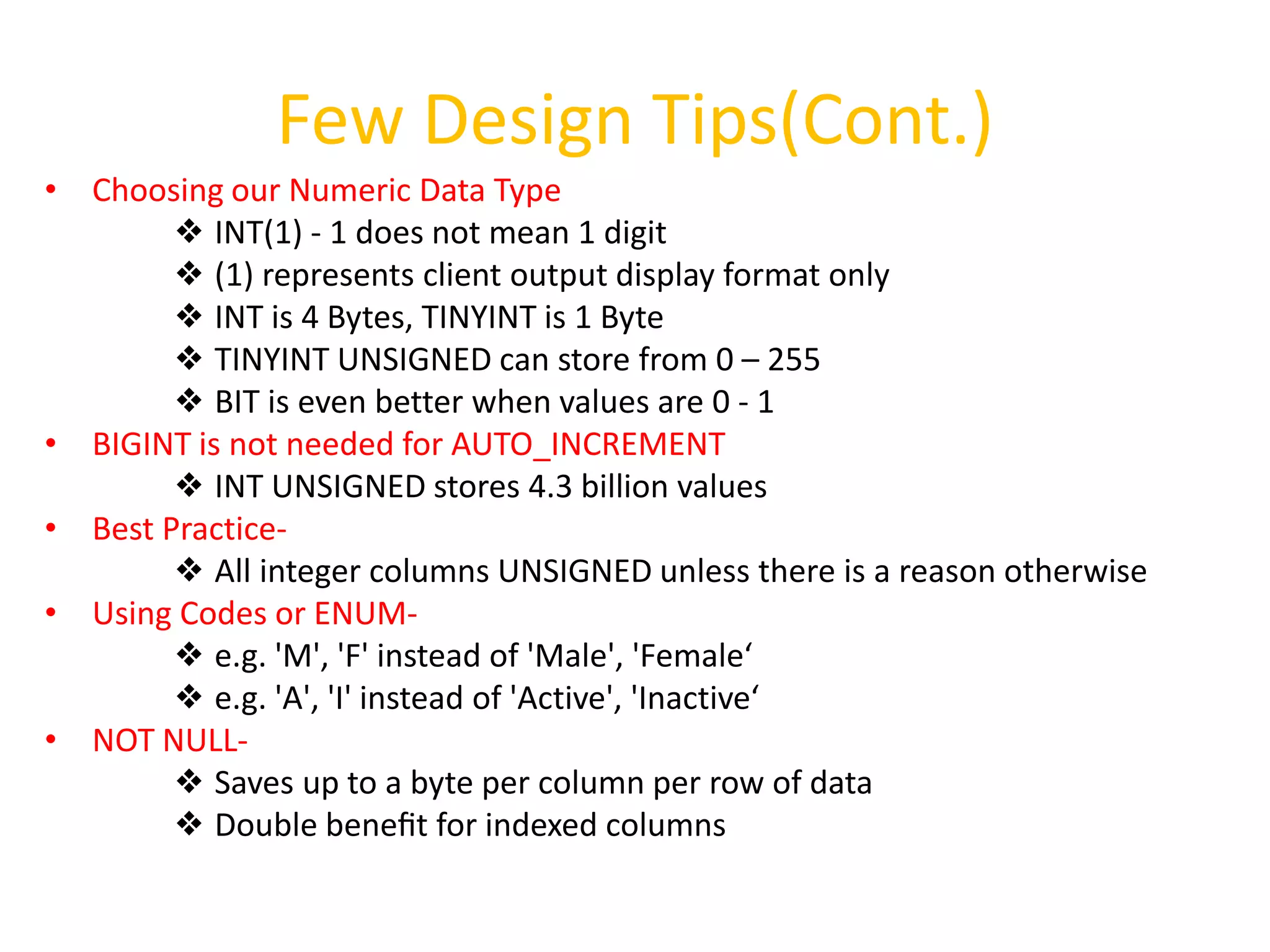

29. Few Design Tips(Cont.)
• Choosing our Numeric Data Type
❖ INT(1) - 1 does not mean 1 digit
❖ (1) represents client output display format only
❖ INT is 4 Bytes, TINYINT is 1 Byte
❖ TINYINT UNSIGNED can store from 0 – 255
❖ BIT is even better when values are 0 - 1
• BIGINT is not needed for AUTO_INCREMENT
❖ INT UNSIGNED stores 4.3 billion values
• Best Practice-
❖ All integer columns UNSIGNED unless there is a reason otherwise
• Using Codes or ENUM-
❖ e.g. 'M', 'F' instead of 'Male', 'Female‘
❖ e.g. 'A', 'I' instead of 'Active', 'Inactive‘
• NOT NULL-
❖ Saves up to a byte per column per row of data
❖ Double benefit for indexed columns

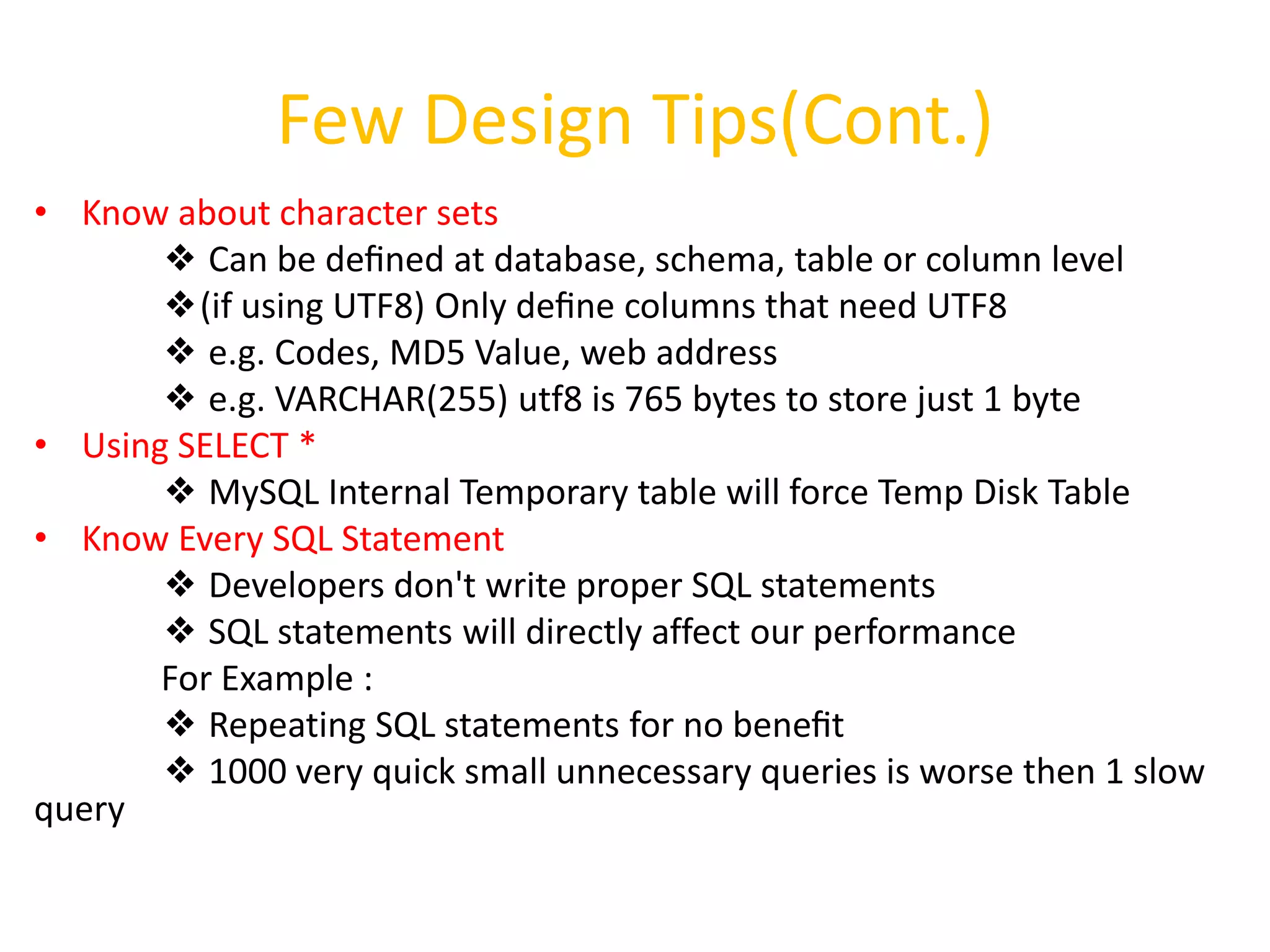

30. Few Design Tips(Cont.)
• Know about character sets
❖ Can be defined at database, schema, table or column level
❖(if using UTF8) Only define columns that need UTF8
❖ e.g. Codes, MD5 Value, web address
❖ e.g. VARCHAR(255) utf8 is 765 bytes to store just 1 byte
• Using SELECT *
❖ MySQL Internal Temporary table will force Temp Disk Table
• Know Every SQL Statement
❖ Developers don't write proper SQL statements
❖ SQL statements will directly affect our performance
For Example :
❖ Repeating SQL statements for no benefit
❖ 1000 very quick small unnecessary queries is worse then 1 slow
query

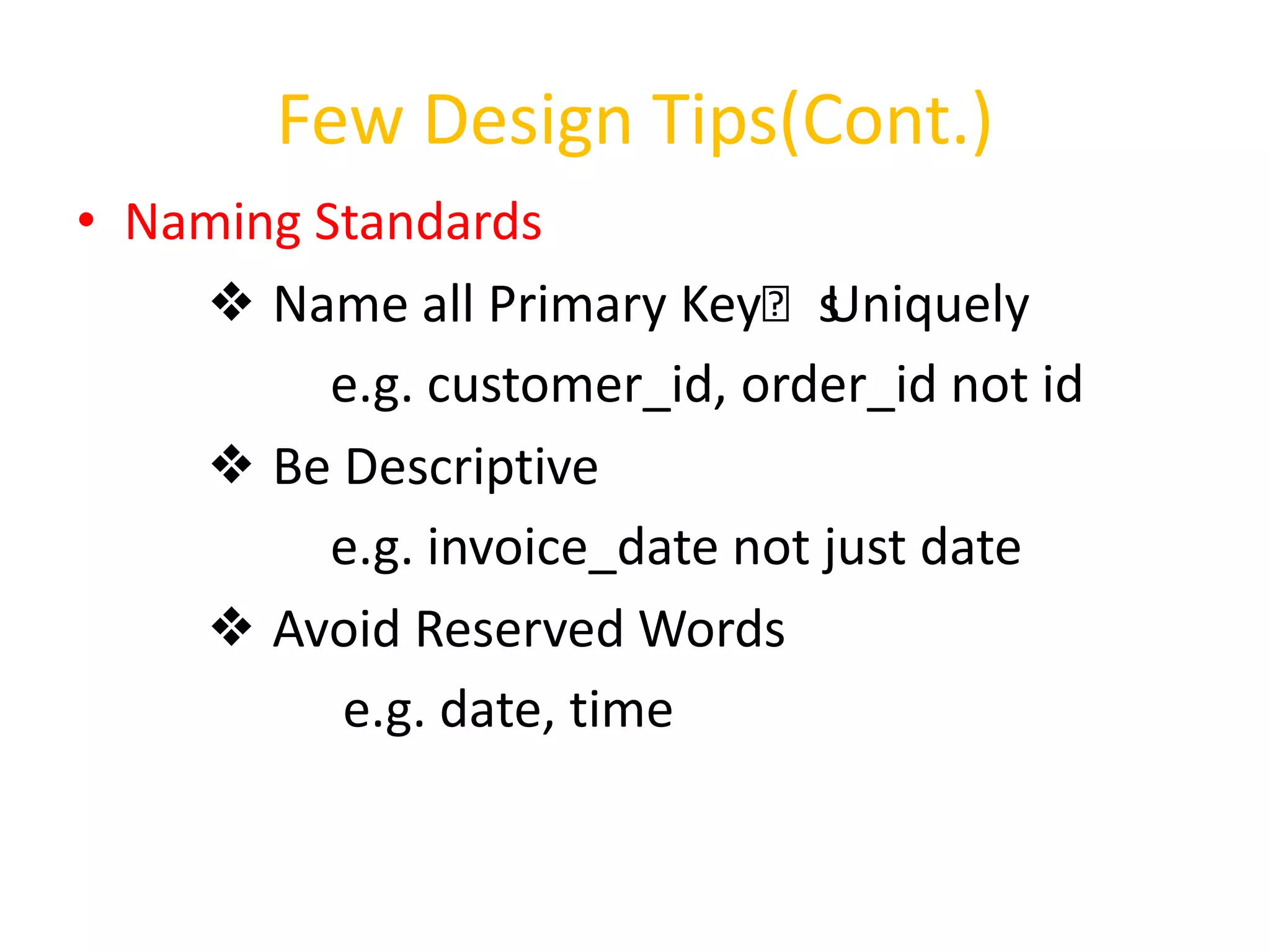

31. Few Design Tips(Cont.)
• Naming Standards
❖ Name all Primary Keyʼs Uniquely
e.g. customer_id, order_id not id
❖ Be Descriptive
e.g. invoice_date not just date
❖ Avoid Reserved Words
e.g. date, time

32. Thank You
