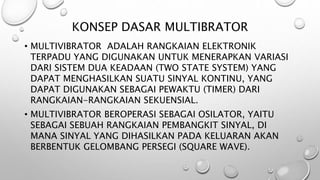

3. KONSEP DASAR MULTIBRATOR
• MULTIVIBRATOR ADALAH RANGKAIAN ELEKTRONIK
TERPADU YANG DIGUNAKAN UNTUK MENERAPKAN VARIASI
DARI SISTEM DUA KEADAAN (TWO STATE SYSTEM) YANG
DAPAT MENGHASILKAN SUATU SINYAL KONTINU, YANG
DAPAT DIGUNAKAN SEBAGAI PEWAKTU (TIMER) DARI
RANGKAIAN-RANGKAIAN SEKUENSIAL.
• MULTIVIBRATOR BEROPERASI SEBAGAI OSILATOR, YAITU
SEBAGAI SEBUAH RANGKAIAN PEMBANGKIT SINYAL, DI
MANA SINYAL YANG DIHASILKAN PADA KELUARAN AKAN
BERBENTUK GELOMBANG PERSEGI (SQUARE WAVE).

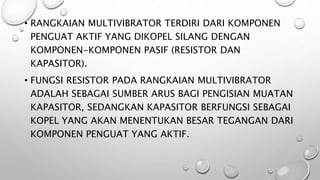

4. • RANGKAIAN MULTIVIBRATOR TERDIRI DARI KOMPONEN
PENGUAT AKTIF YANG DIKOPEL SILANG DENGAN
KOMPONEN-KOMPONEN PASIF (RESISTOR DAN
KAPASITOR).
• FUNGSI RESISTOR PADA RANGKAIAN MULTIVIBRATOR
ADALAH SEBAGAI SUMBER ARUS BAGI PENGISIAN MUATAN
KAPASITOR, SEDANGKAN KAPASITOR BERFUNGSI SEBAGAI
KOPEL YANG AKAN MENENTUKAN BESAR TEGANGAN DARI
KOMPONEN PENGUAT YANG AKTIF.
5. • RANGKAIAN MULTIVIBRATOR DAPAT DIBUAT DENGAN
TRANSISTOR BIPOLAR (BIPOLAR JUNCTION TRANSISTOR,
BJT), FET DAN PENGUAT OPERASIONAL (OPERATIONAL
AMPILFIER, OP-AMP), YANG MANA BENTUK RANGKAIAN
UNTUK SETIAP KOMPONEN AKTIF PERLU DISESUAIKAN
DENGAN KARAKTERISTIK DARI SETIAP KOMPONEN AKTIF
TERSEBUT.
• KARENA CARA KERJA FET LEBIH RUMIT DARI CARA KERJA
BJT, RANGKAIAN MULTIVIBRATOR PADA UMUMNYA
DIBUAT DENGAN RANGKAIAN BJT.

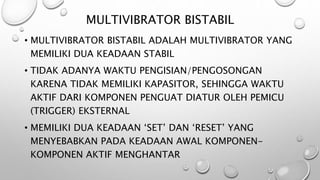

6. MULTIVIBRATOR BISTABIL
• MULTIVIBRATOR BISTABIL ADALAH MULTIVIBRATOR YANG
MEMILIKI DUA KEADAAN STABIL
• TIDAK ADANYA WAKTU PENGISIAN/PENGOSONGAN
KARENA TIDAK MEMILIKI KAPASITOR, SEHINGGA WAKTU
AKTIF DARI KOMPONEN PENGUAT DIATUR OLEH PEMICU
(TRIGGER) EKSTERNAL
• MEMILIKI DUA KEADAAN ‘SET’ DAN ‘RESET’ YANG
MENYEBABKAN PADA KEADAAN AWAL KOMPONEN-
KOMPONEN AKTIF MENGHANTAR

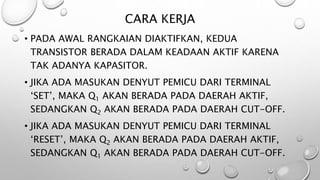

8. CARA KERJA
• PADA AWAL RANGKAIAN DIAKTIFKAN, KEDUA
TRANSISTOR BERADA DALAM KEADAAN AKTIF KARENA
TAK ADANYA KAPASITOR.
• JIKA ADA MASUKAN DENYUT PEMICU DARI TERMINAL
‘SET’, MAKA Q1 AKAN BERADA PADA DAERAH AKTIF,
SEDANGKAN Q2 AKAN BERADA PADA DAERAH CUT-OFF.
• JIKA ADA MASUKAN DENYUT PEMICU DARI TERMINAL
‘RESET’, MAKA Q2 AKAN BERADA PADA DAERAH AKTIF,
SEDANGKAN Q1 AKAN BERADA PADA DAERAH CUT-OFF.

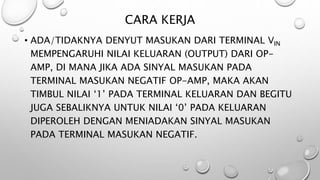

10. CARA KERJA
• ADA/TIDAKNYA DENYUT MASUKAN DARI TERMINAL VIN
MEMPENGARUHI NILAI KELUARAN (OUTPUT) DARI OP-
AMP, DI MANA JIKA ADA SINYAL MASUKAN PADA
TERMINAL MASUKAN NEGATIF OP-AMP, MAKA AKAN
TIMBUL NILAI ‘1’ PADA TERMINAL KELUARAN DAN BEGITU
JUGA SEBALIKNYA UNTUK NILAI ‘0’ PADA KELUARAN
DIPEROLEH DENGAN MENIADAKAN SINYAL MASUKAN
PADA TERMINAL MASUKAN NEGATIF.

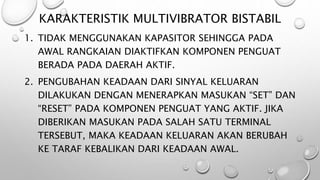

11. KARAKTERISTIK MULTIVIBRATOR BISTABIL
1. TIDAK MENGGUNAKAN KAPASITOR SEHINGGA PADA
AWAL RANGKAIAN DIAKTIFKAN KOMPONEN PENGUAT
BERADA PADA DAERAH AKTIF.
2. PENGUBAHAN KEADAAN DARI SINYAL KELUARAN
DILAKUKAN DENGAN MENERAPKAN MASUKAN “SET” DAN
“RESET” PADA KOMPONEN PENGUAT YANG AKTIF. JIKA
DIBERIKAN MASUKAN PADA SALAH SATU TERMINAL
TERSEBUT, MAKA KEADAAN KELUARAN AKAN BERUBAH
KE TARAF KEBALIKAN DARI KEADAAN AWAL.

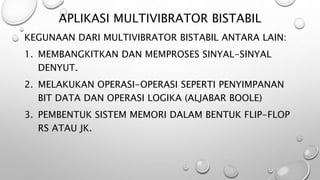

13. APLIKASI MULTIVIBRATOR BISTABIL
KEGUNAAN DARI MULTIVIBRATOR BISTABIL ANTARA LAIN:
1. MEMBANGKITKAN DAN MEMPROSES SINYAL-SINYAL
DENYUT.
2. MELAKUKAN OPERASI-OPERASI SEPERTI PENYIMPANAN
BIT DATA DAN OPERASI LOGIKA (ALJABAR BOOLE)
3. PEMBENTUK SISTEM MEMORI DALAM BENTUK FLIP-FLOP
RS ATAU JK.
