The document describes the Multipoint Synthesis Parameter Measure System, which is designed by Weiber to measure multiple environmental parameters such as temperature, humidity, pressure, wind speed, and gas concentrations. It utilizes centralized data processing and dispersed sampling to provide real-time monitoring. Key features include compact size, high pressure cleaning, measuring cleanliness, and utilizing light scattering theory. It has applications in various industrial and medical fields.

1. R

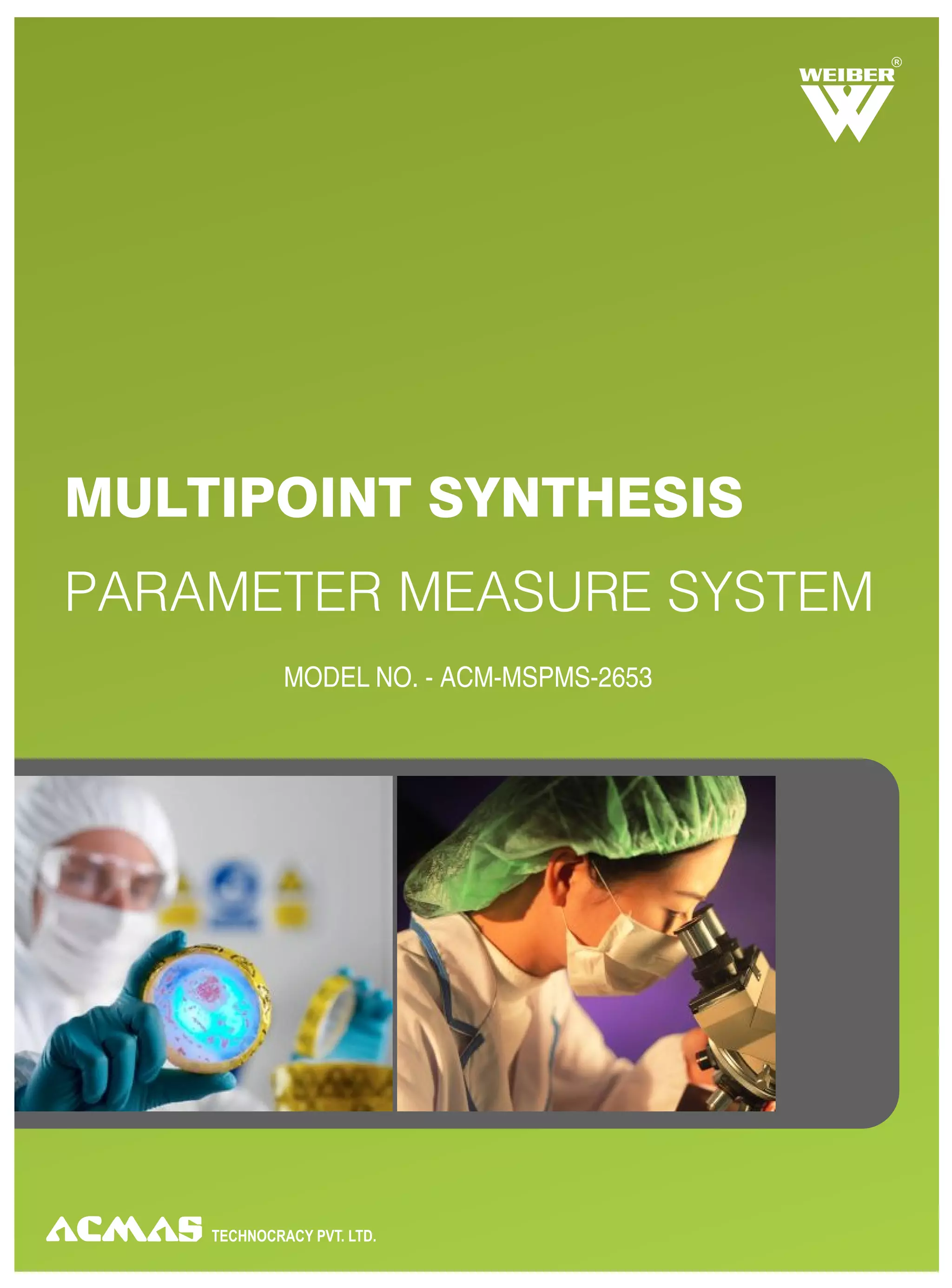

MULTIPOINT SYNTHESIS
PARAMETER MEASURE SYSTEM
MODEL NO. - ACM-MSPMS-2653
TECHNOCRACY PVT. LTD.

2. R

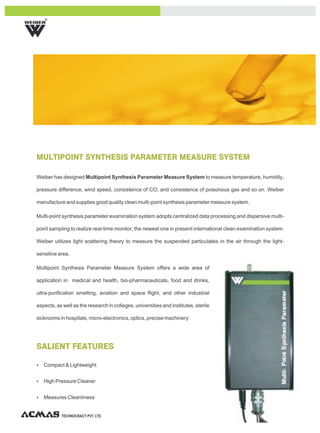

MULTIPOINT SYNTHESIS PARAMETER MEASURE SYSTEM
Weiber has designed Multipoint Synthesis Parameter Measure System to measure temperature, humidity,
pressure difference, wind speed, consistence of CO, and consistence of poisonous gas and so on. Weiber
manufacture and supplies good quality clean multi-point synthesis parameter measure system.
Multi-point synthesis parameter examination system adopts centralized data processing and dispersive multi-
point sampling to realize real-time monitor, the newest one in present international clean examination system.
Weiber utilizes light scattering theory to measure the suspended particulates in the air through the light-
sensitive area.
Multipoint Synthesis Parameter Measure System offers a wide area of
application in medical and health, bio-pharmaceuticals, food and drinks,
ultra-purification smelting, aviation and space flight, and other industrial
aspects, as well as the research in colleges, universities and institutes, sterile
sickrooms in hospitals, micro-electronics, optics, precise machinery.
SALIENT FEATURES
Ÿ Compact & Lightweight
Ÿ High Pressure Cleaner
Ÿ Measures Cleanliness
TECHNOCRACY PVT. LTD.

3. R

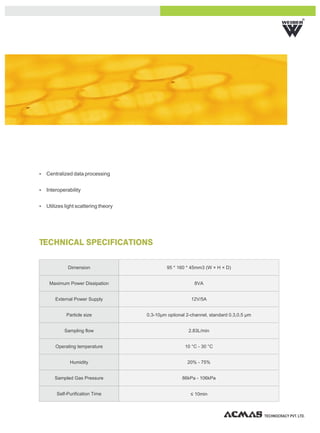

Ÿ Centralized data processing
Ÿ Interoperability
Ÿ Utilizes light scattering theory
TECHNICAL SPECIFICATIONS
Dimension 95 * 160 * 45mm3 (W × H × D)
Maximum Power Dissipation 8VA
External Power Supply 12V/5A
Particle size 0.3-10μm optional 2-channel, standard 0.3,0.5 μm
Sampling flow 2.83L/min
Operating temperature 10 °C - 30 °C
Humidity 20% - 75%
Sampled Gas Pressure 86kPa - 106kPa
Self-Purification Time ≤ 10min
TECHNOCRACY PVT. LTD.

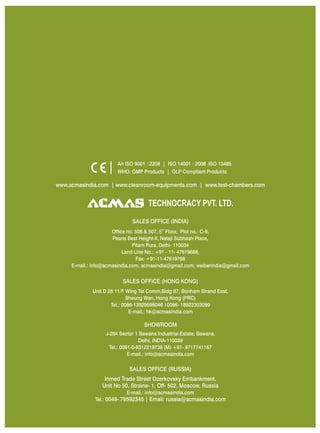

4. An ISO 9001 : 2208 | ISO 14001 : 2008 ISO 13485
WHO: GMP Products | GLP Compliant Products
www.acmasindia.com | www.cleanroom-equipments.com | www.test-chambers.com
