1. 1 © Hortonworks Inc. 2011–2018. All rights reserved
Multi-Lingual Accumulo
Communications
Marc Parisi
https://s.mrsegfault.com/summit

2. 2 © Hortonworks Inc. 2011–2018. All rights reserved
About
• I write code
• Apache NiFi / Apache Accumulo
• Serial website owner
• https://www.iotallthethings.com

3. 3 © Hortonworks Inc. 2011–2018. All rights reserved
Agenda
• History and Why
• Design
• Comparison Techniques

4. 4 © Hortonworks Inc. 2011–2018. All rights reserved
History
• April 2012 – June 2016, 2018 Python
• Started with C
• Migrated to C++
• Bad idea
• Accumulo & Hbase & Cassandra

5. 5 © Hortonworks Inc. 2011–2018. All rights reserved
Questions that I get
• Why?
• Good Question!
• What is the purpose?
• Haven't a clue!
• Why not use proxy?
• A what?!

6. 6 © Hortonworks Inc. 2011–2018. All rights reserved
Why?
• Small footprint ( Ruby/Python/Go)
• Colossus
• Reduces GC
• Reduces overhead
• Hedged reads
• Raw speed not factor!

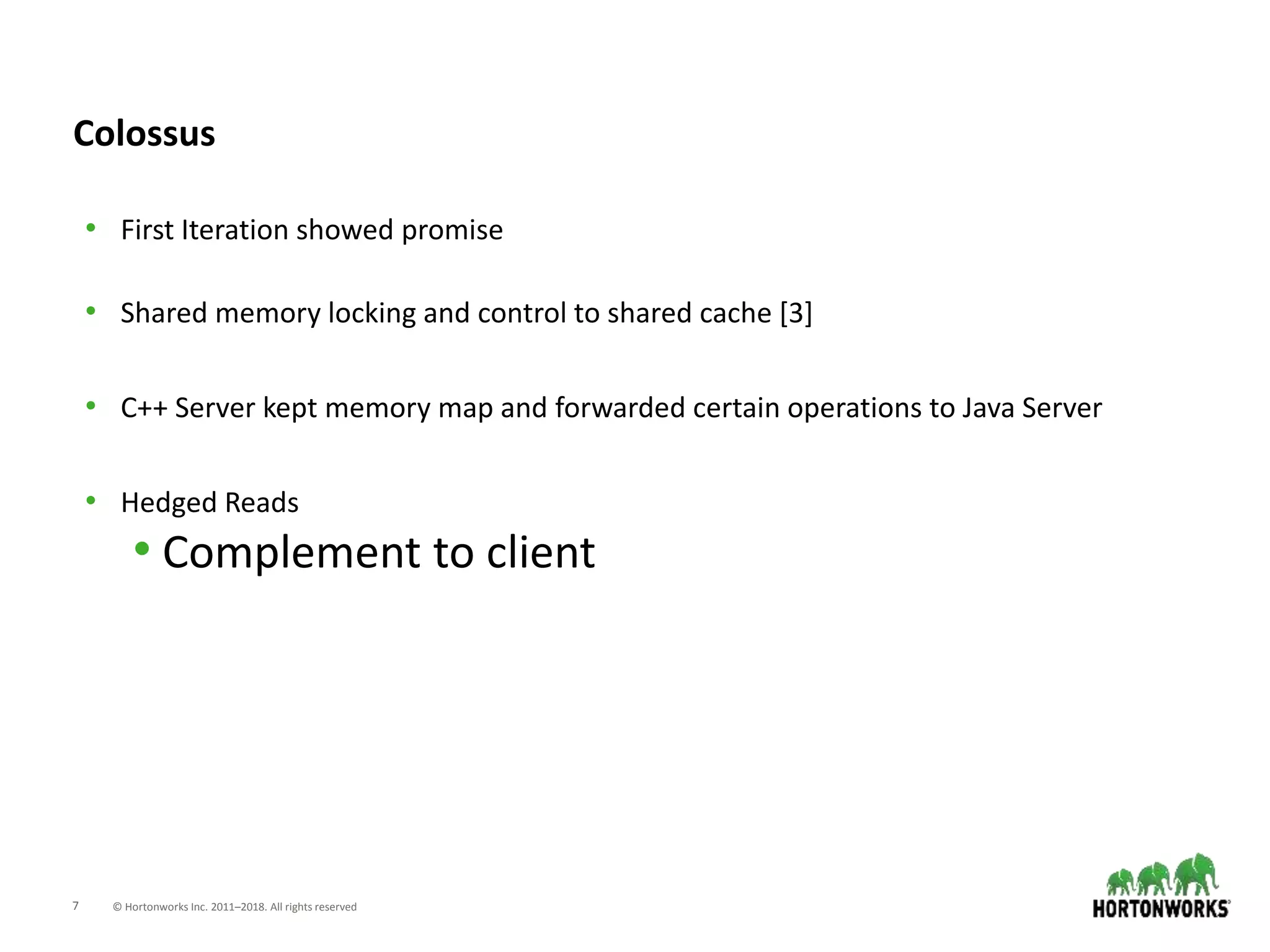

7. 7 © Hortonworks Inc. 2011–2018. All rights reserved
Colossus
• First Iteration showed promise
• Shared memory locking and control to shared cache [3]
• C++ Server kept memory map and forwarded certain operations to Java Server
• Hedged Reads
• Complement to client

8. 8 © Hortonworks Inc. 2011–2018. All rights reserved
Hedged Reads
• RPC scans + Functor
• Keep track of winner to improve future scans
• Functor Scans RFiles with custom iterator stack
• Read Tserver in memory maps
• C++ RFile reads 3-5x faster in 2012 – writes 1-2x slower
• Libhdfs3 predecessor

9. 9 © Hortonworks Inc. 2011–2018. All rights reserved
I'm not saying it's a bad idea...
• C / C++ developer limits
• C++11 improvements
•Template metaprogramming
• SFINAE

10. 10 © Hortonworks Inc. 2011–2018. All rights reserved
Design
https://accumulo.apache.org/1.3/user_manual/Accumulo_Design.html

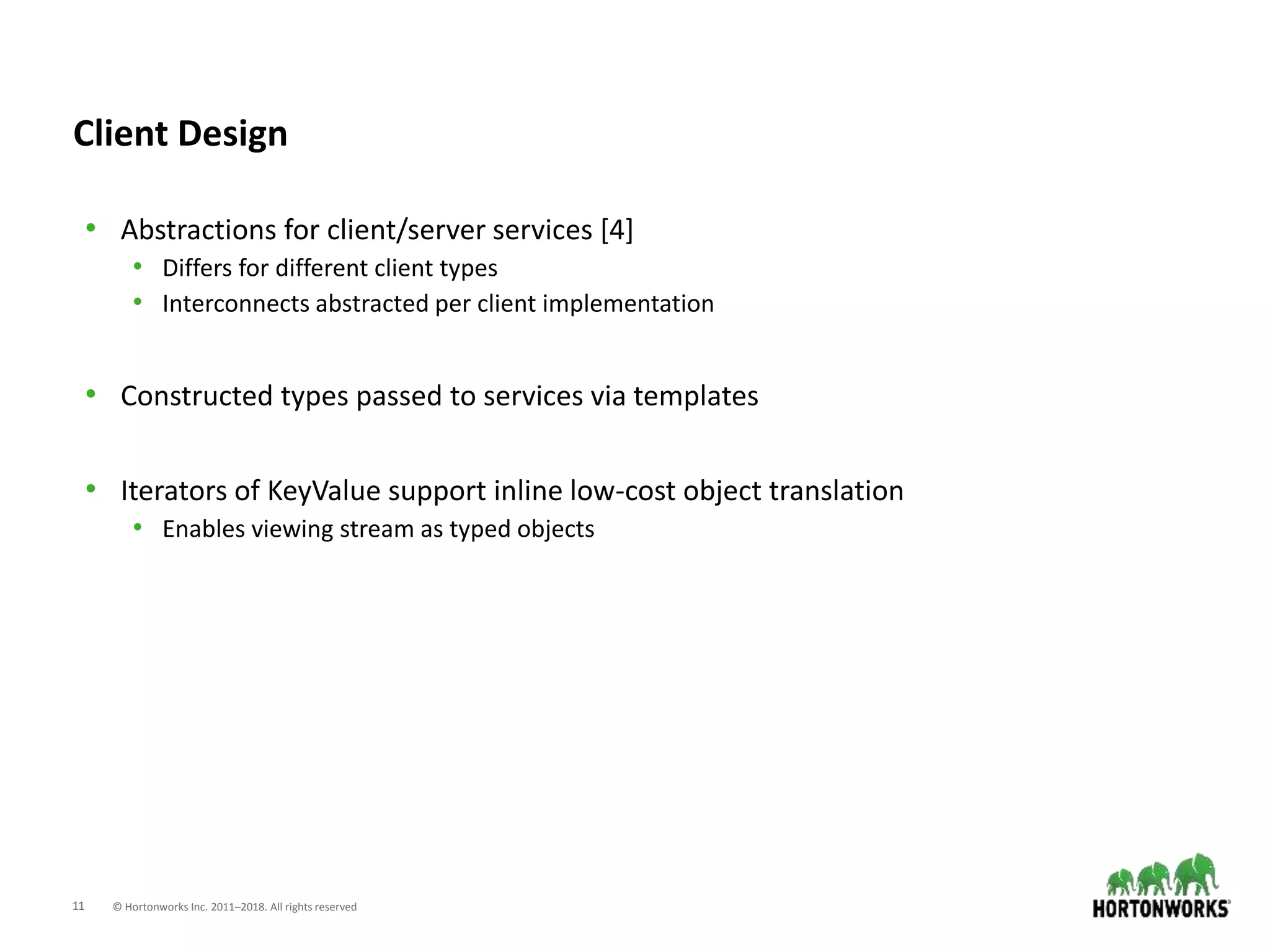

11. 11 © Hortonworks Inc. 2011–2018. All rights reserved
Client Design
• Abstractions for client/server services [4]
• Differs for different client types
• Interconnects abstracted per client implementation
• Constructed types passed to services via templates
• Iterators of KeyValue support inline low-cost object translation
• Enables viewing stream as typed objects

12. 12 © Hortonworks Inc. 2011–2018. All rights reserved
Interactions at a glance

13. 13 © Hortonworks Inc. 2011–2018. All rights reserved
Abstractions -- Interconnect Layer
• Interconnect defines templates for all operations
• Templates <template typename T> are compile time
• Some run time polymorphism
• Some compile time
• Enables connecting to different services/systems more seamlessly
• Improves code re-use between other key value stores

14. 14 © Hortonworks Inc. 2011–2018. All rights reserved
Connection Heuristics
• Interconnects can define heuristic functions
• F(x) will define how scan ranges can be interrogated
• Intended to be combined across multiple clients
• Clients can and should interact
• Goals
• Avoid TServer overhead
• Hedged Reads

15. 15 © Hortonworks Inc. 2011–2018. All rights reserved
Is this any better?
• Avoiding proxy beneficial
• Look at stats soon
• Not necessarily better than Java Client
• Most operations are I/O bound at TServer
• Let's take a closer look

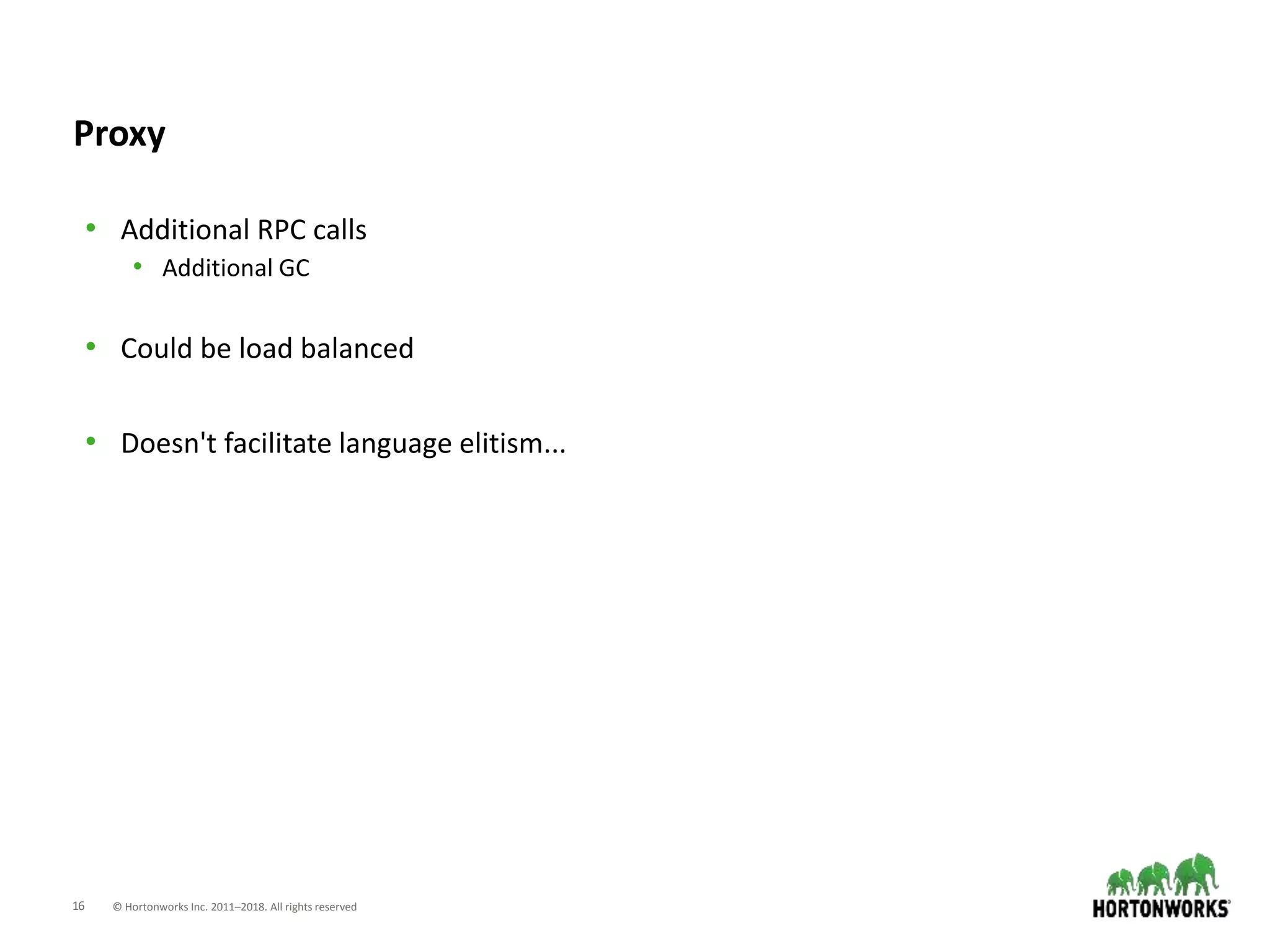

16. 16 © Hortonworks Inc. 2011–2018. All rights reserved
Proxy
• Additional RPC calls
• Additional GC
• Could be load balanced
• Doesn't facilitate language elitism...

17. 17 © Hortonworks Inc. 2011–2018. All rights reserved
Python by example
• Python code uses sharkbite
• Cost incurred for ctypes to call dynamically linked symbols
• RPC costs are same as those in sharkbite client and java client
• Thrift RPC

18. 18 © Hortonworks Inc. 2011–2018. All rights reserved
C client
• Writing C is not actually native
• Conversion from C structs to C++ objects
• Not user friendly
• Is C?
• Impacts Python too

19. 19 © Hortonworks Inc. 2011–2018. All rights reserved
Sharkbite Python

20. 20 © Hortonworks Inc. 2011–2018. All rights reserved
Proxy
• Creates a connection to a proxy server
• Communications through proxy incur additional RPC
• RPC communications are native ( only need proxy )
• No cost to make those RPC calls

21. 21 © Hortonworks Inc. 2011–2018. All rights reserved
Thrift Proxy

22. 22 © Hortonworks Inc. 2011–2018. All rights reserved
GoLang
• Better integration [5]
• Less overhead
• Improved compile optimizations
• Variadic functions not supported

23. 23 © Hortonworks Inc. 2011–2018. All rights reserved
Integrated Python vs Proxy
• R710 – 144 GB ram with 24 Cores
• Heavily loaded servers running multiple services ( cameras, transcoding, etc )
• 3 servers - 2 Tabletservers – 32 gb per VM – no special configuration
• Write 10 million keys on fresh tables.
• Different rows
• Not concerned with costs associated with splits
• 100 runs of each write session from monitor JSON interface
• Computed average

24. 24 © Hortonworks Inc. 2011–2018. All rights reserved
Integrated Python vs Proxy
Client Write Throughput Max Memory Footprint
Sharkbite Client 122,272 k/s 29 kb
Java Client 100,183 k/s 320 MB
Sharkbite Python 37,239 k/s 45 kb
Proxy Python 14,293 k/s 47 kb (client)
1.2 GB ( proxy )

25. 25 © Hortonworks Inc. 2011–2018. All rights reserved
Performance Analysis
• DO. NOT. READ. INTO. THIS.
• Do not read into this
• GC was not really limiting factor ( 1 GB heap on Java Client )
• Not enough keys created to stress
• Memory footprint of Sharkbite client kept small due to small
flush setting
• Sharkbite python costs spent converting objects
• *I think RPC costs impacted proxy python client.

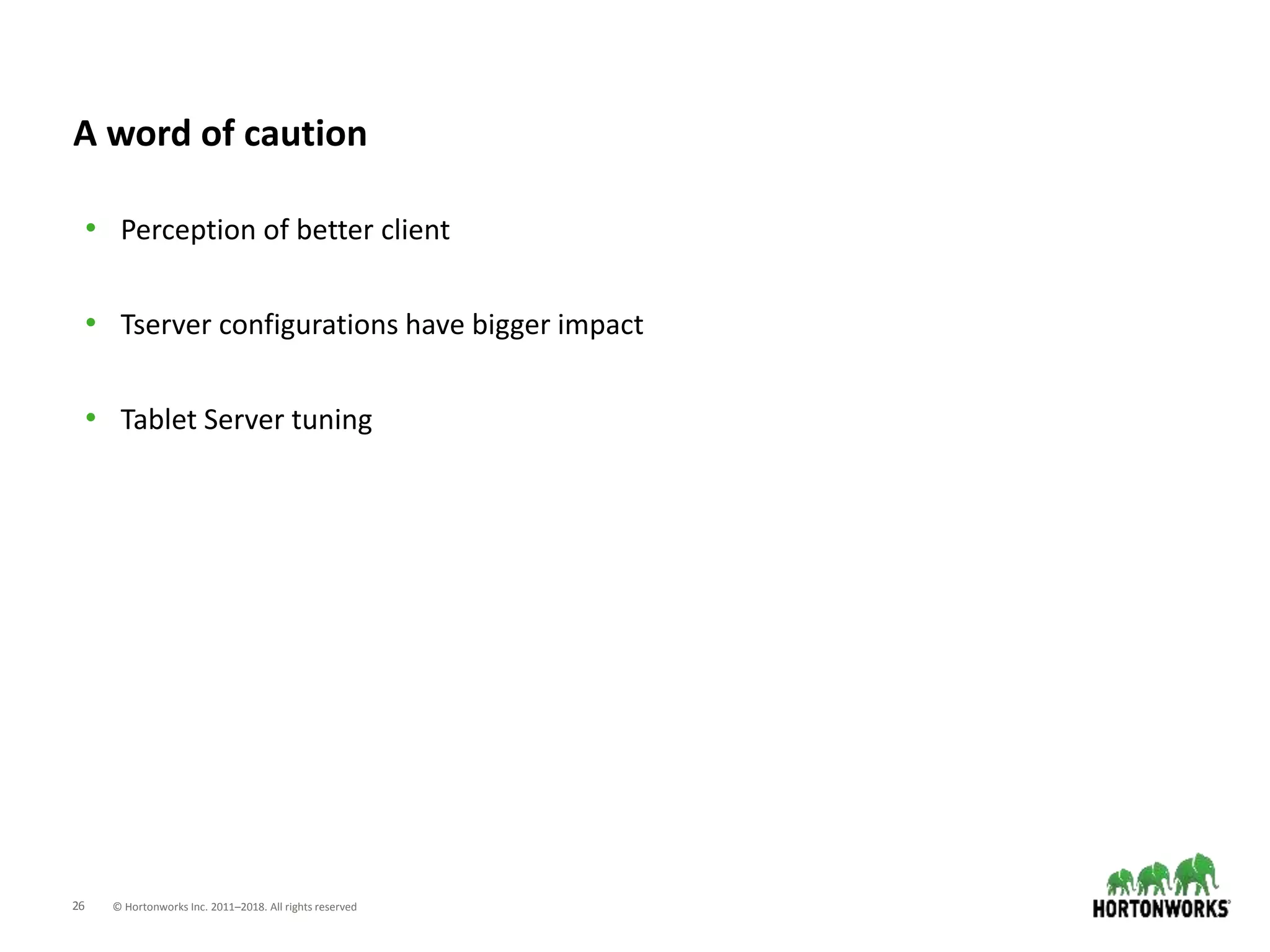

26. 26 © Hortonworks Inc. 2011–2018. All rights reserved
A word of caution
• Perception of better client
• Tserver configurations have bigger impact
• Tablet Server tuning

27. 27 © Hortonworks Inc. 2011–2018. All rights reserved
Conclusion
• Sharkbite C++ interconnect
• Not ready for primetime
• May better facilitate languages

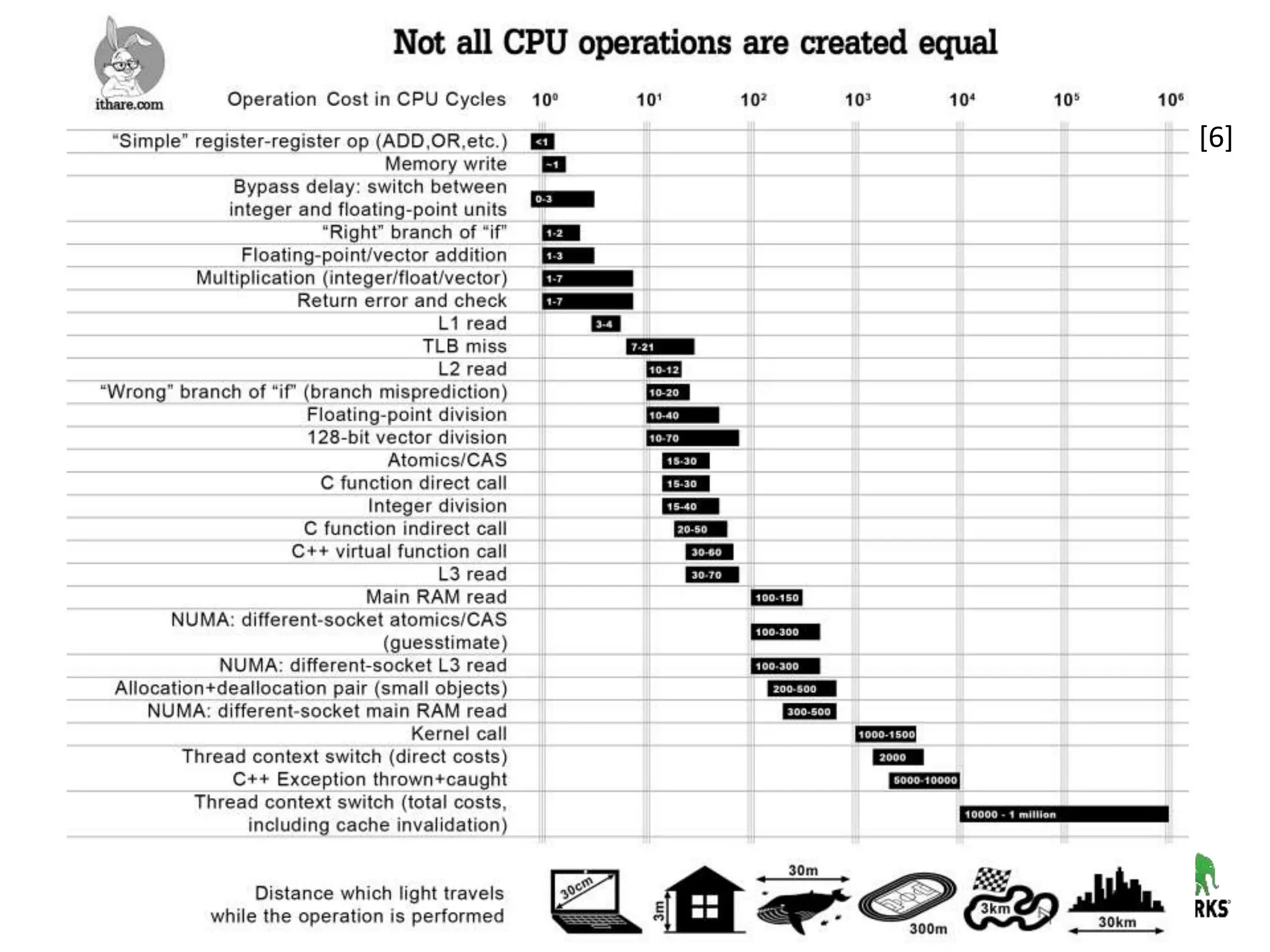

28. 28 © Hortonworks Inc. 2011–2018. All rights reserved
[6]
