1. GWT, CDI & JAX-RS
“A match made in heaven”
Heiko Braun <hbraun@redhat.com>

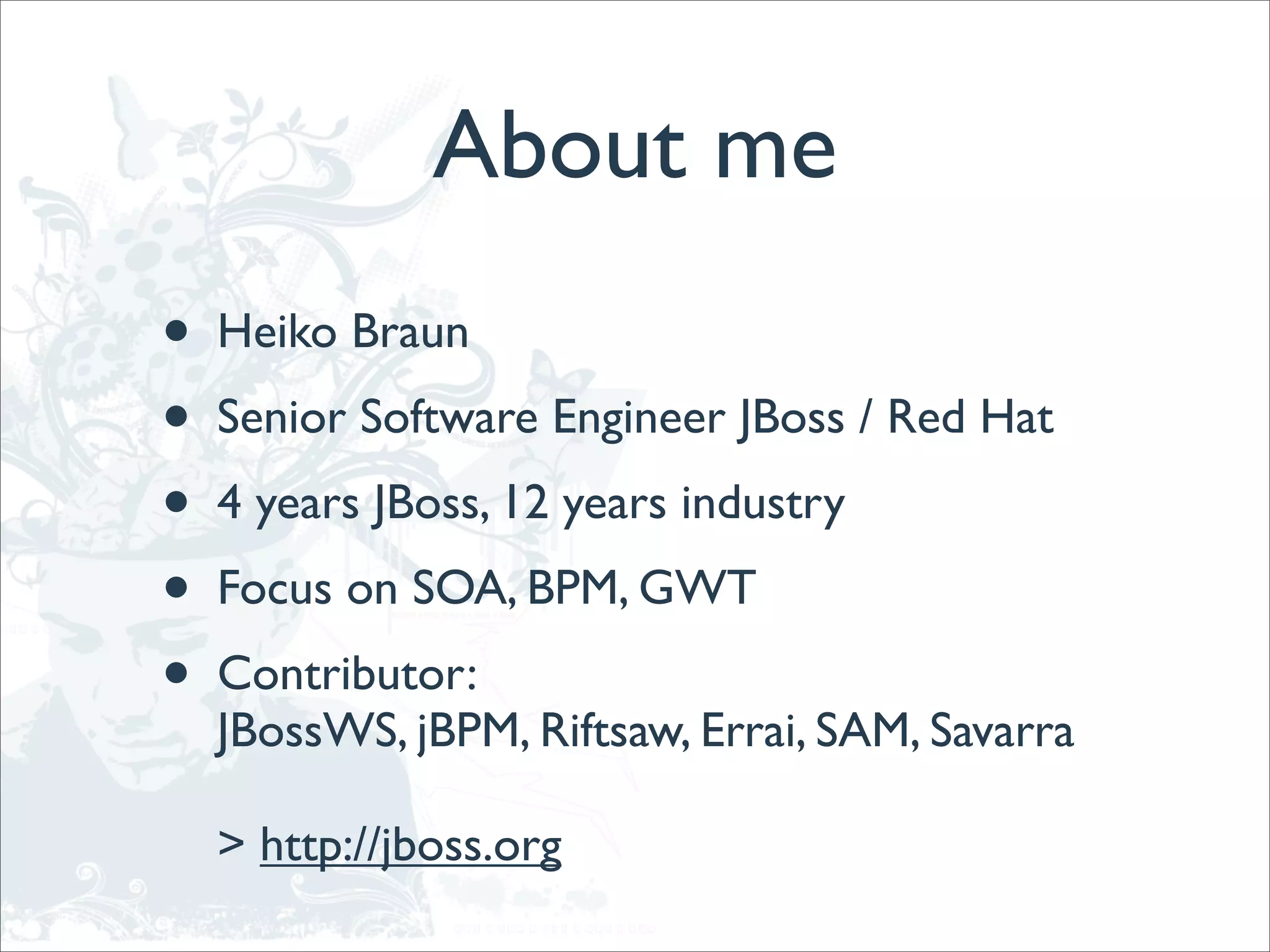

2. About me
• Heiko Braun
• Senior Software Engineer JBoss / Red Hat
• 4 years JBoss, 12 years industry
• Focus on SOA, BPM, GWT
• Contributor:
JBossWS, jBPM, Riftsaw, Errai, SAM, Savarra
> http://jboss.org

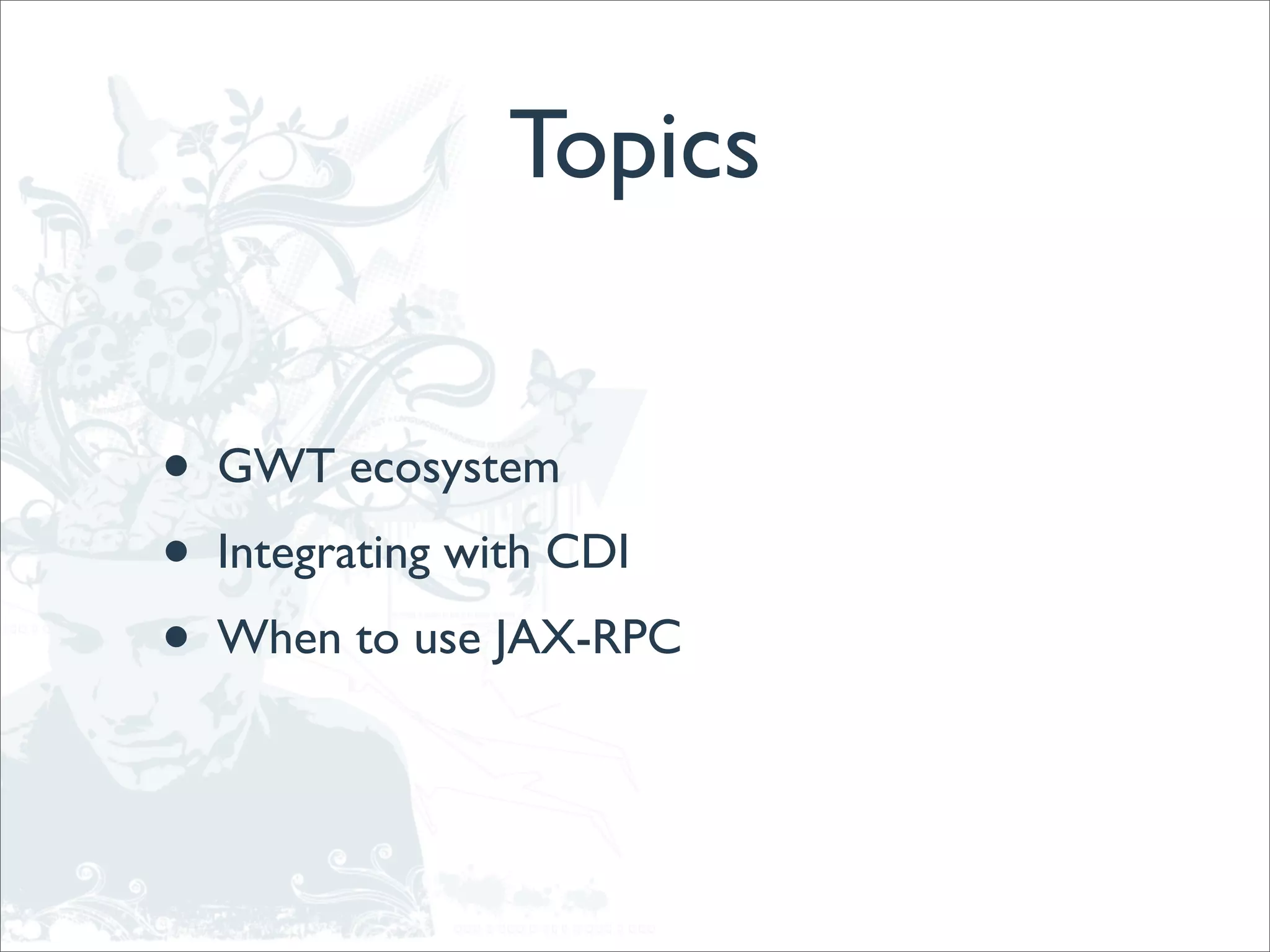

3. Topics
• GWT ecosystem
• Integrating with CDI
• When to use JAX-RPC

4. GWT ecosystem

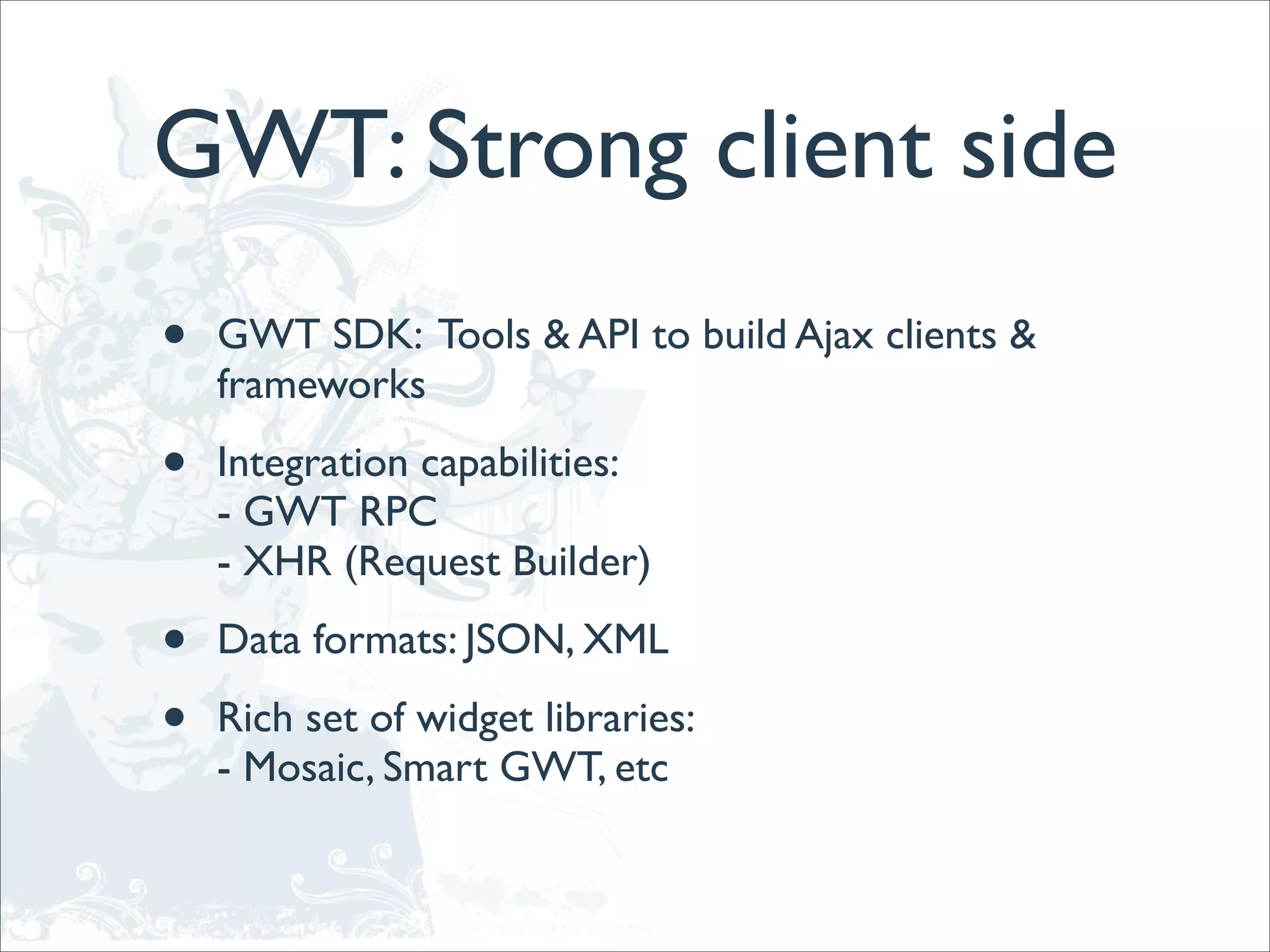

5. GWT: Strong client side
• GWT SDK: Tools & API to build Ajax clients &
frameworks
• Integration capabilities:
- GWT RPC
- XHR (Request Builder)
• Data formats: JSON, XML
• Rich set of widget libraries:
- Mosaic, Smart GWT, etc

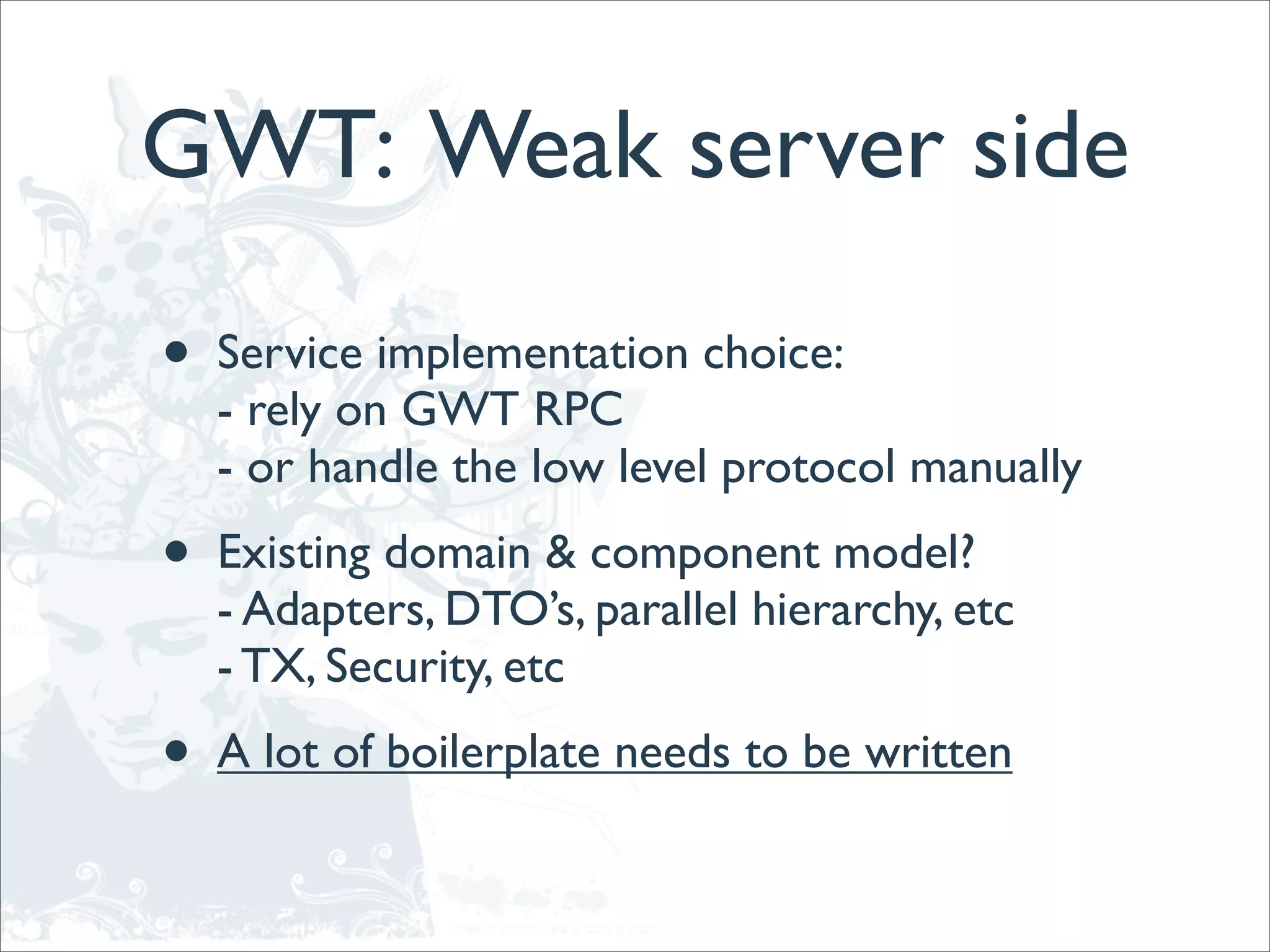

6. GWT: Weak server side
• Service implementation choice:
- rely on GWT RPC
- or handle the low level protocol manually
• Existing domain & component model?
- Adapters, DTO’s, parallel hierarchy, etc
- TX, Security, etc
• A lot of boilerplate needs to be written

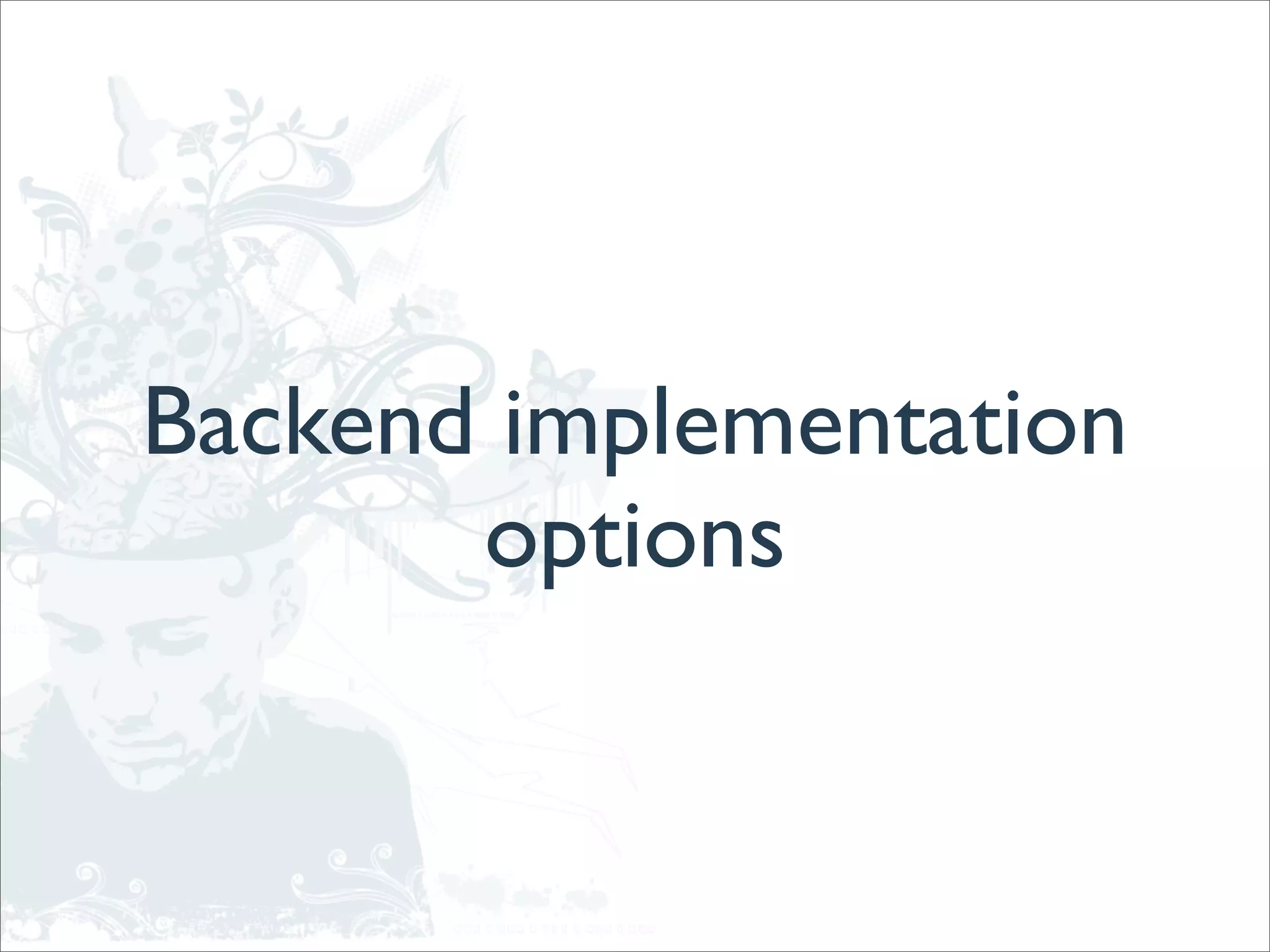

7. Backend implementation
options

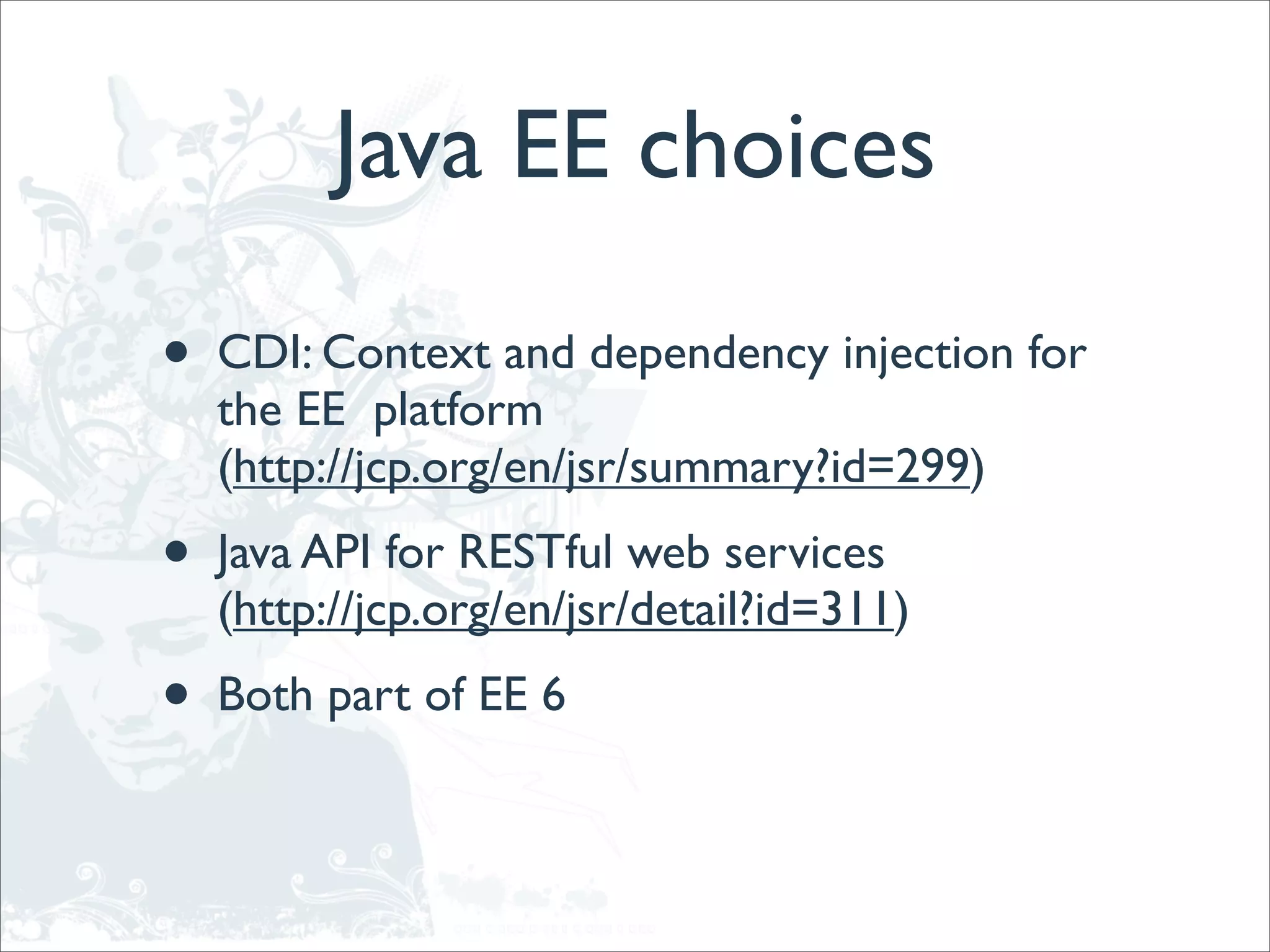

8. Java EE choices
• CDI: Context and dependency injection for
the EE platform
(http://jcp.org/en/jsr/summary?id=299)
• Java API for RESTful web services
(http://jcp.org/en/jsr/detail?id=311)
• Both part of EE 6

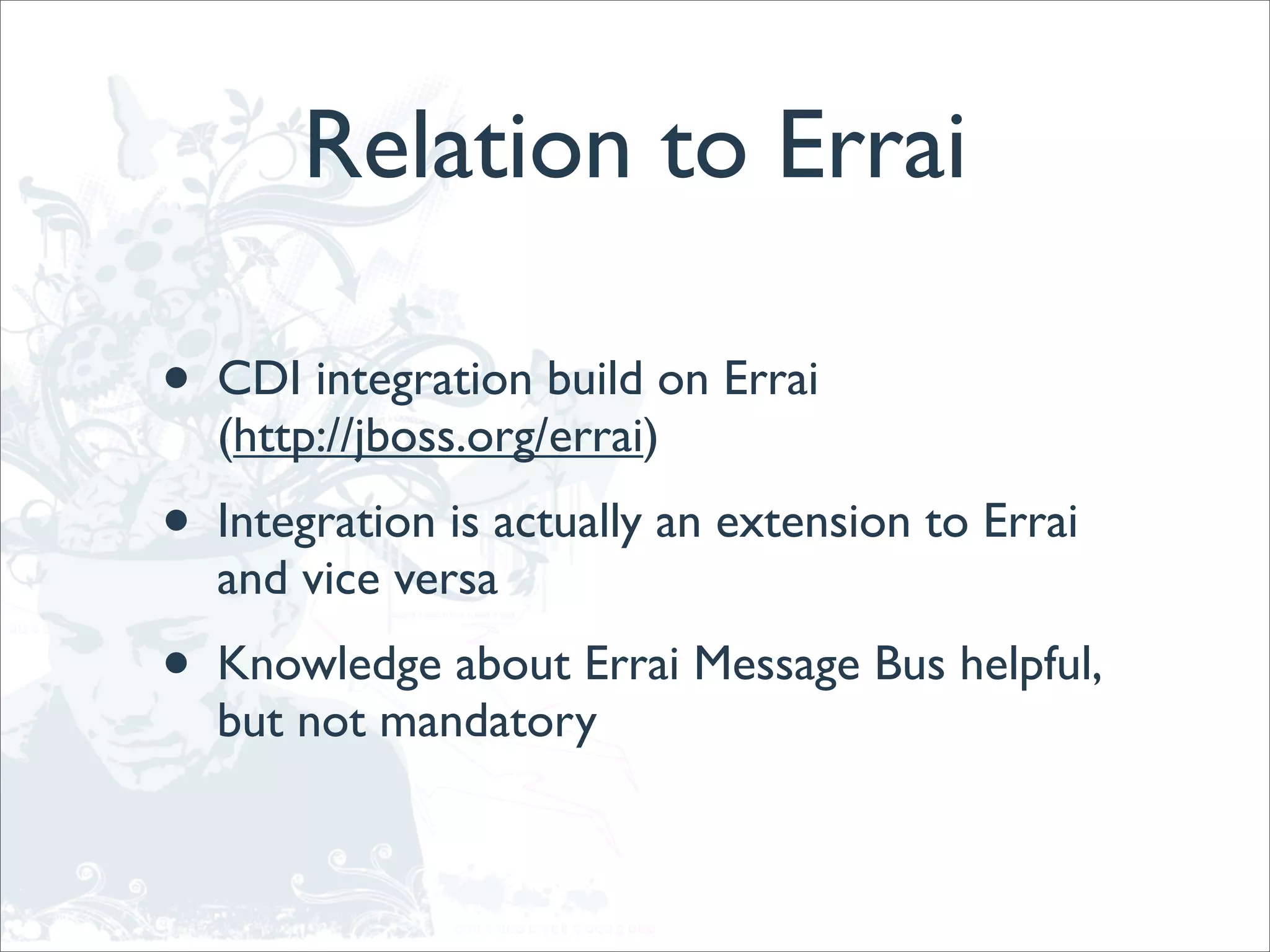

9. Relation to Errai
• CDI integration build on Errai
(http://jboss.org/errai)
• Integration is actually an extension to Errai
and vice versa
• Knowledge about Errai Message Bus helpful,
but not mandatory

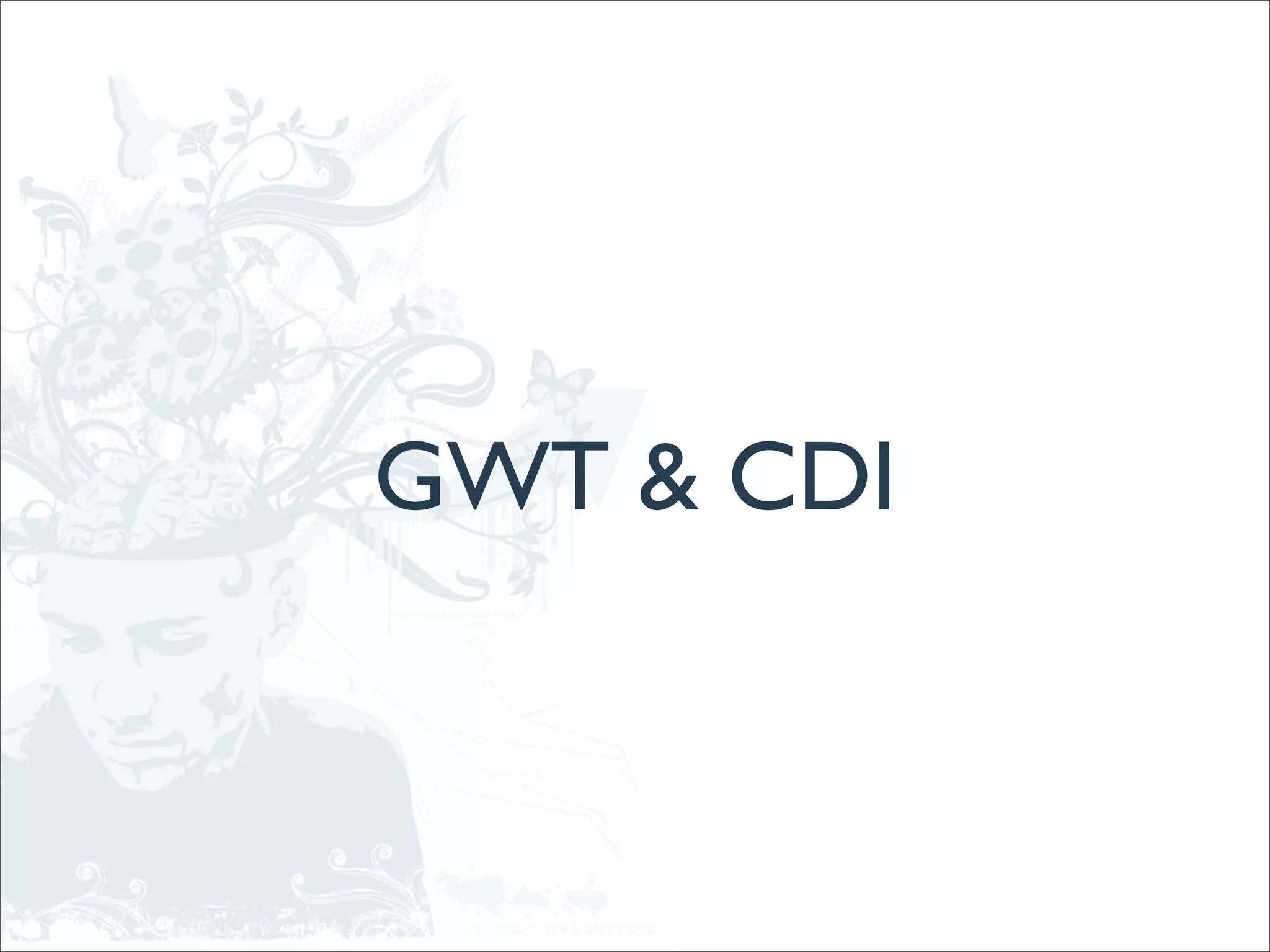

10. GWT & CDI

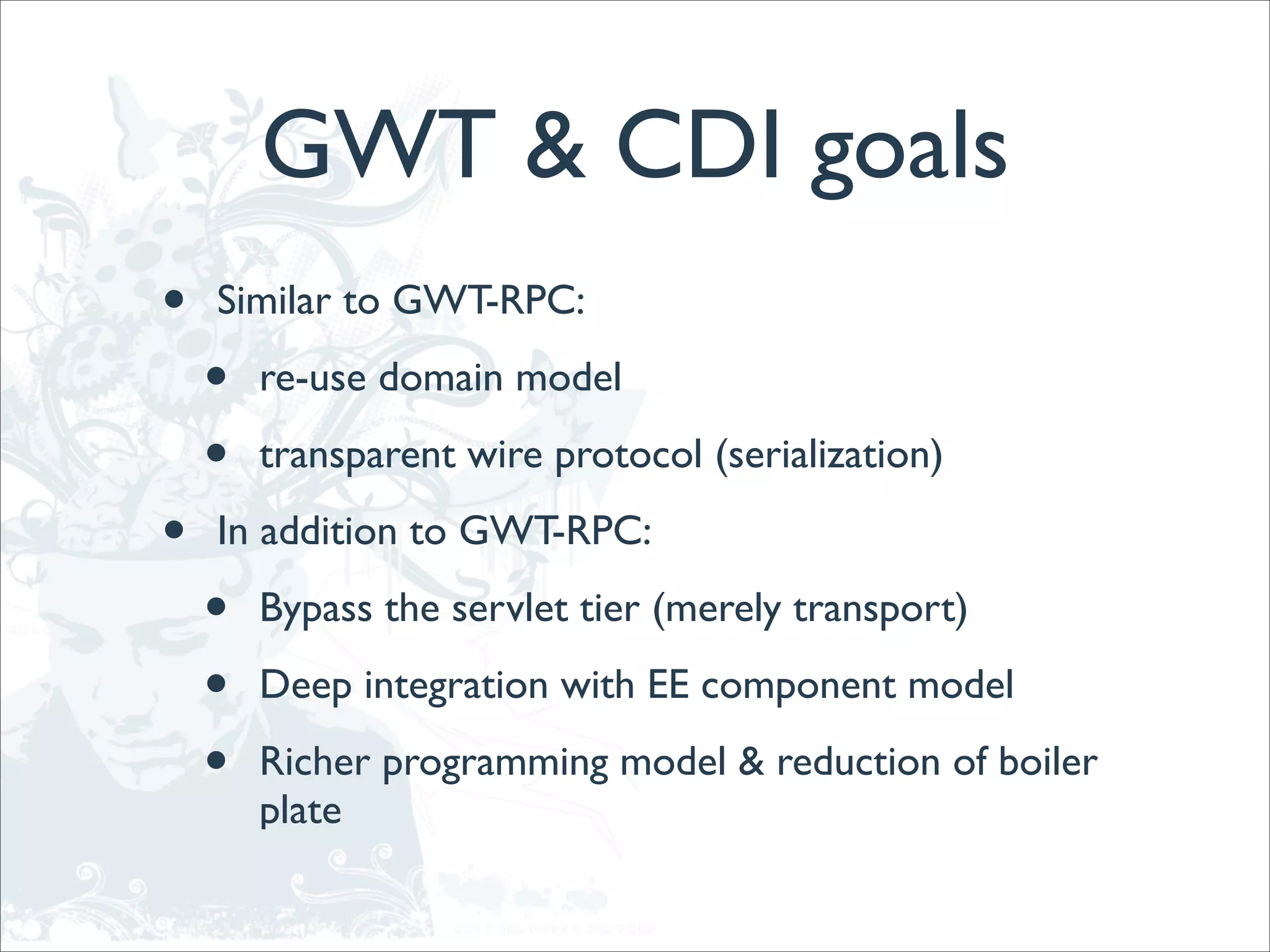

11. GWT & CDI goals
• Similar to GWT-RPC:
• re-use domain model
• transparent wire protocol (serialization)
• In addition to GWT-RPC:
• Bypass the servlet tier (merely transport)
• Deep integration with EE component model
• Richer programming model & reduction of boiler
plate

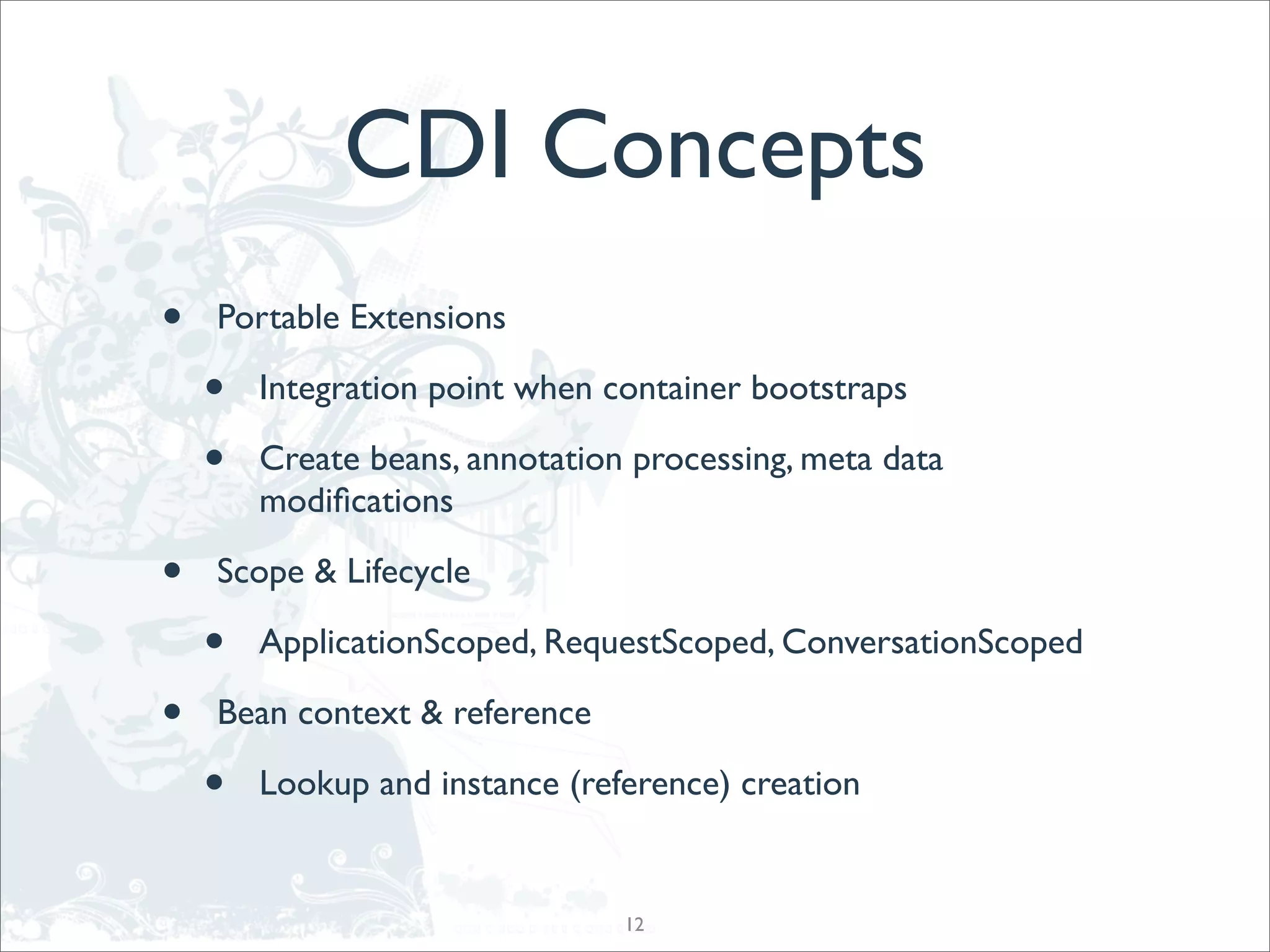

12. CDI Concepts
• Portable Extensions
• Integration point when container bootstraps
• Create beans, annotation processing, meta data
modifications
• Scope & Lifecycle
• ApplicationScoped, RequestScoped, ConversationScoped
• Bean context & reference
• Lookup and instance (reference) creation
12

13. GWT & CDI Samples

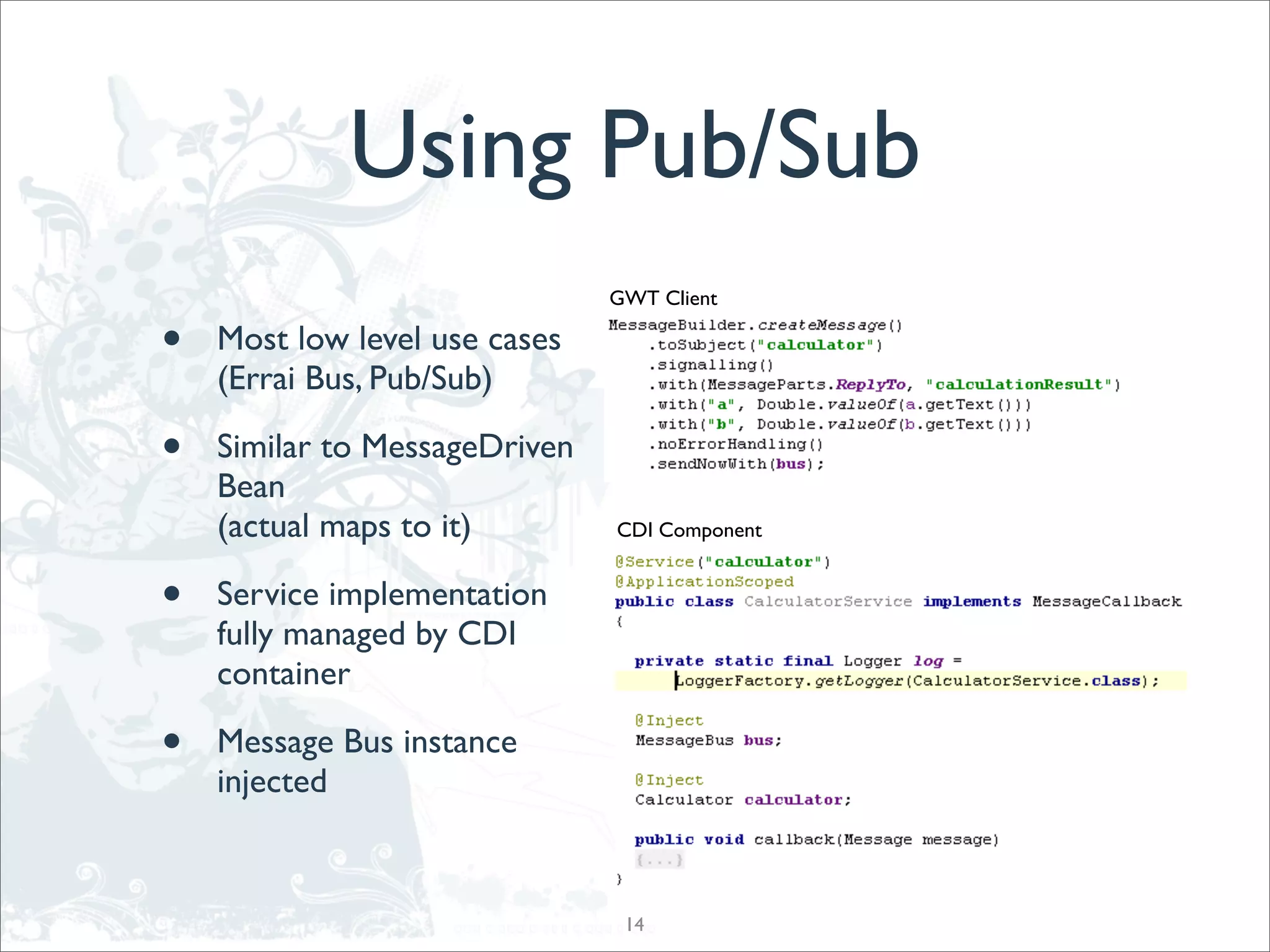

14. Using Pub/Sub
GWT Client
• Most low level use cases
(Errai Bus, Pub/Sub)
• Similar to MessageDriven
Bean
(actual maps to it) CDI Component
• Service implementation
fully managed by CDI
container
• Message Bus instance
injected
14

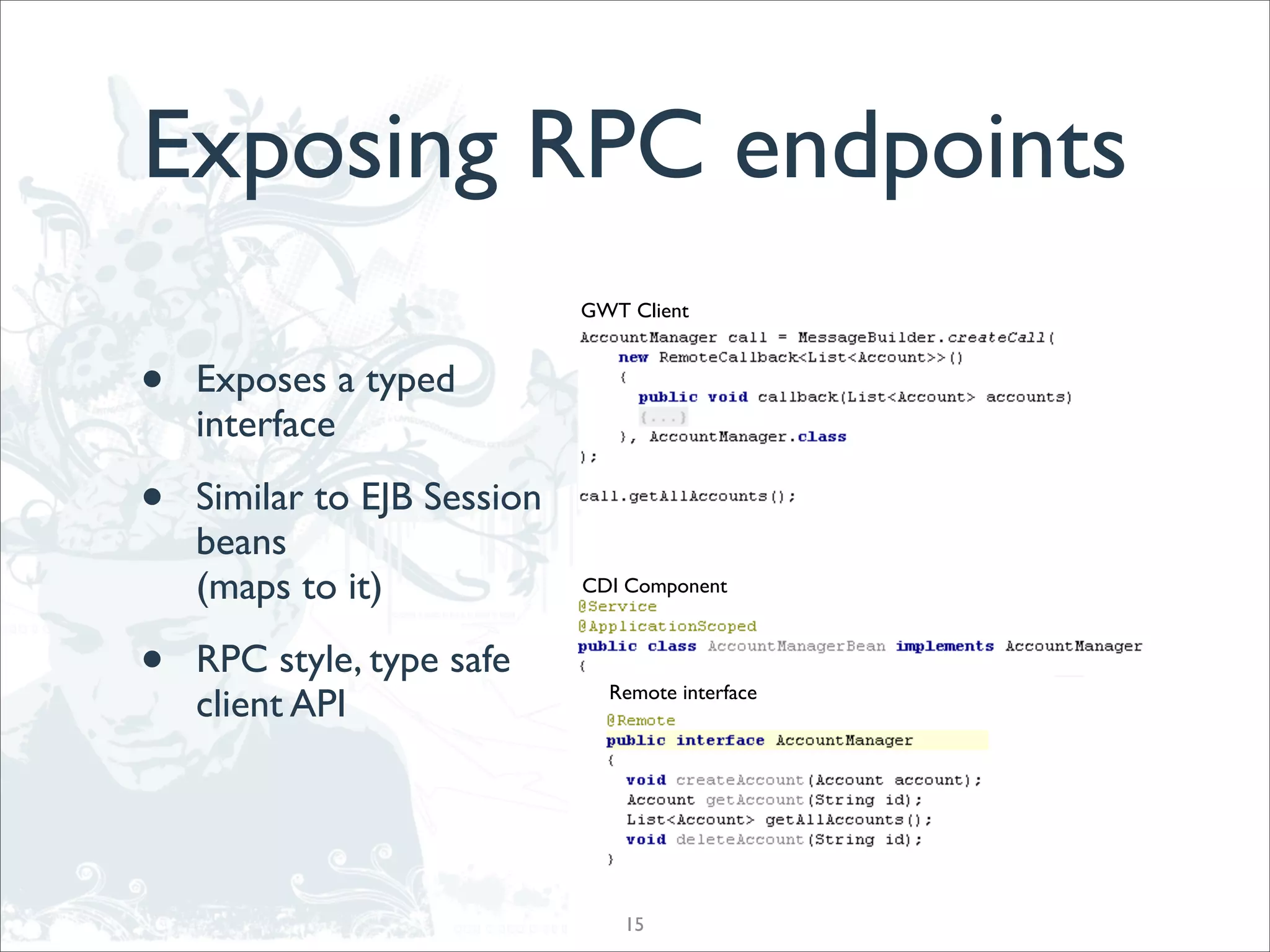

15. Exposing RPC endpoints
GWT Client
• Exposes a typed
interface
• Similar to EJB Session
beans
(maps to it) CDI Component
• RPC style, type safe
Remote interface
client API
15

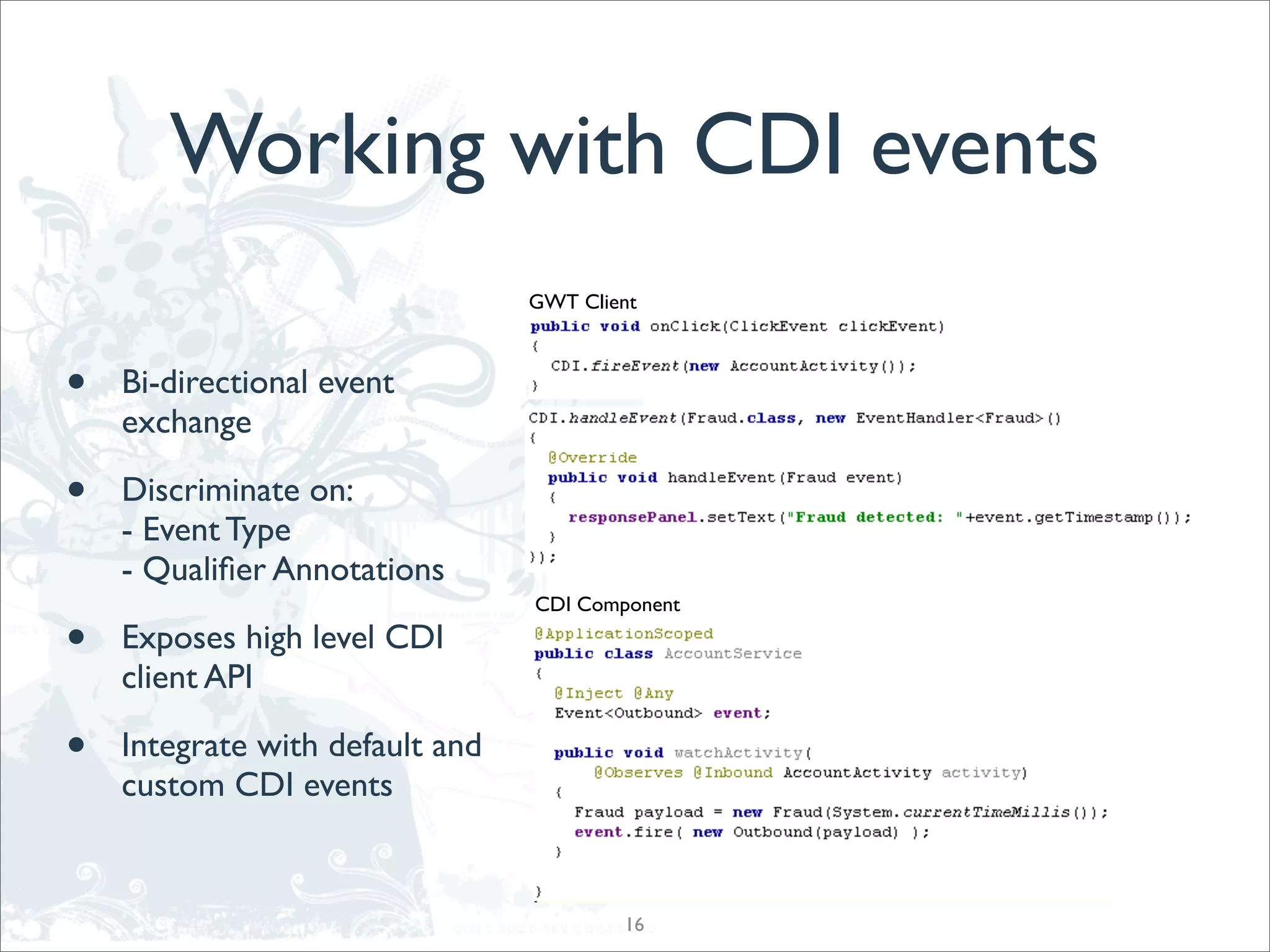

16. Working with CDI events
GWT Client
• Bi-directional event
exchange
• Discriminate on:
- Event Type
- Qualifier Annotations
CDI Component
• Exposes high level CDI
client API
• Integrate with default and
custom CDI events
16

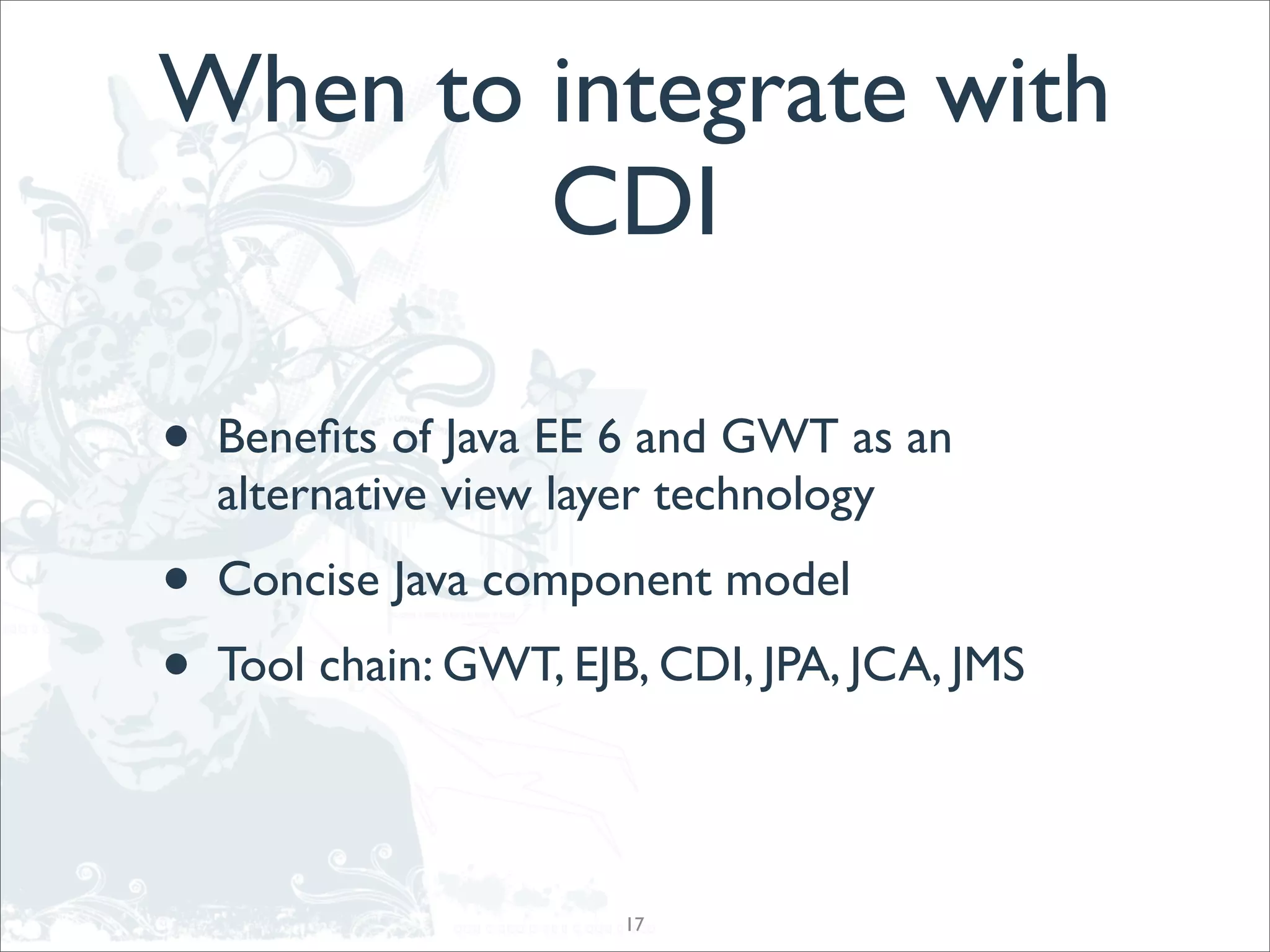

17. When to integrate with
CDI
• Benefits of Java EE 6 and GWT as an
alternative view layer technology
• Concise Java component model
• Tool chain: GWT, EJB, CDI, JPA, JCA, JMS
17

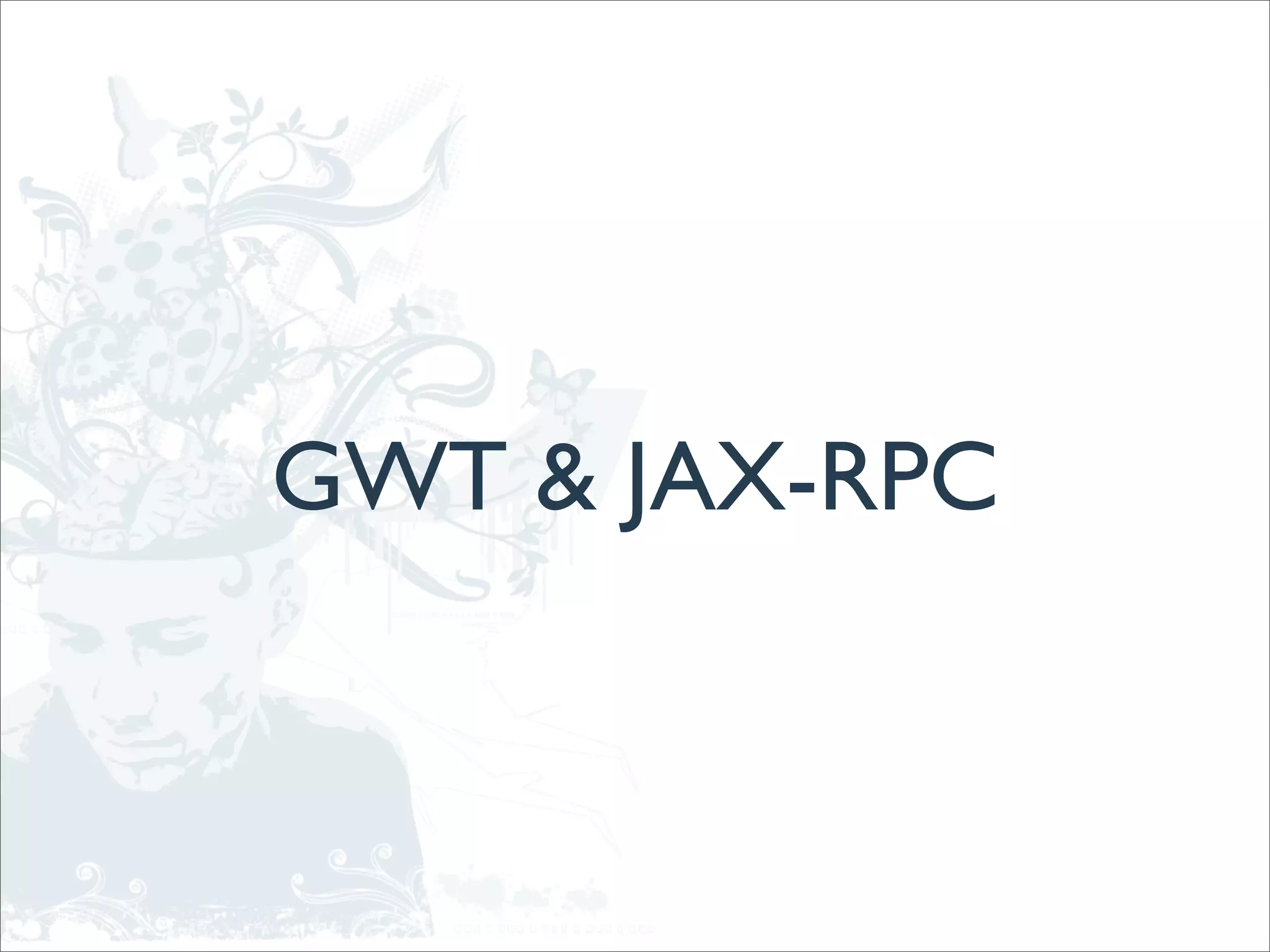

18. GWT & JAX-RPC

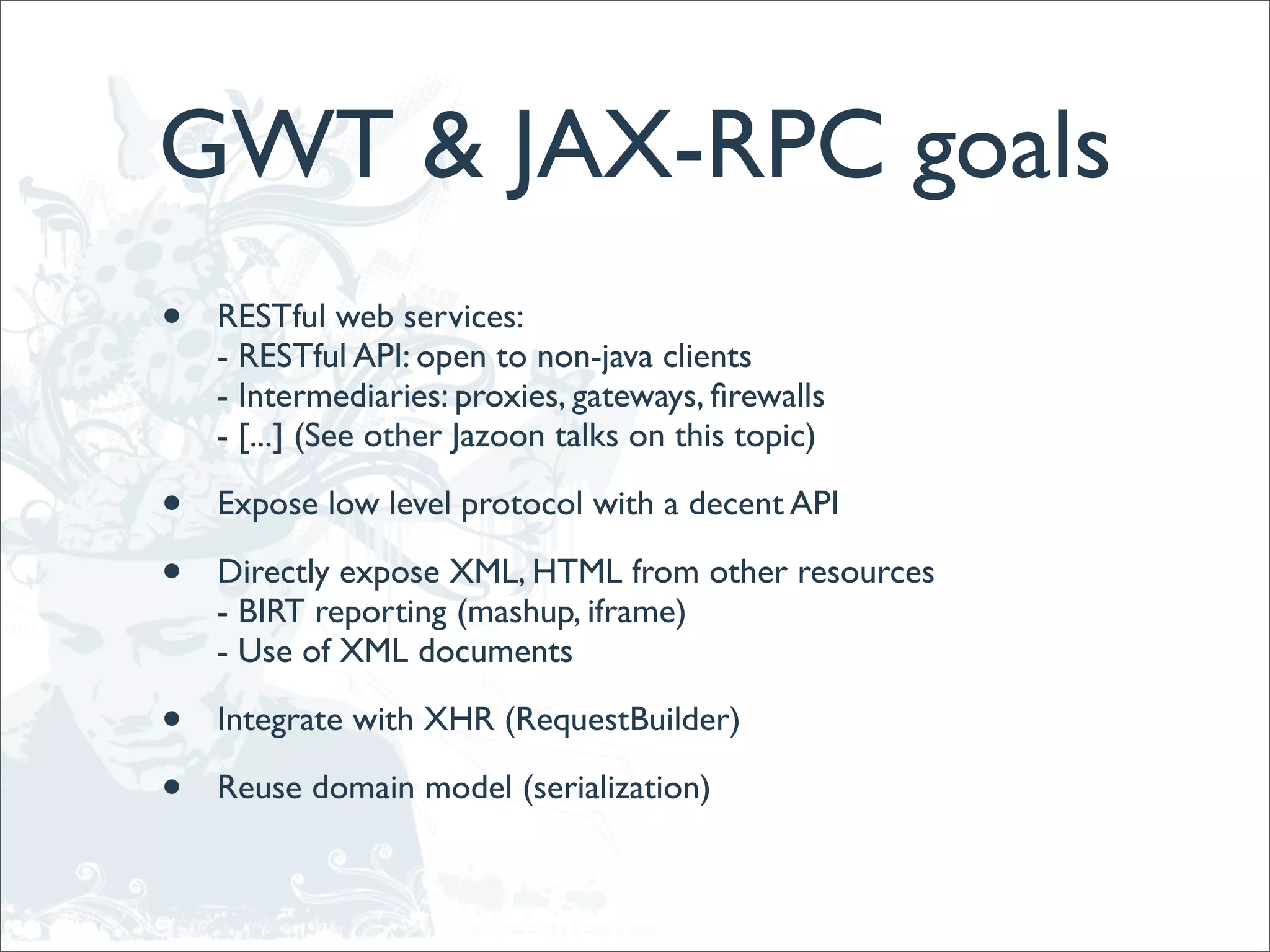

19. GWT & JAX-RPC goals
• RESTful web services:
- RESTful API: open to non-java clients
- Intermediaries: proxies, gateways, firewalls
- [...] (See other Jazoon talks on this topic)
• Expose low level protocol with a decent API
• Directly expose XML, HTML from other resources
- BIRT reporting (mashup, iframe)
- Use of XML documents
• Integrate with XHR (RequestBuilder)
• Reuse domain model (serialization)

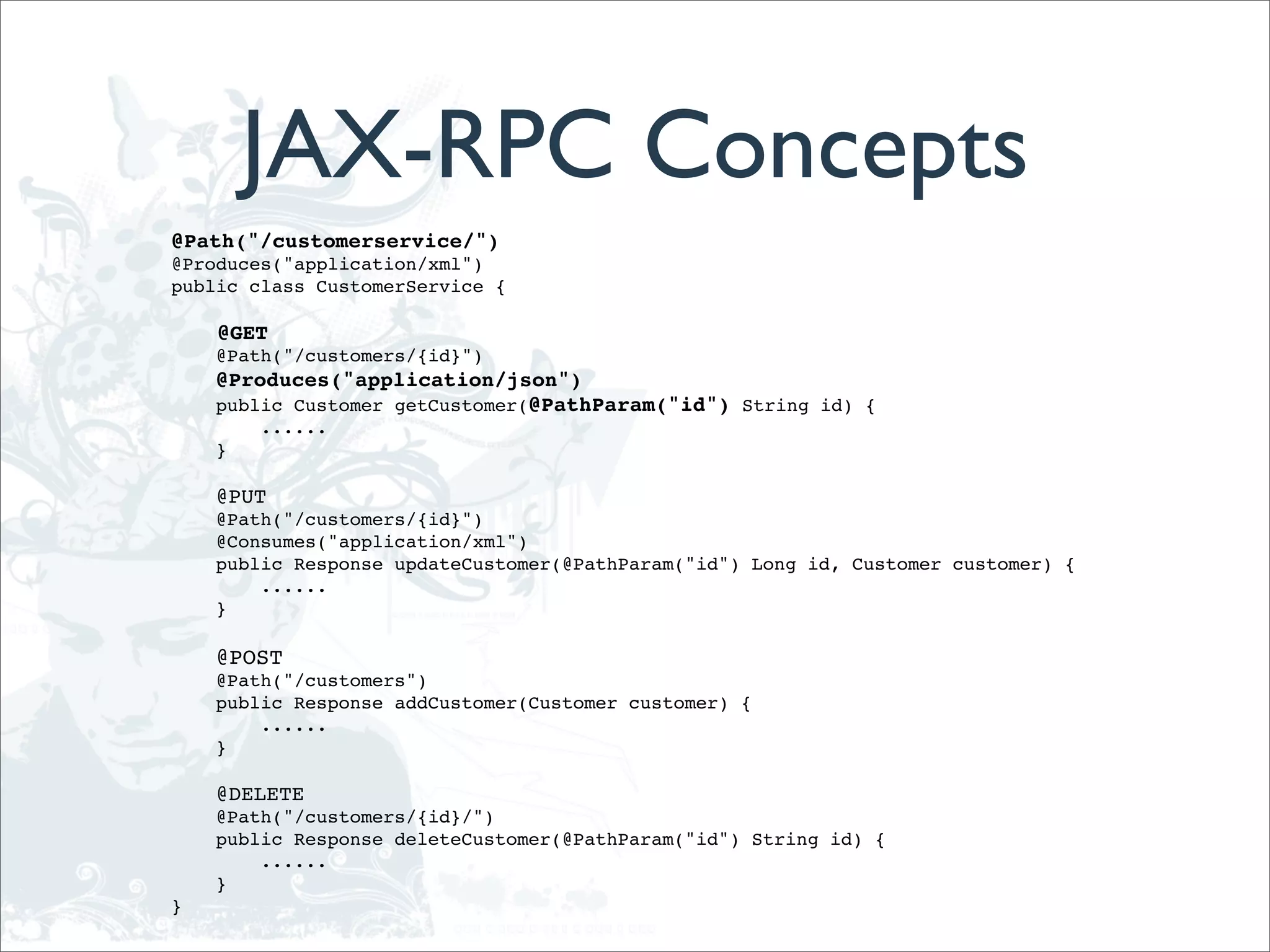

20. JAX-RPC Concepts
@Path("/customerservice/")
@Produces("application/xml")
public class CustomerService {
@GET
@Path("/customers/{id}")
@Produces("application/json")
public Customer getCustomer(@PathParam("id") String id) {
......
}
@PUT
@Path("/customers/{id}")
@Consumes("application/xml")
public Response updateCustomer(@PathParam("id") Long id, Customer customer) {
......
}
@POST
@Path("/customers")
public Response addCustomer(Customer customer) {
......
}
@DELETE
@Path("/customers/{id}/")
public Response deleteCustomer(@PathParam("id") String id) {
......
}
}

21. GWT & JAX-RPC
samples

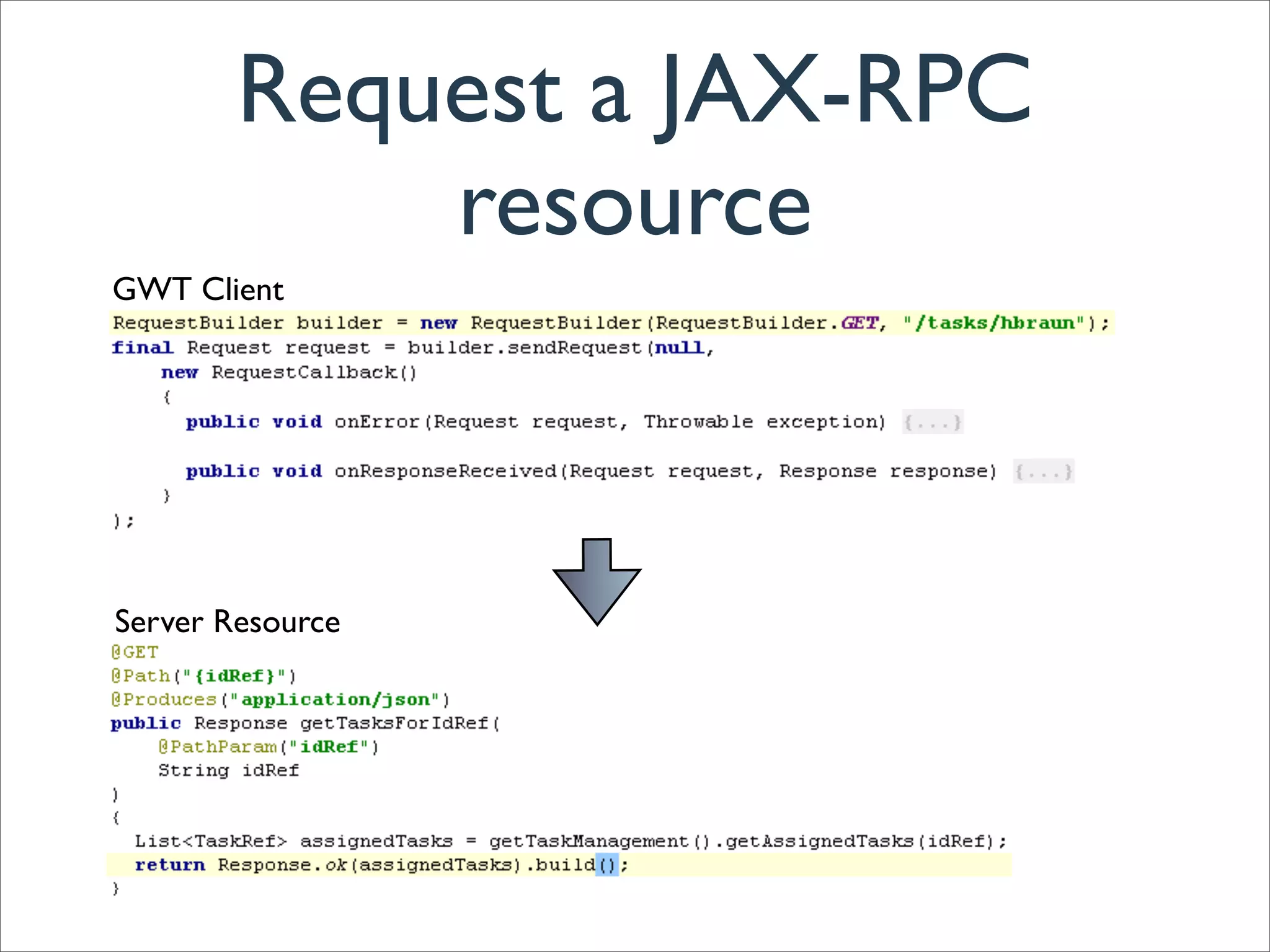

22. Request a JAX-RPC
resource
GWT Client
Server Resource

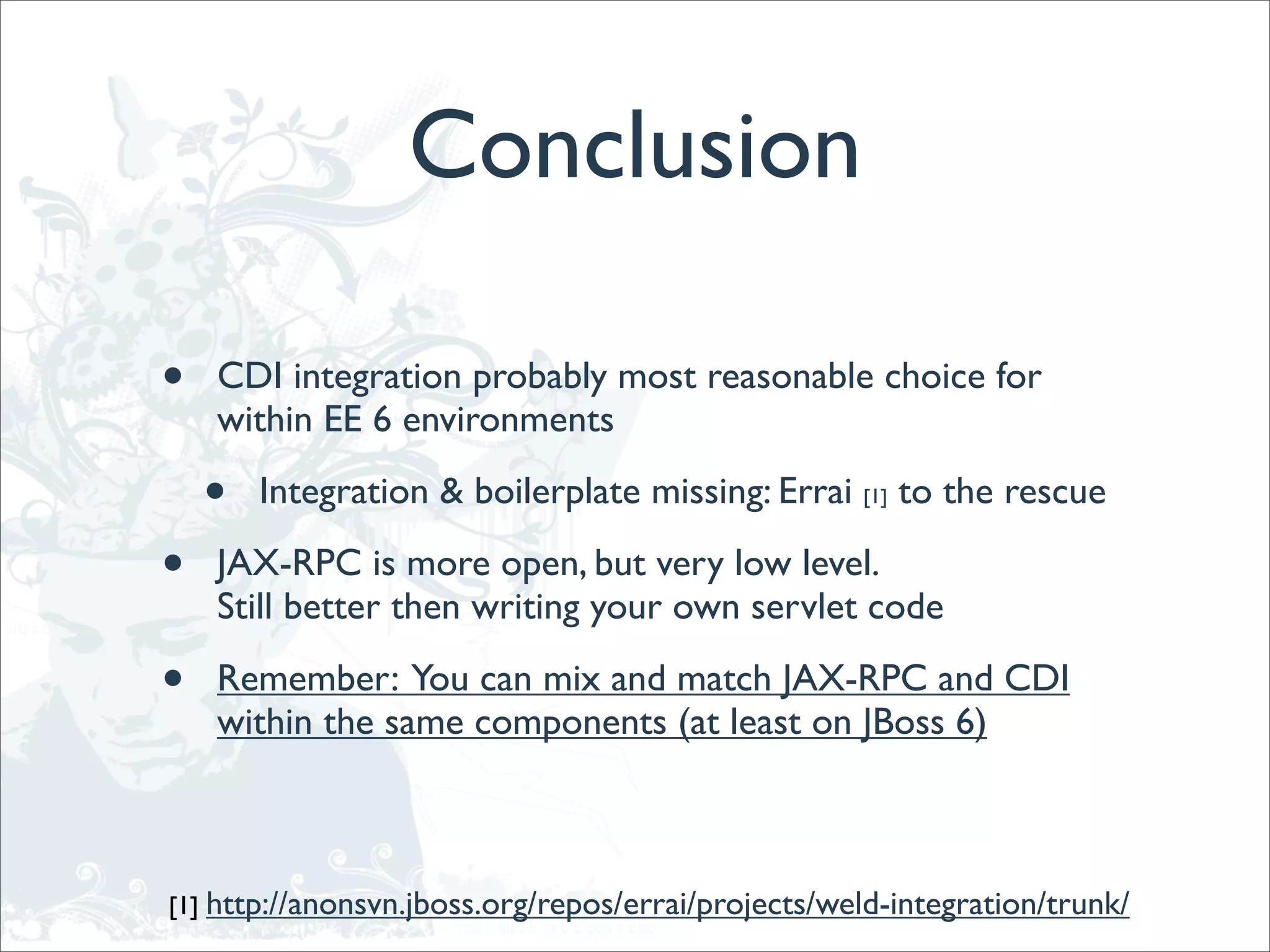

23. Conclusion
• CDI integration probably most reasonable choice for
within EE 6 environments
• Integration & boilerplate missing: Errai [1] to the rescue
• JAX-RPC is more open, but very low level.
Still better then writing your own servlet code
• Remember: You can mix and match JAX-RPC and CDI
within the same components (at least on JBoss 6)
[1] http://anonsvn.jboss.org/repos/errai/projects/weld-integration/trunk/

24. Q&A
> http://jboss.org/errai
> http://errai-blog.blogspot.com/

25. Appendix A:
Errai Message Bus

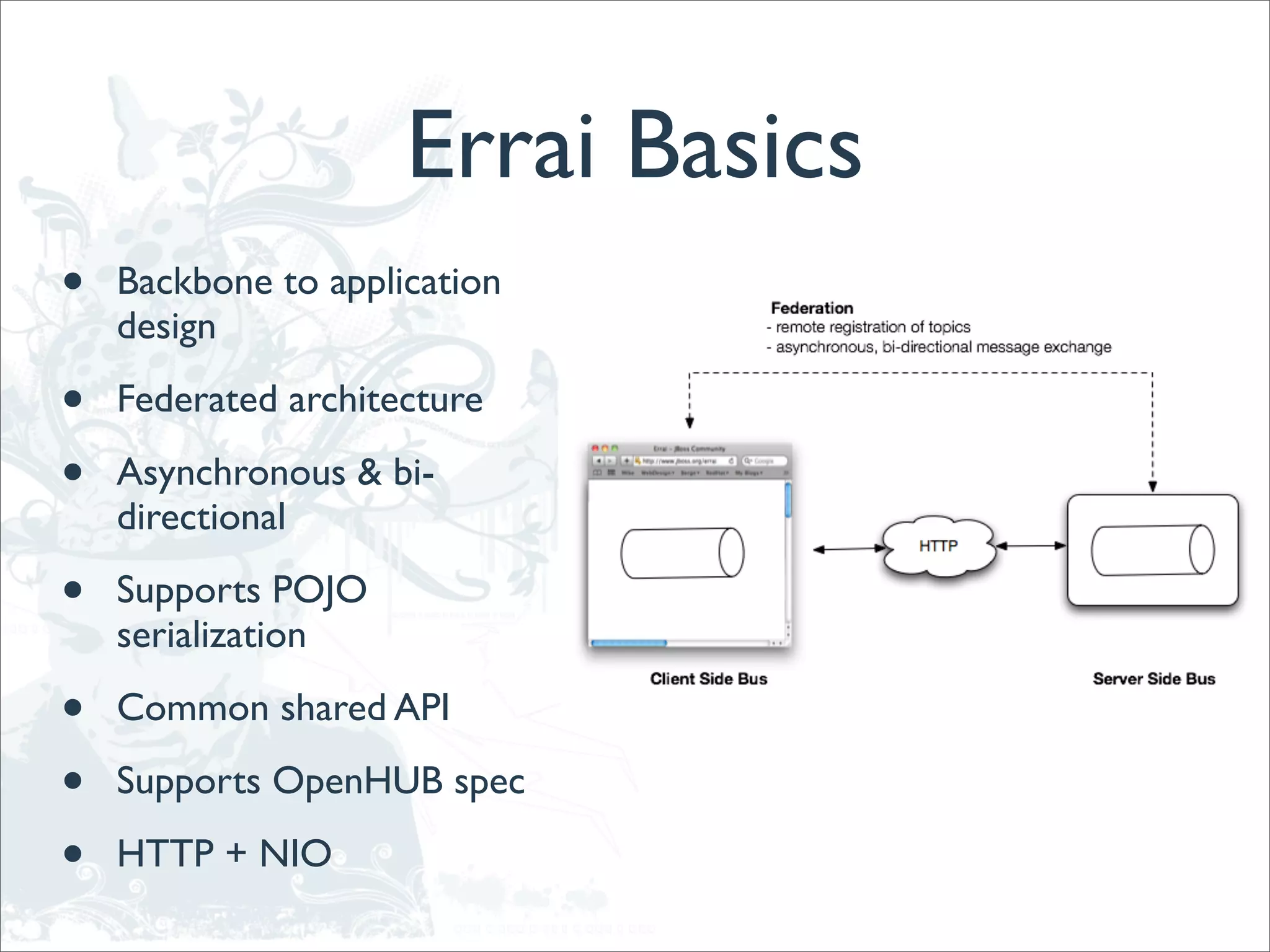

26. Errai Basics
• Backbone to application
design
• Federated architecture
• Asynchronous & bi-
directional
• Supports POJO
serialization
• Common shared API
• Supports OpenHUB spec
• HTTP + NIO

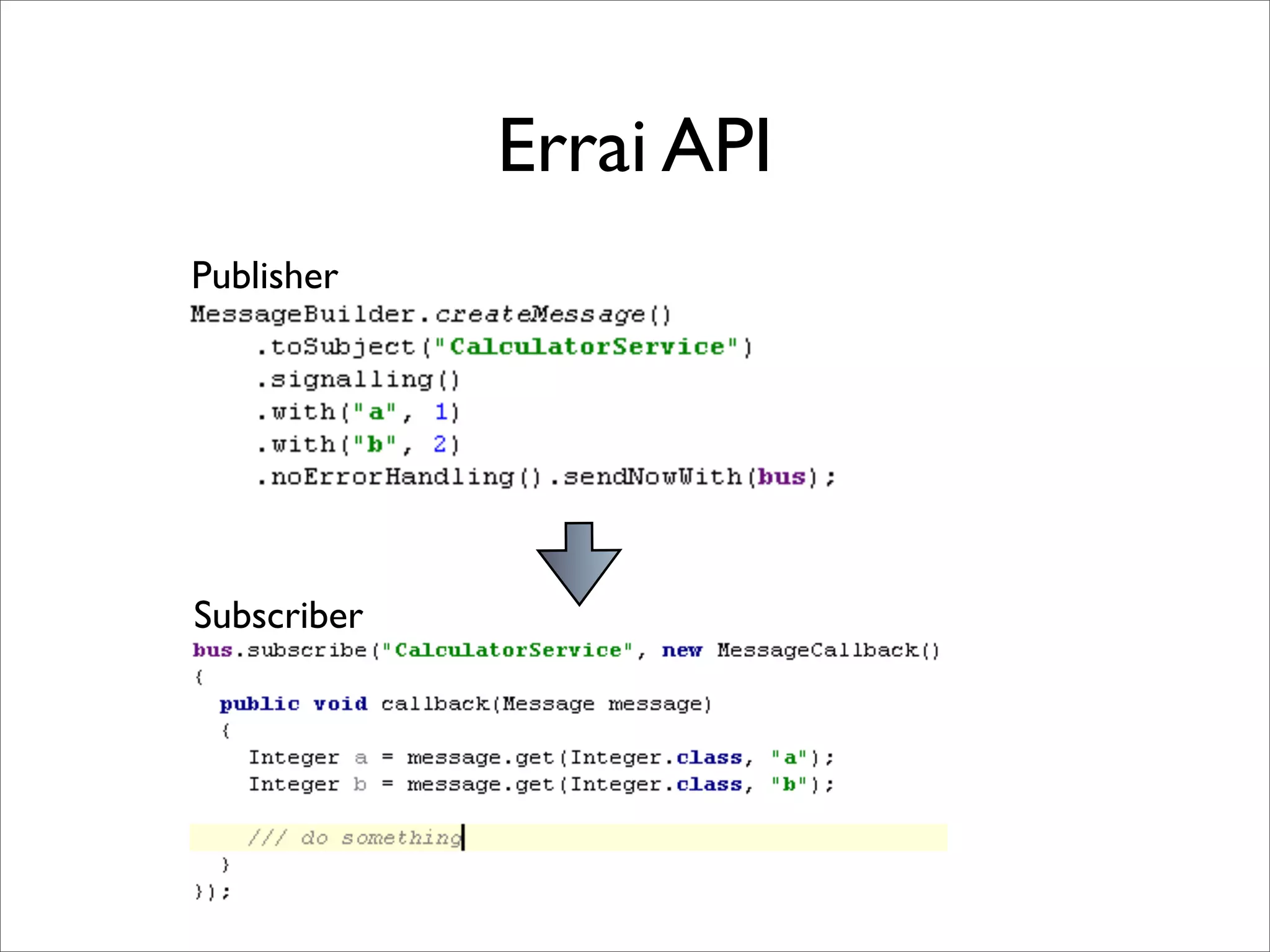

27. Errai API
Publisher
Subscriber
