1. Bruno Bossola
MSNOS
a spontaneus network operating system for
Microservice Architectures
bbossola@gmail.com
bruno.bossola@workshare.com
ROME 27-28 march 2015

2. Hey mate, who are you?
● Developer since 1988
● XP Coach 2000+
● Co-founder and coordinator of JUG Torino
● Java Champion since 2005
● VP of Engineering @Workshare.com

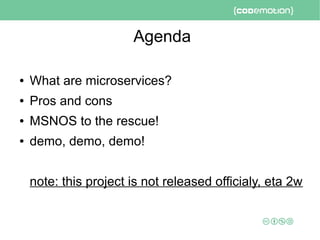

3. Agenda
● What are microservices?
● Pros and cons
● MSNOS to the rescue!
● demo, demo, demo!
note: this project is not released officialy, eta 2w

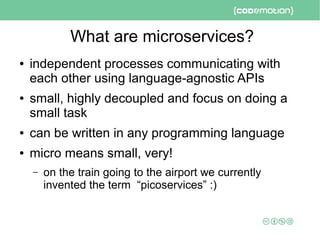

4. What are microservices?
● independent processes communicating with
each other using language-agnostic APIs
● small, highly decoupled and focus on doing a
small task
● can be written in any programming language
● micro means small, very!
– on the train going to the airport we currently
invented the term “picoservices” :)

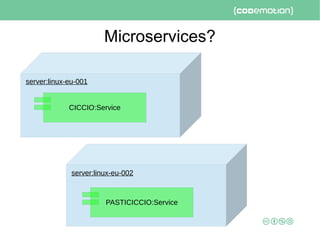

5. Microservices?
server:linux-eu-001
server:linux-eu-002
CICCIO:Service
PASTICICCIO:Service

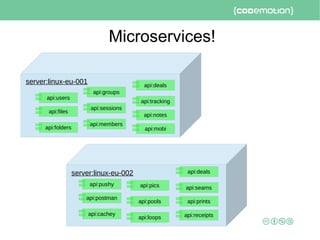

6. Microservices!
server:linux-eu-001
server:linux-eu-002
api:files
api:users
api:folders
api:groups
api:sessions
api:members
api:deals
api:tracking
api:notes
api:mobi
api:postman
api:pushy
api:cachey
api:pics
api:pools
api:loops
api:deals
api:seams
api:prints
api:receipts

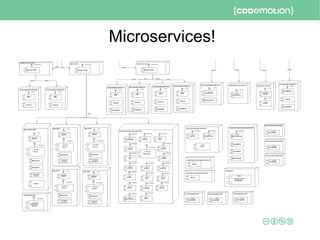

7. Microservices!

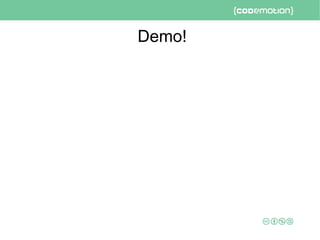

8. Demo!

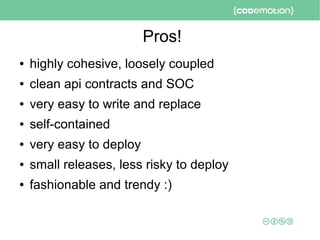

9. Pros!
● highly cohesive, loosely coupled
● clean api contracts and SOC
● very easy to write and replace
● self-contained
● very easy to deploy
● small releases, less risky to deploy
● fashionable and trendy :)

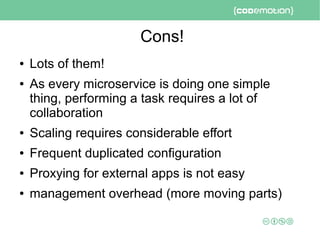

10. Cons!
● Lots of them!
● As every microservice is doing one simple
thing, performing a task requires a lot of
collaboration
● Scaling requires considerable effort
● Frequent duplicated configuration
● Proxying for external apps is not easy
● management overhead (more moving parts)

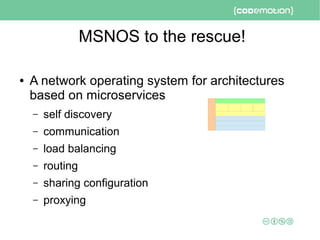

11. MSNOS to the rescue!
● A network operating system for architectures
based on microservices
– self discovery
– communication
– load balancing
– routing
– sharing configuration
– proxying

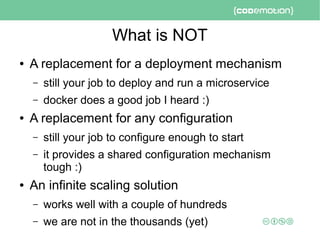

12. What is NOT
● A replacement for a deployment mechanism
– still your job to deploy and run a microservice
– docker does a good job I heard :)
● A replacement for any configuration
– still your job to configure enough to start
– it provides a shared configuration mechanism
tough :)
● An infinite scaling solution
– works well with a couple of hundreds
– we are not in the thousands (yet)

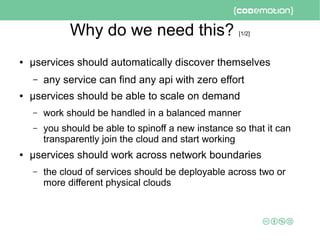

13. Why do we need this? [1/2]
● μservices should automatically discover themselves
– any service can find any api with zero effort
● μservices should be able to scale on demand
– work should be handled in a balanced manner
– you should be able to spinoff a new instance so that it can
transparently join the cloud and start working
● μservices should work across network boundaries
– the cloud of services should be deployable across two or
more different physical clouds

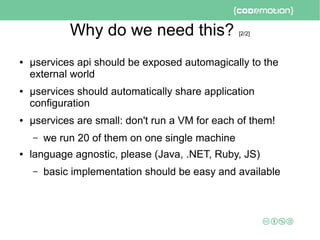

14. Why do we need this? [2/2]
● μservices api should be exposed automagically to the
external world
● μservices should automatically share application
configuration
● μservices are small: don't run a VM for each of them!
– we run 20 of them on one single machine
● language agnostic, please (Java, .NET, Ruby, JS)
– basic implementation should be easy and available

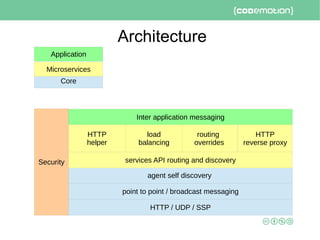

15. Architecture
Security
HTTP / UDP / SSP
agent self discovery
point to point / broadcast messaging
Core
Application
Inter application messaging
Microservices
services API routing and discovery
HTTP
helper
routing
overrides
load
balancing
HTTP
reverse proxy

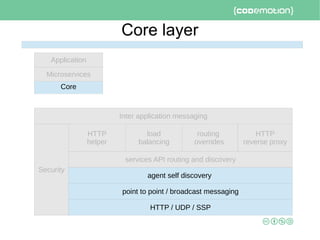

16. Core layer
HTTP / UDP / SSP
Security
agent self discovery
services API routing and discovery
point to point / broadcast messaging
Core
Microservices
Application
Inter application messaging
HTTP
helper
routing
overrides
load
balancing
HTTP
reverse proxy

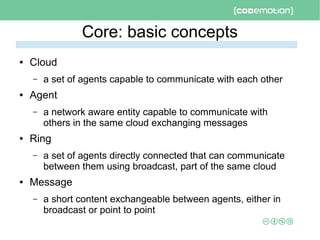

17. Core: basic concepts
● Cloud
– a set of agents capable to communicate with each other
● Agent
– a network aware entity capable to communicate with
others in the same cloud exchanging messages
● Ring
– a set of agents directly connected that can communicate
between them using broadcast, part of the same cloud
● Message
– a short content exchangeable between agents, either in
broadcast or point to point

18. Core: architecture
● provides basic messaging capabilities and security
● each agent can send “SMS” style messages to any other
agent or to the cloud
● messages can be reliable on a point to point
communication
● uses existing networking feats:
– UDP over a local network
– HTTP(s) using internet SAAS over distributed networks
– HTTP(s) and SSH using helpers over near-distance
networks

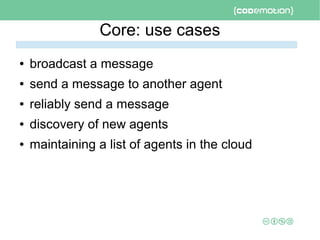

19. Core: use cases
● broadcast a message
● send a message to another agent
● reliably send a message
● discovery of new agents
● maintaining a list of agents in the cloud

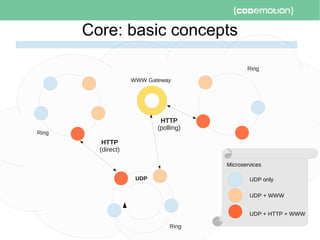

20. Core: basic concepts
WWW Gateway
UDP
Ring
HTTP
(polling)
Ring
Ring
HTTP
(direct)
UDP only
UDP + WWW
Microservices
UDP + HTTP + WWW

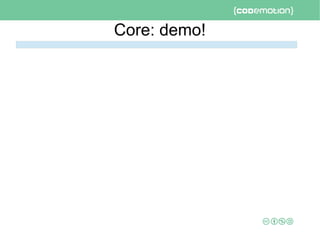

21. Core: demo!

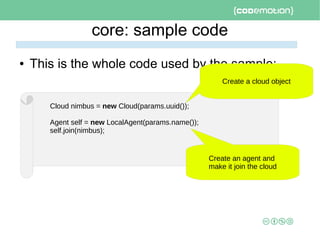

22. core: sample code
● This is the whole code used by the sample:
Cloud nimbus = new Cloud(params.uuid());
Agent self = new LocalAgent(params.name());
self.join(nimbus);
Create a cloud object
Create an agent and
make it join the cloud

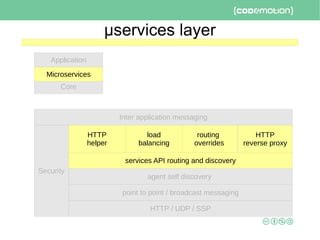

23. μservices layer
HTTP / UDP / SSP
Security
agent self discovery
services API routing and discovery
point to point / broadcast messaging
HTTP
helper
routing
overrides
load
balancing
Core
Application
Inter application messaging
HTTP
reverse proxy
Microservices

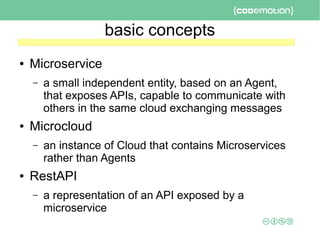

24. basic concepts
● Microservice
– a small independent entity, based on an Agent,
that exposes APIs, capable to communicate with
others in the same cloud exchanging messages
● Microcloud
– an instance of Cloud that contains Microservices
rather than Agents
● RestAPI
– a representation of an API exposed by a
microservice

25. RestApi
● encapsulate a REST endpoint exposed by a
microservice
● has different types:
– public, exposed to anyone
● will be exposed by the proxy to the public
– private, exposed to the cloud only
– health, exposes an internal healthcheck
– msnos, exposes a receiving endpoint for msnos
messages

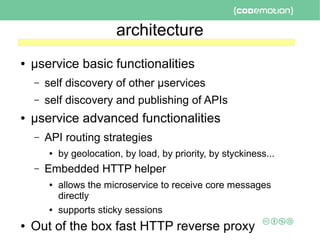

26. architecture
● μservice basic functionalities
– self discovery of other μservices
– self discovery and publishing of APIs
● μservice advanced functionalities
– API routing strategies
● by geolocation, by load, by priority, by styckiness...
– Embedded HTTP helper
● allows the microservice to receive core messages
directly
● supports sticky sessions
● Out of the box fast HTTP reverse proxy

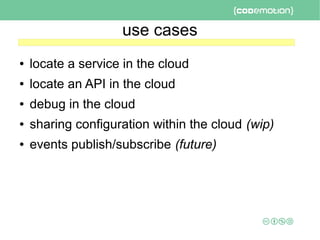

27. use cases
● locate a service in the cloud
● locate an API in the cloud
● debug in the cloud
● sharing configuration within the cloud (wip)
● events publish/subscribe (future)

28. Fast HTTP Proxy
HTTP
Proxy
RestAPI X
RestAPI Y
RestAPI Z

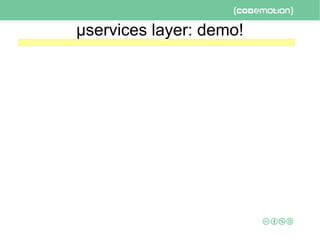

29. μservices layer: demo!

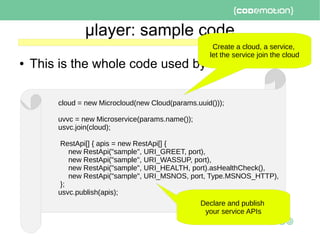

30. μlayer: sample code
● This is the whole code used by the clients:
cloud = new Microcloud(new Cloud(params.uuid()));
uvvc = new Microservice(params.name());
usvc.join(cloud);
RestApi[] { apis = new RestApi[] {
new RestApi("sample", URI_GREET, port),
new RestApi("sample", URI_WASSUP, port),
new RestApi("sample", URI_HEALTH, port).asHealthCheck(),
new RestApi("sample", URI_MSNOS, port, Type.MSNOS_HTTP),
};
usvc.publish(apis);
Declare and publish
your service APIs
Create a cloud, a service,
let the service join the cloud

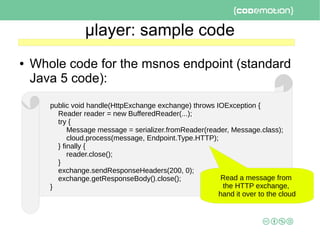

31. μlayer: sample code
● Whole code for the msnos endpoint (standard
Java 5 code):
public void handle(HttpExchange exchange) throws IOException {
Reader reader = new BufferedReader(...);
try {
Message message = serializer.fromReader(reader, Message.class);
cloud.process(message, Endpoint.Type.HTTP);
} finally {
reader.close();
}
exchange.sendResponseHeaders(200, 0);
exchange.getResponseBody().close();
}
Read a message from
the HTTP exchange,
hand it over to the cloud

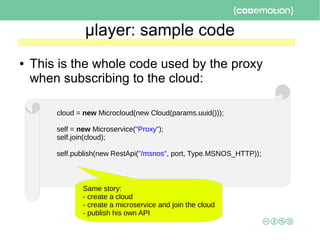

32. μlayer: sample code
● This is the whole code used by the proxy
when subscribing to the cloud:
cloud = new Microcloud(new Cloud(params.uuid()));
self = new Microservice("Proxy");
self.join(cloud);
self.publish(new RestApi("/msnos", port, Type.MSNOS_HTTP));
Same story:
- create a cloud
- create a microservice and join the cloud
- publish his own API

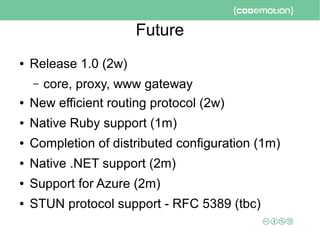

33. Future
● Release 1.0 (2w)
– core, proxy, www gateway
● New efficient routing protocol (2w)
● Native Ruby support (1m)
● Completion of distributed configuration (1m)
● Native .NET support (2m)
● Support for Azure (2m)
● STUN protocol support - RFC 5389 (tbc)

34. Q&A
● Msnos code:
– https://github.com/workshare/ms-nos
● Myself:
– https://about.me/bbossola
– bbossola@gmail.com
– @bbossola
● Company
– https://www.workshare.com
We are hiring!!!

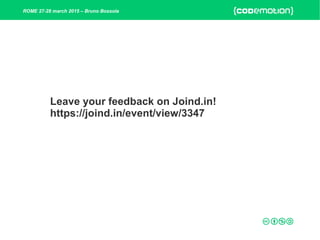

35. ROME 27-28 march 2015 – Bruno Bossola
Leave your feedback on Joind.in!
https://joind.in/event/view/3347

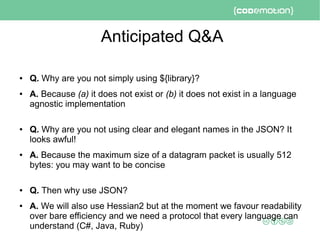

36. Anticipated Q&A
● Q. Why are you not simply using ${library}?
● A. Because (a) it does not exist or (b) it does not exist in a language
agnostic implementation
● Q. Why are you not using clear and elegant names in the JSON? It
looks awful!
● A. Because the maximum size of a datagram packet is usually 512
bytes: you may want to be concise
● Q. Then why use JSON?
● A. We will also use Hessian2 but at the moment we favour readability
over bare efficiency and we need a protocol that every language can
understand (C#, Java, Ruby)
