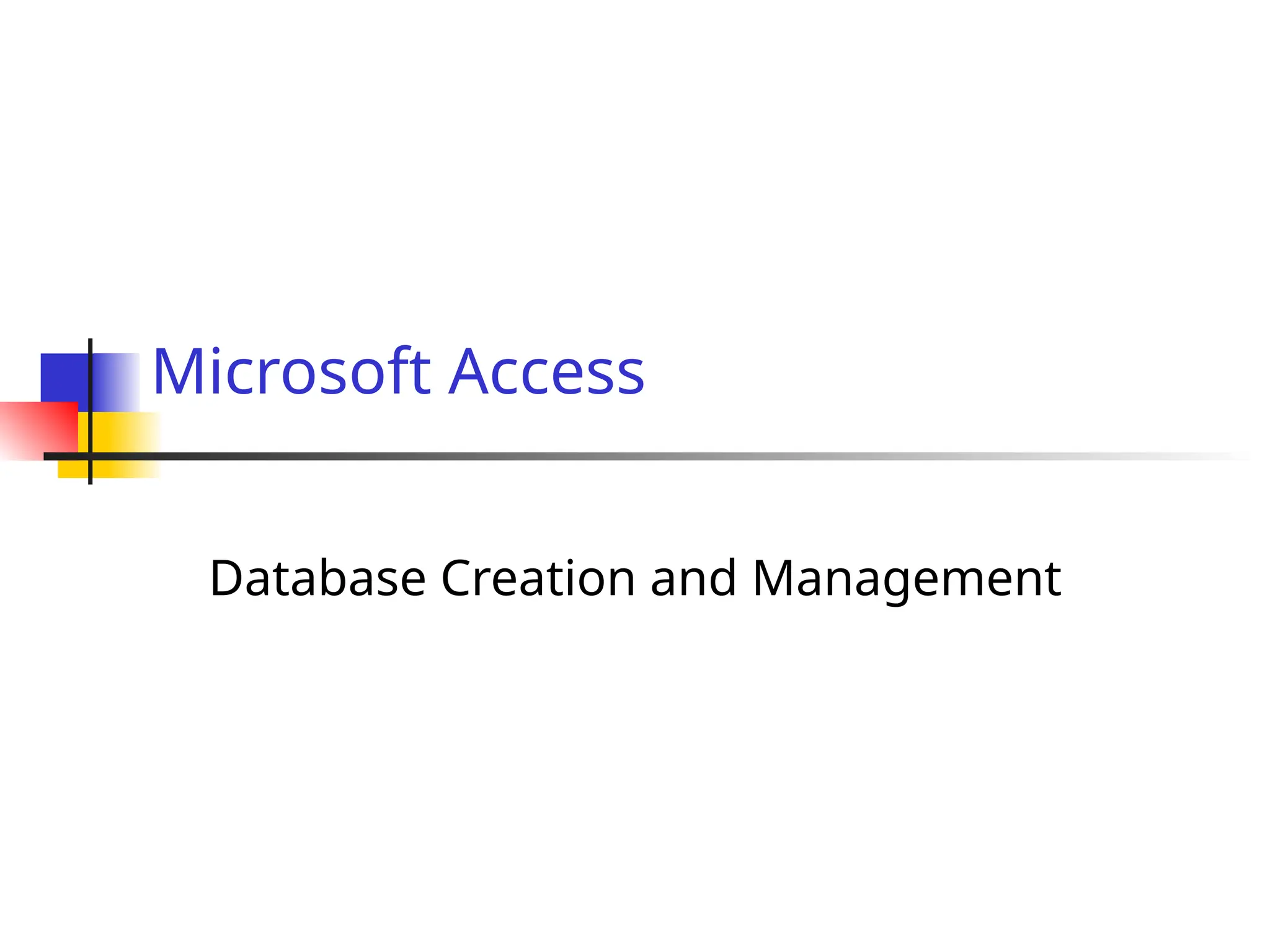

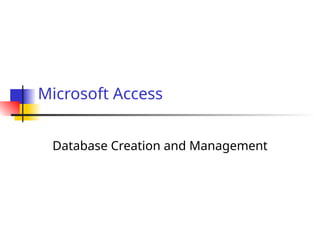

1. Microsoft Access
Database Creation and Management

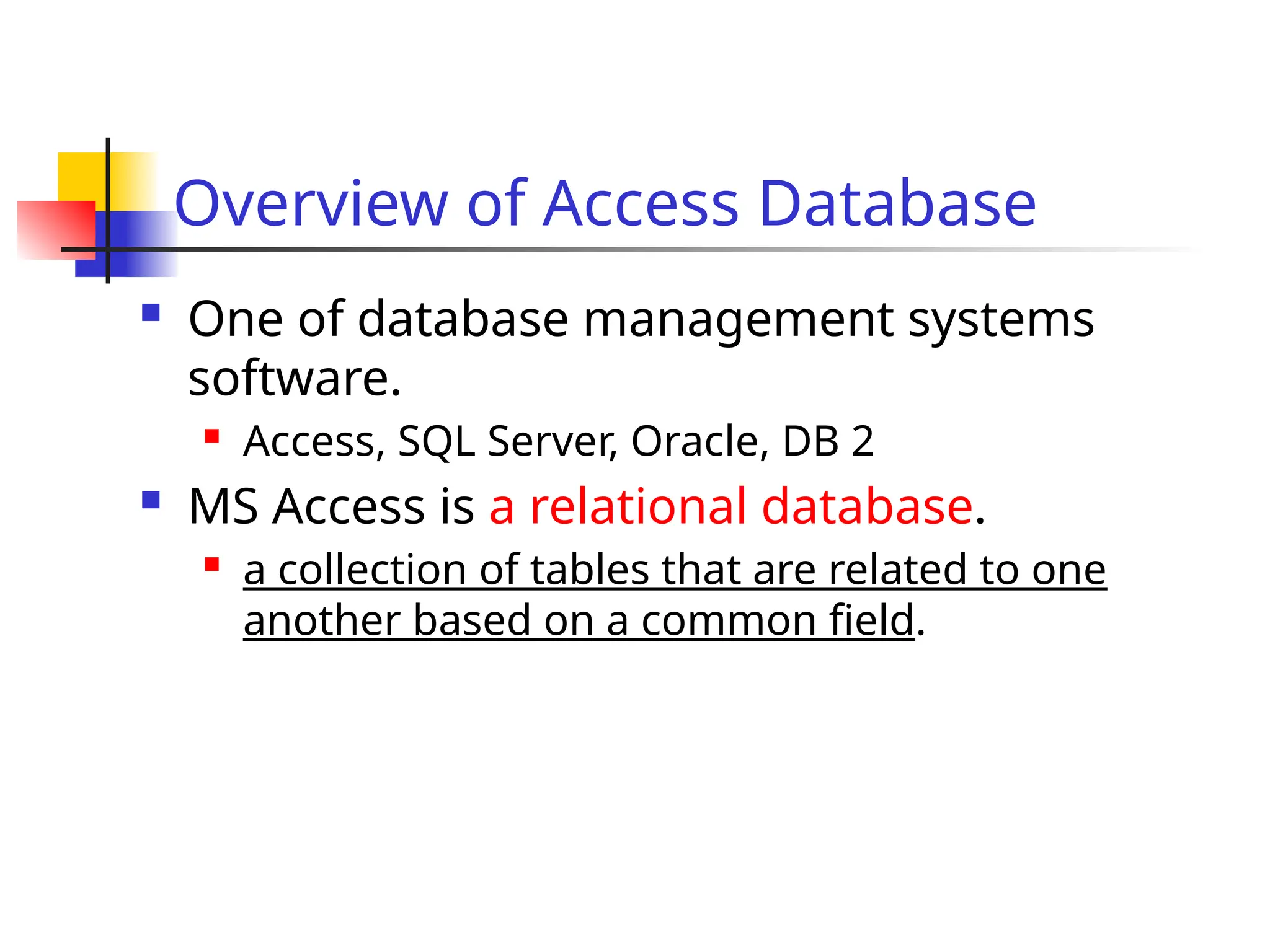

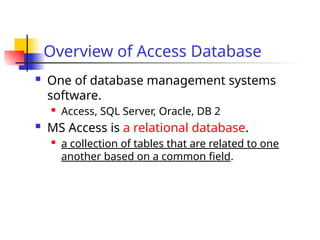

2. Overview of Access Database
 One of database management systems
software.
 Access, SQL Server, Oracle, DB 2
 MS Access is a relational database.
 a collection of tables that are related to one
another based on a common field.

3. Relational Database
A schematic diagram of a relational database (a) and a sample part of a
relational database showing different tables (b)

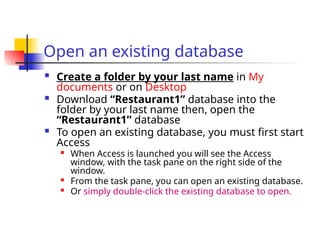

4. Open an existing database
 Create a folder by your last name in My
documents or on Desktop
 Download “Restaurant1” database into the
folder by your last name then, open the
“Restaurant1” database
 To open an existing database, you must first start
Access
 When Access is launched you will see the Access
window, with the task pane on the right side of the
window.

From the task pane, you can open an existing database.

Or simply double-click the existing database to open.

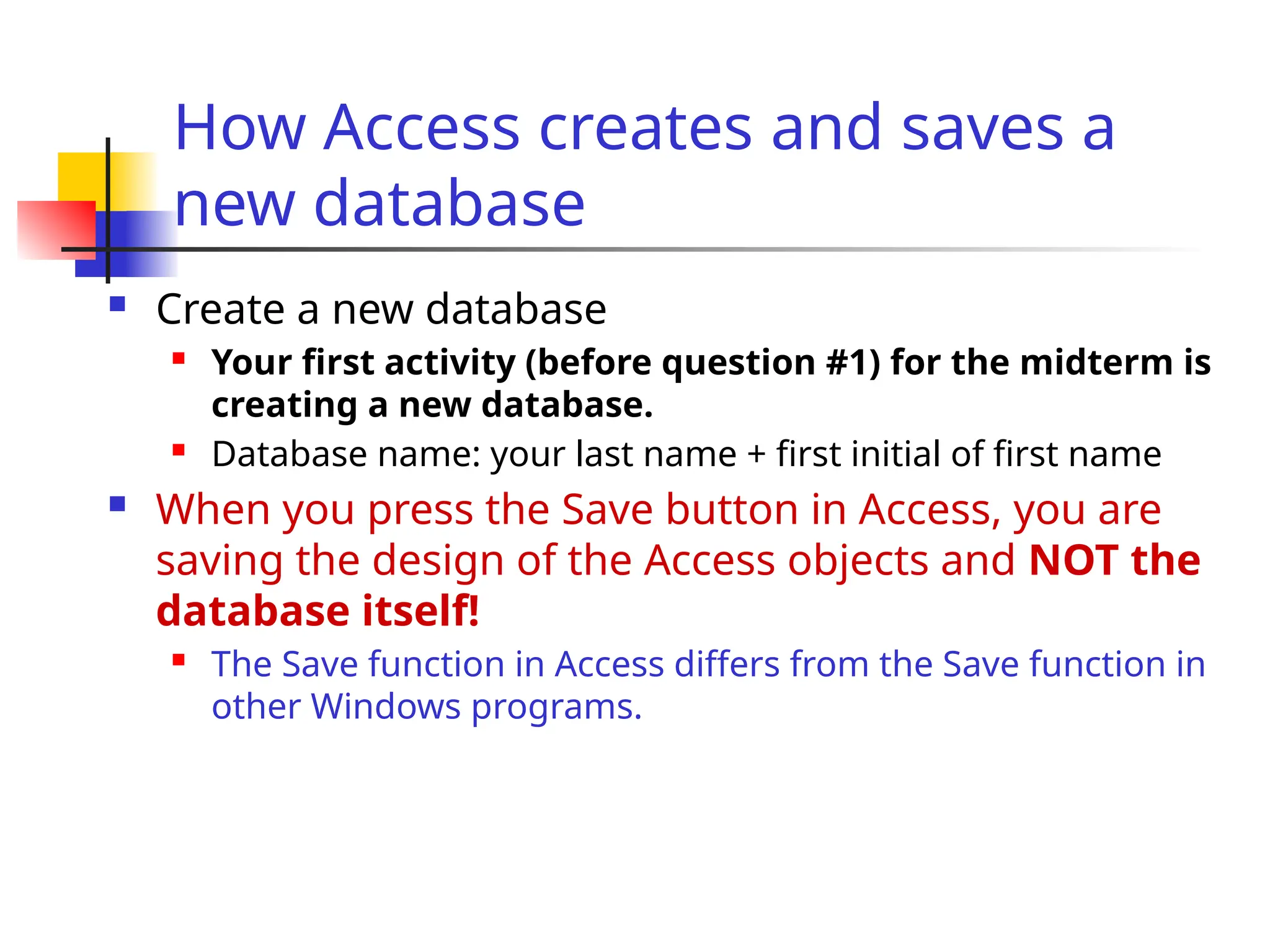

5. How Access creates and saves a
new database
 Create a new database
 Your first activity (before question #1) for the midterm is
creating a new database.
 Database name: your last name + first initial of first name
 When you press the Save button in Access, you are
saving the design of the Access objects and NOT the
database itself!
 The Save function in Access differs from the Save function in
other Windows programs.

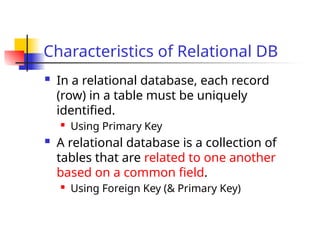

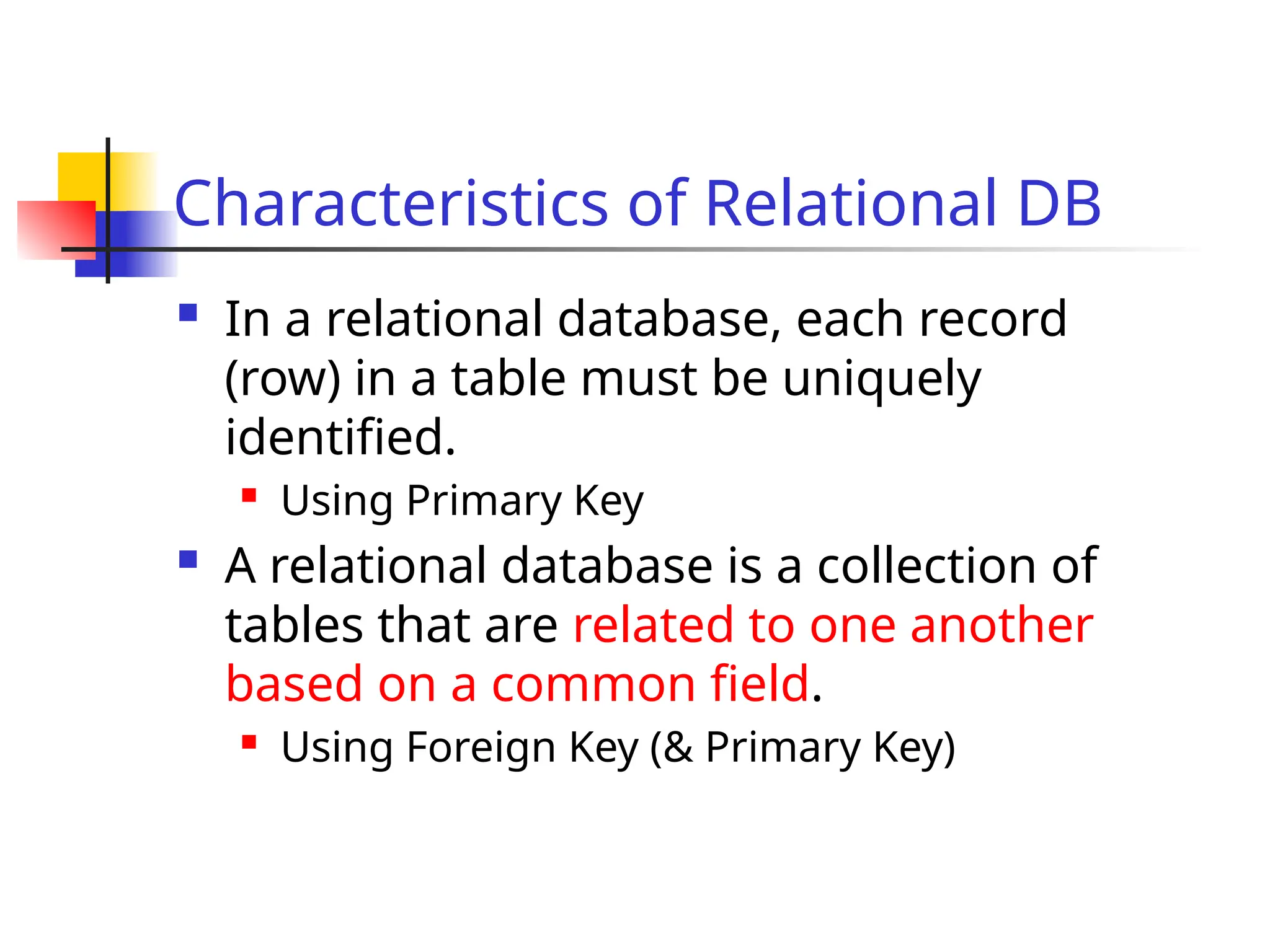

6. Characteristics of Relational DB
 In a relational database, each record
(row) in a table must be uniquely
identified.
 Using Primary Key
 A relational database is a collection of
tables that are related to one another
based on a common field.
 Using Foreign Key (& Primary Key)

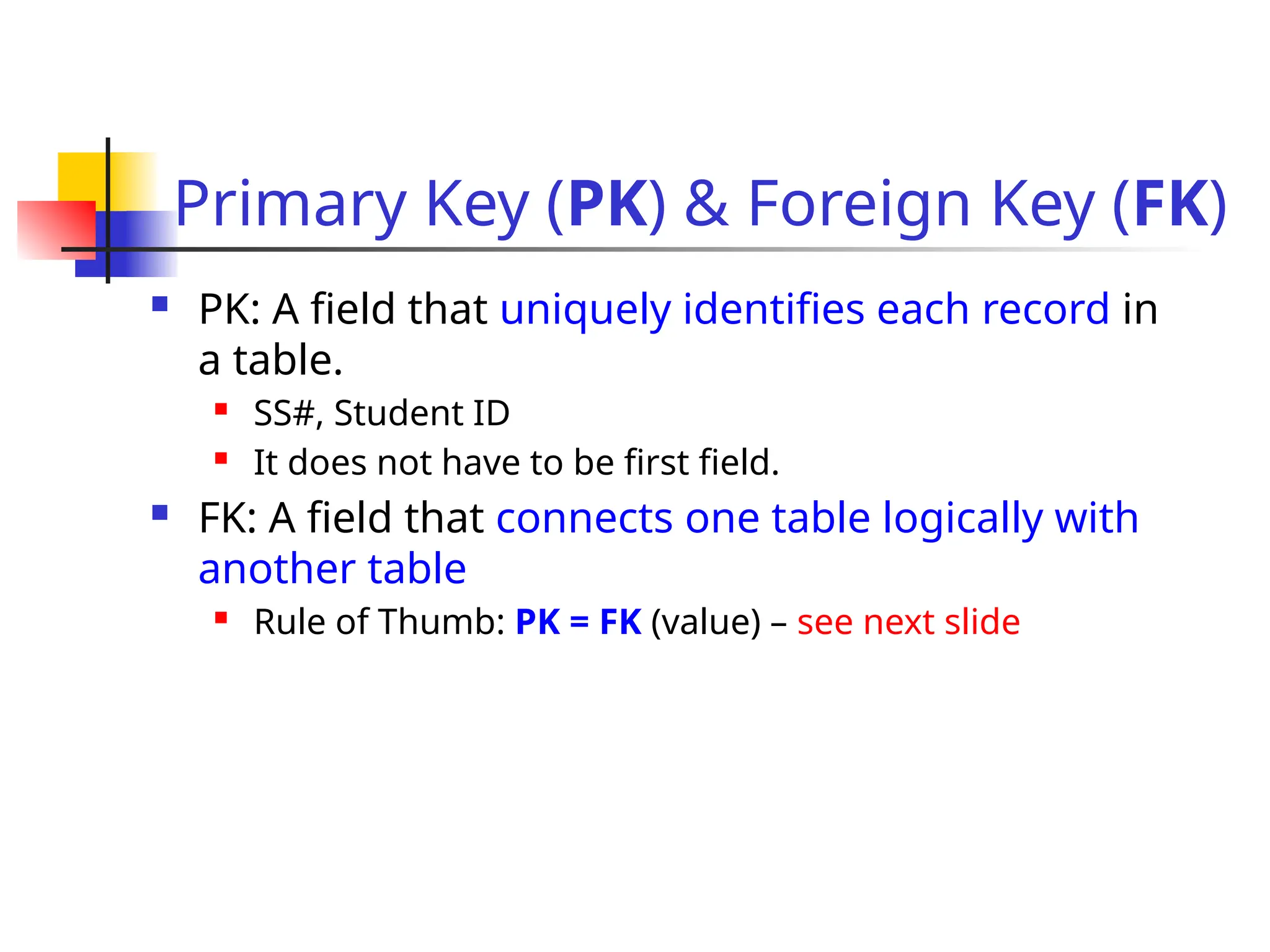

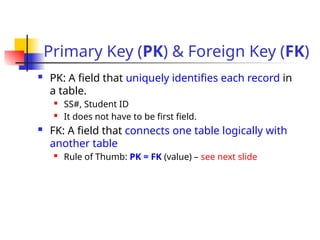

7. Primary Key (PK) & Foreign Key (FK)
 PK: A field that uniquely identifies each record in
a table.
 SS#, Student ID
 It does not have to be first field.
 FK: A field that connects one table logically with
another table
 Rule of Thumb: PK = FK (value) – see next slide

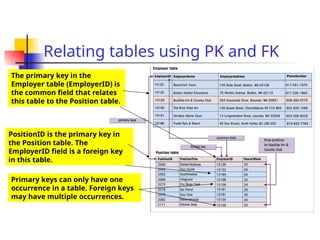

8. Relating tables using PK and FK
The primary key in the
Employer table (EmployerID) is
the common field that relates
this table to the Position table.
PositionID is the primary key in
the Position table. The
EmployerID field is a foreign key
in this table.
Primary keys can only have one
occurrence in a table. Foreign keys
may have multiple occurrences.

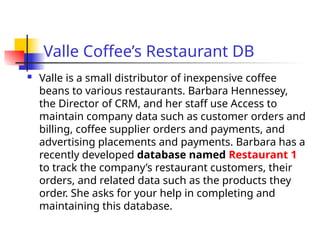

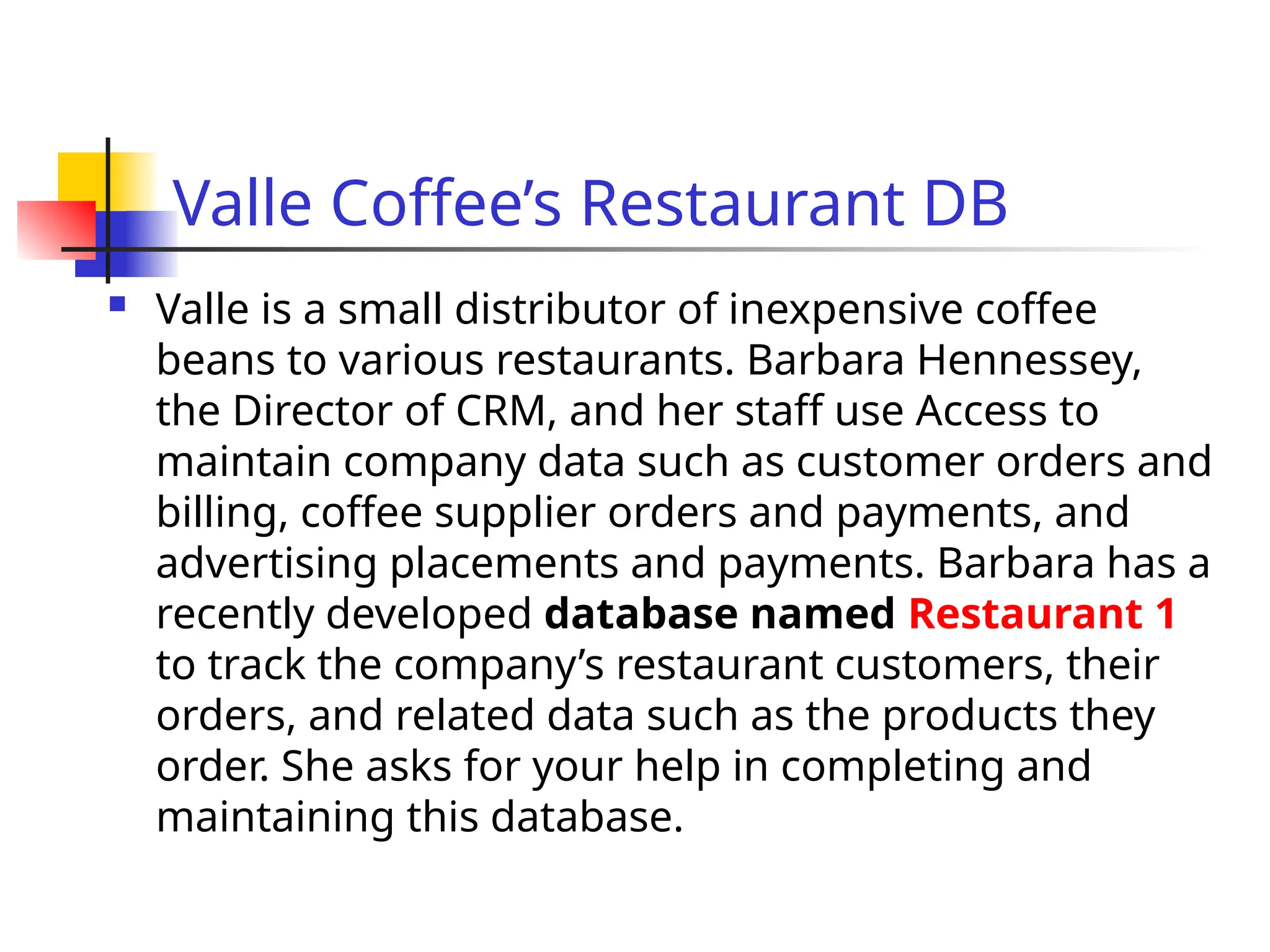

9. Valle Coffee’s Restaurant DB
 Valle is a small distributor of inexpensive coffee
beans to various restaurants. Barbara Hennessey,
the Director of CRM, and her staff use Access to
maintain company data such as customer orders and
billing, coffee supplier orders and payments, and
advertising placements and payments. Barbara has a
recently developed database named Restaurant 1
to track the company’s restaurant customers, their
orders, and related data such as the products they
order. She asks for your help in completing and
maintaining this database.

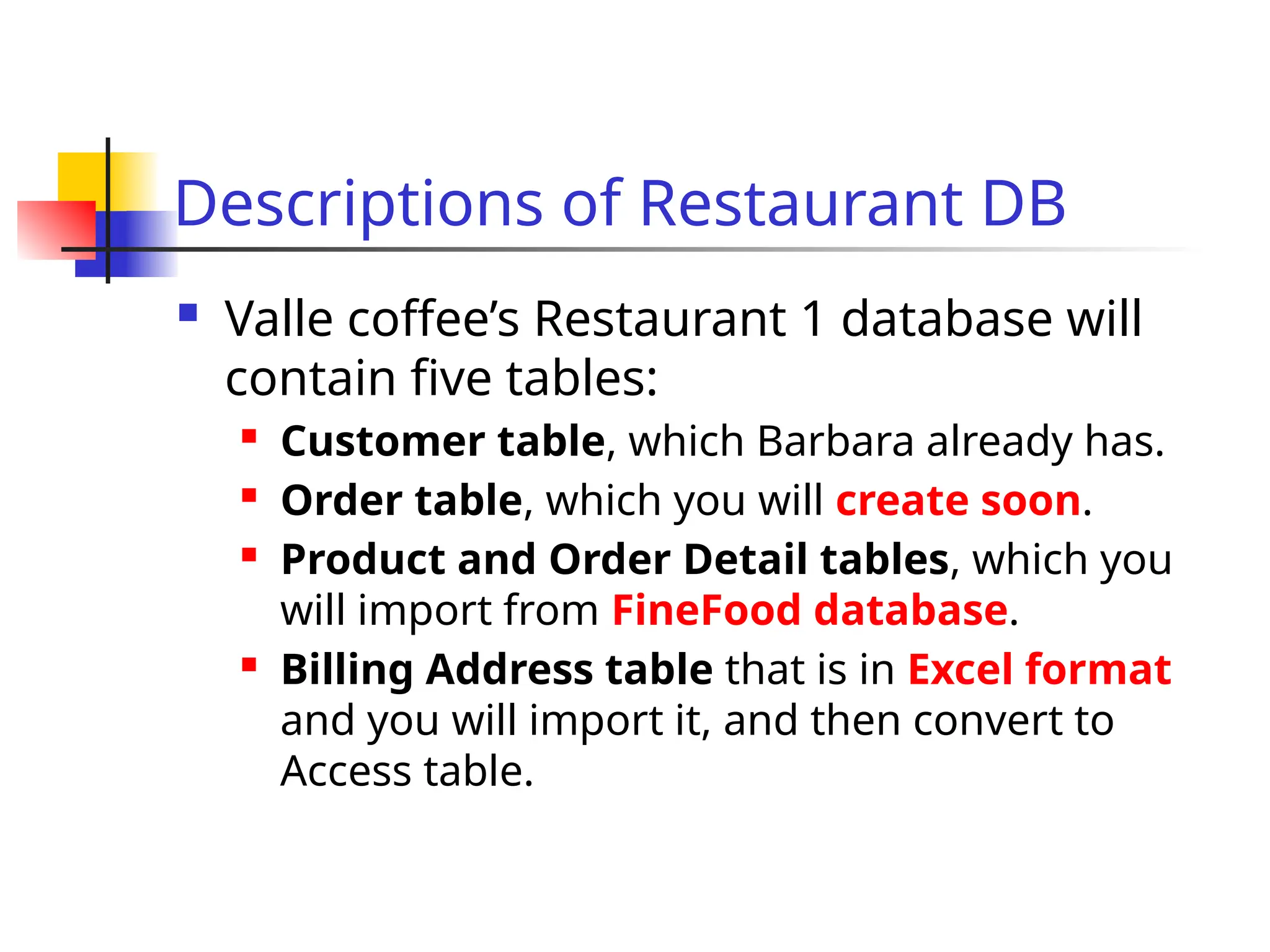

10. Descriptions of Restaurant DB

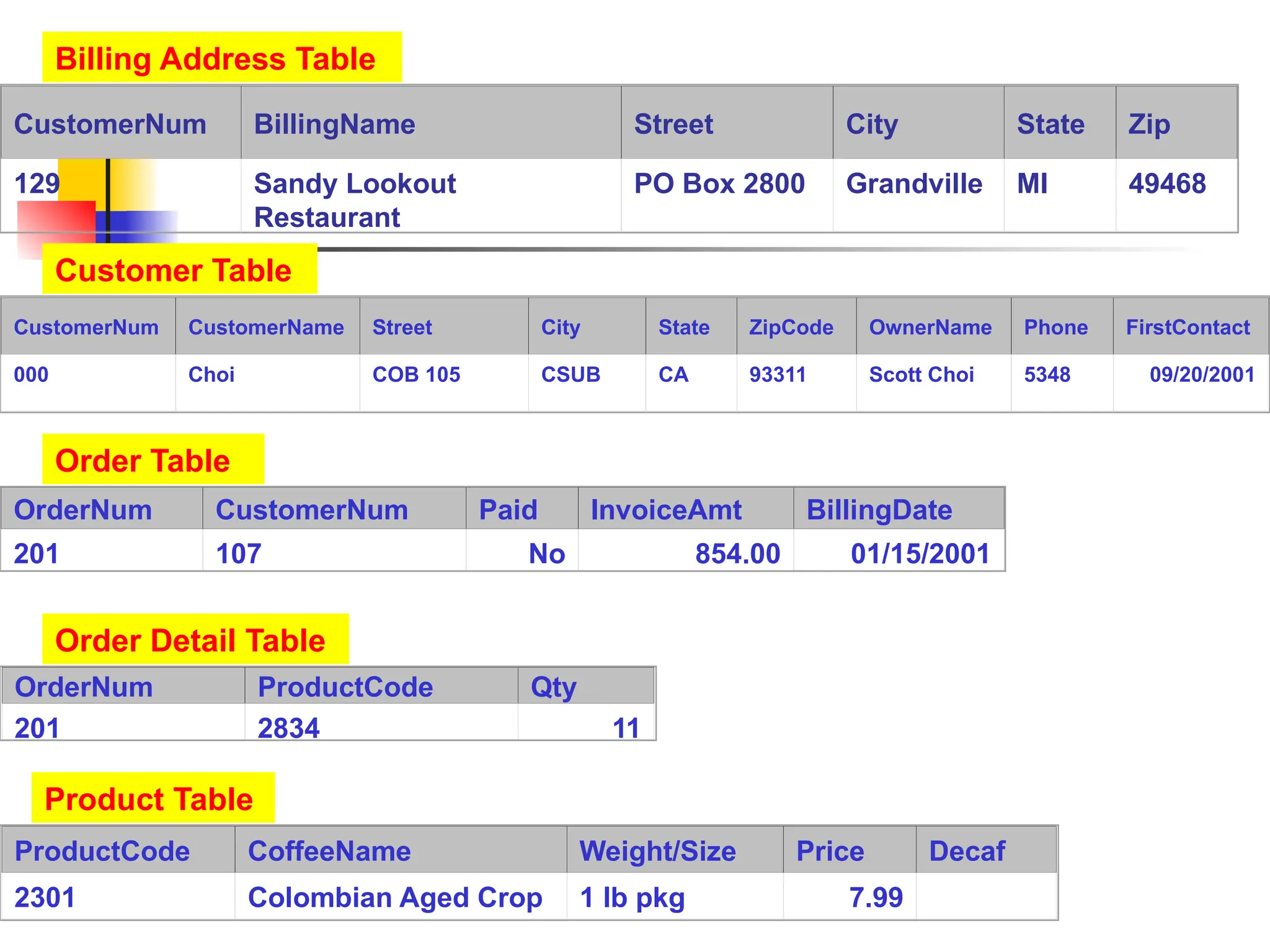

 Valle coffee’s Restaurant 1 database will
contain five tables:
 Customer table, which Barbara already has.
 Order table, which you will create soon.
 Product and Order Detail tables, which you
will import from FineFood database.
 Billing Address table that is in Excel format
and you will import it, and then convert to
Access table.

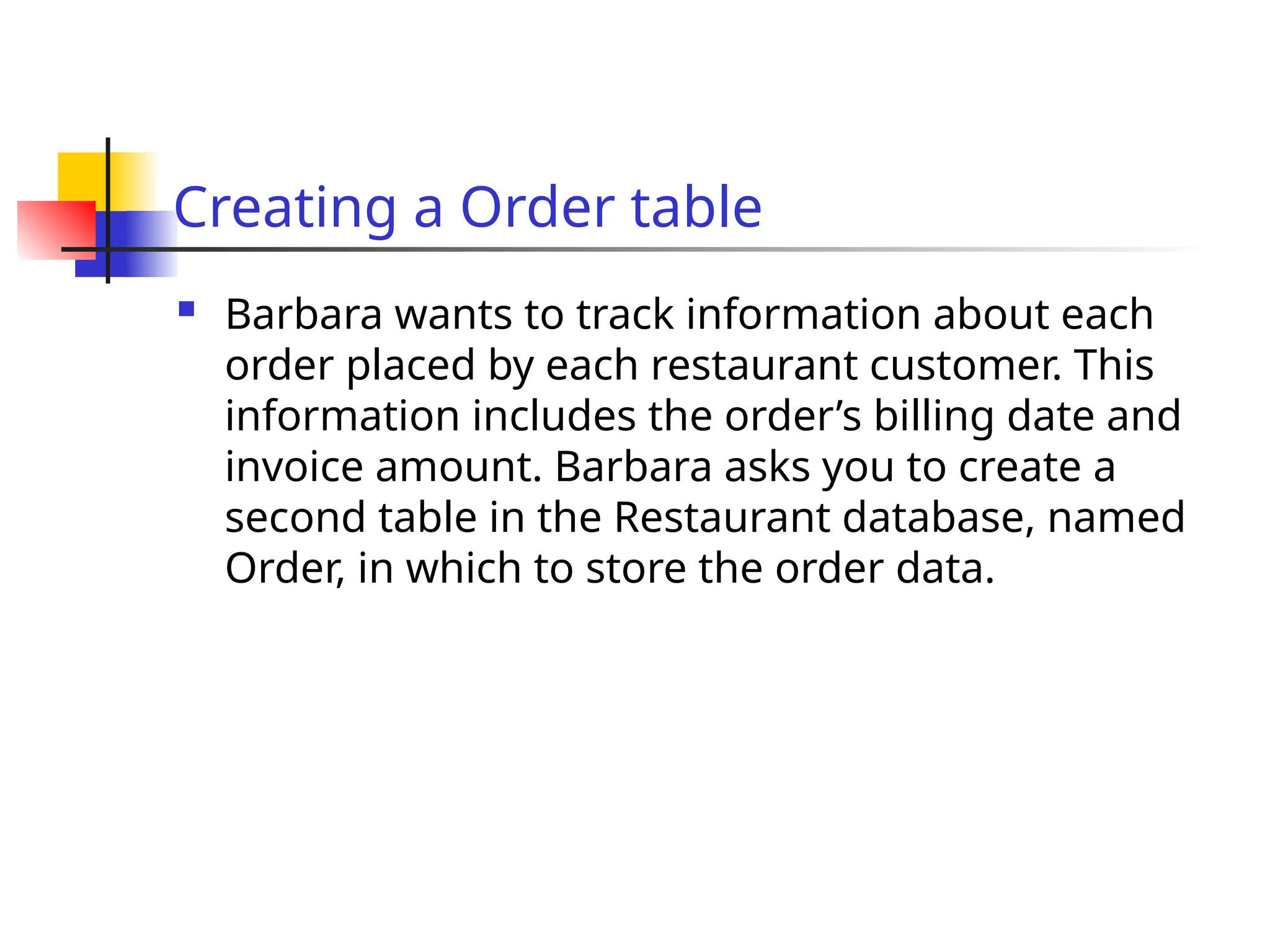

11. Creating a Order table
 Barbara wants to track information about each
order placed by each restaurant customer. This
information includes the order’s billing date and
invoice amount. Barbara asks you to create a
second table in the Restaurant database, named
Order, in which to store the order data.

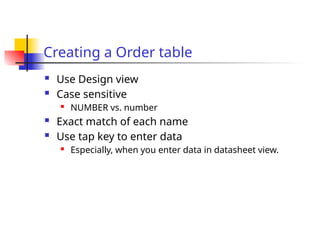

12. Creating a Order table
 Use Design view
 Case sensitive
 NUMBER vs. number
 Exact match of each name
 Use tap key to enter data
 Especially, when you enter data in datasheet view.

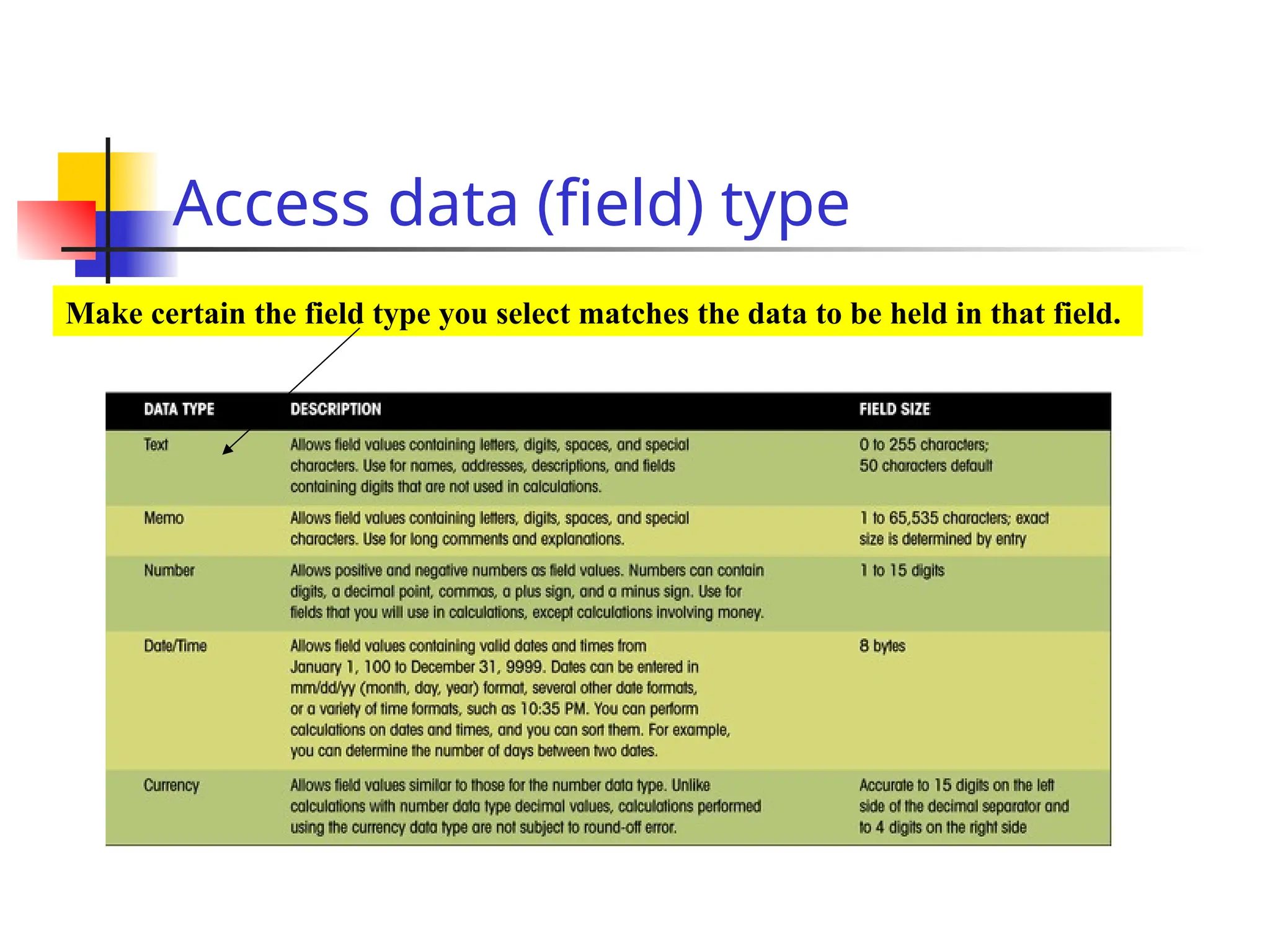

13. Access data (field) type
Make certain the field type you select matches the data to be held in that field.

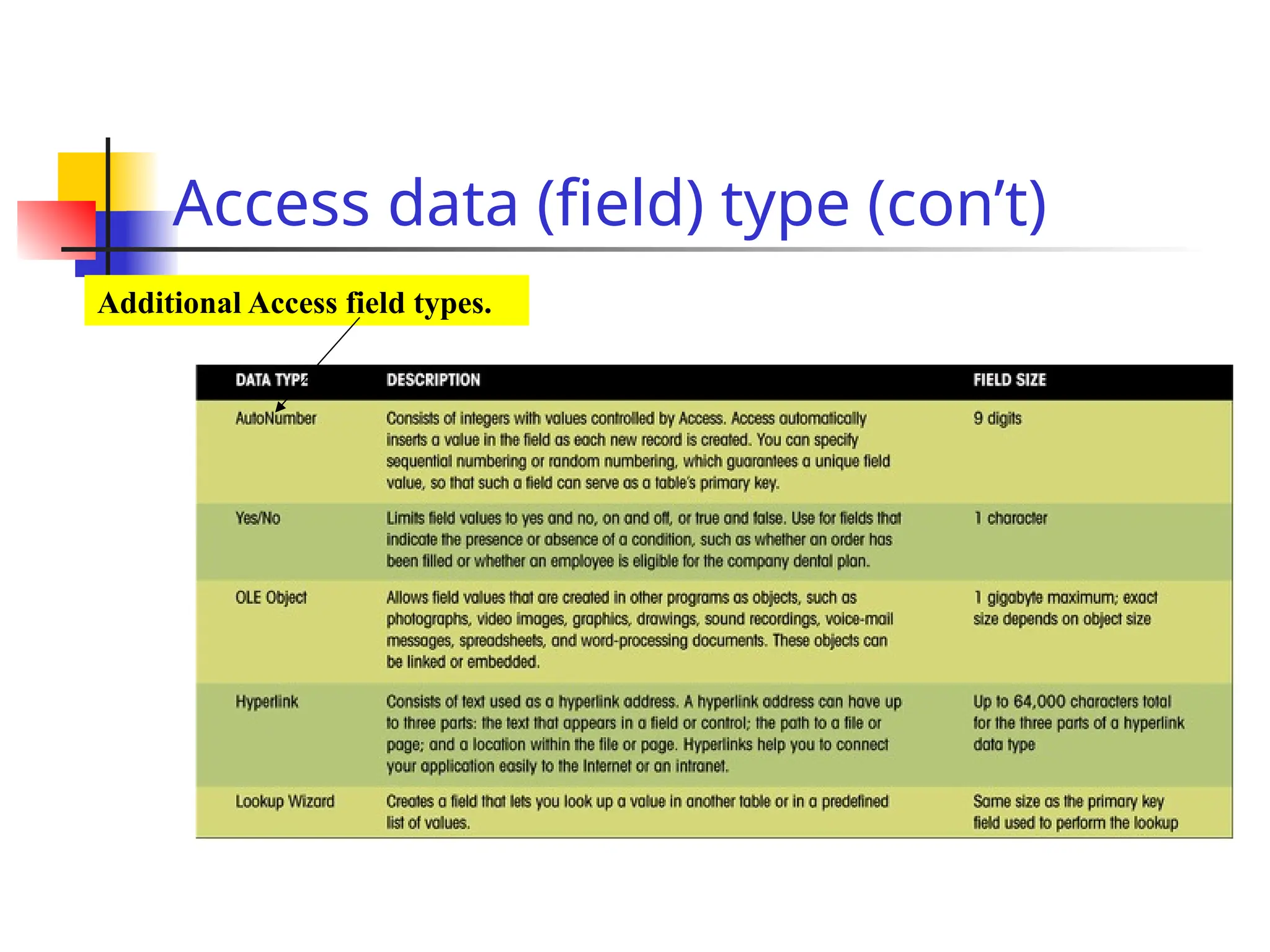

14. Access data (field) type (con’t)
Additional Access field types.

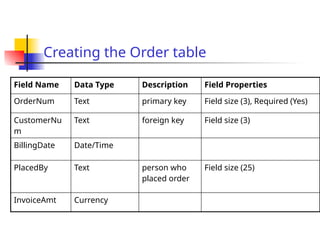

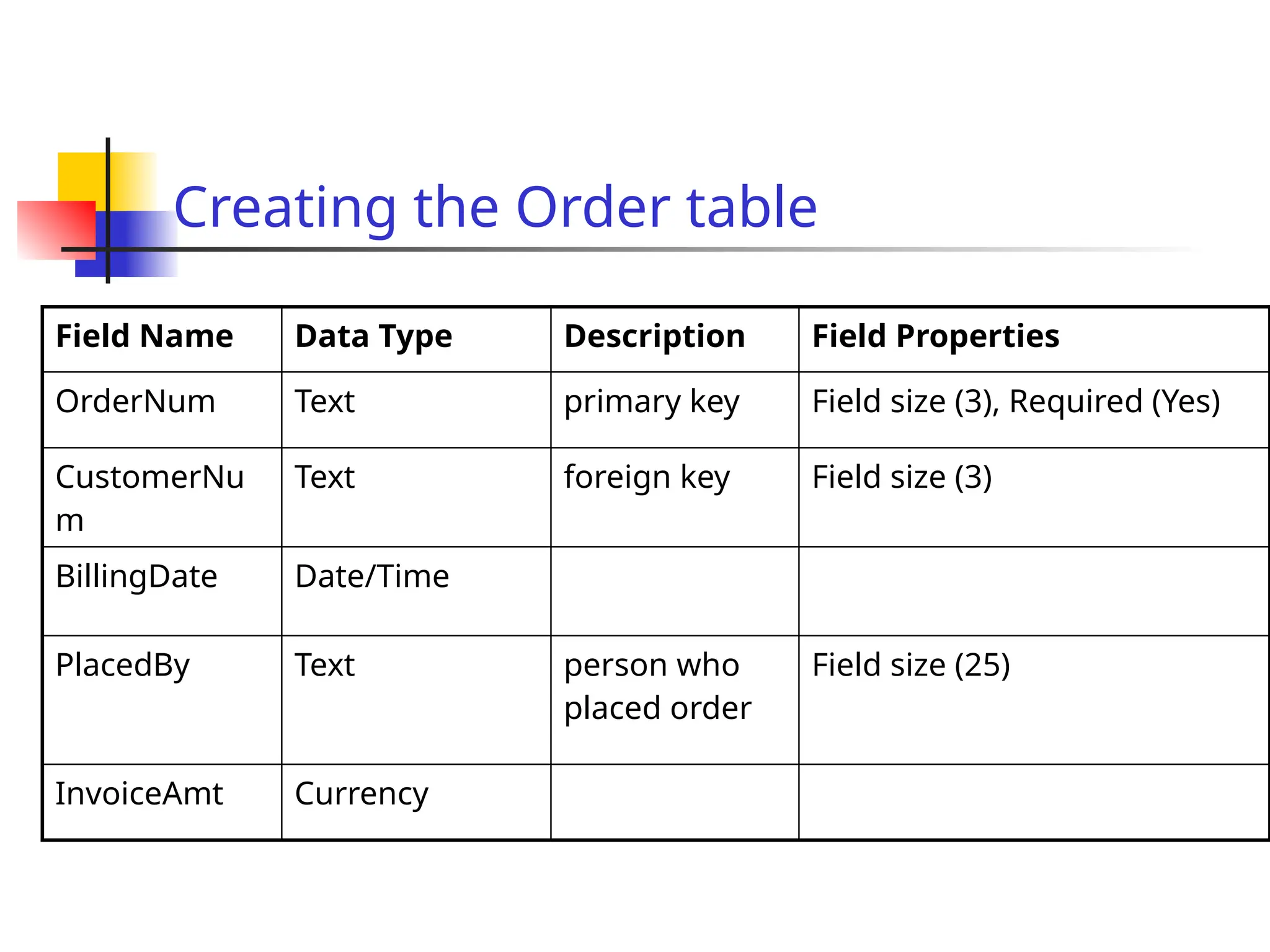

15. Creating the Order table
Field Name Data Type Description Field Properties
OrderNum Text primary key Field size (3), Required (Yes)
CustomerNu
m
Text foreign key Field size (3)
BillingDate Date/Time
PlacedBy Text person who
placed order
Field size (25)
InvoiceAmt Currency

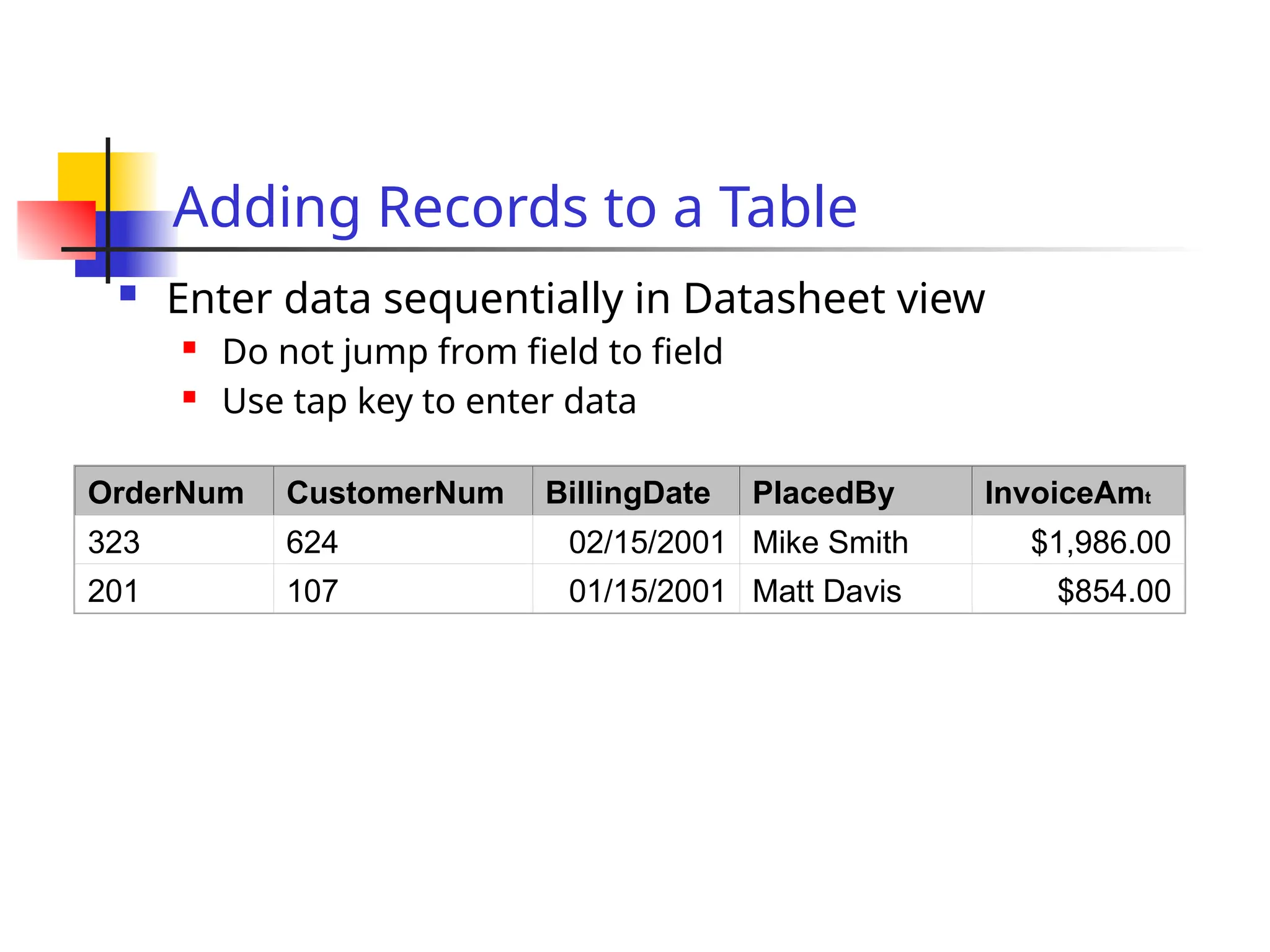

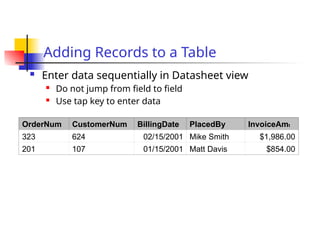

16. Adding Records to a Table
 Enter data sequentially in Datasheet view
 Do not jump from field to field
 Use tap key to enter data
OrderNum CustomerNum BillingDate PlacedBy InvoiceAmt
323 624 02/15/2001 Mike Smith $1,986.00
201 107 01/15/2001 Matt Davis $854.00

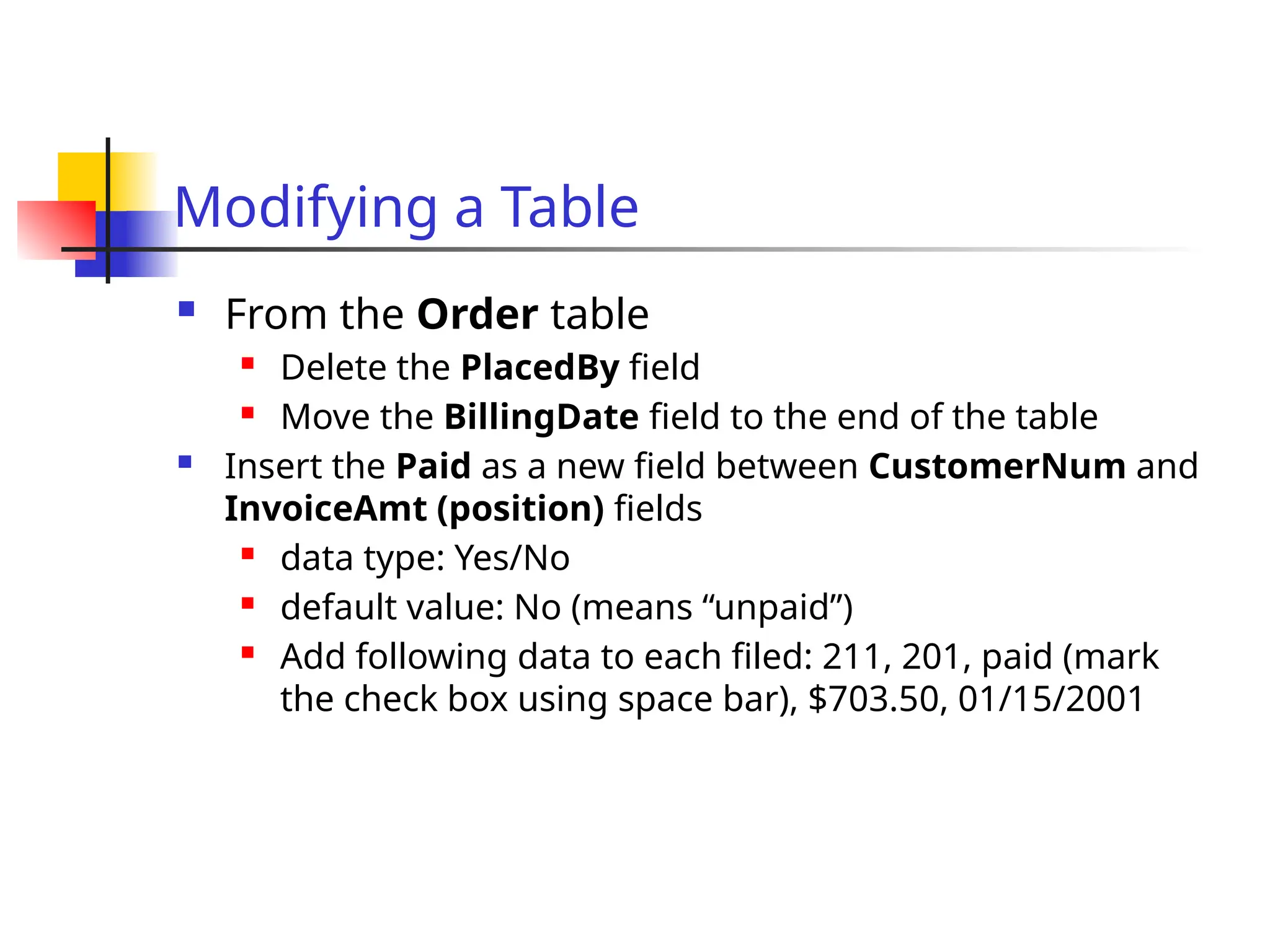

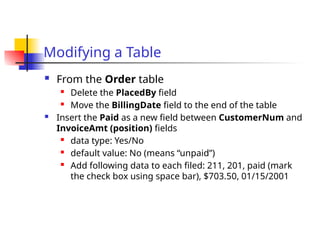

17. Modifying a Table
 From the Order table
 Delete the PlacedBy field
 Move the BillingDate field to the end of the table
 Insert the Paid as a new field between CustomerNum and
InvoiceAmt (position) fields
 data type: Yes/No
 default value: No (means “unpaid”)
 Add following data to each filed: 211, 201, paid (mark
the check box using space bar), $703.50, 01/15/2001

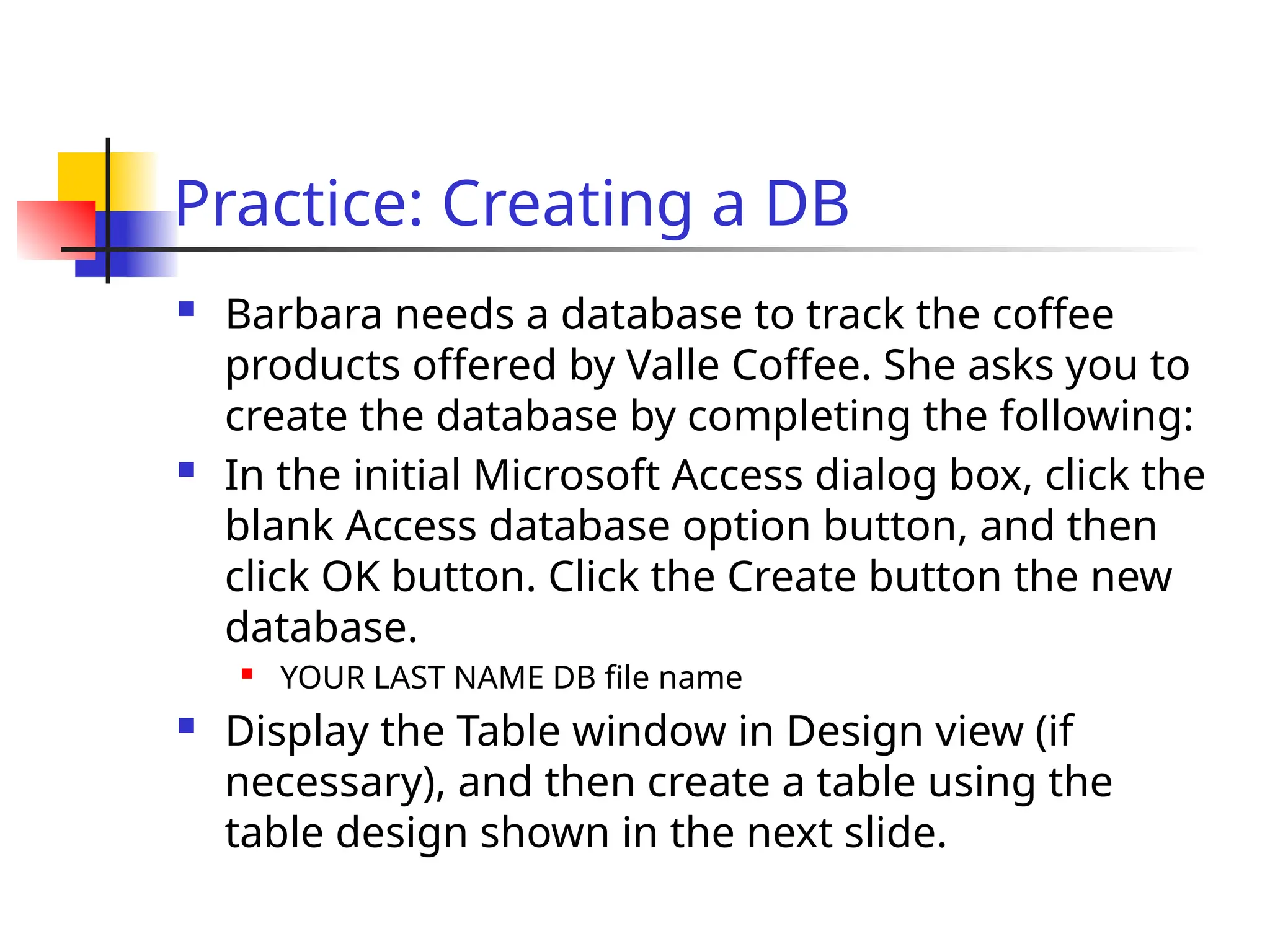

18. Practice: Creating a DB
 Barbara needs a database to track the coffee
products offered by Valle Coffee. She asks you to
create the database by completing the following:
 In the initial Microsoft Access dialog box, click the
blank Access database option button, and then
click OK button. Click the Create button the new
database.
 YOUR LAST NAME DB file name
 Display the Table window in Design view (if
necessary), and then create a table using the
table design shown in the next slide.

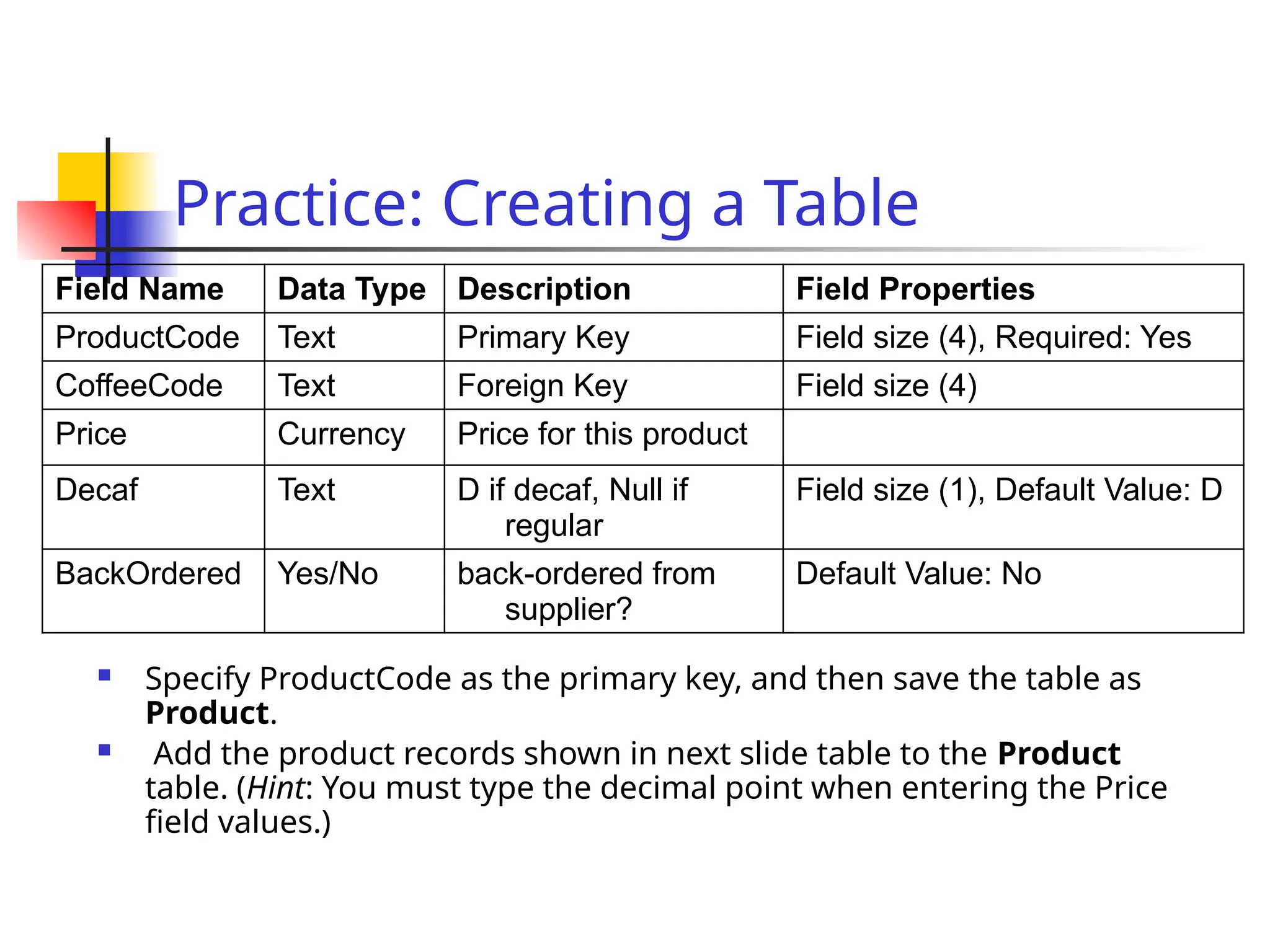

19. Practice: Creating a Table
 Specify ProductCode as the primary key, and then save the table as
Product.
 Add the product records shown in next slide table to the Product
table. (Hint: You must type the decimal point when entering the Price
field values.)
Field Name Data Type Description Field Properties
ProductCode Text Primary Key Field size (4), Required: Yes
CoffeeCode Text Foreign Key Field size (4)
Price Currency Price for this product
Decaf Text D if decaf, Null if
regular
Field size (1), Default Value: D
BackOrdered Yes/No back-ordered from
supplier?
Default Value: No

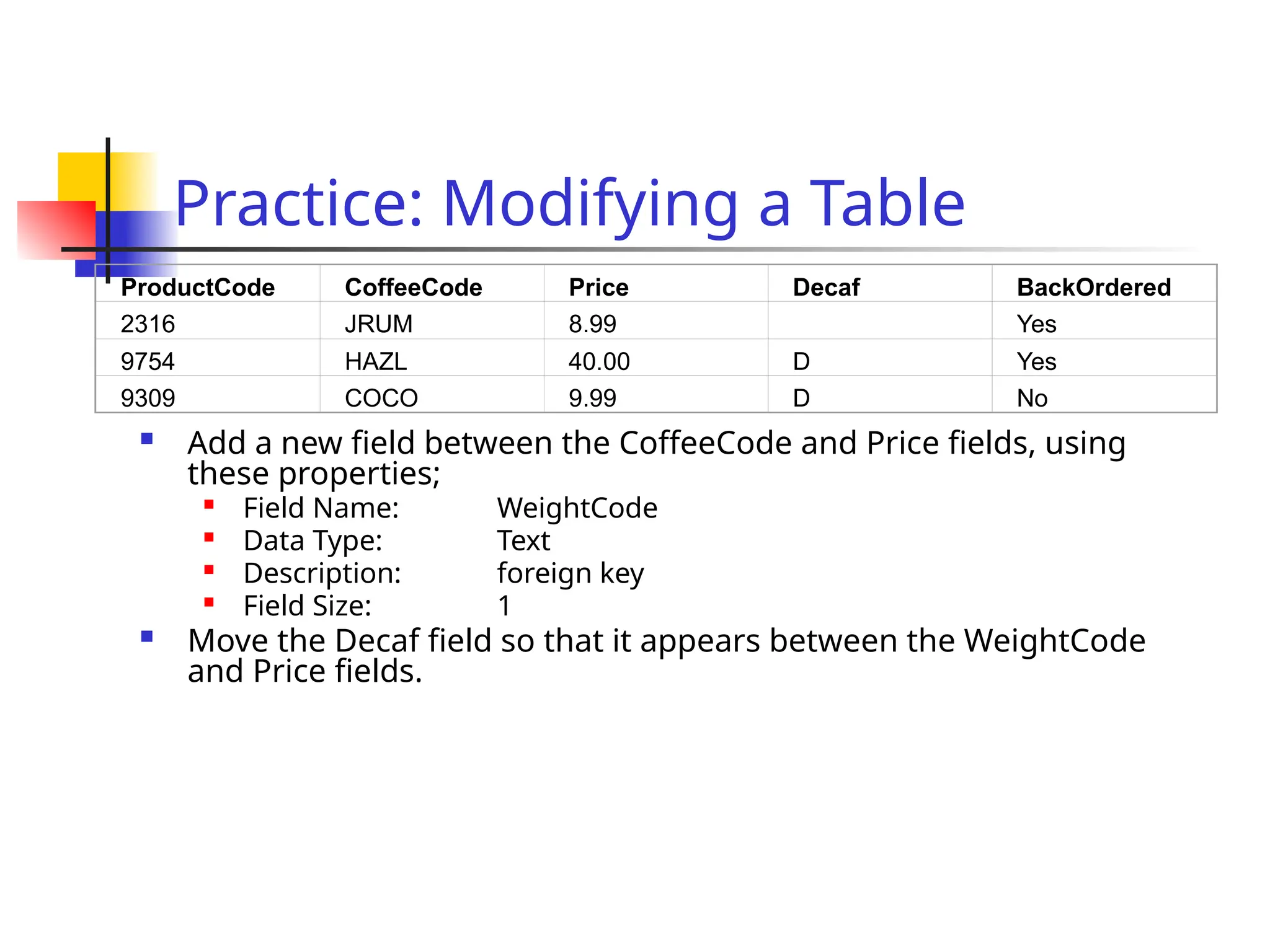

20. Practice: Modifying a Table
 Add a new field between the CoffeeCode and Price fields, using
these properties;

Field Name: WeightCode
 Data Type: Text

Description: foreign key

Field Size: 1
 Move the Decaf field so that it appears between the WeightCode
and Price fields.
ProductCode CoffeeCode Price Decaf BackOrdered
2316 JRUM 8.99 Yes
9754 HAZL 40.00 D Yes
9309 COCO 9.99 D No

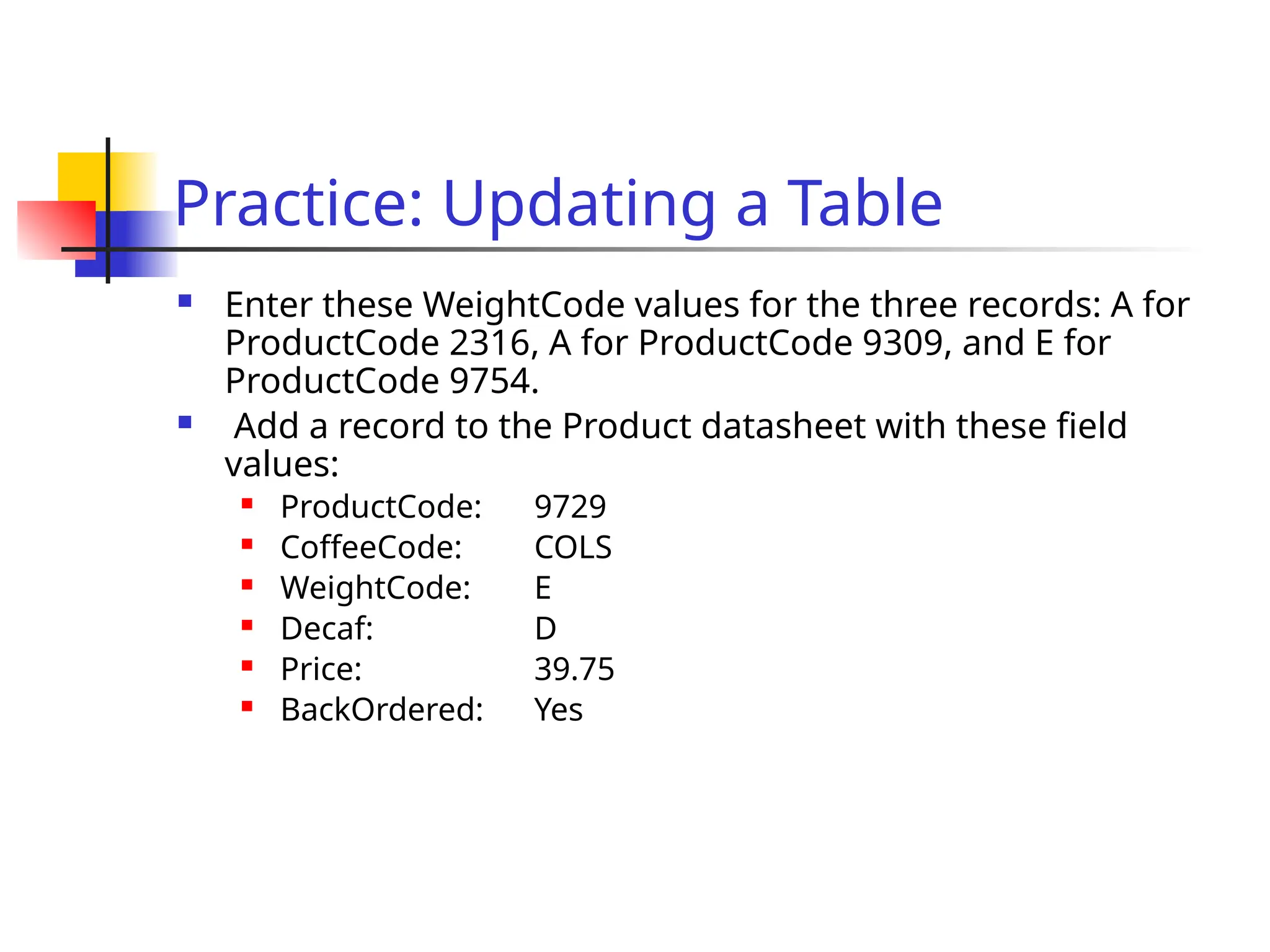

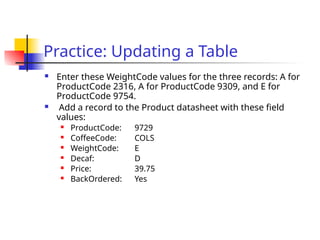

21. Practice: Updating a Table
 Enter these WeightCode values for the three records: A for
ProductCode 2316, A for ProductCode 9309, and E for
ProductCode 9754.
 Add a record to the Product datasheet with these field
values:
 ProductCode: 9729
 CoffeeCode: COLS
 WeightCode: E
 Decaf: D
 Price: 39.75
 BackOrdered: Yes

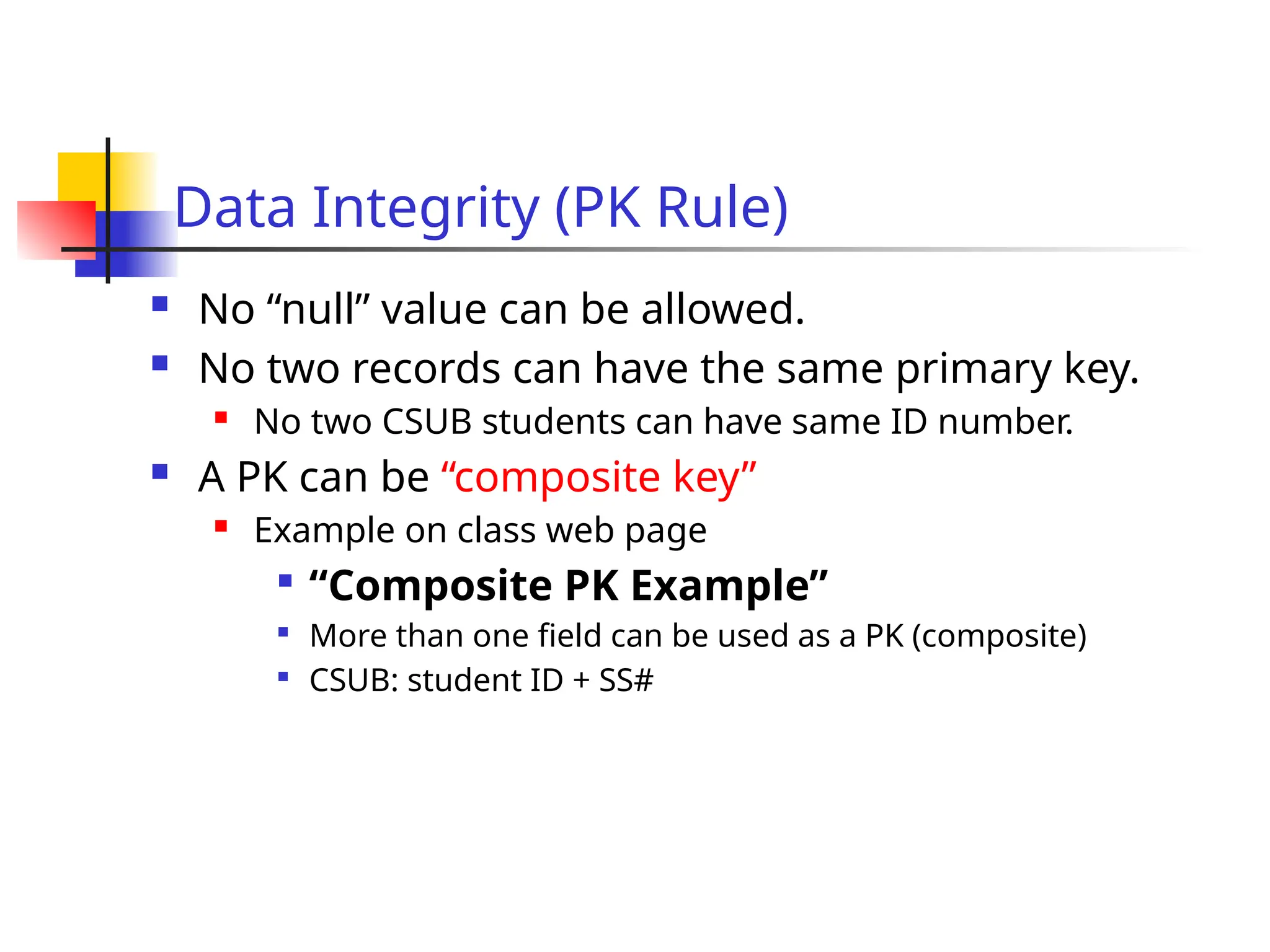

22. Data Integrity (PK Rule)
 No “null” value can be allowed.
 No two records can have the same primary key.
 No two CSUB students can have same ID number.
 A PK can be “composite key”
 Example on class web page

“Composite PK Example”

More than one field can be used as a PK (composite)

CSUB: student ID + SS#

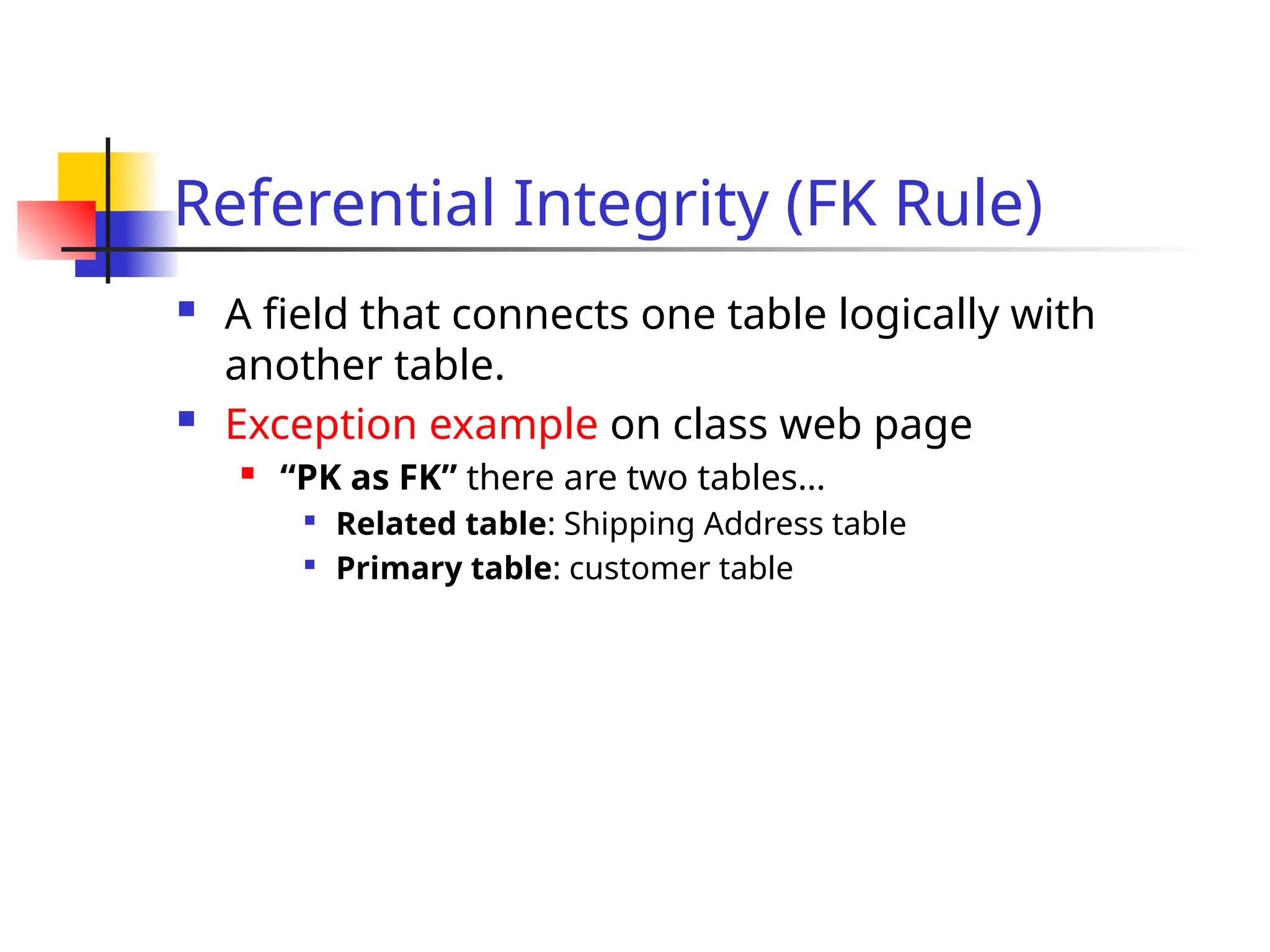

23. Referential Integrity (FK Rule)
 A field that connects one table logically with
another table.
 Exception example on class web page
 “PK as FK” there are two tables…

Related table: Shipping Address table

Primary table: customer table

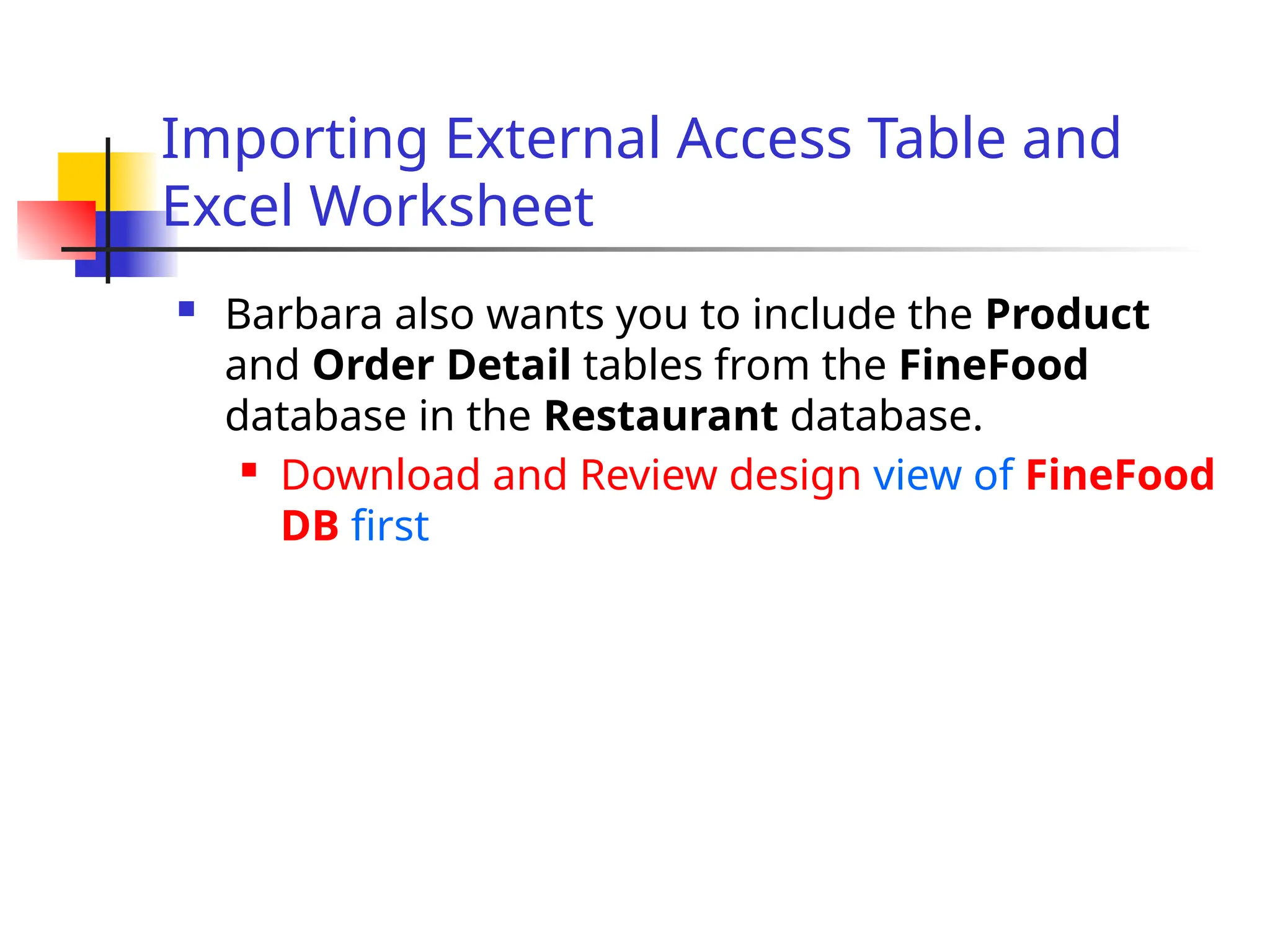

24. Importing External Access Table and
Excel Worksheet
 Barbara also wants you to include the Product
and Order Detail tables from the FineFood
database in the Restaurant database.
 Download and Review design view of FineFood
DB first

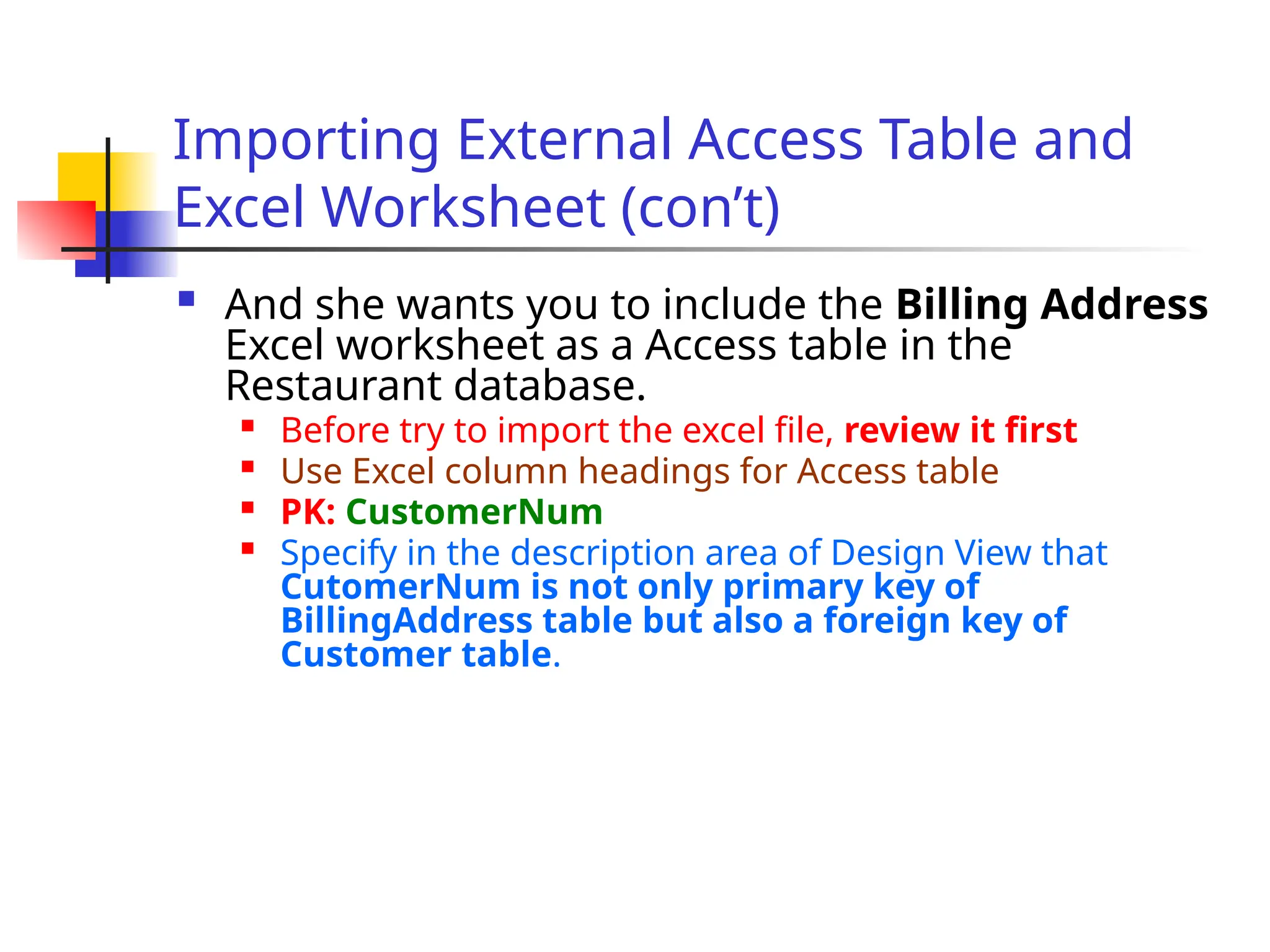

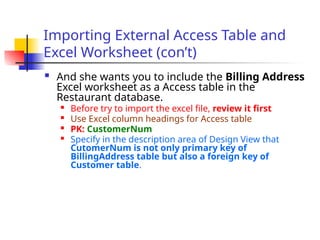

25. Importing External Access Table and
Excel Worksheet (con’t)
 And she wants you to include the Billing Address
Excel worksheet as a Access table in the
Restaurant database.

Before try to import the excel file, review it first

Use Excel column headings for Access table

PK: CustomerNum
 Specify in the description area of Design View that
CutomerNum is not only primary key of
BillingAddress table but also a foreign key of
Customer table.

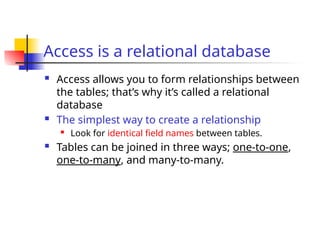

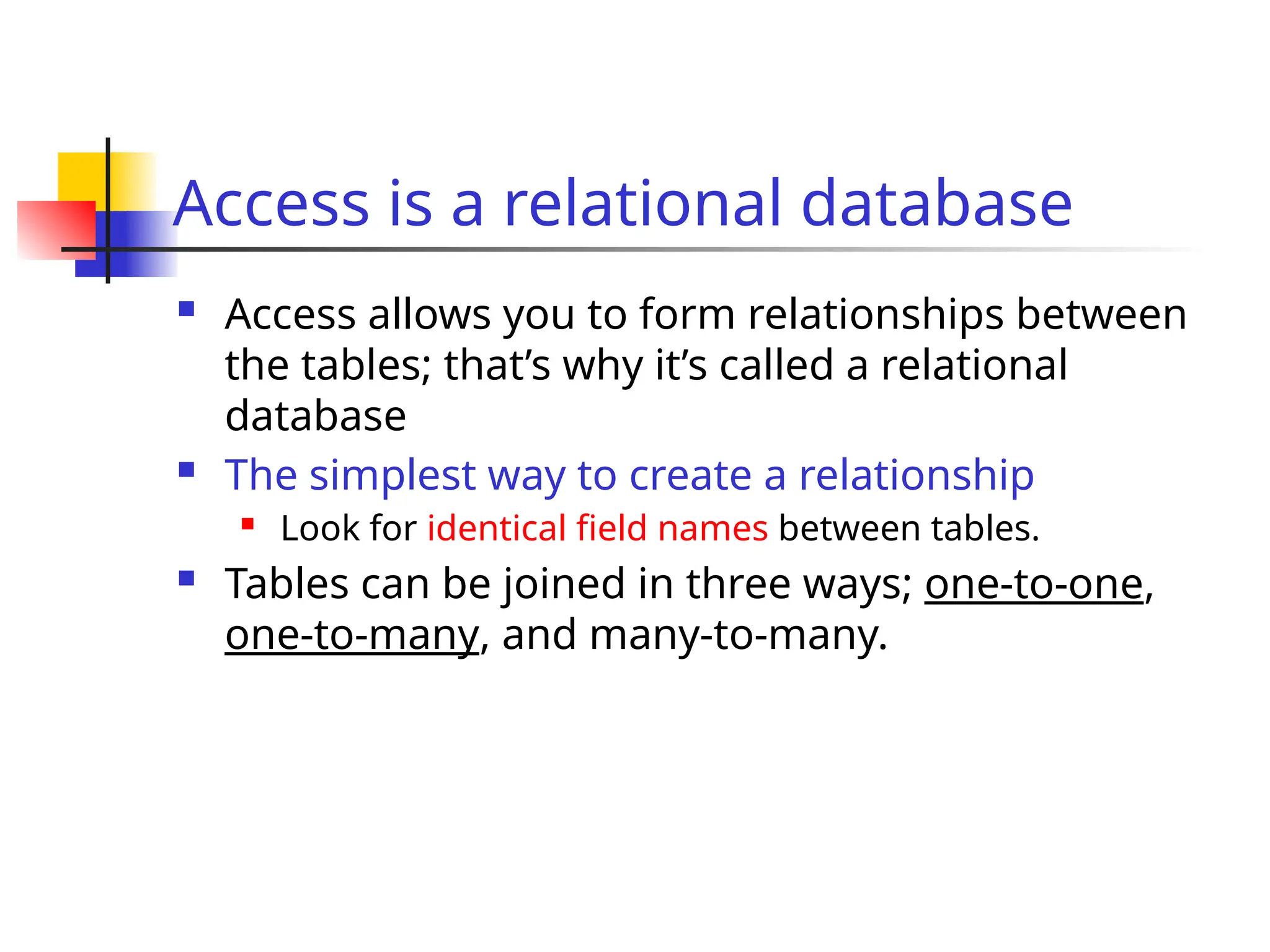

26. Access is a relational database
 Access allows you to form relationships between
the tables; that’s why it’s called a relational
database
 The simplest way to create a relationship
 Look for identical field names between tables.
 Tables can be joined in three ways; one-to-one,
one-to-many, and many-to-many.

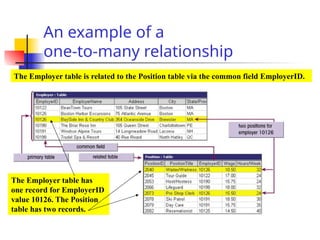

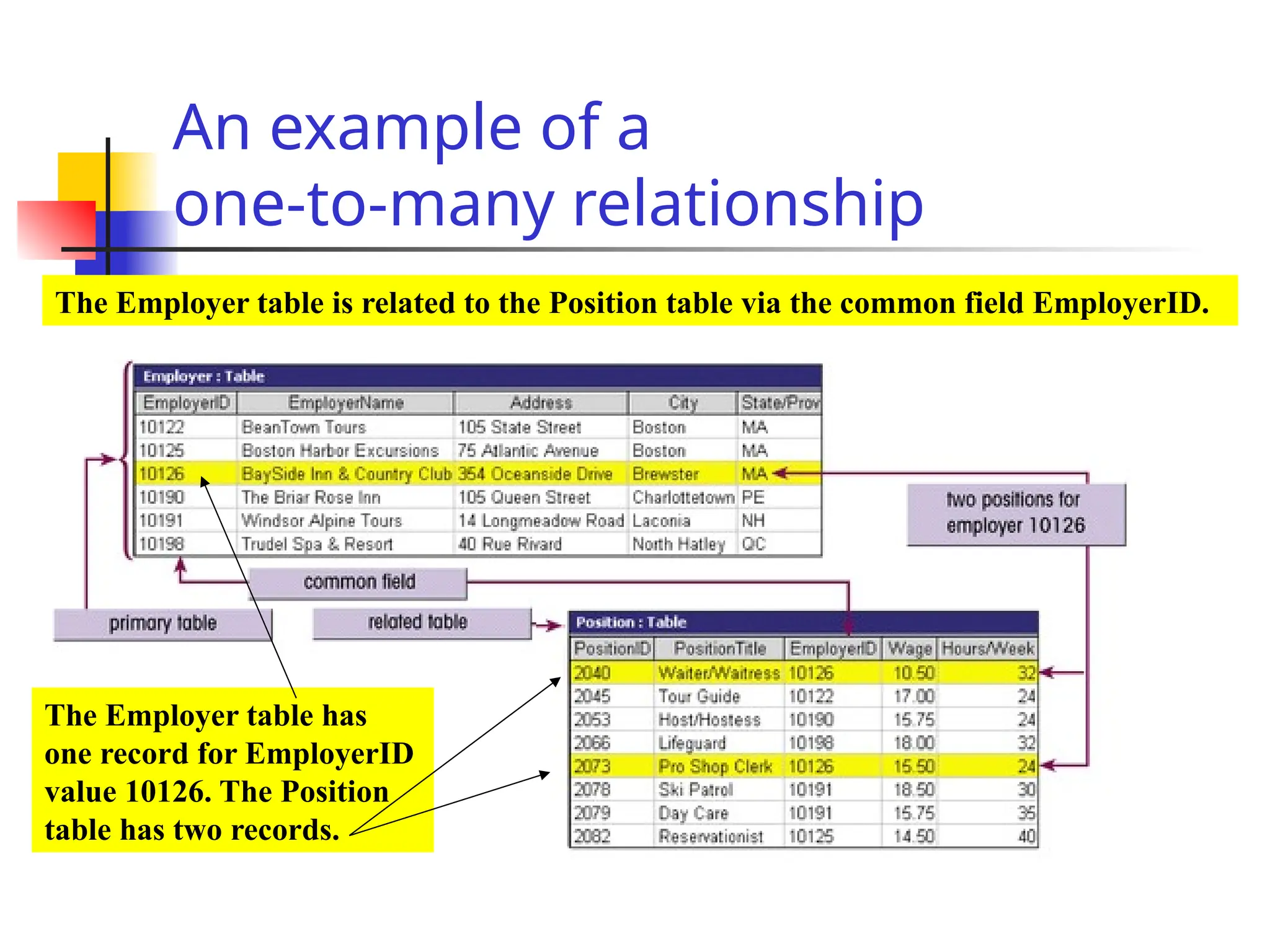

27. An example of a
one-to-many relationship
The Employer table is related to the Position table via the common field EmployerID.
The Employer table has
one record for EmployerID
value 10126. The Position
table has two records.

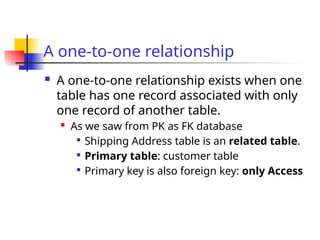

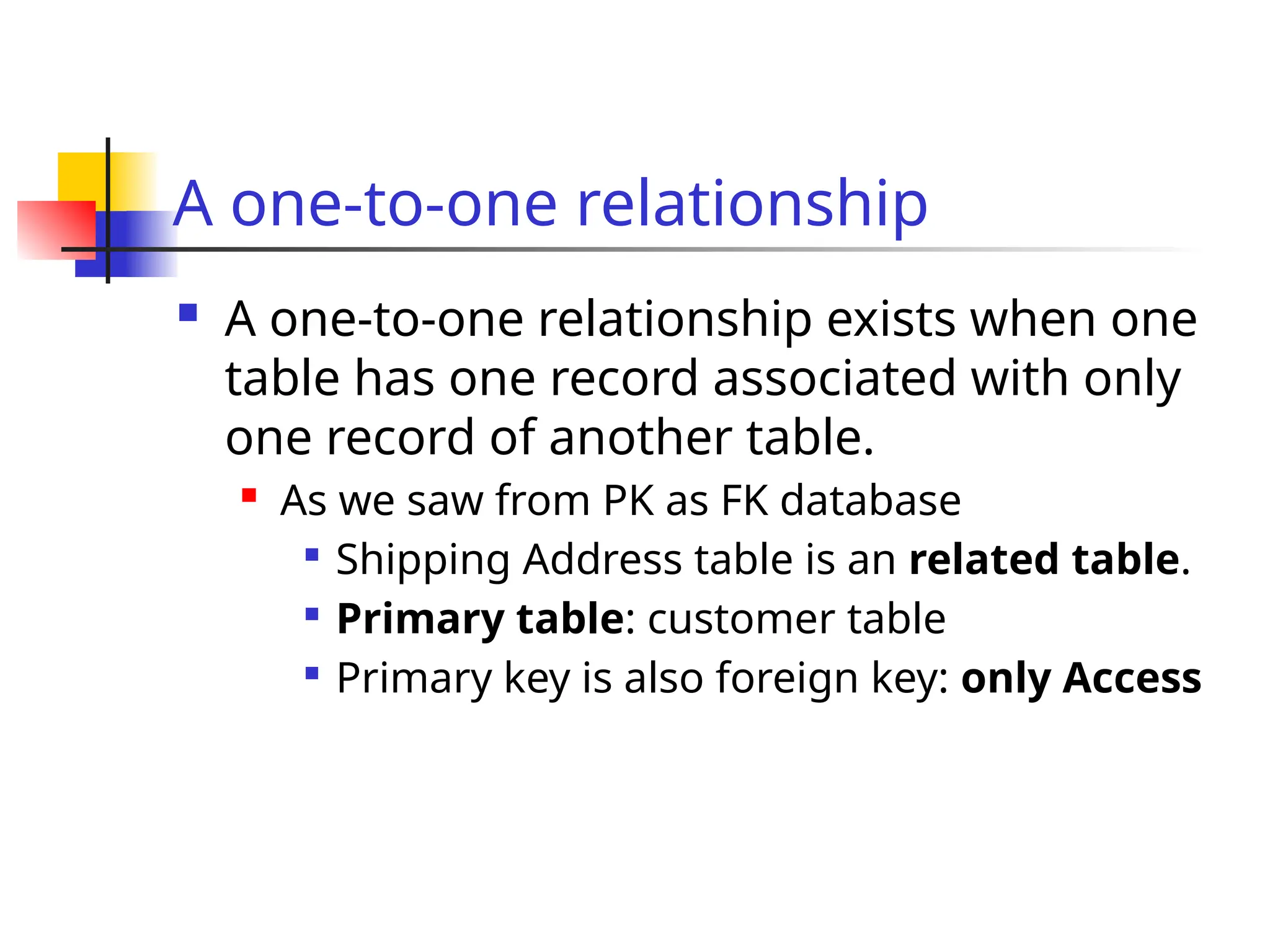

28. A one-to-one relationship
 A one-to-one relationship exists when one
table has one record associated with only
one record of another table.
 As we saw from PK as FK database

Shipping Address table is an related table.

Primary table: customer table

Primary key is also foreign key: only Access

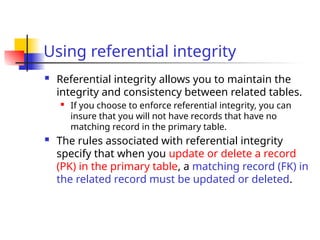

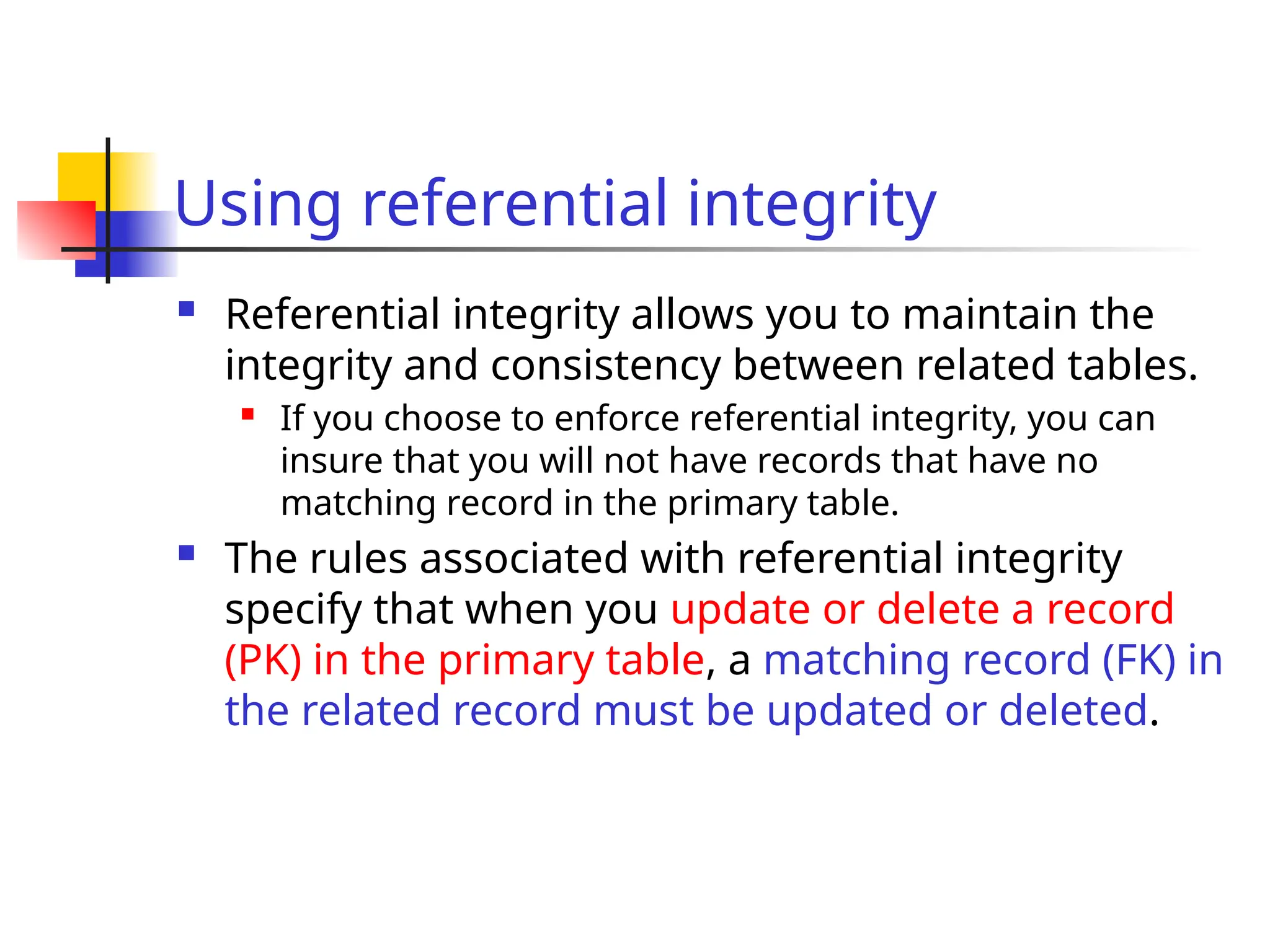

29. Using referential integrity
 Referential integrity allows you to maintain the
integrity and consistency between related tables.
 If you choose to enforce referential integrity, you can
insure that you will not have records that have no
matching record in the primary table.
 The rules associated with referential integrity
specify that when you update or delete a record
(PK) in the primary table, a matching record (FK) in
the related record must be updated or deleted.

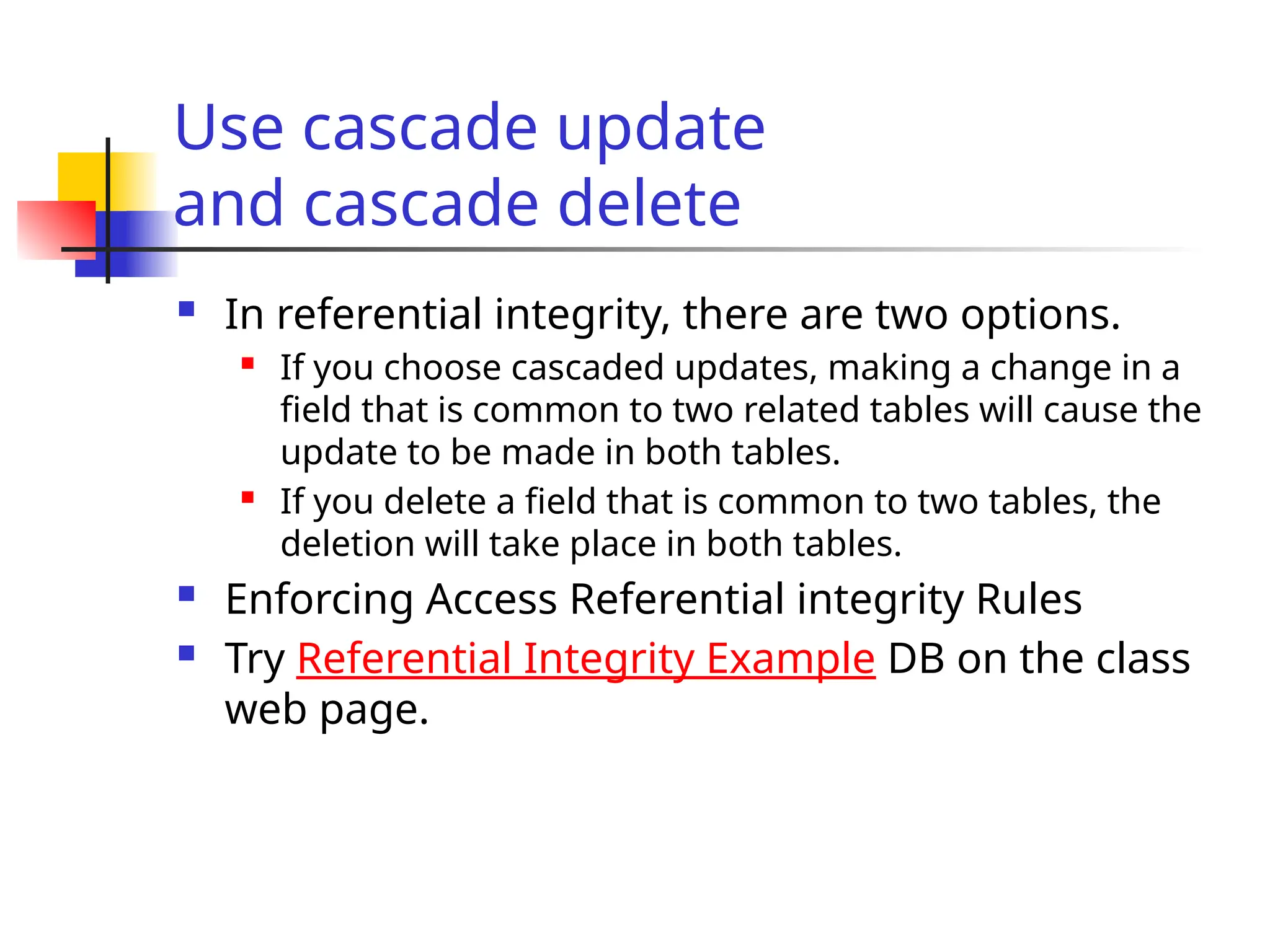

30. Use cascade update
and cascade delete
 In referential integrity, there are two options.
 If you choose cascaded updates, making a change in a
field that is common to two related tables will cause the
update to be made in both tables.
 If you delete a field that is common to two tables, the
deletion will take place in both tables.
 Enforcing Access Referential integrity Rules
 Try Referential Integrity Example DB on the class
web page.

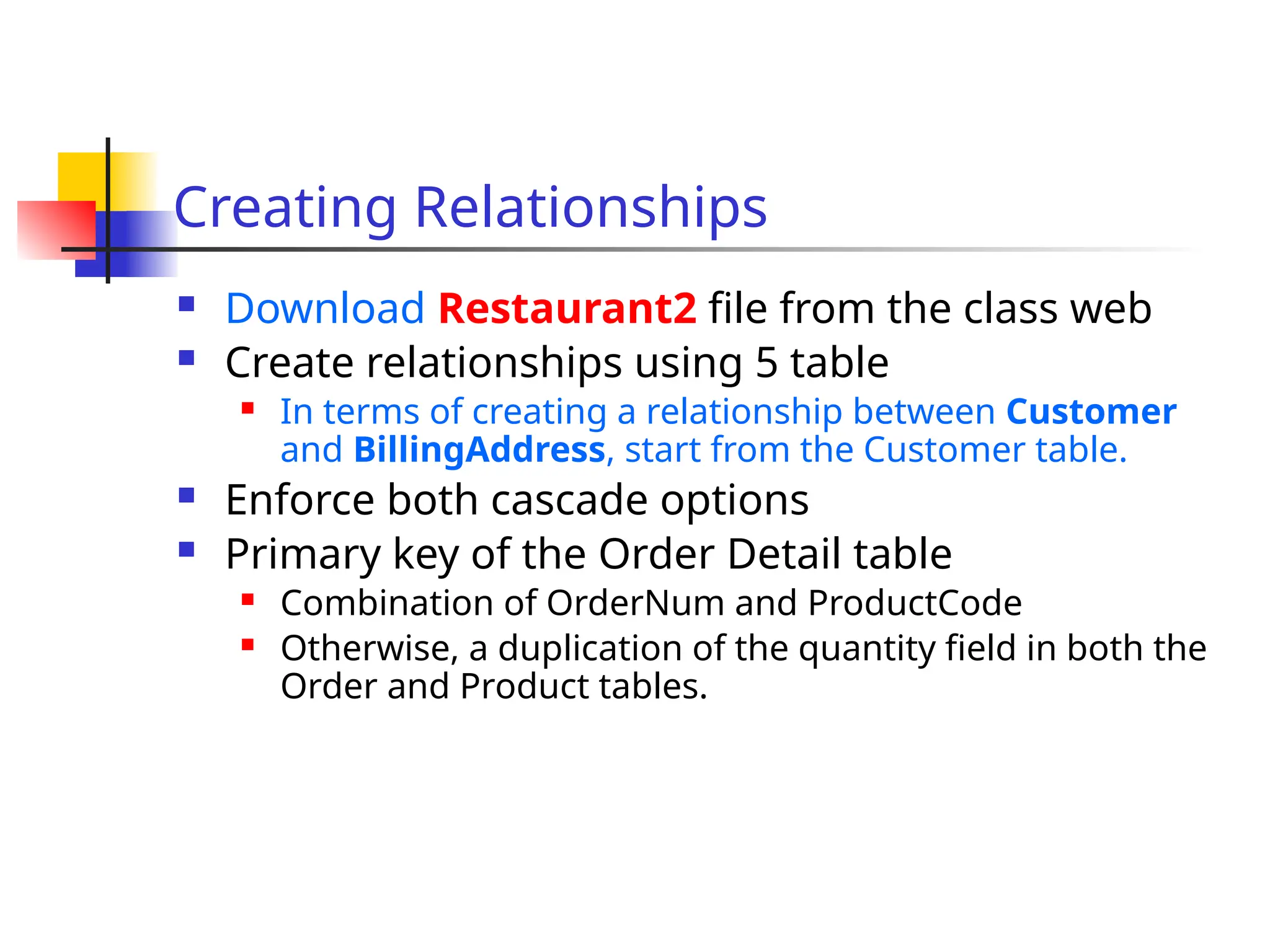

31. Creating Relationships
 Download Restaurant2 file from the class web
 Create relationships using 5 table
 In terms of creating a relationship between Customer
and BillingAddress, start from the Customer table.
 Enforce both cascade options
 Primary key of the Order Detail table
 Combination of OrderNum and ProductCode
 Otherwise, a duplication of the quantity field in both the
Order and Product tables.

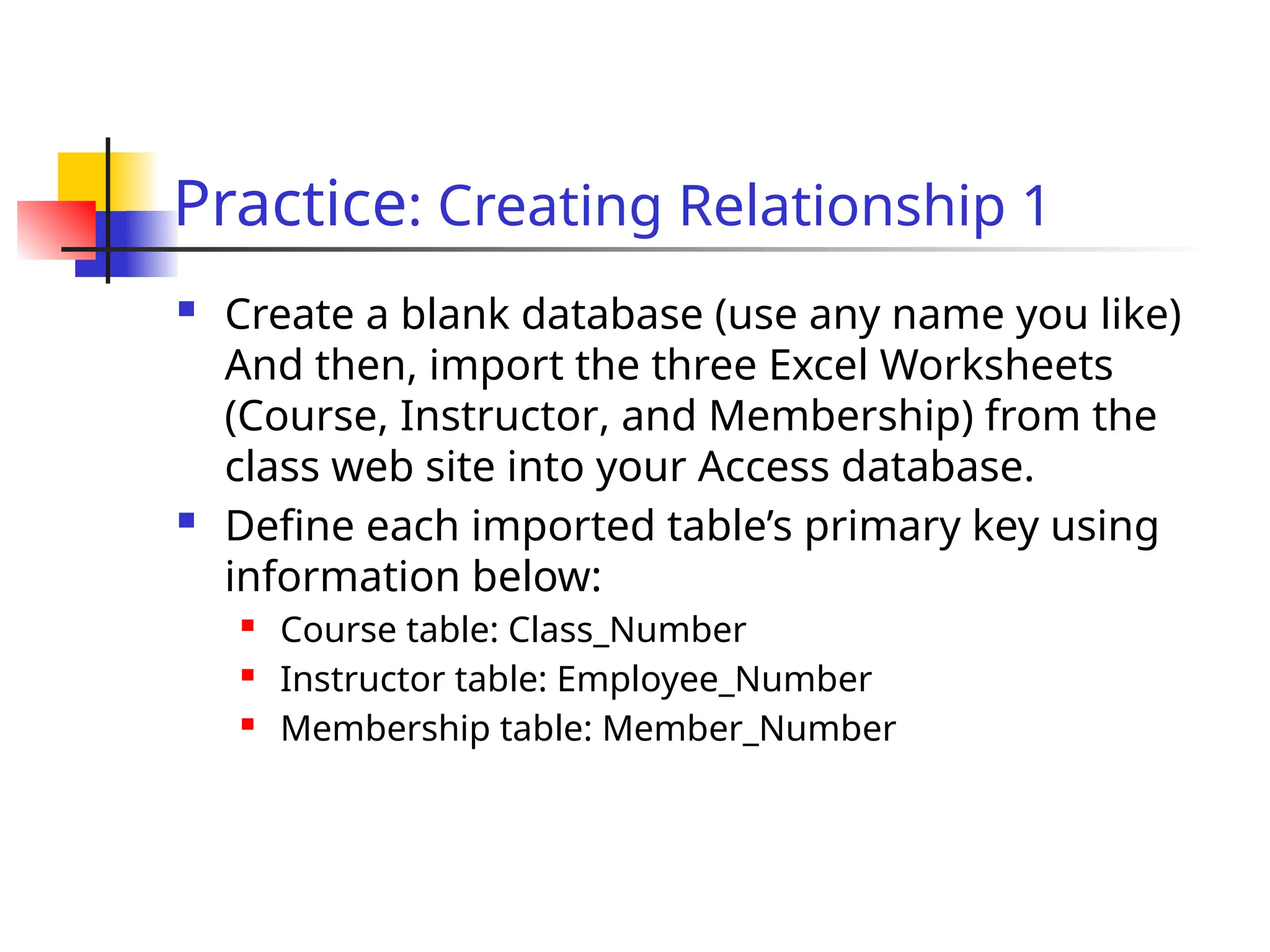

32. Practice: Creating Relationship 1
 Create a blank database (use any name you like)
And then, import the three Excel Worksheets
(Course, Instructor, and Membership) from the
class web site into your Access database.
 Define each imported table’s primary key using
information below:
 Course table: Class_Number
 Instructor table: Employee_Number
 Membership table: Member_Number

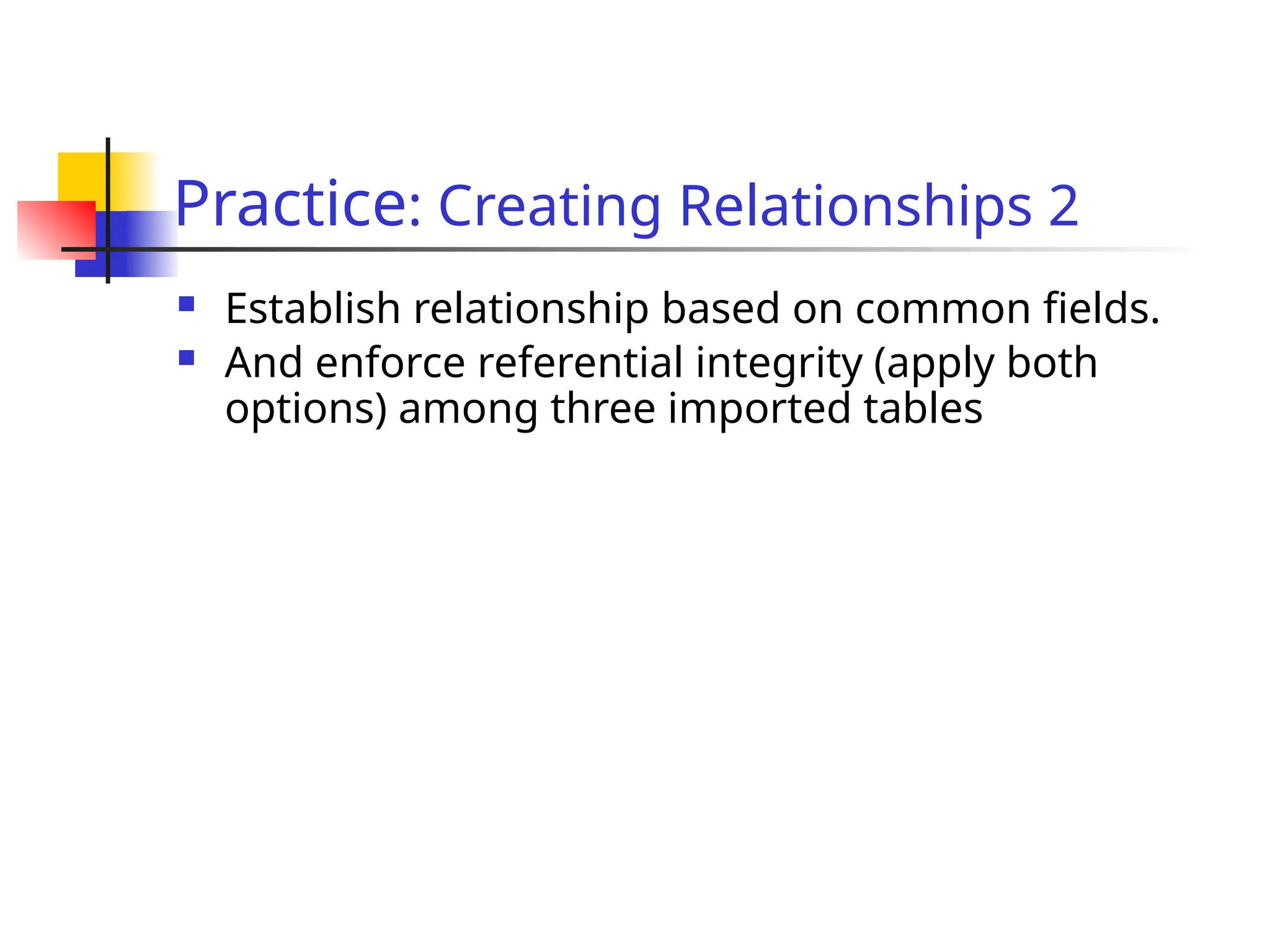

33. Practice: Creating Relationships 2
 Establish relationship based on common fields.
 And enforce referential integrity (apply both
options) among three imported tables

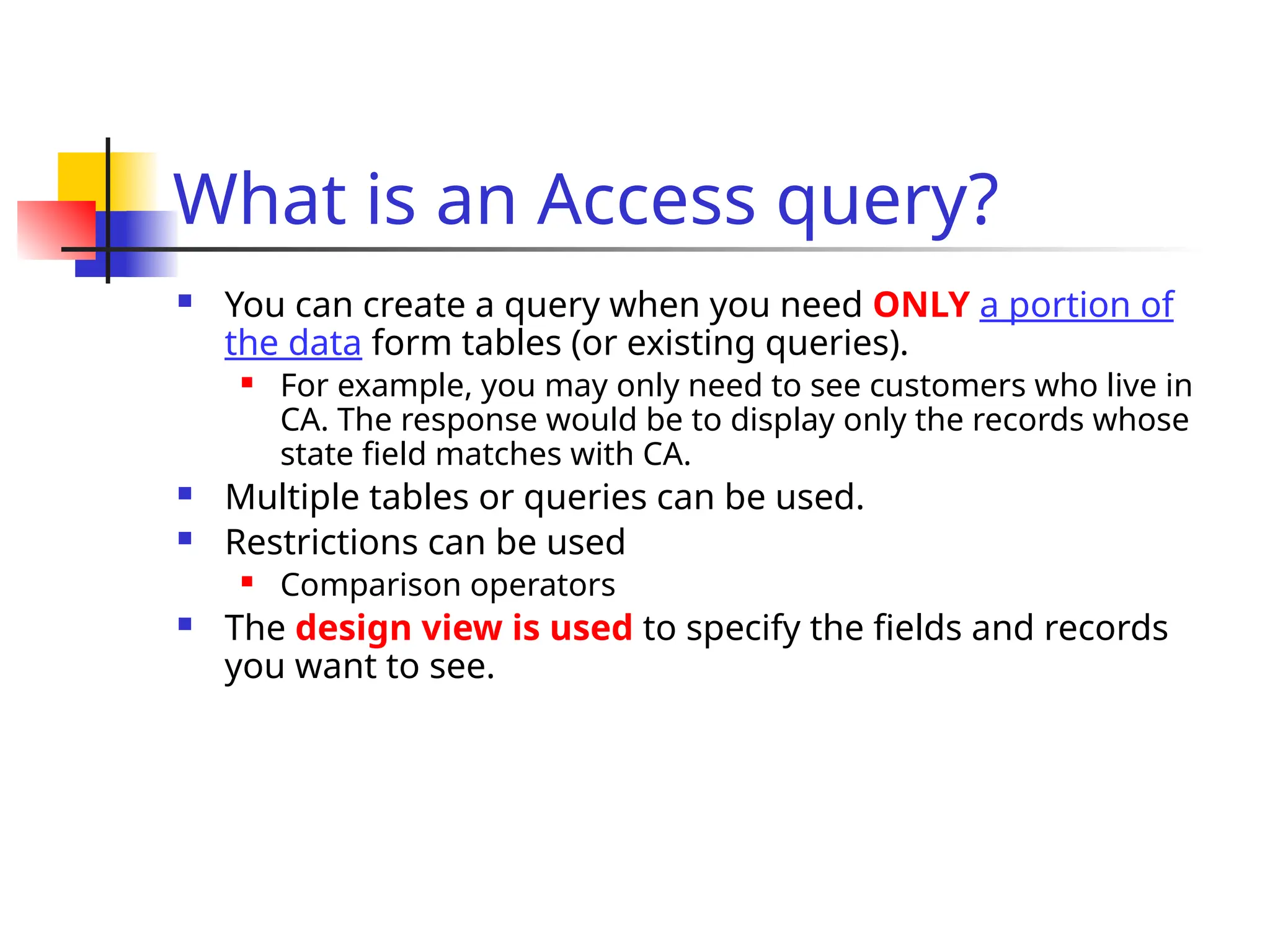

34. What is an Access query?
 You can create a query when you need ONLY a portion of
the data form tables (or existing queries).
 For example, you may only need to see customers who live in
CA. The response would be to display only the records whose
state field matches with CA.
 Multiple tables or queries can be used.
 Restrictions can be used
 Comparison operators
 The design view is used to specify the fields and records
you want to see.

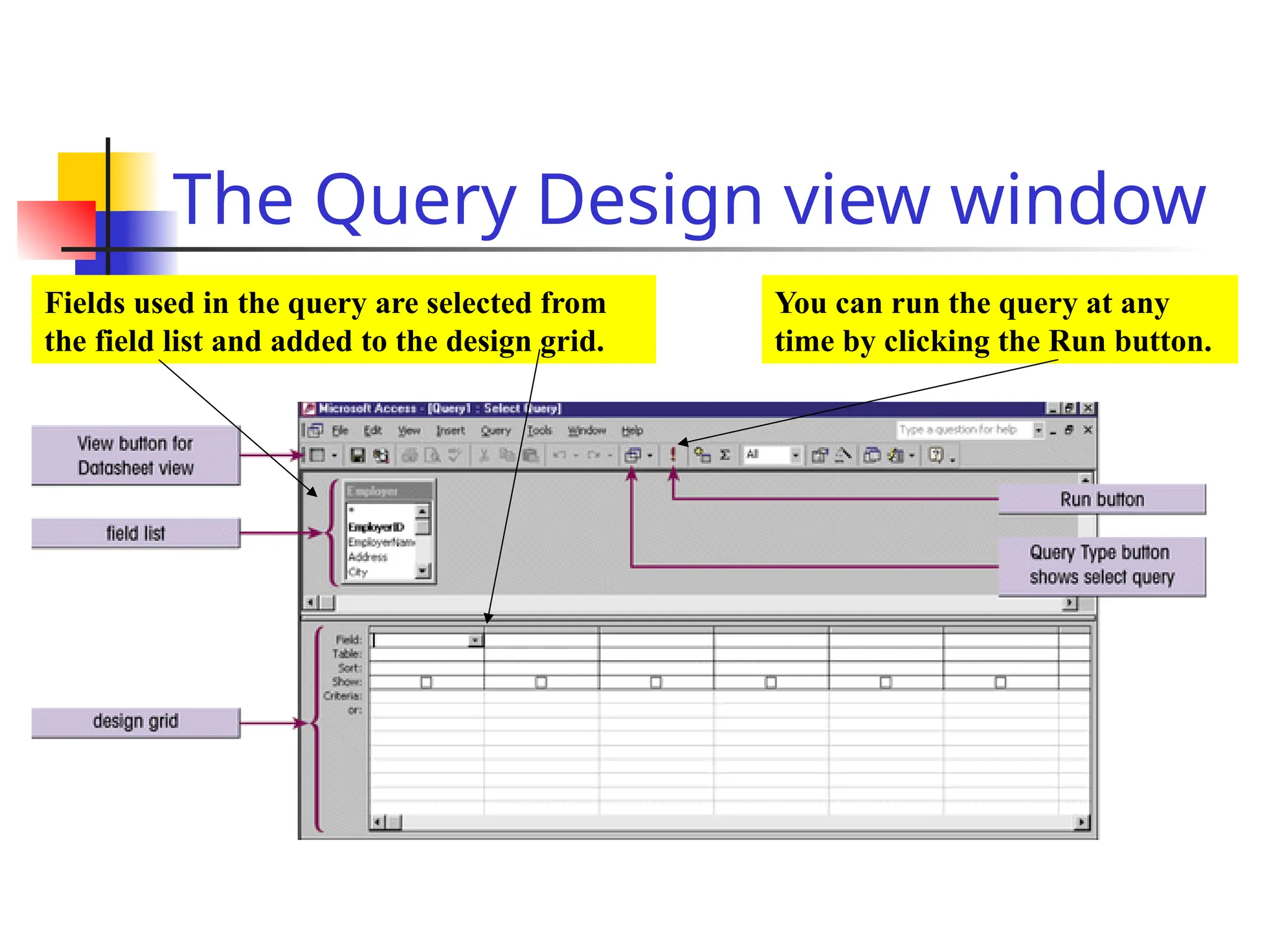

35. The Query Design view window
Fields used in the query are selected from
the field list and added to the design grid.
You can run the query at any
time by clicking the Run button.

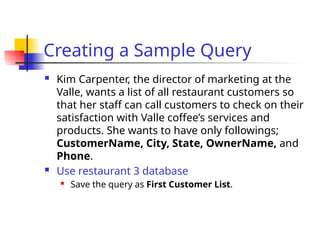

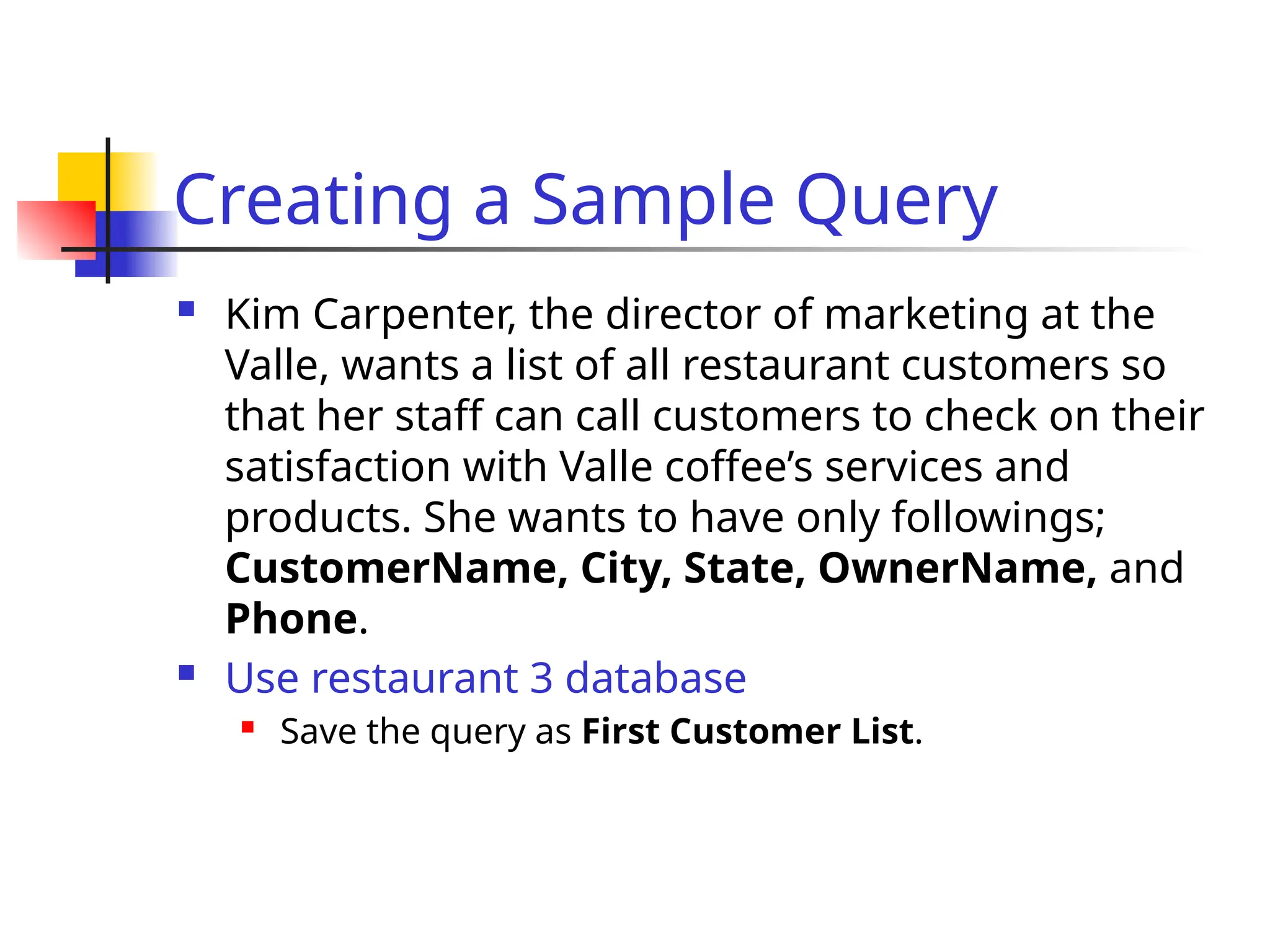

36. Creating a Sample Query
 Kim Carpenter, the director of marketing at the
Valle, wants a list of all restaurant customers so
that her staff can call customers to check on their
satisfaction with Valle coffee’s services and
products. She wants to have only followings;
CustomerName, City, State, OwnerName, and
Phone.
 Use restaurant 3 database
 Save the query as First Customer List.

37. OrderNum CustomerNum Paid InvoiceAmt BillingDate
201 107 No 854.00 01/15/2001
OrderNum ProductCode Qty
201 2834 11
ProductCode CoffeeName Weight/Size Price Decaf
2301 Colombian Aged Crop 1 lb pkg 7.99
Billing Address Table
Customer Table
Order Table
Order Detail Table
Product Table
CustomerNum CustomerName Street City State ZipCode OwnerName Phone FirstContact
000 Choi COB 105 CSUB CA 93311 Scott Choi 5348 09/20/2001
CustomerNum BillingName Street City State Zip
129 Sandy Lookout
Restaurant
PO Box 2800 Grandville MI 49468

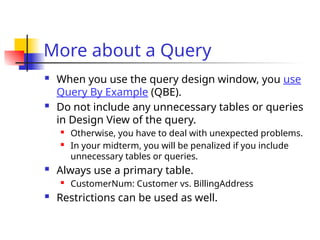

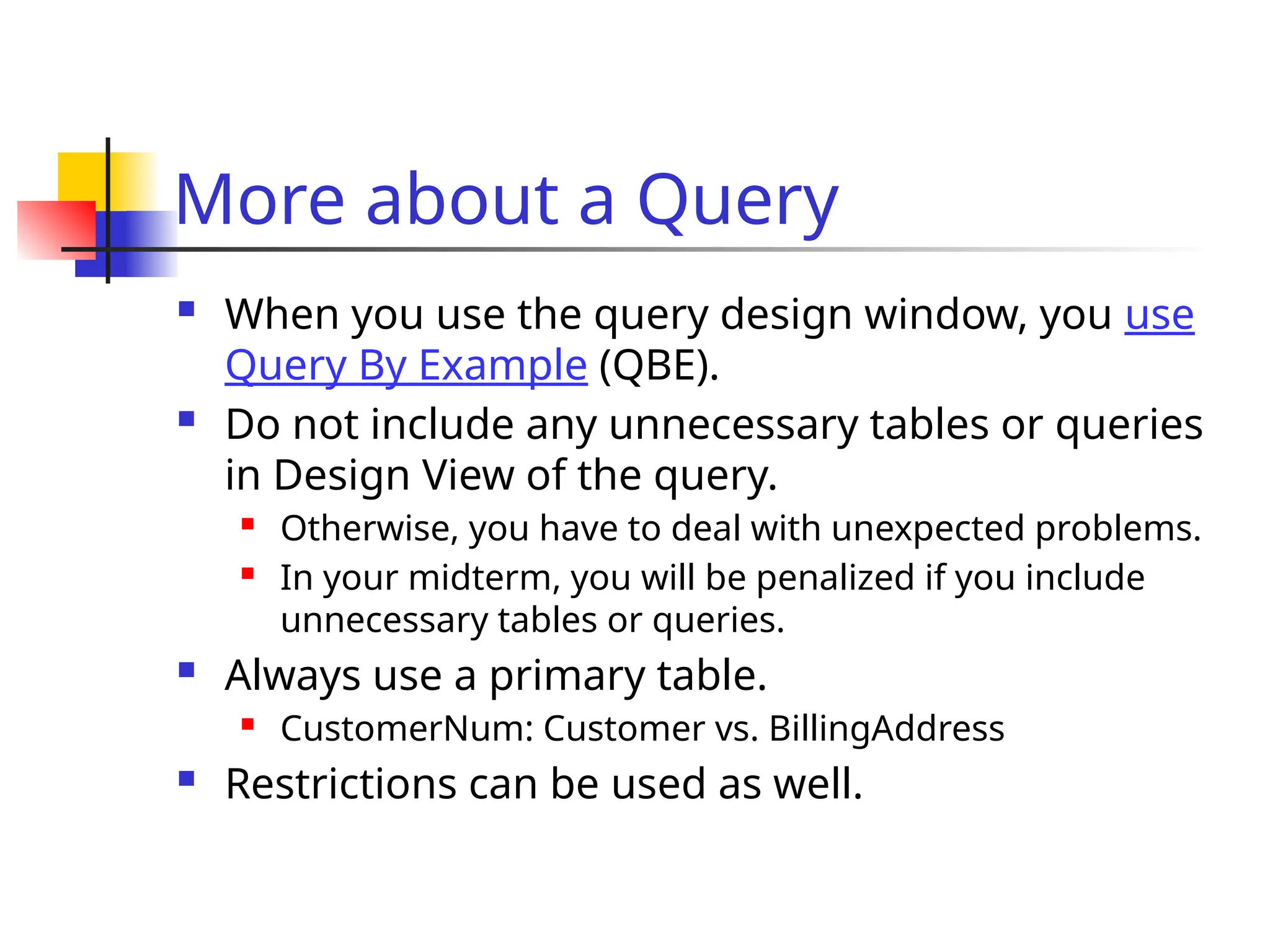

38. More about a Query
 When you use the query design window, you use
Query By Example (QBE).
 Do not include any unnecessary tables or queries
in Design View of the query.
 Otherwise, you have to deal with unexpected problems.
 In your midterm, you will be penalized if you include
unnecessary tables or queries.
 Always use a primary table.
 CustomerNum: Customer vs. BillingAddress
 Restrictions can be used as well.

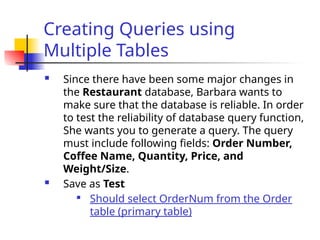

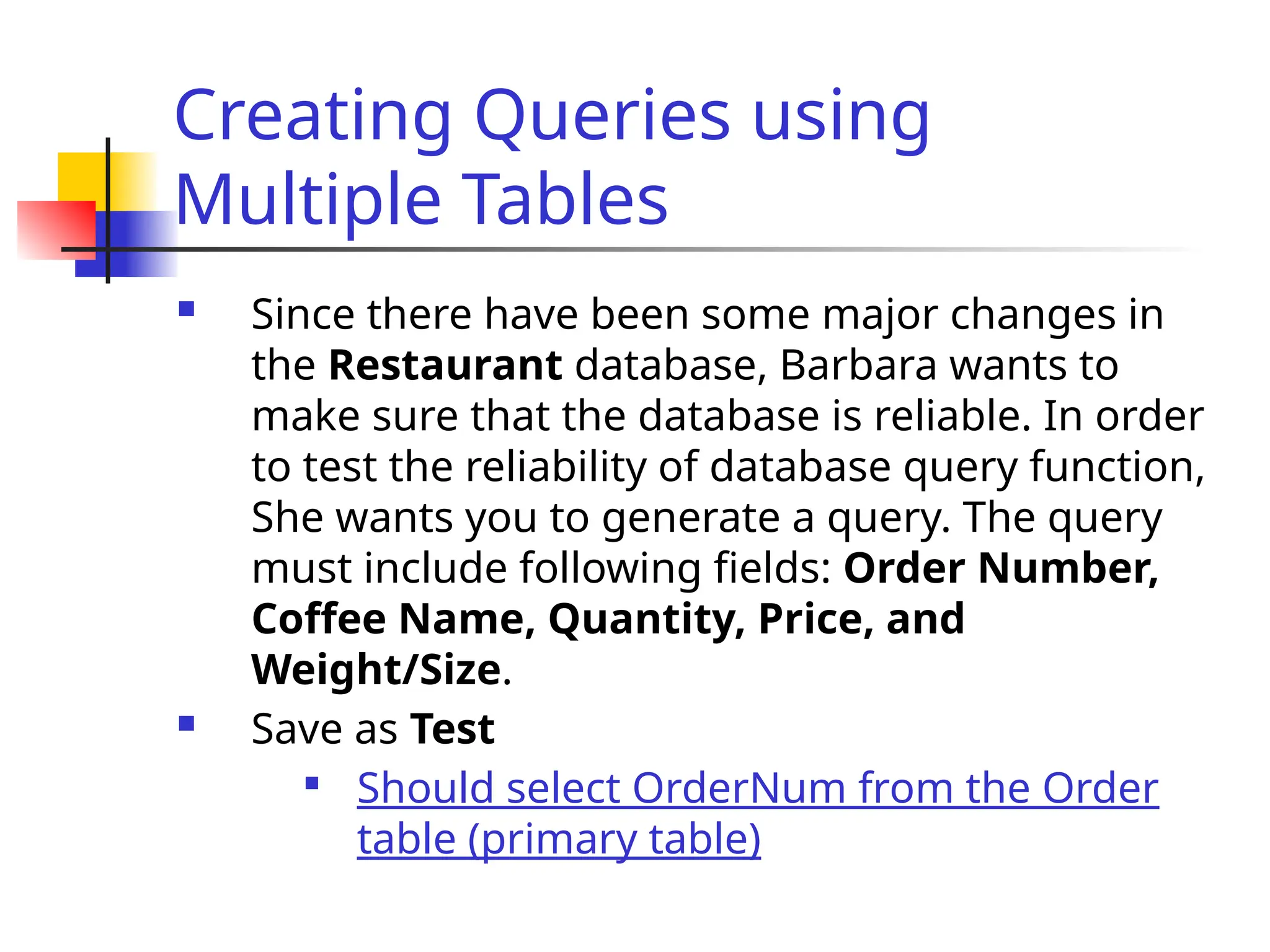

39. Creating Queries using
Multiple Tables
 Since there have been some major changes in
the Restaurant database, Barbara wants to
make sure that the database is reliable. In order
to test the reliability of database query function,
She wants you to generate a query. The query
must include following fields: Order Number,
Coffee Name, Quantity, Price, and
Weight/Size.
 Save as Test

Should select OrderNum from the Order
table (primary table)

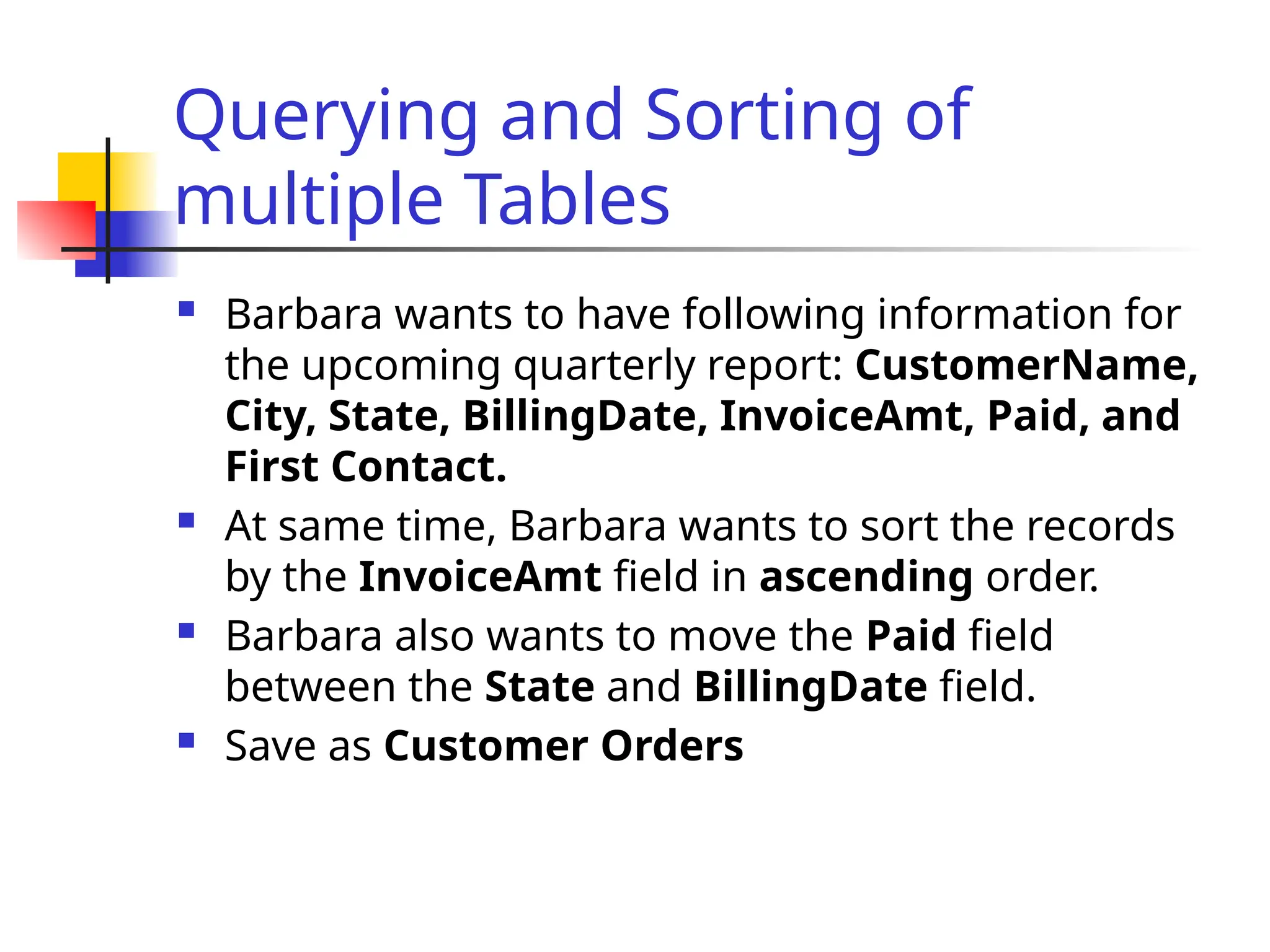

40. Querying and Sorting of
multiple Tables
 Barbara wants to have following information for
the upcoming quarterly report: CustomerName,
City, State, BillingDate, InvoiceAmt, Paid, and
First Contact.
 At same time, Barbara wants to sort the records
by the InvoiceAmt field in ascending order.
 Barbara also wants to move the Paid field
between the State and BillingDate field.
 Save as Customer Orders

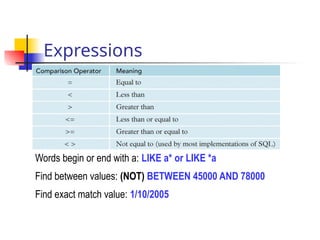

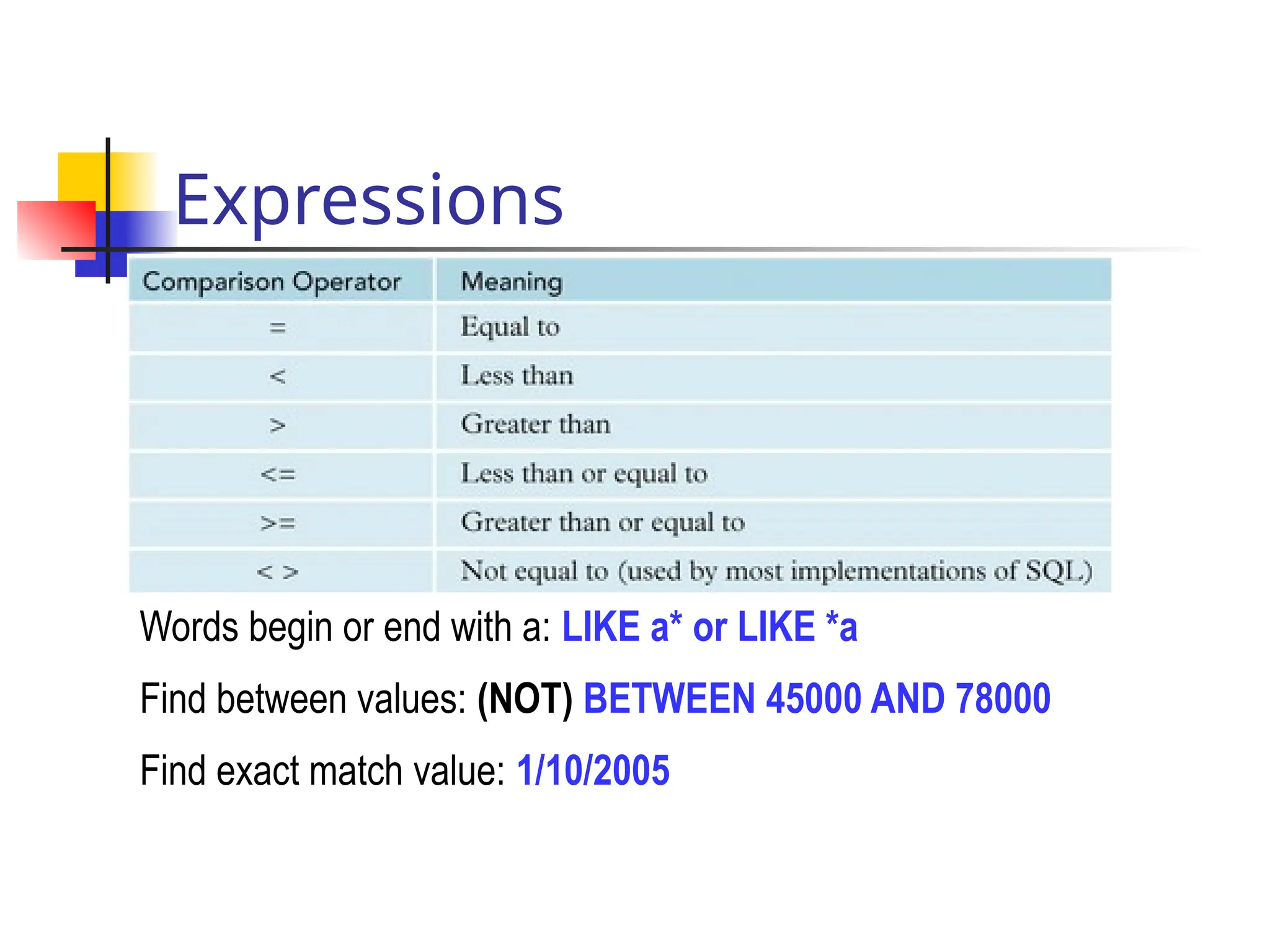

41. Words begin or end with a: LIKE a* or LIKE *a
Find between values: (NOT) BETWEEN 45000 AND 78000
Find exact match value: 1/10/2005
Expressions

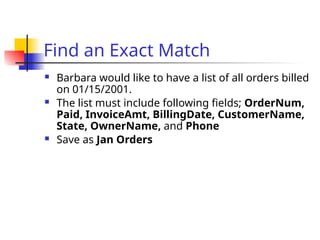

42. Find an Exact Match
 Barbara would like to have a list of all orders billed
on 01/15/2001.
 The list must include following fields; OrderNum,
Paid, InvoiceAmt, BillingDate, CustomerName,
State, OwnerName, and Phone
 Save as Jan Orders

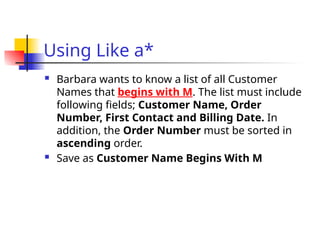

43. Using Like a*
 Barbara wants to know a list of all Customer
Names that begins with M. The list must include
following fields; Customer Name, Order
Number, First Contact and Billing Date. In
addition, the Order Number must be sorted in
ascending order.
 Save as Customer Name Begins With M

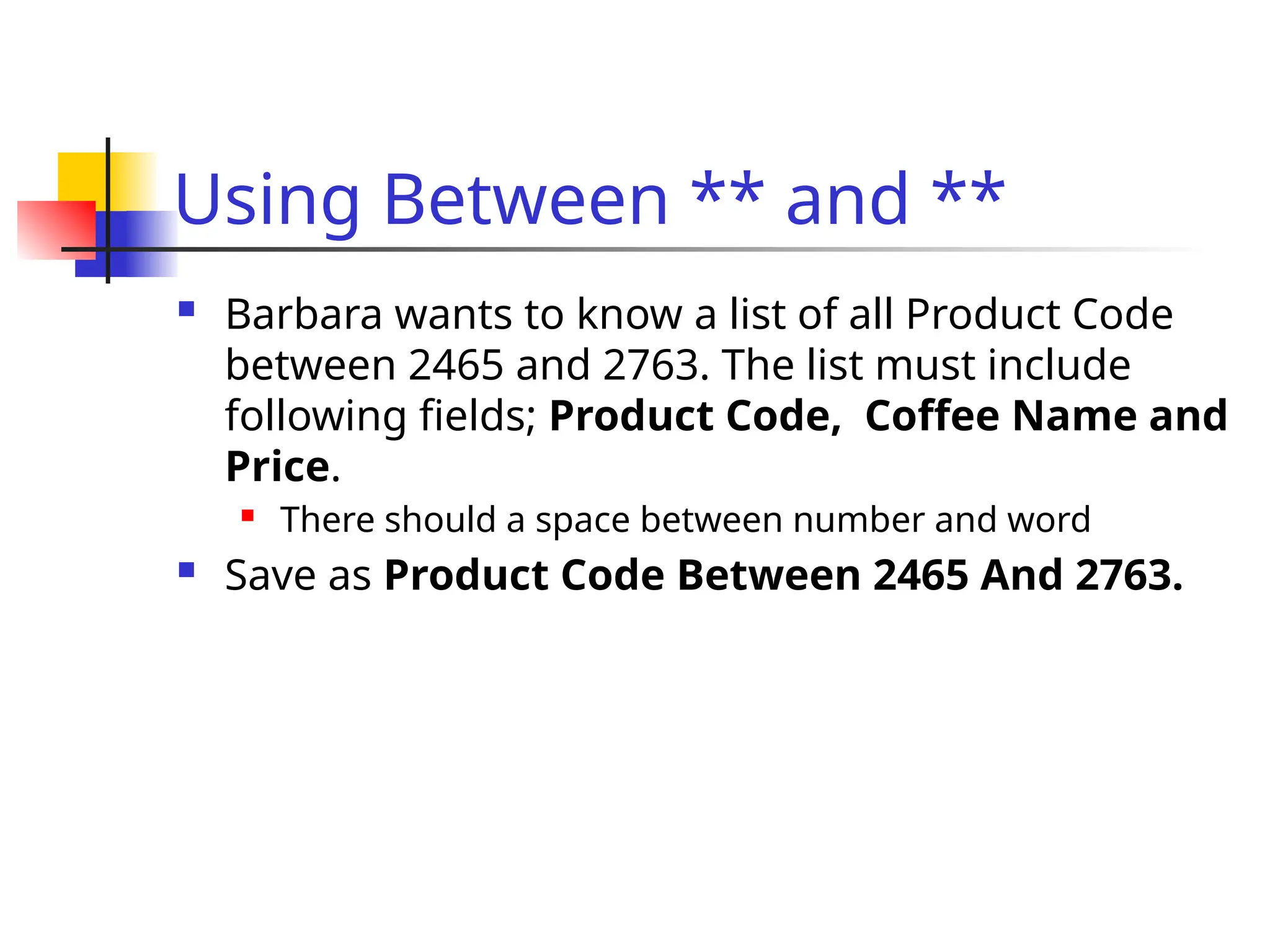

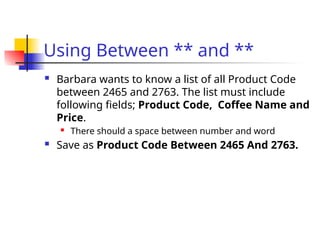

44. Using Between ** and **
 Barbara wants to know a list of all Product Code
between 2465 and 2763. The list must include
following fields; Product Code, Coffee Name and
Price.
 There should a space between number and word
 Save as Product Code Between 2465 And 2763.

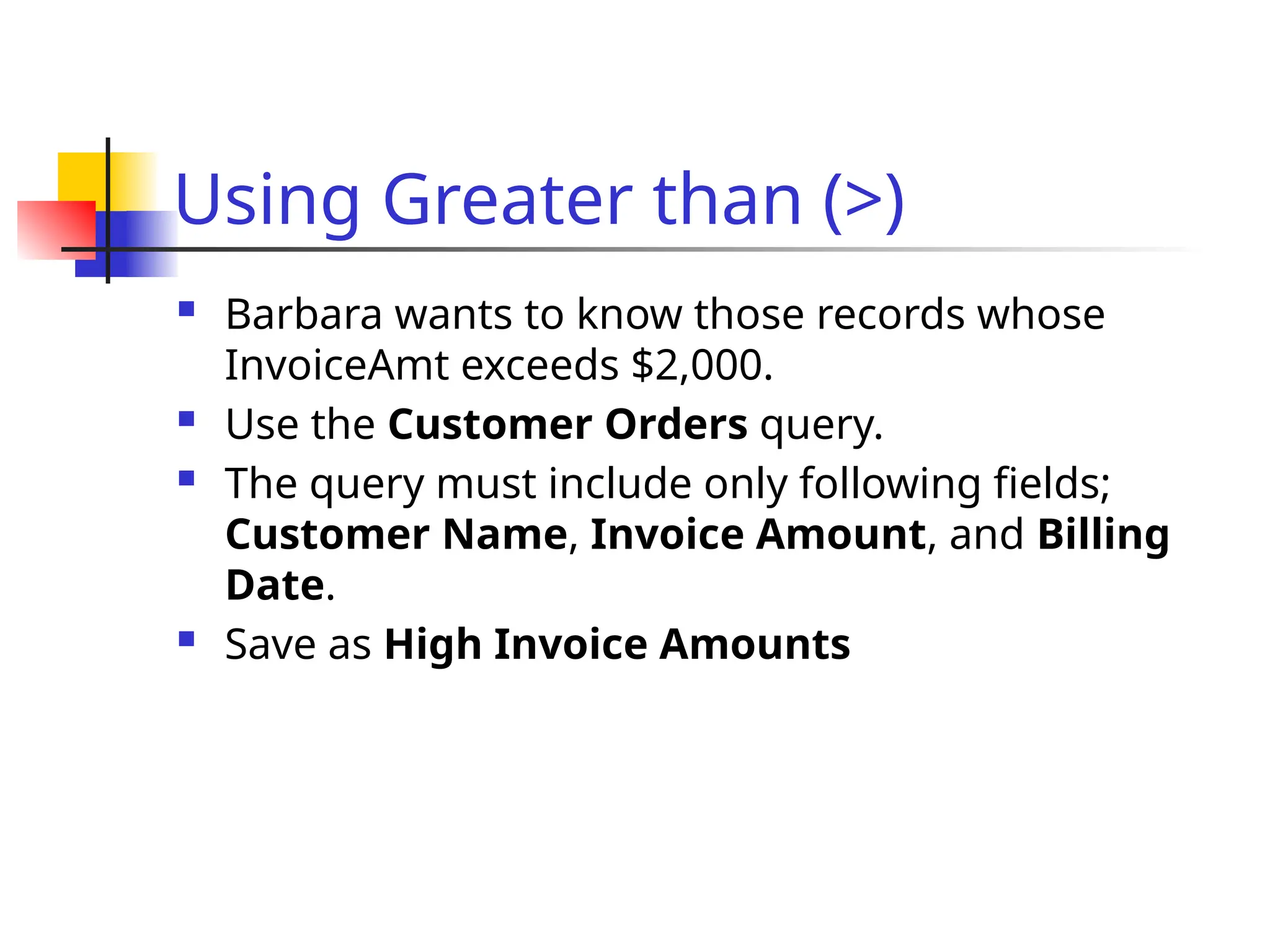

45. Using Greater than (>)
 Barbara wants to know those records whose
InvoiceAmt exceeds $2,000.
 Use the Customer Orders query.
 The query must include only following fields;
Customer Name, Invoice Amount, and Billing
Date.
 Save as High Invoice Amounts

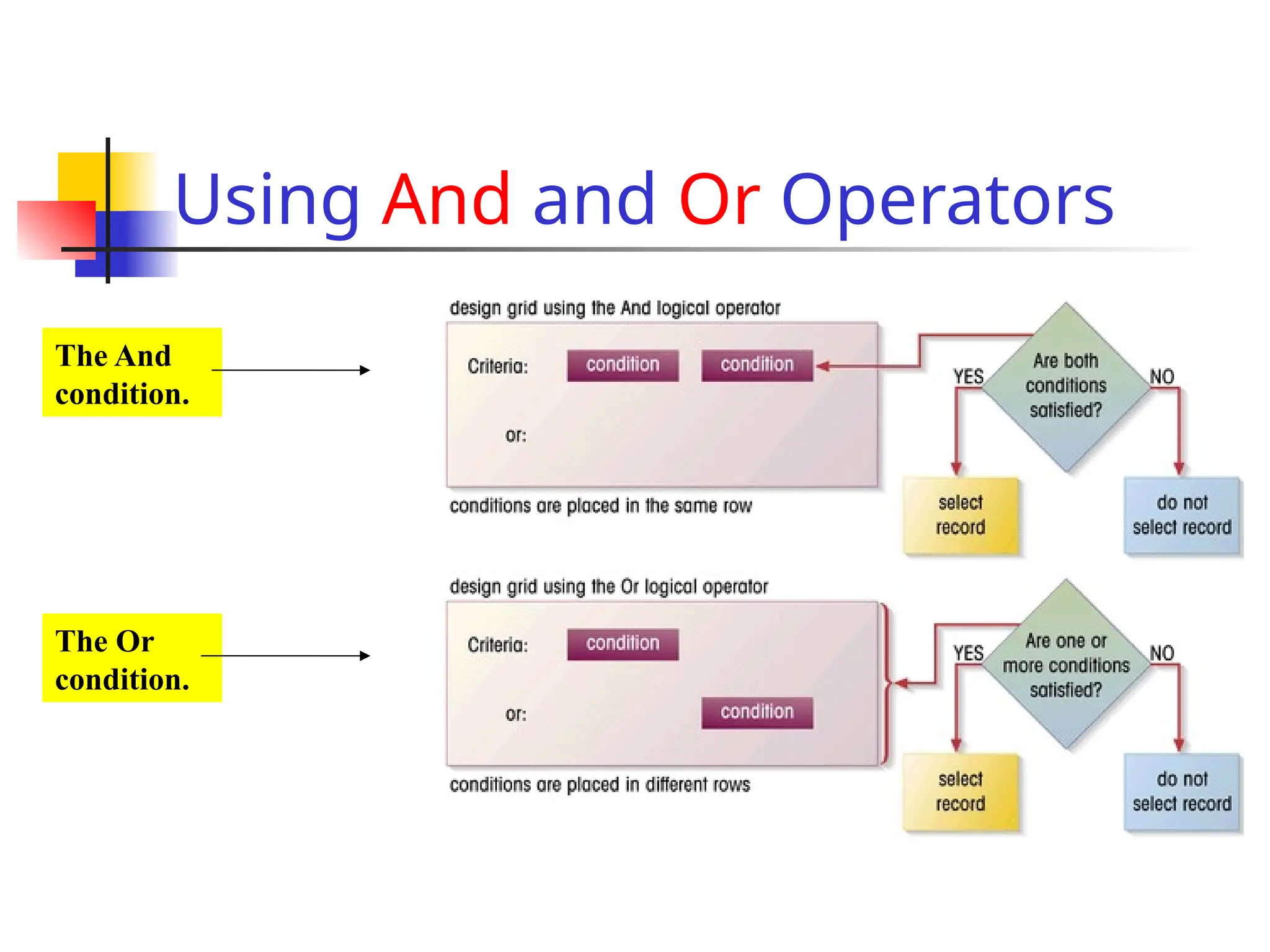

46. Using And and Or Operators
The And
condition.
The Or
condition.

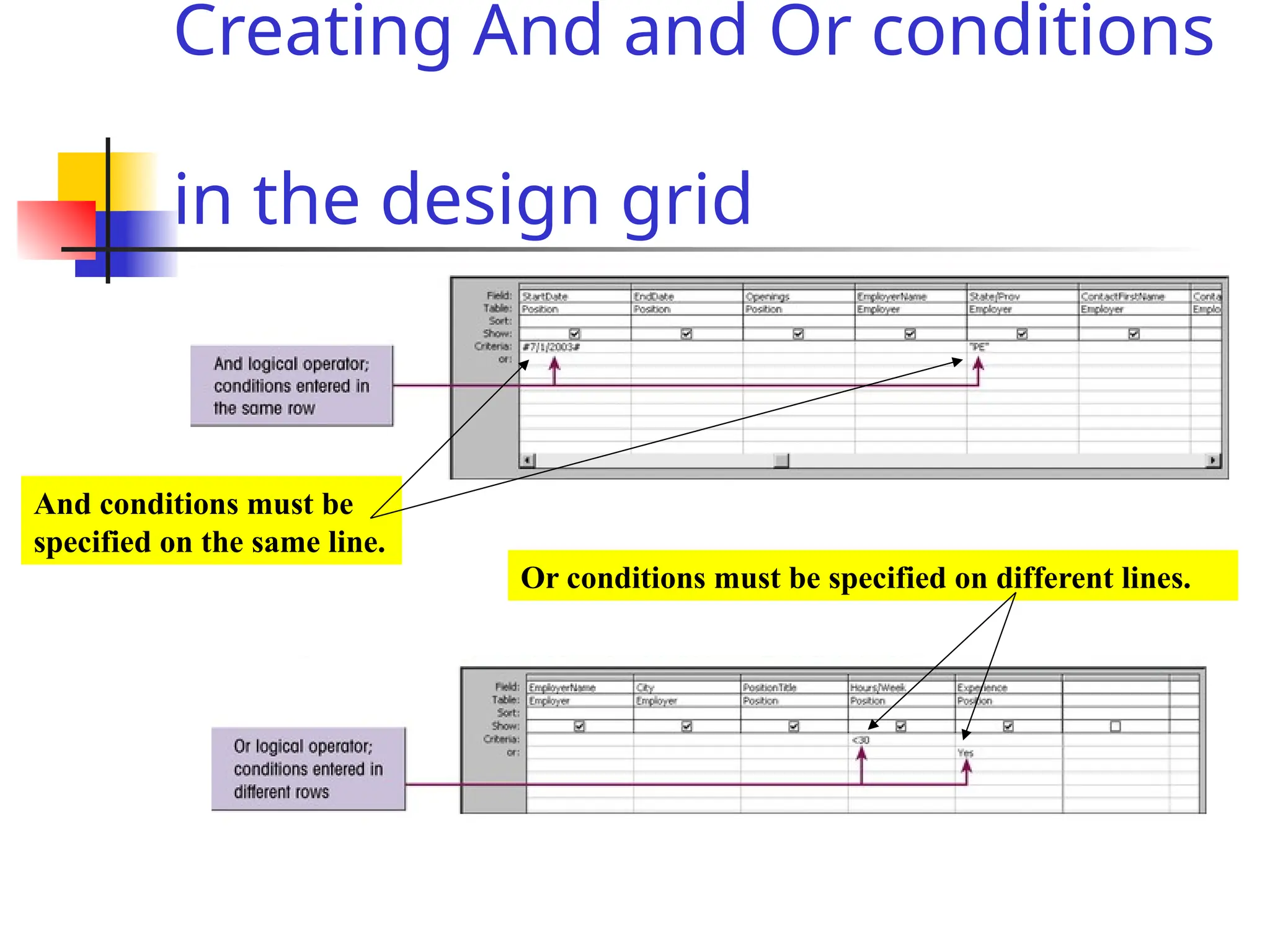

47. Creating And and Or conditions
in the design grid
And conditions must be
specified on the same line.
Or conditions must be specified on different lines.

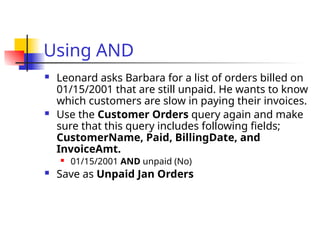

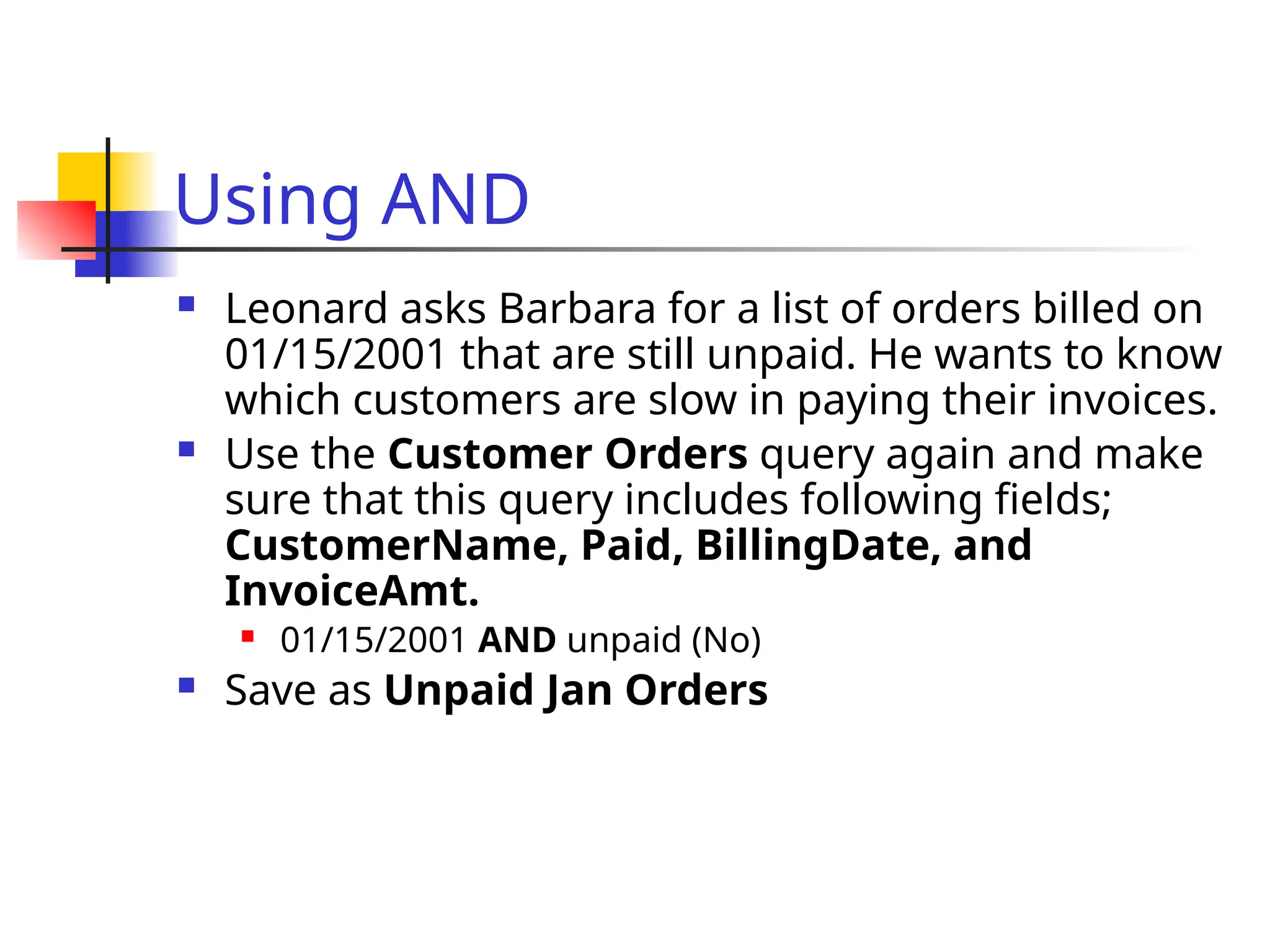

48. Using AND
 Leonard asks Barbara for a list of orders billed on
01/15/2001 that are still unpaid. He wants to know
which customers are slow in paying their invoices.
 Use the Customer Orders query again and make
sure that this query includes following fields;
CustomerName, Paid, BillingDate, and
InvoiceAmt.
 01/15/2001 AND unpaid (No)
 Save as Unpaid Jan Orders

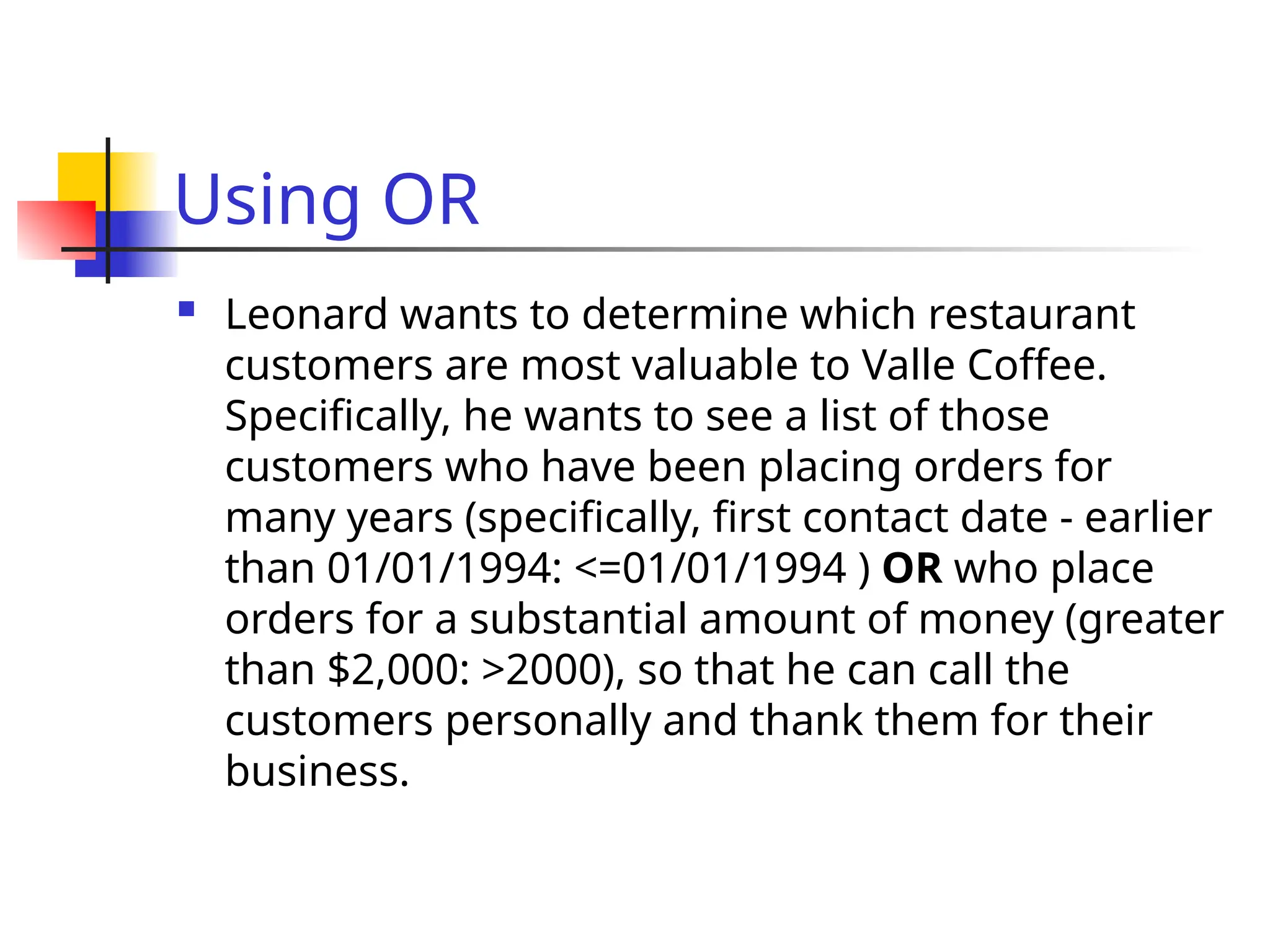

49. Using OR
 Leonard wants to determine which restaurant
customers are most valuable to Valle Coffee.
Specifically, he wants to see a list of those
customers who have been placing orders for
many years (specifically, first contact date - earlier
than 01/01/1994: <=01/01/1994 ) OR who place
orders for a substantial amount of money (greater
than $2,000: >2000), so that he can call the
customers personally and thank them for their
business.

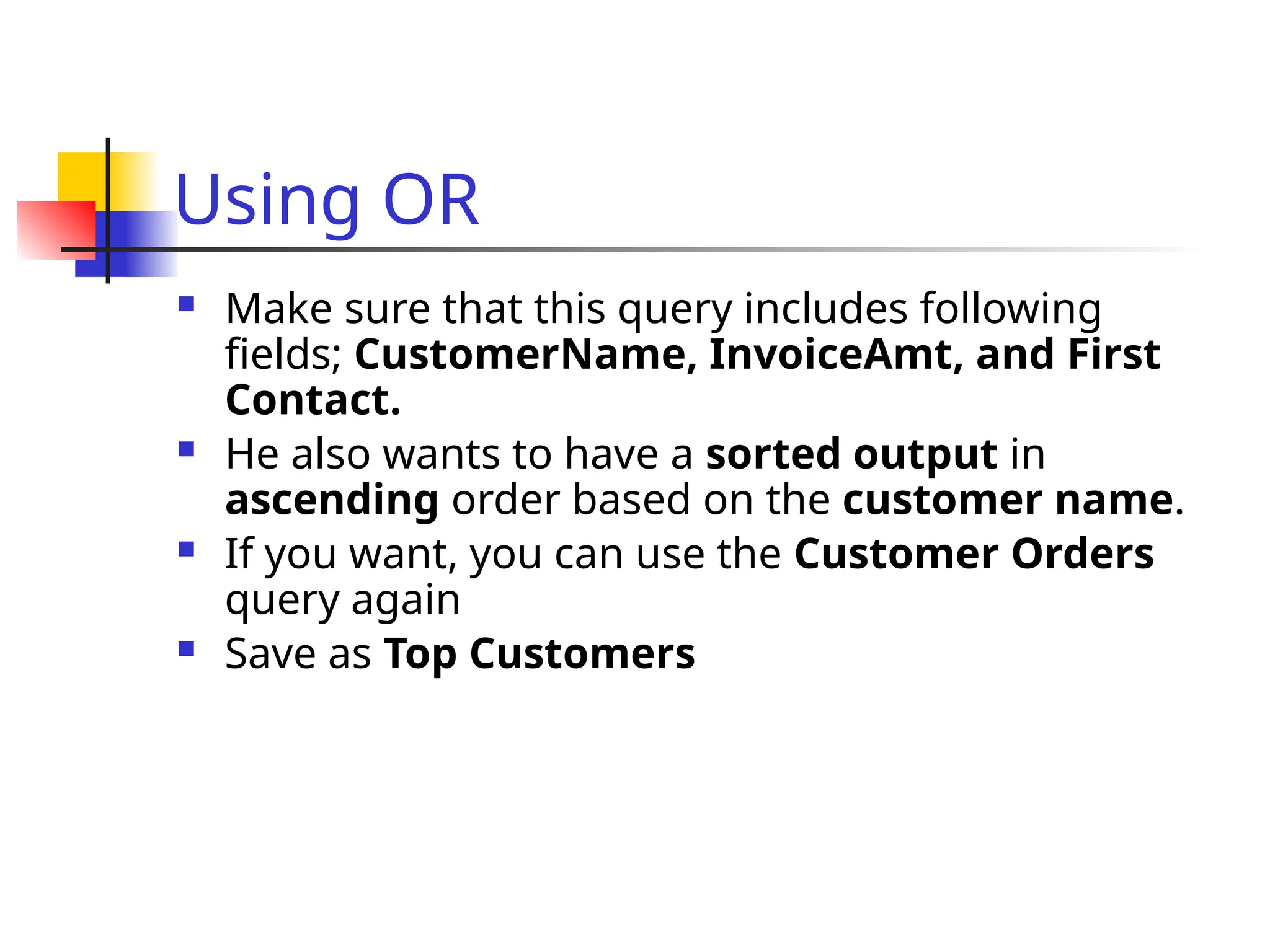

50. Using OR
 Make sure that this query includes following
fields; CustomerName, InvoiceAmt, and First
Contact.
 He also wants to have a sorted output in
ascending order based on the customer name.
 If you want, you can use the Customer Orders
query again
 Save as Top Customers

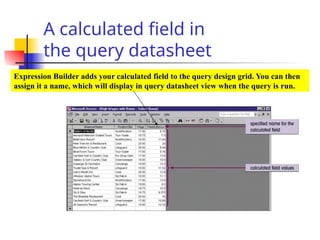

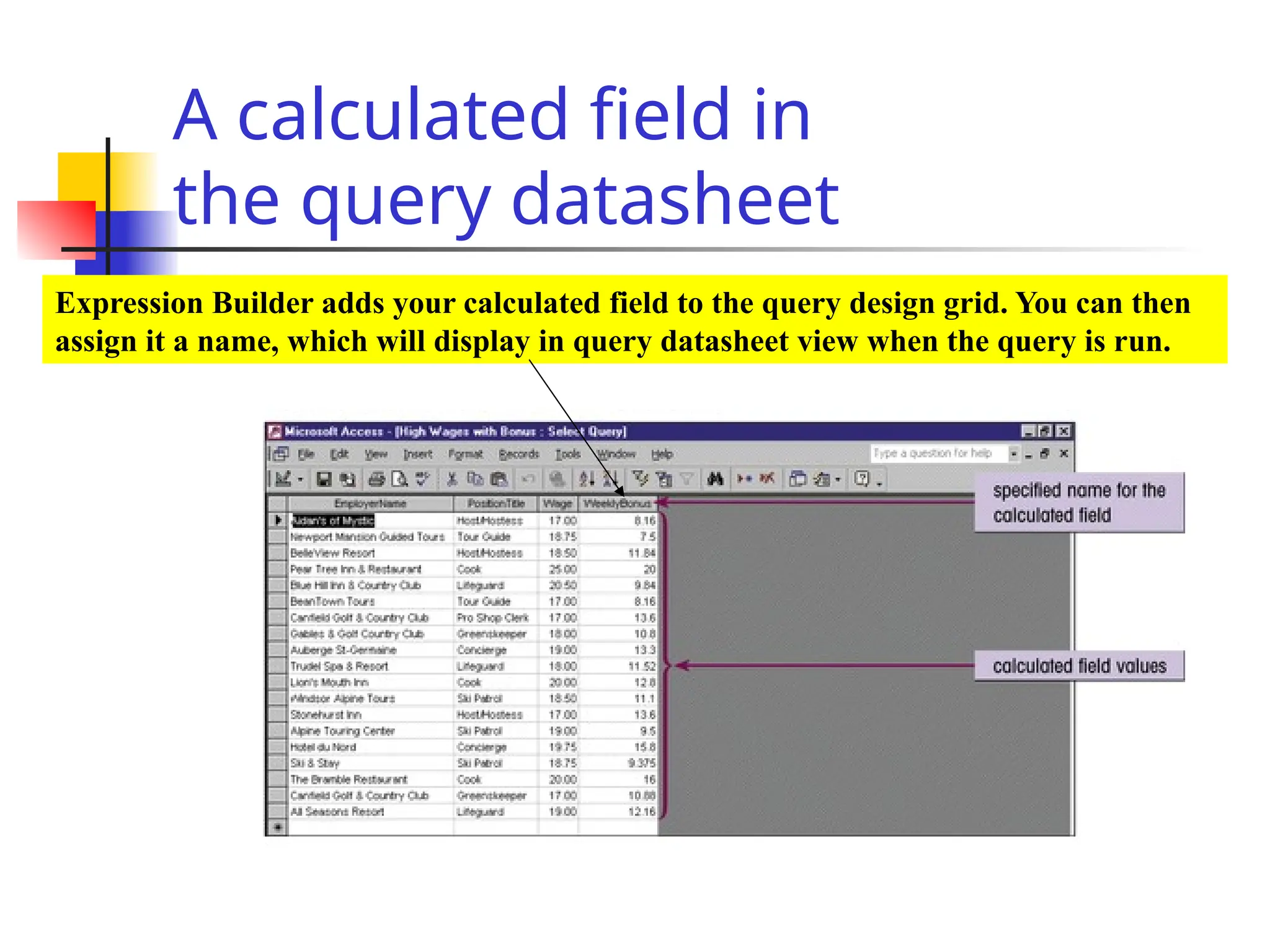

51. A calculated field in
the query datasheet
Expression Builder adds your calculated field to the query design grid. You can then
assign it a name, which will display in query datasheet view when the query is run.

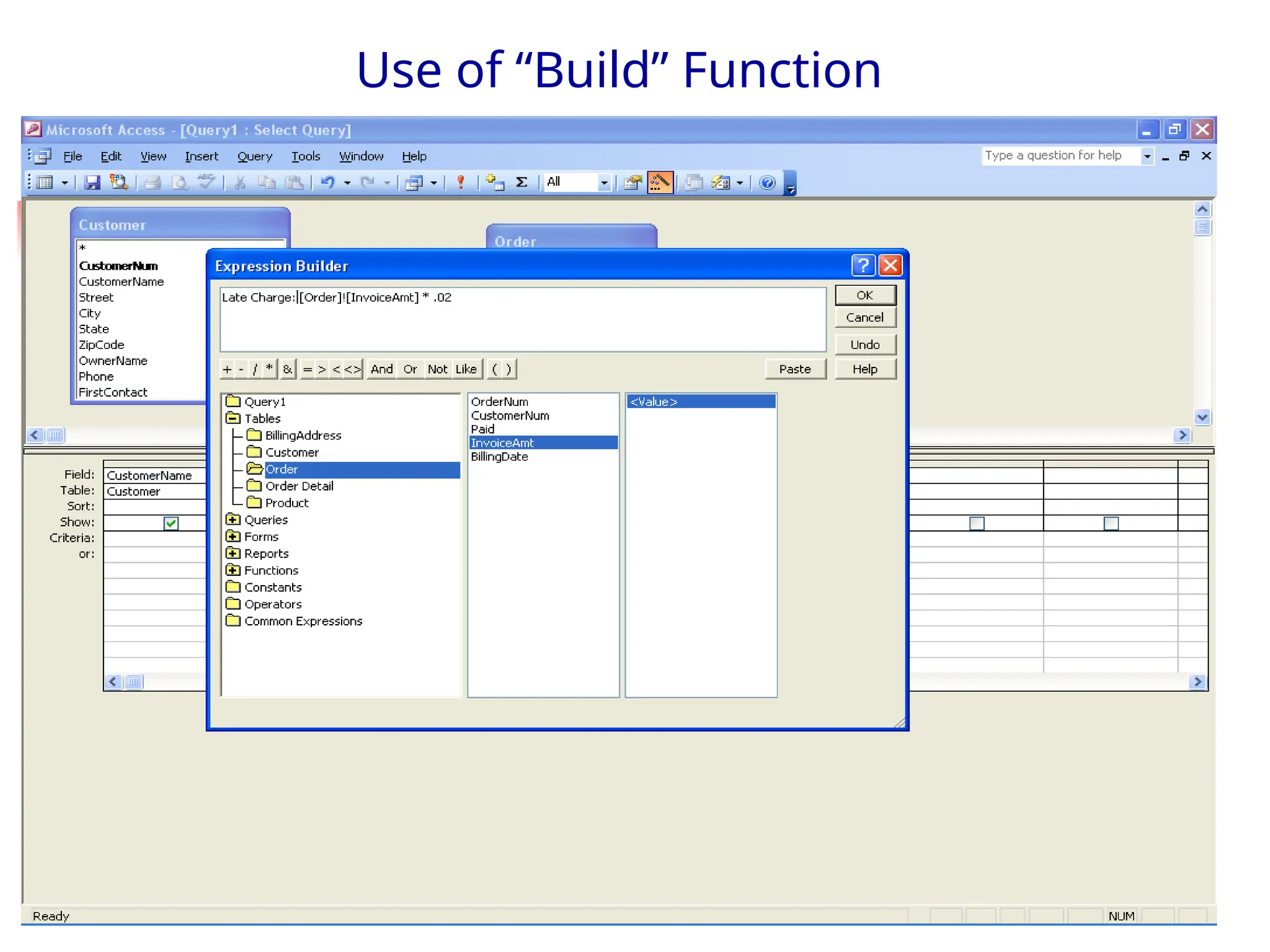

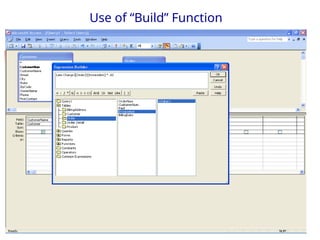

52. Use of “Build” Function

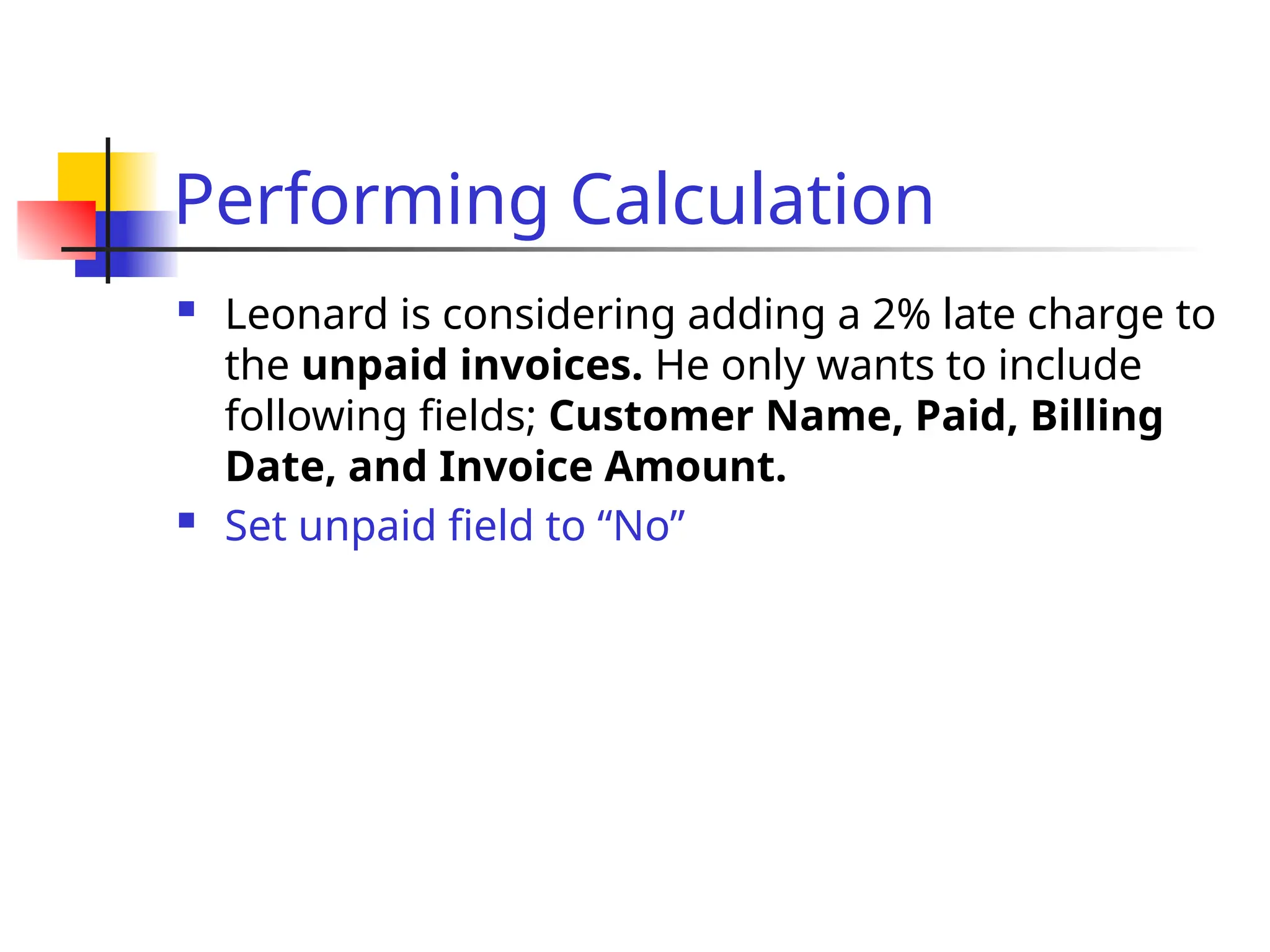

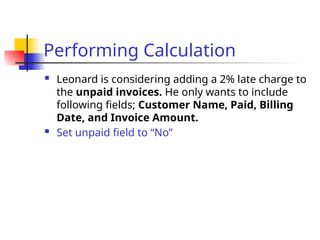

53. Performing Calculation
 Leonard is considering adding a 2% late charge to
the unpaid invoices. He only wants to include
following fields; Customer Name, Paid, Billing
Date, and Invoice Amount.
 Set unpaid field to “No”

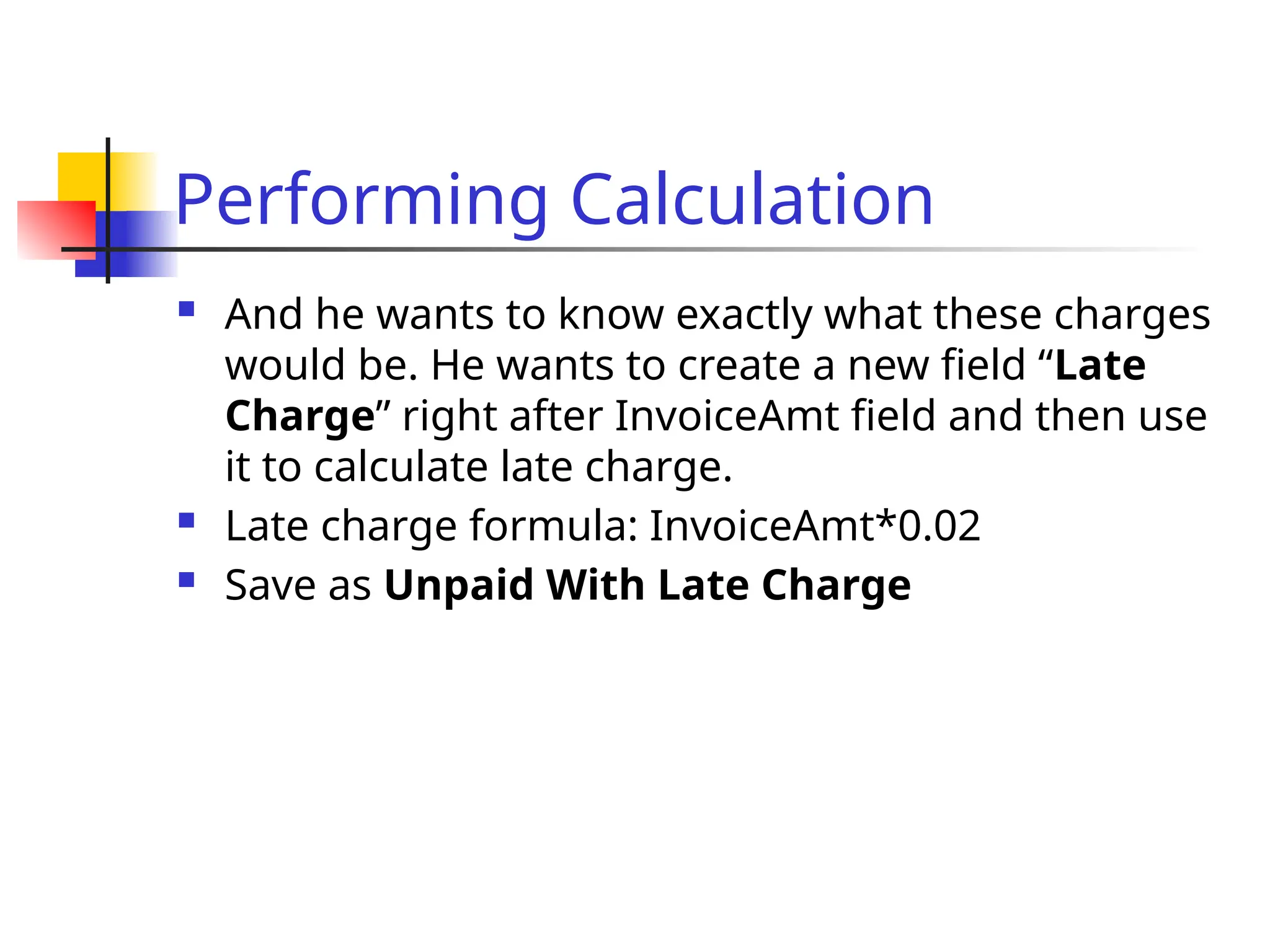

54. Performing Calculation
 And he wants to know exactly what these charges
would be. He wants to create a new field “Late
Charge” right after InvoiceAmt field and then use
it to calculate late charge.
 Late charge formula: InvoiceAmt*0.02
 Save as Unpaid With Late Charge

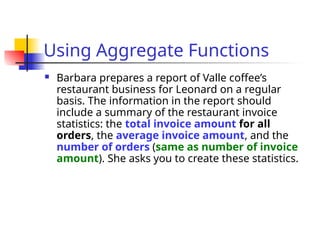

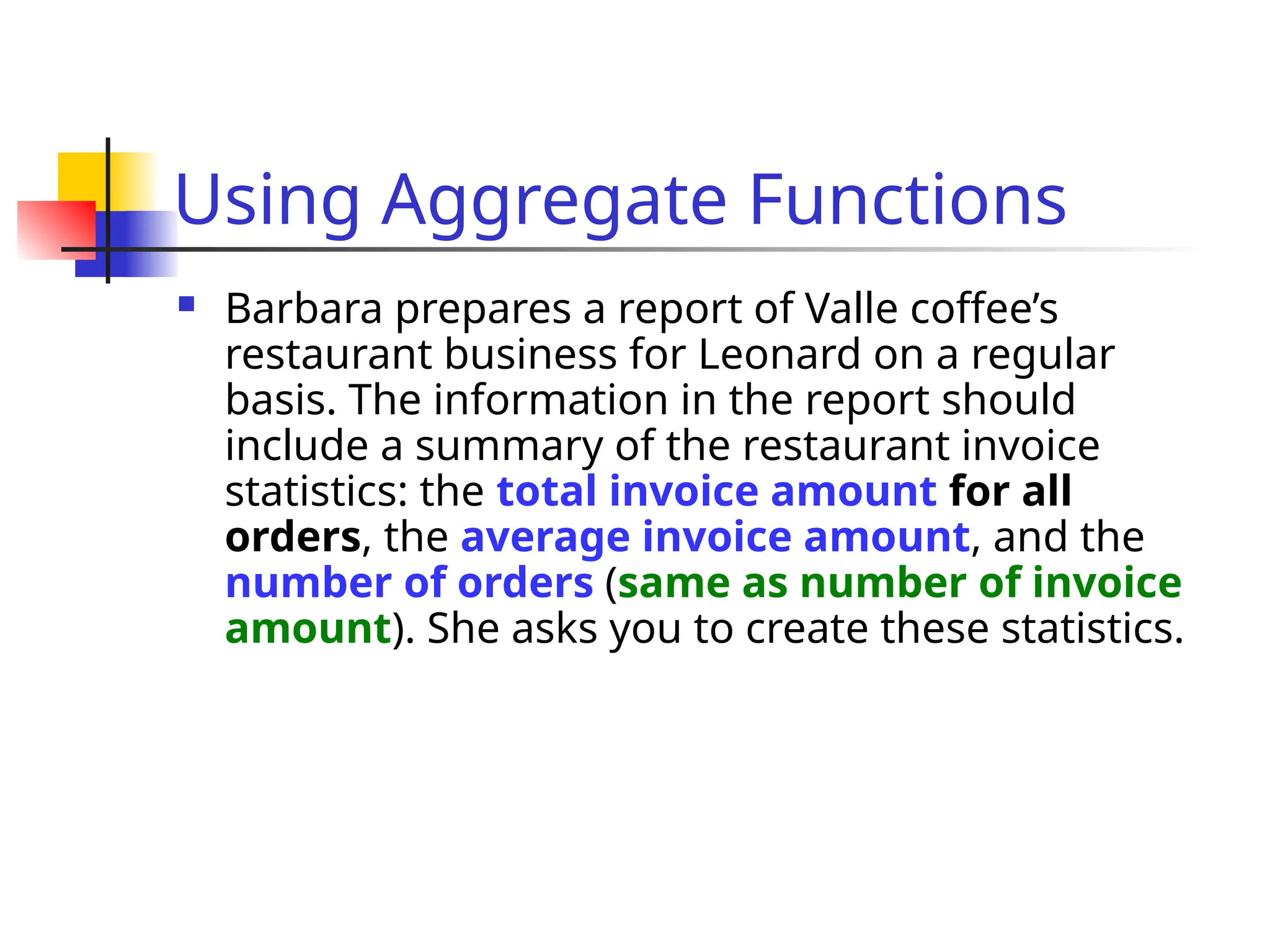

55. Using Aggregate Functions
 Barbara prepares a report of Valle coffee’s
restaurant business for Leonard on a regular
basis. The information in the report should
include a summary of the restaurant invoice
statistics: the total invoice amount for all
orders, the average invoice amount, and the
number of orders (same as number of invoice
amount). She asks you to create these statistics.

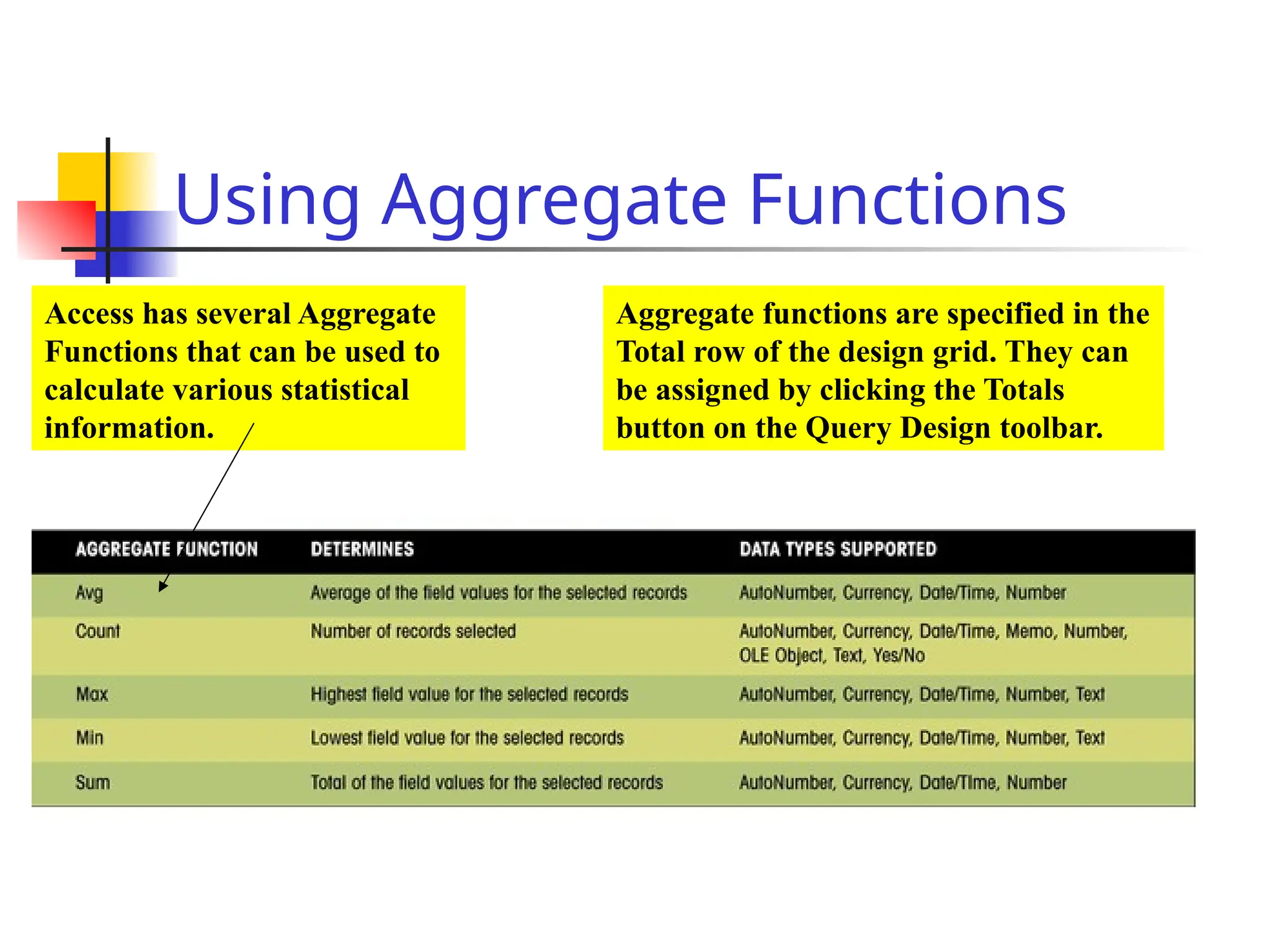

56. Using Aggregate Functions
Access has several Aggregate
Functions that can be used to
calculate various statistical
information.
Aggregate functions are specified in the
Total row of the design grid. They can
be assigned by clicking the Totals
button on the Query Design toolbar.

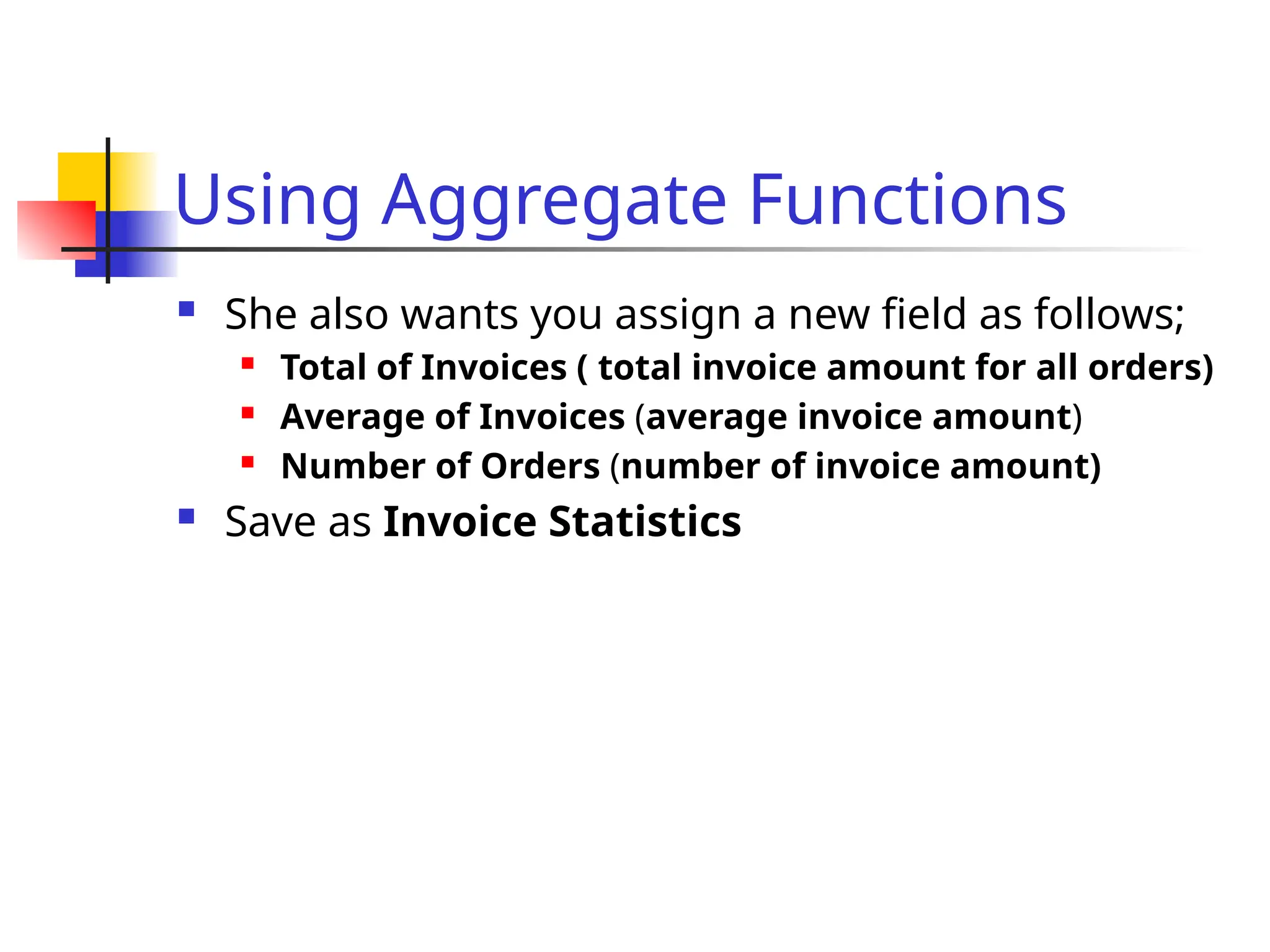

57. Using Aggregate Functions
 She also wants you assign a new field as follows;
 Total of Invoices ( total invoice amount for all orders)
 Average of Invoices (average invoice amount)
 Number of Orders (number of invoice amount)
 Save as Invoice Statistics

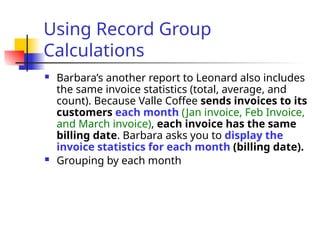

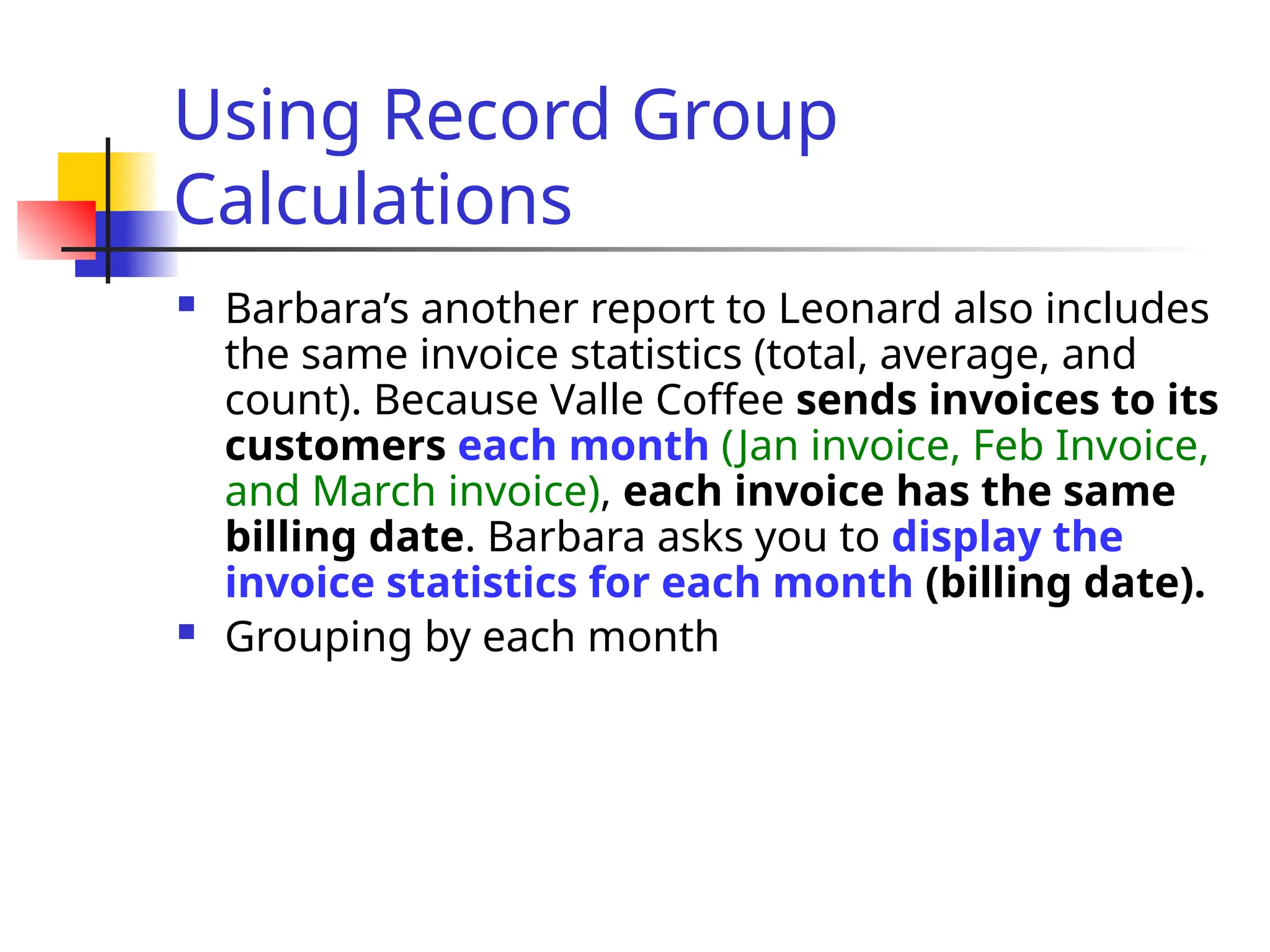

58. Using Record Group
Calculations
 Barbara’s another report to Leonard also includes
the same invoice statistics (total, average, and
count). Because Valle Coffee sends invoices to its
customers each month (Jan invoice, Feb Invoice,
and March invoice), each invoice has the same
billing date. Barbara asks you to display the
invoice statistics for each month (billing date).
 Grouping by each month

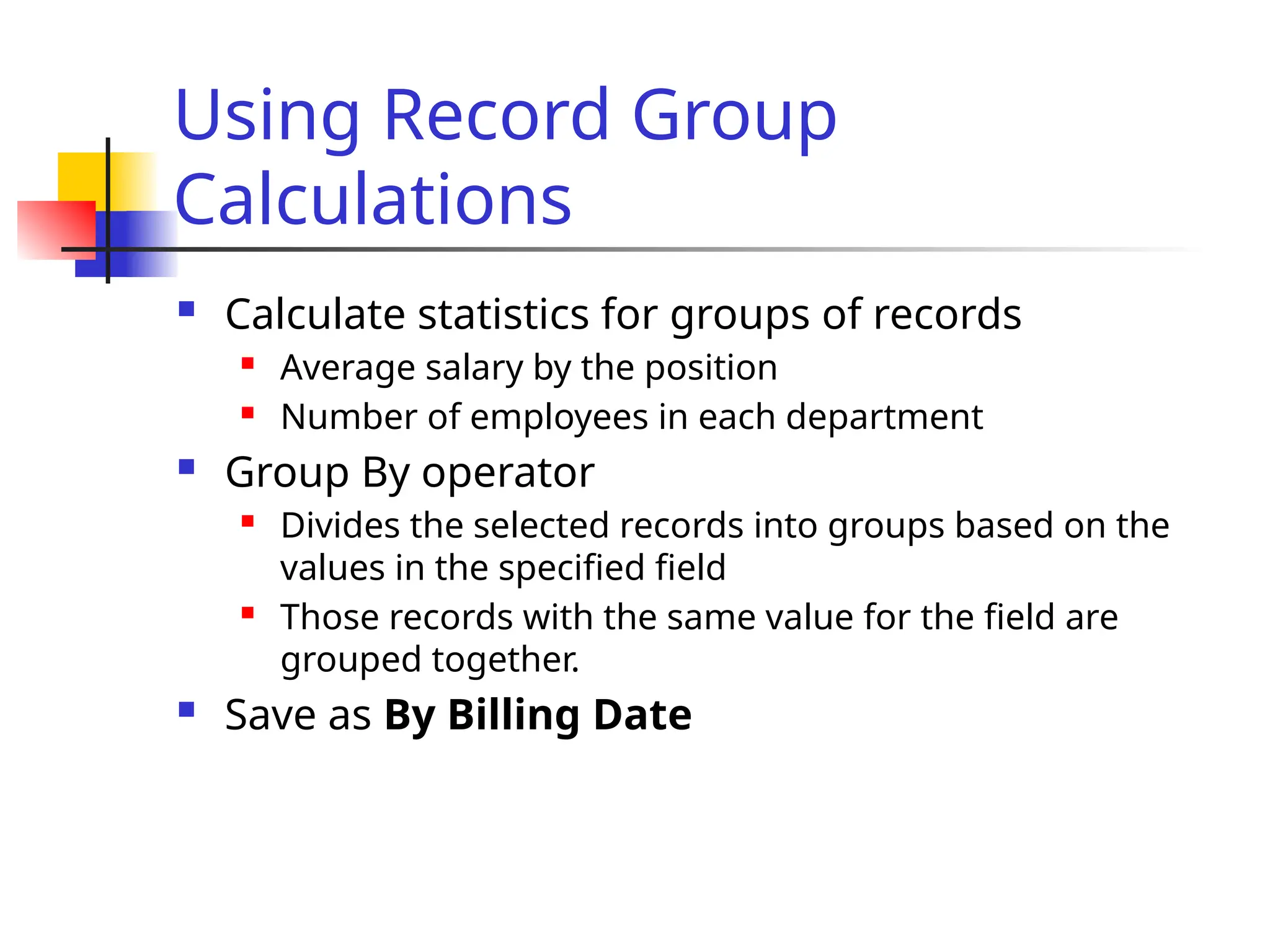

59. Using Record Group
Calculations
 Calculate statistics for groups of records
 Average salary by the position
 Number of employees in each department
 Group By operator
 Divides the selected records into groups based on the
values in the specified field
 Those records with the same value for the field are
grouped together.
 Save as By Billing Date

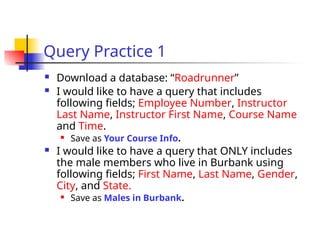

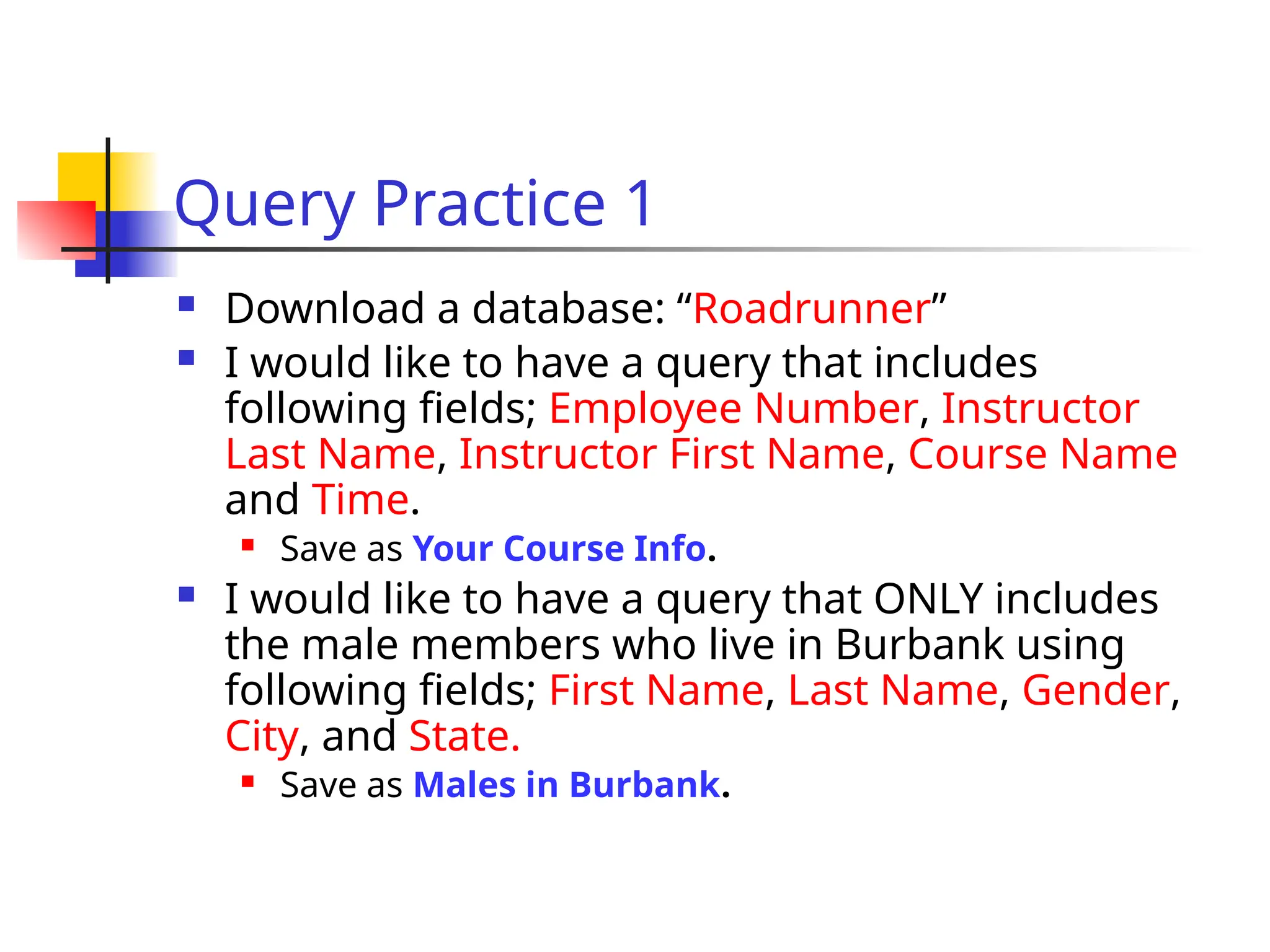

60. Query Practice 1
 Download a database: “Roadrunner”
 I would like to have a query that includes
following fields; Employee Number, Instructor
Last Name, Instructor First Name, Course Name
and Time.
 Save as Your Course Info.
 I would like to have a query that ONLY includes
the male members who live in Burbank using
following fields; First Name, Last Name, Gender,
City, and State.
 Save as Males in Burbank.

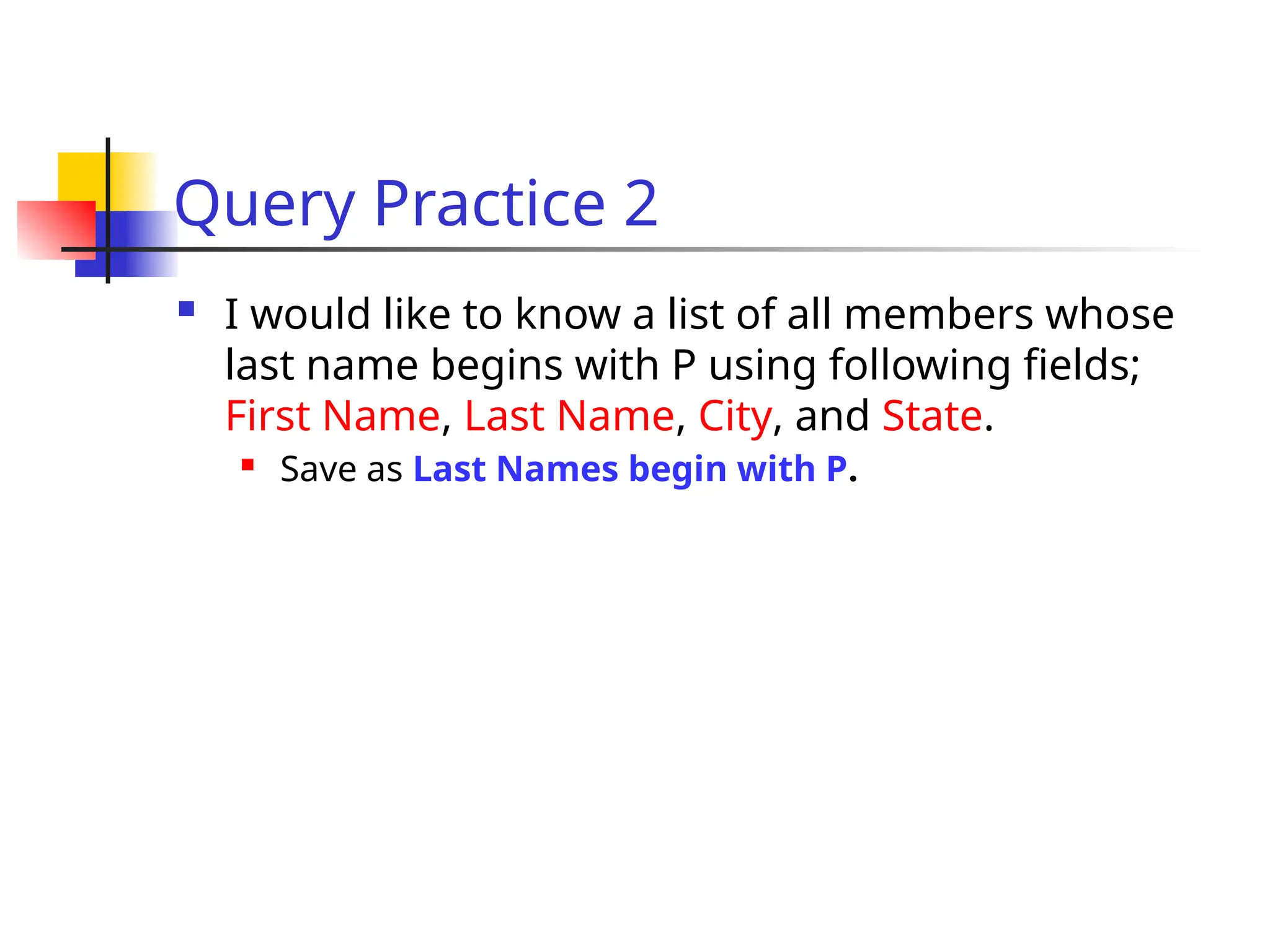

61. Query Practice 2
 I would like to know a list of all members whose
last name begins with P using following fields;
First Name, Last Name, City, and State.
 Save as Last Names begin with P.

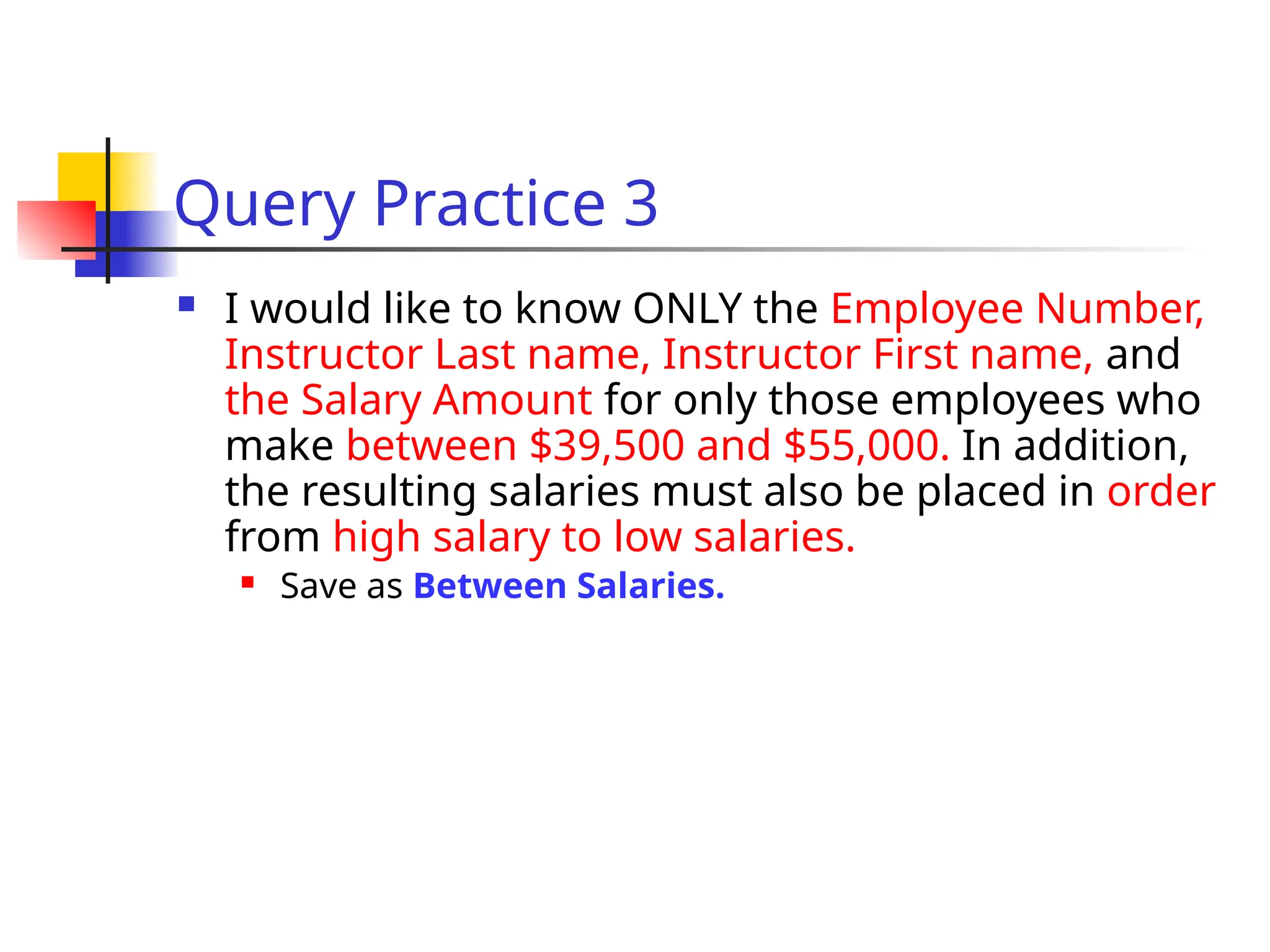

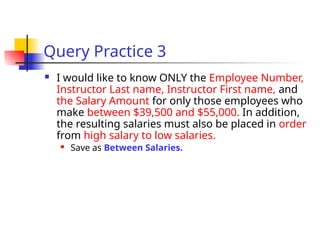

62. Query Practice 3
 I would like to know ONLY the Employee Number,
Instructor Last name, Instructor First name, and
the Salary Amount for only those employees who
make between $39,500 and $55,000. In addition,
the resulting salaries must also be placed in order
from high salary to low salaries.
 Save as Between Salaries.

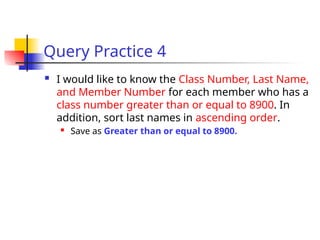

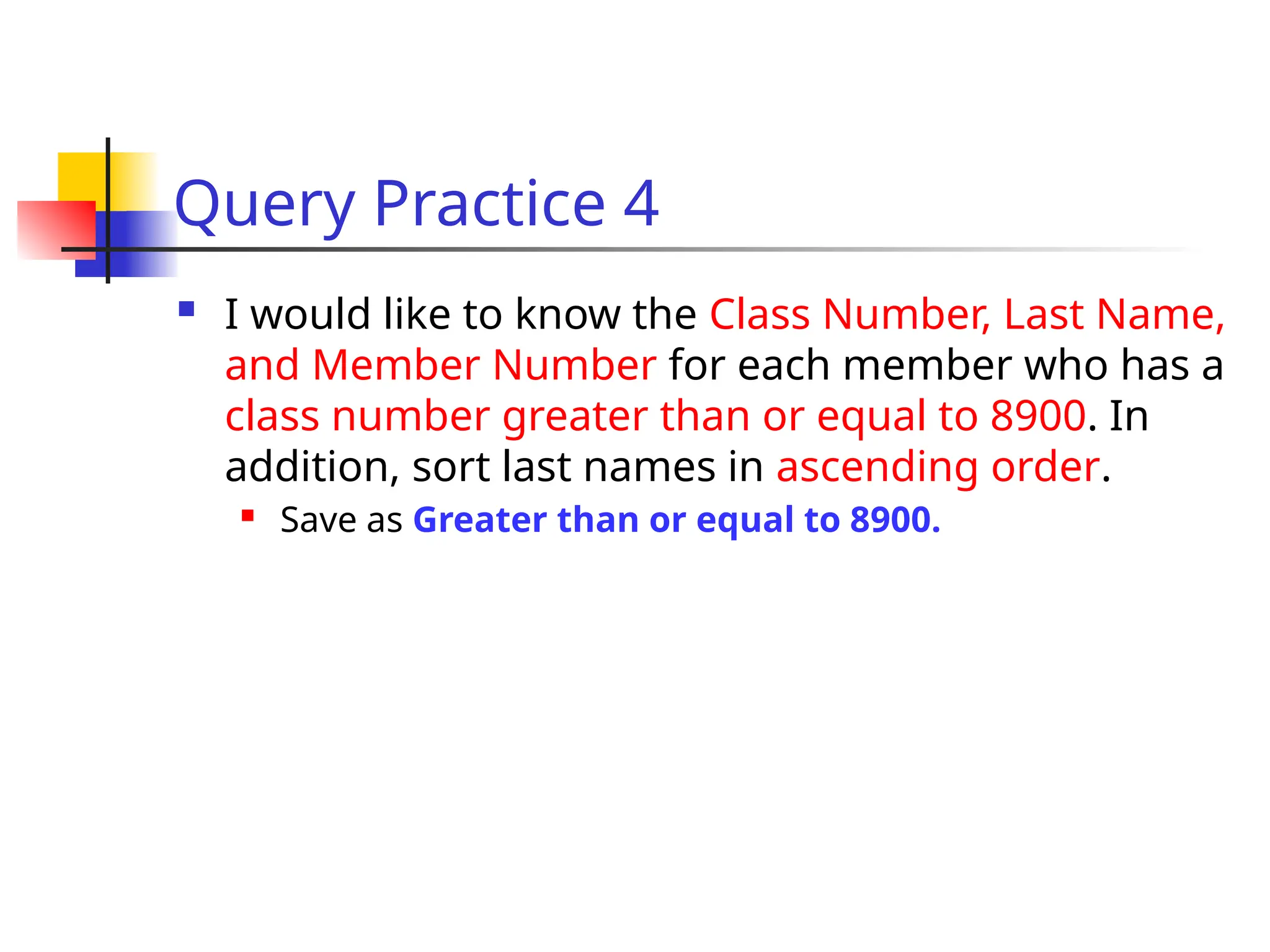

63. Query Practice 4
 I would like to know the Class Number, Last Name,
and Member Number for each member who has a
class number greater than or equal to 8900. In
addition, sort last names in ascending order.
 Save as Greater than or equal to 8900.

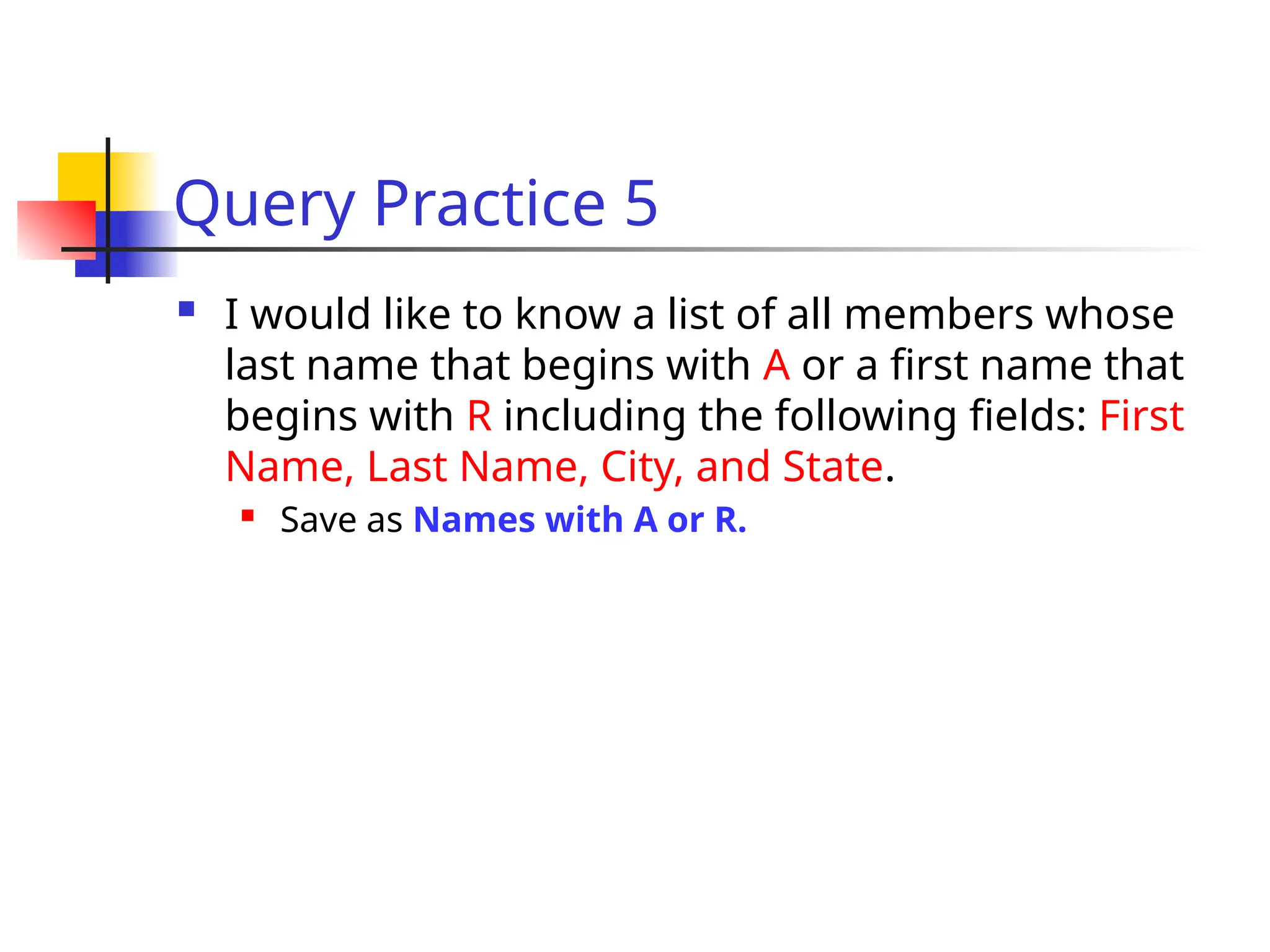

64. Query Practice 5
 I would like to know a list of all members whose
last name that begins with A or a first name that
begins with R including the following fields: First
Name, Last Name, City, and State.
 Save as Names with A or R.

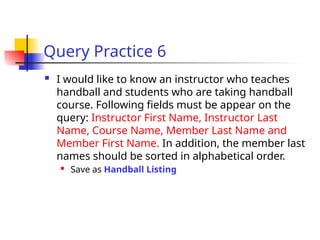

65. Query Practice 6
 I would like to know an instructor who teaches
handball and students who are taking handball
course. Following fields must be appear on the
query: Instructor First Name, Instructor Last
Name, Course Name, Member Last Name and
Member First Name. In addition, the member last
names should be sorted in alphabetical order.
 Save as Handball Listing

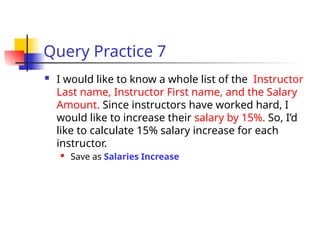

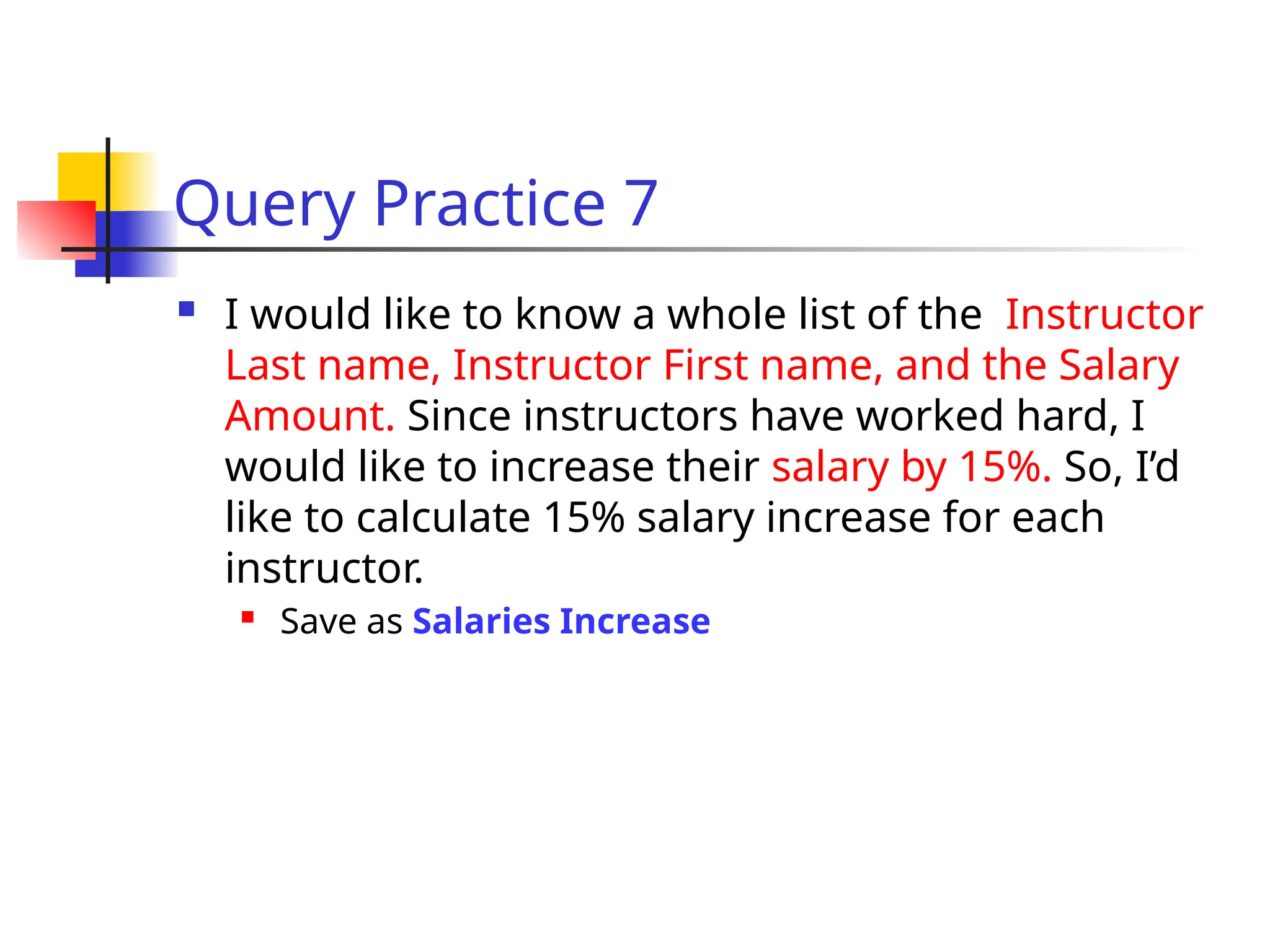

66. Query Practice 7
 I would like to know a whole list of the Instructor
Last name, Instructor First name, and the Salary
Amount. Since instructors have worked hard, I
would like to increase their salary by 15%. So, I’d
like to calculate 15% salary increase for each
instructor.
 Save as Salaries Increase

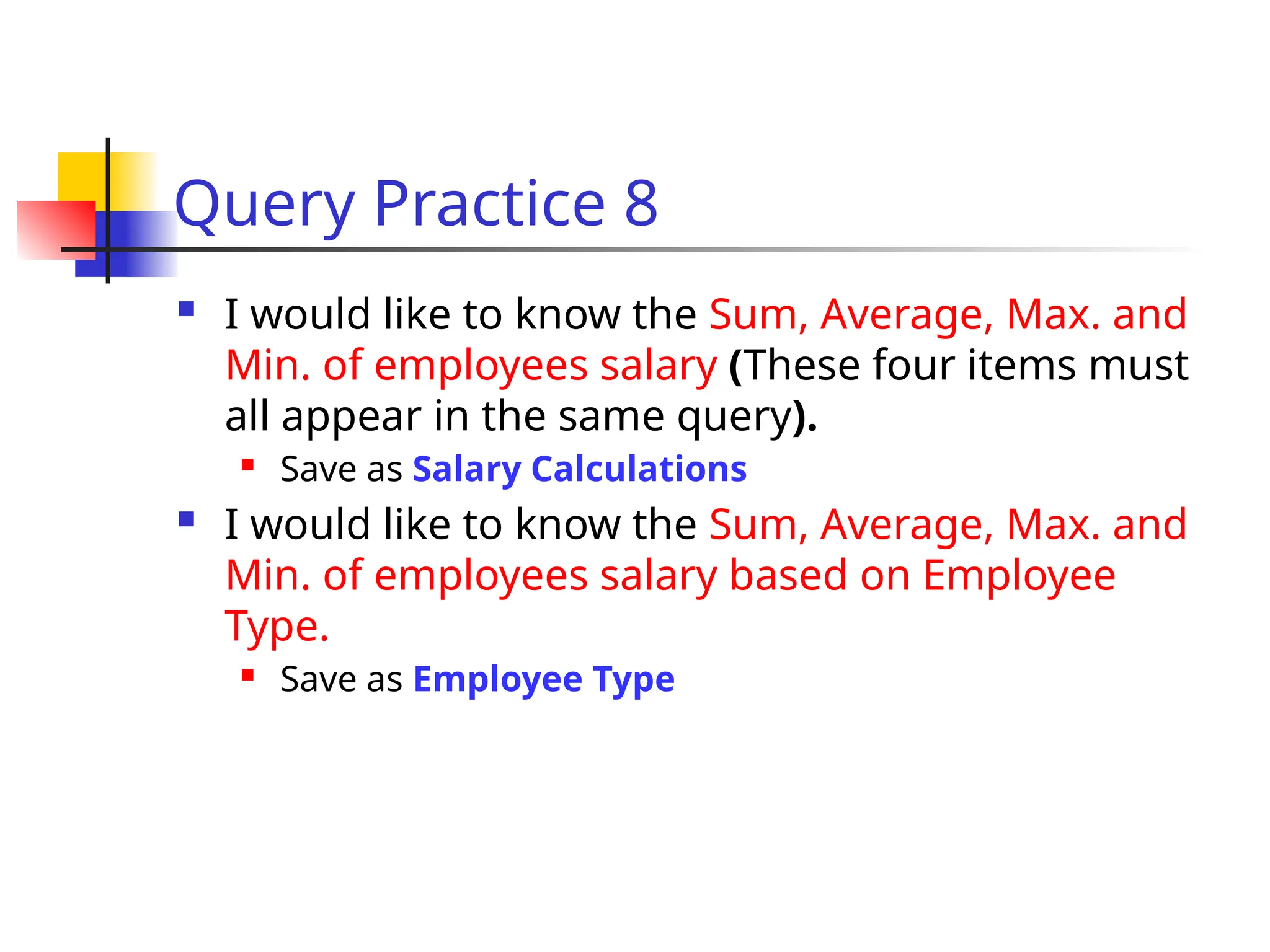

67. Query Practice 8
 I would like to know the Sum, Average, Max. and
Min. of employees salary (These four items must
all appear in the same query).
 Save as Salary Calculations
 I would like to know the Sum, Average, Max. and
Min. of employees salary based on Employee
Type.
 Save as Employee Type

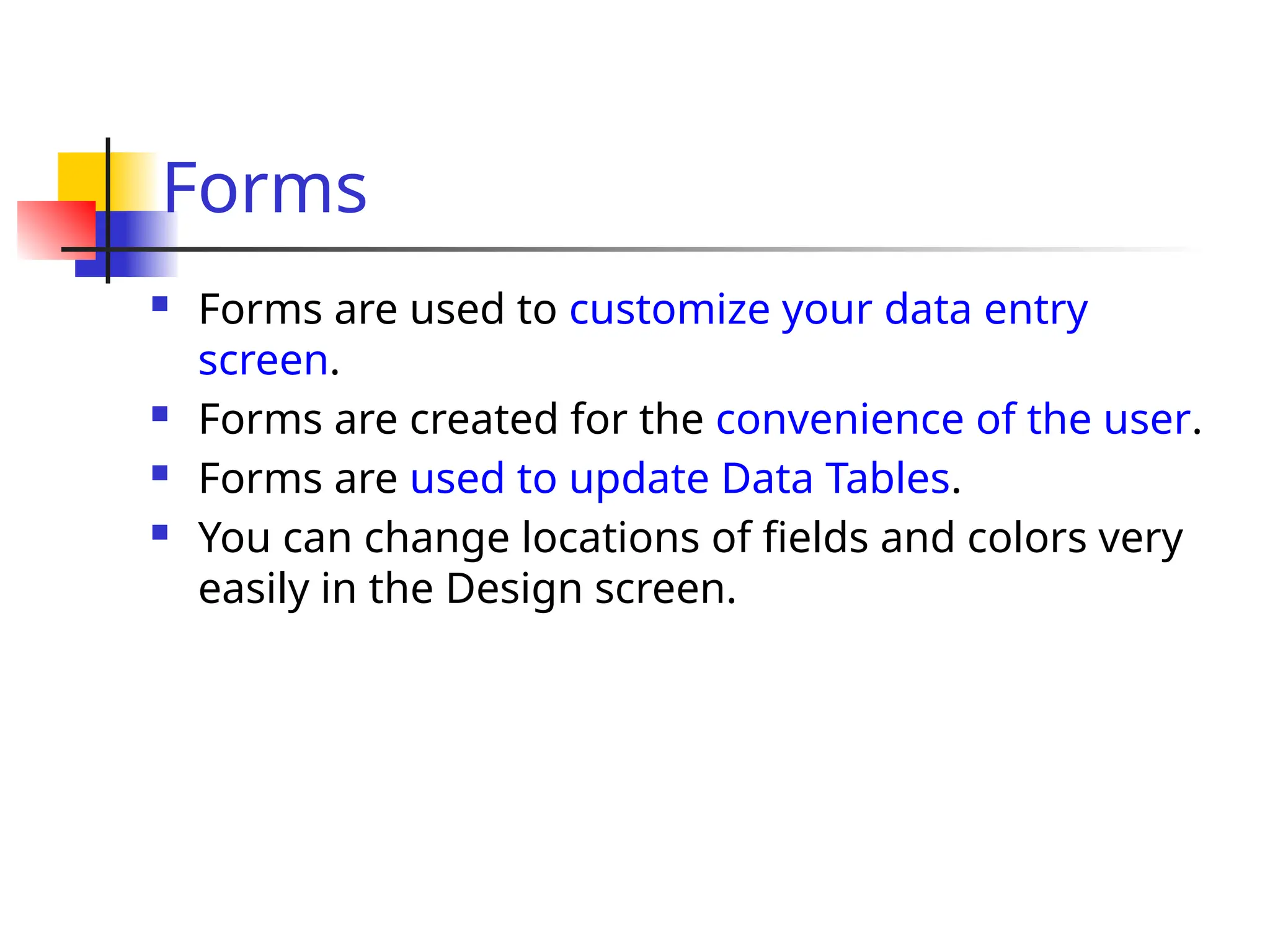

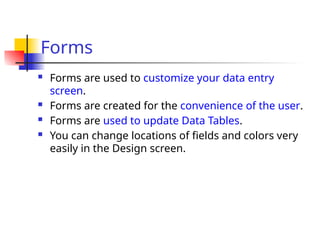

68. Forms
 Forms are used to customize your data entry
screen.
 Forms are created for the convenience of the user.
 Forms are used to update Data Tables.
 You can change locations of fields and colors very
easily in the Design screen.

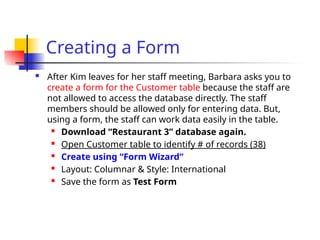

69. Creating a Form
 After Kim leaves for her staff meeting, Barbara asks you to
create a form for the Customer table because the staff are
not allowed to access the database directly. The staff
members should be allowed only for entering data. But,
using a form, the staff can work data easily in the table.
 Download “Restaurant 3” database again.
 Open Customer table to identify # of records (38)
 Create using “Form Wizard”
 Layout: Columnar & Style: International
 Save the form as Test Form

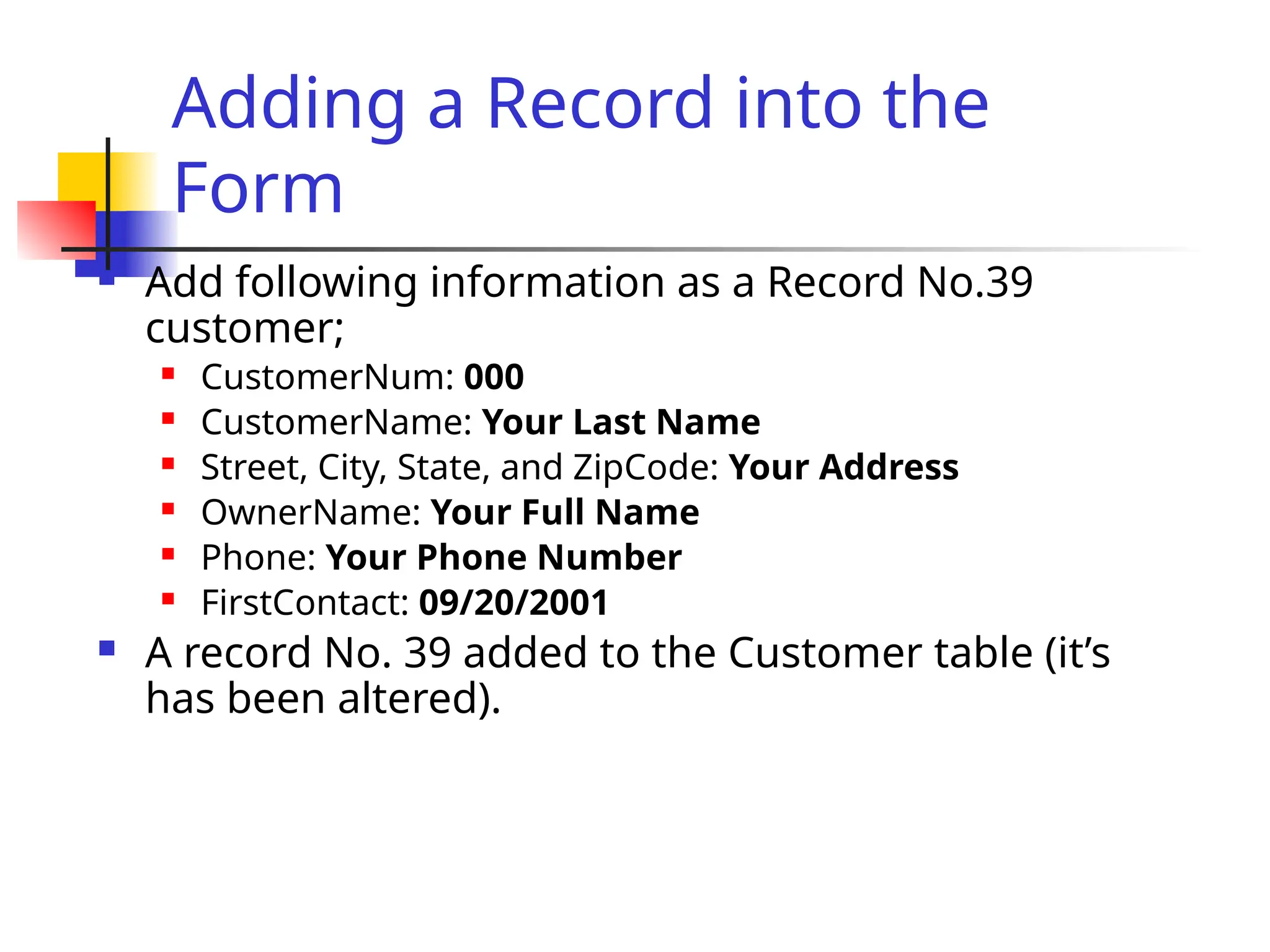

70. Adding a Record into the
Form
 Add following information as a Record No.39
customer;
 CustomerNum: 000
 CustomerName: Your Last Name
 Street, City, State, and ZipCode: Your Address
 OwnerName: Your Full Name
 Phone: Your Phone Number
 FirstContact: 09/20/2001
 A record No. 39 added to the Customer table (it’s
has been altered).

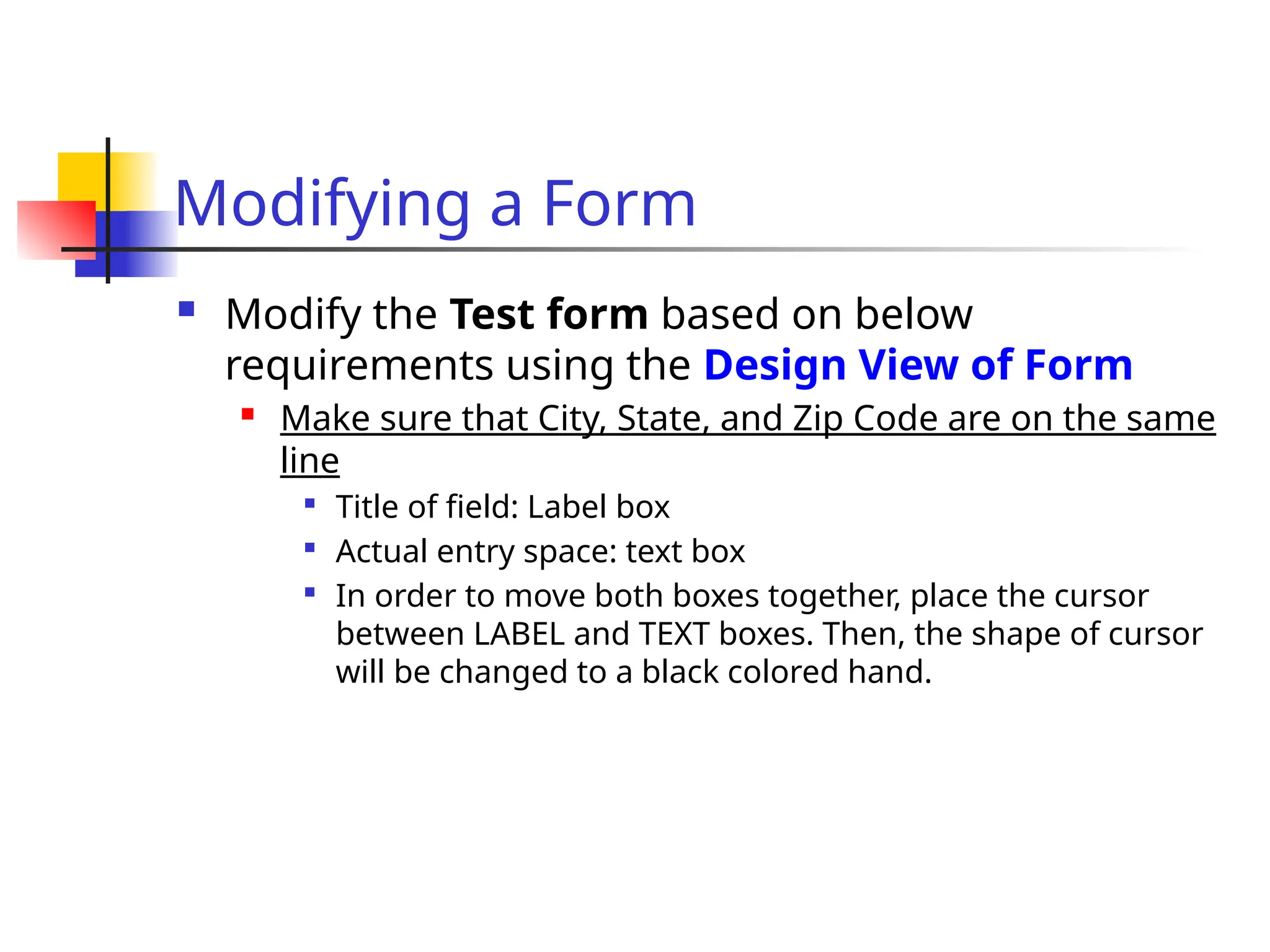

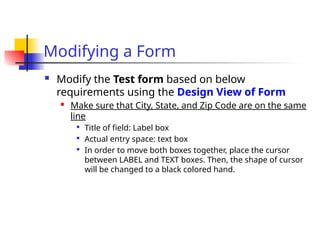

71. Modifying a Form
 Modify the Test form based on below
requirements using the Design View of Form
 Make sure that City, State, and Zip Code are on the same
line

Title of field: Label box

Actual entry space: text box

In order to move both boxes together, place the cursor
between LABEL and TEXT boxes. Then, the shape of cursor
will be changed to a black colored hand.

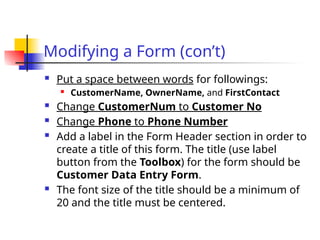

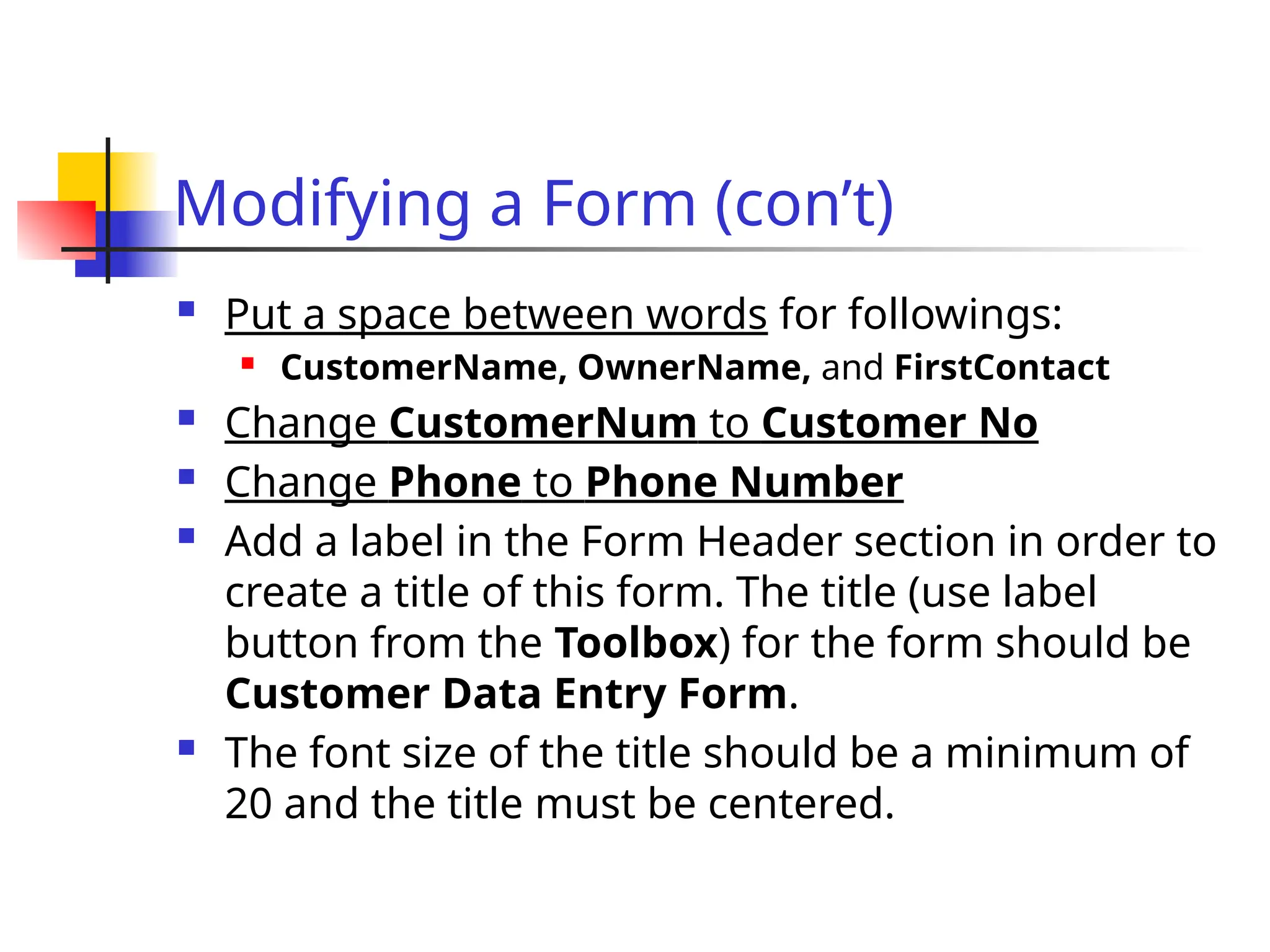

72. Modifying a Form (con’t)
 Put a space between words for followings:
 CustomerName, OwnerName, and FirstContact
 Change CustomerNum to Customer No
 Change Phone to Phone Number
 Add a label in the Form Header section in order to
create a title of this form. The title (use label
button from the Toolbox) for the form should be
Customer Data Entry Form.
 The font size of the title should be a minimum of
20 and the title must be centered.

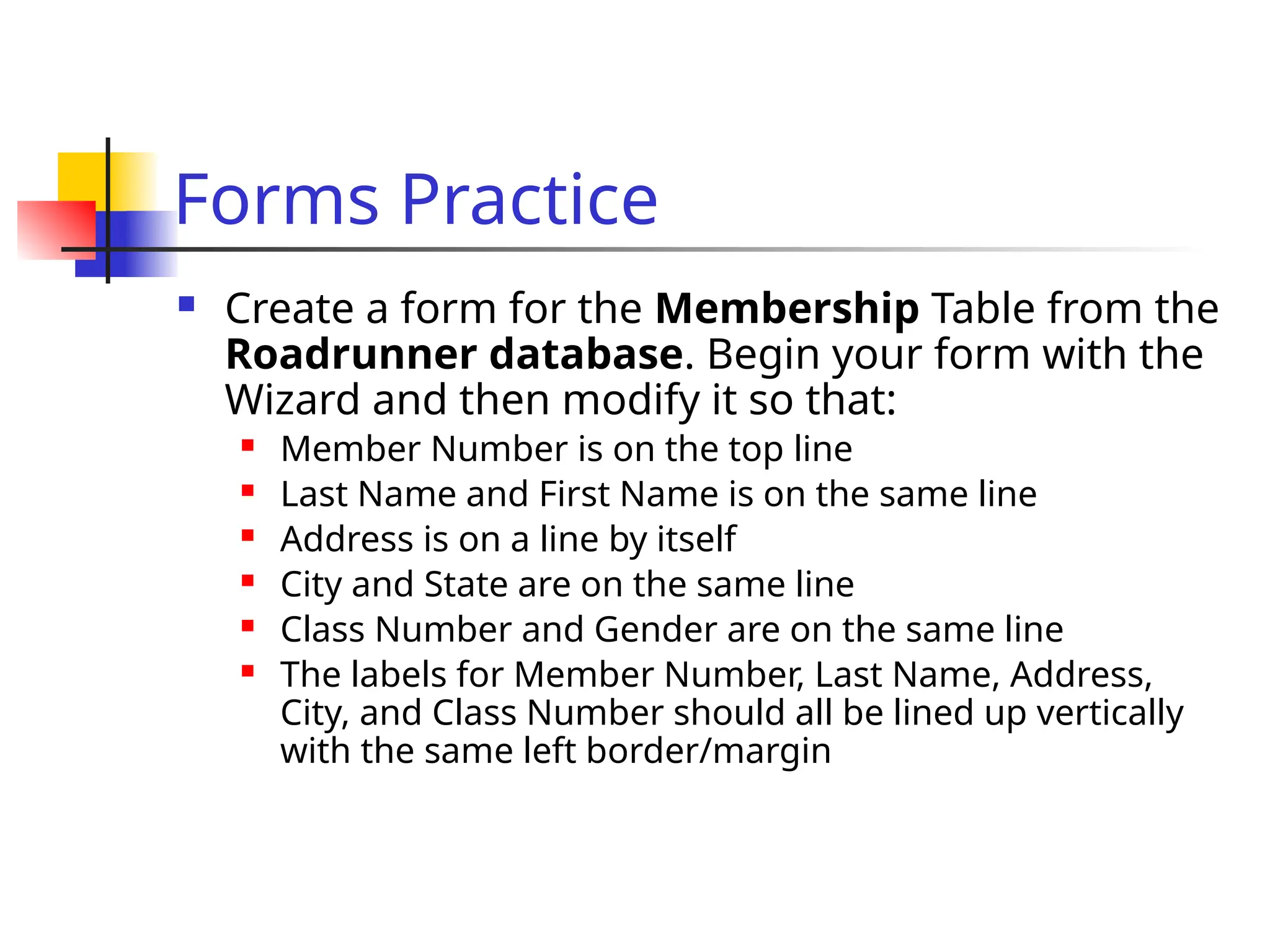

73. Forms Practice
 Create a form for the Membership Table from the
Roadrunner database. Begin your form with the
Wizard and then modify it so that:
 Member Number is on the top line
 Last Name and First Name is on the same line
 Address is on a line by itself
 City and State are on the same line
 Class Number and Gender are on the same line
 The labels for Member Number, Last Name, Address,
City, and Class Number should all be lined up vertically
with the same left border/margin

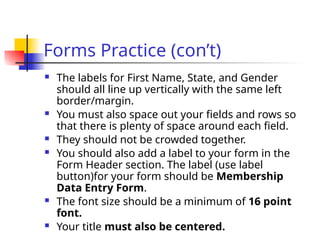

74. Forms Practice (con’t)
 The labels for First Name, State, and Gender
should all line up vertically with the same left
border/margin.
 You must also space out your fields and rows so
that there is plenty of space around each field.
 They should not be crowded together.
 You should also add a label to your form in the
Form Header section. The label (use label
button)for your form should be Membership
Data Entry Form.
 The font size should be a minimum of 16 point
font.
 Your title must also be centered.

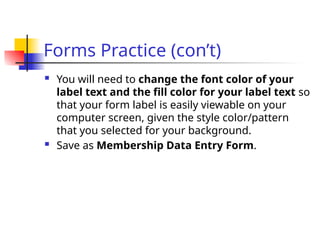

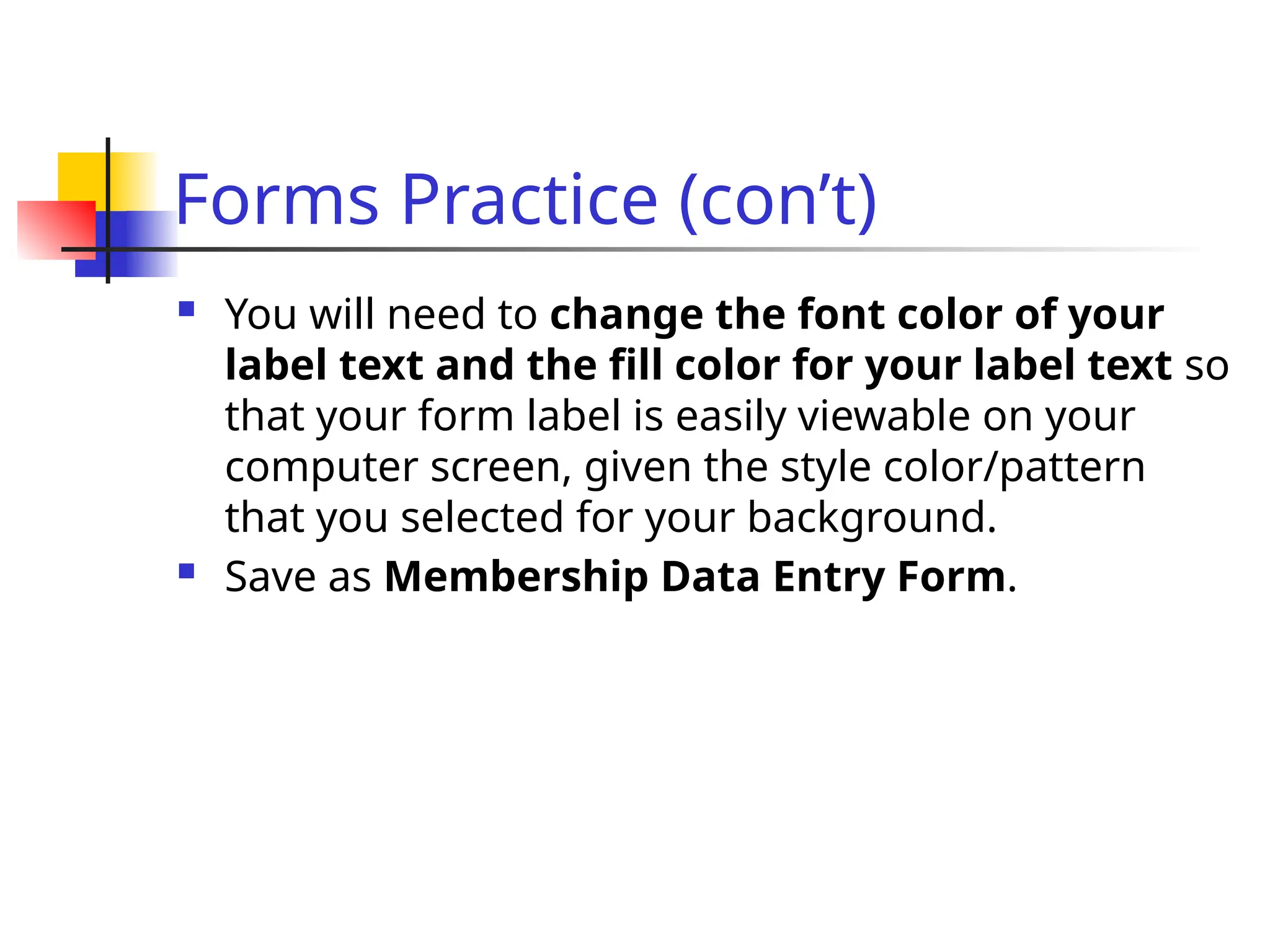

75. Forms Practice (con’t)
 You will need to change the font color of your
label text and the fill color for your label text so
that your form label is easily viewable on your
computer screen, given the style color/pattern
that you selected for your background.
 Save as Membership Data Entry Form.

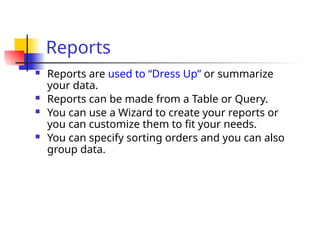

76. Reports
 Reports are used to “Dress Up” or summarize
your data.
 Reports can be made from a Table or Query.
 You can use a Wizard to create your reports or
you can customize them to fit your needs.
 You can specify sorting orders and you can also
group data.

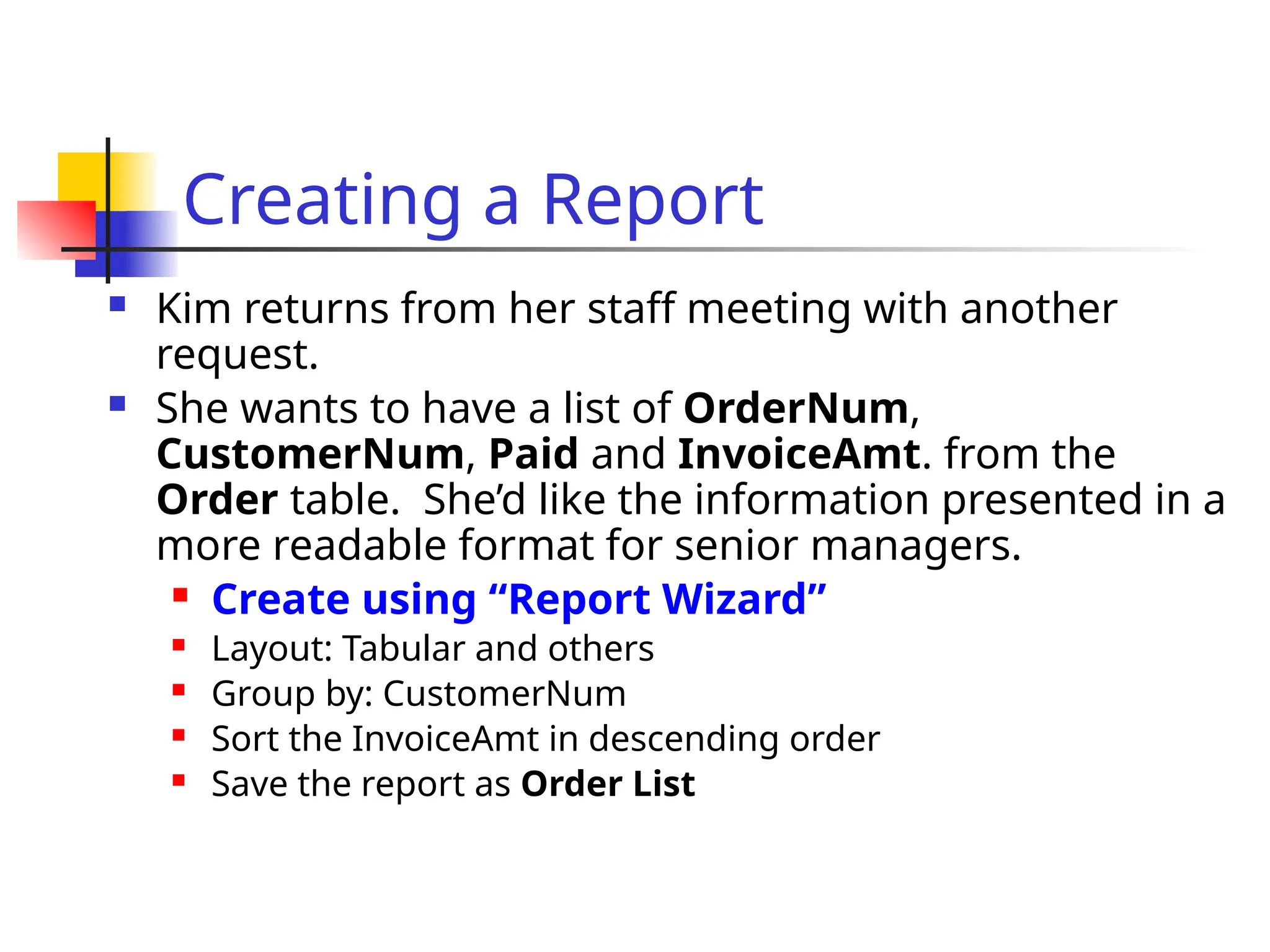

77. Creating a Report
 Kim returns from her staff meeting with another
request.
 She wants to have a list of OrderNum,
CustomerNum, Paid and InvoiceAmt. from the
Order table. She’d like the information presented in a
more readable format for senior managers.
 Create using “Report Wizard”
 Layout: Tabular and others
 Group by: CustomerNum
 Sort the InvoiceAmt in descending order
 Save the report as Order List

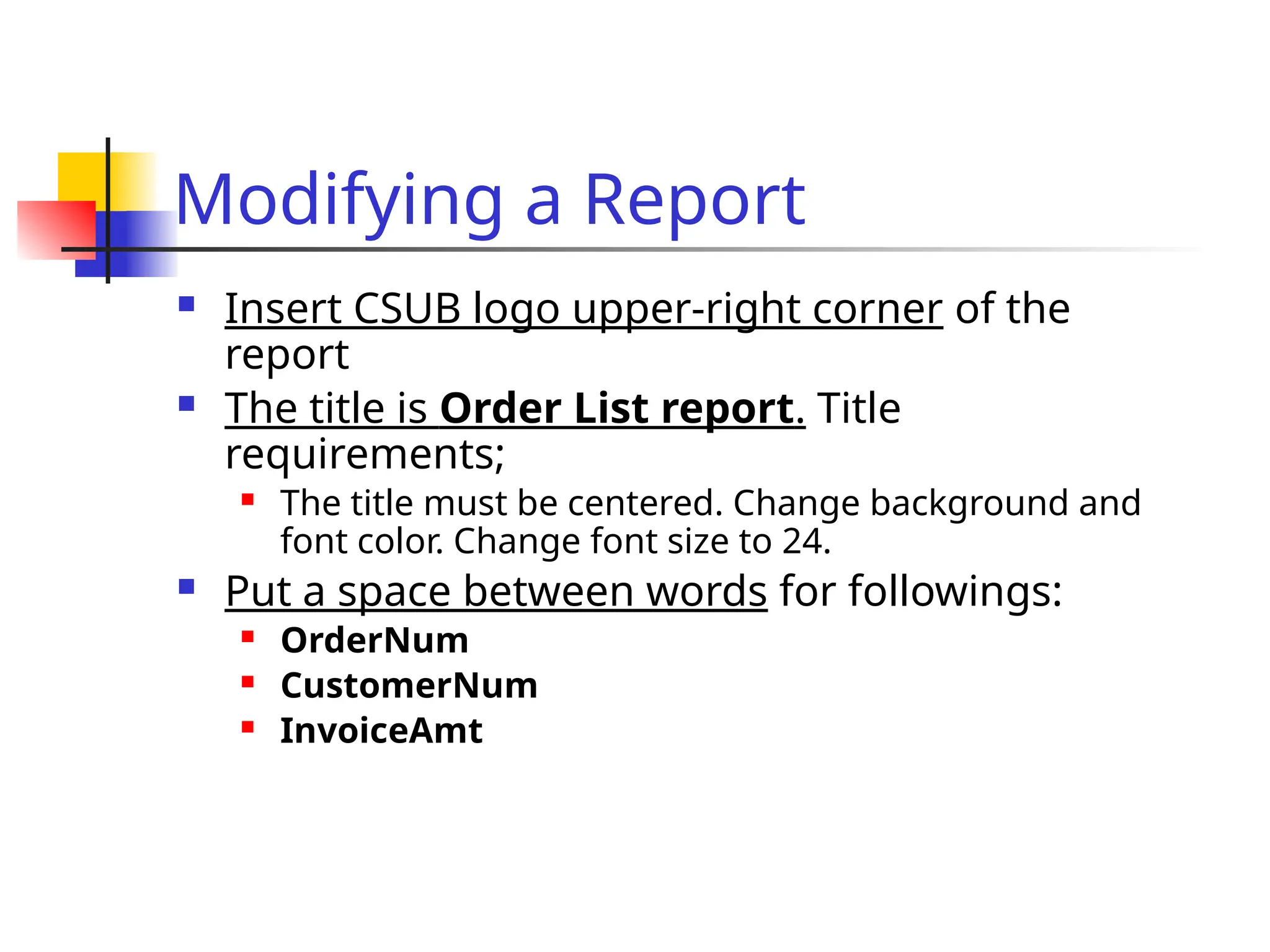

78. Modifying a Report
 Insert CSUB logo upper-right corner of the
report
 The title is Order List report. Title
requirements;
 The title must be centered. Change background and
font color. Change font size to 24.
 Put a space between words for followings:
 OrderNum
 CustomerNum
 InvoiceAmt

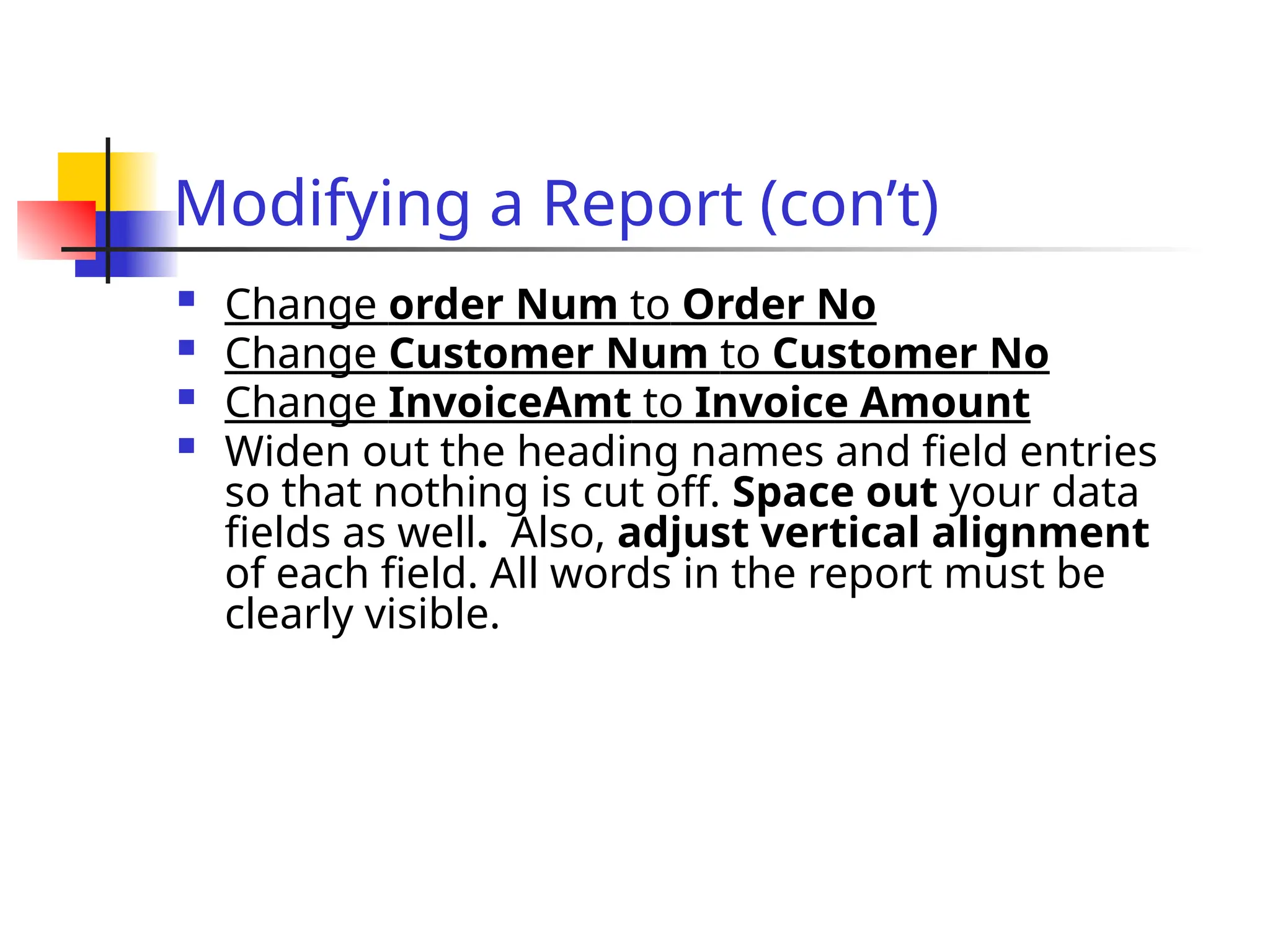

79. Modifying a Report (con’t)
 Change order Num to Order No
 Change Customer Num to Customer No
 Change InvoiceAmt to Invoice Amount
 Widen out the heading names and field entries
so that nothing is cut off. Space out your data
fields as well. Also, adjust vertical alignment
of each field. All words in the report must be
clearly visible.

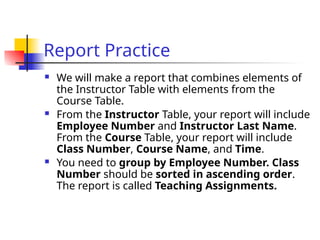

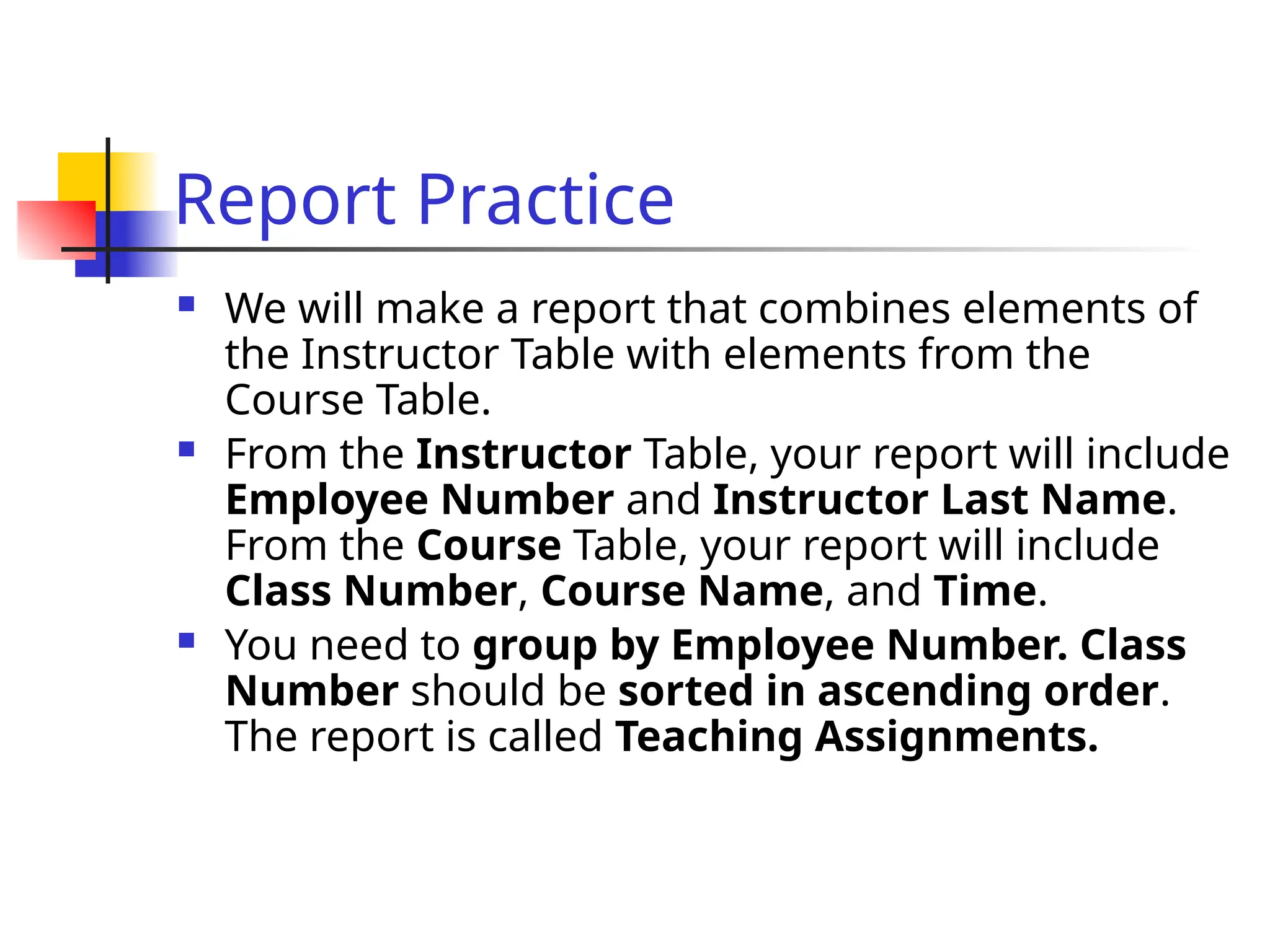

80. Report Practice
 We will make a report that combines elements of
the Instructor Table with elements from the
Course Table.
 From the Instructor Table, your report will include
Employee Number and Instructor Last Name.
From the Course Table, your report will include
Class Number, Course Name, and Time.
 You need to group by Employee Number. Class
Number should be sorted in ascending order.
The report is called Teaching Assignments.

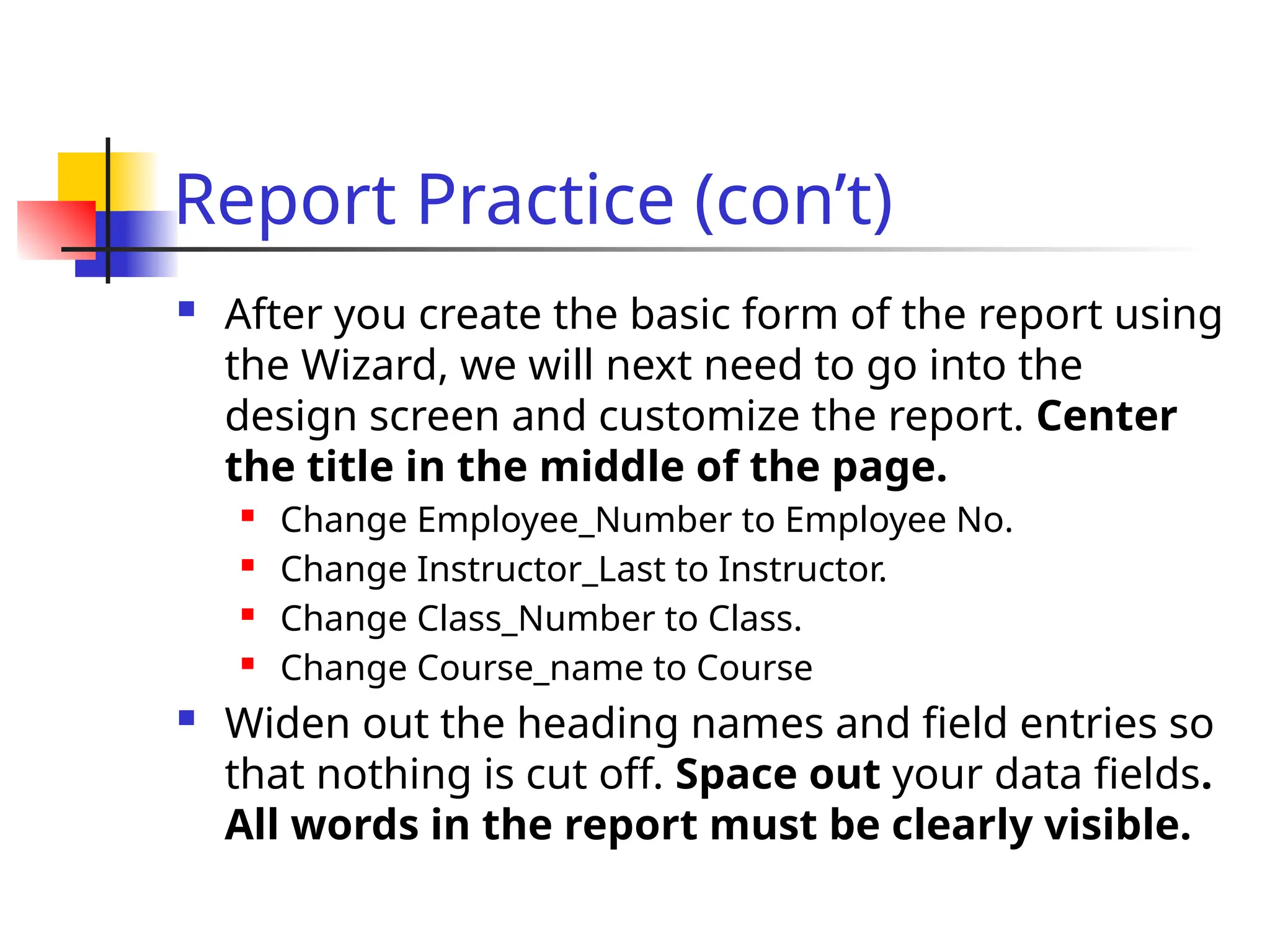

81. Report Practice (con’t)
 After you create the basic form of the report using
the Wizard, we will next need to go into the
design screen and customize the report. Center
the title in the middle of the page.
 Change Employee_Number to Employee No.
 Change Instructor_Last to Instructor.
 Change Class_Number to Class.
 Change Course_name to Course
 Widen out the heading names and field entries so
that nothing is cut off. Space out your data fields.
All words in the report must be clearly visible.

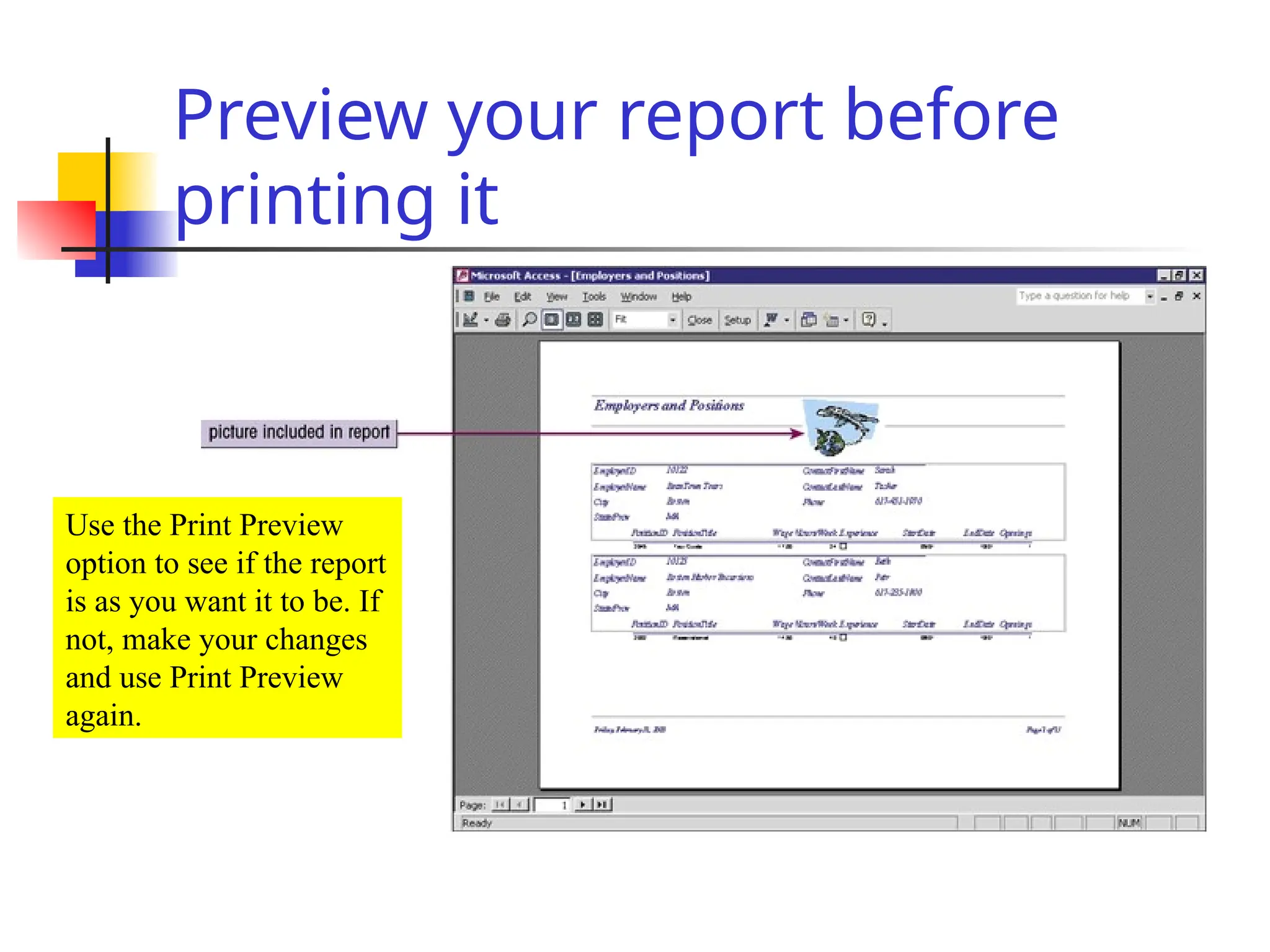

82. Preview your report before
printing it
Use the Print Preview
option to see if the report
is as you want it to be. If
not, make your changes
and use Print Preview
again.

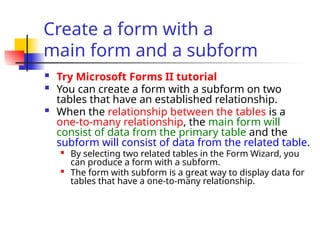

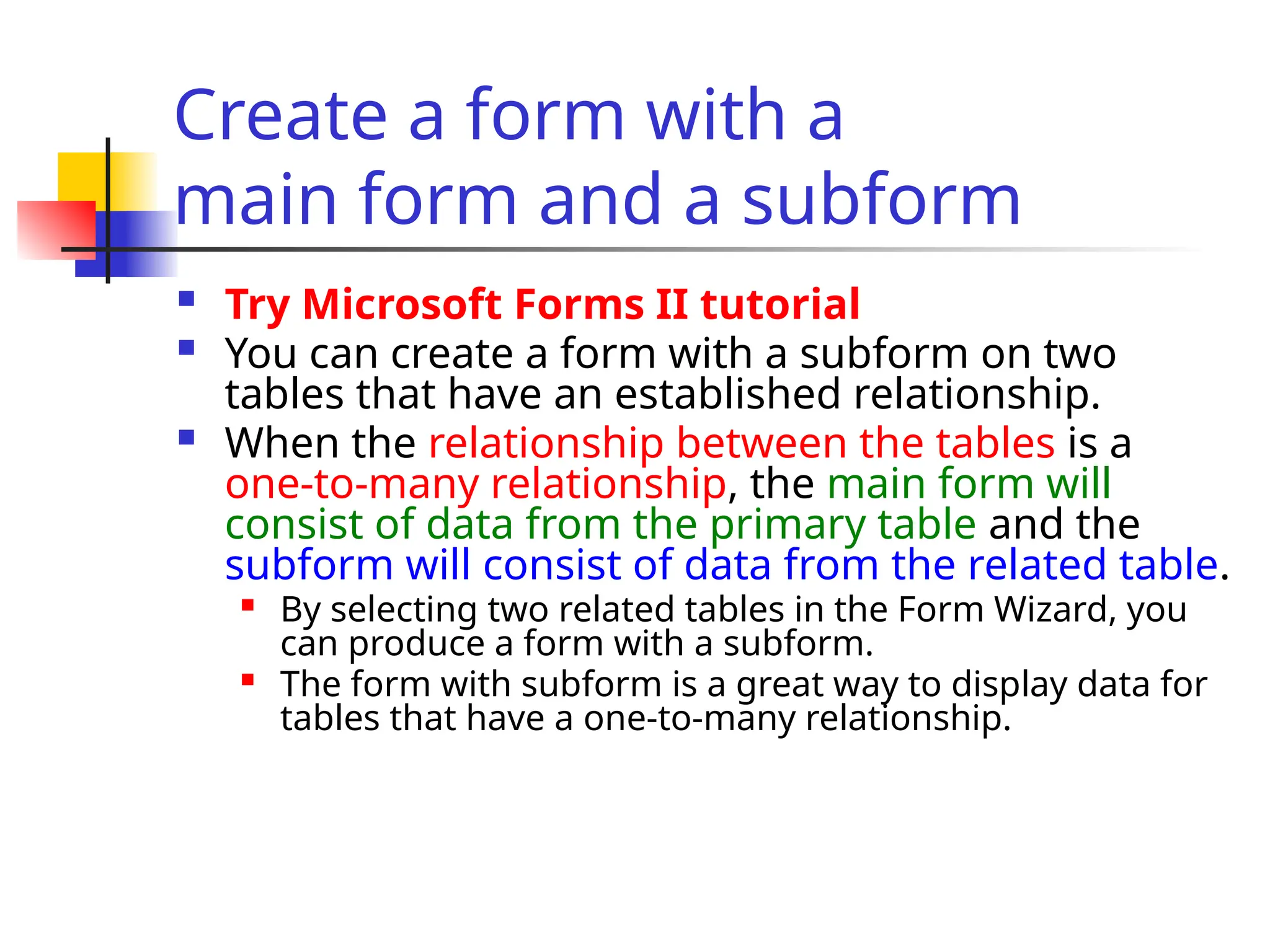

83. Create a form with a
main form and a subform
 Try Microsoft Forms II tutorial
 You can create a form with a subform on two
tables that have an established relationship.
 When the relationship between the tables is a
one-to-many relationship, the main form will
consist of data from the primary table and the
subform will consist of data from the related table.
 By selecting two related tables in the Form Wizard, you
can produce a form with a subform.

The form with subform is a great way to display data for
tables that have a one-to-many relationship.

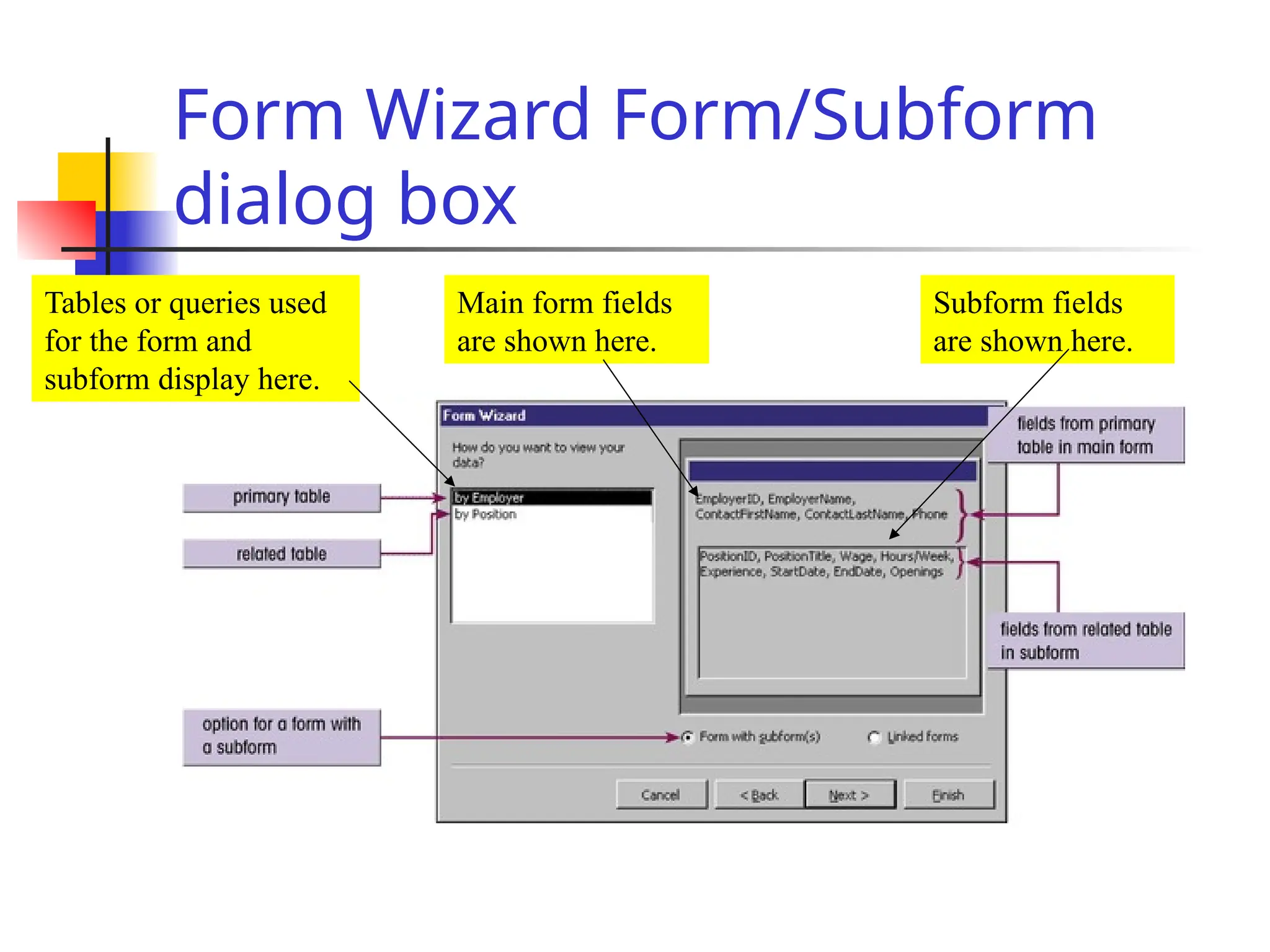

84. Form Wizard Form/Subform
dialog box
Tables or queries used
for the form and
subform display here.
Main form fields
are shown here.
Subform fields
are shown here.

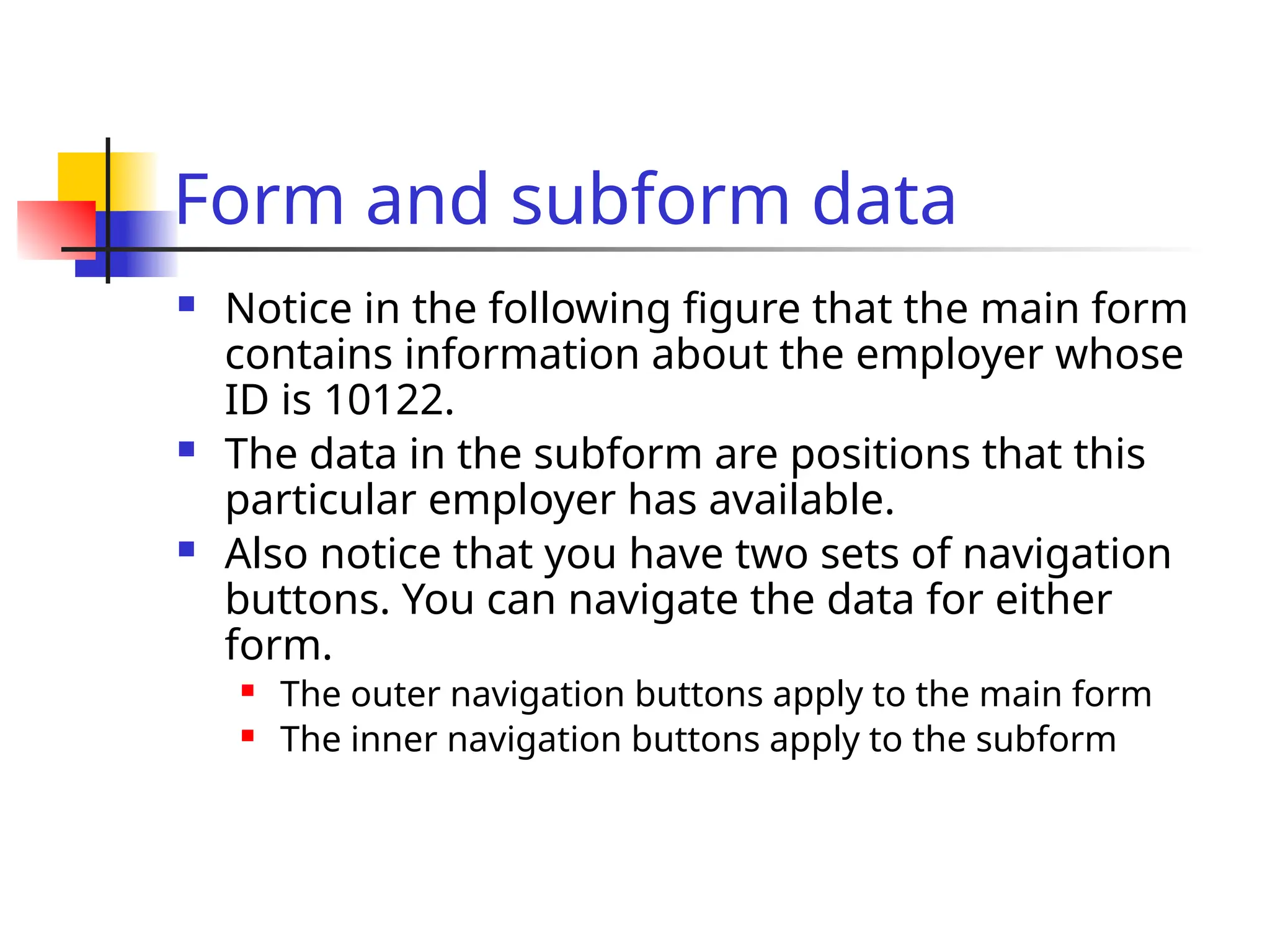

85. Form and subform data
 Notice in the following figure that the main form
contains information about the employer whose
ID is 10122.
 The data in the subform are positions that this
particular employer has available.
 Also notice that you have two sets of navigation
buttons. You can navigate the data for either
form.
 The outer navigation buttons apply to the main form
 The inner navigation buttons apply to the subform

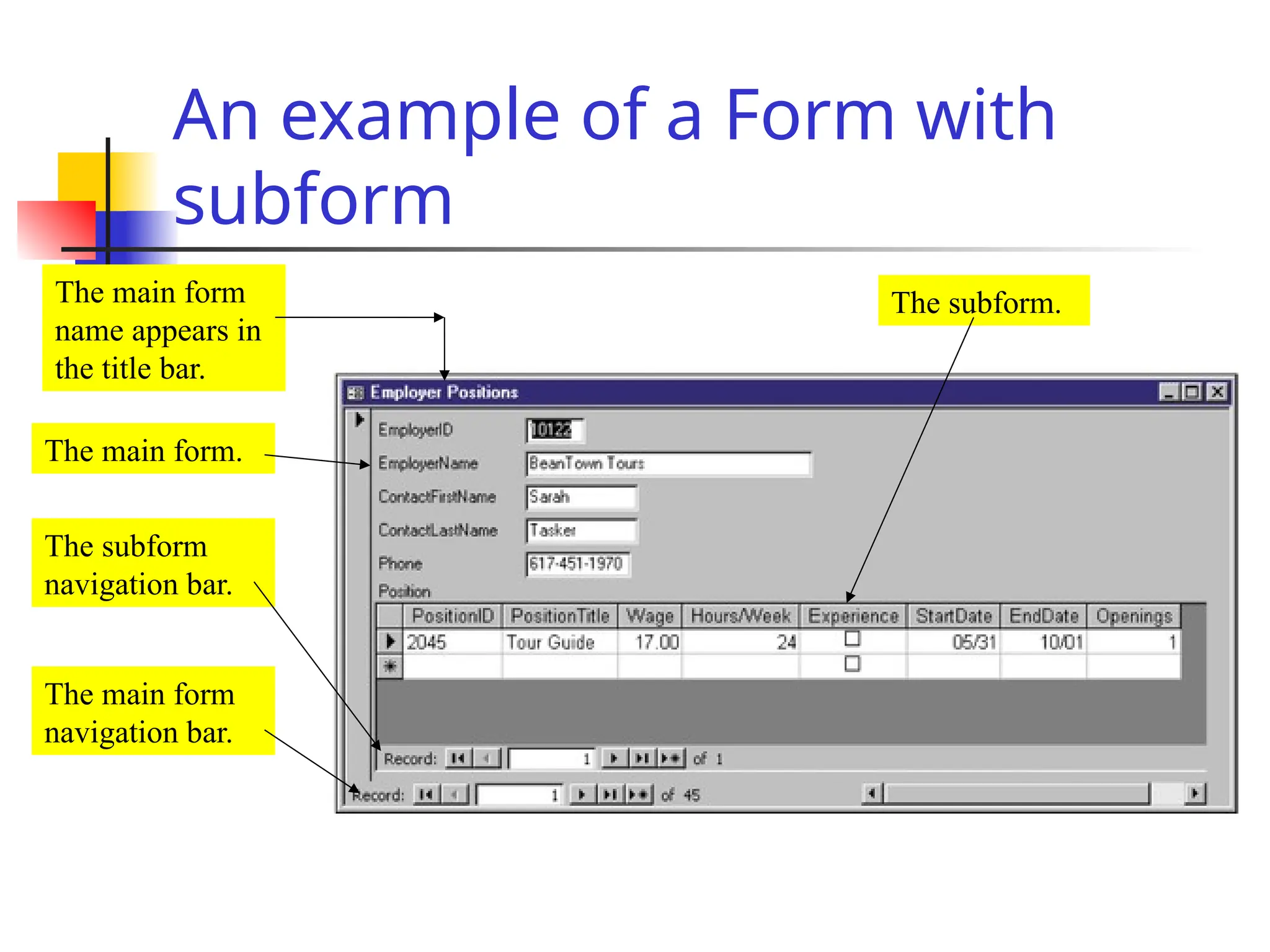

86. An example of a Form with
subform
The main form
name appears in
the title bar.
The main form.
The subform
navigation bar.
The main form
navigation bar.
The subform.

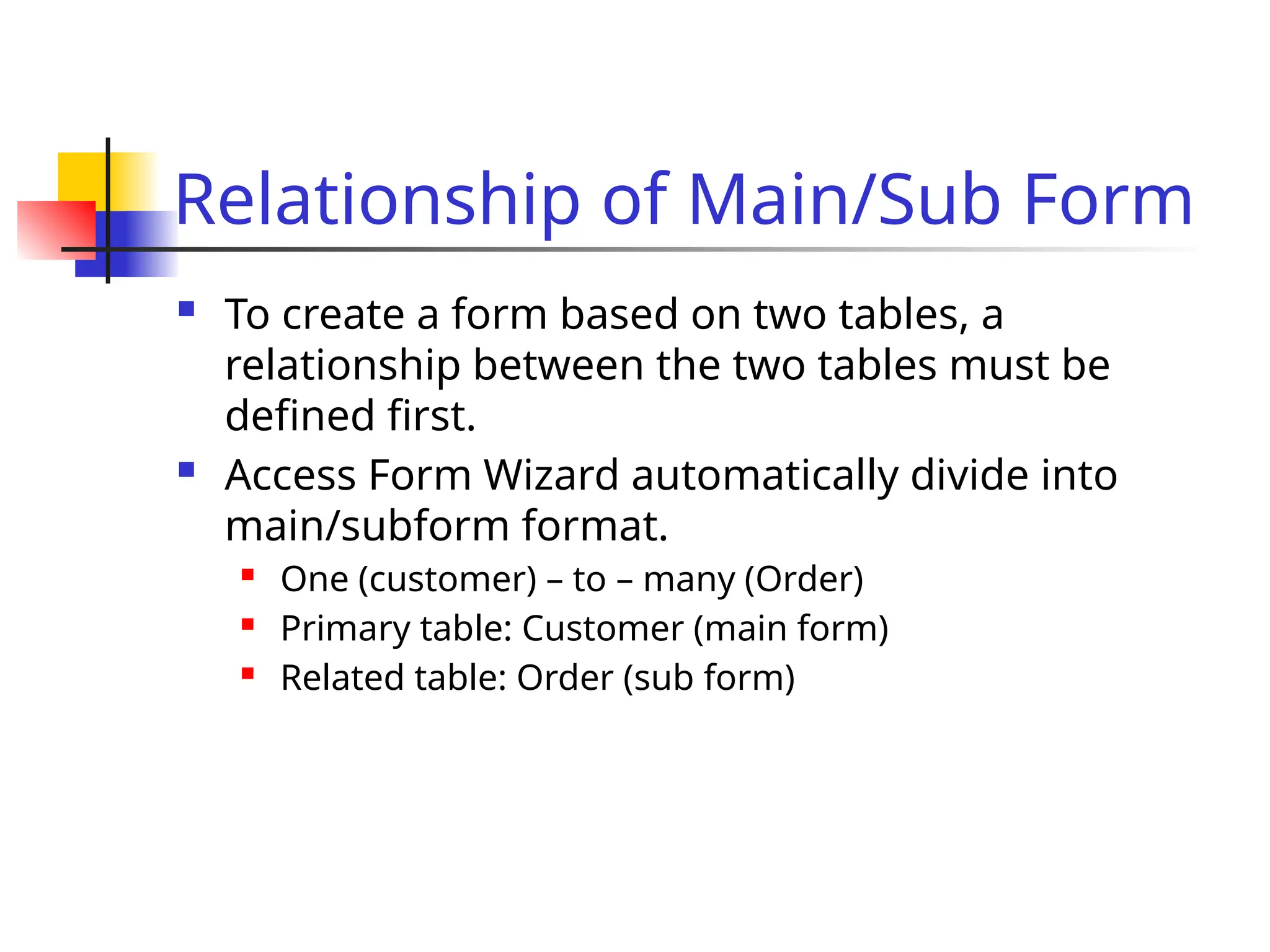

87. Relationship of Main/Sub Form
 To create a form based on two tables, a
relationship between the two tables must be
defined first.
 Access Form Wizard automatically divide into
main/subform format.
 One (customer) – to – many (Order)
 Primary table: Customer (main form)
 Related table: Order (sub form)

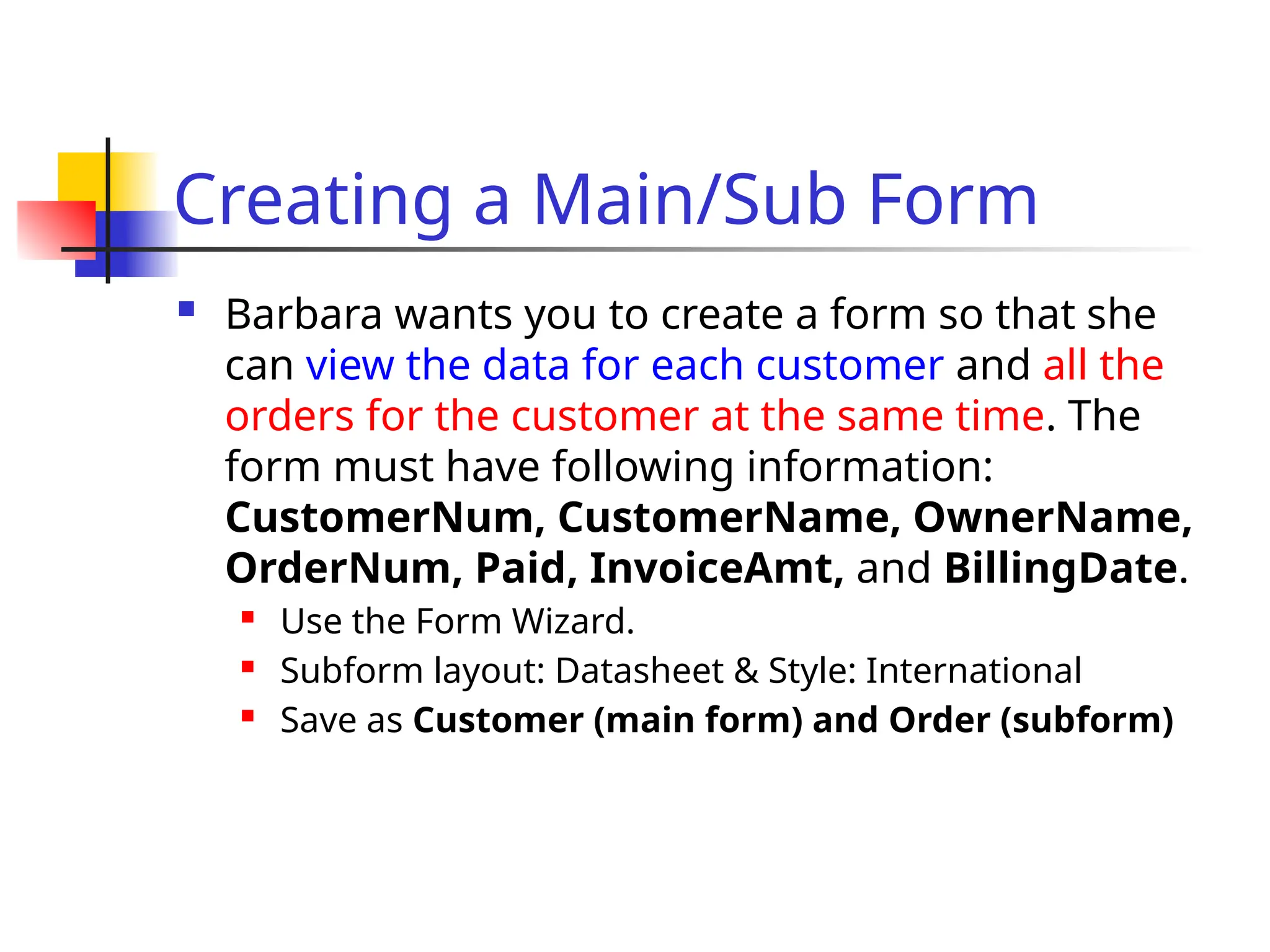

88. Creating a Main/Sub Form
 Barbara wants you to create a form so that she
can view the data for each customer and all the
orders for the customer at the same time. The
form must have following information:
CustomerNum, CustomerName, OwnerName,
OrderNum, Paid, InvoiceAmt, and BillingDate.
 Use the Form Wizard.
 Subform layout: Datasheet & Style: International
 Save as Customer (main form) and Order (subform)

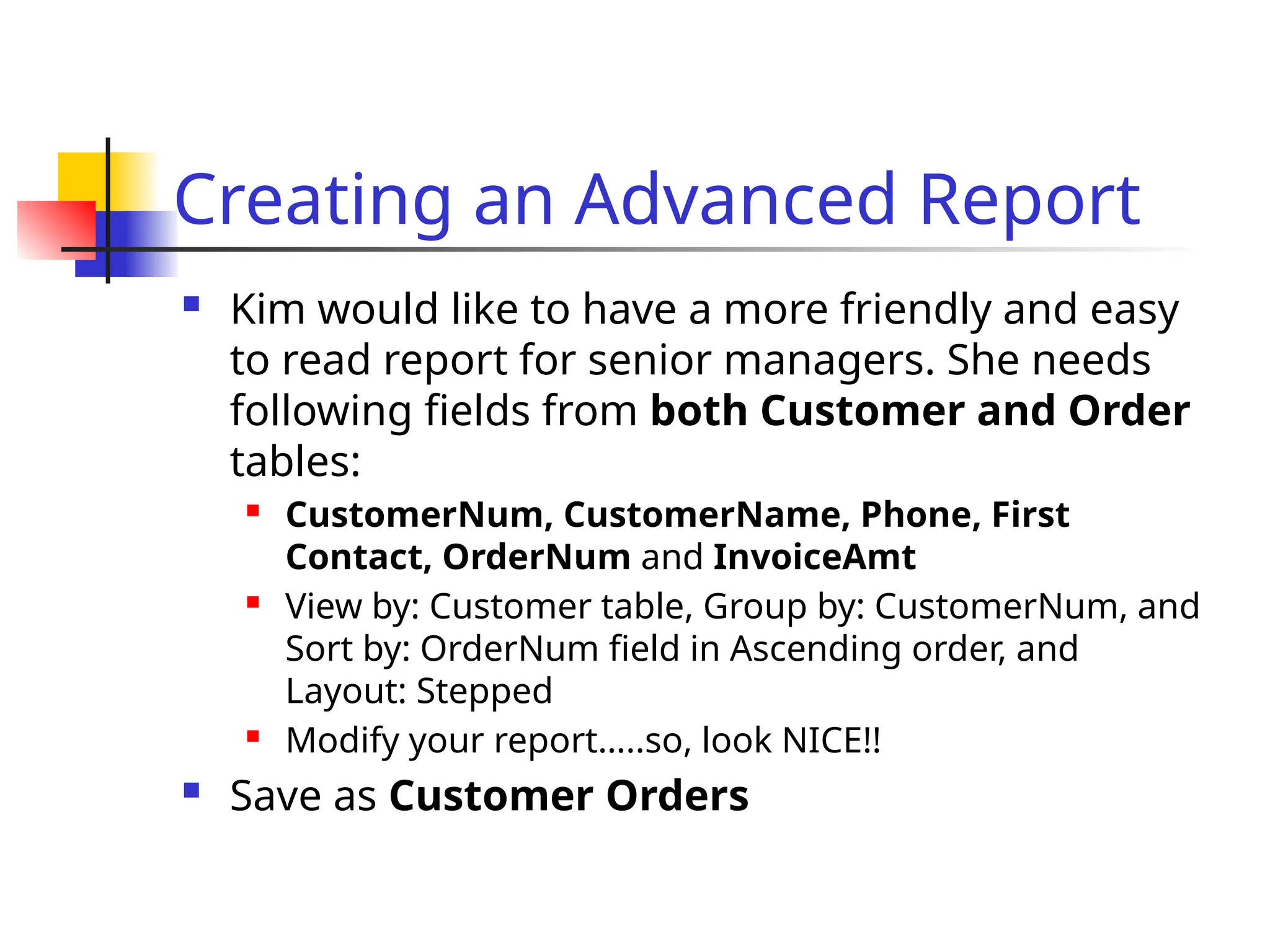

89. Creating an Advanced Report
 Kim would like to have a more friendly and easy
to read report for senior managers. She needs
following fields from both Customer and Order
tables:
 CustomerNum, CustomerName, Phone, First
Contact, OrderNum and InvoiceAmt
 View by: Customer table, Group by: CustomerNum, and
Sort by: OrderNum field in Ascending order, and
Layout: Stepped
 Modify your report…..so, look NICE!!
 Save as Customer Orders

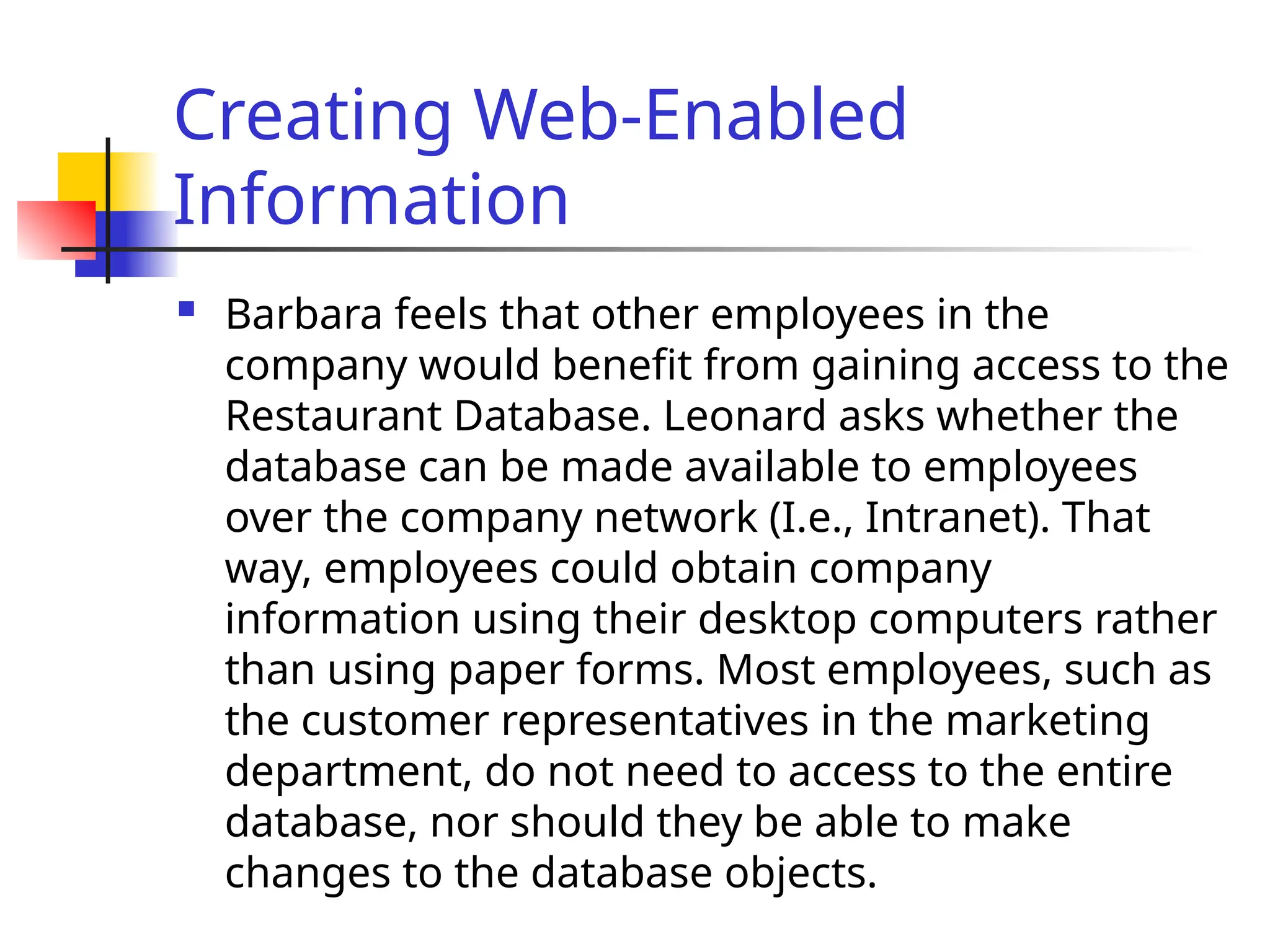

90. Creating Web-Enabled
Information
 Barbara feels that other employees in the
company would benefit from gaining access to the
Restaurant Database. Leonard asks whether the
database can be made available to employees
over the company network (I.e., Intranet). That
way, employees could obtain company
information using their desktop computers rather
than using paper forms. Most employees, such as
the customer representatives in the marketing
department, do not need to access to the entire
database, nor should they be able to make
changes to the database objects.

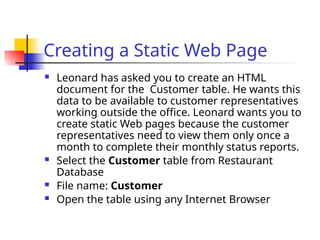

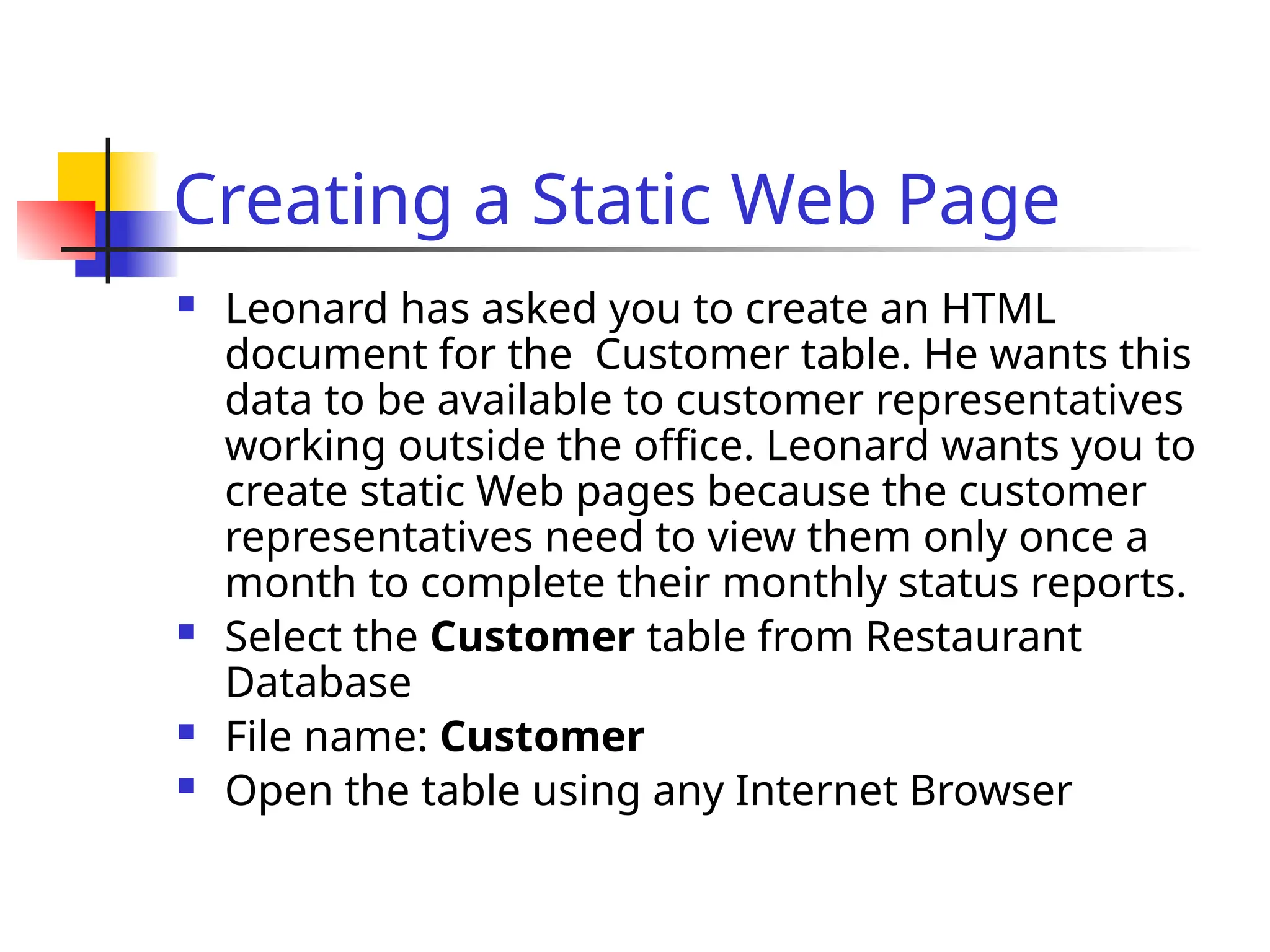

91. Creating a Static Web Page
 Leonard has asked you to create an HTML
document for the Customer table. He wants this
data to be available to customer representatives
working outside the office. Leonard wants you to
create static Web pages because the customer
representatives need to view them only once a
month to complete their monthly status reports.
 Select the Customer table from Restaurant
Database
 File name: Customer
 Open the table using any Internet Browser

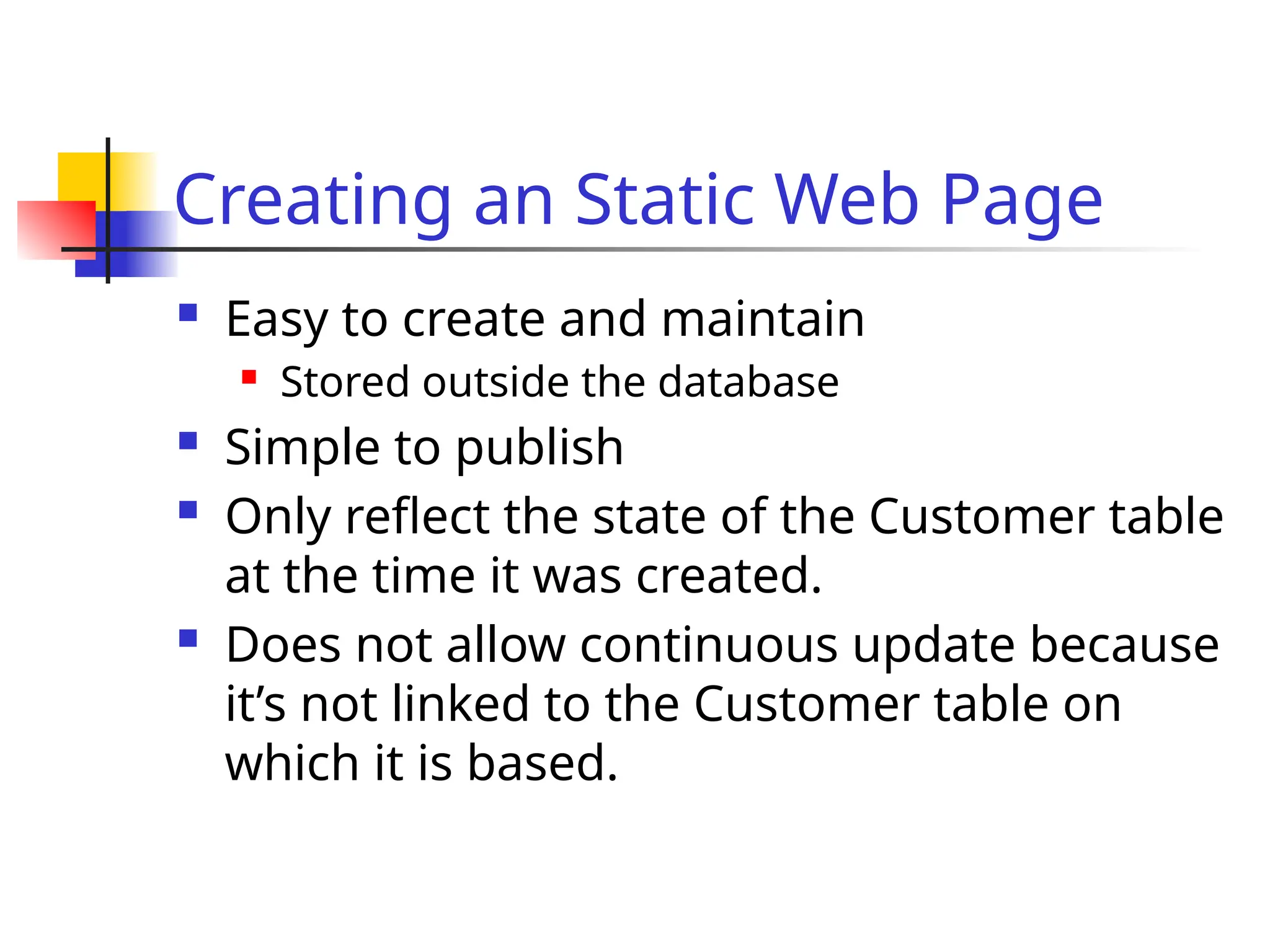

92. Creating an Static Web Page
 Easy to create and maintain
 Stored outside the database
 Simple to publish
 Only reflect the state of the Customer table
at the time it was created.
 Does not allow continuous update because
it’s not linked to the Customer table on
which it is based.

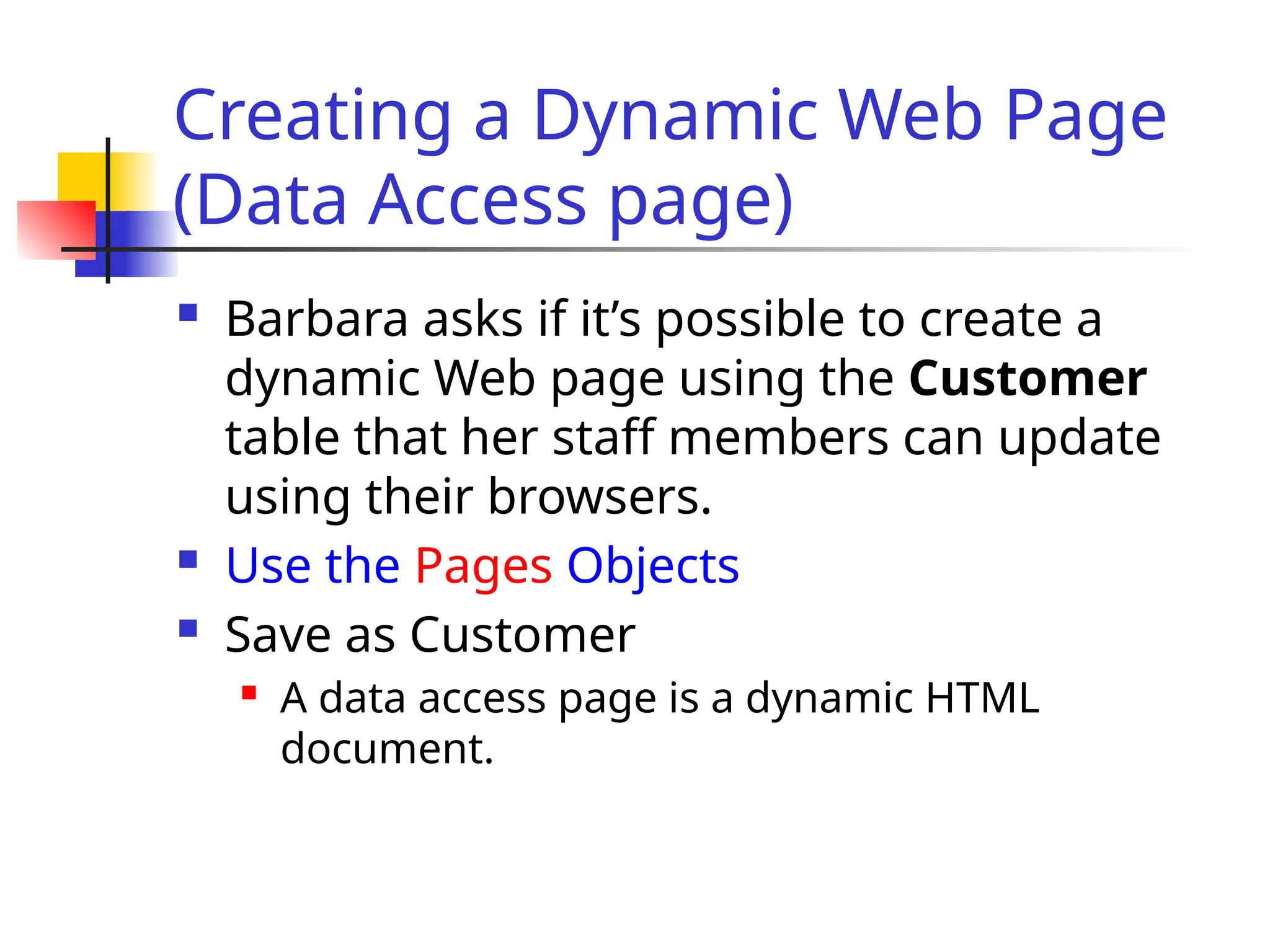

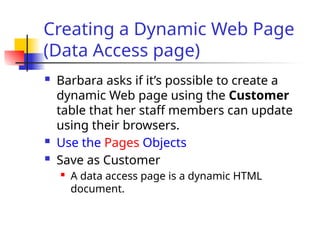

93. Creating a Dynamic Web Page
(Data Access page)
 Barbara asks if it’s possible to create a
dynamic Web page using the Customer
table that her staff members can update
using their browsers.
 Use the Pages Objects
 Save as Customer
 A data access page is a dynamic HTML
document.

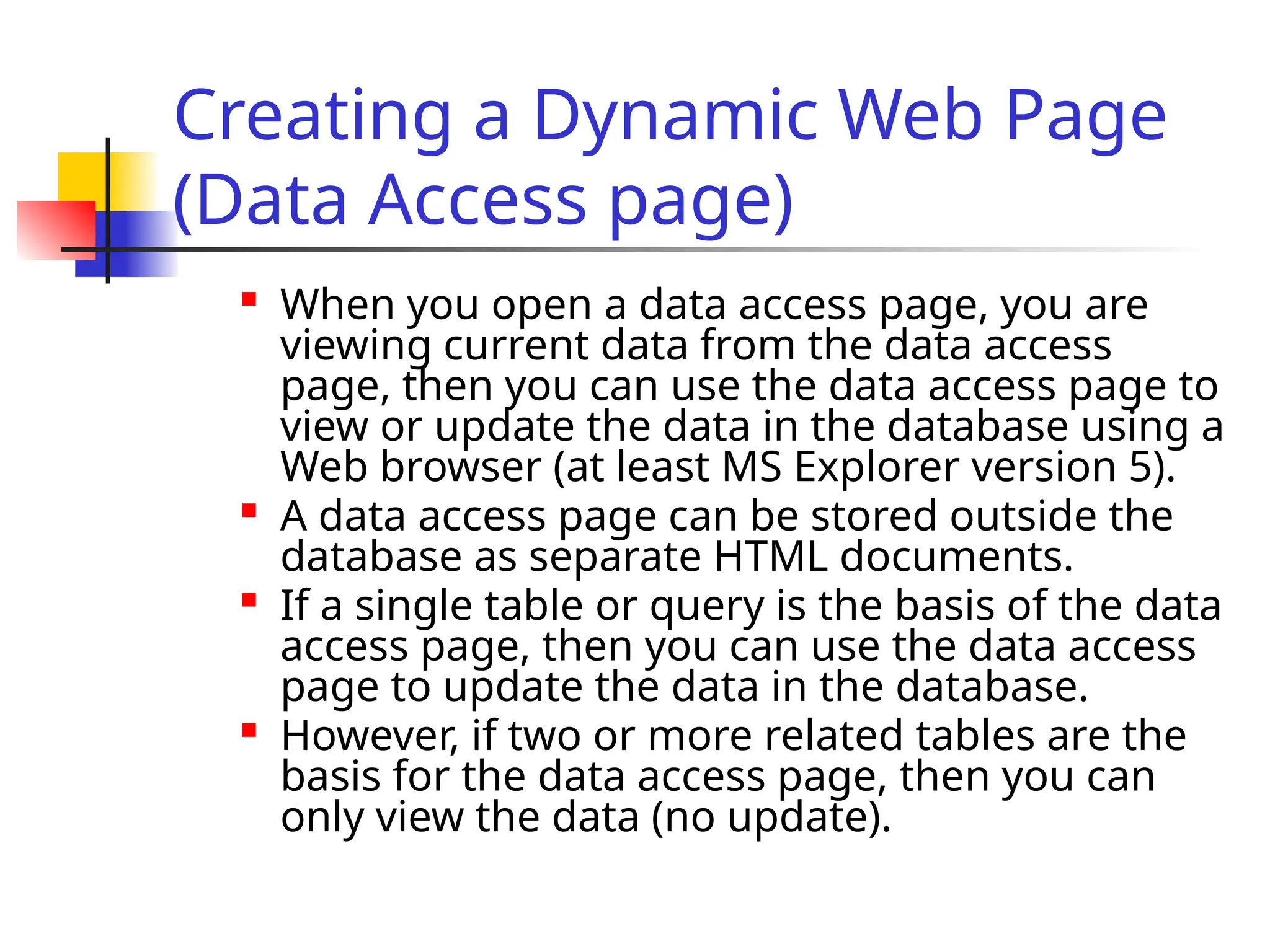

94. Creating a Dynamic Web Page
(Data Access page)

When you open a data access page, you are
viewing current data from the data access
page, then you can use the data access page to
view or update the data in the database using a
Web browser (at least MS Explorer version 5).

A data access page can be stored outside the
database as separate HTML documents.

If a single table or query is the basis of the data
access page, then you can use the data access
page to update the data in the database.
 However, if two or more related tables are the
basis for the data access page, then you can
only view the data (no update).

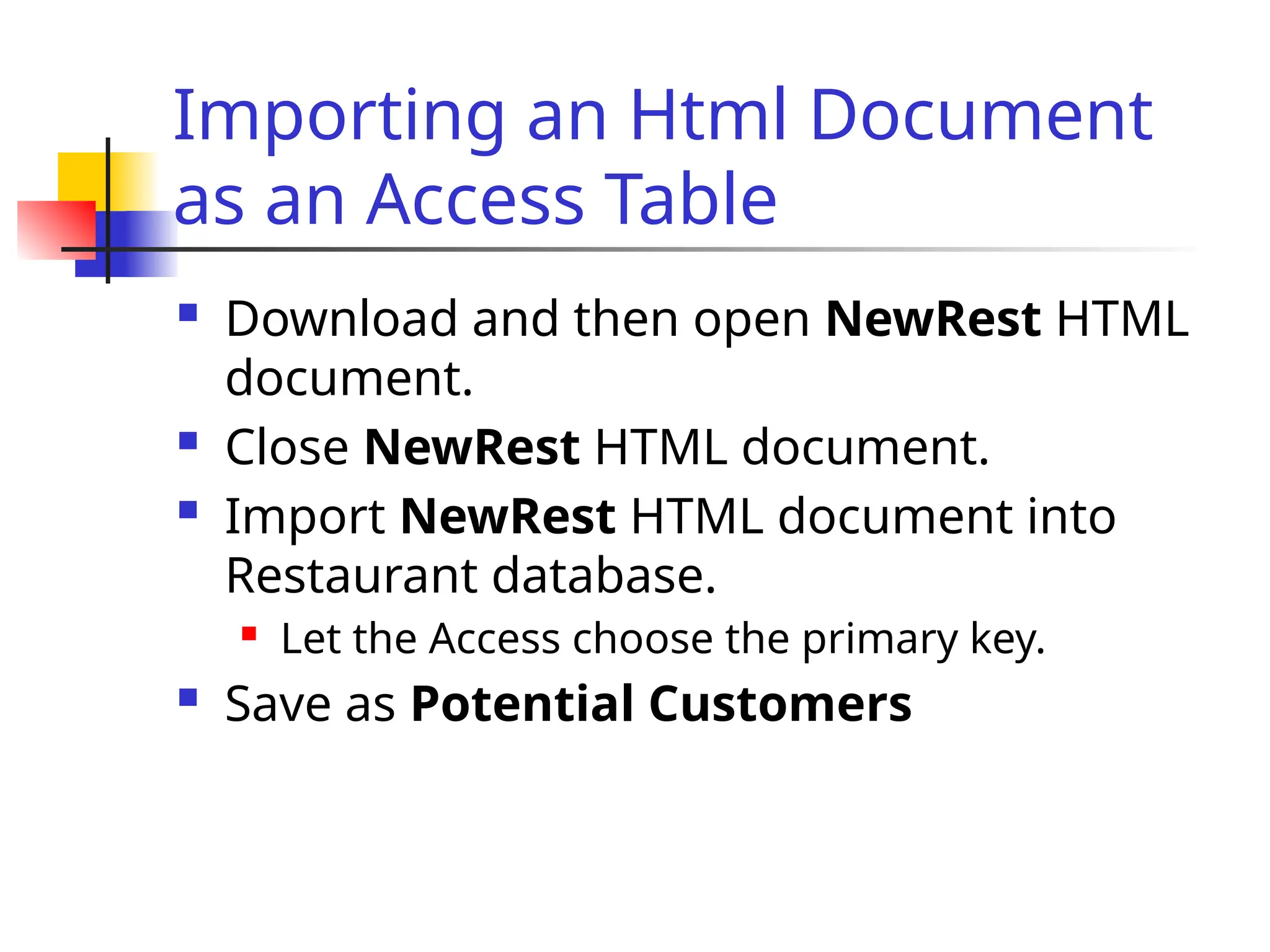

95. Importing an Html Document
as an Access Table
 Download and then open NewRest HTML
document.
 Close NewRest HTML document.
 Import NewRest HTML document into
Restaurant database.
 Let the Access choose the primary key.
 Save as Potential Customers

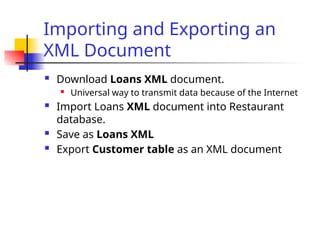

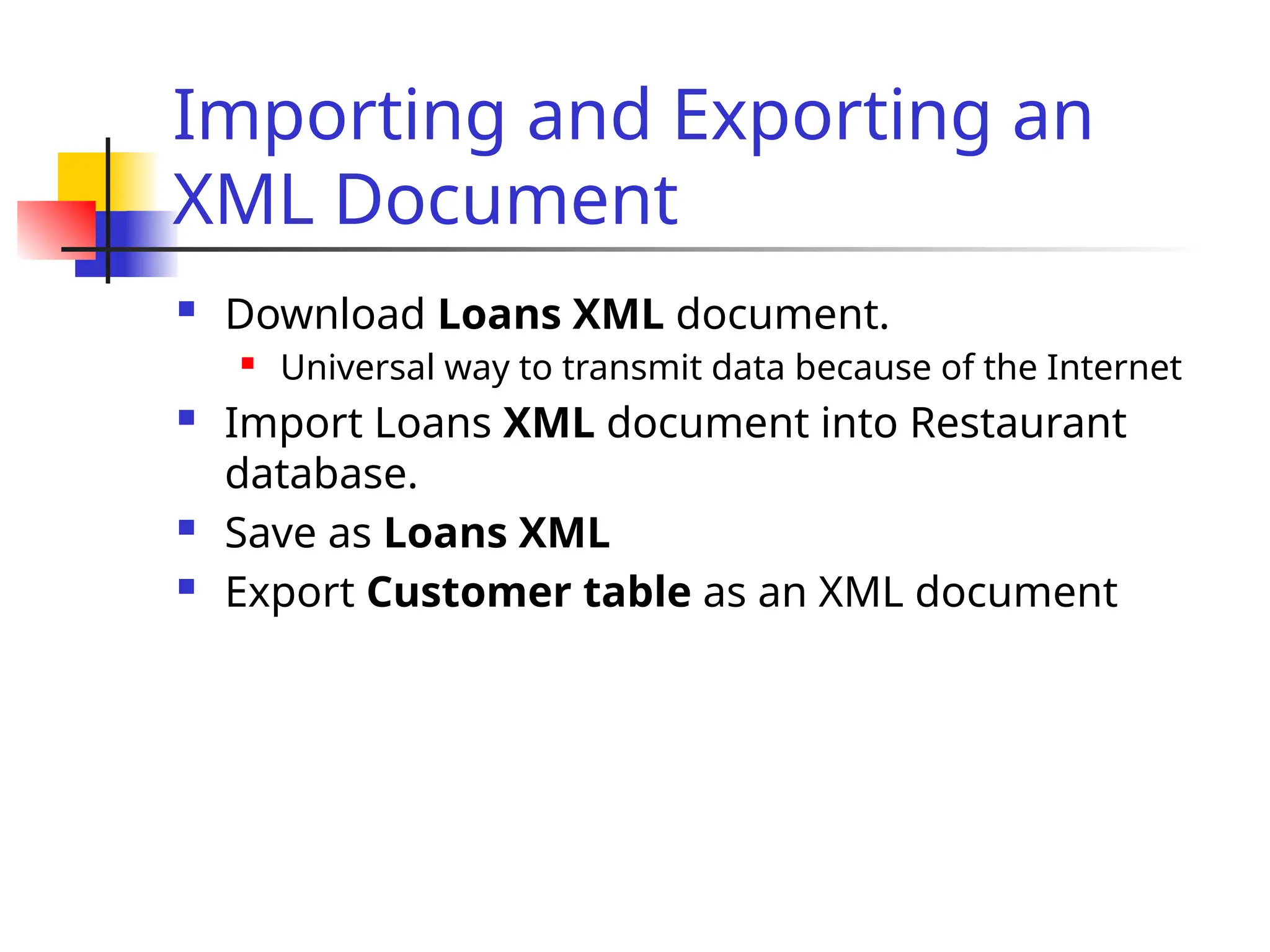

96. Importing and Exporting an
XML Document
 Download Loans XML document.
 Universal way to transmit data because of the Internet
 Import Loans XML document into Restaurant
database.
 Save as Loans XML
 Export Customer table as an XML document
