The document discusses two projects involving motion sensing technology: 1) The SoMo by Sonic Wear, which generates MIDI sound through motion using an accelerometer and gyroscope with wireless data transmission. It is programmable and its website is listed. 2) An adaptation of the SoMo into a gaming glove, which was reprogrammed to use the accelerometer to determine orientation. It includes conductive fabric for a fire button and uses XBee radios in reflection mode.

1. Leif Bloomquist
Emergency Chicagoland Commodore Convention
September 28, 2013

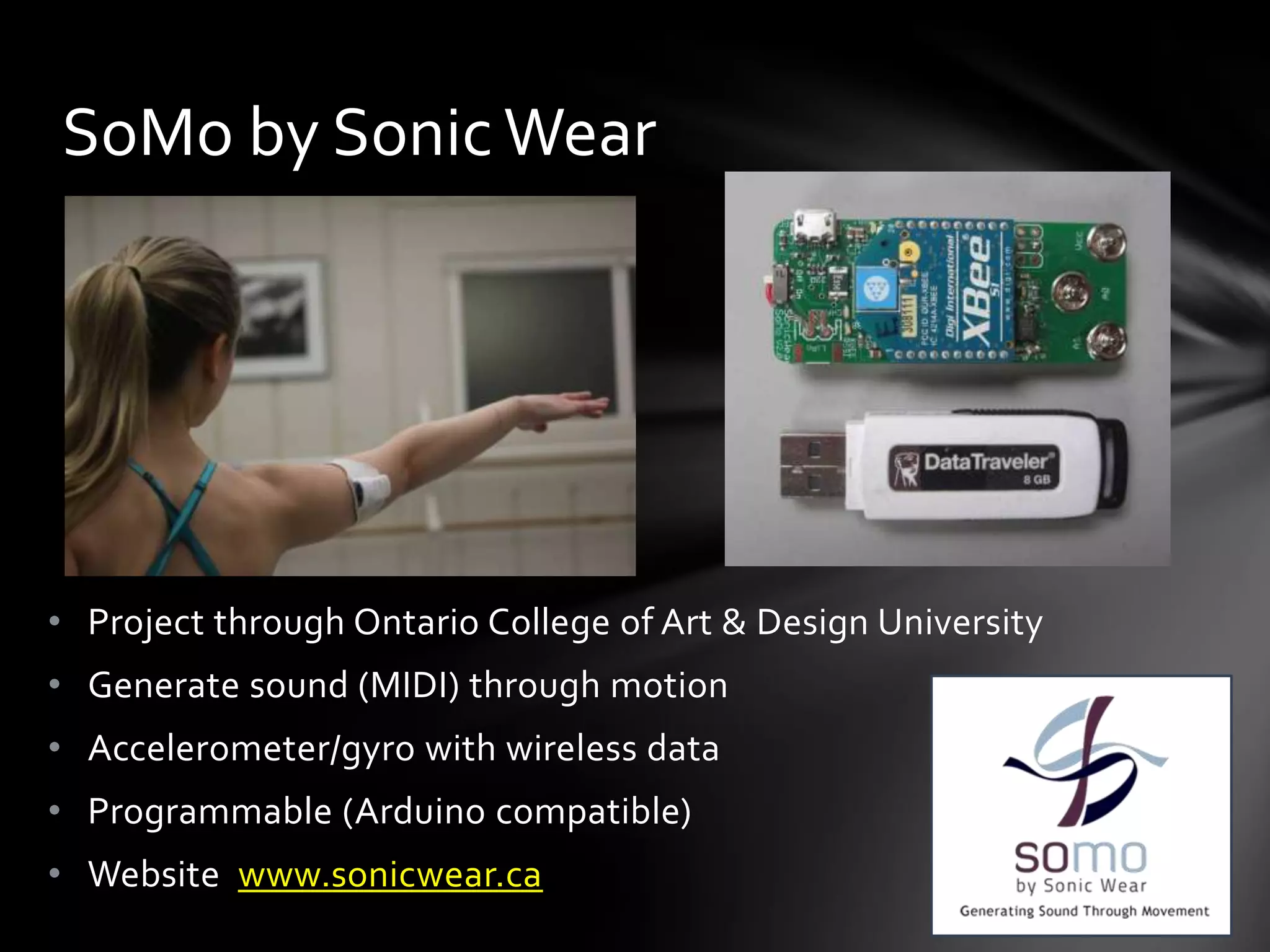

2. • Project through Ontario College of Art & Design University
• Generate sound (MIDI) through motion
• Accelerometer/gyro with wireless data
• Programmable (Arduino compatible)
• Website www.sonicwear.ca
SoMo by Sonic Wear

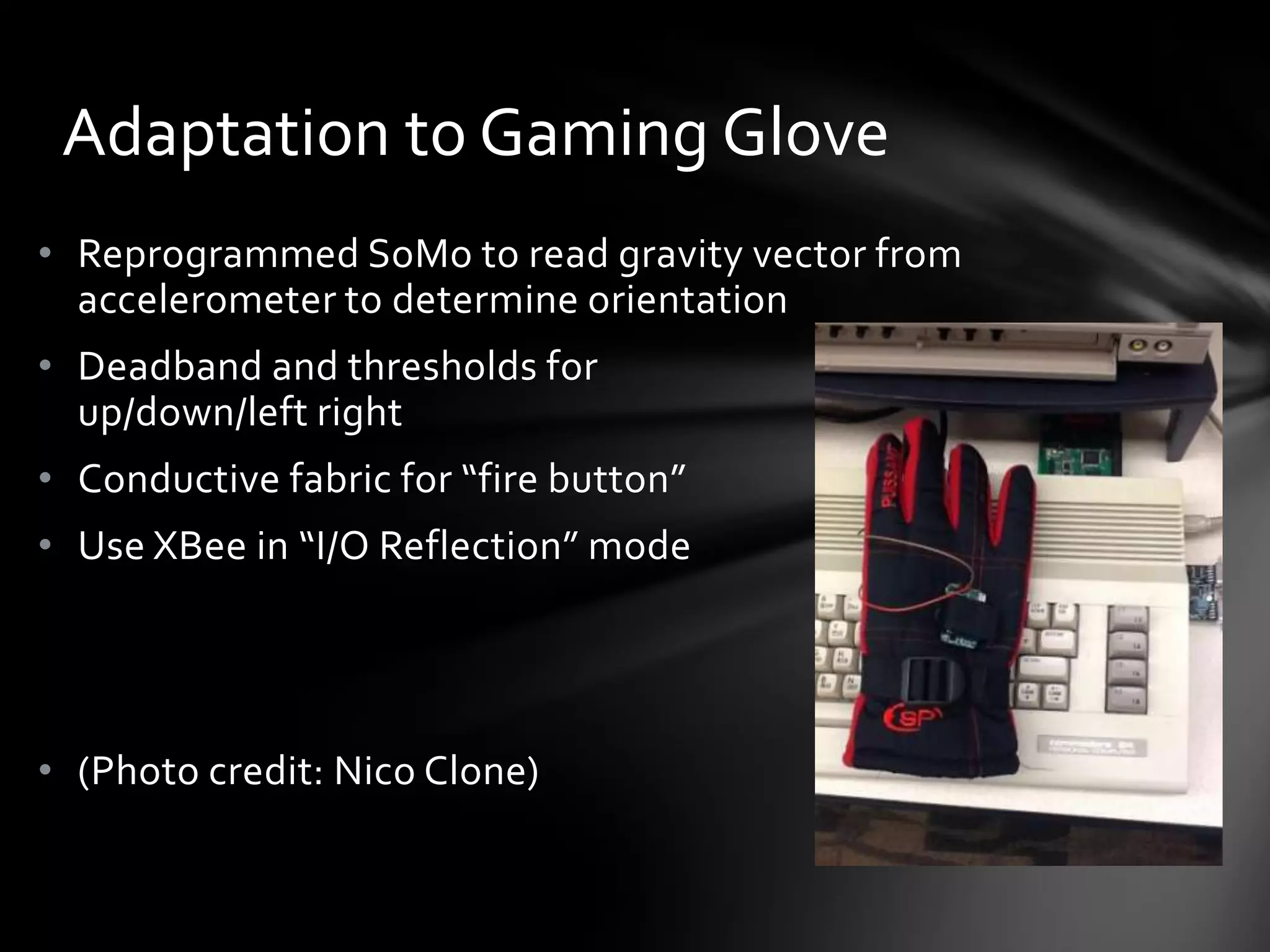

3. • Reprogrammed SoMo to read gravity vector from
accelerometer to determine orientation
• Deadband and thresholds for
up/down/left right
• Conductive fabric for “fire button”
• Use XBee in “I/O Reflection” mode
• (Photo credit: Nico Clone)
Adaptation to Gaming Glove

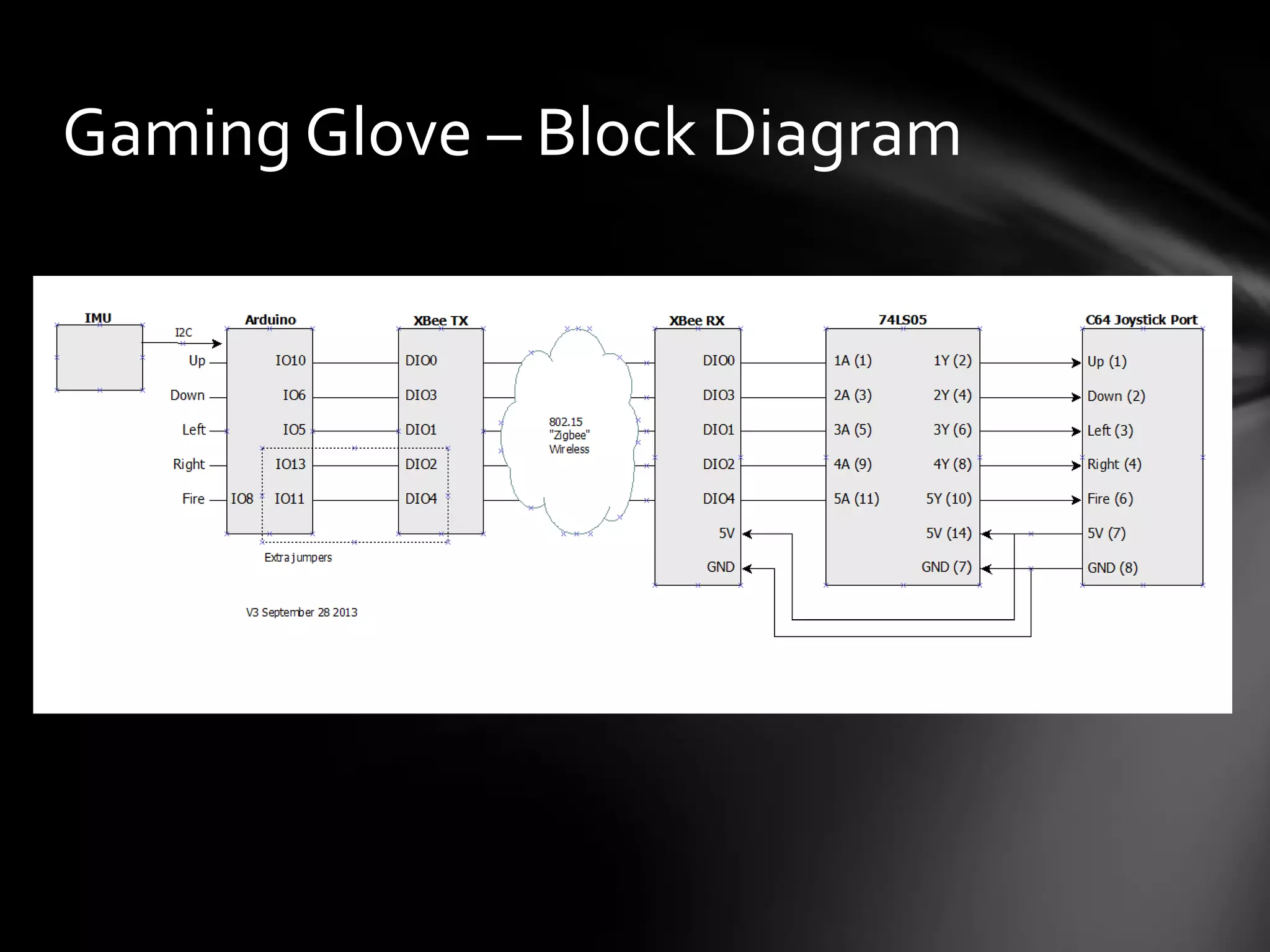

4. Gaming Glove – Block Diagram
