This document provides specifications for various mountain, trial, and BMX bikes. It lists details such as frame materials (carbon fiber, aluminum alloys), components (drivetrains, brakes, wheels), and intended uses (competition, recreation, etc.) for multiple models in each category. Specifications are provided for models ranging from high-end carbon fiber competition bikes to more entry-level aluminum alloy bikes.

5. 46
47
48
49
50
51
52
54
55
56
57
58
59
60
61
64
66
70
71
72
73
74
75
76
77
78
82
83
84
85
8
10
11
12
13
14
15
18
19
20
21
22
23
26
27
28
29
30
32
34
35
36
37
38
39
40
41
42
43

8. 8

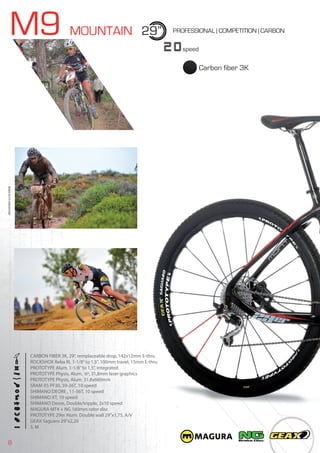

M9 MOUNTAIN 29”
20speed
PROFESSIONAL | COMPETITION | CARBON
CARBON FIBER 3K, 29”, remplaceable drop, 142x12mm E-thru
ROCKSHOX Reba RL 1-1/8”to 1,5”, 100mm travel, 15mm E-thru
PROTOTYPE Alum. 1-1/8”to 1,5”, integrated
PROTOTYPE Physis, Alum. 6º, 31,8mm laser graphics
PROTOTYPE Physis, Alum. 31,8x660mm
SRAM X5 PF30, 39-26T, 10 speed
SHIMANO DEORE , 11-36T, 10 speed
SHIMANO XT, 10 speed
SHIMANO Deore, Double/tripple, 2x10 speed
MAGURA MT4 + NG 160mm rotor disc
PROTOTYPE 29er Alum. Double wall 29”x1,75, A/V
GEAX Saguaro 29”x2,20
S, M
BIKES2015|MOUNTAIN
Carbon fiber 3K

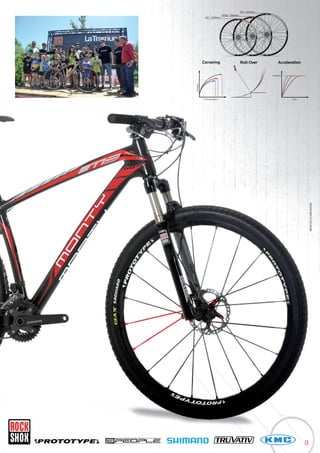

9. 9
BIKES2015|MOUNTAIN

10. 10

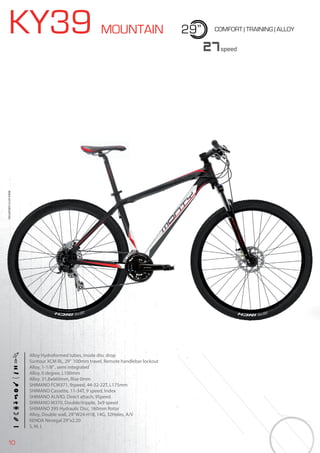

KY39 MOUNTAIN 29” COMFORT | TRAINING | ALLOY
Alloy Hydroformed tubes, inside disc drop
Suntour XCM RL, 29” 100mm travel, Remote handlebar lockout
Alloy, 1-1/8”, semi integrated
Alloy, 0 degree, L100mm
Alloy. 31,8x660mm, Rise 0mm
SHIMANO FCM371, 9speed, 44-32-22T, L175mm
SHIMANO Cassette, 11-34T, 9 speed, Index
SHIMANO ALIVIO, Direct attach, 9Speed
SHIMANO M370, Double/tripple, 3x9 speed
SHIMANO 395 Hydraulic Disc, 160mm Rotor
Alloy, Double wall, 29”W24-H18, 14G, 32Holes, A/V
KENDA Nevegal 29”x2.20
S, M, L
27speed
BIKES2015|MOUNTAINBIKES2015|MOUNTAIN

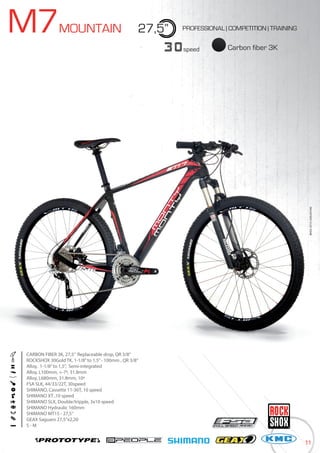

11. 11
BIKES2015|MOUNTAINBIKES2015|MOUNTAIN
M7MOUNTAIN 27,5”
Carbon fiber 3K30speed
PROFESSIONAL | COMPETITION | TRAINING
CARBON FIBER 3K, 27,5” Replaceable drop, QR 3/8”
ROCKSHOX 30Gold TK, 1-1/8”to 1,5”- 100mm , QR 3/8”
Alloy, 1-1/8”to 1,5”, Semi-integrated
Alloy, L100mm, +-7º, 31.8mm
Alloy, L680mm, 31.8mm, 10º
FSA SLK, 44/33/22T, 30speed
SHIMANO, Cassette 11-36T, 10 speed
SHIMANO XT ,10 speed
SHIMANO SLX, Double/tripple, 3x10 speed
SHIMANO Hydraulic 160mm
SHIMANO MT15 - 27,5”
GEAX Saguaro 27,5”x2,20
S - M

12. 12

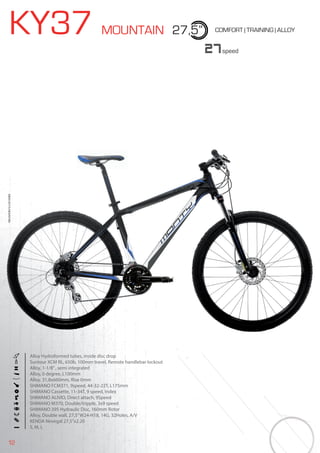

KY37 MOUNTAIN 27,5” COMFORT | TRAINING | ALLOY
Alloy Hydroformed tubes, inside disc drop
Suntour XCM RL, 650b, 100mm travel, Remote handlebar lockout
Alloy, 1-1/8”, semi integrated
Alloy, 0 degree, L100mm
Alloy. 31,8x660mm, Rise 0mm
SHIMANO FCM371, 9speed, 44-32-22T, L175mm
SHIMANO Cassette, 11-34T, 9 speed, Index
SHIMANO ALIVIO, Direct attach, 9Speed
SHIMANO M370, Double/tripple, 3x9 speed
SHIMANO 395 Hydraulic Disc, 160mm Rotor
Alloy, Double wall, 27,5”W24-H18, 14G, 32Holes, A/V
KENDA Nevegal 27,5”x2.20
S, M, L
27speed
BIKES2015|MOUNTAINBIKES2015|MOUNTAIN

13. 13

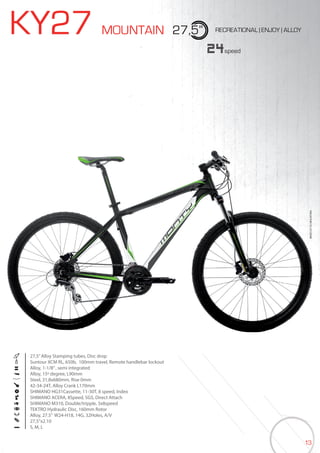

KY27 MOUNTAIN 27,5” RECREATIONAL | ENJOY | ALLOY
27,5”Alloy Stamping tubes, Disc drop
Suntour XCM RL, 650b, 100mm travel, Remote handlebar lockout
Alloy, 1-1/8”, semi integrated
Alloy, 15º degree, L90mm
Steel, 31,8x680mm, Rise 0mm
42-34-24T, Alloy Crank L170mm
SHIMANO HG31Cassette, 11-30T, 8 speed, Index
SHIMANO ACERA, 8Speed, SGS, Direct Attach
SHIMANO M310, Double/tripple, 3x8speed
TEKTRO Hydraulic Disc, 160mm Rotor
Alloy, 27.5” W24-H18, 14G, 32Holes, A/V
27,5”x2.10
S, M, L
24speed
BIKES2015|MOUNTAINBIKES2015|MOUNTAIN

14. 14
KY17 MOUNTAIN 27,5” RECREATIONAL | ENJOY | ALLOY
27,5”Alloy Stamping tubes, Disc drop
HL 386A, 650b, Alloy Crown, 60mm travel, Adjustable
Alloy, 1-1/8”, semi integrated
Alloy, 10º degree, L90mm
Steel, 31,8x680mm, Rise 20mm
42-32-24T, Alloy Crank L170mm
SHIMANO TZ21, 14-28T, 7 speed
SHIMANO TX-35, 7Speed, Direct Attach, Index
SHIMANO EF-51, Double/tripple, 3x7speed
PROMAX V-Brake, Alloy, L108mm
Alloy, 27.5” W24-H18, 14G, 32Holes, A/V
27,5”x2.10
S, M, L
21speed
BIKES2015|MOUNTAINBIKES2015|MOUNTAIN

15. 15

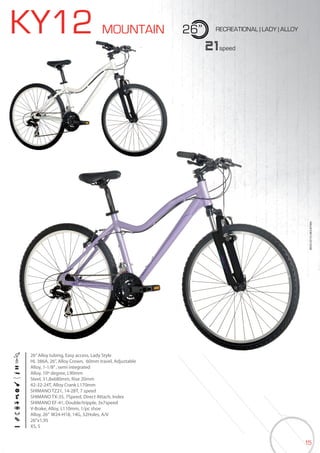

KY12 MOUNTAIN 26” RECREATIONAL | LADY | ALLOY
26”Alloy tubing, Easy access, Lady Style
HL 386A, 26”, Alloy Crown, 60mm travel, Adjustable
Alloy, 1-1/8”, semi integrated
Alloy, 10º degree, L90mm
Steel, 31,8x680mm, Rise 20mm
42-32-24T, Alloy Crank L170mm
SHIMANO TZ21, 14-28T, 7 speed
SHIMANO TX-35, 7Speed, Direct Attach, Index
SHIMANO EF-41, Double/tripple, 3x7speed
V-Brake, Alloy, L110mm, 1/pc shoe
Alloy, 26” W24-H18, 14G, 32Holes, A/V
26”x1,95
XS, S
21speed
BIKES2015|MOUNTAIN

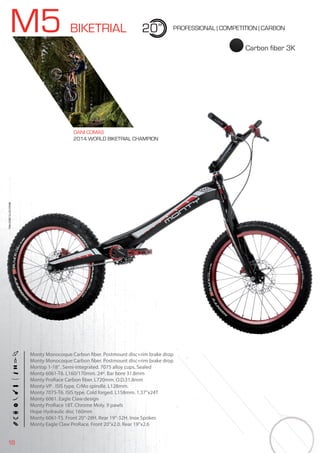

18. 18
M5 BIKETRIAL 20” PROFESSIONAL | COMPETITION | CARBON
Monty Monocoque Carbon fiber. Postmount disc+rim brake drop
Monty Monocoque Carbon fiber. Postmount disc+rim brake drop
Mortop 1-18”. Semi-integrated. 7075 alloy cups. Sealed
Monty 6061-T6. L160/170mm. 24º. Bar bore 31.8mm
Monty ProRace Carbon fiber. L720mm. O.D.31.8mm
Monty-VP . ISIS type. CrMo spindle. L128mm.
Monty 7075-T6. ISIS type. Cold forged. L158mm. 1.37”x24T
Monty 6061. Eagle Claw design
Monty ProRace 18T. Chrome Moly. 9 pawls
Hope Hydraulic disc 160mm
Monty 6061-T5. Front 20”-28H. Rear 19”-32H. Inox Spokes
Monty Eagle Claw ProRace. Front 20”x2.0. Rear 19”x2.6
BIKES2015|BIKETRIAL
Carbon fiber 3K
DANI COMAS
2014 WORLD BIKETRIAL CHAMPION

19. 19

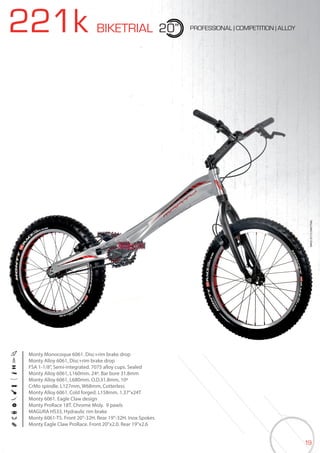

221k BIKETRIAL 20” PROFESSIONAL | COMPETITION | ALLOY
BIKES2015|BIKETRIAL
Monty Monocoque 6061. Disc+rim brake drop
Monty Alloy 6061, Disc+rim brake drop
FSA 1-1/8”, Semi-integrated. 7075 alloy cups. Sealed
Monty Alloy 6061, L160mm. 24º. Bar bore 31.8mm
Monty Alloy 6061, L680mm. O.D.31.8mm, 10º
CrMo spindle. L127mm, W68mm, Cotterless
Monty Alloy 6061. Cold forged. L158mm. 1.37”x24T
Monty 6061. Eagle Claw design
Monty ProRace 18T. Chrome Moly. 9 pawls
MAGURA HS33, Hydraulic rim brake
Monty 6061-T5. Front 20”-32H. Rear 19”-32H. Inox Spokes
Monty Eagle Claw ProRace. Front 20”x2.0. Rear 19”x2.6

20. 20

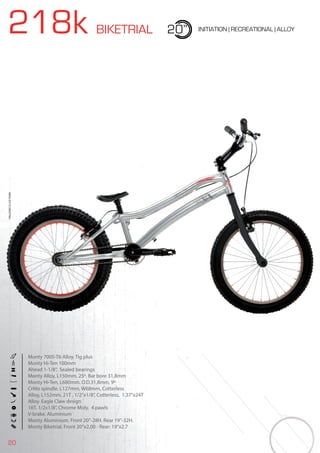

218k BIKETRIAL 20” INITIATION | RECREATIONAL | ALLOY
Monty 7005-T6 Alloy. Tig plus
Monty Hi-Ten 100mm
Ahead 1-1/8”, Sealed bearings
Monty Alloy, L150mm. 25º. Bar bore 31,8mm
Monty Hi-Ten, L680mm. O.D.31,8mm, 9º
CrMo spindle. L127mm, W68mm, Cotterless
Alloy, L152mm, 21T , 1/2”x1/8”, Cotterless, 1.37”x24T
Alloy. Eagle Claw design
16T. 1/2x1/8”, Chrome Moly. 4 pawls
V-brake. Aluminium
Monty Aluminium. Front 20”-28H. Rear 19”-32H.
Monty Biketrial. Front 20”x2,00 - Rear: 19”x2.7
BIKES2015|BIKETRIAL

21. 21

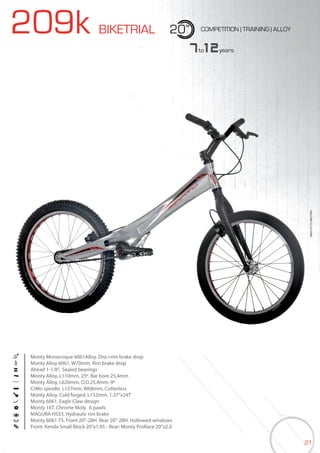

209k BIKETRIAL 20” COMPETITION | TRAINING | ALLOY
Monty Monocoque 6061Alloy. Disc+rim brake drop
Monty Alloy 6061, W70mm, Rim brake drop
Ahead 1-1/8”, Sealed bearings
Monty Alloy, L110mm. 25º. Bar bore 25,4mm
Monty Alloy, L620mm. O.D.25,4mm, 9º
CrMo spindle. L127mm, W68mm, Cotterless
Monty Alloy. Cold forged. L152mm. 1.37”x24T
Monty 6061. Eagle Claw design
Monty 16T. Chrome Moly. 6 pawls
MAGURA HS33, Hydraulic rim brake
Monty 6061-T5. Front 20”-28H. Rear 20”-28H. Hollowed windows
Front: Kenda Small Block 20”x1,95 - Rear: Monty ProRace 20”x2.0
7to12years
BIKES2015|BIKETRIAL

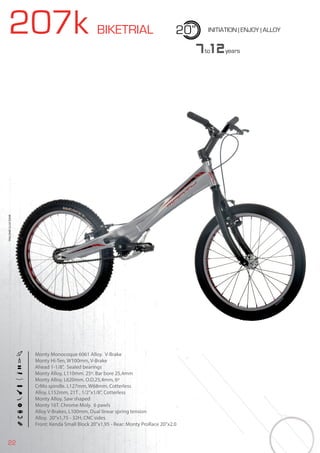

22. 22
207k BIKETRIAL 20” INITIATION | ENJOY | ALLOY
Monty Monocoque 6061 Alloy. V-Brake
Monty Hi-Ten, W100mm, V-Brake
Ahead 1-1/8”, Sealed bearings
Monty Alloy, L110mm. 25º. Bar bore 25,4mm
Monty Alloy, L620mm. O.D.25,4mm, 6º
CrMo spindle. L127mm, W68mm, Cotterless
Alloy, L152mm, 21T , 1/2”x1/8”, Cotterless
Monty Alloy, Saw shaped
Monty 16T. Chrome Moly. 6 pawls
Alloy V-Brakes, L100mm, Dual linear spring tension
Alloy, 20”x1,75 - 32H, CNC sides
Front: Kenda Small Block 20”x1,95 - Rear: Monty ProRace 20”x2.0
7to12years
BIKES2015|BIKETRIAL

23. 23

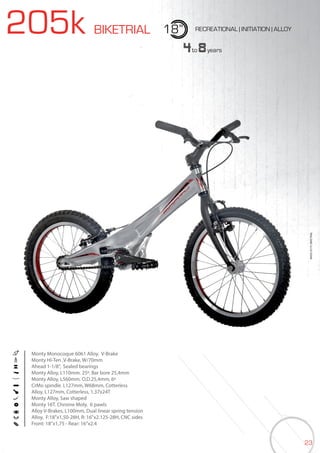

205k BIKETRIAL 18” RECREATIONAL | INITIATION | ALLOY
Monty Monocoque 6061 Alloy. V-Brake
Monty Hi-Ten ,V-Brake, W/70mm
Ahead 1-1/8”, Sealed bearings
Monty Alloy, L110mm. 25º. Bar bore 25,4mm
Monty Alloy, L560mm. O.D.25,4mm, 6º
CrMo spindle. L127mm, W68mm, Cotterless
Alloy, L127mm, Cotterless, 1,37x24T
Monty Alloy, Saw shaped
Monty 16T. Chrome Moly. 6 pawls
Alloy V-Brakes, L100mm, Dual linear spring tension
Alloy, F:18”x1,50-28H, R: 16”x2.125-28H, CNC sides
Front: 18”x1,75 - Rear: 16”x2.4
4to8years
BIKES2015|BIKETRIAL

26. 26

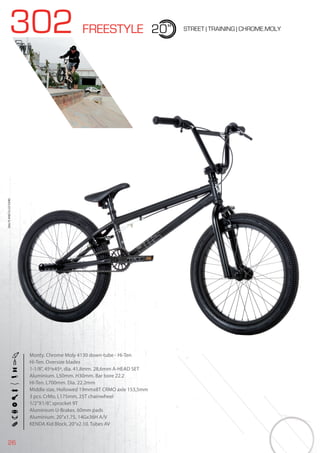

302 FREESTYLE 20” STREET | TRAINING | CHROME.MOLY
Monty. Chrome Moly 4130 down-tube - Hi-Ten
Hi-Ten. Oversize blades
1-1/8”, 45ºx45º, dia. 41,8mm. 28,6mm A-HEAD SET
Aluminium. L50mm. H30mm. Bar bore 22.2
Hi-Ten. L700mm. Dia. 22.2mm
Middle size, Hollowed 19mmx8T CRMO axle 153,5mm
3 pcs. CrMo, L175mm, 25T chainwheel
1/2”X1/8”, sprocket 9T
Aluminium U-Brakes. 60mm pads
Aluminium. 20’’x1.75, 14Gx36H A/V
KENDA Kid Block, 20”x2.10. Tubes AV
BIKES2015|BMX&FREE

27. 27

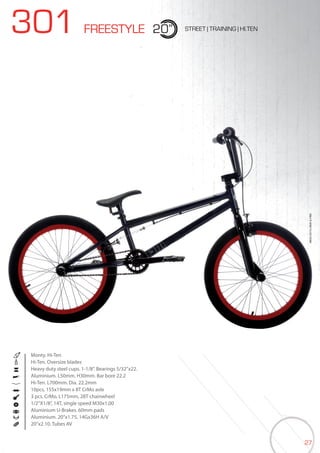

301 FREESTYLE 20” STREET | TRAINING | HI.TEN
Monty. Hi-Ten
Hi-Ten. Oversize blades
Heavy duty steel cups. 1-1/8”. Bearings 5/32”x22.
Aluminium. L50mm. H30mm. Bar bore 22.2
Hi-Ten. L700mm. Dia. 22.2mm
10pcs, 155x19mm x 8T CrMo axle
3 pcs. CrMo, L175mm, 28T chainwheel
1/2”X1/8”, 14T, single speed M30x1,00
Aluminium U-Brakes. 60mm pads
Aluminium. 20’’x1.75, 14Gx36H A/V
20”x2.10. Tubes AV
BIKES2015|BMX&FREE

28. 28

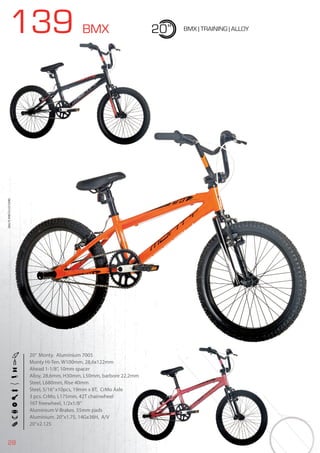

139 BMX 20” BMX | TRAINING | ALLOY
20” Monty. Aluminium 7005
Monty Hi-Ten. W100mm. 28,6x122mm
Ahead 1-1/8”, 10mm spacer
Alloy, 28,6mm, H30mm, L50mm, barbore 22,2mm
Steel, L680mm, Rise 40mm
Steel, 5/16”x10pcs, 19mm x 8T, CrMo Axle
3 pcs. CrMo, L175mm, 42T chainwheel
16T freewheel, 1/2x1/8”
Aluminium V-Brakes. 55mm pads
Aluminium. 20’’x1.75, 14Gx36H, A/V
20”x2.125
BIKES2015|BMX&FREE

29. 29

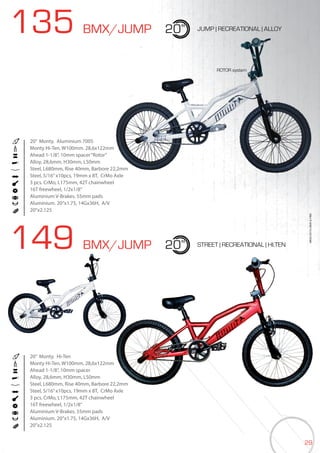

135 BMX/JUMP
149 BMX/JUMP
20”
20”
JUMP | RECREATIONAL | ALLOY
STREET | RECREATIONAL | HI.TEN
20” Monty. Aluminium 7005
Monty Hi-Ten. W100mm. 28,6x122mm
Ahead 1-1/8”, 10mm spacer“Rotor”
Alloy, 28,6mm, H30mm, L50mm
Steel, L680mm, Rise 40mm, Barbore 22,2mm
Steel, 5/16”x10pcs, 19mm x 8T, CrMo Axle
3 pcs. CrMo, L175mm, 42T chainwheel
16T freewheel, 1/2x1/8”
Aluminium V-Brakes. 55mm pads
Aluminium. 20’’x1.75, 14Gx36H, A/V
20”x2.125
20” Monty. Hi-Ten
Monty Hi-Ten. W100mm. 28,6x122mm
Ahead 1-1/8”, 10mm spacer
Alloy, 28,6mm, H30mm, L50mm
Steel, L680mm, Rise 40mm, Barbore 22,2mm
Steel, 5/16”x10pcs, 19mm x 8T, CrMo Axle
3 pcs. CrMo, L175mm, 42T chainwheel
16T freewheel, 1/2x1/8”
Aluminium V-Brakes. 55mm pads
Aluminium. 20’’x1.75, 14Gx36H, A/V
20”x2.125
BIKES2015|BMX&FREE
ROTOR system

32. 32

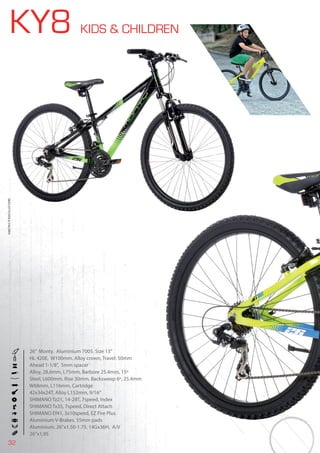

KY8 KIDS & CHILDREN
26” Monty. Aluminium 7005. Size 13”
HL 420E, W100mm. Alloy crown, Travel: 50mm
Ahead 1-1/8”, 5mm spacer
Alloy, 28,6mm, L75mm, Barbore 25.4mm, 15º
Steel, L600mm, Rise 30mm, Backsweep 6º, 25.4mm
W68mm, L116mm, Cartridge
42x34x24T, Alloy L152mm, 9/16”
SHIMANO Tz21, 14-28T, 7speed, Index
SHIMANO Tx35, 7speed, Direct Attach
SHIMANO Ef41, 3x10speed, EZ Fire Plus
Aluminium V-Brakes. 55mm pads
Aluminium. 26’’x1.50-1.75, 14Gx36H, A/V
26”x1,95
BIKES2015|KIDS&CHILDREN

33. 3333

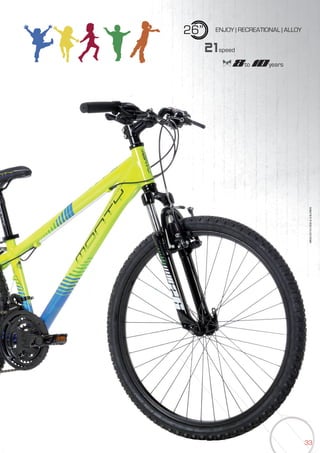

26” ENJOY | RECREATIONAL | ALLOY
BIKES2015|KIDS&CHILDREN
21speed
8to 10years

34. 34
BIKES2015|KIDS&CHILDREN

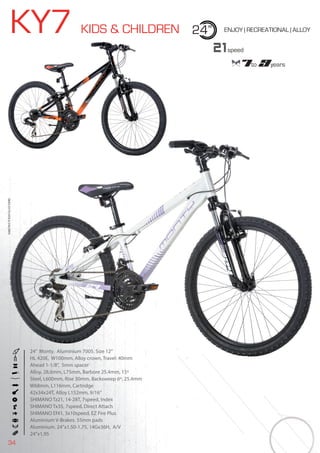

KY7 KIDS & CHILDREN 24” ENJOY | RECREATIONAL | ALLOY
24” Monty. Aluminium 7005. Size 12”
HL 420E, W100mm. Alloy crown, Travel: 40mm
Ahead 1-1/8”, 5mm spacer
Alloy, 28,6mm, L75mm, Barbore 25.4mm, 15º
Steel, L600mm, Rise 30mm, Backsweep 6º, 25.4mm
W68mm, L116mm, Cartridge
42x34x24T, Alloy L152mm, 9/16”
SHIMANO Tz21, 14-28T, 7speed, Index
SHIMANO Tx35, 7speed, Direct Attach
SHIMANO Ef41, 3x10speed, EZ Fire Plus
Aluminium V-Brakes. 55mm pads
Aluminium. 24’’x1.50-1.75, 14Gx36H, A/V
24”x1,95
21speed
7to 9years
BIKES2015|KIDS&CHILDREN
24” Monty. Aluminium 7005. Size 12”
HL 420E, W100mm. Alloy crown, Travel: 40mm
Ahead 1-1/8”, 5mm spacer

35. 35

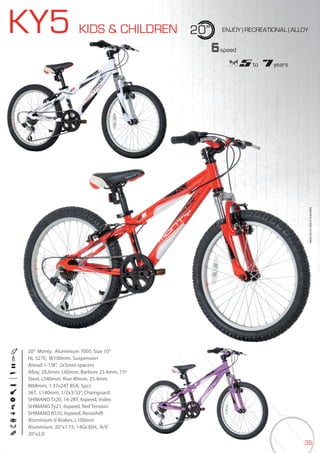

KY5 KIDS & CHILDREN 20” ENJOY | RECREATIONAL | ALLOY
20” Monty. Aluminium 7005. Size 10”
HL 327E, W100mm. Suspension
Ahead 1-1/8”, 2x5mm spacers
Alloy, 28,6mm, L60mm, Barbore 25.4mm, 15º
Steel, L540mm, Rise 40mm, 25.4mm
W68mm, 1.37x24T BSA, 5pcs
36T, L140mm, 1/2x3/32”, Chainguard
SHIMANO Tz20, 14-28T, 6speed, Index
SHIMANO Ty21, 6speed, Red Tension
SHIMANO RS35, 6speed, Revoshift
Aluminium V-Brakes, L100mm
Aluminium. 20”x1.75, 14Gx36H, A/V
20”x2.0
BIKES2015|KIDS&CHILDREN
6speed
5 to 7 years
BIKES2015|KIDS&CHILDREN

36. 36
BIKES2015|KIDS&CHILDRENBIKES2015|KIDS&CHILDREN
105 KIDS & CHILDREN 20” ENJOY | RECREATIONAL | HI.TEN
20” Monty BMX Hi-Ten Size 9”
20” Monty BMX Hi-Ten W100mm
1”Threaded, Steel
Alloy cap, 22.2mm, Foam Protector
Steel, L530mm, H120mm, Foam Protector
5/16”, 9pcs, Ball Bearings
26T, OPC 1/2x1/8”, L140mm
16T, 1/2x1/8”
Aluminium V-Brakes. 55mm pads
Aluminium 20’’x1.50-1.75, 14Gx32H, A/V
BMX 20”x2.125
1speed
5 to7years
PROTECTORS INCLUDED
(HANDLEBAR + STEM)

37. 37

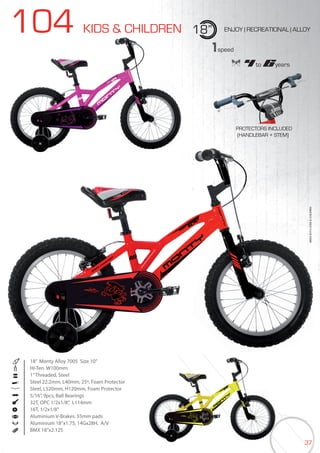

104 KIDS & CHILDREN 18” ENJOY | RECREATIONAL | ALLOY
18” Monty Alloy 7005 Size 10”
Hi-Ten W100mm
1”Threaded, Steel
Steel 22.2mm, L40mm, 25º, Foam Protector
Steel, L520mm, H120mm, Foam Protector
5/16”, 9pcs, Ball Bearings
32T, OPC 1/2x1/8”, L114mm
16T, 1/2x1/8”
Aluminium V-Brakes. 55mm pads
Aluminium 18’’x1.75, 14Gx28H, A/V
BMX 18”x2.125
BIKES2015|KIDS&CHILDREN
1speed
4 to 6years
PROTECTORS INCLUDED
(HANDLEBAR + STEM)

38. 38

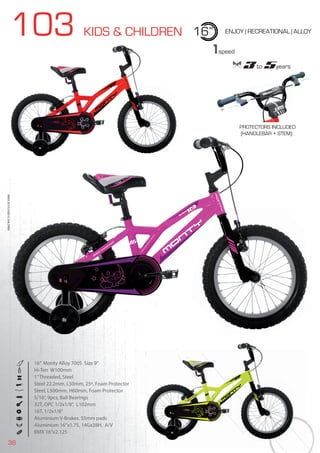

103 KIDS & CHILDREN 16” ENJOY | RECREATIONAL | ALLOY
16” Monty Alloy 7005 Size 9”
Hi-Ten W100mm
1”Threaded, Steel
Steel 22.2mm, L50mm, 25º, Foam Protector
Steel, L500mm, H60mm, Foam Protector
5/16”, 9pcs, Ball Bearings
32T, OPC 1/2x1/8”, L102mm
16T, 1/2x1/8”
Aluminium V-Brakes. 55mm pads
Aluminium 16’’x1.75, 14Gx28H, A/V
BMX 16”x2.125
BIKES2015|KIDS&CHILDREN
1speed
3 to 5years3 to3 to3 5years5years5
PROTECTORS INCLUDED
(HANDLEBAR + STEM)

39. 39
City3 KIDS & CHILDREN 24” ENJOY | RECREATIONAL | HITEN
24” Monty Hi-Ten Size 12”
Hi-Ten W100mm
1”Threaded, Steel
Steel 25.4mm, L50mm, Rise30mm
Steel, L540mm, H50mm, 30º
Steel, 34mm, 5pcs, CrMo axle
36Tx 3/32”, Crank Alloy L152 mm, Chainprotector
Shimano TZ20 , 14-28T, 6speed
Shimano TX35, 6 speed, Direct attach
Shimano RS-35-R6, Revoshift 6speed
Aluminium V-Brakes. 55mm pads
Aluminium 24”x 1.75x14Gx 36H , A/V, Safety line
Kenda K841, 24”x1.75, Old style
BIKES2015|KIDS&CHILDREN
6speed
7 to 9years
25kg

40. 40
City2 KIDS & CHILDREN 20” ENJOY | RECREATIONAL | HITEN
20” Monty Hi-Ten Size 9”
Hi-Ten W100mm
1”Threaded, Steel
Steel 25.4mm, L50mm, Rise 30º
Steel, L480mm, H50mm, 10º
Steel, 35/16”x 9pcs, Ball bearings
32T -1/2”x1/8”, OPC 1/2”x 140mm, Chainprotector
1/2”x 1/8”x 16T
Aluminium V-Brakes. 55mm pads
Aluminium 20”x 1.75x14Gx 28H , A/V, Safety line
Kenda K841, 20”x1.75, Old style
BIKES2015|KIDS&CHILDREN
1speed
5 to 7years
10kg
25kg

41. 41

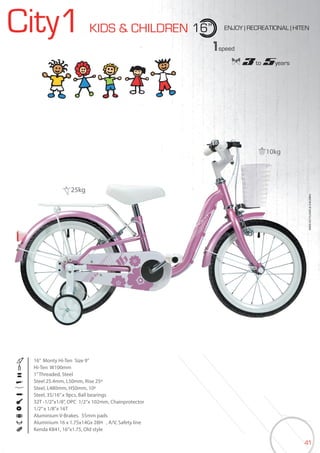

City1 KIDS & CHILDREN 16” ENJOY | RECREATIONAL | HITEN
16” Monty Hi-Ten Size 9”
Hi-Ten W100mm
1”Threaded, Steel
Steel 25.4mm, L50mm, Rise 25º
Steel, L480mm, H50mm, 10º
Steel, 35/16”x 9pcs, Ball bearings
32T -1/2”x1/8”, OPC 1/2”x 102mm, Chainprotector
1/2”x 1/8”x 16T
Aluminium V-Brakes. 55mm pads
Aluminium 16 x 1.75x14Gx 28H , A/V, Safety line
Kenda K841, 16”x1.75, Old style
BIKES2015|KIDS&CHILDREN
1speed
3 to 5years
10kg
25kg

42. 42
202 KIDS & CHILDREN 14” ENJOY | RECREATIONAL | ALLOY
14”Alloy Monty Design. Tig plus.
14”Alloy, W100mm. Tig Plus. 1”fork stem
Ahead 1”, Sealed bearings
Alloy, 25.4mm, L40mm, 27º, H39mm
Alloy, L400mm, backsweep 6º, Rise 30mm
Biketrial type. Plastic+foam
Hi-Ten front caliper
Aluminium 14’’x1.5, 14Gx20H, A/V
Biketrial Type 14”x2.4
Optional kit: Kickstand+bell+pegs
BIKES2015|KIDS&CHILDREN
Push bike
1,5 to 3years

43. 43

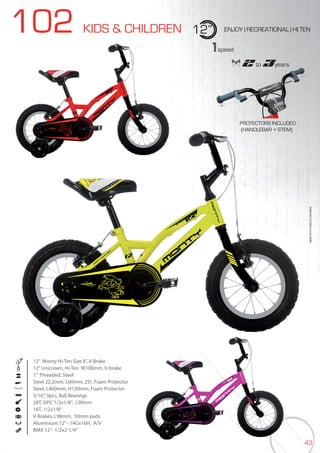

102 KIDS & CHILDREN 12” ENJOY | RECREATIONAL | HI.TEN
12” Monty Hi-Ten Size 8”, V-Brake
12”Unicrown, Hi-Ten W100mm, V-brake
1” Threaded, Steel
Steel 22.2mm, L60mm, 25º, Foam Protector
Steel, L460mm, H120mm, Foam Protector
5/16”, 9pcs, Ball Bearings
28T, OPC 1/2x1/8”, L90mm
16T, 1/2x1/8”
V-Brakes, L98mm, 50mm pads
Aluminium 12’’- 14Gx16H, A/V
BMX 12”- 1/2x2-1/4”
BIKES2015|KIDS&CHILDREN
1speed
2 to 3years2 to2 to2 3years3years3
PROTECTORS INCLUDED
(HANDLEBAR + STEM)

46. 46

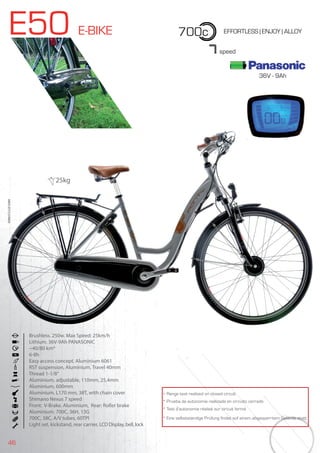

E50 E-BIKE 700c EFFORTLESS | ENJOY | ALLOY
36V - 9Ah
Brushless. 250w. Max Speed: 25km/h
Lithium. 36V-9Ah PANASONIC
~40/80 km*
6-8h
Easy access concept. Aluminium 6061
RST suspension, Aluminium, Travel 40mm
Thread 1-1/8”
Aluminium, adjustable, 110mm, 25,4mm
Aluminium, 600mm
Aluminium. L170 mm, 38T, with chain cover
Shimano Nexus 7 speed
Front: V-Brake. Aluminium, Rear: Roller brake
Aluminium. 700C, 36H, 13G
700C, 38C, A/V tubes, 60TPI
Light set, kickstand, rear carrier, LCD Display, bell, lock
BIKES2015|E-BIKES
7speed
* Range test realized on closed circuit
* Prueba de autonomía realizada en circuito cerrado
* Test d’autonomie réalisé sur circuit fermé
* Eine selbstständige Prüfung findet auf einem abgesperrtem Gelände statt
25kg

47. 47

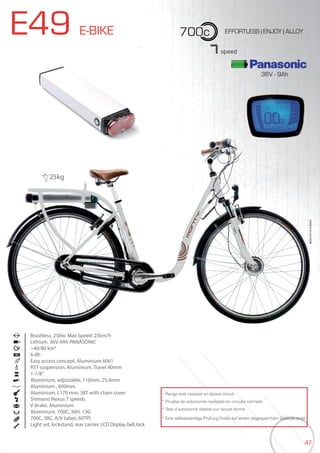

E49 E-BIKE 700c
36V - 9Ah
EFFORTLESS | ENJOY | ALLOY
Brushless. 250w. Max Speed: 25km/h
Lithium. 36V-9Ah PANASONIC
~40/80 km*
6-8h
Easy access concept. Aluminium 6061
RST suspension, Aluminium. Travel 40mm
1-1/8”
Aluminium, adjustable, 110mm, 25,4mm
Aluminium , 600mm
Aluminium. L170 mm, 38T with chain cover
Shimano Nexus 7 speeds
V-Brake. Aluminium
Aluminium. 700C, 36H, 13G
700C, 38C, A/V tubes, 60TPI
Light set, kickstand, rear carrier, LCD Display, bell, lock
BIKES2015|E-BIKES
7speed
* Range test realized on closed circuit
* Prueba de autonomía realizada en circuito cerrado
* Test d’autonomie réalisé sur circuit fermé
* Eine selbstständige Prüfung findet auf einem abgesperrtem Gelände statt
25kg

48. 48

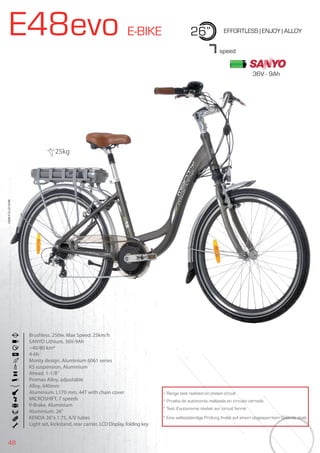

E48evo E-BIKE 26” EFFORTLESS | ENJOY | ALLOY
Brushless. 250w. Max Speed: 25km/h
SANYO Lithium. 36V-9Ah
~40/80 km*
4-6h
Monty design. Aluminium 6061 series
KS suspension, Aluminium
Ahead. 1-1/8”
Promax Alloy, adjustable
Alloy, 640mm
Aluminium. L170 mm, 44T with chain cover
MICROSHIFT, 7 speeds
V-Brake. Aluminium
Aluminium. 26”
KENDA 26”x 1.75, A/V tubes
Light set, kickstand, rear carrier, LCD Display, folding key
BIKES2015|E-BIKES
7speed
* Range test realized on closed circuit
* Prueba de autonomía realizada en circuito cerrado
* Test d’autonomie réalisé sur circuit fermé
* Eine selbstständige Prüfung findet auf einem abgesperrtem Gelände statt
25kg
36V - 9Ah

49. 49

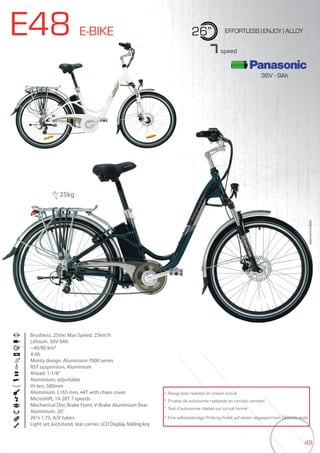

E48 E-BIKE 26” EFFORTLESS | ENJOY | ALLOY
Brushless. 250w. Max Speed: 25km/h
Lithium. 36V-9Ah
~40/80 km*
4-6h
Monty design. Aluminium 7000 series
RST suspension, Aluminium
Ahead. 1-1/8”
Aluminium, adjustable
Hi-ten, 580mm
Aluminium. L165 mm, 44T with chain cover
Microshift, 14-28T 7 speeds
Mechanical Disc Brake Front, V-Brake Aluminium Rear
Aluminium. 26”
26”x 1.75, A/V tubes
Light set, kickstand, rear carrier, LCD Display, folding key
BIKES2015|E-BIKES
7speed
* Range test realized on closed circuit
* Prueba de autonomía realizada en circuito cerrado
* Test d’autonomie réalisé sur circuit fermé
* Eine selbstständige Prüfung findet auf einem abgesperrtem Gelände statt
25kg
36V - 9Ah

50. 50

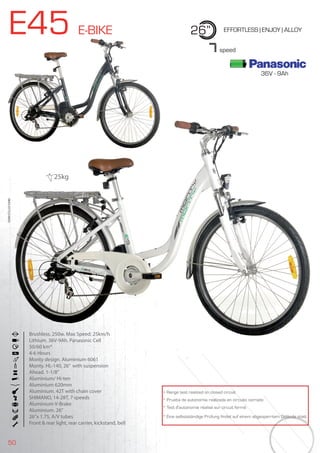

E45 E-BIKE 26” EFFORTLESS | ENJOY | ALLOY
Brushless. 250w. Max Speed: 25km/h
Lithium. 36V-9Ah. Panasonic Cell
50/60 km*
4-6 Hours
Monty design. Aluminium 6061
Monty. HL-140, 26” with suspension
Ahead. 1-1/8”
Aluminium/ Hi-ten
Aluminium 620mm
Aluminium. 42T with chain cover
SHIMANO, 14-28T, 7 speeds
Aluminium V-Brake
Aluminium. 26”
26”x 1.75, A/V tubes
Front & rear light, rear carrier, kickstand, bell
BIKES2015|E-BIKES
7speed
* Range test realized on closed circuit
* Prueba de autonomía realizada en circuito cerrado
* Test d’autonomie réalisé sur circuit fermé
* Eine selbstständige Prüfung findet auf einem abgesperrtem Gelände statt
25kg
36V - 9Ah

51. 51

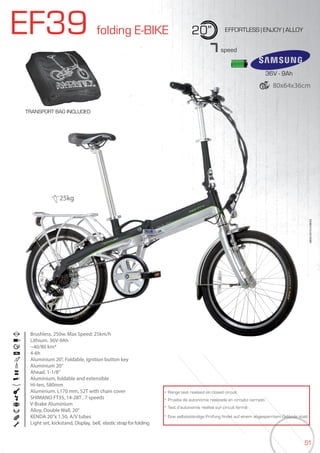

EF39 folding E-BIKE 20” EFFORTLESS | ENJOY | ALLOY
TRANSPORT BAG INCLUDED
Brushless. 250w. Max Speed: 25km/h
Lithium. 36V-9Ah
~40/80 km*
4-6h
Aluminium 20”, Foldable, Ignition button key
Aluminium 20”
Ahead. 1-1/8”
Aluminium, foldable and extensible
Hi-ten, 580mm
Aluminium. L170 mm, 52T with chain cover
SHIMANO FT35, 14-28T , 7 speeds
V-Brake Aluminium
Alloy, Double Wall, 20”
KENDA 20”x 1.50, A/V tubes
Light set, kickstand, Display, bell, elastic strap for folding
BIKES2015|E-BIKES
7speed
* Range test realized on closed circuit
* Prueba de autonomía realizada en circuito cerrado
* Test d’autonomie réalisé sur circuit fermé
* Eine selbstständige Prüfung findet auf einem abgesperrtem Gelände statt
25kg
36V - 9Ah
80x64x36cm

52. 52

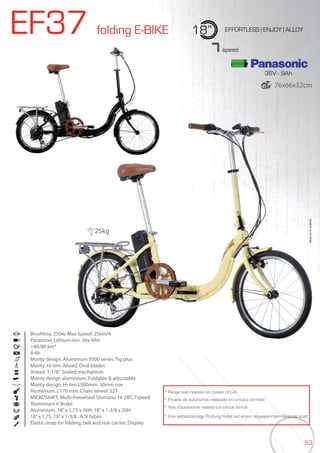

EF37 folding E-BIKE 18” EFFORTLESS | ENJOY | ALLOY
Brushless. 250w. Max Speed: 25km/h
Panasonic Lithium-Ion. 36v-9Ah
~40/80 km*
4-6h
Monty design. Aluminium 7000 series. Tig plus
Monty. Hi-ten. Ahead. Oval blades
Ahead. 1-1/8”. Sealed mechanism
Monty design aluminium. Foldable & adjustable
Monty design, Hi-ten L580mm. 30mm rise
Aluminium. L170 mm. Chain wheel: 52T
1 speed
Aluminium V-Brake
Aluminium. 18”x 1,75 x 36H, 18”x 1-3/8 x 20H
18”x 1,75, 18”x 1-3/8 . A/V tubes
Elastic strap for folding, bell and rear carrier, Display
BIKES2015|E-BIKES
1 single speed
* Range test realized on closed circuit
* Prueba de autonomía realizada en circuito cerrado
* Test d’autonomie réalisé sur circuit fermé
* Eine selbstständige Prüfung findet auf einem abgesperrtem Gelände statt
25kg
36V - 9Ah
76x66x32cm

53. 53
EF37 folding E-BIKE 18” EFFORTLESS | ENJOY | ALLOY
Brushless. 250w. Max Speed: 25km/h
Panasonic Lithium-Ion. 36v-9Ah
~40/80 km*
4-6h
Monty design. Aluminium 7000 series. Tig plus
Monty. Hi-ten. Ahead. Oval blades
Ahead. 1-1/8”. Sealed mechanism
Monty design aluminium. Foldable & adjustable
Monty design, Hi-ten L580mm. 30mm rise
Aluminium. L170 mm. Chain wheel: 52T
MICROSHIFT, Multi-freewheel Shimano 14-28T, 7speed
Aluminium V-Brake
Aluminium. 18”x 1,75 x 36H, 18”x 1-3/8 x 20H
18”x 1,75, 18”x 1-3/8 . A/V tubes
Elastic strap for folding, bell and rear carrier, Display
BIKES2015|E-BIKES
7speed
* Range test realized on closed circuit
* Prueba de autonomía realizada en circuito cerrado
* Test d’autonomie réalisé sur circuit fermé
* Eine selbstständige Prüfung findet auf einem abgesperrtem Gelände statt
25kg
36V - 9Ah
76x66x32cm

54. 54

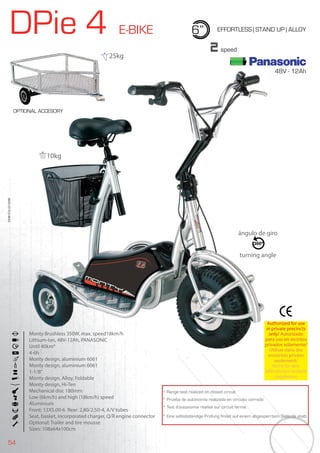

DPie 4 E-BIKE 6” EFFORTLESS | STAND UP | ALLOY
Monty Brushless 350W, max. speed18km/h
Lithium-Ion, 48V-12Ah, PANASONIC
Until 40km*
4-6h
Monty design, aluminium 6061
Monty design, aluminium 6061
1-1/8”
Monty design, Alloy, Foldable
Monty design, Hi-Ten
Mechanical disc 180mm
Low (6km/h) and high (18km/h) speed
Aluminium
Front: 13X5.00-6 Rear: 2,80/2,50-4, A/V tubes
Seat, basket, incorporated charger, Q/R engine connector
Optional: Trailer and tire mousse
Sizes: 108x64x100cm
BIKES2015|E-BIKES
2speed
* Range test realized on closed circuit
* Prueba de autonomía realizada en circuito cerrado
* Test d’autonomie réalisé sur circuit fermé
* Eine selbstständige Prüfung findet auf einem abgesperrtem Gelände statt
Authorized for use
in private precincts
only/ Autorizado
para uso en recintos
privados solamente/
Utiliser dans des
enceintes privées
seulement/
Nicht für den
öffentlichen Verkehr
zugelassen
Monty Brushless 350W, max. speed18km/h
Lithium-Ion, 48V-12Ah, PANASONIC
Until 40km*
4-6h
Monty design, aluminium 6061
Authorized for use
in private precincts
only/
para uso en recintos
privados solamente/
Utiliser dans des
enceintes privées
ángulo de giro
turning angle
OPTIONAL ACCESORY
10kg
25kg
48V - 12Ah

55. 55
DPie 3 E-BIKE 6” EFFORTLESS | STAND UP | ALLOY
LEAD ACID
Monty Brushless 350W, max. speed18km/h
Lead Acid. 48V-12Ah
Until 40km*
4-6h
Monty design, aluminium 6061
Monty design, aluminium 6061
1-1/8”
Monty design, Alloy, Foldable
Monty design, Hi-Ten
Mechanical disc 180mm
Low (6km/h) and high (18km/h) speed
Aluminium
Front: 13X5.00-6 Rear: 2,80/2,50-4, A/V tubes
incorporated charger, Q/R engine connector
Optional: Rear basket, seat , trailer and tire mousse.
Sizes: 108x64x100cm
BIKES2015|E-BIKES
2speed
* Range test realized on closed circuit
* Prueba de autonomía realizada en circuito cerrado
* Test d’autonomie réalisé sur circuit fermé
* Eine selbstständige Prüfung findet auf einem abgesperrtem Gelände statt
Authorized for use
in private precincts
only/ Autorizado
para uso en recintos
privados solamente/
Utiliser dans des
enceintes privées
seulement/
Nicht für den
öffentlichen Verkehr
zugelassen
ángulo de giroángulo de giro
turning angle
OPTIONAL ACCESORY
LEAD ACID
Monty Brushless 350W, max. speed18km/h
Lead Acid. 48V-12Ah
Until 40km*
4-6h
Monty design, aluminium 6061
Authorized for use
in private precincts
only/
para uso en recintos
privados solamente/
Utiliser dans des
enceintes privées
seulement/
Nicht für den
ángulo de giroángulo de giro
turning angle
OPTIONAL ACCESORY
10kg
25kg
48V - 12Ah

56. 56
E132 tricycle E-BIKE 20” EFFORTLESS | ENJOY | ALLOY
Monty Brushless 250W, max. speed18km/h
Lithium-Ion, 36V-8,9Ah, PANASONIC
Until 40km*
4-6h
Monty Aluminium 7005-7000Series. Easy Access Concept
Monty. 20”, Hi-Ten. 1-1/8”. Oval blades
Threaded type. 1-1/8”
Hi-Ten L600mm. Dia.25.4
Alloy, L600mm with basket, Dia.25.4
Steel OPC 1/2”x1/32”- 32T
SHIMANO FT-30 7 speed
Aluminium. Front: V-brake. Rear: drum brake. Adjustable
Aluminium. 20”x1.50, Spokes14G x 36H
KENDA K123 20”x1.75. A/V tubes
Front: 37x30x20cm basket, Max. Load: 25Kg
Rear: 58x40x25, Max. Load: 40Kg
Sizes: 153x66x102cm
BIKES2015|E-BIKES
7speed
* Range test realized on closed circuit
* Prueba de autonomía realizada en circuito cerrado
* Test d’autonomie réalisé sur circuit fermé
* Eine selbstständige Prüfung findet auf einem abgesperrtem Gelände statt
Authorized for use
in private precincts
only/ Autorizado
para uso en recintos
privados solamente/
Utiliser dans des
enceintes privées
seulement/
Nicht für den
öffentlichen Verkehr
zugelassen
25kg
40kg
36V - 9Ah

57. 57

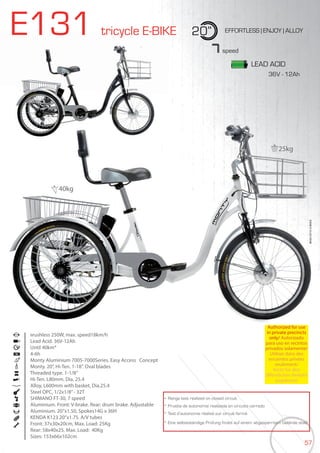

E131 tricycle E-BIKE 20” EFFORTLESS | ENJOY | ALLOY
Brushless 250W, max. speed18km/h
Lead Acid. 36V-12Ah
Until 40km*
4-6h
Monty Aluminium 7005-7000Series. Easy Access Concept
Monty. 20”, Hi-Ten. 1-18”. Oval blades
Threaded type. 1-1/8”
Hi-Ten. L80mm. Dia. 25.4
Alloy, L600mm with basket, Dia.25.4
Steel OPC, 1/2x1/8”- 32T
SHIMANO FT-30, 7 speed
Aluminium. Front: V-brake. Rear: drum brake. Adjustable
Aluminium. 20”x1.50, Spokes14G x 36H
KENDA K123 20”x1.75. A/V tubes
Front: 37x30x20cm, Max. Load: 25Kg
Rear: 58x40x25, Max. Load: 40Kg
Sizes: 153x66x102cm
BIKES2015|E-BIKES
7speed
* Range test realized on closed circuit
* Prueba de autonomía realizada en circuito cerrado
* Test d’autonomie réalisé sur circuit fermé
* Eine selbstständige Prüfung findet auf einem abgesperrtem Gelände statt
LEAD ACID
Authorized for use
in private precincts
only/ Autorizado
para uso en recintos
privados solamente/
Utiliser dans des
enceintes privées
seulement/
Nicht für den
öffentlichen Verkehr
zugelassen
25kg
40kg
36V - 12Ah

58. 58

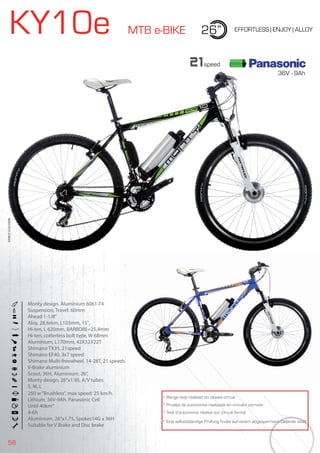

KY10e MTB e-BIKE 26” EFFORTLESS | ENJOY | ALLOY
250 w“Brushless”, max speed: 25 km/h.
Lithium. 36V-9Ah. Panasonic Cell
Until 40km*
4-6h
Aluminium. 26”x1.75, Spokes14G x 36H
Suitable for V Brake and Disc brake
Monty design. Aluminium 6061-T4
Suspension, Travel: 60mm
Ahead 1-1/8”
Aloy, 28.6mm, L105mm, 15°,
Hi-ten, L 620mm, BARBORE=25,4mm
Hi-ten, cotterless bolt type, W 68mm
Aluminium, L170mm, 42X32X22T
Shimano TX35, 21speed
Shimano EF40, 3x7 speed
Shimano Multi-freewheel. 14-28T, 21 speeds
V-Brake aluminium
Scout, 36H, Aluminium, 26”,
Monty design, 26”x1.95, A/V tubes
S, M, L
BIKES2015|E-BIKES
* Range test realized on closed circuit
* Prueba de autonomía realizada en circuito cerrado
* Test d’autonomie réalisé sur circuit fermé
* Eine selbstständige Prüfung findet auf einem abgesperrtem Gelände statt
21speed
36V - 9Ah

59. 59

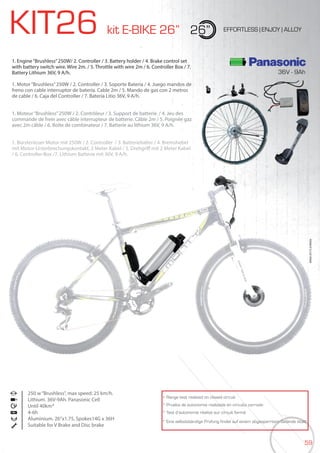

KIT26 kit E-BIKE 26” 26” EFFORTLESS | ENJOY | ALLOY
1. Engine“Brushless”250W/ 2. Controller / 3. Battery holder / 4. Brake control set
with battery switch wire. Wire 2m. / 5. Throttle with wire 2m / 6. Controller Box / 7.
Battery Lithium 36V, 9 A/h.
1. Motor“Brushless”250W / 2. Controller / 3. Soporte Batería / 4. Juego mandos de
freno con cable interruptor de batería. Cable 2m / 5. Mando de gas con 2 metros
de cable / 6. Caja del Controller / 7. Batería Litio 36V, 9 A/h.
1. Moteur“Brushless”250W / 2. Contrôleur / 3. Support de batterie. / 4. Jeu des
commande de frein avec câble interrupteur de batterie. Câble 2m / 5. Poignée gaz
avec 2m câble / 6. Boîte de combinateur / 7. Batterie au lithium 36V, 9 A/h.
1. Bürstenloser Motor mit 250W / 2. Controller / 3. Batteriehalter / 4. Bremshebel
mit Motor-Unterbrechungskontakt, 2 Meter Kabel / 5. Drehgriff mit 2 Meter Kabel
/ 6. Controller-Box /7. Lithium Batterie mit 36V, 9 A/h.
250 w“Brushless”, max speed: 25 km/h.
Lithium. 36V-9Ah. Panasonic Cell
Until 40km*
4-6h
Aluminium. 26”x1.75, Spokes14G x 36H
Suitable for V Brake and Disc brake
BIKES2015|E-BIKES
* Range test realized on closed circuit
* Prueba de autonomía realizada en circuito cerrado
* Test d’autonomie réalisé sur circuit fermé
* Eine selbstständige Prüfung findet auf einem abgesperrtem Gelände statt
36V - 9Ah

60. 60
KIT20 kit E-BIKE 20” 20” EFFORTLESS | ENJOY | ALLOY
1. Engine“Brushless”250W / 2. Battery Lead Acid, 36V, 12 Ah / 3. Grip shifter with
wire 2m / 4. Brake control set with battery switch wire. Wire 2m. / 5. User manual
1. Motor“Brushless”250W / 2. Batería Plomo 36V, 12 Ah / 3. Puño de gas con 2
metros de clable / 4. Juego mandos de freno con cable interruptor de batería.
Cable 2m / 5. Manual de usuario
1. Moteur“Brushless”250W / 2. Batterie Lead Acid 36v, 12 Ah / 3. Poignée gaz avec
2m de câble / 4. Jeu des commande de frein avec câble interrupteur de batterie.
Câble 2m / 5. Manuel d’utilisateur
1. Bürstenloser Motor mit 250W / 2. Bleibatterie mit 36V, 12 Ah / 3. Drehgriff mit 2
Meter Kabel / 4. Bremshebel mit Motor-Unterbrechungskontakt, 2 Meter Kabel /
5. Bedienungsanleitung
BIKES2015|E-BIKES
* Range test realized on closed circuit
* Prueba de autonomía realizada en circuito cerrado
* Test d’autonomie réalisé sur circuit fermé
* Eine selbstständige Prüfung findet auf einem abgesperrtem Gelände statt
250 w“Brushless”, max speed: 25 km/h.
Lithium. 36V-9Ah. Panasonic Cell
Until 40km*
4-6h
Aluminium. 26”x1.75, Spokes14G x 36H
Suitable for V Brake and Disc brake
36V - 9Ah

61. 61

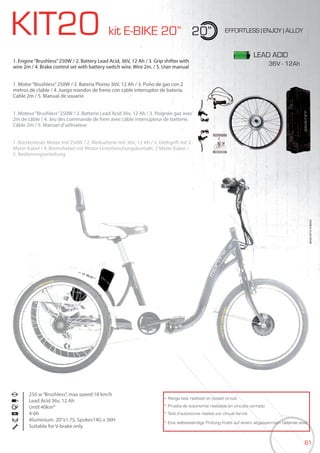

KIT20 kit E-BIKE 20” 20” EFFORTLESS | ENJOY | ALLOY
1. Engine“Brushless”250W / 2. Battery Lead Acid, 36V, 12 Ah / 3. Grip shifter with
wire 2m / 4. Brake control set with battery switch wire. Wire 2m. / 5. User manual
1. Motor“Brushless”250W / 2. Batería Plomo 36V, 12 Ah / 3. Puño de gas con 2
metros de clable / 4. Juego mandos de freno con cable interruptor de batería.
Cable 2m / 5. Manual de usuario
1. Moteur“Brushless”250W / 2. Batterie Lead Acid 36v, 12 Ah / 3. Poignée gaz avec
2m de câble / 4. Jeu des commande de frein avec câble interrupteur de batterie.
Câble 2m / 5. Manuel d’utilisateur
1. Bürstenloser Motor mit 250W / 2. Bleibatterie mit 36V, 12 Ah / 3. Drehgriff mit 2
Meter Kabel / 4. Bremshebel mit Motor-Unterbrechungskontakt, 2 Meter Kabel /
5. Bedienungsanleitung
250 w“Brushless”, max speed:18 km/h
Lead Acid 36v, 12 Ah
Until 40km*
4-6h
Aluminium. 20”x1.75, Spokes14G x 36H
Suitable for V-brake only
BIKES2015|E-BIKES
* Range test realized on closed circuit
* Prueba de autonomía realizada en circuito cerrado
* Test d’autonomie réalisé sur circuit fermé
* Eine selbstständige Prüfung findet auf einem abgesperrtem Gelände statt
LEAD ACID
1. Moteur“Brushless”250W / 2. Batterie Lead Acid 36v, 12 Ah / 3. Poignée gaz avec
36V - 12Ah

64. 64

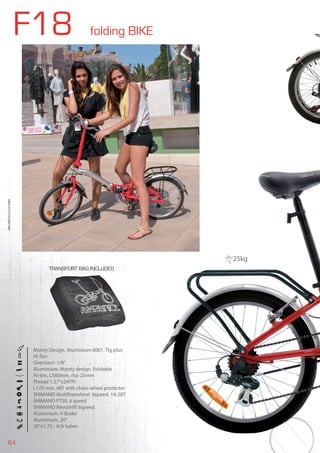

F18 folding BIKE
BIKES2015|FOLDINGBIKE
Monty Design. Aluminium 6061. Tig plus
Hi-Ten
Oversize1-1/8”.
Aluminium. Monty design. Foldable
Hi-ten, L580mm, rise 25mm
Thread 1.37”x24TPI
L170 mm, 48T with chain wheel protector
SHIMANO Multifreewheel 6speed. 14-28T
SHIMANO FT30, 6 speed
SHIMANO Revoshift 6speed
Aluminium. V-Brake
Aluminium, 20”
20”x1.75 - A/V tubes
TRANSPORT BAG INCLUDED
25kg

65. 6565

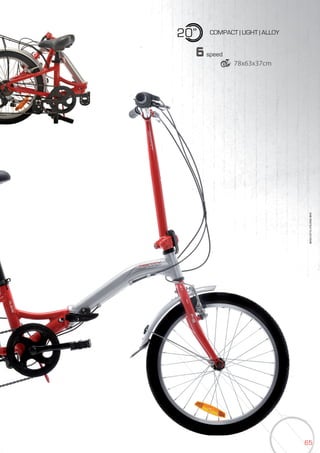

20” COMPACT | LIGHT | ALLOY
BIKES2015|FOLDINGBIKE
6speed
78x63x37cm

66. 66

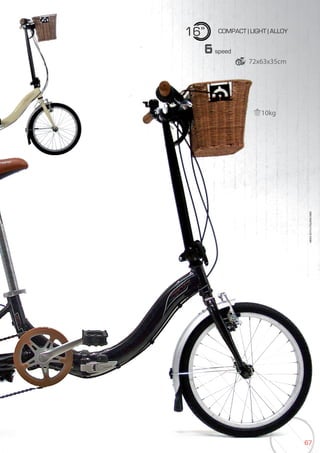

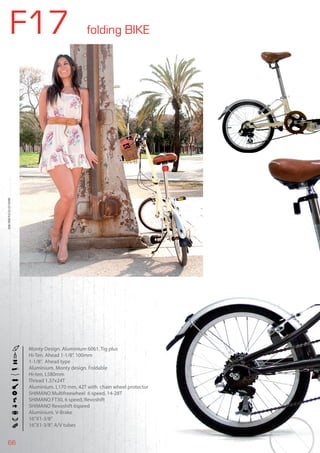

F17 folding BIKE
BIKES2015|FOLDINGBIKE
Monty Design. Aluminium 6061. Tig plus
Hi-Ten. Ahead 1-1/8”. 100mm
1-1/8”. Ahead type
Aluminium. Monty design. Foldable
Hi-ten, L580mm
Thread 1.37x24T
Aluminium. L170 mm, 42T with chain wheel protector
SHIMANO Multifreewheel 6 speed. 14-28T
SHIMANO FT30, 6 speed, Revoshift
SHIMANO Revoshift 6speed
Aluminium. V-Brake
16”X1-3/8”
16”X1-3/8”. A/V tubes

67. 6767
16” COMPACT | LIGHT | ALLOY
BIKES2015|FOLDINGBIKE
6speed
10kg
72x63x35cm

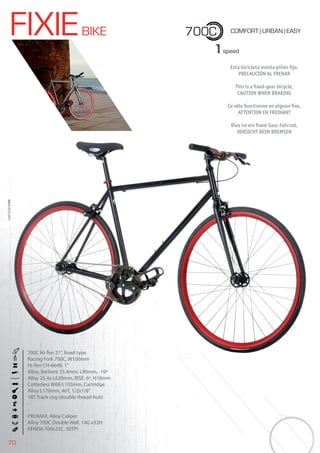

70. 70
FIXIEBIKE 700C COMFORT | URBAN | EASY
BIKES2015|CITY
1speed
Esta bicicleta monta piñón fijo,
PRECAUCIÓN AL FRENAR
This is a fixed-gear bicycle,
CAUTION WHEN BRAKING
Ce vélo fonctionne en pignon fixe,
ATTENTION EN FREINANT
Dies ist ein fixed-Gear Fahrrad,
VORSICHT BEIM BREMSEN
700C Hi-Ten 21”, Road type
Racing Fork 700C, W100mm
Hi-Ten CH-664B, 1”
Alloy, Barbore 25,4mm, L90mm, -10º
Alloy 25.4x L620mm, RISE: 6º, H18mm
Cotterless W68-L103mm, Cartridge
Alloy L170mm, 46T, 1/2x1/8”
18T Track cog (double thread hub)
-
-
PROMAX, Alloy Caliper
Alloy 700C Double Wall, 14G x32H
KENDA 700x25C, 30TPI

71. 71
VINTAGE City 700C COMFORT | RECREATIONAL | ENJOY
BIKES2015|CITY
6speed
700C Hi-Ten + CrMo S/T, Man’s style
700C Hi-Ten, 1”thread, W100mm
CH-801W Steel CP, 1”, 35H
Aluminium L 40mm RISE: 30º
Hi-Ten 25,4 x L610mm, H66mm
UCP , 68x34mm, 5PCS
Steel, 3/32”x36T, L170mm
Shimano TZ20 14-28T, 6speed
Shimano TY21, 6 speed
Shimano Revoshift 6R
V-BRAKES, Aluminium
Alloy 700Cx1.5x14Gx 36H
700x38C, Old style
10kg
25kg

72. 72

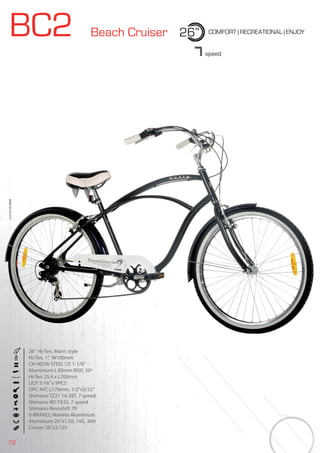

BC2 Beach Cruiser 26” COMFORT | RECREATIONAL | ENJOY
BIKES2015|CITY
7speed
26” Hi-Ten, Man’s style
Hi-Ten, 1”, W100mm
CH-903W STEEL CP, 1-1/8”
Aluminium L 85mm RISE: 30º
Hi-Ten 25,4 x L700mm
UCP 5/16”x 9PCS
OPC 44T, L170mm, 1/2”x3/32”
Shimano TZ21 14-28T, 7 speed
Shimano RD-TX35, 7 speed
Shimano Revoshift 7R
V-BRAKES, Maneta Aluminium
Aluminium 26”x1.50, 14G, 36H
Cruiser 26”x2.125

73. 73
BIKES2015|CITY

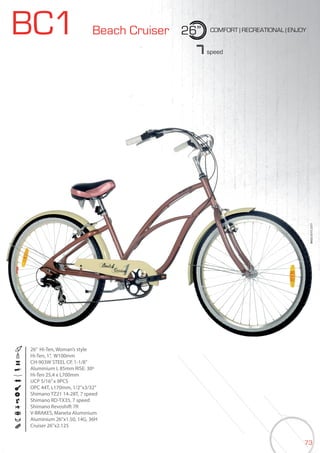

BC1 Beach Cruiser 26” COMFORT | RECREATIONAL | ENJOY
7speed
26” Hi-Ten, Woman’s style
Hi-Ten, 1”, W100mm
CH-903W STEEL CP, 1-1/8”
Aluminium L 85mm RISE: 30º
Hi-Ten 25,4 x L700mm
UCP 5/16”x 9PCS
OPC 44T, L170mm, 1/2”x3/32”
Shimano TZ21 14-28T, 7 speed
Shimano RD-TX35, 7 speed
Shimano Revoshift 7R
V-BRAKES, Maneta Aluminium
Aluminium 26”x1.50, 14G, 36H
Cruiser 26”x2.125

74. 74

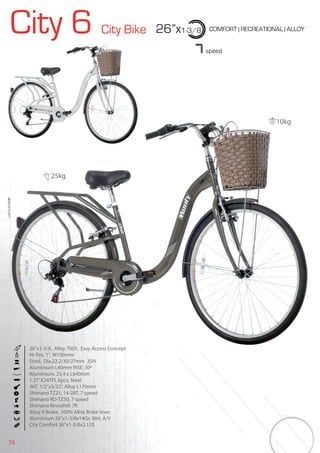

City 6 City Bike 26”x1-3/8 COMFORT | RECREATIONAL | ALLOY
BIKES2015|CITY
7speed
26”x1-3/8, Alloy 7005, Easy Access Concept
Hi-Ten, 1”, W100mm
Steel, Dia.22,2/30/27mm 35H
Aluminium L40mm RISE: 30º
Aluminium, 25,4 x L640mm
1.37”X24TPI, 6pcs, Steel
36T, 1/2”x3/32”, Alloy L170mm
Shimano TZ21, 14-28T, 7 speed
Shimano RD-TZ50, 7 speed
Shimano Revoshift 7R
Alloy V-Brake, 100% Alloy Brake lever
Aluminium 26”x1-3/8x14Gx 36H, A/V
City Comfort 26”x1-3/8x2.125
10kg
25kg

75. 75

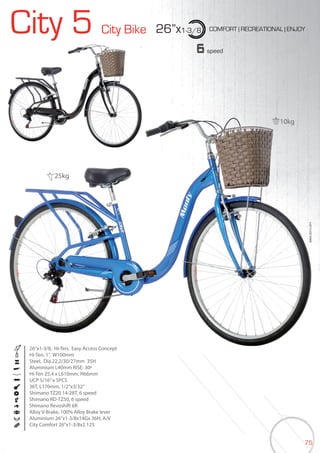

City 5 City Bike 26”x1-3/8 COMFORT | RECREATIONAL | ENJOY
BIKES2015|CITY
6speed
26”x1-3/8, Hi-Ten, Easy Access Concept
Hi-Ten, 1”, W100mm
Steel, Dia.22,2/30/27mm 35H
Aluminium L40mm RISE: 30º
Hi-Ten 25,4 x L610mm, H66mm
UCP 5/16”x 5PCS
36T, L170mm, 1/2”x3/32”
Shimano TZ20 14-28T, 6 speed
Shimano RD-TZ50, 6 speed
Shimano Revoshift 6R
Alloy V-Brake, 100% Alloy Brake lever
Aluminium 26”x1-3/8x14Gx 36H, A/V
City Comfort 26”x1-3/8x2.125
City 5
10kg
25kg

76. 76
City 4 City Bike COMFORT | RECREATIONAL | ENJOY
BIKES2015|CITY
1speed
26”x1-3/8
26”x1-3/8, Hi-Ten, Easy Access Concept
Hi-Ten, 1”, W100mm
Steel, Dia.22,2/30/27mm 35H
Aluminium L40mm RISE: 30º
Hi-Ten 25,4 x L610mm, H66mm
1.37”x24T- 6PCS
36T, L170mm, 1/2”x1/8”, Cotterless
18T Track cog
-
-
Alloy V-Brake, 100% Alloy Brake lever
Alloy 26”x1-3/8x14Gx 36H, A/V
City Comfort 26”x1-3/8x2.125
25kg

77. 77

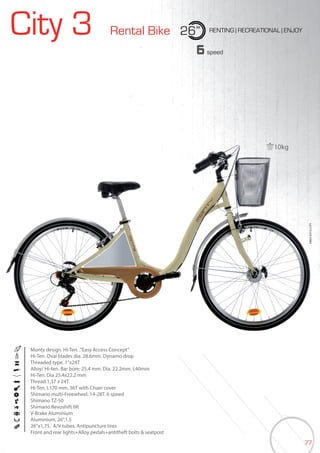

City 3 Rental Bike 26” RENTING | RECREATIONAL | ENJOY
BIKES2015|CITY
6speed
Monty design. Hi-Ten. .”Easy Access Concept”
Hi-Ten. Oval blades dia. 28.6mm. Dynamo drop
Threaded type. 1”x24T
Alloy/ Hi-ten. Bar bore: 25.4 mm. Dia. 22.2mm. L40mm
Hi-Ten. Dia 25.4x22.2 mm
Thread 1,37 x 24T
Hi-Ten. L170 mm, 36T with Chain cover
Shimano multi-Freewheel. 14-28T. 6 speed
Shimano TZ-50
Shimano Revoshift 6R
V-Brake Aluminium
Aluminium, 26”,1.5
26”x1,75. A/V tubes. Antipuncture tires
Front and rear lights+Alloy pedals+antitheft bolts & seatpost
10kg

78. 78
608 Tricycle
BIKES2015|CITY
40kg
Monty Aluminium 7005-7000Series. Easy Access
Monty. 20”, Hi-Ten. 1”-1/8. Oval blades
Threaded type. 1-1/8”
Hi-Ten L600mm. Dia.25.4
Alloy, L600mm with basket, Dia.25.4
Steel OPC 1/2”x1/32”- 32T
SHIMANO 7speed
SHIMANO FT-30 7 speed
SHIMANO Revoshift 7speed
Aluminium. Front: V-brake. Rear: drum brake. Adjustable
Aluminium. 20”x1.50, Spokes14G x 36H
KENDA K123 20”x1.75. A/V tubes
Front: 37x30x20cm basket, Max. Load: 25Kg
Rear: 58x40x25, Max. Load: 40Kg
Sizes: 153x66x102cm

79. 7979

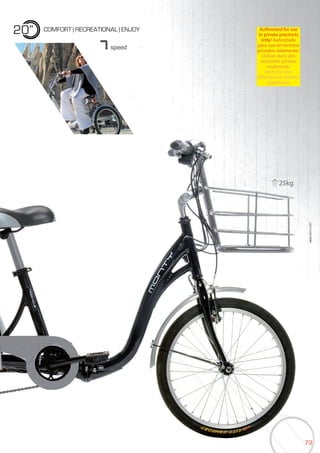

COMFORT | RECREATIONAL | ENJOY
BIKES2015|CITY
7speed
20” Authorized for use
in private precincts
only/ Autorizado
para uso en recintos
privados solamente/
Utiliser dans des
enceintes privées
seulement/
Nicht für den
öffentlichen Verkehr
zugelassen
25kg

82. 82

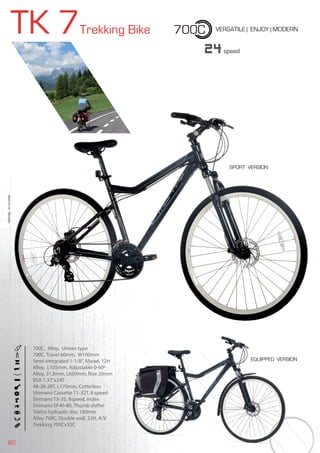

TK 7Trekking Bike VERSATILE | ENJOY | MODERN
BIKES2015|TREKKING
24speed
700C
700C, Alloy, Unisex type
700C, Travel 60mm, W100mm
Semi-integrated 1-1/8”, Ahead, 12H
Alloy, L105mm, Adjustable 0-60º
Alloy, 31,8mm, L660mm, Rise 20mm
BSA 1.37”x24T
48-38-28T, L170mm, Cotterless
Shimano Cassette 11-32T, 8 speed
Shimano TX-35, 8speed, Index
Shimano EF40-8R, Thumb shifter
Tektro hydraulic disc 160mm
Alloy 700C, Double wall, 32H, A/V
Trekking 700Cx35C
EQUIPPED VERSION
SPORT VERSION

83. 83

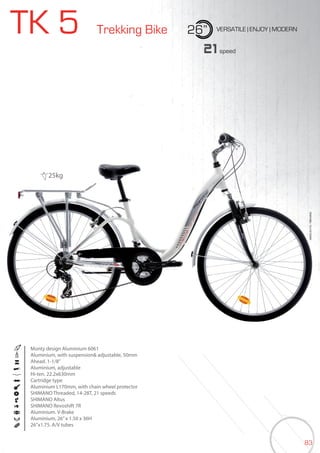

TK 5 Trekking Bike 26” VERSATILE | ENJOY | MODERN
BIKES2015|TREKKING
21speed
Monty design Aluminium 6061
Aluminium, with suspension& adjustable, 50mm
Ahead. 1-1/8”
Aluminium, adjustable
Hi-ten. 22.2x630mm
Cartridge type
Aluminium L170mm, with chain wheel protector
SHIMANO Threaded, 14-28T, 21 speeds
SHIMANO Altus
SHIMANO Revoshift 7R
Aluminium. V-Brake
Aluminium, 26”x 1.50 x 36H
26”x1.75. A/V tubes
25kg

84. 8484

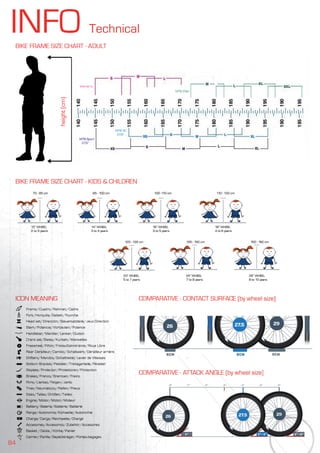

INFO Technical

85. 8585

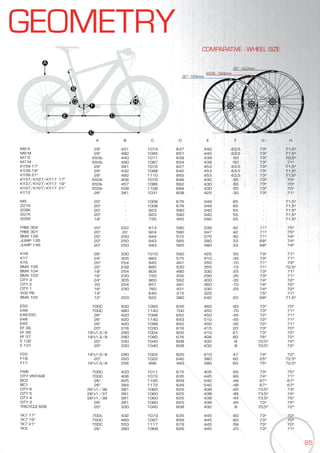

GEOMETRY
