This document provides information on several mountain bike models from Cannondale, including full suspension and hardtail models for cross country, trail, and enduro riding. It describes the Lefty and SuperMax front suspension systems, which are lighter, stiffer, and stronger than competitors. Several models are highlighted, including the Trigger 29 that can adjust travel from 80mm to 130mm, and the Jekyll that adjusts from 150mm to 90mm. The Scalpel 29 is described as a featherlight cross country bike with a Lefty fork and BallisTec carbon construction.

1. Mountain
–– MOUNTAIN
Jérôme Clémentz - Reunion Island
Boundary-breaking, dual-travel,
dual-geometry, two-in-one
superbikes that redefine the “all”
in all-mountain riding.
Light, responsive, versatile full
suspension bikes designed for fast
trail riding.
Ultra-light, race-oriented hardtails
for riders seeking the ultimate in
efficiency and speed.
Light, durable, high-performance
mountain bikes for all-around
trail riding.
OverMountain
Cross Country
Full Suspension
Cross Country
Hardtails
Trail Hardtails
51

2. –– MOUNTAIN
headsho
k
LEFTY
Manuel Fumic -Cannondale
Factory Racing - Finale Ligure, ITA
LIGHTER
At 1332 grams and 1850 grams respectively, the
Lefty Carbon XLR and SuperMax Carbon are over
300 grams lighter than their competitors.
STIFFER
Their unconventional design give them stiffness
comparable to the burliest freeride forks, while
weighing less than any competitor. Lightweight
efficiency with heavyweight control.
STRONGER
Gram for gram, Lefty and SuperMax are the
strongest forks in the world. Even our lightest
forks go head to head in destructive testing with
forks designed for much more abusive riding.
Cross-Country weight meets All-Mountain tough.
SMOOTHER
The heart of the Lefty, Cannondale’s patented
hybrid needle-bearing technology keeps the
suspension moving freely, regardless of load.
Even under the hardest braking, impact, and
steering forces, the wheel is able to track the
ground fluidly for maximum control.
LESS MAINTENANCE
Lefty and SuperMax require around half the
regular maintenance of the competition, so you’ll
spend less time servicing, and more time riding.

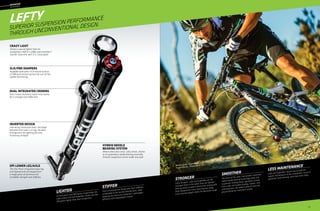

Superior suspension performance
through unconventional design.
Hybrid Needle
Bearing System
Where other forks bind, Lefty shines, thanks
to its proprietary needle bearing assembly.
Smooth suspension action under any load.
OPI Lower Leg/Axle
The One-Piece-Integrated lower leg
and tapered axle are forged from
a single piece of aluminum for
incredible strength and stiffness.
Inverted Design
Like racing motorcycle forks, the larger
diameter fork tube is on top, the best
arrangement for fighting flex and
increasing strength
Dual Integrated Crowns
Dual Crowns distribute loads more evenly
for a stronger and stiffer fork
XLR/PBR Dampers
Available with either XLR remote lockout,
or PBR push button lockout for out-of-the-
saddle hammering.
Crazy Light
Almost a pound lighter than its
competitors AND it’s stiffer and smoother?
Sounds crazy and, well, it is. Crazy good.
53

3. –– MOUNTAIN
headsho
k

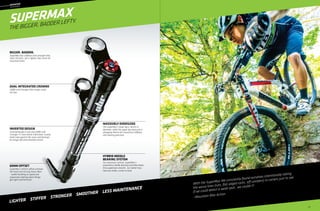

SuperMax
Ben Cruz in Alsace, France
The Bigger, Badder Lefty.
With the SuperMax We constantly found ourselves intentionally taking
the worse lines (ruts, flat-edged rocks, off cambers) in corners just to see
if we could detect a weak spot…we couldn’t!
—Mountain Bike Action
Hybrid Needle
Bearing System
For maximum control, SuperMax’s
proprietary needle bearing assembly keeps
the suspension smooth , no matter how
hard you brake, corner or land.
60mm Offset
SuperMax’s 60mm offset achieves
the Holy Grail of long travel 29ers
- stable handling at speed and
responsive steering when things
get tight and technical.
Inverted Design
Inverted design is not only stiffer and
stronger, it’s also better lubricated. Gravity
holds lube against the seals and bearings
for longer life and smoother action.
Dual Integrated Crowns
Stiffer and stronger than single crown
set-ups.
Massively Oversized
The SuperMax’s lower leg is 36mm in
diameter, while the upper leg measures a
whopping 46mm for maximum stiffness
and steering precision.
Bigger. Badder.
SuperMax has stiffness and strength that
rivals DH forks, yet is lighter than most all-
mountain forks.
LIGHTER STIFFer STRONGER SMOOTHER LESS MAINTENANCE
55

4. –– MOUNTAIN
OVERMOUNTAIN
Jérôme Clémentz and Ben Cruz -
Ligurian Coast , ITA
57

5. 59
–– MOUNTAIN
OVERMOUNTAIN

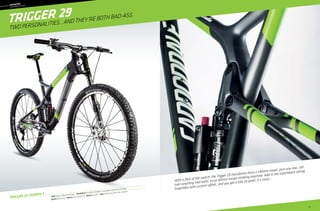

Trigger 29
Trigger 29 Carbon 1
Frame: Trigger 29, BallisTec Hi-MOD Carbon Suspension R/F: Fox DYAD RT2 (130/80mm) / Lefty SuperMax Carbon PBR 130 29 (130mm)
RD/Shift: SRAM XX1/X01 Wheelset: Mavic Crossmax ST 29 Brakes: Magura MT6 Color: Jet Black w/ Gray, White, Green - Matte (01)
With a flick of the switch, the Trigger 29 transforms from a 130mm-travel, pick-any-line, roll-
over-anything trail eater, to an 80mm-travel climbing machine. Add in the switchback-slicing
SuperMax with custom offset, and you get a bike so good, it’s crazy…
Two Personalities…and they’re both Bad-Ass.

6. Trigger 29 Carbon 2
–– MOUNTAIN
OVERMOUNTAIN
Frame: Trigger 29, BallisTec Hi-MOD Carbon Suspension R/F: Fox DYAD RT2 (130/80mm) / Lefty SuperMax PBR 130 29 (130mm) RD/FD/Shift: Shimano XT
Wheelset: Mavic Crossroc 29 WTS Brakes: Shimano XT Trail Color: Magnesium White w/Black, Red - Gloss (01)

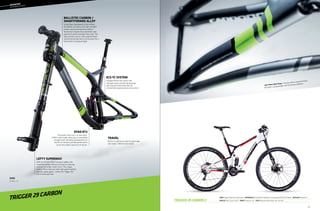

trigger 29 carbon
BALLISTEC CARBON /
SMARTFORMED ALLOY
Using fibers developed by the military
for ballistic armoring, this high-strength
carbon construction process yields a
frame that’s lighter than aluminum and
pound-for-pound stronger than steel. The
alloy versions use our ultra sophisticated
SmartFormed aluminum construction for a
frame that’s strong yet light.
ECS-TC SYSTEM
Clamped 15mm thru-axle in the
swingarm pivot and double bearings
seat stay pivot eliminate flex for
unmatched responsiveness and control.
LEFTY SUPERMAX
With its off-the-charts torsional rigidity, the
SuperMax brings unheard-of levels of steering
precision to longer travel 29’ers. The unique
60mm offset improves both high speed stability
and low speed agility - perfect for Trigger 29’s
full-throttle attitude.
TRAVEL
80mm to 130mm on-the-fly adjustable
rear travel / 130mm front travel.
DYAD RT2
The world’s only true 2-in-one shock.
DYAD’s dual modes allow you to completely
change travel, damping and geometry on
the fly for the best possible performance
across the widest spectrum of terrain.
sizes
S, M, L, X
Zero Pivot Seat Stays. Flexing carbon stays eliminate
the pivot, saving weight and increasing stiffness.
61

7. 63
Frame: Trigger 29, SmartFormed Alloy Suspension R/F: Fox DYAD RT2 dual shock (130/80mm) / RockShox Revelation RL 29 (130mm) RD/FD/Shift: Shimano
SLX/Deore/Deore Wheelset: WTB ST i23 29 TCS / Formula Brakes: Shimano SLX, 180/180mm Color: Jet Black w/ Blue, Orange and White - Gloss (01)
–– MOUNTAIN
OVERMOUNTAIN

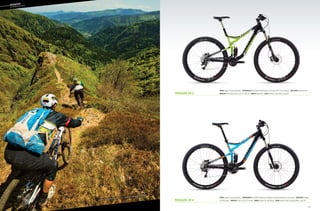

Trigger 29 4
Trigger 29 3
Frame: Trigger 29, SmartFormed Alloy Suspension R/F: Fox DYAD RT2 (130/80mm) / Fox 34 Float CTD FIT 29, O/C (130mm) RD/FD/Shift: SRAM X9/X7/X7
Wheelset: WTB Frequency Race i23 29 TCS / SRAM X9 Brakes: Magura MT4 Color: Jet Black w/ Green, White - Gloss (01)
Jérôme Clémentz and Ben Cruz - Jerome’s Backyard, France

8. 65
–– MOUNTAIN
OVERMOUNTAIN

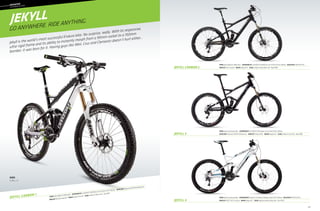

JEKYLL
JEKYLL CARBON 1
Frame: Jekyll, SmartFormed Alloy Suspension R/F: Xfusion P1-RL (150mm) / RockShox Sektor TK DPC (150mm) RD/FD/Shift: SRAM X7/X7/X5
Wheelset: WTB ST I19 TCS /Formula Brakes: Magura MT2 Color: Magnesium White w/ Black, Blue - Gloss (WHT)
Frame: Jekyll, SmartFormed Alloy Suspension R/F: Fox DYAD RT2 (150/90mm) / Fox 34 Float CTD O/C (150mm)
RD/FD/Shift: Shimano XT/SRAM X7/Shimano SLX Wheelset: Shimano MT68 Brakes: Magura MT2 Color: Jet Black w/ Gray, Silver - Matte (BBQ)
Frame: Jekyll, BallisTec Hi-MOD Carbon Suspension R/F: Fox DYAD RT2 (150/90mm) / Fox 34 TALAS CTD O/C (160mm) RD/FD/Shift: SRAM X9/X7/X9
Wheelset: Mavic Crosstrail Brakes: Magura MT4 Color: Jet Black w/ Nearly Black, Gold - Matte (BBQ)
Frame: Jekyll, BallisTec Hi-MOD Carbon Suspension R/F: Fox DYAD RT2 (150/90mm) / Fox 34 TALAS CTD FIT (160mm) RD/FD/Shift: Shimano XTR/SRAM X0/Shimano XT
Wheelset: Reynolds Carbon AM Brakes: Shimano XTR Trail Color: Jet Black w/ White, Green - Gloss (BLK)
Jekyll 4
Jekyll 3
Jekyll Carbon 2
GO ANYWHERE. RIDE ANYTHING.
Jekyll is the world’s most successful Enduro bike. No surprise, really. With its responsive,
ultra-rigid frame and its ability to instantly morph from a 90mm rocket to a 150mm
bomber, it was born for it. Having guys like Weir, Cruz and Clementz doesn’t hurt either...
sizes
S, M, L, X

9. –– MOUNTAIN
cross
country full suspension
Marco Fontana and Manuel Fumic - Cape Epic, RSA
67

10. 69
69

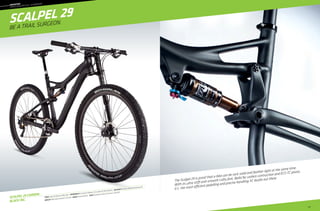

Scalpel 29 Carbon
Black Inc.
–– MOUNTAIN
cross
country full suspension
Scalpel 29
Frame: Scalpel 29, BallisTec Hi-MOD Carbon Suspension R/F: Fox Float CTD (100mm) / Lefty Carbon XLR 100 29 (100mm) RD/FD/Shift: Shimano XTR/SRAM XO/Shimano XTR
Wheelset: ENVE Carbon Twenty9 XC / Chris King Brakes: Shimano XTR Race Color: Nearly Black, w/ Black, Gray Accents - Matte (01)
The Scalpel 29 is proof that a bike can be rock-solid and feather-light at the same time.
With its ultra stiff-and-smooth Lefty fork, BallisTec carbon contruction and ECS-TC pivots,
it’s the most efficient pedalling and precise handling XC dualie out there.
Be a trail surgeon.

11. –– MOUNTAIN
cross
country full suspension

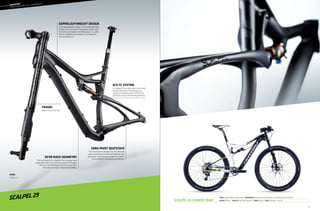

Scalpel 29 Carbon Team
Frame: Scalpel 29, BallisTec Hi-MOD Carbon Suspension R/F: RockShox XX Full Sprint (100mm) / Lefty Carbon XLR 100 29 (100mm)
RD/Shift: SRAM XX1 Wheelset: ENVE Carbon Twenty9 XC Brakes: Avid XX Color: Team Replica - Gloss (01)
scalpel 29
TRAVEL
100mm front and rear.
SUPERLIGHTWEIGHT DESIGN
Ultra light BallisTec Carbon or SmartFormed Alloy
frames with the System Integration of the Lefty
fork, OPI stem/steerer and Hollowgram SL cranks
deliver complete bike weights our competitors
can only dream of.
ZERO-PIVOT SEATSTAYS
The seatstays are designed to flex vertically
while remaining extremely stiff laterally and
torsionally. This enhances suspension perfor-
mance without affecting power delivery.
ECS-TC SYSTEM
A clamped, 15mm thru-axle in the shock
linkage eliminates flex and play, pro-
viding unmatched center-stiffness for
optimum control and steering precision.
29’er RACE GEOMETRY
The combination of a steeper-than-average head
angle and super short chainstays gives the Scalpel
29’er a similar wheelbase and trail to our 26’er
bikes for ultra sharp, responsive handling.
sizes
S, M, L, X
71

12. –– MOUNTAIN
cross
country full suspension

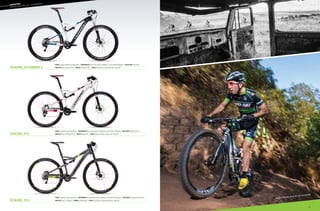

Scalpel 29 4
Scalpel 29 3
Scalpel 29 Carbon 2
Frame: Scalpel 29, SmartFormed Alloy Suspension R/F: RockShox Monarch RL (100mm) / Lefty PBR 100 29 (100mm) RD/FD/Shift: Shimano SLX/Deore/SLX
Wheelset: Stan’s ZTR Rapid 29 Brakes: Shimano Deore Color: Charcoal Grey, w/ Black, Neon Spring - Matte (01)
Frame: Scalpel 29, SmartFormed Alloy Suspension R/F: Fox Performance CTD (100mm) / Lefty XLR 100 29 (100mm) RD/FD/Shift: SRAM X9/X7/X7
Wheelset: Stan’s ZTR Rapid 29 / X9 Brakes: Magura MT2 Color: Magnesium White, w/ Black, Red - Gloss (01)
Frame: Scalpel 29, BallisTec Hi-MOD Carbon Suspension R/F: Fox Performance CTD (100mm) / Lefty XLR 100 29 (100mm) RD/FD/Shift: Shimano XT
Wheelset: Mavic Crossroc 29 WTS Brakes: Shimano XT Race Color: Mariner Blue, w/ White, Red, Blue - Gloss (01)
Jeremiah Bishop, team Sho-Air Cannondale.
73

13. 75

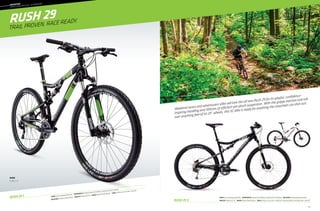

Frame: Rush 29, Optimized 6061 Alloy Suspension R/F: Xfusion 02 RL (100mm) / RockShox XC30 TK (100mm) RD/FD/Shift: Shimano Deore/Alivio/Alivio
Wheelset: Maddux DC3.0 29 Brakes: Shimano M446 hydraulic Color: Jet Black, w/ Gray, Silver - Matte (01) // Magnesium White, w/ Red, Black, Blue - Gloss (02)
Rush 29 1
Rush 29 2
–– MOUNTAIN
cross
country full suspension
Rush 29
Frame: Rush 29, Optimized 6061 Alloy Suspension R/F: RockShox Monarch RL (100mm) / RockShox 30 Gold TK (100mm)
RD/FD/Shift: Shimano XT/Deore/Deore Wheelset: Maddux DC3.0 29 Brakes: Shimano M446 hydraulic Color: Jet Black, w/ Green, White - Gloss (01)
Cannondale Engineer, Matt Timmerman - Bethel, CT
sizes
S, M, L, X
Trail proven. Race ready.
Weekend racers and adventurers alike will love the all new Rush 29 for its playful, confidence-
inspiring handling and 100mm of efficient-yet-plush suspension. With the grippy traction and roll-
over-anything feel of its 29” wheels, this XC bike is ready for anything the mountain can dish out.

14. CFR TEAM.
Lorem ipsum dolor sit amet, consectetur
adipiscing elit. Mauris rutrum tristique lorem ut
vestibulumeses Mauris rutrum ut vestibulum.
77

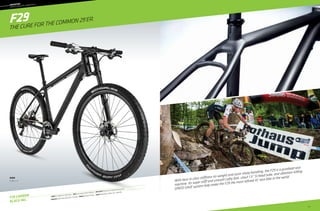

F29 Carbon
Black Inc.
–– MOUNTAIN
cross
country hardtails
F29
Frame: F29, BallisTec Hi-MOD Carbon Fork: Lefty Carbon XLR 90 29 (90mm) RD/FD/Shift: Shimano XTR/SRAM XO/Shimano XTR
Wheelset: ENVE Carbon Twenty9 XC / Chris King Brakes: Shimano XTR Race Color: Nearly Black, w/ Black, Gray - Matte (01)
Max Plaxton - Sho-Air Cannondale - Albstadt, GER
sizes
S, M, L, X With best in class stiffness-to-weight and razor sharp handling, the F29 is a purebred race
machine. Its super stiff and smooth Lefty fork, stout 1.5” SI head tube, and vibration-killing
SPEED SAVE system help make the F29 the most refined XC race bike in the world.
The cure for the common 29’er.

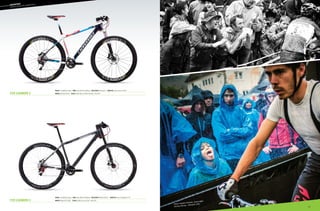

15. Frame: F29, BallisTec Carbon Fork: Lefty PBR 90 29 (90mm) RD/FD/Shift: SRAM X9/X7/X7 Wheelset: Stan’s ZTR Rapid 29 / X9
Brakes: Magura MT2 w/BAT Color: Jet Black, w/Gray, Silver - Matte (01)
Frame: F29, BallisTec Carbon Fork: Lefty XLR 90 29 (90mm) RD/FD/Shift: Shimano XT Wheelset: Mavic Crossroc 29 WTS
Brakes: Shimano XT Race Color: Mariner Blue, w/ White, Red, Blue - Gloss (01)
–– MOUNTAIN
cross
country hardtails
F29 Carbon 3
F29 Carbon 2
Marco Aurelio Fontana, Cannondale
Factory Racing - Albstadt, GER

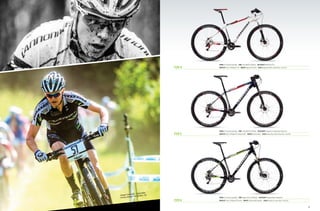

79

16. 81
Frame: F29, SmartFormed Alloy Fork: Magura TS6 Air 29 (100mm) RD/FD/Shift: Shimano Deore, Shadow Plus
Wheelset: Stan’s ZTR Rapid 29/ Formula Brakes: Shimano M505 hydraulic Color: Jet Black, w/ Green, White - Gloss (01)
Frame: F29, SmartFormed Alloy Fork: Lefty PBR 90 29 (90mm) RD/FD/Shift: Shimano SLX, Shadow Plus /Deore/SLX
Wheelset: Stan’s ZTR Rapid 29 / Shimano M525 Brakes: Shimano Deore Color: Mariner Blue, w/Red, White, Blue - Gloss (01)
Frame: F29, SmartFormed Alloy Fork: Lefty PBR 90 29 (90mm) RD/FD/Shift: SRAM X9/X7/X7
Wheelset: Stan’s ZTR Rapid 29 / X9 Brakes: Magura MT2 w/BAT Color: Magnesium White, w/ Red, Black - Gloss (01)
F29 6
F29 5
F29 4
Keegan Swenson - Cannondale
Factory Racing - Val di Sole, ITA.

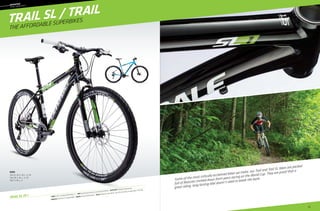

17. 83
83
Trail SL 29 1
–– MOUNTAIN
trail
hardtails
TRAIL SL / TRAIL
Frame: Trail SL 29, Optimized 6061 Alloy, 1.5” Fork: RockShox Recon Gold, air, remote lockout (100mm) RD/FD/Shift: Shimano XT/Deore/Deore
Wheelset: Alex DC3.0 29 / Shimano RM66 Brakes: Shimano M505 hydraulic Color: Jet Black, w/ Green, White - Gloss (01) // Ultra Blue, w/ White, Black - Gloss (02)
Some of the most critically acclaimed bikes we make, our Trail and Trail SL bikes are packed
full of features trickled down from years racing on the World Cup. They are proof that a
great riding, long lasting bike doesn’t need to break the bank.
The affordable superbikes.
sizes
Trail SL 29: S, M, L, X, 2X
Trail 29: S, M, L, X, 2X
Trail: S, M, L, X

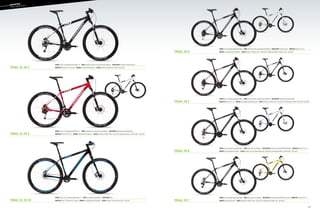

18. 85
Frame: Trail SL 29 SS, Optimized 6061 Alloy, 1.5” Fork: Cannondale Fatty Rigid 29 RD/FD/Shift: N/A
Wheelset: Stan’s ZTR Rapid 29 / Formula Brakes: Cannondale Helix 6 Hydraulic Color: Jet Black, w/ Burnt Sienna, Blue - Gloss (01)
Frame: Trail SL 29, Optimized 6061 Alloy, 1.5” Fork: RockShox XC30, remote lockout (100mm) RD/FD/Shift: Shimano Deore/Alivio/Alivio
Wheelset: Alex DC3.0 29 / C4 Brakes: Shimano M446 hydraulic Color: Race Red, w/ White, Black - Gloss (01) // Magnesium White, w/ Black, Blue - Gloss (02)
Frame: Trail SL 29, Optimized 6061 Alloy, 1.5” Fork: RockShox 30 Gold, air, remote lockout (100mm) RD/FD/Shift: Shimano SLX/Deore/Deore
Wheelset: Alex DC3.0 29 / Formula Brakes: Shimano M446 hydraulic Color: Jet Black, w/ Black Gloss, White - Matte (01)
Trail 29 6
Trail 29 7
Trail 29 5
Trail 29 4
Trail SL 29 SS
Trail SL 29 3
Trail SL 29 2
–– MOUNTAIN
trail
hardtails
Frame: Trail 29, double-butted 6061 Alloy Fork: SR Suntour XCT (100mm) RD/FD/Shift: Shimano Acera/M190/M310 Rapidfire Wheelset: Alex DC 5.0 / C4
Brakes: Promax Decipher Hydraulic Color: Jet Black, w/ Grey, Nearly Black, Red - Matte (01) // Magnesium White, w/ Black, Blue - Gloss (02)
Frame: Trail 29, double-butted 6061 Alloy Fork: SR Suntour XCT (100mm) RD/FD/Shift: Shimano Altus/M190/EF51 Easyfire Wheelset: Alex DC 5.0 / C4
Brakes: Tektro Novela cable Color: Jet Black, w/ White, Green - Gloss (01) // Cdale Yellow, w/ Black, Grey - Gloss (02)
Frame: Trail 29, double-butted 6061 Alloy Fork: SR Suntour XCM, remote lockout (100mm) RD/FD/Shift: Shimano Acera/Altus/Altus
Wheelset: Alex DC 4.0 / C4 Brakes: Cannondale Helix 6B hydraulic Color: Jet Black, w/ White, Red - Gloss (01) // Mariner Blue, w/ White, Blue, Red - Matte (02)
Frame: Trail 29, double-butted 6061 Alloy Fork: SR Suntour XCR, remote lockout (100mm) RD/FD/Shift: Shimano Alivio Wheelset: Alex DC 4.0 / C4
Brakes: Cannondale Helix 6 hydraulic Color: Jet Black, w/ White, Silver - Matte (01) // Magnesium White, w/ Black, Green - Gloss (02)

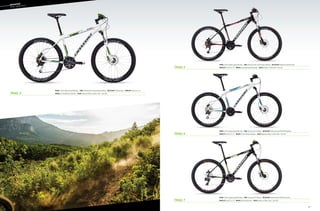

19. 87
Frame: Trail 26, double-butted 6061 Alloy Fork: SR Suntour XCT (100mm) RD/FD/Shift: Shimano Altus/M190/EF51 Easyfire
Wheelset: Alex DC 5.0 / C4 Brakes: Tektro Novela cable Color: Jet Black, w/ White, Green - Gloss (01)
Frame: Trail 26, double-butted 6061 Alloy Fork: SR Suntour XCT (100mm) RD/FD/Shift: Shimano Acera/M190/M310 Rapidfire
Wheelset: Alex DC 5.0 / C4 Brakes: Promax Decipher Hydraulic Color: Magnesium White, w/ Black, Blue - Gloss (01)
Frame: Trail 26, double-butted 6061 Alloy Fork: SR Suntour XCM, remote lockout (100mm) RD/FD/Shift: Shimano Acera/Altus/Altus
Wheelset: Alex DC 4.0 / C4 Brakes: Cannondale Helix 6B hydraulic Color: Jet Black, w/ White, Red - Gloss (01)
Frame: Trail 26, double-butted 6061 Alloy Fork: SR Suntour XCR, remote lockout (100mm) RD/FD/Shift: Shimano Alivio Wheelset: Alex DC 4.0 / C4
Brakes: Cannondale Helix 6 hydraulic Color: Magnesium White, w/ Black, Green - Gloss (01)
Trail 7
Trail 6
Trail 5
Trail 4
–– MOUNTAIN
trail
hardtails
