The document describes several modular coal preparation plant projects supplied by Beijing HOT Mining Tech Co., Ltd. The projects include 250 tph modular plants in Illinois and Mongolia for duff dust recovery and coal washing, 80 and 200 tph modular plants in South Africa and Namibia using dense medium separation technology, and a 180 tph plant in South Africa. All of the plants have yields between 0.8 and 1.2 million tonnes per year.

1. 移动式模块化选煤厂实例
Application of Mobile Modular Coal
Preparation Plant
北京浩沃特矿业技术有限公司
Beijing HOT Mining Tech Co., Ltd

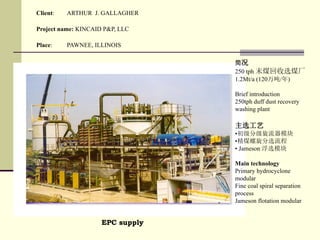

2. EPC supply
Client: ARTHUR J. GALLAGHER
Project name: KINCAID P&P, LLC
Place: PAWNEE, ILLINOIS
简况
250 tph 末煤回收选煤厂
1.2Mt/a (120万吨/年)
Brief introduction
250tph duff dust recovery
washing plant
主选工艺
•初级分级旋流器模块
•精煤螺旋分选流程
• Jameson 浮选模块
Main technology
Primary hydrocyclone
modular
Fine coal spiral separation
process
Jameson flotation modular

3. CLIENT: P.T. UTAH INDONESIA
(BHP MINERALS INTERNATIONAL)
PROJECT: PETANGIS COAL PROJECT
LOCATION: KALIMANTAN INDONESIA
DESCRIPTION
Turnkey design, construction and commissioning of
a thermal coal mine and all associated facilities
FEATURES
•Increased capacity to 400 tph
•Process 1.0mm x 100 mesh raw coal in spirals
•Reduce overall product surface moisture
HOT
2090 Greentree Road
Pittsburgh, Pennsylvania 15220
Tel: 412-429-9800 Fax: 412-429-9801
3681 Robert C. Byrd Drive
Beckley, West Virginia
Tel: 304-256-0031 Fax: 304-256-0033

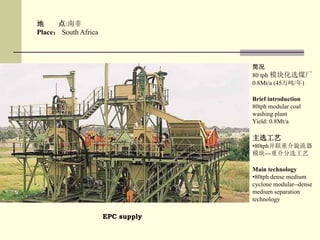

4. EPC supply
地 点:南非
Place： South Africa
简况
80 tph 模块化选煤厂
0.8Mt/a (45万吨/年)
Brief introduction
80tph modular coal
washing plant
Yield: 0.8Mt/a
主选工艺
•80tph并联重介旋流器
模块---重介分选工艺
Main technology
•80tph dense medium
cyclone modular--dense
medium separation
technology

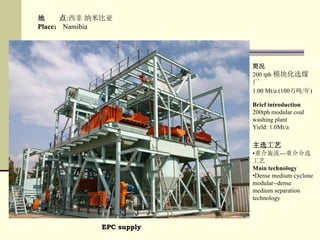

5. EPC supply
地 点:西非 纳米比亚
Place： Namibia
简况
200 tph 模块化选煤
厂
1.00 Mt/a (100万吨/年)
Brief introduction
200tph modular coal
washing plant
Yield: 1.0Mt/a
主选工艺
•重介旋流---重介分选
工艺
Main technology
•Dense medium cyclone
modular--dense
medium separation
technology

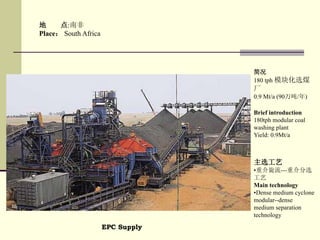

6. EPC Supply
地 点:南非
Place： South Africa
简况
180 tph 模块化选煤
厂
0.9 Mt/a (90万吨/年)
Brief introduction
180tph modular coal
washing plant
Yield: 0.9Mt/a
主选工艺
•重介旋流---重介分选
工艺
Main technology
•Dense medium cyclone
modular--dense
medium separation
technology

7. EPC Supply
Client: imerys yilong andalusite (xinjiang)co.,ltd
Place: Mongolian Autonomous Prefecture of Bayingolin
简况
250 tph 末煤回收模块洗
选厂
1.2Mt/a (120万吨/年)
Brief introduction
250tph modular coal washing
plant
Yield: 1.2Mt/a
主选工艺
•重介分选工艺
Main technology
•Dense medium cyclone
modular--dense medium
separation technology

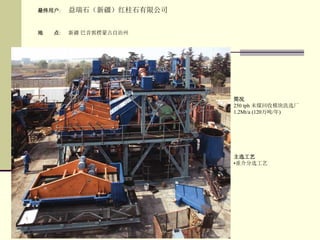

8. 简况
250 tph 末煤回收模块洗选厂
1.2Mt/a (120万吨/年)
主选工艺
•重介分选工艺
最终用户: 益瑞石（新疆）红柱石有限公司
地 点: 新疆 巴音郭楞蒙古自治州
