HOT can provides improvement for screens, and we also provide repairs services as well as Exciter repair.

1. 1

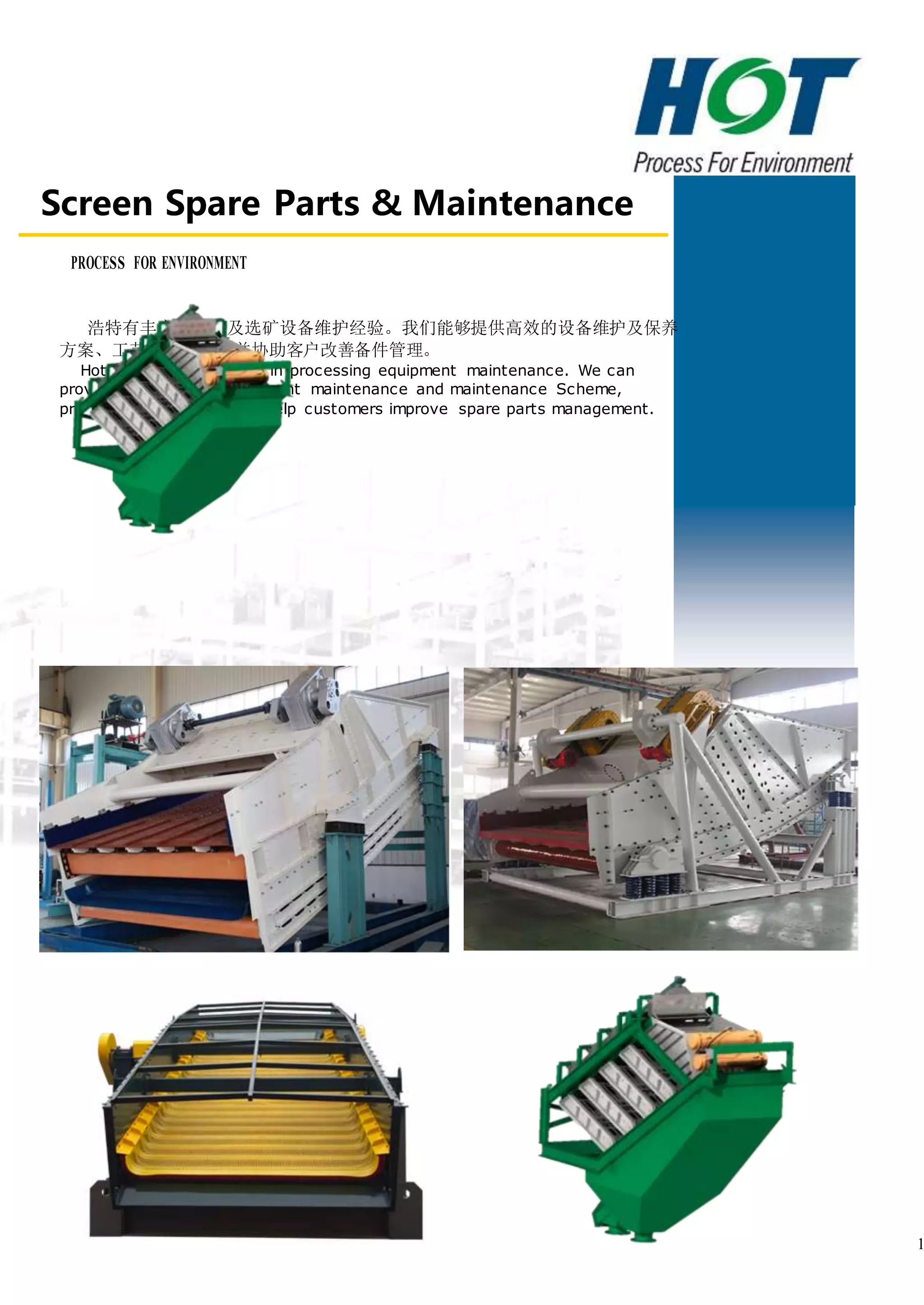

Screen Spare Parts & Maintenance
PROCESS FOR ENVIRONMENT
浩特有丰富的选煤及选矿设备维护经验。我们能够提供高效的设备维护及保养
方案、工艺流程优化，并协助客户改善备件管理。
Hot has rich experience in processing equipment maintenance. We can
provide professional equipment maintenance and maintenance Scheme,
process optimization, and help customers improve spare parts management.

2. 2

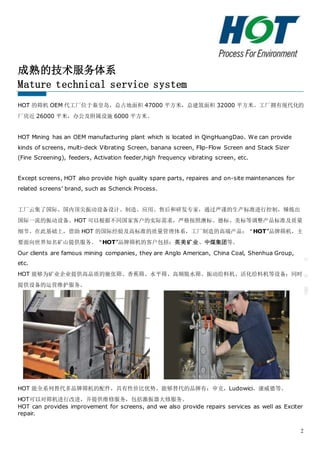

成熟的技术服务体系
Mature technical service system
HOT 的筛机 OEM 代工厂位于秦皇岛，总占地面积 47000 平方米，总建筑面积 32000 平方米。工厂拥有现代化的
厂房近 26000 平米，办公及附属设施 6000 平方米。
HOT Mining has an OEM manufacturing plant which is located in QingHuangDao. We can provide
kinds of screens, multi-deck Vibrating Screen, banana screen, Flip-Flow Screen and Stack Sizer
(Fine Screening), feeders, Activation feeder,high frequency vibrating screen, etc.
Except screens, HOT also provide high quality spare parts, repaires and on-site maintenances for
related screens’ brand, such as Schenck Process.
工厂云集了国际、国内顶尖振动设备设计、制造、应用、售后和研发专家，通过严谨的生产标准进行控制，锤炼出
国际一流的振动设备。HOT 可以根据不同国家客户的实际需求，严格按照澳标、德标、美标等调整产品标准及质量
细节。在此基础上，借助 HOT 的国际经验及高标准的质量管理体系，工厂制造的高端产品：“HOT”品牌筛机，主
要面向世界知名矿山提供服务。“HOT”品牌筛机的客户包括：英美矿业、中煤集团等。
Our clients are famous mining companies, they are Anglo American, China Coal, Shenhua Group,
etc.
HOT 能够为矿业企业提供高品质的驰张筛、香蕉筛、水平筛、高频脱水筛、振动给料机、活化给料机等设备；同时
提供设备的运营维护服务。
HOT 能全系列替代多品牌筛机的配件，具有性价比优势。能够替代的品牌有：申克，Ludowici，康威德等。
HOT可以对筛机进行改进，并提供维修服务，包括激振器大修服务。
HOT can provides improvement for screens, and we also provide repairs services as well as Exciter
repair.

3. 主 要 设 备 及 备 件
3
主要备件 Major Spare Parts
Exciter 激振器
Polyurethane Modular Screening Systems 各类聚氨酯筛板
 The Injection Moulded Difference
Screenex injection moulded modular polyurethane screen panels are made of specially formulated Urethane
to enhance plant and process Requirements.
Apertures are available in Squares, Slots, Zigzag- VR DesignPanel, along with new innovative designs.
Openings range from 0.10mm to 250mm.
We have a wide range of fixing systems to suit any application.This also
includes our proven Polysnap system.

4. 主 要 设 备 及 备 件
4
 Polyurethane Modular Benefits 各类聚氨酯模的好处
There are many Customers can benefit from using involved in using a polyurethane modular screening
system which include the following:
 Easy changeover to maximise wear life and provide a more economical solution.
 High density precision injection moulded Polyurethane screening module.
 Modules available in: flat, inclined, with deflectors or weirs.
 Can be staggered on sub frame or supports for better screening.
 Support system used is firmly connected to screen frame.
 Specifically designed for all mining and quarry industries.
 Injection Moulded Polyurethane Panels
Applications
Applications to suit individual screening needs.
Colours/Special Features
 All Colours
 Surface features like Rider Bars, Weirs, etc.
Panel Sizes
 1’ x 1’ panels (304.8 x 304.8)
 2’ x 1’ panels (609.6 x 304.8)
 300mm x 300mm (metric system)
Customised sizes are also available upon request.
Rubber Modular Screening Systems 各类条缝筛板、冲孔筛板
 The Injection Moulded Difference:
Screenex injection and compression moulded rubber panels are made in a variety of opening sizes, shapes
and fixing systems, including Pin-style, PolySnap, Hold Down Bar and Bolt on, depending on your specific
needs.
Rubber screen panels are available in either 40 durometer (more flexible for fine sizing applications that have
sticky fines) or 65 durometer (stiffer for coarse scalping applications), each specially developed to address
specific production issues. Screenex injection moulded rubber screening panels are designed for high impact
or high moisture screening applications.
Opening sizes range from 2mm to 230mm in a variety of aperture shapes. Screen panel thickness options
range from 30mm to 100mm.

5. 主 要 设 备 及 备 件
5

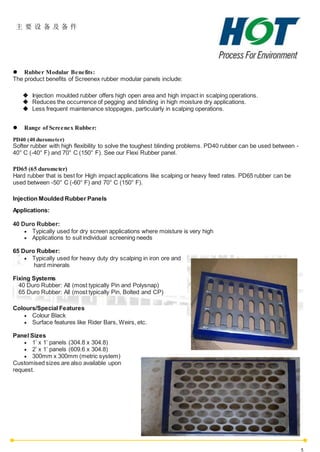

 Rubber Modular Benefits:
The product benefits of Screenex rubber modular panels include:
 Injection moulded rubber offers high open area and high impact in scalping operations.
 Reduces the occurrence of pegging and blinding in high moisture dry applications.
 Less frequent maintenance stoppages, particularly in scalping operations.
 Range of Screenex Rubber:
PD40 (40 durometer)
Softer rubber with high flexibility to solve the toughest blinding problems. PD40 rubber can be used between -
40° C (-40° F) and 70° C (150° F). See our Flexi Rubber panel.
PD65 (65 durometer)
Hard rubber that is best for High impact applications like scalping or heavy feed rates. PD65 rubber can be
used between -50° C (-60° F) and 70° C (150° F).
Injection Moulded Rubber Panels
Applications:
40 Duro Rubber:
 Typically used for dry screen applications where moisture is very high
 Applications to suit individual screening needs
65 Duro Rubber:
 Typically used for heavy duty dry scalping in iron ore and
hard minerals
Fixing Systems
40 Duro Rubber: All (most typically Pin and Polysnap)
65 Duro Rubber: All (most typically Pin, Bolted and CP)
Colours/Special Features
 Colour Black
 Surface features like Rider Bars, Weirs, etc.
Panel Sizes
 1’ x 1’ panels (304.8 x 304.8)
 2’ x 1’ panels (609.6 x 304.8)
 300mm x 300mm (metric system)
Customised sizes are also available upon
request.

6. 主 要 设 备 及 备 件
6

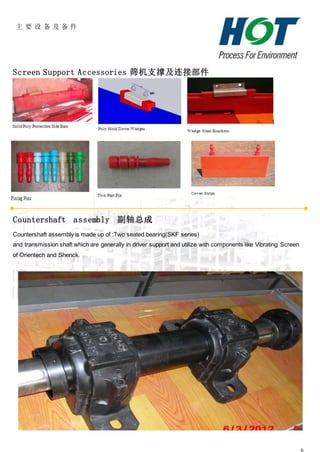

Screen Support Accessories 筛机支撑及连接部件
Countershaft assembly 副轴总成
Countershaft assembly is made up of :Two seated bearing(SKF series)
and transmission shaft which are generally in driver support and utilize with components like Vibrating Screen
of Orientech and Shenck.

7. 主 要 设 备 及 备 件
7
Middle shaft 中间轴
Middle shaft has replace generality with essential aspect Vibrating Screen nowadays.But Observing
carefully is necessary,part of middle shafts of Vibrating Screen embrace expansion joint in earlier stage.
Vibrating spring 振动弹簧
Vibrating spring includes steel spring and rubber spring,but it is distinguished from rubber spring of high
frequency screen.

8. 8

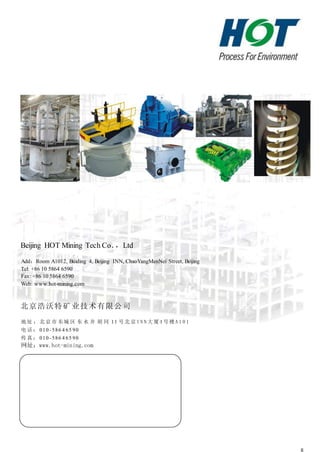

Beijing HOT Mining Tech Co．，Ltd
