The document discusses modernizing authorization through OpenFGA, focusing on the transition from role-based access control (RBAC) to attribute-based access control (ABAC), and introducing relation-based access control (ReBAC). It outlines the complexities and downsides of RBAC and ABAC, emphasizing the need for a robust authorization model and the importance of efficiently managing user permissions and relationships. Additionally, it provides a high-level overview of implementing OpenFGA and its reliance on specific data types for making authorization decisions.

1. Modernizing
authorization with
OpenFGA
Yamil Asusta @elbuo8

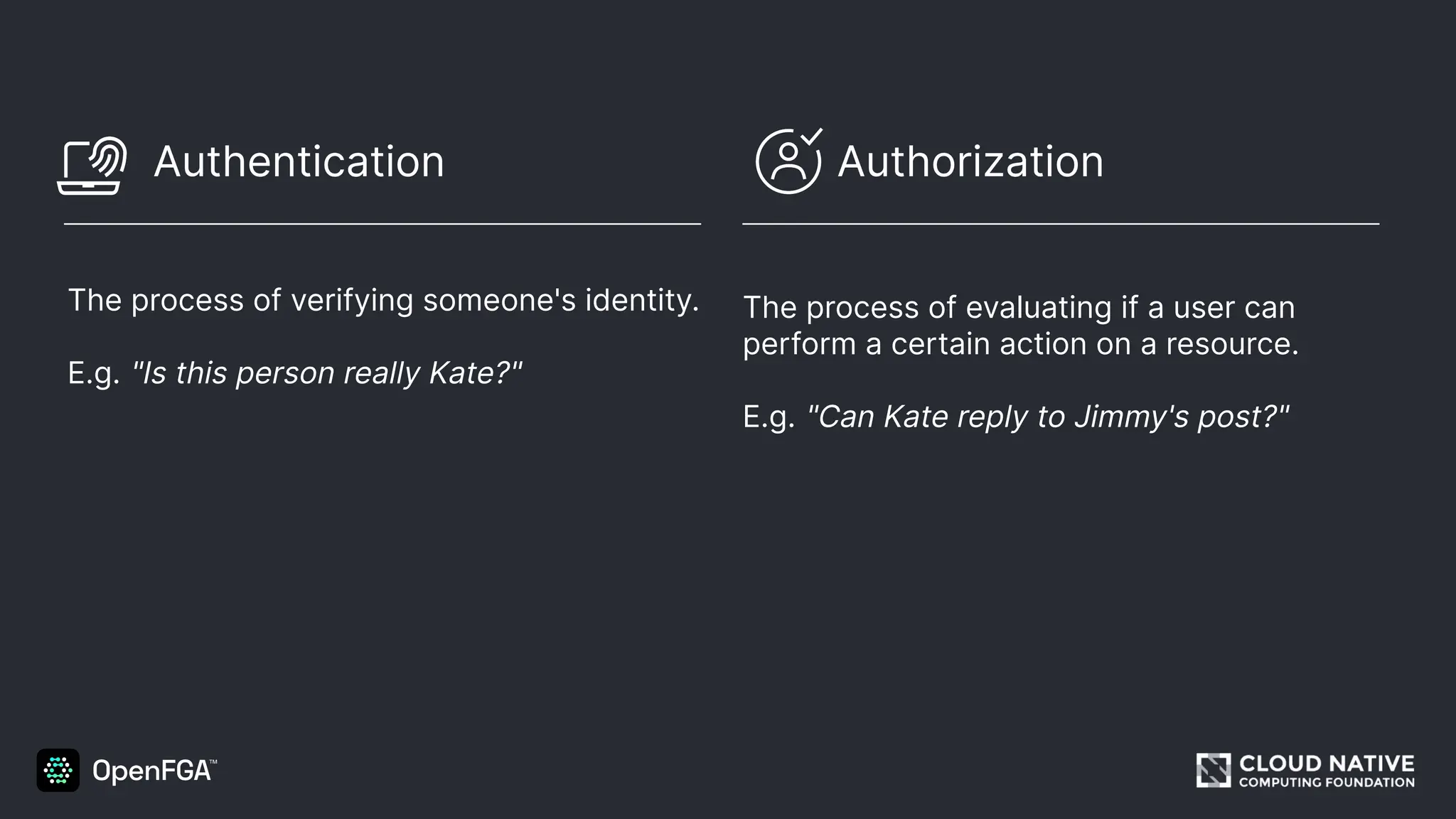

2. The process of verifying someone's identity.
E.g. "Is this person really Kate?"
The process of evaluating if a user can
perform a certain action on a resource.
E.g. "Can Kate reply to Jimmy's post?"
Authentication Authorization
�� ��

3. Example
You want to build a product like Google Drive that allows users to
create and share documents amongst each other.
Users can be in groups.
Documents can be in folders.

4. app.get("/documents/:id", async (res, req) => {
const document = await db.documents.findOne({ id: req.params.id });
res.send({ document });
});

5. app.get("/documents/:id", async (res, req) => {
if (!req.user.roles.includes("employee") && !req.user.roles.includes("manager")) {
throw new ForbiddenError();
}
const document = await db.documents.findOne({ id: req.params.id });
res.send({ document });
});
Add RBAC!
If the user has a role, grant access
But… what if there are many roles? What if new roles get added?

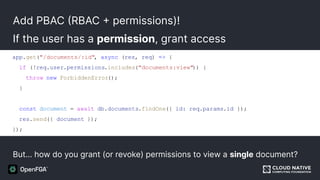

6. Add PBAC (RBAC + permissions)!
If the user has a permission, grant access
But… how do you grant (or revoke) permissions to view a single document?
app.get("/documents/:id", async (res, req) => {
if (!req.user.permissions.includes("documents:view")) {
throw new ForbiddenError();
}
const document = await db.documents.findOne({ id: req.params.id });
res.send({ document });
});

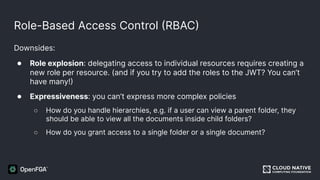

7. Role-Based Access Control (RBAC)
Downsides:
● Role explosion: delegating access to individual resources requires creating a
new role per resource. (and if you try to add the roles to the JWT? You can’t
have many!)
● Expressiveness: you can’t express more complex policies
○ How do you handle hierarchies, e.g. if a user can view a parent folder, they
should be able to view all the documents inside child folders?
○ How do you grant access to a single folder or a single document?

8. ABAC allows granting more granular permissions.
But… is this check fast?! What if you forget to check the folders the document is in?
// GET /documents/:id
const document = await db.documents.findOne({ id: req.params.id });
// Because we might have the document nested in many folders, any of which may have been shared with
the user
const folders = await db.folders.recursivelyFindAllFoldersInChain ({ id: document.folder_id });
// Because the document or folder may have been shared with a group the user is in
const groups = await db.groups.recursivelyFindAllGroupsInChain ({ ids: req.user.group_ids });
await authorize(req.user, "read", { folders, groups });
res.send({ document });
Use ABAC!

9. Downsides:
● Nesting gets complicated: attributes about the documents and the users need to
be gathered from the database, increasing database load and increasing
response latency
● Repeated implementation for each type of resources and each type of requests
(whether user can access a particular resource and what resources a particular
user can access)
Attribute-Based Access Control (ABAC)

10. Introducing… ReBAC!
It allows expressing authorization rules based on relations that users and objects in a
system have with each other.

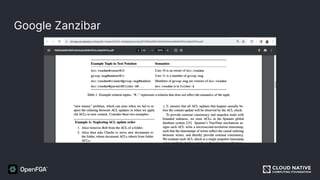

11. Google Zanzibar

12. OpenFGA is based
on Zanzibar
There are other solutions out there, too: SpiceDB, Aserto,
Topaz, etc.

13. In order to make authorization decisions, OpenFGA
needs two types of data:
1. An authorization model
- Does not change often
- Usually updated when introducing new products
or features
2. The authorization data
- Changes very often
- Updated as relationships between objects
change

14. Step 1. Write the Authorization Model

15. ● Direct Relationships
● Computed Relationships
● Hierarchical Relationships
● Rewrite Set Operations
○ Union
○ Intersection
○ Exclusion

16. Step 2. Write the Tuples

17. Can user:jon view document:1?
user:jon document:1
viewer
folder:X
viewer parent
Step 3. Check for access

18. Demo

19. Resources
Zanzibar Paper https://research.google/pubs/pub48190/
Zanzibar Academy https://zanzibar.academy
OpenFGA Documentation https://openfga.dev
OpenFGA Playground https://play.fga.dev

20. Thanks
