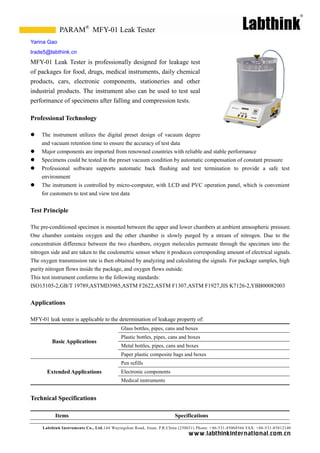

1. PARAM® MFY-01 Leak Tester
Yarina Gao
trade5@labthink.cn
MFY-01 Leak Tester is professionally designed for leakage test
of packages for food, drugs, medical instruments, daily chemical
products, cars, electronic components, stationeries and other
industrial products. The instrument also can be used to test seal
performance of specimens after falling and compression tests.
Professional Technology
 The instrument utilizes the digital preset design of vacuum degree
and vacuum retention time to ensure the accuracy of test data
 Major components are imported from renowned countries with reliable and stable performance
 Specimens could be tested in the preset vacuum condition by automatic compensation of constant pressure
 Professional software supports automatic back flushing and test termination to provide a safe test
environment
 The instrument is controlled by micro-computer, with LCD and PVC operation panel, which is convenient
for customers to test and view test data
Test Principle
The pre-conditioned specimen is mounted between the upper and lower chambers at ambient atmospheric pressure.
One chamber contains oxygen and the other chamber is slowly purged by a stream of nitrogen. Due to the
concentration difference between the two chambers, oxygen molecules permeate through the specimen into the
nitrogen side and are taken to the coulometric sensor where it produces corresponding amount of electrical signals.
The oxygen transmission rate is then obtained by analyzing and calculating the signals. For package samples, high
purity nitrogen flows inside the package, and oxygen flows outside.
This test instrument conforms to the following standards:
ISO15105-2,GB/T 19789,ASTMD3985,ASTM F2622,ASTM F1307,ASTM F1927,JIS K7126-2,YBB00082003
Applications
MFY-01 leak tester is applicable to the determination of leakage property of:
Glass bottles, pipes, cans and boxes
Plastic bottles, pipes, cans and boxes
Basic Applications
Metal bottles, pipes, cans and boxes
Paper plastic composite bags and boxes
Pen refills
Extended Applications Electronic components
Medical instruments
Technical Specifications
Items Specifications
Labthink Instruments Co., Ltd.144 Wuyingshan Road, Jinan, P.R.China (250031) Phone: +86-531-85068566 FAX: +86-531-85812140
w w w.labthinkinter n atio n al.co m.cn

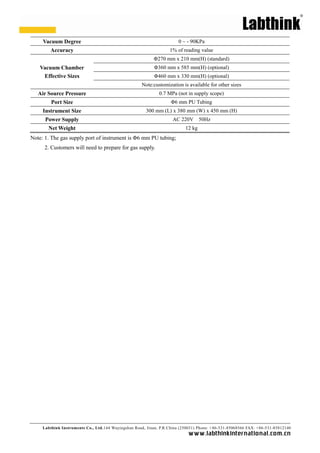

2. Vacuum Degree 0 ~ - 90KPa
Accuracy 1% of reading value
Φ270 mm x 210 mm(H) (standard)
Vacuum Chamber Φ360 mm x 585 mm(H) (optional)
Effective Sizes Φ460 mm x 330 mm(H) (optional)
Note:customization is available for other sizes
Air Source Pressure 0.7 MPa (not in supply scope)
Port Size Φ6 mm PU Tubing
Instrument Size 300 mm (L) x 380 mm (W) x 450 mm (H)
Power Supply AC 220V 50Hz
Net Weight 12 kg
Note: 1. The gas supply port of instrument is Φ6 mm PU tubing;
2. Customers will need to prepare for gas supply.
