This document provides an overview of the construction of CNC machines at Jyoti CNC Automation Pvt. Ltd. It discusses the company profile and management system, which follows 5S. It describes the main departments involved in construction: R&D, foundry, machining, sheet metal, painting, and assembly. Each department's role and key processes are summarized. The document aims to explain the end-to-end process of constructing CNC machines at this company.

1. 1 Construction Of CNC Machine
Jyoti CNC Automation Pvt. Ltd.
DEPARTMENT OF MECHANICAL ENGINEERING
STUDENT NAME: VAKHARIA PALLAV
REPORT ON construction of cnc machine

2. ACKNOWLEDGEMENT
A work of this nature while entailing a log of personal effort cannot be completed without the help
of some external sources. We will be failing in our duty as trainees if we do not acknowledge with
gratitude the invaluable contribution of these sources.
First of all we are very thankful to our college ‘Darshan Institute Of Engineering & Technology’,
Rajkot for giving us a chance to visit and get trained at renowned and quickly growing organization in
global market like “JYOTI CNC AUTOMATION PVT. LTD.”.
We express our gratitude to Mr. Vincent Dabhi, Training Officer, Jyoti CNC Automation Pvt. Ltd. to
permit us to get training in this temple of technology. We would like to thank him for his valuable
planning and schedule for training in various departments. Without him we could not have the
chance to enhance our knowledge in the field of automation.
It will not be out of place here to express our gratitude to all the supervisors and workers of the
different departments for their incredible support and information regarding various process
elements and machine tools. Many questions were answered and new information was added to our
knowledge after healthy conversations with them.
Finally, there are many others who have helped us to complete our training. We gratefully
acknowledge their contribution.
Anil Ajani
Vakharia Pallav
Virani Akshay

3. Jyoti CNC Automation Pvt. Ltd.
1Construction Of CNC Machine

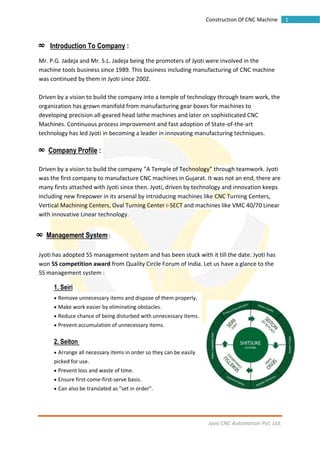

∞ Introduction To Company :
Mr. P.G. Jadeja and Mr. S.L. Jadeja being the promoters of Jyoti were involved in the
machine tools business since 1989. This business including manufacturing of CNC machine
was continued by them in Jyoti since 2002.
Driven by a vision to build the company into a temple of technology through team work, the
organization has grown manifold from manufacturing gear boxes for machines to
developing precision all-geared head lathe machines and later on sophisticated CNC
Machines. Continuous process improvement and fast adoption of State-of-the-art
technology has led Jyoti in becoming a leader in innovating manufacturing techniques.
∞ Company Profile :
Driven by a vision to build the company “A Temple of Technology” through teamwork. Jyoti
was the first company to manufacture CNC machines in Gujarat. It was not an end, there are
many firsts attached with Jyoti since then. Jyoti, driven by technology and innovation keeps
including new firepower in its arsenal by introducing machines like CNC Turning Centers,
Vertical Machining Centers, Oval Turning Center i-SECT and machines like VMC 40/70 Linear
with innovative Linear technology.
∞ Management System :
Jyoti has adopted 5S management system and has been stuck with it till the date. Jyoti has
won 5S competition award from Quality Circle Forum of India. Let us have a glance to the
5S management system :
1. Seiri
 Remove unnecessary items and dispose of them properly.
 Make work easier by eliminating obstacles.
 Reduce chance of being disturbed with unnecessary items.
 Prevent accumulation of unnecessary items.
2. Seiton
 Arrange all necessary items in order so they can be easily
picked for use.
 Prevent loss and waste of time.
 Ensure first-come-first-serve basis.
 Can also be translated as "set in order".

4. Jyoti CNC Automation Pvt. Ltd.
2Construction Of CNC Machine

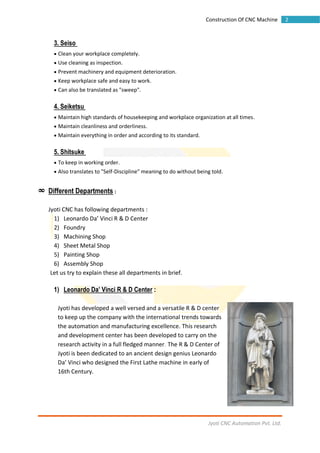

3. Seiso
 Clean your workplace completely.
 Use cleaning as inspection.
 Prevent machinery and equipment deterioration.
 Keep workplace safe and easy to work.
 Can also be translated as "sweep".
4. Seiketsu
 Maintain high standards of housekeeping and workplace organization at all times.
 Maintain cleanliness and orderliness.
 Maintain everything in order and according to its standard.
5. Shitsuke
 To keep in working order.
 Also translates to "Self-Discipline" meaning to do without being told.
∞ Different Departments :
Jyoti CNC has following departments :
1) Leonardo Da’ Vinci R & D Center
2) Foundry
3) Machining Shop
4) Sheet Metal Shop
5) Painting Shop
6) Assembly Shop
Let us try to explain these all departments in brief.
1) Leonardo Da’ Vinci R & D Center :
Jyoti has developed a well versed and a versatile R & D center
to keep up the company with the international trends towards
the automation and manufacturing excellence. This research
and development center has been developed to carry on the
research activity in a full fledged manner. The R & D Center of
Jyoti is been dedicated to an ancient design genius Leonardo
Da’ Vinci who designed the First Lathe machine in early of
16th Century.

5. Jyoti CNC Automation Pvt. Ltd.
3Construction Of CNC Machine

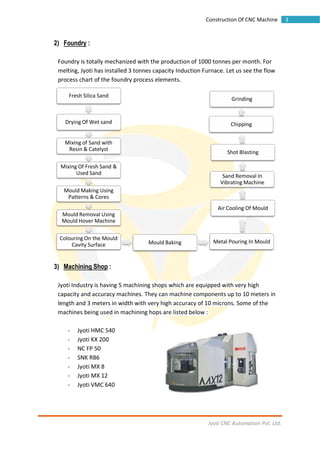

2) Foundry :
Foundry is totally mechanized with the production of 1000 tonnes per month. For
melting, Jyoti has installed 3 tonnes capacity Induction Furnace. Let us see the flow
process chart of the foundry process elements.
3) Machining Shop :
Jyoti Industry is having 5 machining shops which are equipped with very high
capacity and accuracy machines. They can machine components up to 10 meters in
length and 3 meters in width with very high accuracy of 10 microns. Some of the
machines being used in machining hops are listed below :
- Jyoti HMC 540
- Jyoti KX 200
- NC FP 50
- SNK RB6
- Jyoti MX 8
- Jyoti MX 12
- Jyoti VMC 640
Fresh Silica Sand
Drying Of Wet sand
Mixing of Sand with
Resin & Catelyst
Mixing Of Fresh Sand &
Used Sand
Mould Making Using
Patterns & Cores
Mould Removal Using
Mould Hover Machine
Colouring On the Mould
Cavity Surface Mould Baking Metal Pouring In Mould
Air Cooling Of Mould
Sand Removal In
Vibrating Machine
Shot Blasting
Chipping
Grinding

6. Jyoti CNC Automation Pvt. Ltd.
4Construction Of CNC Machine

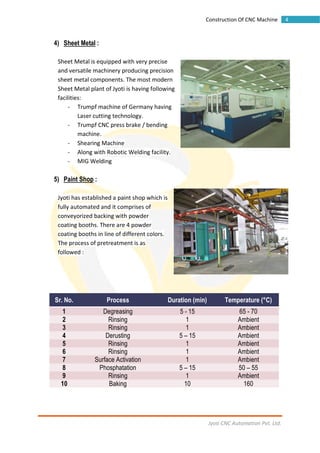

4) Sheet Metal :
Sheet Metal is equipped with very precise
and versatile machinery producing precision
sheet metal components. The most modern
Sheet Metal plant of Jyoti is having following
facilities:
- Trumpf machine of Germany having
Laser cutting technology.
- Trumpf CNC press brake / bending
machine.
- Shearing Machine
- Along with Robotic Welding facility.
- MIG Welding
5) Paint Shop :
Jyoti has established a paint shop which is
fully automated and it comprises of
conveyorized backing with powder
coating booths. There are 4 powder
coating booths in line of different colors.
The process of pretreatment is as
followed :
Sr. No. Process Duration (min) Temperature (°C)
1 Degreasing 5 - 15 65 - 70
2 Rinsing 1 Ambient
3 Rinsing 1 Ambient
4 Derusting 5 – 15 Ambient
5 Rinsing 1 Ambient
6 Rinsing 1 Ambient
7 Surface Activation 1 Ambient
8 Phosphatation 5 – 15 50 – 55
9 Rinsing 1 Ambient
10 Baking 10 160

7. Jyoti CNC Automation Pvt. Ltd.
5Construction Of CNC Machine

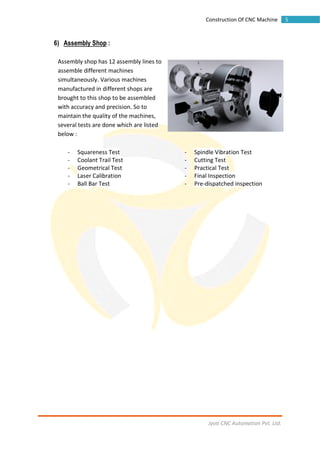

6) Assembly Shop :
Assembly shop has 12 assembly lines to
assemble different machines
simultaneously. Various machines
manufactured in different shops are
brought to this shop to be assembled
with accuracy and precision. So to
maintain the quality of the machines,
several tests are done which are listed
below :
- Squareness Test - Spindle Vibration Test
- Coolant Trail Test - Cutting Test
- Geometrical Test - Practical Test
- Laser Calibration - Final Inspection
- Ball Bar Test - Pre-dispatched inspection
