Big Data NLP with HPCC Systems –
A Development Ride from Spray to THOR to ROXIE
Bob Foreman – Senior Software Engineer/ECL Instructor
Twitter:
#HPCCMeetup

WHT/082311
 HPCC Systems Platform Overview

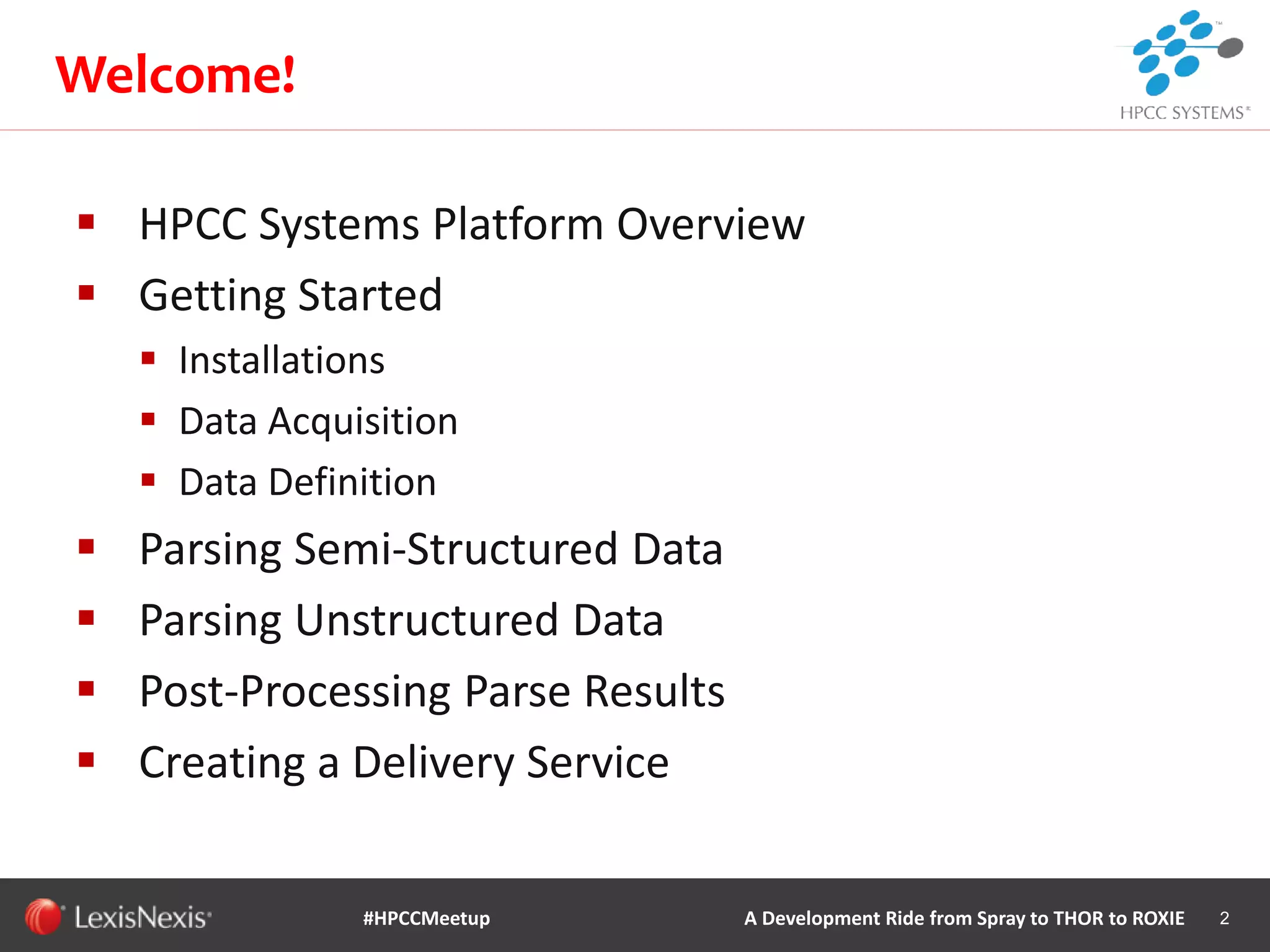

 Getting Started
 Installations
 Data Acquisition
 Data Definition
 Parsing Semi-Structured Data
 Parsing Unstructured Data
 Post-Processing Parse Results
 Creating a Delivery Service
2
Welcome!
#HPCCMeetup A Development Ride from Spray to THOR to ROXIE

WHT/082311
 Familiarity with the HPCC Systems Platform
 Familiarity with the ECL (Enterprise Control Language)
Programming tools:
 ECL IDE
 ECL Watch
 Familiarity with Basic ECL Concepts and Syntax
 Familiarity with ECL’s Parsing Technology
3
Primary Goals of this Meetup

WHT/082311

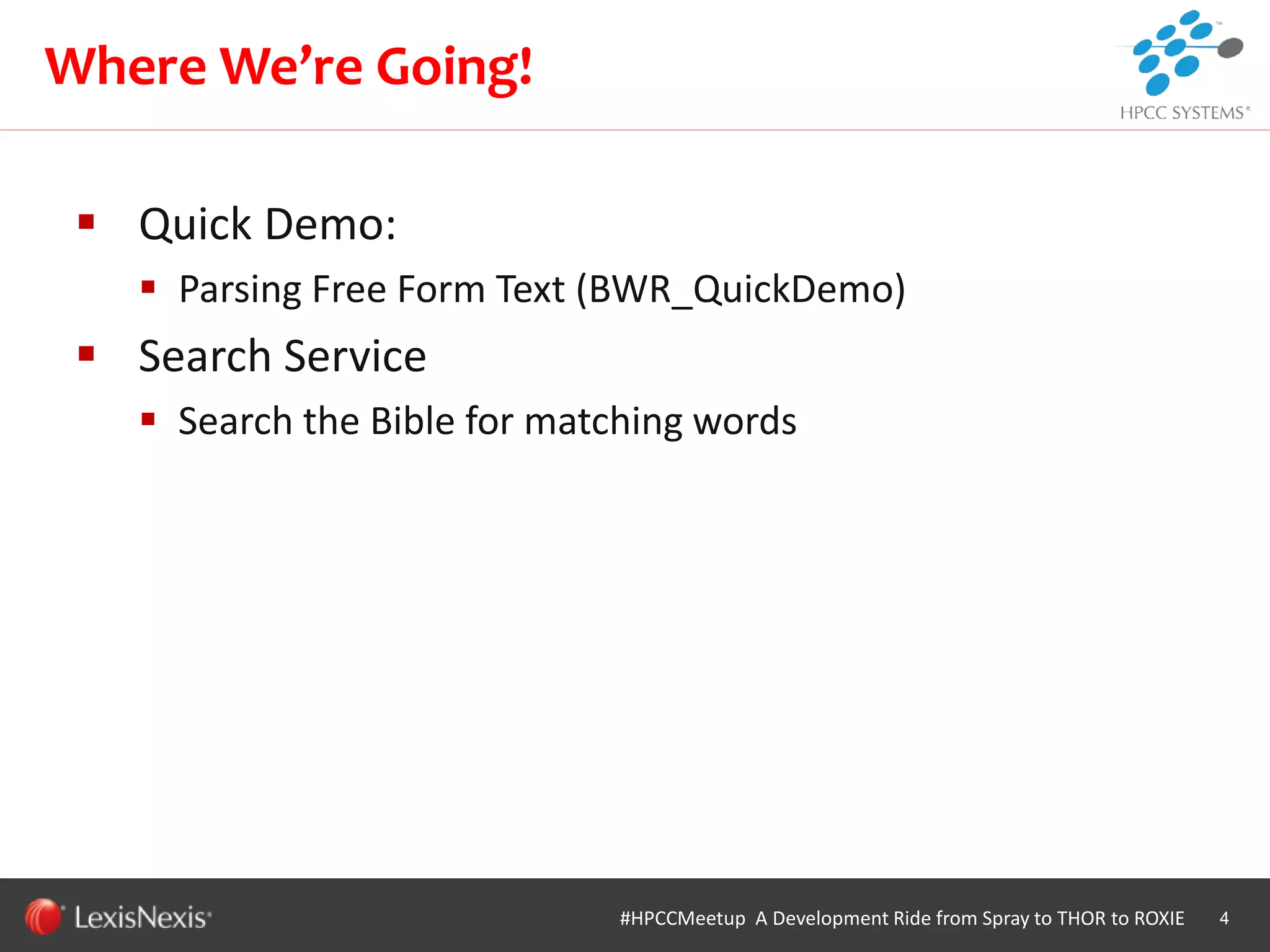

 Quick Demo:
 Parsing Free Form Text (BWR_QuickDemo)
 Search Service
 Search the Bible for matching words
4
Where We’re Going!

WHT/082311
 It was NOT developed with the idea of selling the
technology to anybody else!
 It was all created only to solve some of the data-
handling problems that we encountered as we were
developing our products.
5
Why Does HPCC Systems Exist?

WHT/082311

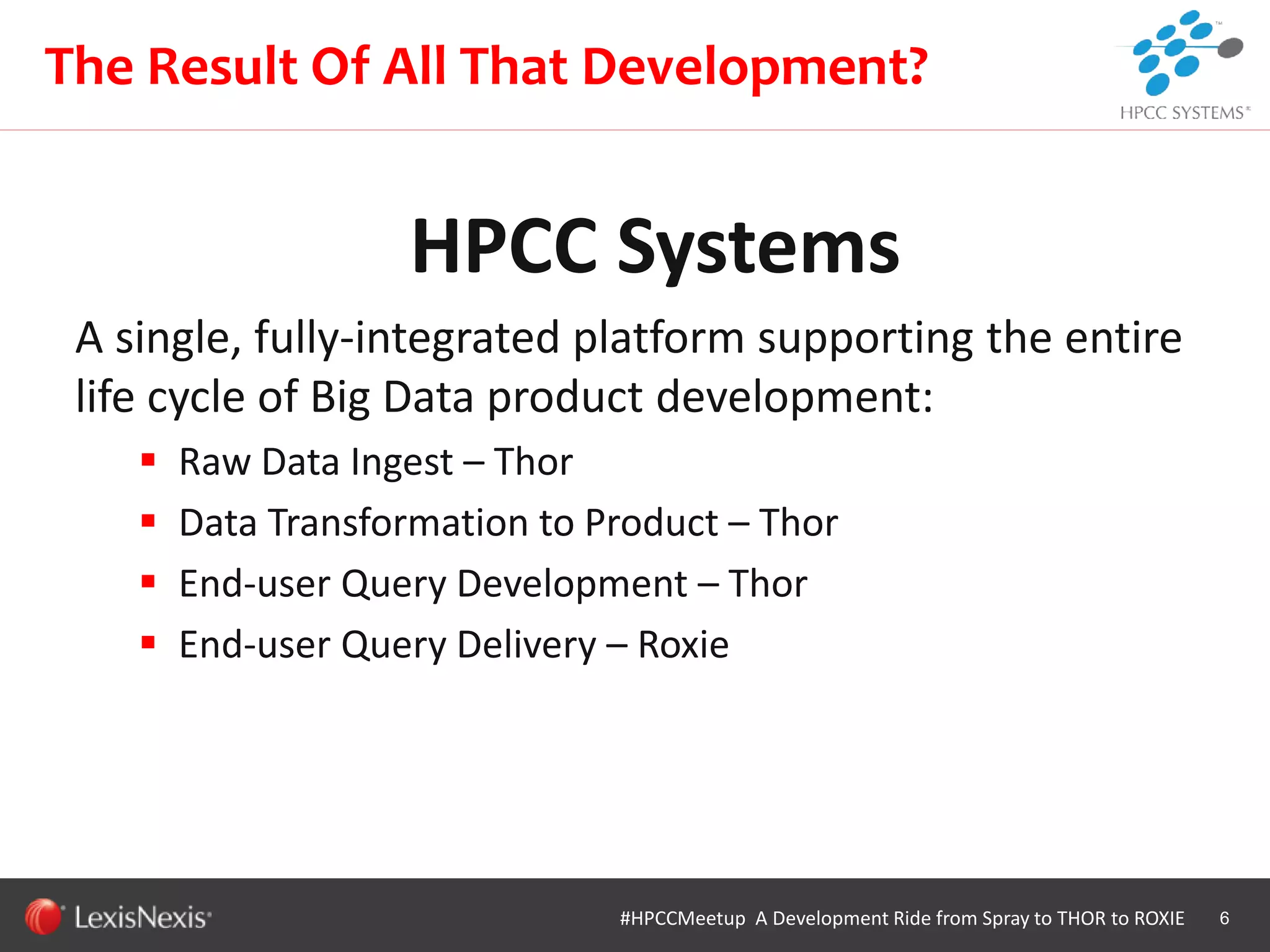

HPCC Systems
A single, fully-integrated platform supporting the entire
life cycle of Big Data product development:
 Raw Data Ingest – Thor
 Data Transformation to Product – Thor
 End-user Query Development – Thor
 End-user Query Delivery – Roxie
6
The Result Of All That Development?

WHT/082311

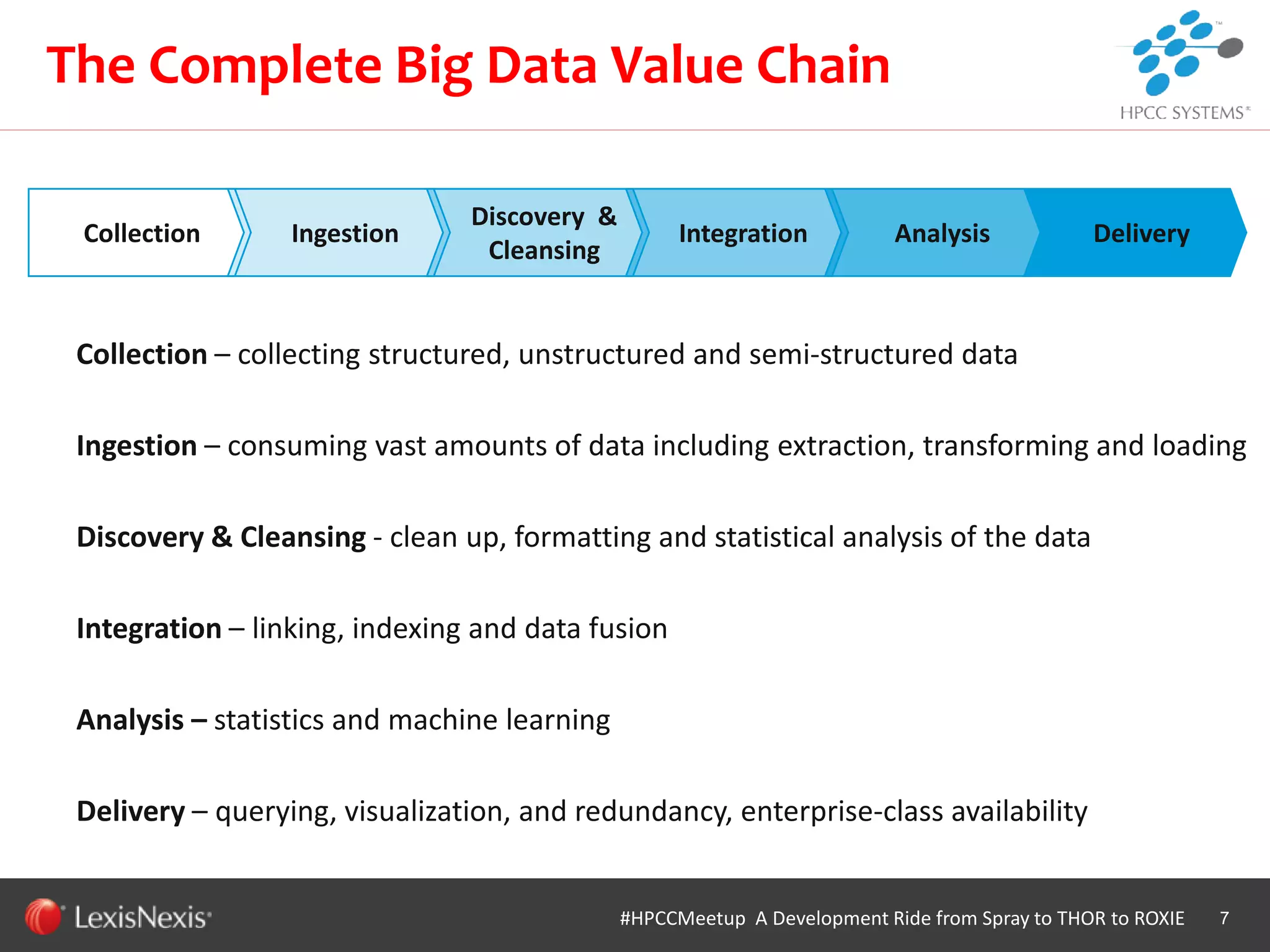

The Complete Big Data Value Chain
Collection – collecting structured, unstructured and semi-structured data
Ingestion – consuming vast amounts of data including extraction, transforming and loading
Discovery & Cleansing - clean up, formatting and statistical analysis of the data
Integration – linking, indexing and data fusion
Analysis – statistics and machine learning
Delivery – querying, visualization, and redundancy, enterprise-class availability
7#HPCCMeetup A Development Ride from Spray to THOR to ROXIE
Collection Ingestion
Discovery &
Cleansing
Integration Analysis Delivery

WHT/082311

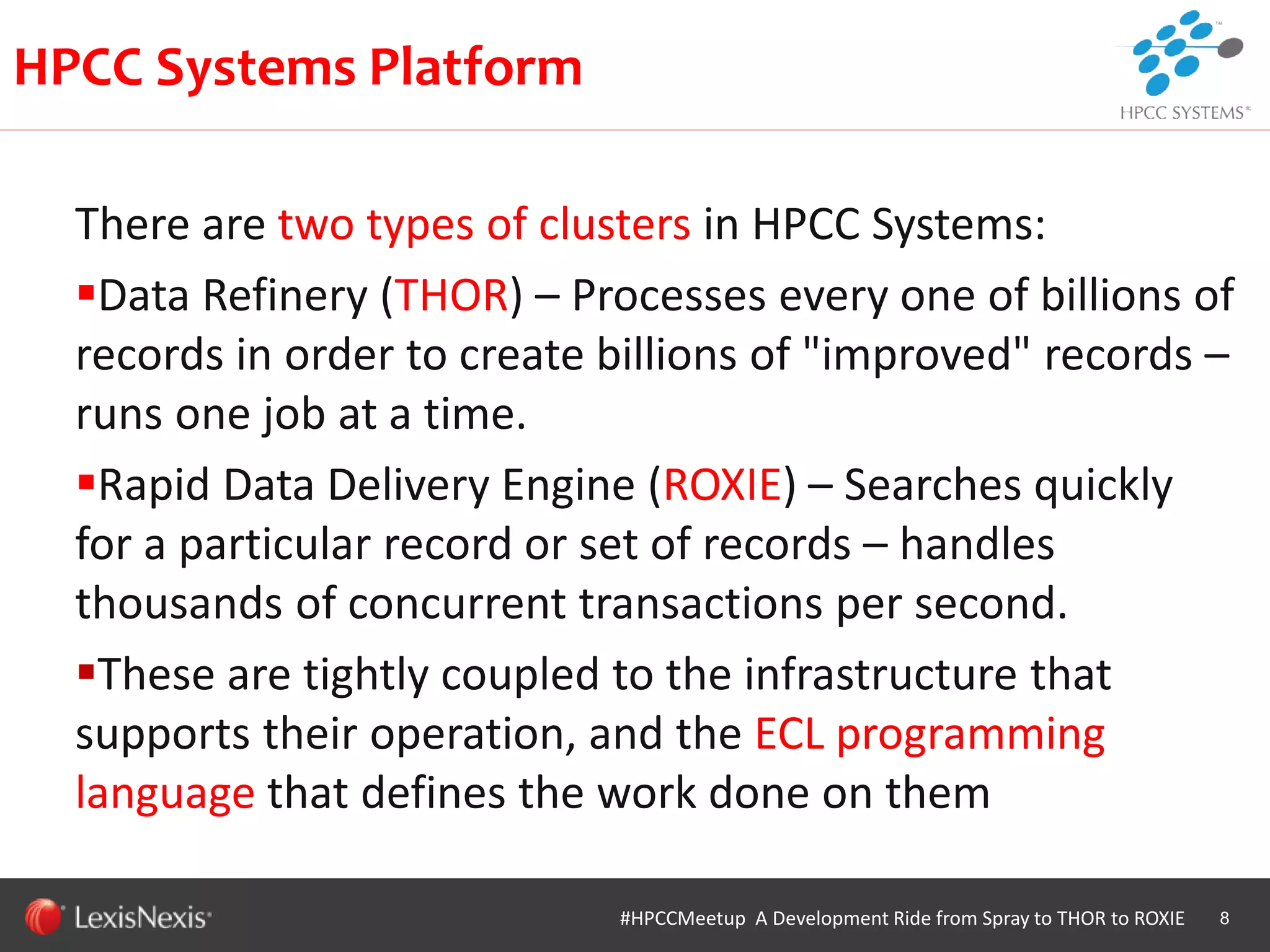

There are two types of clusters in HPCC Systems:
Data Refinery (THOR) – Processes every one of billions of
records in order to create billions of "improved" records –
runs one job at a time.
Rapid Data Delivery Engine (ROXIE) – Searches quickly
for a particular record or set of records – handles
thousands of concurrent transactions per second.
These are tightly coupled to the infrastructure that
supports their operation, and the ECL programming
language that defines the work done on them
8
HPCC Systems Platform

WHT/082311

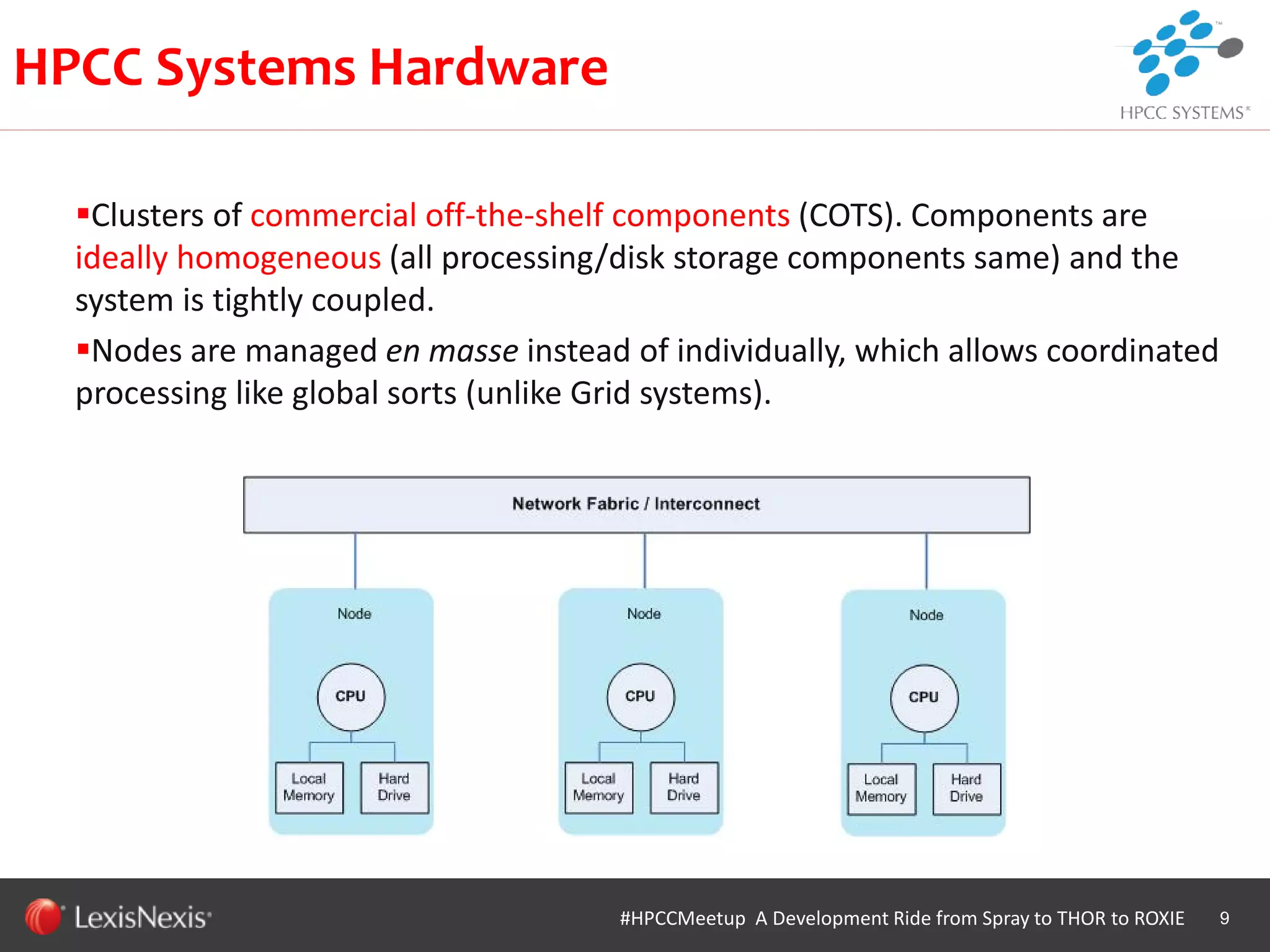

Clusters of commercial off-the-shelf components (COTS). Components are
ideally homogeneous (all processing/disk storage components same) and the
system is tightly coupled.
Nodes are managed en masse instead of individually, which allows coordinated
processing like global sorts (unlike Grid systems).
9
HPCC Systems Hardware

WHT/082311

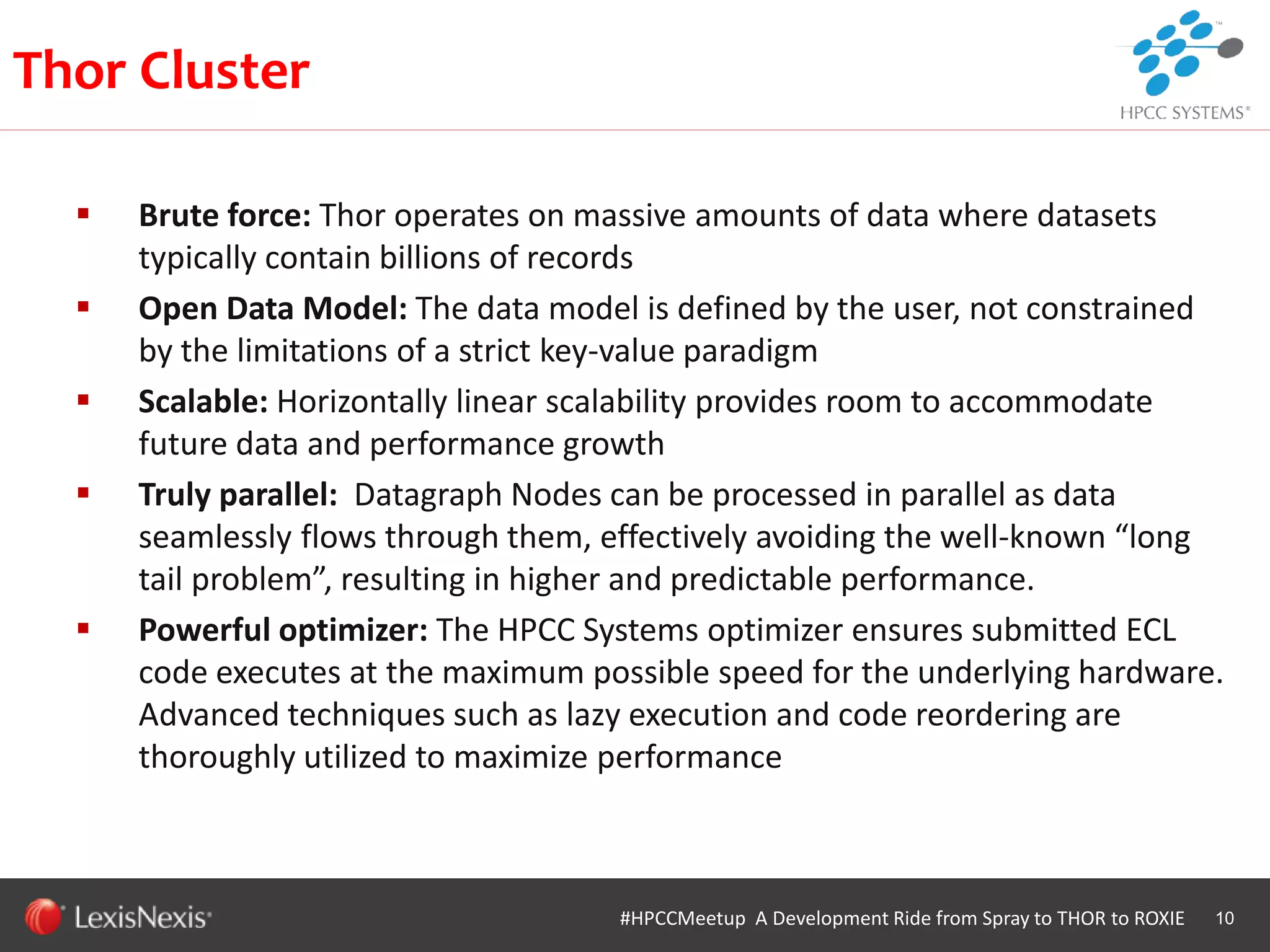

 Brute force: Thor operates on massive amounts of data where datasets
typically contain billions of records
 Open Data Model: The data model is defined by the user, not constrained
by the limitations of a strict key-value paradigm
 Scalable: Horizontally linear scalability provides room to accommodate
future data and performance growth
 Truly parallel: Datagraph Nodes can be processed in parallel as data
seamlessly flows through them, effectively avoiding the well-known “long
tail problem”, resulting in higher and predictable performance.
 Powerful optimizer: The HPCC Systems optimizer ensures submitted ECL
code executes at the maximum possible speed for the underlying hardware.
Advanced techniques such as lazy execution and code reordering are
thoroughly utilized to maximize performance
Thor Cluster

WHT/082311

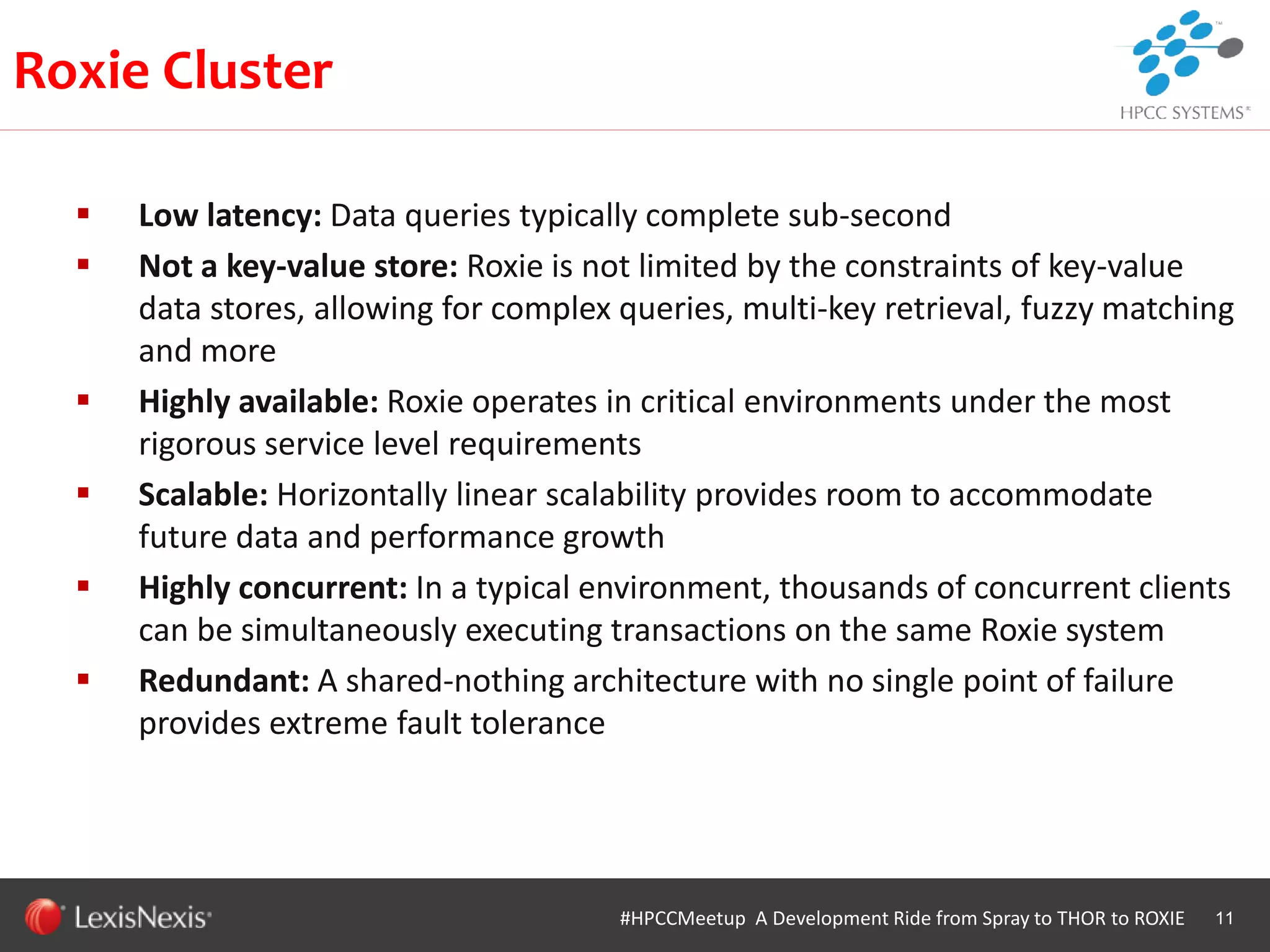

 Low latency: Data queries typically complete sub-second
 Not a key-value store: Roxie is not limited by the constraints of key-value
data stores, allowing for complex queries, multi-key retrieval, fuzzy matching
and more
 Highly available: Roxie operates in critical environments under the most
rigorous service level requirements
 Scalable: Horizontally linear scalability provides room to accommodate
future data and performance growth
 Highly concurrent: In a typical environment, thousands of concurrent clients
can be simultaneously executing transactions on the same Roxie system
 Redundant: A shared-nothing architecture with no single point of failure
provides extreme fault tolerance
Roxie Cluster

WHT/082311

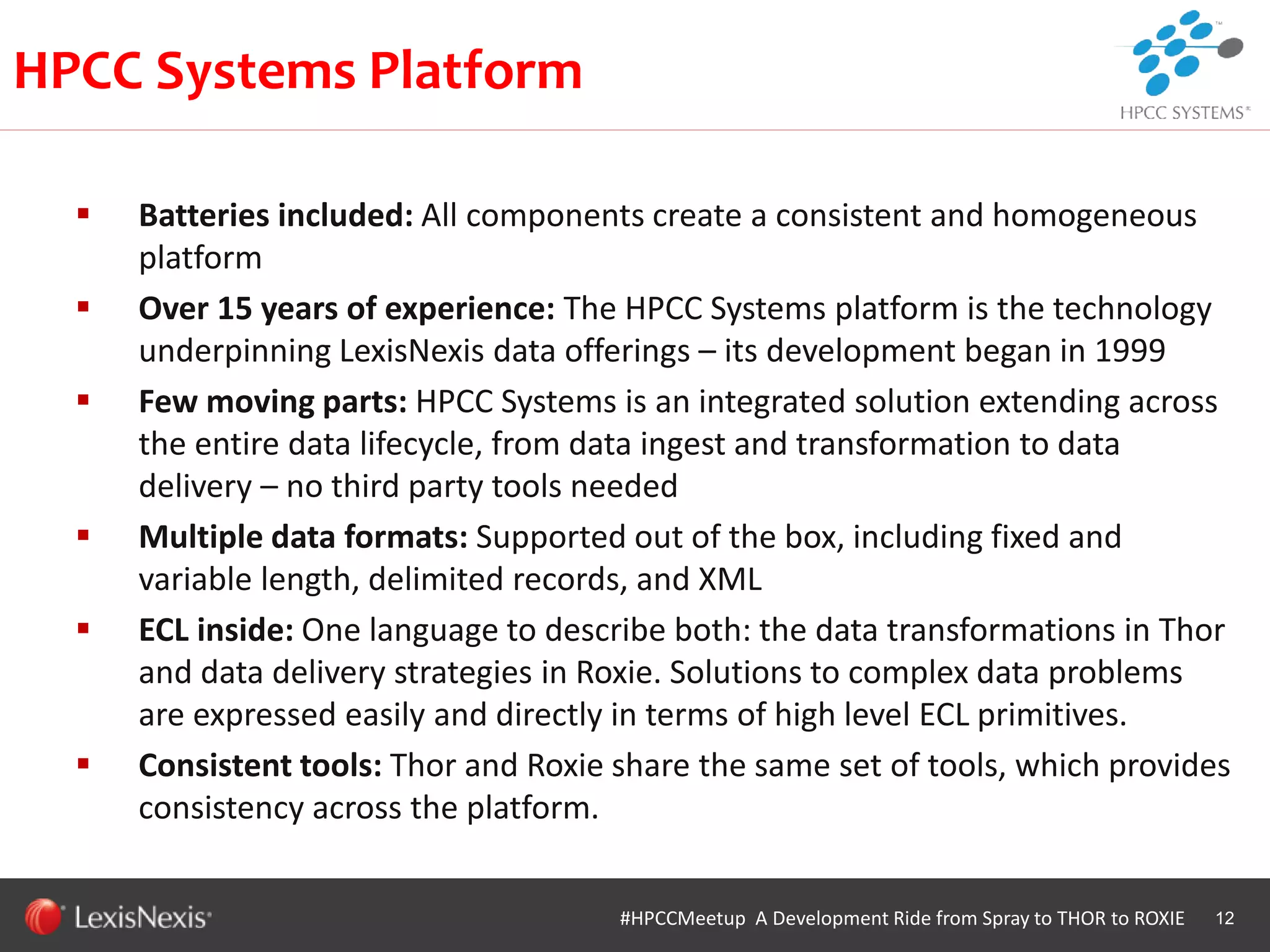

 Batteries included: All components create a consistent and homogeneous
platform
 Over 15 years of experience: The HPCC Systems platform is the technology
underpinning LexisNexis data offerings – its development began in 1999
 Few moving parts: HPCC Systems is an integrated solution extending across
the entire data lifecycle, from data ingest and transformation to data
delivery – no third party tools needed
 Multiple data formats: Supported out of the box, including fixed and
variable length, delimited records, and XML
 ECL inside: One language to describe both: the data transformations in Thor
and data delivery strategies in Roxie. Solutions to complex data problems
are expressed easily and directly in terms of high level ECL primitives.
 Consistent tools: Thor and Roxie share the same set of tools, which provides
consistency across the platform.
HPCC Systems Platform

WHT/082311

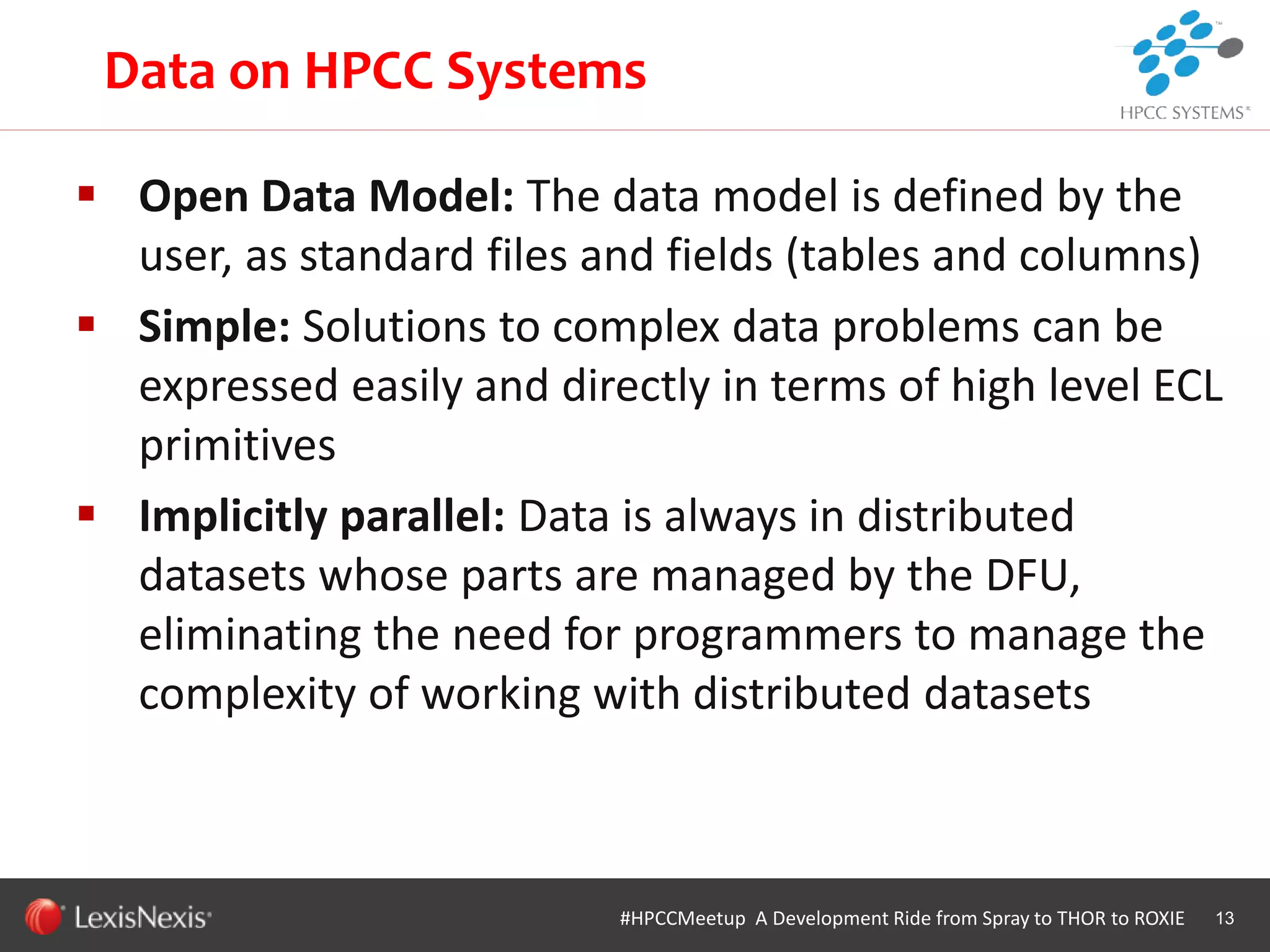

 Open Data Model: The data model is defined by the
user, as standard files and fields (tables and columns)
 Simple: Solutions to complex data problems can be
expressed easily and directly in terms of high level ECL
primitives
 Implicitly parallel: Data is always in distributed
datasets whose parts are managed by the DFU,
eliminating the need for programmers to manage the
complexity of working with distributed datasets
Data on HPCC Systems

WHT/082311

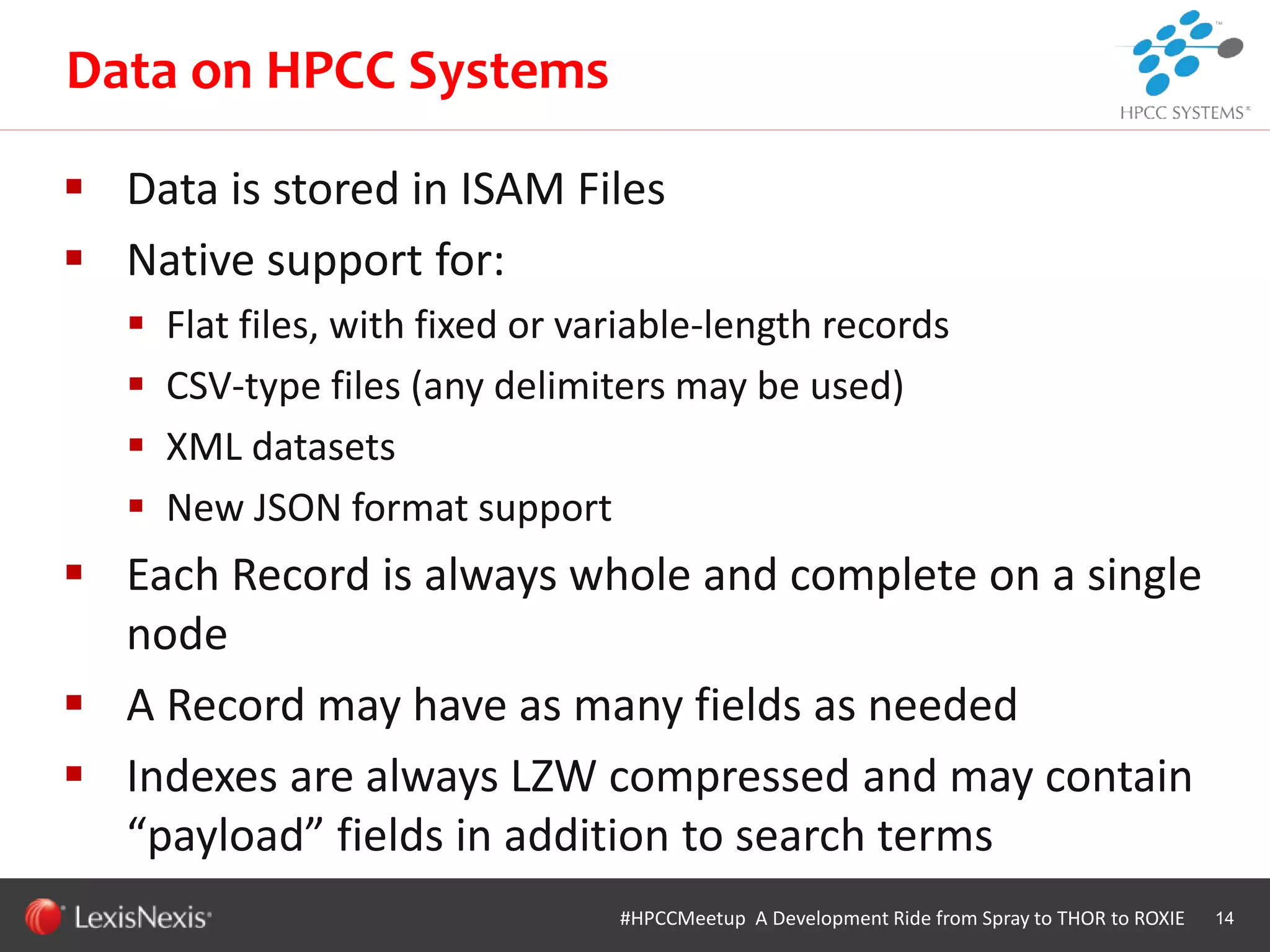

 Data is stored in ISAM Files
 Native support for:
 Flat files, with fixed or variable-length records
 CSV-type files (any delimiters may be used)
 XML datasets
 New JSON format support
 Each Record is always whole and complete on a single
node
 A Record may have as many fields as needed
 Indexes are always LZW compressed and may contain
“payload” fields in addition to search terms
Data on HPCC Systems

WHT/082311

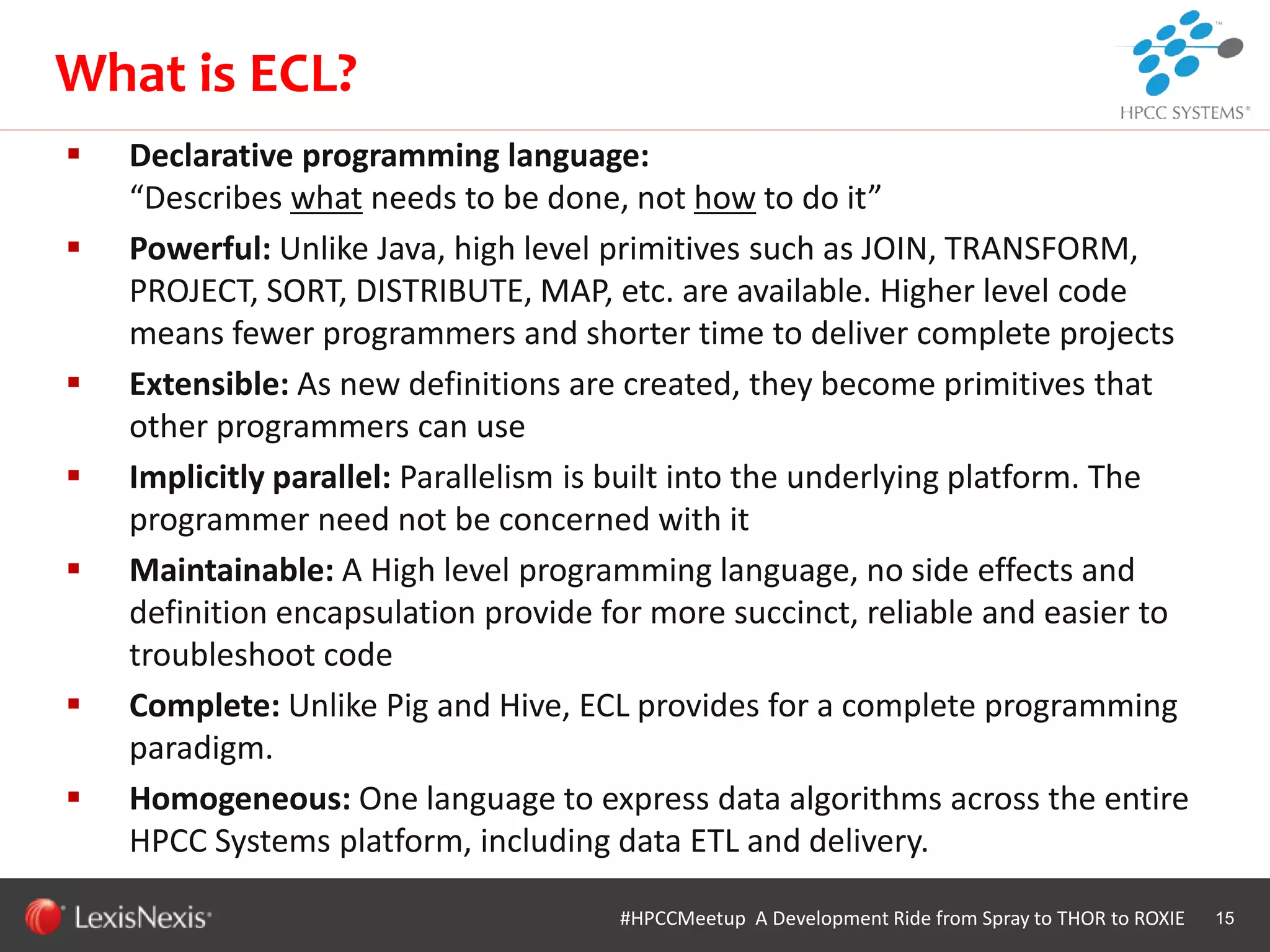

 Declarative programming language:
“Describes what needs to be done, not how to do it”
 Powerful: Unlike Java, high level primitives such as JOIN, TRANSFORM,
PROJECT, SORT, DISTRIBUTE, MAP, etc. are available. Higher level code
means fewer programmers and shorter time to deliver complete projects
 Extensible: As new definitions are created, they become primitives that
other programmers can use
 Implicitly parallel: Parallelism is built into the underlying platform. The
programmer need not be concerned with it
 Maintainable: A High level programming language, no side effects and
definition encapsulation provide for more succinct, reliable and easier to
troubleshoot code
 Complete: Unlike Pig and Hive, ECL provides for a complete programming
paradigm.
 Homogeneous: One language to express data algorithms across the entire
HPCC Systems platform, including data ETL and delivery.
What is ECL?

WHT/082311

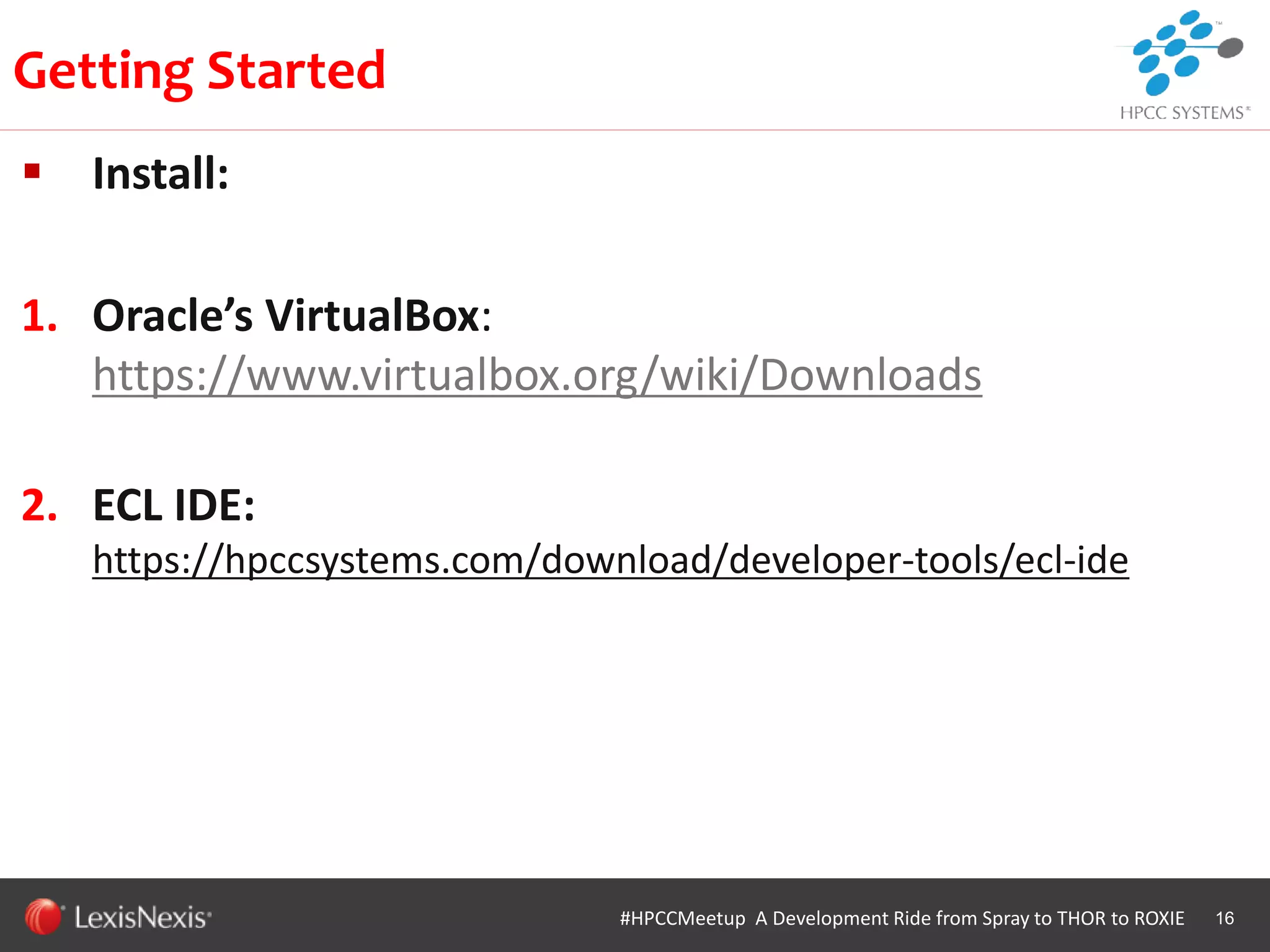

 Install:
1. Oracle’s VirtualBox:
https://www.virtualbox.org/wiki/Downloads
2. ECL IDE:
https://hpccsystems.com/download/developer-tools/ecl-ide
16
Getting Started

WHT/082311

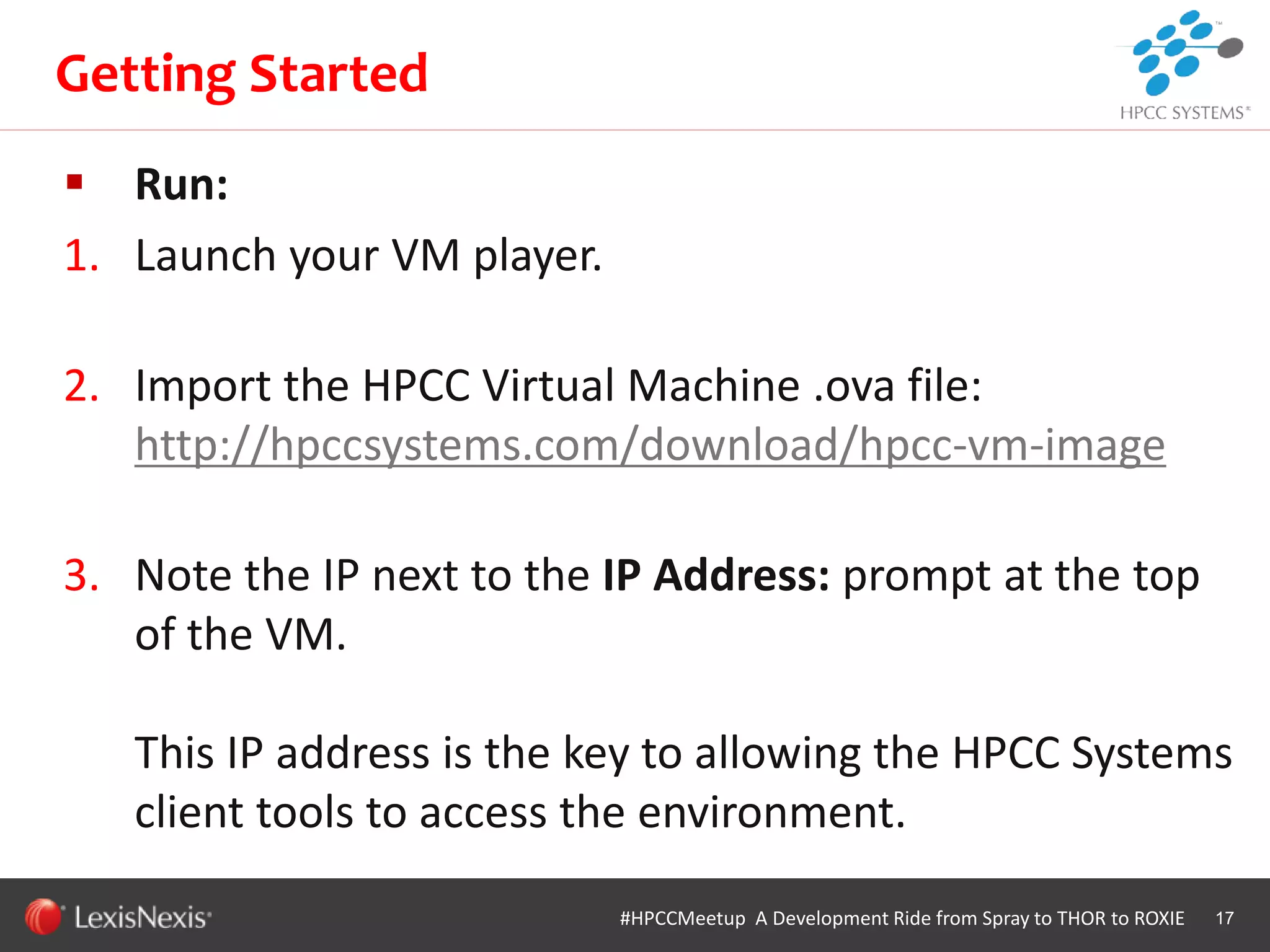

 Run:
1. Launch your VM player.
2. Import the HPCC Virtual Machine .ova file:
http://hpccsystems.com/download/hpcc-vm-image
3. Note the IP next to the IP Address: prompt at the top
of the VM.
This IP address is the key to allowing the HPCC Systems
client tools to access the environment.
17
Getting Started

WHT/082311
 Run:

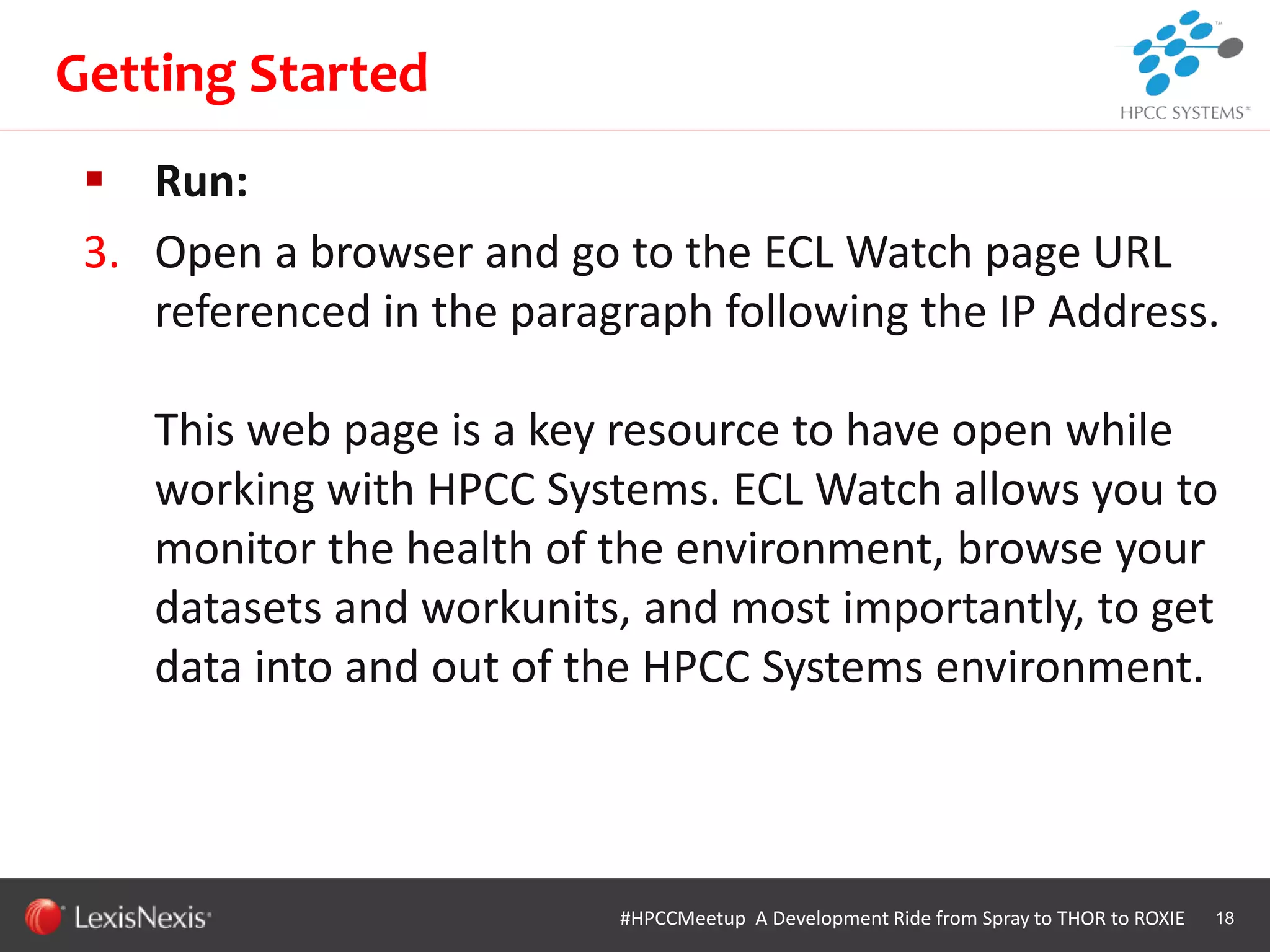

3. Open a browser and go to the ECL Watch page URL
referenced in the paragraph following the IP Address.
This web page is a key resource to have open while
working with HPCC Systems. ECL Watch allows you to
monitor the health of the environment, browse your
datasets and workunits, and most importantly, to get
data into and out of the HPCC Systems environment.
18
Getting Started

WHT/082311
 Run:

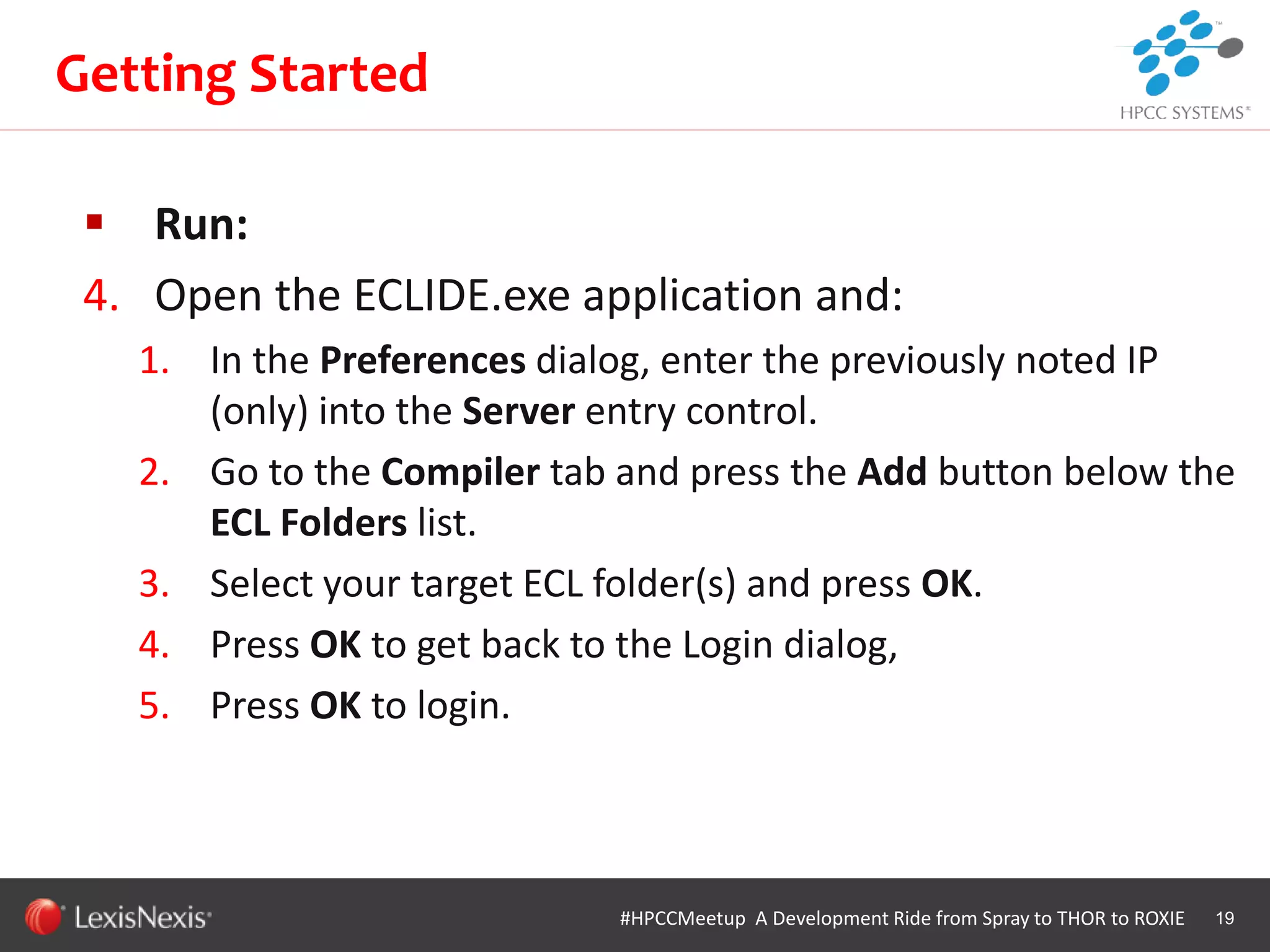

4. Open the ECLIDE.exe application and:
1. In the Preferences dialog, enter the previously noted IP
(only) into the Server entry control.
2. Go to the Compiler tab and press the Add button below the
ECL Folders list.
3. Select your target ECL folder(s) and press OK.
4. Press OK to get back to the Login dialog,
5. Press OK to login.
19
Getting Started

WHT/082311

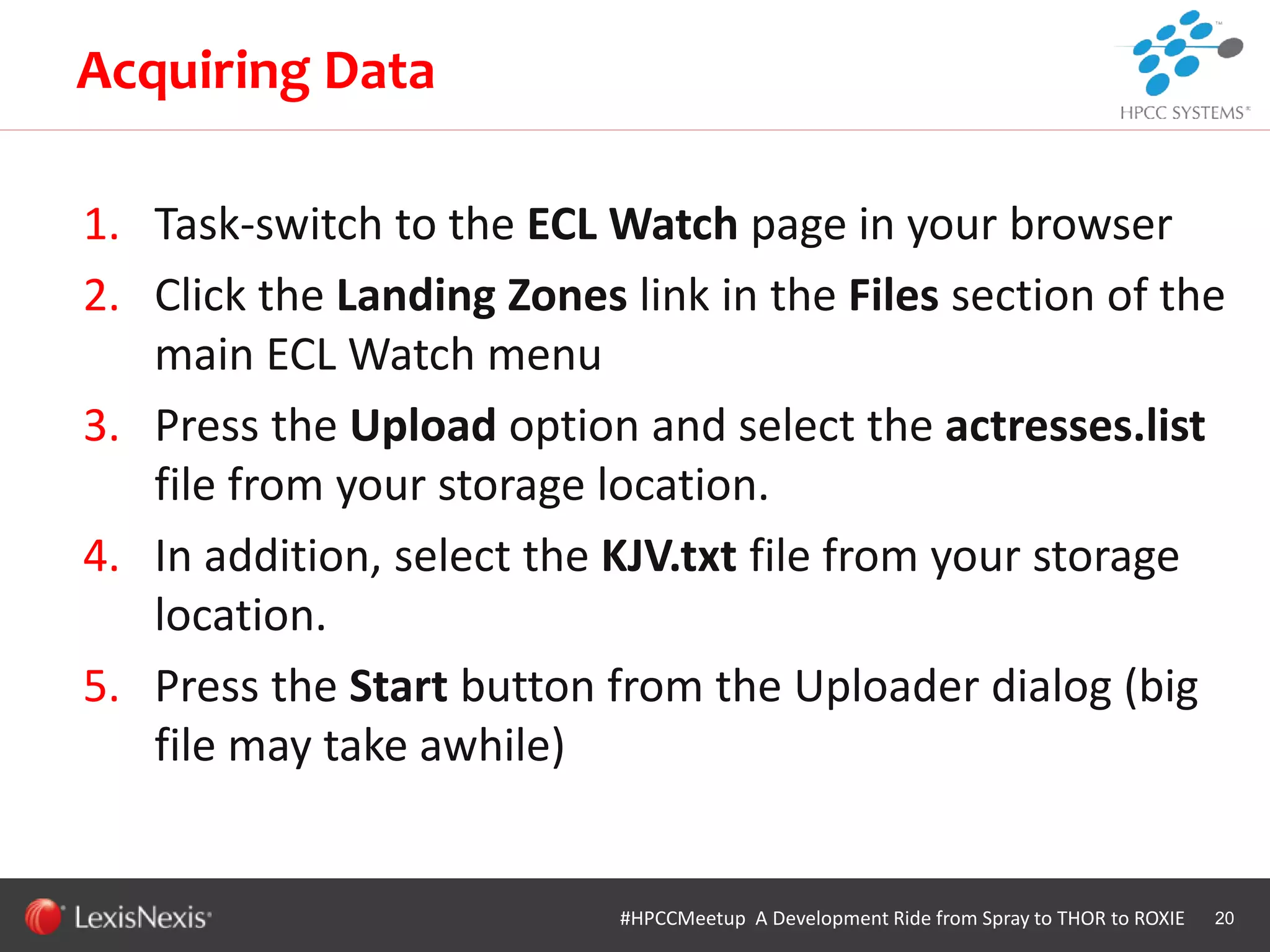

1. Task-switch to the ECL Watch page in your browser
2. Click the Landing Zones link in the Files section of the
main ECL Watch menu
3. Press the Upload option and select the actresses.list
file from your storage location.
4. In addition, select the KJV.txt file from your storage
location.
5. Press the Start button from the Uploader dialog (big
file may take awhile)
20
Acquiring Data

WHT/082311

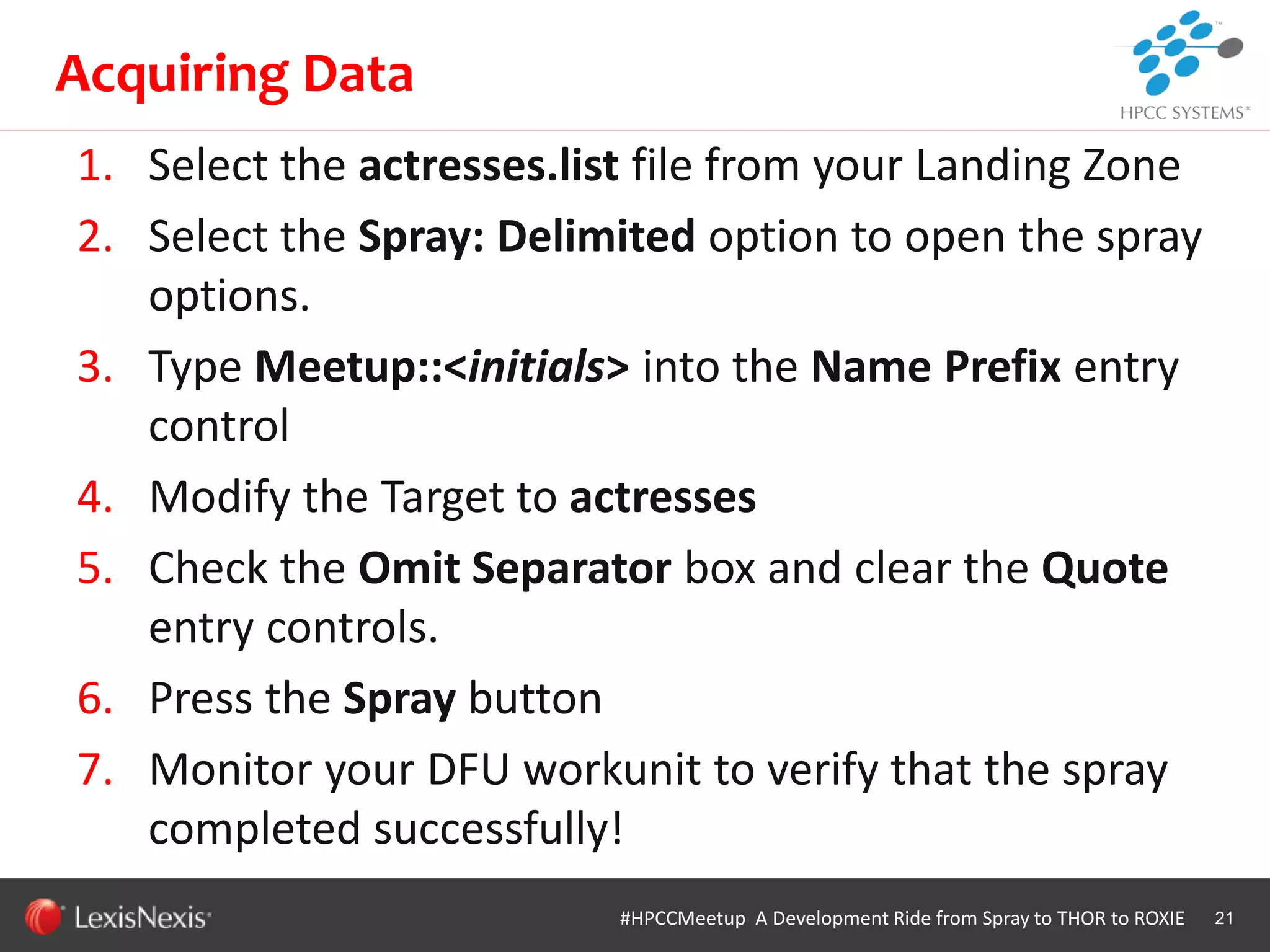

1. Select the actresses.list file from your Landing Zone
2. Select the Spray: Delimited option to open the spray
options.
3. Type Meetup::<initials> into the Name Prefix entry
control
4. Modify the Target to actresses
5. Check the Omit Separator box and clear the Quote
entry controls.
6. Press the Spray button
7. Monitor your DFU workunit to verify that the spray
completed successfully!
21
Acquiring Data

WHT/082311

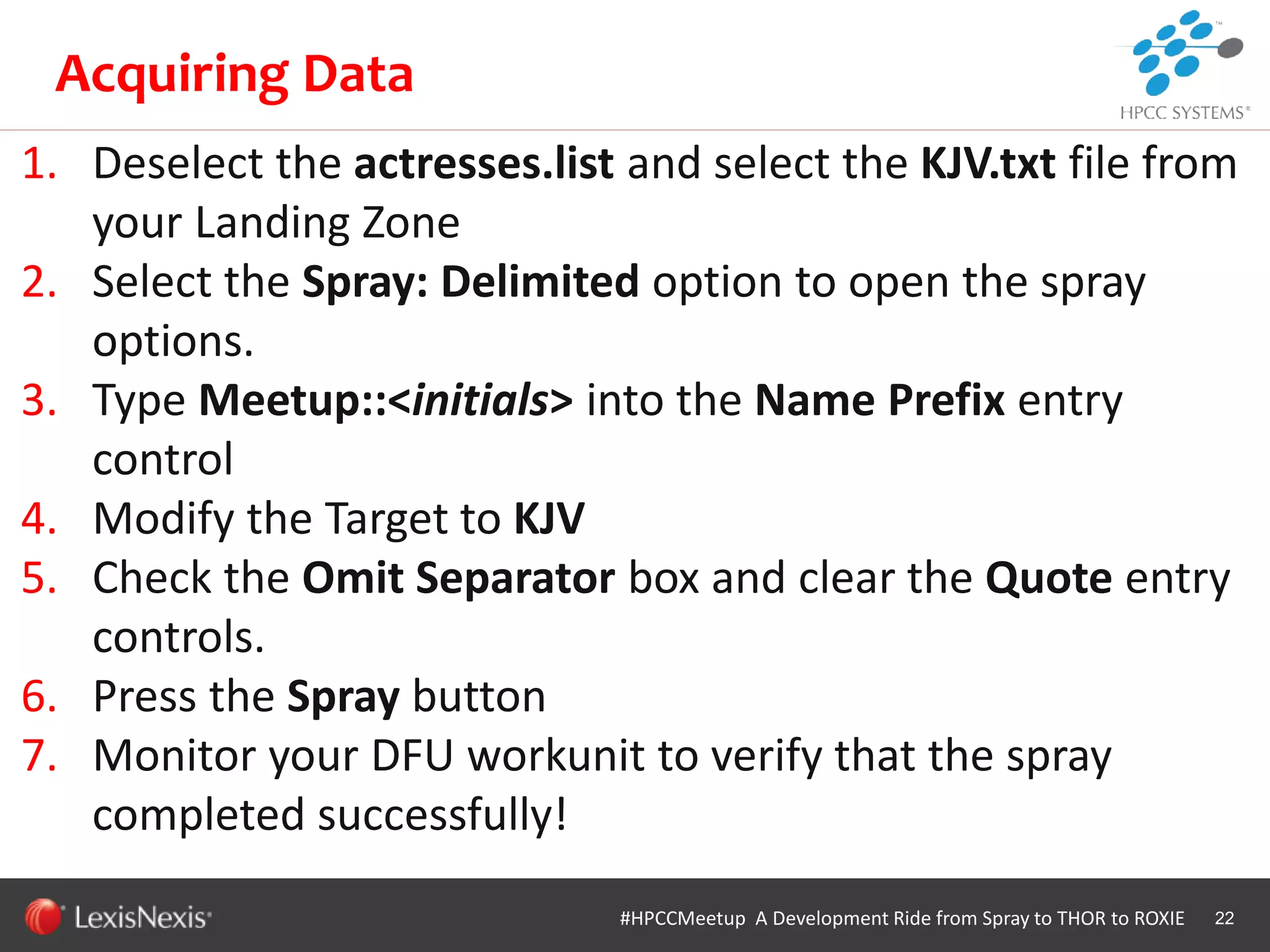

1. Deselect the actresses.list and select the KJV.txt file from
your Landing Zone
2. Select the Spray: Delimited option to open the spray
options.
3. Type Meetup::<initials> into the Name Prefix entry
control
4. Modify the Target to KJV
5. Check the Omit Separator box and clear the Quote entry
controls.
6. Press the Spray button
7. Monitor your DFU workunit to verify that the spray
completed successfully!
22
Acquiring Data

WHT/082311

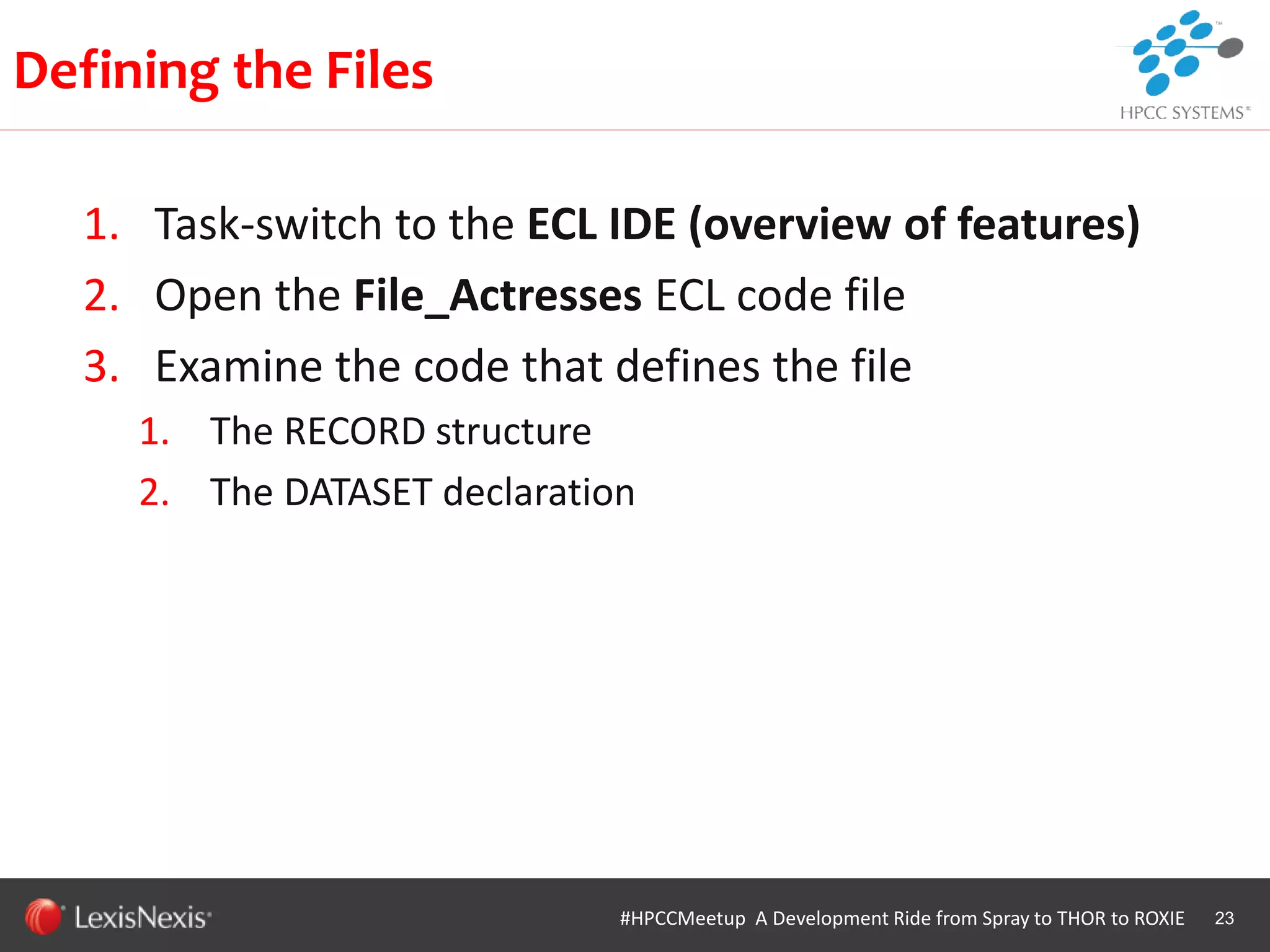

1. Task-switch to the ECL IDE (overview of features)
2. Open the File_Actresses ECL code file
3. Examine the code that defines the file
1. The RECORD structure
2. The DATASET declaration
23
Defining the Files

WHT/082311

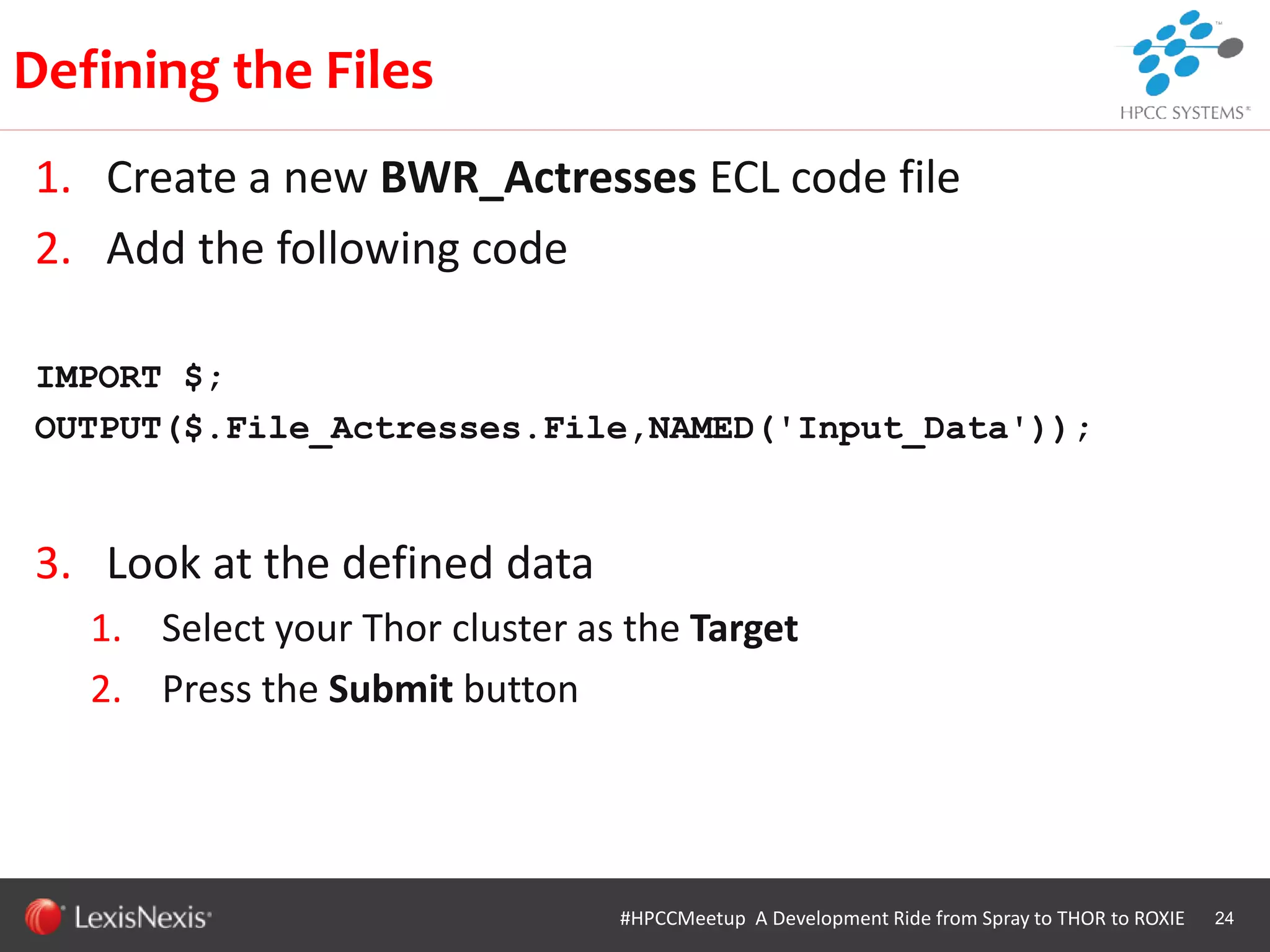

1. Create a new BWR_Actresses ECL code file
2. Add the following code
IMPORT $;
OUTPUT($.File_Actresses.File,NAMED('Input_Data'));
3. Look at the defined data
1. Select your Thor cluster as the Target
2. Press the Submit button
24
Defining the Files

WHT/082311

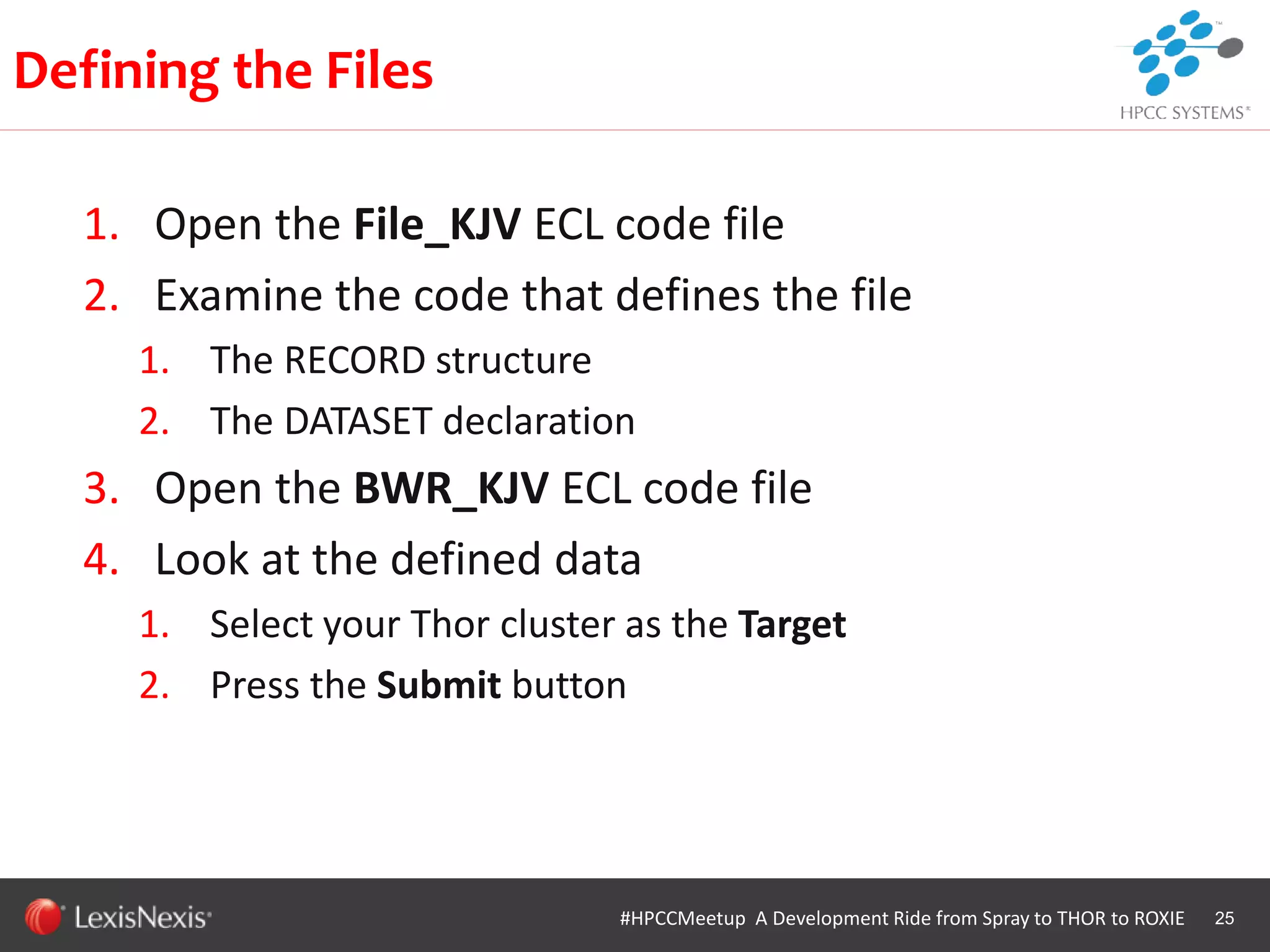

1. Open the File_KJV ECL code file
2. Examine the code that defines the file
1. The RECORD structure
2. The DATASET declaration
3. Open the BWR_KJV ECL code file
4. Look at the defined data
25
Defining the Files

WHT/082311

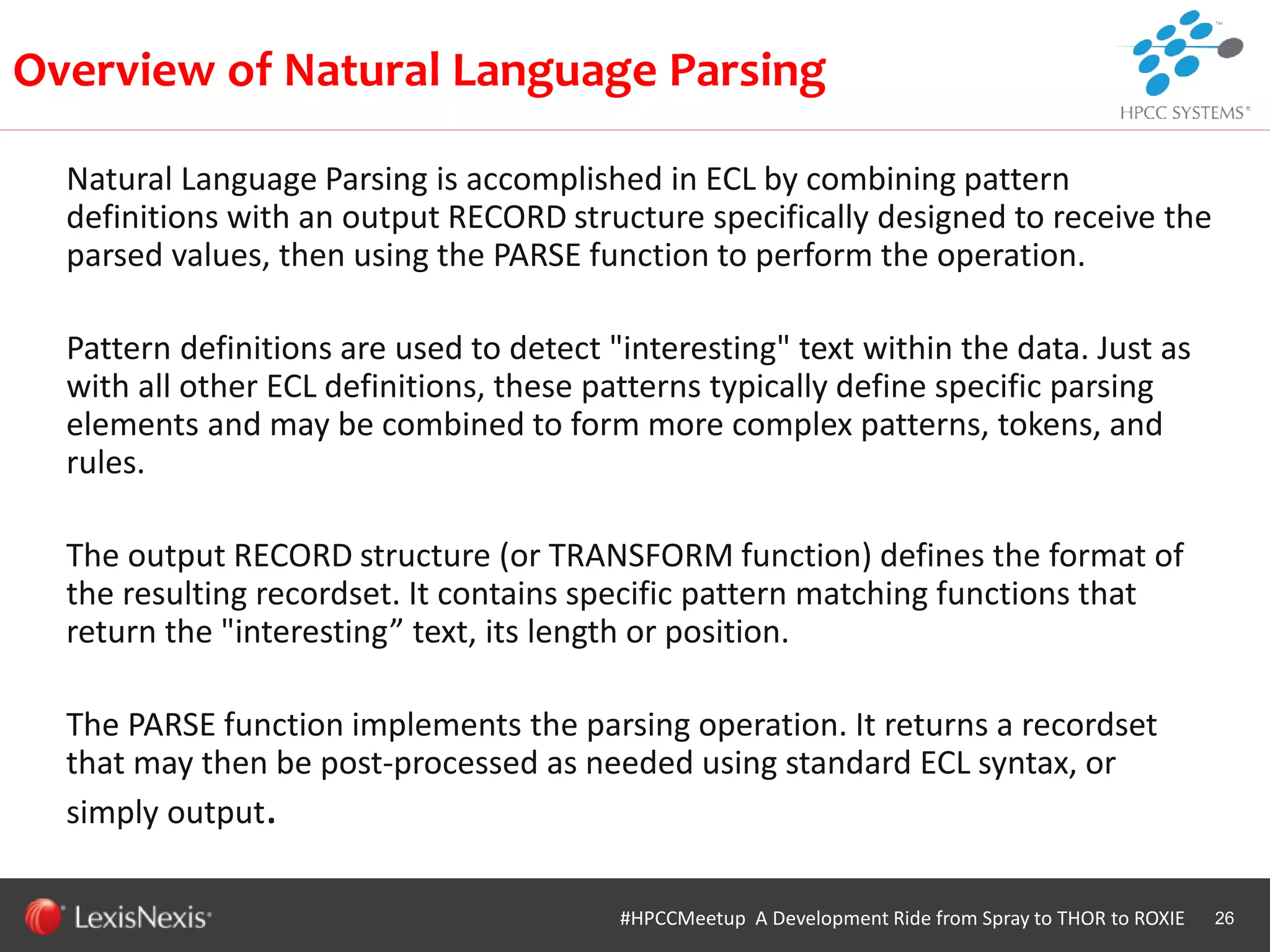

Natural Language Parsing is accomplished in ECL by combining pattern
definitions with an output RECORD structure specifically designed to receive the
parsed values, then using the PARSE function to perform the operation.
Pattern definitions are used to detect "interesting" text within the data. Just as
with all other ECL definitions, these patterns typically define specific parsing
elements and may be combined to form more complex patterns, tokens, and
rules.
The output RECORD structure (or TRANSFORM function) defines the format of
the resulting recordset. It contains specific pattern matching functions that
return the "interesting” text, its length or position.
The PARSE function implements the parsing operation. It returns a recordset
that may then be post-processed as needed using standard ECL syntax, or
simply output.
26
Overview of Natural Language Parsing

WHT/082311

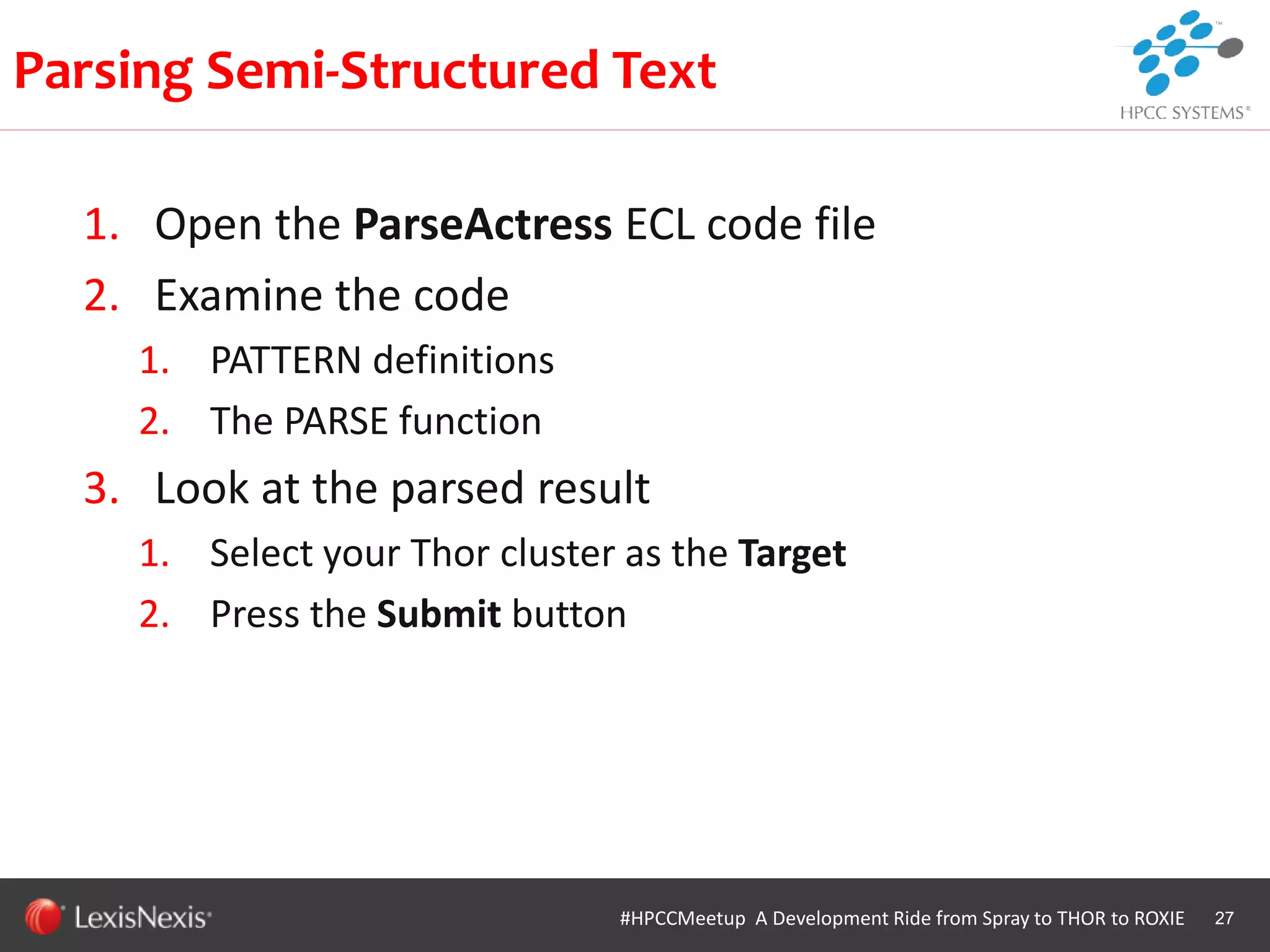

1. Open the ParseActress ECL code file
2. Examine the code
1. PATTERN definitions
2. The PARSE function
3. Look at the parsed result
27
Parsing Semi-Structured Text

WHT/082311

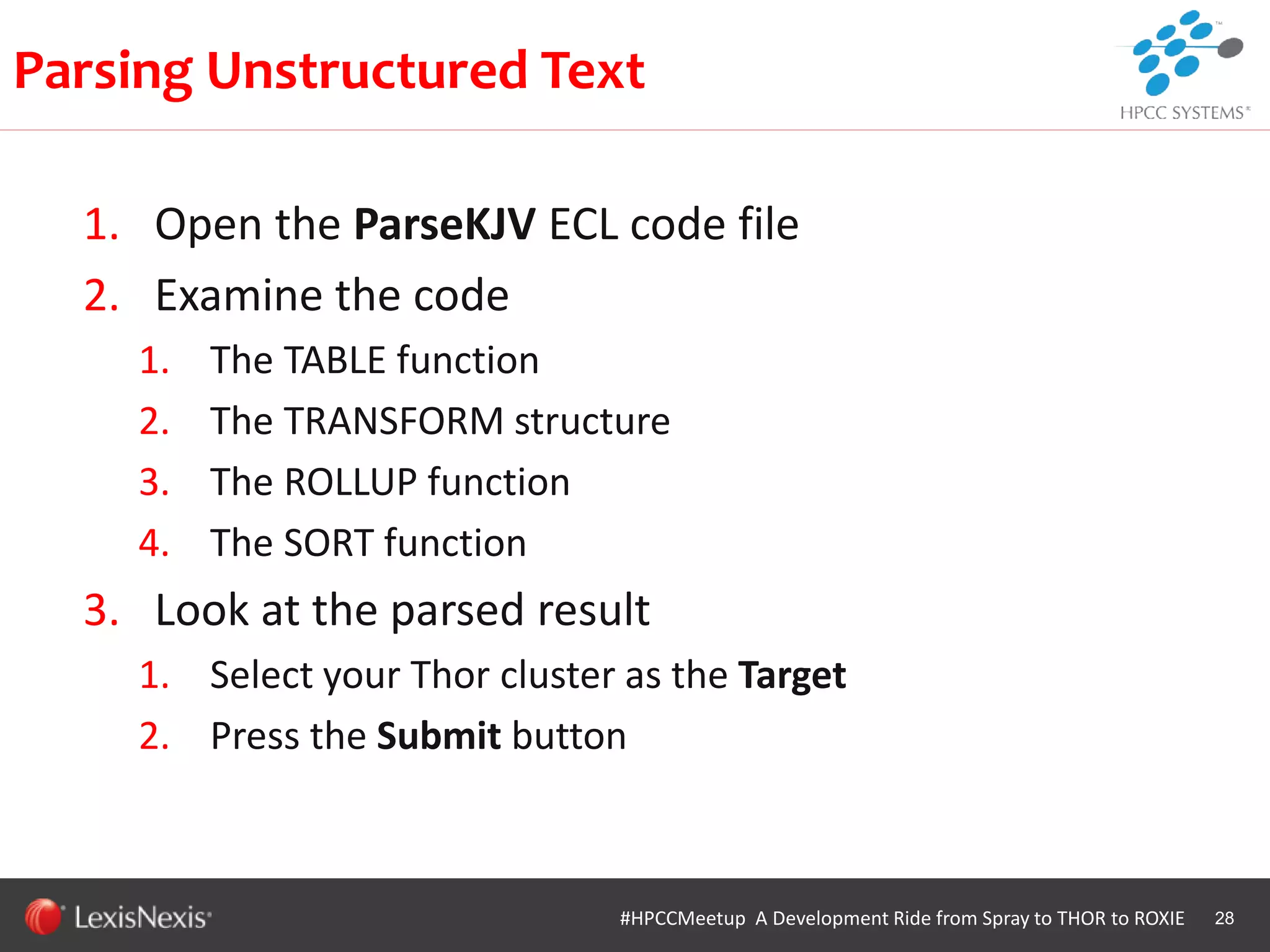

1. Open the ParseKJV ECL code file
2. Examine the code
1. The TABLE function
2. The TRANSFORM structure
3. The ROLLUP function
4. The SORT function
3. Look at the parsed result
28
Parsing Unstructured Text

WHT/082311

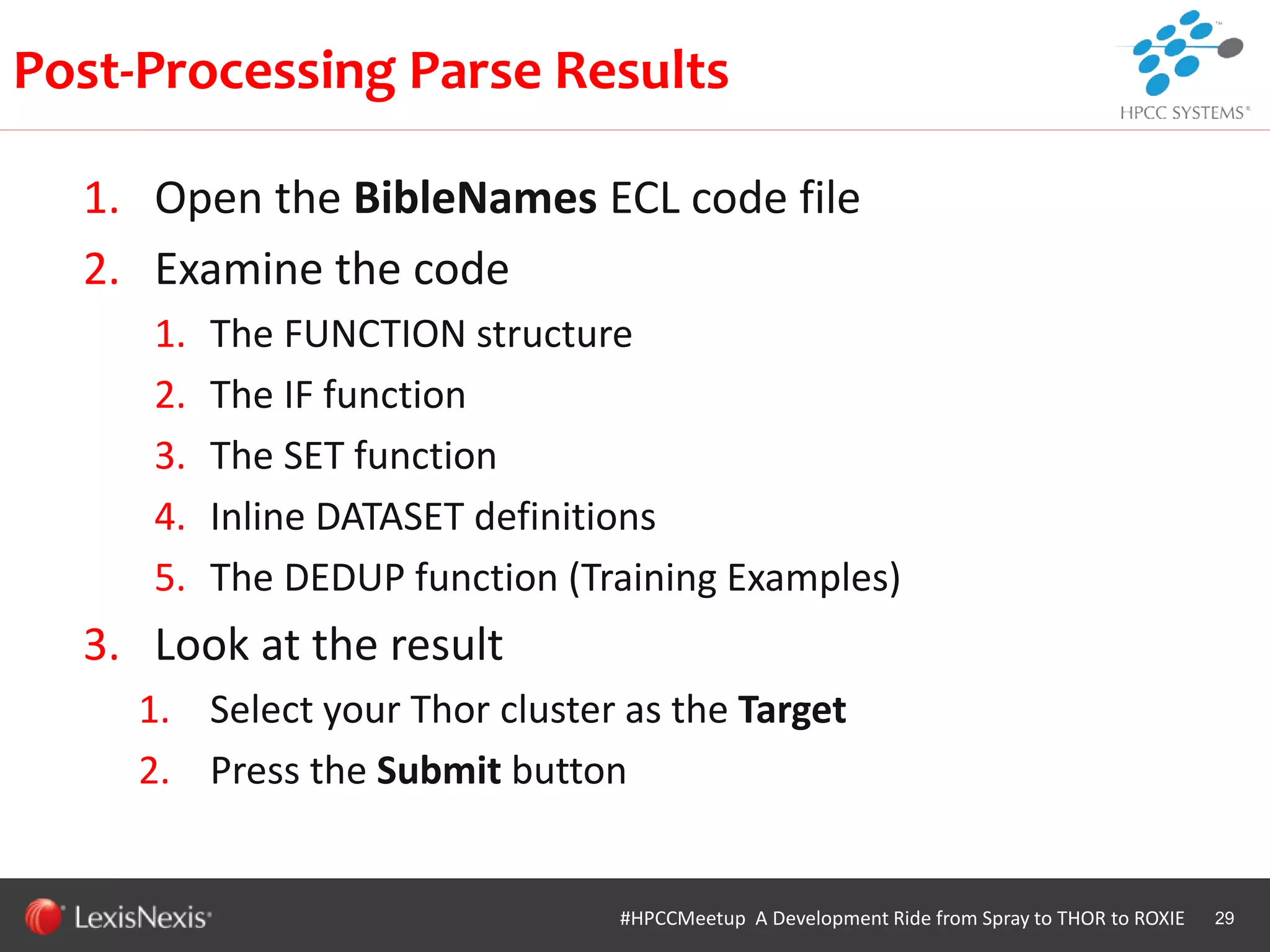

1. Open the BibleNames ECL code file
2. Examine the code
1. The FUNCTION structure
2. The IF function
3. The SET function
4. Inline DATASET definitions
5. The DEDUP function (Training Examples)
3. Look at the result
29
Post-Processing Parse Results

WHT/082311

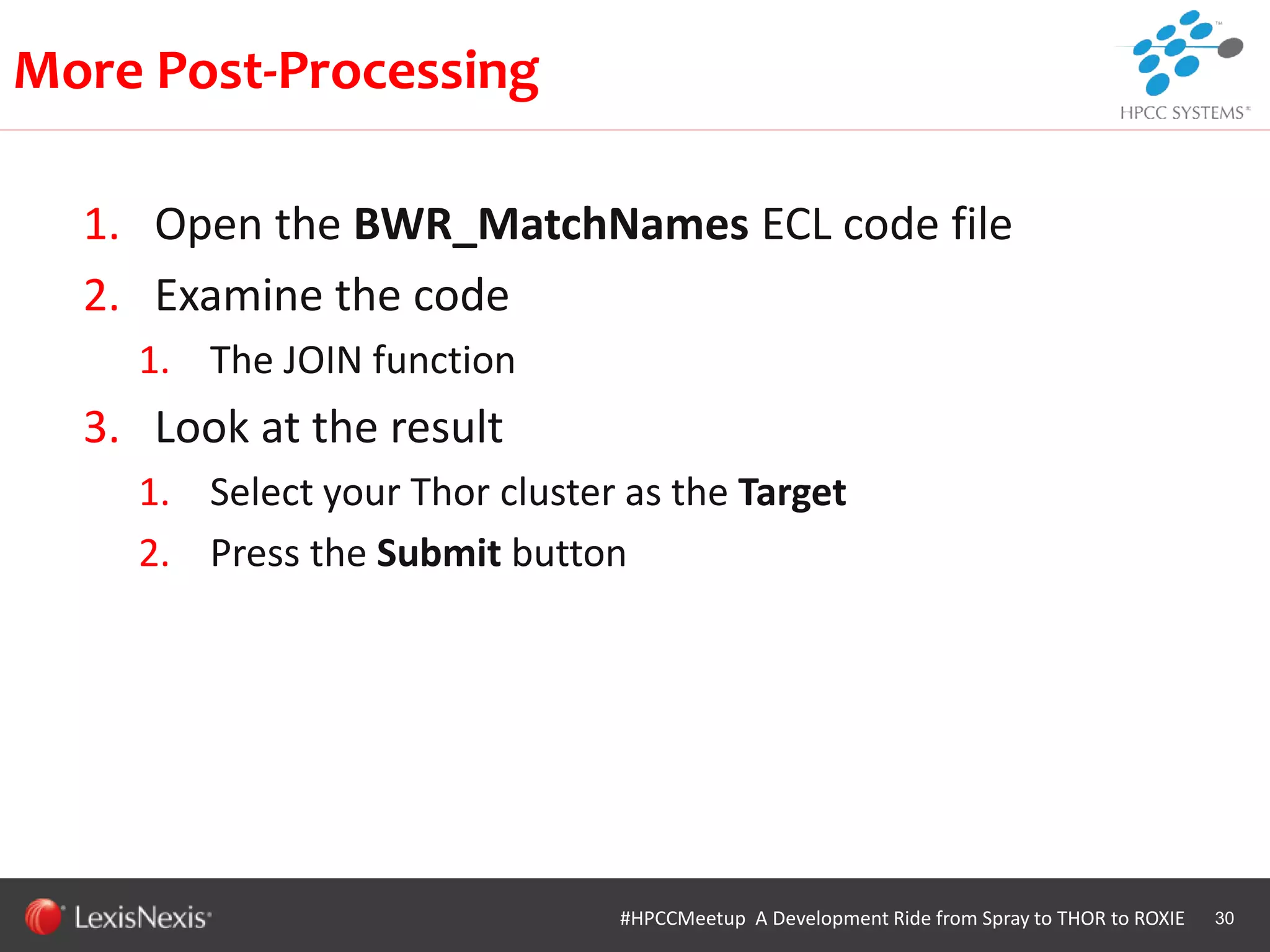

1. Open the BWR_MatchNames ECL code file
2. Examine the code
1. The JOIN function
30
More Post-Processing

WHT/082311

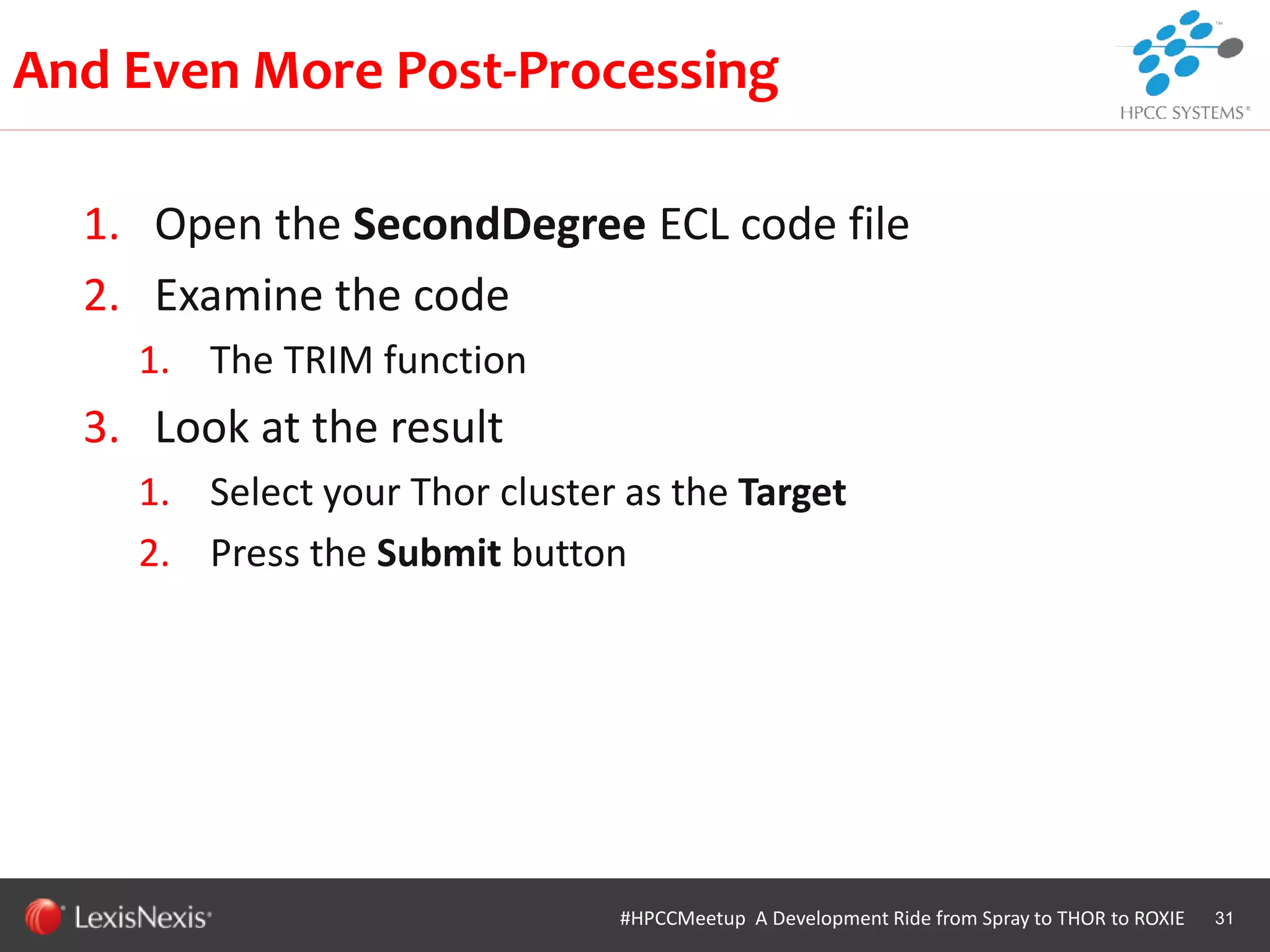

1. Open the SecondDegree ECL code file
2. Examine the code
1. The TRIM function

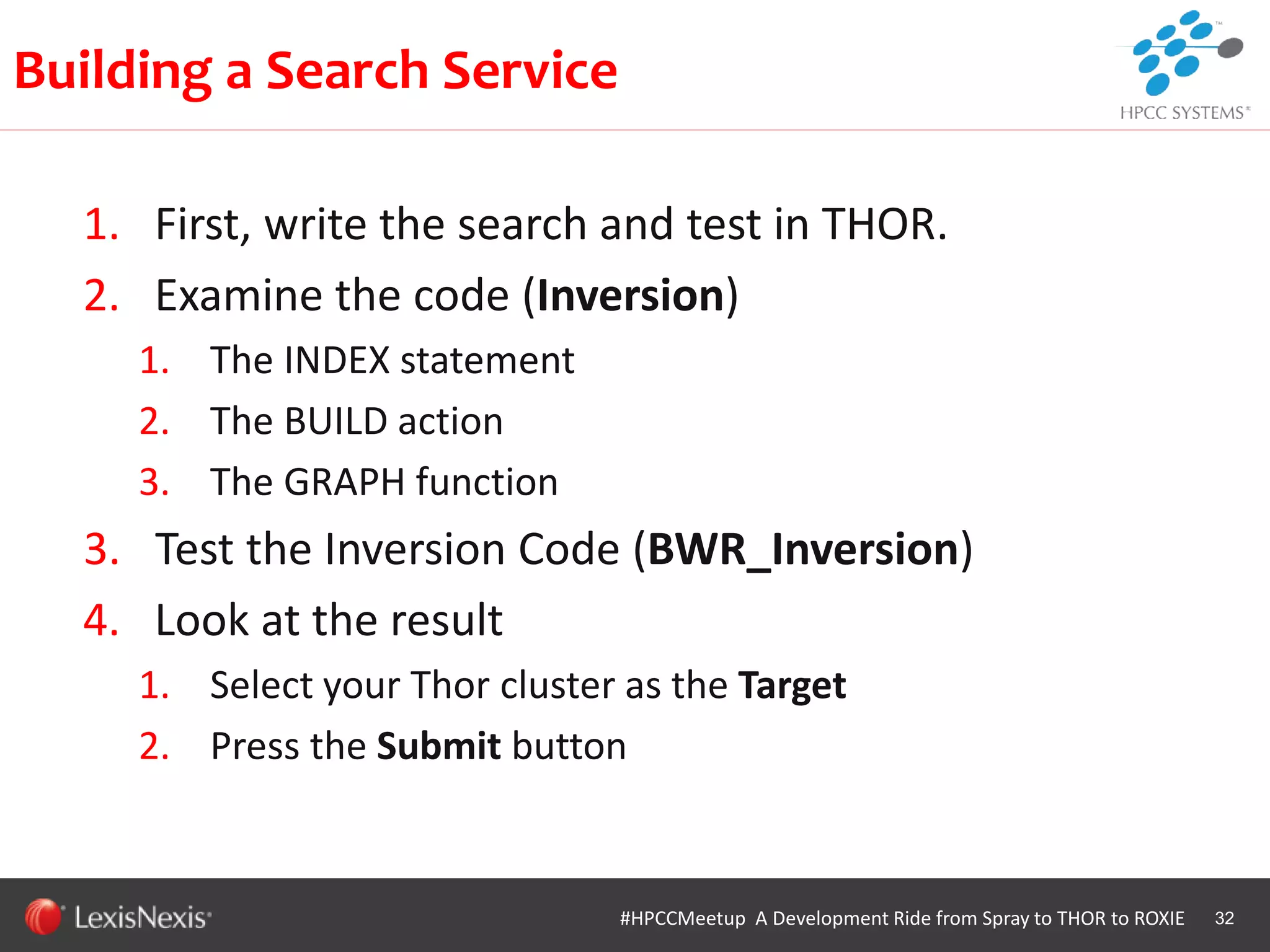

31
And Even More Post-Processing

WHT/082311
1. First, write the search and test in THOR.
2. Examine the code (Inversion)
1. The INDEX statement
2. The BUILD action
3. The GRAPH function
3. Test the Inversion Code (BWR_Inversion)

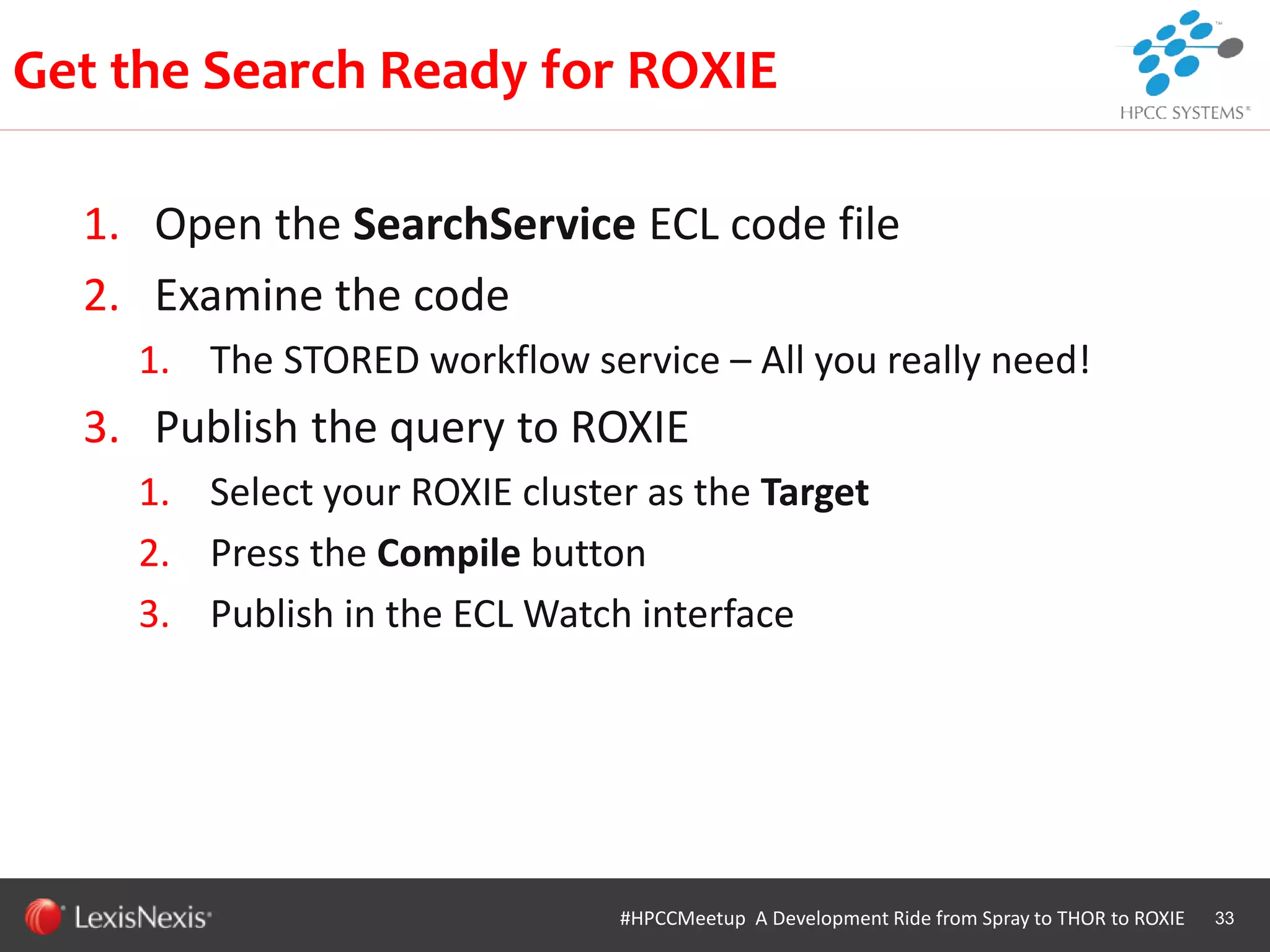

32
Building a Search Service

WHT/082311
1. Open the SearchService ECL code file
2. Examine the code
1. The STORED workflow service – All you really need!
3. Publish the query to ROXIE
1. Select your ROXIE cluster as the Target
2. Press the Compile button
3. Publish in the ECL Watch interface
33
Get the Search Ready for ROXIE

WHT/082311
And There’s So Much More to Learn!!!
Thanks for attending!
That’s All Folks!

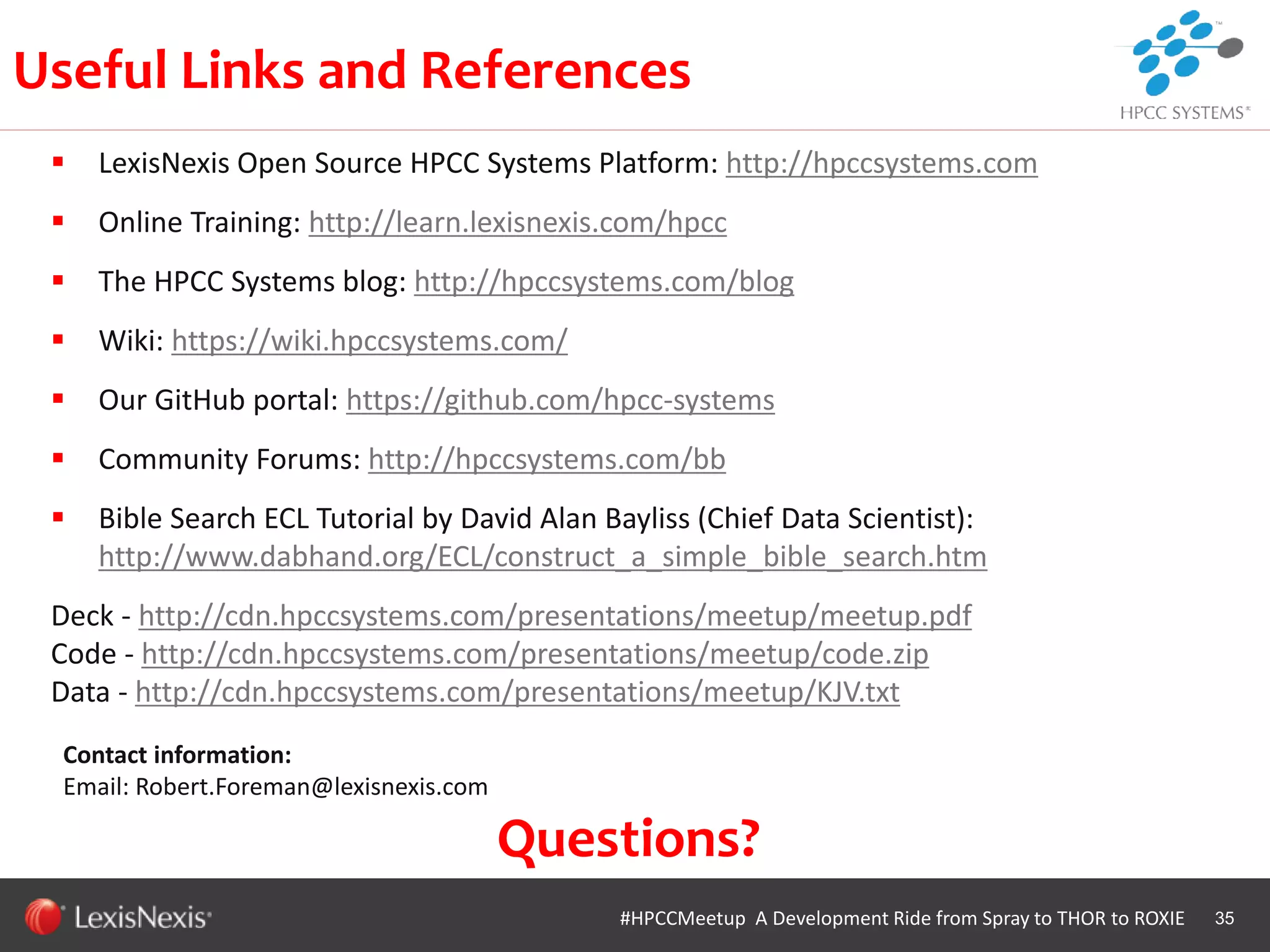

WHT/082311
Contact information:
Email: Robert.Foreman@lexisnexis.com
 LexisNexis Open Source HPCC Systems Platform: http://hpccsystems.com
 Online Training: http://learn.lexisnexis.com/hpcc
 The HPCC Systems blog: http://hpccsystems.com/blog
 Wiki: https://wiki.hpccsystems.com/
 Our GitHub portal: https://github.com/hpcc-systems
 Community Forums: http://hpccsystems.com/bb
 Bible Search ECL Tutorial by David Alan Bayliss (Chief Data Scientist):
http://www.dabhand.org/ECL/construct_a_simple_bible_search.htm
Deck - http://cdn.hpccsystems.com/presentations/meetup/meetup.pdf
Code - http://cdn.hpccsystems.com/presentations/meetup/code.zip
Data - http://cdn.hpccsystems.com/presentations/meetup/KJV.txt
Useful Links and References
Questions?

Meetup: Big Data NLP with HPCC Systems® - A Development Ride from Spray to THOR to ROXIE

More Related Content

What's hot

Viewers also liked

Similar to Meetup: Big Data NLP with HPCC Systems® - A Development Ride from Spray to THOR to ROXIE

More from HPCC Systems

Recently uploaded

Meetup: Big Data NLP with HPCC Systems® - A Development Ride from Spray to THOR to ROXIE
