As one of the leading medical equipment manufacturers,
involved in R&D, manufacturing and marketing.
enterprise, our products are selling in more than
We produce a wide range of medical products
clinics
Meditech Equipment Co., Ltd
Nanjing Road No.100, Qingdao,
Shandong Province, P. R. China
81705332
81705331
sales@meditech.cn
manufacturers, we are
marketing. And as a global
than 70 countries worldwide.
products used in hospitals and

Meditech Equipment Co., Ltd |PRODUCT CATALOGE 2015
Meditech Trade Marks.
Products Content
Defibrillator
Spirometer
CPAP & BIPAP

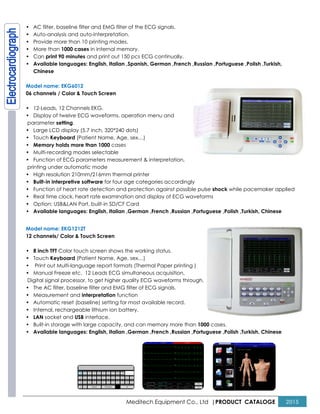

Electrocardiograph

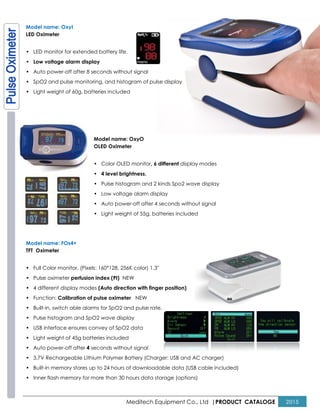

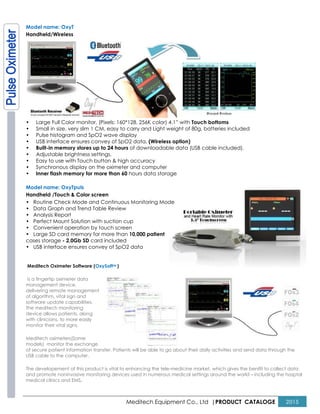

Pulse Oximeter
Visual Stethoscope
Fetal Monitor & Doppler

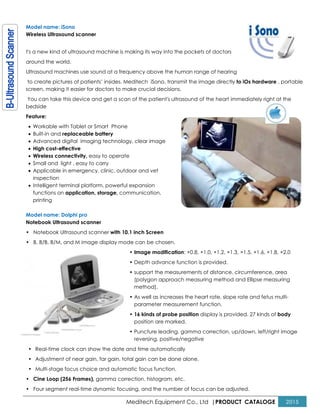

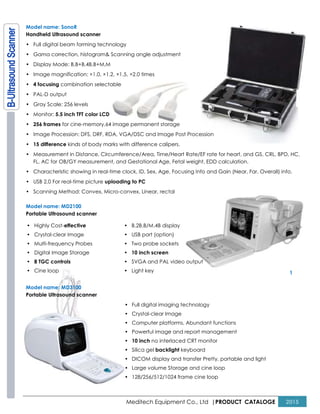

Ultrasound Scanner
Blood Pressure Monitor
Capnograph
Vital Signs Monitor

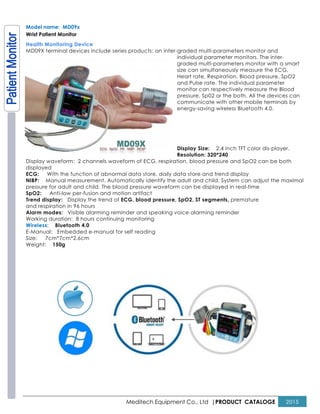

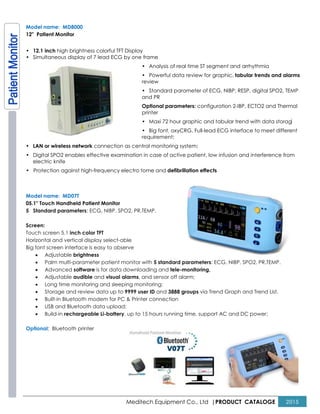

Multi Parameter Patient Monitor

Model name: Defi Xpress
03 Parameters Patient Monitor
DefiXpress: Defibrillator. ECG .PR .SPO2
• Screen: 7 inches (17.7 cm) diagonally, High-resolution display
• Energy selection 0，3，5，7，10，20,30，50,100,200,300,360 joule
• Defibrillator device voice alarm
• SpO2 Module (options)
• NIBP Module (options)
• Manual mode.
• Built in Printer
• AED Function: Auto analyses and charge x3 with programmable
auto energy level selection, screen prompts, and voice prompts.
• Output waveform Monophonic technology
Biphasic technology
Model name: Defi 8
Defi8: Defibrillator .ECG .PR .SPO2
• Screen: 7 inches (17.7 cm) diagonally, TFT display
• Energy selection 0，3，5，7，10，20,30，50,100,200,300,360 joule
• Manual mode.
• Built in Printer (Option)
• SpO2 Module (options)
Biphasic technology (Option)
Model name: Defi 9
Defi9: Defibrillator.ECG .RESP .SPO2 .TEMP .PR .NIBP
• Screen: 7 inches (17.7 cm) diagonally, TFT display
• Energy selection 0，3，5，7，10，20,30，
50,100,200,300,360 joule
• Manual mode.
• Built in Printer (Option)

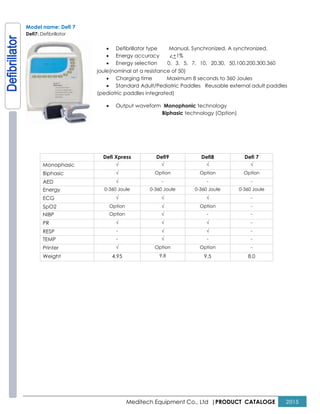

Model name: Defi 7
Defi7: Defibrillator
• Defibrillator type Manual, Synchronized, A synchronized,
• Energy accuracy ∠+1%
• Energy selection 0，3，5，7，10，20,30，50,100,200,300,360
joule(nominal at a resistance of 50)
• Charging time Maximum 8 seconds to 360 Joules
• Standard Adult/Pediatric Paddles Reusable external adult paddles
(pediatric paddles integrated)
Defi Xpress Defi9 Defi8 Defi 7
Monophasic √ √ √ √
Biphasic √ Option Option Option
AED √ - - -
Energy 0-360 Joule 0-360 Joule 0-360 Joule 0-360 Joule
ECG √ √ √ -
SpO2 Option √ Option -
NIBP Option √ - -
PR √ √ √ -
RESP - √ √ -
TEMP - √ - -
Printer √ Option Option -
Weight 4.95 9.8 9.5 8.0

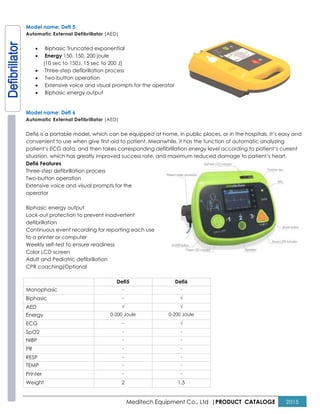

Model name: Defi 5
Automatic External Defibrillator (AED)
• Biphasic Truncated exponential
• Energy 150, 150, 200 joule
(10 sec to 150J, 15 sec to 200 J
• Three-step defibrillation process
• Two-button operation
• Extensive voice and visual prompts for the operator
• Biphasic energy output
Model name: Defi 6
Automatic External Defibrillator (AED)
Defi6 is a portable model, which can be equipped at home, in public places, or in the hospitals. It’s easy and
convenient to use when give first-aid to patient. Meanwhile, it has the function of automatic analyzing
patient’s ECG data, and then takes corresponding defibrillation energy level according to patient’s current
situation, which has greatly improved success rate, and maximum reduce
Defi6 Features
Three-step defibrillation process
Two-button operation
Extensive voice and visual prompts for the
operator
Biphasic energy output
Lock-out protection to prevent inadvertent
defibrillation
Continuous event recording for reporting each use
to a printer or computer
Weekly self-test to ensure readiness
Color LCD screen
Adult and Pediatric defibrillation
CPR coaching(Optional
Defi5
Monophasic
Biphasic
AED
Energy 0-200 Joule
ECG
SpO2
NIBP
PR
RESP
TEMP
Printer
Weight
Meditech Equipment Co., Ltd |PRODUCT
Biphasic Truncated exponential
to 150J, 15 sec to 200 J)
step defibrillation process
nd visual prompts for the operator
aid to patient. Meanwhile, it has the function of automatic analyzing
situation, which has greatly improved success rate, and maximum reduced damage to patient’s heart.
Extensive voice and visual prompts for the
out protection to prevent inadvertent
ording for reporting each use
Defi5 Defi6
- -
- √
√ √
200 Joule 0-200 Joule
- √
- -
- -
- -
- -
- -
- -
2 1.5
PRODUCT CATALOGE 2015
aid to patient. Meanwhile, it has the function of automatic analyzing
d damage to patient’s heart.

Model name: SpirOx pro
Spirometer System, Portable pulmonary function
• The portable pulmonary function measurement instrument can be used to measure:
1.Vital capacity (VC),
2.Forced vital capacity (FVC), Maximum Ventilator Volume (MVV).
3.Measurement algorithm refers to the ITS, ERS
standards of the American Thoracic Society (ATS)
• Adopting pressure-flow sensor, sensitive, precise, easy
to launder, clean and durable
• All parameters displayed on large screen(320 x 240),
• Built-in memory can store up to 300 cases of patient
measurement results
• The instrument can calibrate automatically, all English
operation, more convenient to operate
• 110mm thermal printer built-in, can print out a clear
clinical report, predicted value, measured value
• Measurement of breathing time:
1. VC time 50 seconds,
2. FVC measuring time 25 seconds,
3. MVV time 12 seconds, in favor of the
coordination between patients and the device
• Compact and flexible
Model name: SpirOx
Handheld / Colorful screen
• Ultra thin design for portable carrying, easy operation for convenient test
• 1.8inch TFT screen
• Communication with computer USB port which can calculate data,
analyse trend and export.
• Flow range: 16l/s
• Built-in lithium battery, (DC 3,7V)
• Battery power display, automatic shut
down (1 min.)
• Comes with PC Software for data transfer
(Save, Review, and Print a report)
• Weight 150gr.

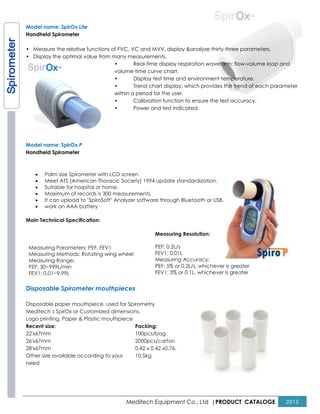

Model name: SpirOx Lite
Handheld Spirometer
• Measure the relative functions of FVC, VC and MVV, display &
• Display the optimal value from many measurements
•
volume
•
•
within a period for the user.
•
•
Model name: SpirOx P
Handheld Spirometer
• Palm size Spirometer with LCD
• Meet ATS (American Thoracic
• Suitable for hospital or home.
• Maximum of records is 300 measurements.
• It can upload to "SpiroSoft" Analyzer
• work on AAA battery
Main Technical Specification:
Measuring Parameters: PEF, FEV1
Measuring Methods: Rotating wing wheel
Measuring Range:
PEF: 30~999L/min
FEV1: 0.01~9.99L
Disposable Spirometer mouthpieces
Disposable paper mouthpiece, used
Meditech`s SpirOx or Customized dimensions.
Logo printing, Paper & Plastic mouthpiece
Recent size:
22'x67mm
26'x67mm
28'x67mm
Other size available according to your
need
e functions of FVC, VC and MVV, display &analyze thirty-three parameters,
Display the optimal value from many measurements.
Real-time display respiration waveform: flow
volume-time curve chart.
Display test time and environment temperatur
Trend chart display, which provides the trend of each parameter
within a period for the user.
Calibration function to ensure the test accuracy.
Power and test indicated.
LCD screen
Thoracic Society) 1994 update standardization.
measurements.
Analyzer software through Bluetooth or USB.
wheel
Measuring Resolution:
PEF: 0.2L/s
FEV1: 0.01L
Measuring Accuracy:
PEF: 5% or 0.2L/s, whichever is greater
FEV1: 3% or 0.1L, whichever is greater
Spirometer mouthpieces
for Spirometry
dimensions.
mouthpiece
your
Packing:
100pcs/bag
2000pcs/carton
0.42 x 0.42 x0.76,
10.5kg
three parameters,
time display respiration waveform: flow-volume loop and
Display test time and environment temperature.
Trend chart display, which provides the trend of each parameter
Calibration function to ensure the test accuracy.
greater
greater

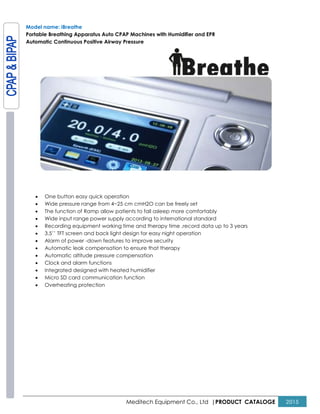

Model name: iBreathe
Portable Breathing Apparatus Auto CPAP Machines with Humidifier and EPR
Automatic Continuous Positive Airway Pressure
• One button easy quick operation
• Wide pressure range from 4~25 cm cmH2O can be freely set
• The function of Ramp allow patients to fall asleep more comfortably
• Wide input range power supply according to international standard
• Recording equipment working time and therapy time ,record data up to 3 years
• 3.5’’ TFT screen and back light design for easy night operation
• Alarm of power -down features to improve security
• Automatic leak compensation to ensure that therapy
• Automatic altitude pressure compensation
• Clock and alarm functions
• Integrated designed with heated humidifier
• Micro SD card communication function
• Overheating protection

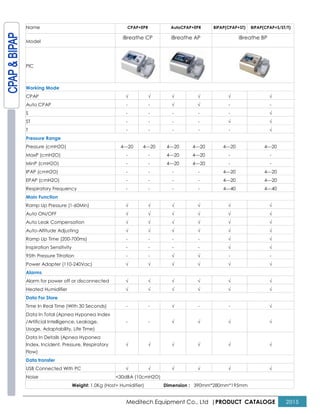

Name CPAP+EPR AutoCPAP+EPR BiPAP(CPAP+ST) BiPAP(CPAP+S/ST/T)
Model
iBreathe CP iBreathe AP iBreathe BP
PIC
Working Mode
CPAP √ √ √ √ √ √
Auto CPAP - - √ √ - -
S - - - - - √
ST - - - - √ √
T - - - - - √
Pressure Range
Pressure (cmH2O) 4---20 4---20 4---20 4---20 4---20 4---20
MaxP (cmH2O) - - 4---20 4---20 - -
MinP (cmH2O) - - 4---20 4---20 - -
IPAP (cmH2O) - - - - 4---20 4---20
EPAP (cmH2O) - - - - 4---20 4---20
Respiratory Frequency - - - - 4---40 4---40
Main Function
Ramp Up Pressure (1-60Min) √ √ √ √ √ √
Auto ON/OFF √ √ √ √ √ √
Auto Leak Compensation √ √ √ √ √ √
Auto-Altitude Adjusting √ √ √ √ √ √
Ramp Up Time (200-700ms) - - - - √ √
Inspiration Sensitivity - - - - √ √
95th Pressure Titration - - √ √ - -
Power Adapter (110-240Vac) √ √ √ √ √ √
Alarms
Alarm for power off or disconnected √ √ √ √ √ √
Heated Humidifier √ √ √ √ √ √
Data For Store
Time In Real Time (With 30 Seconds) - - √ - - √
Data In Total (Apnea Hyponea Index
/Artificial Intelligence, Leakage,
Usage, Adaptability, Life Time)
- - √ √ √ √
Data In Details (Apnea Hyponea
Index, Incident, Pressure, Respiratory
Flow)
√ √ √ √ √ √
Data transfer
USB Connected With PC √ √ √ √ √ √
Noise <30dBA (10cmH2O)
Weight: 1.0Kg (Host+ Humidifier) Dimension : 390mm*280mm*195mm

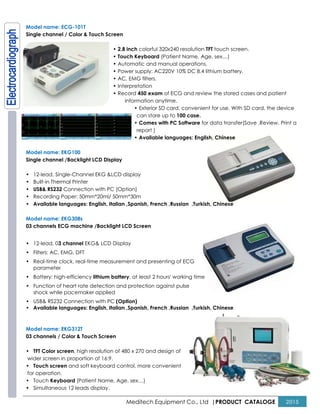

Model name: ECG-101T
Single channel / Color & Touch Screen
• 2.8
• Touch Keyboard
• Automatic and manual operations.
• Power supply: AC220V 10% DC 8.4 lithium battery.
• AC, EMG filters.
• Interpretation
• Record
Model name: EKG100
Single channel /Backlight LCD Display
• 12-lead, Single-Channel EKG &LCD display
• Built-in Thermal Printer
• USB& RS232 Connection with PC (O
• Recording Paper: 50mm*20ml/ 50mm*30m
• Available languages: English, Italian ,
Model name: EKG308s
03 channels ECG machine /Backlight
• 12-lead, 03 channel EKG& LCD Display
• Filters: AC, EMG, DFT
• Real-time clock, real-time measurement and presenting of ECG
parameter
• Battery: high-efficiency lithium battery
• Function of heart rate detection and protection against pulse
shock while pacemaker applied
• USB& RS232 Connection with PC (Option)
• Available languages: English, Italian ,
Model name: EKG312T
03 channels / Color & Touch Screen
• TFT Color screen, high resolution of 480 x 270 and design of
wider screen in proportion of 16:9.
• Touch screen and soft keyboard control, more convenient
for operation.
• Touch Keyboard (Patient Name, Age, sex…)
• Simultaneous 12 leads display.
Color & Touch Screen
2.8 inch colorful 320x240 resolution TFT touch screen
Touch Keyboard (Patient Name, Age, sex…)
Automatic and manual operations.
Power supply: AC220V 10% DC 8.4 lithium battery.
AC, EMG filters.
Interpretation
Record 450 exam of ECG and review the stored cases and patient
information anytime.
• Exterior SD card, convenient for use. With SD card, the device
can store up to 100 case.
• Comes with PC Software for data transfer(Save ,Review
report )
• Available languages: English, Chinese
play
LCD display
with PC (Option)
Recording Paper: 50mm*20ml/ 50mm*30m
English, Italian ,Spanish, French ,Russian ,Turkish, Chinese
Backlight LCD Screen
LCD Display
time measurement and presenting of ECG
lithium battery, at least 2 hours' working time
of heart rate detection and protection against pulse
(Option)
English, Italian ,Spanish, French ,Russian ,Turkish, Chinese
resolution of 480 x 270 and design of
and soft keyboard control, more convenient
(Patient Name, Age, sex…)
touch screen.
Power supply: AC220V 10% DC 8.4 lithium battery.
of ECG and review the stored cases and patient
Exterior SD card, convenient for use. With SD card, the device
for data transfer(Save ,Review, Print a

• AC filter, baseline filter and EMG filter of the ECG signals.
• Auto-analysis and auto-interpretation.
• Provide more than 10 printing modes.
• More than 1000 cases in internal memory.
• Can print 90 minutes and print out 150 pcs ECG continually.
• Available languages: English, Italian ,Spanish, German ,French ,Russian ,Portuguese ,Polish ,Turkish,
Chinese
Model name: EKG6012
06 channels / Color & Touch Screen
• 12-Leads, 12 Channels EKG.
• Display of twelve ECG waveforms, operation menu and
parameter setting.
• Large LCD display (5.7 inch, 320*240 dots)
• Memory holds more than 1000 cases
• Multi-recording modes selectable
• Function of ECG parameters measurement & interpretation,
printing under automatic mode
• High resolution 210mm/216mm thermal printer
• Built-in interpretive software for four age categories accordingly
• Function of heart rate detection and protection against possible pulse shock while pacemaker applied
• Real time clock, heart rate examination and display of ECG waveforms
• Option: USB&LAN Port, built-in SD/CF Card
• Available languages: English, Italian ,German ,French ,Russian ,Portuguese ,Polish ,Turkish, Chinese
Model name: EKG1212T
12 channels/ Color & Touch Screen
• 8 inch TFT Color touch screen shows the working status.
• Print out Multi-language report formats (Thermal Paper printing )
• Manual Freeze etc. 12 Leads ECG simultaneous acquisition,
Digital signal processor, to get higher quality ECG waveforms through.
• The AC filter, baseline filter and EMG filter of ECG signals.
• Measurement and interpretation function
• Automatic reset (baseline) setting for most available record.
• Internal, rechargeable lithium ion battery.
• LAN socket and USB interface.
• Built-in storage with large capacity, and can memory more than 1000 cases.
• Available languages: English, Italian ,German ,French ,Russian ,Portuguese ,Polish ,Turkish, Chinese

Model name: HeartRec
ECG Holter: 03 Channels.12 Channel
• Channels: Two Work Modes
12-lead / 3-Channel Switchable by Changing
12-Lead: I, II, III, aVR, aVL, aVF, V1 - V6
Program able Recording:
Time: 24h-72h, up to 7 days for 3ch
Sampling Rate: 128—1024/ch/s up to
Independent Pace Maker Channel
Model name: HeartRec Eco
ECG Holter: 12 Channels
• Compact design and small size
• With 12 leads synchro analysis
• There are more than 10 templates
ventricular premature beat module,
long interval module,
atrial flutter module,
atrial fibrillation module etc.and multiplicative
could almost identify every kind of pathological
• Powerful pacemaker
• Analysis of heart
and full analysis
• "Heart rate turbulence"
myocardial
• "T Wave alternation"
Arrhythmia
• The report has
analysis.
• Recorder features
• Removable
• Work on "AAA"
• Separated electrodes
for replacement
• 60g , battery
Changing Patient Cable 10-Wire Cable:
V6 5-Wire or 7-Wire
to 10,000/ch/s Resolution: 12-16 bits
• LCD Display:
Real Time ECG View
Instruction Programming Multi-Language Selectable
• High Quality Recording:
Frequency Response: 0.05~60Hz CMMR: >80dB
Input Impedance: >5M
• Double Work Modes in Data Access:
Removable SD Card: 512MB/1GB/ 2GB USB connector
• Low Power Consumption:
One AAA Battery: up to 7 days for 3-Channel
• Compact Size & Light Weight:
72mm×53mm×16mm (2.8"×2.0"×0.63")
48g (1.7oz.), battery not included
size with OLED display
analysis , QRS search can be more exactly
templates as atrial premature beat module,
multiplicative User-defined templates
pathological wave forms
pacemaker analysis, on the AAI, VVI, DDD etc. all pacemaker
heart rate variability with short-range 5 minutes and
analysis of heart rate variability
turbulence" analysis can predict the risk of death
myocardial infarction
alternation" analysis is a important index on judging
Arrhythmia
has more reference value with the functions of VCG,
features
TF card(volume: up to 2GB).
"AAA" size battery, and workable for 60 hours.
electrodes synchronously collect the 12-lead ECG
replacement
battery not included
Selectable
>80dB
connector
pacemaker analysis
and long-range 1 hour
death in patients with
judging and preventing
VCG, VLP, TVCG and QTD
ECG data (easy

Model name: Cardios
PC based ECG machine
• 12-Lead Simultaneous ECG (Patient Cable: 10
wires, independent (easy to remove))
• Automatic Measurement and Interpretation (PC
Interface: USB Connector)
• Pacemaker Analysis, Multi-Form Printing
• VCG and VLP (option), Isolated USB
• Sampling Rate: A/D: 24K SPS/Channel, Recording: 1000 SPS/Channel
• Quantization Precision: A/D: 24 Bits, Recording: 16 Bits
• Resolution: 0.4µV
• Frequency Response: 0.05-250Hz (±3dB)
• Common Mode Rejection: >90dB
• Input Impedance: >10M
• Time Constant: ≥3.2Sec.
• Maximum Electrode Potential: ±300mV DC
• Dynamic Range: ±12mV
• Isolate Voltage: 4000V
• Patent Multi-Channel Synchronous A/D
• Defibrillation Protect: Built-in box
Model name: Cardios pro
Stress test system
• High resolution A/D: 24K SPS/Ch, 24 bits
• Meditech patent technology: Digital synchronous A/D
• Meditech patent technology: Myoelectric filter based on ECG spectrum
• Meditech proprietary algorithm: Minimum delay baseline wander eraser
• Preset classical protocols and unlimited user defined protocols
• ECG, BP, SO2, METS, max VO2, Distance and Time synchronous display
• Rehabilitation mode: Cardiac function recovery protocols
• Independent testing for different treadmills and ergo meters
• Different filters selectable: LP, HP and artifact filters
• Skin-electrode impedance measurement
• Arrhythmia detect and live review
• Various trends: tracking and compare
• Soft anti-aliased ECG display

Model name: OxyC
LED Talking Oximeter (Oxygen level, Pulse rate)
• 30+ hours continuously monitoring on one set of batteries
• Integrated SPO2 probe and processing display module and calling results
• SPO2 and Pulse Rate bar graph
• Low battery level indication
• Auto power off after 5 seconds
• Interference resistance capacity against ambient light and measurement
performance at low perfusion
Model name: FOs2
OLED Oximeter
• Display SpO2, Pulse Rate ,Pulse bar
and Plethysmogram
• 6 display modes for easy reading
from all sides.
• Low power consumption,
automatic power off.
• Approximately 30 Hour normal operation.
• Battery-low indicator
• 10 setting adjustable brightness
• Accommodates widest range of finger sizes from pediatric to adult
Model name: POxi2
LED Oximeter
• LED monitor for extended battery life.
• 2 Display mode.
• SpO2 and pulse monitoring, and histogram of pulse display
• Easy to use with one-key operation(for power on and change display)
• Low voltage alarm display
• Auto power-off after 8 seconds without signal

Model name: OxyI
LED Oximeter
• LED monitor for extended battery life.
• SpO2 and pulse monitoring, and histogram of pulse displa
• Light weight of 60g, batteries included
Model name: OxyO
OLED Oximeter
• Color OLED monitor
• 4 level brightness.
• Pulse histogram and 2 kinds Spo2 wave display
• Auto power
Model name: FOs4+
TFT Oximeter
• Full Color monitor, (Pixels: 160*128, 256K color) 1.3"
• Pulse oximeter perfusion index (PI)
• 4 different display modes (Auto direction with finger position)
• Function: Calibration of pulse oximeter
• Built-in, switch able alarms for SpO2 and pulse rate.
• Pulse histogram and SpO2 wave display
• USB interface ensures convey of SpO2 data
• Light weight of 45g batteries included
• 3.7V Rechargeable Lithium Polymer Battery (Charger: USB and AC charger)
• Built-in memory stores up to 24 hours of downloadable data (USB cable included)
• Inner flash memory for more than 30 hours data storage (options)
LED monitor for extended battery life.
off after 8 seconds without signal
SpO2 and pulse monitoring, and histogram of pulse display
weight of 60g, batteries included
Model name: OxyO
OLED Oximeter
Color OLED monitor, 6 different display modes
4 level brightness.
Pulse histogram and 2 kinds Spo2 wave display
Low voltage alarm display
Auto power-off after 4 seconds without signal
Light weight of 55g, batteries included
Full Color monitor, (Pixels: 160*128, 256K color) 1.3"
perfusion index (PI) NEW
(Auto direction with finger position)
ration of pulse oximeter NEW
in, switch able alarms for SpO2 and pulse rate.
Pulse histogram and SpO2 wave display
USB interface ensures convey of SpO2 data
Light weight of 45g batteries included
seconds without signal
Rechargeable Lithium Polymer Battery (Charger: USB and AC charger)
in memory stores up to 24 hours of downloadable data (USB cable included)
Inner flash memory for more than 30 hours data storage (options)

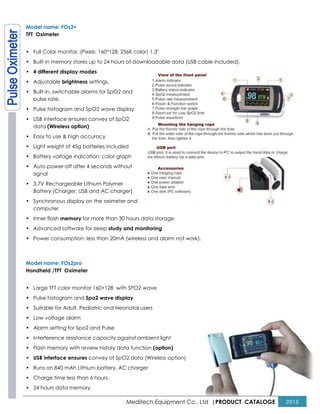

Model name: FOs3+
TFT Oximeter
• Full Color monitor, (Pixels: 160*128, 256K color) 1.3"
• Built-in memory stores up to 24 hours of downloadable data (USB cable included).
• 4 different display modes
• Adjustable brightness settings.
• Built-in, switchable alarms for SpO2 and
pulse rate.
• USB interface ensures convey of SpO2
data (Wireless option)
• Easy to use & high accuracy
• Light weight of 45g batteries included
• Battery voltage indication: color graph
• Auto power-off after 4 seconds without
signal
• 3.7V Rechargeable Lithium Polymer
Battery (Charger: USB and AC charger)
• Synchronous display on the oximeter and
computer
• Inner flash memory for more than 30 hours data storage
• Advanced software for sleep study and monitoring
• Power consumption: less than 20mA (wireless and alarm not work).
Model name: FOs2pro
Handheld /TFT Oximeter
• Large TFT color monitor 160×128 with SPO2 wave
• Pulse histogram and Spo2 wave display
• Suitable for Adult, Pediatric and Neonatal users
• Low voltage alarm
• Alarm setting for Spo2 and Pulse
• Interference resistance capacity against ambient light
• Flash memory with review history data function (option)
• USB interface ensures convey of SpO2 data (Wireless option)
• Runs on 840 mAh Lithium battery, AC charger
• Charge time less than 6 hours.
• 24 hours data memory.

Model name: OxyT
Handheld/Wireless
• Large Full Color monitor, (Pixels: 160*128, 256K color) 4.1” with Touch bottoms
• Small in size, very slim 1 CM, easy to carry and Light weight of 80g, batteries included
• USB interface ensures convey of SpO2 data, (Wireless option)
• Built-in memory stores up to 24 hours of downloadable data (USB cable included).
• Adjustable brightness settings.
• Easy to use with Touch button & high accuracy
• Synchronous display on the oximeter and computer
• Inner flash memory for more than 60 hours data storage
Model name: OxyTpuls
Handheld /Touch & Color screen
• Routine Check Mode and Continuous Monitoring Mode
• Data Graph and Trend Table Review
• Analysis Report
• Perfect Mount Solution with suction cup
• Convenient operation by touch screen
• Large SD card memory for more than 10,000 patient
cases storage - 2.0Gb SD card included
• USB interface ensures convey of SpO2 data
Meditech Oximeter Software (OxySoftTM )
is a fingertip oximeter data
management device,
delivering remote management
of algorithm, vital sign and
software update capabilities.
The meditech monitoring
device allows patients, along
with clinicians, to more easily
monitor their vital signs.
Meditech oximeters(Some
models) monitor the exchange
of secure patient information transfer. Patients will be able to go about their daily activities and send data through the
USB cable to the computer.
The developement of this product is vital to enhancing the tele-medicine market, which gives the benifit to collect data
and promote noninvasive monitoring devices used in numerous medical settings around the world – including the hosptal
medical clinics and EMS.

Model name: Stethoplus2
Stethoscope with auto pulse accounting
• Advanced designing, small in size and light in weight
• Special medical thickening PC material for the tubes
• High quality polyester material for the membrane
• Minimize the interference of environmental noise
• Enhance auscultation sound volume by 1
Model name: Stethoplus
Model name: VS1
Visual Stethoscope / with 3 Lead cable
• Back light (option )
• Collecting sensitivity and wave move speed
• Runs on standard AAA batteries& continuous worki
dvanced designing, small in size and light in weight
PC material for the tubes
High quality polyester material for the membrane
of environmental noise
Enhance auscultation sound volume by 1-2 times
• Advanced designing, small in size and light in weight
• Come with Digital clock
• Special medical thickening PC material for the tubes
• High quality polyester material for the membrane
• Minimize the interference of environmental noise
• Enhance auscultation sound volume by 1
/ with 3 Lead cable
• Electronic Stethoscope with real time ECG display
• ECG display can be frozen to show ST
• Leads I - II –III
• Recording speed of 12.5, 25 or 25 mm/s
• Hi-Lo frequency pick up depending on applied pressure
• Simple to use with single button operation
Collecting sensitivity and wave move speed
Runs on standard AAA batteries& continuous working time 43 hours
Advanced designing, small in size and light in weight
Special medical thickening PC material for the tubes
High quality polyester material for the membrane
he interference of environmental noise
Enhance auscultation sound volume by 1-2 times
Electronic Stethoscope with real time ECG display
ECG display can be frozen to show ST-elevation
Recording speed of 12.5, 25 or 25 mm/s
frequency pick up depending on applied pressure
Simple to use with single button operation

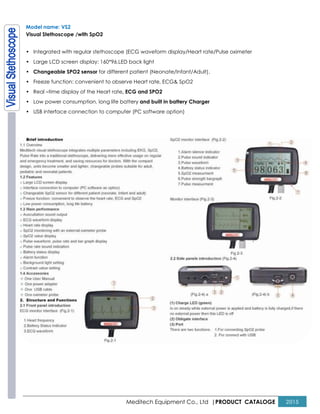

Model name: VS2
Visual Stethoscope /with SpO2
• Integrated with regular stethoscope (ECG waveform display/Heart rate/Pulse oximeter
• Large LCD screen display: 160*96,LED back light
• Changeable SPO2 sensor for different patient (Neonate/Infant/Adult).
• Freeze function: convenient to observe Heart rate, ECG& SpO2
• Real –time display of the Heart rate, ECG and SPO2
• Low power consumption, long life battery and built in battery Charger
• USB interface connection to computer (PC software option)

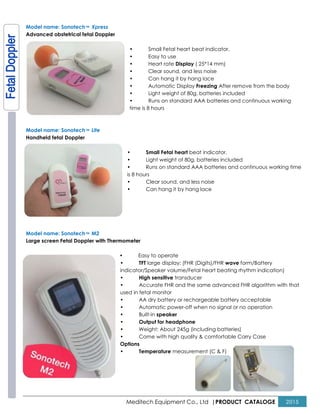

Model name: SonotechTM Xpress
Advanced obstetrical fetal Doppler
Model name: SonotechTM Lite
Handheld fetal Doppler
Model name: SonotechTM M2
Large screen Fetal Doppler with Thermometer
•
• Small Fetal heart beat indicator.
• Easy to use
• Heart rate Display ( 25*14 mm)
• Clear sound, and less noise
• Can hang it by hang lace
• Automatic Display Freezing After remove from th
• Runs on standard AAA batteries and continuous working
time is 8 hours
• Small Fetal heart beat indicator.
• Runs on standard AAA batteries and continuous working time
is 8 hours
• Clear sound, and less noise
• Can hang it by hang lace
Large screen Fetal Doppler with Thermometer
• Easy to operate
• TFT large display: (FHR (Digits)/FHR wave
indicator/Speaker volume/Fetal heart beating rhythm indication)
• High sensitive transducer
• Accurate FHR and the same advanced FHR algorithm with that
used in fetal monitor
• AA dry battery or rechargeable battery acceptable
• Automatic power-off when no signal or no operation
• Built-in speaker
• Output for headphone
• Weight: About 245g (including batteries)
• Come with high quality & comfortable Carry Case
Options
• Temperature measurement (C & F)
After remove from the body
Runs on standard AAA batteries and continuous working
standard AAA batteries and continuous working time
form/Battery
indicator/Speaker volume/Fetal heart beating rhythm indication)
Accurate FHR and the same advanced FHR algorithm with that
AA dry battery or rechargeable battery acceptable
no signal or no operation
Weight: About 245g (including batteries)
Come with high quality & comfortable Carry Case

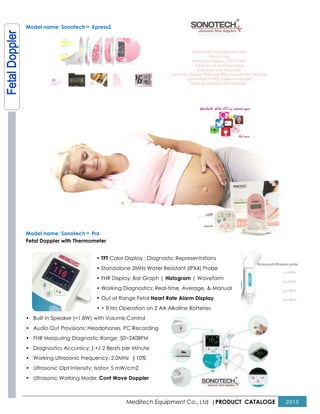

Model name: SonotechTM Xpress2
Model name: SonotechTM Pro
Fetal Doppler with Thermometer
• TFT Color Display : Diagnostic Representations
• Standalone 2MHz Water Resistant (IPX4) Probe
• FHR Display: Bar Graph |
• Working Diagnostics: Real
• Out of Range Fetal
• + 8 Hrs Operation on 2 AA Alkaline Batteries
• Built In Speaker (=1.8W) with Volume Control
• Audio Out Provisions: Headphones, PC Recording
• FHR Measuring Diagnostic Range: 50~240BPM
• Diagnostics Accuracy: } +/-2 Beats per Minute
• Working Ultrasonic Frequency: 2.0MHz
• Ultrasonic Opt Intensity: Isata< 5 mW/cm2
• Ultrasonic Working Mode: Cont Wave Doppler
Color Display : Diagnostic Representations
Standalone 2MHz Water Resistant (IPX4) Probe
FHR Display: Bar Graph | Histogram | Waveform
Working Diagnostics: Real-time, Average, & Manual
Out of Range Fetal Heart Rate Alarm Display
8 Hrs Operation on 2 AA Alkaline Batteries
Built In Speaker (=1.8W) with Volume Control
Audio Out Provisions: Headphones, PC Recording
FHR Measuring Diagnostic Range: 50~240BPM
2 Beats per Minute
Working Ultrasonic Frequency: 2.0MHz } 10%
Ultrasonic Opt Intensity: Isata< 5 mW/cm2
Cont Wave Doppler

Model name: iSono
Wireless Ultrasound scanner
t's a new kind of ultrasound machine is making its way into the pockets of doctors
around the world.
Ultrasound machines use sound at a frequency above the human range of hearing
to create pictures of patients’ insides. Meditech iSono, transmit the image directly to iOs hardware , portable
screen, making it easier for doctors to make crucial decisions.
You can take this device and get a scan of the patient's ultrasound of the heart immediately right at the
bedside
Feature:
• Workable with Tablet or Smart Phone
• Built-in and replaceable battery
• Advanced digital imaging technology, clear image
• High cost-effective
• Wireless connectivity, easy to operate
• Small and light , easy to carry
• Applicable in emergency, clinic, outdoor and vet
inspection
• Intelligent terminal platform, powerful expansion
functions on application, storage, communication,
printing
Model name: Dolphi pro
Notebook Ultrasound scanner
• Notebook Ultrasound scanner with 10.1 inch Screen
• B, B/B, B/M, and M image display mode can be chosen.
• Image modification: ×0.8, ×1.0, ×1.2, ×1.3, ×1.5, ×1.6, ×1.8, ×2.0
• Depth advance function is provided.
• support the measurements of distance, circumference, area
(polygon approach measuring method and Ellipse measuring
method),
• As well as increases the heart rate, slope rate and fetus multi-
parameter measurement function.
• 16 kinds of probe position display is provided, 27 kinds of body
position are marked.
• Puncture leading, gamma correction, up/down, left/right image
reversing, positive/negative
• Real-time clock can show the date and time automatically
• Adjustment of near gain, far gain, total gain can be done alone.
• Multi-stage focus choice and automatic focus function.
• Cine Loop (256 Frames), gamma correction, histogram, etc.
• Four segment real-time dynamic focusing, and the number of focus can be adjusted.

Model name: SonoR
Handheld Ultrasound scanner
• Full digital beam forming technology
• Gama correction, histogram& Scanning angle adjustment
• Display Mode: B,B+B,4B,B+M,M
• Image magnification: ×1.0, ×1.2, ×1.5, ×2.0 times
• 4 focusing combination selectable
• PAL-D output
• Gray Scale: 256 levels
• Monitor: 5.5 inch TFT color LCD
• 256 frames for cine-memory,64 image permanent storage
• Image Procession: DFS, DRF, RDA, VGA/DSC and Image Post Procession
• 15 difference kinds of body marks with difference calipers.
• Measurement in Distance, Circumference/Area, Time/Heart Rate/EF rate for heart, and GS, CRL, BPD, HC,
FL, AC for OB/GY measurement, and Gestational Age, Fetal weight, EDD calculation.
• Characteristic showing in real-time clock, ID, Sex, Age, Focusing Info and Gain (Near, Far, Overall) info.
• USB 2.0 For real-time picture uploading to PC
• Scanning Method: Convex, Micro-convex, Linear, rectal
Model name: MD2100
Portable Ultrasound scanner
1
Model name: MD3100
• Full digital imaging technology
• Crystal-clear Image
• Computer platforms, Abundant functions
• Powerful image and report management
• 10 inch no interlaced CRT monitor
• Silica gel backlight keyboard
• DICOM display and transfer Pretty, portable and light
• Large volume Storage and cine loop
• 128/256/512/1024 frame cine loop
• Highly Cost-effective
• Crystal-clear Image
• Multi-frequency Probes
• Digital Image Storage
• 8 TGC controls
• Cine loop
• B.2B.B/M.4B display
• USB port (option)
• Two probe sockets
• 10 inch screen
• SVGA and PAL video output
• Light key

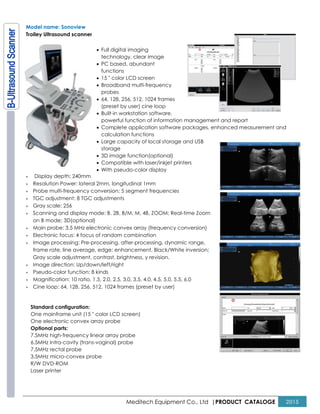

Model name: Sonoview
Trolley Ultrasound scanner
• Full digital imaging
technology, clear image
• PC based, abundant
functions
• 15 " color LCD screen
• Broadband multi-frequency
probes
• 64, 128, 256, 512, 1024 frames
(preset by user) cine loop
• Built-in workstation software,
powerful function of information management and report
• Complete application software packages, enhanced measurement and
calculation functions
• Large capacity of local storage and USB
storage
• 3D image function(optional)
• Compatible with laser/inkjet printers
• With pseudo-color display
× Display depth: 240mm
× Resolution Power: lateral 2mm, longitudinal 1mm
× Probe multi-frequency conversion: 5 segment frequencies
× TGC adjustment: 8 TGC adjustments
× Gray scale: 256
× Scanning and display mode: B, 2B, B/M, M, 4B, ZOOM; Real-time Zoom
on B mode; 3D(optional)
× Main probe: 3.5 MHz electronic convex array (frequency conversion)
× Electronic focus: 4 focus of random combination
× Image processing: Pre-processing, after-processing, dynamic range,
frame rate, line average, edge; enhancement, Black/White inversion;
Gray scale adjustment, contrast, brightness, γ revision.
× Image direction: Up/down/left/right
× Pseudo-color function: 8 kinds
× Magnification: 10 ratio, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0
× Cine loop: 64, 128, 256, 512, 1024 frames (preset by user)
Standard configuration:
One mainframe unit (15 " color LCD screen)
One electronic convex array probe
Optional parts:
7.5MHz high-frequency linear array probe
6.5MHz intra-cavity (trans-vaginal) probe
7.5MHz rectal probe
3.5MHz micro-convex probe
R/W DVD-ROM
Laser printer

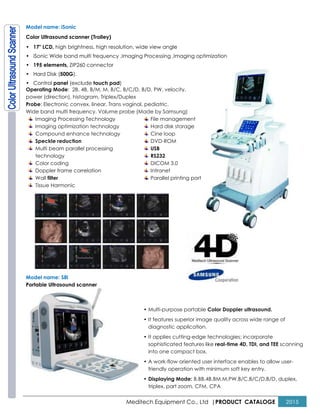

Model name: iSonic
Color Ultrasound scanner (Trolley)
• 17" LCD, high brightness, high resolution, wide view angle
• iSonic Wide band multi frequency ,Imaging Processing ,Imaging optimization
• 195 elements, ZIP260 connector
• Hard Disk (500G),
• Control panel (exclude touch pad)
Operating Mode: 2B, 4B, B/M, M, B/C, B/C/D, B/D, PW, velocity,
power (direction), histogram, Triplex/Duplex
Probe: Electronic convex, linear, Trans vaginal, pediatric.
Wide band multi frequency. Volume probe (Made by Samsung)
Imaging Processing Technology
Imaging optimization technology
Compound enhance technology
Speckle reduction
Multi beam parallel processing
technology
Color coding
Doppler frame correlation
Wall filter
Tissue Harmonic
File management
Hard disk storage
Cine loop
DVD-ROM
USB
RS232
DICOM 3.0
Intranet
Parallel printing port
Model name: S8i
• Multi-purpose portable Color Doppler ultrasound.
• It features superior image quality across wide range of
diagnostic application.
• It applies cutting-edge technologies; incorporate
sophisticated features like real-time 4D, TDI, and TEE scanning
into one compact box.
• A work-flow oriented user interface enables to allow user-
friendly operation with minimum soft key entry.
• Displaying Mode: B,BB,4B,BM,M,PW,B/C,B/C/D,B/D, duplex,
triplex, part zoom, CFM, CPA

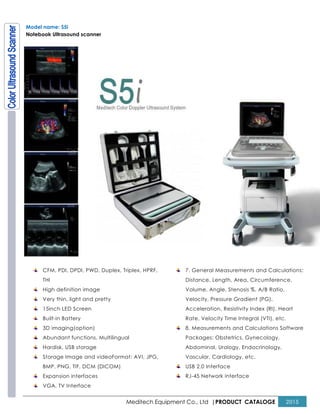

Model name: S5i
Notebook Ultrasound scanner
CFM, PDI, DPDI, PWD, Duplex, Triplex, HPRF,
THI
High definition image
Very thin, light and pretty
15inch LED Screen
Built-in Battery
3D imaging(option)
Abundant functions, Multilingual
Hardisk, USB storage
Storage Image and videoFormat: AVI, JPG,
BMP, PNG, TIF, DCM (DICOM)
Expansion interfaces
VGA, TV Interface
7. General Measurements and Calculations:
Distance, Length, Area, Circumference,
Volume, Angle, Stenosis %, A/B Ratio,
Velocity, Pressure Gradient (PG),
Acceleration, Resistivity Index (RI), Heart
Rate, Velocity Time Integral (VTI), etc.
8. Measurements and Calculations Software
Packages: Obstetrics, Gynecology,
Abdominal, Urology, Endocrinology,
Vascular, Cardiology, etc.
USB 2.0 Interface
RJ-45 Network interface

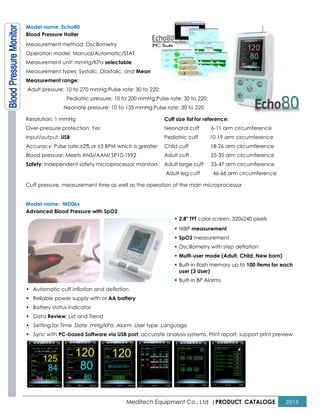

Model name: Echo80
Blood Pressure Holter
Measurement method: Oscillometry
Operation model: Manual/Automatic/STAT
Measurement unit: mmHg/KPa selectable
Measurement types: Systolic, Diastolic, and
Measurement range:
Adult pressure: 10 to 270 mmHg;Pulse rate: 30 to 220;
Pediatric pressure: 10 to 200 mmHg;Pulse rate: 30 to 220;
Neonate pressure: 10 to 135 mmHg;Pulse rate: 30 to 220
Resolution: 1 mmHg
Over-pressure protection: Yes
Input/output: USB
Accuracy: Pulse rate:±2% or ±3 BPM wh
Blood pressure: Meets ANSI/AAMI SP10
Safety: Independent safety microprocessor monitors
Cuff pressure, measurement time as well as the
Model name: MD06x
Advanced Blood Pressure with SpO2
• Automatic cuff inflation and deflation
• Reliable power supply with or AA battery
• Battery status indicator
• Data Review: List and Trend
• Setting for Time .Date .mHg/kPa .Alarm .User type .Language
• Sync with PC-based Software via USB port
Operation model: Manual/Automatic/STAT
selectable
Measurement types: Systolic, Diastolic, and Mean
Adult pressure: 10 to 270 mmHg;Pulse rate: 30 to 220;
: 10 to 200 mmHg;Pulse rate: 30 to 220;
Neonate pressure: 10 to 135 mmHg;Pulse rate: 30 to 220
Accuracy: Pulse rate:±2% or ±3 BPM which is greater
Blood pressure: Meets ANSI/AAMI SP10-1992
: Independent safety microprocessor monitors
Cuff size list for reference:
Neonatal cuff 6-11 arm circumference
Pediatric cuff 10-19 arm circumference
Child cuff 18-26 arm circumference
Adult cuff 25-35 arm circumference
Adult large cuff 33-47 arm circumference
Adult leg cuff 46-66 arm circumference
Cuff pressure, measurement time as well as the operation of the main microprocessor
• 2.8" TFT color screen, 320x240 pixels
• NIBP measurement
• SpO2 measurement
• Oscillometry with step deflation
• Multi-user mode (Adult, Child, New born)
• Built-in flash memory up to
user (3 User)
• Built-in BP Alarms
Automatic cuff inflation and deflation
AA battery
Setting for Time .Date .mHg/kPa .Alarm .User type .Language
based Software via USB port, accurate analysis systems, Print report, support print preview
11 arm circumference
peration of the main microprocessor
color screen, 320x240 pixels
Oscillometry with step deflation
user mode (Adult, Child, New born)
in flash memory up to 100 items for each
urate analysis systems, Print report, support print preview

Model name: MD90ET
Capnograph (EtCO2.SpO2)
• 5 Inch Color TFT-LCD display with adjustable brightness
• Build-in rechargeable Lithium battery for long-term monitoring
• Adjustable audible and visual alarms, and sensor off alarm
• Powerful data storage capacity, power-off data protection
Capnography Measuring Data
EtCO2/CO2
Range: 0-150mmHg,
Accuracy: ±2mmHg when 0-5% ±10%(reading) when > 5%
Update: Once every breath
Trend length: 24hours
Respiration Rate
Range: 0 -120 rpm
Accuracy: maximum ±1 %(reading)
Pulse Oximeter Data (optional)
Oximetry Saturation
Range: 0-100%
Accuracy: ±2% when 70-100%
Trend length: 24 hours
Pulse Rate
Range: 20-300bpm
Accuracy: Maximum ±1bpm
Alarm: Audio &Visual
Masimo SpO2 Module
Model name: MD ET7
External Side Stream ETCO2 module
Sensor type Side stream
Technical principle Non-dispersive infrared gas analysis
Storage condition -40o to 70oC, <90% RH, non-condensing
Working condition 5℃—50℃°, 10 to 90% RH, non-condensing
Circumstance pressure 86—106kPa
Power demand 5 V±5% (max ripple 200 mVp-p)
Power consumption
Usual typical value 120mA during deviation
and calibration, typical value 280mA
CO2 measurement range 0-19.7%（0－150mmHg,or 0-20kPa）
CO2 resolution 0.1mmHg
CO2 measurement
accuracy
0 – 40 mmHg ±2 mm Hg
41 – 70 mmHg ±5% of reading
Above 80 BPM ±12% of reading

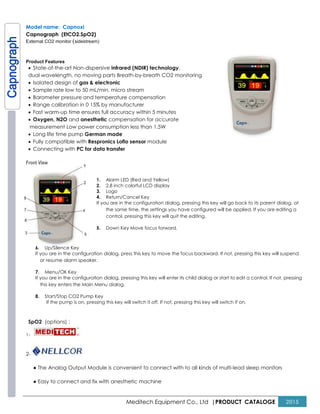

Model name: Capnoxi
Capnograph (EtCO2.SpO2)
External CO2 monitor (sidestream)
Product Features
• State-of-the-art Non-dispersive infrared (NDIR) technology,
dual wavelength, no moving parts Breath-by-breath CO2 monitoring
• Isolated design of gas & electronic
• Sample rate low to 50 mL/min, micro stream
• Barometer pressure and temperature compensation
• Range calibration in 0 15% by manufacturer
• Fast warm-up time ensures full accuracy within 5 minutes
• Oxygen, N2O and anesthetic compensation for accurate
measurement Low power consumption less than 1.5W
• Long life time pump German made
• Fully compatible with Respronics Loflo sensor module
• Connecting with PC for data transfer
Front View
1. Alarm LED (Red and Yellow)
2. 2.8 inch colorful LCD display
3. Logo
4. Return/Cancel Key
If you are in the configuration dialog, pressing this key will go back to its parent dialog, at
the same time, the settings you have configured will be applied. If you are editing a
control, pressing this key will quit the editing.
5. Down Key Move focus forward.
6. Up/Silence Key
If you are in the configuration dialog, press this key to move the focus backward. If not, pressing this key will suspend
or resume alarm speaker.
7. Menu/OK Key
If you are in the configuration dialog, pressing this key will enter its child dialog or start to edit a control. If not, pressing
this key enters the Main Menu dialog.
8. Start/Stop CO2 Pump Key
If the pump is on, pressing this key will switch it off. If not, pressing this key will switch if on.
SpO2 (options) :
1-
2-
● The Analog Output Module is convenient to connect with to all kinds of multi-lead sleep monitors
● Easy to connect and fix with anesthetic machine

Model name: Oxima
Vital signs Monitor (SpO2.PR.NIBP)
• Small in size, and easy to carry
• High resolution color
size
• Compact and portable, allowing for uninterrupted monitoring with buil
in battery
• High bright
• Manual, auto, continuous measurement of NIBP
• Adjustable
• Up to 2000 groups NIBP data storage& 10h SpO2 data.
• Changeable probe (Adult, Infant ,Newborn)
• AC/DC power supply
Options
• Printer (built-in)
Model name: Oxima2
Vital signs Monitor (SpO2.PR.NIBP.TEMP)
• Suitable for adult, pediatric
• Battery capacity indicator and
battery low
• Large screen : SpO2,PR are
• On 2.8" color LCD screen in
• 24 hours or AC power and Built
• Storage/Review trend data up to
• Audio and visual alarm when pa
• Via USB to connect with the
data synchronously via internet
Options
• Bluetooth Function “built-in”
• Bluetooth Printer
Small in size, and easy to carry
High resolution color LCD for trend tabular and SPO2 waveform ( display
size 2.4'' (320×240) )
Compact and portable, allowing for uninterrupted monitoring with buil
in battery
High bright LED display of NIBP,SPO2 and pulse ra
Manual, auto, continuous measurement of NIBP
Adjustable audible and visual alarms
groups NIBP data storage& 10h SpO2 data.
Changeable probe (Adult, Infant ,Newborn)
(SpO2.PR.NIBP.TEMP)
pediatric and neonatal
and prompt when
are shown on LED screen, Pleth waveform is displayed
in real time
Built-in rechargeable Li-ion battery, up to 4 hour
Storage/Review trend data up to 3888 groups, data save time interval settable
Audio and visual alarm when parameters exceeded and sensor-off
the computer, unique software for telemonitoring
internet
in”
for trend tabular and SPO2 waveform ( display
Compact and portable, allowing for uninterrupted monitoring with built-
LED display of NIBP,SPO2 and pulse rate
displayed
hour running time
, data save time interval settable
telemonitoring by transmitting

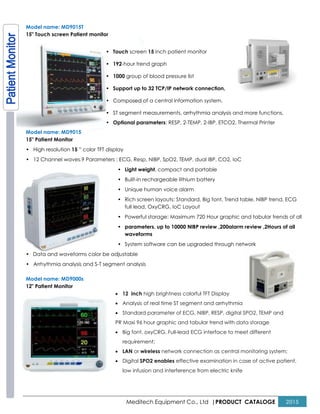

Model name: MD9015T
15" Touch screen Patient monitor
• Touch
• 192
• 1000
• Support up to 32 TCP/IP network connection,
• Composed of a central
• ST segment measurements, arrhythmia analysis and more f
• Optional parameters
Model name: MD9015
15" Patient Monitor
• High resolution 15 ” color TFT display
• 12 Channel waves.9 Parameters : ECG, Resp, NIBP, SpO2, TEMP, dual IBP, CO2, IoC
•
•
•
•
•
•
•
• Data and waveforms color be adjustable
• Arrhythmia analysis and S-T segment analysis
Model name: MD9000s
12" Patient Monitor
•
•
•
PR Maxi 96 hour graphic and tabular trend with data storage
•
•
•
Touch screen 15 inch patient monitor
192-hour trend graph
1000 group of blood pressure list
Support up to 32 TCP/IP network connection,
Composed of a central information system.
ST segment measurements, arrhythmia analysis and more f
Optional parameters: RESP, 2-TEMP, 2-IBP, ETCO2, Thermal Printer
” color TFT display
ECG, Resp, NIBP, SpO2, TEMP, dual IBP, CO2, IoC
• Light weight, compact and portable
• Built-in rechargeable lithium battery
• Unique human voice alarm
• Rich screen layouts: Standard, Big font, Trend table, NIBP trend, ECG
full lead, OxyCRG, IoC Layout
• Powerful storage: Maximum 720 Hour graphic and tabular trends of all
• parameters, up to 10000 NIBP review ,200alarm review ,2Hours of all
waveforms
• System software can be upgraded through network
Data and waveforms color be adjustable
T segment analysis
12 inch high brightness colorful TFT Display
Analysis of real time ST segment and arrhythmia
Standard parameter of ECG, NIBP, RESP, digital SPO2, TEMP and
Big font, oxyCRG, Full-lead ECG interface to meet different
requirement;
LAN or wireless network connection as central monitoring system;
Digital SPO2 enables effective examination in case of active patient,
low infusion and interference from electric knife
ST segment measurements, arrhythmia analysis and more functions,
IBP, ETCO2, Thermal Printer
ECG, Resp, NIBP, SpO2, TEMP, dual IBP, CO2, IoC
Standard, Big font, Trend table, NIBP trend, ECG
Powerful storage: Maximum 720 Hour graphic and tabular trends of all
, up to 10000 NIBP review ,200alarm review ,2Hours of all
System software can be upgraded through network
Analysis of real time ST segment and arrhythmia
Standard parameter of ECG, NIBP, RESP, digital SPO2, TEMP and
ECG interface to meet different
network connection as central monitoring system;
effective examination in case of active patient,
low infusion and interference from electric knife

Model name: MD12M
12" Patient Monitor (Modular )
• Standard anti-shock class Class I anti
• Standard anti-shock level ECG (RESP),
NIBP is BF type;
• Anti-degree of liquid inlet Common
the ability to prevent liquid from entering
Model name: MD9000s
12" Patient Monitor
• High resolution 12.1” color TFT display
• Light weight, compact and portable
Optional parameters: configuration 2
• Built-in rechargeable lithium battery
•
•
•
•
•
•
•
Model name: MD908
08" Patient Monitor
• 8 inch TFT Display
• 6 standard parameters: ECG, NIBP
• 7-lead ECG displays in a screen, and ECG waveforms series display.
• Storage of 480-hour trend data, and review of
anti-shock devices
(RESP), IBP is CF type; TEMP, SpO2,
Common seal equipment, does not have
entering
Disinfection / sterilization method
Work mode Continuous work
ECG: RA, LA, LL, RL, V,
leads from: I, II, III, aVR, aVL, aVF, V
EMC Class: Class A
waveform display Up to 8 waves
12.1” color TFT display
Light weight, compact and portable ECG, SP02, NIBP, RESP .2-TEMP. PR
2-IBP, ECTO2 and Thermal printer
in rechargeable lithium battery
ECG waveforms of 7-leads display on the same
72-hours graphic and tabular trends of all parameters
480 alarm events of all parameters recall
500 NIBP measurement data can be storage and recal
Suitable for adult, pediatric and neonatal patient
Data and waveforms color be adjustable
Arrhythmia analysis and S-T segment analysis
ECG, NIBP, PR ,TEMP ,Resp and SPO2
ECG displays in a screen, and ECG waveforms series display.
ta, and review of 40-second holographic waveform.
leads display on the same screen
hours graphic and tabular trends of all parameters
data can be storage and recall
Suitable for adult, pediatric and neonatal patient

Model name: MD8000
12" Patient Monitor
• 12.1 inch high brightness colorful TFT Display
• Simultaneous display of 7 lead ECG by one frame
• Analysis of real time ST segment and arrhythmia
• Powerful data review for graphic, tabular trends and alarms
review
• Standard parameter of ECG, NIBP, RESP, digital SPO2, TEMP
and PR
Optional parameters: configuration 2-IBP, ECTO2 and Thermal
printer
• Maxi 72 hour graphic and tabular trend with data storage
• Big font, oxyCRG, Full-lead ECG interface to meet different
requirement;
• LAN or wireless network connection as central monitoring system;
• Digital SPO2 enables effective examination in case of active patient, low infusion and interference from
electric knife
• Protection against high-frequency electro tome and defibrillation effects
Model name: MD07T
05.1" Touch Handheld Patient Monitor
5 Standard parameters: ECG, NIBP, SPO2, PR,TEMP.
Screen:
Touch screen 5.1 inch color TFT
Horizontal and vertical display select-able
Big font screen interface is easy to observe
• Adjustable brightness
• Palm multi-parameter patient monitor with 5 standard parameters: ECG, NIBP, SPO2, PR,TEMP.
• Advanced software is for data downloading and tele-monitoring,
• Adjustable audible and visual alarms, and sensor off alarm;
• Long time monitoring and sleeping monitoring;
• Storage and review data up to 9999 user ID and 3888 groups via Trend Graph and Trend List.
• Built-in Bluetooth modem for PC & Printer connection
• USB and Bluetooth data upload;
• Build-in rechargeable Li-battery, up to 15 hours running time, support AC and DC power;
Optional: Bluetooth printer

Model name: MD09x
Wrist Patient Monitor
Health Monitoring Device
MD09X terminal devices include series products: an inter-graded multi-parameters monitor and
individual parameter monitors. The inter-
graded multi-parameters monitor with a smart
size can simultaneously measure the ECG,
Heart rate, Respiration, Blood pressure, SpO2
and Pulse rate. The individual parameter
monitor can respectively measure the Blood
pressure, Sp02 or the both. All the devices can
communicate with other mobile terminals by
energy-saving wireless Bluetooth 4.0.
Display Size: 2.4 inch TFT color dis-player.
Resolution: 320*240
Display waveform: 2 channels waveform of ECG, respiration, blood pressure and SpO2 can be both
displayed
ECG: With the function of abnormal data store, daily data store and trend display
NIBP: Manual measurement. Automatically identify the adult and child. System can adjust the maximal
pressure for adult and child. The blood pressure waveform can be displayed in real-time
SpO2: Anti-low per-fusion and motion artifact
Trend display: Display the trend of ECG, blood pressure, SpO2, ST segments, premature
and respiration in 96 hours
Alarm modes: Visible alarming reminder and speaking voice alarming reminder
Working duration: 8 hours continuing monitoring
Wireless: Bluetooth 4.0
E-Manual: Embedded e-manual for self reading
Size: 7cm*7cm*2.6cm
Weight: 150g

Meditech products list 2015 no FM v.B1

More Related Content

Similar to Meditech products list 2015 no FM v.B1

More from Miss.Alicia Zhang

Meditech products list 2015 no FM v.B1
