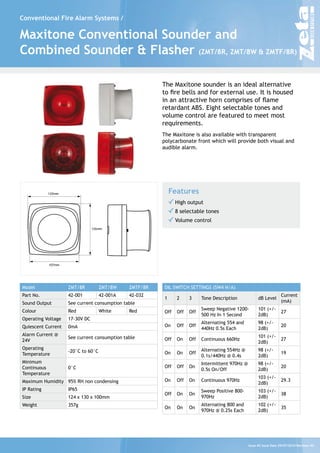

Conventional Fire Alarm Systems /

Maxitone Conventional Sounder and
Combined Sounder & Flasher (ZMT/8R, ZMT/8W & ZMTF/8R)

                                                        The Maxitone sounder is an ideal alternative
                                                        to fire bells and for external use. It is housed
                                                        in an attractive horn comprises of flame
                                                        retardant ABS. Eight selectable tones and
                                                        volume control are featured to meet most
                                                        requirements.
                                                        The Maxitone is also available with transparent
                                                        polycarbonate front which will provide both visual and
                                                        audible alarm.




            120mm                                           Features
                                                              High output
                                                              8 selectable tones
                                                              Volume control
                                126mm




            107mm




Model               ZMT/8R          ZMT/8W    ZMTF/8R   DIL SWITCH SETTINGS (SW4 N/A)
Part No.            42-001          42-001A   42-032                                                                 Current
                                                        1     2     3     Tone Description             dB Level
Sound Output        See current consumption table                                                                    (mA)

Colour              Red             White     Red                         Sweep Negative 1200-         101 (+/-
                                                        Off   Off   Off                                              27
                                                                          500 Hz In 1 Second           2dB)
Operating Voltage   17-30V DC
                                                                          Alternating 554 and          98 (+/-
Quiescent Current   0mA                                 On    Off   Off                                              20
                                                                          440Hz 0.5s Each              2dB)
Alarm Current @                                                                                        101 (+/-
                    See current consumption table       Off   On    Off   Continuous 660Hz                           27
24V                                                                                                    2dB)
Operating                                                                 Alternating 554Hz @          98 (+/-
                    -20°C to 60°C                       On    On    Off                                              19
Temperature                                                               0.1s/440Hz @ 0.4s            2dB)
Minimum                                                                   Intermittent 970Hz @         98 (+/-
Continuous          0°C                                 Off   Off   On                                               20
                                                                          0.5s On/Off                  2dB)
Temperature
                                                                                                       103 (+/-
Maximum Humidity 95% RH non condensing                  On    Off   On    Continuous 970Hz                           29.3
                                                                                                       2dB)
IP Rating           IP65                                                  Sweep Positive 800-          103 (+/-
                                                        Off   On    On                                               38
Size                124 x 130 x 100mm                                     970Hz                        2dB)
Weight              357g                                                  Alternating 800 and          102 (+/-
                                                        On    On    On                                               35
                                                                          970Hz @ 0.25s Each           2dB)




                                                                                                 Issue #2 Issue Date 05/07/2010 Revision #2
