1. Machine Learning Techniques
Dr. M. Lilly Florence
Professor
Adhiyamaan College of Engineering (Autonomous)
Hosur, Tamilnadu

2. Linear Models

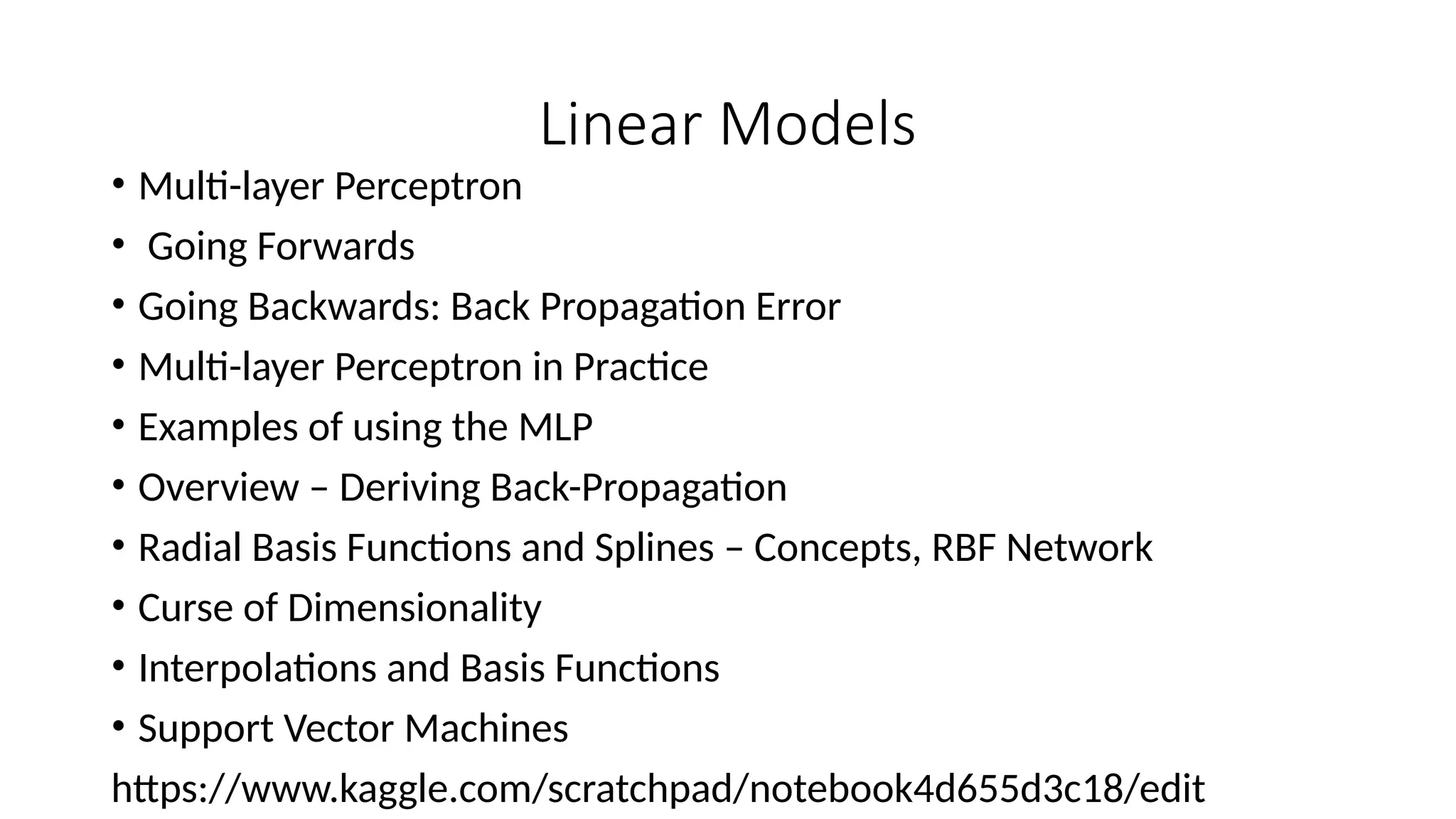

• Multi-layer Perceptron
• Going Forwards
• Going Backwards: Back Propagation Error
• Multi-layer Perceptron in Practice
• Examples of using the MLP
• Overview – Deriving Back-Propagation
• Radial Basis Functions and Splines – Concepts, RBF Network
• Curse of Dimensionality
• Interpolations and Basis Functions
• Support Vector Machines
https://www.kaggle.com/scratchpad/notebook4d655d3c18/edit

3. Multi-layer Perceptron

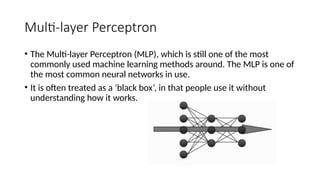

• The Multi-layer Perceptron (MLP), which is still one of the most
commonly used machine learning methods around. The MLP is one of
the most common neural networks in use.
• It is often treated as a ‘black box’, in that people use it without
understanding how it works.

4. Multi-layer Perceptron – Going Forward

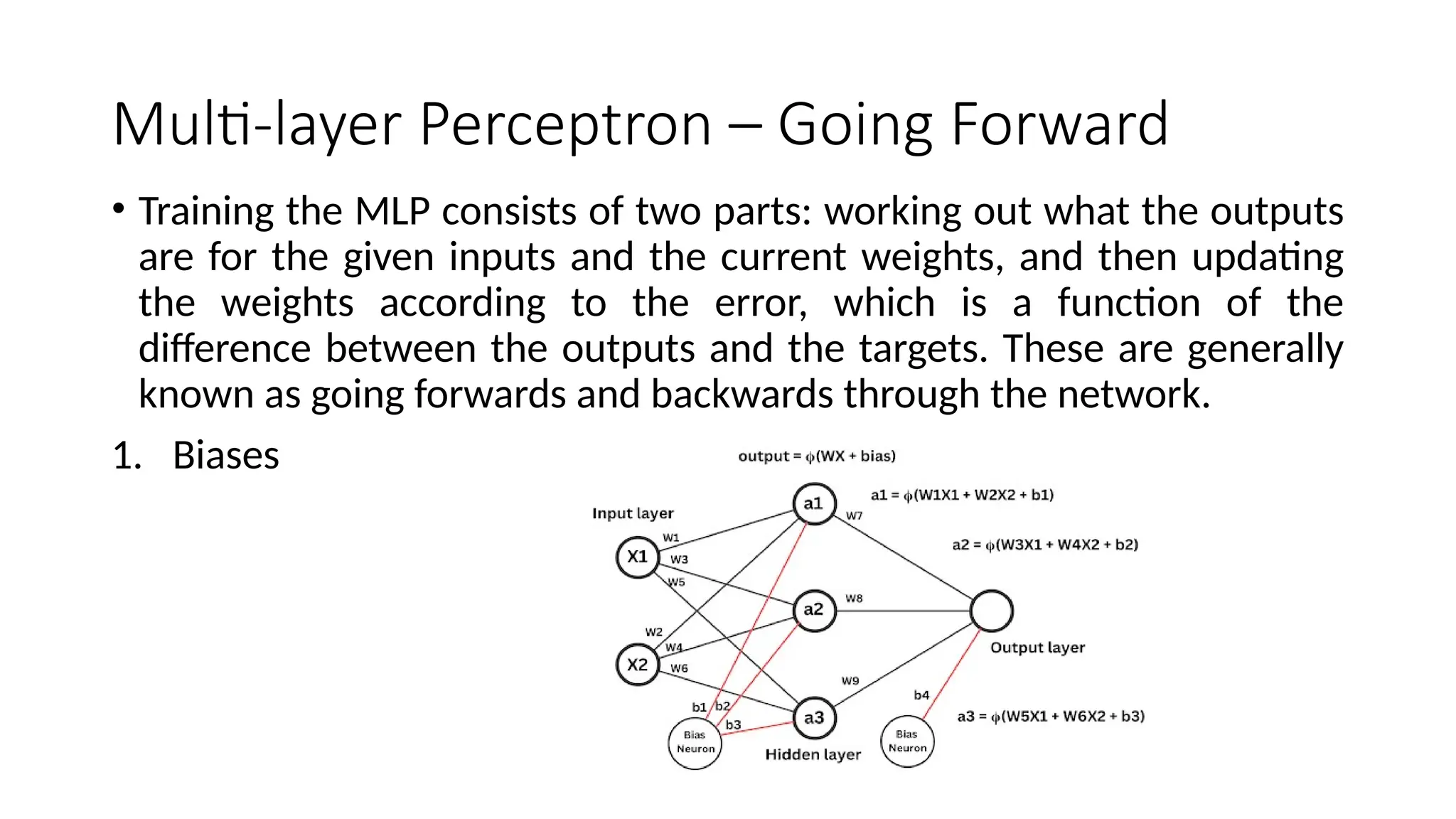

• Training the MLP consists of two parts: working out what the outputs
are for the given inputs and the current weights, and then updating
the weights according to the error, which is a function of the
difference between the outputs and the targets. These are generally
known as going forwards and backwards through the network.
1. Biases

5. Multi-layer Perceptron – Going Backward

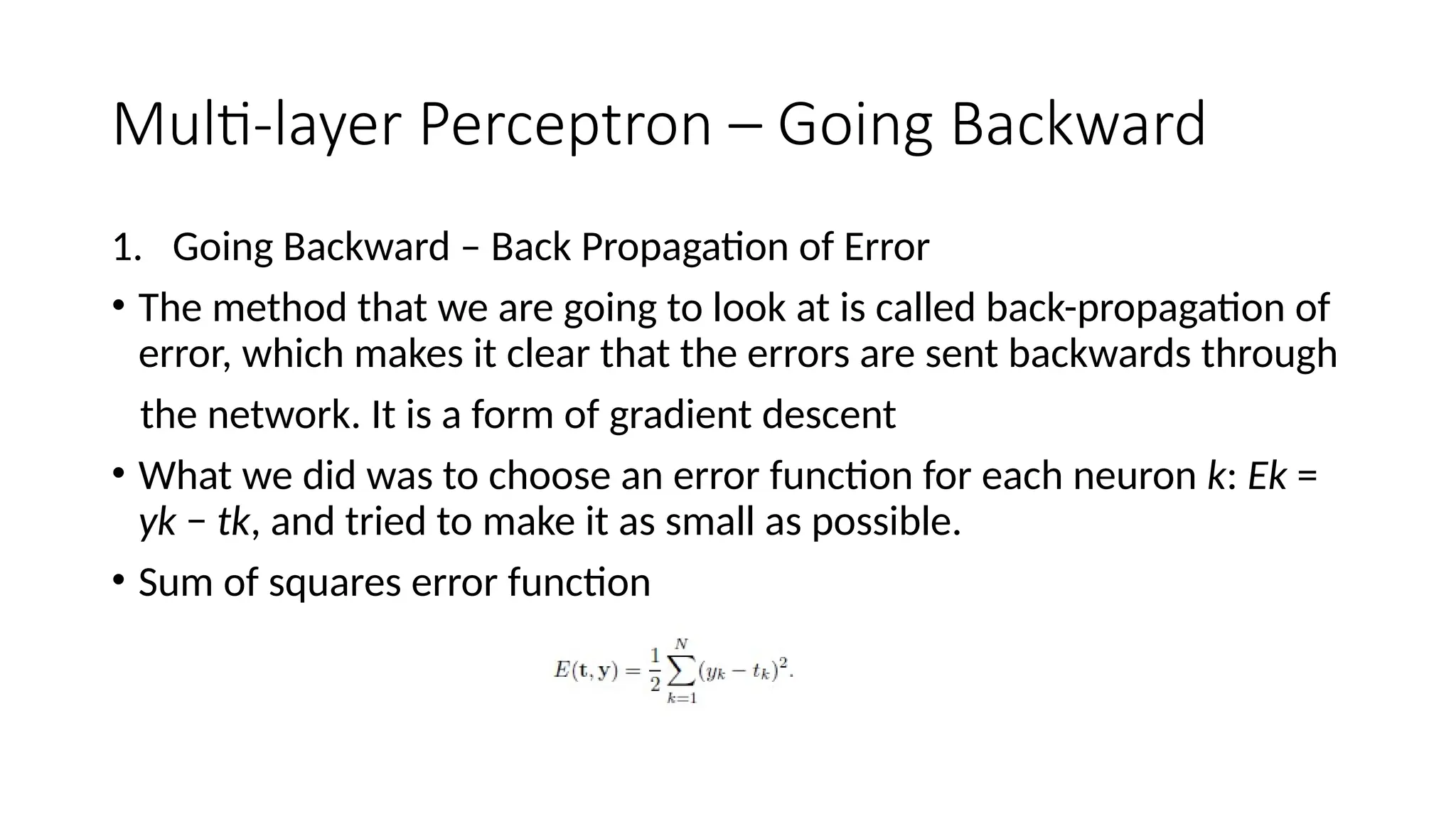

1. Going Backward – Back Propagation of Error
• The method that we are going to look at is called back-propagation of
error, which makes it clear that the errors are sent backwards through
the network. It is a form of gradient descent
• What we did was to choose an error function for each neuron k: Ek =
yk − tk, and tried to make it as small as possible.
• Sum of squares error function

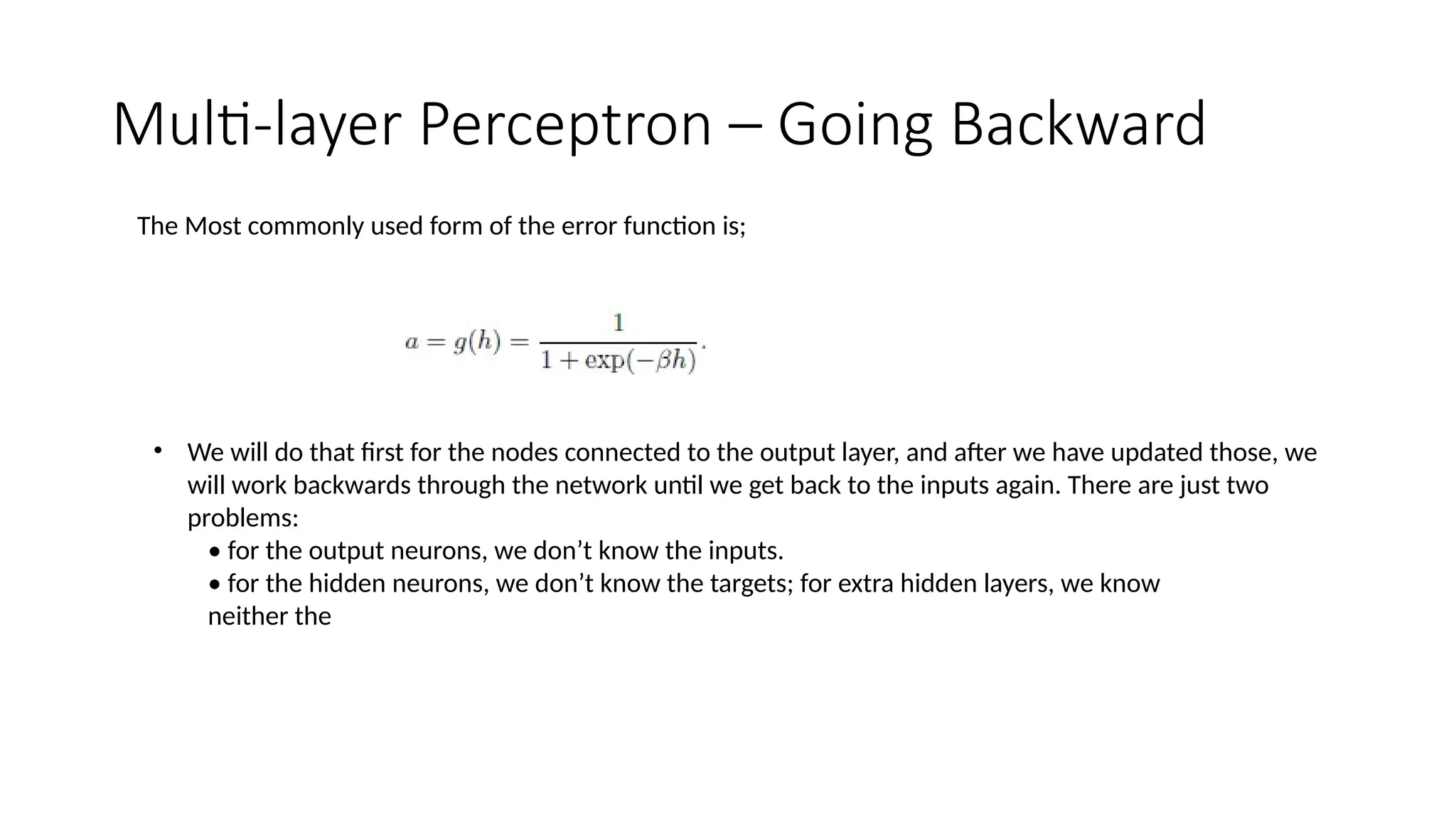

6. Multi-layer Perceptron – Going Backward

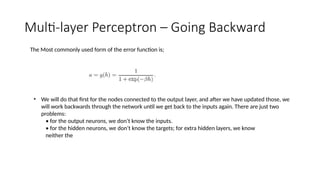

The Most commonly used form of the error function is;
• We will do that first for the nodes connected to the output layer, and after we have updated those, we
will work backwards through the network until we get back to the inputs again. There are just two
problems:
• for the output neurons, we don’t know the inputs.
• for the hidden neurons, we don’t know the targets; for extra hidden layers, we know
neither the

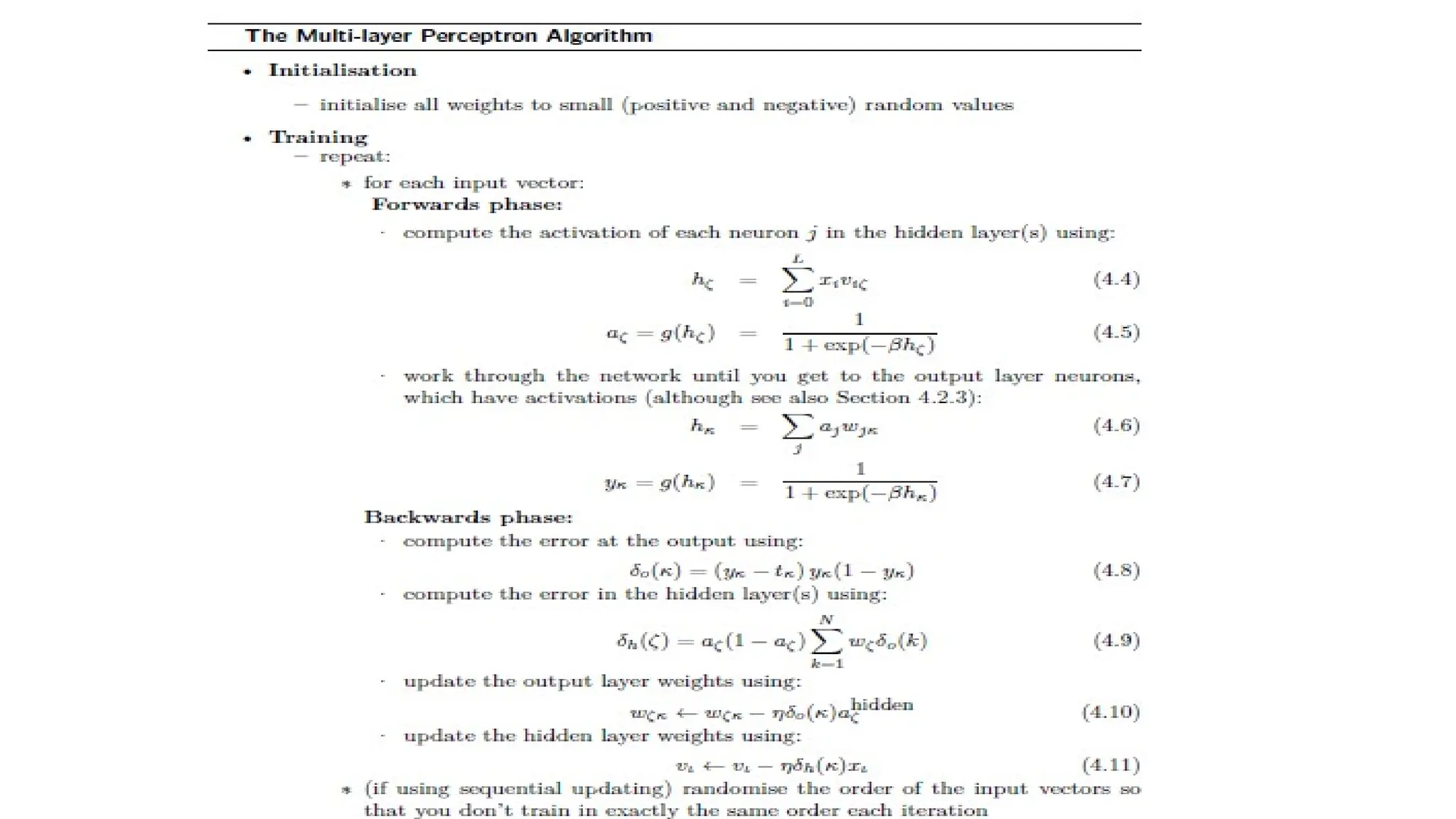

7. MLP Algorithm

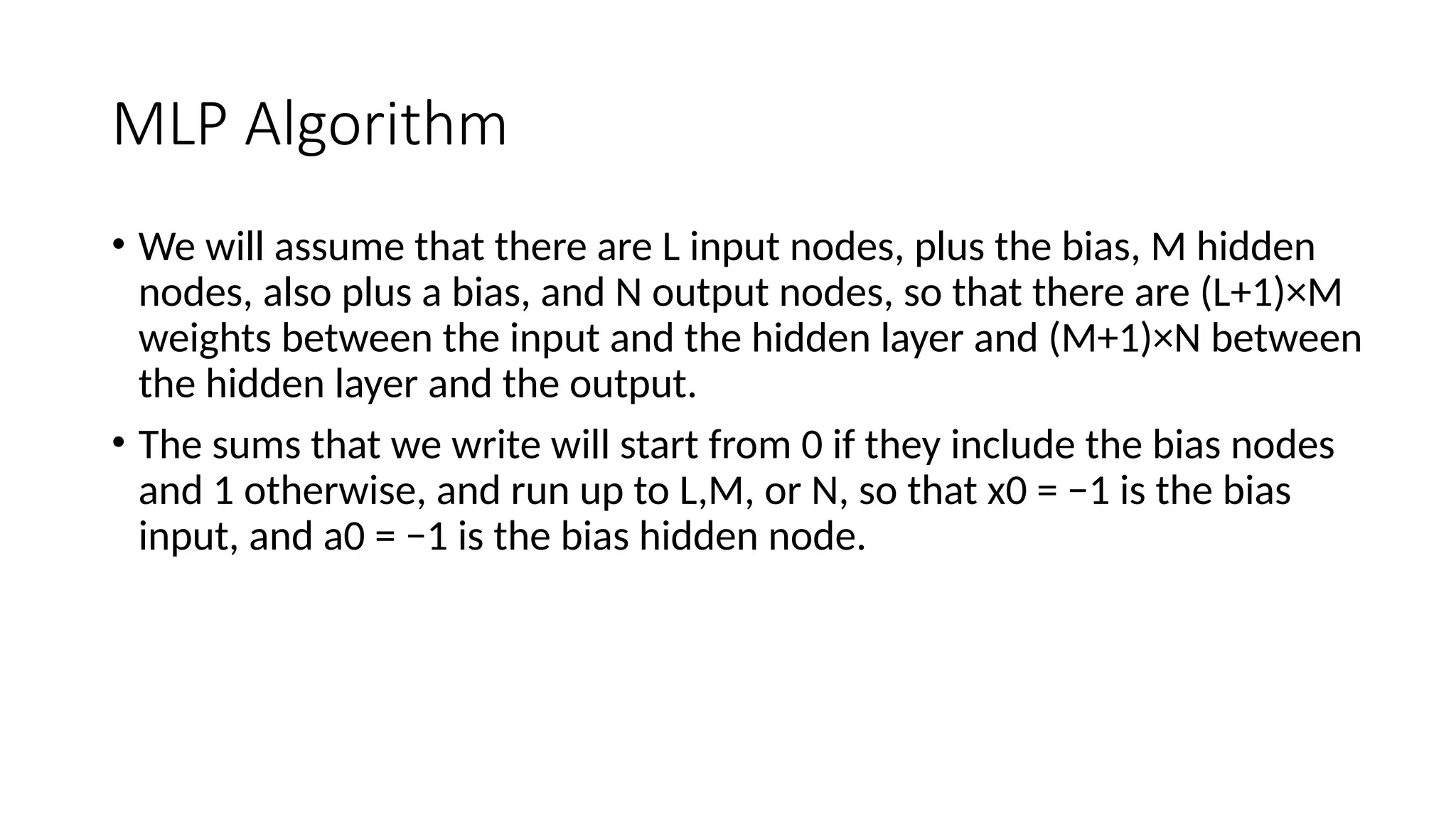

• We will assume that there are L input nodes, plus the bias, M hidden
nodes, also plus a bias, and N output nodes, so that there are (L+1)×M
weights between the input and the hidden layer and (M+1)×N between
the hidden layer and the output.
• The sums that we write will start from 0 if they include the bias nodes
and 1 otherwise, and run up to L,M, or N, so that x0 = −1 is the bias
input, and a0 = −1 is the bias hidden node.

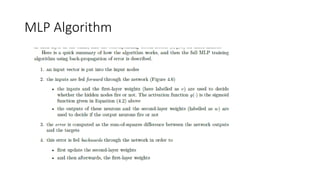

8. MLP Algorithm

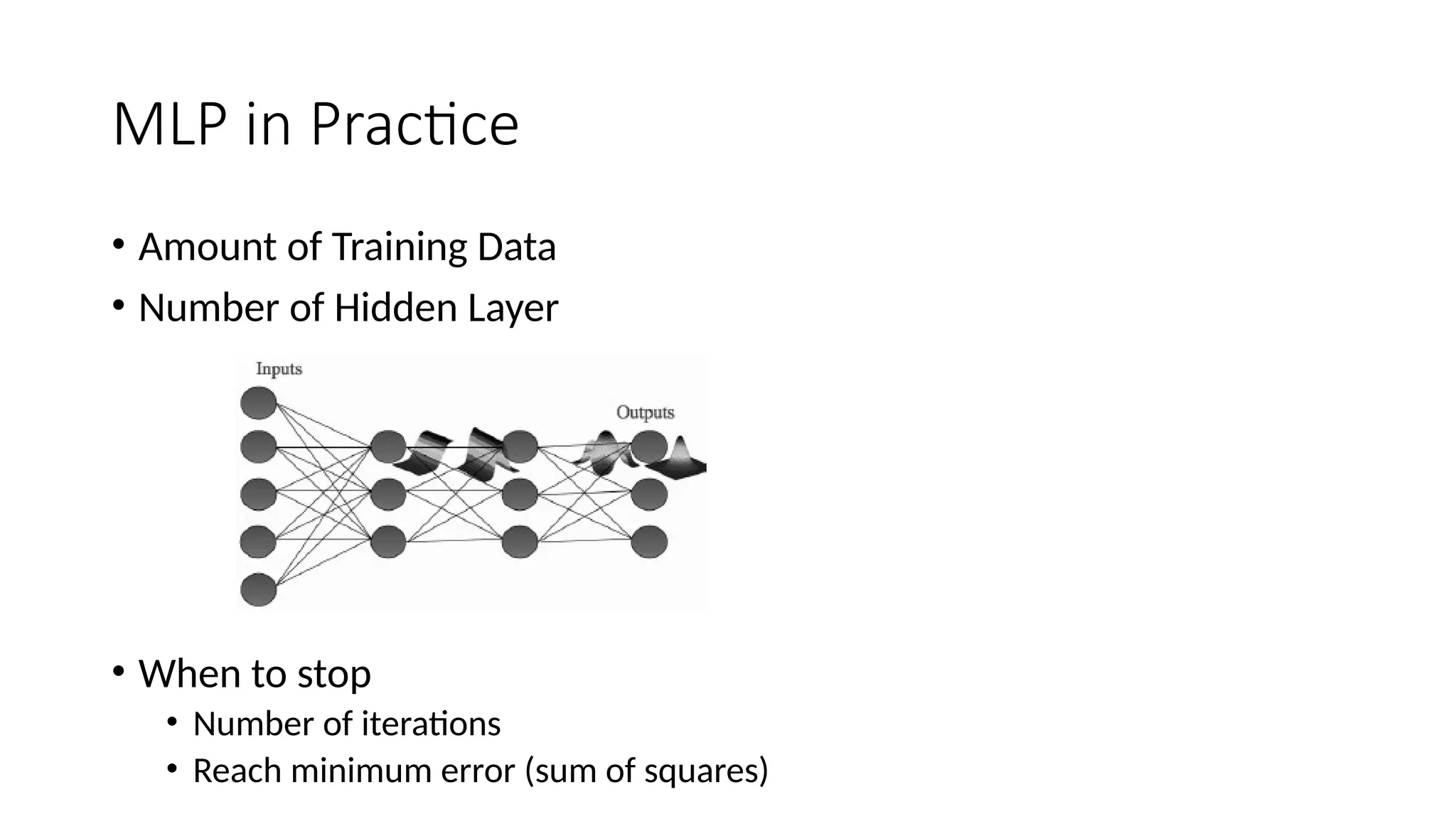

10. MLP in Practice
• Amount of Training Data
• Number of Hidden Layer

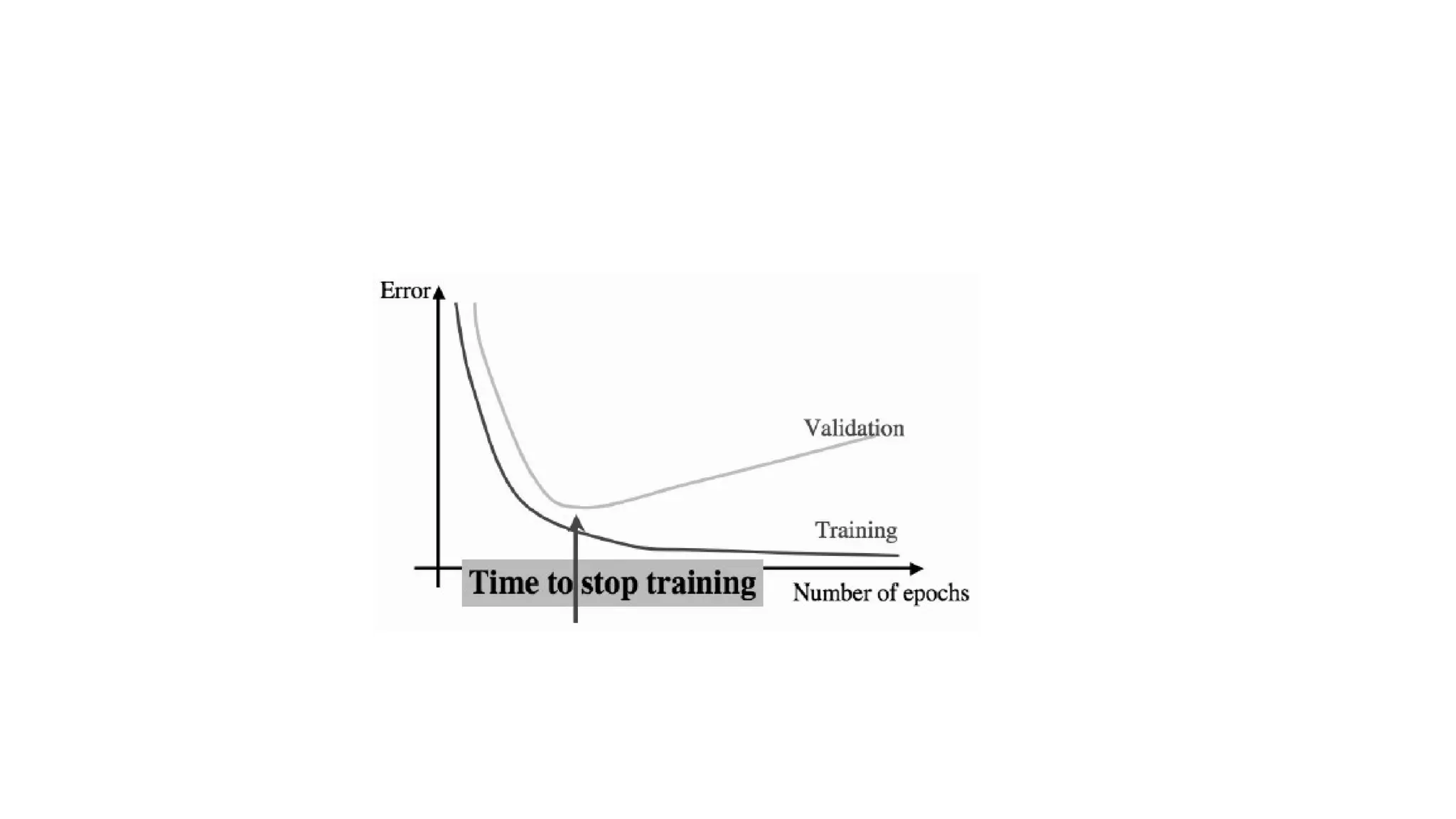

• When to stop
• Number of iterations
• Reach minimum error (sum of squares)

12. Examples of Using MLP

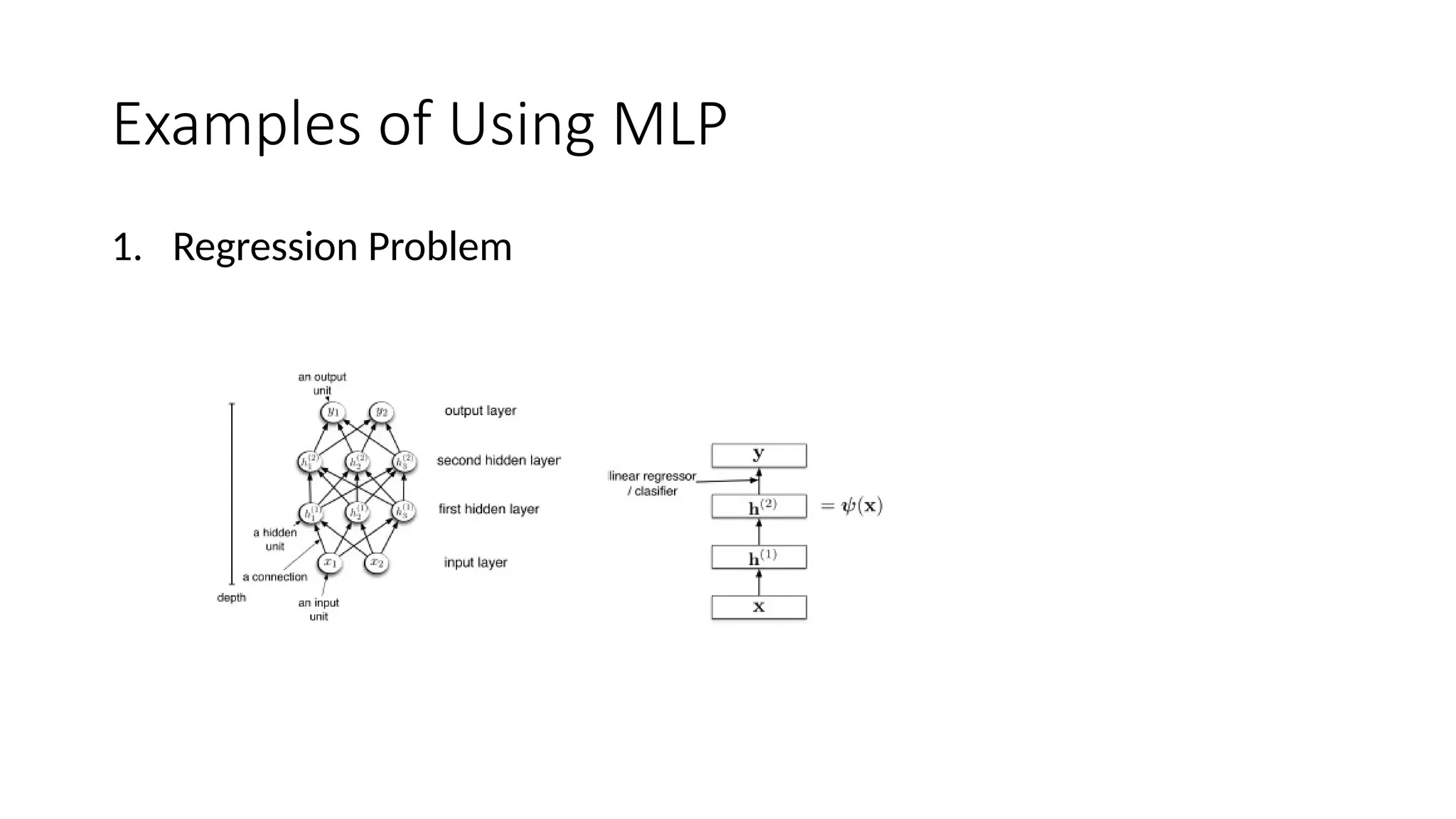

1. Regression Problem

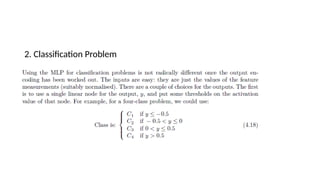

13. 2. Classification Problem

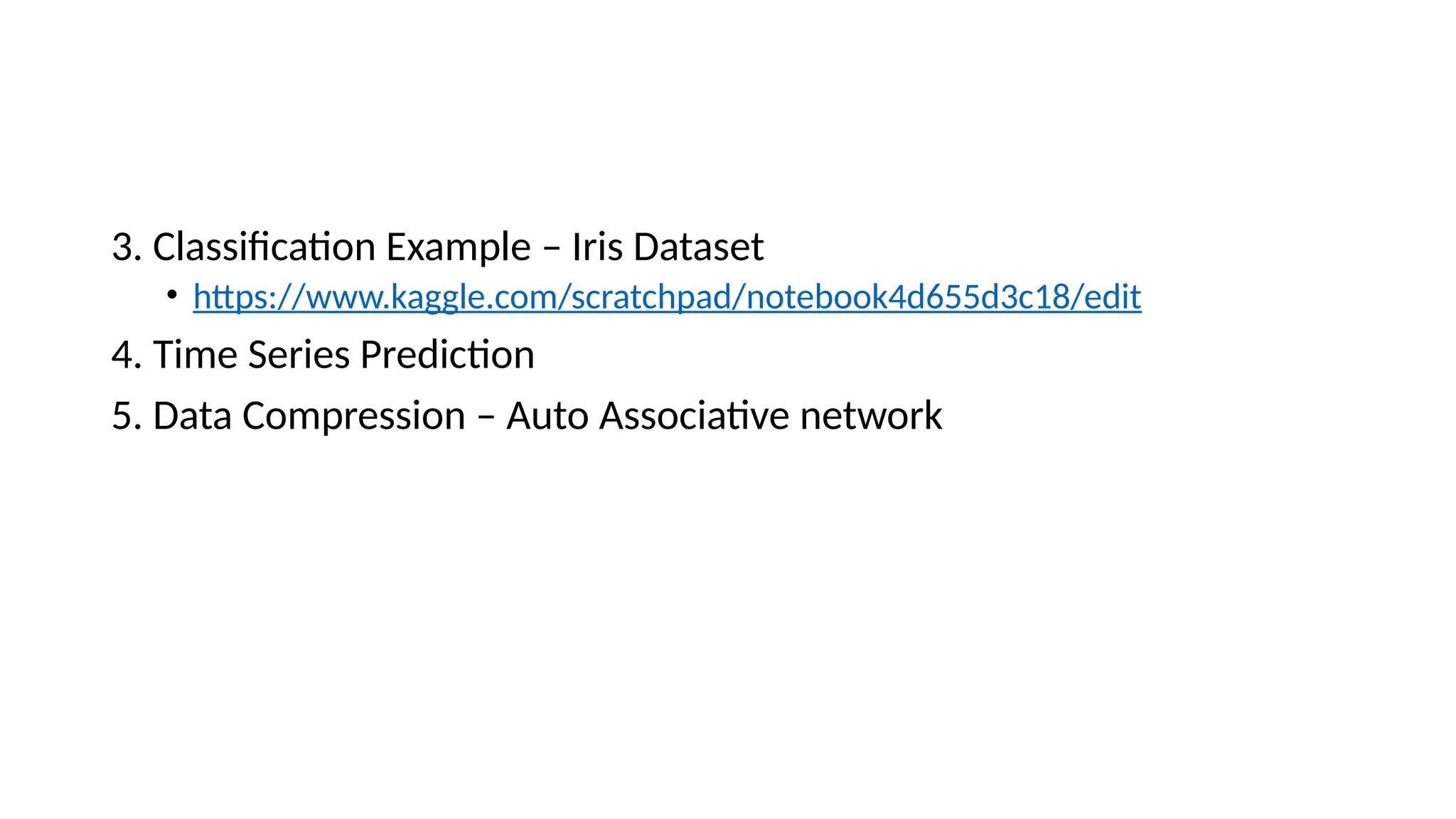

14. 3. Classification Example – Iris Dataset
• https://www.kaggle.com/scratchpad/notebook4d655d3c18/edit
4. Time Series Prediction

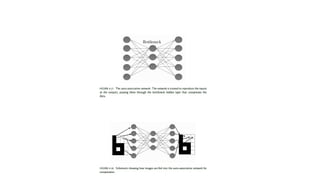

5. Data Compression – Auto Associative network

16. Deriving Backpropagation

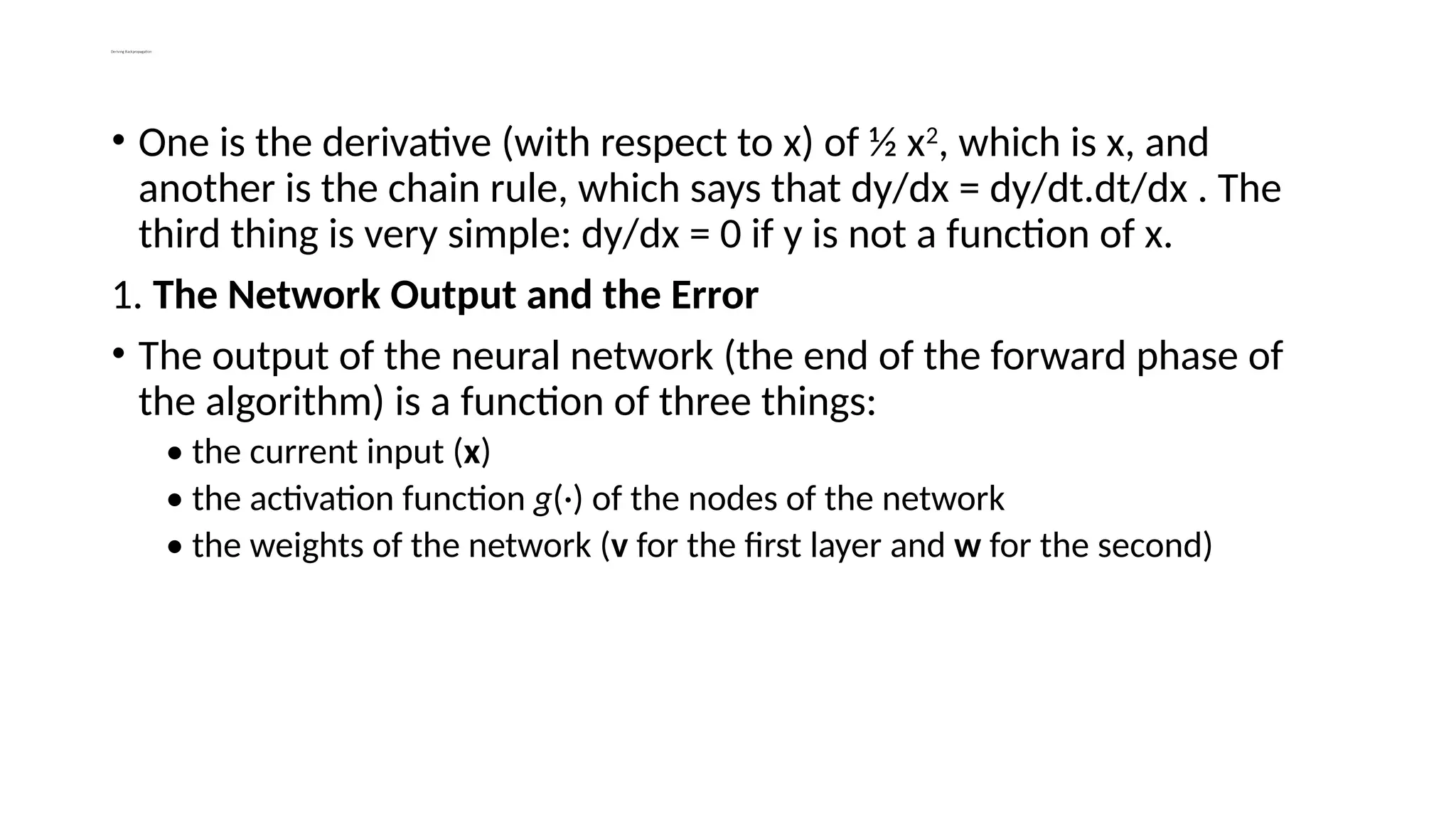

• One is the derivative (with respect to x) of ½ x2
, which is x, and
another is the chain rule, which says that dy/dx = dy/dt.dt/dx . The
third thing is very simple: dy/dx = 0 if y is not a function of x.
1. The Network Output and the Error
• The output of the neural network (the end of the forward phase of
the algorithm) is a function of three things:
• the current input (x)
• the activation function g(·) of the nodes of the network
• the weights of the network (v for the first layer and w for the second)

17. Deriving Backpropagation

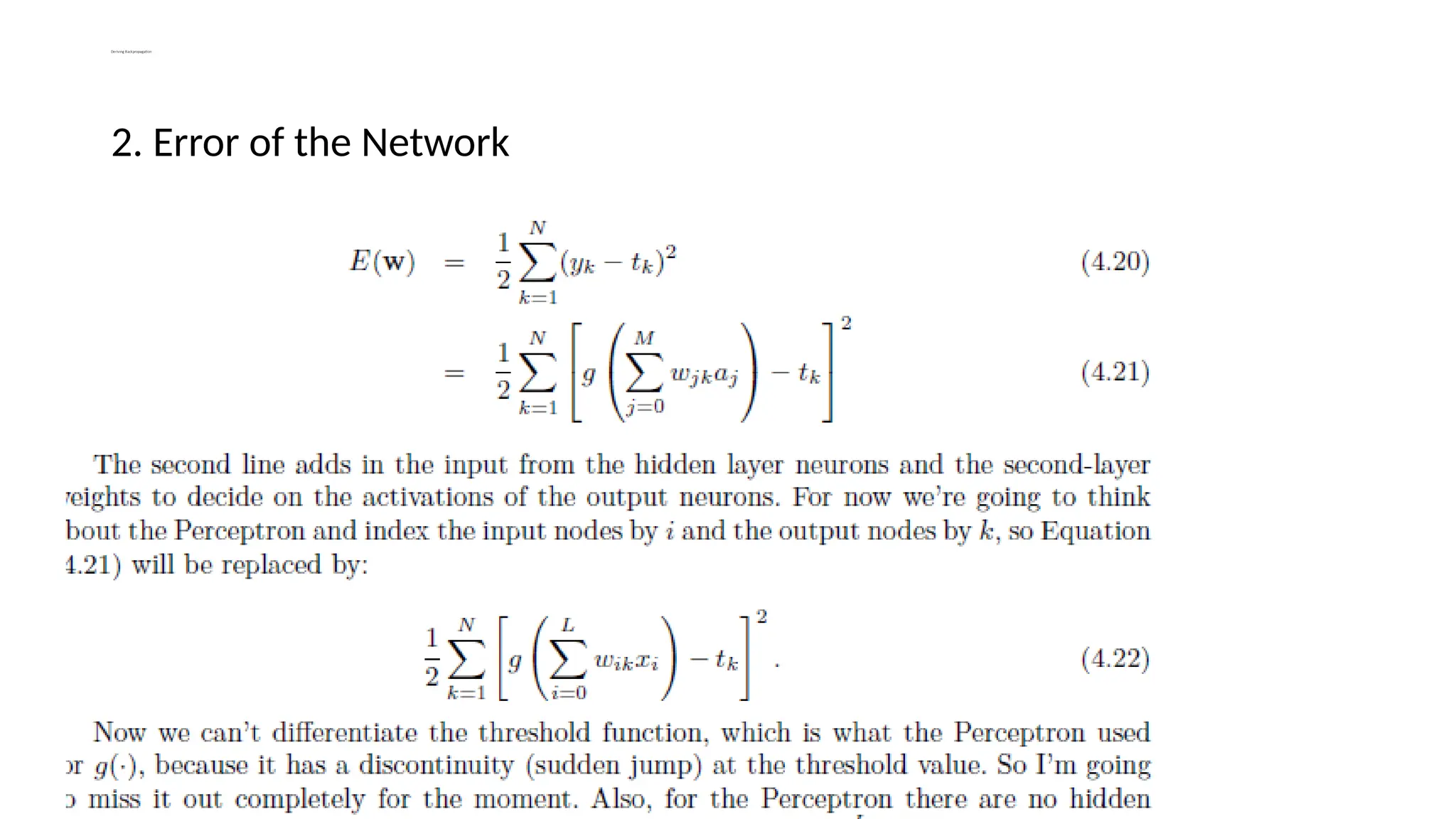

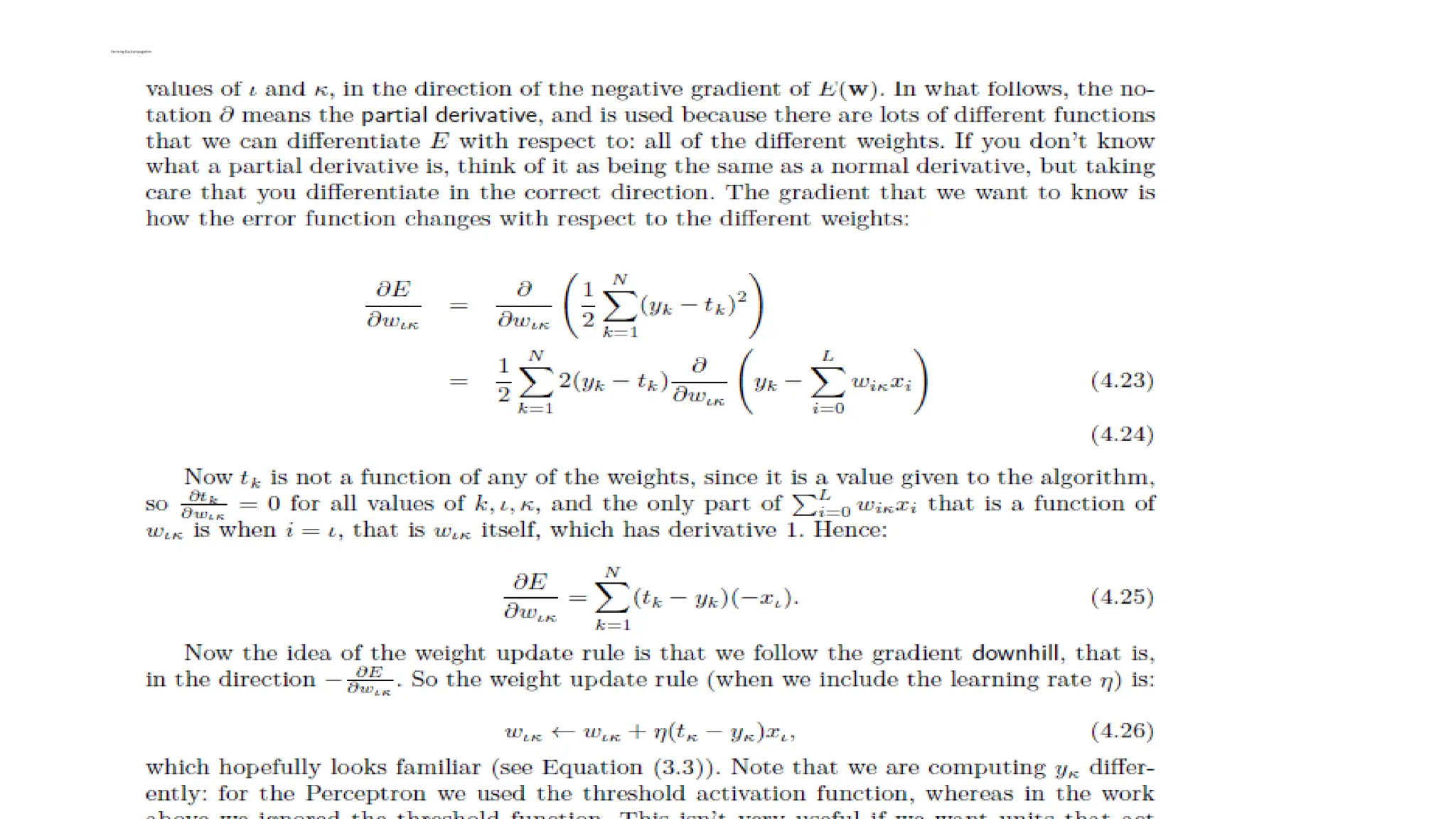

2. Error of the Network

18. Deriving Backpropagation
2. Error of the Network

19. Deriving Backpropagation

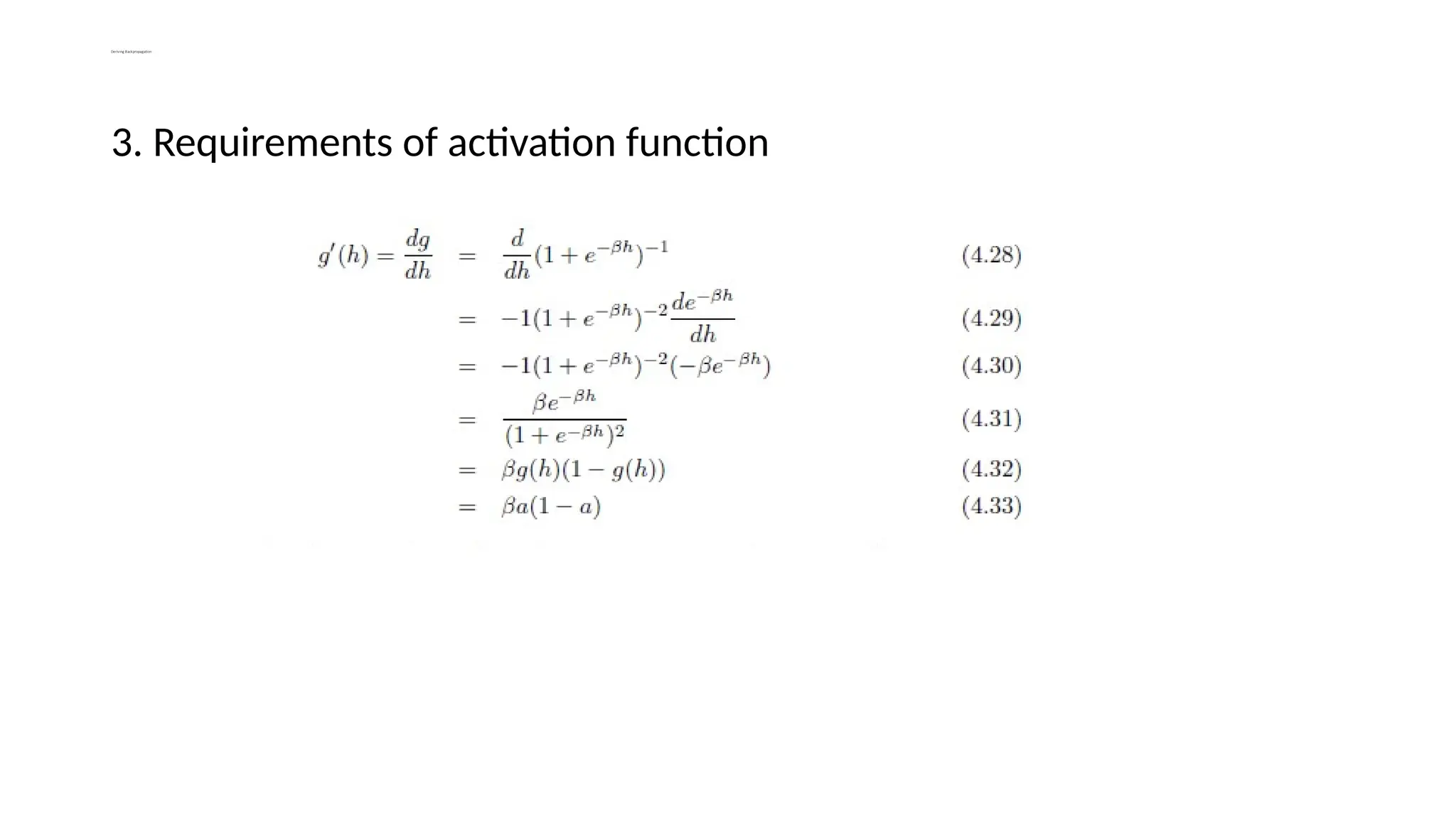

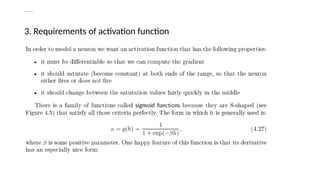

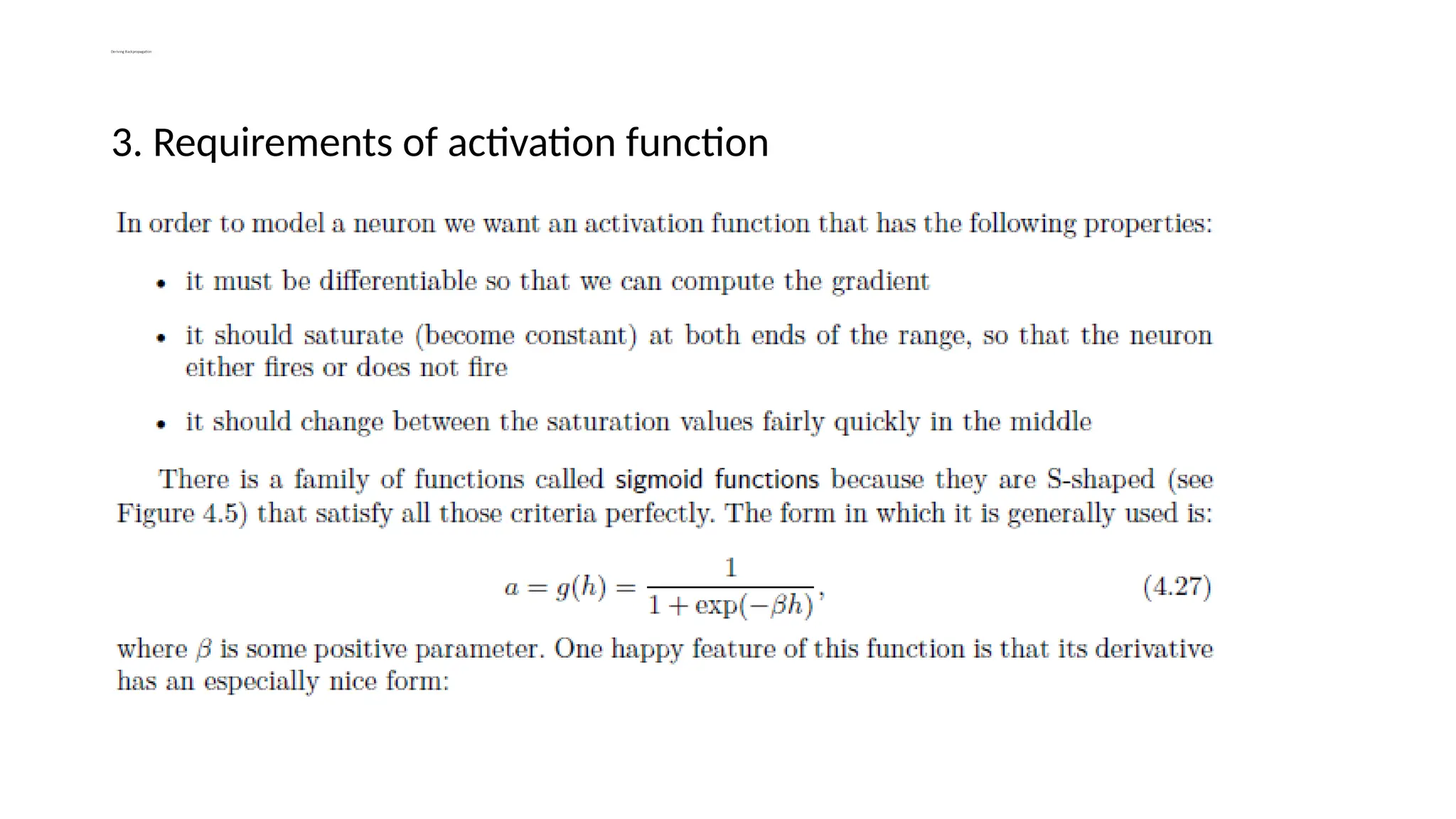

3. Requirements of activation function

20. Deriving Backpropagation
3. Requirements of activation function

21. Deriving Backpropagation

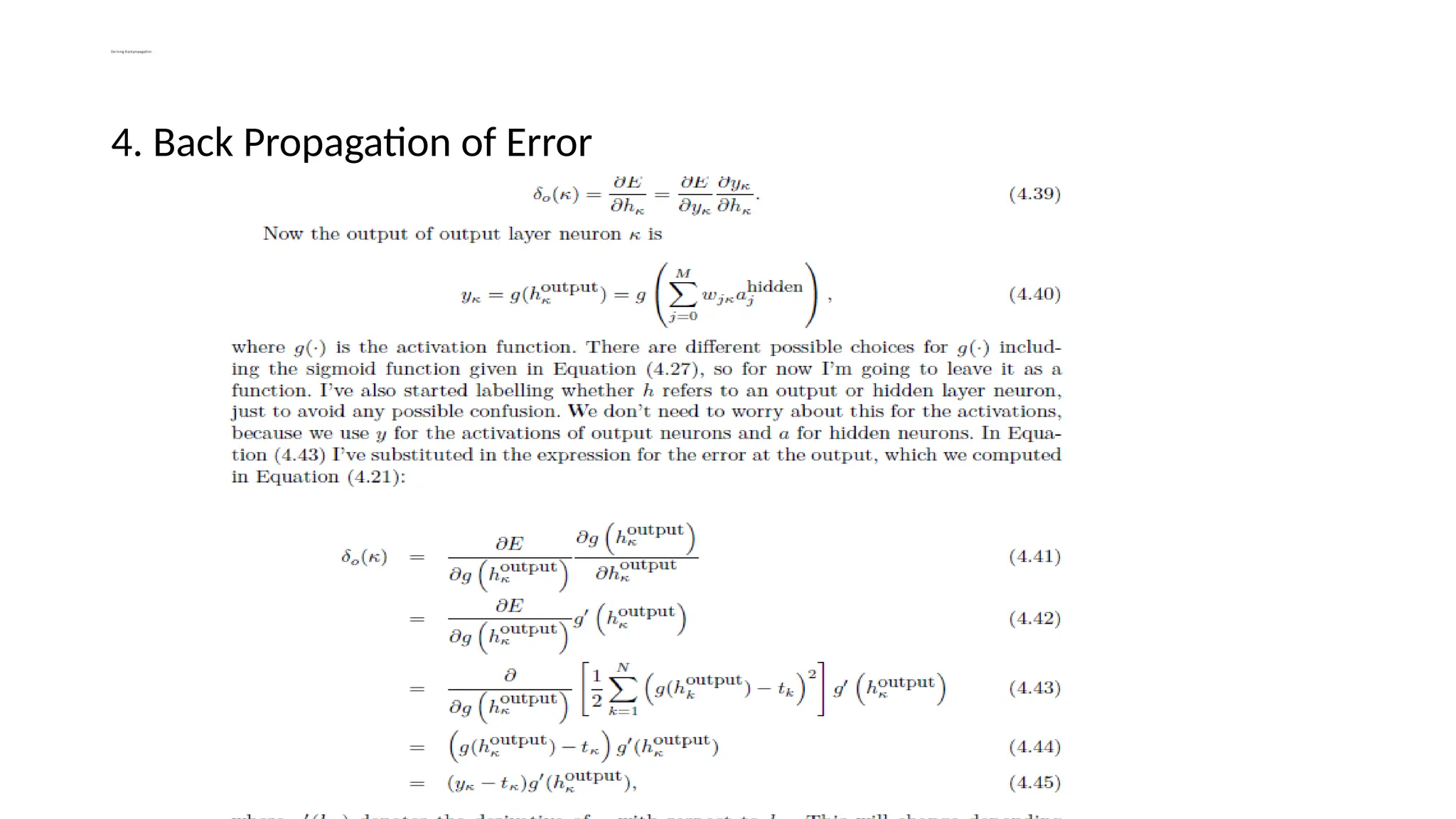

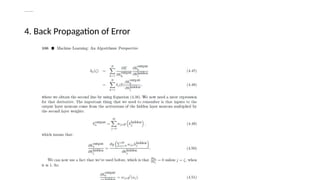

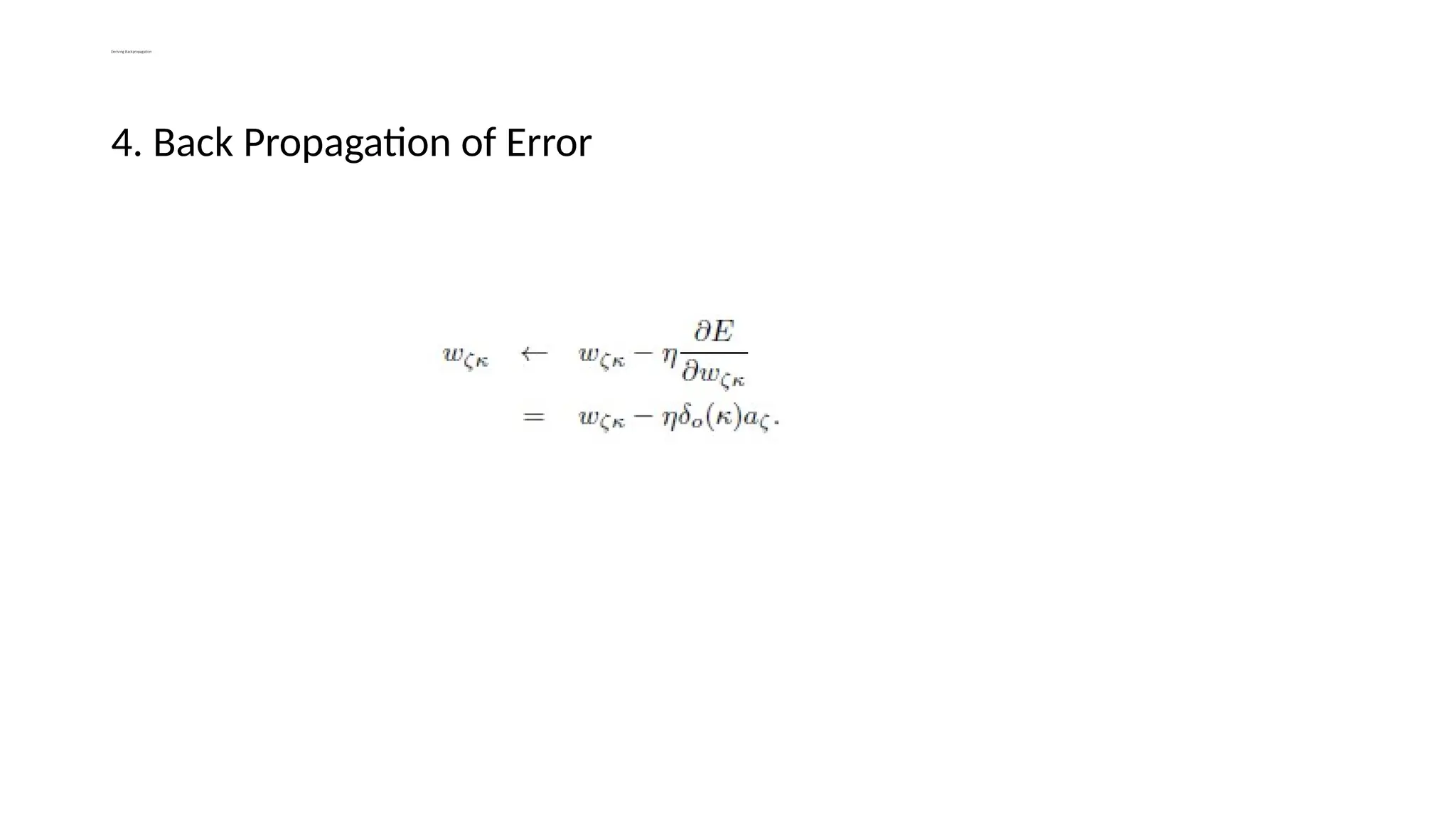

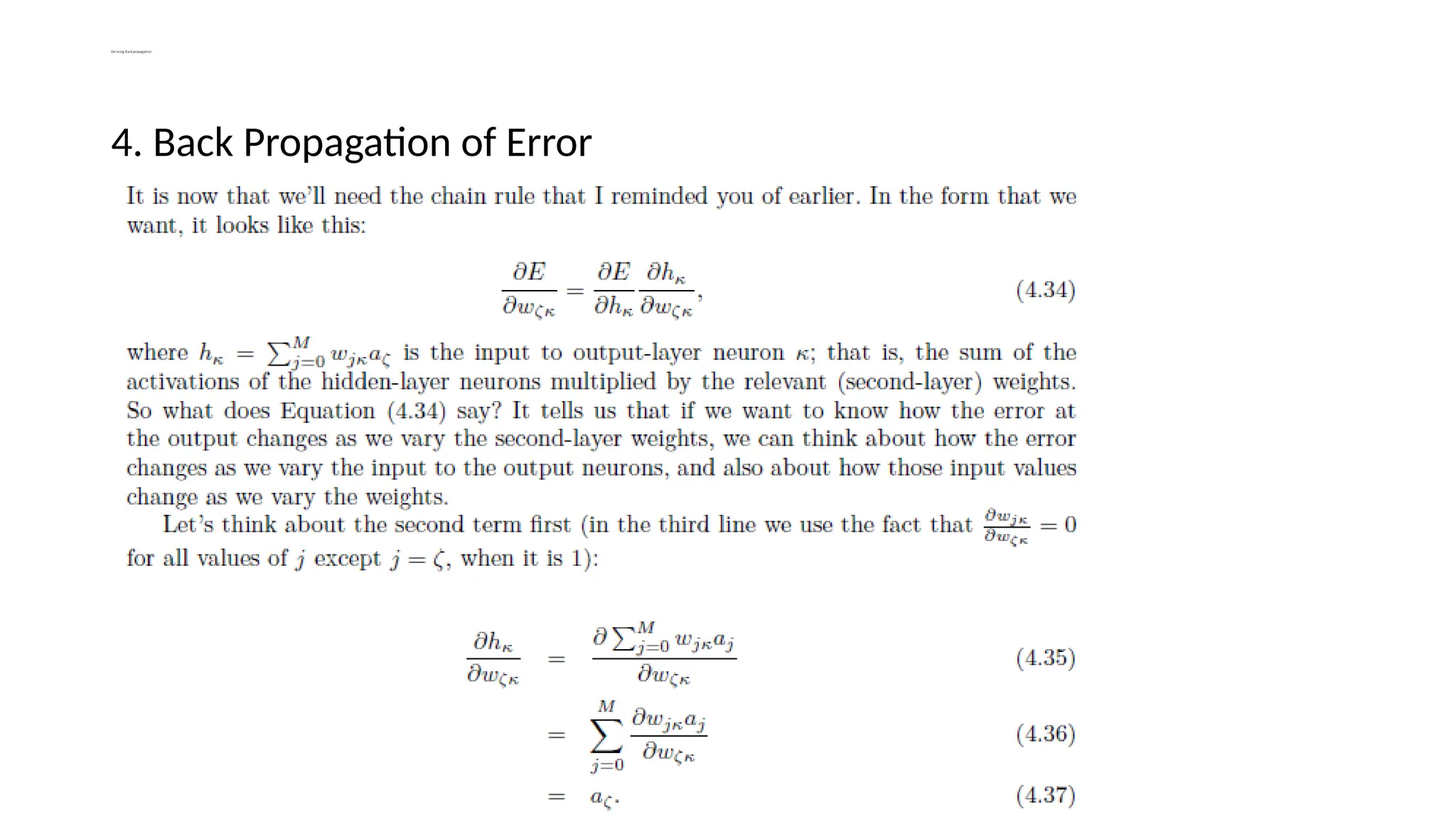

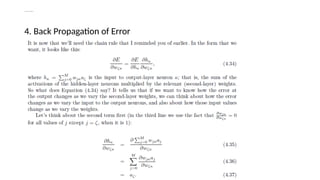

4. Back Propagation of Error

22. Deriving Backpropagation
4. Back Propagation of Error

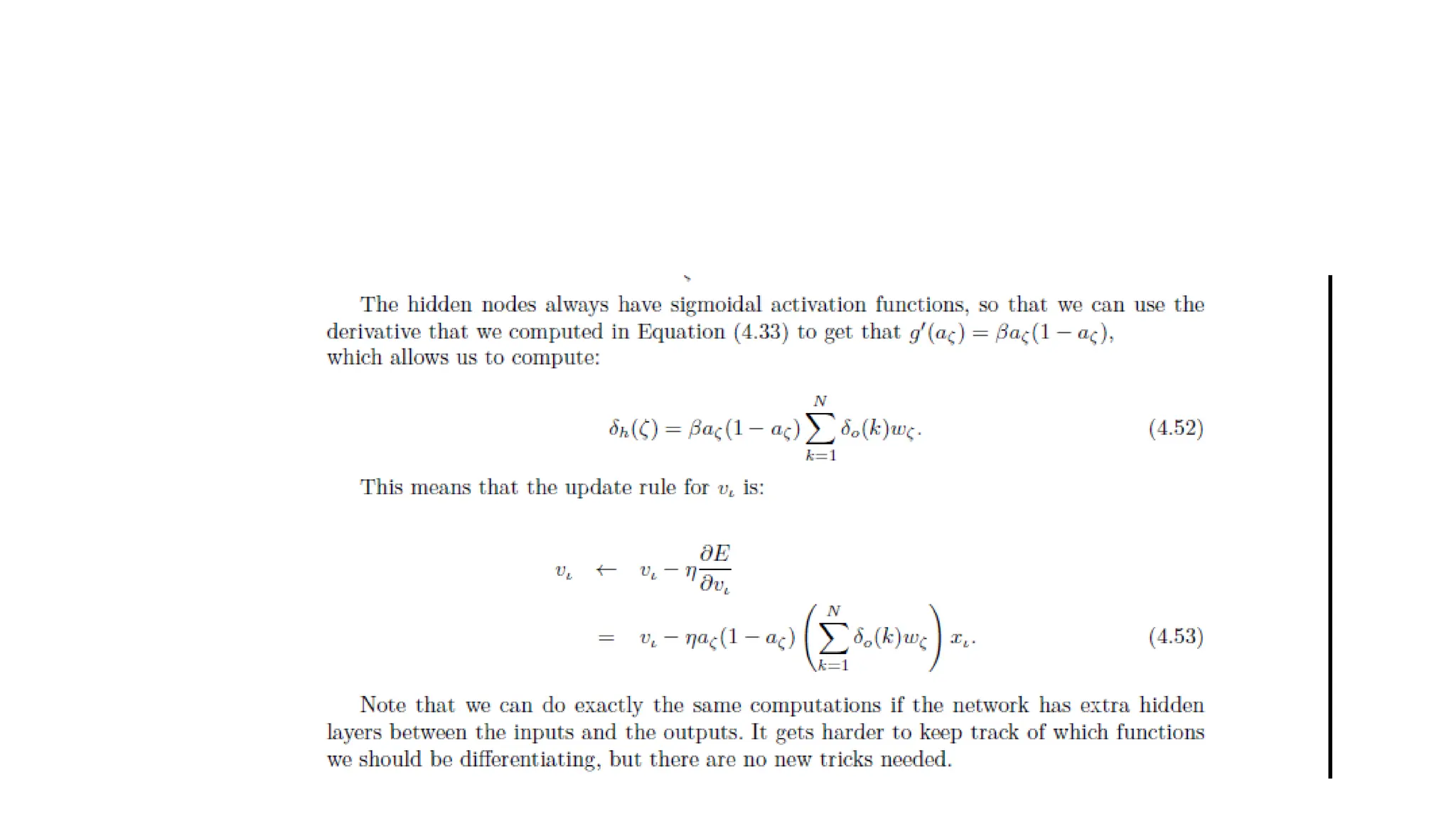

23. Deriving Backpropagation
4. Back Propagation of Error

24. Deriving Backpropagation
4. Back Propagation of Error

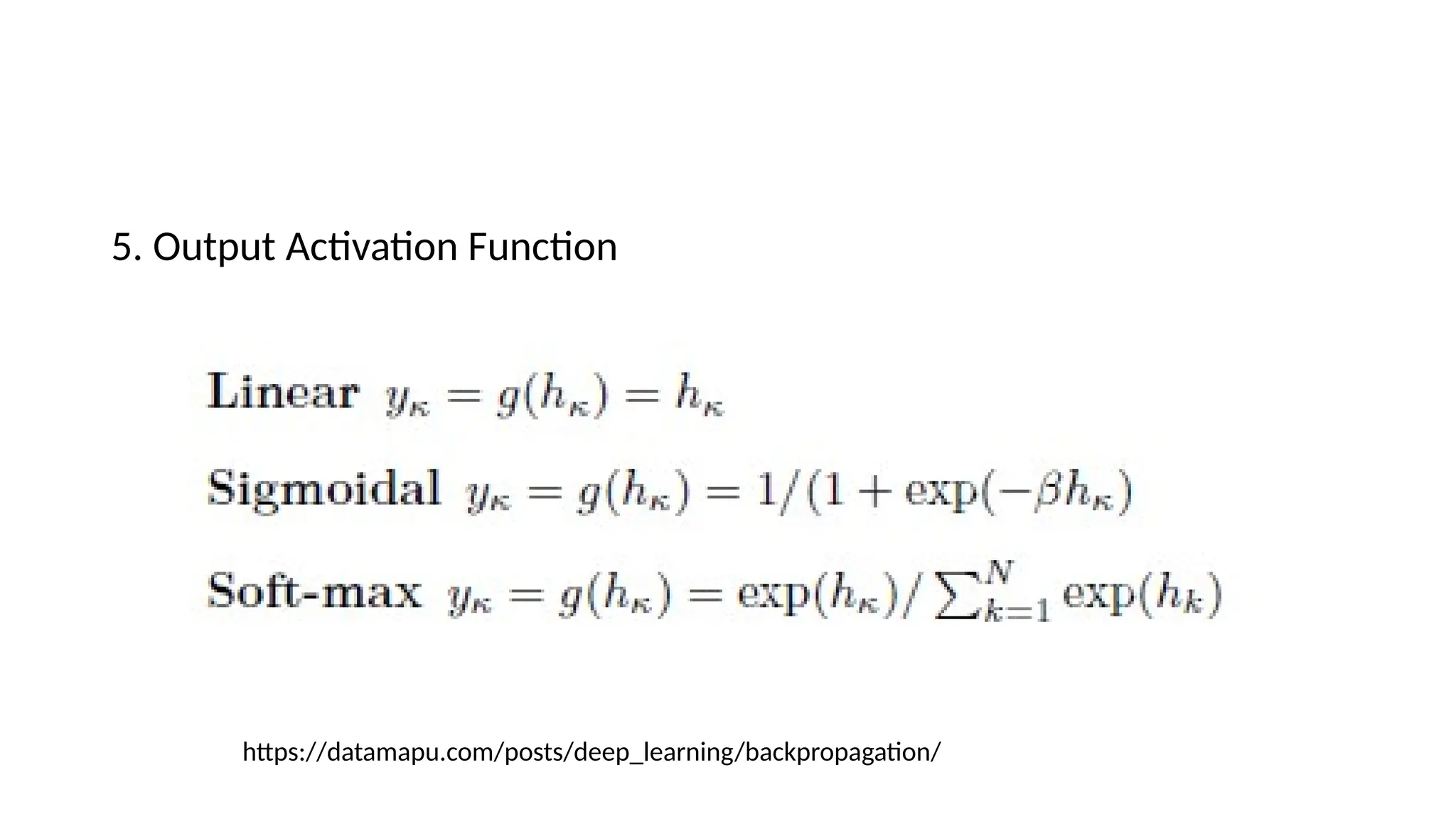

26. 5. Output Activation Function
https://datamapu.com/posts/deep_learning/backpropagation/

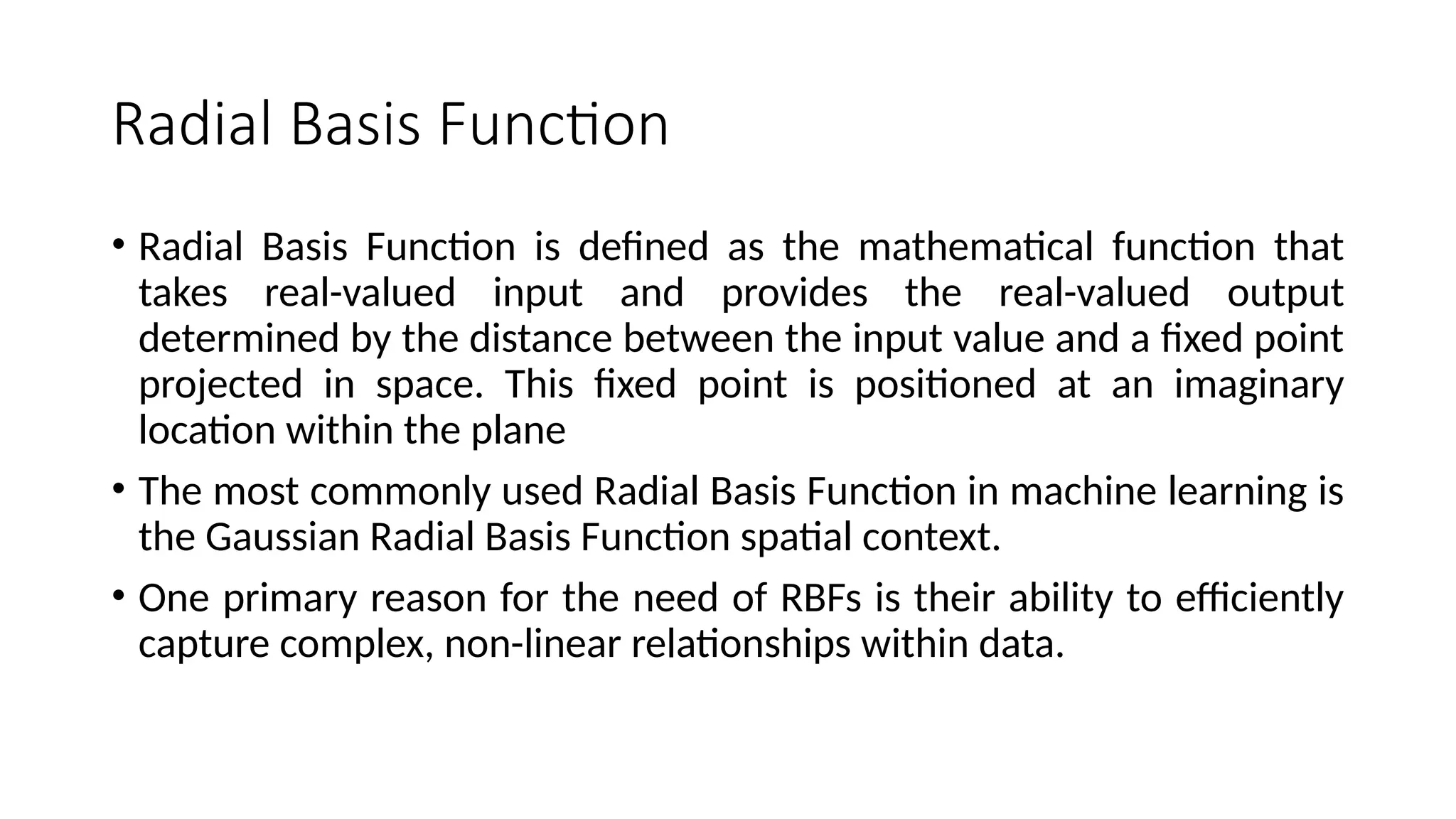

27. Radial Basis Function
• Radial Basis Function is defined as the mathematical function that
takes real-valued input and provides the real-valued output
determined by the distance between the input value and a fixed point
projected in space. This fixed point is positioned at an imaginary
location within the plane
• The most commonly used Radial Basis Function in machine learning is
the Gaussian Radial Basis Function spatial context.
• One primary reason for the need of RBFs is their ability to efficiently
capture complex, non-linear relationships within data.

28. Radial Basis Function
• The RBF calculates the Euclidean distance between the input vector
and the center, squares it, divides it by 2σ2
, and applies an
exponential function. The result is a weighted output that reflects the
proximity of the input to the center.

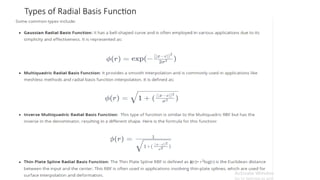

29. Types of Radial Basis Function

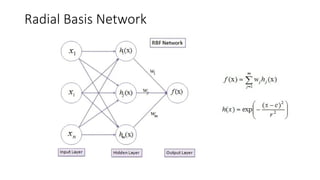

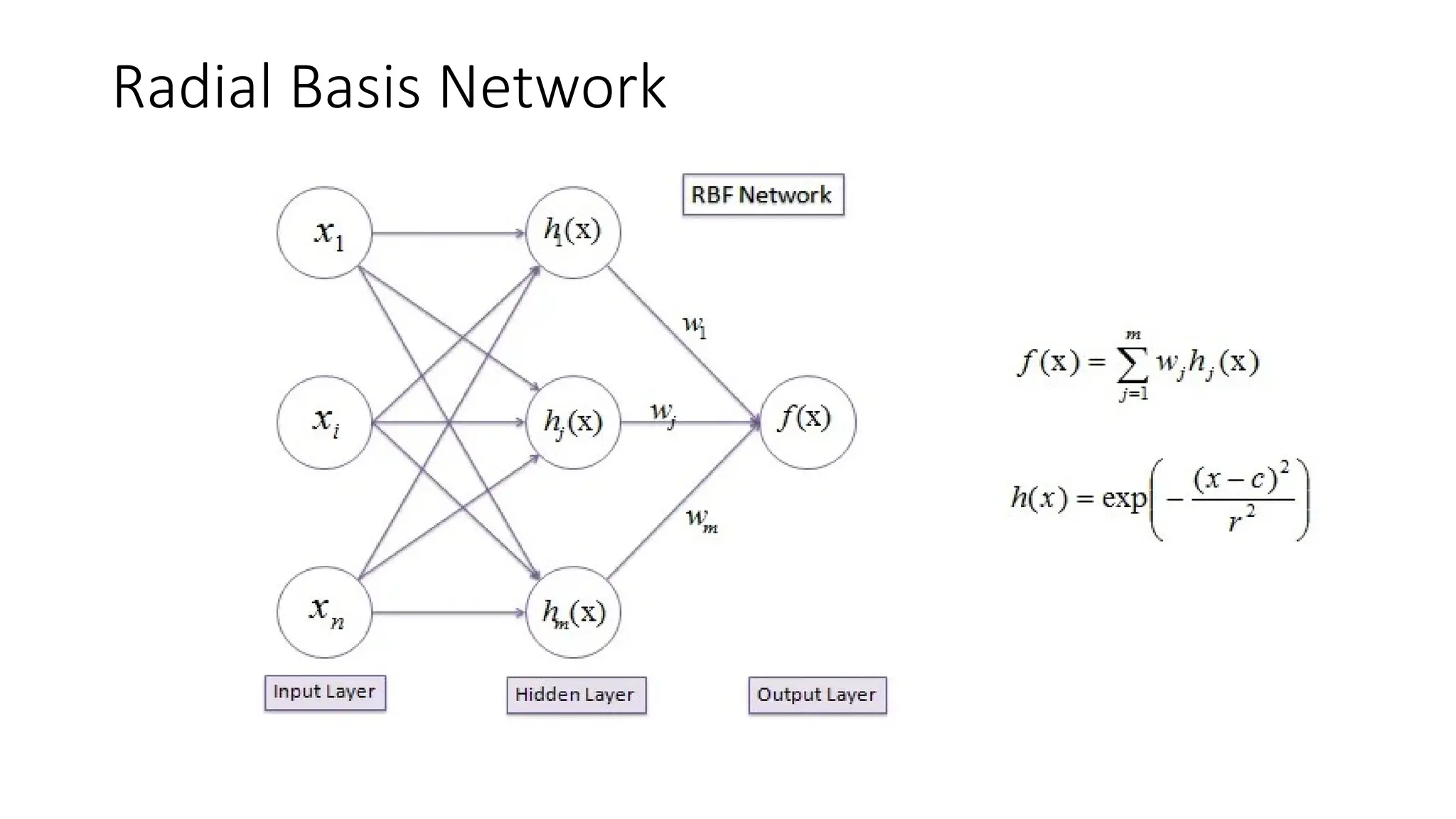

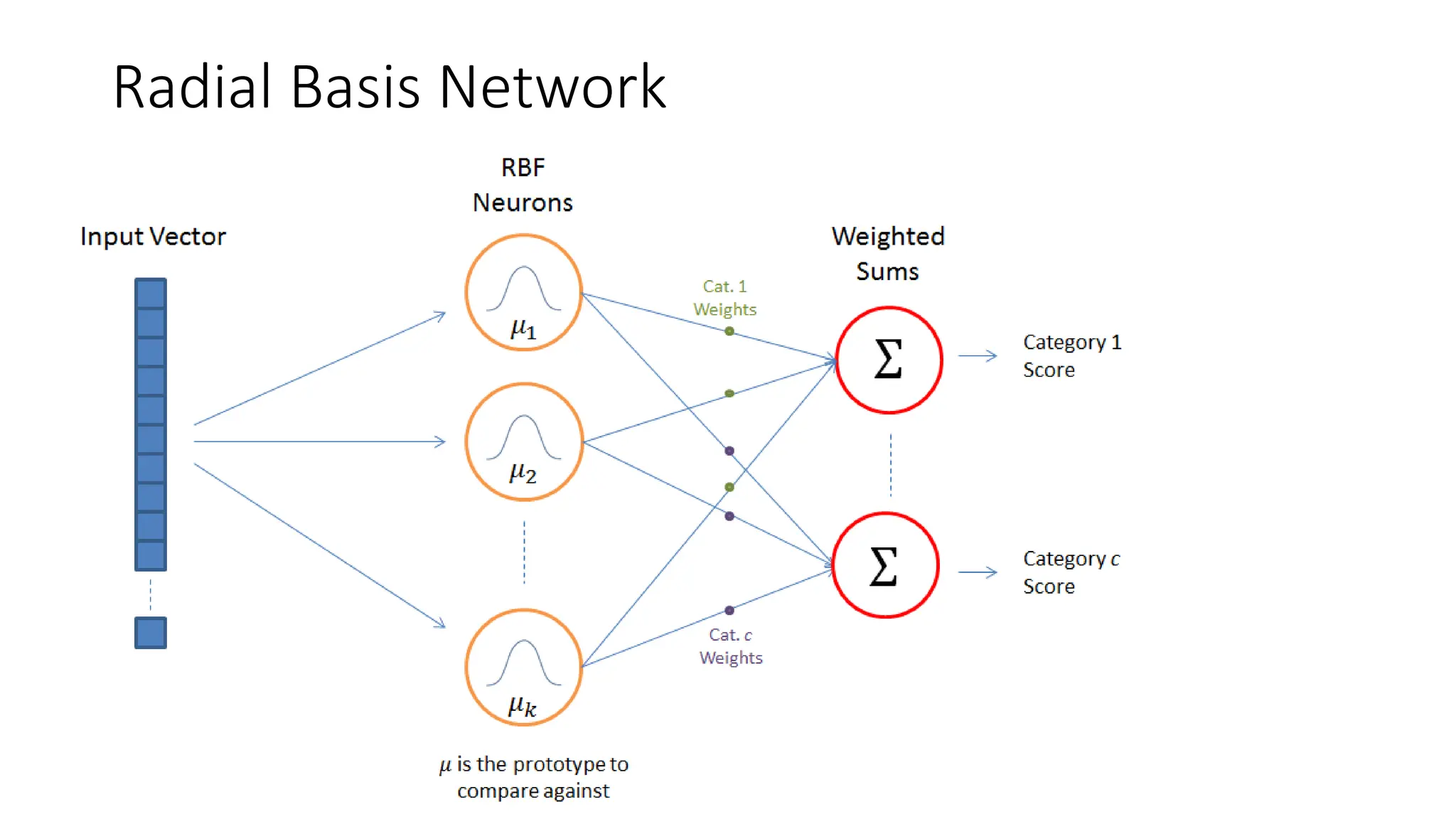

30. Radial Basis Network

31. Radial Basis Network

32. Radial Basis Network-

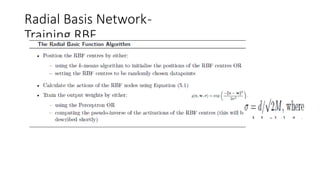

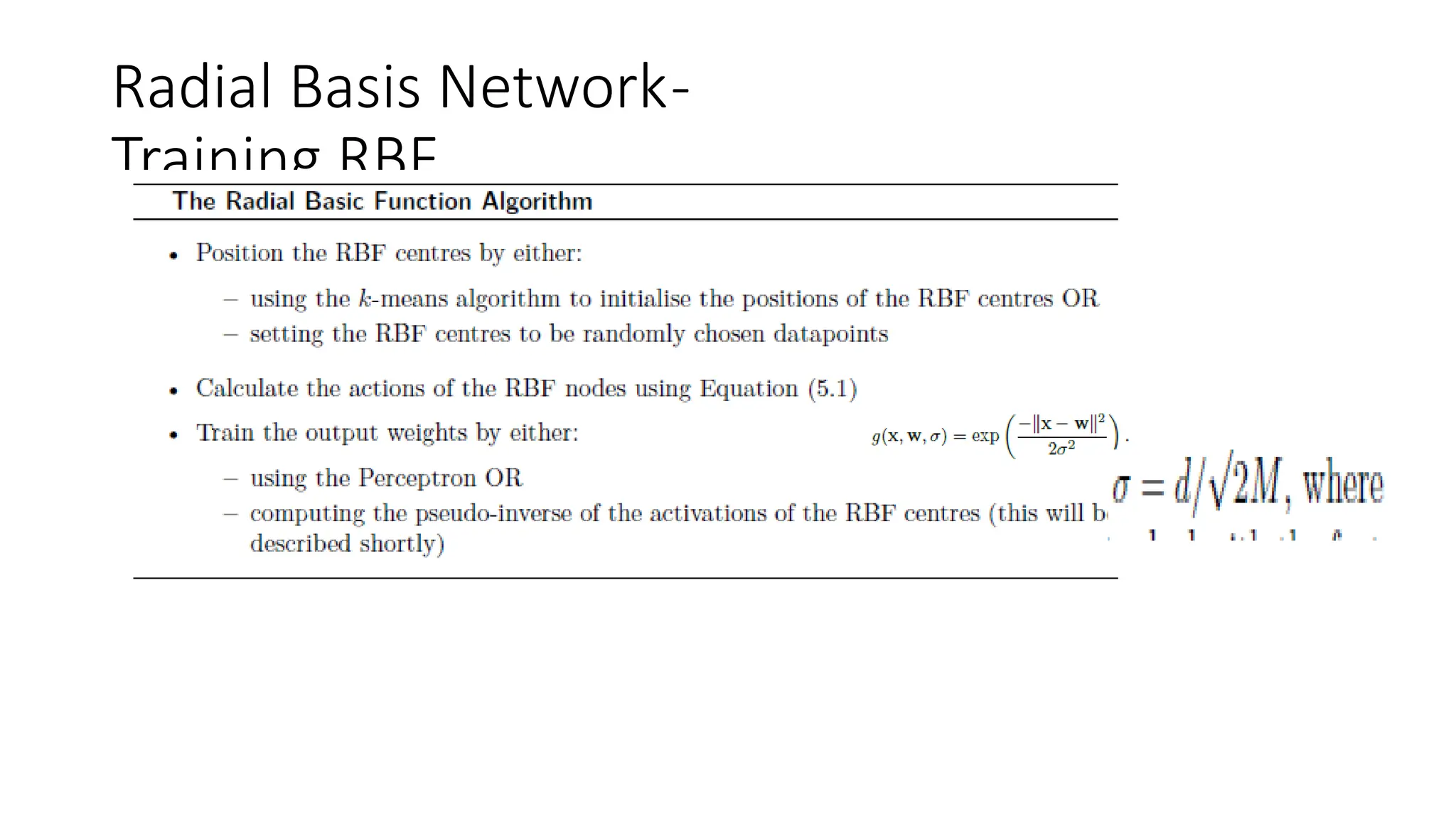

Training RBF

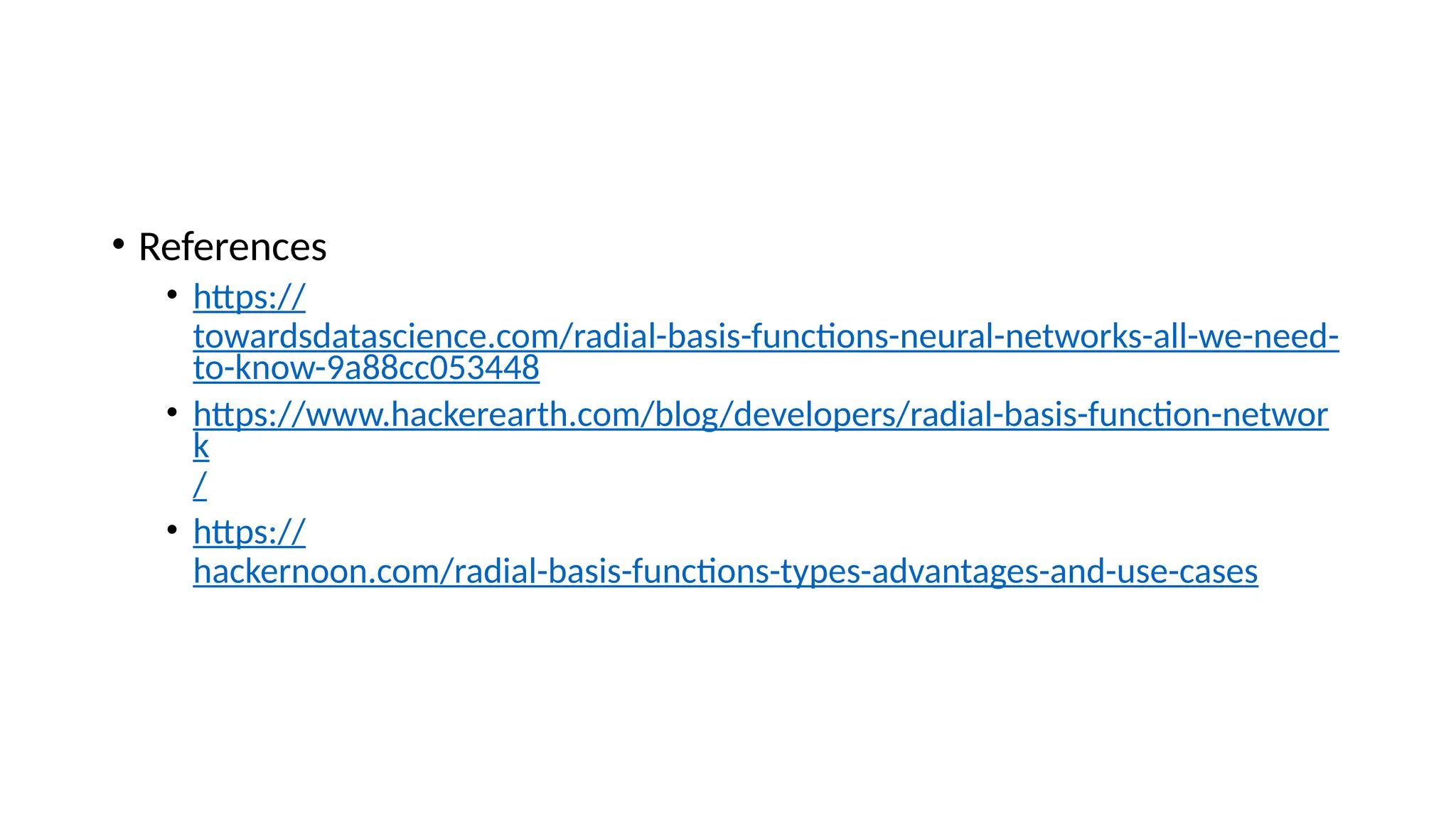

33. • References
• https://
towardsdatascience.com/radial-basis-functions-neural-networks-all-we-need-
to-know-9a88cc053448
• https://www.hackerearth.com/blog/developers/radial-basis-function-networ
k
/
• https://
hackernoon.com/radial-basis-functions-types-advantages-and-use-cases

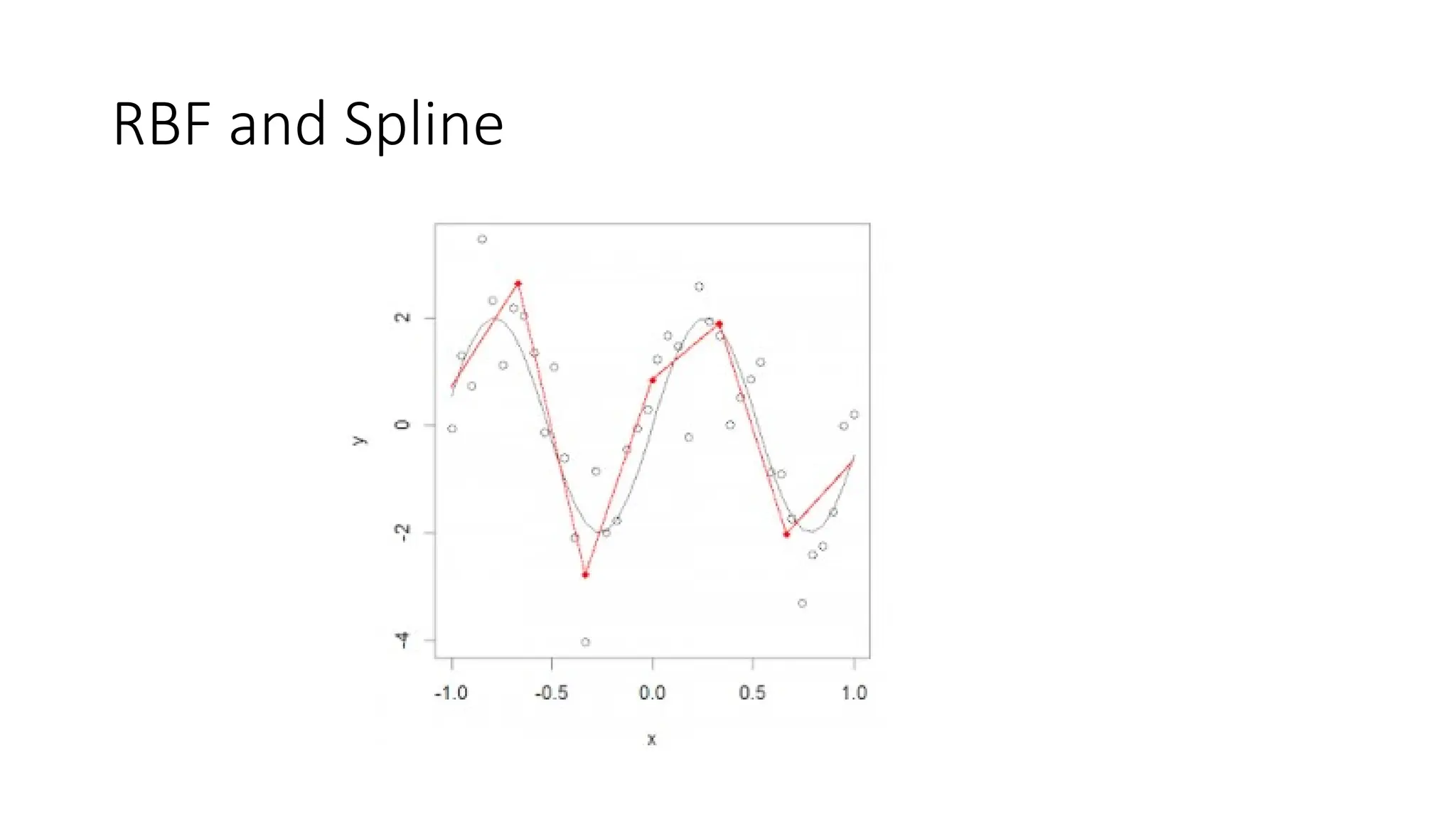

34. RBF and Spline

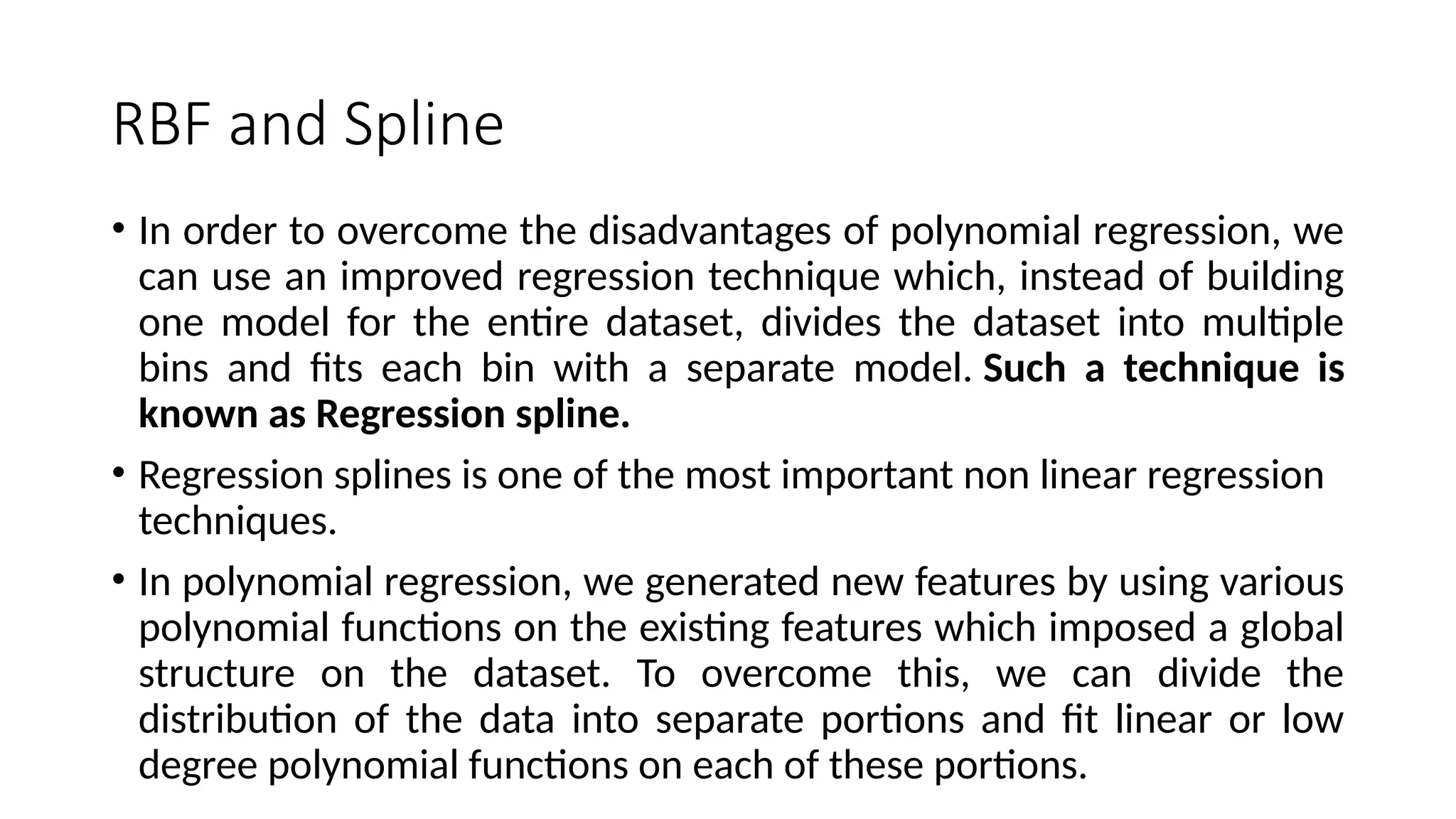

• In order to overcome the disadvantages of polynomial regression, we
can use an improved regression technique which, instead of building
one model for the entire dataset, divides the dataset into multiple
bins and fits each bin with a separate model. Such a technique is
known as Regression spline.
• Regression splines is one of the most important non linear regression
techniques.
• In polynomial regression, we generated new features by using various
polynomial functions on the existing features which imposed a global
structure on the dataset. To overcome this, we can divide the
distribution of the data into separate portions and fit linear or low
degree polynomial functions on each of these portions.

35. RBF and Spline

36. RBF and Spline

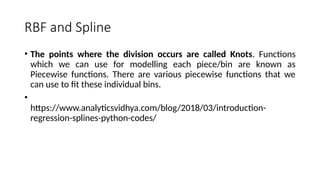

• The points where the division occurs are called Knots. Functions
which we can use for modelling each piece/bin are known as
Piecewise functions. There are various piecewise functions that we
can use to fit these individual bins.
•
https://www.analyticsvidhya.com/blog/2018/03/introduction-
regression-splines-python-codes/

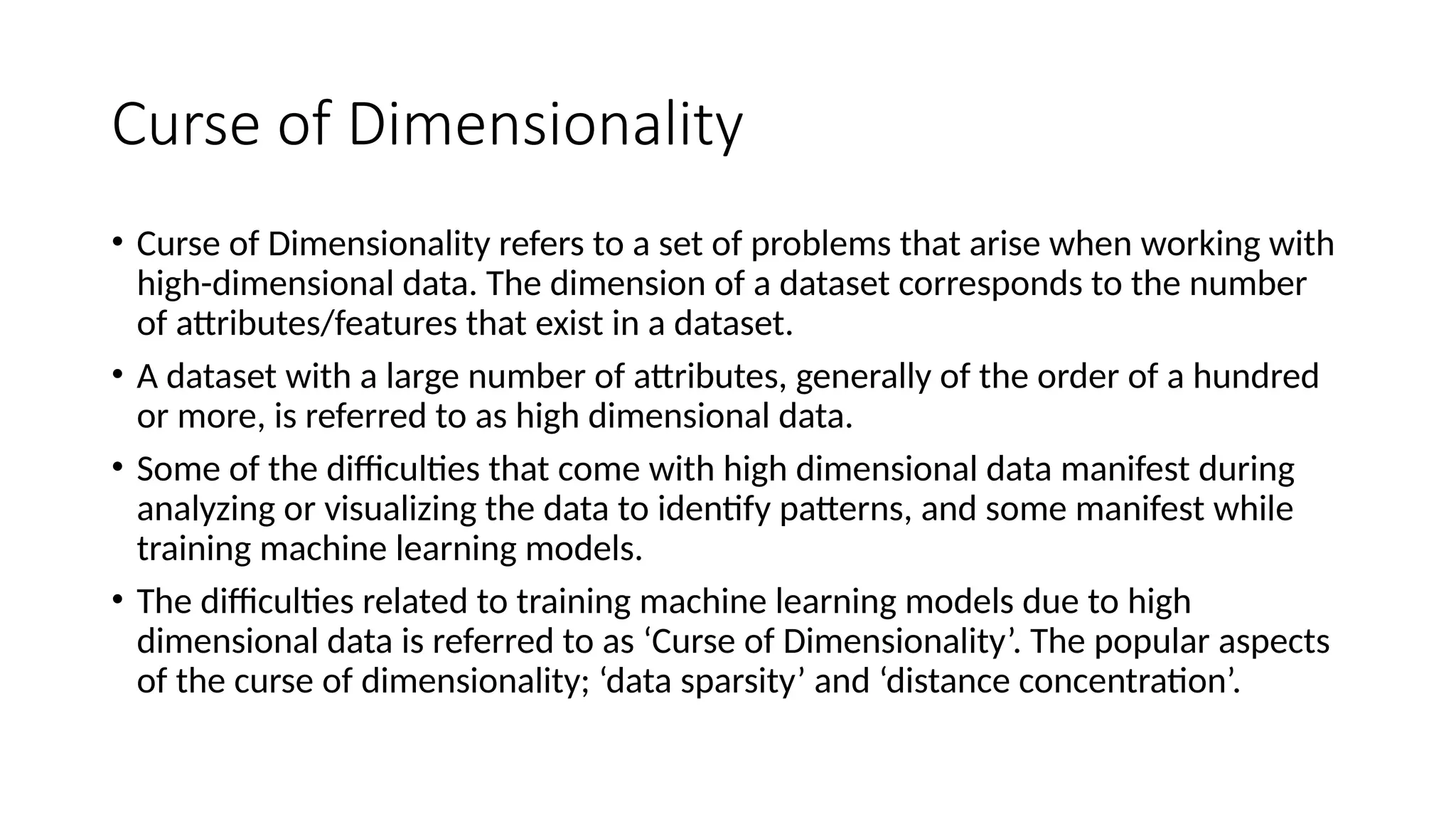

37. Curse of Dimensionality

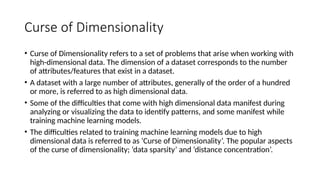

• Curse of Dimensionality refers to a set of problems that arise when working with
high-dimensional data. The dimension of a dataset corresponds to the number
of attributes/features that exist in a dataset.
• A dataset with a large number of attributes, generally of the order of a hundred
or more, is referred to as high dimensional data.
• Some of the difficulties that come with high dimensional data manifest during
analyzing or visualizing the data to identify patterns, and some manifest while
training machine learning models.
• The difficulties related to training machine learning models due to high
dimensional data is referred to as ‘Curse of Dimensionality’. The popular aspects
of the curse of dimensionality; ‘data sparsity’ and ‘distance concentration’.

38. Curse of Dimensionality

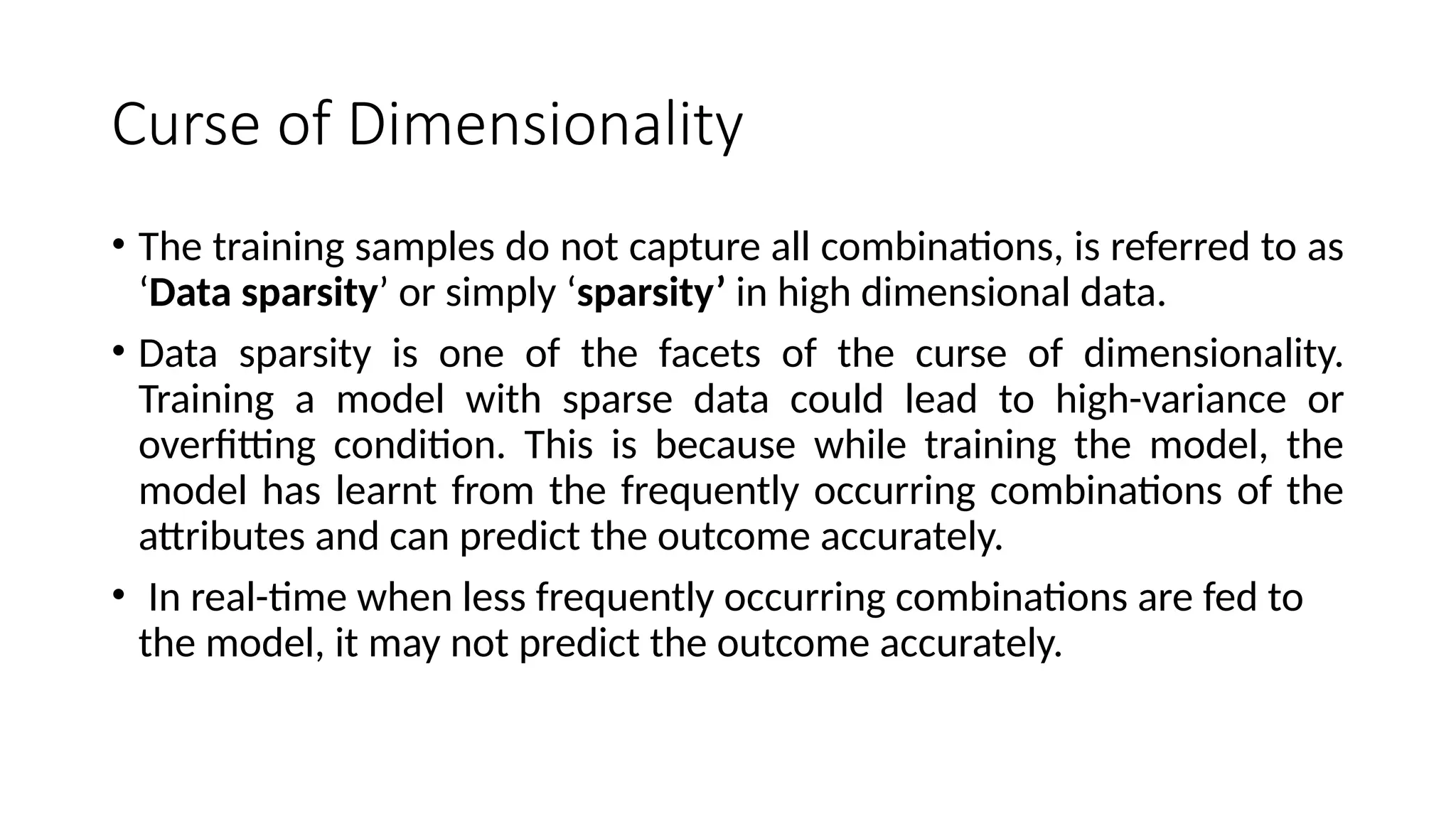

• The training samples do not capture all combinations, is referred to as
‘Data sparsity’ or simply ‘sparsity’ in high dimensional data.
• Data sparsity is one of the facets of the curse of dimensionality.
Training a model with sparse data could lead to high-variance or
overfitting condition. This is because while training the model, the
model has learnt from the frequently occurring combinations of the
attributes and can predict the outcome accurately.
• In real-time when less frequently occurring combinations are fed to
the model, it may not predict the outcome accurately.

39. Curse of Dimensionality
• ‘Distance concentration’ refers to the problem of all the pairwise
distances between different samples/points in the space converging
to the same value as the dimensionality of the data increases. Several
machine learning models such as clustering or nearest neighbours’
methods use distance-based metrics to identify similar or proximity of
the samples.

40. Interpolation and Basis Function
1. Bases and Basic Function

41. Interpolation and Basis Function

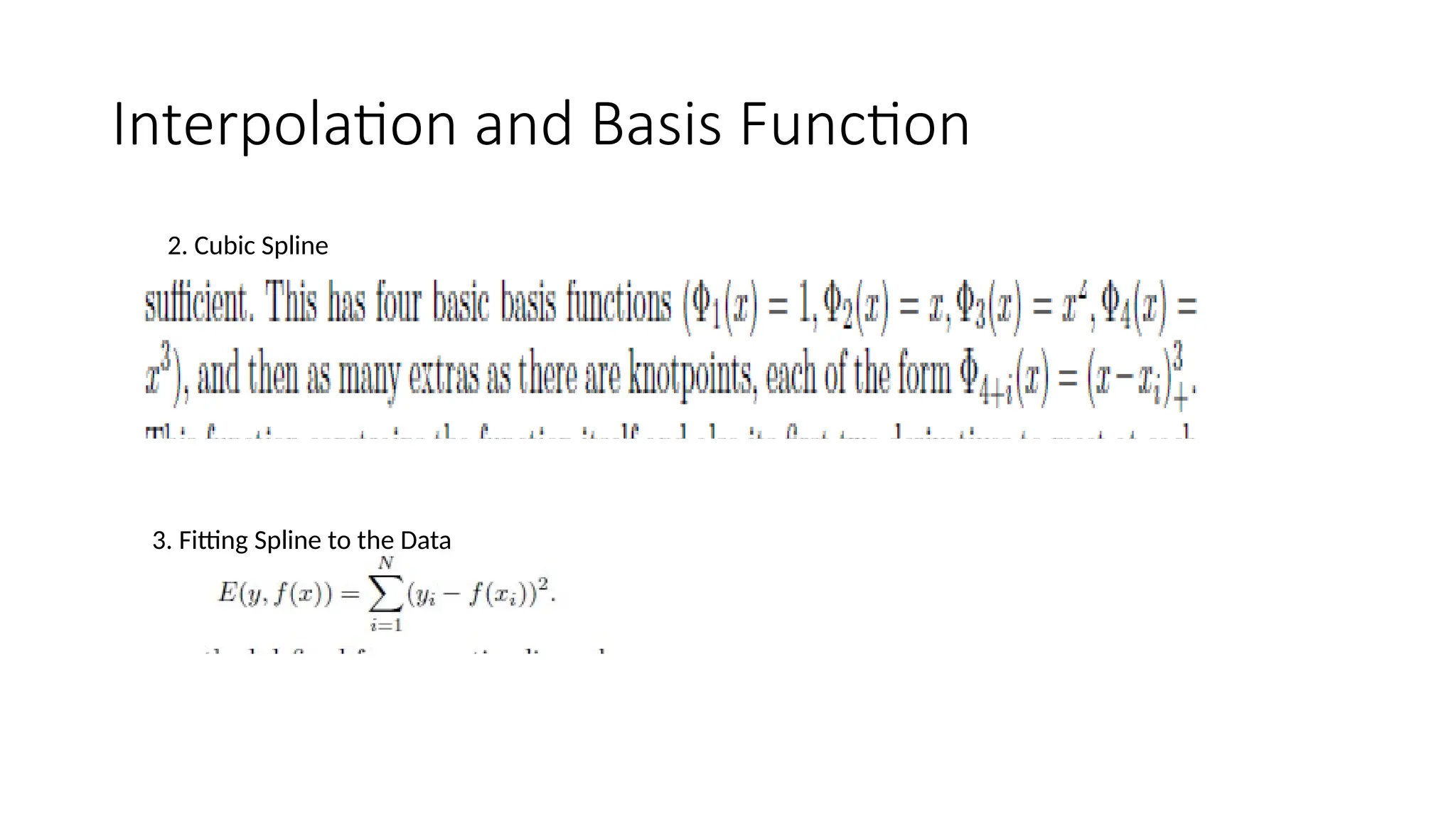

2. Cubic Spline
3. Fitting Spline to the Data

42. Interpolation and Basis Function

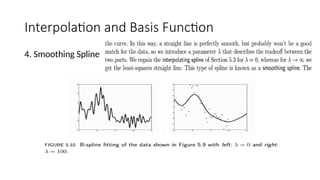

4. Smoothing Spline
5.

43. Interpolation and Basis Function

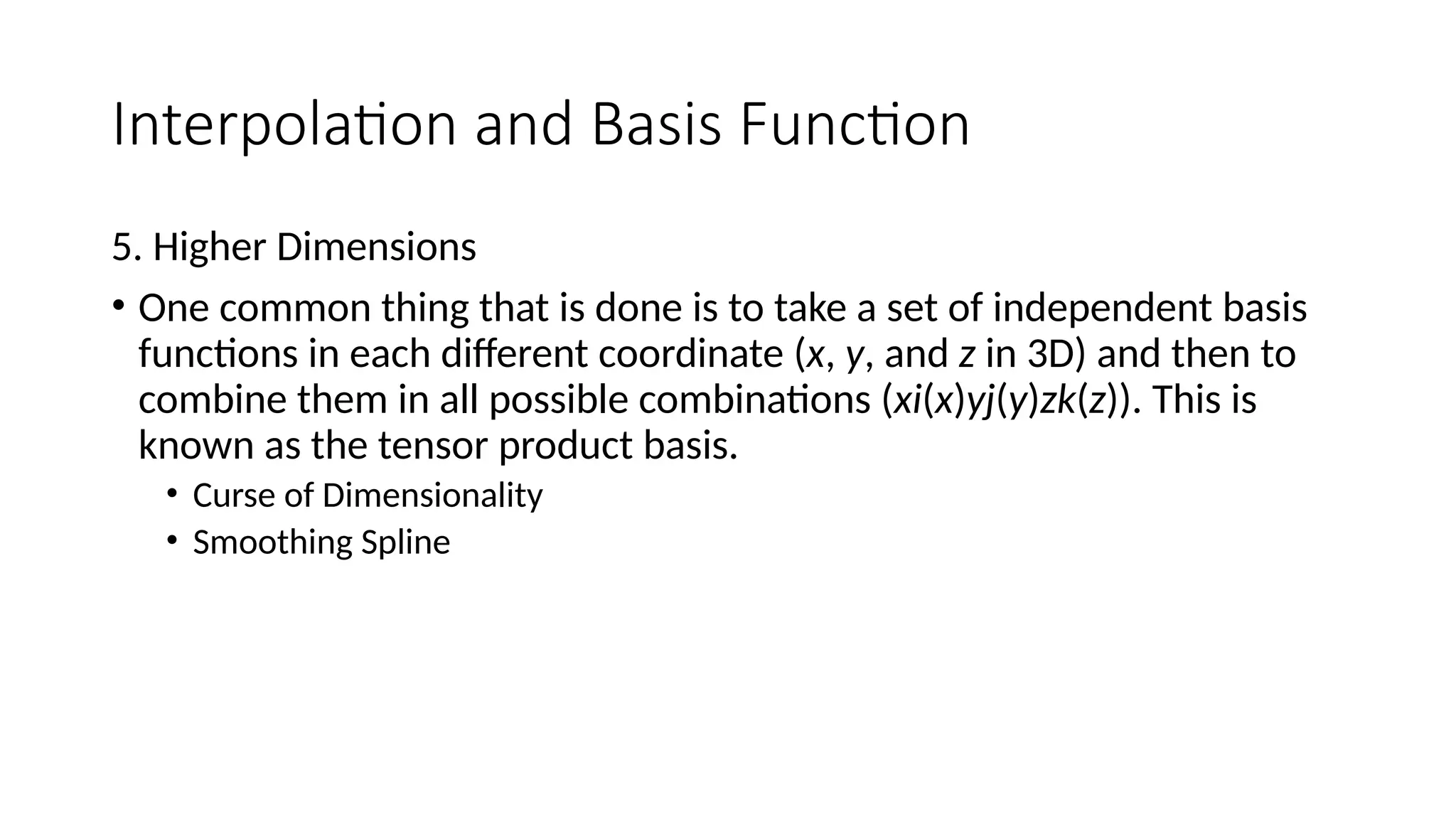

5. Higher Dimensions
• One common thing that is done is to take a set of independent basis
functions in each different coordinate (x, y, and z in 3D) and then to
combine them in all possible combinations (xi(x)yj(y)zk(z)). This is
known as the tensor product basis.
• Curse of Dimensionality
• Smoothing Spline

44. Support Vector Machine

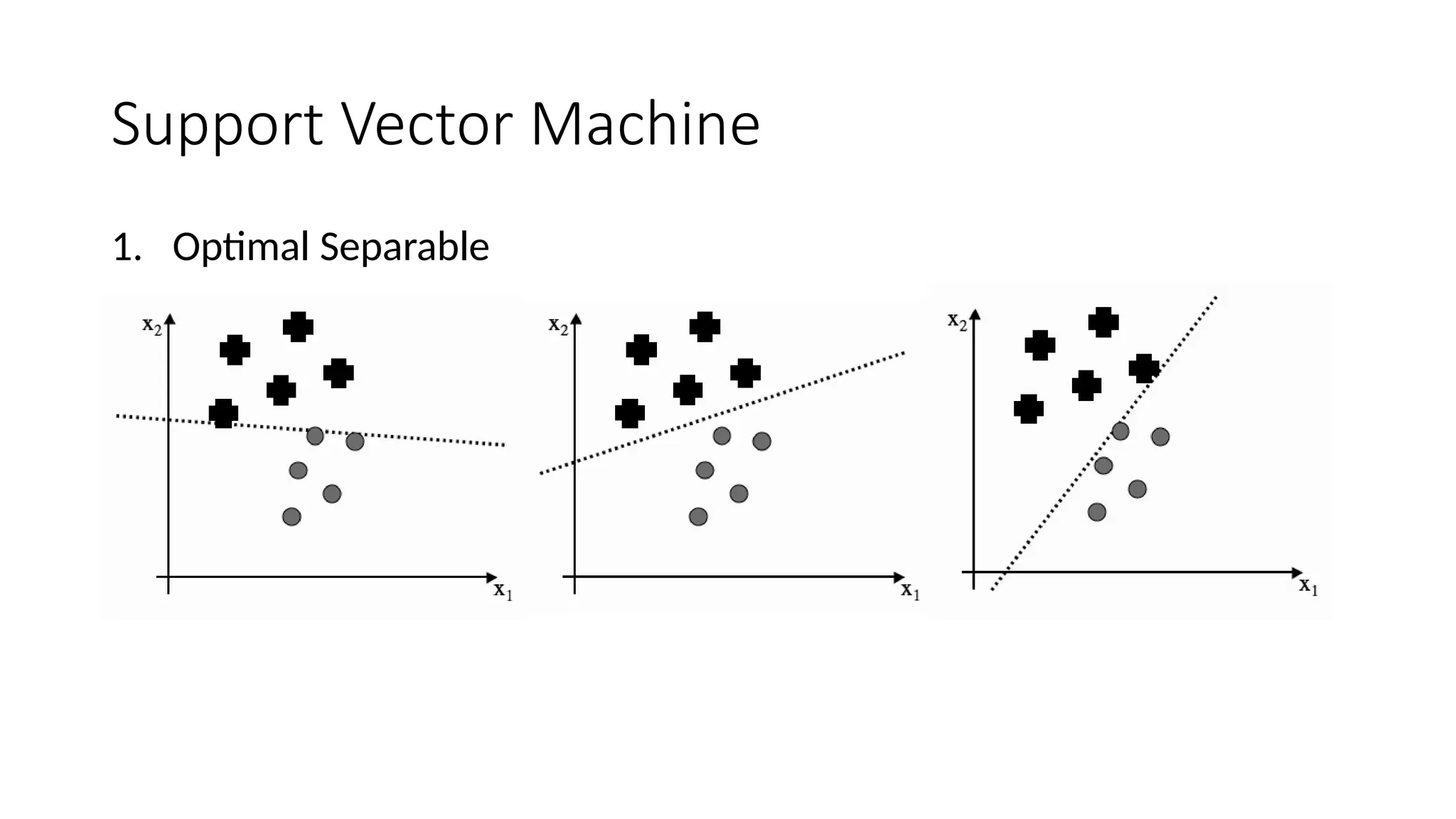

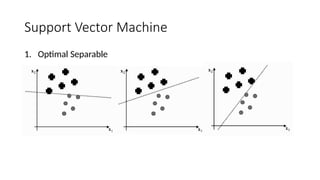

1. Optimal Separable

45. Support Vector Machine

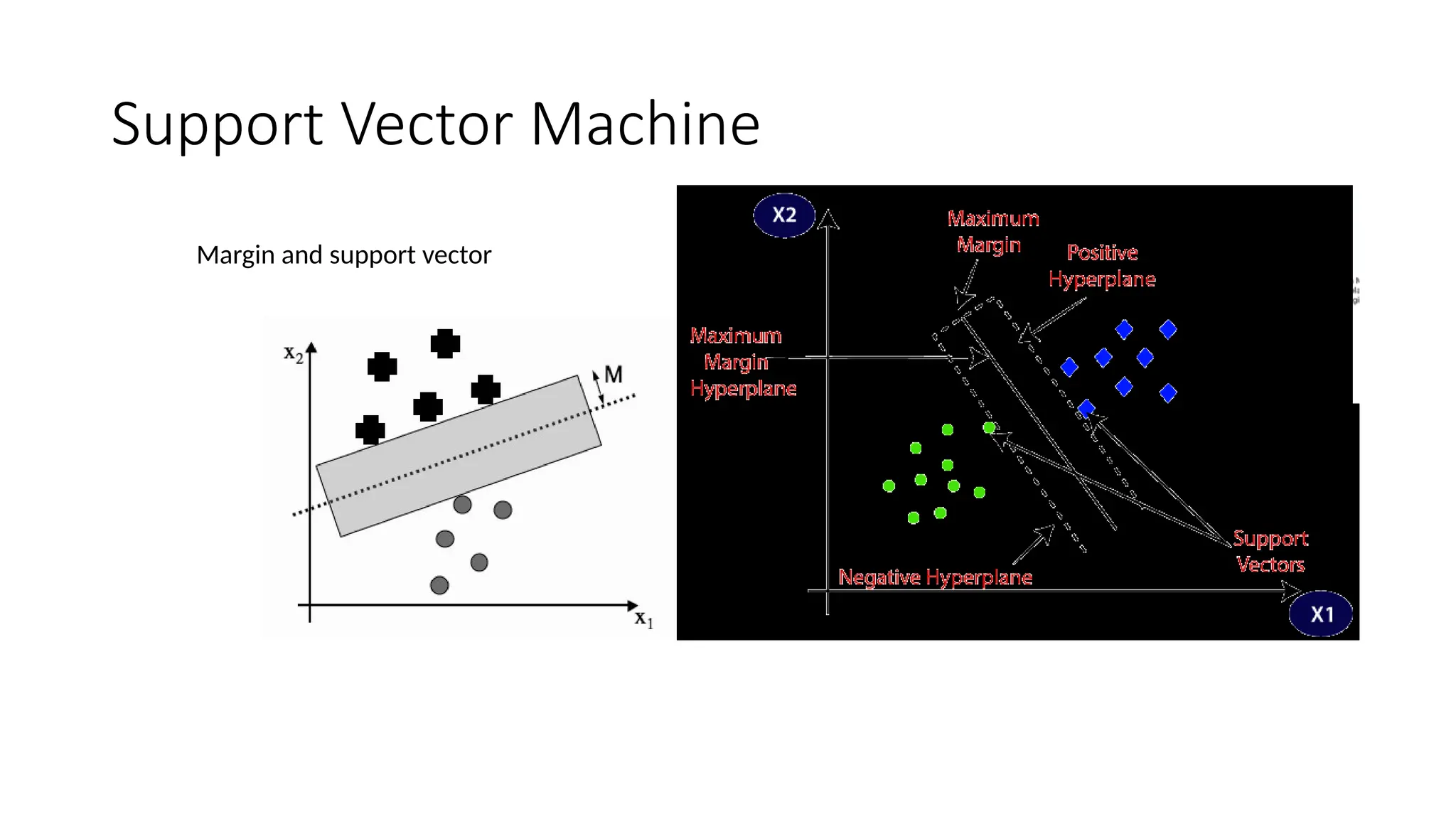

Margin and support vector

46. Support Vector Machine

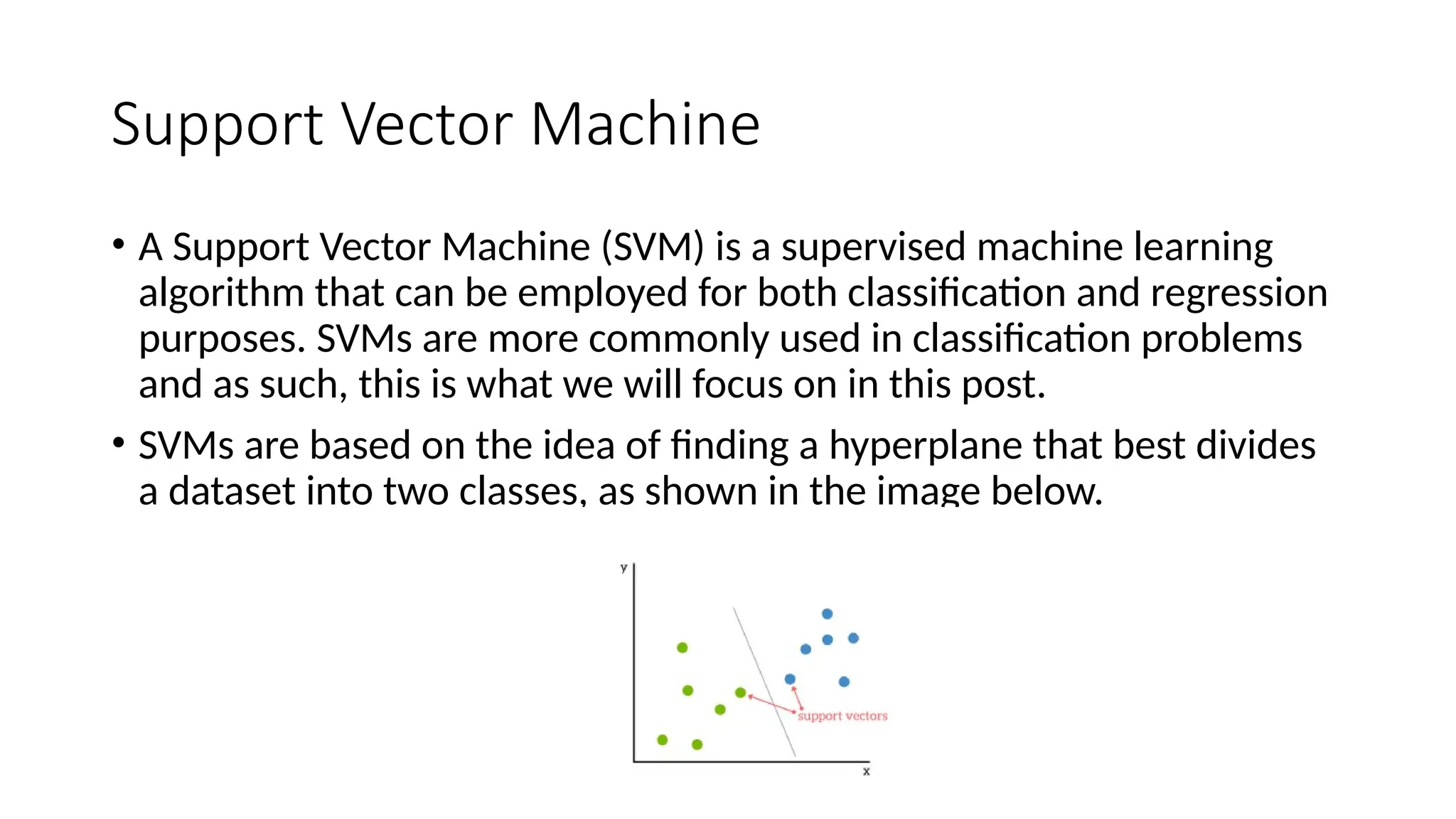

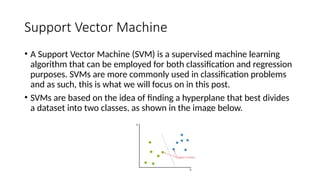

• A Support Vector Machine (SVM) is a supervised machine learning
algorithm that can be employed for both classification and regression
purposes. SVMs are more commonly used in classification problems
and as such, this is what we will focus on in this post.
• SVMs are based on the idea of finding a hyperplane that best divides
a dataset into two classes, as shown in the image below.

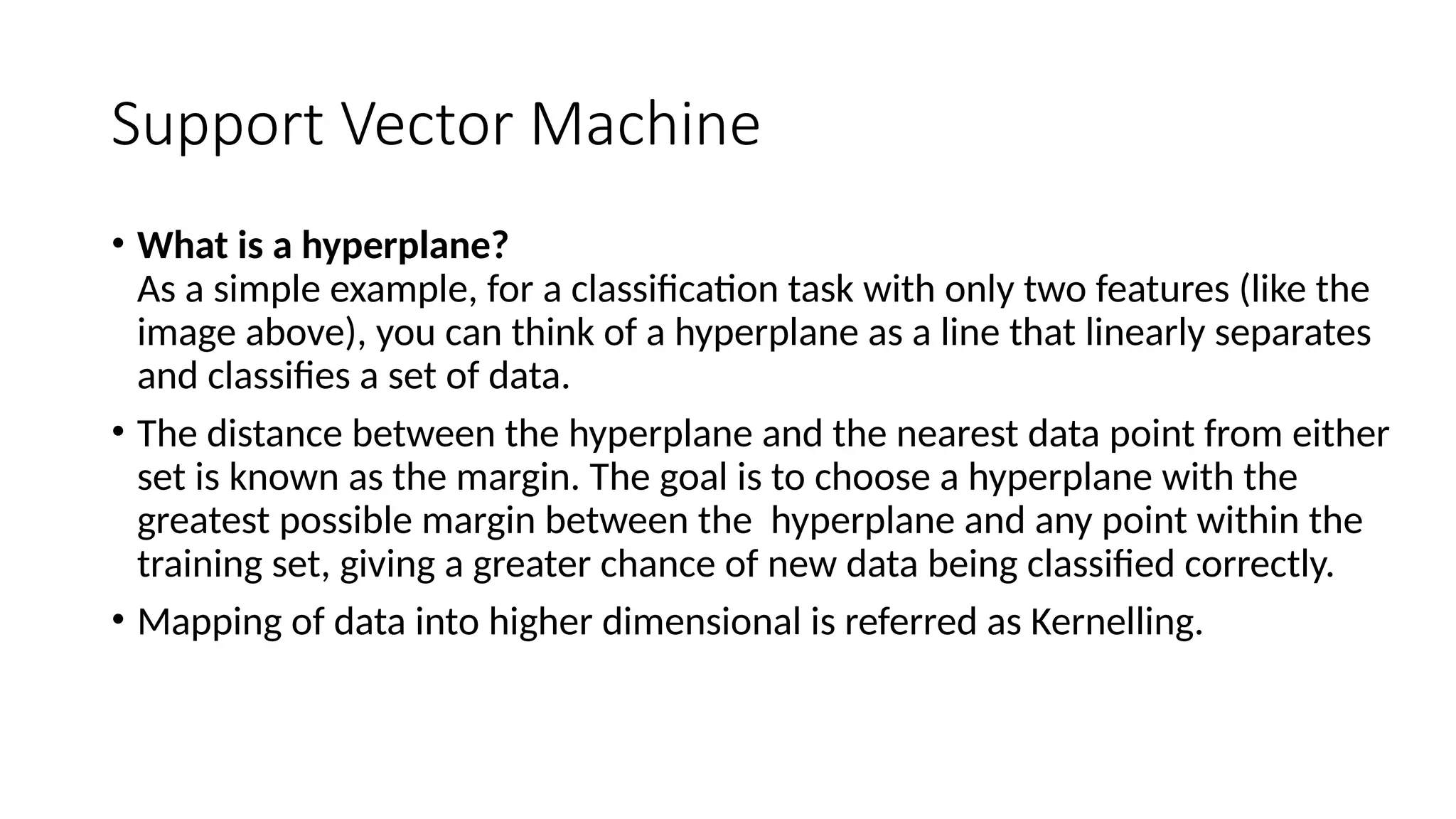

47. Support Vector Machine
• What is a hyperplane?
As a simple example, for a classification task with only two features (like the
image above), you can think of a hyperplane as a line that linearly separates
and classifies a set of data.
• The distance between the hyperplane and the nearest data point from either
set is known as the margin. The goal is to choose a hyperplane with the
greatest possible margin between the hyperplane and any point within the
training set, giving a greater chance of new data being classified correctly.
• Mapping of data into higher dimensional is referred as Kernelling.

48. Support Vector Machine
Kernels

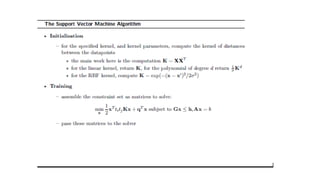

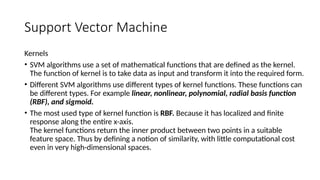

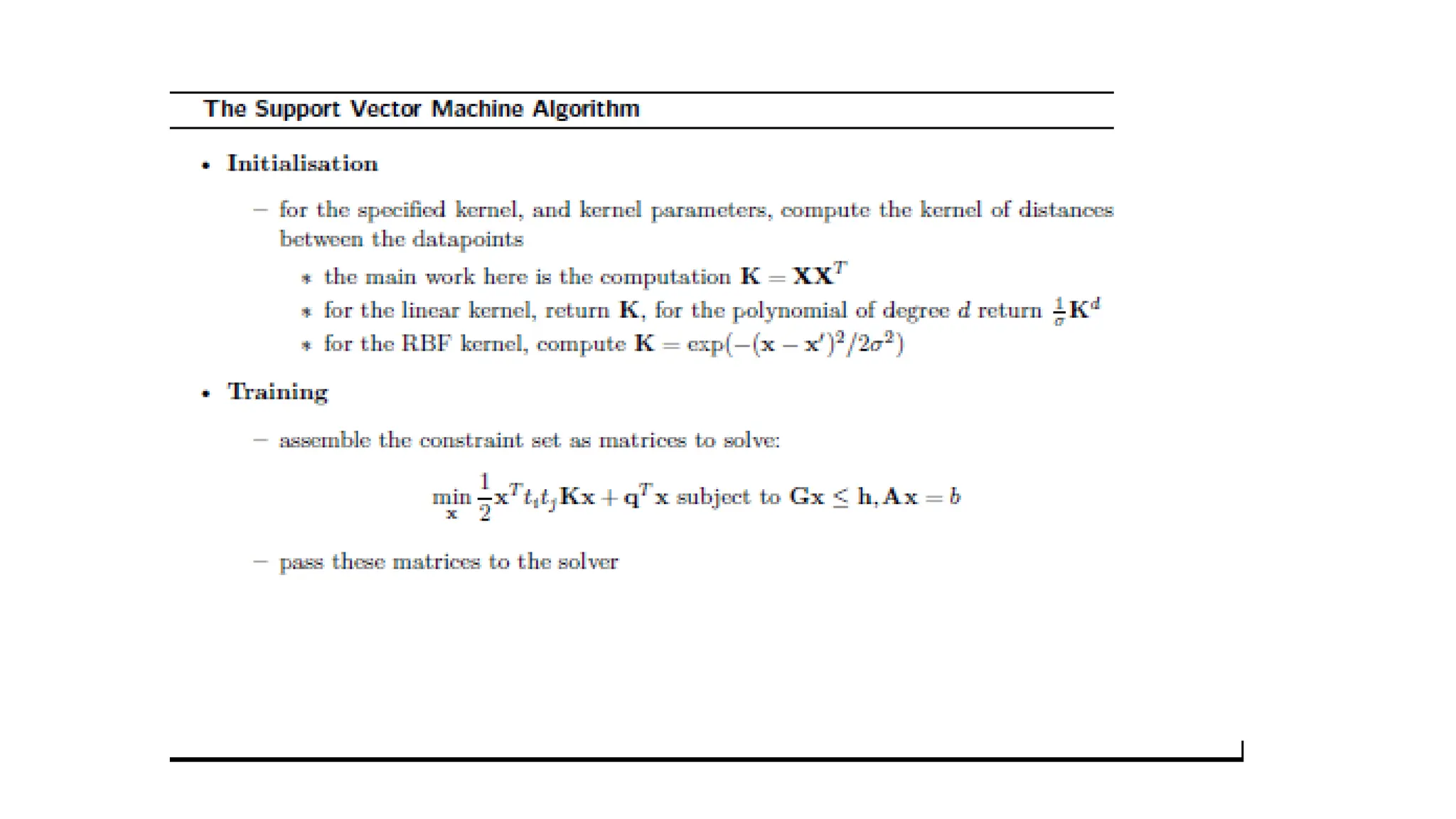

• SVM algorithms use a set of mathematical functions that are defined as the kernel.
The function of kernel is to take data as input and transform it into the required form.
• Different SVM algorithms use different types of kernel functions. These functions can
be different types. For example linear, nonlinear, polynomial, radial basis function
(RBF), and sigmoid.
• The most used type of kernel function is RBF. Because it has localized and finite
response along the entire x-axis.
The kernel functions return the inner product between two points in a suitable
feature space. Thus by defining a notion of similarity, with little computational cost
even in very high-dimensional spaces.

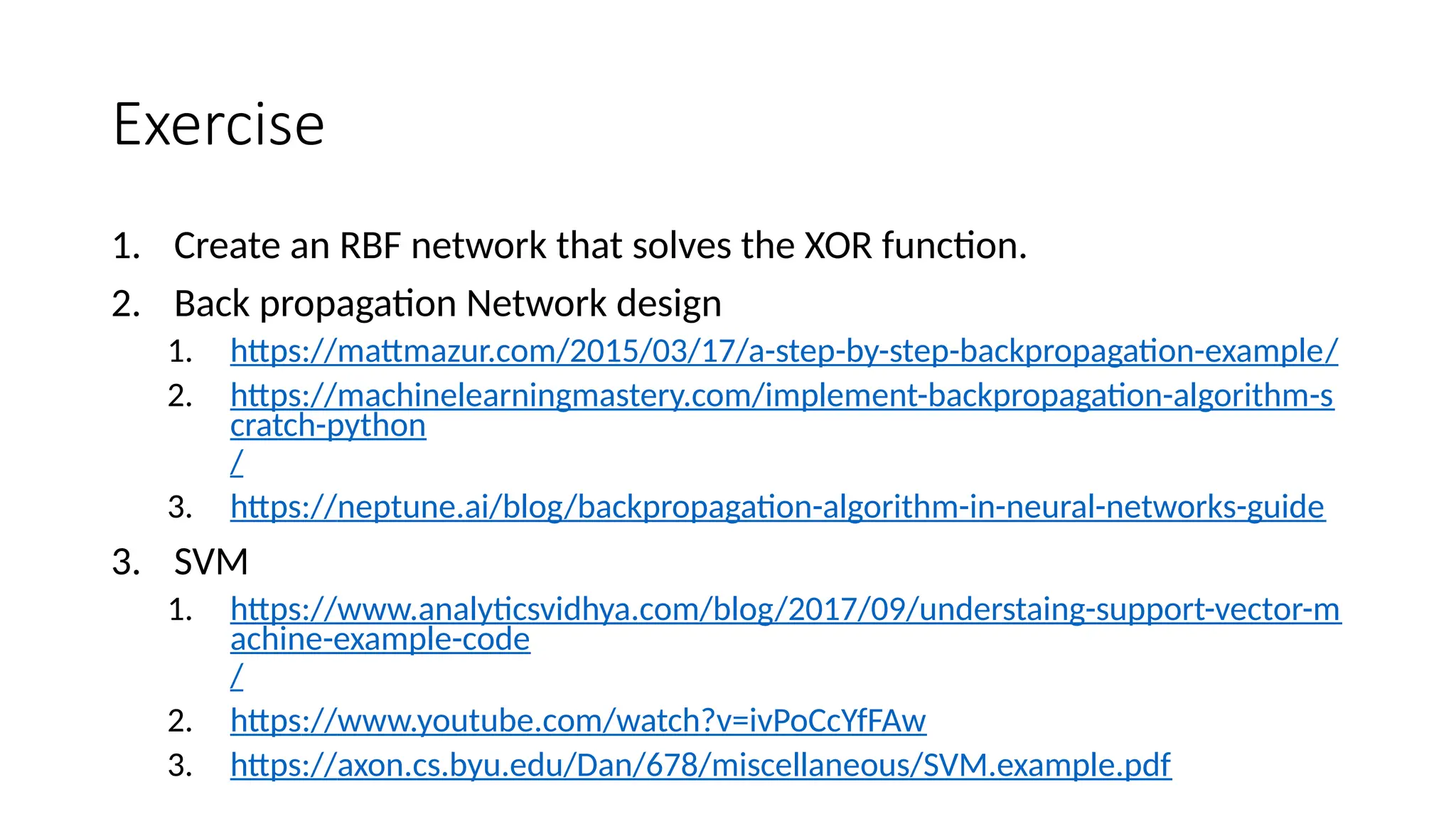

51. Exercise
1. Create an RBF network that solves the XOR function.
2. Back propagation Network design
1. https://mattmazur.com/2015/03/17/a-step-by-step-backpropagation-example/
2. https://machinelearningmastery.com/implement-backpropagation-algorithm-s
cratch-python
/
3. https://neptune.ai/blog/backpropagation-algorithm-in-neural-networks-guide
3. SVM
1. https://www.analyticsvidhya.com/blog/2017/09/understaing-support-vector-m
achine-example-code
/
2. https://www.youtube.com/watch?v=ivPoCcYfFAw
3. https://axon.cs.byu.edu/Dan/678/miscellaneous/SVM.example.pdf
