This document discusses the numbering format for M2M devices. It notes that the numbering format follows E.164 standards with a 12 digit number excluding the top level country code. The number is broken down into an access code, service trunk code, provider identification code of 6 digits, and device identification number of 4 digits. Each provider identification code can support up to 100,000 device identification numbers for a total block capacity of 1 billion numbers.

1. M2M NUMBERING FORMAT
ROLAND Y KUDOZIA

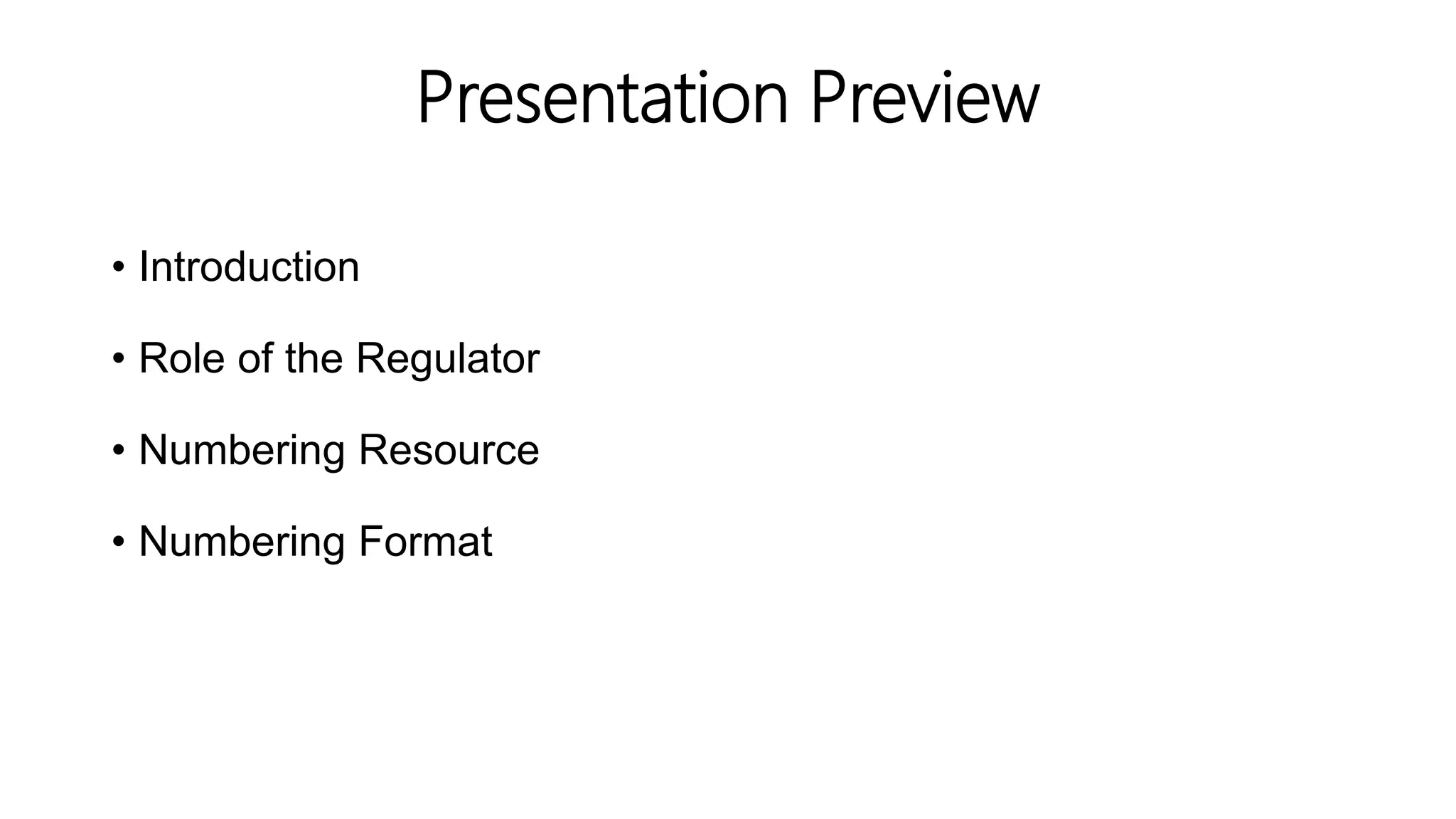

2. Presentation Preview
• Introduction
• Role of the Regulator
• Numbering Resource
• Numbering Format

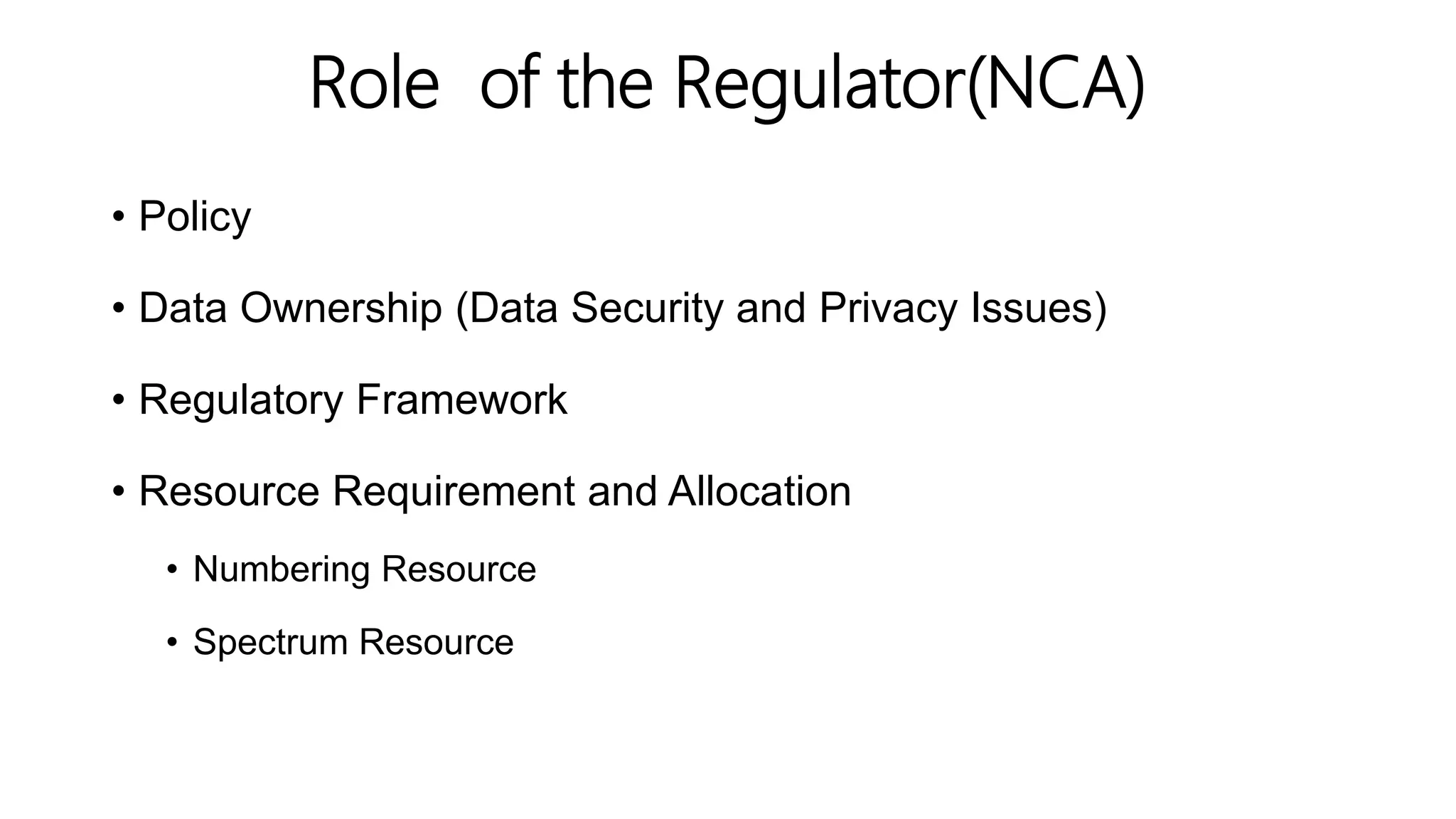

3. Role of the Regulator(NCA)
• Policy
• Data Ownership (Data Security and Privacy Issues)
• Regulatory Framework
• Resource Requirement and Allocation
• Numbering Resource
• Spectrum Resource

4. Numbering Resource
• Number Format: E.164
• Number Length: 12 Digits (Excluding the TopLevelCountryCode)
• Total Number in a Block: 10 Billion
• Nature of Assignment: Shared
• Order of Assignment: 10,000
• Number of PIC in a Block: 100,000

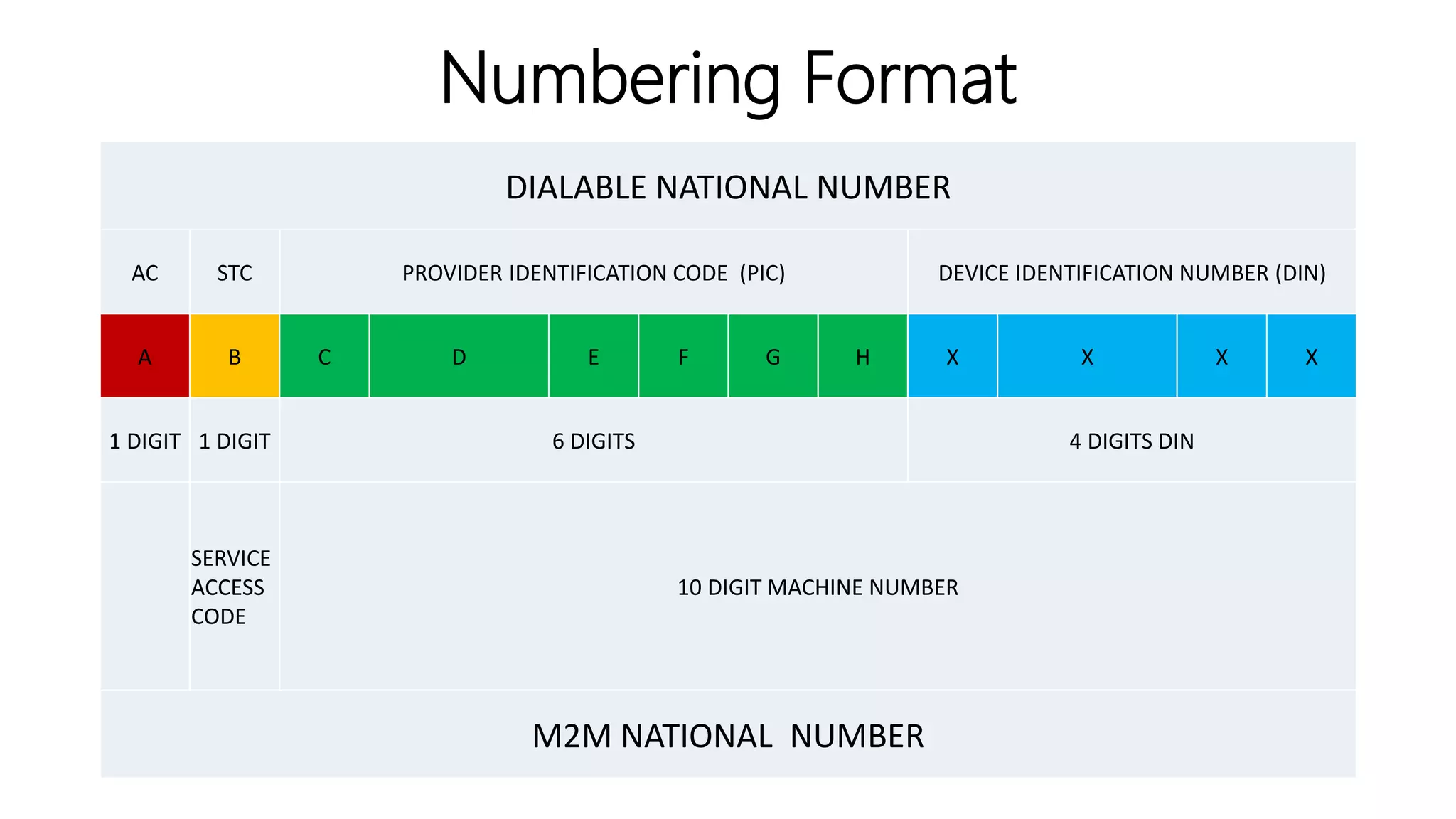

5. Numbering Format
DIALABLE NATIONAL NUMBER
AC STC PROVIDER IDENTIFICATION CODE (PIC) DEVICE IDENTIFICATION NUMBER (DIN)
A B C D E F G H X X X X
1 DIGIT 1 DIGIT 6 DIGITS 4 DIGITS DIN
SERVICE
ACCESS
CODE
10 DIGIT MACHINE NUMBER
M2M NATIONAL NUMBER

6. Numbering Format
AC STC PROVIDER IDENTIFICATION CODE (PIC)
DEVICE IDENTIFICATION
NUMBER (DIN)
A B C D E F G H X X X X
0 7 0 0 0 0 0 0 0 0 0 0
0 7 0 0 0 0 0 1 0 0 0 0
0 7 0 0 0 0 0 2 0 0 0 0
0 7 0 0 0 0 0 3 0 0 0 0
There is no Network Destination Code or National Destination Code in the M2M assignment

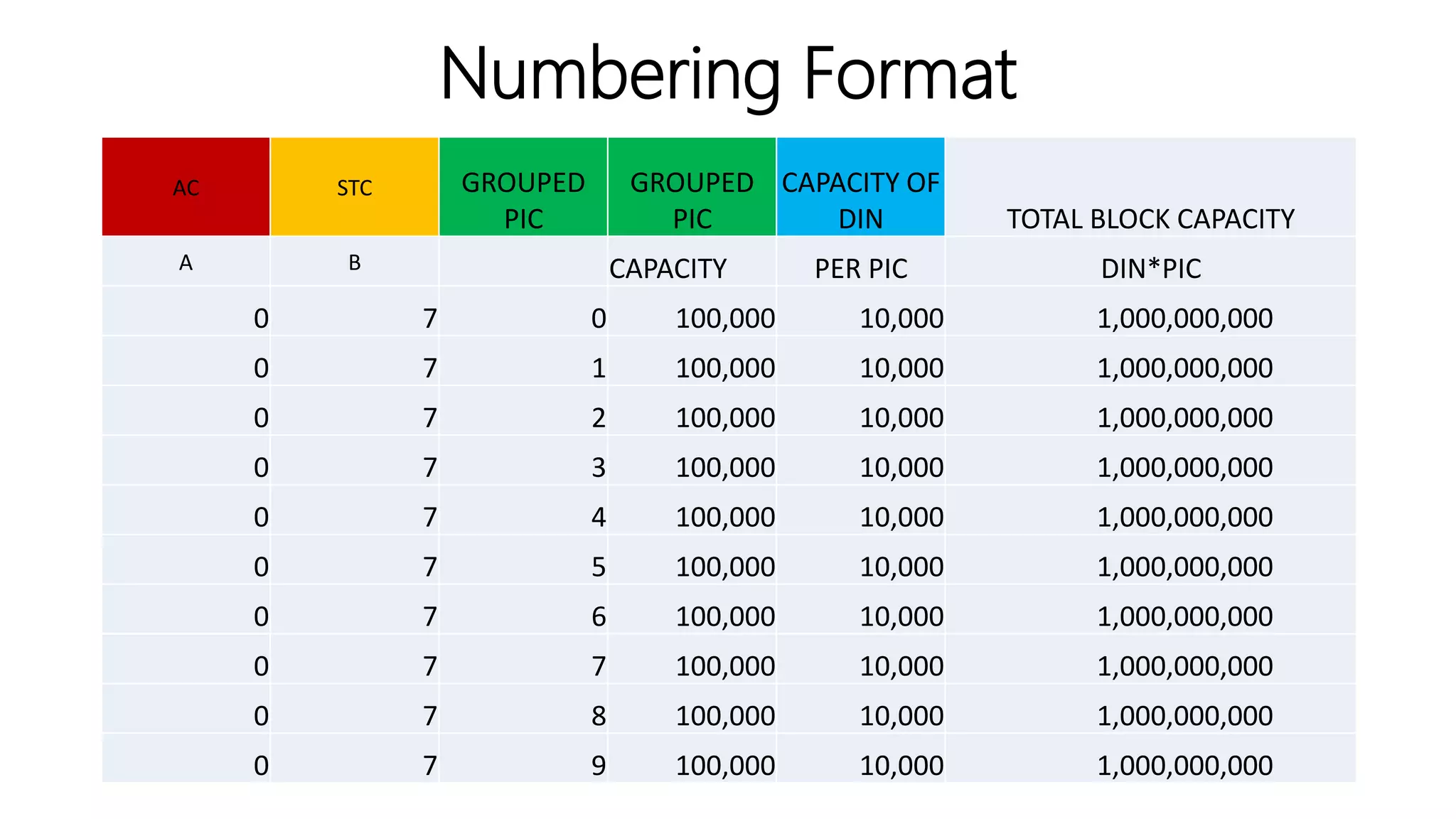

7. Numbering Format
AC STC GROUPED
PIC
GROUPED
PIC
CAPACITY OF
DIN TOTAL BLOCK CAPACITY
A B CAPACITY PER PIC DIN*PIC
0 7 0 100,000 10,000 1,000,000,000
0 7 1 100,000 10,000 1,000,000,000
0 7 2 100,000 10,000 1,000,000,000
0 7 3 100,000 10,000 1,000,000,000
0 7 4 100,000 10,000 1,000,000,000
0 7 5 100,000 10,000 1,000,000,000
0 7 6 100,000 10,000 1,000,000,000
0 7 7 100,000 10,000 1,000,000,000
0 7 8 100,000 10,000 1,000,000,000
0 7 9 100,000 10,000 1,000,000,000

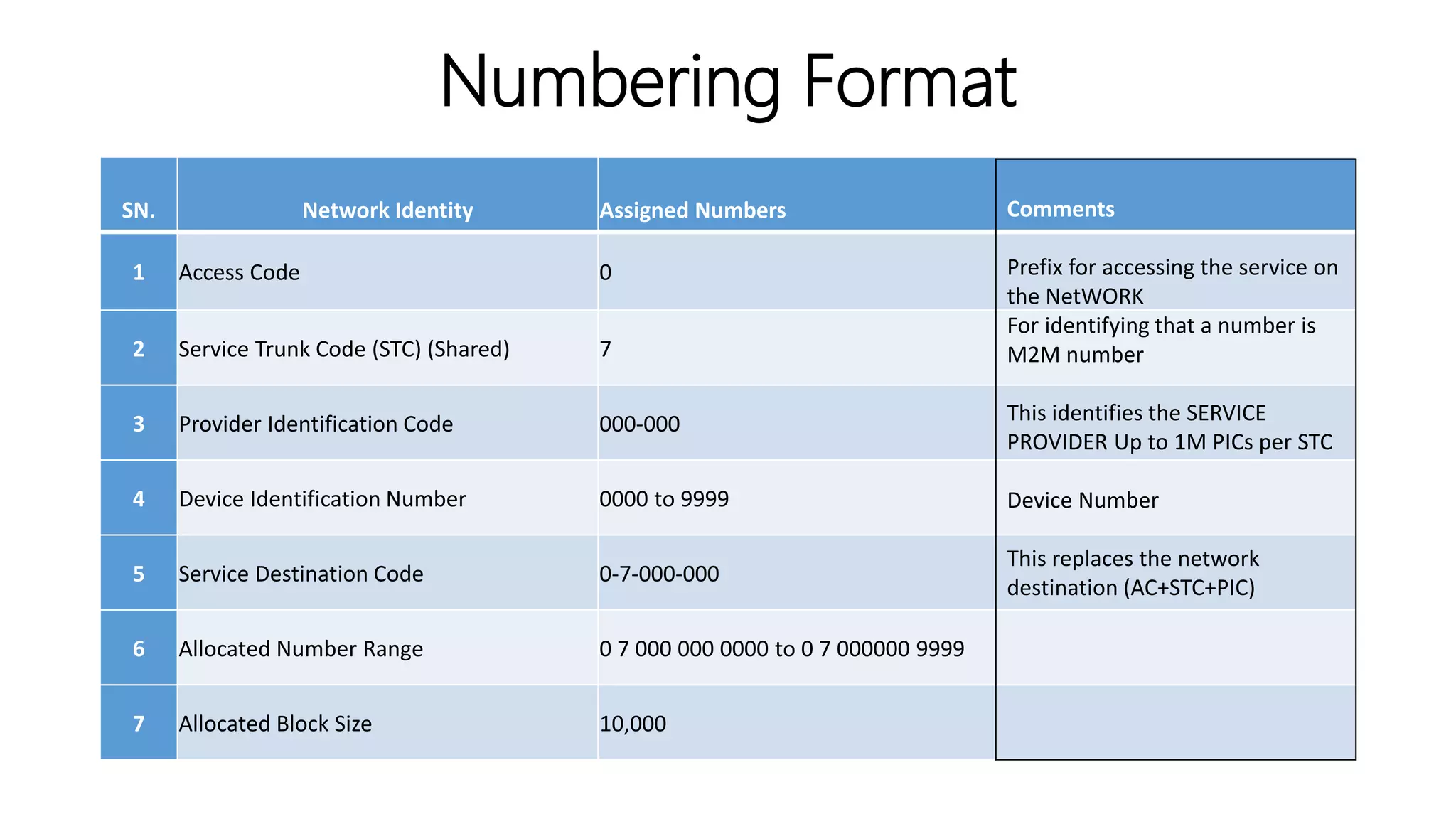

8. Numbering Format
SN. Network Identity Assigned Numbers
1 Access Code 0
2 Service Trunk Code (STC) (Shared) 7
3 Provider Identification Code 000-000
4 Device Identification Number 0000 to 9999
5 Service Destination Code 0-7-000-000
6 Allocated Number Range 0 7 000 000 0000 to 0 7 000000 9999
7 Allocated Block Size 10,000
Comments
Prefix for accessing the service on
the NetWORK
For identifying that a number is
M2M number
This identifies the SERVICE
PROVIDER Up to 1M PICs per STC
Device Number
This replaces the network
destination (AC+STC+PIC)

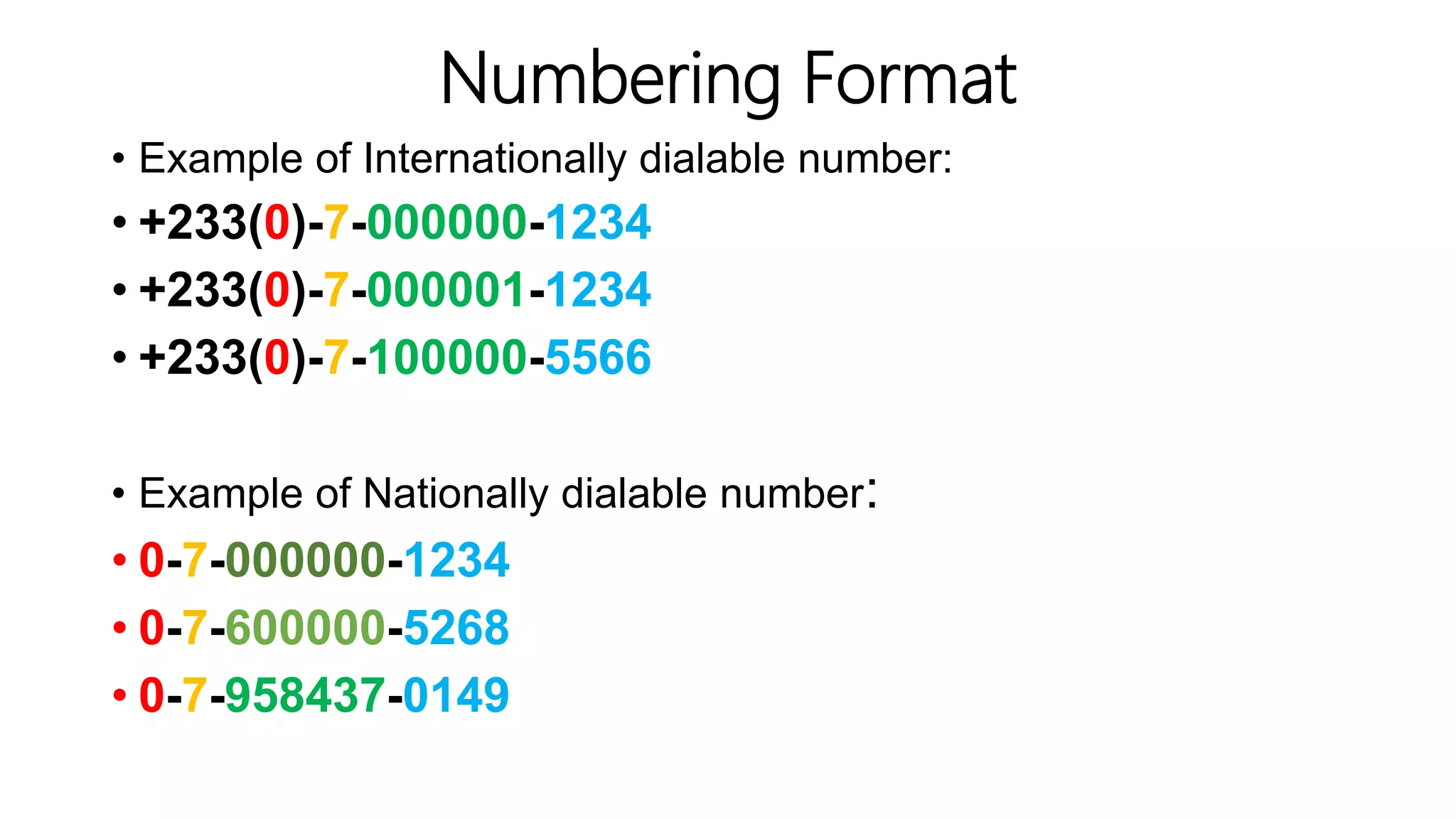

9. Numbering Format
• Example of Internationally dialable number:
• +233(0)-7-000000-1234
• +233(0)-7-000001-1234
• +233(0)-7-100000-5566
• Example of Nationally dialable number:
• 0-7-000000-1234
• 0-7-600000-5268
• 0-7-958437-0149

10. THANK YOU
