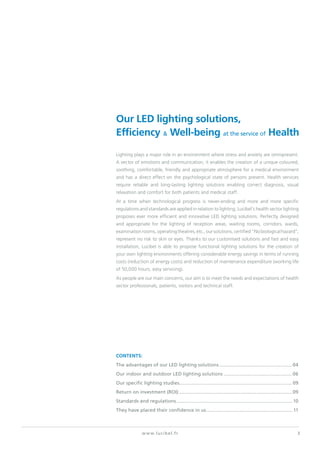

Our LED lighting solutions,
Efficiency & Well-being at the service of Health
Lighting plays a major role in an environment where stress and anxiety are omnipresent.
A vector of emotions and communication, it enables the creation of a unique coloured,
soothing, comfortable, friendly and appropriate atmosphere for a medical environment
and has a direct effect on the psychological state of persons present. Health services
require reliable and long-lasting lighting solutions enabling correct diagnosis, visual
relaxation and comfort for both patients and medical staff.
At a time when technological progress is never-ending and more and more specific
regulations and standards are applied in relation to lighting, Lucibel’s health sector lighting
proposes ever more efficient and innovative LED lighting solutions. Perfectly designed
and appropriate for the lighting of reception areas, waiting rooms, corridors, wards,
examinationrooms,operatingtheatres,etc.,oursolutions,certified“Nobiologicalhazard”,
represent no risk to skin or eyes. Thanks to our customised solutions and fast and easy
installation, Lucibel is able to propose functional lighting solutions for the creation of
your own lighting environments offering considerable energy savings in terms of running
costs (reduction of energy costs) and reduction of maintenance expenditure (working life
of 50,000 hours, easy servicing).
As people are our main concerns, our aim is to meet the needs and expectations of health
sector professionals, patients, visitors and technical staff.
contents:
The advantages of our LED lighting solutions.......................................................04
Our indoor and outdoor LED lighting solutions....................................................06
Our specific lighting studies.....................................................................................09
Return on investment (ROI).....................................................................................09
Standards and regulations....................................................................................... 10
They have placed their confidence in us................................................................. 11

4. Health establishments pay more and more attention to products certified
“Photo-biological harmlessness”, standard NF EN 62471. This standard proposes classification
of products in 4 categories corresponding to the level of risk the light beam represents to human tissue
(skin and eyes). The entire core range of Lucibel products has been certified free of any
photo-biological hazard since 2011.
www.lucibel.fr4
The advantages
of our LED lighting solutions
• “Safe” lighting:
> Products certified hazard free “photo-biological harmlessness”
> Over 50,000 hours without failure
> Instantaneous illumination and extinction
• Lighting quality and comfort:
> No glare, no heat emission
> Homogenous light dispersion, no shaded zones
• A profitable investment:
> Efficient LED design (IRC85, 80 Lm/W)
> 50% reduction in electrical power consumption
> Compatible with control systems: variation from 1-10V or DALI,
movement detectors, timers…
> Soothing
> Confidence
> Relaxation
> Serenity
> Calm
Lighting adapted for
patients and visitors
favours:
Well-being
> Reduction in running costs
> Reliability
> Safety
> Orientation
> Enhances your image
Lighting adapted for
Health sector professionals
favours:
Durability
> Performance
> Precision of actions
> Concentration
> Efficiency
> Reduction of fatigue
Lighting adapted for
Health sector professionals
favours:
Efficiency

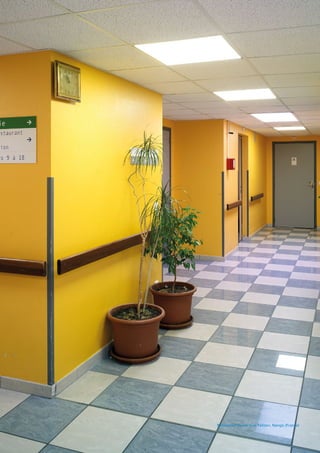

5. Retirement home «Les Patios», Nangis (France)

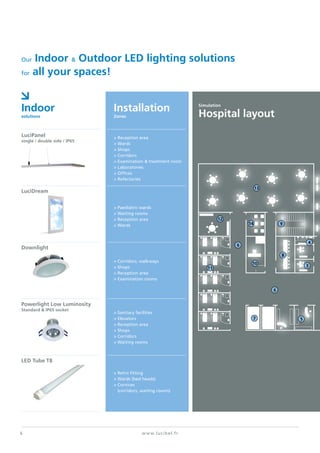

6. Our Indoor & Outdoor LED lighting solutions
for all your spaces!
www.lucibel.fr6
Indoor
solutions
Installation
Zones
Simulation
Hospital layout
> Paediatric wards
> Waiting rooms
> Reception area
> Wards
LuciDream
> Reception area
> Wards
> Shops
> Corridors
> Examination & treatment room
> Laboratories
> Offices
> Refectories
LuciPanel
single / double side / IP65
> Sanitary facilities
> Elevators
> Reception area
> Shops
> Corridors
> Waiting rooms
Powerlight Low Luminosity
Standard & IP65 socket
> Corridors, walkways
> Shops
> Reception area
> Examination rooms
Downlight
> Retro fitting
> Wards (bed heads)
> Cornices
(corridors, waiting rooms)
LED Tube T8
8
12
11
13
6
6
5
914
10
3
4
7

7. 1- Reception area
2- Waiting room
3- Offices
4- Sanitary facilities
5- Shops
6- Corridors, walkways
7- Elevators
8- Laboratory
9- Stairwells
10- Examination room
11- Wards
12- Rest room
13- Refectory
14- Storage
15- Around the building
16- Outdoor car parks
7www.lucibel.fr

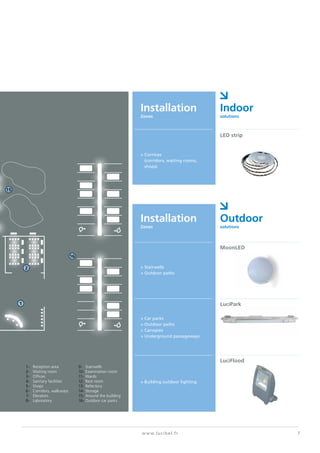

Installation
Zones
Installation
Zones
Indoor
solutions
Outdoor
solutions
> Cornices
(corridors, waiting rooms,
shops)
LED strip
> Stairwells
> Outdoor paths
MoonLED
> Car parks
> Outdoor paths
> Canopies
> Underground passageways
LuciPark
> Building outdoor lighting
LuciFlood
16
2
1
15

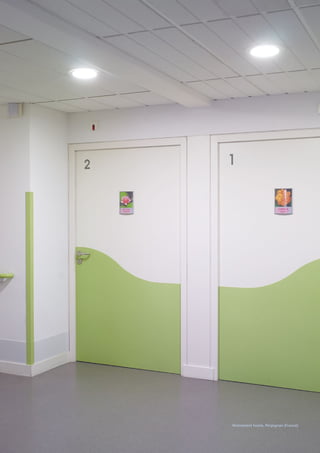

8. Retirement home, Perpignan (France)

9. 9www.lucibel.fr

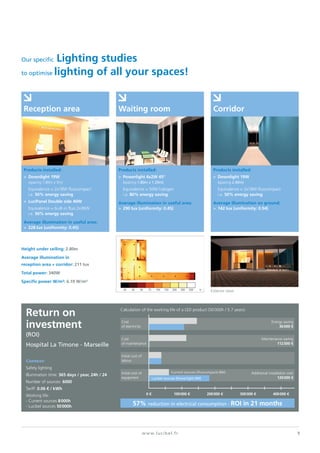

Our specific Lighting studies
to optimise lighting of all your spaces!
Height under ceiling: 2.80m
Average illumination in
reception area + corridor: 211 lux
Total power: 340W
Specific power W/m²: 6.19 W/m²
Products installed:
> Downlight 19W
(spacing 1.80m x 3m)
Equivalence = 2x18W fluocompact
i.e. 50% energy saving
> LuciPanel Double side 40W
Equivalence = built-in fluo 2x36W
i.e. 50% energy saving
Average illumination in useful area:
> 228 lux (uniformity: 0.45)
Products installed:
> Powerlight 4x2W 45°
(spacing 1.80m x 1.20m)
Equivalence = 50W halogen
i.e. 80% energy saving
Average illumination in useful area:
> 290 lux (uniformity: 0.45)
Products installed:
> Downlight 19W
(spacing 2.40m)
Equivalence = 2x18W fluocompact
i.e. 50% energy saving
Average illumination on ground:
> 142 lux (uniformity: 0.54)
Reception area Waiting room Corridor
Exterior viewlx50030020015010075593020
Return on
investment
(ROI)
Hospital La Timone - Marseille
Context:
Safety lighting
Illumination time: 365 days / year, 24h / 24
Number of sources: 6000
Tariff: 0.06 € / kWh
Working life:
- Current sources 8 000h
- Lucibel sources 50 000h
Initial cost of
labour
Energy saving
36 000 €
Cost
of electricity
Maintenance saving
112 500 €
Cost
of maintenance
Initial cost of
equipment
Additional installation cost
120 000 €
Current sources (fluocompacts 8W)
Lucibel sources (Powerlight 6W)
0 € 100 000 € 200 000 € 300 000 € 400 000 €
57% reduction in electrical consumption - ROI in 21 months
Calculation of the working life of a LED product (50 000h / 5.7 years):

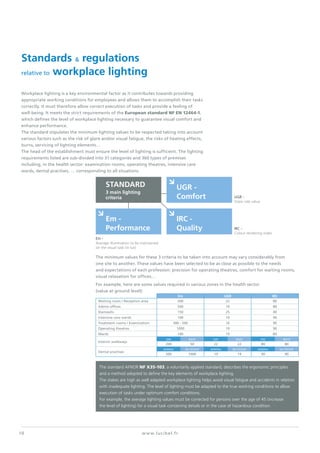

10. Standards & regulations
relative to workplace lighting
Workplace lighting is a key environmental factor as it contributes towards providing
appropriate working conditions for employees and allows them to accomplish their tasks
correctly. It must therefore allow correct execution of tasks and provide a feeling of
well-being. It meets the strict requirements of the European standard NF EN 12464-1,
which defines the level of workplace lighting necessary to guarantee visual comfort and
enhance performance.
The standard stipulates the minimum lighting values to be respected taking into account
various factors such as the risk of glare and/or visual fatigue, the risks of heating effects,
burns, servicing of lighting elements…
The head of the establishment must ensure the level of lighting is sufficient. The lighting
requirements listed are sub-divided into 31 categories and 360 types of premises
including, in the health sector: examination rooms, operating theatres, intensive care
wards, dental practises, … corresponding to all situations.
IRC -
Colour rendering index
UGR -
Glare rate value
Em -
Average illumination to be maintained
on the visual task (in lux)
STANDARD
3 main lighting
criteria
Em -
Performance
UGR -
Comfort
IRC -
Quality
The minimum values for these 3 criteria to be taken into account may vary considerably from
one site to another. These values have been selected to be as close as possible to the needs
and expectations of each profession: precision for operating theatres, comfort for waiting rooms,
visual relaxation for offices…
For example, here are some values required in various zones in the health sector
(value at ground level):
Em UGR IRC
Waiting room / Reception area 200 22 80
Admin offices 500 19 80
Stairwells 150 25 40
Intensive care wards 100 19 90
Treatment rooms / Examination 300 - 500 16 90
Operating theatres 1000 19 90
Wards 100 19 80
Interior walkways
day night day night day night
200 50 22 22 80 80
Dental practises
general on patient general on patient general on patient
500 1000 19 19 90 90
The standard AFNOR NF X35-103, a voluntarily applied standard, describes the ergonomic principles
and a method adopted to define the key elements of workplace lighting.
The stakes are high as well adapted workplace lighting helps avoid visual fatigue and accidents in relation
with inadequate lighting. The level of lighting must be adapted to the true working conditions to allow
execution of tasks under optimum comfort conditions.
For example, the average lighting values must be corrected for persons over the age of 45 (increase
the level of lighting) for a visual task containing details or in the case of hazardous condition.
www.lucibel.fr10
