1. Debugging templates DIY
Gert Franz
Rasia GmbH

2. MY EVOLUTION
Assembler  Basic  Clipper  Pascal  Delphi  Java  CFML  Lucee

3. WHO AM I?
• Gert Franz
– Involved with Lucee and Railo since day 1
– Into CFML for 17 years
– DBA, System architect
– CTO Rasia Ltd, CTO Rasia CH
• Rasia is founding Member of the Lucee
association

4. WHO AM I?
• Studied Astrophysics in München
• Basic, dBase, Clipper, Visual Basic, Delphi, Java
• Performance, DB & Code Tuning is my professional
Hobby
• I live in Switzerland
• Lucee training, consulting, support etc.

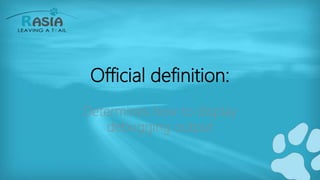

7. Official definition:
Determines how to display
debugging output

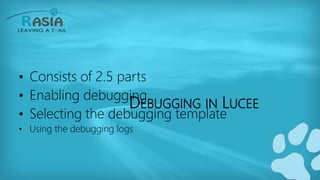

8. DEBUGGING IN LUCEE
• Consists of 2.5 parts
• Enabling debugging
• Selecting the debugging template
• Using the debugging logs

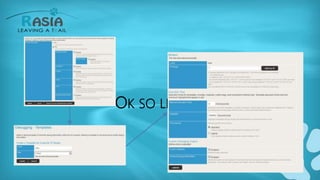

9. OK SO LET'S HAVE A LOOK

10. WHAT YOU END UP WITH:

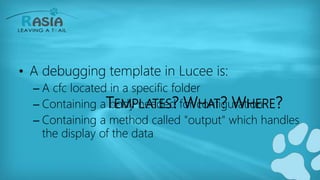

12. TEMPLATES? WHAT? WHERE?
• A debugging template in Lucee is:
– A cfc located in a specific folder
– Containing a body needed for configuration
– Containing a method called "output" which handles
the display of the data

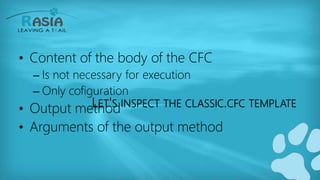

14. LET'S INSPECT THE CLASSIC.CFC TEMPLATE
• Content of the body of the CFC
– Is not necessary for execution
– Only cofiguration
• Output method
• Arguments of the output method

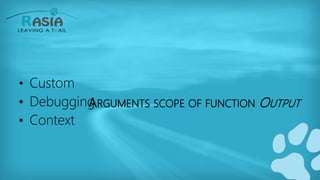

15. ARGUMENTS SCOPE OF FUNCTION OUTPUT
• Custom
• Debugging
• Context

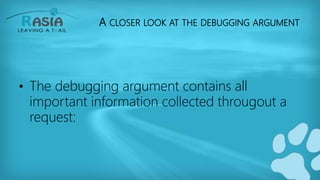

16. A CLOSER LOOK AT THE DEBUGGING ARGUMENT
• The debugging argument contains all
important information collected througout a
request:

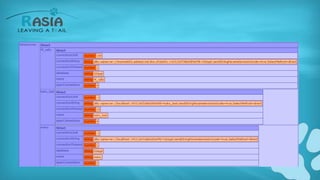

17. DATASOURCES

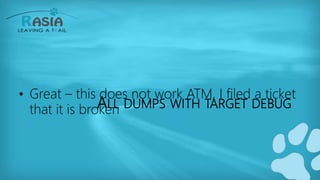

18. ALL DUMPS WITH TARGET DEBUG
• Great – this does not work ATM, I filed a ticket
that it is broken

19. ALL EXCEPTIONS (SILENT OR NOT)

20. HISTORY (CALLSTACK)
• The callstack tells us, in what order
(by ID) the templates have been
called
• This would allow us to display the
callstack

21. IMPLICIT ACCESS
• In this section you get all the
variables, that are called by
following the rules of scope
cascading. If you see none,
two reasons:
– Feature is disabled
– Your programming is impecable

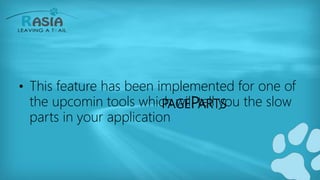

22. PAGEPARTS
• This feature has been implemented for one of
the upcomin tools which will tell you the slow
parts in your application

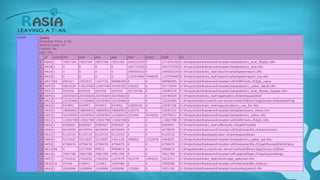

23. PAGES

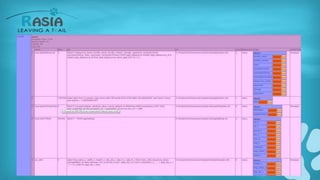

24. QUERIES

25. TIMERS
• Mostly used for testing
• If you don't want your output to be disturbed
by the timer output
• Generated by the tag CFTIMER

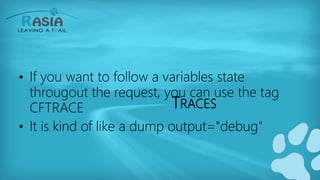

26. TRACES
• If you want to follow a variables state
througout the request, you can use the tag
CFTRACE
• It is kind of like a dump output="debug"

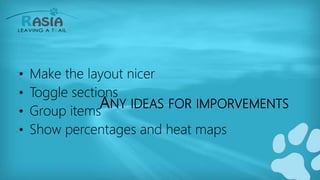

27. ANY IDEAS FOR IMPORVEMENTS
• Make the layout nicer
• Toggle sections
• Group items
• Show percentages and heat maps

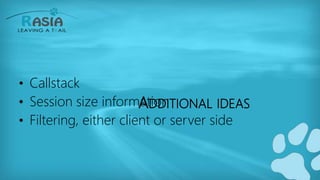

28. ADDITIONAL IDEAS
• Callstack
• Session size information
• Filtering, either client or server side

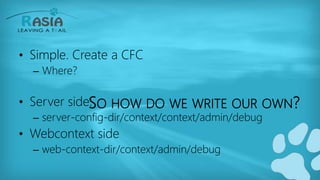

29. SO HOW DO WE WRITE OUR OWN?
• Simple. Create a CFC
– Where?
• Server side:
– server-config-dir/context/context/admin/debug
• Webcontext side
– web-context-dir/context/admin/debug

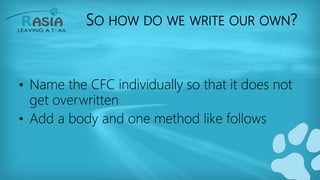

30. SO HOW DO WE WRITE OUR OWN?
• Name the CFC individually so that it does not
get overwritten
• Add a body and one method like follows

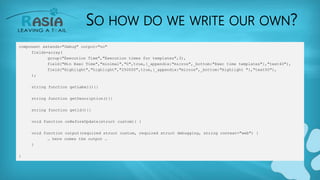

31. SO HOW DO WE WRITE OUR OWN?
component extends="Debug" output="no"
fields=array(
group("Execution Time","Execution times for templates",3),
field("Min Exec Time","minimal","0",true,{_appendix:"micros",_bottom:"Exec time templates"},"text40"),
field("Highlight","highlight","250000",true,{_appendix:"micros",_bottom:"Highlight "},"text50"),
);
string function getLabel(){}
string function getDescription(){}
string function getid(){}
void function onBeforeUpdate(struct custom){ }
void function output(required struct custom, required struct debugging, string context="web") {
… here comes the output …
}
}

32. CFADMIN ACTION="SURVEILLANCE"
• This is a very interesting tag that allows you to
see what's going on on your server
• It also contains the debugging information
generated up to that time

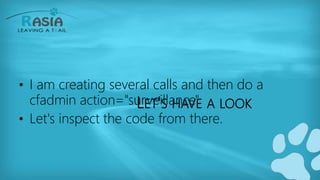

33. LET'S HAVE A LOOK
• I am creating several calls and then do a
cfadmin action="surveillance"
• Let's inspect the code from there.

34. BTW• I am working on a debugging console again 

35. ANOTHER IMPORTANT BTW
CAPITOL CITY BREWERY
2 BLOCKS NORTH
2 BLOCKS EAST
6:00 PM
