Lubi Electronics SMPS

  • 1.
    SWITCHING POWER SUPPLY ISO9001 CERTIFIED ISO 14001 / OHSAS 18001 CERTIFIED
  • 2.

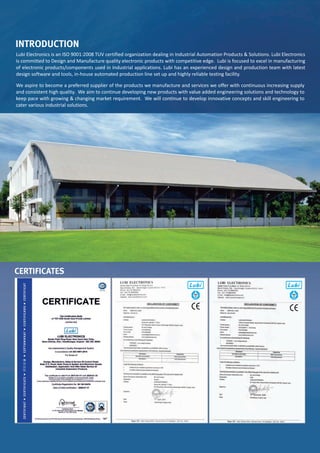

    Lubi Electronics isan ISO 9001:2008 TUV certified organization dealing in Industrial Automation Products & Solutions. Lubi Electronics is committed to Design and Manufacture quality electronic products with competitive edge. Lubi is focused to excel in manufacturing of electronic products/components used in Industrial applications. Lubi has an experienced design and production team with latest design software and tools, in-house automated production line set up and highly reliable testing facility. INTRODUCTION CERTIFICATES We aspire to become a preferred supplier of the products we manufacture and services we offer with continuous increasing supply and consistent high quality. We aim to continue developing new products with value added engineering solutions and technology to keep pace with growing & changing market requirement. We will continue to develop innovative concepts and skill engineering to cater various industrial solutions.
  • 3.
    LABELING & PACKINGBOX ASSEMBLYQUALITY CONTROL PCB ASSEMBLY WAVE SOLDERSMT LINE PRODUCTION PROCESS FLOW MANUFACTURING MANUFACTURING FACILITIES DESIGN TOOLS SCHEMATIC PCB LAYOUT SOFTWARE SIMULATION ENVIRONMENTAL CHAMBER SMT LINE WAVE SOLDER MACHINE BURN-IN TEST
  • 4.

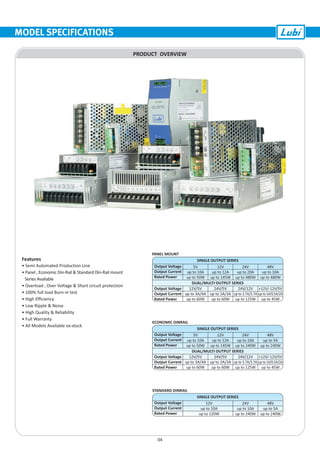

    MODEL SPECIFICATIONS PRODUCT OVERVIEW •Semi Automated Production Line • Panel , Economic Din-Rail & Standard Din-Rail mount Series Available • Overload , Over Voltage & Short circuit protection • 100% full load Burn-in test • High Efficiency • Low Ripple & Noise • High Quality & Reliability • Full Warranty • All Models Available ex-stock Features SINGLE OUTPUT SERIES Output Voltage Output Current Rated Power 5V up to 10A up to 50W 12V up to 12A up to 145W 24V up to 20A up to 480W 48V up to 10A up to 480W DUAL/MULTI OUTPUT SERIES Output Voltage Output Current Rated Power 12V/5V up to 3A/4A up to 60W 24V/5V up to 2A/3A up to 60W 24V/12V up to 3.7A/3.7A up to 125W +12V/-12V/5V up to 1A/0.5A/2A up to 45W PANEL MOUNT SINGLE OUTPUT SERIES Output Voltage Output Current Rated Power 5V up to 10A up to 50W 12V up to 12A up to 145W 24V up to 10A up to 240W 48V up to 5A up to 240W DUAL/MULTI OUTPUT SERIES Output Voltage Output Current Rated Power 12V/5V up to 3A/4A up to 60W 24V/5V up to 2A/3A up to 60W 24V/12V up to 3.7A/3.7A up to 125W +12V/-12V/5V up to 1A/0.5A/2A up to 45W ECONOMIC DINRAIL SINGLE OUTPUT SERIES Output Voltage Output Current Rated Power 12V up to 10A up to 120W 24V up to 10A up to 240W 48V up to 5A up to 240W STANDARD DINRAIL 04
  • 5.

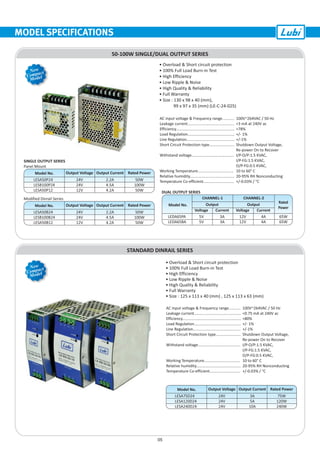

    MODEL SPECIFICATIONS STANDARD DINRAILSERIES AC input voltage & Frequency range........... Leakage current........................................... Efficiency...................................................... Load Regulation........................................... Line Regulation............................................ Short Circuit Protection type....................... Withstand voltage....................................... Working Temperature................................. Relative humidity......................................... Temperature Co-efficient............................ 100V~264VAC / 50 Hz <0.75 mA at 240V ac >80% +/- 1% +/-1% Shutdown Output Voltage, Re-power On to Recover I/P-O/P:1.5 KVAC, I/P-FG:1.5 KVAC, O/P-FG:0.5 KVAC, 10 to 60° C 20-95% RH Nonconducting +/-0.03% / °C • Overload & Short circuit protection • 100% Full Load Burn-in Test • High Efficiency • Low Ripple & Noise • High Quality & Reliability • Full Warranty • Size : 125 x 113 x 40 (mm) , 125 x 113 x 63 (mm) Model No. Output Voltage Output Current Rated Power LESA75D24 LESA120D24 LESA240D24 24V 24V 24V 3A 5A 10A 75W 120W 240W New Compact Model 05 50-100W SINGLE/DUAL OUTPUT SERIES • Overload & Short circuit protection • 100% Full Load Burn-in Test • High Efficiency • Low Ripple & Noise • High Quality & Reliability • Full Warranty • Size : 130 x 98 x 40 (mm), 99 x 97 x 35 (mm) (LE-C-24-025) AC input voltage & Frequency range........... Leakage current........................................... Efficiency...................................................... Load Regulation........................................... Line Regulation............................................ Short Circuit Protection type....................... Withstand voltage....................................... Working Temperature................................. Relative humidity......................................... Temperature Co-efficient............................ 100V~264VAC / 50 Hz <3 mA at 240V ac >78% +/- 1% +/-1% Shutdown Output Voltage, Re-power On to Recover I/P-O/P:1.5 KVAC, I/P-FG:1.5 KVAC, O/P-FG:0.5 KVAC, 10 to 60° C 20-95% RH Nonconducting +/-0.03% / °C New Compact Model DUAL OUTPUT SERIES Model No. Output Voltage LEDA65PA LEDA65BA 5V 5V 3A 3A CHANNEL-1 12V 12V 4A 4A CHANNEL-2 Rated Power 65W 65W Current Output Voltage Current Model No. Output Voltage Output Current Rated Power LESA50P24 LESB100P24 LESA50P12 24V 24V 12V 2.2A 4.5A 4.2A 50W 100W 50W SINGLE OUTPUT SERIES Panel Mount Modified Dinrail Series Model No. Output Voltage Output Current Rated Power LESA50B24 LESB100B24 LESA50B12 24V 24V 12V 2.2A 4.5A 4.2A 50W 100W 50W
  • 6.

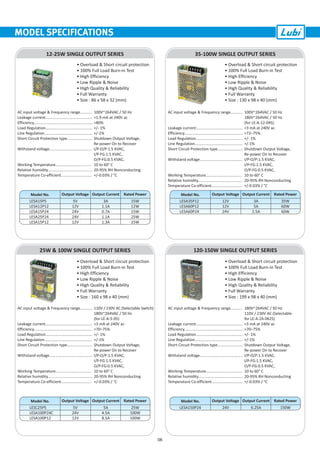

    MODEL SPECIFICATIONS 35-100W SINGLEOUTPUT SERIES • Overload & Short circuit protection • 100% Full Load Burn-in Test • High Efficiency • Low Ripple & Noise • High Quality & Reliability • Full Warranty • Size : 130 x 98 x 40 (mm) Model No. Output Voltage Output Current Rated Power LESA35P12 LESA60P12 LESA60P24 12V 12V 24V 3A 5A 2.5A 35W 60W 60W AC input voltage & Frequency range........... Leakage current........................................... Efficiency...................................................... Load Regulation........................................... Line Regulation............................................ Short Circuit Protection type....................... Withstand voltage....................................... Working Temperature................................. Relative humidity......................................... Temperature Co-efficient............................ 100V~264VAC / 50 Hz 180V~264VAC / 50 Hz (for LE-A-12-045) <3 mA at 240V ac >72 75%~ +/- 1% +/-1% Shutdown Output Voltage, Re-power On to Recover I/P-O/P:1.5 KVAC, I/P-FG:1.5 KVAC, O/P-FG:0.5 KVAC, 10 to 60° C 20-95% RH Nonconducting +/-0.03% / °C 12-25W SINGLE OUTPUT SERIES • Overload & Short circuit protection • 100% Full Load Burn-in Test • High Efficiency • Low Ripple & Noise • High Quality & Reliability • Full Warranty • Size : 86 x 58 x 32 (mm) AC input voltage & Frequency range........... Leakage current........................................... Efficiency...................................................... Load Regulation........................................... Line Regulation............................................ Short Circuit Protection type....................... Withstand voltage....................................... Working Temperature................................. Relative humidity......................................... Temperature Co-efficient............................ 100V~264VAC / 50 Hz <1.9 mA at 240V ac >80% +/- 1% +/-1% Shutdown Output Voltage, Re-power On to Recover I/P-O/P:1.5 KVAC, I/P-FG:1.5 KVAC, O/P-FG:0.5 KVAC, 10 to 60° C 20-95% RH Nonconducting +/-0.03% / °C Model No. Output Voltage Output Current Rated Power LESA15P5 LESA12P12 LESA15P24 LESA25P24 LESA15P12 5V 12V 24V 24V 12V 3A 1.1A 0.7A 1.1A 1.3A 15W 12W 15W 25W 15W 120-150W SINGLE OUTPUT SERIES • Overload & Short circuit protection • 100% Full Load Burn-in Test • High Efficiency • Low Ripple & Noise • High Quality & Reliability • Full Warranty • Size : 199 x 98 x 40 (mm) Model No. Output Voltage Output Current Rated Power LESA150P24 24V 6.25A 150W AC input voltage & Frequency range........... Leakage current........................................... Efficiency...................................................... Load Regulation........................................... Line Regulation............................................ Short Circuit Protection type....................... Withstand voltage....................................... Working Temperature................................. Relative humidity......................................... Temperature Co-efficient............................ 180V~264VAC / 50 Hz 110V / 230V AC (Selectable for LE-A-24-0625) <3 mA at 240V ac >70 75%~ +/- 1% +/-1% Shutdown Output Voltage, Re-power On to Recover I/P-O/P:1.5 KVAC, I/P-FG:1.5 KVAC, O/P-FG:0.5 KVAC, 10 to 60° C 20-95% RH Nonconducting +/-0.03% / °C 25W & 100W SINGLE OUTPUT SERIES • Overload & Short circuit protection • 100% Full Load Burn-in Test • High Efficiency • Low Ripple & Noise • High Quality & Reliability • Full Warranty • Size : 160 x 98 x 40 (mm) AC input voltage & Frequency range........... Leakage current........................................... Efficiency...................................................... Load Regulation........................................... Line Regulation............................................ Short Circuit Protection type....................... Withstand voltage....................................... Working Temperature................................. Relative humidity......................................... Temperature Co-efficient............................ 110V / 230V AC (Selectable Switch) 180V~264VAC / 50 Hz (for LE-A-5-05) <3 mA at 240V ac >70 75%~ +/- 1% +/-1% Shutdown Output Voltage, Re-power On to Recover I/P-O/P:1.5 KVAC, I/P-FG:1.5 KVAC, O/P-FG:0.5 KVAC, 10 to 60° C 20-95% RH Nonconducting +/-0.03% / °C Model No. Output Voltage Output Current Rated Power LESC25P5 LESA100P24C LESA100P12 5V 24V 12V 5A 4.5A 8.5A 25W 100W 100W 06
  • 7.
    MODEL SPECIFICATIONS 240-350W SINGLEOUTPUT SERIES • Overload & Short circuit protection • 100% Full Load Burn-in Test • High Efficiency • Low Ripple & Noise • High Quality & Reliability • Full Warranty • Size : 215 x 114 x 48 (mm) AC input voltage & Frequency range........... Leakage current........................................... Efficiency...................................................... Load Regulation........................................... Line Regulation............................................ Short Circuit Protection type....................... Withstand voltage....................................... Working Temperature................................. Relative humidity......................................... Temperature Co-efficient............................ 150V~264VAC / 50 Hz 180V~264VAC / 50 Hz (for LE-A-24-15, LE-A-48-05) <2 mA at 240V ac >70% +/- 1% +/- 1% Shutdown Output Voltage, Re-power On to Recover I/P-O/P:1.5 KVAC, I/P-FG:1.5 KVAC, O/P-FG:0.5 KVAC, 10 to 60° C 20-95% RH Nonconducting +/-0.03% / °C 480W SINGLE OUTPUT SERIES • Overload & Short circuit protection • 100% Full Load Burn-in Test • High Efficiency • Low Ripple & Noise • High Quality & Reliability • Full Warranty • Size : 241 x 124 x 65 (mm) Model No. Output Voltage Output Current Rated Power LESA480P24 LESA480P48 24V 48V 20A 10A 480W 480W AC input voltage & Frequency range........... Leakage current........................................... Efficiency...................................................... Load Regulation........................................... Line Regulation............................................ Short Circuit Protection type....................... Withstand voltage....................................... Working Temperature................................. Relative humidity......................................... Temperature Co-efficient............................ 180V~240VAC / 50 Hz <3.5 mA at 240V ac >70 75%~ +/- 1% +/-1% Shutdown Output Voltage, Re-power On to Recover I/P-O/P:1.5 KVAC, I/P-FG:1.5 KVAC, O/P-FG:0.5 KVAC, 10 to 60° C 20-95% RH Nonconducting +/-0.03% / °C 125W DUAL OUTPUT SERIES • Overload & Short circuit protection • 100% Full Load Burn-in Test • High Efficiency • Low Ripple & Noise • High Quality & Reliability • Full Warranty • Size : 199 x 98 x 40 (mm) Model No. Output Voltage LEDA125PC 24V 3.7A CHANNEL-1 12V 3.7A CHANNEL-2 Rated Power 125W Current Output Voltage Current AC input voltage & Frequency range........... Leakage current........................................... Efficiency...................................................... Load Regulation........................................... Line Regulation............................................ Short Circuit Protection type....................... Withstand voltage....................................... Working Temperature................................. Relative humidity......................................... Temperature Co-efficient............................ 180V~264VAC / 50 Hz <3 mA at 240V ac >70% +/- 1% +/-1% Shutdown Output Voltage, Re-power On to Recover I/P-O/P:1.5 KVAC, I/P-FG:1.5 KVAC, O/P-FG:0.5 KVAC, 10 to 60° C 20-95% RH Nonconducting +/-0.03% / °C 55W DUAL OUTPUT SERIES • Overload & Short circuit protection • 100% Full Load Burn-in Test • High Efficiency • Low Ripple & Noise • High Quality & Reliability • Full Warranty • Size : 160 x 98 x 40 (mm) AC input voltage & Frequency range........... Leakage current........................................... Efficiency...................................................... Load Regulation........................................... Line Regulation............................................ Short Circuit Protection type....................... Withstand voltage....................................... Working Temperature................................. Relative humidity......................................... Temperature Co-efficient............................ 180V~264VAC / 50 Hz <3 mA at 240V ac >70% +/- 1% +/-1% Shutdown Output Voltage, Re-power On to Recover I/P-O/P:1.5 KVAC, I/P-FG:1.5 KVAC, O/P-FG:0.5 KVAC, 10 to 60° C 20-95% RH Nonconducting +/-0.03% / °C Model No. Output Voltage LEDA55PA LEDA55PB 12V 24V 3A 2A CHANNEL-1 5V 5V 4A 3A CHANNEL-2 Rated Power 55W 55W Current Output Voltage Current 07 Model No. Output Voltage Output Current Rated Power LESC120P12 LESC150P12 LESC240P24C LESC290P24 LESA350P24 LESC240P48 12V 12V 24V 24V 24V 48V 10A 12A 10A 12A 14.6A 5A 120W 150W 240W 290W 350W 240W
  • 8.

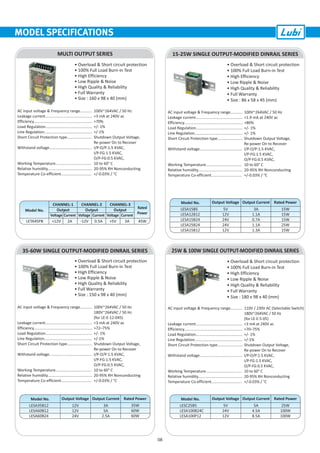

    MODEL SPECIFICATIONS MULTI OUTPUTSERIES • Overload & Short circuit protection • 100% Full Load Burn-in Test • High Efficiency • Low Ripple & Noise • High Quality & Reliability • Full Warranty • Size : 160 x 98 x 40 (mm) Model No. Output Voltage LETA45PB CHANNEL-1 Rated Power CHANNEL-2 CHANNEL-3 Current Output Output CurrentVoltage Voltage Current +12V 2A -12V 0.5A +5V 3A 45W AC input voltage & Frequency range........... Leakage current........................................... Efficiency...................................................... Load Regulation........................................... Line Regulation............................................ Short Circuit Protection type....................... Withstand voltage....................................... Working Temperature................................. Relative humidity......................................... Temperature Co-efficient............................ 100V~264VAC / 50 Hz <3 mA at 240V ac >70% +/- 1% +/-1% Shutdown Output Voltage, Re-power On to Recover I/P-O/P:1.5 KVAC, I/P-FG:1.5 KVAC, O/P-FG:0.5 KVAC, 10 to 60° C 20-95% RH Nonconducting +/-0.03% / °C 15-25W SINGLE OUTPUT-MODIFIED DINRAIL SERIES • Overload & Short circuit protection • 100% Full Load Burn-in Test • High Efficiency • Low Ripple & Noise • High Quality & Reliability • Full Warranty • Size : 86 x 58 x 45 (mm) AC input voltage & Frequency range........... Leakage current........................................... Efficiency...................................................... Load Regulation........................................... Line Regulation............................................ Short Circuit Protection type....................... Withstand voltage....................................... Working Temperature................................. Relative humidity......................................... Temperature Co-efficient............................ 100V~264VAC / 50 Hz <1.9 mA at 240V ac >80% +/- 1% +/- 1% Shutdown Output Voltage, Re-power On to Recover I/P-O/P:1.5 KVAC, I/P-FG:1.5 KVAC, O/P-FG:0.5 KVAC, 10 to 60° C 20-95% RH Nonconducting +/-0.03% / °C Model No. Output Voltage Output Current Rated Power LESA15B5 LESA12B12 LESA15B24 LESA25B24 LESA15B12 5V 12V 24V 24V 12V 3A 1.1A 0.7A 1.1A 1.3A 15W 15W 15W 25W 15W 25W & 100W SINGLE OUTPUT-MODIFIED DINRAIL SERIES • Overload & Short circuit protection • 100% Full Load Burn-in Test • High Efficiency • Low Ripple & Noise • High Quality & Reliability • Full Warranty • Size : 180 x 98 x 40 (mm) AC input voltage & Frequency range........... Leakage current........................................... Efficiency...................................................... Load Regulation........................................... Line Regulation............................................ Short Circuit Protection type....................... Withstand voltage....................................... Working Temperature................................. Relative humidity......................................... Temperature Co-efficient............................ 110V / 230V AC (Selectable Switch) 180V~264VAC / 50 Hz (for LE-E-5-05) <3 mA at 240V ac >70 75%~ +/- 1% +/-1% Shutdown Output Voltage, Re-power On to Recover I/P-O/P:1.5 KVAC, I/P-FG:1.5 KVAC, O/P-FG:0.5 KVAC, 10 to 60° C 20-95% RH Nonconducting +/-0.03% / °C Model No. Output Voltage Output Current Rated Power LESC25B5 LESA100B24C LESA100P12 5V 24V 12V 5A 4.5A 8.5A 25W 100W 100W 35-60W SINGLE OUTPUT-MODIFIED DINRAIL SERIES • Overload & Short circuit protection • 100% Full Load Burn-in Test • High Efficiency • Low Ripple & Noise • High Quality & Reliability • Full Warranty • Size : 150 x 98 x 40 (mm) AC input voltage & Frequency range........... Leakage current........................................... Efficiency...................................................... Load Regulation........................................... Line Regulation............................................ Short Circuit Protection type....................... Withstand voltage....................................... Working Temperature................................. Relative humidity......................................... Temperature Co-efficient............................ 100V~264VAC / 50 Hz 180V~264VAC / 50 Hz (for LE-E-12-045) <3 mA at 240V ac >72 75%~ +/- 1% +/-1% Shutdown Output Voltage, Re-power On to Recover I/P-O/P:1.5 KVAC, I/P-FG:1.5 KVAC, O/P-FG:0.5 KVAC, 10 to 60° C 20-95% RH Nonconducting +/-0.03% / °C Model No. Output Voltage Output Current Rated Power LESA35B12 LESA60B12 LESA60B24 12V 12V 24V 3A 5A 2.5A 35W 60W 60W 08
  • 9.

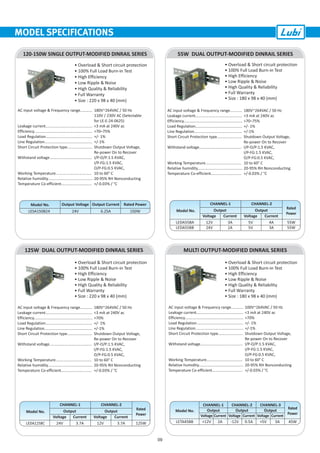

    MODEL SPECIFICATIONS 120-150W SINGLEOUTPUT-MODIFIED DINRAIL SERIES • Overload & Short circuit protection • 100% Full Load Burn-in Test • High Efficiency • Low Ripple & Noise • High Quality & Reliability • Full Warranty • Size : 220 x 98 x 40 (mm) AC input voltage & Frequency range........... Leakage current........................................... Efficiency...................................................... Load Regulation........................................... Line Regulation............................................ Short Circuit Protection type....................... Withstand voltage....................................... Working Temperature................................. Relative humidity......................................... Temperature Co-efficient............................ 180V~264VAC / 50 Hz 110V / 230V AC (Selectable for LE-E-24-0625) <3 mA at 240V ac >70 75%~ +/- 1% +/-1% Shutdown Output Voltage, Re-power On to Recover I/P-O/P:1.5 KVAC, I/P-FG:1.5 KVAC, O/P-FG:0.5 KVAC, 10 to 60° C 20-95% RH Nonconducting +/-0.03% / °C Model No. Output Voltage Output Current Rated Power LESA150B24 24V 6.25A 150W 125W DUAL OUTPUT-MODIFIED DINRAIL SERIES • Overload & Short circuit protection • 100% Full Load Burn-in Test • High Efficiency • Low Ripple & Noise • High Quality & Reliability • Full Warranty • Size : 220 x 98 x 40 (mm) Model No. Output Voltage LEDA125BC 24V 3.7A CHANNEL-1 12V 3.7A CHANNEL-2 Rated Power 125W Current Output Voltage Current AC input voltage & Frequency range........... Leakage current........................................... Efficiency...................................................... Load Regulation........................................... Line Regulation............................................ Short Circuit Protection type....................... Withstand voltage....................................... Working Temperature................................. Relative humidity......................................... Temperature Co-efficient............................ 180V~264VAC / 50 Hz <3 mA at 240V ac >70% +/- 1% +/-1% Shutdown Output Voltage, Re-power On to Recover I/P-O/P:1.5 KVAC, I/P-FG:1.5 KVAC, O/P-FG:0.5 KVAC, 10 to 60° C 20-95% RH Nonconducting +/-0.03% / °C 55W DUAL OUTPUT-MODIFIED DINRAIL SERIES • Overload & Short circuit protection • 100% Full Load Burn-in Test • High Efficiency • Low Ripple & Noise • High Quality & Reliability • Full Warranty • Size : 180 x 98 x 40 (mm) AC input voltage & Frequency range........... Leakage current........................................... Efficiency...................................................... Load Regulation........................................... Line Regulation............................................ Short Circuit Protection type....................... Withstand voltage....................................... Working Temperature................................. Relative humidity......................................... Temperature Co-efficient............................ 180V~264VAC / 50 Hz <3 mA at 240V ac >70 75%~ +/- 1% +/-1% Shutdown Output Voltage, Re-power On to Recover I/P-O/P:1.5 KVAC, I/P-FG:1.5 KVAC, O/P-FG:0.5 KVAC, 10 to 60° C 20-95% RH Nonconducting +/-0.03% / °C Model No. Output Voltage LEDA55BA LEDA55BB 12V 24V 3A 2A CHANNEL-1 5V 5V 4A 3A CHANNEL-2 Rated Power 55W 55W Current Output Voltage Current MULTI OUTPUT-MODIFIED DINRAIL SERIES • Overload & Short circuit protection • 100% Full Load Burn-in Test • High Efficiency • Low Ripple & Noise • High Quality & Reliability • Full Warranty • Size : 180 x 98 x 40 (mm) Model No. Output Voltage LETA45BB CHANNEL-1 Rated Power CHANNEL-2 CHANNEL-3 Current Output Output CurrentVoltage Voltage Current +12V 2A -12V 0.5A +5V 3A 45W AC input voltage & Frequency range........... Leakage current........................................... Efficiency...................................................... Load Regulation........................................... Line Regulation............................................ Short Circuit Protection type....................... Withstand voltage....................................... Working Temperature................................. Relative humidity......................................... Temperature Co-efficient............................ 100V~264VAC / 50 Hz <3 mA at 240V ac >70% +/- 1% +/-1% Shutdown Output Voltage, Re-power On to Recover I/P-O/P:1.5 KVAC, I/P-FG:1.5 KVAC, O/P-FG:0.5 KVAC, 10 to 60° C 20-95% RH Nonconducting +/-0.03% / °C 09
  • 10.

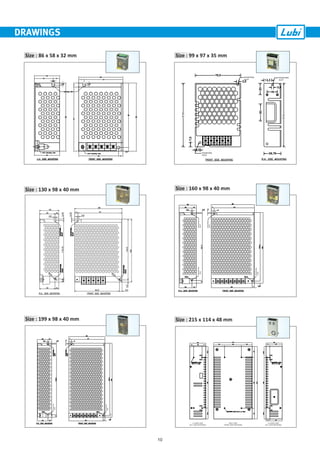

    DRAWINGS Size : 86x 58 x 32 mm Size : 130 x 98 x 40 mm Size : 160 x 98 x 40 mm Size : 199 x 98 x 40 mm Size : 215 x 114 x 48 mm 10 Size : 99 x 97 x 35 mm
  • 11.

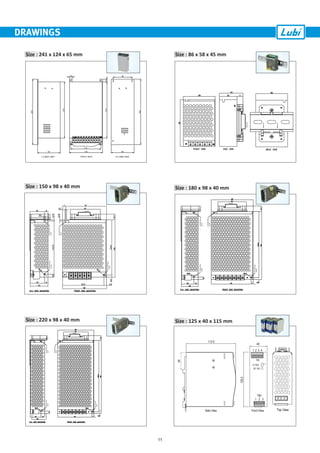

    DRAWINGS Size : 86x 58 x 45 mm Size : 150 x 98 x 40 mm Size : 180 x 98 x 40 mm Size : 220 x 98 x 40 mm Size : 125 x 40 x 115 mm 11 Size : 241 x 124 x 65 mm
  • 12.
    Sardar Patel RingRoad, Nr. Karai Gam Patia, Nana Chiloda, Dist. : Gandhinagar - 382 330. Tel. : +91-79-3984 5300 • Fax : +91-79-3984 5599 • E-mail : info@lubielectronics.com • Website : www.lubielectronics.com Lubi Electronics VAPI 104-A, Platinum Mall, Plot No. Cm/13, Opp. V.I.A. Ground, G.I.D.C. Vapi - 396 195. District : Valsad, Gujarat. INDIA Tel. : + 91 - 260 - 2425 307 MUMBAI 405, Sangeet Plaza, Opp. Marol Fire Brigade, Marol Maroshi Road, Andheri (E), MUMBAI - 400 059. Tel. : + 91 - 22 - 6704 2570 / 2925 7315 PUNE Breman Business Center, Off. No.301, Nr. City International School, Opp. Breman Square, University Road, Aundh Pune - 411 007. Tel. : + 91 - 20 - 2588 0583 / 2025 1162 DELHI 202, 2th Floor, Ajit Singh House, 12, Commercial Complex, Yusuf Sarai, New Delhi. 110 049. Tel. : + 91-11-4608 5120 LUDHIANA BXX1/14436, Nr. Dada Motors, Besides HDFC Bank, Kalsinagar, G.T.Road, Ludhiana - 141 003. Tel. : + 91 - 161 - 2535 342 CHENNAI #3, 1st Floor, Vishalakshi Street, Balavinayagar Nagar, Arumbakkam, Chennai - 600 106. Tel. : + 91 - 44 - 6459 8855 • Fax : + 91 - 44 - 4355 6630 COIMBATORE SF 489/2 Thiru Nagar 3rd Street, Selvapuram By-Pass Road, Coimbatore - 641026. Tel. : + 91-422-6555 886 • Service No. : +91 - 422 - 2340 111 HYDERABAD Shed No. - 21, Phase - 1, TCIE, Balanagar, Hyderabad - 500 037. Tel. : + 91 - 40 - 4007 3424 • Fax : + 91 - 40 - 4007 3214 BANGALORE "Sri Chakra" #30/25/1, 1st Floor, New Ring Road, Malagala, 2nd Stage, Nagarabavi, Bangalore-560072, Karnataka. MORBI Shop no : 4 & 5, Aarohi chamber, Nr. GSPC office, Opp. Adarsh Hotel, 8-A N.H., Trajpar, Morbi - 363 642. Tel. : 02822 - 244 890 BRANCH OFFICE This map of india does not reflect accurate boundaries. It is only for illustration purpose. PUNJABPUNJABPUNJAB JAMMUJAMMU && KASHMIRKASHMIR JAMMU & KASHMIR HIMACHALHIMACHAL PRADESHPRADESH HIMACHAL PRADESH RAJASTHANRAJASTHANRAJASTHAN UTTARANCHAL UTTARANCHAL UTTARANCHAL UTTAR PRADESHUTTAR PRADESHUTTAR PRADESH HARYANAHARYANAHARYANA GUJARATGUJARATGUJARAT MADHYA PRADESHMADHYA PRADESHMADHYA PRADESH BIHARBIHARBIHAR WESTWEST BENGALBENGAL WEST BENGAL JHARKHANDJHARKHANDJHARKHAND ORISSAORISSAORISSA CHHATTISGARHCHHATTISGARHCHHATTISGARH MAHARASHTRAMAHARASHTRAMAHARASHTRA KARNATAKAKARNATAKAKARNATAKA ANDHRA PRADESHANDHRA PRADESHANDHRA PRADESH TAMILNADUTAMILNADUTAMILNADU KERALA KERALA KERALA ARUNACHAL PRADESH ARUNACHAL PRADESH ARUNACHAL PRADESH ASSAMASSAMASSAM MAGHALAYAMAGHALAYAMAGHALAYA NAGALANDNAGALANDNAGALAND MANIPURMANIPURMANIPUR MIZORAMMIZORAMMIZORAM TRIPURATRIPURATRIPURA SIKKIMSIKKIMSIKKIM GOAGOAGOA Ludhiana Chandigarh New Delhi Jaipur Kanpur Udaipur Ahmedabad Baroda Indore Jamshedpur Kolkata Rajkot Surat Vapi Nasik Nagpur Mumbai Ahmadnagar Pune Kolhapur Bangalore Chennai Coimbatore Madurai Mysore Pondicherry Aurangabad Head Office Branch Office Dealer Network Service Centre Morbi Solarpur TELANGANATELANGANATELANGANA Hyderabad P201800801
