1. The document describes the burning of an ISO image file to a DVD using Nero burning software. It lists the hardware, software versions, burn settings and progress of the burning process. 2. The burn was started at 48x speed to the HL-DT-ST DVDRAM GH24NS95 DVD drive. Files were cached and then the burning process began and completed successfully. 3. Information about the burning process such as caching, writing lead-in/lead-out, and burn completion is reported.

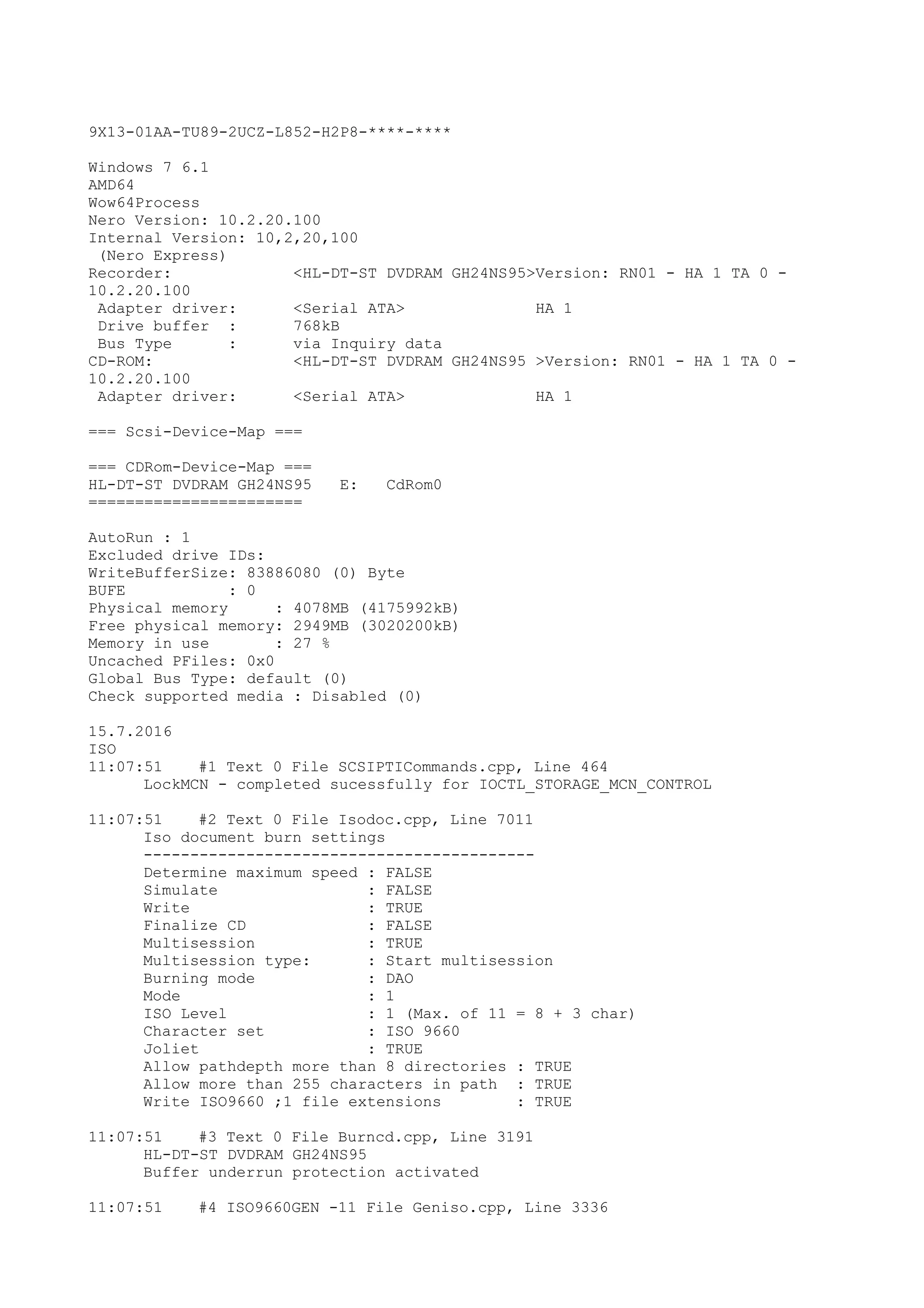

1. 9X13-01AA-TU89-2UCZ-L852-H2P8-****-****
Windows 7 6.1
AMD64
Wow64Process
Nero Version: 10.2.20.100
Internal Version: 10,2,20,100
(Nero Express)
Recorder: <HL-DT-ST DVDRAM GH24NS95>Version: RN01 - HA 1 TA 0 -
10.2.20.100
Adapter driver: <Serial ATA> HA 1
Drive buffer : 768kB
Bus Type : via Inquiry data
CD-ROM: <HL-DT-ST DVDRAM GH24NS95 >Version: RN01 - HA 1 TA 0 -
10.2.20.100
Adapter driver: <Serial ATA> HA 1
=== Scsi-Device-Map ===
=== CDRom-Device-Map ===
HL-DT-ST DVDRAM GH24NS95 E: CdRom0
=======================
AutoRun : 1
Excluded drive IDs:
WriteBufferSize: 83886080 (0) Byte
BUFE : 0
Physical memory : 4078MB (4175992kB)
Free physical memory: 2949MB (3020200kB)
Memory in use : 27 %
Uncached PFiles: 0x0
Global Bus Type: default (0)
Check supported media : Disabled (0)
15.7.2016
ISO
11:07:51 #1 Text 0 File SCSIPTICommands.cpp, Line 464
LockMCN - completed sucessfully for IOCTL_STORAGE_MCN_CONTROL
11:07:51 #2 Text 0 File Isodoc.cpp, Line 7011
Iso document burn settings
------------------------------------------
Determine maximum speed : FALSE
Simulate : FALSE
Write : TRUE
Finalize CD : FALSE
Multisession : TRUE
Multisession type: : Start multisession
Burning mode : DAO
Mode : 1
ISO Level : 1 (Max. of 11 = 8 + 3 char)
Character set : ISO 9660
Joliet : TRUE
Allow pathdepth more than 8 directories : TRUE
Allow more than 255 characters in path : TRUE
Write ISO9660 ;1 file extensions : TRUE
11:07:51 #3 Text 0 File Burncd.cpp, Line 3191
HL-DT-ST DVDRAM GH24NS95
Buffer underrun protection activated
11:07:51 #4 ISO9660GEN -11 File Geniso.cpp, Line 3336

2. First writeable address = 0 (0x00000000)
11:07:51 #5 Text 0 File Burncd.cpp, Line 3521
Turn on Disc-At-Once, using CD-R/RW media
11:07:52 #6 Text 0 File DlgWaitCD.cpp, Line 314
[E: DVDRAM GH24NS95 ] Last possible write address on media: 359842
Last address to be written: 3919
11:07:52 #7 Text 0 File DlgWaitCD.cpp, Line 326
[E: DVDRAM GH24NS95 ] Write in overburning mode: NO (enabled: CD)
11:07:52 #8 Text 0 File DlgWaitCD.cpp, Line 2917
Recorder: HL-DT-ST DVDRAM GH24NS95;
CDR code: 00 97 15 17; OSJ entry from: Ritek Co.
ATIP Data:
Special Info [hex] 1: C0 00 90, 2: 61 0F 11 (LI 97:15.17), 3: 4F
3B 46 (LO 79:59.70)
Additional Info [hex] 1: 00 00 80 (invalid), 2: 00 80 00 (invalid),
3: 00 80 80 (invalid)
11:07:52 #9 Text 0 File DlgWaitCD.cpp, Line 499
[E: DVDRAM GH24NS95 ] >>> Protocol of DlgWaitCD activities: <<<
=========================================
11:07:52 #10 Text 0 File ThreadedTransferInterface.cpp, Line 861
Setup items (after recorder preparation)
0: TRM_DATA_MODE1 ()
2 indices, index0 (150) not provided
original disc pos #0 + 3920 (3920) = #3920/0:52.20
relocatable, disc pos for caching/writing not required/ required
-> TRM_DATA_MODE1, 2048, config 0, wanted index0 0 blocks, length 3920
blocks [E: HL-DT-ST DVDRAM GH24NS95]
--------------------------------------------------------------
11:07:52 #11 Text 0 File ThreadedTransferInterface.cpp, Line 1077
Prepare [E: HL-DT-ST DVDRAM GH24NS95] for write in CUE-sheet-DAO
DAO infos:
==========
MCN: ""
TOCType: 0x00; Session Closed, disc not fixated
Tracks 1 to 1: Idx 0 Idx 1
Next Trk
1: TRM_DATA_MODE1, 2048/0x00, FilePos 0 307200
8335360, ISRC ""
DAO layout:
===========
___Start_|____Track_|_Idx_|_CtrlAdr_|_____Size_|______NWA_|
_RecDep__________
-150 | lead-in | 0 | 0x41 | 0 | 0 | 0x00
-150 | 1 | 0 | 0x41 | 0 | 0 | 0x00
0 | 1 | 1 | 0x41 | 3920 | 0 | 0x00
3920 | lead-out | 1 | 0x41 | 0 | 0 | 0x00
MediaType: CD-R
11:07:52 #12 Text 0 File SCSIPTICommands.cpp, Line 251
SPTILockVolume - completed successfully for FSCTL_LOCK_VOLUME
11:07:52 #13 Text 0 File Burncd.cpp, Line 4234
Caching options: cache CDRom or Network-Yes, small files-No (<64KB)
11:07:52 #14 PHASE 24 File dlgbrnst.cpp, Line 1827
Caching of files started

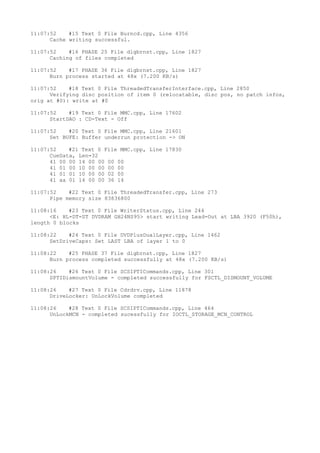

3. 11:07:52 #15 Text 0 File Burncd.cpp, Line 4356
Cache writing successful.
11:07:52 #16 PHASE 25 File dlgbrnst.cpp, Line 1827
Caching of files completed
11:07:52 #17 PHASE 36 File dlgbrnst.cpp, Line 1827
Burn process started at 48x (7.200 KB/s)
11:07:52 #18 Text 0 File ThreadedTransferInterface.cpp, Line 2850
Verifying disc position of item 0 (relocatable, disc pos, no patch infos,
orig at #0): write at #0
11:07:52 #19 Text 0 File MMC.cpp, Line 17602
StartDAO : CD-Text - Off
11:07:52 #20 Text 0 File MMC.cpp, Line 21601
Set BUFE: Buffer underrun protection -> ON
11:07:52 #21 Text 0 File MMC.cpp, Line 17830
CueData, Len=32
41 00 00 14 00 00 00 00
41 01 00 10 00 00 00 00
41 01 01 10 00 00 02 00
41 aa 01 14 00 00 36 14
11:07:52 #22 Text 0 File ThreadedTransfer.cpp, Line 273
Pipe memory size 83836800
11:08:16 #23 Text 0 File WriterStatus.cpp, Line 244
<E: HL-DT-ST DVDRAM GH24NS95> start writing Lead-Out at LBA 3920 (F50h),
length 0 blocks
11:08:22 #24 Text 0 File DVDPlusDualLayer.cpp, Line 1462
SetDriveCaps: Set LAST LBA of layer 1 to 0
11:08:22 #25 PHASE 37 File dlgbrnst.cpp, Line 1827
Burn process completed successfully at 48x (7.200 KB/s)
11:08:26 #26 Text 0 File SCSIPTICommands.cpp, Line 301
SPTIDismountVolume - completed successfully for FSCTL_DISMOUNT_VOLUME
11:08:26 #27 Text 0 File Cdrdrv.cpp, Line 11878
DriveLocker: UnLockVolume completed
11:08:26 #28 Text 0 File SCSIPTICommands.cpp, Line 464
UnLockMCN - completed sucessfully for IOCTL_STORAGE_MCN_CONTROL
