2. XDI Introduction
Core Technology
New Features
New Product Introduction
Product Specification

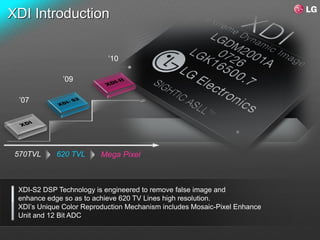

3. XDI Introduction
’10
’09
’07
570TVL 620 TVL Mega Pixel
XDI-S2 DSP Technology is engineered to remove false image and
enhance edge so as to achieve 620 TV Lines high resolution.
XDI’s Unique Color Reproduction Mechanism includes Mosaic-Pixel Enhance
Unit and 12 Bit ADC

4. Core Technology
620 TV Lines
Day & Night 3D-DNR
eXtreme
EIS Dynamic HSBLC
Image processor

5. Core Technology
620 TV Lines Resolution
By removing false image and enhancing edge,
XDI achieves 620 TV Lines high resolution.
XDI-S2
Conventional

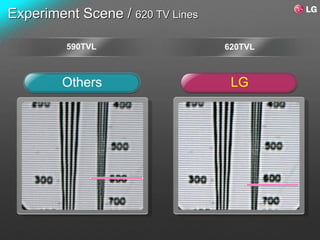

6. Experiment Scene / 620 TV Lines
590TVL 620TVL
Others LG

7. Core Technology

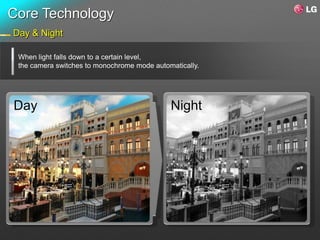

Day & Night
When light falls down to a certain level,
the camera switches to monochrome mode automatically.
Day Night

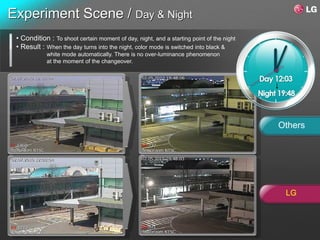

8. Experiment Scene / Day & Night
• Condition : To shoot certain moment of day, night, and a starting point of the night
• Result : When the day turns into the night, color mode is switched into black &
white mode automatically. There is no over-luminance phenomenon
at the moment of the changeover.
↓
Others
LG

9. Core Technology

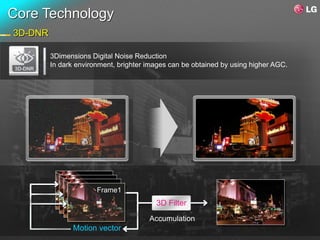

3D-DNR
3Dimensions Digital Noise Reduction
In dark environment, brighter images can be obtained by using higher AGC.
Frame1
3D Filter
Accumulation
Motion vector

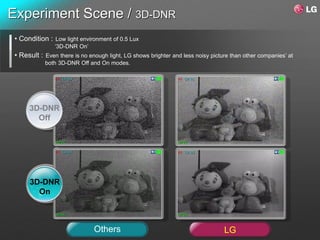

10. Experiment Scene / 3D-DNR
• Condition : Low light environment of 0.5 Lux
‘3D-DNR On’
• Result : Even there is no enough light, LG shows brighter and less noisy picture than other companies’ at
both 3D-DNR Off and On modes.
3D-DNR
Off
3D-DNR
On
Others LG

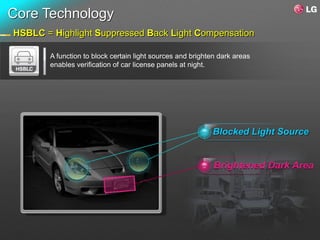

11. Core Technology
HSBLC = Highlight Suppressed Back Light Compensation
A function to block certain light sources and brighten dark areas
enables verification of car license panels at night.
Blocked Light Source
Brightened Dark Area

12. Experiment Scene / HSBLC
•Condition : Low-light Outdoor Shooting
Under 10km/h speed with head light
•Result : LG new models are programmed to set mask area & scope in advance.
By setting the masking area, user can achieve convenience in operating, and clearer number plate.
Others LG

13. Core Technology

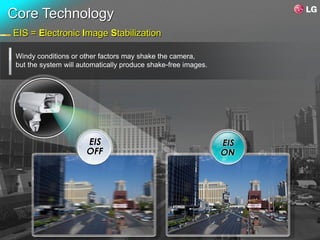

EIS = Electronic Image Stabilization
Windy conditions or other factors may shake the camera,
but the system will automatically produce shake-free images.

14. Experiment Scene / EIS
• Condition : Shaking Plate with ‘EIS TEST’ text
Vibration speed of 2.967cm/s (Frequency: 1.0 Hz)
• Result : LG shows brighter and less shaky picture than other companies’.
Others LG
Shaking Image Stabilized Image

16. New Features / Camera

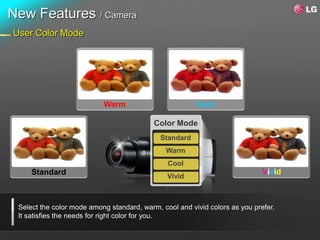

User Color Mode
Warm Cool
Color Mode
Standard
Warm
Cool
Standard Vivid
Vivid
Select the color mode among standard, warm, cool and vivid colors as you prefer.
It satisfies the needs for right color for you.

17. Experiment Scene / User Color Mode
LG
Cool
Vivid
Standard
Warm
Others
No Color Profile Option
Standard

18. New Features
Low Power Consumption
Power Consumption
(W/ea)
 Save a tree / year
4.0
1 Year 2 Year 3 Year 4 Year
2.9
Reduced CO2 5.35kg/yr
(1.1W x 24hr x 365 days
= 9,636Kwh)
5 Year …Year 1 Tree = CO2 5kg
Conventional New Model
LG New products are environmentally friendly,
by reducing its energy consumption to 2.9w.
* Except IR Camera

19. New Features / Camera
Outstanding Color Adjustment
Others LG
Orange White Blue
Museum
2,500˚K 9,000˚K Others
Hotel
1,700˚K 11,000˚K LG
Tunnel
Color Temperature [Absolute Temperature ˚K]
Thanks to its wide white balance, even in low color temperature environment
such as museum, hotel and tunnel, XDI generates the real color as it is

20. New Features / DVR
Separated Recording / Network Dual Streaming
 Usage Scene
Live Video Steam
120fps @ CIF
480fps @ CIF
Client S/W
Video
Local Recording
Network video stream is separated from Recording video stream. User can adjust the frame
rate and resolution of network video stream regardless of local video stream.

21. New Features / DVR
Extended recording thru. e-SATA storage
 Usage Scene
Capacity
e-SATA
Analog Cameras DVR External Storage
User can easily extend the storage by e-SATA interface,
and instant archiving and scheduled archiving are supported.

23. Box Camera
620TVL/ICR Day & Night 620TVL/Digital Day & Night
L321-BP(PAL)
L321-BN(NTSC)
L320-BP(PAL)
L320-BN(NTSC)
620 TVL Horizontal Resolution
Day & Night : L321-ICR, L320-Digtal
Low-light performance By 3D-DNR
Advanced BLC(HSBLC)
Electronic Image Stabilization(EIS)

24. Dome Camera
Vandal - Proof Enhanced Plastic
L6213-BP(PAL) L5213-BP(PAL)
L6213-BN(NTSC) L5213-BN(NTSC)
3Axis Gimbal Mechanism
620 TVL Horizontal Resolution
ICR Day & Night
Electronic Image Stabilization(EIS)
Vandal–Proof/IP66 : L6213-BP/BN
Low-light performance By 3D-DNR : L5213-BP/BN

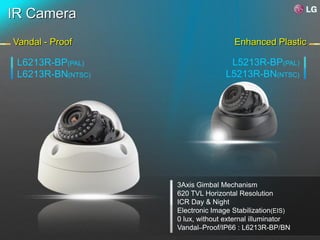

25. IR Camera
Vandal - Proof Enhanced Plastic
L6213R-BP(PAL) L5213R-BP(PAL)
L6213R-BN(NTSC) L5213R-BN(NTSC)
3Axis Gimbal Mechanism
620 TVL Horizontal Resolution
ICR Day & Night
Electronic Image Stabilization(EIS)
0 lux, without external illuminator
Vandal–Proof/IP66 : L6213R-BP/BN

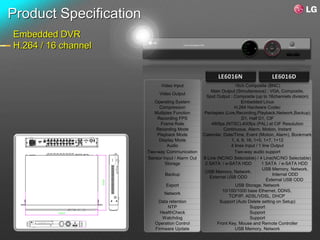

26. Embedded DVR
H.264 / 16 channel
LE6016N(w/ ODD)
LE6016D(w/o ODD)
CIF Real-time recording
Small file size with H.264 Video Compression
Separated Recording/Network dual streaming
Extended recording thru. e-SATA storage
Two-way communication with audio

28. Product Specification Signal System PAL NTSC
Total / Effective Pixels No. 470K / 440K 410K / 380K
Image Device 6.0mm (1/3 Type) CCD
DSP XDI-S2
620 TVL / ICR Day & Night Lens CS Mount (C Mount using adaptor ring)
Digital Zoom X8
IRIS Control DC / ELC
L321-BP(PAL) *L321-CP(AC230V) Sync. System
Scanning Frequency (H/V) 15.625 KHz / 50 Hz
Internal
15.734 KHz / 59.94 Hz
L321-BN(NTSC) Horizontal Resolution
S/N Ratio
620 TV Lines
52dB
0.05 lux @ Sens-up OFF
0.0001 lux @ Sens-up Auto
Minimum Illumination
B/W 0.005 lux @ Sens-up OFF
B/W 0.000001 lux @ Sens-up x128
Control Method Key button
Video Output Signal 1Vp-p Composite (75Ω)
Day & Night Day / Night / Auto (ICR)
Backlight Compensation OFF/BLC/HSBLC
DNR 3D-DNR(Off/Low/Middle/High)
Auto Gain Control Off / Low / Middle / High
Electronic Shutter Speed 1/50 ~1/90,000 1/60 ~1/90,000
Electronic Sensitivity OFF/Auto ( x2, x3, x4,…..x 128 )
ATW / AWC Push / Manual
White Balance
(1,700 ºk ~ 11,000 ºk)
User Color Mode Standard / Cool / Warm / Vivid
Motion Detection 4 Zones
Privacy Zone Masking 8 Masks
Stabilizer( EIS) On / Off
Multi OSD Language 15
Power Source DC12V/AC24V(Dual) / AC230V DC12V/AC24V
Power Consumption 4.4W (DC12V/AC24V/230V)
Operation Temp. -10 ºC ~ 50 ºC
Storage Temp. -20 ºC ~ 60 ºC
Operation Humidity 0%RH ~ 80%RH
Weight 415g
Dimension (H x V x D) 67.4 x 61.5 x 134 mm
Accessory Installation Manual

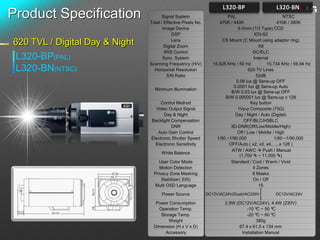

29. Product Specification Signal System
Total / Effective Pixels No.
PAL
470K / 440K
NTSC
410K / 380K
Image Device 6.0mm (1/3 Type) CCD
DSP XDI-S2
620 TVL / Digital Day & Night Lens
Digital Zoom
CS Mount (C Mount using adaptor ring)
X8
IRIS Control DC/ELC
L320-BP(PAL) Sync. System Internal
Scanning Frequency (H/V) 15.625 KHz / 50 Hz 15.734 KHz / 59.94 Hz
L320-BN(NTSC) Horizontal Resolution 620 TV Lines
S/N Ratio 52dB
0.06 lux @ Sens-up OFF
0.0001 lux @ Sens-up Auto
Minimum Illumination
B/W 0.03 lux @ Sens-up OFF
B/W 0.000001 lux @ Sens-up x 128
Control Method Key button
Video Output Signal 1Vp-p Composite (75Ω)
Day & Night Day / Night / Auto (Digital)
Backlight Compensation OFF/BLC/HSBLC
DNR 3D-DNR(Off/Low/Middle/High)
Auto Gain Control Off / Low / Middle / High
Electronic Shutter Speed 1/50 ~1/90,000 1/60 ~1/90,000
Electronic Sensitivity OFF/Auto ( x2, x3, x4,…..x 128 )
ATW / AWC  Push / Manual
White Balance
(1,700 ºk ~ 11,000 ºk)
User Color Mode Standard / Cool / Warm / Vivid
Motion Detection 4 Zones
Privacy Zone Masking 8 Masks
Stabilizer( EIS) On / Off
Multi OSD Language 15
Power Source DC12V/AC24V(Dual)/AC230V DC12V/AC24V
Power Consumption 2.9W (DC12V/AC24V), 4.4W (230V)
Operation Temp. -10 ºC ~ 50 ºC
Storage Temp. -20 ºC ~ 60 ºC
Weight 380g
Dimension (H x V x D) 67.4 x 61.5 x 134 mm
Accessory Installation Manual

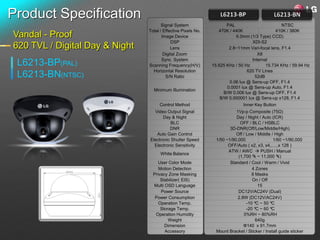

30. Product Specification
Signal System PAL NTSC
Total / Effective Pixels No. 470K / 440K 410K / 380K
Vandal - Proof Image Device 6.0mm (1/3 Type) CCD)
DSP XDI-S2
620 TVL / Digital Day & Night Lens 2.8~11mm Vari-focal lens, F1.4
Digital Zoom X8
Sync. System Internal
L6213-BP(PAL) Scanning Frequency(H/V) 15.625 KHz / 50 Hz 15.734 KHz / 59.94 Hz
Horizontal Resolution 620 TV Lines
L6213-BN(NTSC) S/N Ratio 52dB
0.06 lux @ Sens-up OFF, F1.4
0.0001 lux @ Sens-up Auto, F1.4
Minimum Illumination
B/W 0.006 lux @ Sens-up OFF, F1.4
B/W 0.000001 lux @ Sens-up x128, F1.4
Control Method Inner Key Button
Video Output Signal 1Vp-p Composite (75Ω)
Day & Night Day / Night / Auto (ICR)
BLC OFF / BLC / HSBLC
DNR 3D-DNR(Off/Low/Middle/High)
Auto Gain Control Off / Low / Middle / High
Electronic Shutter Speed 1/50 ~1/90,000 1/60 ~1/90,000
Electronic Sensitivity OFF/Auto ( x2, x3, x4,…..x 128 )
ATW / AWC  PUSH / Manual
White Balance
(1,700 ºk ~ 11,000 ºk)
User Color Mode Standard / Cool / Warm / Vivid
Motion Detection 4 Zones
Privacy Zone Masking 8 Masks
Stabilizer( EIS) On / Off
Multi OSD Language 15
Power Source DC12V/AC24V (Dual)
Power Consumption 2.8W (DC12V/AC24V)
Operation Temp. -10 ºC ~ 50 ºC
Storage Temp. -20 ºC ~ 60 ºC
Operation Humidity 0%RH ~ 80%RH
Weight 640g
Dimension Φ140 x 91.7mm
Accessory Mount Bracket / Sticker / Install guide sticker

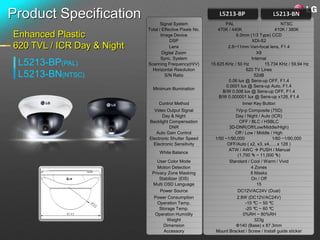

31. Product Specification
Signal System PAL NTSC
Total / Effective Pixels No. 470K / 440K 410K / 380K
Enhanced Plastic Image Device 6.0mm (1/3 Type) CCD
DSP XDI-S2
620 TVL / ICR Day & Night Lens 2.8~11mm Vari-focal lens, F1.4
Digital Zoom X8
Sync. System Internal
L5213-BP(PAL) Scanning Frequency(H/V) 15.625 KHz / 50 Hz 15.734 KHz / 59.94 Hz
Horizontal Resolution 620 TV Lines
L5213-BN(NTSC) S/N Ratio 52dB
0.06 lux @ Sens-up OFF, F1.4
0.0001 lux @ Sens-up Auto, F1.4
Minimum Illumination
B/W 0.006 lux @ Sens-up OFF, F1.4
B/W 0.000001 lux @ Sens-up x128, F1.4
Control Method Inner Key Button
Video Output Signal 1Vp-p Composite (75Ω)
Day & Night Day / Night / Auto (ICR)
Backlight Compensation OFF / BLC / HSBLC
DNR 3D-DNR(Off/Low/Middle/High)
Auto Gain Control Off / Low / Middle / High
Electronic Shutter Speed 1/50 ~1/90,000 1/60 ~1/90,000
Electronic Sensitivity OFF/Auto ( x2, x3, x4,…..x 128 )
ATW / AWC  PUSH / Manual
White Balance
(1,700 ºk ~ 11,000 ºk)
User Color Mode Standard / Cool / Warm / Vivid
Motion Detection 4 Zones
Privacy Zone Masking 8 Masks
Stabilizer (EIS) On / Off
Multi OSD Language 15
Power Source DC12V/AC24V (Dual)
Power Consumption 2.8W (DC12V/AC24V)
Operation Temp. -10 ºC ~ 50 ºC
Storage Temp. -20 ºC ~ 60 ºC
Operation Humidity 0%RH ~ 80%RH
Weight 323g
Dimension Φ140 (Base) x 87.3mm
Accessory Mount Bracket / Screw / Install guide sticker

32. Product Specification
Vandal – Proof IR Signal System PAL NTSC
620 TVL / ICR Day & Night Total Effective Pixels No.
Image Device
470K / 440K
6.0mm (1/3 Type) CCD
410K / 380K
DSP XDI-S2
L6213R-BP(PAL) Lens
Digital Zoom
2.8~11mm Vari-focal lens, F1.4
X8
L6213R-BN(NTSC) Sync. System
Scanning Frequency(H/V) 15.625 KHz / 50 Hz
Internal
15.734 KHz / 59.94 Hz
Horizontal Resolution 620 TV Lines
S/N Ratio 52dB
Minimum Illumination B/W : 0 Lux (IR LED On)
IR shooting Range 30m
Control Method Inner Key Button
Video Output Signal 1Vp-p Composite (75Ω)
ICR Day & Night Day / Night / Auto (ICR)
Backlight Compensation OFF / BLC / HSBLC
DNR 3D-DNR (Off/Low/Middle/High)
Auto Gain Control Off / Low / Middle / High
Electronic Shutter Speed 1/50 ~1/90,000 1/60 ~1/90,000
Electronic Sensitivity OFF/Auto ( x2, x3, x4,…..x 128 )
ATW / AWC  PUSH / Manual
White Balance
(1,700 ºk ~ 11,000 ºk)
User Color Mode Standard / Cool / Warm / Vivid
Motion Detection 4 Zones
Privacy Zone Masking 8 Masks
Stabilizer( EIS) On / Off
Multi OSD Language 15
Power Source DC12V/AC24V (Dual)
*Power Consumption 6.8 W (DC12V/AC24V)
Operation / Storage Temp. -10 ºC ~ 50 ºC / -20 ºC ~ 60 ºC
Operation Humidity 0%RH ~ 80%RH
Weight 869g
Dimension 109.1 (H) x Φ150.5
Accessory Screw / Install guide sticker / Installation Manual
*Power Consumption (IR LED On)

33. Product Specification
Enhanced Plastic IR Signal System PAL NTSC
Total / Effective Pixels No. 470K / 440K 410K / 380K
620 TVL / ICR Day & Night Image Device 6.0mm (1/3 Type) CCD
DSP XDI-S2
Lens 2.8~11mm Vari-focal lens
L5213R-BP(PAL) Digital Zoom X8
Sync. System Internal
L5213R-BN(NTSC) Scanning Frequency(H/V) 15.625 KHz / 50 Hz 15.734 KHz / 59.94 Hz
Horizontal Resolution 620 TV Lines
S/N Ratio 52dB
Minimum Illumination 0 lux @ IR LED ON, BW
IR shooting range 20m
Control Method Inner Key Button
Video Output Signal 1Vp-p Composite (75Ω)
Day & Night Day / Night / Auto (ICR)
Backlight Compensation OFF / BLC / HSBLC
DNR 3D-DNR(Off/Low/Middle/High)
Auto Gain Control Off / Low / Middle / High
Electronic Shutter Speed 1/50 ~1/90,000 1/60 ~1/90,000
Electronic Sensitivity OFF/Auto ( x2, x3, x4,…..x 128 )
ATW / AWC  PUSH / Manual
White Balance
(1,700 ºk ~ 11,000 ºk)
User Color Mode Standard / Cool / Warm / Vivid
Motion Detection 4 Zones
Privacy Zone Masking 8 Masks
Stabilizer (EIS) On / Off
Multi OSD Language 15
Power Source DC12V/AC24V (Dual)
*Power Consumption 6.0 W (DC12V/AC24V)
Operation / Storage Temp. -10 ºC ~ 50 ºC / -20 ºC ~ 60 ºC
Operation Humidity 0%RH ~ 80%RH
Weight 342g
Dimension 96.9(H) x Φ135.0
Accessory Screw / Install guide sticker / Installation Guide
*Power Consumption (IR LED On)

34. Product Specification
Embedded DVR
H.264 / 16 channel
Video Input 16ch Composite (BNC)
Main Output (Simultaneous) : VGA, Composite,
Video Output
Spot Output : Composite (up to 16channels division)
Operating System Embedded Linux
Compression H.264 Hardware Codec
Multiplex Function Pentaplex (Live,Recording,Playback,Network,Backup)
Recording FPS D1, Half D1, CIF
Frame Rate 480fps (NTSC),400fps (PAL) at CIF Resolution
Recording Mode Continuous, Alarm, Motion, Instant
Playback Mode Calendar, Date/Time, Event (Motion, Alarm), Bookmark
Display Mode 1, 4, 9, 16, 1+5, 1+7, 1+12
Audio 4 lines Input / 1 line Output
Two-way Communication Two-way audio support
Sensor Input / Alarm Out 8 Line (NC/NO Selectable) / 4 Line(NC/NO Selectable)
Storage 2 SATA / e-SATA HDD 1 SATA / e-SATA HDD
USB Memory, Network,
USB Memory, Network,
Backup Internal ODD
External USB ODD
External USB ODD
Export USB Storage, Network
10/100/1000 base Ethernet, DDNS,
Network
TCP/IP, ADSL/VDSL, DHCP
Data retention Support (Auto Delete setting on Setup)
NTP Support
HealthCheck Support
Watchdog Support
Operation Control Front Key, Mouse and Remote Controller
Firmware Update USB Memory, Network
