This document discusses asynchronous APIs and how they can be used to deliver real-time updates and event-driven collaboration across domains. It describes the advantages of asynchronous APIs over synchronous APIs, including allowing subscribers to receive notifications without polling. Common technologies for implementing asynchronous APIs like WebSockets and WebHooks are also discussed. The document outlines challenges in adopting asynchronous APIs and how a hub architecture can help address issues like unifying subscriptions, protocol conversion, enforcing API contracts, and providing rate limiting and insights.

1. Leveraging Asynchronous APIs to deliver
cross domain agile collaboration
September 2021
Nuwan Dias

2. Hello!
Nuwan Dias
VP and deputy CTO - WSO2
@nuwandias
Co-Author of Microservices Security in Action

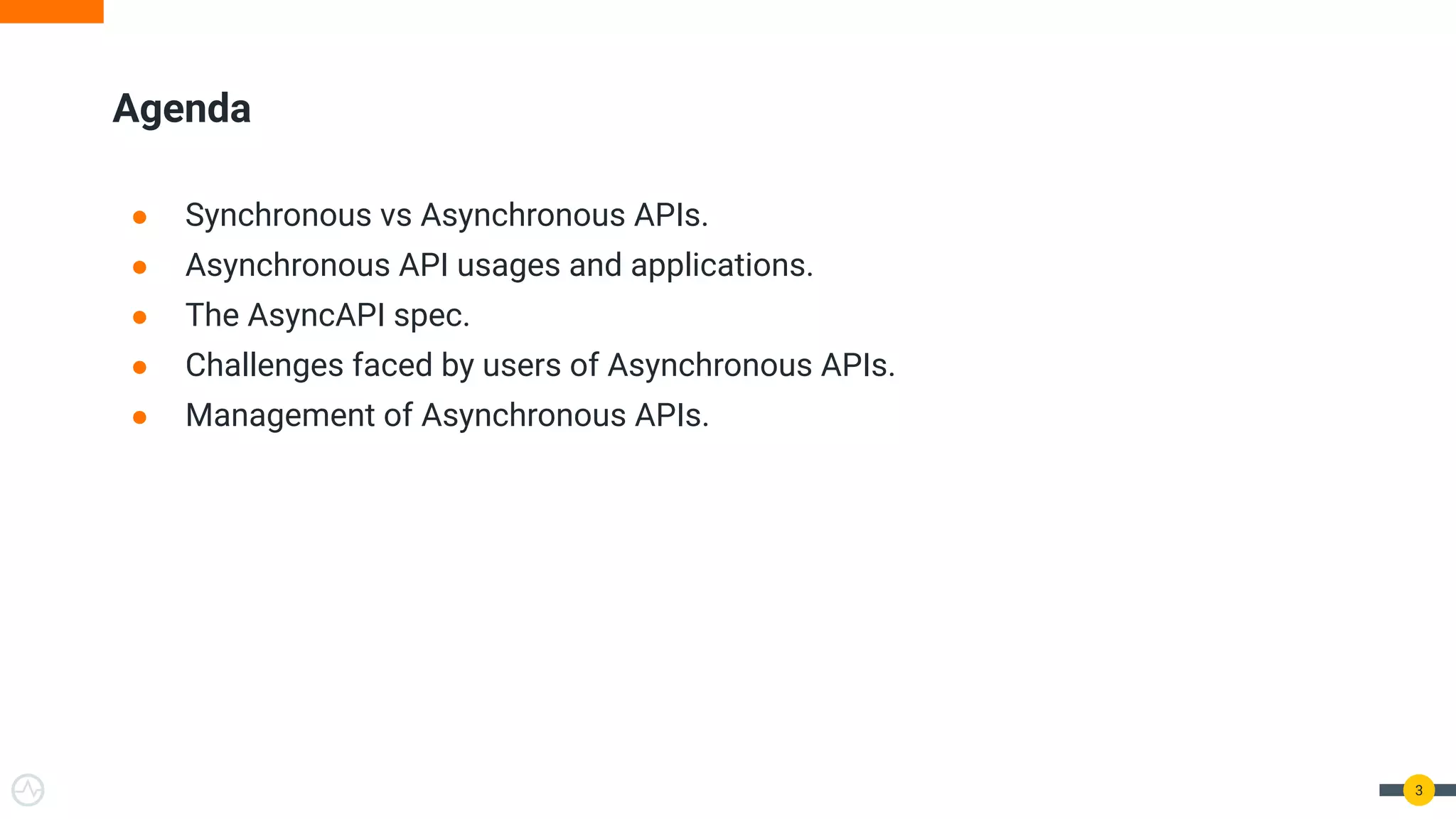

3. ● Synchronous vs Asynchronous APIs.
● Asynchronous API usages and applications.
● The AsyncAPI spec.
● Challenges faced by users of Asynchronous APIs.
● Management of Asynchronous APIs.
3
Agenda

4. 4
Synchronous Communication

5. 5

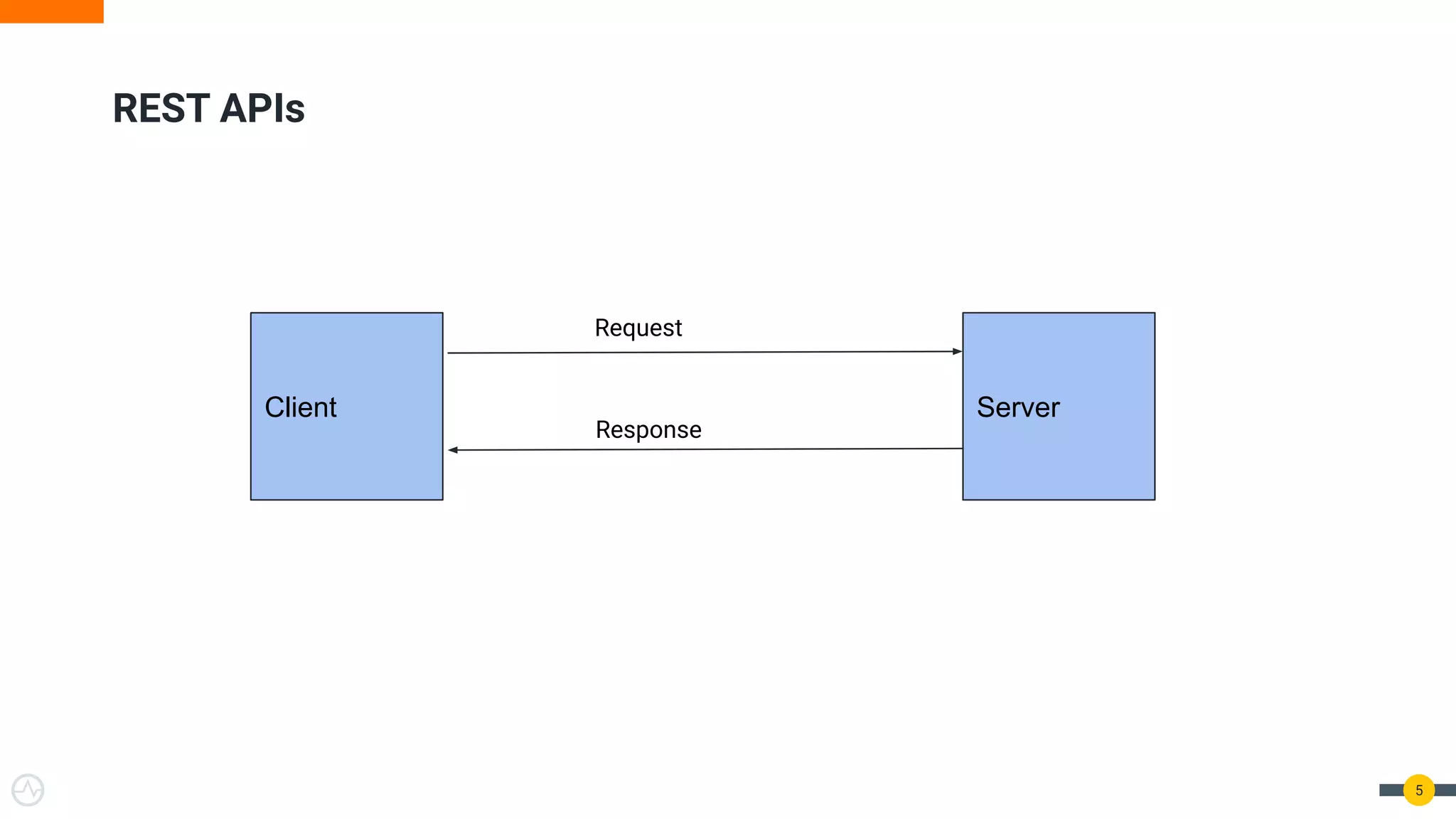

REST APIs
Client Server
Request
Response

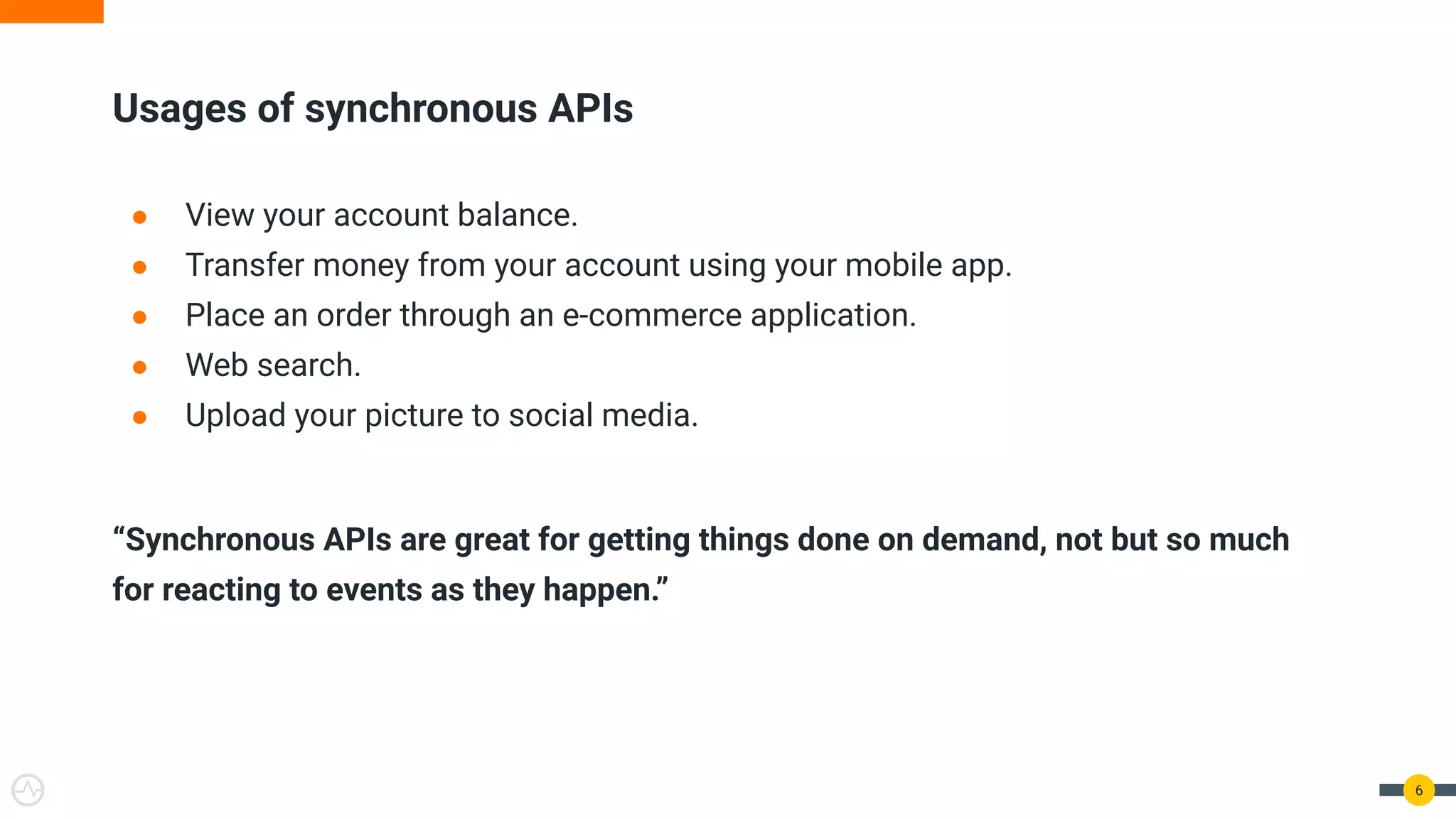

6. ● View your account balance.
● Transfer money from your account using your mobile app.
● Place an order through an e-commerce application.
● Web search.
● Upload your picture to social media.
“Synchronous APIs are great for getting things done on demand, not but so much
for reacting to events as they happen.”
6
Usages of synchronous APIs

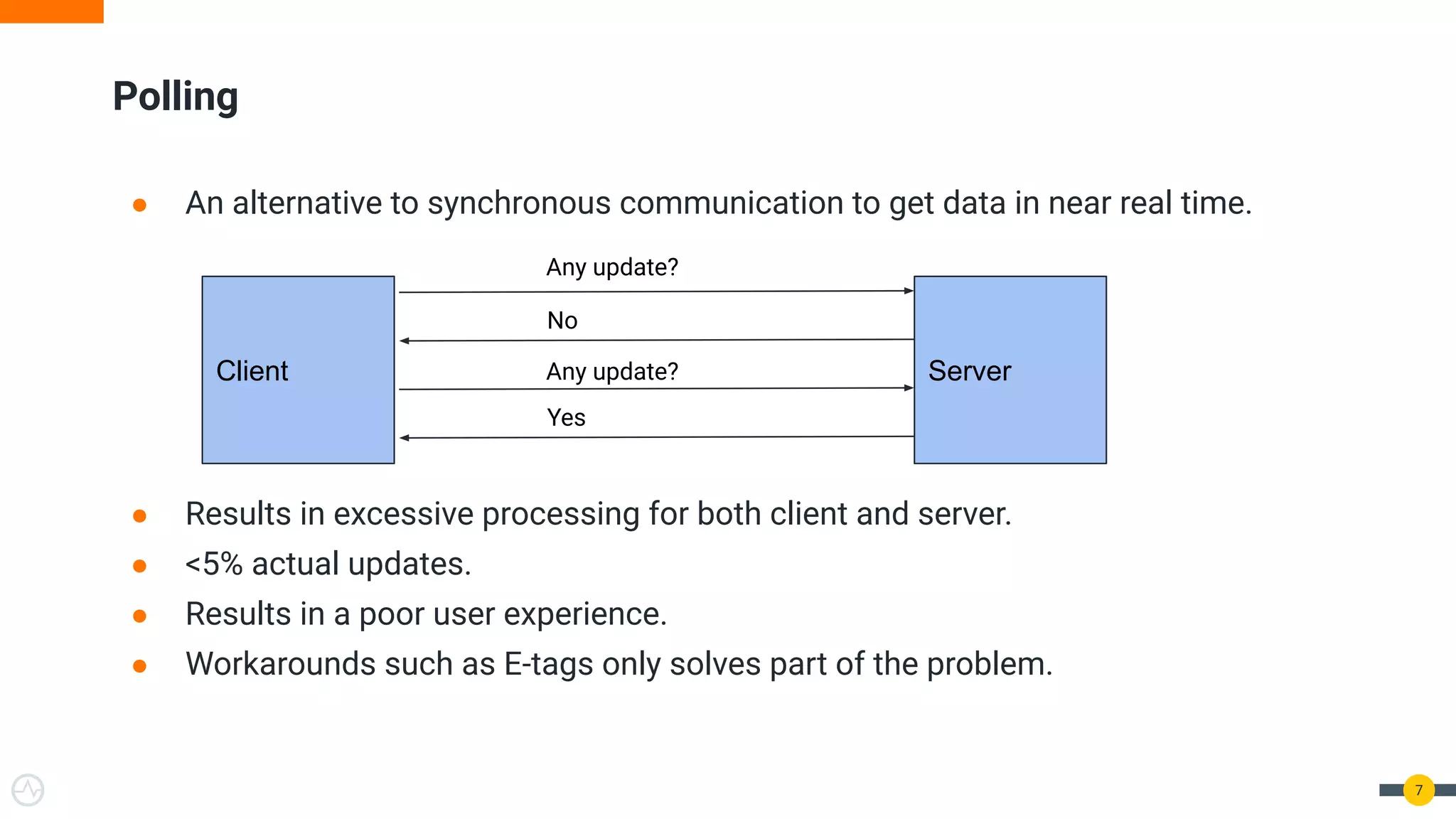

7. ● An alternative to synchronous communication to get data in near real time.
● Results in excessive processing for both client and server.
● <5% actual updates.
● Results in a poor user experience.
● Workarounds such as E-tags only solves part of the problem.
7
Polling
Client Server
Any update?
No
Any update?
Yes

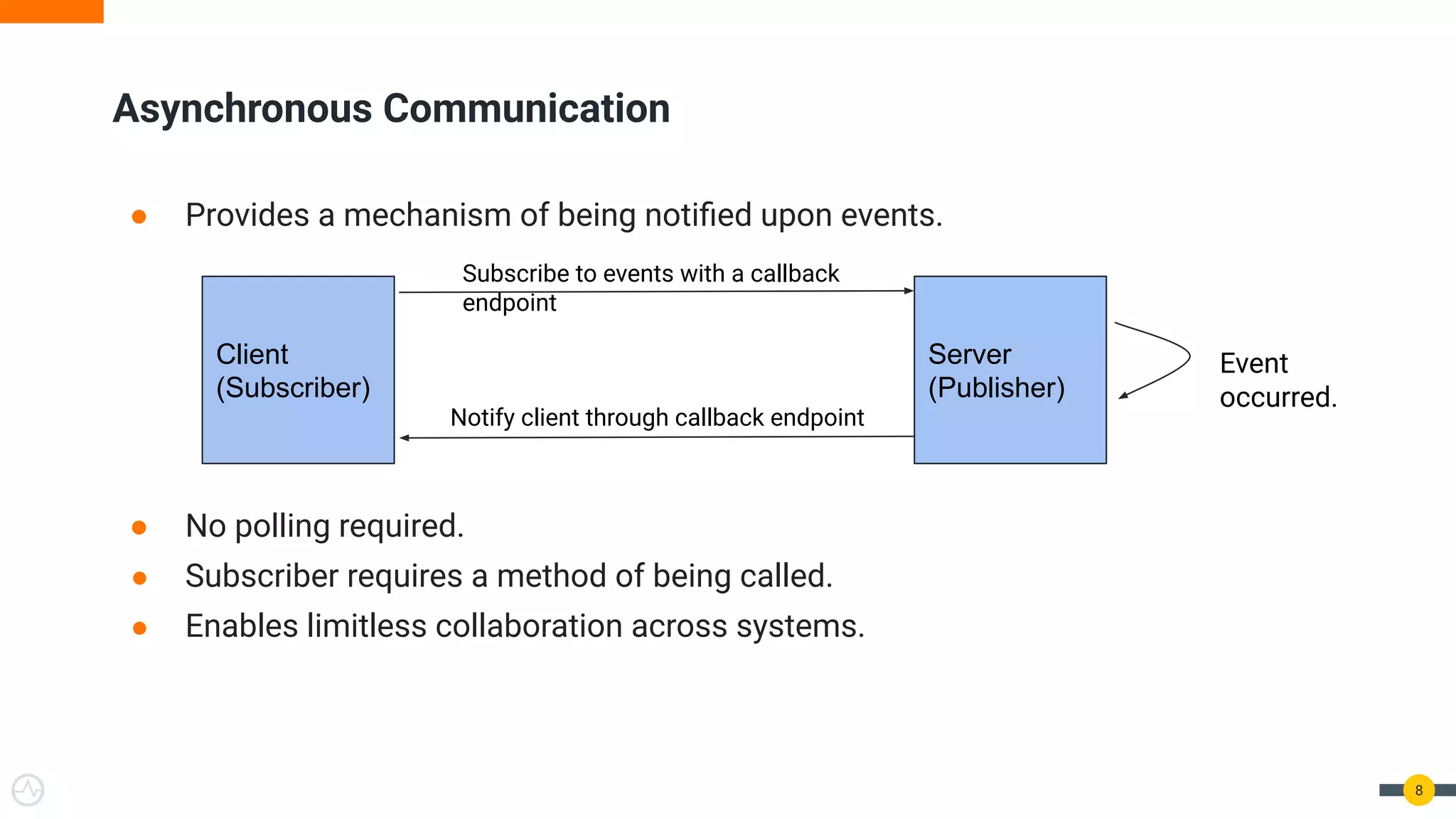

8. ● Provides a mechanism of being notified upon events.
● No polling required.
● Subscriber requires a method of being called.
● Enables limitless collaboration across systems.
8
Asynchronous Communication
Client
(Subscriber)
Server
(Publisher)
Subscribe to events with a callback
endpoint
Notify client through callback endpoint
Event
occurred.

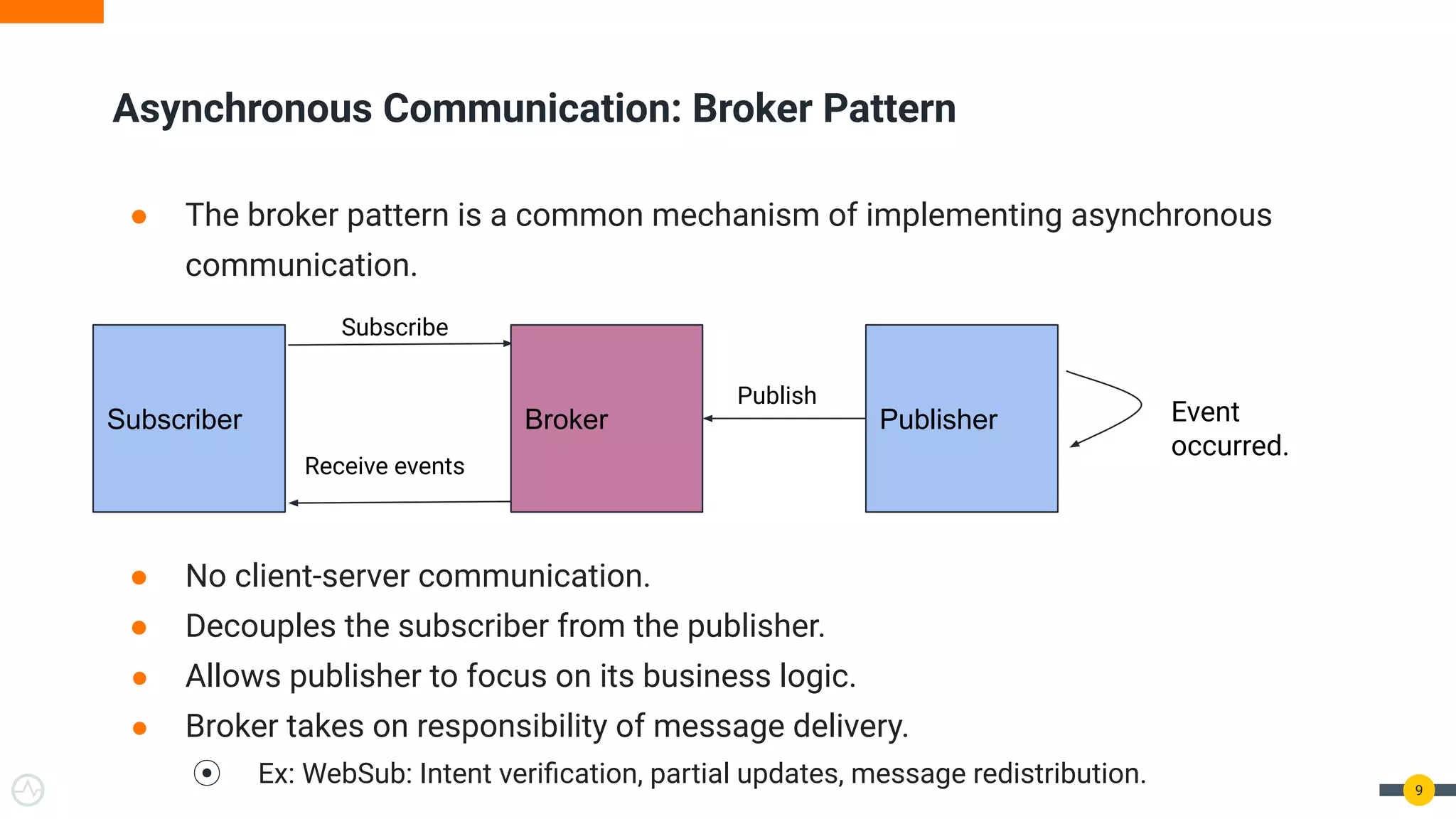

9. ● The broker pattern is a common mechanism of implementing asynchronous
communication.
● No client-server communication.
● Decouples the subscriber from the publisher.
● Allows publisher to focus on its business logic.
● Broker takes on responsibility of message delivery.
⦿ Ex: WebSub: Intent verification, partial updates, message redistribution. 9
Asynchronous Communication: Broker Pattern
Subscriber Publisher
Subscribe
Receive events
Event
occurred.
Broker
Publish

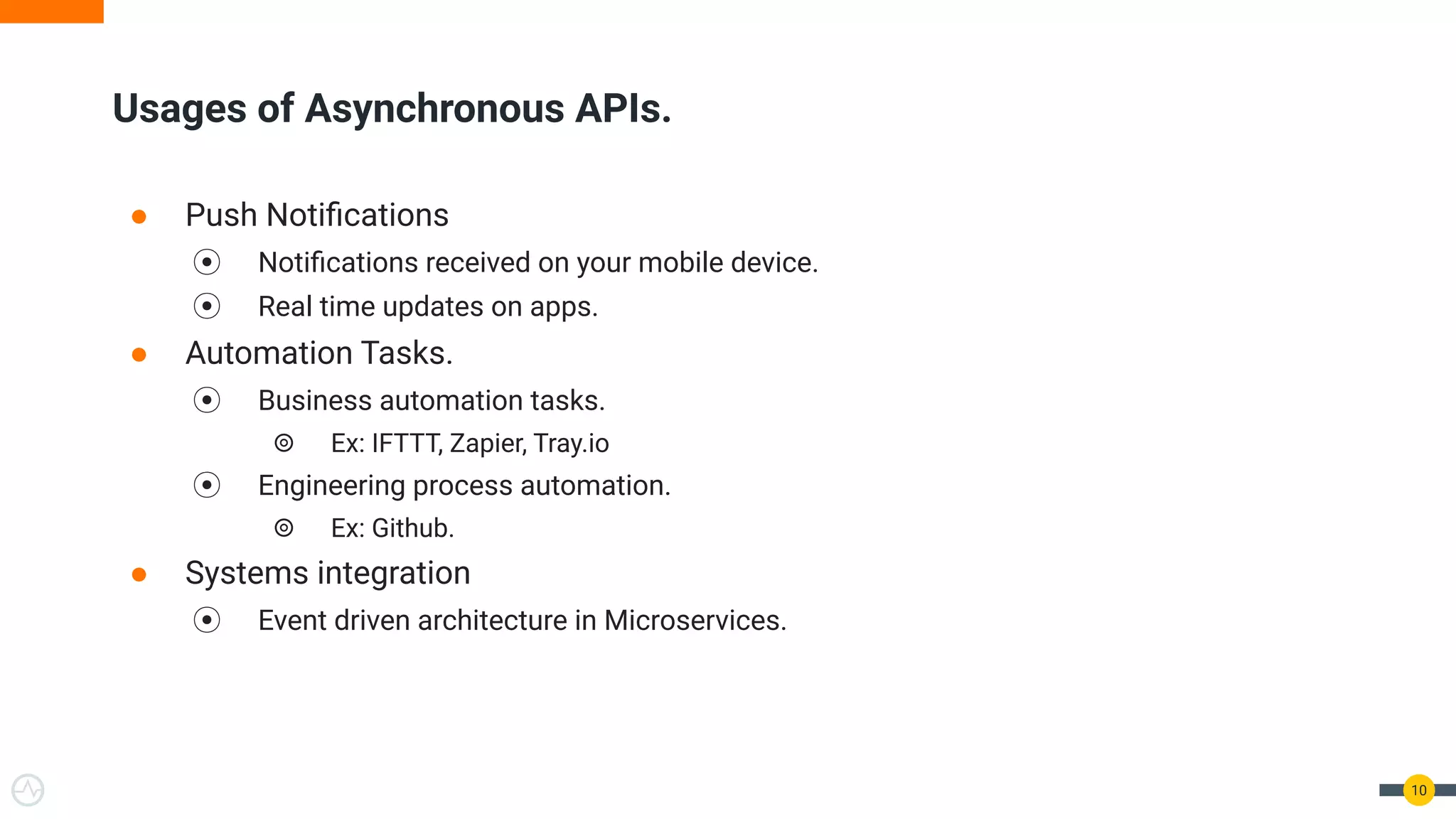

10. ● Push Notifications
⦿ Notifications received on your mobile device.
⦿ Real time updates on apps.
● Automation Tasks.
⦿ Business automation tasks.
⦾ Ex: IFTTT, Zapier, Tray.io
⦿ Engineering process automation.
⦾ Ex: Github.
● Systems integration
⦿ Event driven architecture in Microservices.
10
Usages of Asynchronous APIs.

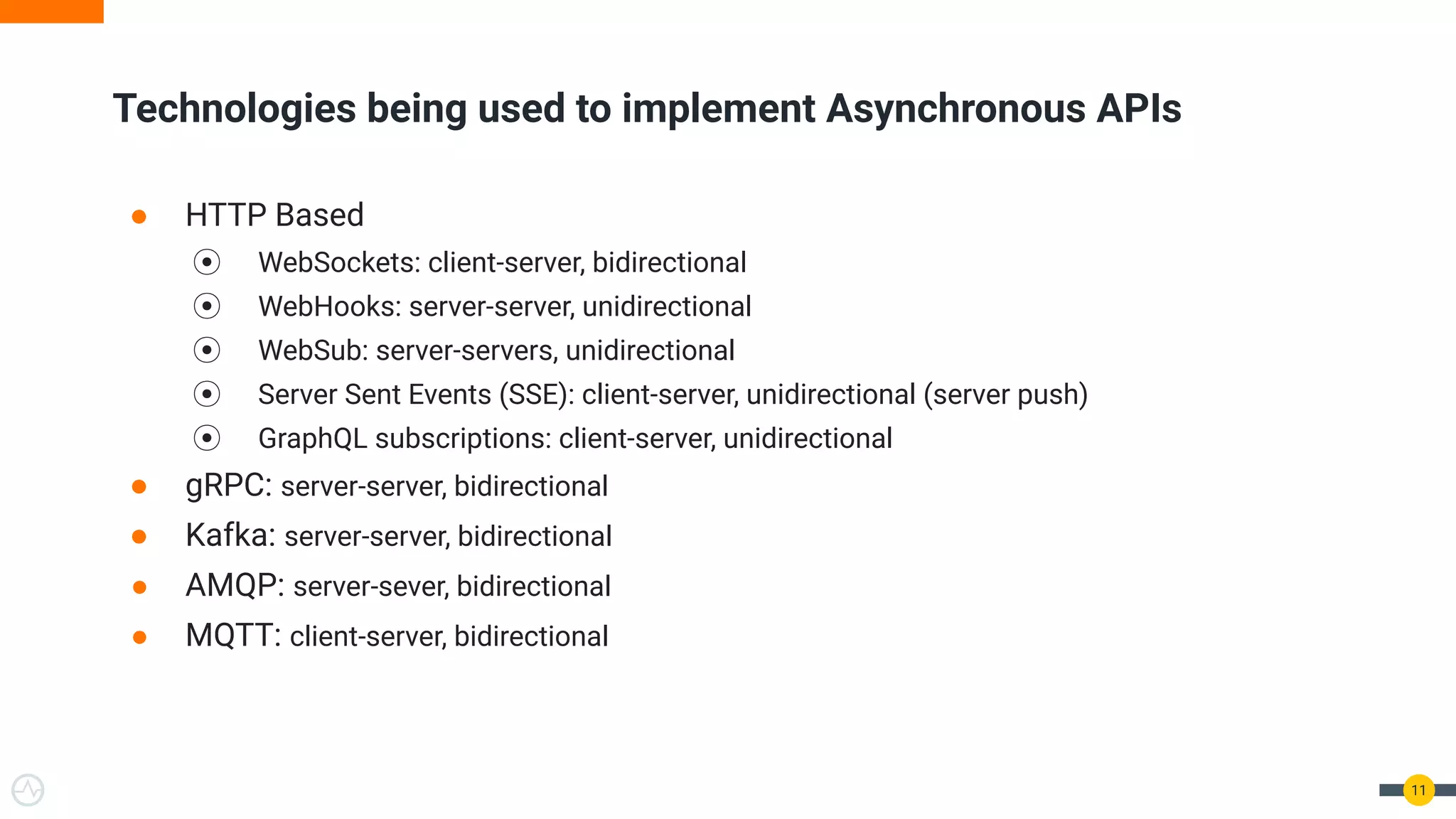

11. ● HTTP Based
⦿ WebSockets: client-server, bidirectional
⦿ WebHooks: server-server, unidirectional
⦿ WebSub: server-servers, unidirectional
⦿ Server Sent Events (SSE): client-server, unidirectional (server push)
⦿ GraphQL subscriptions: client-server, unidirectional
● gRPC: server-server, bidirectional
● Kafka: server-server, bidirectional
● AMQP: server-sever, bidirectional
● MQTT: client-server, bidirectional
11
Technologies being used to implement Asynchronous APIs

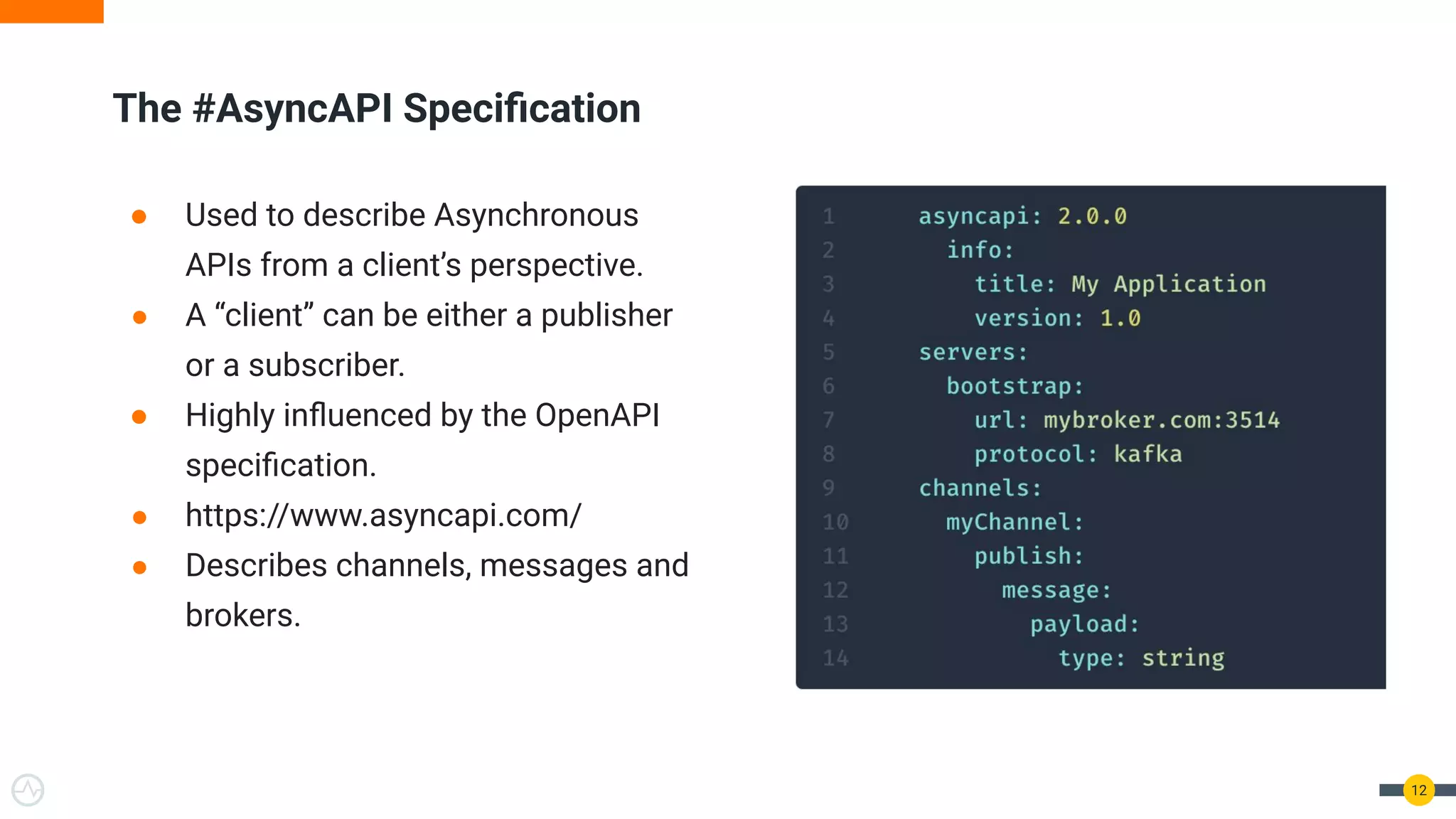

12. ● Used to describe Asynchronous
APIs from a client’s perspective.
● A “client” can be either a publisher
or a subscriber.
● Highly influenced by the OpenAPI
specification.
● https://www.asyncapi.com/
● Describes channels, messages and
brokers.
12
The #AsyncAPI Specification

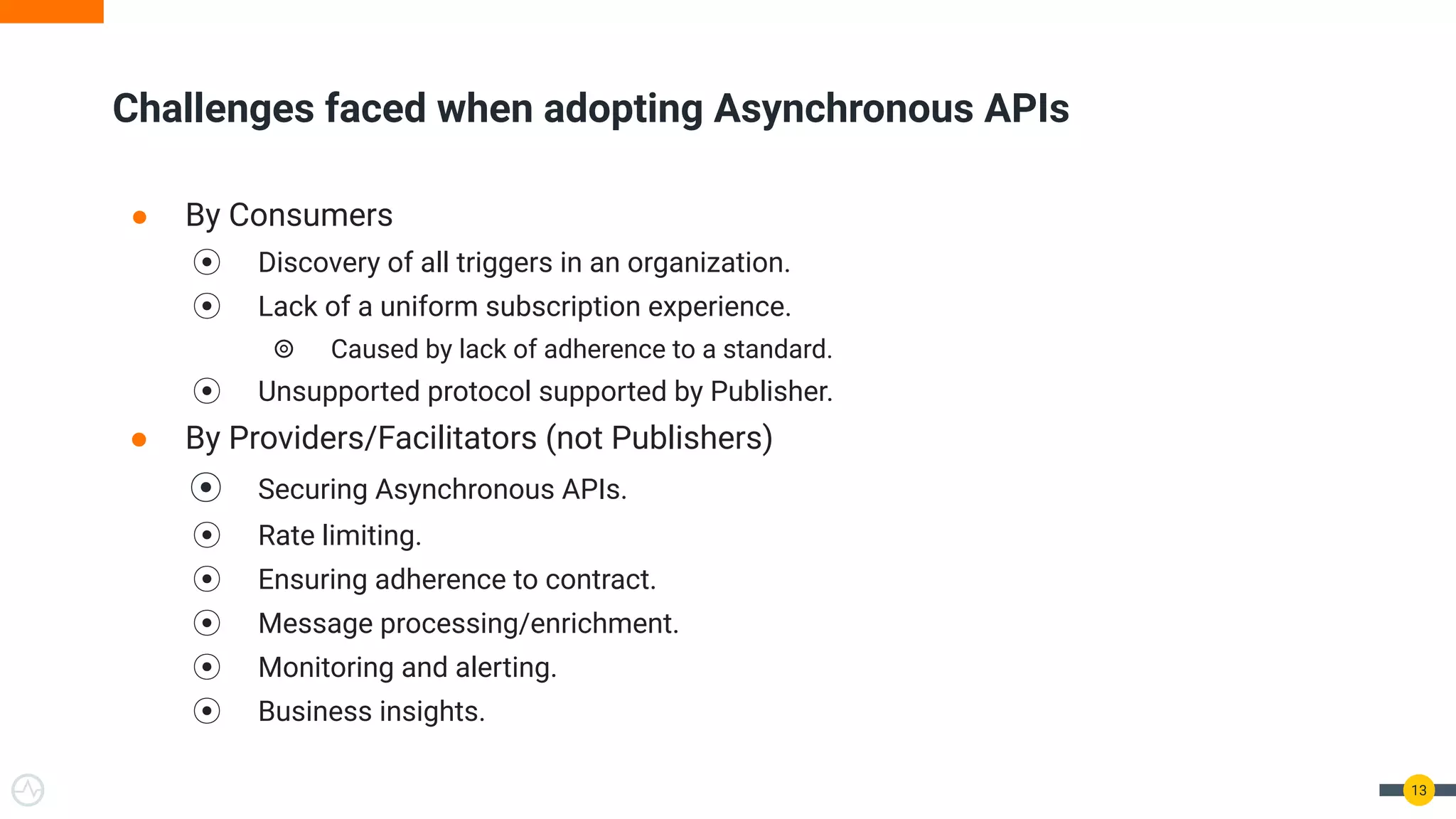

13. ● By Consumers
⦿ Discovery of all triggers in an organization.
⦿ Lack of a uniform subscription experience.
⦾ Caused by lack of adherence to a standard.
⦿ Unsupported protocol supported by Publisher.
● By Providers/Facilitators (not Publishers)
⦿ Securing Asynchronous APIs.
⦿ Rate limiting.
⦿ Ensuring adherence to contract.
⦿ Message processing/enrichment.
⦿ Monitoring and alerting.
⦿ Business insights.
13
Challenges faced when adopting Asynchronous APIs

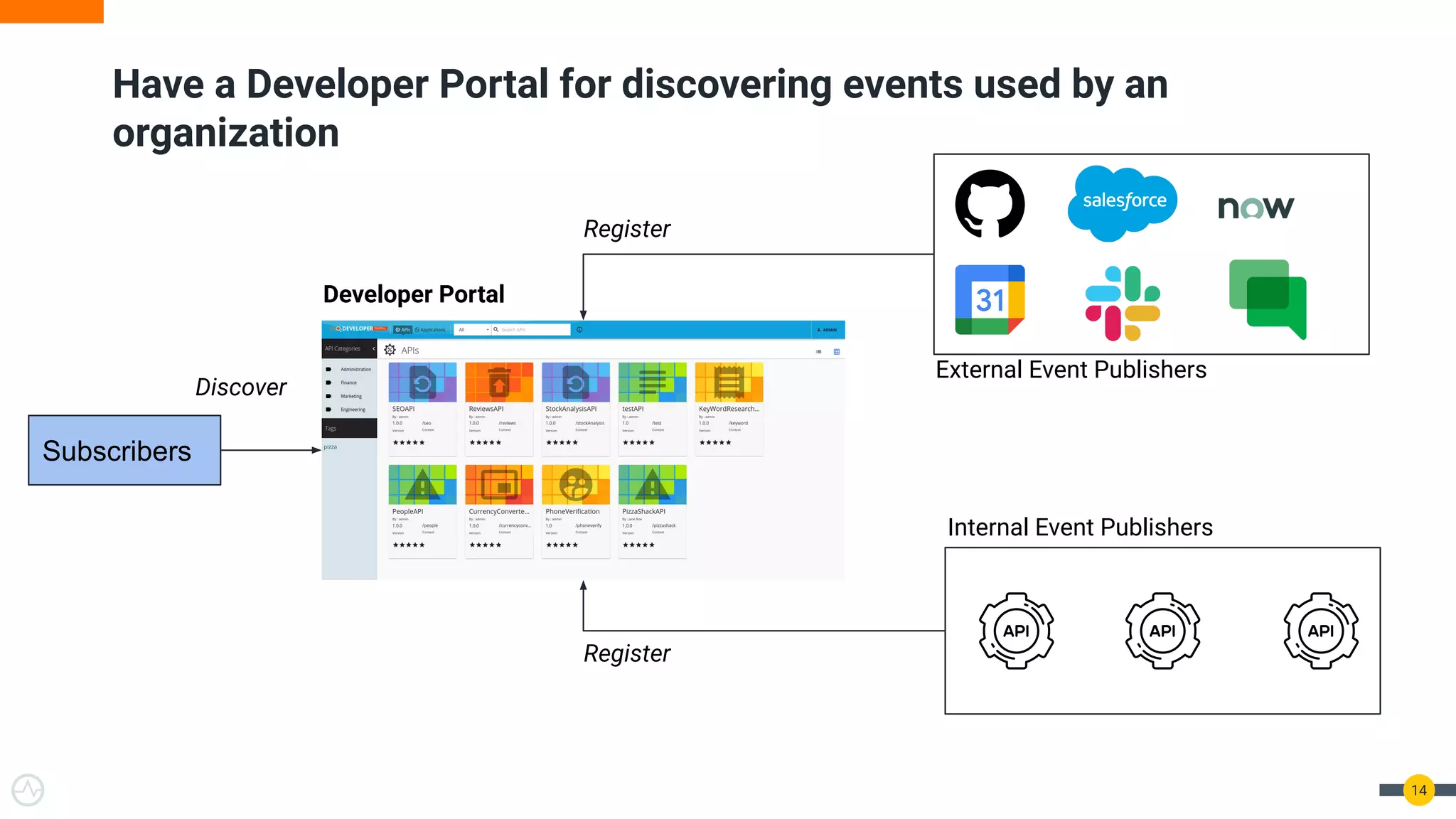

14. 14
Have a Developer Portal for discovering events used by an
organization
Subscribers
External Event Publishers
Internal Event Publishers
Register
Register
Developer Portal
Discover

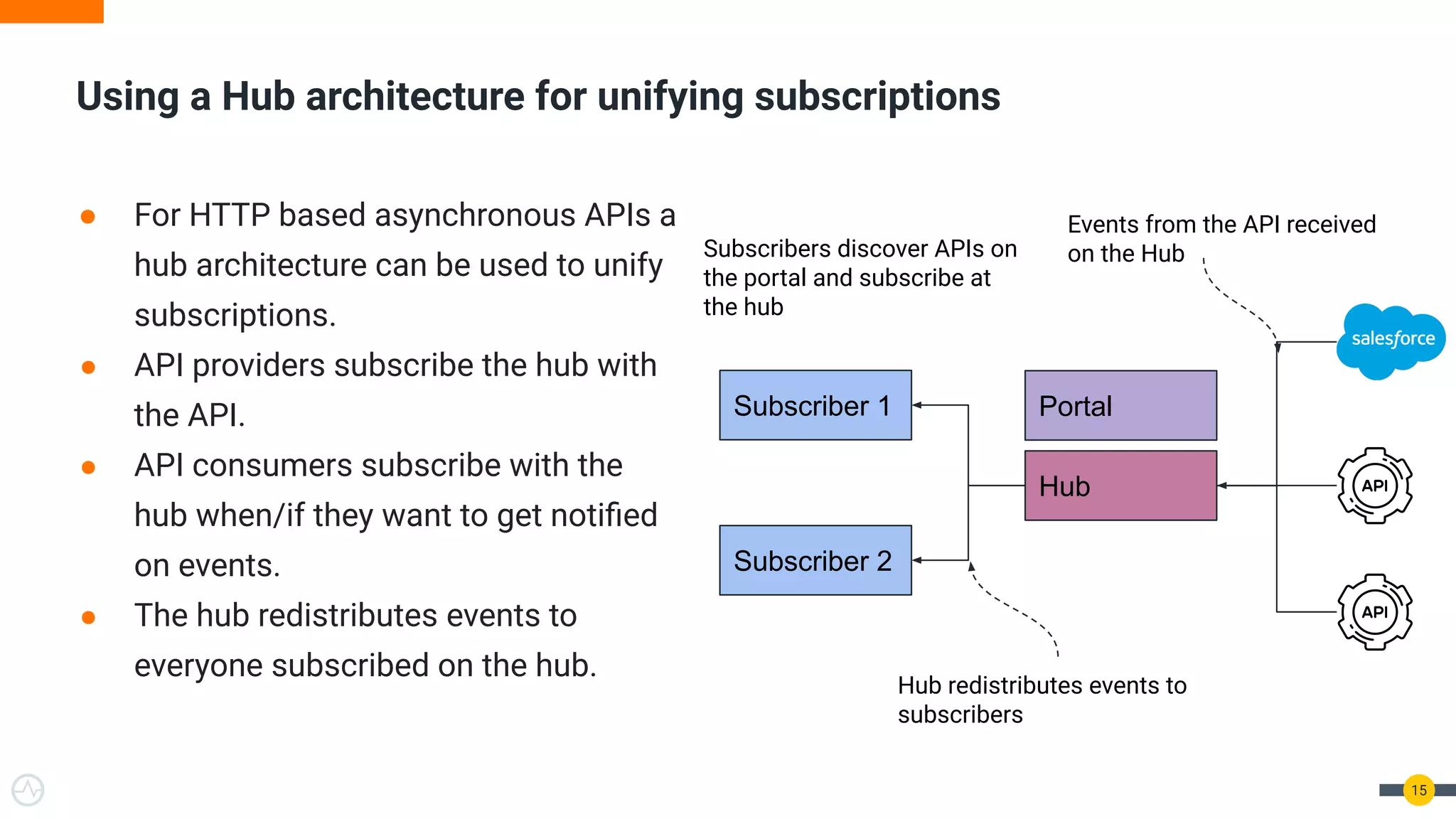

15. ● For HTTP based asynchronous APIs a
hub architecture can be used to unify
subscriptions.
● API providers subscribe the hub with
the API.
● API consumers subscribe with the
hub when/if they want to get notified
on events.
● The hub redistributes events to
everyone subscribed on the hub.
15
Using a Hub architecture for unifying subscriptions
Subscriber 1
Subscriber 2
Portal
Hub
Events from the API received
on the Hub
Hub redistributes events to
subscribers
Subscribers discover APIs on
the portal and subscribe at
the hub

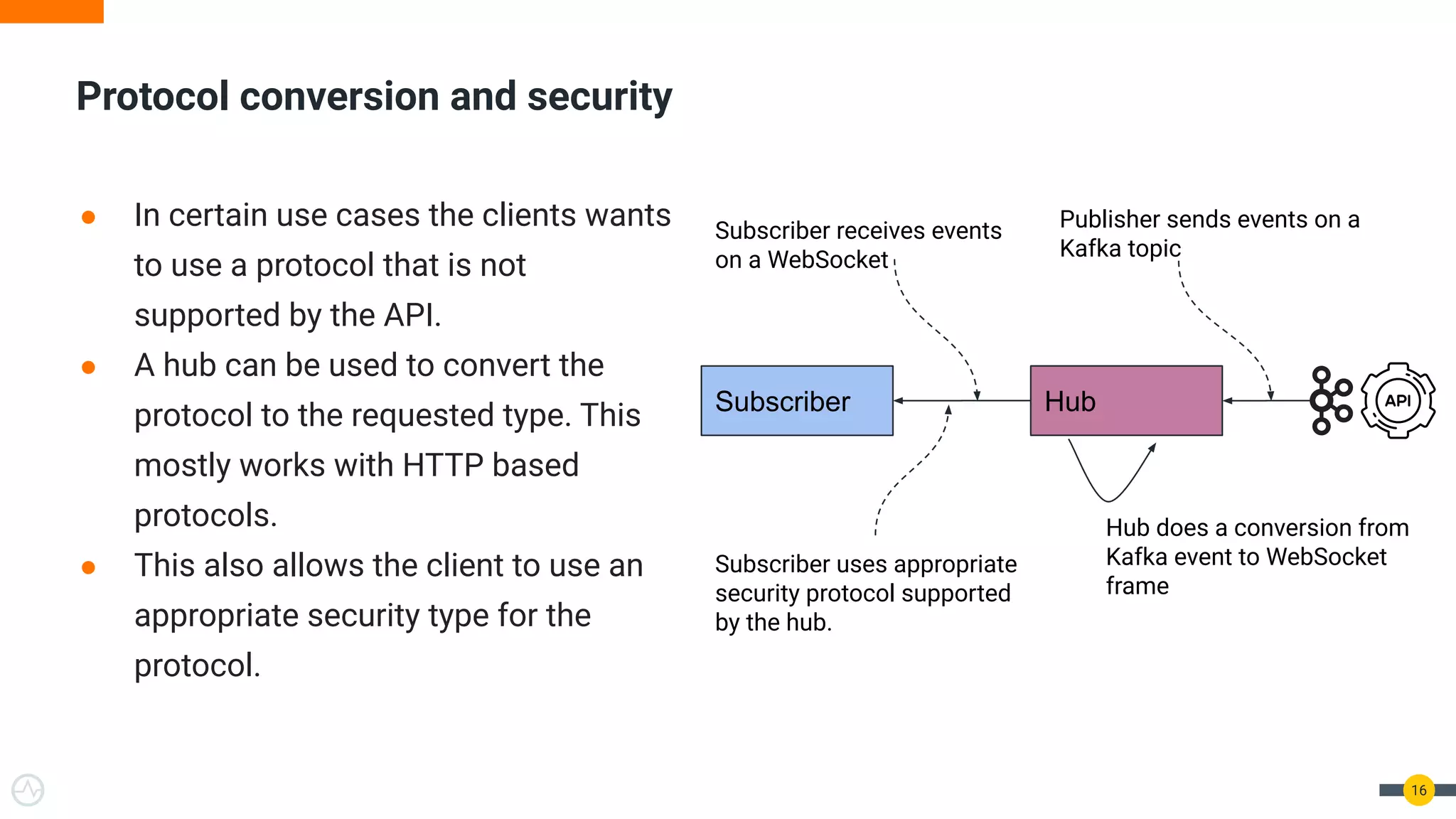

16. ● In certain use cases the clients wants
to use a protocol that is not
supported by the API.
● A hub can be used to convert the
protocol to the requested type. This
mostly works with HTTP based
protocols.
● This also allows the client to use an
appropriate security type for the
protocol.
16
Protocol conversion and security
Subscriber Hub
Publisher sends events on a
Kafka topic
Subscriber uses appropriate
security protocol supported
by the hub.
Subscriber receives events
on a WebSocket
Hub does a conversion from
Kafka event to WebSocket
frame

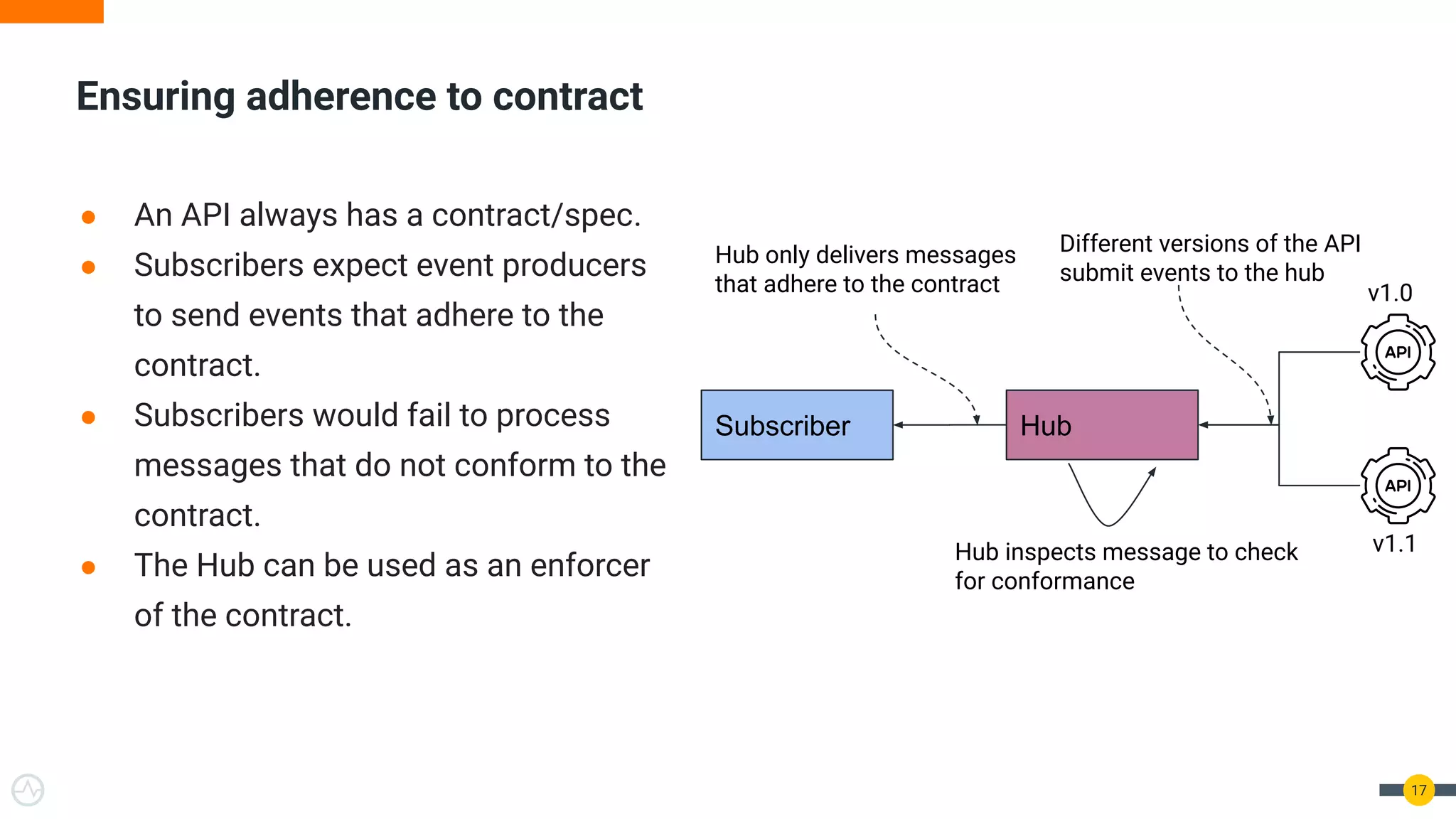

17. ● An API always has a contract/spec.
● Subscribers expect event producers
to send events that adhere to the
contract.
● Subscribers would fail to process
messages that do not conform to the
contract.
● The Hub can be used as an enforcer
of the contract.
17
Ensuring adherence to contract
Subscriber Hub
Different versions of the API
submit events to the hub
Hub only delivers messages
that adhere to the contract
Hub inspects message to check
for conformance
v1.0
v1.1

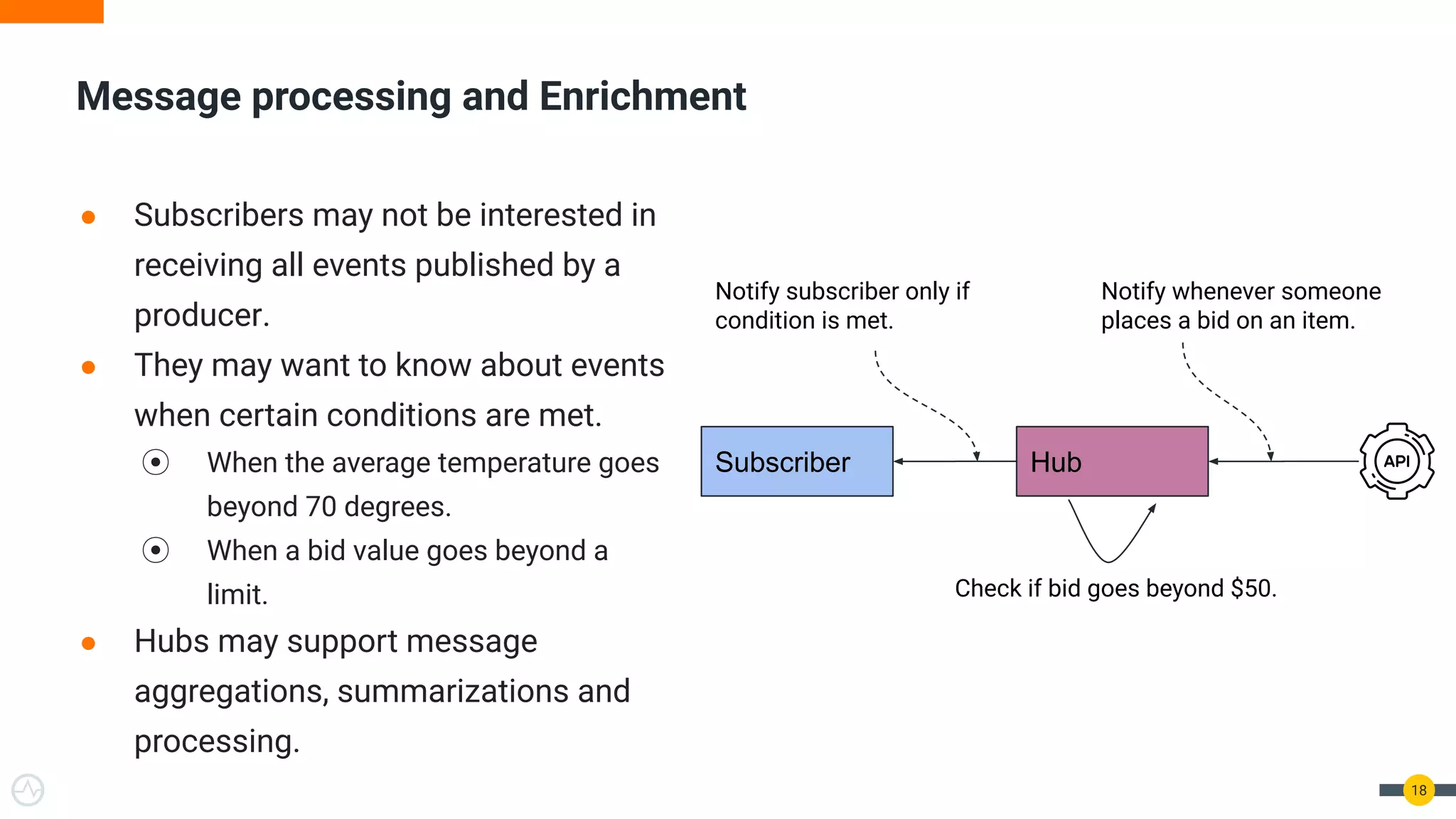

18. ● Subscribers may not be interested in
receiving all events published by a
producer.
● They may want to know about events
when certain conditions are met.
⦿ When the average temperature goes
beyond 70 degrees.
⦿ When a bid value goes beyond a
limit.
● Hubs may support message
aggregations, summarizations and
processing.
18
Message processing and Enrichment
Subscriber Hub
Notify whenever someone
places a bid on an item.
Notify subscriber only if
condition is met.
Check if bid goes beyond $50.

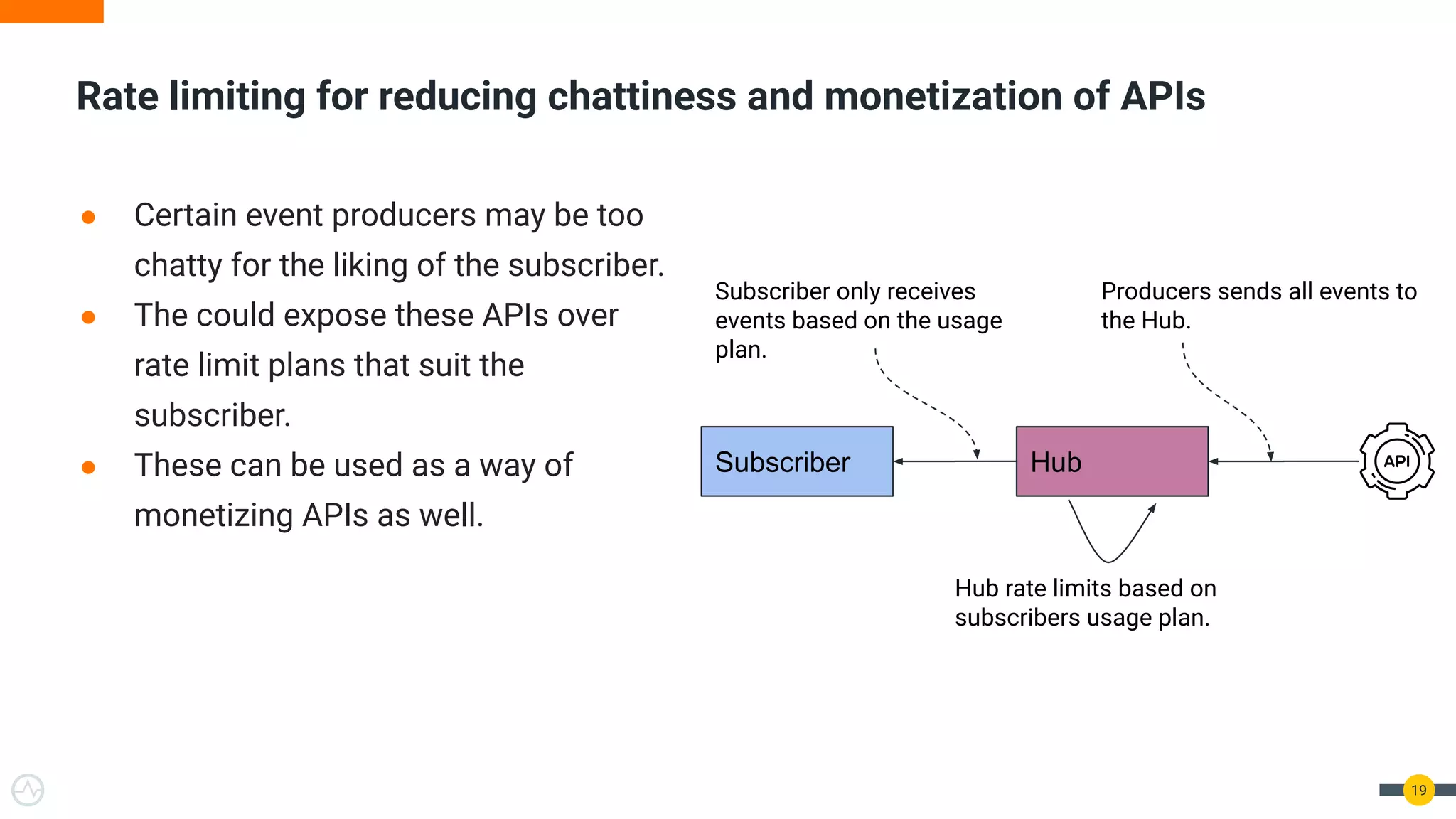

19. ● Certain event producers may be too
chatty for the liking of the subscriber.
● The could expose these APIs over
rate limit plans that suit the
subscriber.
● These can be used as a way of
monetizing APIs as well.
19
Rate limiting for reducing chattiness and monetization of APIs
Subscriber Hub
Producers sends all events to
the Hub.
Subscriber only receives
events based on the usage
plan.
Hub rate limits based on
subscribers usage plan.

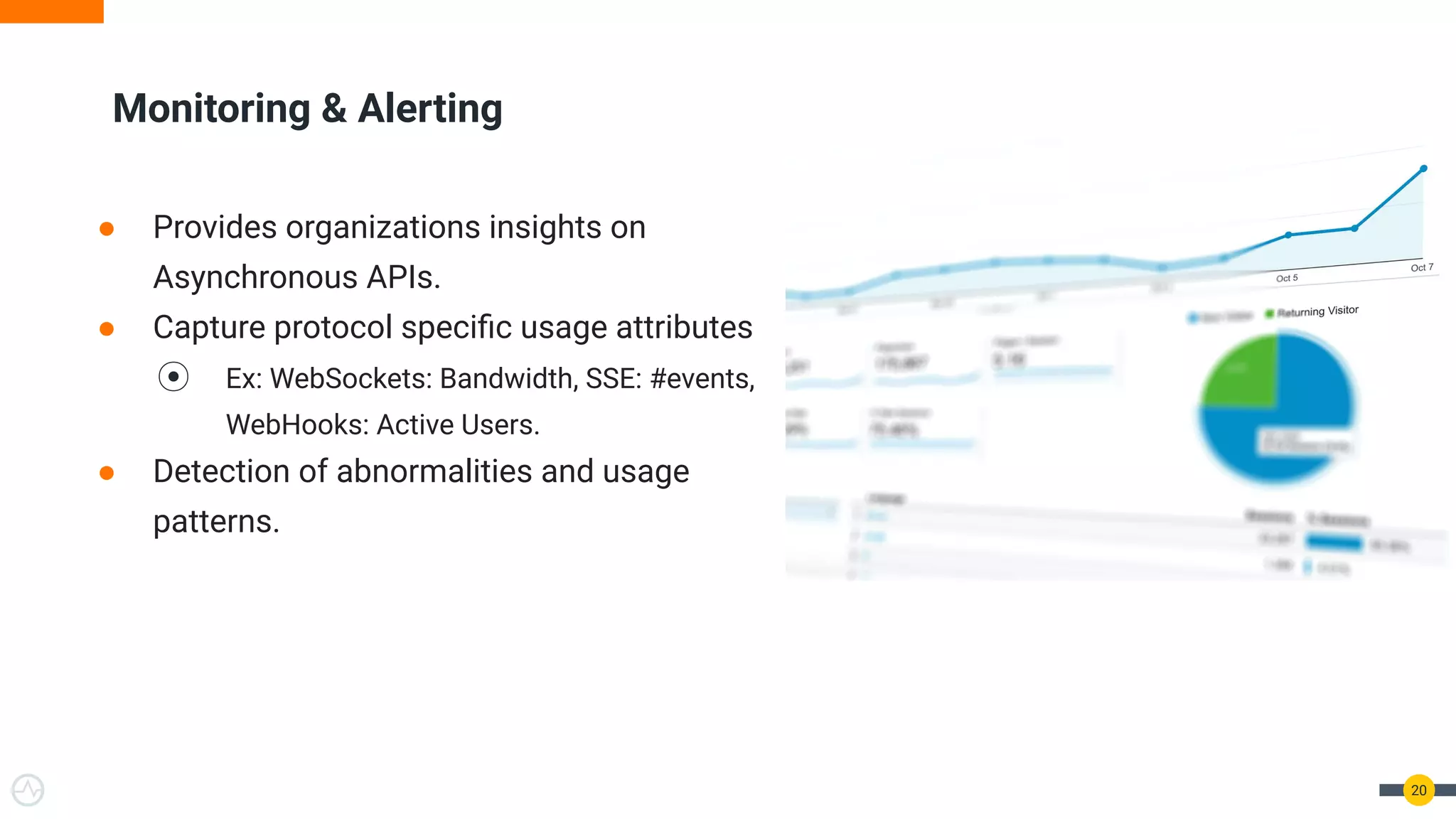

20. ● Provides organizations insights on
Asynchronous APIs.
● Capture protocol specific usage attributes
⦿ Ex: WebSockets: Bandwidth, SSE: #events,
WebHooks: Active Users.
● Detection of abnormalities and usage
patterns.
20
Monitoring & Alerting

21. wso2.com
Thanks!
Contact: @nuwandias
