Let’s Talk about
Java Class File
Yongqiang Li

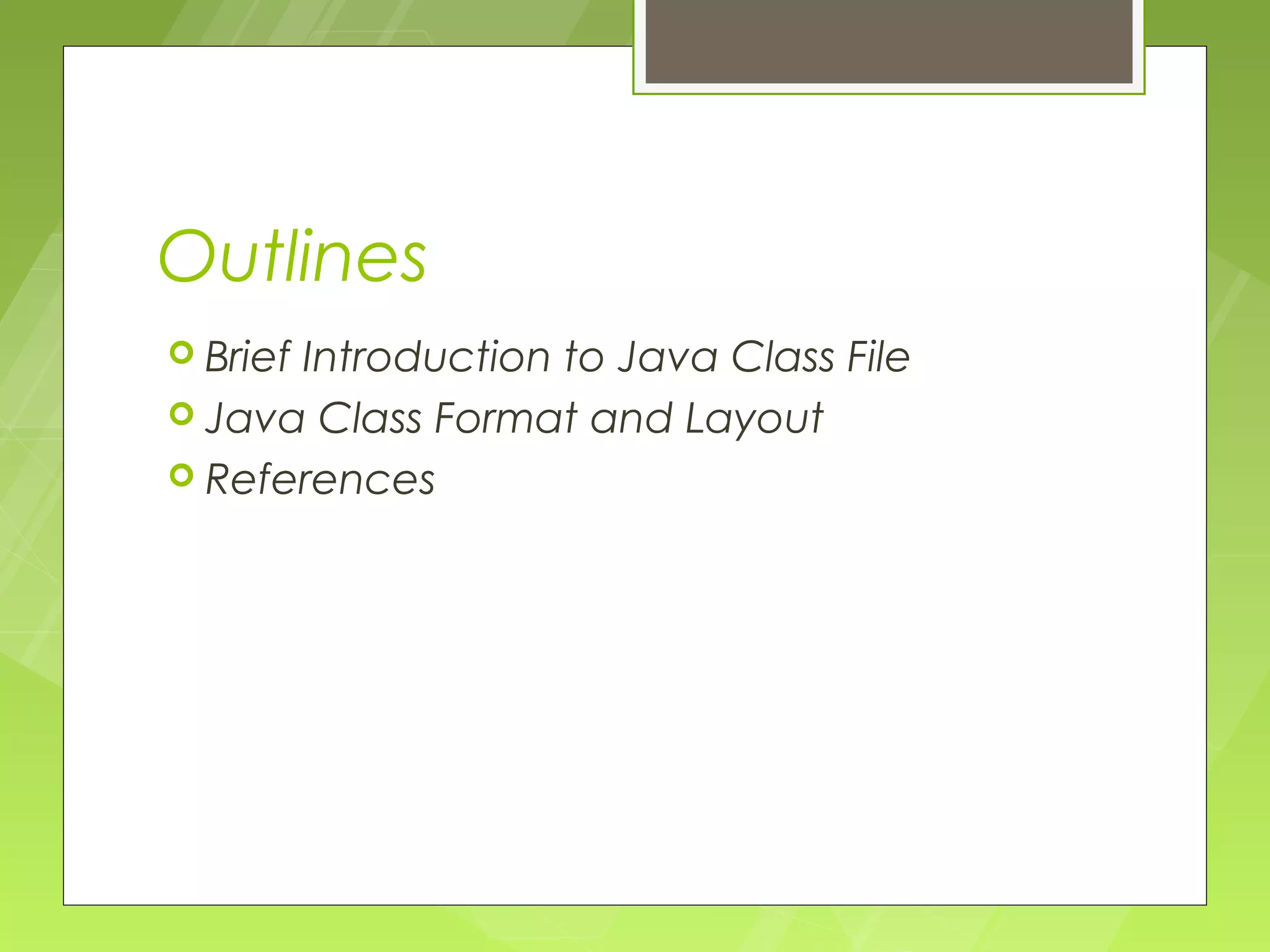

Outlines
 Brief
      Introduction to Java Class File
 Java Class Format and Layout
 References
Brief Introduction to Java Class
 File
 Has  .class extension
 Compiled from java source files (.java)
 Platform-independent
 Machine-readable
 Stores so-called “bytecodes”
Java Source File (ClassA.java)

                                      javac ClassA.java




     Java Class File (ClassA.class)
 Bytecode
 Only   “javac” can generate class file?

          JRuby                   Clojure




Jython             Java Class


          Groovy                   Scala
Java Class Format and Layout
   Class File contains different sections.
       Magic Number
       Version of Class File Format
       Constant Pool
       Access Flags
       This Class
       Super Class
       Interfaces
       Fields
       Methods
       Attributes
Magic Number
4 bytes
 Always “CAFEBABE” ( 咖啡宝贝 )
Version of Class File Format

  2  bytes for minor version
   2 bytes for major version
   Java major version starts from 45 (JDK 1.1)
   Java SE 5 is 49, SE 6 is 50 (0x32), SE 7 is 51.
Constant Pool
2  bytes used to store constant count
 Index of constant starts from 1 not 0.
Tag Byte   Constant Type           Additional Bytes
0x01       UTF8-String             2+x
0x03       Integer                 4 (Big endian)
0x04       Float                   4 (IEEE 754 floating-
                                   point)
0x05       Long                    8 (Big endian)

0x06       Double                  8 (IEEE 754 floating-
                                   point)
0x07       Class Reference         2
0x08       String Reference        2
0x09       Field Reference         2+2 (first 2 for class
                                   Ref)
0x0A       Method Reference        2+2 (first 2 for class
                                   Ref)
0x0B       Interface Method Ref.   2+2 (first 2 for class
                                   Ref)
0x0C       Name and Type Ref.      2+2
 Constant    Count




 0x0021(hex) = 33 (dec)
 Double




           • 0x06: Double Tag
           • 0x4000 1893 74bc 6a7f: 2.012
• 0x01: UTF-8 Tag
 UTF-8   • 0x0006: “String” has 6 char.
          • 0x5374 7269 6367: “String”
 More   Strings
    Field/Method
     Name
    Field/Method
     Type
    Attribute Name
 Class   Reference




                      • 0x07: Class Ref Tag
                      • 0x0002: Constant Index
Access Flags

 For Class
 2 Bytes
This and Super
  Both  are 2 bytes
  Direct to Class Reference in Constant
   Pool.




This Ref: 0x0001
Super Ref: 0x0003
Interfaces
2  bytes for count of interfaces
 2 * interfaces_count bytes
Fields
2  bytes for fields count
 field_info * fields_count
 Attribute   Structure
 Field   Access
     2 bytes
•   0x0001: Only 1 Field
•   0x0019: public static final
•   0x0005: “obj”
•   0x0006: Descriptor “Ljava/lang/Object;”
•   0x0002: 2 Attributes
     • 1st: 0x0007 (Deprecated)
     • 2nd: 0x0008 (RuntimeVisibleAnnotations)
Methods
2 bytes for methods count
 method_info * methods_count

                          Method Access Flags
 Method Attributes
 CodeAttributes
•   Max Stack: 2
•   Max Locals: 3
•   Args Size: 2
•   Code:
 JVM   Opcode
    Based on stack
     not register
    About 200
     opcode in JVM 6
 0: push the integer in
  slot 0 to stack
 1: push the integer in
  slot 1 to stack
 2: add first 2 integers in
  stack and result will be
  push into stack
 3: load the integer
  from stack top to
  integer in slot 2
 4: push the integer in
  slot 2 to stack
 5: return an integer
 Exception   Attributes
Who can help me on this?
 Magic Number
 Version of Class File Format
 Constant Pool
 Access Flags
 This Class
 Super Class
 Interfaces
 Fields
 Methods
 Attributes
References
 JVM
    6 Specification
 《深入浅出 Java 虚拟机》
