This document discusses the Java Native Interface (JNI) which allows Java code running in the Java Virtual Machine (JVM) to call and be called by native code such as C and C++. It provides an overview of JNI and walks through a sample implementation in 5 steps. It also discusses more details of JNI including JNI types, the JNIEnv interface, accessing fields and methods, and managing native memory.

1. Let’s talk
about JNI
Yongqiang Li

2. Agenda
 JNI Overview
 JNI Sample Step by Step
 More Details of JNI
 JVM Native Memory
 Reference

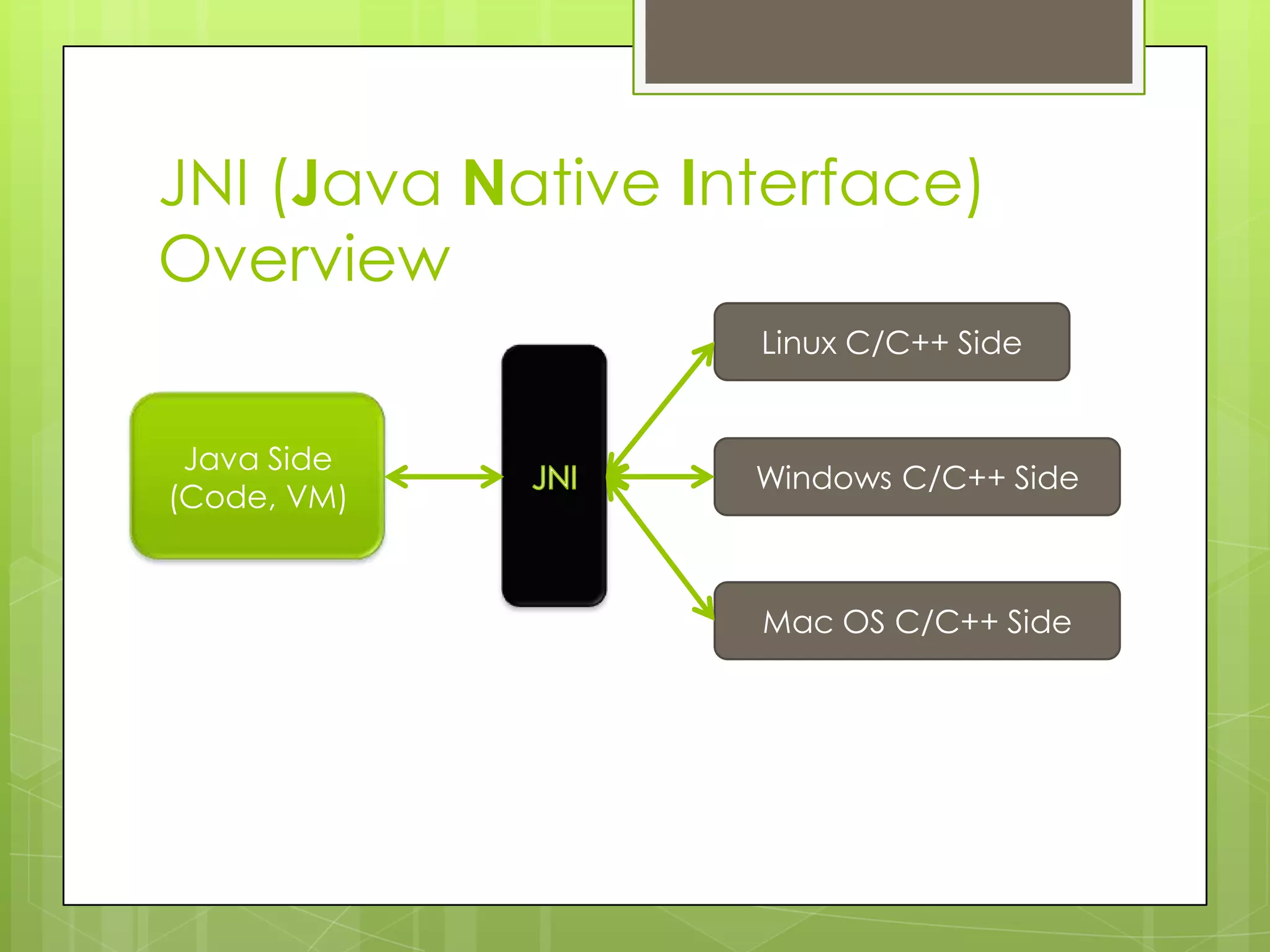

3. JNI (Java Native Interface)
Overview
Linux C/C++ Side
Java Side
Windows C/C++ Side
(Code, VM)
Mac OS C/C++ Side

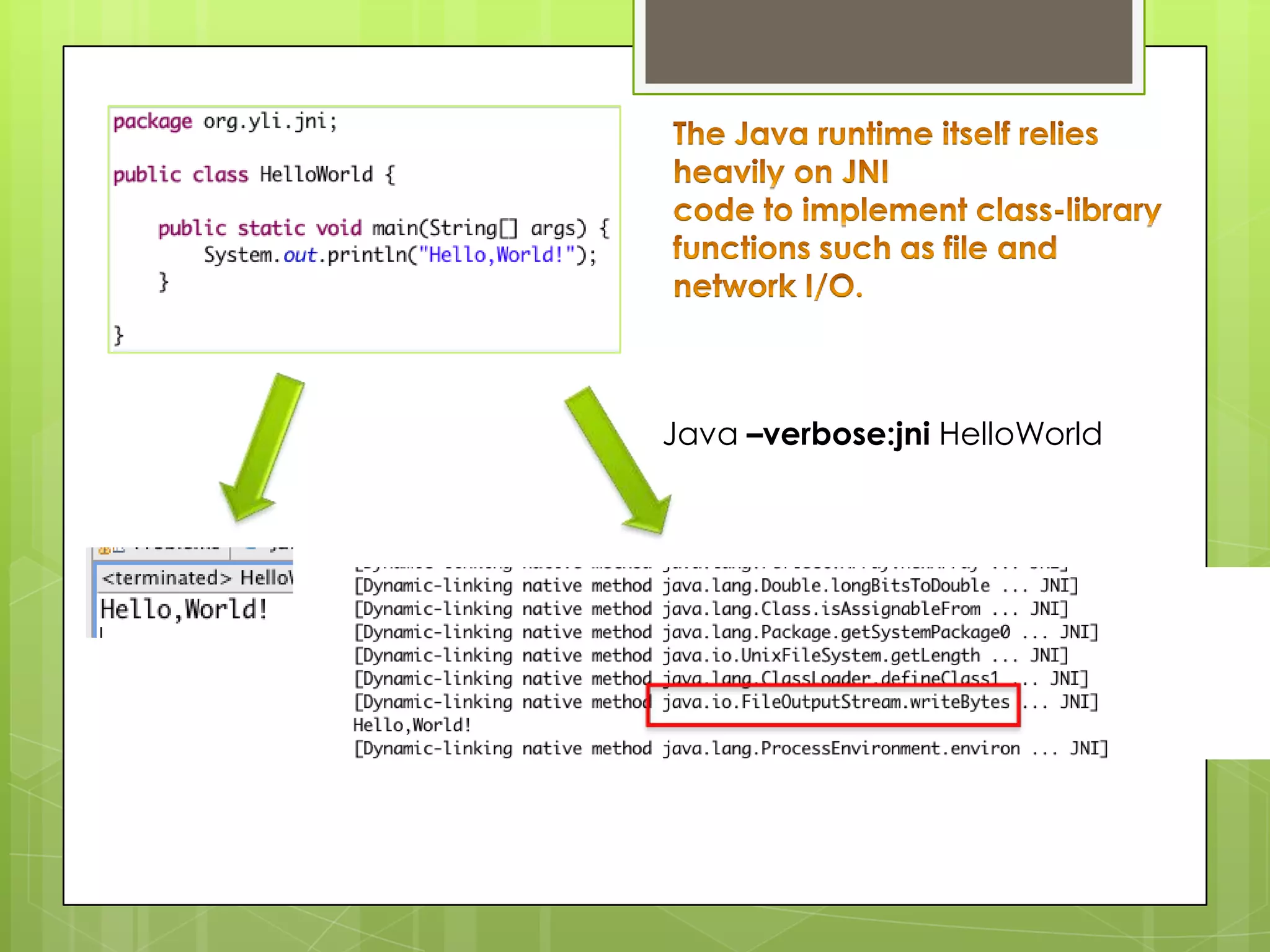

4. Java –verbose:jni HelloWorld

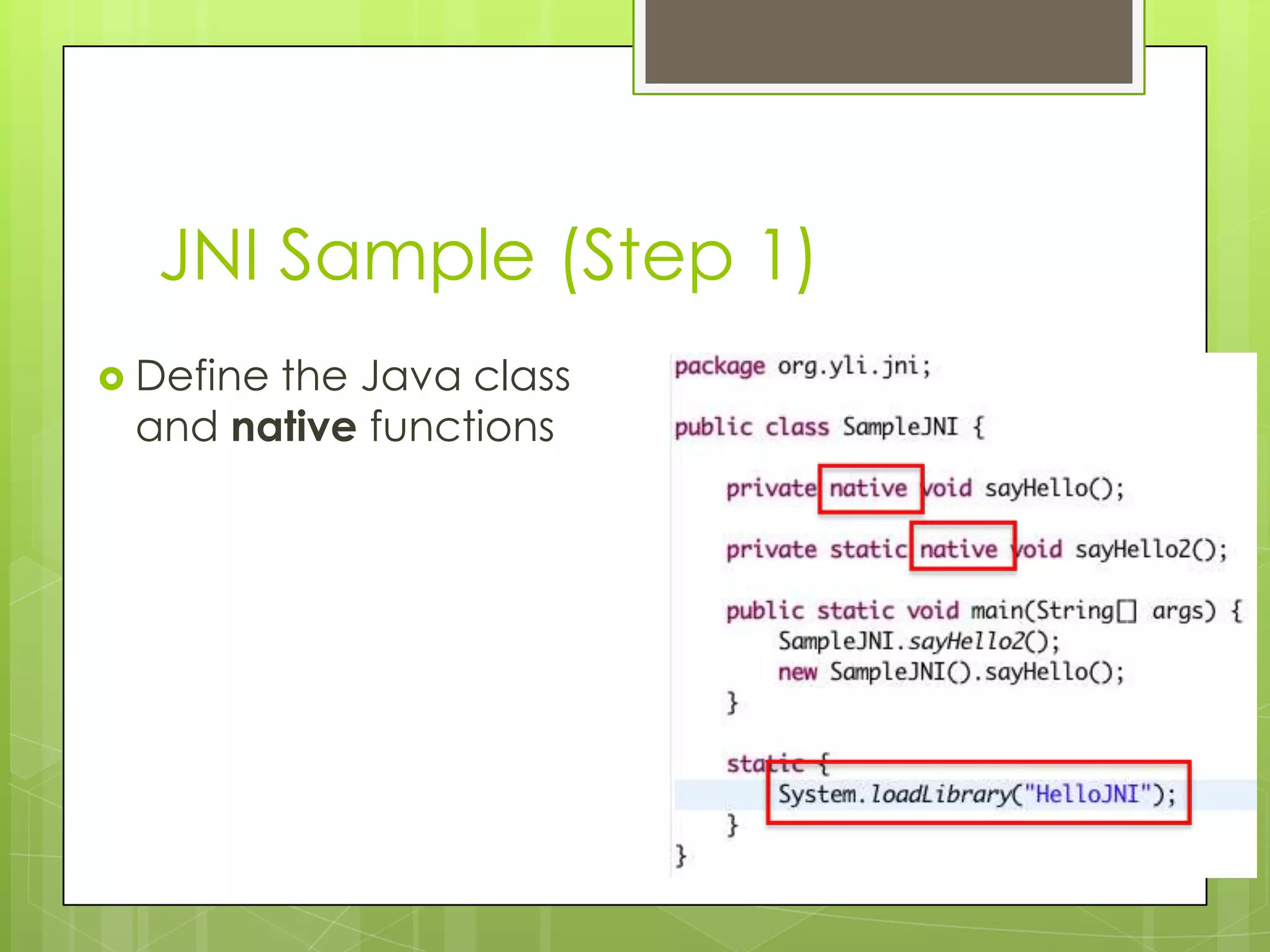

5. JNI Sample (Step 1)
 Define
the Java class
and native functions

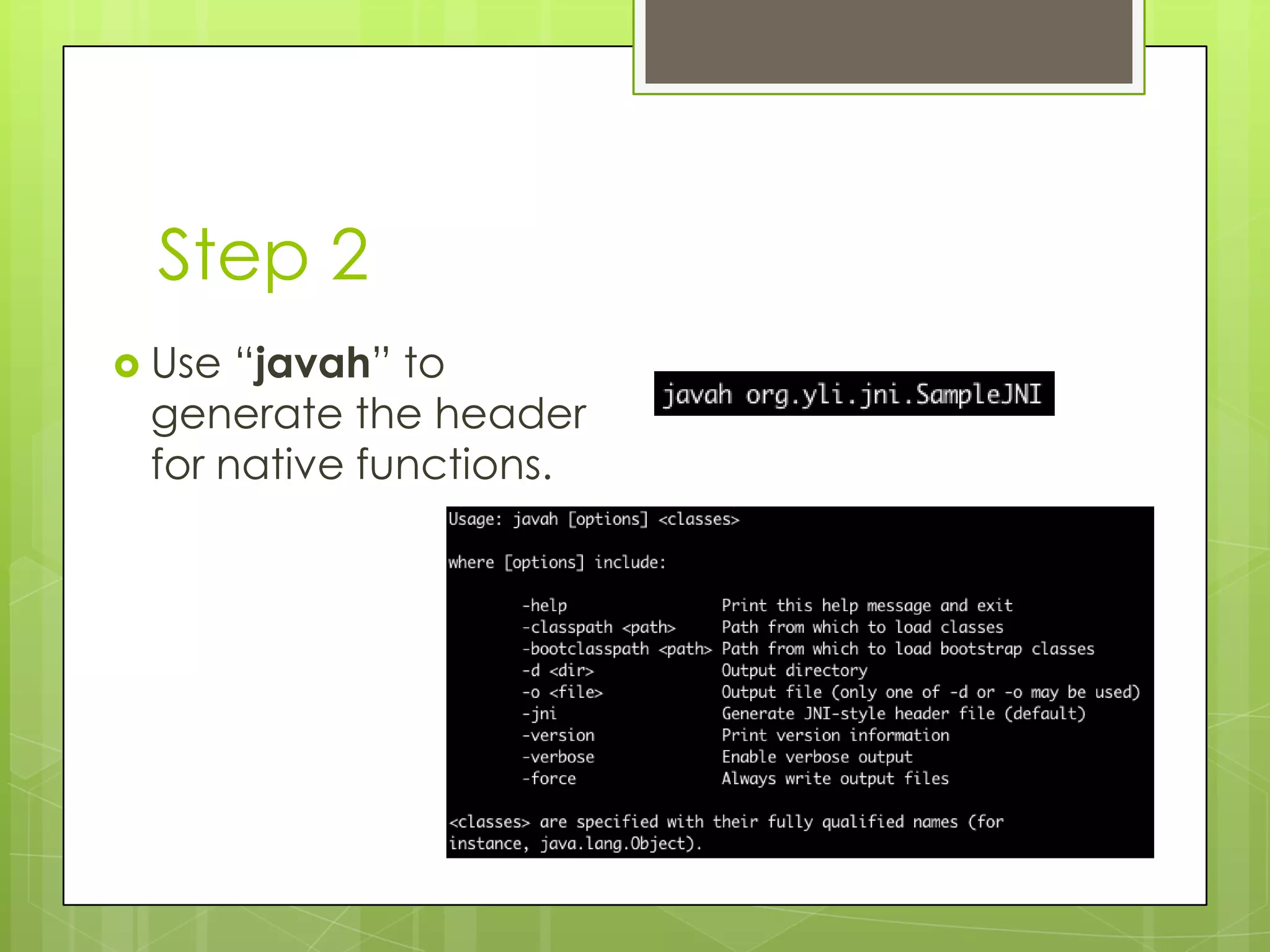

6. Step 2
 Use “javah” to
generate the header
for native functions.

7. Header File

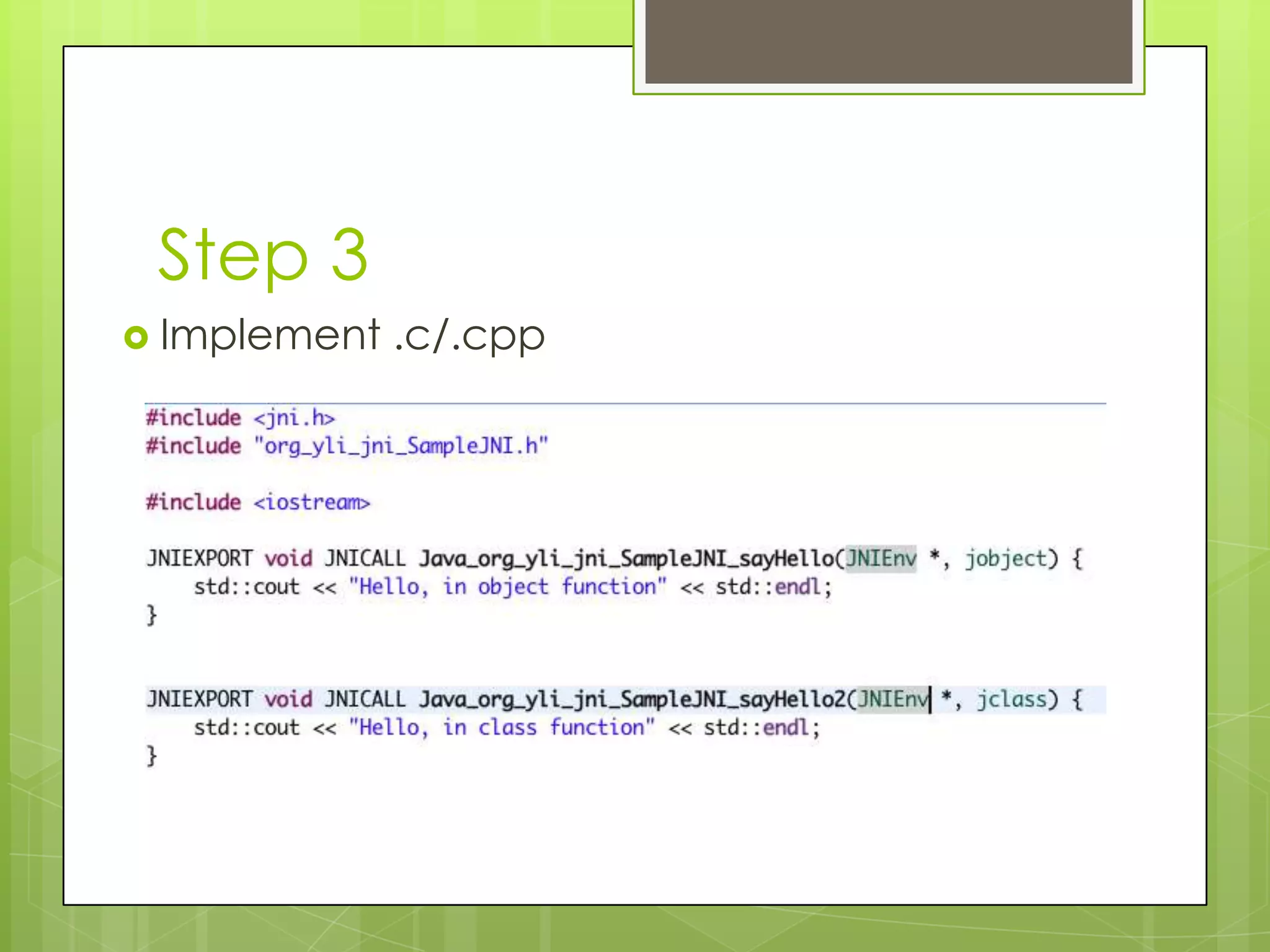

8. Step 3
 Implement .c/.cpp

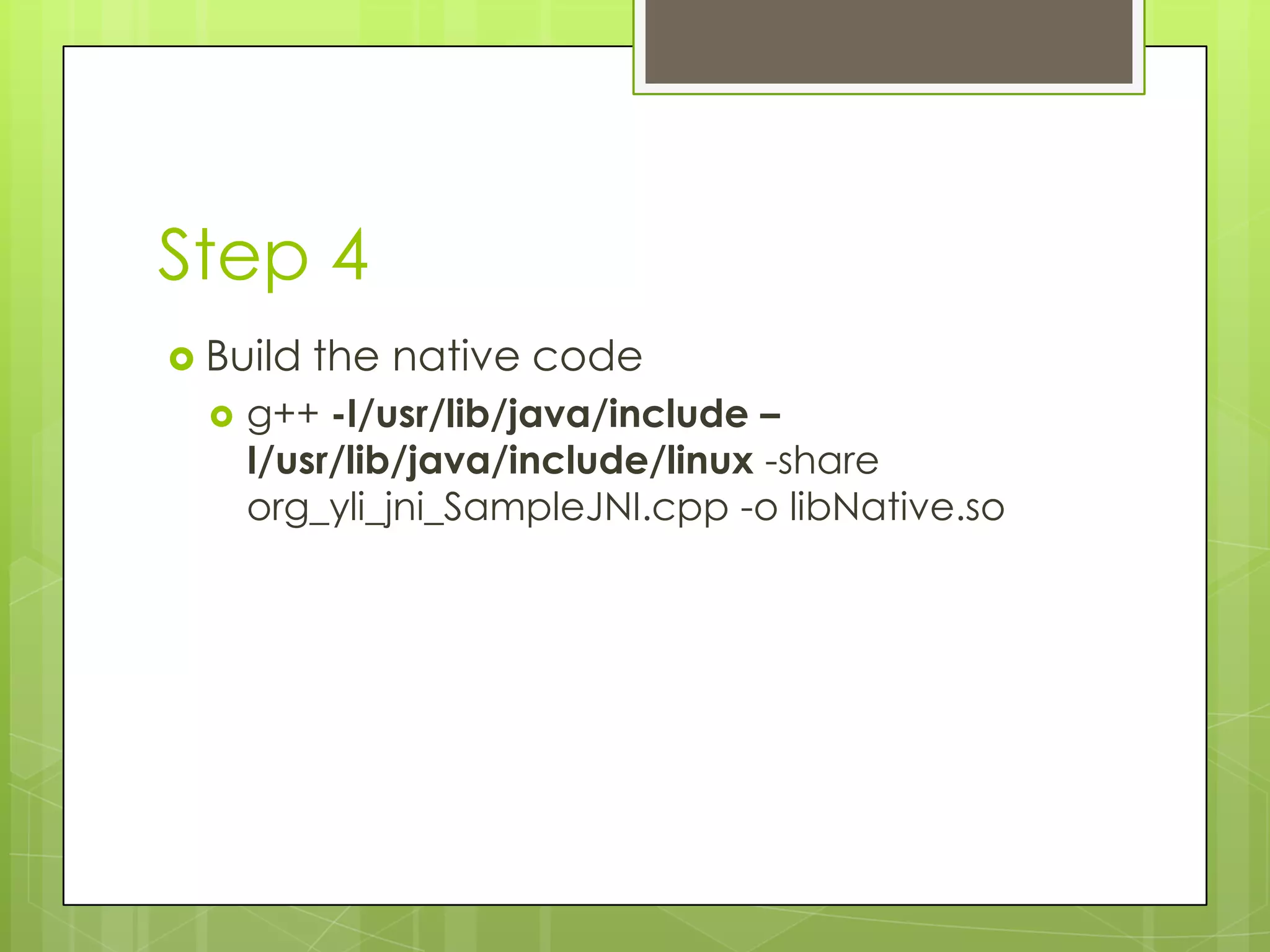

9. Step 4
 Build the native code
 g++ -I/usr/lib/java/include –
I/usr/lib/java/include/linux -share
org_yli_jni_SampleJNI.cpp -o libNative.so

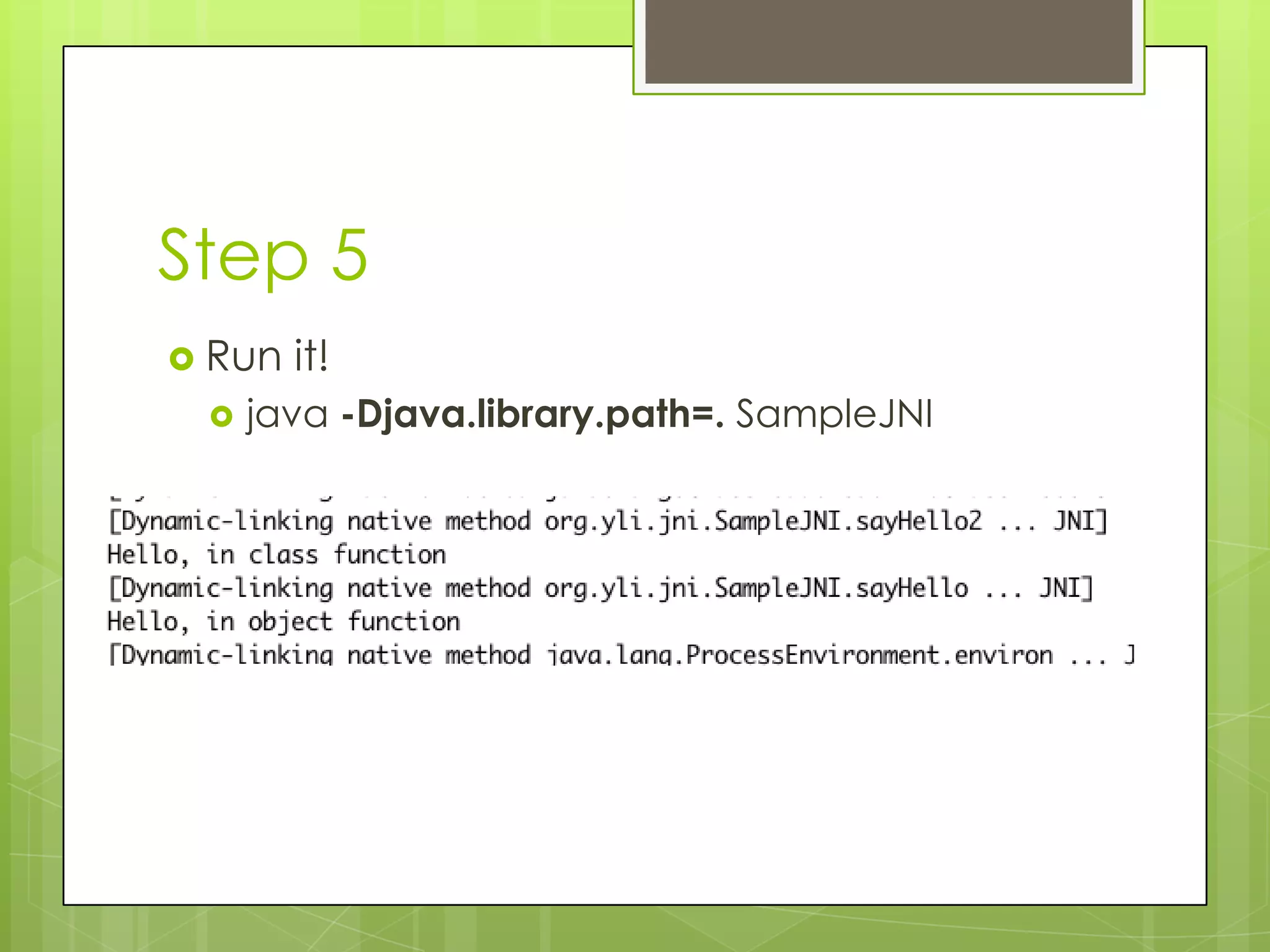

10. Step 5
 Run it!
 java -Djava.library.path=. SampleJNI

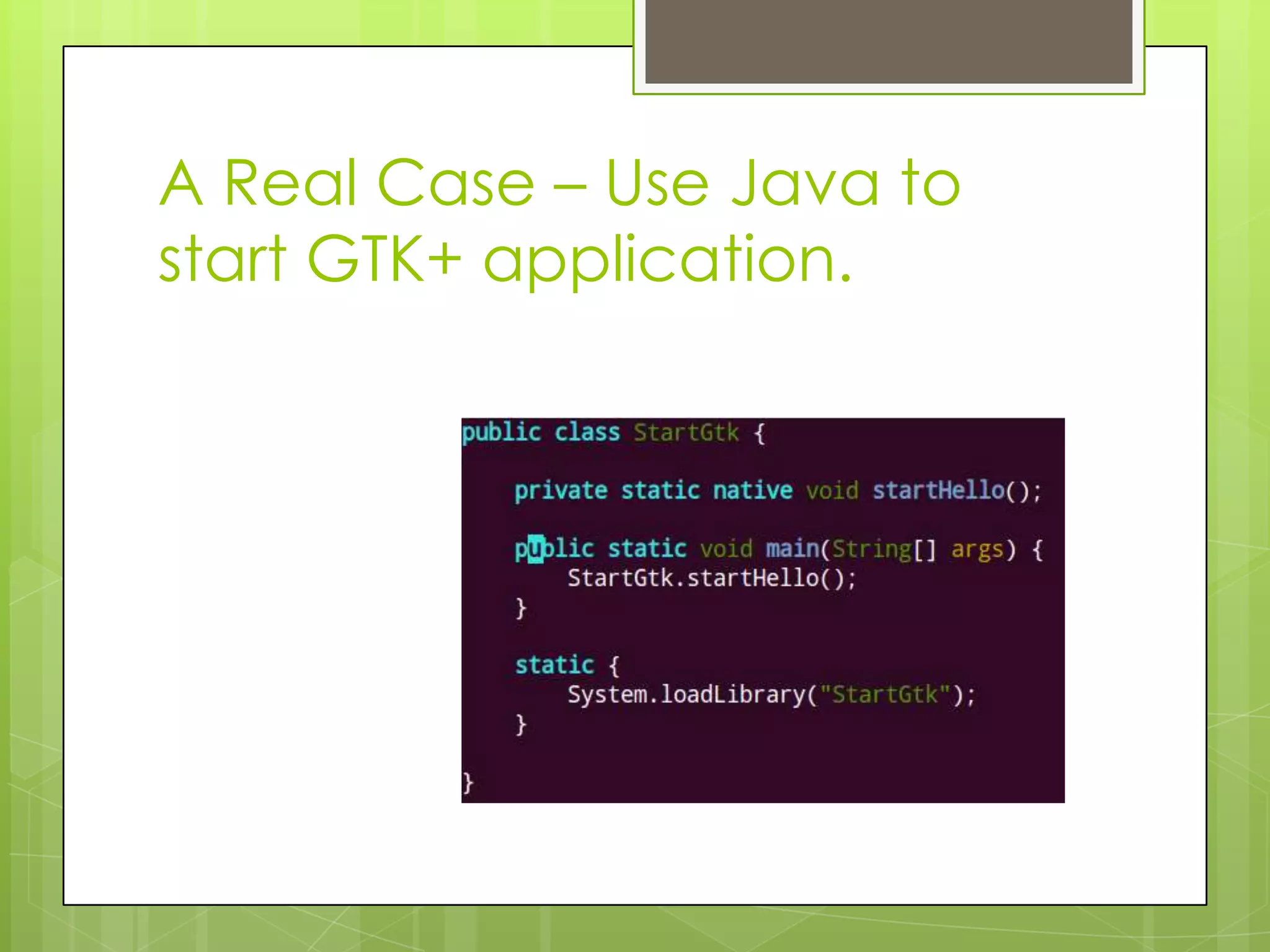

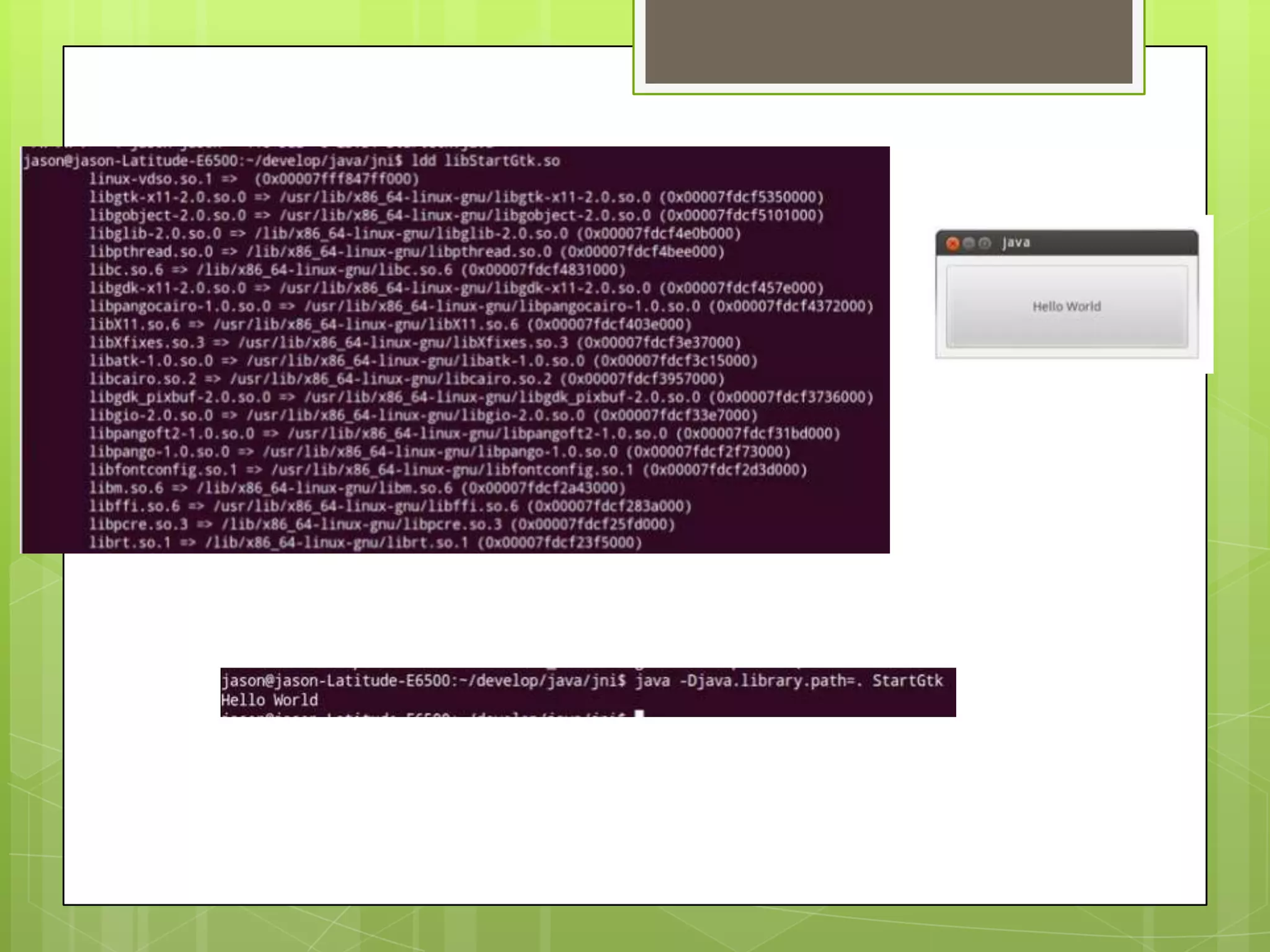

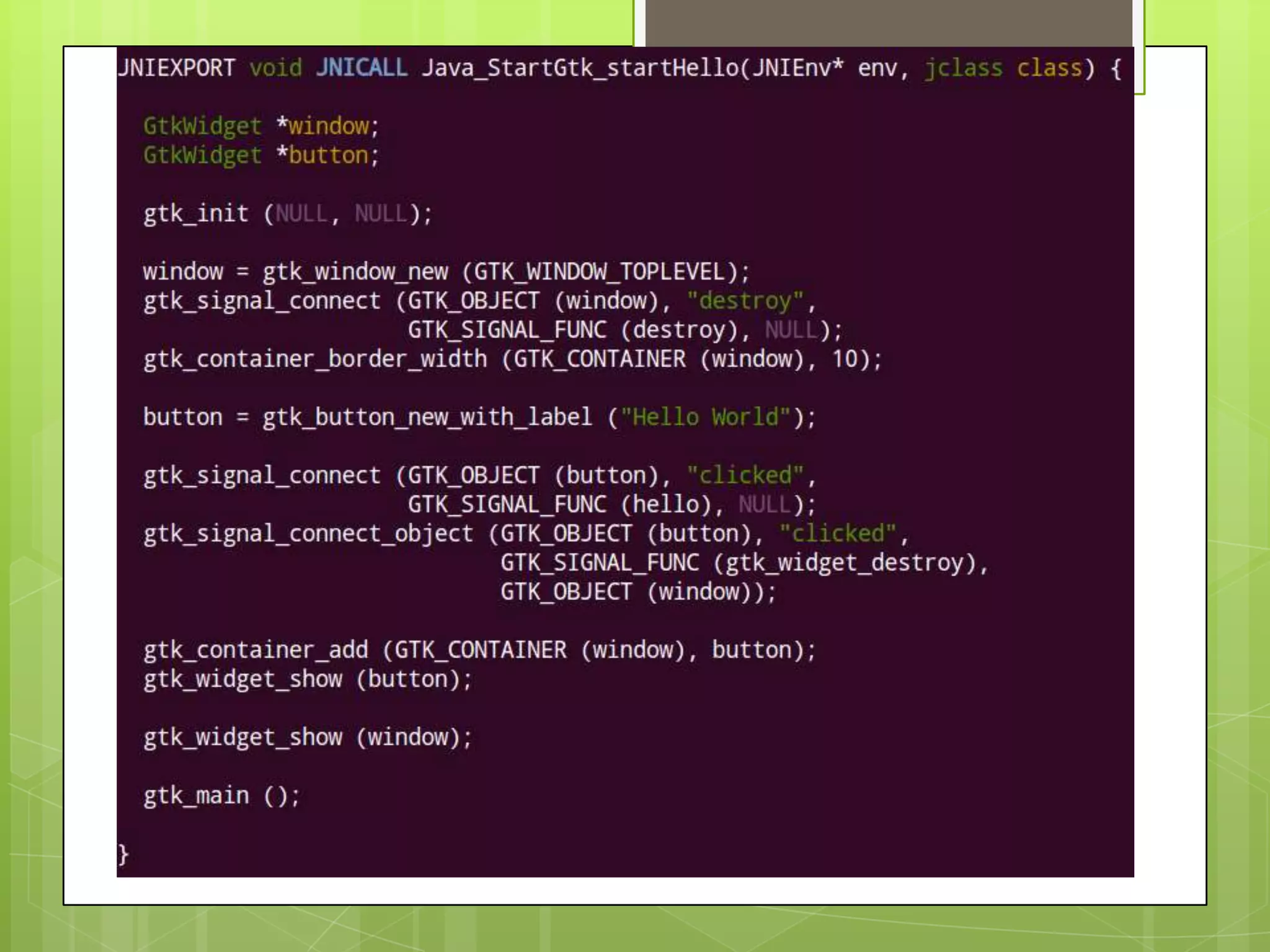

11. A Real Case – Use Java to
start GTK+ application.

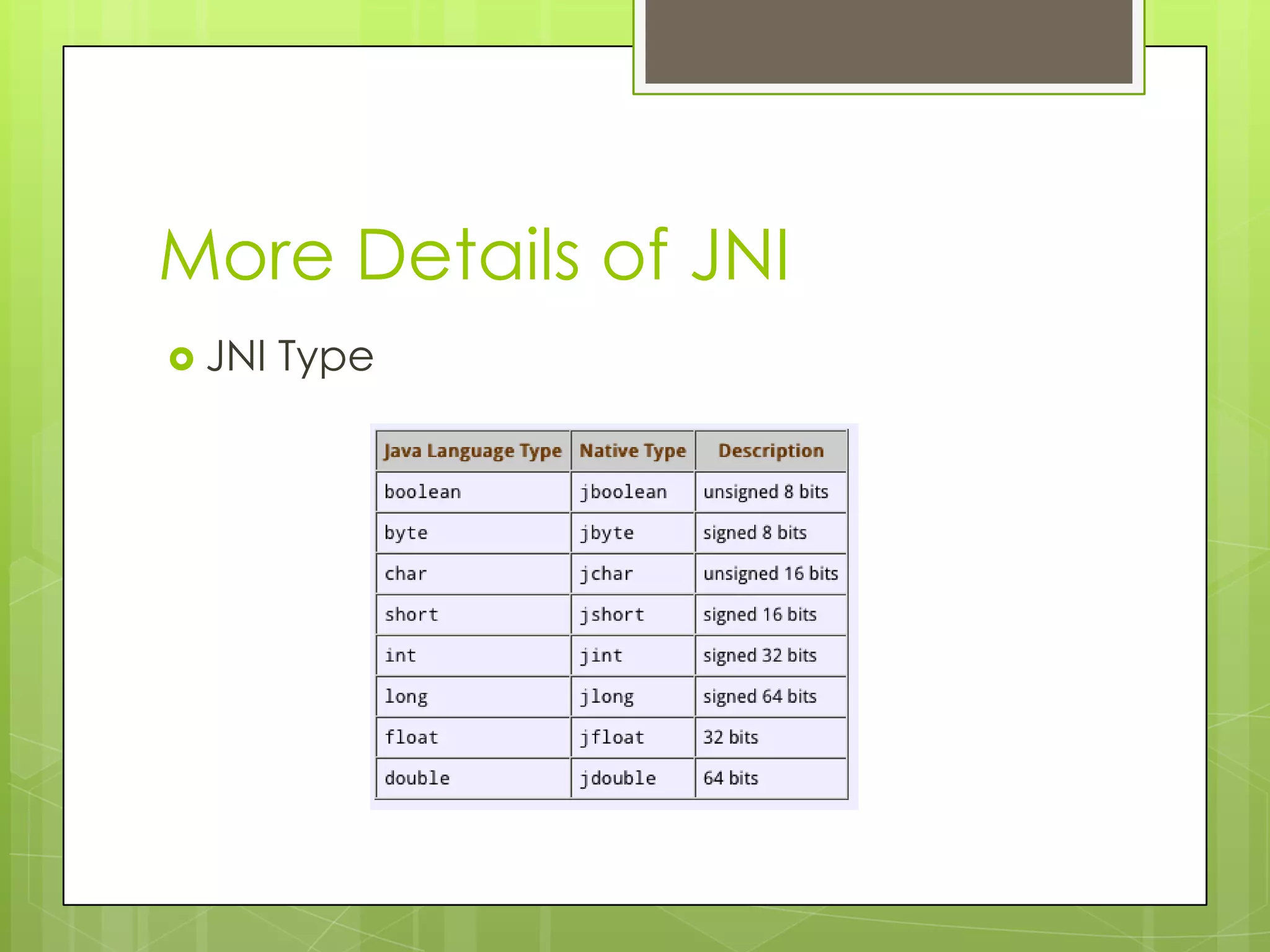

14. More Details of JNI

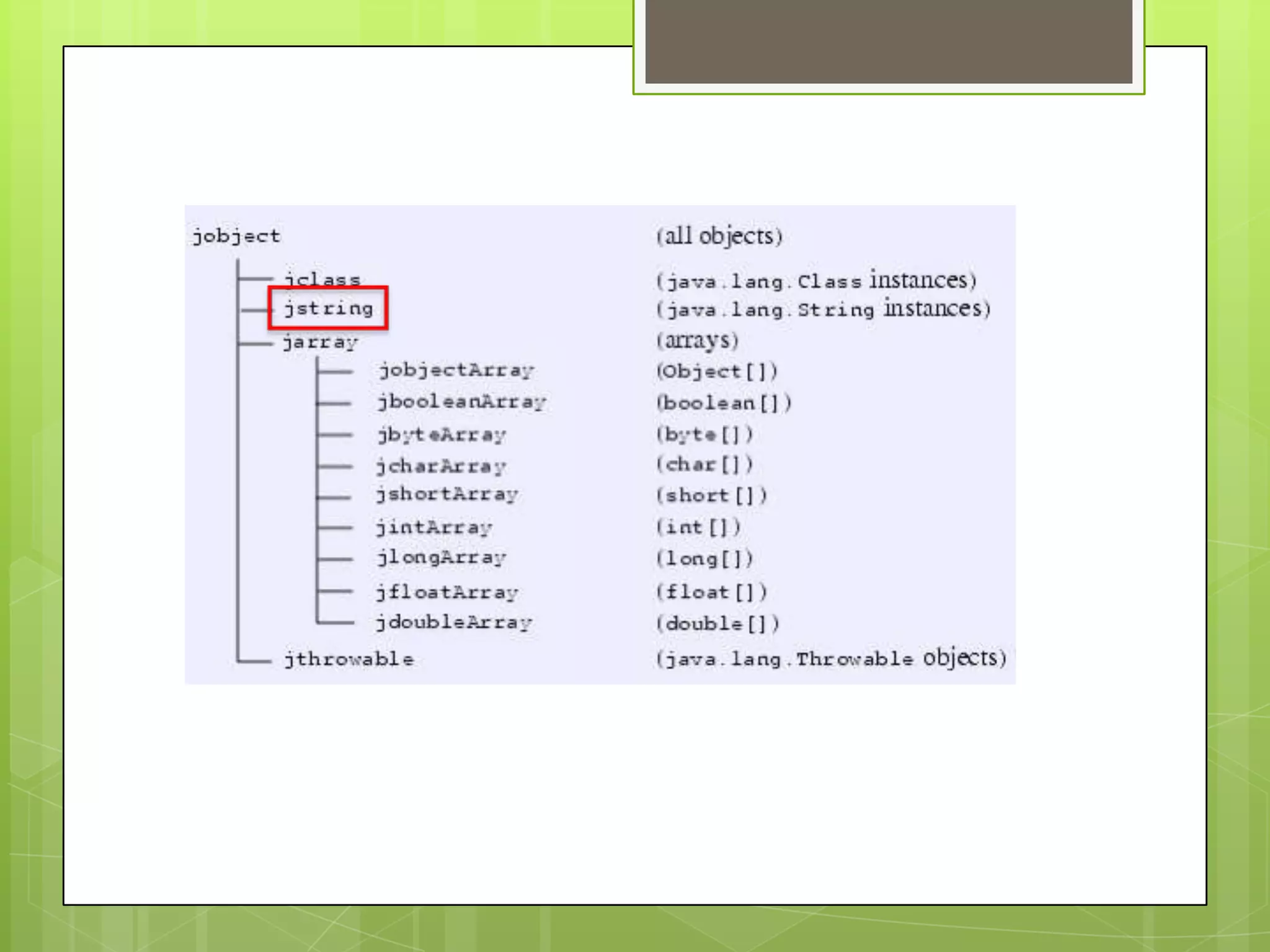

 JNI Type

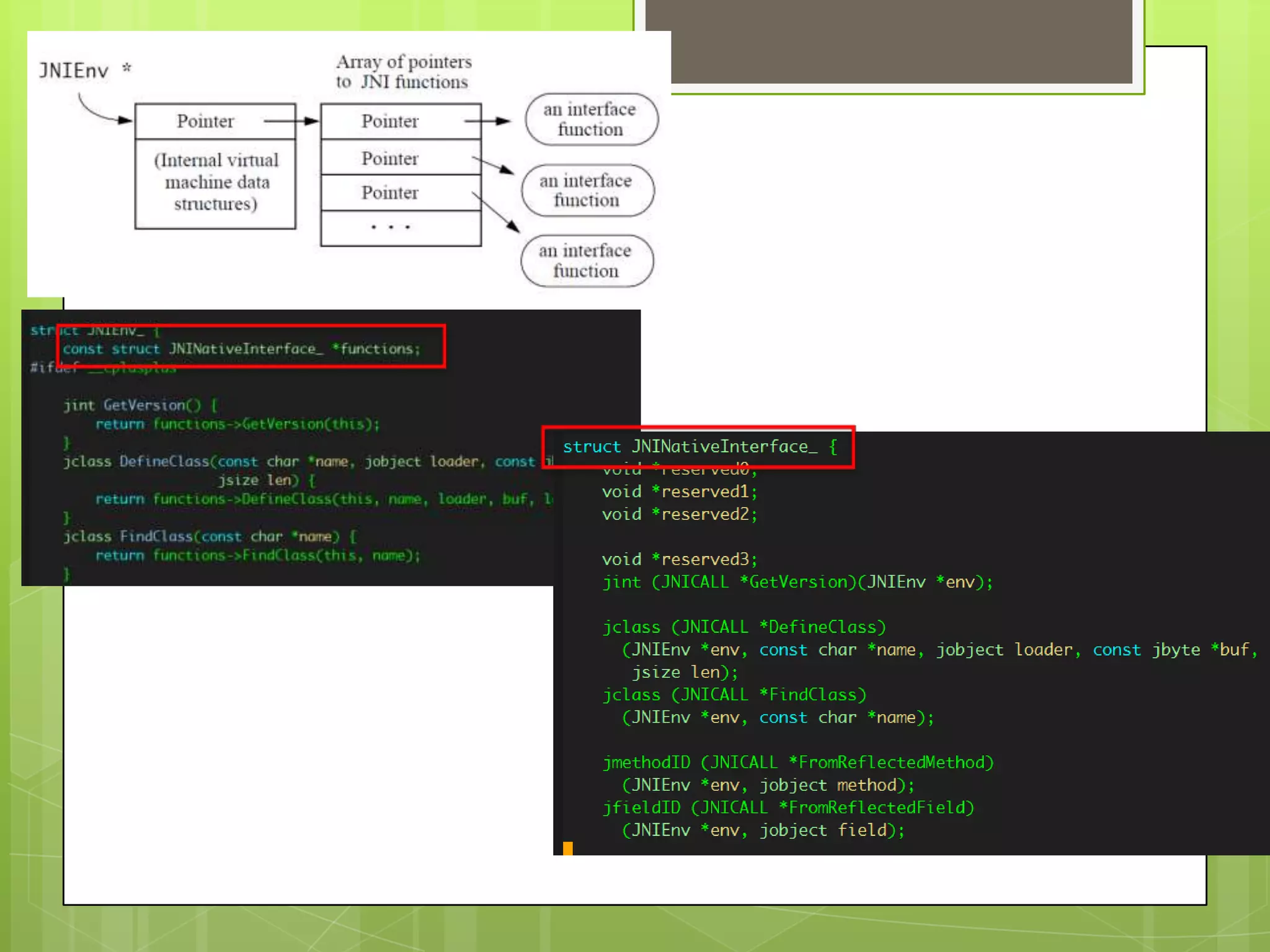

16. JNIEnv
 Definea set of functions to manipulate
JNI data, get field/method id, find class.
 env->GetVersion()
 env->Throw()
 env->FindClass()
 env->NewLocalRef()
a Thread Local Storage variable

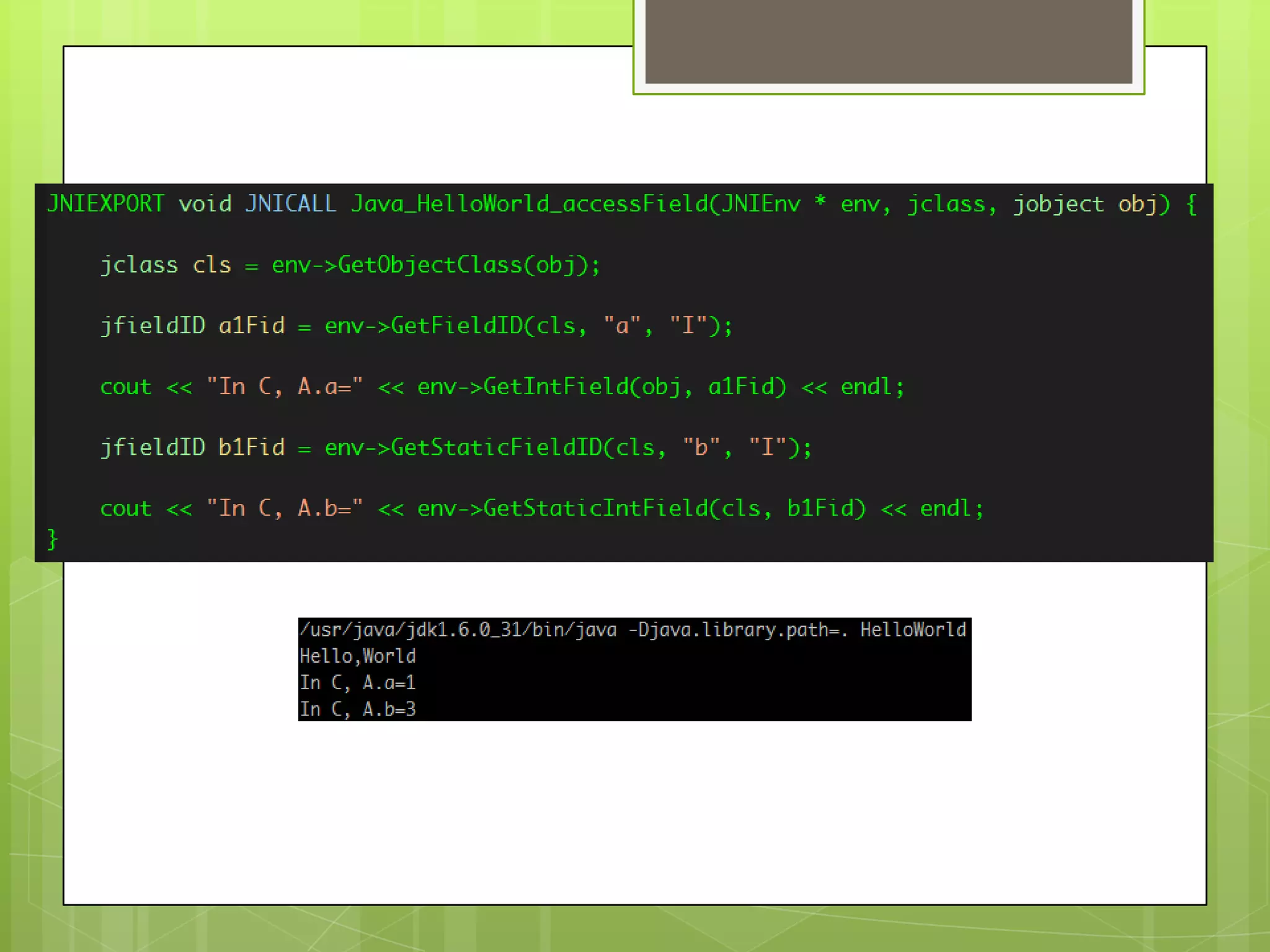

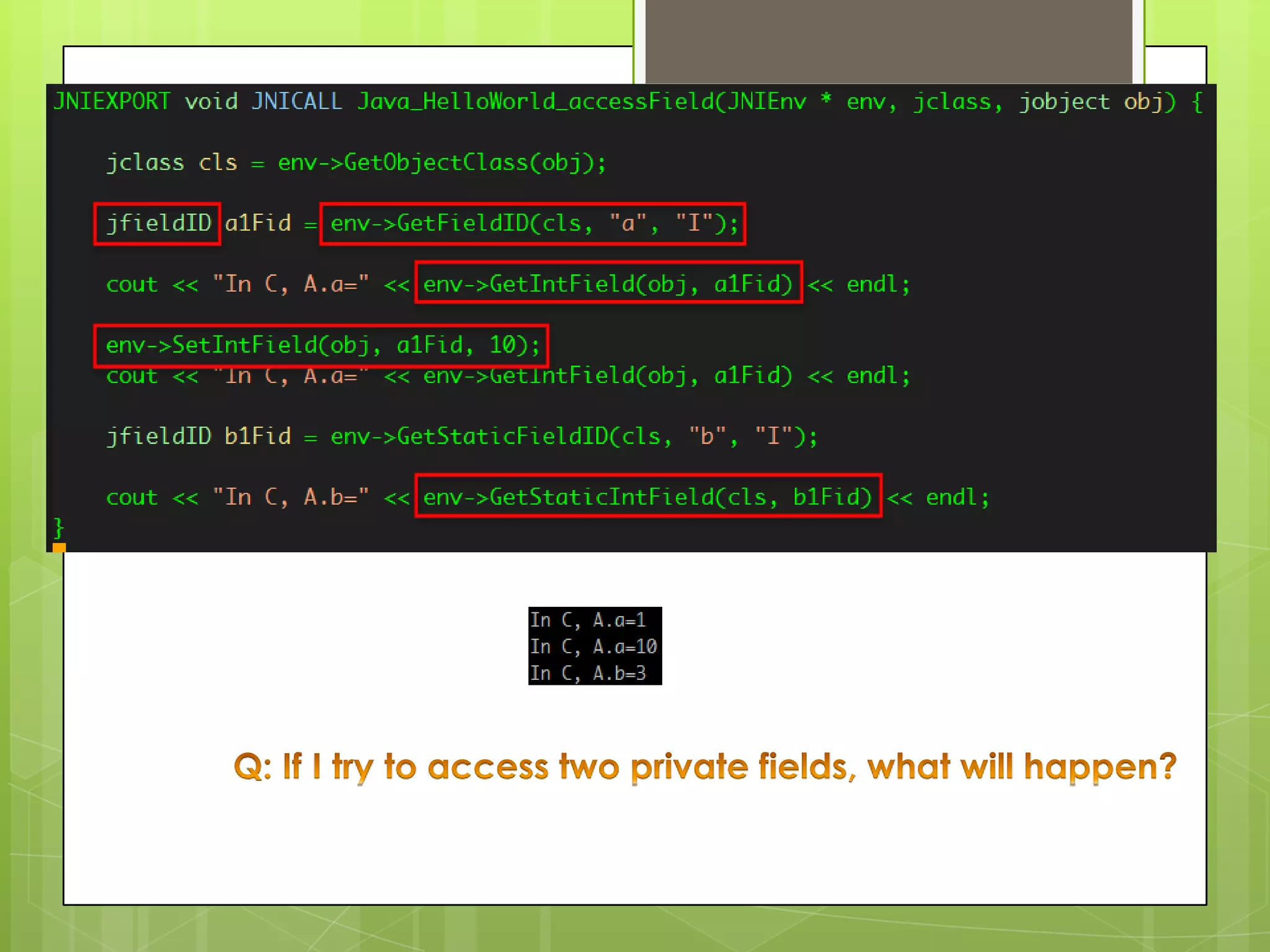

18. Fields
 Can’t access
directly
 Need to get Field
ID first

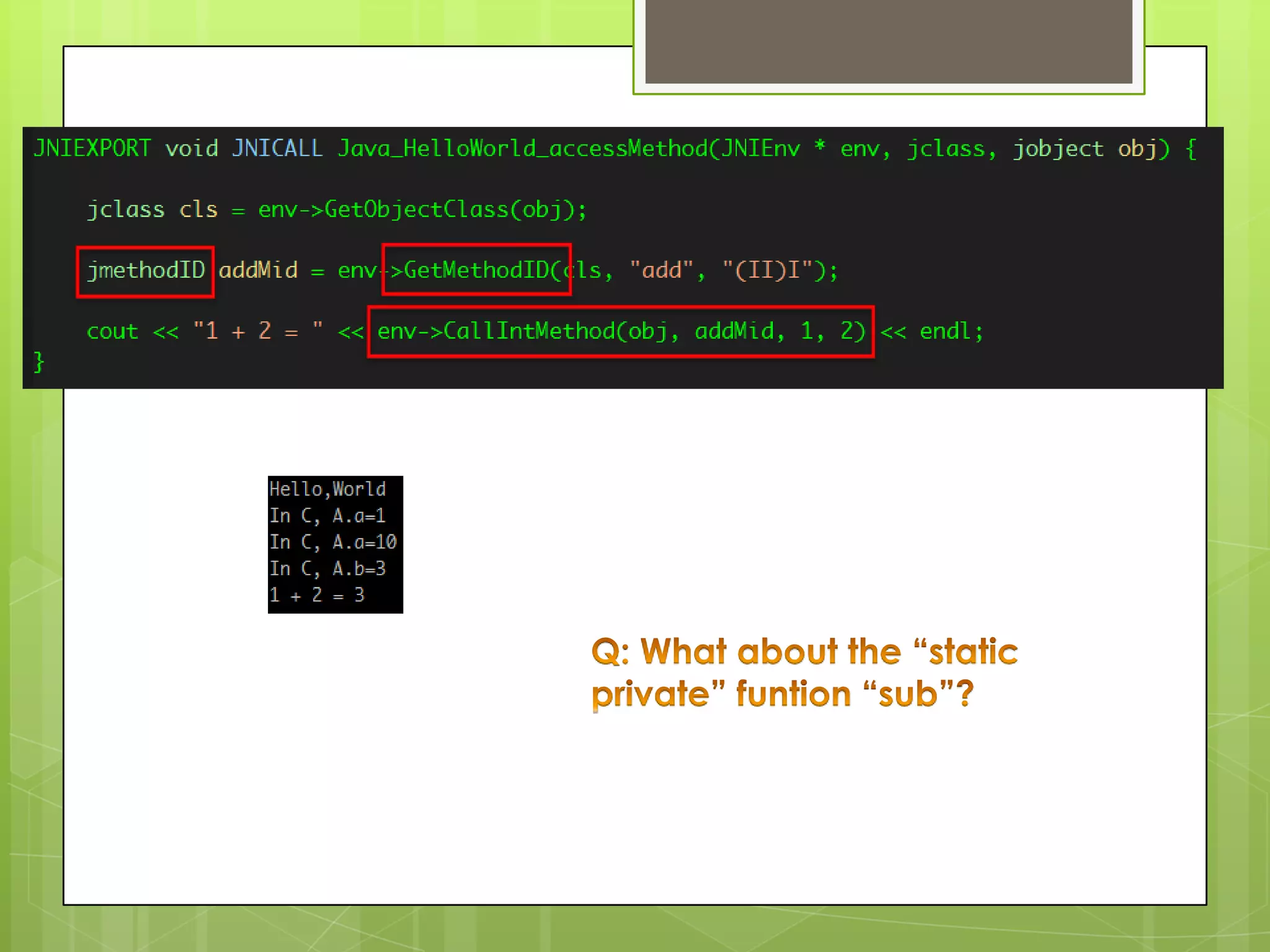

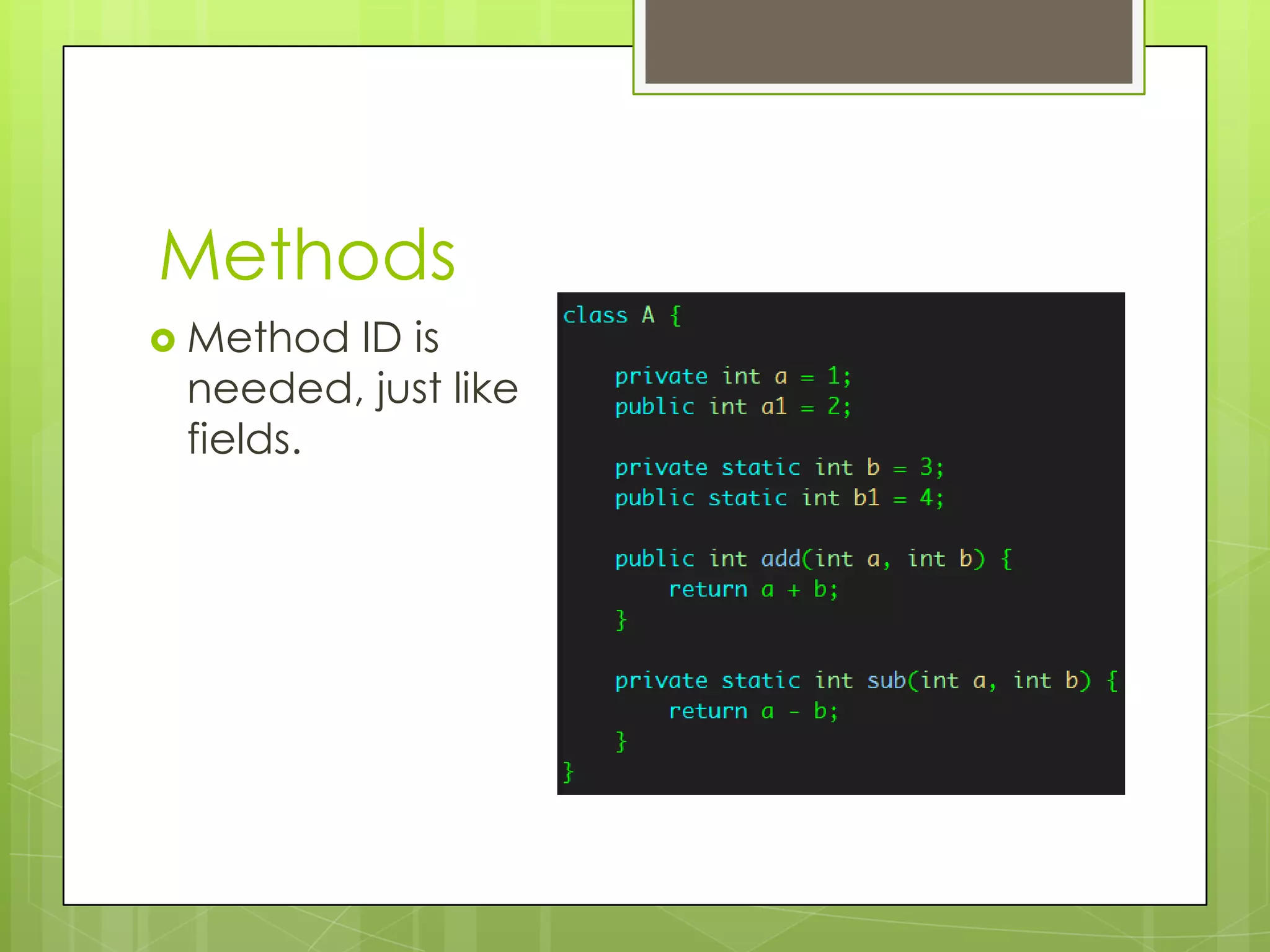

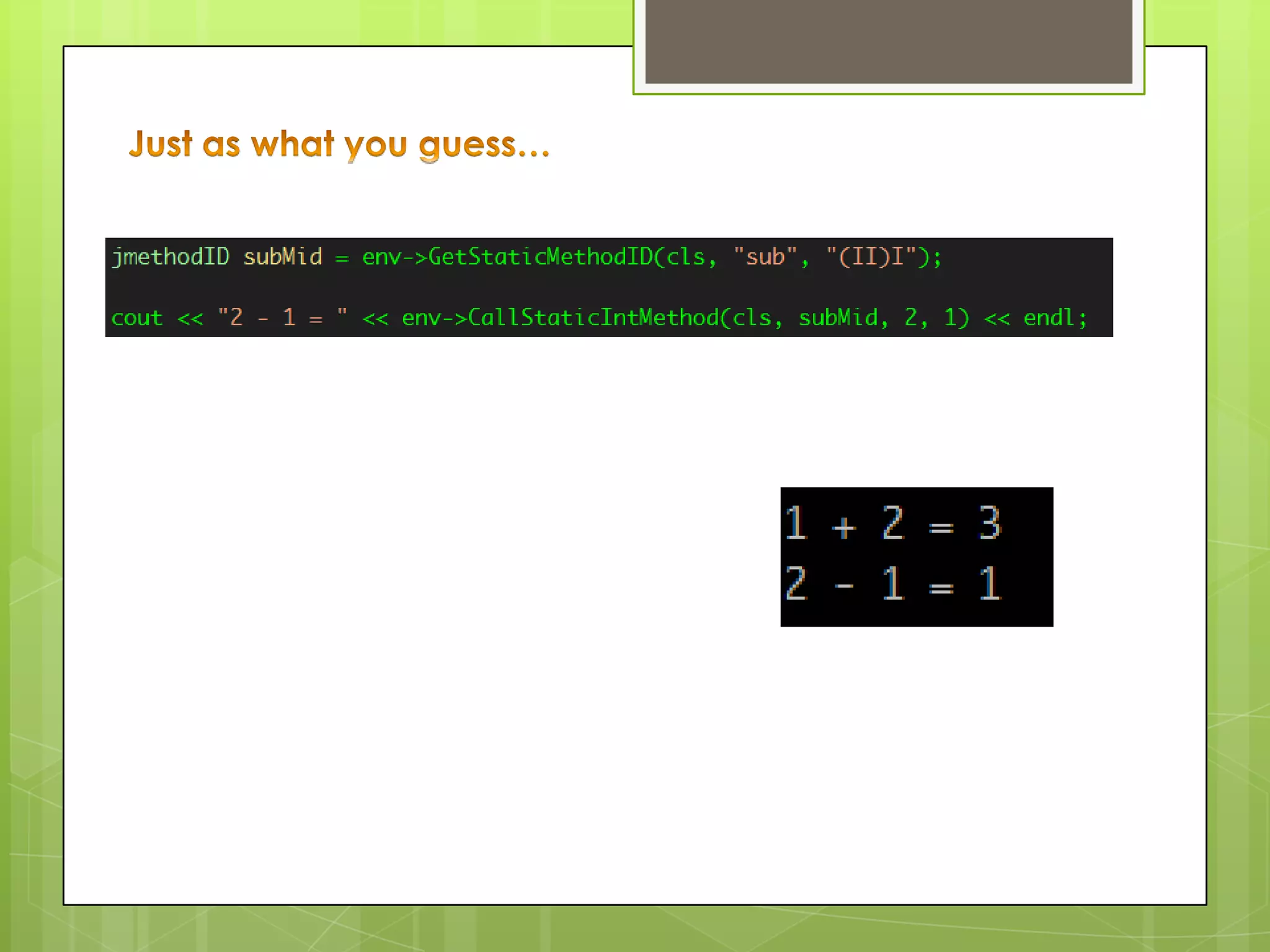

21. Methods
 Method ID is
needed, just like
fields.

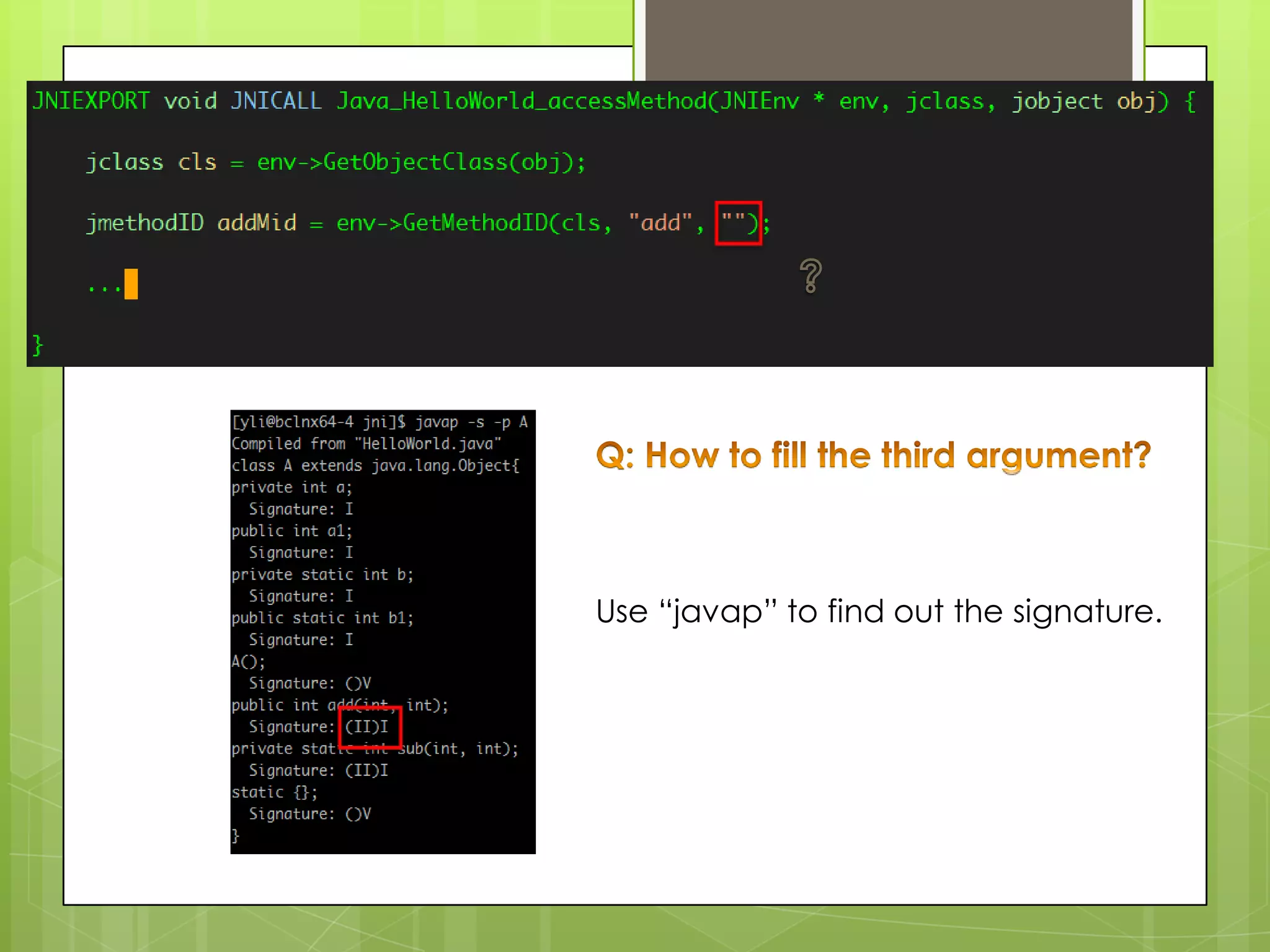

22. Use “javap” to find out the signature.

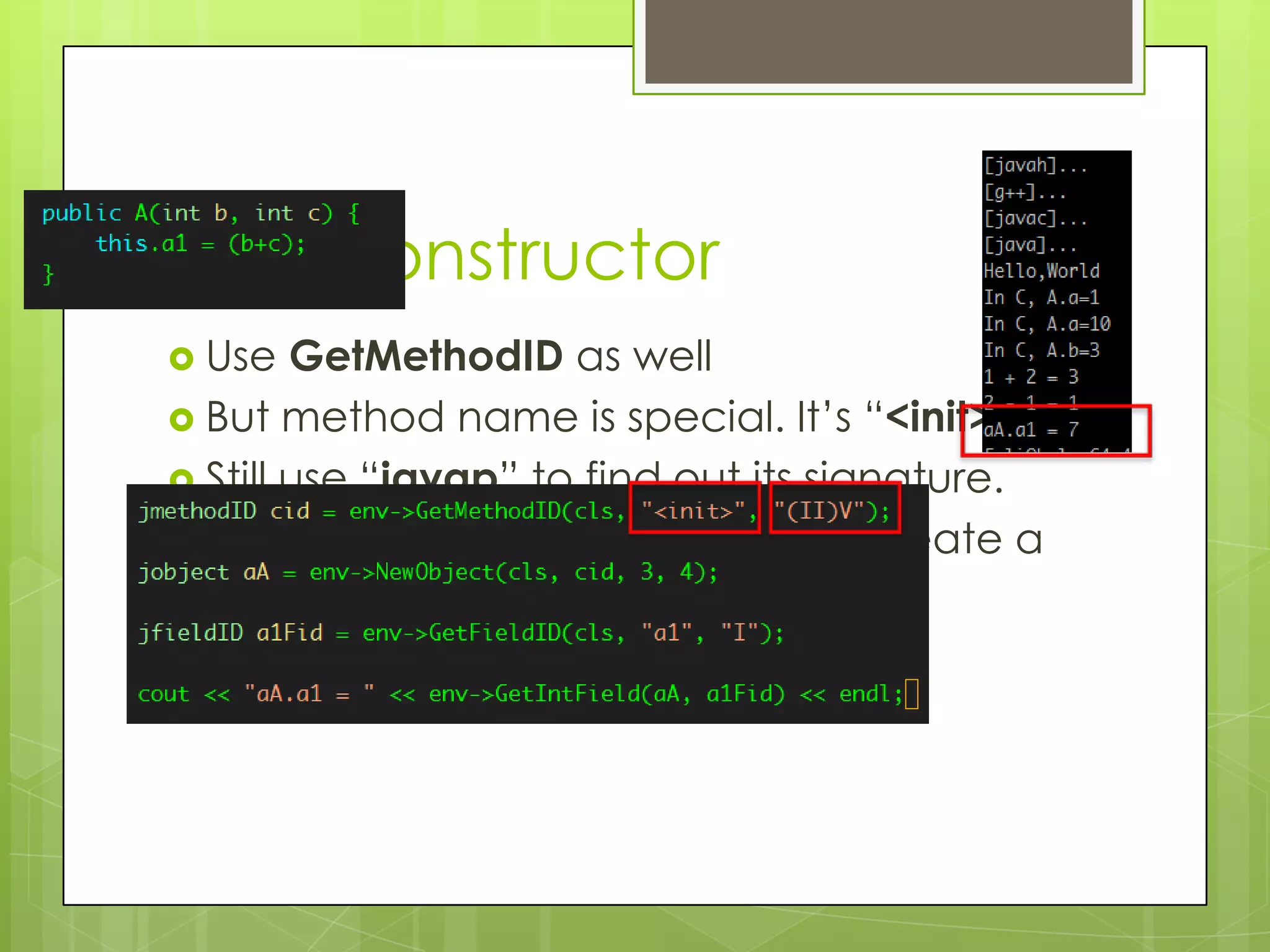

25. And Constructor
 Use GetMethodID as well
 But method name is special. It’s “<init>”.
 Still use “javap” to find out its signature.
 Need use env->NewObject() to create a
new instance.

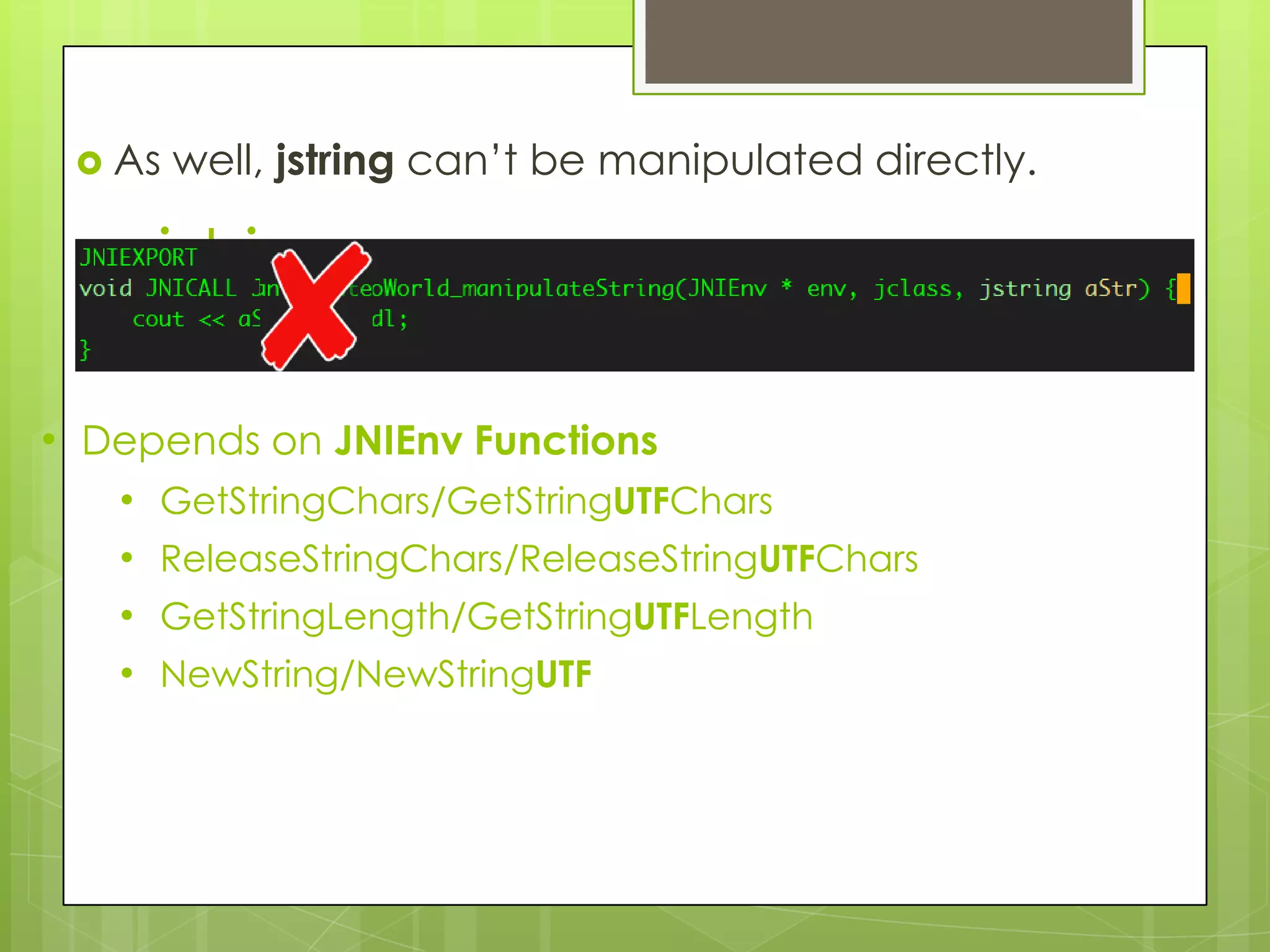

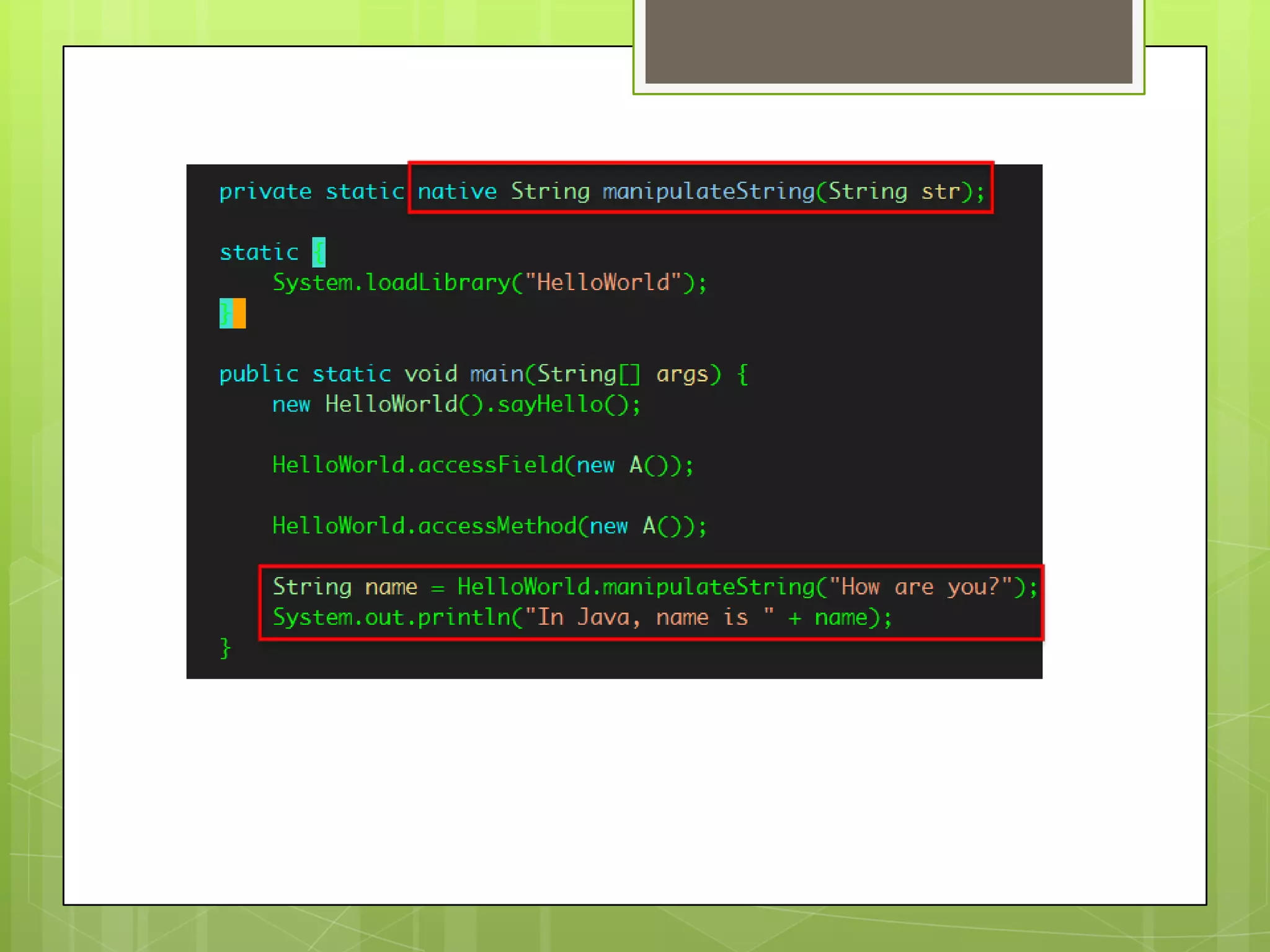

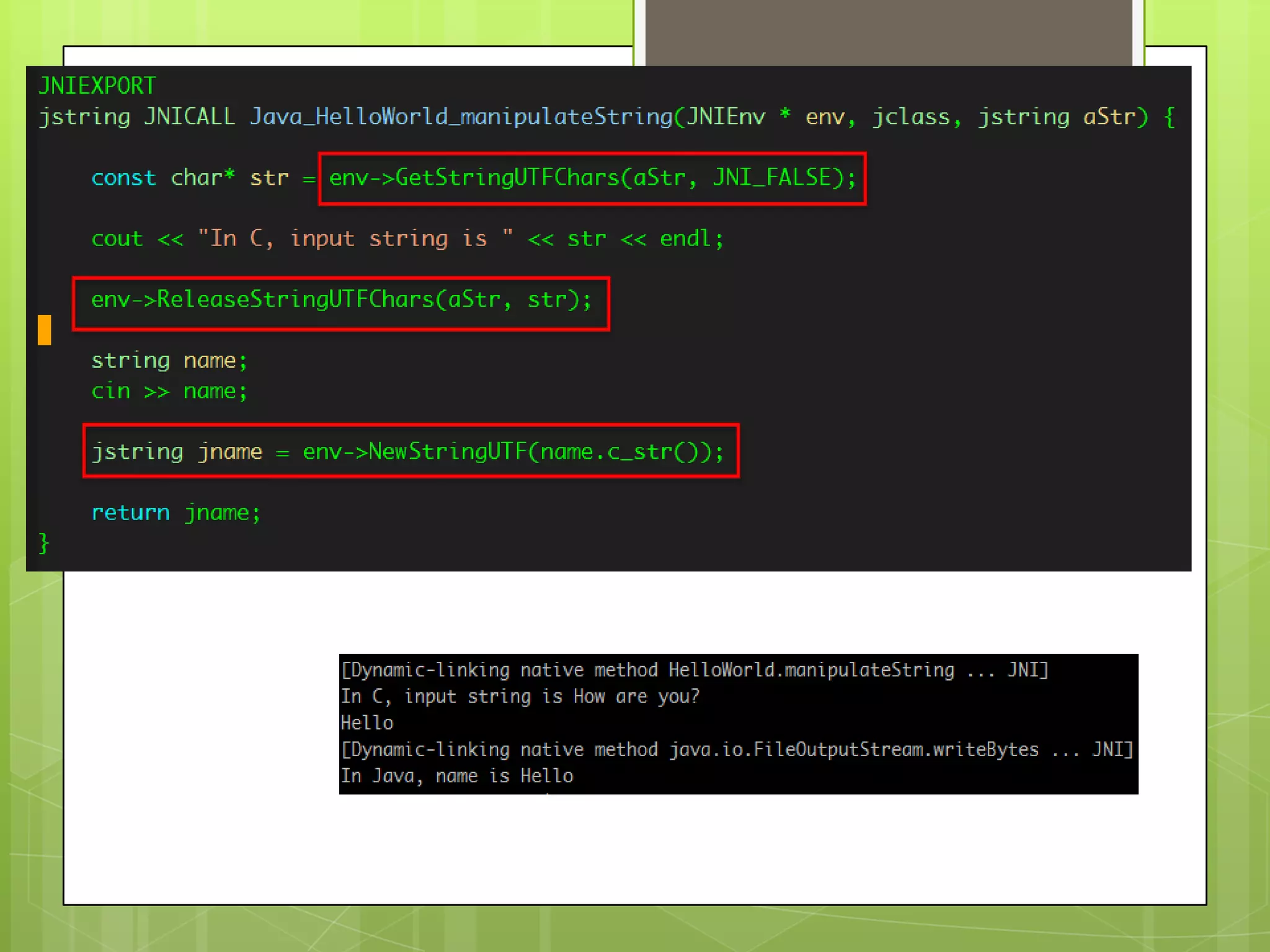

26.  As well, jstring can’t be manipulated directly.
jstring
• Depends on JNIEnv Functions
• GetStringChars/GetStringUTFChars
• ReleaseStringChars/ReleaseStringUTFChars
• GetStringLength/GetStringUTFLength
• NewString/NewStringUTF

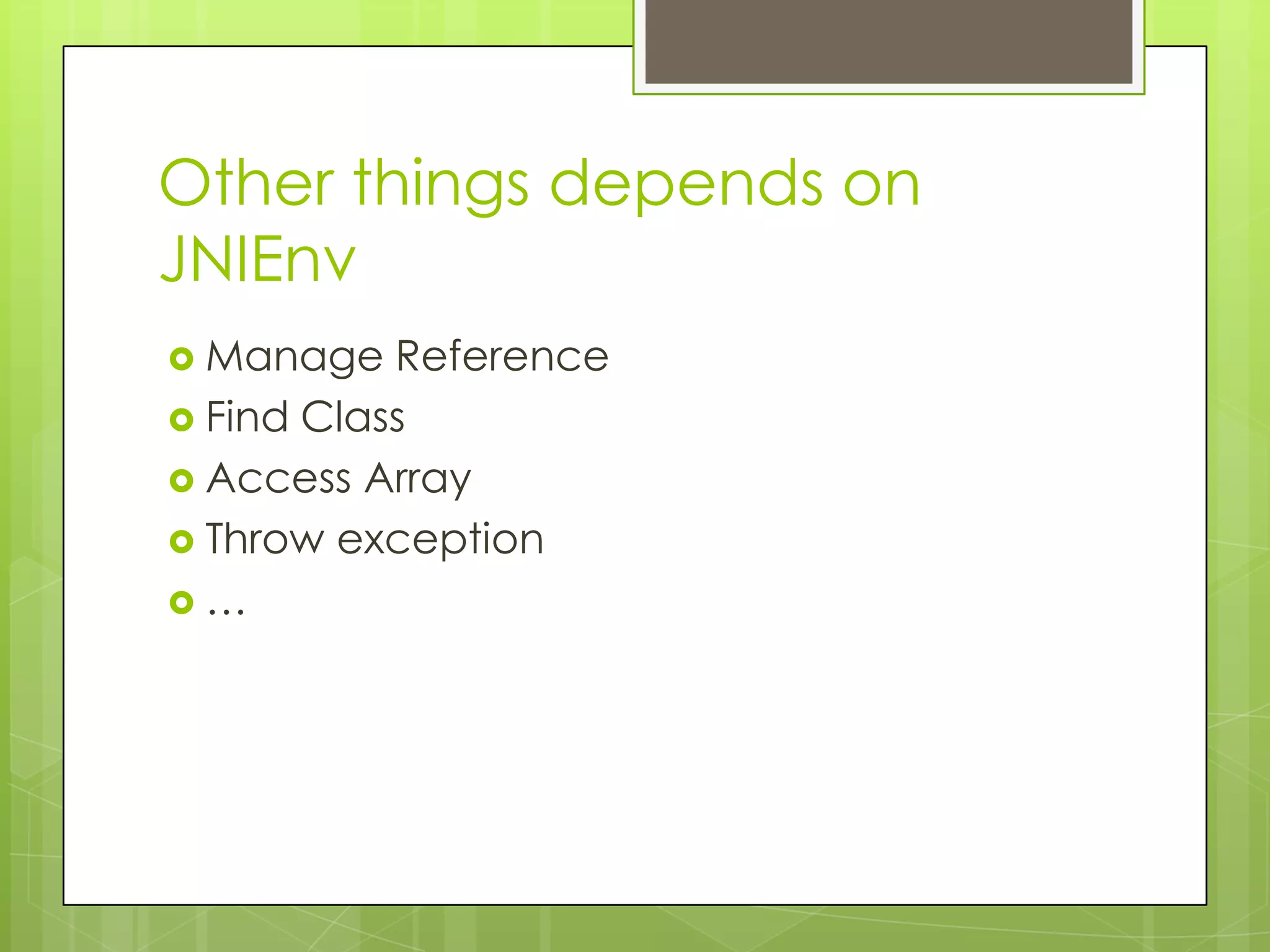

29. Other things depends on
JNIEnv
 Manage Reference
 Find Class
 Access Array
 Throw exception
…

30. Native Memory

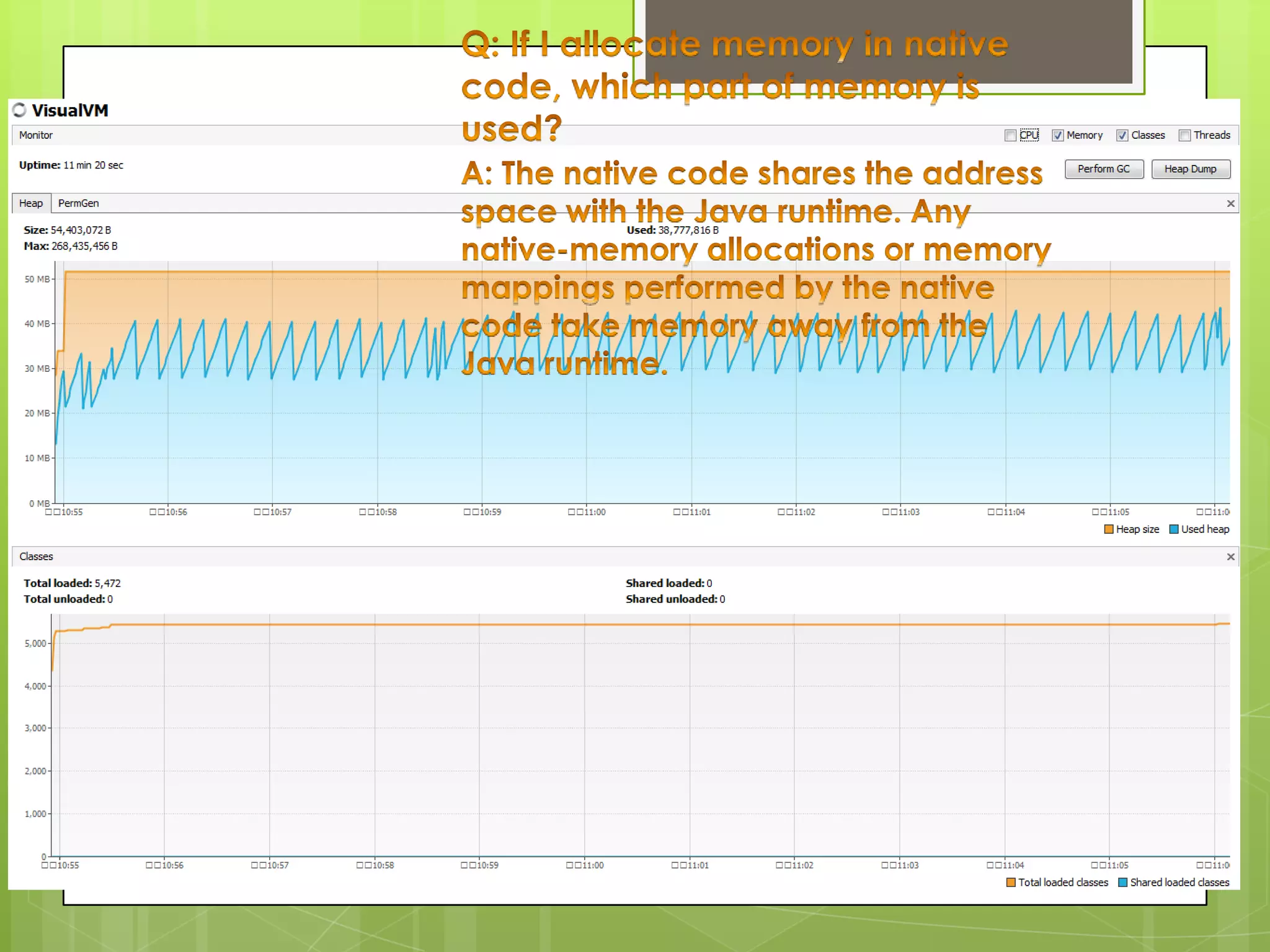

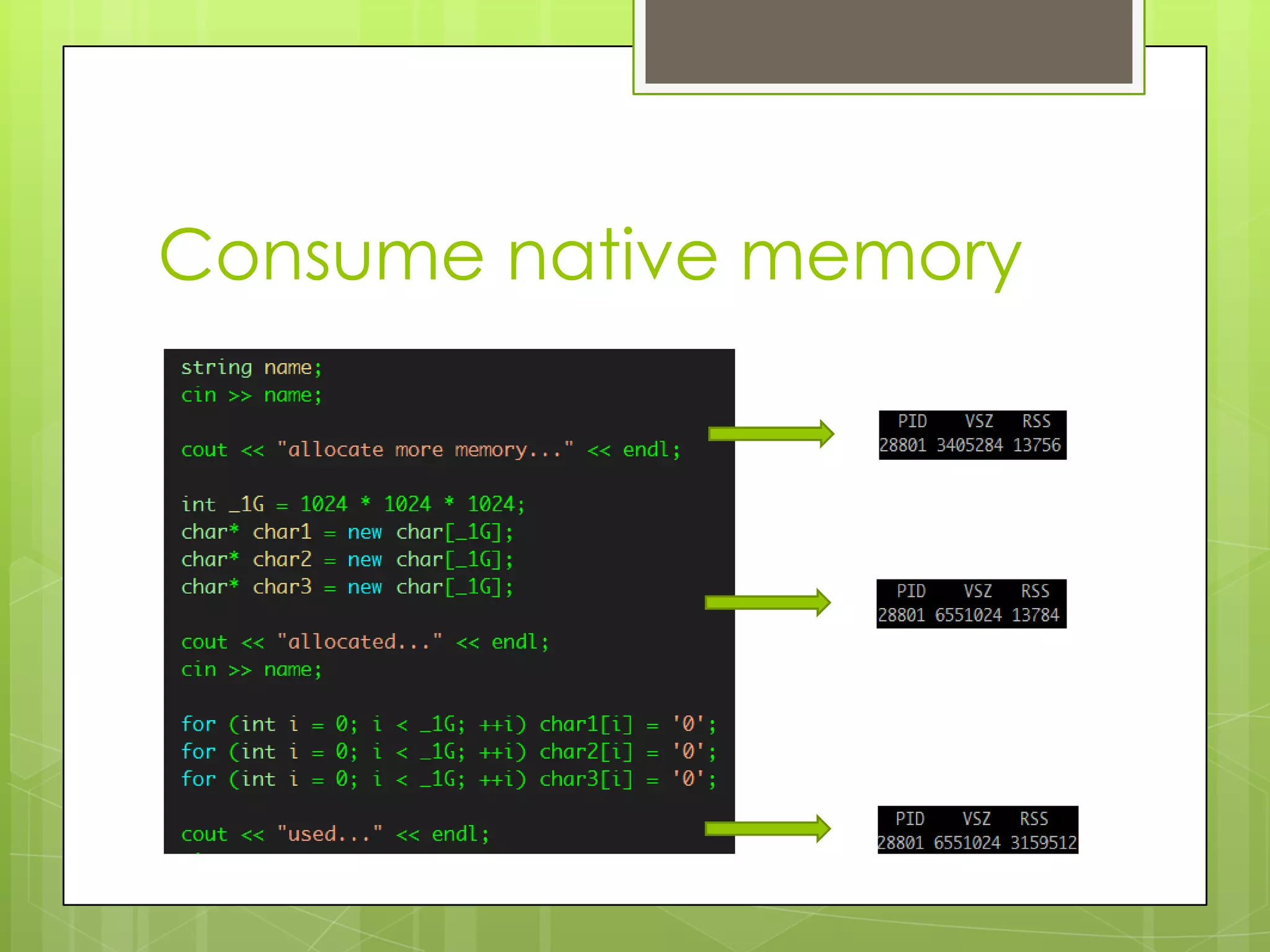

32. Consume native memory

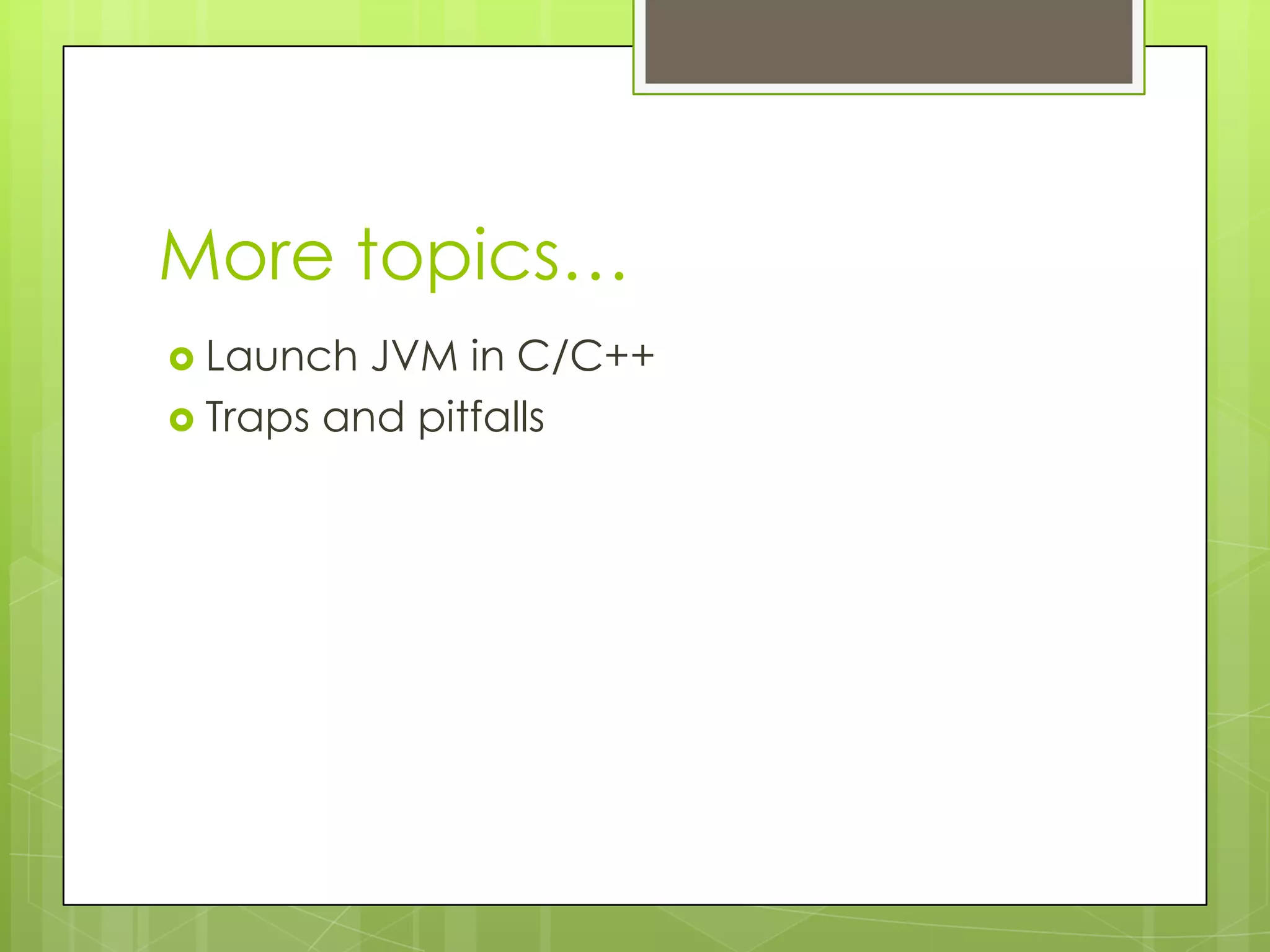

33. More topics…
 Launch JVM in C/C++
 Traps and pitfalls

34. Reference
 Java Native Interface Specification
 Thanks for the memory
