Let’s go reactive with JAVA
The document presents a detailed overview of reactive programming in Java, emphasizing its principles, including asynchronous and non-blocking data flows. It discusses the Reactive Streams specification, Project Reactor, and Spring WebFlux, highlighting their roles in creating responsive applications. Additionally, it includes interfaces for publishers, subscribers, and processors that facilitate event-driven streaming and back pressure management.
More Related Content
Similar to Let’s go reactive with JAVA
Let’s go reactive with JAVA
- 1. Let’s go reactivewith JAVA Presented By : Vinisha Sharma Software consultant - Knoldus Inc

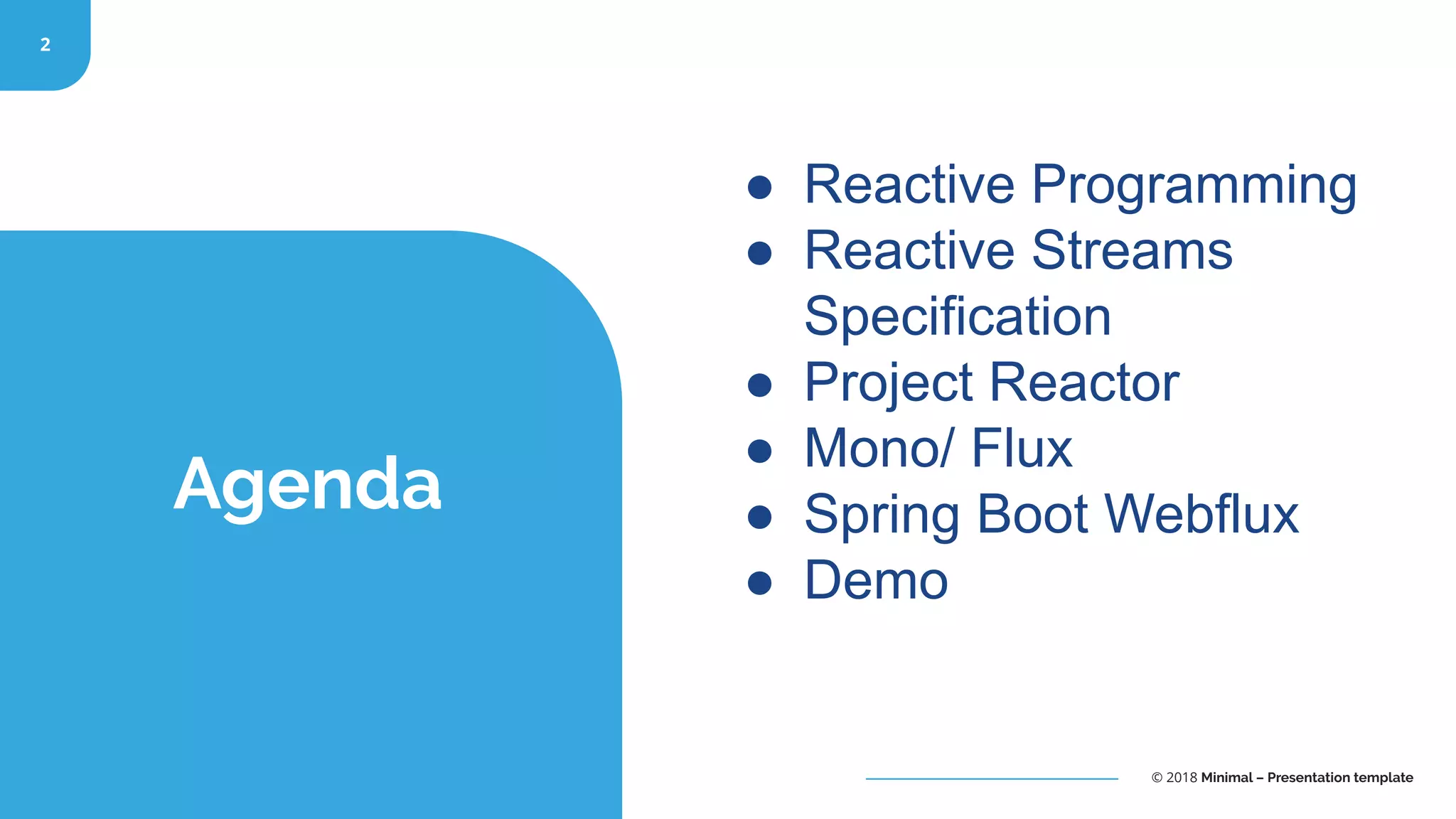

- 2. © 2018 Minimal –Presentation template 2 Agenda ● Reactive Programming ● Reactive Streams Specification ● Project Reactor ● Mono/ Flux ● Spring Boot Webflux ● Demo
- 3.
- 4. 4 ❑ Programming paradigmoriented around - data flows and propagation of change. ❑ Asynchronous and Non Blocking. ❑ Data flow as an Event/Message Driven stream Reactive Programming
- 5.
- 6.
- 7. 7 Reactive streams Reactive Streamsis an initiative to provide a standard for asynchronous stream processing with non-blocking back pressure Functional Style Code ● Java 8 Streams API ● Lambdas Event Driven Streams ● Event or Message for every result item from Data Source ● Event or Message for Completion or error ● Asynchronous and non-blocking Deferred Push/Pull Model Back Pressure F BE D
- 8.
- 9.
- 10. 10 Reactive Stream Specification Specificationor Rules for a Reactive Stream (Created by Pivotal, Netflix, LightBend, Twitter etc...)
- 11. 11 public interface Publisher<T>{ public void subscribe(Subscriber<? super T> s); } ❑ Represents the Data source ❑ Database ❑ External Service, etc….. Publisher
- 12. 12 public interface Subscriber<T>{ public void onSubscribe(Subscription s); public void onNext(T t); public void onError(Throwable t); public void onComplete(); } ❑ Represents the consumer of the stream data Subscriber

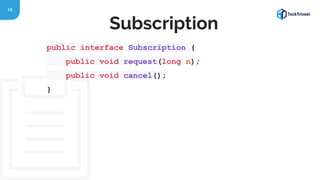

- 13. 13 public interface Subscription{ public void request(long n); public void cancel(); } Subscription
- 14. 14 public interface Processor<T,R> extends Subscriber<T>, Publisher<R> { } ❑ A Processor represents a processing stage—which is both a Subscriber and a Publisher. Processor
- 15.
- 16.
- 17. 17 Data Flow asan Event Driven Stream
- 18. 18 Data Flow asan Event Driven Stream ❏ On Error
- 19. 19 Data Flow asan Event Driven Stream ❏ No data
- 20.
- 21.
- 22. 22 ❑ Reactor isa fully non-blocking reactive programming foundation for the JVM, with efficient demand management (in the form of managing "backpressure"). ❑ Integrates directly with the Java 8 functional APIs, notably CompletableFuture, Stream, and Duration. ❑ Reactive Types - Offers asynchronous sequence (MONO/FLUX) for reactive streams Project Reactor <dependency> <groupId>io.projectreactor</groupId> <artifactId>reactor-core</artifactId> </dependency>
- 23. 23 ❑ Publisher<T> thatemits at most one item ❑ Optionally terminates with an onComplete signal or an onError signal. Mono
- 24. 24 ❑ Publisher<T> thatemits 0 to n items ❑ Optionally terminates with an onComplete signal or an onError signal. Flux
- 25. 25 Mono Vs Flux Mono<Student>Flux<Student>
- 26. 26 ❑ Reactive-stack webframework ❑ Non Blocking and Supports Reactive Streams back pressure ❑ Runs on such servers as Netty, Undertow, and Servlet 3.1+ containers. Spring Webflux
- 27.
- 28. 28 ❑ https://projectreactor.io/ ❑ https://github.com/reactive-streams/reactive-streams-jvm ❑https://stackify.com/reactive-spring-5/ References
- 29.
- 30. 30 Stay in touch ContactDetails: vinsha.sharma@knoldus.com or linkedin.com/in/vinisha-sharma-26538a135
