Lexical Analysis

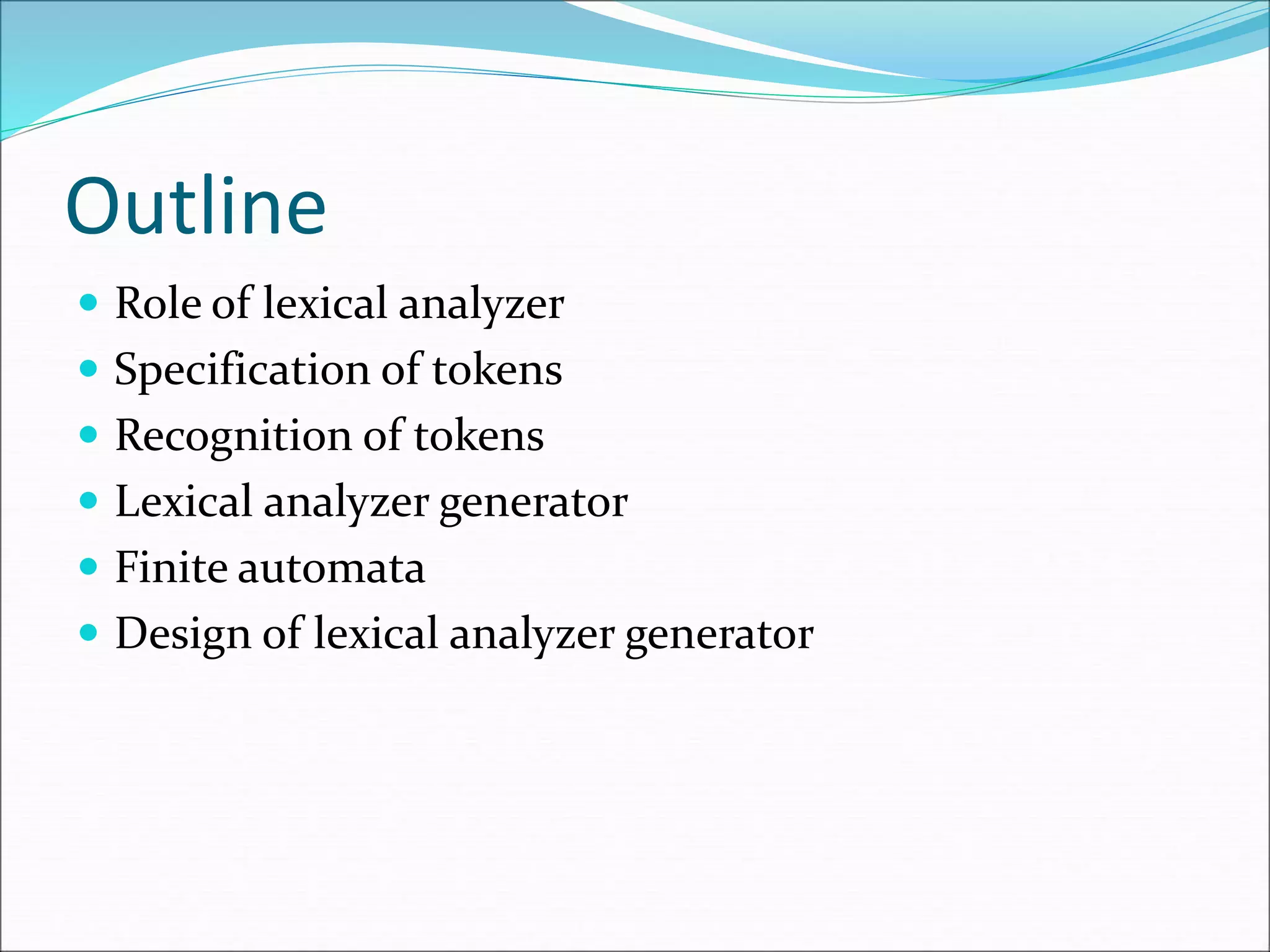

Outline
 Role of lexical analyzer
 Specification of tokens
 Recognition of tokens
 Lexical analyzer generator
 Finite automata
 Design of lexical analyzer generator

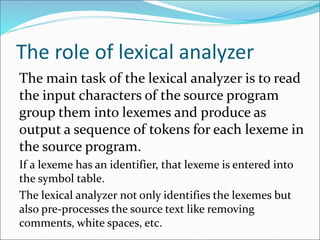

The role of lexical analyzer
The main task of the lexical analyzer is to read
the input characters of the source program
group them into lexemes and produce as
output a sequence of tokens for each lexeme in
the source program.
If a lexeme has an identifier, that lexeme is entered into
the symbol table.
The lexical analyzer not only identifies the lexemes but
also pre-processes the source text like removing
comments, white spaces, etc.
The role of lexical analyzer
Lexical
Analyzer
Parser
Source
program
token
getNextToken
Symbol
table
To semantic
analysis

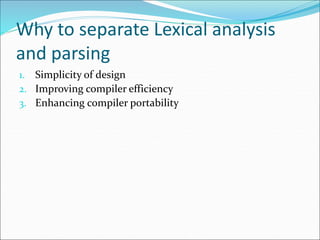

Why to separate Lexical analysis
and parsing
1. Simplicity of design
2. Improving compiler efficiency
3. Enhancing compiler portability
Lexical analysis
Lexical analyzers are divided into a cascade of two
processes:
 Scanning - It consists of simple processes that do not
require the tokenization of the input such as deletion
of comments, compaction of consecutive white space
characters into one.
 Lexical Analysis- This is the more complex portion
where the scanner produces sequence of tokens as
output.
Tokens, Patterns and Lexemes
 A token is a pair a token name and an optional token
value
 A pattern is a description of the form that the lexemes
of a token may take
 Specification of Tokens: Regular expressions are
important part in specifying lexeme patterns. While
they cannot express all possible patterns, they are very
effective in specifying those type of patterns that we
actually need for tokens.
 A lexeme is a sequence of characters in the source
program that matches the pattern for a token

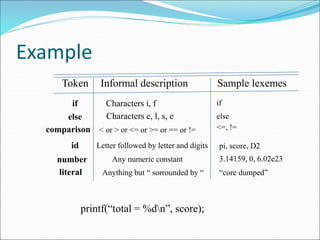

Example
Token Informal description Sample lexemes
if
else
comparison
id
number
literal
Characters i, f
Characters e, l, s, e
< or > or <= or >= or == or !=
Letter followed by letter and digits
Any numeric constant
Anything but “ sorrounded by “
if
else
<=, !=
pi, score, D2
3.14159, 0, 6.02e23
“core dumped”
printf(“total = %dn”, score);
Attributes for tokens
 E = M * C ** 2
 <id, pointer to symbol table entry for E>
 <assign-op>
 <id, pointer to symbol table entry for M>
 <mult-op>
 <id, pointer to symbol table entry for C>
 <exp-op>
 <number, integer value 2>

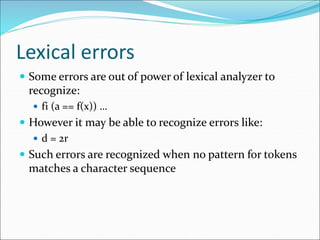

Lexical errors
 Some errors are out of power of lexical analyzer to
recognize:
 fi (a == f(x)) …
 However it may be able to recognize errors like:
 d = 2r
 Such errors are recognized when no pattern for tokens
matches a character sequence
Error recovery
 Panic mode: successive characters are ignored until we
reach to a well formed token
 Delete one character from the remaining input
 Insert a missing character into the remaining input
 Replace a character by another character
 Transpose two adjacent characters

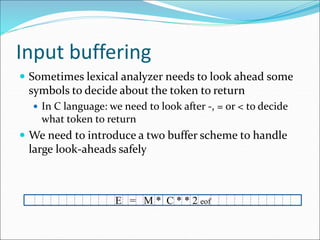

Input buffering
 Sometimes lexical analyzer needs to look ahead some
symbols to decide about the token to return
 In C language: we need to look after -, = or < to decide
what token to return
 We need to introduce a two buffer scheme to handle
large look-aheads safely
E = M * C * * 2 eof

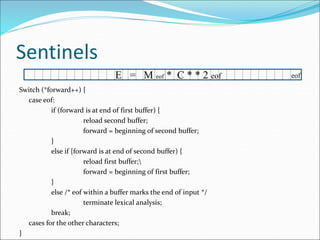

Sentinels
Switch (*forward++) {
case eof:
if (forward is at end of first buffer) {
reload second buffer;
forward = beginning of second buffer;
}
else if {forward is at end of second buffer) {
reload first buffer;
forward = beginning of first buffer;
}
else /* eof within a buffer marks the end of input */
terminate lexical analysis;
break;
cases for the other characters;
}
E = M eof * C * * 2 eof eof
Specification of tokens
 In theory of compilation regular expressions are used
to formalize the specification of tokens
 Regular expressions are means for specifying regular
languages
 Example:
 Letter_(letter_ | digit)*
 Each regular expression is a pattern specifying the
form of strings
Regular expressions
 Ɛ is a regular expression, L(Ɛ) = {Ɛ}
 If a is a symbol in ∑then a is a regular expression, L(a)
= {a}
 (r) | (s) is a regular expression denoting the language
L(r) ∪ L(s)
 (r)(s) is a regular expression denoting the language
L(r)L(s)
 (r)* is a regular expression denoting (L(r))*
 (r) is a regular expression denoting L(r)
Regular definitions
d1 -> r1
d2 -> r2
…
dn -> rn
 Example:
letter_ -> A | B | … | Z | a | b | … | Z | _
digit -> 0 | 1 | … | 9
id -> letter_ (letter_ | digit)*
Extensions
 One or more instances: (r)+
 Zero of one instances: r?
 Character classes: [abc]
 Example:
 letter_ -> [A-Za-z_]
 digit -> [0-9]
 id -> letter_(letter|digit)*
Recognition of tokens
 Starting point is the language grammar to understand
the tokens:
stmt -> if expr then stmt
| if expr then stmt else stmt
| Ɛ
expr -> term relop term
| term
term -> id
| number

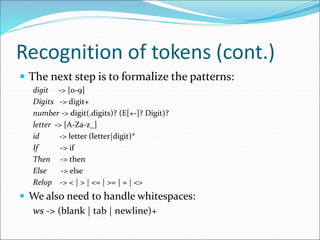

Recognition of tokens (cont.)
 The next step is to formalize the patterns:
digit -> [0-9]
Digits -> digit+
number -> digit(.digits)? (E[+-]? Digit)?
letter -> [A-Za-z_]
id -> letter (letter|digit)*
If -> if
Then -> then
Else -> else
Relop -> < | > | <= | >= | = | <>
 We also need to handle whitespaces:
ws -> (blank | tab | newline)+
Transition diagrams
 Transition diagram for relop

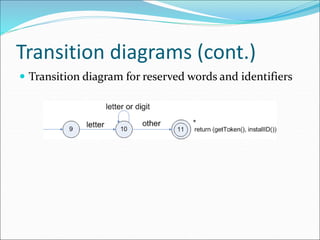

Transition diagrams (cont.)
 Transition diagram for reserved words and identifiers
Transition diagrams (cont.)
 Transition diagram for unsigned numbers

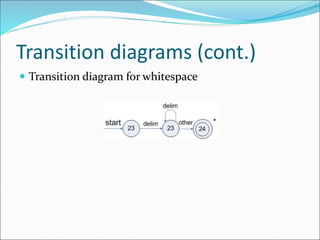

Transition diagrams (cont.)
 Transition diagram for whitespace
Architecture of a transition-
diagram-based lexical analyzer
TOKEN getRelop()
{
TOKEN retToken = new (RELOP)
while (1) { /* repeat character processing until a
return or failure occurs */
switch(state) {
case 0: c= nextchar();
if (c == ‘<‘) state = 1;
else if (c == ‘=‘) state = 5;
else if (c == ‘>’) state = 6;
else fail(); /* lexeme is not a relop */
break;
case 1: …
…
case 8: retract();
retToken.attribute = GT;
return(retToken);
}

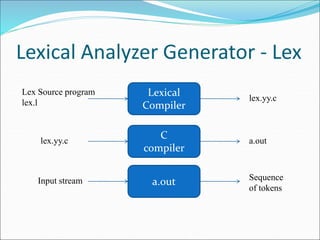

Lexical Analyzer Generator - Lex
Lexical
Compiler
Lex Source program
lex.l
lex.yy.c
C
compiler
lex.yy.c a.out
a.out
Input stream Sequence
of tokens
Structure of Lex programs
declarations
%%
translation rules
%%
auxiliary functions
Pattern {Action}

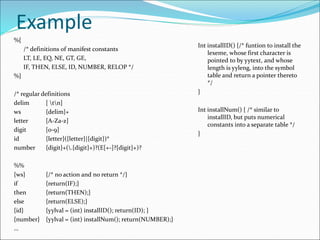

Example
%{
/* definitions of manifest constants
LT, LE, EQ, NE, GT, GE,
IF, THEN, ELSE, ID, NUMBER, RELOP */
%}
/* regular definitions
delim [ tn]
ws {delim}+
letter [A-Za-z]
digit [0-9]
id {letter}({letter}|{digit})*
number {digit}+(.{digit}+)?(E[+-]?{digit}+)?
%%
{ws} {/* no action and no return */}
if {return(IF);}
then {return(THEN);}
else {return(ELSE);}
{id} {yylval = (int) installID(); return(ID); }
{number} {yylval = (int) installNum(); return(NUMBER);}
…
Int installID() {/* funtion to install the
lexeme, whose first character is
pointed to by yytext, and whose
length is yyleng, into the symbol
table and return a pointer thereto
*/
}
Int installNum() { /* similar to
installID, but puts numerical
constants into a separate table */
}
28
Finite Automata
 Regular expressions = specification
 Finite automata = implementation
 A finite automaton consists of
 An input alphabet 
 A set of states S
 A start state n
 A set of accepting states F  S
 A set of transitions state input state
29
Finite Automata
 Transition
s1 a s2
 Is read
In state s1 on input “a” go to state s2
 If end of input
 If in accepting state => accept, othewise => reject
 If no transition possible => reject
30

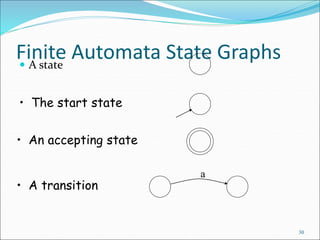

Finite Automata State Graphs
 A state
• The start state
• An accepting state
• A transition
a
31
A Simple Example
 A finite automaton that accepts only “1”
 A finite automaton accepts a string if we can follow
transitions labeled with the characters in the string
from the start to some accepting state
1
32
Another Simple Example
 A finite automaton accepting any number of 1’s
followed by a single 0
 Alphabet: {0,1}
 Check that “1110” is accepted but “110…” is not
0
1
33
And Another Example
 Alphabet {0,1}
 What language does this recognize?
0
1
0
1
0
1
34
And Another Example
 Alphabet still { 0, 1 }
 The operation of the automaton is not completely
defined by the input
 On input “11” the automaton could be in either state
1
1
35
Epsilon Moves
 Another kind of transition: -moves

• Machine can move from state A to state B
without reading input
A B
36
Deterministic and
Nondeterministic Automata
 Deterministic Finite Automata (DFA)
 One transition per input per state
 No -moves
 Nondeterministic Finite Automata (NFA)
 Can have multiple transitions for one input in a given
state
 Can have -moves
 Finite automata have finite memory
 Need only to encode the current state
37
Execution of Finite Automata
 A DFA can take only one path through the state graph
 Completely determined by input
 NFAs can choose
 Whether to make -moves
 Which of multiple transitions for a single input to take
38
Acceptance of NFAs
 An NFA can get into multiple states
• Input:
0
1
1
0
1 0 1
• Rule: NFA accepts if it can get in a final state
39
NFA vs. DFA (1)
 NFAs and DFAs recognize the same set of languages
(regular languages)
 DFAs are easier to implement
 There are no choices to consider
40
NFA vs. DFA (2)
 For a given language the NFA can be simpler than the
DFA
0
1
0
0
0
1
0
1
0
1
NFA
DFA
• DFA can be exponentially larger than NFA
41
Regular Expressions to Finite
Automata
 High-level sketch
Regular
expressions
NFA
DFA
Lexical
Specification
Table-driven
Implementation of DFA
42

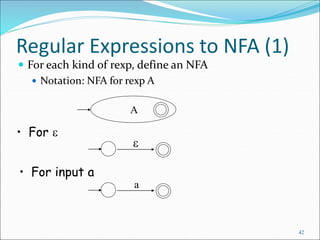

Regular Expressions to NFA (1)
 For each kind of rexp, define an NFA
 Notation: NFA for rexp A
A
• For 

• For input a
a
43

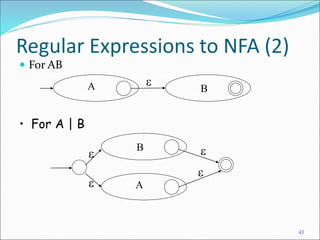

Regular Expressions to NFA (2)
 For AB
A B

• For A | B
A
B




44
Regular Expressions to NFA (3)
 For A*
A



45
Example of RegExp -> NFA
conversion
 Consider the regular expression
(1 | 0)*1
 The NFA is

1
C E
0
D F


B


G



A H
1
I J
46
Next
Regular
expressions
NFA
DFA
Lexical
Specification
Table-driven
Implementation of DFA
47
NFA to DFA. The Trick
 Simulate the NFA
 Each state of resulting DFA
= a non-empty subset of states of the NFA
 Start state
= the set of NFA states reachable through -moves from
NFA start state
 Add a transition S a S’ to DFA iff
 S’ is the set of NFA states reachable from the states in S
after seeing the input a
 considering -moves as well
48
NFA -> DFA Example
1
0
1
 






A B
C
D
E
F
G H I J
ABCDHI
FGABCDHI
EJGABCDHI
0
1
0
1
0 1
49

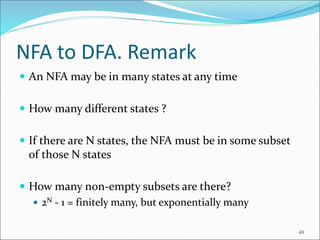

NFA to DFA. Remark
 An NFA may be in many states at any time
 How many different states ?
 If there are N states, the NFA must be in some subset
of those N states
 How many non-empty subsets are there?
 2N - 1 = finitely many, but exponentially many
50
Implementation
 A DFA can be implemented by a 2D table T
 One dimension is “states”
 Other dimension is “input symbols”
 For every transition Si a Sk define T[i,a] = k
 DFA “execution”
 If in state Si and input a, read T[i,a] = k and skip to state
Sk
 Very efficient
51

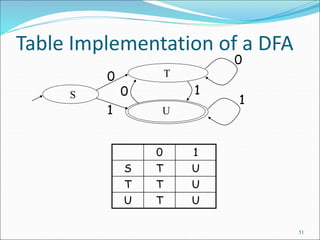

Table Implementation of a DFA
S
T
U
0
1
0
1
0 1
0 1
S T U
T T U
U T U
52
Implementation (Cont.)
 NFA -> DFA conversion is at the heart of tools such as
flex or jflex
 But, DFAs can be huge
 In practice, flex-like tools trade off speed for space in
the choice of NFA and DFA representations

More Related Content

What's hot

Lexical Analysis
Lexical AnalysisLexical Analysis
Lexical AnalysisMunni28

Finite Automata in compiler design
Finite Automata in compiler designFinite Automata in compiler design
Finite Automata in compiler designRiazul Islam

Ambiguous & Unambiguous Grammar
Ambiguous & Unambiguous GrammarAmbiguous & Unambiguous Grammar
Ambiguous & Unambiguous GrammarMdImamHasan1

A Role of Lexical Analyzer
A Role of Lexical AnalyzerA Role of Lexical Analyzer
A Role of Lexical AnalyzerArchana Gopinath

Lexical Analysis - Compiler design
Lexical Analysis - Compiler design Lexical Analysis - Compiler design
Lexical Analysis - Compiler design Aman Sharma

Lexical analyzer generator lex
Lexical analyzer generator lexLexical analyzer generator lex
Lexical analyzer generator lexAnusuya123

Compiler design syntax analysis
Compiler design syntax analysisCompiler design syntax analysis
Compiler design syntax analysisRicha Sharma

Lecture 04 syntax analysis
Lecture 04 syntax analysisLecture 04 syntax analysis
Lecture 04 syntax analysisIffat Anjum

Syntax analyzer
Syntax analyzerSyntax analyzer
Syntax analyzerahmed51236

Symbol table management and error handling in compiler design
Symbol table management and error handling in compiler designSymbol table management and error handling in compiler design
Symbol table management and error handling in compiler designSwati Chauhan

Compiler Design Introduction
Compiler Design Introduction Compiler Design Introduction
Compiler Design Introduction Thapar Institute


What's hot (20)

Lexical Analysis
Lexical AnalysisLexical Analysis
Lexical Analysis

Compiler unit 2&3
Compiler unit 2&3Compiler unit 2&3
Compiler unit 2&3

Finite Automata in compiler design
Finite Automata in compiler designFinite Automata in compiler design
Finite Automata in compiler design

Introduction to Compiler design
Introduction to Compiler design Introduction to Compiler design
Introduction to Compiler design

6. describing syntax and semantics
6. describing syntax and semantics6. describing syntax and semantics
6. describing syntax and semantics

Syntax analysis
Syntax analysisSyntax analysis
Syntax analysis

Ambiguous & Unambiguous Grammar
Ambiguous & Unambiguous GrammarAmbiguous & Unambiguous Grammar
Ambiguous & Unambiguous Grammar

A Role of Lexical Analyzer
A Role of Lexical AnalyzerA Role of Lexical Analyzer
A Role of Lexical Analyzer

Chapter 5 Syntax Directed Translation
Chapter 5   Syntax Directed TranslationChapter 5   Syntax Directed Translation
Chapter 5 Syntax Directed Translation

COMPILER DESIGN
COMPILER DESIGNCOMPILER DESIGN
COMPILER DESIGN

Compiler design
Compiler designCompiler design
Compiler design

Lexical Analysis - Compiler design
Lexical Analysis - Compiler design Lexical Analysis - Compiler design
Lexical Analysis - Compiler design

Lexical analyzer generator lex
Lexical analyzer generator lexLexical analyzer generator lex
Lexical analyzer generator lex

Compiler design syntax analysis
Compiler design syntax analysisCompiler design syntax analysis
Compiler design syntax analysis

Lecture 04 syntax analysis
Lecture 04 syntax analysisLecture 04 syntax analysis
Lecture 04 syntax analysis

Syntax analyzer
Syntax analyzerSyntax analyzer
Syntax analyzer

Specification-of-tokens
Specification-of-tokensSpecification-of-tokens
Specification-of-tokens

Symbol table management and error handling in compiler design
Symbol table management and error handling in compiler designSymbol table management and error handling in compiler design
Symbol table management and error handling in compiler design

Lexical analyzer
Lexical analyzerLexical analyzer
Lexical analyzer

Compiler Design Introduction
Compiler Design Introduction Compiler Design Introduction
Compiler Design Introduction


Similar to Lexical Analysis Generator

02. chapter 3 lexical analysis
02. chapter 3   lexical analysis02. chapter 3   lexical analysis
02. chapter 3 lexical analysisraosir123

Compiler Design ug semLexical Analysis.ppt
Compiler Design ug semLexical Analysis.pptCompiler Design ug semLexical Analysis.ppt
Compiler Design ug semLexical Analysis.pptssuser6ba09a

Lexical analysis, syntax analysis, semantic analysis. Ppt
Lexical analysis, syntax analysis, semantic analysis. PptLexical analysis, syntax analysis, semantic analysis. Ppt
Lexical analysis, syntax analysis, semantic analysis. Pptovidlivi91

compiler Design course material chapter 2
compiler Design course material chapter 2compiler Design course material chapter 2
compiler Design course material chapter 2gadisaAdamu

Ch 2.pptx
Ch 2.pptxCh 2.pptx
Ch 2.pptxwoldu2

New compiler design 101 April 13 2024.pdf
New compiler design 101 April 13 2024.pdfNew compiler design 101 April 13 2024.pdf
New compiler design 101 April 13 2024.pdfeliasabdi2024

Chapter Two(1)
Chapter Two(1)Chapter Two(1)
Chapter Two(1)bolovv

Regular Expression to Finite Automata
Regular Expression to Finite AutomataRegular Expression to Finite Automata
Regular Expression to Finite AutomataArchana Gopinath

Compiler Designs
Compiler DesignsCompiler Designs
Compiler Designswasim liam

Lecture 02 lexical analysis
Lecture 02 lexical analysisLecture 02 lexical analysis
Lecture 02 lexical analysisIffat Anjum

A simple approach of lexical analyzers
A simple approach of lexical analyzersA simple approach of lexical analyzers
A simple approach of lexical analyzersArchana Gopinath


Similar to Lexical Analysis Generator (20)

02. chapter 3 lexical analysis
02. chapter 3   lexical analysis02. chapter 3   lexical analysis
02. chapter 3 lexical analysis

Ch3.ppt
Ch3.pptCh3.ppt
Ch3.ppt

Ch3.ppt
Ch3.pptCh3.ppt
Ch3.ppt

Compiler Design ug semLexical Analysis.ppt
Compiler Design ug semLexical Analysis.pptCompiler Design ug semLexical Analysis.ppt
Compiler Design ug semLexical Analysis.ppt

Lexical analysis, syntax analysis, semantic analysis. Ppt
Lexical analysis, syntax analysis, semantic analysis. PptLexical analysis, syntax analysis, semantic analysis. Ppt
Lexical analysis, syntax analysis, semantic analysis. Ppt

compiler Design course material chapter 2
compiler Design course material chapter 2compiler Design course material chapter 2
compiler Design course material chapter 2

Ch3
Ch3Ch3
Ch3

Ch3.ppt
Ch3.pptCh3.ppt
Ch3.ppt

Ch 2.pptx
Ch 2.pptxCh 2.pptx
Ch 2.pptx

Lexicalanalyzer
LexicalanalyzerLexicalanalyzer
Lexicalanalyzer

Lexicalanalyzer
LexicalanalyzerLexicalanalyzer
Lexicalanalyzer

New compiler design 101 April 13 2024.pdf
New compiler design 101 April 13 2024.pdfNew compiler design 101 April 13 2024.pdf
New compiler design 101 April 13 2024.pdf

Chapter Two(1)
Chapter Two(1)Chapter Two(1)
Chapter Two(1)

Regular Expression to Finite Automata
Regular Expression to Finite AutomataRegular Expression to Finite Automata
Regular Expression to Finite Automata

Compiler Designs
Compiler DesignsCompiler Designs
Compiler Designs

Compilers Design
Compilers DesignCompilers Design
Compilers Design

Assignment5
Assignment5Assignment5
Assignment5

Lecture 02 lexical analysis
Lecture 02 lexical analysisLecture 02 lexical analysis
Lecture 02 lexical analysis

A simple approach of lexical analyzers
A simple approach of lexical analyzersA simple approach of lexical analyzers
A simple approach of lexical analyzers

SS UI Lecture 5
SS UI Lecture 5SS UI Lecture 5
SS UI Lecture 5


Recently uploaded

Learn the Fundamentals of XCUITest Framework_ A Beginner's Guide.pdf
Learn the Fundamentals of XCUITest Framework_ A Beginner's Guide.pdfLearn the Fundamentals of XCUITest Framework_ A Beginner's Guide.pdf
Learn the Fundamentals of XCUITest Framework_ A Beginner's Guide.pdfkalichargn70th171

Asset Management Software - Infographic
Asset Management Software - InfographicAsset Management Software - Infographic
Asset Management Software - InfographicHr365.us smith

Cloud Management Software Platforms: OpenStack
Cloud Management Software Platforms: OpenStackCloud Management Software Platforms: OpenStack
Cloud Management Software Platforms: OpenStackVICTOR MAESTRE RAMIREZ

Russian Call Girls in Karol Bagh Aasnvi ➡️ 8264348440 💋📞 Independent Escort S...
Russian Call Girls in Karol Bagh Aasnvi ➡️ 8264348440 💋📞 Independent Escort S...Russian Call Girls in Karol Bagh Aasnvi ➡️ 8264348440 💋📞 Independent Escort S...
Russian Call Girls in Karol Bagh Aasnvi ➡️ 8264348440 💋📞 Independent Escort S...soniya singh

Unveiling the Tech Salsa of LAMs with Janus in Real-Time Applications
Unveiling the Tech Salsa of LAMs with Janus in Real-Time ApplicationsUnveiling the Tech Salsa of LAMs with Janus in Real-Time Applications
Unveiling the Tech Salsa of LAMs with Janus in Real-Time ApplicationsAlberto González Trastoy

Reassessing the Bedrock of Clinical Function Models: An Examination of Large ...
Reassessing the Bedrock of Clinical Function Models: An Examination of Large ...Reassessing the Bedrock of Clinical Function Models: An Examination of Large ...
Reassessing the Bedrock of Clinical Function Models: An Examination of Large ...harshavardhanraghave

Introduction to Decentralized Applications (dApps)
Introduction to Decentralized Applications (dApps)Introduction to Decentralized Applications (dApps)
Introduction to Decentralized Applications (dApps)Intelisync

Professional Resume Template for Software Developers
Professional Resume Template for Software DevelopersProfessional Resume Template for Software Developers
Professional Resume Template for Software DevelopersVinodh Ram

DNT_Corporate presentation know about us
DNT_Corporate presentation know about usDNT_Corporate presentation know about us
DNT_Corporate presentation know about usDynamic Netsoft

Hand gesture recognition PROJECT PPT.pptx
Hand gesture recognition PROJECT PPT.pptxHand gesture recognition PROJECT PPT.pptx
Hand gesture recognition PROJECT PPT.pptxbodapatigopi8531

Optimizing AI for immediate response in Smart CCTV
Optimizing AI for immediate response in Smart CCTVOptimizing AI for immediate response in Smart CCTV
Optimizing AI for immediate response in Smart CCTVshikhaohhpro

A Secure and Reliable Document Management System is Essential.docx
A Secure and Reliable Document Management System is Essential.docxA Secure and Reliable Document Management System is Essential.docx
A Secure and Reliable Document Management System is Essential.docxComplianceQuest1

Unit 1.1 Excite Part 1, class 9, cbse...
Unit 1.1 Excite Part 1, class 9, cbse...Unit 1.1 Excite Part 1, class 9, cbse...
Unit 1.1 Excite Part 1, class 9, cbse...aditisharan08

5 Signs You Need a Fashion PLM Software.pdf
5 Signs You Need a Fashion PLM Software.pdf5 Signs You Need a Fashion PLM Software.pdf
5 Signs You Need a Fashion PLM Software.pdfWave PLM

The Ultimate Test Automation Guide_ Best Practices and Tips.pdf
The Ultimate Test Automation Guide_ Best Practices and Tips.pdfThe Ultimate Test Automation Guide_ Best Practices and Tips.pdf
The Ultimate Test Automation Guide_ Best Practices and Tips.pdfkalichargn70th171

Unlocking the Future of AI Agents with Large Language Models
Unlocking the Future of AI Agents with Large Language ModelsUnlocking the Future of AI Agents with Large Language Models
Unlocking the Future of AI Agents with Large Language Modelsaagamshah0812

Building a General PDE Solving Framework with Symbolic-Numeric Scientific Mac...
Building a General PDE Solving Framework with Symbolic-Numeric Scientific Mac...Building a General PDE Solving Framework with Symbolic-Numeric Scientific Mac...
Building a General PDE Solving Framework with Symbolic-Numeric Scientific Mac...stazi3110

The Real-World Challenges of Medical Device Cybersecurity- Mitigating Vulnera...
The Real-World Challenges of Medical Device Cybersecurity- Mitigating Vulnera...The Real-World Challenges of Medical Device Cybersecurity- Mitigating Vulnera...
The Real-World Challenges of Medical Device Cybersecurity- Mitigating Vulnera...ICS

Short Story: Unveiling the Reasoning Abilities of Large Language Models by Ke...
Short Story: Unveiling the Reasoning Abilities of Large Language Models by Ke...Short Story: Unveiling the Reasoning Abilities of Large Language Models by Ke...
Short Story: Unveiling the Reasoning Abilities of Large Language Models by Ke...kellynguyen01


Recently uploaded (20)

Learn the Fundamentals of XCUITest Framework_ A Beginner's Guide.pdf
Learn the Fundamentals of XCUITest Framework_ A Beginner's Guide.pdfLearn the Fundamentals of XCUITest Framework_ A Beginner's Guide.pdf
Learn the Fundamentals of XCUITest Framework_ A Beginner's Guide.pdf

Asset Management Software - Infographic
Asset Management Software - InfographicAsset Management Software - Infographic
Asset Management Software - Infographic

Cloud Management Software Platforms: OpenStack
Cloud Management Software Platforms: OpenStackCloud Management Software Platforms: OpenStack
Cloud Management Software Platforms: OpenStack

Russian Call Girls in Karol Bagh Aasnvi ➡️ 8264348440 💋📞 Independent Escort S...
Russian Call Girls in Karol Bagh Aasnvi ➡️ 8264348440 💋📞 Independent Escort S...Russian Call Girls in Karol Bagh Aasnvi ➡️ 8264348440 💋📞 Independent Escort S...
Russian Call Girls in Karol Bagh Aasnvi ➡️ 8264348440 💋📞 Independent Escort S...

Unveiling the Tech Salsa of LAMs with Janus in Real-Time Applications
Unveiling the Tech Salsa of LAMs with Janus in Real-Time ApplicationsUnveiling the Tech Salsa of LAMs with Janus in Real-Time Applications
Unveiling the Tech Salsa of LAMs with Janus in Real-Time Applications

Reassessing the Bedrock of Clinical Function Models: An Examination of Large ...
Reassessing the Bedrock of Clinical Function Models: An Examination of Large ...Reassessing the Bedrock of Clinical Function Models: An Examination of Large ...
Reassessing the Bedrock of Clinical Function Models: An Examination of Large ...

Introduction to Decentralized Applications (dApps)
Introduction to Decentralized Applications (dApps)Introduction to Decentralized Applications (dApps)
Introduction to Decentralized Applications (dApps)

Professional Resume Template for Software Developers
Professional Resume Template for Software DevelopersProfessional Resume Template for Software Developers
Professional Resume Template for Software Developers

DNT_Corporate presentation know about us
DNT_Corporate presentation know about usDNT_Corporate presentation know about us
DNT_Corporate presentation know about us

Hand gesture recognition PROJECT PPT.pptx
Hand gesture recognition PROJECT PPT.pptxHand gesture recognition PROJECT PPT.pptx
Hand gesture recognition PROJECT PPT.pptx

Optimizing AI for immediate response in Smart CCTV
Optimizing AI for immediate response in Smart CCTVOptimizing AI for immediate response in Smart CCTV
Optimizing AI for immediate response in Smart CCTV

A Secure and Reliable Document Management System is Essential.docx
A Secure and Reliable Document Management System is Essential.docxA Secure and Reliable Document Management System is Essential.docx
A Secure and Reliable Document Management System is Essential.docx

Unit 1.1 Excite Part 1, class 9, cbse...
Unit 1.1 Excite Part 1, class 9, cbse...Unit 1.1 Excite Part 1, class 9, cbse...
Unit 1.1 Excite Part 1, class 9, cbse...

5 Signs You Need a Fashion PLM Software.pdf
5 Signs You Need a Fashion PLM Software.pdf5 Signs You Need a Fashion PLM Software.pdf
5 Signs You Need a Fashion PLM Software.pdf

The Ultimate Test Automation Guide_ Best Practices and Tips.pdf
The Ultimate Test Automation Guide_ Best Practices and Tips.pdfThe Ultimate Test Automation Guide_ Best Practices and Tips.pdf
The Ultimate Test Automation Guide_ Best Practices and Tips.pdf

Unlocking the Future of AI Agents with Large Language Models
Unlocking the Future of AI Agents with Large Language ModelsUnlocking the Future of AI Agents with Large Language Models
Unlocking the Future of AI Agents with Large Language Models

Building a General PDE Solving Framework with Symbolic-Numeric Scientific Mac...
Building a General PDE Solving Framework with Symbolic-Numeric Scientific Mac...Building a General PDE Solving Framework with Symbolic-Numeric Scientific Mac...
Building a General PDE Solving Framework with Symbolic-Numeric Scientific Mac...

The Real-World Challenges of Medical Device Cybersecurity- Mitigating Vulnera...
The Real-World Challenges of Medical Device Cybersecurity- Mitigating Vulnera...The Real-World Challenges of Medical Device Cybersecurity- Mitigating Vulnera...
The Real-World Challenges of Medical Device Cybersecurity- Mitigating Vulnera...

Exploring iOS App Development: Simplifying the Process
Exploring iOS App Development: Simplifying the ProcessExploring iOS App Development: Simplifying the Process
Exploring iOS App Development: Simplifying the Process

Short Story: Unveiling the Reasoning Abilities of Large Language Models by Ke...
Short Story: Unveiling the Reasoning Abilities of Large Language Models by Ke...Short Story: Unveiling the Reasoning Abilities of Large Language Models by Ke...
Short Story: Unveiling the Reasoning Abilities of Large Language Models by Ke...


Lexical Analysis Generator

  • 2. Outline  Role of lexical analyzer  Specification of tokens  Recognition of tokens  Lexical analyzer generator  Finite automata  Design of lexical analyzer generator
  • 3. The role of lexical analyzer The main task of the lexical analyzer is to read the input characters of the source program group them into lexemes and produce as output a sequence of tokens for each lexeme in the source program. If a lexeme has an identifier, that lexeme is entered into the symbol table. The lexical analyzer not only identifies the lexemes but also pre-processes the source text like removing comments, white spaces, etc.
  • 4. The role of lexical analyzer Lexical Analyzer Parser Source program token getNextToken Symbol table To semantic analysis
  • 5. Why to separate Lexical analysis and parsing 1. Simplicity of design 2. Improving compiler efficiency 3. Enhancing compiler portability
  • 6. Lexical analysis Lexical analyzers are divided into a cascade of two processes:  Scanning - It consists of simple processes that do not require the tokenization of the input such as deletion of comments, compaction of consecutive white space characters into one.  Lexical Analysis- This is the more complex portion where the scanner produces sequence of tokens as output.
  • 7. Tokens, Patterns and Lexemes  A token is a pair a token name and an optional token value  A pattern is a description of the form that the lexemes of a token may take  Specification of Tokens: Regular expressions are important part in specifying lexeme patterns. While they cannot express all possible patterns, they are very effective in specifying those type of patterns that we actually need for tokens.  A lexeme is a sequence of characters in the source program that matches the pattern for a token
  • 8. Example Token Informal description Sample lexemes if else comparison id number literal Characters i, f Characters e, l, s, e < or > or <= or >= or == or != Letter followed by letter and digits Any numeric constant Anything but “ sorrounded by “ if else <=, != pi, score, D2 3.14159, 0, 6.02e23 “core dumped” printf(“total = %dn”, score);
  • 9. Attributes for tokens  E = M * C ** 2  <id, pointer to symbol table entry for E>  <assign-op>  <id, pointer to symbol table entry for M>  <mult-op>  <id, pointer to symbol table entry for C>  <exp-op>  <number, integer value 2>
  • 10. Lexical errors  Some errors are out of power of lexical analyzer to recognize:  fi (a == f(x)) …  However it may be able to recognize errors like:  d = 2r  Such errors are recognized when no pattern for tokens matches a character sequence
  • 11. Error recovery  Panic mode: successive characters are ignored until we reach to a well formed token  Delete one character from the remaining input  Insert a missing character into the remaining input  Replace a character by another character  Transpose two adjacent characters
  • 12. Input buffering  Sometimes lexical analyzer needs to look ahead some symbols to decide about the token to return  In C language: we need to look after -, = or < to decide what token to return  We need to introduce a two buffer scheme to handle large look-aheads safely E = M * C * * 2 eof
  • 13. Sentinels Switch (*forward++) { case eof: if (forward is at end of first buffer) { reload second buffer; forward = beginning of second buffer; } else if {forward is at end of second buffer) { reload first buffer; forward = beginning of first buffer; } else /* eof within a buffer marks the end of input */ terminate lexical analysis; break; cases for the other characters; } E = M eof * C * * 2 eof eof
  • 14. Specification of tokens  In theory of compilation regular expressions are used to formalize the specification of tokens  Regular expressions are means for specifying regular languages  Example:  Letter_(letter_ | digit)*  Each regular expression is a pattern specifying the form of strings
  • 15. Regular expressions  Ɛ is a regular expression, L(Ɛ) = {Ɛ}  If a is a symbol in ∑then a is a regular expression, L(a) = {a}  (r) | (s) is a regular expression denoting the language L(r) ∪ L(s)  (r)(s) is a regular expression denoting the language L(r)L(s)  (r)* is a regular expression denoting (L(r))*  (r) is a regular expression denoting L(r)
  • 16. Regular definitions d1 -> r1 d2 -> r2 … dn -> rn  Example: letter_ -> A | B | … | Z | a | b | … | Z | _ digit -> 0 | 1 | … | 9 id -> letter_ (letter_ | digit)*
  • 17. Extensions  One or more instances: (r)+  Zero of one instances: r?  Character classes: [abc]  Example:  letter_ -> [A-Za-z_]  digit -> [0-9]  id -> letter_(letter|digit)*
  • 18. Recognition of tokens  Starting point is the language grammar to understand the tokens: stmt -> if expr then stmt | if expr then stmt else stmt | Ɛ expr -> term relop term | term term -> id | number
  • 19. Recognition of tokens (cont.)  The next step is to formalize the patterns: digit -> [0-9] Digits -> digit+ number -> digit(.digits)? (E[+-]? Digit)? letter -> [A-Za-z_] id -> letter (letter|digit)* If -> if Then -> then Else -> else Relop -> < | > | <= | >= | = | <>  We also need to handle whitespaces: ws -> (blank | tab | newline)+
  • 21. Transition diagrams (cont.)  Transition diagram for reserved words and identifiers
  • 22. Transition diagrams (cont.)  Transition diagram for unsigned numbers
  • 23. Transition diagrams (cont.)  Transition diagram for whitespace
  • 24. Architecture of a transition- diagram-based lexical analyzer TOKEN getRelop() { TOKEN retToken = new (RELOP) while (1) { /* repeat character processing until a return or failure occurs */ switch(state) { case 0: c= nextchar(); if (c == ‘<‘) state = 1; else if (c == ‘=‘) state = 5; else if (c == ‘>’) state = 6; else fail(); /* lexeme is not a relop */ break; case 1: … … case 8: retract(); retToken.attribute = GT; return(retToken); }
  • 25. Lexical Analyzer Generator - Lex Lexical Compiler Lex Source program lex.l lex.yy.c C compiler lex.yy.c a.out a.out Input stream Sequence of tokens
  • 26. Structure of Lex programs declarations %% translation rules %% auxiliary functions Pattern {Action}
  • 27. Example %{ /* definitions of manifest constants LT, LE, EQ, NE, GT, GE, IF, THEN, ELSE, ID, NUMBER, RELOP */ %} /* regular definitions delim [ tn] ws {delim}+ letter [A-Za-z] digit [0-9] id {letter}({letter}|{digit})* number {digit}+(.{digit}+)?(E[+-]?{digit}+)? %% {ws} {/* no action and no return */} if {return(IF);} then {return(THEN);} else {return(ELSE);} {id} {yylval = (int) installID(); return(ID); } {number} {yylval = (int) installNum(); return(NUMBER);} … Int installID() {/* funtion to install the lexeme, whose first character is pointed to by yytext, and whose length is yyleng, into the symbol table and return a pointer thereto */ } Int installNum() { /* similar to installID, but puts numerical constants into a separate table */ }
  • 28. 28 Finite Automata  Regular expressions = specification  Finite automata = implementation  A finite automaton consists of  An input alphabet   A set of states S  A start state n  A set of accepting states F  S  A set of transitions state input state
  • 29. 29 Finite Automata  Transition s1 a s2  Is read In state s1 on input “a” go to state s2  If end of input  If in accepting state => accept, othewise => reject  If no transition possible => reject
  • 30. 30 Finite Automata State Graphs  A state • The start state • An accepting state • A transition a
  • 31. 31 A Simple Example  A finite automaton that accepts only “1”  A finite automaton accepts a string if we can follow transitions labeled with the characters in the string from the start to some accepting state 1
  • 32. 32 Another Simple Example  A finite automaton accepting any number of 1’s followed by a single 0  Alphabet: {0,1}  Check that “1110” is accepted but “110…” is not 0 1
  • 33. 33 And Another Example  Alphabet {0,1}  What language does this recognize? 0 1 0 1 0 1
  • 34. 34 And Another Example  Alphabet still { 0, 1 }  The operation of the automaton is not completely defined by the input  On input “11” the automaton could be in either state 1 1
  • 35. 35 Epsilon Moves  Another kind of transition: -moves  • Machine can move from state A to state B without reading input A B
  • 36. 36 Deterministic and Nondeterministic Automata  Deterministic Finite Automata (DFA)  One transition per input per state  No -moves  Nondeterministic Finite Automata (NFA)  Can have multiple transitions for one input in a given state  Can have -moves  Finite automata have finite memory  Need only to encode the current state
  • 37. 37 Execution of Finite Automata  A DFA can take only one path through the state graph  Completely determined by input  NFAs can choose  Whether to make -moves  Which of multiple transitions for a single input to take
  • 38. 38 Acceptance of NFAs  An NFA can get into multiple states • Input: 0 1 1 0 1 0 1 • Rule: NFA accepts if it can get in a final state
  • 39. 39 NFA vs. DFA (1)  NFAs and DFAs recognize the same set of languages (regular languages)  DFAs are easier to implement  There are no choices to consider
  • 40. 40 NFA vs. DFA (2)  For a given language the NFA can be simpler than the DFA 0 1 0 0 0 1 0 1 0 1 NFA DFA • DFA can be exponentially larger than NFA
  • 41. 41 Regular Expressions to Finite Automata  High-level sketch Regular expressions NFA DFA Lexical Specification Table-driven Implementation of DFA
  • 42. 42 Regular Expressions to NFA (1)  For each kind of rexp, define an NFA  Notation: NFA for rexp A A • For   • For input a a
  • 43. 43 Regular Expressions to NFA (2)  For AB A B  • For A | B A B    
  • 44. 44 Regular Expressions to NFA (3)  For A* A   
  • 45. 45 Example of RegExp -> NFA conversion  Consider the regular expression (1 | 0)*1  The NFA is  1 C E 0 D F   B   G    A H 1 I J
  • 47. 47 NFA to DFA. The Trick  Simulate the NFA  Each state of resulting DFA = a non-empty subset of states of the NFA  Start state = the set of NFA states reachable through -moves from NFA start state  Add a transition S a S’ to DFA iff  S’ is the set of NFA states reachable from the states in S after seeing the input a  considering -moves as well
  • 48. 48 NFA -> DFA Example 1 0 1         A B C D E F G H I J ABCDHI FGABCDHI EJGABCDHI 0 1 0 1 0 1
  • 49. 49 NFA to DFA. Remark  An NFA may be in many states at any time  How many different states ?  If there are N states, the NFA must be in some subset of those N states  How many non-empty subsets are there?  2N - 1 = finitely many, but exponentially many
  • 50. 50 Implementation  A DFA can be implemented by a 2D table T  One dimension is “states”  Other dimension is “input symbols”  For every transition Si a Sk define T[i,a] = k  DFA “execution”  If in state Si and input a, read T[i,a] = k and skip to state Sk  Very efficient
  • 51. 51 Table Implementation of a DFA S T U 0 1 0 1 0 1 0 1 S T U T T U U T U
  • 52. 52 Implementation (Cont.)  NFA -> DFA conversion is at the heart of tools such as flex or jflex  But, DFAs can be huge  In practice, flex-like tools trade off speed for space in the choice of NFA and DFA representations
