Advanced Database Systems

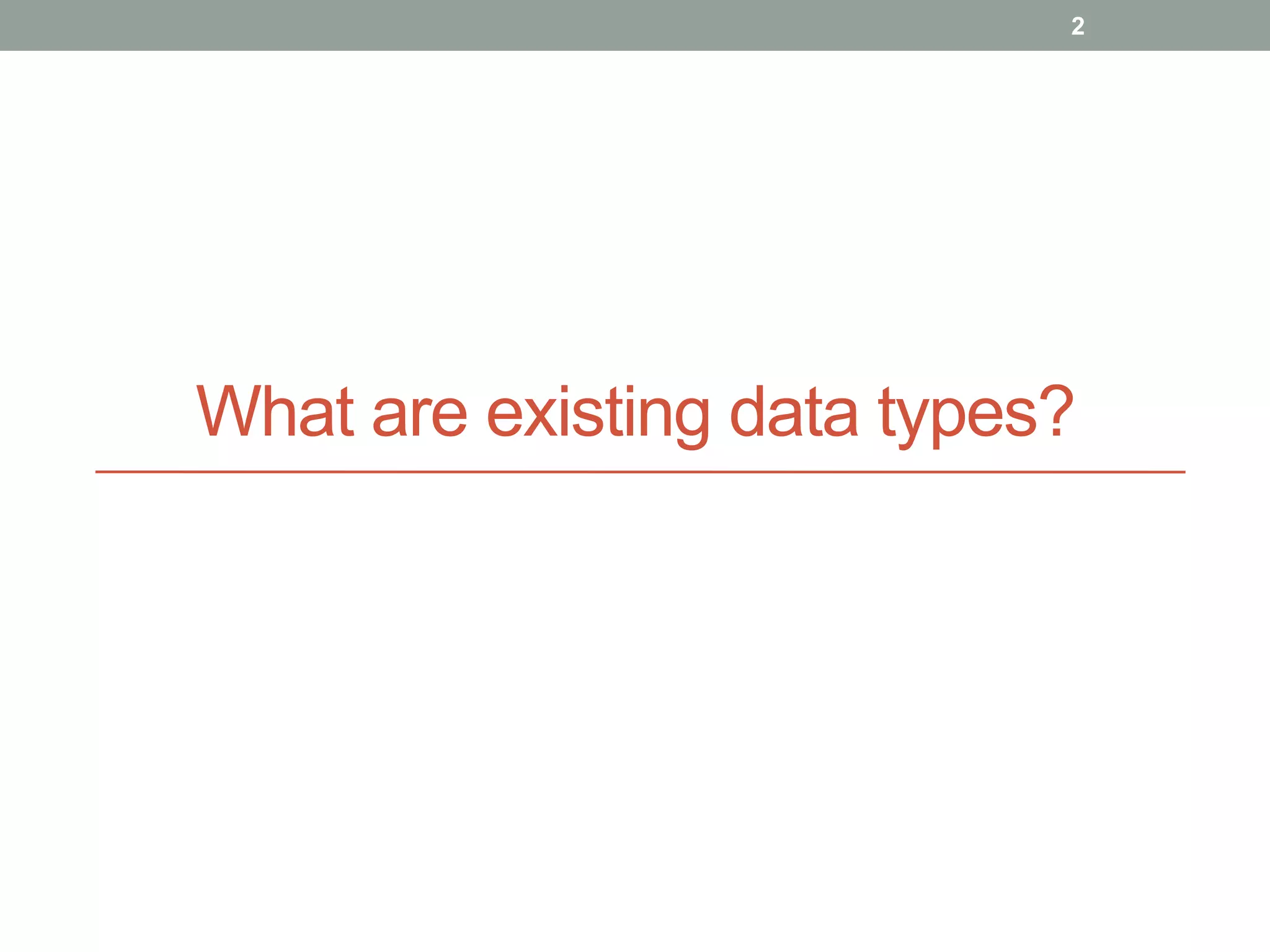

1. What are existing data types?
2

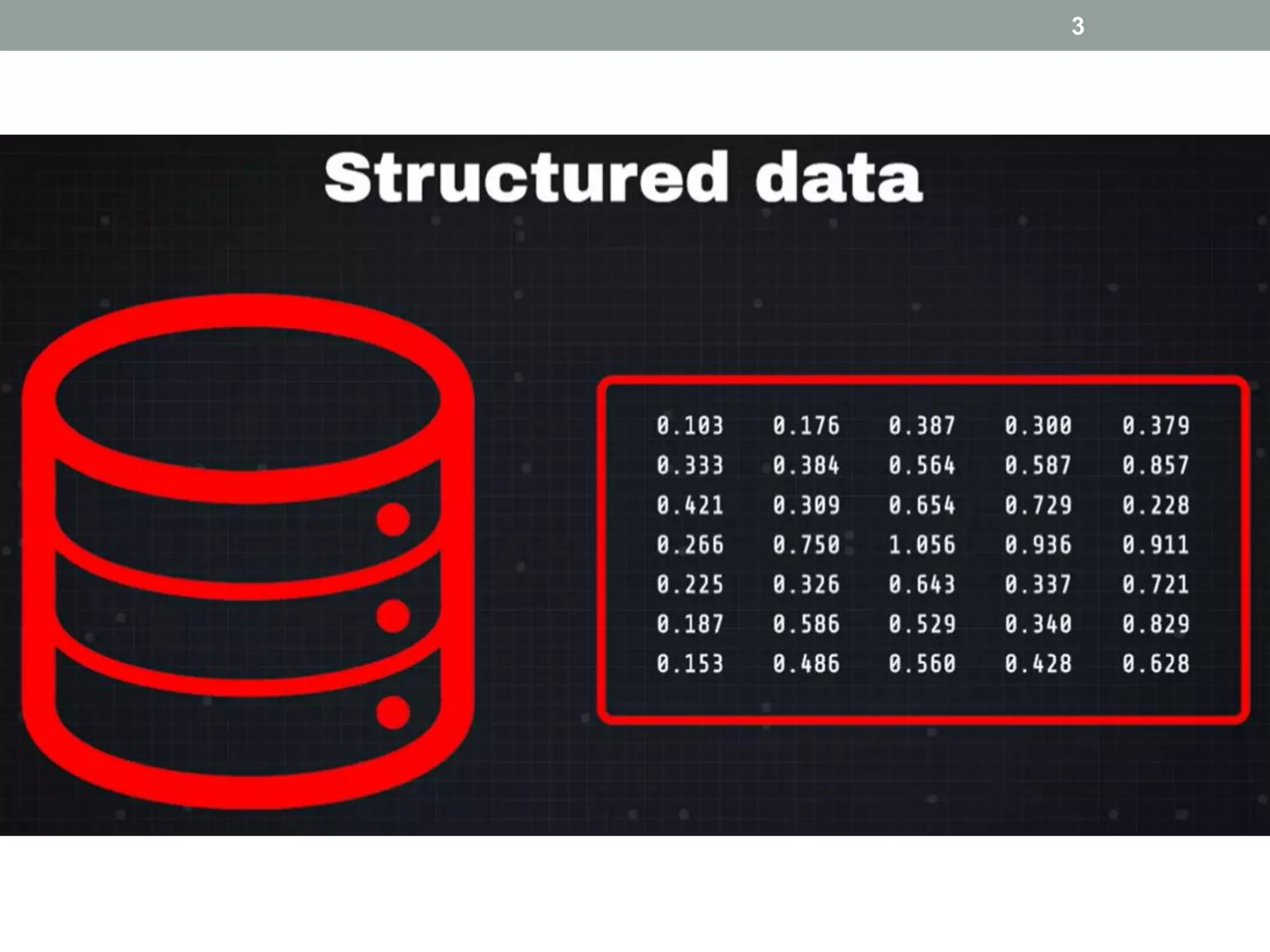

2. 3

3. 4

4. 5

5. What are existing database types?
6

6. Database Types (Relational - Structured)
7

7. Database Types (Relational - Structured)
8
• OLTP Characteristics
• Designed for data entry and manipulations
• Day to day business operation
• Normalized data
• Concerned with current data (real time data)
• Data stored in columns and rows (highly detailed)
• Flexible schema
• Most common Type

8. Database Types (Relational - Structured)
9
• OLAP Characteristics
• AKA Data warehouse
• Designed for data collection & analysis
• Fast
• Easy access to complex queries
• Concerned with historical/ statistical information
• Data is summarized
• Rigid schema (how the data is organized)
• Not usually concerned with individual transactions

9. Why SQL is not enough?
10

10. Why SQL is not enough?
11

11. Case Study
12

12. G-Flix Example
13

13. G-Flix Example
14

14. Data lakes
15

15. • Designed to capture raw data (structured, semi-
structured, and unstructured)
• Made for large amounts of data
• Uses ML and AI for analytics and processing
• It is not super-useable
• To be useful it is cleansed and organized into databases or data
warehouses.
16
Data lakes

16. No one option is better for all…
• No one is better than the other
• Depends on what kind of data you have and what you
want to do with it
• A company can have one or all options
18

17. Course Plan
• Data-Warehousing concepts and data modeling
• NoSQL Database Models
• Key-Value
• Column
• Document
• Graph
• In-Memory Databases
19

18. PART 1
DATA WAREHOUSING
20

19. What is Data Warehouse?
Is a database, or collection of databases, that
centralizes a business's information from
multiple sources and applications, and makes it
available for analytics and use across the
organization.
21

20. Data Warehouse Definition
22

21. Data Warehouse Architecture
Why do we need a DW?
23
