Exploiting the Power of the Mainframe:
The Latest News from System z

Diane Goff
IBM IMS ATS
dgoff@us.ibm.com

© 2012 IBM Corporation

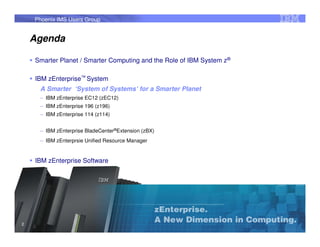

Agenda

Smarter Planet / Smarter Computing and the Role of IBM System z®

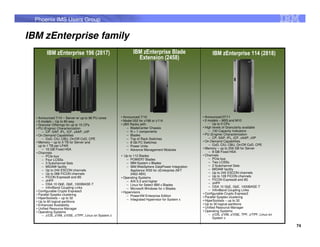

IBM zEnterprise™ System
A Smarter ‘System of Systems’ for a Smarter Planet

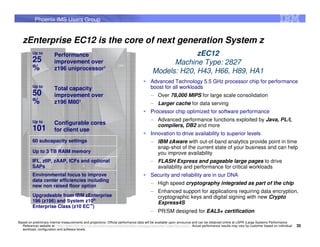

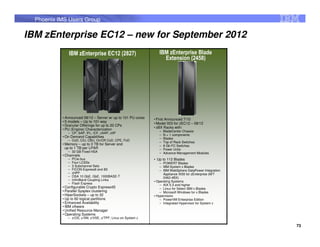

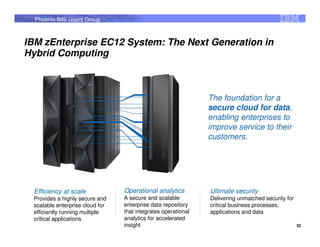

– IBM zEnterprise EC12 (zEC12)

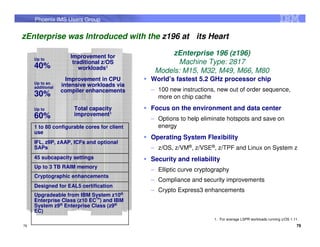

– IBM zEnterprise 196 (z196)

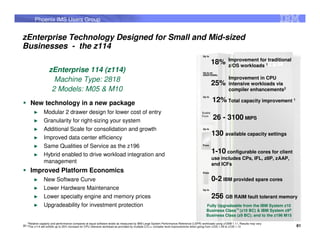

– IBM zEnterprise 114 (z114)

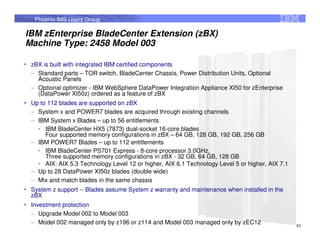

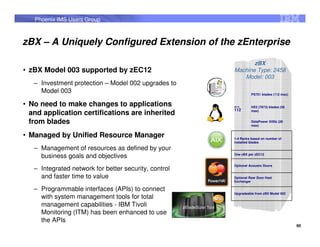

– IBM zEnterprise BladeCenter®Extension (zBX)

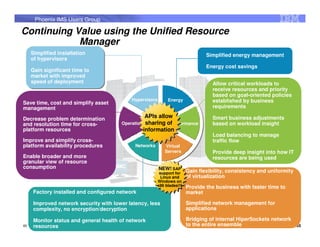

– IBM zEnterprsie Unified Resource Manager

IBM zEnterprise Software

2 2

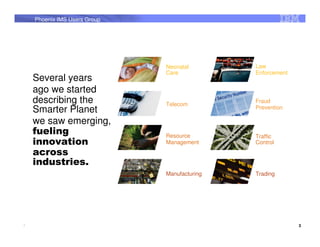

Neonatal Law
Care Enforcement
Several years
ago we started
describing the Telecom
Fraud
Smarter Planet Prevention

we saw emerging,
fueling Resource Traffic
innovation Management Control
across
industries.
Manufacturing Trading

3 3

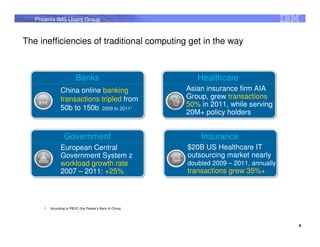

The inefficiencies of traditional computing get in the way

Banks Healthcare
China online banking Asian insurance firm AIA
transactions tripled from Group, grew transactions
50b to 150b 2009 to 20111 50% in 2011, while serving
20M+ policy holders

Government Insurance
European Central $20B US Healthcare IT
Government System z outsourcing market nearly
workload growth rate doubled 2009 – 2011, annually
2007 – 2011: +25% transactions grew 35%+

1. According to PBOC (the People’s Bank of China)

4

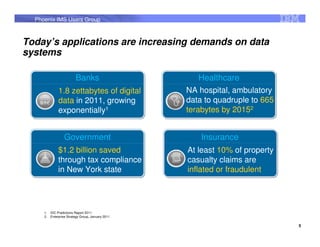

Today’s applications are increasing demands on data
systems

Banks Healthcare
1.8 zettabytes of digital NA hospital, ambulatory
data in 2011, growing data to quadruple to 665
exponentially1 terabytes by 20152

$1.2 billion saved At least 10% of property
through tax compliance casualty claims are
in New York state inflated or fraudulent

1. IDC Predictions Report 2011
2. Enterprise Strategy Group, January 2011

5

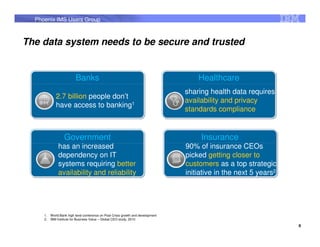

The data system needs to be secure and trusted

Banks Healthcare
sharing health data requires
2.7 billion people don’t
availability and privacy
have access to banking1
standards compliance

has an increased 90% of insurance CEOs
dependency on IT picked getting closer to
systems requiring better customers as a top strategic
availability and reliability initiative in the next 5 years2

1. World Bank high level conference on Post-Crisis growth and development
2. IBM Institute for Business Value – Global CEO study, 2010

6


Innovative clients are implementing new technologies to
…

React to shorter product cycles by delivering IT efficiency for
and invest in new services … core business transactions

Deliver new business by using actionable insight for
opportunities … information-centric processes

Capture new markets and drive by strengthening the customer
top-line revenue growth … experience

7

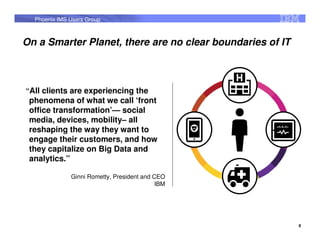

On a Smarter Planet, there are no clear boundaries of IT

“All clients are experiencing the
phenomena of what we call ‘front
office transformation’— social
media, devices, mobility– all
reshaping the way they want to
engage their customers, and how
they capitalize on Big Data and
analytics.”

Ginni Rometty, President and CEO
IBM

8

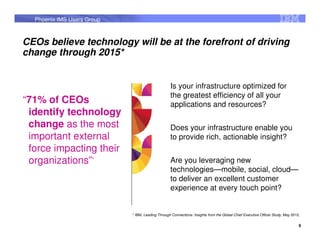

CEOs believe technology will be at the forefront of driving
change through 2015*

Is your infrastructure optimized for
the greatest efficiency of all your
“71% of CEOs applications and resources?
identify technology
change as the most Does your infrastructure enable you
important external to provide rich, actionable insight?
force impacting their
organizations”* Are you leveraging new
technologies—mobile, social, cloud—
to deliver an excellent customer
experience at every touch point?

* IBM, Leading Through Connections: Insights from the Global Chief Executive Officer Study, May 2012.

9

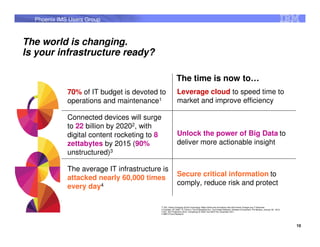

The world is changing.
Is your infrastructure ready?

The time is now to…
70% of IT budget is devoted to Leverage cloud to speed time to
operations and maintenance1 market and improve efficiency

Connected devices will surge
to 22 billion by 20202, with
digital content rocketing to 8 Unlock the power of Big Data to
zettabytes by 2015 (90% deliver more actionable insight
unstructured)3

The average IT infrastructure is
Secure critical information to
attacked nearly 60,000 times
comply, reduce risk and protect
every day4

1 IDC, Game Changing Virtual Technology: Major Shifts and Innovations that will Forever Change your IT Business
2 Forrester, BT 2020: To Thrive In The Empowered Era, You’ll Need Software, Software Everywhere, Phil Murphy, January 30, 2012.
3 IDC, IDC Predictions 2012: Competing for 2020, Doc #231720, December 2011,
4 IBM X-Force Research

10

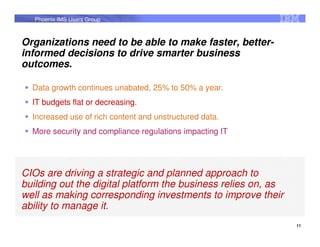

Organizations need to be able to make faster, better-
informed decisions to drive smarter business
outcomes.

Data growth continues unabated, 25% to 50% a year.
IT budgets flat or decreasing.
Increased use of rich content and unstructured data.
More security and compliance regulations impacting IT

CIOs are driving a strategic and planned approach to
building out the digital platform the business relies on, as
well as making corresponding investments to improve their
ability to manage it.
11


Smarter Computing: Tomorrow Ready.
Smarter Computing is the IT infrastructure that
enables a Smarter Planet.

Cloud Ready

Data Ready

Security Ready

12

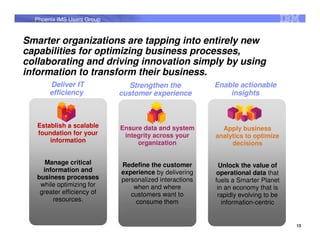

Smarter organizations are tapping into entirely new
capabilities for optimizing business processes,
collaborating and driving innovation simply by using
information to transform their business.
Deliver IT Strengthen the Enable actionable
efficiency customer experience insights

Establish a scalable Ensure data and system Apply business
foundation for your integrity across your analytics to optimize
information organization decisions

Manage critical Redefine the customer Unlock the value of
information and experience by delivering operational data that
business processes personalized interactions fuels a Smarter Planet
while optimizing for when and where in an economy that is
greater efficiency of customers want to rapidly evolving to be
resources. consume them information-centric

13

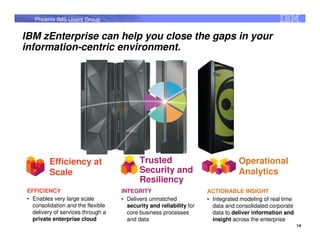

IBM zEnterprise can help you close the gaps in your
information-centric environment.

Efficiency at Trusted Operational
Scale Security and Analytics
Resiliency
EFFICIENCY INTEGRITY ACTIONABLE INSIGHT
• Enables very large scale • Delivers unmatched • Integrated modeling of real time
consolidation and the flexible security and reliability for data and consolidated corporate
delivery of services through a core business processes data to deliver information and
private enterprise cloud and data insight across the enterprise
14

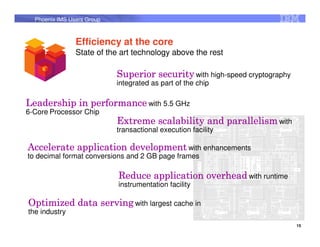

Efficiency at the core
State of the art technology above the rest

Superior security with high-speed cryptography
integrated as part of the chip

Leadership in performance with 5.5 GHz
6-Core Processor Chip
Extreme scalability and parallelism with
transactional execution facility

Accelerate application development with enhancements
to decimal format conversions and 2 GB page frames

Reduce application overhead with runtime
instrumentation facility

Optimized data serving with largest cache in
the industry
15

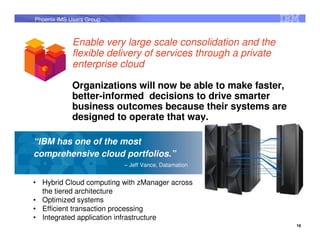

Enable very large scale consolidation and the
flexible delivery of services through a private
enterprise cloud

Organizations will now be able to make faster,
better-informed decisions to drive smarter
business outcomes because their systems are
designed to operate that way.

“IBM has one of the most
comprehensive cloud portfolios.”
– Jeff Vance, Datamation

• Hybrid Cloud computing with zManager across
the tiered architecture
• Optimized systems
• Efficient transaction processing
• Integrated application infrastructure
16

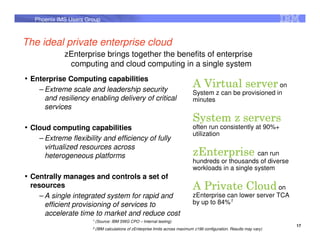

The ideal private enterprise cloud
zEnterprise brings together the benefits of enterprise
computing and cloud computing in a single system
• Enterprise Computing capabilities
– Extreme scale and leadership security
A Virtual server on
System z can be provisioned in
and resiliency enabling delivery of critical minutes
services
System z servers
• Cloud computing capabilities often run consistently at 90%+
utilization
– Extreme flexibility and efficiency of fully
virtualized resources across
heterogeneous platforms zEnterprise can run
hundreds or thousands of diverse
workloads in a single system
• Centrally manages and controls a set of
resources A Private Cloud on
– A single integrated system for rapid and zEnterprise can lower server TCA
efficient provisioning of services to by up to 84%1
accelerate time to market and reduce cost
1 (Source: IBM SWG CPO – Internal testing)
17
2 (IBM calculations of zEnterprise limits across maximum z196 configuration. Results may vary)


Why Deploy Cloud and Linux on System z?

Increased Productivity
More Efficient Data Center
TCA of less than $0.70 per day per
virtual server1 U.S. Insurance Company uses
80% less energy than existing
79% less TCA vs. leading public distributed servers
cloud 2
Less floor space
More than 3,000 applications
available on System z Fewer physical servers to manage

Higher Utilization Greater Reliability, Availability
Most clients run consistently at Most customers test backup of
90%+ utilization1 System z to 100% recovery
“Shared everything” architecture annually
Manage up to 100,000 virtual Built-in hardware redundancy
servers1 Capacity and Backup on Demand

1 IBM calculations of zEnterprise limits across maximum z196 configuration. Results may vary. 5-Year Total IT Cost
2 The Edison Group: The Value of IBM zEnterprise for Deploying Heterogeneous Private Clouds, savings start at 250
virtual servers

18

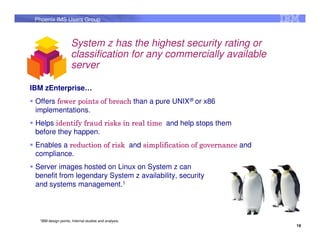

System z has the highest security rating or
classification for any commercially available
server

IBM zEnterprise…
Offers fewer points of breach than a pure UNIX® or x86
implementations.
Helps identify fraud risks in real time and help stops them
before they happen.
Enables a reduction of risk and simplification of governance and
compliance.
Server images hosted on Linux on System z can
benefit from legendary System z availability, security
and systems management.1

1IBM design points, Internal studies and analysis.
19

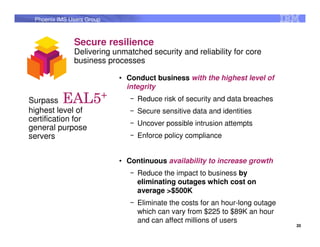

Secure resilience
Delivering unmatched security and reliability for core
business processes

• Conduct business with the highest level of
integrity
Surpass EAL5+ ‒ Reduce risk of security and data breaches
highest level of ‒ Secure sensitive data and identities
certification for
‒ Uncover possible intrusion attempts
general purpose
servers ‒ Enforce policy compliance

• Continuous availability to increase growth
‒ Reduce the impact to business by
eliminating outages which cost on
average >$500K
‒ Eliminate the costs for an hour-long outage
which can vary from $225 to $89K an hour
and can affect millions of users
20

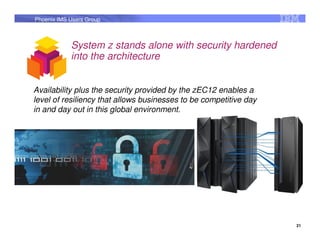

System z stands alone with security hardened
into the architecture

Availability plus the security provided by the zEC12 enables a
level of resiliency that allows businesses to be competitive day
in and day out in this global environment.

21

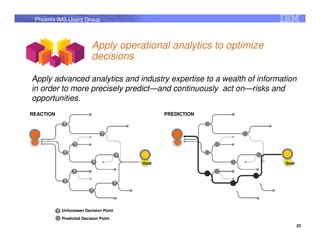

Apply operational analytics to optimize
decisions

Apply advanced analytics and industry expertise to a wealth of information
in order to more precisely predict—and continuously act on—risks and
opportunities.
REACTION PREDICTION

Goal Goal

Unforeseen Decision Point
Predicted Decision Point
22

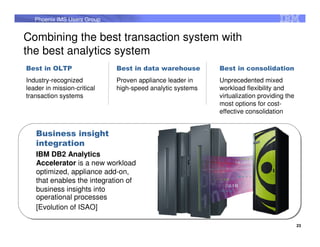

Combining the best transaction system with
the best analytics system
Best in OLTP Best in data warehouse Best in consolidation
Industry-recognized Proven appliance leader in Unprecedented mixed
leader in mission-critical high-speed analytic systems workload flexibility and
transaction systems virtualization providing the
most options for cost-
effective consolidation

Business insight
integration
IBM DB2 Analytics
Accelerator is a new workload
optimized, appliance add-on,
that enables the integration of
business insights into
operational processes
[Evolution of ISAO]

23


The IBM DB2 Analytics Accelerator (IDAA)
Capitalizing on the best of both worlds – System z and Netezza

The IBM DB2 Analytics Accelerator is a
blending of System z and Netezza
technologies that delivers unparalleled
mixed workload performance for
addressing complex analytic business
needs.

Performance, availability and scalability

Extreme Performance for Complex Analytics

Breakthrough technologies - Hardware
acceleration

Transparent to DB2 applications

24


Operational Analytics
Integrating business insights when and where it matters

Real-
Real-Time Scoring offers new technology that ensures current, relevant
business insights within the time of a transaction

Improve query response times by up to 30% when
updating to IBM zEnterprise EC12

Advanced query management integrates operational, strategic,
and tactical decisions, while delivering response times up to 2000x faster, and
maintaining critical business priorities

Enterprise-
Enterprise-wide Data Warehousing leverages
leading temporal and data governance capabilities, to deliver a
single, consistent view of business

25


With System z, even the most complex
queries can be processed within seconds

Deliver real-time insights that uncover new business opportunities,
and provide that information to the front lines of business, so that
they can take action when it can yield real business results.

26


zEnterprise EC12 parallel sysplex availability leads the pack

Downtime Survey (400 participants in 20 countries)
3.5

3
Downtime Hours Per Year

2.5 System z Parallel Sysplex
with 99.999% availability
2

5 minutes
1.5

1

0.5

0
Microsoft Microsoft Novell HP HP Sun Mandrake Novell IBM IBM
Win2003 Win2008 Linux on HP-UX HP-UX Solaris Linux Linux on AIX z/OS
on on Intel x86 on on on on Intel x86 on Sysplex
Intel x86 Intel x86 (unmodified) Intel Itanium HP PA-RISC Sun SPARC Intel x86 (modified) IBM Power

Source: ITIC: ITIC 2009 Global Server Hardware & Server OS Reliability Survey; July 2009; http://itic-corp.com/blog/2009/07/itic-2009-global-server-hardware-server-os-
reliability-survey-results/; Results are measured in minutes per year.
*Note: All operating systems included in the survey are not included in this chart. Fifteen operating systems on various processor architectures were included in the
survey. The chart will be updated when the full report is available.

27


IBM Software for zEnterprise solves key Business
Initiatives
Cloud Data Security
Efficiency at Scale Operational Analytics Ultimate Security
Delivering high value Delivering predictive and Providing advanced data
secured applications and operational analysis of real- security and audit
services to create the ideal time enterprise data to deliver capabilities for managing risk,
private cloud environment insights data leaks, and compliance
issues
NEW
IBM CICS Transaction Server for IBM DB2 Analytics Accelerator V3 IBM Security zSecure Suite
z/OS® V5.1 and tools IBM zEnterprise Analytics System V1.13.1
IBM OMEGAMON® Family V5.1 9700/9710 IBM InfoSphere Guardium V9.0
IBM Continuous Integration for Cognos BI 10.2
System z InfoSphere™ Optim™ 9.1
IBM Integrated solution for DB2 for z/OS Tools
System z development IMS Enterprise Suite 2.2
IBM Sterling B2B Integrator V5.2.5 DB2 11 Beta ESP, IMS 13 QPP
IBM Sterling File Gateway V2.2.4 IBM Business Rules for z/OS V8.1
IBM Operational Decision
Management V8.1
28
28


zEnterprise provides the foundation for the “smart” infrastructure
on which we can build the workloads of today and tomorrow

They are workloads that … … and / or …
Rely on data serving and
application components on Reside in low utilization /
IBM System z® development environments

Solutions that need to Can be made more
leverage strengths of efficient through
System z… Security, consolidation
Reliability, Availability
Can be optimized by using
Have application the newest virtualization
components on UNIX (HP, technology
Sun, Power) or Linux (x86,
System z) but require a
higher level of integration
capabilities and efficiency
… but also may …
Reside in complex multi-platform IT environments
Require flexible development and test infrastructure
Require simplified, integrated policy and management
29


Evolution of hybrid computing with IBM System z
Announced
IBM zEnterprise® 196 (z196) zEnterprise
First ever multiplatform Availability of
Availability of Analytics System
computer – mainframe and Microsoft® Windows®
Linux® on IBM 9700 and IDAA V3
distributed with single on System x blades
management DataPower® XI50z System x® on HX5 in zBX and APIs
within the IBM blades in the zBX
zEnterprise
BladeCenter®
Extension (zBX)
HTTP MQ JMS FTP IMS

CSV
COBOL
XML
SOAP

July 2010 Nov 2010 Mar 2011 Jul 2011 Sep 2011 Oct 2011 Dec 2011 Aug 2012 Oct 2012

Availability of zBX with IBM Announce IBM zEnterprise EC12
IDAA – evolution of IBM
POWER7® blades and IBM zEnterprise 114 (zEC12)
Smart Analytics Optimizer –
IBM Smart Analytics Optimizer Next generation of
coming out of the zBX and
into Netezza technology hybrid computing

30


IBM zEnterprise System: The complete system of
systems

The integration of a shared pool of Cloud Ready
virtualized heterogeneous
resources, managed as a single Data Ready
system, that is: Security Ready

31 31


IBM zEnterprise EC12 System: The Next Generation in
Hybrid Computing

The foundation for a
secure cloud for data,
enabling enterprises to
improve service to their
customers.

Efficiency at scale Operational analytics Ultimate security
Provides a highly secure and A secure and scalable Delivering unmatched security for
scalable enterprise cloud for enterprise data repository critical business processes,
efficiently running multiple that integrates operational applications and data
critical applications analytics for accelerated
insight 32


Introducing the newest members of the zEnterprise System
The zEnterprise EC12 and zEnterprise BladeCenter Extension
Model 003
IBM zEnterprise EC12 (zEC12)

• zEC12 has the industry’s fastest chip with each core at 5.5 GHz
• New innovation to drive availability with IBM zAware and Flash Express
• Optimized for the corporate data serving environment
• Hardware functions boost software performance for Java™, PL/I, DB2®
IBM zEnterprise Unified Resource Manager
and zEnterprise BladeCenter Extension (zBX)
Mod 003

• Supports the new zEC12 platform
• Hosts PS701 and HX5 blades
• Provides workload-awareness resource optimization
• Enhancements to System Director support zBX
• System z will continue to expand hybrid computing

Plus more flexibility and function by
connecting IBM DB2 Analytics Accelerator
• Deployment of business analytics on the same platform as operational applications --
analytics and OLTP can be run as the same workload
• IBM Data Analytics Accelerator V3 lowers the cost of analytics
33


zEnterprise EC12 is the core of next generation of System z
zEC12
Up to Performance improvement over z196
25% uniprocessor1 Up to Machine Type: 2827
25% Models: H20, H43, H66, H89, HA1
Faster engines1
Advanced Technology 5.5 GHz 6-core
Up to
50%
Total capacity improvement over z196
M801
processor chip delivers a performance boost
Up to
for all workloads
50%
Up to More total capacity1
Configurable cores for client use Innovation to drive availability to superior
101
levels
60 subcapacity settings
Up to 101 configurable cores – IBM zAware offers snap-shot of the current
60 subcapacity
Up to 3 TB RAIM memory settings
state of your business
Up to 3 TB RAIM memory
– FLASH Express and pageable large pages to
IFL, zIIP, zAAP, ICFs and optional SAPs
drive availability and performance for critical
IFL, zIIP, zAAP, ICFs and optional SAPs workloads
Environmental focus to improve data center
efficiencies including new non raised floor option
Environmental focus
Trusted resilience is a zEnterprise standard
Upgradeable from IBM zEnterprise 196
Upgradeable from IBM zEnterprise 196®(z196) and
System z10® Enterprise Class (z10 EC™) Enterprise Class
and IBM System z10

1 Based on preliminary internal measurements and projections against a z196. Official performance data will be available upon announce and can be obtained online at LSPR (Large Systems Performance Reference) website at:
https://www.ibm.com/servers/resourcelink/lib03060.nsf/pages/lsprindex . Actual performance results may vary by customer based on individual workload, configuration and software levels.

34


zEnterprise EC12 is the core of next generation System z
Up to
Performance zEC12
25 improvement over Machine Type: 2827
% z196 uniprocessor1
Models: H20, H43, H66, H89, HA1
Advanced Technology 5.5 GHz processor chip for performance
Up to
Total capacity boost for all workloads
50 improvement over – Over 78,000 MIPS for large scale consolidation
% z196 M801 – Larger cache for data serving
Processor chip optimized for software performance
Up to – Advanced performance functions exploited by Java, PL/I,
Configurable cores compilers, DB2 and more
101 for client use
Innovation to drive availability to superior levels
60 subcapacity settings – IBM zAware with out-of-band analytics provide point in time
snap-shot of the current state of your business and can help
Up to 3 TB RAIM memory you improve availability
IFL, zIIP, zAAP, ICFs and optional – FLASH Express and pageable large pages to drive
SAPs availability and performance for critical workloads
Environmental focus to improve Security and reliability are in our DNA
data center efficiencies including
new non raised floor option
– High speed cryptography integrated as part of the chip
– Enhanced support for applications requiring data encryption,
Upgradeable from IBM zEnterprise cryptographic keys and digital signing with new Crypto
196 (z196) and System z10® Express4S
Enterprise Class (z10 EC™)
– PR/SM designed for EAL5+ certification
1 Based on preliminary internal measurements and projections. Official performance data will be available upon announce and can be obtained online at LSPR (Large Systems Performance
Reference) website at: https://www-304.ibm.com/servers/resourcelink/lib03060.nsf/pages/lsprindex?OpenDocument . Actual performance results may vary by customer based on individual 35
workload, configuration and software levels.


IBM zEnterprise EC12: An optimized system

Java

Semiconductor Microprocessor Systems Virtualization Compilers & Optimized
Technology Design Design & Operating Java Virtual Middleware
Systems Machine

36


zEnterprise EC12: Freedom through Design
Enhanced performance and scalability for Smarter Computing

Up to Up to Up to
25% 50% 25%

Core processor
performance
Total capacity More configurable cores
improvement over
improvement over z196 for client use over z196
IBM zEnterprise® 196
(z196)
• Faster processors and more capacity for economies of scale
• New processor chip optimized for software performance
– Up to 45% improvement for Java™ workloads
– Up to 27% improvement in compute-intensive and floating-
point C/C++ applications
– Up to 30% improvement in IMS™ workloads
– More than 30% improvement for SAP workloads
• Larger caches to optimize data-serving environments Upgradeable from:
IBM zEnterprise 196 (z196)
• Hybrid computing capabilities to reduce cost and complexity and IBM System z10® Enterprise Class (z10 EC™)

37


Processor chip optimized for software performance
Exploited by Java, PL/I, compilers, DB2, more

Our leadership in microprocessor design
supports a boost in performance for all Excellent Results:
workloads
– Second generation out of order design Up to Up to
– Multi-level branch prediction supports complex 45% 27%
workloads Improvement Improvement in
for Java CPU intensive int
Larger caches to optimize data serving workloads1 & float C/C++
environments applications1
– Almost 2x on chip and 2x additional on book
New hardware functions optimized for Up to More than
software performance 30% 30%
– Transactional Execution Facility for parallelism and Improvement in Improvement in
scalability throughput for throughput for
– Runtime Instrumentation Facility is intended to help DB2 for z/OS SAP workloads1
reduce Java overhead operational
– 2 GB page frames are intended to offer performance analytics2
improvements for DB2 buffer pools and Java heaps
– Up to 30% improvement in IMS throughput due to
faster CPU and cache, compliers, and more1
– New IBM Enterprise PL/I compiler is planned to exploit
and get a performance boost from decimal format
conversions facility
1 Based on preliminary internal measurements and projections
2 Aa measured by the IBM 9700 Solution Integration Center. The measured operational BI workload consists of 56 concurrent users executing a fixed set of 160,860 Cognos reports . Compared DB2 v10 workload running on38
IBM's z196 w/10 processors to an zEC12 w/10 processors


zEC12 – Overall Attributes Highlights (compared to z196)
50% more cores in a CP chip
– Up to 5.7% faster core running frequency
– Up to 25% capacity improvement over z196 uni-processor
Bigger caches and shorter latency
– Total L2 per core is 33% bigger
– Total on-chip shared L3 is 100% bigger
– Unique private L2 designed to reduce L1 miss latency by up to 45%
3rd Generation High Frequency, 2nd Generation Out of Order Design
– Numerous pipeline improvements based on z10 and z196 designs
– # of instructions in flight is increased by 25%
New 2nd level Branch Prediction Table for enterprise scale program footprint
– 3.5x more branches
Dedicated Co-processor per core with improved performance and additional
capability
– New hardware support for Unicode UTF8<>UTF16 bulk conversions
Multiple innovative architectural extensions for software exploitation
39


zEC12 Architecture Extensions
Transactional Execution (a/k/a Transactional Memory)
– Software-defined sequence treated by hardware as atomic “transaction”
– Enables significantly more efficient software
• Highly-parallelized applications
• Speculative code generation
• Lock elision
– Designed for exploitation by Java; longer-term opportunity for DB2, z/OS, others
Runtime instrumentation
– Real-time information to software on dynamic program characteristics
– Enables increased optimization in JVM/JIT recompilations
– Additional exploitation opportunities in the works
2 GB page frames
– Increased efficiency for DB2 buffer pools, Java heap, other large structures
Software directives to improve hardware performance
– Data usage intent improves cache management
– Branch pre-load improves branch prediction effectiveness
– Block prefetch moves data closer to processor earlier, reducing access latency
Decimal format conversions
– Enable broader exploitation of Decimal Floating Point facility by COBOL programs 40


zEC12 Full and Sub-Capacity CP Offerings
CP Capacity
Relative to Full Capacity Uni Subcapacity CPs, up to 20, may be ordered on ANY zEC12 model.
7xx = 100% ~ 1514 PCI
~ If 21 or more CPs are ordered all must be full 7xx capacity
6xx ~ 63% ~ 947 PCI
~ ~ 7xx All CPs on a zEC12 CPC must be the same capacity
5xx ~ 42% ~ 631 PCI
~ ~
4xx ~ 16% ~ 240 PCI
~ ~ All specialty engines run at full capacity. The one for
xx = 01 Through 20
one entitlement to purchase one zAAP and one zIIP for
6xx
each CP purchased is the same for CPs of any capacity.
Only 20 CPs can have granular capacity but
5xx other PU cores may be characterized
as full capacity specialty engines
4xx For no CPs, the capacity
setting is 400
PVU for zEC12 is 120
MSU Sub Capacity

H20 H43 H66 H89 HA1 41


IBM System z: System I/O Bandwidth
384 GB/Sec*
Design Comparison
for High End Systems 288 GB/sec*
Balanced System
CPU, nWay, Memory,
I/O Bandwidth*
172.8 GB/sec*

96 GB/sec

24 GB/sec PCI for
Memory
1.5 TB** 256 64 1-way
3 TB** 512 GB 300 450 600 920 1202
GB GB
1514
16-way

32-way
zEC12
54-way
z196
64-way
z10 EC
* Servers exploit a subset of its
80-way z9 EC
designed I/O capability
** Up to 1 TB per LPAR zSeries 990
PCI – Processor Capacity Index 101-way
zSeries 900
Processors
42


zEC12 performance and scalability
Balanced performance growth 1.5X z196 total capacity
– Across broad range of workloads – 27 or 30 cores per MCM

– Scalable from 1 to 101 processors – 120 max cores (Model HA1)

LSPR: 1.25 x z196 Continued full-stack performance focus
– 32nm SOI technology – New z/Architecture features

– Improved core and cache designs – Compiler optimization for zEC12
• Hybrid Computing – POWER7 and System x blades
• Linux on System x and Microsoft Windows IBM DB2 Analytics
Accelerator (IDAA)
• DataPower XI50z with Netezza

• Hybrid Computing – POWER7 & System x blades
• Linux on System x and Microsoft Windows
zEC12
• DataPower XI50z
Configurable Engines

z196
• Specialty engines

z10 EC

PureSystems

• zArchitecture enhancements
• 100 new instructions
• RAIM memory • Focus on core strengths –
• Compute intensive • PCIe I/O drawer scale, security, availability
• Decimal Floating Point • Optional offerings – water • Compiler optimized for zEC12
• zHPF cooling or HV DC power
• Preplanning enhancements

Capacity
43


System z Servers Continue to Scale with zEC12 120 engines
zEC12 101-way*
Each new range continues to
deliver:
96 engines
• New function z196 80-way
• Unprecedented capacity to meet
77 engines
consolidation needs

Maximum PCI
64-way
z10 EC
• Improved efficiency to further reduce
64 engines
energy consumption z9 EC 54-way
• Continues to delivering flexible and
48 engines
simplified on demand capacity z990 32-way
• A mainframe that goes beyond the
traditional paradigm
20 engines
z900 16-way

Minimum PCI

PCI - Processor Capacity Index z900 z990 z9 EC z10 EC z196 zEC12
*z/OS supports up to a 100-way only z/OS 1.6 z/OS 1.6 z/OS 1.6 z/OS 1.8 z/OS 1.11 z/OS 1.13
44


zEC12 Continues the CMOS Mainframe Heritage Begun in
1994 5.2 GHz
5.5 GHz
6000
6000

4.4 GHz
5000 5000

4000
4000
MHz/GHz

3000
3000
1.7 GHz
1.2 GHz
2000
2000
770 MHz

1000
1000

00 2000 2003 2005 2008 2010 2012
z900 z990 z9 EC z10 EC z196 zEC12
z900
189 nm SOI z990
130 nm SOI z9ec
90 nm SOI z10ec
65 nm SOI z196
45 nm SOI zxxx
32 nm SOI
16 Cores 32 Cores 54 Cores 64 Cores 80 Cores 101 Cores
Full 64-bit Superscalar System level High-freq core OOO core OOO and eDRAM
z/Architecture Modular SMP scaling 3-level cache eDRAM cache cache improvements
RAIM memory PCIe Flash
zBX integration Arch extensions
for scaling

45


Extending System z Availability with Flash Express
and IBM zAware Highly resilient & available systems

Business
Server Systems Operations Availability Application
Design Availability Availability

Sparing HyperSwap™ Capacity on Demand IBM zAware
Concurrent Upgrade Capacity Back Up Flash Express
Enhanced Book Virtual networking GDPS®/HyperSwap
Availability Data Sharing Call home
Hardware checks
Redundant parts
Parallel Sysplex®

Designed to Prevent Designed to Improve Designed to improve Designed to Improve
Hard Failures System SW Availability Continuous Operations Business Availability

IBM Confidential 46


IBM Flash Express – Smarter Availability for Smarter
Systems
• Flash Express is an innovative solution designed to help you compete effectively in
today’s market
– Automatically improve availability for key workloads at critical processing times
– Drive availability and performance for workloads that cannot tolerate paging spikes or inconsistent
performance
– Slash latency for critical application processing such as diagnostics collection
• Extends IBM’s expertise in memory management introducing a new tier of memory
using Flash Express
• Provides a secured, resilient and immediately usable solution
• Planned Flash Express and pageable large page exploiters:
– z/OS V1.13 Language Environment
– Java SDK7 and by extension
• WAS Liberty Profile v8.5
• DB2
• IMS 12
• And a future release of CICS® Transaction Server
– IMS 12 Common Queue Server

47 © 2012 IBM Corporation
47


Introducing Flash Express Time to Read
• Flash Express is intended to improve System z availability Data measured
– Slash latency delays from paging in System z
• Flash Memory is much faster than spinning disk Instructions
• Flash Memory is much slower than main memory
• Flash Memory takes less power than either
– Make your start of day processing fast Real Memory:
– Designed to eliminate delays from SVC Dump processing (256B line)

More Latency
~100 Instructions
• zEC12 offers optional Flash Express memory cards
– Supported in PCIe I/O drawer with other PCIe I/O cards
– Installed in pairs for availability Flash Memory
– No HCD/IOCP definitions required (4K page)
~100K
• Assign Flash Memory to partitions like main memory
Instructions
– Assignment is by memory amount, not by feature
– Each partition’s Flash Memory is isolated like main memory External Disk
– Dynamically increase the partition maximum amount of Flash (4K page)
– Dynamically configure Flash Memory into and out of the partition
~5,000K
Instructions

48


Relative Access Times for different technologies
Access time

CPU
< 20 ns
Cache

Random Access < 200 ns
Memory (RAM)
Flash Express 5-20 micro sec.

Solid State Drive (SSD) Storage 1-3 ms

< 10 ms
Spinning Disk Drive

WORM, Tape Library seconds

49


Flash Express Exploitation on zEC12 IBM Flash Express

Flash Express will be exploited by z/OS
– z/OS V1.13 Flash Web Deliverable – GA December 14, 2012
• Pagable Large Pages (1 MB)
– z/OS V1.13 enabling PTFs for RSM enhancements – 1Q2013
• Flash Dynamic Reconfiguration
• Optional PLPA and COMMON Page data sets

– DB2 for z/OS and JAVA SDK7 SR3 will support pageable Large Pages
(SoD*)
– IBM is working with it’s Linux Distribution partners to include support in future
Linux on System z distribution releases
– IMS* CQS will use pageable Large Pages when IMS runs on zEC12 –
Availability targeted for end of 2013
*All statements regarding IBM's future direction and intent are subject to change or withdrawal without notice, and represent goals and objectives only.

50


IBM zAware delivers smarter message monitoring
capabilities
The complexity and rate of change of today’s IT infrastructures stress the limits
of IT to resolve problems quickly and accurately–while preserving SLAs
IT is challenged to diagnose system anomalies and restore service quickly
– Systems often experience problems which are difficult or unusual to detect
– Existing tools do little to quickly identify messages preceding system problems
– Some incidents begin with symptoms that remain undetected for long periods of
time
– Manual log analysis is skills-intensive, and prone to errors
IBM zAware with Expert System Diagnostics Gets it Right, Fast
– IBM zAware helps improve problem determination in near real time – helps
rapidly and accurately identify problems and speed time to recovery
– Analyzes massive amounts of data to identify problematic messages, providing
information to enable faster corrective action
– Analytics on log data provides a near real time view of current system state
– Cutting edge pattern recognition examines system behavior to help you pinpoint
deviations
– Machine learning, modeling and historical data work to describe your unique
environment

51


IBM zAware - Identifies Unusual System Behavior
IBM zAware contains sophisticated analytics, applies IBM insight,
and machine learning to understand your unique system.

Monitoring Detection Frequency Reporting
• Supports IBM and non • Detects anomalies other • Samples every 2 minutes • Near real time analysis
IBM middleware and solutions might miss • 10 minute interval • Intuitive reporting – both
applications • Can find the rare or • Uses 90 day rolling high level and drill down
• Monitors OPERLOG in a infrequent message baseline; a utility provided • Color coded browser
sysplex or monoplex • Can detect an unusual to populate baseline; display
• Assigns a message number of normal flexibility provided • XML output can feed
anomaly score to help messages ISVs or processes
identify potential issues • Can detect messages – Tivoli® intends to
issued out of context provide alert and
event notifications1

52
1 All statements regarding IBM future direction and intent are subject to change or withdrawal without notice and represents goals and objectives only.


Sophisticated Detection and Diagnostic Capabilities
IBM zAware - Cutting edge pattern recognition analytics looks at the health of a z/OS
system
– Perform machine learning, pattern recognition, and statistical analysis on streaming
messages to look for unexpected patterns to give faster, more pinpointed recognition of
problems

IBM zAware - A ‘watch dog’ to detect unusual behavior of z/OS images in near real time –
enabling you act on system issues sooner - pushes z/OS high availability even beyond
what it is today.
– Diagnose problems/ critical events/ outages while they are occurring in real time
– Helps heighten awareness of small problems so they can be corrected quickly
– Determine the cause of problems so the operation team can establish procedures to
prevent a reoccurrence

IBM zAware - can consume massive amounts of OPERLOG messages (anything with a
well-formed message) and turn it into useful information
– Works “out of the box” with relatively little customization (as compared to existing tools)
– A single browser based view of the health of a Parallel Sysplex® via a relative weighting
and color coding
– Out of band – minimal effect on z/OS product workloads
– Complementary to existing tools

53


IBM zAware –
IBM System z Advanced Workload Analysis Reporter
Monitors z/OS OPERLOG messages including all
z/OS console message, ISV and application
generated messages
Can monitor across a sysplex Expert Machine
Knowledge Learning
Samples every 2 minutes.
IBM
IBM
Reports on 10 minute time slices. zAware
zAware
Uses a 90 day baseline created from SYSLOG
Integrated Intuitive
Detects anomalies monitoring systems miss:
– Messages may be suppressed or rare
– Messages may indicate a trend
Reports on unique messages, and a “score”
Color-coded, browser-based (IE 8, Firefox)
XML Output consumable through published API,
can drive ISV products

54


IBM zAware: Unmatched Resiliency by design

Self learning integrated expert solution Reduce financial impact
of down time

Simple graphical interface for easy Gain visibility into
drill down system behavior

Analyze system messages to identify Increase operator
unusual system behavior effectiveness

Monitor all System z servers from a Diagnose problems
single point and decrease risk

55


IBM System z Security as the Enterprise Standard

• Intrinsic platform security and privacy for transactions and sensitive data helps enable System z to
be the secure enterprise application server and data vault
– Hardware cryptography built into each general purpose CP and IFL, and via the
new Crypto Express4S coprocessors
– Secure your critical information assets (or data) throughout their life cycle
• Security capabilities that span the needs of multiple industries
– Strong focus on security and crypto functions required by the Banking/Finance industries
– Support for the payment card industry with solutions that leverage the zEC12 for compliance and security (i.e. EMV for
American Express)
– New IBM Enterprise PKCS #11 Coprocessor firmware and support from z/OS
helps meets the requirements of the European Union and public sector clients
• Leveraging the strengths of operating system security and cryptographic capabilities
– Qualities needed by enterprises adopting cloud application architectures
– Wide range of cryptographic primitives exploited by operating system and middleware to help secure and accelerate
workloads
• zEC12 supports the System z exclusive protected key processor based cryptography
– Blends the speed of processor based crypto with the security of the
Crypto Express coprocessor
• PR/SM™ designed for EAL 5+ certification

56


Systems z delivers ultimate security to address your
challenges of cost, complexity and compliance

People • Encryption of critical data, at rest and in
flight

Data • Early detection of application
vulnerabilities and Isolation of workloads

Application • A fully secured virtual pool of resources as
a foundation for enterprise clouds

Infrastructure • Complete user authentication, access
control, audit and management

Governance, Risk
Build a strong foundation
Management and
compliance for IT security

57


Ultimate security by design

High speed cryptography integrated on Protect corporate data
tamper resistant hardware

Enhanced digital signature capability for Meet regulatory
smart passports, ID cards and banking requirements

New credit card transaction verification Enable smart
support for smart payment cards1 payment cards

Mainframe security events integrated Enhance security
with zSecure and QRadar intelligence

1verification of card security codes and support for PIN changes

58


zEC12 – Supports efficiencies in the data center
• New non-raised floor option offers flexible possibilities
for the data center
• Continuing to support options for better control of
energy usage and improved efficiency in your data
center
– zEC12 has a new radiator-based air cooled system design for
more efficient cooling and improved concurrent maintenance
– Water cooled options on zEC12 allow for up to 9% additional data
center energy savings1
– Savings with optional HV DC power when implemented in a new
data center could be on the order of 7-12% of server input power2
• More capacity but little change to the footprint in the data
center
– Identical floor cutouts for zEC12 as the z196 and z10 EC3 with no
significant increase in weight
– Depth of system with covers will increase by 64 mm / 2.52 inches
• Over 12 years experience in designing and building
earthquake resistant servers

1 Based on internal measurements with average power usage effectiveness (PUE) of 2 with well configured zEC12 configuration.
2
Based on internal measurements and projections.
3
With the exception of water cooling and overhead cabling
59


zBX – A Uniquely Configured Extension of the zEnterprise

zBX
• zBX Model 003 supported by zEC12 Machine Type: 2458
Model: 003
– Investment protection – Model 002 upgrades to
Model 003 PS701 blades (112 max)

• No need to make changes to applications Up to HX5 (7873) blades (56
112
and application certifications are inherited max)

from blades DataPower XI50z (28
max)

• Managed by Unified Resource Manager 1-4 Racks based on number of
installed blades

– Management of resources as defined by your
business goals and objectives One zBX per zEC12

Optional Acoustic Doors
– Integrated network for better security, control
and faster time to value Optional Rear Door Heat
Exchanger

– Programmable interfaces (APIs) to connect
Upgradeable from zBX Model 002
with system management tools for total
management capabilities - IBM Tivoli
Monitoring (ITM) has been enhanced to use
the APIs
60


zEnterprise Hybrid Computing
The commitment to Hybrid Computing continues with new
enhancements
Clients can use the same method to implement servers for AIX®, Linux® and
Microsoft® Windows® to reduce costs with high quality of service

Hybrid computing on IBM System z® keeps getting smarter
• Enhancements to IBM zEnterprise Unified Resource manager (zManager) in support
dynamic storage capabilities and additional Linux distributions
• Improved image and energy management capabilities for IBM System x® and Power®
blades
• No charge migration to move to the current generation of IBM zEnterprise BladeCenter®
Extension (zBX) and Unified Resource Manager

What Clients are saying about zEnterprise Hybrid Computing
… same method for implementing new servers across AIX, Linux

“ and Microsoft Windows … simplify and integrate its diverse infrastructure to reduce costs
and ensure high quality of service … BG-Phoenics

“
… The combination of IBM System z® with Intel® servers in an Ensemble configuration turns
out to be the best solution for modernization… EUROCONTROL

…. a platform for all the services we need in the future …

“
more computing resources for less money … Health Insurance Institute of Slovenia

61


IBM zEnterprise BladeCenter Extension (zBX)
Machine Type: 2458 Model 003

zBX is built with integrated IBM certified components
– Standard parts – TOR switch, BladeCenter Chassis, Power Distribution Units, Optional
Acoustic Panels
– Optional optimizer - IBM WebSphere DataPower Integration Appliance XI50 for zEnterprise
(DataPower XI50z) ordered as a feature of zBX
Up to 112 blades are supported on zBX
– System x and POWER7 blades are acquired through existing channels
– IBM System x Blades – up to 56 entitlements
• IBM BladeCenter HX5 (7873) dual-socket 16-core blades
Four supported memory configurations in zBX – 64 GB, 128 GB, 192 GB, 256 GB
– IBM POWER7 Blades – up to 112 entitlements
• IBM BladeCenter PS701 Express - 8-core processor 3.0GHz,
Three supported memory configurations in zBX - 32 GB, 64 GB, 128 GB
• AIX: AIX 5.3 Technology Level 12 or higher, AIX 6.1 Technology Level 5 or higher, AIX 7.1
– Up to 28 DataPower XI50z blades (double wide)
– Mix and match blades in the same chassis
System z support -- Blades assume System z warranty and maintenance when installed in the
zBX
Investment protection
– Upgrade Model 002 to Model 003
– Model 002 managed only by z196 or z114 and Model 003 managed only by zEC12 62


Operating System Environments extend application
flexibility
Operating Systems are customer acquired and installed
Unified Resource Manager will install hypervisor on blades in the zBX
– Integrated hypervisor (KVM-based) for System x blades
– PowerVM Enterprise Edition for POWER7 blades
Support for Linux and Windows environments on System x blades in zBX
– 64-bit version support only
– Linux: Red Hat RHEL 5.5, 5.6, 5.7, 6.0 6.1 & SUSE Linux Enterprise Server
(SLES) 10 (SP4) and SLES 11 SP1
– Microsoft Windows Server 2008 R2 and Microsoft Windows Server 2008 (SP2)
(for either Windows we recommend Datacenter Edition)
Support of AIX environments on POWER7 blades in zBX
– AIX: AIX 5.3 Technology Level 12 or higher, AIX 6.1 Technology Level 5 or
higher, AIX 7.1
Certifications inherited from blades
– SAP support for Linux and Windows on x86 blades in the zBX
PowerHA SystemMirror Standard Edition for AIX supported for the zBX with
PS701 blades

63


Unified Resource Manager optimizes system resources

Bringing mainframe governance for System z resources
Single view of virtualized resources across platforms
Integrated network for better security, control and faster
time to value
Management of resources as defined by your business
goals and objectives
– IBM intends to deliver workload-aware optimization for
System x blades (Statement of Direction)*
Programmable interfaces (APIs) to connect with system
management tools for total management capabilities
New dynamic storage capabilities for System x blades

Unified Resource Manager transforms the way resources are
managed and deployed
* All statements regarding IBM future direction and intent are subject to change or withdrawal without notice and represents goals and objectives only.

64


Continuing Value using the Unified Resource
Manager
Simplified installation
Simplified installation Simplified energy management
of hypervisors
of hypervisors
Energy cost savings
Gain significant time to
Gain significant time to
market with improved
market with improved
speed of deployment
speed of deployment Allow critical workloads to
receive resources and priority
based on goal-oriented policies
Hypervisors Energy established by business
Save time, cost and simplify asset
management requirements

Decrease problem determination APIs allow Smart business adjustments
and resolution time for cross- Operationssharing ofPerformance based on workload insight
platform resources information
Load balancing to manage
Improve and simplify cross- traffic flow
platform availability procedures Networks Virtual
Servers Provide deep insight into how IT
Enable broader and more resources are being used
granular view of resource
consumption HMC NEW! SAP
support for Gain flexibility, consistency and uniformity
Linux and of virtualization
Windows on
x86 blades!!! Provide the business with faster time to
Factory installed and configured network market

Improved network security with lower latency, less Simplified network management for
complexity, no encryption/decryption applications

Monitor status and general health of network Bridging of internal HiperSockets network
65 resources to the entire ensemble 65


Flexible Connectivity on zEC12
Improving bandwidth, granularity and options for connections
Heterogeneous environments
For Clustering
zBX
HCA-3 InfiniBand® Coupling HMC
Links – Intraensemble data network
(IEDN) New IBM zAware partition
– 12x InfiniBand managed from HMC
– Intranode management network
– 1x InfiniBand (4 ports) (INMN) Location to run Unified Resource
improved scalability
– Increased 10 Gb Ethernet Manager – including monitoring
ISC-3 (peer mode only) 1 connectivity within zBX CPU, energy, workload
performance
STP To PureSystems
– Improved broadband Host of the ensemble – controlling
– 10 Gb Ethernet all functions of the ensemble
security
Primary with Alternate needed for
DR
Within zEC12
PCIe I/O Infrastructure
I/O Drawer and I/O Cage
Flash Express

HMC To the Network

To the Data OSA-Express4S PCIe based) OSA-Express31
– 10 Gb Ethernet LR and SR – 10 Gb Ethernet
FICON® Express8S FICON Express41
(PCIe-based) – 1 Gb Ethernet SX and LX – 1 Gb Ethernet
– SX and 10 km LX
– SX and 10KM LX – 1000BASE-T Ethernet – 1000BASE-T
Enhanced channel Ethernet
FICON Express81 subsystem
1 Carry
– SX and 10KM LX forward only 66


IBM System Storage DS8800
Unique performance, availability and scalability makes DS8800
the ideal storage platform for zEnterprise
• Self-optimizing performance and cost for hybrid computing
– Easy Tier can improve performance by up to 3x by moving only 3% of
data to SSDs
– Integrated QoS management aligns server and storage resources with
application priorities
– 8x faster query performance for operational analytics with special
DS8000® List Prefetch Optimizer for High Performance FICON
• Designed for near-continuous operations with over six-nines
availability
– Fully-redundant design for near-continuous data access
– Tight integration between DS8000 remote mirroring and GDPS
HyperSwap is designed for over six-nines (99.9999%) availability
• Optimized for zEnterprise efficiency and scalability
– Support for System z Discovery and Auto-Configuration simplifies
configuration
– Extended Address Volumes of up to 1 TB volumes simplifies
management of large volumes
– New support for System z load balancing algorithms can optimize
throughput and response times between server and DS8000

67


Robust tape storage to protect your information
Helping our clients retain data securely and in compliance with regulatory
requirements

Comprehensive tape storage product line for System z attachment

TS1140 Offers high performance (250 MBps) and high native capacity (4 TB) for storage consolidation
Tape Drive
Provides information security with support for encryption and key management
Supports Write Once Read Many (WORM) cartridges to help satisfy compliance requirements

TS3500 Scalable, automated data retention with up to 2.7 EB capacity with 3:1 compression
Tape Library
Offers enhanced data availability and reliability with optional dual library accessory
Provides data security and regulatory compliance via support for tape drive encryption and
WORM cartridges
TS7700 Virtualization solution implements a fully integrated tiered storage hierarchy of disk and tape
Virtualization
Reduces batch processing time, total cost of ownership and management overhead
Engine
Disk-only models with up to 1.3 PB native tape volume cache
Grid configurations for information availability and business continuity

Tape is often cost effective versus disk

• Lower price per MB
• Lowest power and cooling storage option available today

68


Synergy with zEC12 operating systems
z/OS Linux on System z
Java exploitation of Transactional Execution Improved consolidation ratio through new capacity performance
for increased parallelism and scalability Improved I/O performance using High Performance FICON (zHPF)
Enhanced security support for digital Application and Linux optimization enabled by full exploitation of
signatures zArchitecture extensions
Faster problem determination with IBM zAware Optimized system setup via Linux health checker
for improved availability FCP end-to-end data integrity checking for applications and storage
Improve availability and performance with subsystems
Flash Express Plus over 3,000 applications on System z
2 GB page support
Simpler Specialty Engine (zIIP) exploitation
z/OS v1.13 exploitation of new hardware
Plus over 4,100 applications enabled on z/OS® z/TPF
Support for 86 CPUs
Hardware exploitation for performance
z/VM improvements

z/VM® Compatibility support
Guest exploitation support for new encryption
z/VSE
technology 64-bit addressing with z/VSE® V5.1
Improved I/O performance using High Performance Strong interoperability with Linux on
FICON (zHPF) for guest exploitation System z
New CICS functionality (CICS Explorer)
AND with blades on the zBX there are even more
options with applications on AIX, Linux on
System x or Microsoft Windows
69


Operating System Support for zEC12

The following are the minimum operating systems planned to run on zEC12:
– z/OS
• z/OS V1.12, V1.13
• z/OS V1.11, V1.10 Lifecycle Extension
– Linux on System z distributions:
• SUSE Enterprise Server (SLES) SLES 10 and SLES 11
• Red Hat Enterprise Linux (RHEL) 6 and RHEL 5
– z/VM
• VM V5.4, 6.1, 6.2 with PTFs
• z/VM V6.1, 6.2 for zBX support
– z/VSE
• z/VSE V4.3, V5.1, with PTFs
• z/VSE V5.1 with PTFs for Crypto Express4S toleration
– z/TPF V1.1
Using the general purpose application server blades we have:
– Linux: Red Hat RHEL 5.5 and up, 6.0 and up and SUSE Linux Enterprise Server (SLES) 10 (SP4) and up and SLES
11 SP1 and up
– Microsoft Windows Server 2008 R2 and Microsoft Windows Server 2008 (SP2) (for either Windows we recommend
Datacenter Edition)
– AIX: AIX 5.3 Technology Level 12 or higher, AIX 6.1 Technology Level 5 or higher, AIX 7.1

70


Evolution of Specialty Engines Plus . . .
Building on a strong track record of technology innovation
with specialty engines

DB Compression, SORT,
Encryption
Transparent for applications 2010

Optimizers,
Accelerators,
2006
Hybrid
IBM System z10 processing
2004 Integrated Information
Processor (IBM zIIP)
System z9
Application Assist Eligible workloads:
Processor (zAAP) IPSec encryption,
2001 HiperSockets™, XML,
Eligible ISV, some DB2, z/OS
Integrated Facility Global Mirror, IBM
workloads: Java
for Linux (IFL) GBS Scalable
1997 and XML
Architecture for
Financial Reporting
Internal
Coupling
Facility (ICF)

71


Protecting your investment in IBM technology

• Designed to protect your investment zBX
z196 Mod 002
– Offering upgrades from z10 EC™ and z196
to the zEC12
– Upgrades from zBX Model 002 to zBX z10 EC
Model 003

• Full upgradeability within the zEC12
family
zEC12
– Upgrade to Model HA1 will require a
planned outage

• On demand offerings offer temporary
or permanent growth when you need it

zBX
Mod 003

72


IBM zEnterprise EC12 – new for September 2012
IBM zEnterprise EC12 (2827) IBM zEnterprise Blade
Extension (2458)

• Announced 08/12 – Server w/ up to 101 PU cores • First Announced 7/10
• 5 models – Up to 101-way • Model 003 for zEC12 – 08/12
• Granular Offerings for up to 20 CPs
• zBX Racks with:
• PU (Engine) Characterization – BladeCenter Chassis
– CP, SAP, IFL, ICF, zAAP, zIIP
– N + 1 components
• On Demand Capabilities – Blades
– CoD, CIU, CBU, On/Off CoD, CPE, FoD
– Top of Rack Switches
• Memory – up to 3 TB for Server and – 8 Gb FC Switches
up to 1 TB per LPAR – Power Units
– 32 GB Fixed HSA – Advance Management Modules
• Channels
– PCIe bus • Up to 112 Blades
– Four LCSSs – POWER7 Blades
– 3 Subchannel Sets – IBM System x Blades
– FICON Express8 and 8S – IBM WebSphere DataPower Integration
– zHPF Appliance XI50 for zEnterprise (M/T
– OSA 10 GbE, GbE, 1000BASE-T 2462-4BX)
– InfiniBand Coupling Links • Operating Systems
– Flash Express – AIX 5.3 and higher
• Configurable Crypto Express4S – Linux for Select IBM x Blades
• Parallel Sysplex clustering – Microsoft Windows for x Blades
• HiperSockets – up to 32 • Hypervisors
• Up to 60 logical partitions – PowerVM Enterprise Edition
• Enhanced Availability – Integrated Hypervisor for System x
• IBM zAware
• Unified Resource Manager
• Operating Systems
– z/OS, z/VM, z/VSE, z/TPF, Linux on System z

73


IBM zEnterprise family
IBM zEnterprise 196 (2817) IBM zEnterprise Blade IBM zEnterprise 114 (2818)
Extension (2458)

• Announced 7/10 – Server w/ up to 96 PU cores • Announced 7/10 • Announced 07/11
• 5 models – Up to 80-way • Model 002 for z196 or z114 • 2 models – M05 and M10
• Granular Offerings for up to 15 CPs • zBX Racks with: ‒ Up to 5 CPs
• PU (Engine) Characterization – BladeCenter Chassis • High levels of Granularity available
– CP, SAP, IFL, ICF, zAAP, zIIP – N + 1 components – 130 Capacity Indicators
• On Demand Capabilities – Blades • PU (Engine) Characterization
– CoD, CIU, CBU, On/Off CoD, CPE – Top of Rack Switches – CP, SAP, IFL, ICF, zAAP, zIIP
• Memory – up to 3 TB for Server and – 8 Gb FC Switches • On Demand Capabilities
up to 1 TB per LPAR – Power Units – CoD, CIU, CBU, On/Off CoD. CPE
– 16 GB Fixed HSA – Advance Management Modules • Memory – up to 256 GB for Server
• Channels – 8 GB Fixed HSA
– PCIe bus • Up to 112 Blades • Channels
– Four LCSSs – POWER7 Blades – PCIe bus
– 3 Subchannel Sets – IBM System x Blades – Two LCSSs
– MIDAW facility – IBM WebSphere DataPower Integration – 2 Subchannel Sets
– Up to 240 ESCON channels Appliance XI50 for zEnterprise (M/T – MIDAW facility
– Up to 288 FICON channels 2462-4BX) – Up to 240 ESCON channels
– FICON Express8 and 8S • Operating Systems – Up to 128 FICON channels
– zHPF – AIX 5.3 and higher – FICON Express8 and 8S
– OSA 10 GbE, GbE, 1000BASE-T – zHPF
– Linux for Select IBM x Blades
– InfiniBand Coupling Links – OSA 10 GbE, GbE, 1000BASE-T
– Microsoft Windows for x Blades – InfiniBand Coupling Links
• Configurable Crypto Express3 • Hypervisors
• Parallel Sysplex clustering • Configurable Crypto Express3
– PowerVM Enterprise Edition • Parallel Sysplex clustering
• HiperSockets – up to 32 – Integrated Hypervisor for System x
• Up to 60 logical partitions • HiperSockets – up to 32
• Enhanced Availability • Up to 30 logical partitions
• Unified Resource Manager • Unified Resource Manager
• Operating Systems • Operating Systems
– z/OS, z/VM, z/VSE, z/TPF, Linux on System z – z/OS, z/VM, z/VSE, TPF, z/TPF, Linux on
System z

74


• Machine Type
zEC12 Overview – 2827
• 5 Models
– H20, H43, H66, H89 and HA1
• Processor Units (PUs)
– 27 (30 for HA1) PU cores per book
– Up to 16 SAPs per system, standard
– 2 spares designated per system
– Dependant on the H/W model - up to 20, 43, 66,89, 101 PU cores
available for characterization
• Central Processors (CPs), Internal Coupling Facility (ICFs),
Integrated Facility for Linux (IFLs), System z Application Assist
Processors (zAAPs), System z Integrated Information
Processor (zIIP), optional - additional System Assist
Processors (SAPs)
– Sub-capacity available for up to 20 CPs
• 3 sub-capacity points
• Memory
– RAIM Memory design
– System Minimum of 32 GB
– Up to 768 GB per book
– Up to 3 TB for System and up to 1 TB per LPAR
• 32 GB Fixed HSA, standard
• 32/64/96/112/128/240/256 GB increments
- Flash Express
• I/O
– 6 GBps I/O Interconnects – carry forward only
– Up to 48 PCIe interconnects per System @ 8 GBps each
– Up to 4 Logical Channel Subsystems (LCSSs)
– Up to 3 Sub-channel sets per LCSS
• STP - optional (No ETR)
75


zBX Overview • Machine Type/Model 002458-003
• Racks – Up to 4 (B, C, D and E)
– 42U Enterprise, (36u height reduction option)
– 4 maximum, 2 chassis/rack
– 2-4 power line cords/rack
– Non-acoustic doors as standard
– Optional Acoustic Doors
– Optional Rear Door Heat Exchanger (conditioned water required)
2458-003 • Chassis – Up to 2 per rack
– 9U BladeCenter
– Redundant Power, cooling and management modules
– Network Modules
– I/O Modules
• Blades (Maximum 112 single width blades in 4 racks)
– Customer supplied POWER7 Blades (0 to 112)
– Customer supplied IBM System x Blades (0 to 56)
– DataPower XI50z, M/T 2462-4BX (0 to 28 – double width)
• Management Firmware
– Unified Resource Manager
• Top of Rack (TOR) Switches - 4
– 1000BASE-T intranode management network (INMN)
– 10 GbE intraensemble data network (IEDN)
– GbE IEDN for customer network
• Network and I/O Modules in the BladeCenter
Fibre Channel – 1000BASE-T and 10 GbE modules
Disk Storage
– 8 Gb Fibre Channel (FC) connected to customer supplied disks

76


zEnterprise EC12 Functions and Features
(GA Driver Level 12K – September, 2012)OSA-Express 4S 1000BASE-T
Five hardware models CFCC Level 18
Six core 32nm PU chip IBM zAware
Up to 101 processors configurable as On Demand enhancements
CPs, zAAPs, zIIPs, IFLs, ICFs, or
optional SAPs Non-Raised floor option for Air Cooled
System only with overhead I/O and
Increased capacity processor (1.25 x zEC12
power cabling options
z196) Raised floor option for Air and Water
Up to 20 sub capacity CPs at capacity Cooled System with overhead I/O and
settings 4, 5, or 6 power cabling options
z/Architecture Enhancements including New ‘radiator’ design for Air Cooled
2 GB Pages, Transactional Execution System
and Runtime Instrumentation
Optional water cooling with Exhaust Air
2nd Generation out-of order design Heat Exchanger & air backup
Enhanced processor cache design Cycle Steering for Power Save and
back-up for radiator and water cooled
Dedicated data compression and
systems
crypto coprocessor on each PU
Optional High Voltage DC power
Up to 3 TB of Redundant Array of
Independent Memory (RAIM) Static Power Save Mode
Flask Express and pagable large page
support Optional overhead Power and I/O
cabling
Crypto Express4S and Cryptographic
enhancements NTP Broadband Authentication

New Channel path selection algorithms zBX Model 003 and Unified Resource
Manager
77


zEnterprise zBX Functions and Features

One hardware model Advance Management Module

zBX is controlled by one specific zEC12 1000BASE-T and 10 GbE TORs

Up to 4 Racks (B, C, D and E) Up to 112 Blades
zBX
2 BladeCenters Chassis per rack POWER7 Blades
Model 003
Non-acoustics doors standard IBM System x Blades
IBM WebSphere DataPower Integration
Optional Rear Door Heat Exchanger Appliance XI50 for zEnterprise
Optional Rear acoustic door Additional connectivity for SANs
Redundant Power, Cooling and
Management Modules HMCs for Unified Resource Manager

10 GbE and 1 GbE Network Modules Upgraded Hypervisor levels

8 Gb FC modules Unified Resource Manager support for
zEC12 and zBX Model 003
IEDN 10 GbE link aggregation between
the BladeCenter and TORs Unified Resource Manager support for
ensembles with zEC12, z196, z114, and
zBX Models 002 and 003

78


zEnterprise was Introduced with the z196 at its Heart

Improvement for
zEnterprise 196 (z196)
Up to
traditional z/OS Machine Type: 2817
40% workloads1
Models: M15, M32, M49, M66, M80
Improvement in CPU World’s fastest 5.2 GHz processor chip
Up to an
additional intensive workloads via
compiler enhancements – 100 new instructions, new out of order sequence,
30% more on chip cache
Up to Total capacity Focus on the environment and data center
60% improvement1
– Options to help eliminate hotspots and save on
1 to 80 configurable cores for client energy
use
Operating System Flexibility
IFL, zIIP, zAAP, ICFs and optional
SAPs – z/OS, z/VM®, z/VSE®, z/TPF and Linux on System z
45 subcapacity settings Security and reliability
Up to 3 TB RAIM memory
– Elliptic curve cryptography
Cryptographic enhancements
– Compliance and security improvements
Designed for EAL5 certification
– Crypto Express3 enhancements
Upgradeable from IBM System z10®
Enterprise Class (z10 EC™) and IBM
System z9® Enterprise Class (z9®
EC)
1. For average LSPR workloads running z/OS 1.11.
79 79


z196 – IBM Leadership Technology At the Core

New 5.2 GHz Quad Core Processor Chip boosts
hardware price/performance
– 100 new instructions – improvements for CPU
intensive, Java™, and C++ applications
– Over twice as much on-chip cache as System z10 to
help optimize data serving environment
– Out-of-order execution sequence gives significant
performance boost for compute intensive applications
– Significant improvement for floating point workloads
Performance improvement for systems with large
number of cores – improves MP ratio
Data compression and cryptographic processors
right on the chip

80 80


zEnterprise Technology Designed for Small and Mid-sized
Businesses - the z114
Up to
Improvement for traditional
18% z/OS workloads 1
zEnterprise 114 (z114) Up to an
ADDITIONAL

Machine Type: 2818 Improvement in CPU
25% intensive workloads via
2 Models: M05 & M10 compiler enhancements2
Up to

New technology in a new package 12% Total capacity improvement 1
► Modular 2 drawer design for lower cost of entry Scales

► Granularity for right-sizing your system
From
26 - 3100 MIPS
► Additional Scale for consolidation and growth Up to

130 available capacity settings
► Improved data center efficiency
► Same Qualities of Service as the z196 From

► Hybrid enabled to drive workload integration and
1-10 configurable cores for client
use includes CPs, IFL, zIIP, zAAP,
management and ICFs
Improved Platform Economics From

► New Software Curve 0-2 IBM provided spare cores
► Lower Hardware Maintenance Up to

► Lower specialty engine and memory prices 256 GB RAIM fault tolerant memory
► Upgradeability for investment protection Fully Upgradeable from the IBM System z10
Business Class™ (z10 BC) & IBM System z9®
Business Class (z9 BC); and to the z196 M15
1Relative capacity and performance compares at equal software levels as measured by IBM Large System Performance Reference (LSPR) workloads using z/OS® 1.11, Results may vary
81 2The z114 will exhibit up to 25% increase for CPU intensive workload as provided by multiple C/C++ compiler level improvements when going from z/OS 1.09 to z/OS 1.12 81


z114 – IBM Leadership Technology At the Core
3.8 GHz Superscalar Processor Chip boosts hardware
price/performance
– 100 new instructions – improvements for CPU intensive,
Java™, and C++ applications
– New on-chip cache structure to help optimize data serving
environment
– Out-of-order execution sequence gives significant
performance boost for compute intensive applications
– Significant improvement for floating point workloads
Data compression and cryptographic processors
right on the chip
Over 18 percent performance improvement per core
and 12% improvement in total system scalability over
the z10 BC.
Compiler related enhancements help drive gains of
up to 25% improvement in throughput for
CPU/Numeric intensive workloads.

82 82


Blades Provide Added Flexibility for Workload
Deployment and Integration
IBM zEnterprise
IBM System x Blades BladeCenter Extension (zBX)
– IBM BladeCenter HX5 7873 dual-socket 16-core blades Machine Type: 2458 Mod 002
– Four supported memory configurations for zBX – 64 GB, 128 GB,
192 GB, 256 GB Optimizers
• IBM WebSphere DataPower
IBM POWER7 Blades Integration Appliance XI50z for
– IBM BladeCenter PS701 8-core processor 3.0GHz zEnterprise

– Three configurations supported in zBX - 32 GB, 64 GB, 128 GB
Select IBM Blades
Flexibility in ordering – acquired though existing • IBM BladeCenter PS701 Express
channels, including IBM • IBM BladeCenter HX5 (7873)

Unified Resource Manager will install hypervisor on
One to four – 42u racks –
blades in the zBX capacity for up to 112 blades
– Integrated hypervisor (KVM-based) for System x blades
– PowerVM Enterprise Edition for POWER7 blades
• Up to 112 PS701 Power blades
Up to 112 Blades supported on zBX
• Up to 56 HX5 System x blades
– Ability to mix and match blades in the same chassis
• Up to 28 DataPower XI50z
– Number of blades supported varies by type blades (double-wide)
Blades assume System x warranty and maintenance
when installed in the zBX

83 83


Service levels to match your business needs
Increased flexibility for your multi-architecture strategy when data is on z/OS
zEnterprise System
Extreme scalability and
performance for
Extreme consolidation of transaction processing
servers and networking and data serving
Superior levels of virtual High availability and
Expanded ISV support server provisioning, cross-system scalability
monitoring and workload with Parallel Sysplex® and
TCO for enterprise
applications
management GDPS®
Industry-best virtual I/O
Focus Silo managed islands
of computing bandwidth and reliability
Leading policy-based
Targeted for capacity provisioning and
applications that interact Fewer components and
workload management
Less dynamic than z reduced complexity
with mainframe data Pervasive, high-
virtualization and transactions System z qualities of
dynamic resource performance security
management and support
Minimal resource Provisioned and
sharing with z capacity-on-demand
managed by System z
resources Seamless integration with
z/OS backup and disaster
recovery solutions z/OS

Linux on z/VM®
Select IBM Blades
in zBX
Distributed
TCA Systems
Focus

LOWER SCALABILITY, SECURITY, HIGHER
DYNAMIC WORKLOAD MANAGEMENT
84


Increasing your flexibility using zEnterprise Systems
Additional offerings can help to strengthen business innovation

Unified Resource
PureSystems
Manager

10 GbE Select IBM Blades Optimizers

10 GbE

DataPower XI50z
DataPower XI50z
IEDN Linux on Windows AIX on
System x on POWER7
System x

1 GbE
INMN
10 GbE

z196/z114 zBX
IBM DB2 Analytics
Accelerator (IDAA) HMC

85 85


Underpinned by a thriving System z ecosystem

Thousands of ISVs Worldwide adoption of
invest in System z mainframe curriculum
7,000+ 1,200 new 120+ new 1067 43,825 SystemzJobs.com
applications and ISV schools students from connects System
supported upgraded partners enrolled 32 countries z clients, partners
on z (3250+ applications added to with more participated in and businesses
Linux and on System z the adding Master the with students and
4000+ z/OS) in 2010 platform curricula Mainframe professionals
contests seeking z jobs

86 86


Extensive ISV support for zEnterprise

87 87


What is the IBM Academic Initiative?

Membership in the IBM Academic Initiative is free and open to
individual faculty members.
A skills initiative – An IBM program that partners with academic institutions
worldwide to build a pipeline of skilled students for the IT jobs of tomorrow
and skills for a smarter planet.

System z Mission (ibm.com/university/systemz):
Assist clients world wide with z skills
Demonstrate IBM’s commitment and continued investment in the
mainframe
88 88


IBM System z courses
Foundational principles Tivoli security, systems, network, and storage Application development
Intro to the Mainframe: z/OS Basics* management courses
WebSphere Application Server for z/OS
Intro to the Mainframe: Networking* IBM Tivoli License Compliance Manager for z/OS
Intro to IBM WebSphere Developer for z
4.2 Implementation
Intro to the Mainframe: Security* (Web based)
Intro to the Mainframe: Large Scale IBM Tivoli System Automation for z/OS 3.1 WebSphere MQ for z/OS System
Commercial Computing Introduction and Operations Administration
Operating systems IBM Tivoli System Automation for z/OS 3.1 Developing COBOL with IBM Rational
Linux on System z Implementation and Administration Developer for System z
Introduction to z/VM® IBM Tivoli Workload Scheduler 8.2 for zOS
Introduction to z/VSE Basics Scheduler's Workshop
Information, data and transaction management Diagnosis
UNIX® System Services (Module)
Enterprise Server Data Management z/OS RAS and Diagnostics*
User interfaces
ISPF: z/OS Basic Interfaces DB2 for z/OS Fundamentals
Storage management DB2 Family Fundamentals (Cross product)
VSAM DB2 SQL Workshop (Cross product) eLearning resources
Programming languages DB2 for z/OS Database Admin Workshop, Part 1 Interactive e-Learning Module: z/OS Basics
Assembler DB2 for z/OS Database Admin Workshop, Part 2 Flash Demo: Introduction to Rational
COBOL DB2 Programming Workshop for z/OS Developer for System z
JCL DB2 for z/OS Application Development Develop a batch DB2 for z/OS COBOL
Other DB2 for z/OS Query Optimization and application using RDz
Performance Tuning Developing and debugging a COBOL DB2
Developing COBOL with Rational
Intro to IMS* application
Developer for System z V7.6
IMS Fundamentals Editing record-oriented programs with the
z/OS Advanced Topics*
System z LPEX editor
z/OS Emerging Technologies* An Introduction to IMS (Textbook reference)
Learn about your future in Large Systems
z/OS Installation Transaction Management
Careers in Mainframes
*available in audio version

89


Introducing SystemzJobs.com - The link to your future career
The IBM System z Job Board at SystemzJobs.com is a new resource that connects students
learning IBM Enterprise Systems with companies hiring talent.

Benefits of using SystemzJobs.com Getting started
Free, secure, and easy to use Follow these steps at SystemzJobs.com to
Fast access to the best jobs in the get started:
IT industry
1. Create a secure account (optional)
Global pool of available jobs
2. Search for jobs with your preferences
3. Connect with employers

Sponsored by the
IBM Academic Initiative, System z
Visit: ibm.com/university/systemz

Questions? Contact zSkills@us.ibm.com
90


The new IBM zEnterprise is designed to help top
performing organizations transition from the process
centric, programmable era of IT to the information
centric, cognitive era of IT.
Deliver significant cost Provide protection and Build intelligence in to
savings for existing 24/7 availability for core the business transaction
operations while freeing business operations and to expand the value of the
up resources to focus on provides a secure and transaction, create new
new services to drive stable information source transactions and improve
growth for new customer facing customer service
services

These core capabilities are strengthened through the delivery
of key technologies and continued innovation.

91


zEnterprise EC12: Operational Analytics
Delivering information and insight to enable intelligent
decisions

zEnterprise EC12 increases throughput up to 30% for a DB2® for z/OS® operational
analytics workloads as compared to z196
With IBM DB2 Analytics Accelerator (IDAA) clients can deploy business analytics on the
same platform as operational applications
Integration of analytics scoring within an OLTP transaction enables faster decision making
IDAA on zEnterprise EC12 can offer up 12X improvement in price / performance vs. the
competition
With Cognos® on System z customer queries that previously ranged from 25 seconds to
90 minutes now take 8 seconds or less

92


zEnterprise EC12: Superior availability by design
Delivering a resilient environment for core business processes
and data

New operational diagnostics with IBM zAware
– Analytics on log data provides a near real time view of current
system state
– Cutting edge pattern recognition helps pinpoint deviations in
system behavior
– Provides information to enable faster corrective action 24x7
24x7
New Flash Express Card to exploit Flash Memory
– Automatically improve availability for key workloads at critical
processing times
– Reduces latency for critical application processing such as
diagnostics collection
– Improves availability for workloads that cannot tolerate paging
spikes or inconsistent performance

93


zEnterprise EC12: Ultimate security by design
New and enhanced capabilities to improve customer trust and
confidence

High speed cryptography integrated on the new Crypto Express4S chip to
protect sensitive data from unauthorized users
Enhanced digital signature capability with new Enterprise PKCS #11 to meet
regulatory requirements
New credit transaction verification support for smart payment cards
Centrally protect multiple, mixed workloads running in separate partitions
Integration of mainframe security events with IBM zSecure Suite and QRadar to
enhance security intelligence

94


IBM zEnterprise EC12 enables improved services for your
clients
Cloud ready
• New 5.5 GHz 6-core processor chip and 50%
increase in capacity enables flexible delivery of
services though a private cloud.
• Virtualization means fewer resources are required to
meet peak demands with optimized interconnection.
Data ready
• IBM zAware is a self-learning expert solution to
reduce risk of downtime impacting data availability
for critical business processes.
• Connecting the most sophisticated data warehousing
and analytics solutions with the fastest query
performance in the market
Security ready
• Most secure system with 99.999% reliability
• Superior security with high-speed cryptography
integrated as part of the chip protects customer
privacy and reduces risk of breaches.

95


A “System of Systems” for Predictable Service Delivery
IBM zEnterprise EC12 or 196 (z196) or
Optimized to host transaction, and mission-critical
applications
The most efficient platform
for large-scale Linux® consolidation
Massive scale-up – 26 MIPS to over 78K MIPS

zEnterprise Unified Resource Manager
Unifies management of resources, extending IBM
System z® qualities of service end-to-end across
workloads
Provides platform, hardware and workload management

zEnterprise BladeCenter® Extension (zBX)
Selected IBM POWER7® blades and IBM System x® blades for
deploying applications in a multi-tier architecture
High-performance optimizers and appliances to accelerate time to
insight and reduce cost
Dedicated high-performance private network

96 96


What’s new with z/OS and z/OS
Management Facility Version 1 Release 13

97 97


Agenda

z/OS® and z/OS Management Facility
function and value
z/OS and
Integration with IBM zEnterprise™ z/OS Management Facility R13
System Available today

98 98


z/OS – Smarter Operating System for Smarter Computing

z/OS V1.13 – Performance, programming, and operations
improvements help you to gain more value from your workloads.
http://www.ibm.com/systems/z/os/zos/

z/OSMF V1.13 - Streamlined processes and built-in guidance address
a broad scope of z/OS activities and helps create a more integrated
z/OS experience and improved productivity
http://www-03.ibm.com/systems/z/os/zos/zosmf/

99


z/OS R13 – Smarter Operating System for Smarter Computing

Improved performance, programming, and operations provide
more value from your workloads.
Enhancements in z/OS and z/OS Management Facility Version 1
Release 13 help provide:

Advantages for your organization. Autonomics and smart operations
proactively avoid errors, reduce risk from outages, speed software
deployment, simplify z/OS management, and make your organization more
productive.

Advantages to your business. Foundation for modern batch capability,
industry leading security, resiliency, and data handling capability enables
you to access and transform business data to business value more readily.

Advantages to your operations. Improved performance and new
technologies for Web-based and traditional workloads improves integration
of core data in your enterprise and opens new opportunity for applications
with affinity to z data.

100


z/OS R13 – Smarter Operating System for Smarter Computing

More value from your workloads with programming, performance, and
operations improvements. Enhancements for release 13:
Foundation for modern batch applications
A new z/OS base component, z/OS Batch Runtime environment, provides the framework for Java-to-COBOL interoperability,
for transactional updates to DB2, and for sharing database connections between Java and COBOL. *
Simplified batch application programming and potentially shortened batch windows, with new JES2 JCL improvements, giving
you more control of your batch applications.
Leverage the strength of z/OS batch, a new web-based (REST) interface enables you to submit batch jobs and access batch
data from non-z/OS systems**

Improved performance for new and traditional workloads***:
Between 50% and 150%* I/O performance improvement for workloads using shared zFS in a Parallel Sysplex.
Up to 15% to 55%* IEBCOPY performance improvement for traditional workloads
Potentially shorter batch windows using JES2 JCL improvements to free tape volumes more quickly

Availability enhancements:
Improve spool volume management by using new JES2 spool migration function and JES3 dynamic spool add capability
Improved channel recovery - track errors and automatically remove failing paths (on a controller level) faster
zFS internal restart - automatically recover disabled aggregates in Sysplex aware mode – avoiding lengthy manual system
recovery process.
Avoid planned outages - Concurrent service for DADSM and CVAF

* Prerequisites: IBM 31-bit SDK for z/OS, Java Technology Edition Version 6.0.1 (5655-R31), DB2 V9.1 for z/OS (5635-DB2) or later with PTFs, IBM Enterprise
COBOL for z/OS V4.1 (5655-S71) or later
** Prerequisite: RESTful API included in z/OSMF V1.13.
*** Based on IBM Lab results, your results will vary.
I/O performance improvements measured for fully shared zFS ranged from very small to 900%, with the majority of workload conditions tested falling
between 50% and 150%. The actual amount of improvement will depend on the environment (monoplex or Parallel Sysplex) and the type of file processing
being done.
IEBCOPY improvement will depend on conditions such as: the amount of data being copied, block size, and type of IEBCOPY operation
101


z/OS Management Facility – the new face of z/OS

Streamlined processes and built-in guidance address a broad scope of
activities and helps create a more integrated z/OS experience.
Configuration
Configuration Assistant for z/OS Communication Server (R11) – Simplified configuration and setup of TCP/IP policy-
based networking functions
Performance
Capacity Provisioning (R13) - simplified monitoring of CP status for domains
Resource Monitoring and System Status (R12) – single view of sysplex and Linux® performance status and dynamic
real time resource metrics.
Workload Management – creation, editing, and activation of WLM policies (R12)
Problem Determination
Incident Log (R11) – Simplified capture, packaging, sending of SVC dump diagnostic data
Software
Deployment (R13) - Clone z/OS images, deploy software more easily and consistently
z/OS Classic Interface
ISPF Task integrates existing ISPF into z/OSMF to launch to ISPF functions directly (R13)
Base
A new web-based (REST) interface enables you to submit batch jobs and access batch data from non-z/OS systems
(R13)
Leverage System z Specialty engines
IBM Assistance available to help with pre-planning, early discovery, and readiness review for new z/OSMF
environment(s).

102


z/OSMF Software Deployment (R13)
New! - simplified deployment of installed software

New task designed to make deployment of installed software simpler and safer.
– Easy to follow checklist replaces manual and error prone procedures with a user friendly application
– Incorporates IBM recommended best practices for software deployment.
Software Deployment can clone software
– Locally, single system or within a sysplex
– Remotely, across a network, and multiple sysplexes.
Software Deployment can also:
– Identify, modify, delete software instances
– Generate jobs to copy a software instance
– Verify cross-system and cross-product requisites,
verify fixes
– Copy ALL parts of the software (SMP/E CSI
inventory too)
Clones all SMP/E installed software!
– IBM, ISV, z/OS, stack or individual products
– Service upgrades for all of the above (via complete replacement)
103 103


z/OSMF Incident Log (R11)
Save hours of time when diagnosing incidents

Respond to and manage
incidents quickly and efficiently
– View, sort, and act on incidents (identified
by subsystem)
– Package dump data for transmission in
Many fields, set tracking IDs
minutes
Can identify which subsystem
For z/OSMF R12
Add additional comments and diagnostic Select incident, get
data popup with actions
Encrypted parallel FTP of the incident
files, to IBM .
Sending additional user-defined data with
an incident

For z/OSMF R13
New APAR search
View job status via SDSF launch
Utilizes new Problem Documentation
Upload utility in base of z/OS R13
Also available as a download from
Note, screen capture from z/OSMF R12
http://www14.software.ibm.com/webapp/set2/s
as/f/zaids/pduf.html

104 104


Application Linking (R13)
Example, link Incident Log to SDSF in context

A more seamless experience
when working with z/OS.
Make your own linkages
between z/OSMF apps and even
to any web-based apps

Define an ‘event’ (such as “View
Job Status”)
A c tion from the Inc ident Log:
Launc h to view job s tatus - S D S F

Then define the ‘event handler’
action and parameters (such as ‘go
to ISPF’ with context of the job)

105 105


Resource Monitoring (R12)
A snapshot of the performance of workloads running on your systems

Sysplex status:
– Instant snapshot of workload
performance
– RED, YELLOW GREEN status
gives instant indication of WLM
goals
– Monitor z/OS AND Linux
– Drill down to see RMF™ metrics
– Renamed System Status (R13)

Monitoring Desktops
– GUI for RMF
– Monitor most Resource
Measurement Facility (RMF)
Monitor III metrics, create and
save custom views, and display
real-time performance data as bar
charts.
– Renamed Dashboards (R13)

Note, screen captures from z/OSMF R12


Integrated z/OS and Linux resource monitoring
A monitoring solution for multi-tier workloads

Monitor the resources for z/OS
and Linux workloads

Ideal for use with System z
Processor Utilization
Enterprise System
of Linux Processes

For z/OSMF R12
– Use separate as-is, no-charge
web-download tool to gather
resource information for Linux
systems.

For z/OSMF R13
– New integrated performance data
gatherers for Linux on System z,
Linux on IBM System x®, and
AIX® systems
– Additional monitoring capabilities Processor Utilization
of z/OS Jobs
for your zEnterprise System Note, screen capture from z/OSMF R12

107 107


New programmatic interface for z/OS batch
Function delivered with z/OSMF R13
A new REST API (HTTP(s)-based) interface to z/OS
Easy programmatic access to the power of z/OS batch capabilities
– REST API web services can be used by: web applications (javascript/AJAX, Flex(Flash), etc)
and other web service clients, such as Java, PHP, Perl, etc
– The REST API web service will connect to both JES2 and JES3, as well as select secondary
subsystems

Today: New option today
Complex programming Any web-based, Java, PHP, Perl
– Allocate and open internal reader
– TSO/ISPF submit,
application, etc. supporting HTTP
– FTP “interface-level2” New RESTful HTTPs based API
– Java z/OS submit interface Highly secure, firewall friendly,
Security protocol limitations Simplified text-like programming

Break the barriers of batch
Submit JCL, get status, retrieve output
files, change jobclass, cancel job, purge job

z/OS JES2 and z/OS JES3

108


z/OS R13 - The foundation for modern batch

About 90% of customers consider batch mission critical*
Challenge: Greater volumes of data and larger batch and on-line processing windows.
Solution: Need to make batch more efficient.

Expand existing COBOL applications with Shorter batch windows!
Java! – New function in z/OS helps make batch processing
– More choice for application development skills more efficient
– Leverage specialty engines! – “Pipe” data between two batch jobs to enable these
jobs to perform concurrent reads and writes

Simplified programming!
Real time batch!
– Enhancements in z/OS simplify the development
and maintenance of existing batch applications. – WebSphere® Compute Grid delivers a batch
environment capable of supporting 24x7 batch and
– Enable distributed applications to access the power OLTP processing, and parallel computing
of z/OS batch

109
* IBM Market Research 109


z/OS R13 - The foundation for modern batch (detail)

Expand existing COBOL applications! Shorter batch windows
– The z/OS Batch Runtime environment, provides Java-to- – Allow overlapping processing for multi-
COBOL interoperability, for transactional updates to DB2®, and volume data sets (FREEVOL=EOV, R13)
for sharing database connections between Java and COBOL
(R13)* – Avoid recalling migrated datasets, just to
Ideal for processing for computationally intensive programs delete them (IEFBR14, R11)
and extensions – “Pipe” data between two batch jobs to
– Use JZOS Batch Toolkit for z/OS for efficient use of z/OS enable these jobs to perform reads and
System interfaces for Java batch (IBM Java SDKs for z/OS) writes concurrently (BatchPipes®, 5655-D45)

– Leverage specialty engines! Real time batch

Simplified programming! – WebSphere Compute Grid delivers a
resilient, highly available, secure, and
– JES2 JCL enhancements provide in-stream data in catalogue scalable runtime with container-managed
procedures, more options on setting job return codes, and the services for batch applications
ability to stop and hold a job at the end of a step (not just at
the end of the job) give much more granularity and control – Capable of supporting 24x7 batch and OLTP
(z/OS R13) processing, and parallel computing

– An new REST API allows you to submit z/OS batch jobs and
retrieve z/OS batch job information from distributed systems
as well as z/OS systems; and is intended to make z/OS batch
processing much more accessible to distributed systems and
web-based processes (z/OS and z/OSMF R13)

* Prerequisites:
IBM 31-bit SDK for z/OS, Java Technology Edition, Version 6.0.1 (5655-R31)
110 DB2 V9.1 for z/OS (5635-DB2) or later with PTFs 110
IBM Enterprise COBOL for z/OS V4.1 (5655-S71) or later


Additional z/OS R13 simplification enhancements

Health Checker Framework, updates
– Greater ability to schedule health checks
– Ability for checks to raise message severity as conditions change
New health checks:
– Two new checks for Allocation – intended to warn about potential Allocation deadlock
conditions
– Detects tape library initialization errors with suggestions on how to resolve.
New Migration checks for:
– zFS configuration options, new symbolic links, z/OS console mode of operation
DFSMSrmm™, updates:
– NEW automatic recovery for missing our out-of-sequence tape volumes. For multivolume
data sets, DFSMSrmm will attempt to return the corrected list
– New ability to specify data sets by expiration date or VRS policy management. Help simplify
retention policies, avoid batch VRS policy management, and enable you to determine how
long a tape data set will be retained
DFSMSdfp™ updates:
– New includes the explanatory text for Open, Close, and End of Volume error conditions along
with the error message.
SMF dump improvement for log streams (SMF dump to log stream introduced with z/OS R9)
111 111


z/OS Availability Enhancements

Availability enhancements (with R13)

– Avoid JES2 re-starts with JES2 dynamic spool migration, rapidly
discontinue and drain spool volumes quickly

– Avoid JES3 re-starts with JES3 dynamic spool add

– Improved channel recovery - track errors and automatically remove
failing paths (on a controller level) faster Smart!
– zFS internal restart - automatically recover disabled aggregates in
Sysplex aware mode – avoiding lengthy manual system recovery
process.

– Automatic rerouting and recovery of z/OS system name server
resolver

– Concurrent service for DADSM and CVAF and DADSM dynamic
exits – avoid planned outages

112 112


z/OS Availability Enhancements
Parallel Sysplex updates for R13
Fully shared zFS in a sysplex!
– Between 50% (1.5x) and 150% (2.5x)* I/O performance improvement for any z/OS UNIX workload
using shared zFS in a Parallel Sysplex®. Applications that use zFS, such as z/OS UNIX System
Services and WebSphere Application Server for z/OS, are expected to benefit
– Also: Less-disruptive recovery from most internal zFS problems (for both single system and sysplex-
aware systems)
– Also: A new health check for zFS configuration files
Simplified software deployment – clone z/OS and software in a sysplex (z/OSMF R13)
Eliminate the need for WebSphere MQ for SDSF Sysplex environments.
Automatic monitoring, takeover, and recovery to prevent CSM-constrained conditions
NEW Easier to use XCF signaling protocol
Updated volume information on all systems in the sysplex when DFSMSdss™ or
DFSMShsm™ Fast Replication Backup and Recovery processing complete
More responsive to VIPA changes
Workload balancing of IPsec IKEv2 and IPv4.

* I/O performance improvements measured for fully shared zFS ranged from very small to 900%, with the majority of workload conditions
tested falling between 50% and 150%. The actual amount of improvement will depend on the environment (monoplex or Parallel Sysplex)
and the type of file processing being done. 113


NEW suite of GDPS solutions
IBM GDPS active/active continuous availability family of solutions is the
next generation of GDPS

IBM Geographically Dispersed Parallel Sysplex (GDPS)

GDPS/PPRC GDPS/MGM
GDPS/HyperSwap GDPS/GM GDPS
™ Manager Continuous GDPS/MzGM
GDPS/XRC active/active
Continuous availability or Continuous
Disaster recovery Near-continuous
availability of data disaster recovery at availability availability across
within a data within a extended regionally and unlimited
center metropolitan disaster recovery
distances distances
region extended distance

GDPS/ A-A concept: two or more data centers
running the same applications and data with
cross-site workload balancing and replication
• z/OS workload monitoring, management, and
distribution
• z/OS data and transaction replication
• GDPS automation
• First configuration is ‘Active Standby’

114 114


IBM GDPS active/active continuous availability family of solutions
The next generation of GDPS

Challenge
– Multi-site, global-distance solutions may take up to an hour to
recover full application availability at the remote site.
What’s New
– GDPS/ Active-Active solution, Active Standby configuration*
– Designed to provide continuous availability for two or more sites
separated by global distances and achieve Recovery Time
Objective of 1 minute or less**
– Statement of Direction for Active Query configuration***
Value
– Automated recovery of z/OS applications means recovery can be
faster and without human error
– A complete solution for continuous availability (consulting, design,
implementation, and maintenance) means piece of mind for you
– Continuous availability over global distance sites helps meet more
stringent audit and legislative compliance requirements
* Active Standby is the first configuration available under the GDPS/Active-Active family of solutions. Additional IBM software prerequisites required
** Recovery Time Objective (RTO) is a definition of the amount of time it takes from the initial disaster declaration to having critical business processes available to users.
Less than one hour RTO is based on use of IBM best practices and includes the time it takes to: IPL an LPAR, reconfigure disk, reconfigure coupling facility and CF
structure, apply System z Capacity Back Up, as well as switching network connections.
***All statements regarding IBM future direction and intent are subject to change or withdrawal without notice, and represent goals and objectives only. 115


Risk Management
Comprehensive security for a dynamic infrastructure

NEW! GDPS/Active-Active - Two or more sites, separated
by unlimited distances, running the same applications
and having the same data to provide cross-site
workload balancing and Continuous Availability /
Disaster Recovery
– Customer data at geographically dispersed sites kept in sync via
replication
– Shift from disaster recovery model to nearly continuous
availability model
– Integration of IBM products and GDPS control software through
an IBM service engagement which includes project management
throughout the implementation cycle
– Active/Standby configuration released now, IBM plans to make
available the Active/Query configuration which will provide the
ability to selectively query data in either site.

Minimizing risk for discovery and
backup systems
116 116


Keep critical business applications up and running without data loss
in case of disaster for System z platform
IBM GDPS/Active-Active continuous availability

Reduces application downtime to help lower costs,
improve productivity and boost customer loyalty
Continuous Availability
– Provides continuous availability for two or more sites
separated by unlimited distances, achieving Recovery Time
Objective of 1 minute or less.
– Shift from disaster recovery model to nearly continuous
availability model
Results
– Planned workload switch - 20 seconds from active site to
standby site
– Unplanned workload switch - 120 seconds from active site to
standby site
– Planned site switch - (9 * CICS-DB2 and 1 * IMS workloads)
20 seconds
– Unplanned workload switch - 150 seconds

117 117


z/OS R13 Performance for many key workloads

Between 50% and 150%* I/O performance improvement for any z/OS UNIX workload using
shared zFS in a Parallel Sysplex.
– Applications that use zFS, such as z/OS UNIX System Services and WebSphere Application
Server for z/OS, are expected to benefit
Between 15% and 55%* IEBCOPY performance improvement for traditional workloads
– Workloads copying PDS to PDS, copying PDS to sequential, or compressing a PDS are expected
to benefit
Potential for shorter batch windows *
– New JCL FREEVOL=EOV parameter frees up a tape volume when the batch job is done with it.
Network throughput Enterprise Extender can be improved
– Using Inbound Workload Queuing (IWQ), available on OSA-Express3 and OSA-Express4S (July
12, 2011)
Foundation for extreme data handling and simplified storage management
– Potentially improved I/O performance without the need for application changes for QSAM-,
BPAM-, and BSAM-based workloads by leveraging High Performance FICON™. Also, existing
EAV functionality is enhanced with support for larger, 1 TB Extended Address Volumes (EAVs).**
- IBM statements of direction
* Based on IBM Lab results, your results will vary.
I/O performance improvements measured for fully shared zFS ranged from very small to 900%, with the majority of workload conditions tested falling between 50% and
150%. The actual amount of improvement will depend on the environment (monoplex or Parallel Sysplex) and the type of file processing being done.
IEBCOPY improvement will depend on conditions such as: the amount of data being copied, block size, and type of IEBCOPY operation
Batch concurrency for multi volume tape datasets and will depend on the amount of data being processed
118
** All statements regarding IBM future direction and intent are subject to change or withdrawal without notice, and represent goals and objectives only.

zOS R13 Enhancements in Security
IKEv2
– Initial support with z/OS R12 Communications Server. z/OS R13 adds Network Address Translation
(NAT) traversal support for IKEv2 over IPv4.
System SSL, ECC
– z/OS R12 Communications Server added support for Elliptic Curve Cryptography (ECC), ECDSA
(Elliptic Curve Digital Signature Algorithm).
– z/OS R13 to extend System SSL ECC support for :
• Creating ECC-style certificates in key database files or ICSF PKCS#11 tokens
• Creating ECC-style certificates through the Certificate Management Services (CMS) API
• Enabling ECC for TLS V1.0 and TLS V1.1 handshakes (RFC4492)
• ECC certificate support with Crypto Express3 Coprocessor (on zEnterprise server)
ICSF support for additional HMAC algorithms
– Support for FIPS-198, support planned for SHA-1, SHA-224, SHA-256, SHA-384, and SHA-512
TN3270 and FTP support for password phrases
Ported tools
– IBM Ported Tools for z/OS (5655-M23), a no-charge product, provides the sudo (su "do") open source
tool that allows system administrators to delegate authority to users or groups while providing the
RACF® (or equivalent) audit trail of the user and their commands. Already available on UNIX
platforms, now available with z/OS UNIX System Services.

119 119

z/OS Security Server – RACF
Helping to address security and compliance** guidelines

Enhancements with z/OS R13
RACF
RACF
––RACF Remote Sharing Facility (RRSF) support for TCP/IP (in addition to SNA APPC)
RACF Remote Sharing Facility (RRSF) support for TCP/IP (in addition to SNA APPC)
––Support for generating Elliptic Curve Cryptography (ECC) secure keys (using Crypto Express3
Support for generating Elliptic Curve Cryptography (ECC) secure keys (using Crypto Express3
Cryptographic Coprocessors (CEX3C) available with zEnterprise servers)
Cryptographic Coprocessors (CEX3C) available with zEnterprise servers)
Tivoli Directory Server for z/OS (LDAP)
Tivoli Directory Server for z/OS (LDAP)
––Support for SHA-2 and salted SHA-2 hashing of user password attributes. Addresses:
Support for SHA-2 and salted SHA-2 hashing of user password attributes. Addresses:
–– Need for stronger hashing and cryptographic algorithms
Need for stronger hashing and cryptographic algorithms
– Enhanced interoperability with distributed IBM TDS, openLDAP, and other LDAP servers.
– Enhanced interoperability with distributed IBM TDS, openLDAP, and other LDAP servers.
– The National Institute of Standards and Technology (NIST) policy for the use of hash functions.
– The National Institute of Standards and Technology (NIST) policy for the use of hash functions.
––Support for LDAP administrators to delegate LDAP administrative authority
Support for LDAP administrators to delegate LDAP administrative authority
–– Can improve LDAP administration flexibility, help improve auditability, and help improve security
Can improve LDAP administration flexibility, help improve auditability, and help improve security
––Support for DB2 99for z/OS (5635-DB2) backend for scalability of large LDAP deployments
Support for DB2 for z/OS (5635-DB2) backend for scalability of large LDAP deployments
––Improved interoperability between z/OS applications and Microsoft Active Directory environments for
Improved interoperability between z/OS applications and Microsoft Active Directory environments for
Kerberos
Kerberos
––Support for RFC 2696 and RFC 2891 for improved LDAP sorted search performance
Support for RFC 2696 and RFC 2891 for improved LDAP sorted search performance

** It is the customer's responsibility to identify, interpret, and comply with laws or regulatory requirements that affect its business.
IBM does not represent that its products or services will ensure that the customer is in compliance with the law.

120 120

z/OS and IPv6

IPv4 address pool is exhausted February 3, 2011
– http://www.ipv6news.info/2011/02/04/ipv4-address-pool-is-exhausted/
– Now the IPv4 Internet only has the stock of IPv4 addresses held by the regional
registrars and Internet Service Provides (ISPs) to keep it going.
z/OS is IPv6 certified! (http://jitc.fhu.disa.mil/adv_ip/register/certs/ibmzosv110_dec08.pdf)
z/OS Communications Server is adding function for IPv6 networks:
– For z/OS R11
– Support RFC4941 and RFC5095; and the AES-based AES-XCBC-MAC-96 and AES-XCBC-PRF-128
algorithms - intended to meet new government IPv6 standards

– For z/OS R12
– Health checks for IPv4 and IPv6 routing
– Support for DFSMSrmm, IKEv2, ability to Send DNS Queries over IPv6, support for security-related
RFC3484 and RFC5014

– For z/OS R13
– Support for IPv6 intrusion detection security equivalent to that provided for IPv4, integrated with the
Configuration Assistant (in z/OSMF)
– Support for IPv6 checksum and segmentation offload enhancements and for LPAR-to-LPAR
checksum offload for both IPv4 and IPv6 packets available with OSA-Express4S QDIO (announced
July 12 2011)
• TCP/IP segmentation and checksum processing on OSA card and not on CP
121 121


Taking z/OS Storage Volumes to the Extreme

Extended Address Volumes (EAVs) help address storage constraints
Can help simplify storage management by enabling you to manage fewer, larger
volumes, as opposed to many small volumes
IDEAL for large datasets, may improve storage utilization!
DS8000® exploitation rolled out over time, starting with 223 GB volumes:
– With z/OS R10, support for VSAM
– With z/OS R11, support for extended format sequential data sets
– With z/OS R12, support extended to sequential (both basic and large)
data sets, partitioned (PDS/PDSE) data sets, catalogs (ICF now
larger than 4 GB), BDAM data sets, JES spool and checkpoint
data sets, standalone Dump extended format dump data sets,
DFSMSrmm data sets, generation data groups (GDGs) and VSAM
volume data sets (VVDSs).
– With z/OS R13 - Support extended to z/OS Communications Server FTP,
SDSF extended format print files, VSAM volume data set (VVDS) scalability,
ISPF to display data sets eligible for EAV.
– SOD - support for larger extended address volumes (EAVs), up to 1 TB EAV
per volume, on IBM System Storage® DS8700 and DS8800 series,
EAV 3390-A
with new DS8000 licensed machine code.*
3390-A
3390-9
54GB 223GB
65,520 cyl 262,668 cyl 1TB SOD*
122 122
*All statements regarding IBM's plans, directions, and intent are subject to change or withdrawal without notice.


z/OS Statement of Direction
Software Announcement 212-086 – 4/11/2012

IBM plans to introduce a new version of the z/OS operating system, z/OS Version 2, with
z/OS V2.1 to be released in the second half of 2013 as part of a new two-year release
cycle.
IBM intends to make new z/OS and z/OSMF releases available approximately every two
years.
It is IBM's intent that z/OS V2 and z/OSMF V2 will continue to support coexistence,
fallback, and migration rules similar to those for z/OS V1 and z/OSMF V1. IBM plans to
support an n-2 approach, where three consecutive releases are planned to be supported
for coexistence, fallback, and migration.
Beginning with z/OS Version 2, IBM plans to provide five years of z/OS support, with
three years of optional, fee-based extended service (5+3) as part of the new release
cadence.
IBM further plans to provide enhancements to current z/OS releases during the transition
to the new support model as follows:
– z/OS V1.12 support is planned to be increased from three years to four years. Thus,
support for Version 1.12 is planned to be extended from September 30, 2013, to
September 30, 2014.
– z/OS V1.13 support is planned to be increased from three years to five years. Thus,
support for Version 1.13 is planned to be extended from September 30, 2014, to
September 30, 2016.

123

Support and Service Changes
Transition Timing
– Release 11 has three Years Support + 2 years LCE
– Release 12 has four Years Support + optional fee based extended service
– Release 13 has five Years Support + optional fee based extended service
Migration and Support
– Longer support lifecycles align with delivery cycles
– Maintain N-2 release migration (accommodate a 2 or 4 year migration cycle)
– Bridge migration to Version 2 from currently supported releases

2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 2021 2022

R 1.10 3 Year Support Life Cycle Ext. Extended Service

R 1.11 3 Year Support Life Cycle Ext. Extended Service

R1.12 4 Year Support Extended Service

R1.13 5 Year Support Extended Service

V 2.1 5 Year Support Extended Service

V 2.2 5 Year Support Extended Service

V 2.3 5 Year Support Ext


z/OS Version 2 Statement of Direction April 11th, 2012
Summary of Statement of Direction
Version 2 of z/OS targeted to Availability 2H2013
A Version 2 release is the next z/OS release; there is no release in 2012
Release delivery cycle is planned to be every two years, in the second half of that
calendar year.
z/OSMF will be on the same cycle as z/OS
N+1 or N+2 release migrations support two or four year migration cycle
New five year support with optional fee based service extension
IBM intends to offer interim updates, such as server support, through periodic small
product enhancement PTFs (SPEs) and web deliverables
Minimum supported HW levels (IBM System z9® server or later, and 3990-3 controller or
later)
Changes to Current Releases:
R12 Support extended to four years
R13 Support extended to five years to bridge customers to Version 2 migration
R13 orderable until Version 2 becomes available



IBM zEnterprise System: Freedom by Design
The broadest systems architecture – for integration and
management of multi-platform applications and data
IBM zEnterprise EC12 (zEC12)
IBM zEnterprise z196 (z196)
Unified Resource Manager BladeCenter Extension (zBX)
IBM zEnterprise z114 (z114)
Extending zEnterprise qualities of – AIX®, Linux®, and Microsoft®
Industry’s most robust design for service and management across Windows®* applications
keeping systems and data the infrastructure – Appliance Blades - Smart
continuously accessible
analytics, DataPower®

1. Meets the need of today’s heterogeneous data centers
2. Enables mixed workload business processes to be deployed and centrally managed
3. Allows optimized integration of data, applications, and web serving
4. Delivers dynamically responsive IT with lower acquisition and operating costs

126 126


A “System of Systems” for Predictable Service Delivery
IBM zEnterprise EC12 or 196 (z196) or
Optimized to host transaction, and mission-critical
applications
The most efficient platform
for large-scale Linux® consolidation
Massive scale-up – 26 MIPS to over 78K MIPS

zEnterprise Unified Resource Manager
Unifies management of resources, extending IBM
System z® qualities of service end-to-end across
workloads
Provides platform, hardware and workload management

zEnterprise BladeCenter® Extension (zBX)
Selected IBM POWER7® blades and IBM System x® blades for
deploying applications in a multi-tier architecture
High-performance optimizers and appliances to accelerate time to
insight and reduce cost
Dedicated high-performance private network

127 © 2012 IBM Corporation 127


zEnterprise software supports mission critical requirements
Efficiency at scale Operational analytics Ultimate Security
Transactional Processing
Millions of transactions per day Data Warehousing Security
Business Rules and Processes Unique temporal capabilities Advanced encryption
Create reusable services and and decryption software
Data Management
processes
Governance through the Social Business
Enterprise Modernization
enterprise Integrating social business
Single platform for development with enterprise computing
and test Operational Analytics
Integrated Appliances Secured right-time
Packaged solutions for optimal analysis
performance
Cloud Computing
Saas and Paas solutions
Integrated service management
Single point of control

128
128


IBM Software for zEnterprise solves key Business
Initiatives
Cloud Data Security
Efficiency at Scale Operational Analytics Ultimate Security
Delivering high value Delivering predictive and Providing advanced data
secured applications and operational analysis of real- security and audit
services to create the ideal time enterprise data to deliver capabilities for managing risk,
private cloud environment insights data leaks, and compliance
issues
NEW
IBM CICS Transaction Server for IBM DB2 Analytics Accelerator V3 IBM Security zSecure Suite
z/OS® V5.1 and tools IBM zEnterprise Analytics System V1.13.1
IBM OMEGAMON® Family V5.1 9700/9710 IBM InfoSphere Guardium V9.0
IBM Continuous Integration for Cognos BI 10.2
System z InfoSphere™ Optim™ 9.1
IBM Integrated solution for DB2 for z/OS Tools
System z development IMS Enterprise Suite 2.2
IBM Sterling B2B Integrator V5.2.5 DB2 11 Beta ESP, IMS 13 QPP
IBM Sterling File Gateway V2.2.4 IBM Business Rules for z/OS V8.1
IBM Operational Decision
Management V8.1
129
129


System z Analyst Quotes: IBM zEnterprise EC12
"The new IBM zEnterprise EC12 showcases all of the major System z differentiators: powerful processing;
"The new IBM zEnterprise EC12 showcases all of the major System z differentiators: powerful processing;
advanced reliability, availability and serviceability; enhanced security; efficiency at scale; and most important,
advanced reliability, availability and serviceability; enhanced security; efficiency at scale; and most important,
the ability to optimally run and manage a wide range of workloads across System z and heterogeneous
the ability to optimally run and manage a wide range of workloads across System z and heterogeneous
environments.“
environments.“
-- Joe Clabby, President, Clabby Analytics
-- Joe Clabby, President, Clabby Analytics

"Organizations are looking for newer and better ways to make information available, and actionable, to
"Organizations are looking for newer and better ways to make information available, and actionable, to
business customers -- and to do so rapidly and securely. The challenge for many organizations is to transform
business customers -- and to do so rapidly and securely. The challenge for many organizations is to transform
the transactional data they already have into new business insights that will guide the business to new
the transactional data they already have into new business insights that will guide the business to new
opportunities and revenue growth. To do that, analytics systems must be capable of handling high data
opportunities and revenue growth. To do that, analytics systems must be capable of handling high data
volumes. The IBM zEnterprise EC12 was designed with these goals, providing an analytics platform that is
volumes. The IBM zEnterprise EC12 was designed with these goals, providing an analytics platform that is
highly secure, efficient and resilient -- and links to other systems to support end-to-end computing. It supports
highly secure, efficient and resilient -- and links to other systems to support end-to-end computing. It supports
analytics workloads that transform massive amounts of data into actionable information, allowing
analytics workloads that transform massive amounts of data into actionable information, allowing
organizations to improve business performance and to gain competitive advantage."
organizations to improve business performance and to gain competitive advantage."
-- Jean S. Bozman, Research Vice President, IDC Enterprise Platforms
-- Jean S. Bozman, Research Vice President, IDC Enterprise Platforms

"Once again, IBM has demonstrated why the mainframe is the ultimate platform for enterprise computing. On
"Once again, IBM has demonstrated why the mainframe is the ultimate platform for enterprise computing. On
a capacity basis, the new IBM zEnterprise EC12 is 55% larger than its predecessor, which is especially
a capacity basis, the new IBM zEnterprise EC12 is 55% larger than its predecessor, which is especially
important for the largest enterprises. With a clock speed of 5.5 GHz, it is the world's fastest commercial
important for the largest enterprises. With a clock speed of 5.5 GHz, it is the world's fastest commercial
processor, allowing much more work to be done than with competitive x86-based servers. With its new Flash
processor, allowing much more work to be done than with competitive x86-based servers. With its new Flash
Express, availability of key workloads will be improved automatically by reducing latency. With IBM zAware,
Express, availability of key workloads will be improved automatically by reducing latency. With IBM zAware,
also new, data center staff will be alerted more quickly to difficult-to-detect operating anomalies and can act
also new, data center staff will be alerted more quickly to difficult-to-detect operating anomalies and can act
sooner to mitigate them. In summary, the zEC12 offers a well-balanced collection of improvements for existing
sooner to mitigate them. In summary, the zEC12 offers a well-balanced collection of improvements for existing
mainframe customers and even more reasons for a new customer to consider System z for critical workloads."
mainframe customers and even more reasons for a new customer to consider System z for critical workloads."
-- Mike Kahn, Managing Director, The Clipper Group
-- Mike Kahn, Managing Director, The Clipper Group

130


System z Analyst Quotes: IBM zEnterprise EC12
"IBM's latest System z model clearly demonstrates the mainframe is very much alive and kicking ... the new
"IBM's latest System z model clearly demonstrates the mainframe is very much alive and kicking ... the new
System z supports and speeds achieving competitive advantage with the most sophisticated data
System z supports and speeds achieving competitive advantage with the most sophisticated data
warehousing and analytics coupled with the fasted performing query functions in the market. It provides
warehousing and analytics coupled with the fasted performing query functions in the market. It provides
unequaled security along with 99.999% reliability on a unified platform that helps accelerate the development
unequaled security along with 99.999% reliability on a unified platform that helps accelerate the development
of secure applications. The hybrid architecture speeds cloud deployment of mission critical workloads on
of secure applications. The hybrid architecture speeds cloud deployment of mission critical workloads on
systems designed to be the fastest and most efficient available to the market. This increased operating
systems designed to be the fastest and most efficient available to the market. This increased operating
efficiency frees IT resources to focus on developing and delivering services that drive growth by meeting
efficiency frees IT resources to focus on developing and delivering services that drive growth by meeting
customer demands. With this combination, we anticipate success for the new models along with a very long
customer demands. With this combination, we anticipate success for the new models along with a very long
life for the whole family."
life for the whole family."
-- Ptak, Noel & Associates: “IBM’s Latest Mainframe, Another Winner”
-- Ptak, Noel & Associates: “IBM’s Latest Mainframe, Another Winner”

"IBM’s latest zEnterprise EC12 multiplatform mainframe systems provide current and prospective Big Blue
"IBM’s latest zEnterprise EC12 multiplatform mainframe systems provide current and prospective Big Blue
customers with the processing power, performance and near-flawless reliability and security necessary for the
customers with the processing power, performance and near-flawless reliability and security necessary for the
most demanding workloads. The new zEnterprise EC12 multiplatform servers solidify and extend IBM’s stake in
most demanding workloads. The new zEnterprise EC12 multiplatform servers solidify and extend IBM’s stake in
high-end enterprises.“
high-end enterprises.“
-- Laura DiDio, ITIC: “IBM zEnterprise EC12 Servers Deliver Near-Flawless Reliability, Security”
-- Laura DiDio, ITIC: “IBM zEnterprise EC12 Servers Deliver Near-Flawless Reliability, Security”

"IT executives should insist on an evaluation that addresses the financial facts and ignores the religious platform
"IT executives should insist on an evaluation that addresses the financial facts and ignores the religious platform
wars. In today's environment IT must deliver processing services at a least cost or be exposed; thus internal
wars. In today's environment IT must deliver processing services at a least cost or be exposed; thus internal
wars must be put aside and the best target platforms must be selected and put into service as soon as possible.
wars must be put aside and the best target platforms must be selected and put into service as soon as possible.
Bottom line: the zEnterprise as a database server is a killer application.“
Bottom line: the zEnterprise as a database server is a killer application.“
-- Cal Braunstein, Robert Frances Group: “IBM System z -- The Lowest Cost Database Server Solution”
-- Cal Braunstein, Robert Frances Group: “IBM System z The Lowest Cost Database Server Solution”

131


Service levels to match your business needs
Increased flexibility for your multi-architecture strategy when data is on z/OS
zEnterprise System
Extreme scalability and
performance for
Extreme consolidation of transaction processing
servers and networking and data serving
Superior levels of virtual High availability and
Expanded ISV support server provisioning, cross-system scalability
monitoring and workload with Parallel Sysplex® and
TCO for enterprise
applications
management GDPS®
Industry-best virtual I/O
Focus Silo managed islands
of computing bandwidth and reliability
Leading policy-based
Targeted for capacity provisioning and
applications that interact Fewer components and
workload management
Less dynamic than z reduced complexity
with mainframe data Pervasive, high-
virtualization and transactions System z qualities of
dynamic resource performance security
management and support
Minimal resource Provisioned and
sharing with z capacity-on-demand
managed by System z
resources Seamless integration with
z/OS backup and disaster
recovery solutions z/OS

Linux on z/VM®
Select IBM Blades
in zBX
Distributed
TCA Systems
Focus

LOWER SCALABILITY, SECURITY, HIGHER
DYNAMIC WORKLOAD MANAGEMENT
132


zEnterprise EC12: An optimized design which delivers
unique value
Comprehensive integration enabling information – centric
computing

®

Java

Compilers,
Semiconductor Microprocessor Systems Virtualization Optimized
Tools & Java
Technology Design Design & Operating Middleware
Virtual
Systems
Machine

133


The IBM zEnterprise EC12 (zEC12)

Efficiency at scale
• Most efficient and fastest system for
mission critical workloads
• Increased efficiency will free up IT
resources to focus on new services to
drive growth
Operational analytics to enable
business opportunities
• Most sophisticated data warehousing
and analytics solutions with the fastest
query performance in the market
• Leverage your data to build
competitive advantage

Ultimate security strengthens the
customer experience
• Most secure system with 99.999%
reliability
• Unified platform for rapid development
of secure applications end-to-end

134


Summary: IBM zEnterprise EC12 (zEC12)
The secure cloud for data, enabling enterprises to improve service to
their customers…

zEC12: A Smarter Computing infrastructure that is Cloud Ready, Data Ready and Security Ready,
enabling a Smarter Planet™ for today and tomorrow

135


What is IBM zEnterprise System?

Re-write the rulebook and set new
standards for business-centric IT
with IBM System z, to be the
world’s premier workload-optimized
platform for enterprise applications.

Our Vision:
Deliver the best of all worlds - Mainframe, UNIX®, x86 and single
function processors - integrated in a single system for ultimate flexibility
and simplicity to optimize service, risk, and cost across multiple
heterogeneous workloads.

136

Latest news phoenix

More Related Content

What's hot

Similar to Latest news phoenix

More from Jeff Pearce

Recently uploaded

Latest news phoenix
