The document provides specifications and features for various flame generation products by Hansol FX, including models such as Hurricane NTS, Hurricane NT, Easy Flame NT, and Hurricane AW. Each product features electric spark ignition, compact designs, and the capability to produce significant flame effects along with various control options. The products are CE certified and suitable for use in entertainment and event settings.

1. Product Feature
Product Photo
Road Case Fuel tank Flame head
HanSol FX inc.
43-5, Sicheong-ro 677beon-gil, Paltan-myeon, Hwaseong-si, Gyeonggi-do Korea Zip 18524
T : +82-31-366-0517 | F : +82-505-361-9699 | E : fxg6131@naver.com | W : www.hansolfx.com instagram@hansolsfx
2020 Hansol FX All right reserved.
Ver 1.0 2020.6.1
Specification

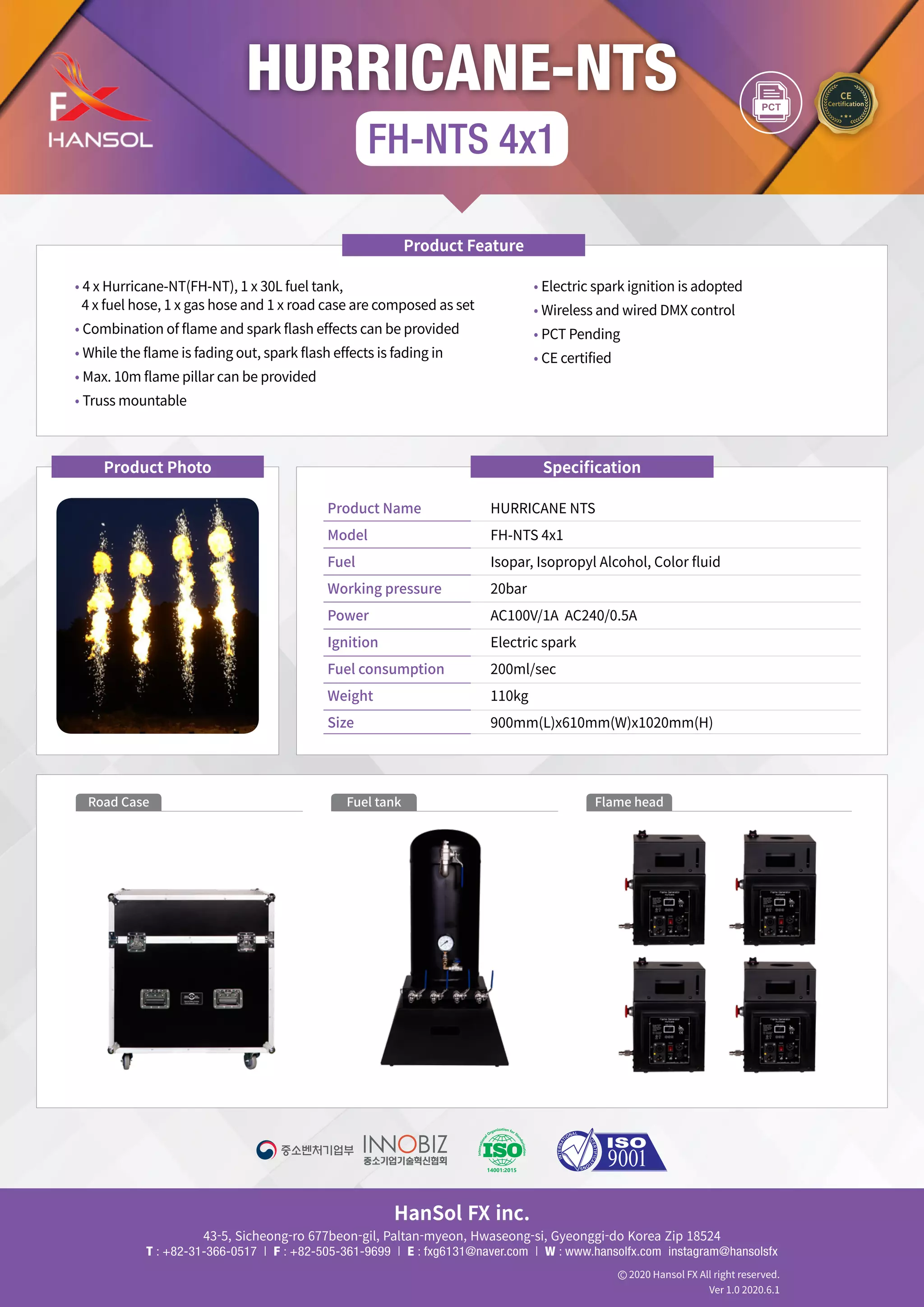

Product Name HURRICANE NTS
Model FH-NTS 4x1
Fuel Isopar, Isopropyl Alcohol, Color fluid
Working pressure 20bar
Power AC100V/1A AC240/0.5A
Ignition Electric spark
Fuel consumption 200ml/sec
Weight 110kg
Size 900mm(L)x610mm(W)x1020mm(H)
•
4 x Hurricane-NT(FH-NT), 1 x 30L fuel tank,
4 x fuel hose, 1 x gas hose and 1 x road case are composed as set
•
Combination of flame and spark flash effects can be provided
•
While the flame is fading out, spark flash effects is fading in
•
Max. 10m flame pillar can be provided
•
Truss mountable
•
Electric spark ignition is adopted
•
Wireless and wired DMX control
•
PCT Pending
•
CE certified
HURRICANE-NTS
FH-NTS 4x1

2. HURRICANE-NS
FH-NS 4x1
•
4 x Hurricane-N(FH-N), 1 x 30L fuel tank,
4 x fuel hose, 1 x gas hose and 1 x road case are composed as set
•
Max. 10m flame pillar can be provided
•
Truss mountable
•
Electric spark ignition is adopted
•
Wireless wired DMX control
•
CE certified
Product Feature
Specification
Product Name HURRICANE NS
Model FH-NS 4x1
Fuel Isopar, Isopropyl Alcohol, Color fluid
Working pressure 20bar
Power AC/100V/0.6A AC240V/0.3A
Ignition Electric spark
Fuel consumption 200ml/sec
Weight 104kg
Size 900mm(L)x610mm(W)x1020mm(H)
Product Photo
Road Case Fuel tank Flame head
HanSol FX inc.
43-5, Sicheong-ro 677beon-gil, Paltan-myeon, Hwaseong-si, Gyeonggi-do Korea Zip 18524
T : +82-31-366-0517 | F : +82-505-361-9699 | E : fxg6131@naver.com | W : www.hansolfx.com instagram@hansolsfx
2020 Hansol FX All right reserved.
Ver 1.0 2020.6.1

3. HanSol FX inc.
43-5, Sicheong-ro 677beon-gil, Paltan-myeon, Hwaseong-si, Gyeonggi-do Korea Zip 18524
T : +82-31-366-0517 | F : +82-505-361-9699 | E : fxg6131@naver.com | W : www.hansolfx.com instagram@hansolsfx
2020 Hansol FX All right reserved.
Ver 1.0 2020.6.1
Specification

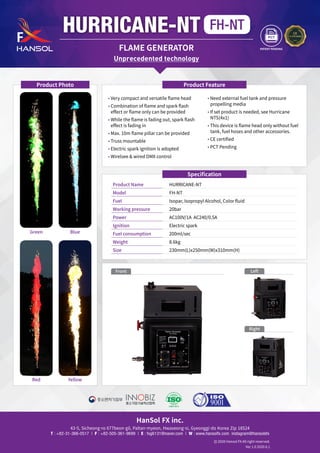

Product Name HURRICANE-NT
Model FH-NT
Fuel Isopar, Isopropyl Alcohol, Color fluid
Working pressure 20bar
Power AC100V/1A AC240/0.5A
Ignition Electric spark
Fuel consumption 200ml/sec
Weight 8.6kg
Size 230mm(L)x250mm(W)x310mm(H)
HURRICANE-NT FH-NT
FLAME GENERATOR
•
Very compact and versatile flame head
•
Combination of flame and spark flash
effect or flame only can be provided
•
While the flame is fading out, spark flash
effect is fading in
•
Max. 10m flame pillar can be provided
•
Truss mountable
•
Electric spark ignition is adopted
•
Wirelsee wired DMX control
•
Need external fuel tank and pressure
propelling media
•
If set product is needed, see Hurricane
NTS(4x1)
•
This device is flame head only without fuel
tank, fuel hoses and other accessories.
•
CE certified
•
PCT Pending
Product Feature
Product Photo
Unprecedented technology
Blue
Yellow
Green
Red
PATENT PENDING
Front
Right
Left

4. HanSol FX inc.
43-5, Sicheong-ro 677beon-gil, Paltan-myeon, Hwaseong-si, Gyeonggi-do Korea Zip 18524
T : +82-31-366-0517 | F : +82-505-361-9699 | E : fxg6131@naver.com | W : www.hansolfx.com instagram@hansolsfx
2020 Hansol FX All right reserved.
Ver 1.0 2020.6.1
Specification
Product Name HURRICANE-N
Model FH-N
Fuel Isopar, Isopropyl Alcohol, Color fluid
Working pressure 20bar
Power AC100V/0.6A AC240/0.3A
Ignition Electric spark
Fuel consumption 200ml/sec
Weight 7.2kg
Size 230mm(L)x250mm(W)x310mm(H)
•
Very compact and versatile flame head
•
Max. 10m flame pillar can be provided
•
Truss mountable
•
Electric spark ignition is adopted
•
Wirelsee wired DMX control
•
Need external fuel tank and pressure propelling media
•
If set product is needed, see Hurricane NS(4x1)
•
This device is flame head only without fuel tank, fuel hoses and other accessories.
•
CE certified
Product Feature
Product Photo
HURRICANE-N FH-N
FLAME GENERATOR
Front
Right
Left

5. HanSol FX inc.
43-5, Sicheong-ro 677beon-gil, Paltan-myeon, Hwaseong-si, Gyeonggi-do Korea Zip 18524
T : +82-31-366-0517 | F : +82-505-361-9699 | E : fxg6131@naver.com | W : www.hansolfx.com instagram@hansolsfx
2020 Hansol FX All right reserved.
Ver 1.0 2020.6.1
Specification

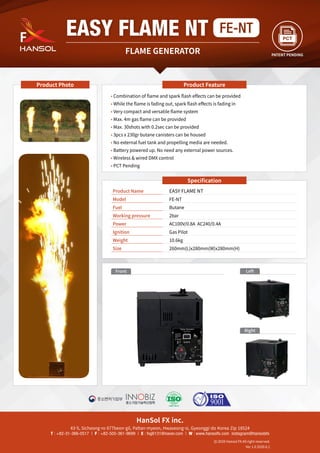

Product Name EASY FLAME NT
Model FE-NT
Fuel Butane
Working pressure 2bar
Power AC100V/0.8A AC240/0.4A
Ignition Gas Pilot
Weight 10.6kg
Size 260mm(L)x280mm(W)x280mm(H)
Product Feature
Product Photo
Front
Right
Left
FLAME GENERATOR
EASY FLAME NT FE-NT
PATENT PENDING
• Combination of flame and spark flash effects can be provided
• While the flame is fading out, spark flash effects is fading in
• Very compact and versatile flame system
• Max. 4m gas flame can be provided
• Max. 30shots with 0.2sec can be provided
• 3pcs x 230gr butane canisters can be housed
• No external fuel tank and propelling media are needed.
• Battery powered up. No need any external power sources.
• Wireless wired DMX control
• PCT Pending

6. HanSol FX inc.
43-5, Sicheong-ro 677beon-gil, Paltan-myeon, Hwaseong-si, Gyeonggi-do Korea Zip 18524
T : +82-31-366-0517 | F : +82-505-361-9699 | E : fxg6131@naver.com | W : www.hansolfx.com instagram@hansolsfx
2020 Hansol FX All right reserved.
Ver 1.0 2020.6.1
Specification

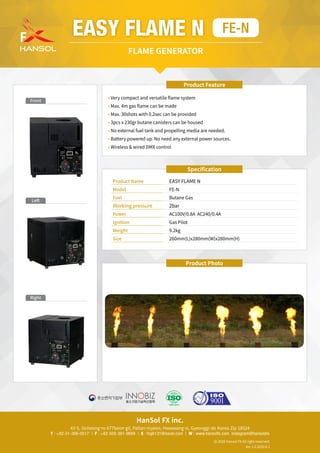

Product Name EASY FLAME N
Model FE-N
Fuel Butane Gas
Working pressure 2bar
Power AC100V/0.8A AC240/0.4A
Ignition Gas Pilot
Weight 9.2kg
Size 260mm(L)x280mm(W)x280mm(H)
Product Feature
•
Very compact and versatile flame system
•
Max. 4m gas flame can be made
•
Max. 30shots with 0.2sec can be provided
•
3pcs x 230gr butane canisters can be housed
•
No external fuel tank and propelling media are needed.
•
Battery powered up. No need any external power sources.
•
Wireless wired DMX control
EASY FLAME N FE-N
FLAME GENERATOR
Left
Right
Front
Product Photo

7. HanSol FX inc.
43-5, Sicheong-ro 677beon-gil, Paltan-myeon, Hwaseong-si, Gyeonggi-do Korea Zip 18524
T : +82-31-366-0517 | F : +82-505-361-9699 | E : fxg6131@naver.com | W : www.hansolfx.com instagram@hansolsfx
2020 Hansol FX All right reserved.
Ver 1.0 2020.6.1
Specification
Product Name HURRICANE-AT
Model FH-AT
Fuel Isopar, Isopropyl alcohol
Powder Spark powder
Working pressure 15-18bar
Power AC100V/7A AC240V/3.5A
Ignition Electric spark
Fuel consumption 200ml/sec
Weight 28kg
Size 260mm(L)x555mm(W)x415mm(H)
HURRICANE-AT FH-AT
FLAME GENERATOR
•
Combination of flame and spark flash
effects or flame effect only can be provided
•
While flame is fading out, spark flash
effects is fading in
•
All in one flame system without any
external pressure propelling media and
fuel reservoir.
•
2 small pressure pumps are built in the
device
•
Max. 12L fuel reservoir and an accumulator
are built in the device
•
Max. 8m of flame pillar can be provided
•
Electric spark ignition is adopted
•
Wirelsee wired DMX control
•
CE certified
•
PCT patent pending
Product Feature
Product Photo
Unprecedented technology
Flame only
Flame Spark Flash
PATENT PENDING
Front
Left
ALL IN ONE

8. HanSol FX inc.
43-5, Sicheong-ro 677beon-gil, Paltan-myeon, Hwaseong-si, Gyeonggi-do Korea Zip 18524
T : +82-31-366-0517 | F : +82-505-361-9699 | E : fxg6131@naver.com | W : www.hansolfx.com instagram@hansolsfx
2020 Hansol FX All right reserved.
Ver 1.0 2020.6.1

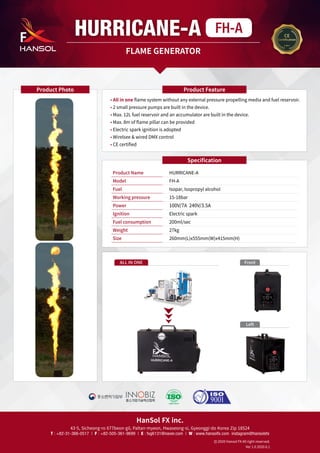

HURRICANE-A FH-A
FLAME GENERATOR
•
All in one flame system without any external pressure propelling media and fuel reservoir.
•
2 small pressure pumps are built in the device.
•
Max. 12L fuel reservoir and an accumulator are built in the device.
•
Max. 8m of flame pillar can be provided
•
Electric spark ignition is adopted
•
Wirelsee wired DMX control
•
CE certified
Product Feature
Product Photo
Specification
Product Name HURRICANE-A
Model FH-A
Fuel Isopar, Isopropyl alcohol
Working pressure 15-18bar
Power 100V/7A 240V/3.5A
Ignition Electric spark
Fuel consumption 200ml/sec
Weight 27kg
Size 260mm(L)x555mm(W)x415mm(H)
ALL IN ONE Front
Left

9. HanSol FX inc.
43-5, Sicheong-ro 677beon-gil, Paltan-myeon, Hwaseong-si, Gyeonggi-do Korea Zip 18524
T : +82-31-366-0517 | F : +82-505-361-9699 | E : fxg6131@naver.com | W : www.hansolfx.com instagram@hansolsfx
2020 Hansol FX All right reserved.
Ver 1.0 2020.6.1
Specification
Product Name HURRICANE-AW
Model FH-AW
Fuel Isopar, Isopropyl Alcohol, Colored flame fuel
(Red, Gold orange flame fluid. Do not use blue and green)
Working pressure 15-18bar
Power AC100V/7A AC240V/3.5A
Ignition Electric spark
Fuel consumption 200ml/sec
Weight 31kg
Size 255mm(L)x580mm(W)x415mm(H)
•
All-in-one flame system without any
external pressure propelling media and
fuel reservoir.
•
2 small pressure pumps are built in the device
•
Max 11L fuel reservoir and an accumulator
are built in the device
•
Very compact and ready to use liquid driven
flame system with moving head technology.
•
Swiveling flame head can produce a wide
range of magnificent flame effects as well
as very fast and accurate flame effects with
a radius of 180°
•
Flame head is motorized and moveable
with pressurized liquid fuel.
•
Max. 8m flame can be provided
•
Electric spark ignition is adopted
•
Wireless or wired DMX control is available
at option
•
CE certified
Product Feature
Product Photo
HURRICANE-AW FH-AW
FLAME GENERATOR
Front
Left
ALL IN ONE
