1. Memory Management
Feng Qin
CSE Dept., The Ohio State University

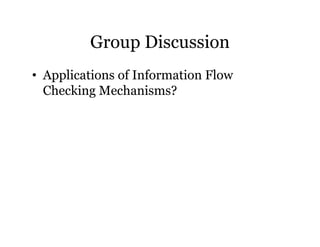

2. Group Discussion
• Applications of Information Flow
Checking Mechanisms?

3. Outline
• Background
– Linux Kernel Memory Management
• ION Memory Management

4. Kernel Memory Management
• Physical memory
• It is not easy:
– Often kernel cannot sleep
– Not easy to handle memory errors
4/25/2012 CSE662: Operating Systems Laboratory 4

5. Pages
• <linux/mm.h>
struct page {
page_flags_t flags;
atomic_t _count;
atomic_t _mapcount;
unsigned long private;
struct address_space *mapping;
pgoff_t index;
struct list_head lru;
void *virtual;
}
4/25/2012 CSE662: Operating Systems Laboratory 5

6. Zones
• Reasons:
– Some devices are capable of performing DMA to
only certain memory addresses
– Some architectures are capable of physically
addressing larger amounts of memory than they
can virtually address
• Zones: ( for x86)
– ZONE_DMA (< 16 MB)
– ZONE_NORMAL (16-896 MB)
– ZONE_HIGHMEM(> 896 MB)
4/25/2012 CSE662: Operating Systems Laboratory 6

7. Getting Memory (I)
• Contiguous physical memory pages:
– struct page *alloc_pages (unsigned int
gfp_mask, unsigned int order)
– unsigned long __get_free_pages(…)
– unsigned long get_zeroed_pages(…)
– void free_pages(…)
– void __free_pages(…)
4/25/2012 CSE662: Operating Systems Laboratory 7

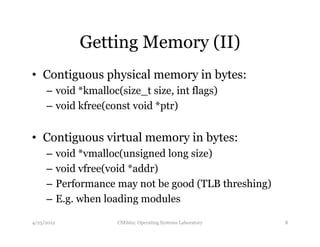

8. Getting Memory (II)
• Contiguous physical memory in bytes:
– void *kmalloc(size_t size, int flags)
– void kfree(const void *ptr)
• Contiguous virtual memory in bytes:
– void *vmalloc(unsigned long size)
– void vfree(void *addr)
– Performance may not be good (TLB threshing)
– E.g. when loading modules
4/25/2012 CSE662: Operating Systems Laboratory 8

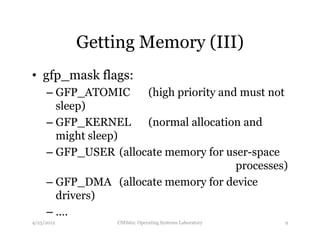

9. Getting Memory (III)
• gfp_mask flags:
– GFP_ATOMIC (high priority and must not
sleep)
– GFP_KERNEL (normal allocation and
might sleep)
– GFP_USER (allocate memory for user-space
processes)
– GFP_DMA (allocate memory for device
drivers)
– ….
4/25/2012 CSE662: Operating Systems Laboratory 9

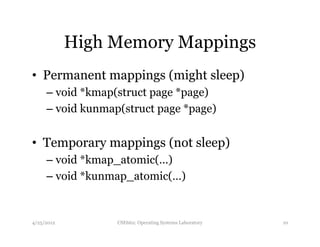

10. High Memory Mappings
• Permanent mappings (might sleep)
– void *kmap(struct page *page)
– void kunmap(struct page *page)
• Temporary mappings (not sleep)
– void *kmap_atomic(…)
– void *kunmap_atomic(…)
4/25/2012 CSE662: Operating Systems Laboratory 10

11. Slab Layer (I)
• Cache objects that are frequently allocated
and deallocated
Cache
Slab
Slab
obj
obj
obj
obj
4/25/2012 CSE662: Operating Systems Laboratory 11

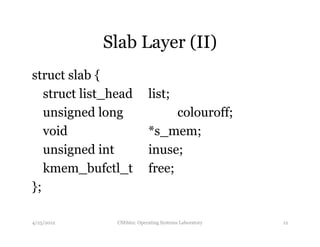

12. Slab Layer (II)
struct slab {
struct list_head list;
unsigned long colouroff;
void *s_mem;
unsigned int inuse;
kmem_bufctl_t free;
};
4/25/2012 CSE662: Operating Systems Laboratory 12

13. Statically Allocating on the
Stack
• Per-process kernel stack
• Keep stack usage to a minimum
– The size is really small ( 4 KB option in 2.6
kernels)
4/25/2012 CSE662: Operating Systems Laboratory 13

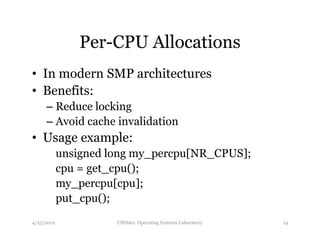

14. Per-CPU Allocations
• In modern SMP architectures
• Benefits:
– Reduce locking
– Avoid cache invalidation
• Usage example:
unsigned long my_percpu[NR_CPUS];
cpu = get_cpu();
my_percpu[cpu];
put_cpu();
4/25/2012 CSE662: Operating Systems Laboratory 14

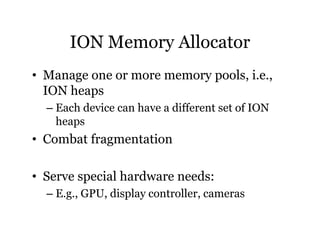

15. ION Memory Allocator
• Manage one or more memory pools, i.e.,
ION heaps
– Each device can have a different set of ION
heaps
• Combat fragmentation
• Serve special hardware needs:
– E.g., GPU, display controller, cameras

16. Providing an ION Heap
struct ion_heap_ops {
int (*allocate) (struct ion_heap *heap,
struct ion_buffer *buffer, unsigned long len,
unsigned long align, unsigned long flags);
void (*free) (struct ion_buffer *buffer);
int (*phys) (struct ion_heap *heap, struct ion_buffer *buffer,
ion_phys_addr_t *addr, size_t *len);
struct scatterlist *(*map_dma) (struct ion_heap *heap,
struct ion_buffer *buffer);
void (*unmap_dma) (struct ion_heap *heap,
struct ion_buffer *buffer);
void * (*map_kernel) (struct ion_heap *heap,
struct ion_buffer *buffer);
void (*unmap_kernel) (struct ion_heap *heap,
struct ion_buffer *buffer);
int (*map_user) (struct ion_heap *heap, struct ion_buffer *buffer,
struct vm_area_struct *vma);
};

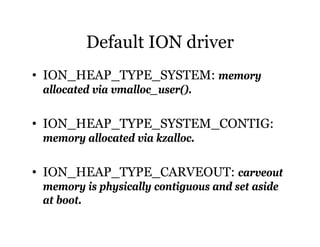

17. Default ION driver
• ION_HEAP_TYPE_SYSTEM: memory
allocated via vmalloc_user().
• ION_HEAP_TYPE_SYSTEM_CONTIG:
memory allocated via kzalloc.
• ION_HEAP_TYPE_CARVEOUT: carveout
memory is physically contiguous and set aside
at boot.

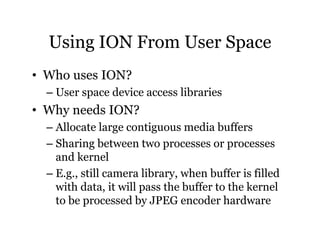

18. Using ION From User Space
• Who uses ION?
– User space device access libraries
• Why needs ION?
– Allocate large contiguous media buffers
– Sharing between two processes or processes
and kernel
– E.g., still camera library, when buffer is filled
with data, it will pass the buffer to the kernel
to be processed by JPEG encoder hardware

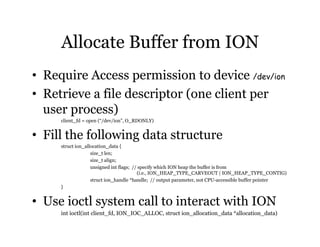

19. Allocate Buffer from ION
• Require Access permission to device /dev/ion
• Retrieve a file descriptor (one client per
user process)
client_fd = open (“/dev/ion”, O_RDONLY)
• Fill the following data structure
struct ion_allocation_data {
size_t len;
size_t align;
unsigned int flags; // specify which ION heap the buffer is from
(i.e., ION_HEAP_TYPE_CARVEOUT | ION_HEAP_TYPE_CONTIG)
struct ion_handle *handle; // output parameter, not CPU-accessible buffer pointer
}
• Use ioctl system call to interact with ION
int ioctl(int client_fd, ION_IOC_ALLOC, struct ion_allocation_data *allocation_data)

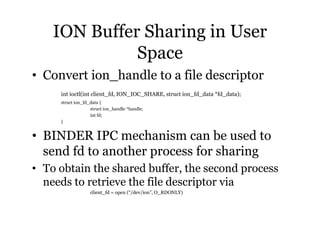

20. ION Buffer Sharing in User
Space
• Convert ion_handle to a file descriptor
int ioctl(int client_fd, ION_IOC_SHARE, struct ion_fd_data *fd_data);
struct ion_fd_data {
struct ion_handle *handle;
int fd;
}
• BINDER IPC mechanism can be used to
send fd to another process for sharing
• To obtain the shared buffer, the second process
needs to retrieve the file descriptor via
client_fd = open (“/dev/ion”, O_RDONLY)

21. Free ION Buffer
• Go through ioctl again
int ioctl(int client_fd, ION_IOC_FREE, struct ion_handle_data *handle_data);
struct ion_handle_data {
struct ion_handle *handle;
}

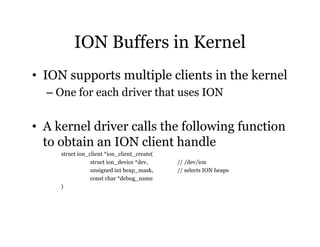

22. ION Buffers in Kernel
• ION supports multiple clients in the kernel
– One for each driver that uses ION
• A kernel driver calls the following function
to obtain an ION client handle
struct ion_client *ion_client_create(
struct ion_device *dev, // /dev/ion
unsigned int heap_mask, // selects ION heaps
const char *debug_name
)

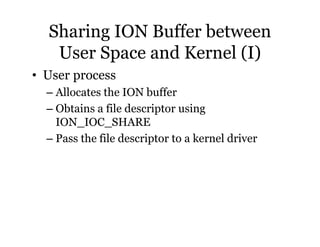

23. Sharing ION Buffer between
User Space and Kernel (I)
• User process
– Allocates the ION buffer
– Obtains a file descriptor using
ION_IOC_SHARE
– Pass the file descriptor to a kernel driver

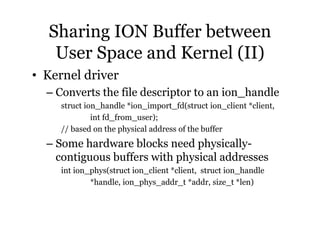

24. Sharing ION Buffer between
User Space and Kernel (II)
• Kernel driver
– Converts the file descriptor to an ion_handle
struct ion_handle *ion_import_fd(struct ion_client *client,
int fd_from_user);
// based on the physical address of the buffer
– Some hardware blocks need physically-contiguous
buffers with physical addresses
int ion_phys(struct ion_client *client, struct ion_handle
*handle, ion_phys_addr_t *addr, size_t *len)

25. Source Code Cross References
• Linux kernel
– http://lxr.linux.no/
• Android
– http://androidxref.com/source/xref/
