The document describes Kimley-Horn's Integrated Transportation Management System (KITS). KITS is a scalable software that allows agencies to monitor, detect, alert, respond, inform, manage, control, and plan their transportation infrastructure from a single application. It integrates features such as CCTV, traffic detection, signal control, and more. KITS provides agencies with comprehensive monitoring and management of their transportation systems.

1. KIMLEY-HORN INTEGRATED TRANSPORTATION MANAGEMENT SYSTEM
Copyright © 2012, Kimley-Horn and Associates, Inc.

2. F REEWAY AND ARTERIAL CONTROL SYSTEM
Committed to personal client service
allows you to... Kimley-Horn formulates the right technical
solutions to fit your situation, based on a thorough
MONITOR understanding of your needs and infrastructure. Let us
show you how the scalable architecture of KITS software
DETECT can help you meet your needs.
ALERT
RESPOND
INFORM
MANAGE
CONTROL
CONFIGURE
PLAN
2

3. THE MOST ADVANCED USER INTERFACE AVAILABLE
3

4. M ONITOR
Comprehensive CCTV and video wall
management
CCTV control Successful traffic operations are founded on real-time
knowledge of system conditions. KITS provides
Video wall control comprehensive CCTV and video wall management—
including equipment monitoring, failure alerts, diagnostic
Camera tours displays, and dynamic GIS maps—to monitor all your
system devices from one application. Let KITS monitor
Scheduled presets your transportation system for you.
Real-time displays
Dynamic GIS maps
4

5. SCHEDULE YOUR VIDEO WALL TO VIEW FOCUS AREAS BY TIME OF DAY
5

6. D ETECT
Configure KITS to notify you before an issue
becomes a problem
Detector malfunctions and stuck pedestrian buttons
Skipped phases, unplanned recalls, and abnormal
phase timing
Congestion alerts
Automatically reposition cameras when congestion
Congestion maps thresholds are reached
Scheduled daily controller database comparisons
Incident detection
Controller phase monitoring
Detector malfunction
monitoring
Automatic controller
database verification
Radar, video, and wireless
sensor support
6

7. Let KITS notify you anytime, anywhere
A LERT
Configurable priority-based alerts
Audible alerts, pages, or emails
Configurable scheduled reports
Real-time displays
7

8. R
Route preemption/priority
ESPOND
Manage congestion and respond to incidents
Mitigate unusual traffic conditions created by traffic
incidents, weather, or other causes with integrated CCTV,
Bridge preemption DMS, and control responses.
Traffic responsive control
Adaptive signal control
adence Congestion
Incident management Route Priority
Adaptive Control Manager
8

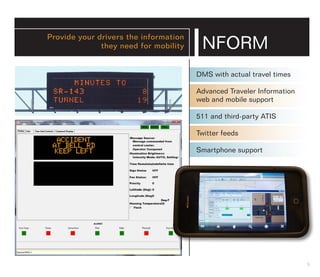

9. Provide your drivers the information
they need for mobility
INFORM
DMS with actual travel times
Advanced Traveler Information
web and mobile support
511 and third-party ATIS
Twitter feeds
Smartphone support
9

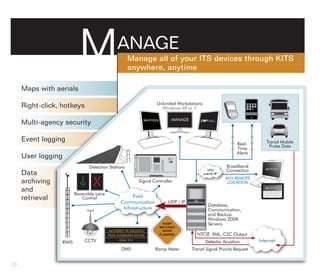

10. M ANAGE
Manage all of your ITS devices through KITS
anywhere, anytime
Maps with aerials
Unlimited Workstations
Right-click, hotkeys Windows XP or 7
MANAGE
Multi-agency security
Event logging Transit Mobile
Real- Probe Data
Time
Alerts
User logging
Detection Stations Broadband
VPN Connection
Data
ANY REMOTE
archiving Signal Controller LOCATION
and
Reversible Lane
retrieval Control Field
UDP / IP
Communication
Database,
Infrastructure Communication,
and Backup
Windows 2008
RAMP Servers
METERED
ACCIDENT AT KELLOGG WHEN
TAKE ALTERNATE ROUTE FLASHING NTCIP XML, C2C Output
,
RWIS CCTV DIAL 511
Detector Acuation Internet
DMS Ramp Meter Transit Signal Priority Request
10

11. Remotely control your devices
The KITS traffic control capabilities give traffic
engineers the flexibility to configure and refine their
C ONTROL
Central scheduling
system to meet the demands of predictable traffic  Time of day
patterns.  Special events
 DMS, CCTV, and talking
control
Quick commands
Adaptive control
11

12. C
Controller database editors
ONFIGURE
Remotely configure your devices
KITS will revolutionize the way you store and archive
timing data, with a history of all timing revisions and a
Excel timing sheet export
rollback capability.
Controller history tracking
Visual timing plan editor
DMS message editor
12

13. Functionality to create and monitor vehicle
progression across your system
P LAN
Time-space diagram
Turning movement count analysis
LOS and MOE data
Comprehensive Synchro®
interface
13

14. M OBILE TECHNOLOGY
Opportunities to use mobile technology
are rapidly growing
Traffic engineering — performance metrics, greenhouse
gas output monitoring, remote operations, and real-time,
SUPPORTS time-space diagrams
iOS (iPad, iPhone) Public safety vehicle traffic signal and ramp meter
preemption
Google Android Real-time tracking and signal priority of transit vehicles
BSP performance metric tracking for before and after
studies of transit vehicles
Mobile alerts and reports
Real-time display and historical tracking of mobile assets,
alerts, and reporting
CCTV viewing and control
Integrated historical data fly-over using Google Earth
14

15. 45 47
42
45
43
42
42
42 43
45
45 46
44
43
42
42
41
40
39
15

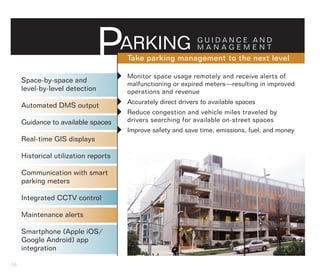

16. P ARKING GUIDANCE AND
MANAGEMENT
Take parking management to the next level
Space-by-space and Monitor space usage remotely and receive alerts of
malfunctioning or expired meters—resulting in improved
level-by-level detection operations and revenue
Automated DMS output Accurately direct drivers to available spaces
Reduce congestion and vehicle miles traveled by
Guidance to available spaces drivers searching for available on-street spaces
Improve safety and save time, emissions, fuel, and money
Real-time GIS displays
Historical utilization reports
Communication with smart
parking meters
Integrated CCTV control
Maintenance alerts
Smartphone (Apple iOS/
Google Android) app
integration
16

17. 17

18. F REEWAY MANAGEMENT
Comprehensive support for freeway
monitoring and control
System detection
Ramp metering
Incident management
DMS control
CCTV
RWIS
Performance analysis
Active traffic management
18

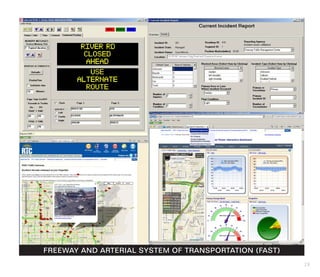

19. FREEWAY AND ARTERIAL SYSTEM OF TRANSPORTATION (FAST)
19

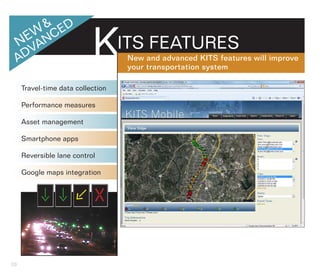

20. ITS FEATURES
New and advanced KITS features will improve
your transportation system
Travel-time data collection
Performance measures
Asset management
Smartphone apps
Reversible lane control
Google maps integration
20

21. Intersection
Green Light Signaled Signal Controller
With Decreased Delay Detector/
Pedestrian
Field Actuation
Communication
Once Infrastructure Priority
Per Second Sequence
Communication
Servers
Updates
User At Least Once
Location Per Second
Internet Secure
VIRTUAL (3G, 4G
Web
Connection) Real-Time
DETECTION Alerts
Service
ZONE
iPhone/Android Carried by
User Running Mobility App
TRAFFIC
MANAGEMENT
CENTER
SMARTPHONE APP FOR BICYCLE DETECTION AND PRIORITY
21

22. Project management
I
NTEGRATION SERVICES
Engineering professionals for all facets
of your project
Turnkey solutions KIMLEY-HORN is a nationally recognized leader in ITS
design and integration services. With a comprehensive
Traffic signal timing approach to ITS technology, we have the expertise to
successfully manage your agency’s system implementation
TMC design process, from start to finish.
Communication
infrastructure design
Field device integration
22

23. S
Client
Focused on client and system support ERVICE
Kimley-Horn understands the benefit of our clients com-
ing together to discuss operational strategies and desired Software maintenance
future functionality. Our annual Users Conference
presents sessions on diverse transportation topics. Input System support
from KITS users allows Kimley-Horn to better understand
our valued clients and continually improve our system. Users conference
The conference was extremely informative. The level of
commitment displayed by the Kimley-Horn staff is refreshing.
I like to see professionals sharing their knowledge in a manner
that is inviting for agencies, big and small, to participate. I took
the opportunity to engage the County staff... in an effort to see
more advanced use of the Kimley-Horn system and to develop
relationships in order to further advance improvements to traffic
in this area. It would be a positive move to see the system
benefit local as well as regional commuters… I look forward
to future workshops. Please feel free to pass my gratitude along
to your coworkers. My hat’s off to you all!
John Campbell
Maintenance Superintendent, City of San Dimas
23

24. W W W. K I M L E Y- H O R N . C O M / K I T S
KITS
Software Services
Kimley-Horn Office
KITS Annual Users
Group Meeting
(Prior Locations)
Version 8.2012
