KEW 1020R | Digital Multimeter | System Protection
•
0 likes•88 views

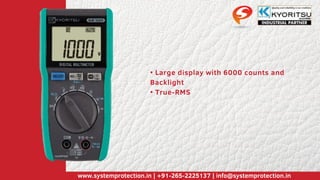

The document describes a digital multimeter model KEW 1020R that features a large 6000 count backlit display, true-RMS and MIN/MAX measurement functions. It is rugged and reliable with clamp sensor mode and safety ratings up to CAT IV 300V, CAT III 600V and CAT II 1000V. Additional information can be found at www.systemprotection.in or by calling +91-265-2225137.
