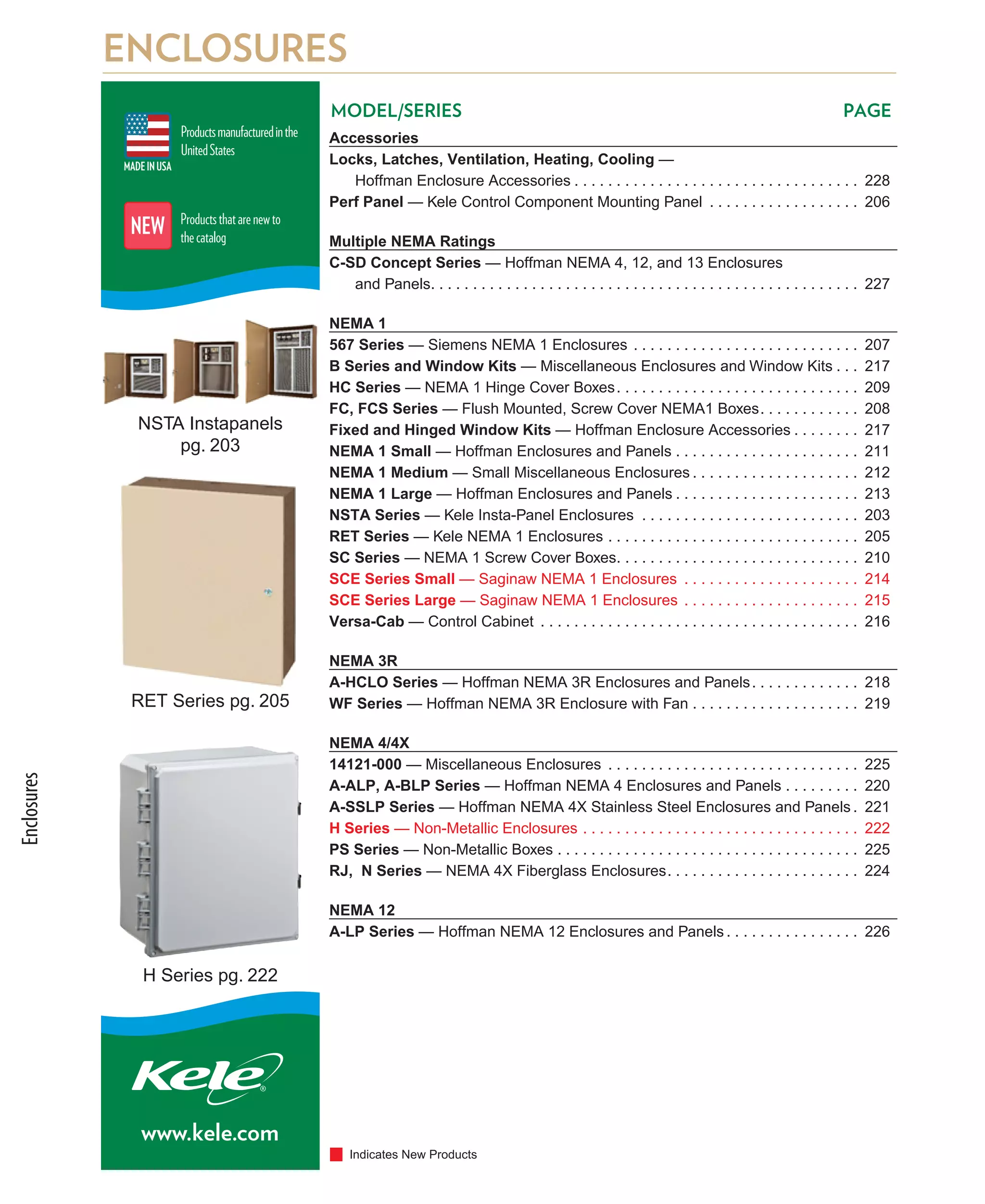

ENCLOSURES
MODEL/SERIES PAGE
NSTA Instapanels
pg. 203
RET Series pg. 205
H Series pg. 222
Accessories
Locks, Latches, Ventilation, Heating, Cooling —
Hoffman Enclosure Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 228
Perf Panel — Kele Control Component Mounting Panel . . . . . . . . . . . . . . . . . . 206
Multiple NEMA Ratings
C-SD Concept Series — Hoffman NEMA 4, 12, and 13 Enclosures
and Panels. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 227
NEMA 1
567 Series — Siemens NEMA 1 Enclosures . . . . . . . . . . . . . . . . . . . . . . . . . . . 207
B Series and Window Kits — Miscellaneous Enclosures and Window Kits . . . 217
HC Series — NEMA 1 Hinge Cover Boxes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 209
FC, FCS Series — Flush Mounted, Screw Cover NEMA1 Boxes. . . . . . . . . . . . 208
Fixed and Hinged Window Kits — Hoffman Enclosure Accessories . . . . . . . . 217
NEMA 1 Small — Hoffman Enclosures and Panels . . . . . . . . . . . . . . . . . . . . . . 211
NEMA 1 Medium — Small Miscellaneous Enclosures . . . . . . . . . . . . . . . . . . . . 212
NEMA 1 Large — Hoffman Enclosures and Panels . . . . . . . . . . . . . . . . . . . . . . 213
NSTA Series — Kele Insta-Panel Enclosures . . . . . . . . . . . . . . . . . . . . . . . . . . 203
RET Series — Kele NEMA 1 Enclosures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 205
SC Series — NEMA 1 Screw Cover Boxes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
SCE Series Small — Saginaw NEMA 1 Enclosures . . . . . . . . . . . . . . . . . . . . . 214
SCE Series Large — Saginaw NEMA 1 Enclosures . . . . . . . . . . . . . . . . . . . . . 215
Versa-Cab — Control Cabinet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 216
NEMA 3R
A-HCLO Series — Hoffman NEMA 3R Enclosures and Panels. . . . . . . . . . . . . 218
WF Series — Hoffman NEMA 3R Enclosure with Fan . . . . . . . . . . . . . . . . . . . . 219
NEMA 4/4X
14121-000 — Miscellaneous Enclosures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 225
A-ALP, A-BLP Series — Hoffman NEMA 4 Enclosures and Panels . . . . . . . . . 220
A-SSLP Series — Hoffman NEMA 4X Stainless Steel Enclosures and Panels . 221
H Series — Non-Metallic Enclosures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 222
PS Series — Non-Metallic Boxes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 225
RJ, N Series — NEMA 4X Fiberglass Enclosures. . . . . . . . . . . . . . . . . . . . . . . 224
NEMA 12
A-LP Series — Hoffman NEMA 12 Enclosures and Panels . . . . . . . . . . . . . . . . 226
Enclosures

3. © 2012 Kele, Inc. All rights reserved. The Kele name and logo are registered trademarks of Kele, Inc. kele.com 888-397-5353USA 001-901-382-6084International
201
ENCLOSURES
ENCLOSURES
6
January2012
DESCRIPTION
Kele's Custom Panel Shop offers 123 years of combined
panel building experience. From complex one-time designs
to multiple standardized panels, Kele has the capacity and
efficiency to help make and keep jobs profitable. UL508A
and UL698A panels, done with complete labeling and
doccumentation are available from Kele whenever the job
requires them. All Kele Custom Panel Shop panels are
inspected prior to shipment.
UL508A Panels – typically equipment intended for
general industrial use and installed in ordinary locations in
accordance with state, local and National Electrical codes.
UL508A panels are intended to operate using 600 volts or
less and where ambient temperatures do not exceed 104°F
(40°C)
UL698A Panels – typically equipment intended for general
industrial use and installed in unclassified locations with
intrinsically safe circuit extensions into Class I, Class II,
and Class III, Division 1 hazardous (classified) locations in
accordance with local, state, and National Electric codes.
UL698A panels are intended to operate where ambient
temperatures do not exceed 104°F (40°C), have an oxygen
concentration no greater than 21% by volume, and a normal
barometric pressure of one atmosphere.
Custom Panel Assemblies – one-time designs, specialty
builds for certain jobs, and complex designs
Repeat Panel Assemblies – multiple jobs, one model
number, consistent price, and standardized components
Contact the Kele Custom Panel Shop by e-mailing
panels1@kele.com or call 888-397-5353 and ask to speak
to the panel shop.
KELE'S CUSTOM PANEL SHOP
CUSTOM SERVICES/PANEL SHOP
FEATURES
• UL approved for the following - UL 508A, UL 698A,
CATEGORY NNNY
• 6000 sq. ft dedicated Panel Shop
• Specialized labeling/logos
• Expedite service
• 123 years of combined panel building experience
• 100% drawing inspection for accuracy on all drawings
• Documented panel inspection on 100% of panels
• Capable of cutting special hole sizes in stainless steel
• Optional wire tagging available
Custom Stainless Steel Face Plate
Custom Panel Door

4. 001-901-382-6084International 888-397-5353USA kele.com © 2012 Kele, Inc. All rights reserved. The Kele name and logo are registered trademarks of Kele, Inc.
ENCLOSURES
202
ENCLOSURES
6
January2012
CONTACT INFORMATION
KELE'S CUSTOM PANEL SHOP
CUSTOM SERVICES/PANEL SHOP
Contact the Kele Custom Panel Shop by e-mailing panels1@kele.com or call
888-397-5353 and ask to speak to the panel shop.

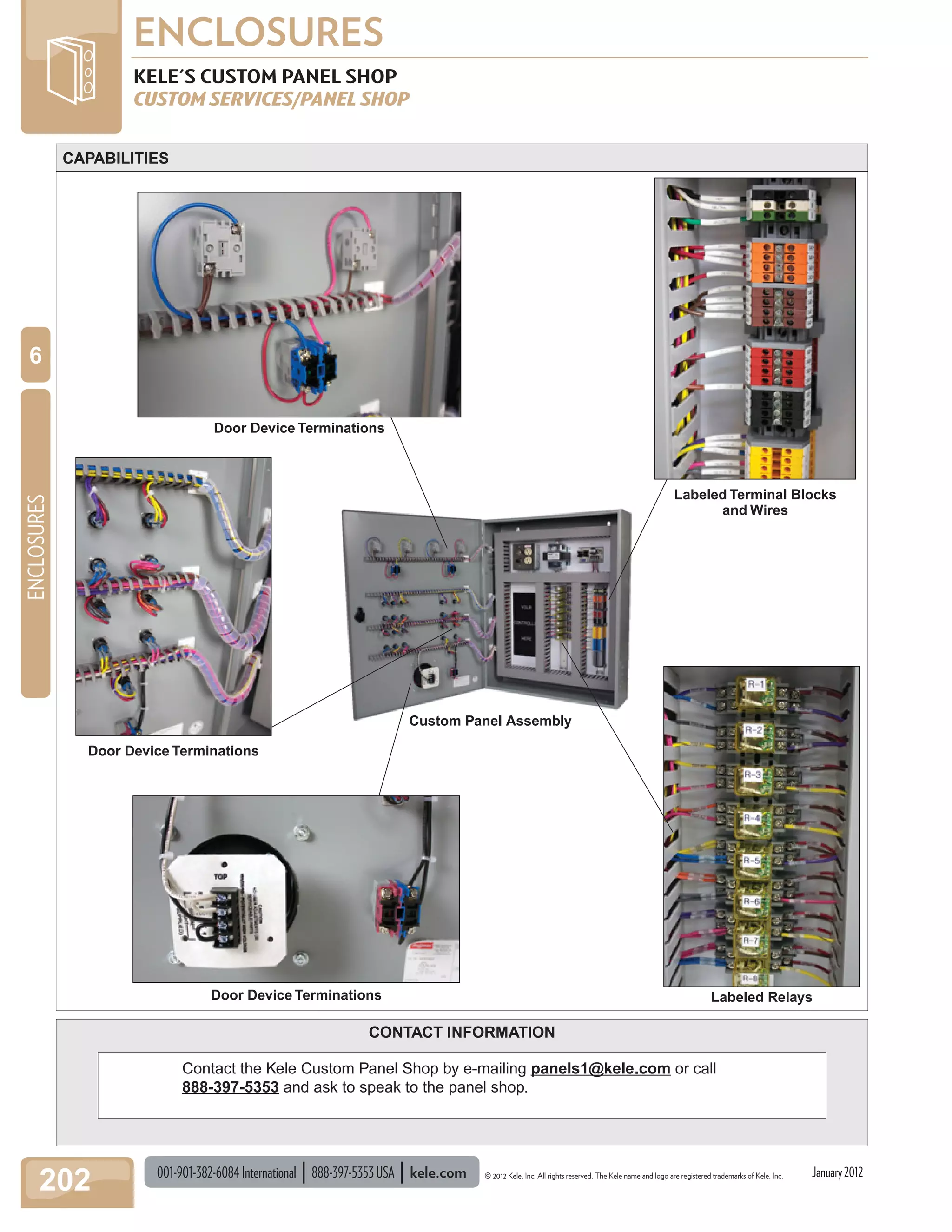

Custom Panel Assembly
Labeled Terminal Blocks
and Wires
Door Device Terminations
Door Device Terminations Labeled Relays
CAPABILITIES
Door Device Terminations

5. © 2012 Kele, Inc. All rights reserved. The Kele name and logo are registered trademarks of Kele, Inc. kele.com 888-397-5353USA 001-901-382-6084International
203
ENCLOSURES
ENCLOSURES
6
January2012
Supply Voltage
NSTA2018VA100: (1) 120/24 VAC transformer, 100 VA
NSTA2620VA200: (2) 120/24 VAC transformers, 100 VA
(200 VA total)
NSTA3826VA300: (3) 120/24 VAC transformers, 100 VA
(300 VA total)
Convenience Outlet 120 VAC, 3A maximum
Panel Size
NSTA2018VA100: 20"H x 18"W x 7"D
(50.8 x 45.7 x 17.8 cm)
NSTA2620VA200: 26"H x 20"W x 7"D
(66 x 50.8 x 17.8 cm)
NSTA3826VA300: 38"H x 26"W x 7"D
(96.5 x 66 x 17.8 cm)
Interior Panel Mounting Dimensions
NSTA2018VA100: 7.375"H x 13.125"W
(18.7 x 33.3 cm),
NSTA2620VA200: 13.0" H x 15.375" W
(33.0 x 39.0 cm),
NSTA3826VA300: 24.0" H x 20" W
(61.0 x 50.8 cm)
Panel Color Dark brown body and light tan door,
Dark blue body and door, Gray
body and door, Dark blue body and
powder blue door
Weight
NSTA2018VA100: 31 lb (14 kg)
NSTA2620VA200: 45 lb (20.4kg)
NSTA3826VA300: 71 lb (32.2 kg)

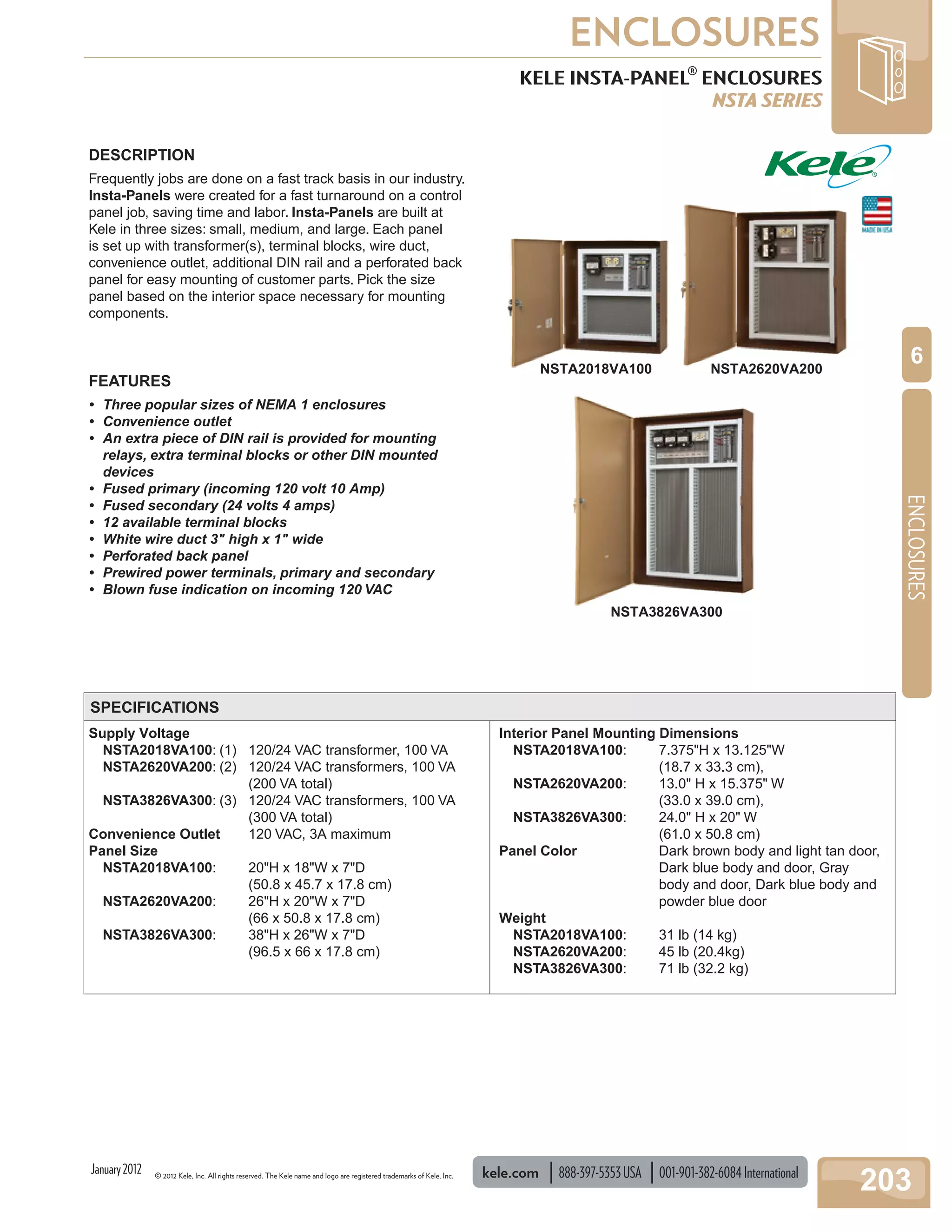

KELE INSTA-PANEL
®ENCLOSURES
NSTA SERIES
DESCRIPTION
Frequently jobs are done on a fast track basis in our industry.
Insta-Panels were created for a fast turnaround on a control
panel job, saving time and labor. Insta-Panels are built at
Kele in three sizes: small, medium, and large. Each panel
is set up with transformer(s), terminal blocks, wire duct,
convenience outlet, additional DIN rail and a perforated back
panel for easy mounting of customer parts. Pick the size
panel based on the interior space necessary for mounting
components.
FEATURES
• Three popular sizes of NEMA 1 enclosures
• Convenience outlet
• An extra piece of DIN rail is provided for mounting
relays, extra terminal blocks or other DIN mounted
devices
• Fused primary (incoming 120 volt 10 Amp)
• Fused secondary (24 volts 4 amps)
• 12 available terminal blocks
• White wire duct 3" high x 1" wide
• Perforated back panel
• Prewired power terminals, primary and secondary
• Blown fuse indication on incoming 120 VAC
SPECIFICATIONS
NSTA2018VA100 NSTA2620VA200
NSTA3826VA300
