Kay Kay Industries, an ISO 9001:2008 certified manufacturer and exporter, specializes in high-grade malleable iron, forged, and alloy steel chains and sprockets for bulk material handling industries, such as sugar and cement. The company prides itself on its superior product reliability, with zero breakdowns reported, and has a modern manufacturing facility located in Jalandhar, India. Their product range includes various types of chains, conveyor systems, and sprockets designed for demanding operational conditions across multiple industries.

1. An ISO 9001 : 2008 Certified Company
MANUFACTURER & EXPORTER
www.kkichains.com

2. About Us
We, at Kay Kay Industries feel proud
to introduce ourselves as one of the
oldest and leading manufacturer of all
kinds of high grade Malleable Iron,
Forged and Alloy Steel fabricated
Chains, Slats, C.I & C.S Sprockets for
conveyor & elevators.
Chains are a crucial part of industry where bulk material handling is done by conveyors & elevators. We are pleased
to offer you our products which are well known for their strength, performance and rugged dependability under the
most arduous operating conditions. The products are well known for zero percent breakdowns during services and
are therefore in regular demand by a large number of Sugar Mills, Cement Plants, Fertilizer Plants, Paper Plants, Milk
Plants, Original Equipment manufacturers etc. All over India.
We manufacture all types of high grade Malleable Iron, Forged and Alloy Steel, Fabricated Chains, Cane Carrier,
Bagasse Carrier , Rake Carrier, Intermediate Carrier, Block Forged type Chain along with Slats, Cast Iron & Cast
Steel Sprockets.
The State of the art manufacturing facility as located at Focal Point, Industrial City, Jalandhar. The plant is equipped
with modern machines to provide world-class quality products to our customers in the shortest possible time. The
plant covers an area of around 5000 S.q Mtrs.
www.kkichains.com

3. Quality Policy
We, at KAY KAY INDUSTRIES Commit ourselves to supply
products meeting specified and implied requirements of the
customers so that supplies made perform well during service.
We also commit to make continuous improvements in
Technology, manufacturing processes and the services to
enhance the customer’s satisfaction”
Due to our adherence to ‘exemplary quality', to provide
products which meet customer's specifications and our
continuous efforts to upgrade our manufacturing techniques
and to provide healthy atmosphere to our workers, we have
been awarded by the prestigious ISO 9001:2008 by TUV
Nord Germany.
www.kkichains.com

4. Certificates
www.kkichains.com

5. Our Products
1. Block Forged Chains
2. Cane Carrier Chains
3. Sugar Bag Stacker/Sugar Elevator
4. Forged / Malleable Inter-Mediate Carrier Chains
5. Feeder Table Chain
6. Bagasse Carrier Chains
7. Slats
8. Travelling Grate Chain
9. Conveyor & Elevator Chains for Food Processing Industry
10. Sprocket
www.kkichains.com

6. Our Products
1 BLOCK FORGED CHAINS
CHAIN PIN BUSH BREAKING
PITCH (MM) LOAD IN KGF.
DIA (MM) LENGTH (MM) DIA (MM) LENGTH (MM)
101.6 18 68 20,000
142 25 89 31 29.5 40,000
150 28 104 36 30 50,000
200 32 110 38 32 60,000
229 32 132 38 32 60,000
229 32 108 40 40 75,000
300
www.kkichains.com 45 180 57 50 1,00,000

7. Our Products

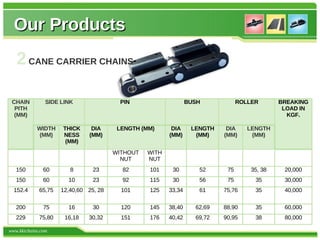

2 CANE CARRIER CHAINS
CHAIN SIDE LINK PIN BUSH ROLLER BREAKING
PITH LOAD IN
(MM) KGF.
WIDTH THICK DIA LENGTH (MM) DIA LENGTH DIA LENGTH
(MM) NESS (MM) (MM) (MM) (MM) (MM)
(MM)
WITHOUT WITH
NUT NUT
150 60 8 23 82 101 30 52 75 35, 38 20,000
150 60 10 23 92 115 30 56 75 35 30,000
152.4 65,75 12,40,60 25, 28 101 125 33,34 61 75,76 35 40,000
200 75 16 30 120 145 38,40 62,69 88,90 35 60,000
229 75,80 16,18 30,32 151 176 40,42 69,72 90,95 38 80,000
www.kkichains.com

8. Our Products

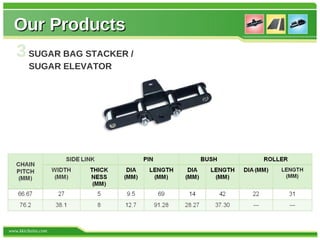

3 SUGAR BAG STACKER /
SUGAR ELEVATOR
www.kkichains.com

9. Our Products
4 FORGED / MALLEABLE INTER-MEDIATE
CARRIER CHAINS
CHAIN NO. ASSEMBLED PITCH (MM) AVERAGE ULTIMATE
5174 E4 60.0 10250
901 E43 80.0 11350
901 E44 80.0 11350
902 E43 75.4 11350
902 E44 75.4 11350
907 E51 80.5 11350
www.kkichains.com

10. Our Products
5 FEEDER TABLE CHAIN
CHAIN SIDE LINK PIN BUSH ROLLER BREAKING
PITCH (MM) LOAD IN KGF.
WIDTH THICK NESS DIA LENGTH DIA LENGTH DIA LENGTH
(MM) (MM) (MM) (MM) (MM) (MM) (MM) (MM)
150 60 8 23 82 30 52 75 35 20,000
150/152.4 60 10 23 92 30 56 75 35 30,000
150/152.4 65 12 25 101 33 61 75 35 40,000
152.4 75 12 26 108 38 60 88 35 50,000
200 75 16 28 142 38 69 88 35 60,000
www.kkichains.com

11. Our Products

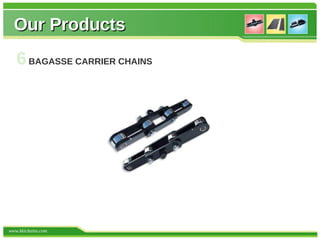

6 BAGASSE CARRIER CHAINS
www.kkichains.com

12. Our Products
BAGASSE CARRIER CHAINS
Specifications
CHAIN SIDE LINK PIN BUSH ROLLER BREAKING
PITCH (MM) LOAD IN
WIDTH THICK NESS DIA LENGTH DIA LENGTH DIA LENGTH KGF.
(MM) (MM) (MM) (MM) (MM) (MM) (MM) (MM)
102 55 10 18 95.25 25.4 50 37 29 28,000
150 60 8 23 82 30 52 75 35 20,000
150/152.4 60 10 23 92 30 56 75 35 30,000
150/152.4 65 12 25 101 33 61 75 35 40,000
152.4 75 12 26 108 38 60 88 35 50,000
152.4 75 16 28 142 38 69 88 35 60,000
200 75 16 30 125 40 69 90 35 60,000
229 80 13 30 136 40 66 95 38 60,000
229 80 16 30 150 40 72 95 38 70,000
229 80 18 32 157 42 76 95 38 80,000
www.kkichains.com

13. Our Products
7 SLATS
www.kkichains.com

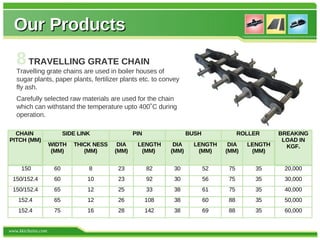

14. Our Products
8 TRAVELLING GRATE CHAIN
Travelling grate chains are used in boiler houses of
sugar plants, paper plants, fertilizer plants etc. to convey
fly ash.
Carefully selected raw materials are used for the chain
which can withstand the temperature upto 400˚C during
operation.
CHAIN SIDE LINK PIN BUSH ROLLER BREAKING
PITCH (MM) LOAD IN
WIDTH THICK NESS DIA LENGTH DIA LENGTH DIA LENGTH KGF.
(MM) (MM) (MM) (MM) (MM) (MM) (MM) (MM)
150 60 8 23 82 30 52 75 35 20,000
150/152.4 60 10 23 92 30 56 75 35 30,000
150/152.4 65 12 25 33 38 61 75 35 40,000
152.4 65 12 26 108 38 60 88 35 50,000
152.4 75 16 28 142 38 69 88 35 60,000
www.kkichains.com

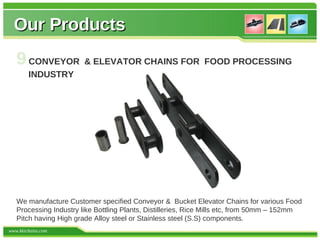

15. Our Products
9 CONVEYOR & ELEVATOR CHAINS FOR FOOD PROCESSING
INDUSTRY
We manufacture Customer specified Conveyor & Bucket Elevator Chains for various Food
Processing Industry like Bottling Plants, Distilleries, Rice Mills etc, from 50mm – 152mm
Pitch having High grade Alloy steel or Stainless steel (S.S) components.
www.kkichains.com

16. Our Products

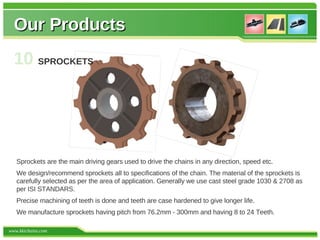

10 SPROCKETS
Sprockets are the main driving gears used to drive the chains in any direction, speed etc.
We design/recommend sprockets all to specifications of the chain. The material of the sprockets is
carefully selected as per the area of application. Generally we use cast steel grade 1030 & 2708 as
per ISI STANDARS.
Precise machining of teeth is done and teeth are case hardened to give longer life.
We manufacture sprockets having pitch from 76.2mm - 300mm and having 8 to 24 Teeth.
www.kkichains.com

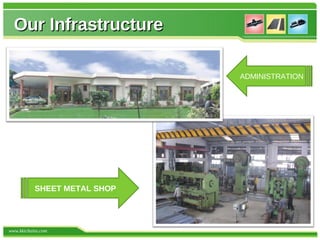

17. Our Infrastructure
ADMINISTRATION
SHEET METAL SHOP
www.kkichains.com

18. Our Infrastructure
POWER PRESS SHOP
HEAT TREATMENT
www.kkichains.com

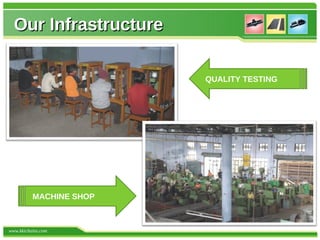

19. Our Infrastructure
QUALITY TESTING
MACHINE SHOP
www.kkichains.com

20. Heat Treatment
The heat treatment plant is a state of the art plant having 2Nos. of Electrically Heated Sealed Retort Pit
Type Gas Carburizing Furnace having 1 Ton charge capacity each.
The case hardening of the components is done upto 1.5 mm of case depth depending upon the area of
application & the sizes of the components.
Polymer quenching is done
afterwards and then stress
relieving is done in 2 nos.
of Induction based
tempering furnaces having
600 kg charge capacity
each.
The whole process is
strictly monitored to get the
best results.
www.kkichains.com

21. Chain Testing Machine
The breaking strength of the chains is checked in house with the
help of a break load testing machine.
www.kkichains.com

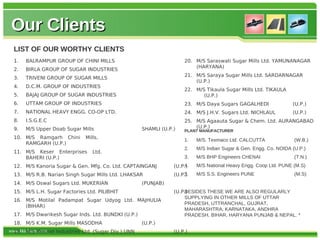

22. Our Clients
LIST OF OUR WORTHY CLIENTS
1. BALRAMPUR GROUP OF CHINI MILLS 20. M/S Saraswati Sugar Mills Ltd. YAMUNANAGAR
(HARYANA)
2. BIRLA GROUP OF SUGAR INDUSTRIES
21. M/S Saraya Sugar Mills Ltd. SARDARNAGAR
3. TRIVENI GROUP OF SUGAR MILLS
(U.P.)
4. D.C.M. GROUP OF INDUSTRIES
22. M/S Tikaula Sugar Mills Ltd. TIKAULA
5. BAJAJ GROUP OF SUGAR INDUSTRIES (U.P.)
6. UTTAM GROUP OF INDUSTRIES 23. M/S Daya Sugars GAGALHEDI (U.P.)
7. NATIONAL HEAVY ENGG. CO-OP LTD. 24. M/S J.H.V. Sugars Ltd. NICHLAUL (U.P.)
8. I.S.G.E.C 25. M/S Agaauta Sugar & Chem. Ltd. AURANGABAD
9. M/S Upper Doab Sugar Mills SHAMLI (U.P.) (U.P.)
PLANT MANUFACTURER
10. M/S Ramgarh Chini Mills,
1. M/S. Texmaco Ltd. CALCUTTA (W.B.)
RAMGARH (U.P.)
2. M/S Indian Sugar & Gen. Engg. Co. NOIDA (U.P.)
11. M/S Keser Enterprises Ltd.
BAHERI (U.P.) 3. M/S BHP Engineers CHENAI (T.N.)
12. M/S Kanoria Sugar & Gen. Mfg. Co. Ltd. CAPTAINGANJ 4.
(U.P.) M/S National Heavy Engg. Coop Ltd. PUNE (M.S)
13. M/S R.B. Narian Singh Sugar Mills Ltd. LHAKSAR 5.
(U.P.) M/S S.S. Engineers PUNE (M.S)
14. M/S Oswal Sugars Ltd. MUKERIAN (PUNJAB)
15. M/S L.H. Sugar Factories Ltd. PILIBHIT (U.P.)
BESIDES THESE WE ARE ALSO REGULARLY
SUPPLYING IN OTHER MILLS OF UTTAR
16. M/S Motilal Padampat Sugar Udyog Ltd. MAJHULIA
PRADESH, UTTRANCHAL, GUJRAT,
(BIHAR)
MAHARASHTRA, KARNATAKA, ANDHRA
17. M/S Dwarikesh Sugar Inds. Ltd. BUNDKI (U.P.) PRADESH, BIHAR, HARYANA PUNJAB & NEPAL. *
18. M/S K.M. Sugar Mills MASODHA (U.P.)
www.kkichains.com
19. M/S Monnet Industries Ltd. (Sugar Div.) UNN (U.P.)

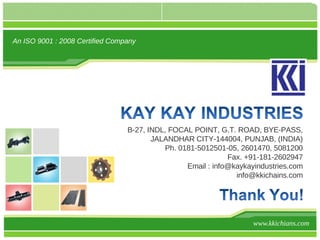

23. An ISO 9001 : 2008 Certified Company
