Kafka Connect & Kafka Streams/KSQL - powerful ecosystem around Kafka core

The document provides an overview of Apache Kafka, highlighting its components such as Kafka Connect, Kafka Streams, and KSQL, which enable efficient streaming data processing. It covers various aspects of Kafka's architecture, data connectors, and transformation capabilities, along with practical demo examples related to vehicle tracking systems. The document emphasizes Kafka's functionality in handling big data and real-time applications through its robust ecosystem.

Embed presentation

Download as PDF, PPTX
BASEL BERN BRUGG DÜSSELDORF FRANKFURT A.M. FREIBURG I.BR. GENF HAMBURG KOPENHAGEN LAUSANNE MÜNCHEN STUTTGART WIEN ZÜRICH Kafka Connect & Kafka Streams/KSQL Powerful Ecosystem Around Kafka Core Guido Schmutz – 5.12.2017 @gschmutz guidoschmutz.wordpress.com
Guido Schmutz Working at Trivadis for more than 20 years Oracle ACE Director for Fusion Middleware and SOA Consultant, Trainer Software Architect for Java, Oracle, SOA and Big Data / Fast Data Head of Trivadis Architecture Board Technology Manager @ Trivadis More than 30 years of software development experience Contact: guido.schmutz@trivadis.com Blog: http://guidoschmutz.wordpress.com Slideshare: http://www.slideshare.net/gschmutz Twitter: gschmutz Kafka Connect & Kafka Streams/KSQL
Agenda 1. What is Apache Kafka? 2. Kafka Connect 3. Kafka Streams 4. KSQL 5. Kafka and "Big Data" / "Fast Data" Ecosystem 6. Kafka in Software Architecture Kafka Connect & Kafka Streams/KSQL

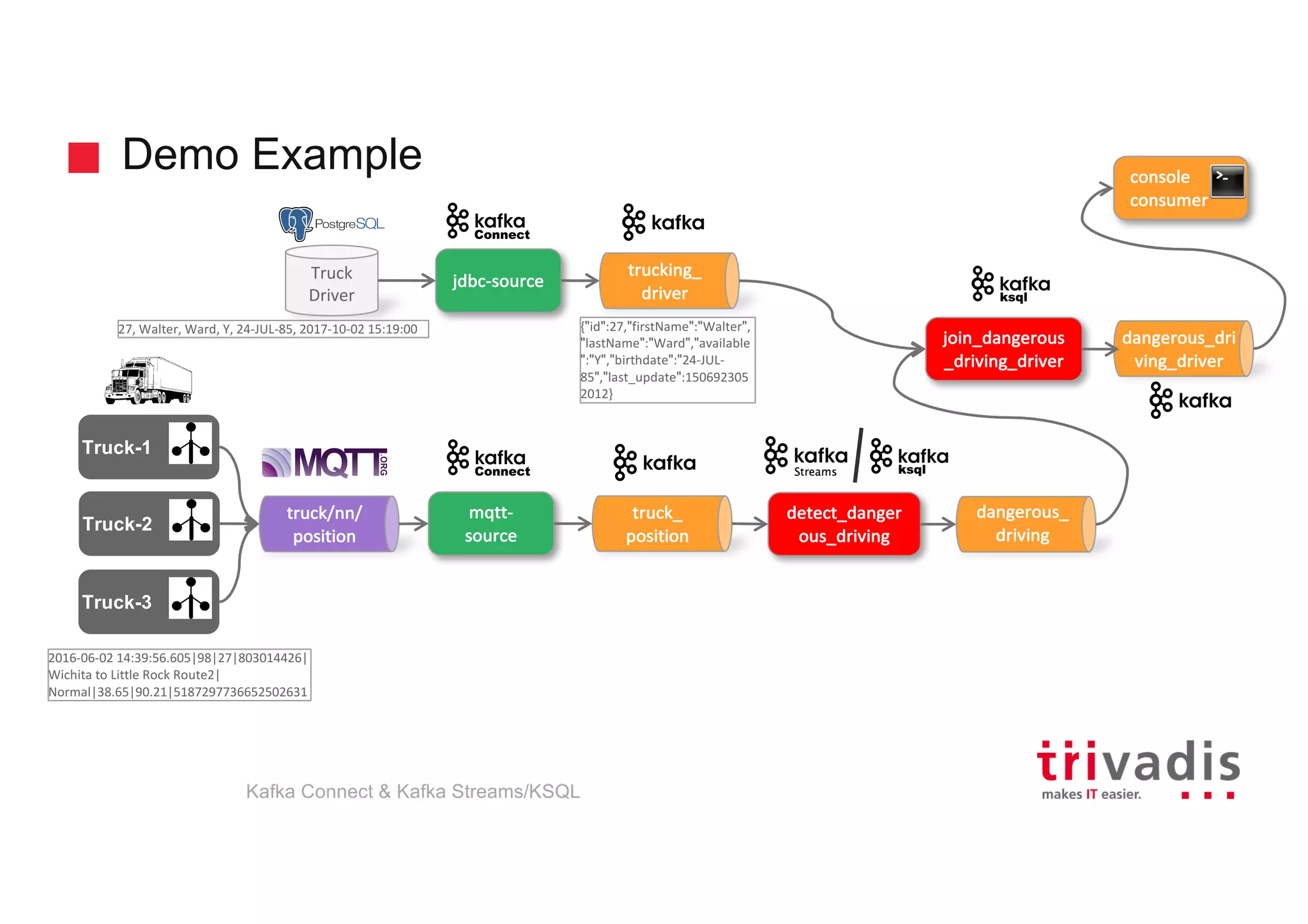

Demo Example Truck-2 truck/nn/ position Truck-1 Truck-3 mqtt- source truck_ position detect_danger ous_driving dangerous_ driving Truck Driver jdbc-source trucking_ driver join_dangerous _driving_driver dangerous_dri ving_driver console consumer 2016-06-02 14:39:56.605|98|27|803014426| Wichita to Little Rock Route2| Normal|38.65|90.21|5187297736652502631 Kafka Connect & Kafka Streams/KSQL 27, Walter, Ward, Y, 24-JUL-85, 2017-10-02 15:19:00 {"id":27,"firstName":"Walter", "lastName":"Ward","available ":"Y","birthdate":"24-JUL- 85","last_update":150692305 2012}
What is Apache Kafka? Kafka Connect & Kafka Streams/KSQL

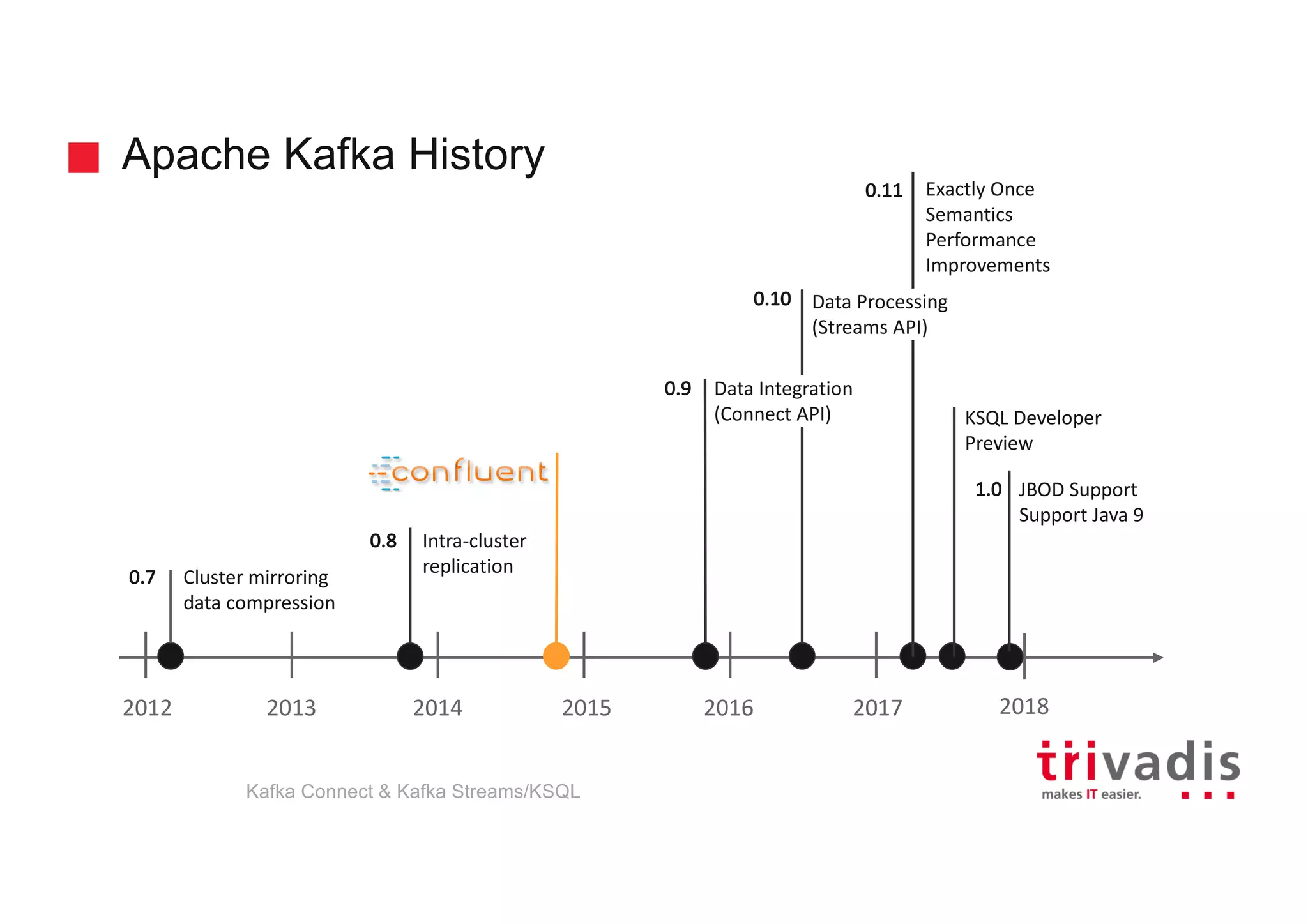

Apache Kafka History 2012 2013 2014 2015 2016 2017 Cluster mirroring data compression Intra-cluster replication 0.7 0.8 0.9 Data Processing (Streams API) 0.10 Data Integration (Connect API) 0.11 2018 Exactly Once Semantics Performance Improvements KSQL Developer Preview Kafka Connect & Kafka Streams/KSQL 1.0 JBOD Support Support Java 9
Apache Kafka - Unix Analogy $ cat < in.txt | grep "kafka" | tr a-z A-Z > out.txt Kafka Connect API Kafka Connect APIKafka Streams API Kafka Core (Cluster) Adapted from: Confluent KSQL Kafka Connect & Kafka Streams/KSQL
Apache Kafka – A Streaming Platform Kafka Connect & Kafka Streams/KSQL High-Level Architecture Distributed Log at the Core Scale-Out Architecture Logs do not (necessarilys) forget
How to get a Kafka environent Kafka Connect & Kafka Streams/KSQL On Premises • Bare Metal Installation • Docker • Mesos / Kubernetes • Hadoop Distributions Cloud • Oracle Event Hub Cloud Service • Azure HDInsight Kafka • Confluent Cloud • …

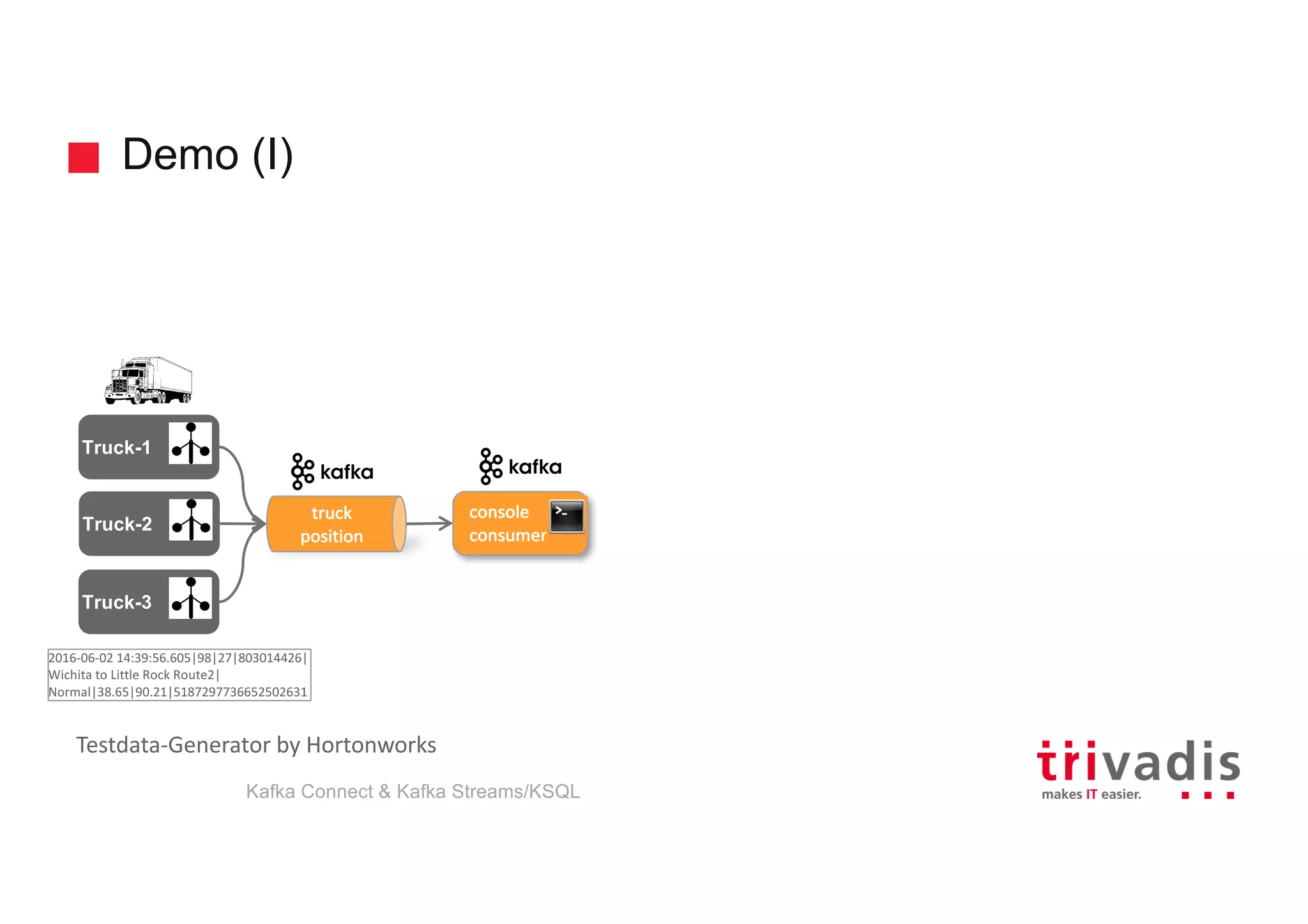

Demo (I) Truck-2 truck position Truck-1 Truck-3 console consumer 2016-06-02 14:39:56.605|98|27|803014426| Wichita to Little Rock Route2| Normal|38.65|90.21|5187297736652502631 Testdata-Generator by Hortonworks Kafka Connect & Kafka Streams/KSQL

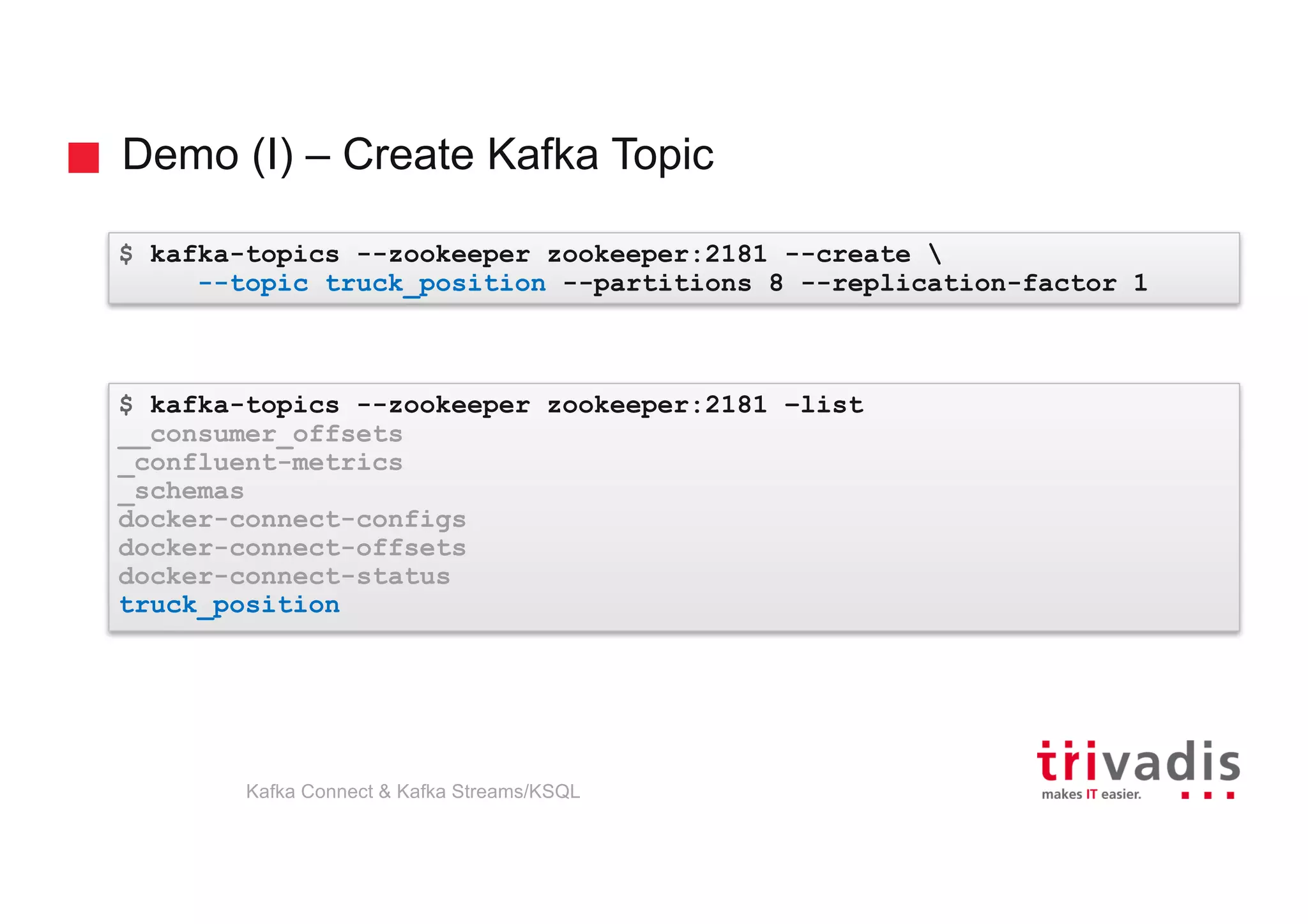

Demo (I) – Create Kafka Topic $ kafka-topics --zookeeper zookeeper:2181 --create --topic truck_position --partitions 8 --replication-factor 1 $ kafka-topics --zookeeper zookeeper:2181 –list __consumer_offsets _confluent-metrics _schemas docker-connect-configs docker-connect-offsets docker-connect-status truck_position Kafka Connect & Kafka Streams/KSQL
Demo (I) – Run Producer and Kafka-Console-Consumer Kafka Connect & Kafka Streams/KSQL

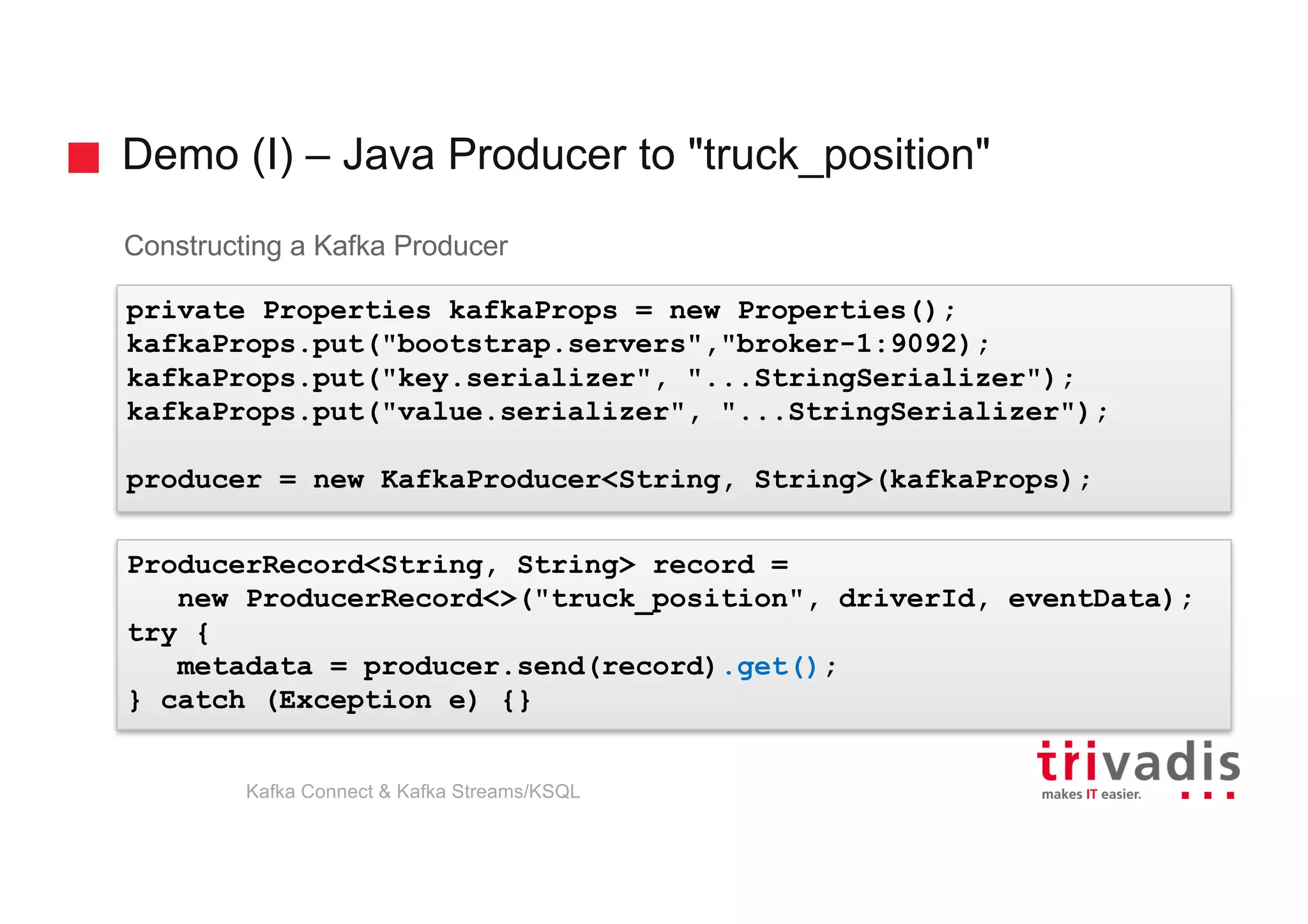

Demo (I) – Java Producer to "truck_position" Constructing a Kafka Producer private Properties kafkaProps = new Properties(); kafkaProps.put("bootstrap.servers","broker-1:9092); kafkaProps.put("key.serializer", "...StringSerializer"); kafkaProps.put("value.serializer", "...StringSerializer"); producer = new KafkaProducer<String, String>(kafkaProps); ProducerRecord<String, String> record = new ProducerRecord<>("truck_position", driverId, eventData); try { metadata = producer.send(record).get(); } catch (Exception e) {} Kafka Connect & Kafka Streams/KSQL

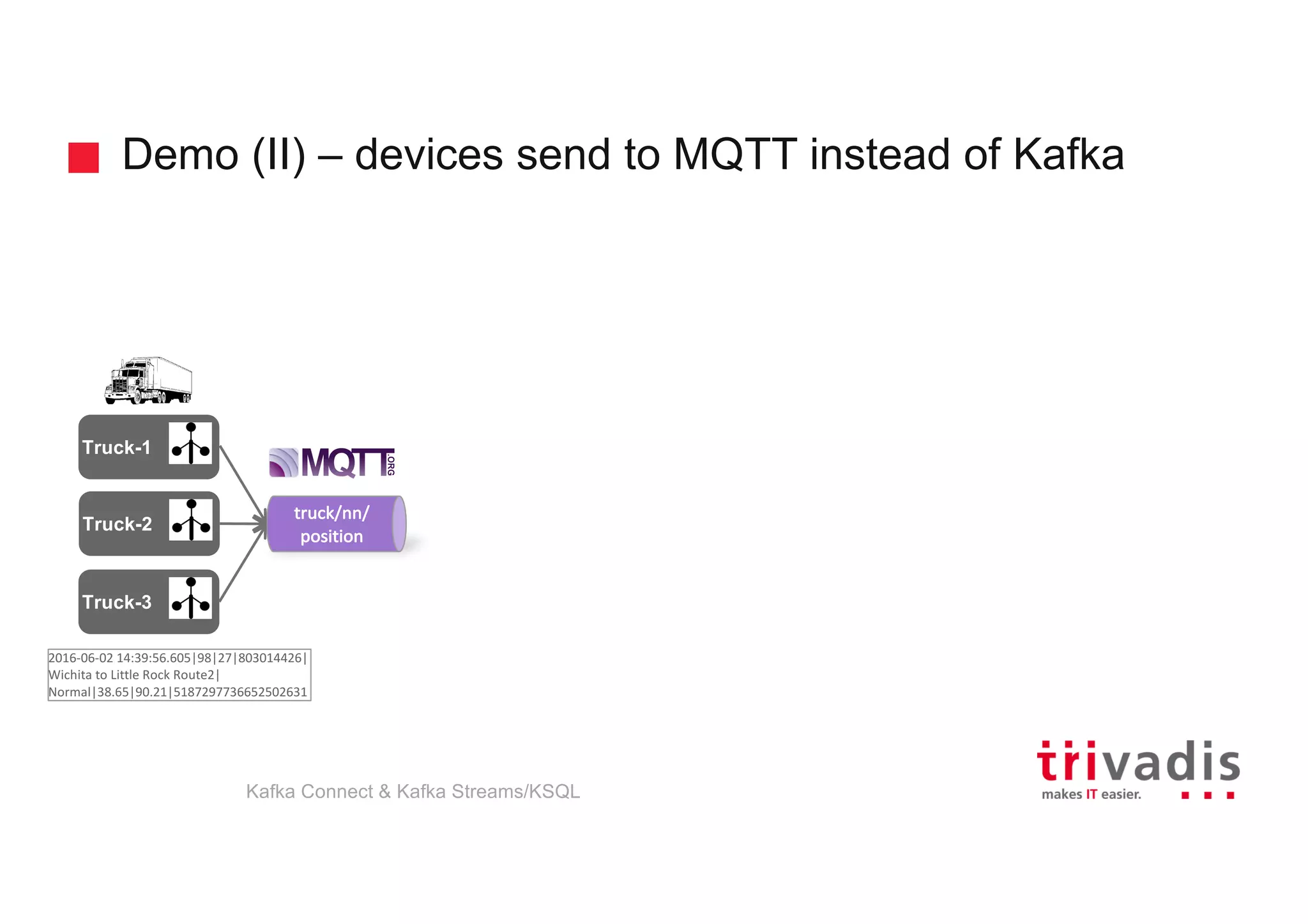

Demo (II) – devices send to MQTT instead of Kafka Truck-2 truck/nn/ position Truck-1 Truck-3 2016-06-02 14:39:56.605|98|27|803014426| Wichita to Little Rock Route2| Normal|38.65|90.21|5187297736652502631 Kafka Connect & Kafka Streams/KSQL

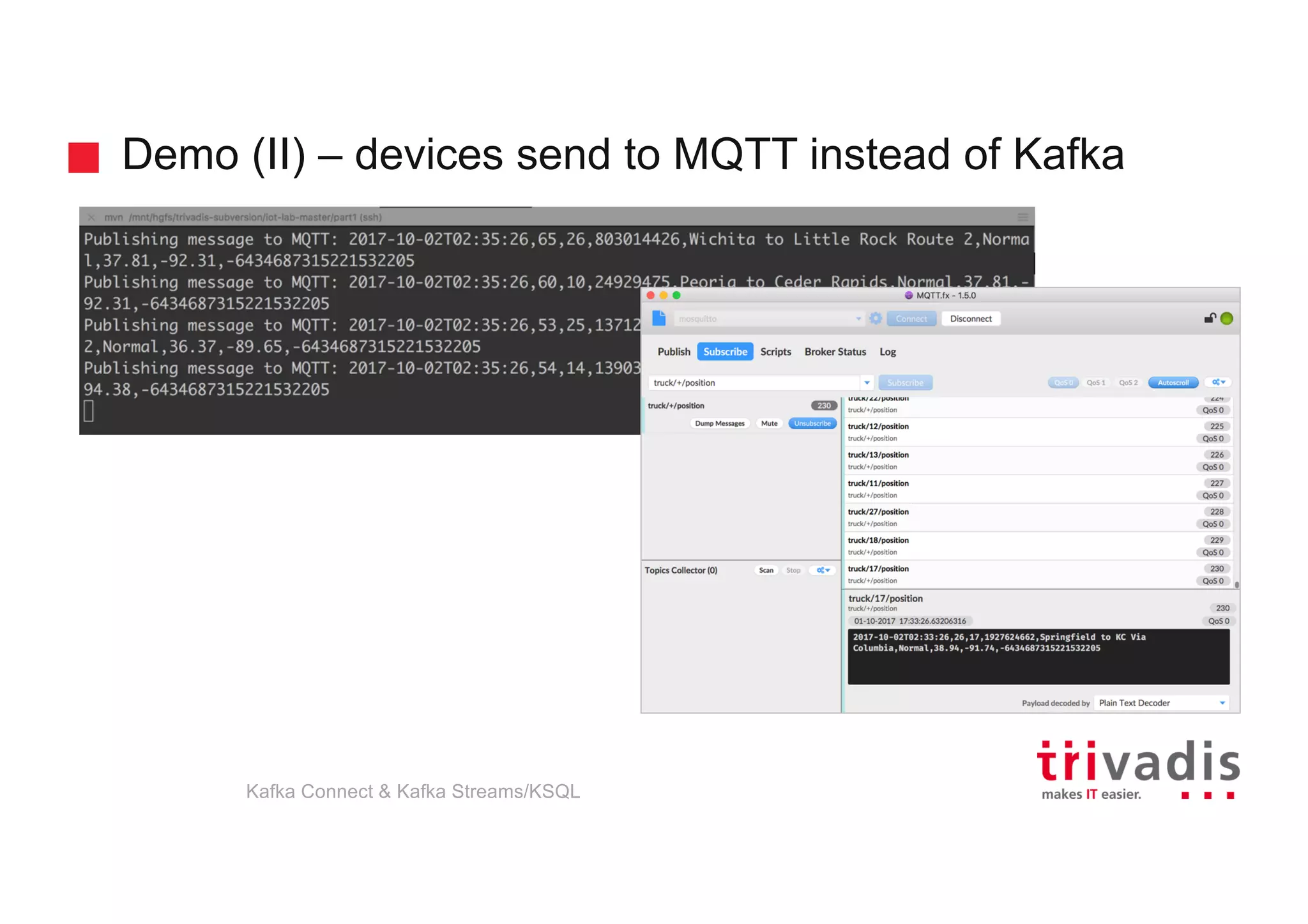

Demo (II) – devices send to MQTT instead of Kafka Kafka Connect & Kafka Streams/KSQL
Demo (II) - devices send to MQTT instead of Kafka – how to get the data into Kafka? Truck-2 truck/nn/ position Truck-1 Truck-3 truck position raw ? 2016-06-02 14:39:56.605|98|27|803014426| Wichita to Little Rock Route2| Normal|38.65|90.21|5187297736652502631 Kafka Connect & Kafka Streams/KSQL
Kafka Connect Kafka Connect & Kafka Streams/KSQL

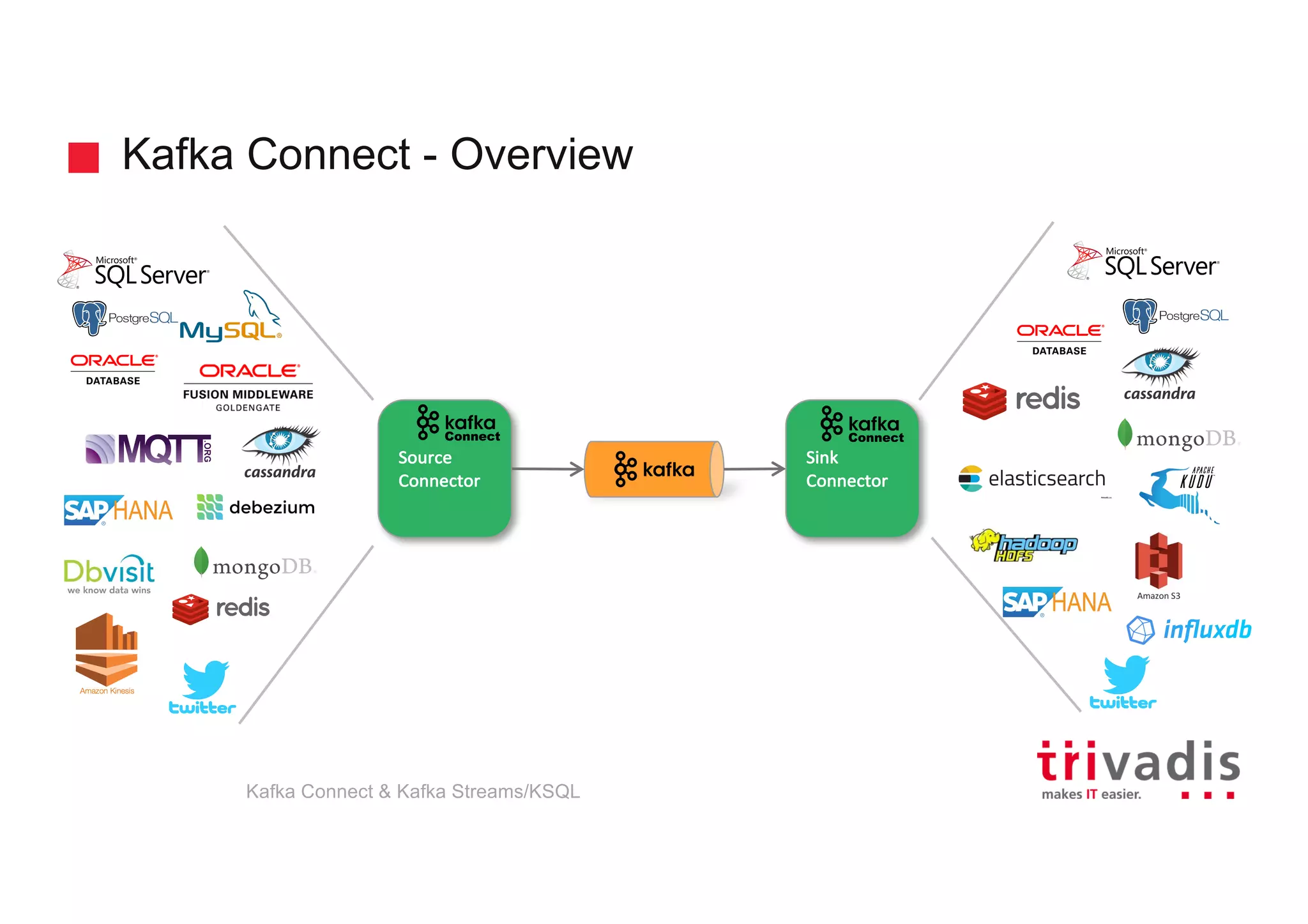

Kafka Connect - Overview Source Connector Sink Connector Kafka Connect & Kafka Streams/KSQL

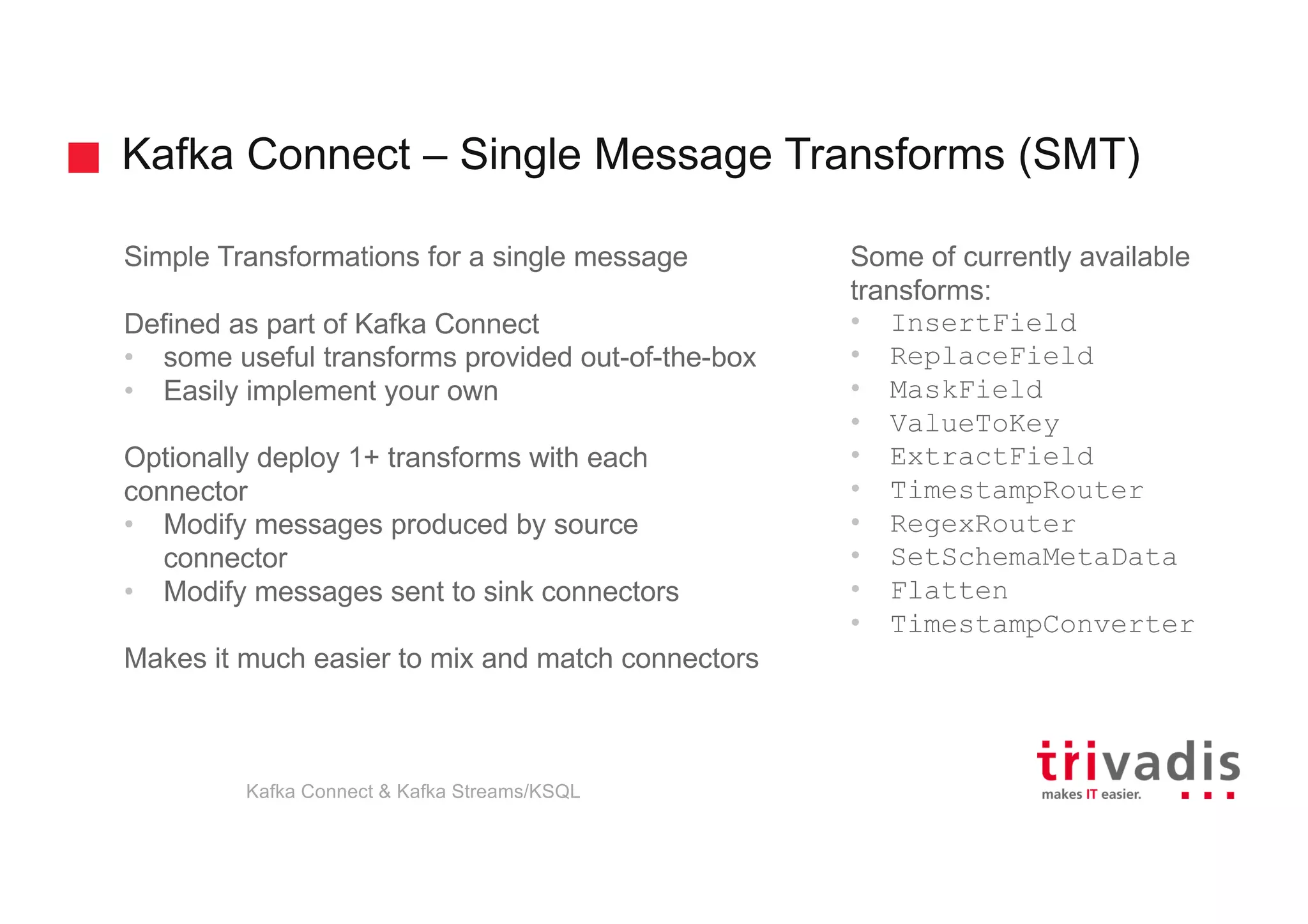

Kafka Connect – Single Message Transforms (SMT) Simple Transformations for a single message Defined as part of Kafka Connect • some useful transforms provided out-of-the-box • Easily implement your own Optionally deploy 1+ transforms with each connector • Modify messages produced by source connector • Modify messages sent to sink connectors Makes it much easier to mix and match connectors Some of currently available transforms: • InsertField • ReplaceField • MaskField • ValueToKey • ExtractField • TimestampRouter • RegexRouter • SetSchemaMetaData • Flatten • TimestampConverter Kafka Connect & Kafka Streams/KSQL
Kafka Connect – Many Connectors 60+ since first release (0.9+) 20+ from Confluent and Partners Source: http://www.confluent.io/product/connectors Confluent supported Connectors Certified Connectors Community Connectors Kafka Connect & Kafka Streams/KSQL

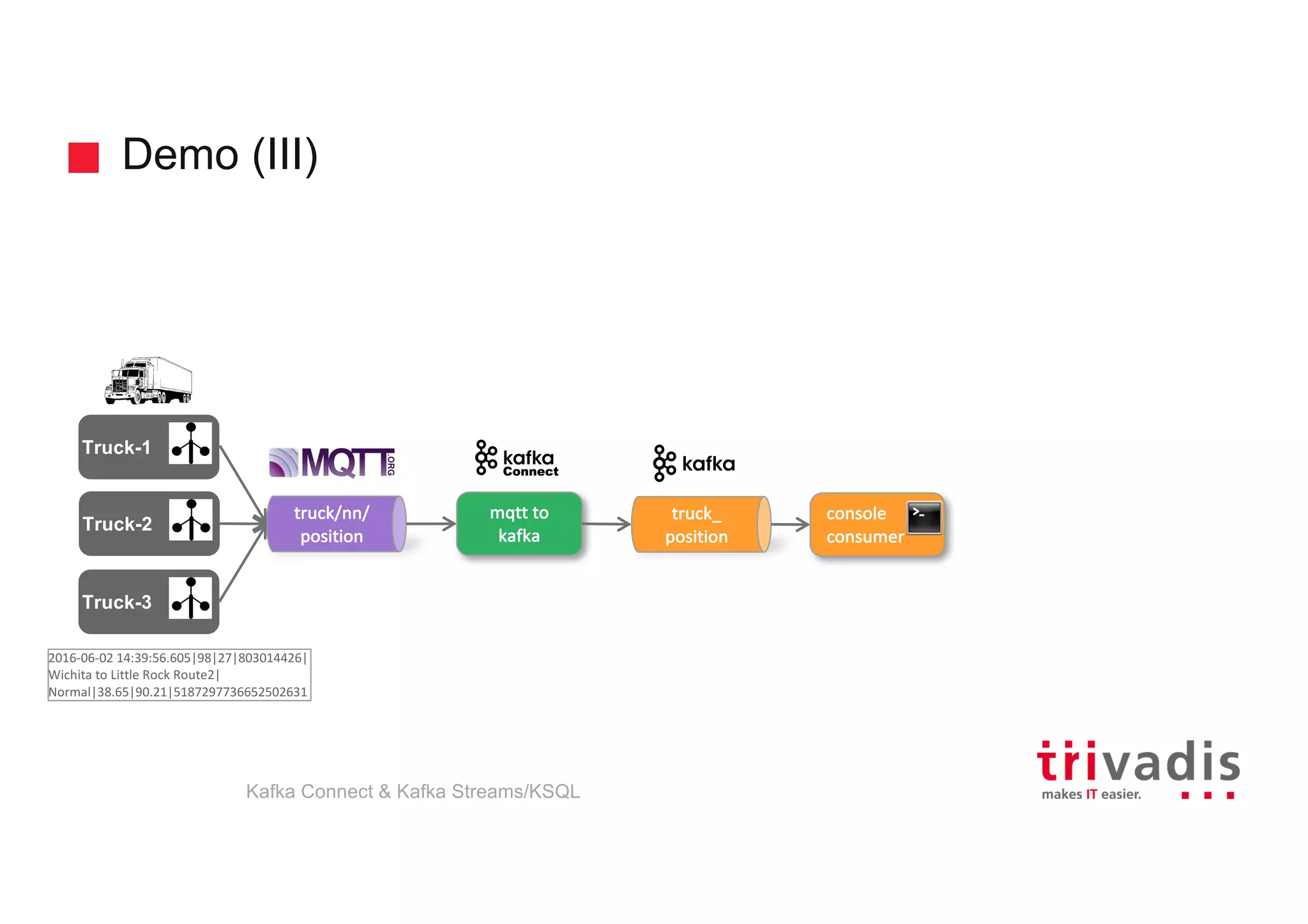

Demo (III) Truck-2 truck/nn/ position Truck-1 Truck-3 mqtt to kafka truck_ position 2016-06-02 14:39:56.605|98|27|803014426| Wichita to Little Rock Route2| Normal|38.65|90.21|5187297736652502631 console consumer Kafka Connect & Kafka Streams/KSQL

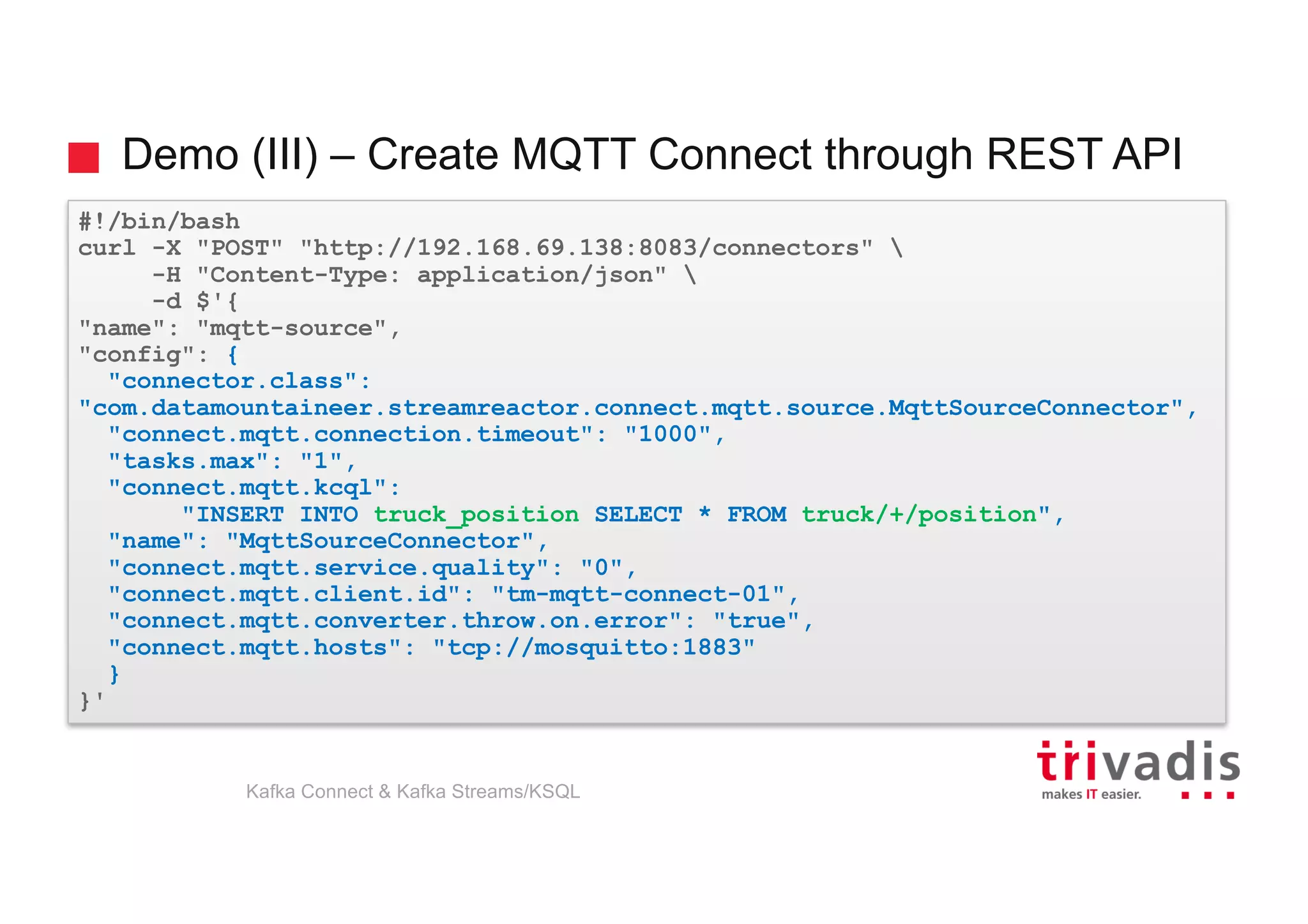

Demo (III) – Create MQTT Connect through REST API #!/bin/bash curl -X "POST" "http://192.168.69.138:8083/connectors" -H "Content-Type: application/json" -d $'{ "name": "mqtt-source", "config": { "connector.class": "com.datamountaineer.streamreactor.connect.mqtt.source.MqttSourceConnector", "connect.mqtt.connection.timeout": "1000", "tasks.max": "1", "connect.mqtt.kcql": "INSERT INTO truck_position SELECT * FROM truck/+/position", "name": "MqttSourceConnector", "connect.mqtt.service.quality": "0", "connect.mqtt.client.id": "tm-mqtt-connect-01", "connect.mqtt.converter.throw.on.error": "true", "connect.mqtt.hosts": "tcp://mosquitto:1883" } }' Kafka Connect & Kafka Streams/KSQL
Demo (III) – Call REST API and Kafka Console Consumer Kafka Connect & Kafka Streams/KSQL

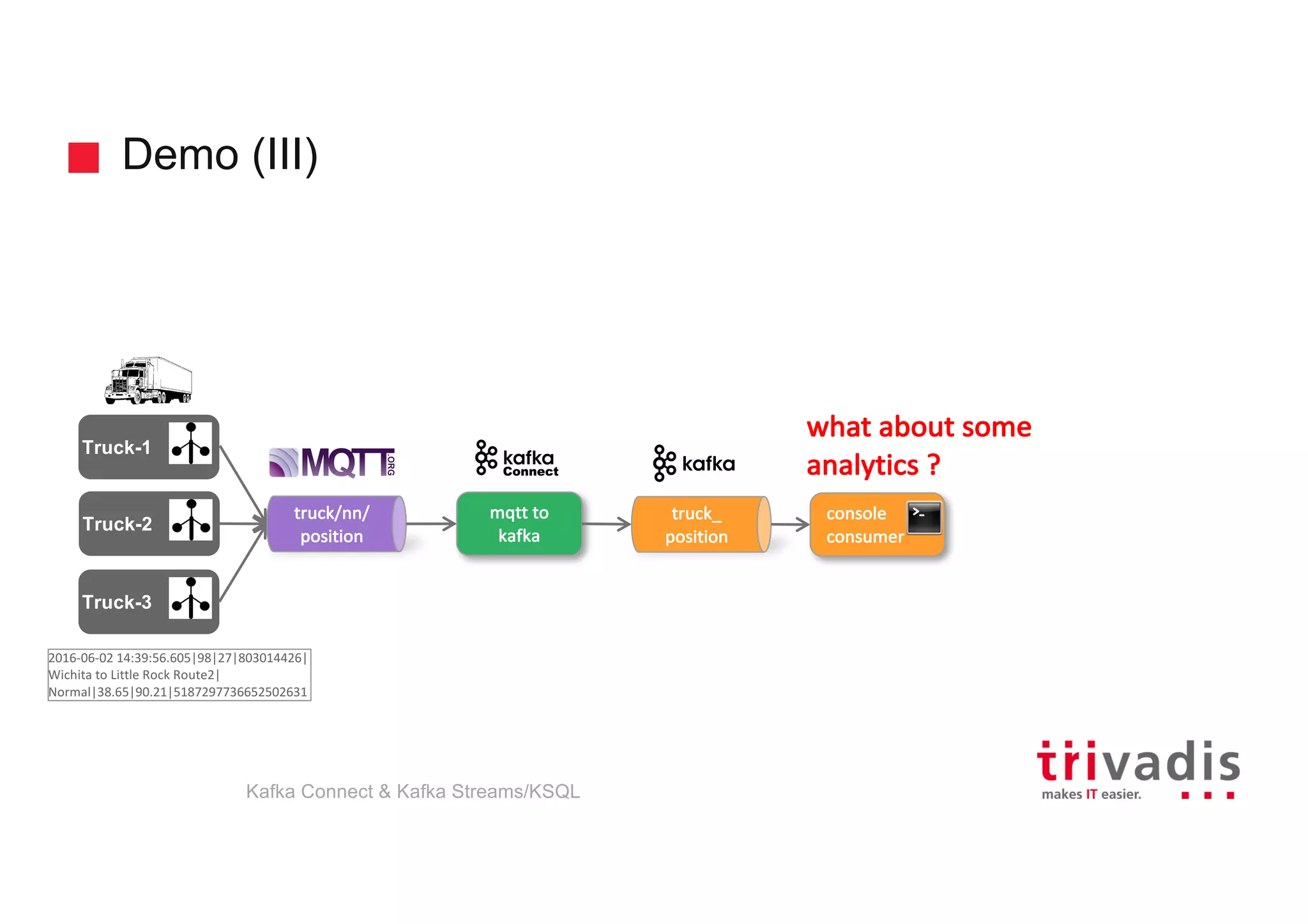

Demo (III) Truck-2 truck/nn/ position Truck-1 Truck-3 mqtt to kafka truck_ position 2016-06-02 14:39:56.605|98|27|803014426| Wichita to Little Rock Route2| Normal|38.65|90.21|5187297736652502631 console consumer what about some analytics ? Kafka Connect & Kafka Streams/KSQL
Kafka Streams Kafka Connect & Kafka Streams/KSQL

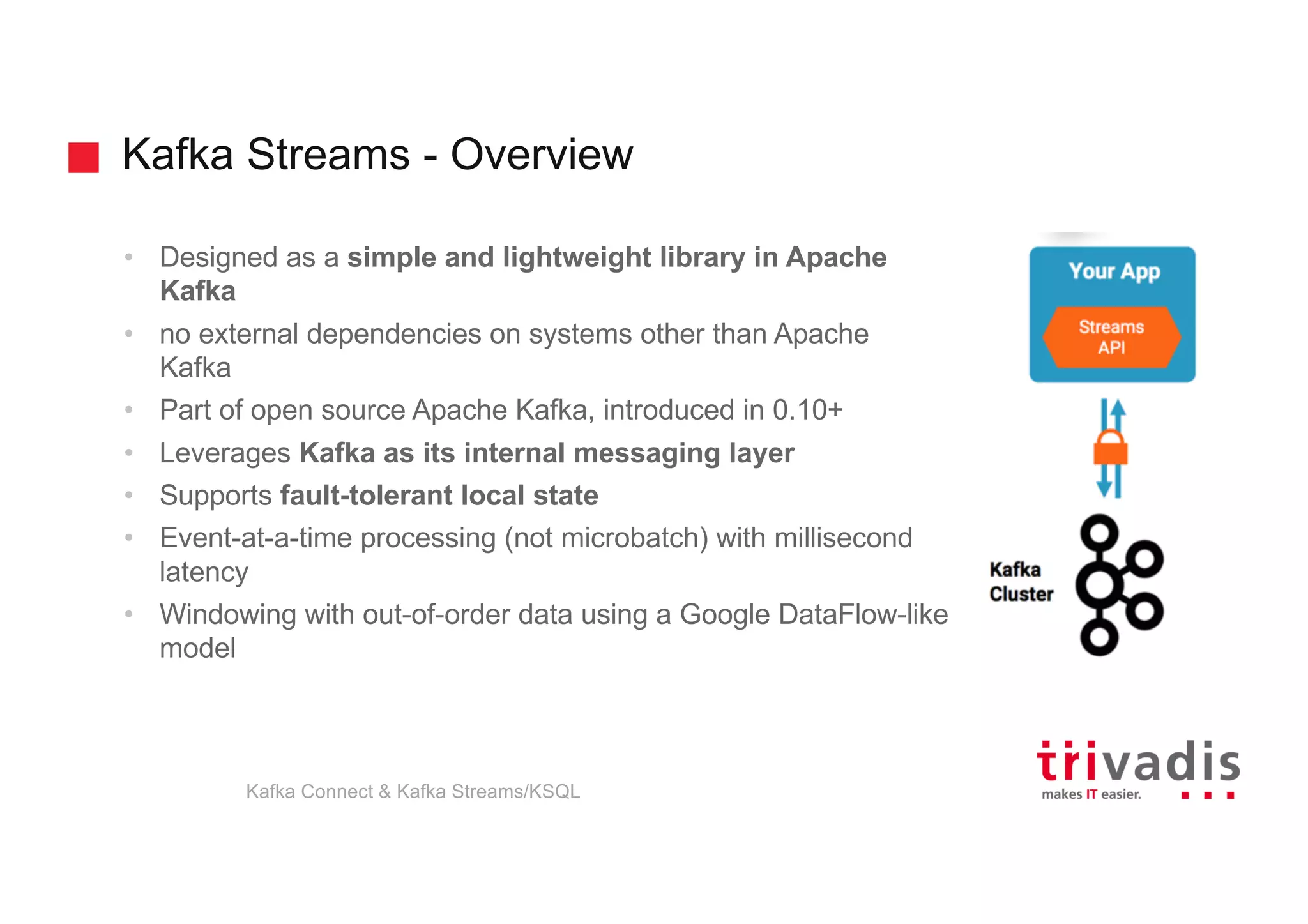

Kafka Streams - Overview • Designed as a simple and lightweight library in Apache Kafka • no external dependencies on systems other than Apache Kafka • Part of open source Apache Kafka, introduced in 0.10+ • Leverages Kafka as its internal messaging layer • Supports fault-tolerant local state • Event-at-a-time processing (not microbatch) with millisecond latency • Windowing with out-of-order data using a Google DataFlow-like model Kafka Connect & Kafka Streams/KSQL

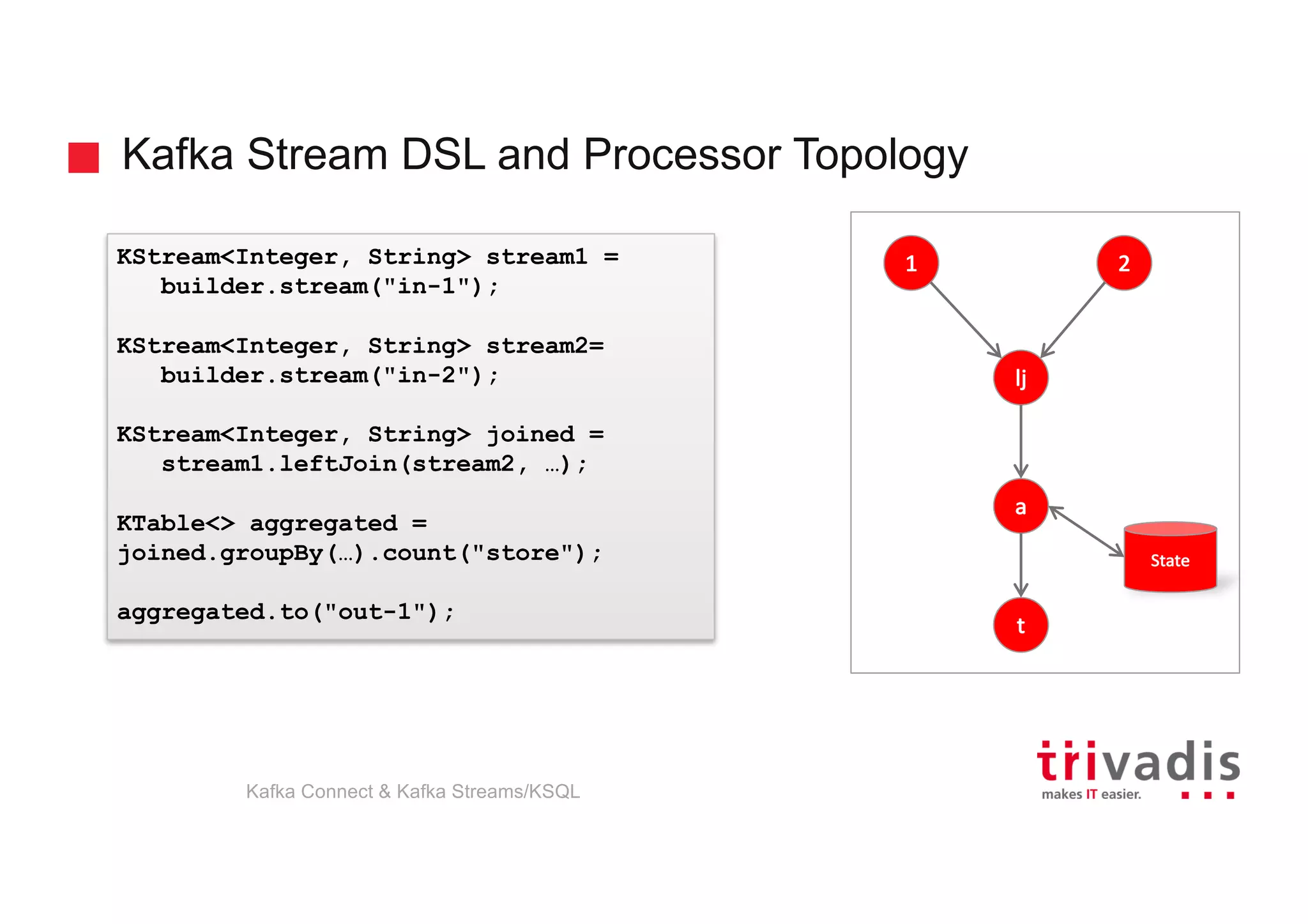

Kafka Stream DSL and Processor Topology KStream<Integer, String> stream1 = builder.stream("in-1"); KStream<Integer, String> stream2= builder.stream("in-2"); KStream<Integer, String> joined = stream1.leftJoin(stream2, …); KTable<> aggregated = joined.groupBy(…).count("store"); aggregated.to("out-1"); 1 2 lj a t State Kafka Connect & Kafka Streams/KSQL

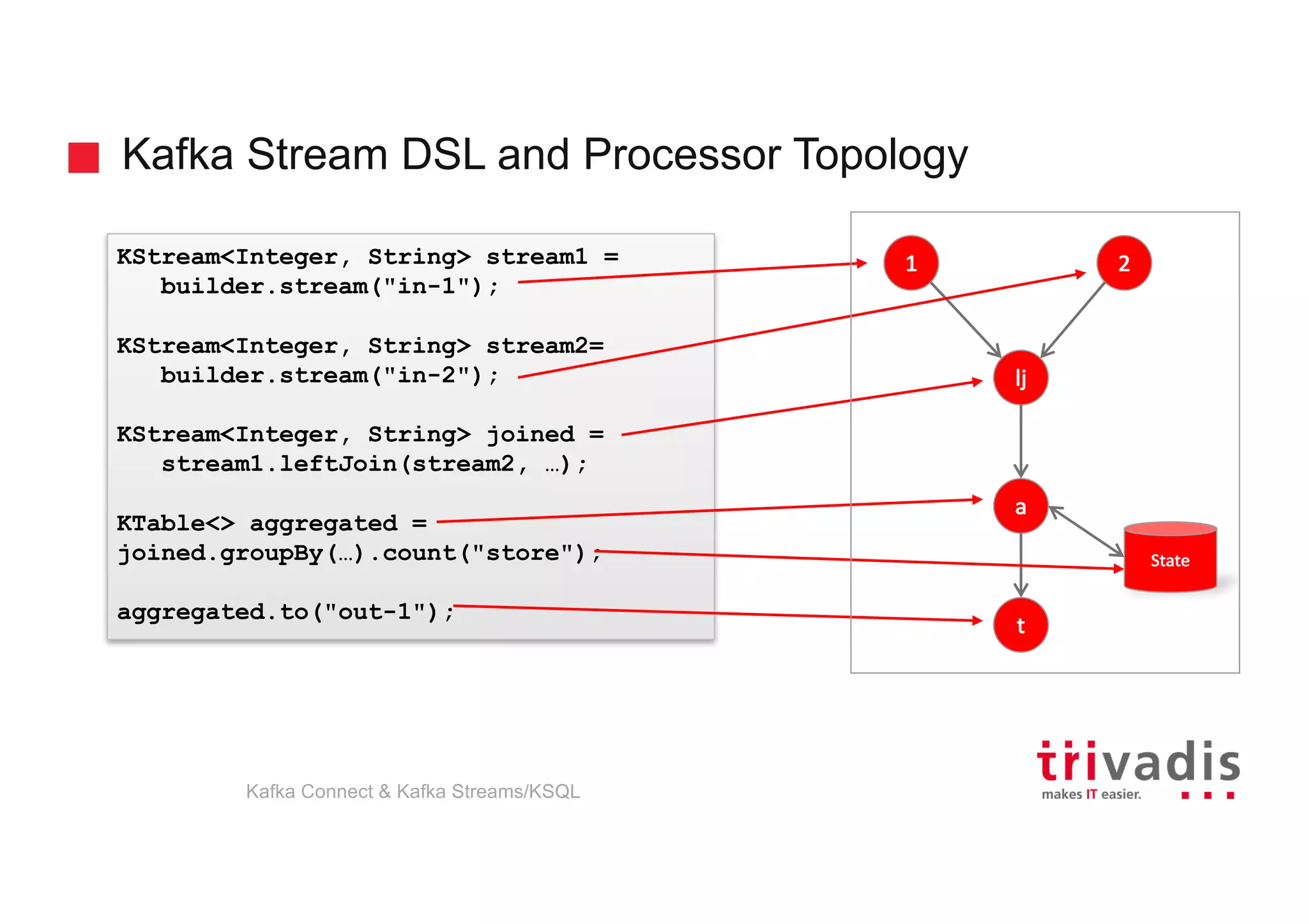

Kafka Stream DSL and Processor Topology KStream<Integer, String> stream1 = builder.stream("in-1"); KStream<Integer, String> stream2= builder.stream("in-2"); KStream<Integer, String> joined = stream1.leftJoin(stream2, …); KTable<> aggregated = joined.groupBy(…).count("store"); aggregated.to("out-1"); 1 2 lj a t State Kafka Connect & Kafka Streams/KSQL

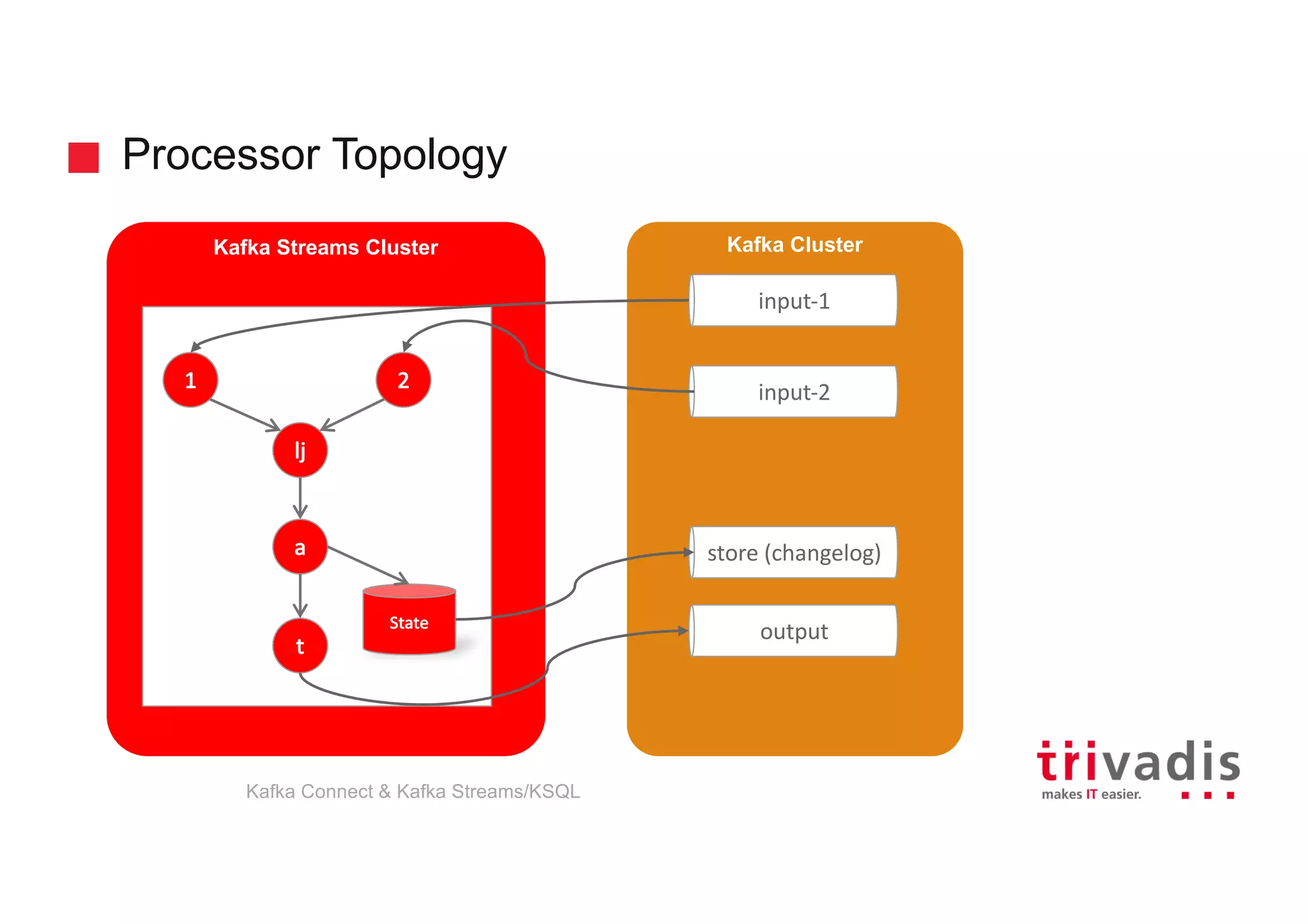

Kafka Streams Cluster Processor Topology Kafka Cluster input-1 input-2 store (changelog) output 1 2 lj a t State Kafka Connect & Kafka Streams/KSQL

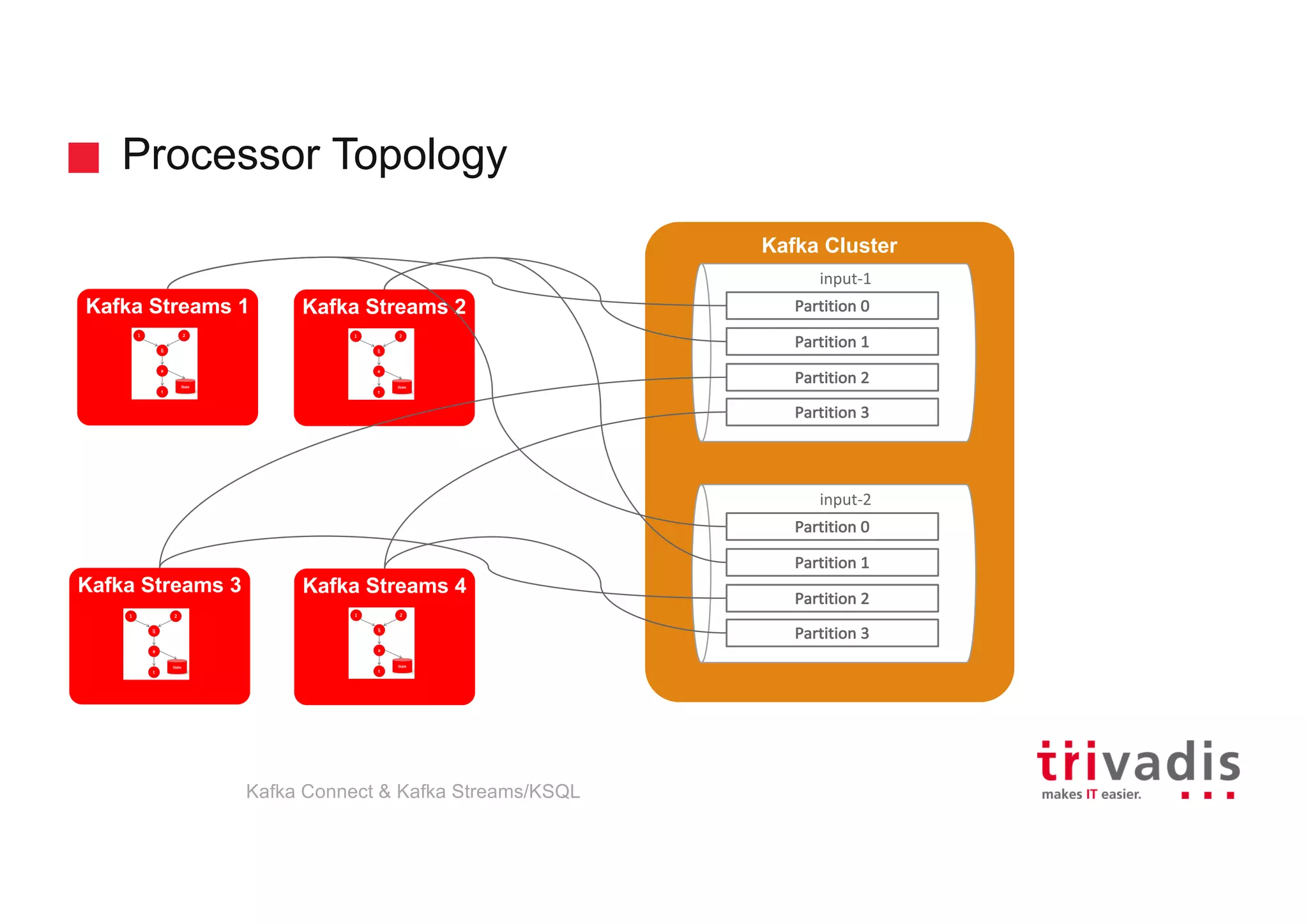

Kafka Cluster Processor Topology input-1 Partition 0 Partition 1 Partition 2 Partition 3 input-2 Partition 0 Partition 1 Partition 2 Partition 3 Kafka Streams 1 Kafka Streams 2 Kafka Connect & Kafka Streams/KSQL

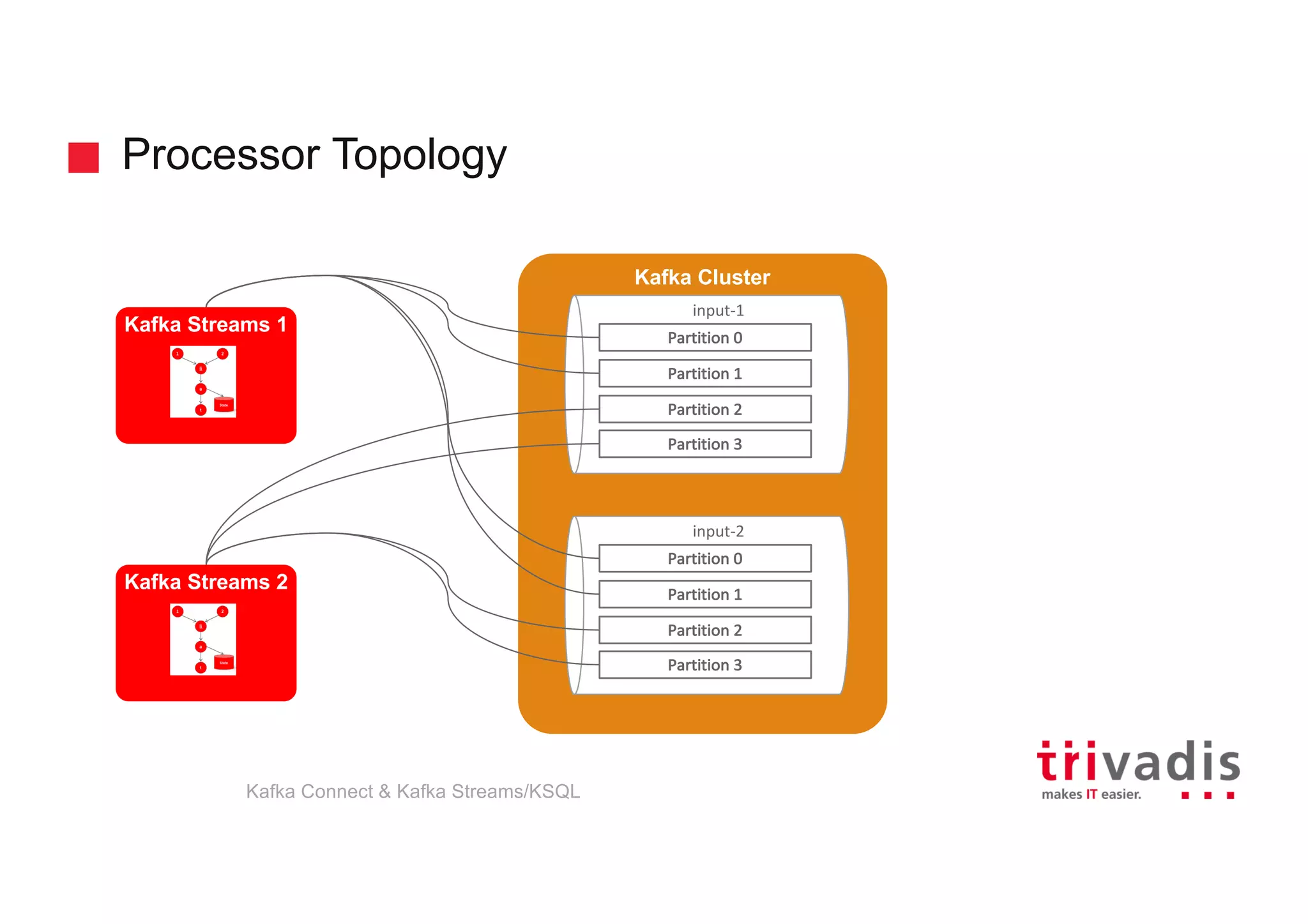

Kafka Cluster Processor Topology input-1 Partition 0 Partition 1 Partition 2 Partition 3 input-2 Partition 0 Partition 1 Partition 2 Partition 3 Kafka Streams 1 Kafka Streams 2 Kafka Streams 3 Kafka Streams 4 Kafka Connect & Kafka Streams/KSQL

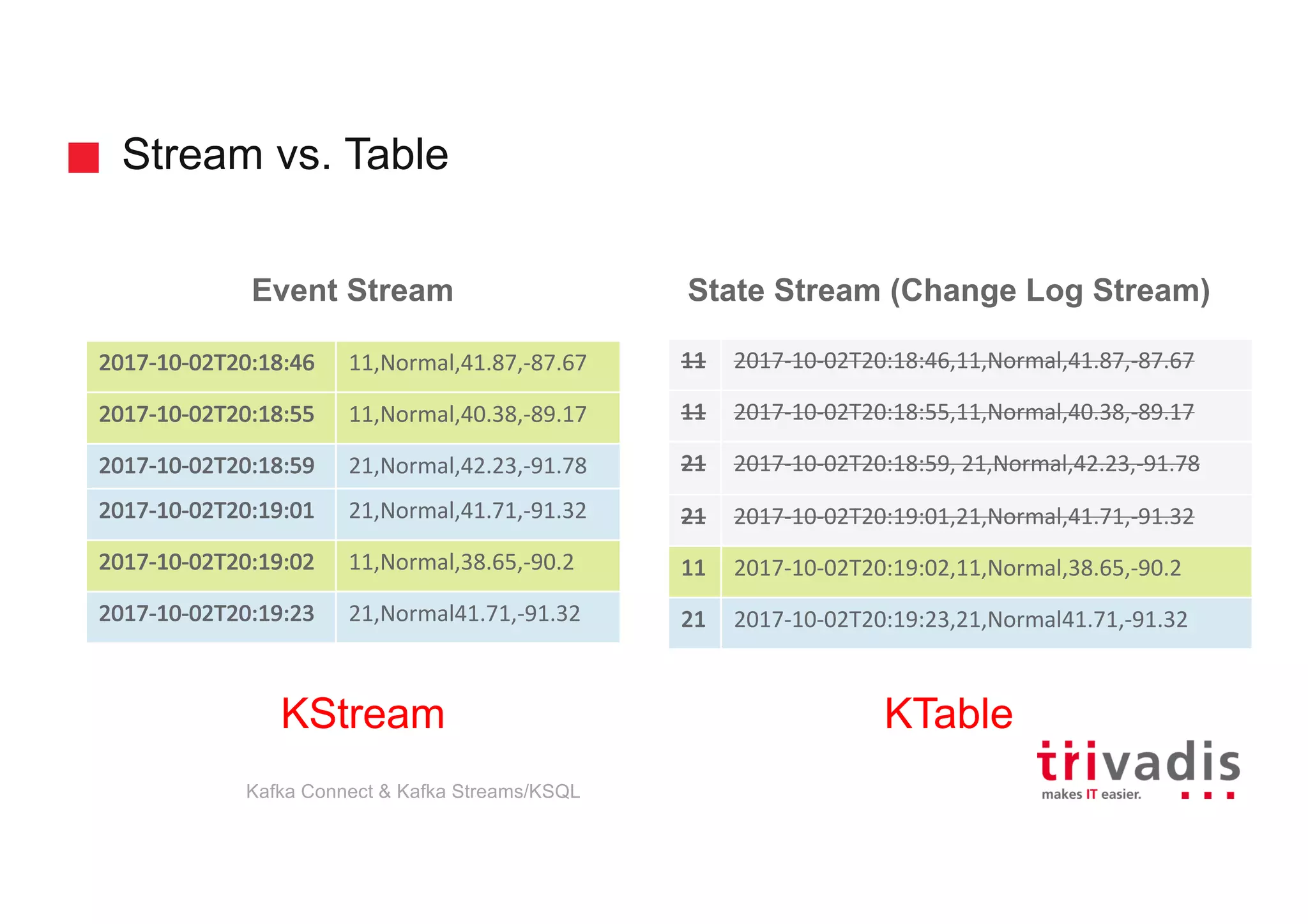

Stream vs. Table Event Stream State Stream (Change Log Stream) 2017-10-02T20:18:46 11,Normal,41.87,-87.67 2017-10-02T20:18:55 11,Normal,40.38,-89.17 2017-10-02T20:18:59 21,Normal,42.23,-91.78 2017-10-02T20:19:01 21,Normal,41.71,-91.32 2017-10-02T20:19:02 11,Normal,38.65,-90.2 2017-10-02T20:19:23 21,Normal41.71,-91.32 11 2017-10-02T20:18:46,11,Normal,41.87,-87.67 11 2017-10-02T20:18:55,11,Normal,40.38,-89.17 21 2017-10-02T20:18:59, 21,Normal,42.23,-91.78 21 2017-10-02T20:19:01,21,Normal,41.71,-91.32 11 2017-10-02T20:19:02,11,Normal,38.65,-90.2 21 2017-10-02T20:19:23,21,Normal41.71,-91.32 Kafka Connect & Kafka Streams/KSQL KStream KTable

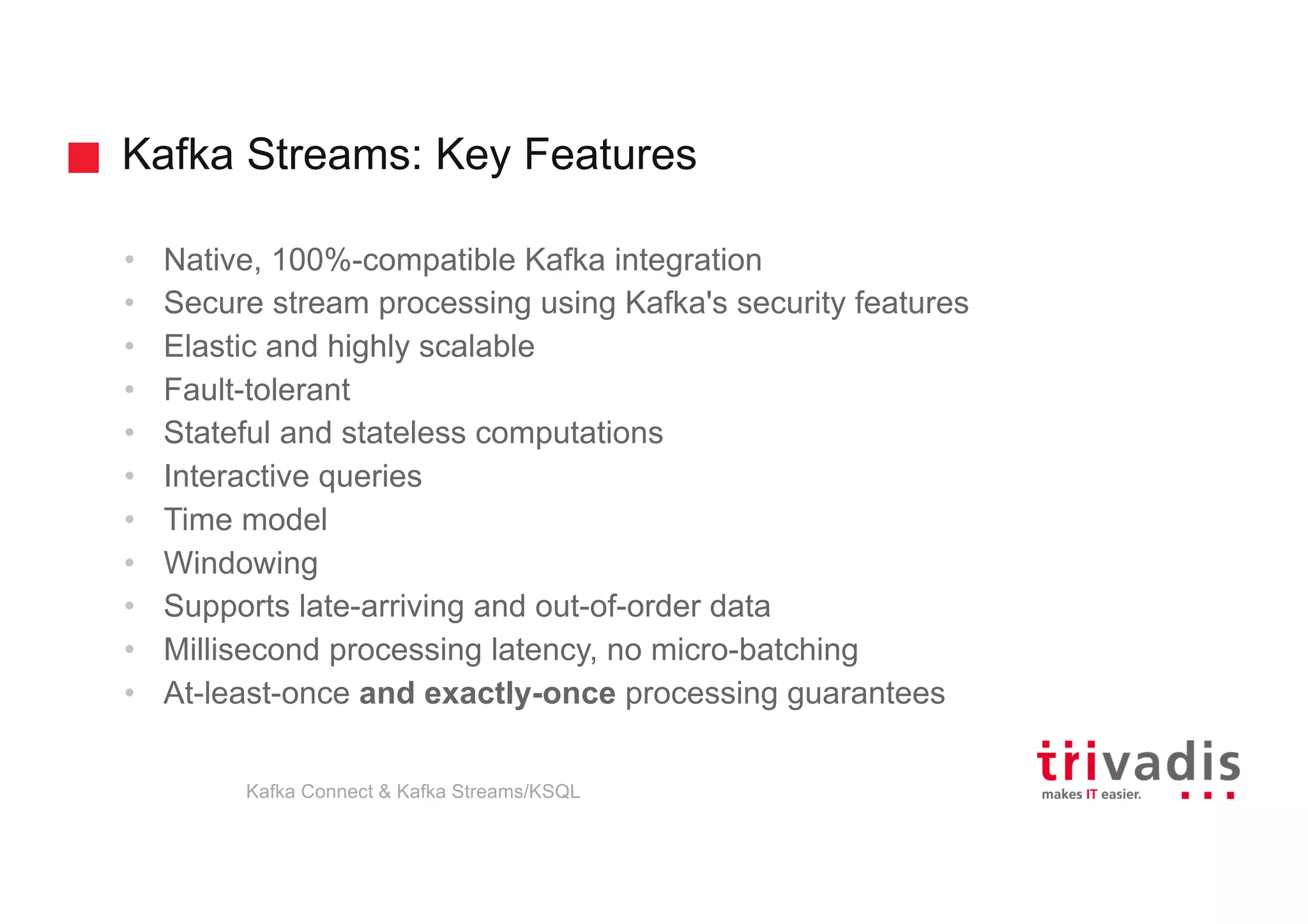

Kafka Streams: Key Features Kafka Connect & Kafka Streams/KSQL • Native, 100%-compatible Kafka integration • Secure stream processing using Kafka's security features • Elastic and highly scalable • Fault-tolerant • Stateful and stateless computations • Interactive queries • Time model • Windowing • Supports late-arriving and out-of-order data • Millisecond processing latency, no micro-batching • At-least-once and exactly-once processing guarantees

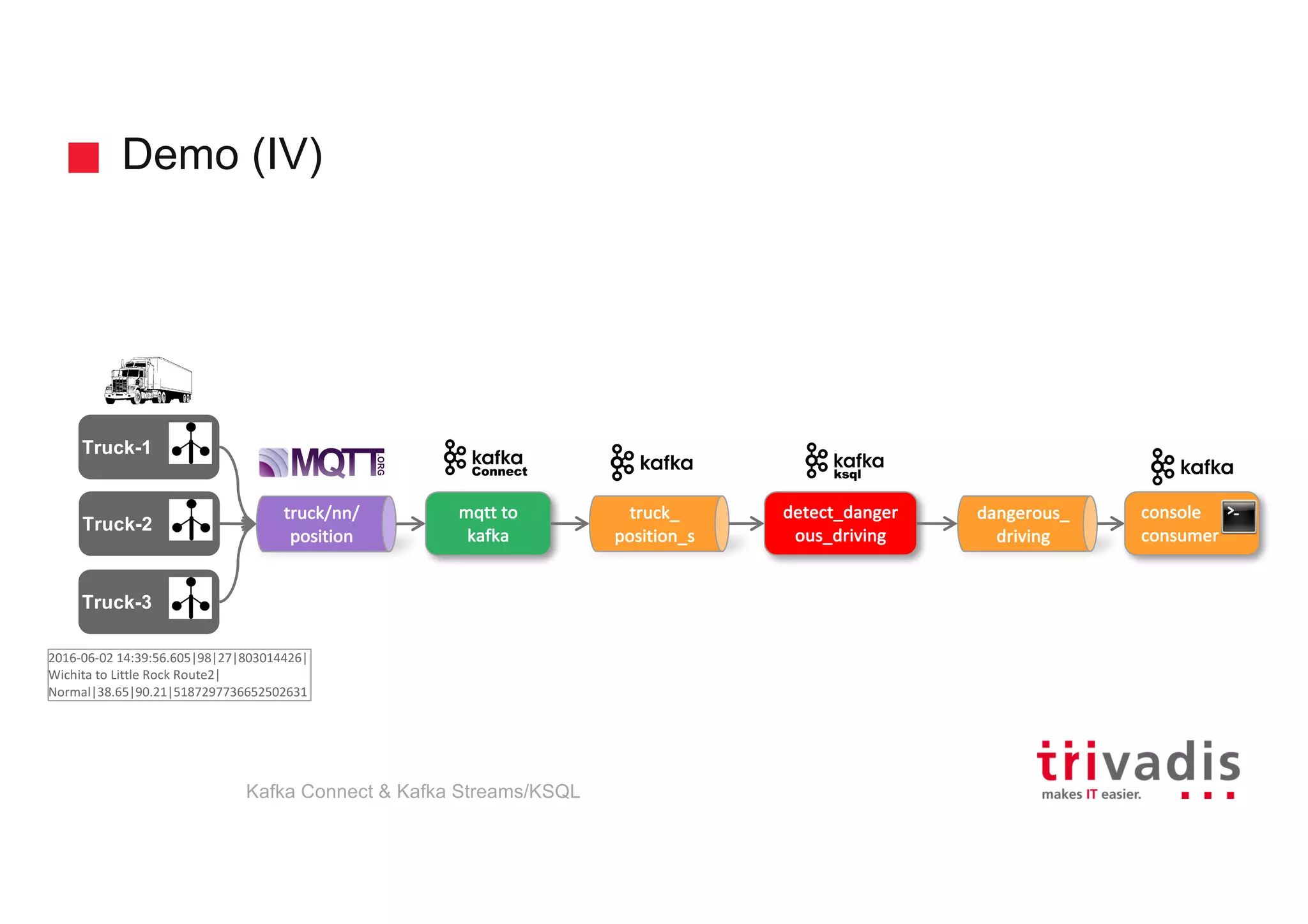

Demo (IV) Truck-2 truck/nn/ position Truck-1 Truck-3 mqtt to kafka truck_ position_s detect_danger ous_driving dangerous_ driving console consumer 2016-06-02 14:39:56.605|98|27|803014426| Wichita to Little Rock Route2| Normal|38.65|90.21|5187297736652502631 Kafka Connect & Kafka Streams/KSQL

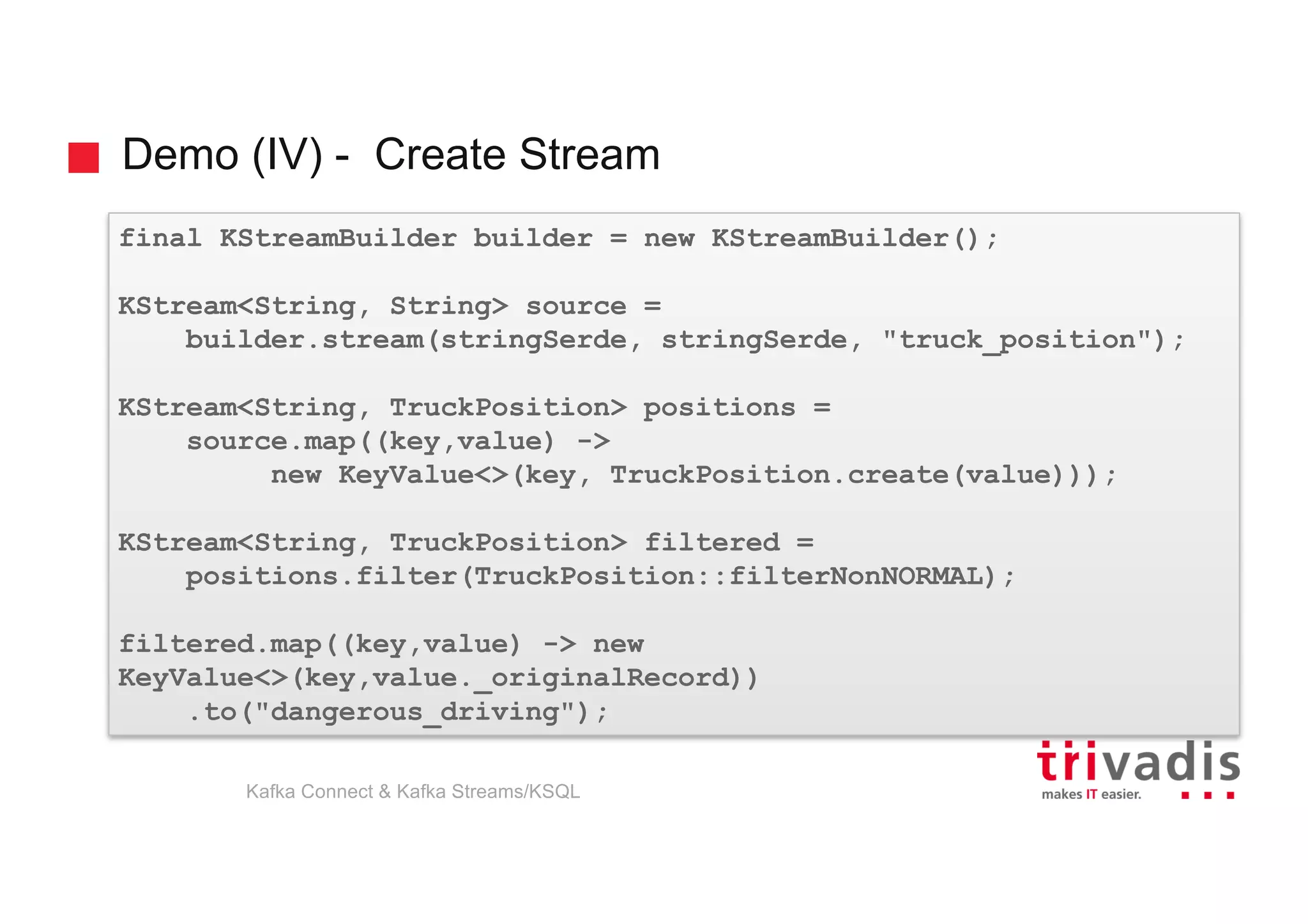

Demo (IV) - Create Stream final KStreamBuilder builder = new KStreamBuilder(); KStream<String, String> source = builder.stream(stringSerde, stringSerde, "truck_position"); KStream<String, TruckPosition> positions = source.map((key,value) -> new KeyValue<>(key, TruckPosition.create(value))); KStream<String, TruckPosition> filtered = positions.filter(TruckPosition::filterNonNORMAL); filtered.map((key,value) -> new KeyValue<>(key,value._originalRecord)) .to("dangerous_driving"); Kafka Connect & Kafka Streams/KSQL
KSQL Kafka Connect & Kafka Streams/KSQL

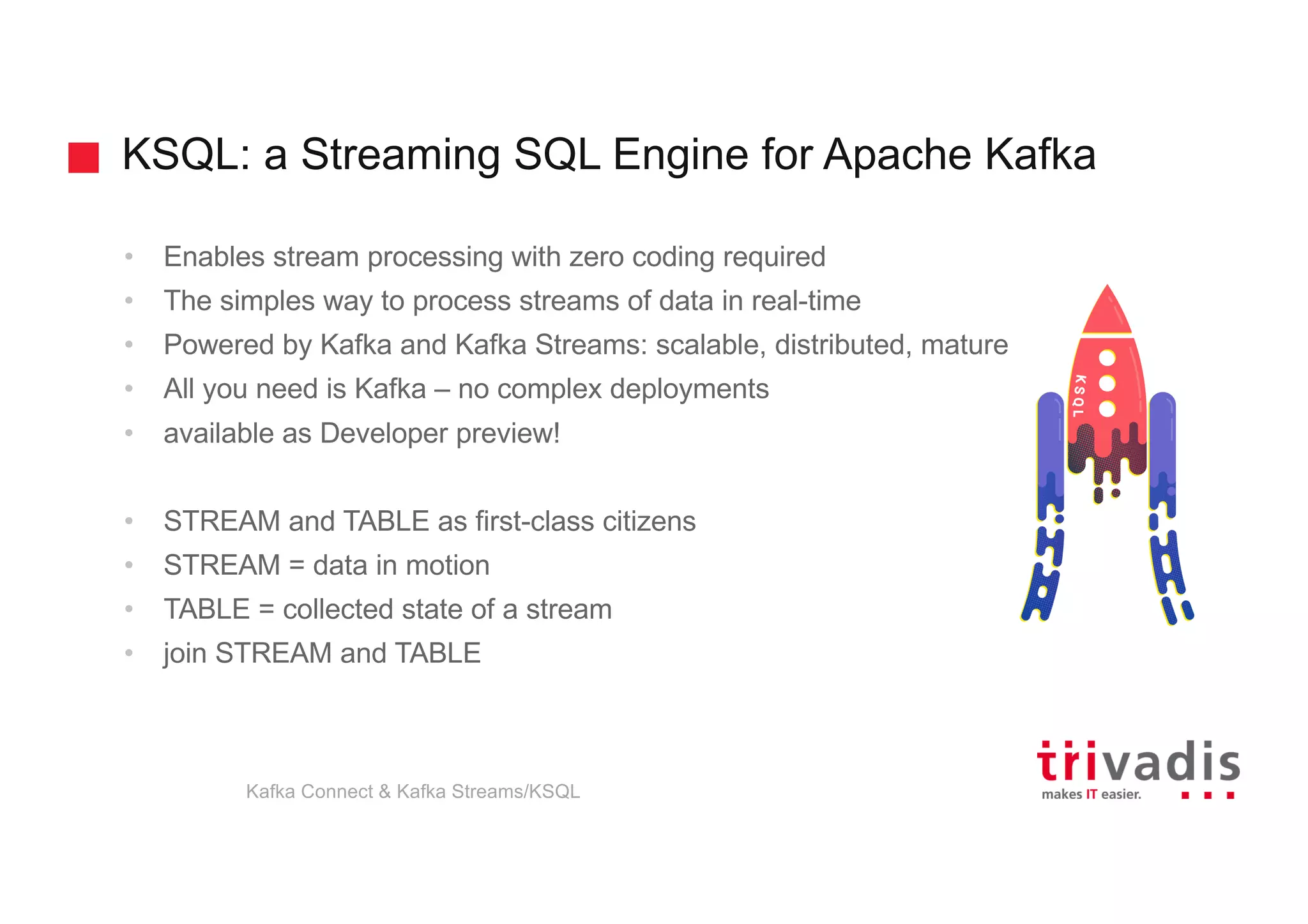

KSQL: a Streaming SQL Engine for Apache Kafka • Enables stream processing with zero coding required • The simples way to process streams of data in real-time • Powered by Kafka and Kafka Streams: scalable, distributed, mature • All you need is Kafka – no complex deployments • available as Developer preview! • STREAM and TABLE as first-class citizens • STREAM = data in motion • TABLE = collected state of a stream • join STREAM and TABLE Kafka Connect & Kafka Streams/KSQL

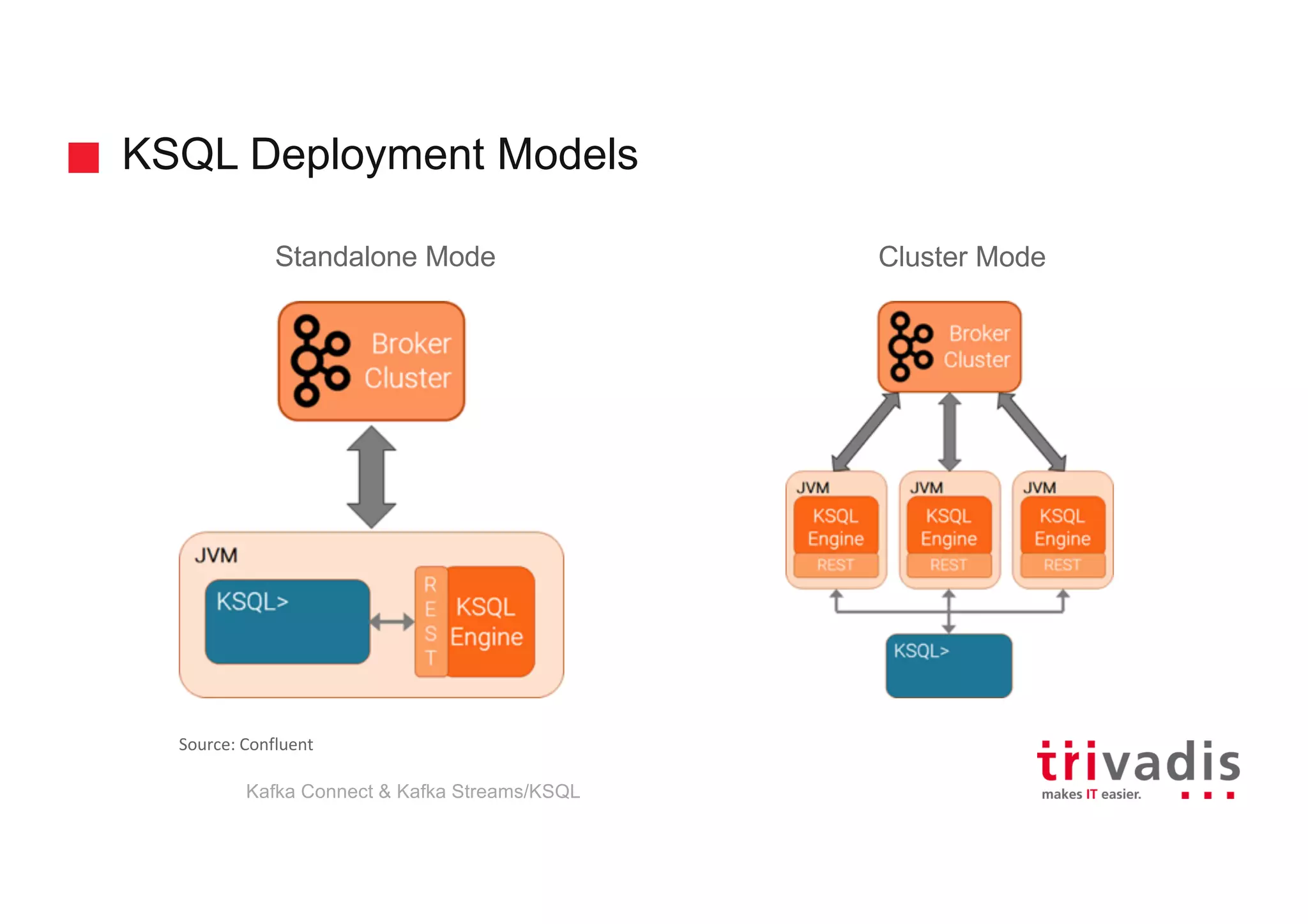

KSQL Deployment Models Standalone Mode Cluster Mode Source: Confluent Kafka Connect & Kafka Streams/KSQL
Demo (IV) Truck-2 truck/nn/ position Truck-1 Truck-3 mqtt to kafka truck_ position_s detect_danger ous_driving dangerous_ driving console consumer 2016-06-02 14:39:56.605|98|27|803014426| Wichita to Little Rock Route2| Normal|38.65|90.21|5187297736652502631 Kafka Connect & Kafka Streams/KSQL

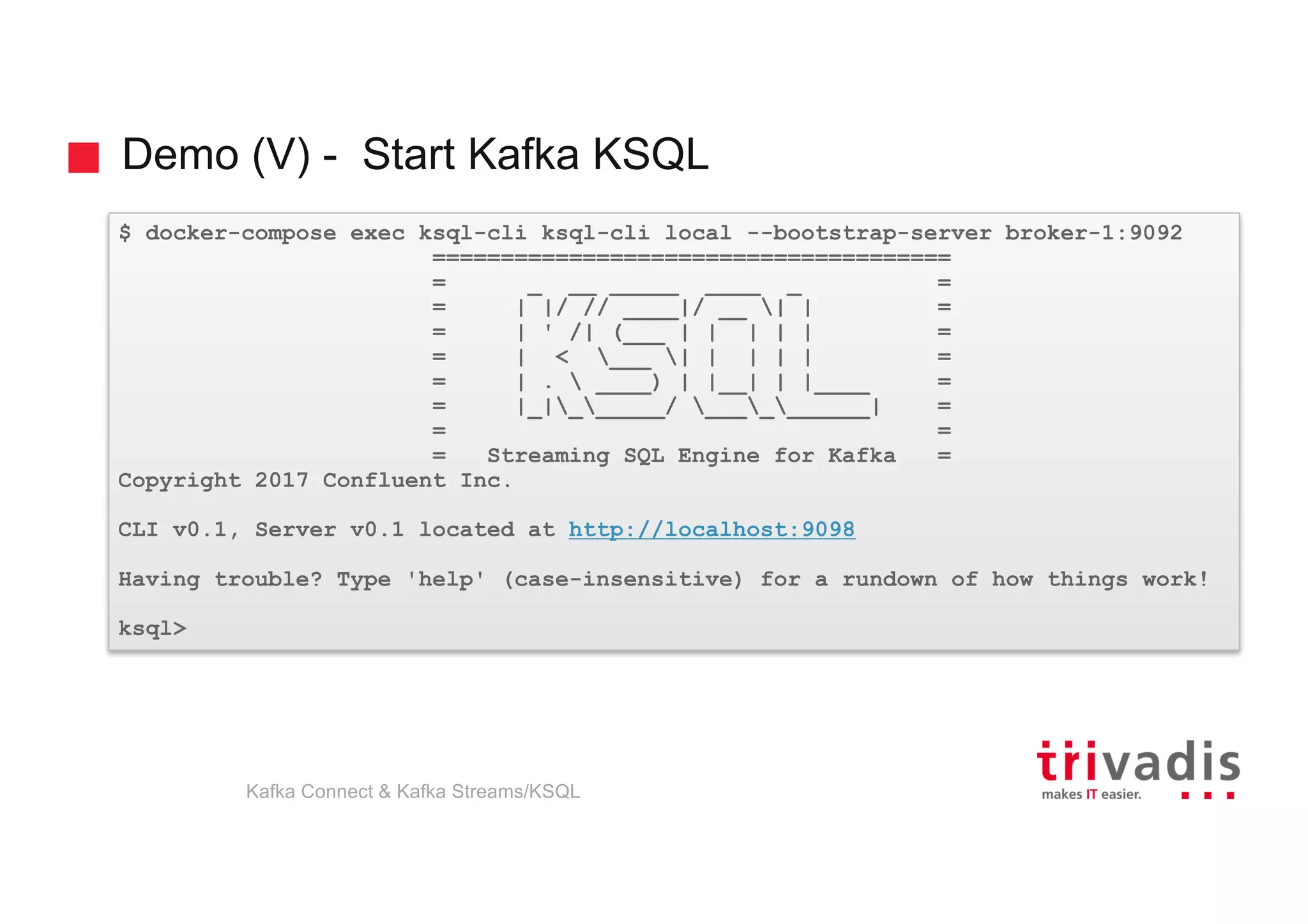

Demo (V) - Start Kafka KSQL $ docker-compose exec ksql-cli ksql-cli local --bootstrap-server broker-1:9092 ====================================== = _ __ _____ ____ _ = = | |/ // ____|/ __ | | = = | ' /| (___ | | | | | = = | < ___ | | | | | = = | . ____) | |__| | |____ = = |_|______/ __________| = = = = Streaming SQL Engine for Kafka = Copyright 2017 Confluent Inc. CLI v0.1, Server v0.1 located at http://localhost:9098 Having trouble? Type 'help' (case-insensitive) for a rundown of how things work! ksql> Kafka Connect & Kafka Streams/KSQL

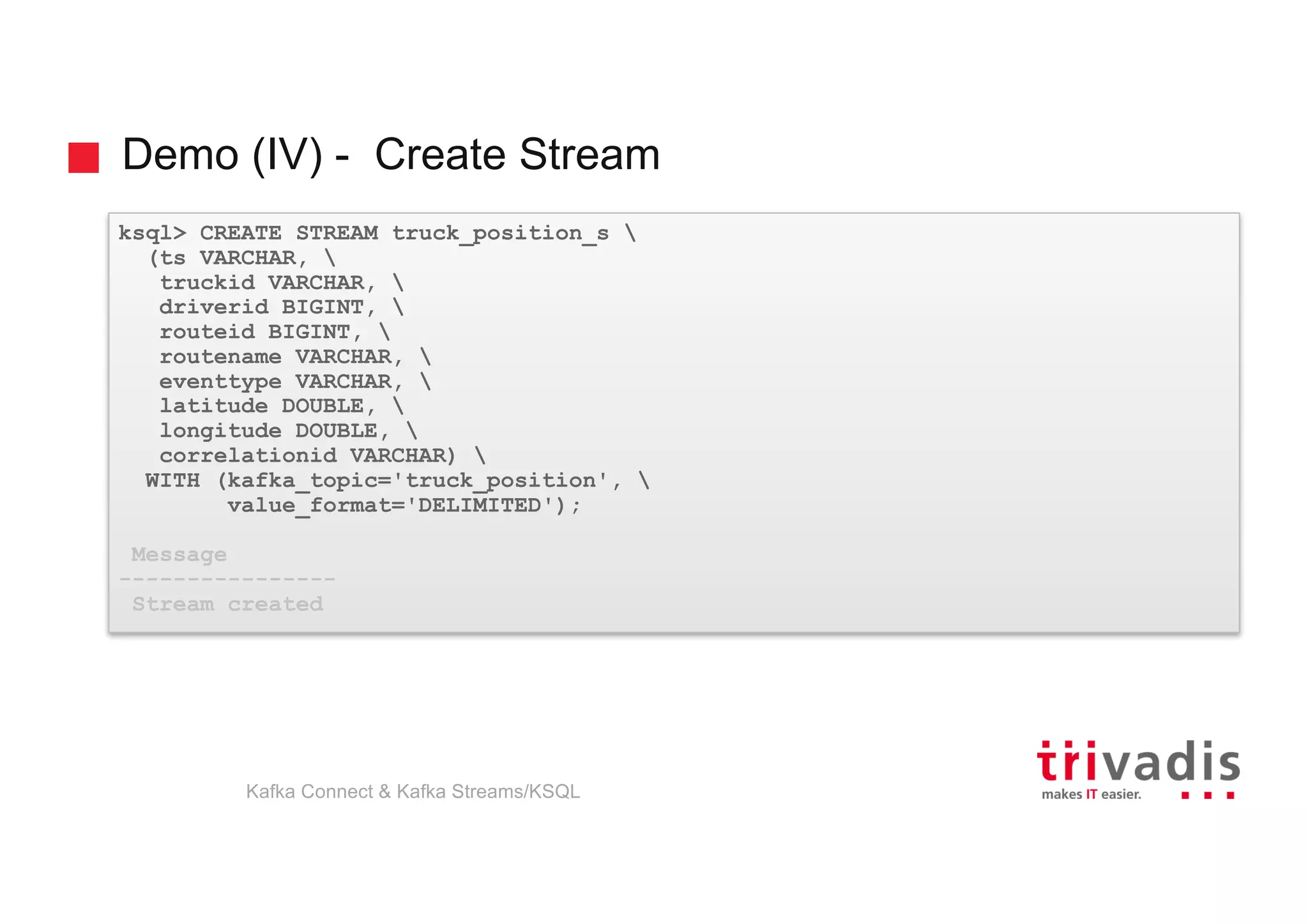

Demo (IV) - Create Stream ksql> CREATE STREAM truck_position_s (ts VARCHAR, truckid VARCHAR, driverid BIGINT, routeid BIGINT, routename VARCHAR, eventtype VARCHAR, latitude DOUBLE, longitude DOUBLE, correlationid VARCHAR) WITH (kafka_topic='truck_position', value_format='DELIMITED'); Message ---------------- Stream created Kafka Connect & Kafka Streams/KSQL

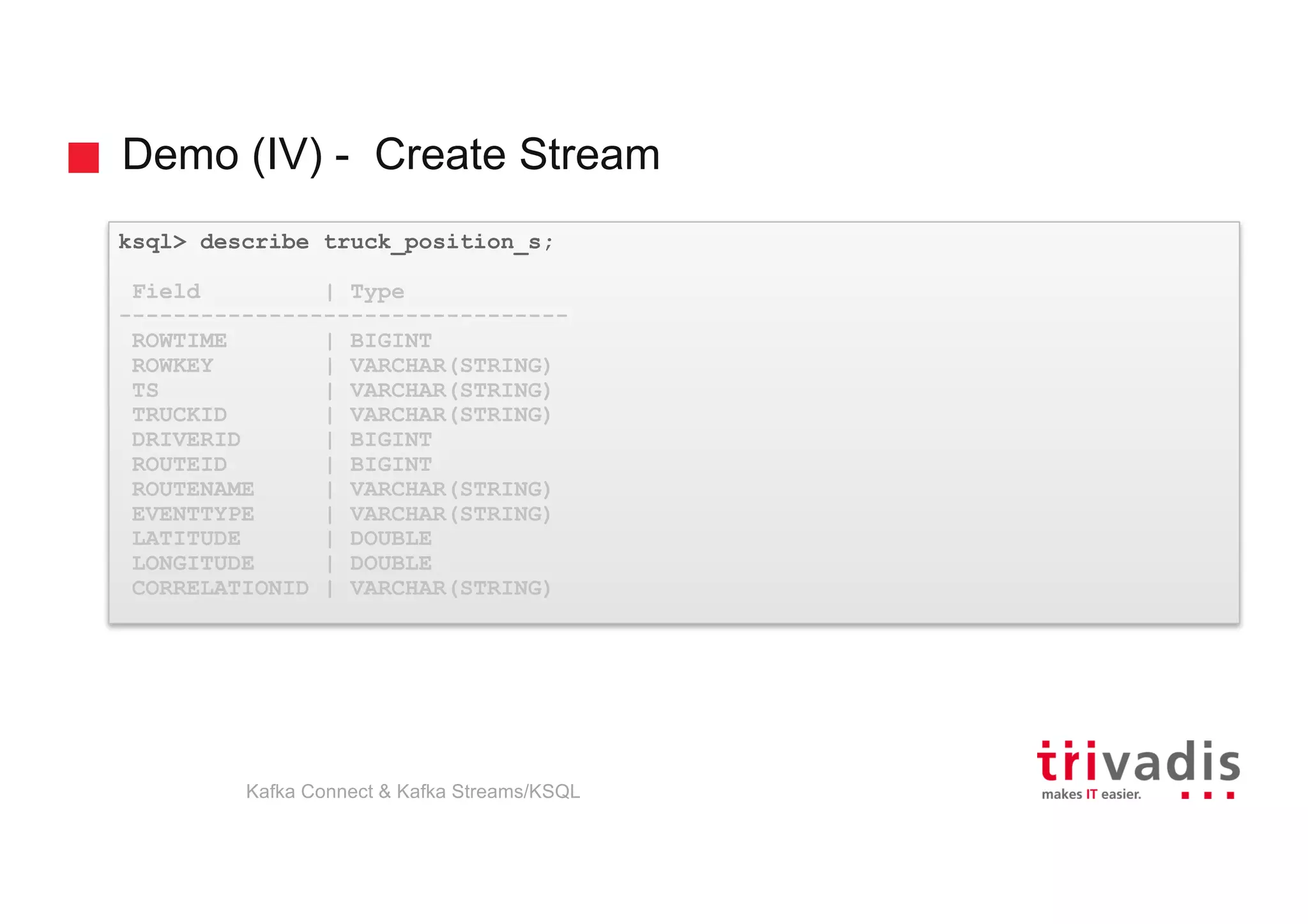

Demo (IV) - Create Stream ksql> describe truck_position_s; Field | Type --------------------------------- ROWTIME | BIGINT ROWKEY | VARCHAR(STRING) TS | VARCHAR(STRING) TRUCKID | VARCHAR(STRING) DRIVERID | BIGINT ROUTEID | BIGINT ROUTENAME | VARCHAR(STRING) EVENTTYPE | VARCHAR(STRING) LATITUDE | DOUBLE LONGITUDE | DOUBLE CORRELATIONID | VARCHAR(STRING) Kafka Connect & Kafka Streams/KSQL

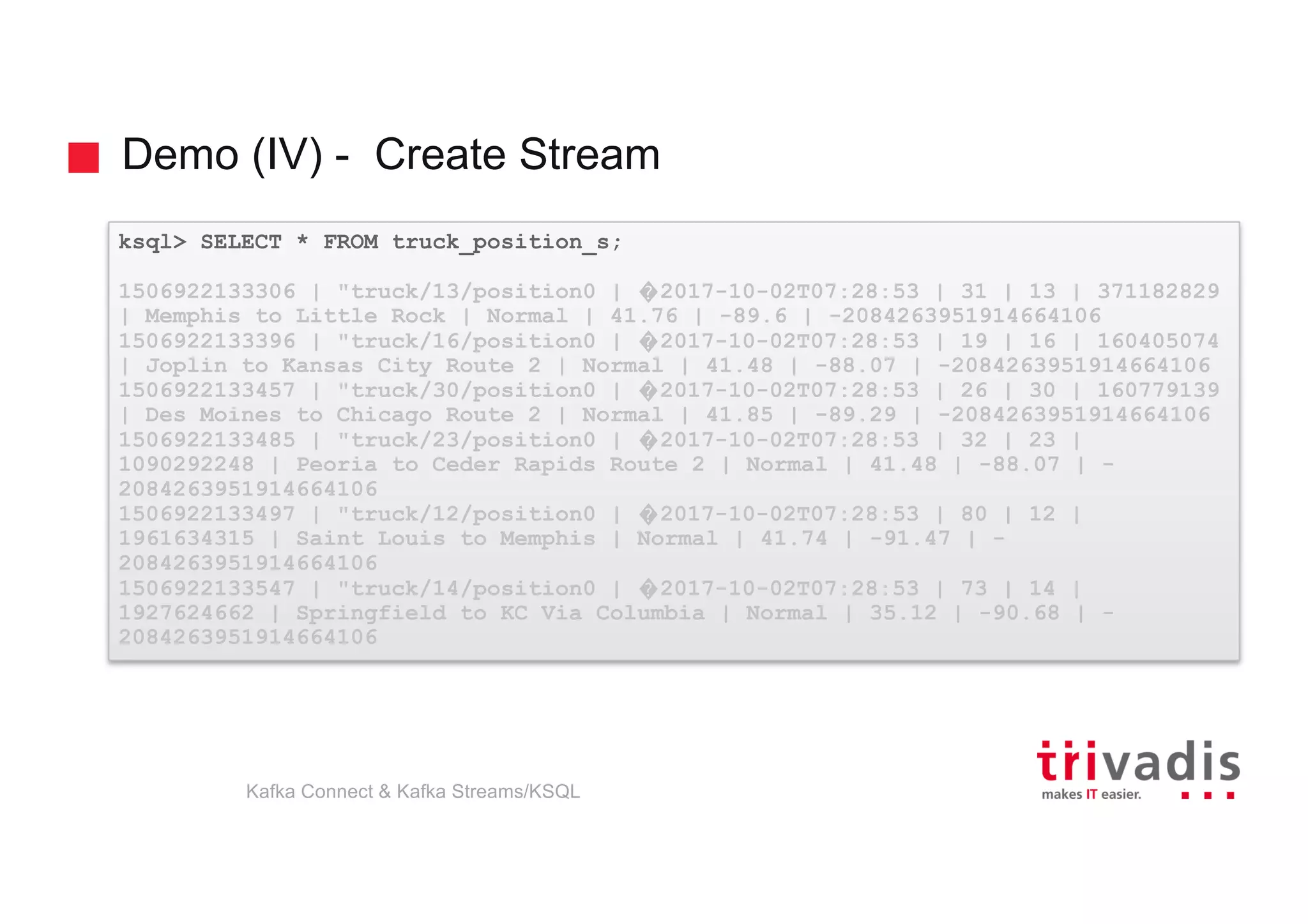

Demo (IV) - Create Stream ksql> SELECT * FROM truck_position_s; 1506922133306 | "truck/13/position0 | �2017-10-02T07:28:53 | 31 | 13 | 371182829 | Memphis to Little Rock | Normal | 41.76 | -89.6 | -2084263951914664106 1506922133396 | "truck/16/position0 | �2017-10-02T07:28:53 | 19 | 16 | 160405074 | Joplin to Kansas City Route 2 | Normal | 41.48 | -88.07 | -2084263951914664106 1506922133457 | "truck/30/position0 | �2017-10-02T07:28:53 | 26 | 30 | 160779139 | Des Moines to Chicago Route 2 | Normal | 41.85 | -89.29 | -2084263951914664106 1506922133485 | "truck/23/position0 | �2017-10-02T07:28:53 | 32 | 23 | 1090292248 | Peoria to Ceder Rapids Route 2 | Normal | 41.48 | -88.07 | - 2084263951914664106 1506922133497 | "truck/12/position0 | �2017-10-02T07:28:53 | 80 | 12 | 1961634315 | Saint Louis to Memphis | Normal | 41.74 | -91.47 | - 2084263951914664106 1506922133547 | "truck/14/position0 | �2017-10-02T07:28:53 | 73 | 14 | 1927624662 | Springfield to KC Via Columbia | Normal | 35.12 | -90.68 | - 2084263951914664106 Kafka Connect & Kafka Streams/KSQL

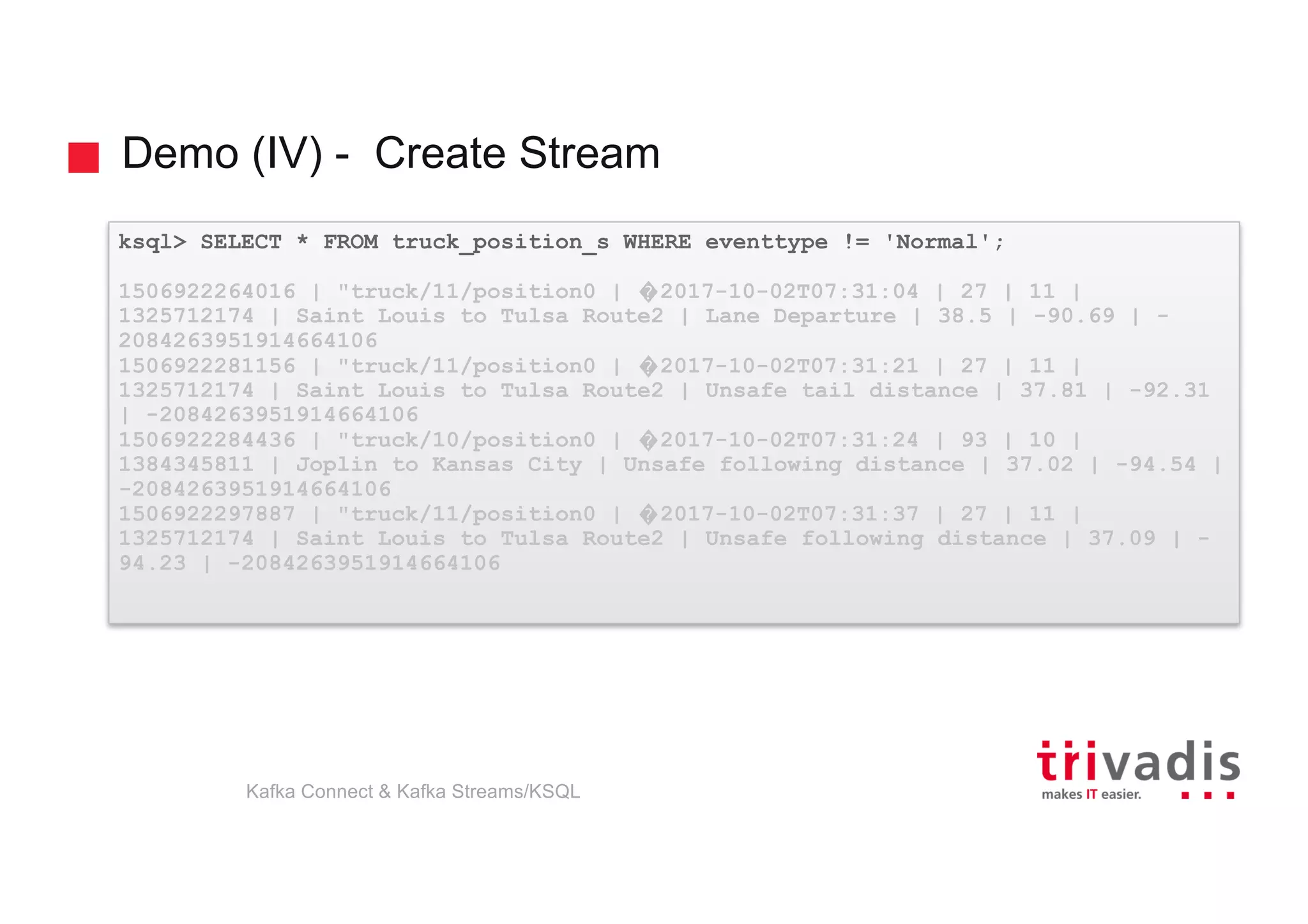

Demo (IV) - Create Stream ksql> SELECT * FROM truck_position_s WHERE eventtype != 'Normal'; 1506922264016 | "truck/11/position0 | �2017-10-02T07:31:04 | 27 | 11 | 1325712174 | Saint Louis to Tulsa Route2 | Lane Departure | 38.5 | -90.69 | - 2084263951914664106 1506922281156 | "truck/11/position0 | �2017-10-02T07:31:21 | 27 | 11 | 1325712174 | Saint Louis to Tulsa Route2 | Unsafe tail distance | 37.81 | -92.31 | -2084263951914664106 1506922284436 | "truck/10/position0 | �2017-10-02T07:31:24 | 93 | 10 | 1384345811 | Joplin to Kansas City | Unsafe following distance | 37.02 | -94.54 | -2084263951914664106 1506922297887 | "truck/11/position0 | �2017-10-02T07:31:37 | 27 | 11 | 1325712174 | Saint Louis to Tulsa Route2 | Unsafe following distance | 37.09 | - 94.23 | -2084263951914664106 Kafka Connect & Kafka Streams/KSQL

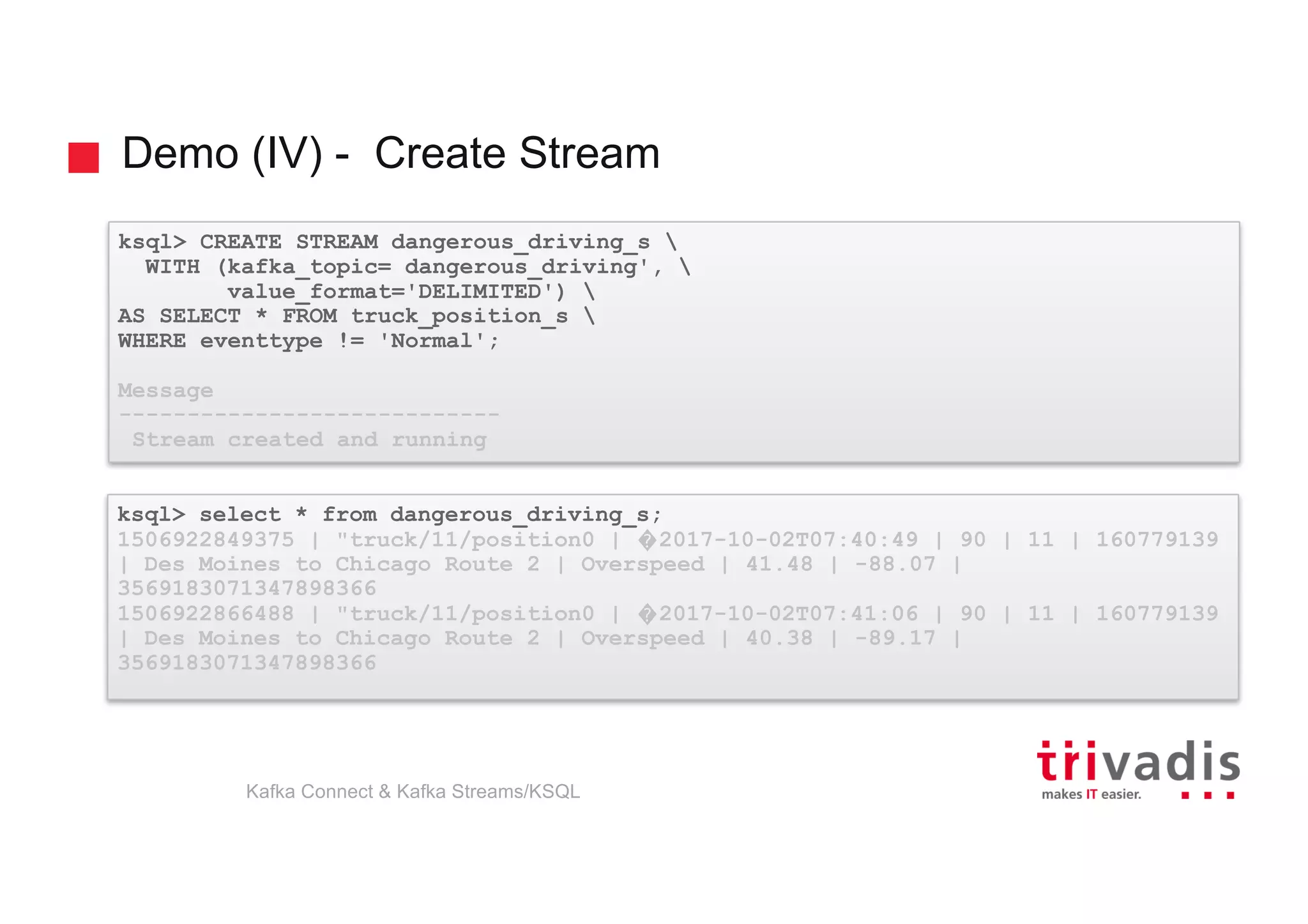

Demo (IV) - Create Stream ksql> CREATE STREAM dangerous_driving_s WITH (kafka_topic= dangerous_driving', value_format='DELIMITED') AS SELECT * FROM truck_position_s WHERE eventtype != 'Normal'; Message ---------------------------- Stream created and running ksql> select * from dangerous_driving_s; 1506922849375 | "truck/11/position0 | �2017-10-02T07:40:49 | 90 | 11 | 160779139 | Des Moines to Chicago Route 2 | Overspeed | 41.48 | -88.07 | 3569183071347898366 1506922866488 | "truck/11/position0 | �2017-10-02T07:41:06 | 90 | 11 | 160779139 | Des Moines to Chicago Route 2 | Overspeed | 40.38 | -89.17 | 3569183071347898366 Kafka Connect & Kafka Streams/KSQL
Demo (IV) - Create Stream ksql> describe dangerous_driving_s; Field | Type --------------------------------- ROWTIME | BIGINT ROWKEY | VARCHAR(STRING) TS | VARCHAR(STRING) TRUCKID | VARCHAR(STRING) DRIVERID | BIGINT ROUTEID | BIGINT ROUTENAME | VARCHAR(STRING) EVENTTYPE | VARCHAR(STRING) LATITUDE | DOUBLE LONGITUDE | DOUBLE CORRELATIONID | VARCHAR(STRING) Kafka Connect & Kafka Streams/KSQL

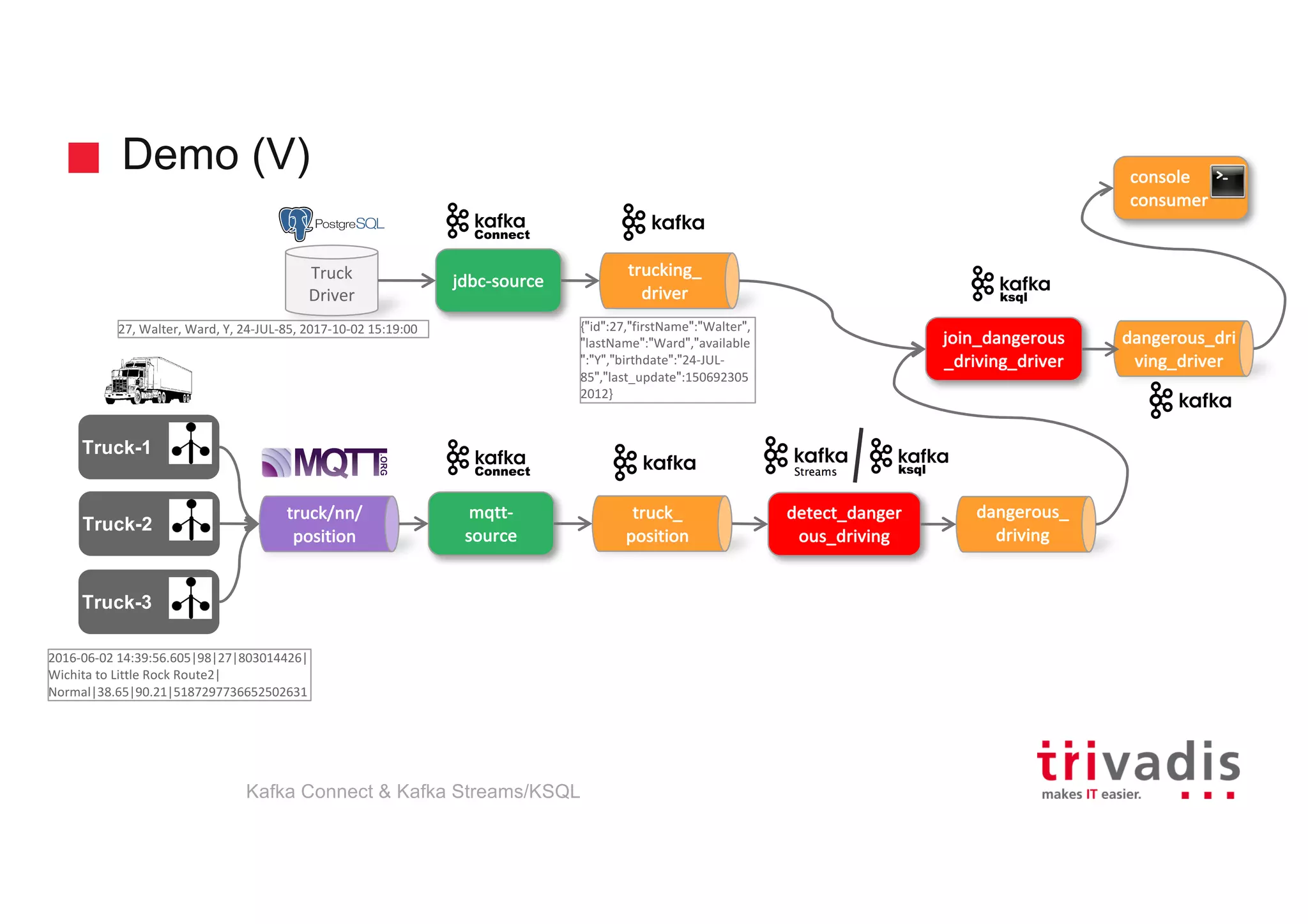

Demo (V) Truck-2 truck/nn/ position Truck-1 Truck-3 mqtt- source truck_ position detect_danger ous_driving dangerous_ driving Truck Driver jdbc-source trucking_ driver join_dangerous _driving_driver dangerous_dri ving_driver 27, Walter, Ward, Y, 24-JUL-85, 2017-10-02 15:19:00 console consumer 2016-06-02 14:39:56.605|98|27|803014426| Wichita to Little Rock Route2| Normal|38.65|90.21|5187297736652502631 {"id":27,"firstName":"Walter", "lastName":"Ward","available ":"Y","birthdate":"24-JUL- 85","last_update":150692305 2012} Kafka Connect & Kafka Streams/KSQL

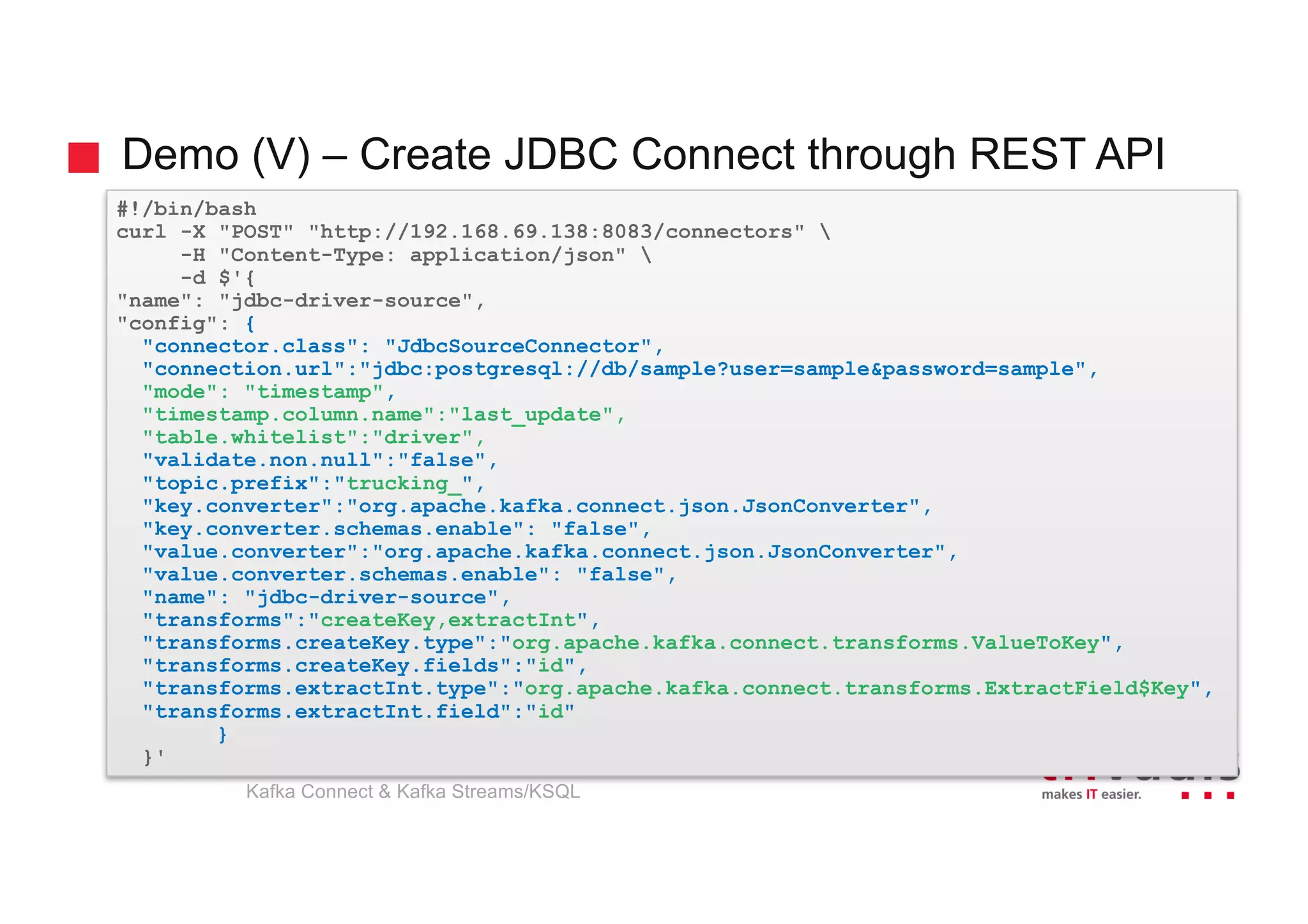

Demo (V) – Create JDBC Connect through REST API #!/bin/bash curl -X "POST" "http://192.168.69.138:8083/connectors" -H "Content-Type: application/json" -d $'{ "name": "jdbc-driver-source", "config": { "connector.class": "JdbcSourceConnector", "connection.url":"jdbc:postgresql://db/sample?user=sample&password=sample", "mode": "timestamp", "timestamp.column.name":"last_update", "table.whitelist":"driver", "validate.non.null":"false", "topic.prefix":"trucking_", "key.converter":"org.apache.kafka.connect.json.JsonConverter", "key.converter.schemas.enable": "false", "value.converter":"org.apache.kafka.connect.json.JsonConverter", "value.converter.schemas.enable": "false", "name": "jdbc-driver-source", "transforms":"createKey,extractInt", "transforms.createKey.type":"org.apache.kafka.connect.transforms.ValueToKey", "transforms.createKey.fields":"id", "transforms.extractInt.type":"org.apache.kafka.connect.transforms.ExtractField$Key", "transforms.extractInt.field":"id" } }' Kafka Connect & Kafka Streams/KSQL
Demo (V) – Create JDBC Connect through REST API Kafka Connect & Kafka Streams/KSQL

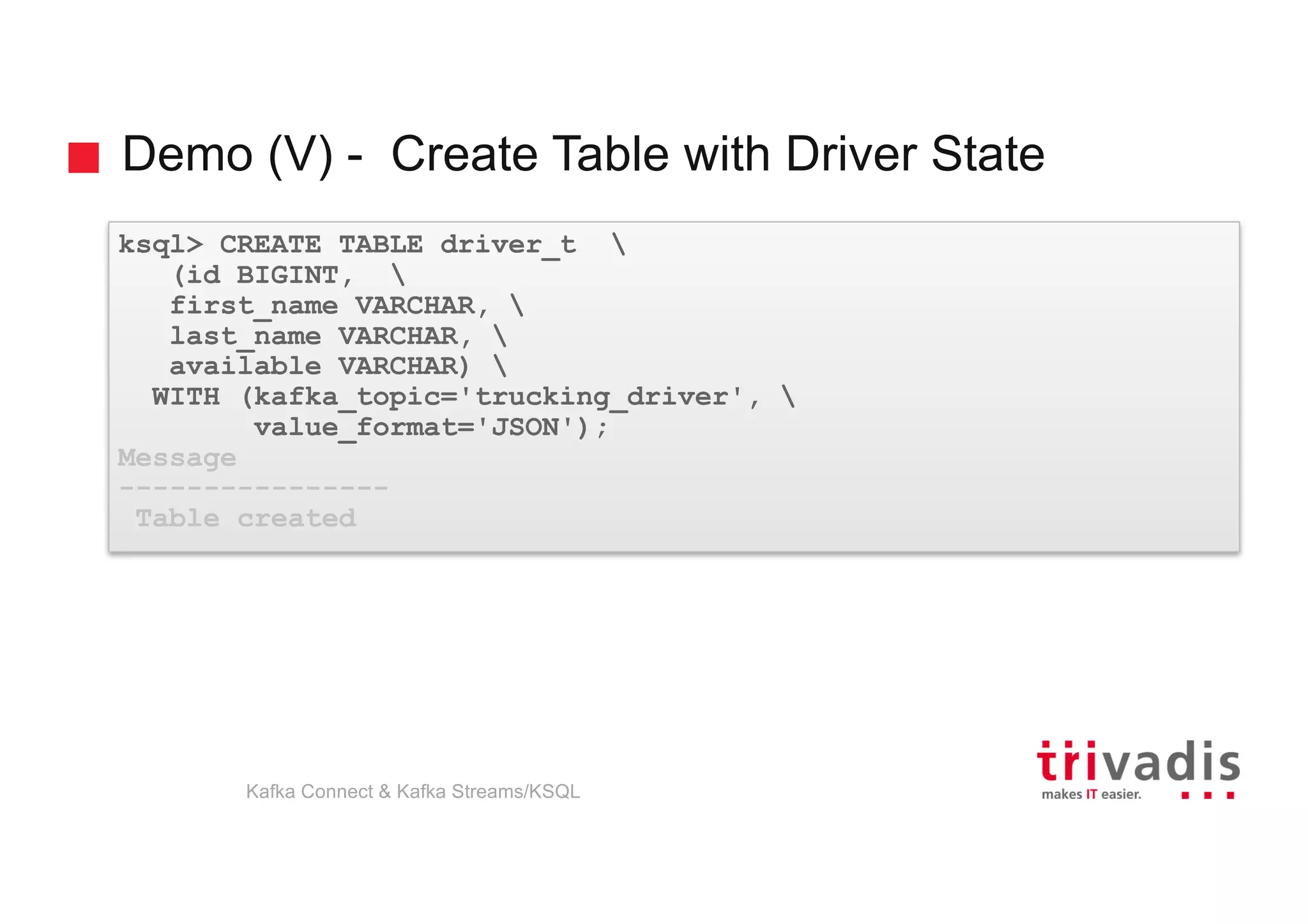

Demo (V) - Create Table with Driver State ksql> CREATE TABLE driver_t (id BIGINT, first_name VARCHAR, last_name VARCHAR, available VARCHAR) WITH (kafka_topic='trucking_driver', value_format='JSON'); Message ---------------- Table created Kafka Connect & Kafka Streams/KSQL

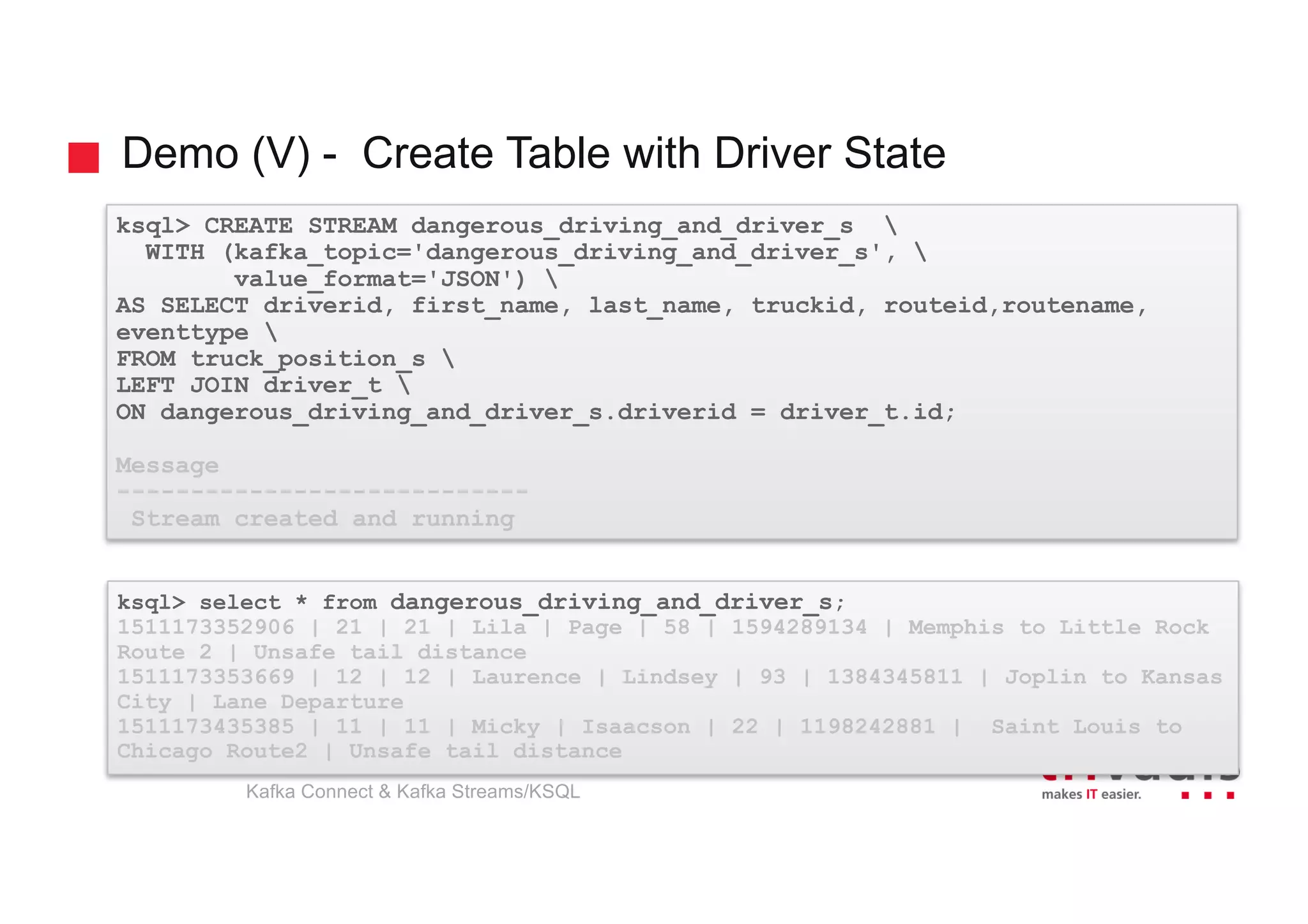

Demo (V) - Create Table with Driver State ksql> CREATE STREAM dangerous_driving_and_driver_s WITH (kafka_topic='dangerous_driving_and_driver_s', value_format='JSON') AS SELECT driverid, first_name, last_name, truckid, routeid,routename, eventtype FROM truck_position_s LEFT JOIN driver_t ON dangerous_driving_and_driver_s.driverid = driver_t.id; Message ---------------------------- Stream created and running ksql> select * from dangerous_driving_and_driver_s; 1511173352906 | 21 | 21 | Lila | Page | 58 | 1594289134 | Memphis to Little Rock Route 2 | Unsafe tail distance 1511173353669 | 12 | 12 | Laurence | Lindsey | 93 | 1384345811 | Joplin to Kansas City | Lane Departure 1511173435385 | 11 | 11 | Micky | Isaacson | 22 | 1198242881 | Saint Louis to Chicago Route2 | Unsafe tail distance Kafka Connect & Kafka Streams/KSQL

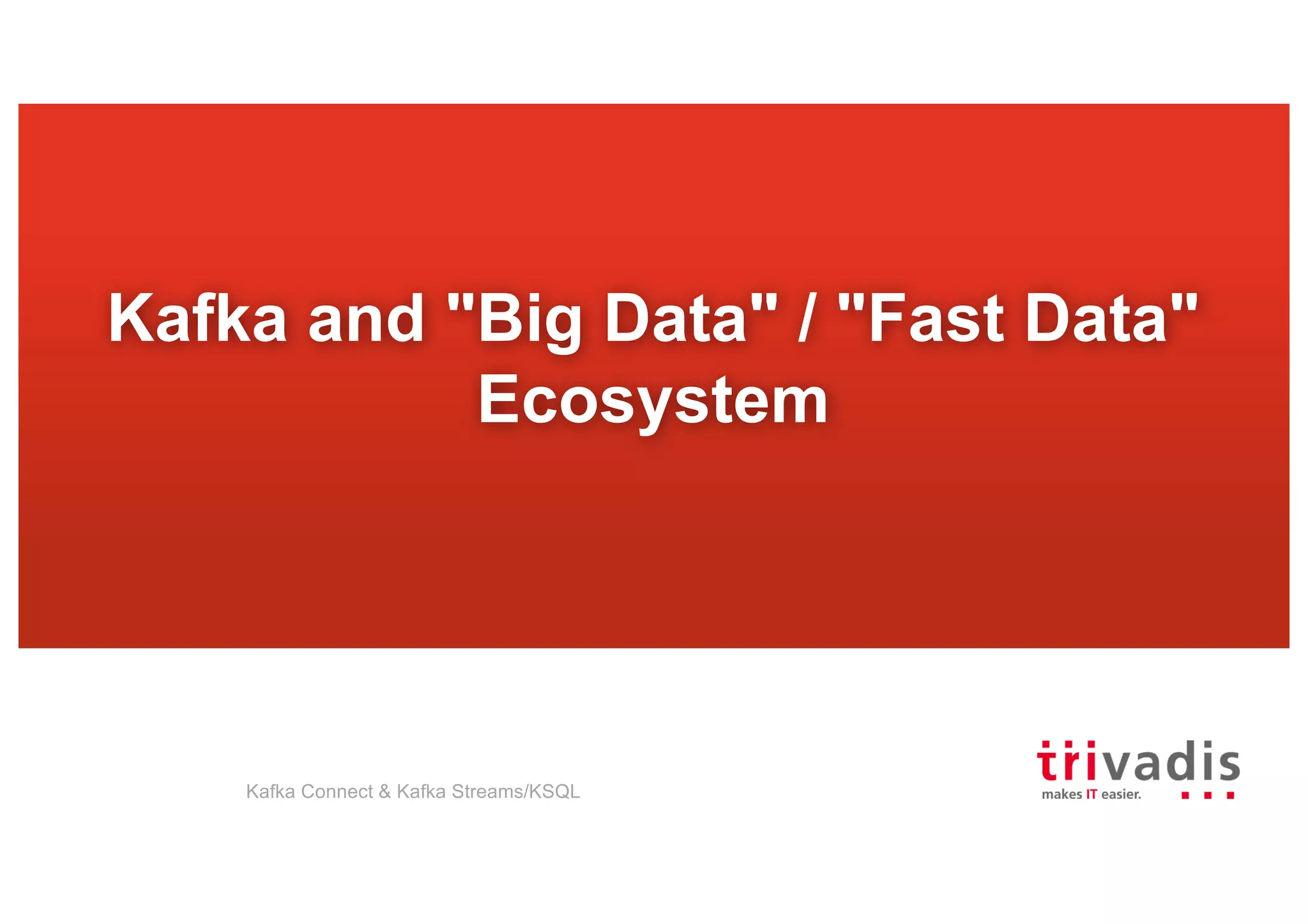

Kafka and "Big Data" / "Fast Data" Ecosystem Kafka Connect & Kafka Streams/KSQL

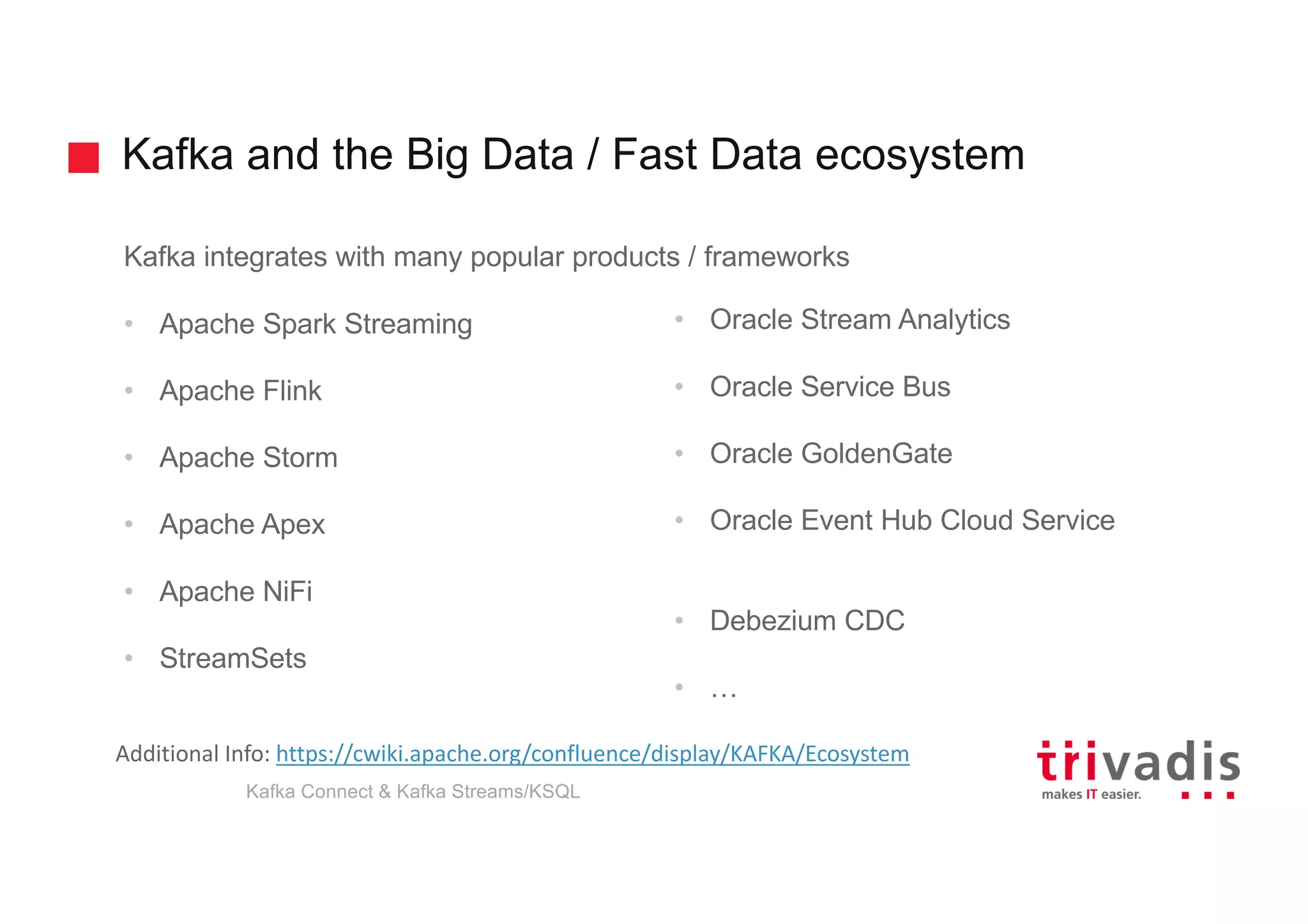

Kafka and the Big Data / Fast Data ecosystem Kafka integrates with many popular products / frameworks • Apache Spark Streaming • Apache Flink • Apache Storm • Apache Apex • Apache NiFi • StreamSets • Oracle Stream Analytics • Oracle Service Bus • Oracle GoldenGate • Oracle Event Hub Cloud Service • Debezium CDC • … Additional Info: https://cwiki.apache.org/confluence/display/KAFKA/Ecosystem Kafka Connect & Kafka Streams/KSQL
Kafka in Software Architecture Kafka Connect & Kafka Streams/KSQL

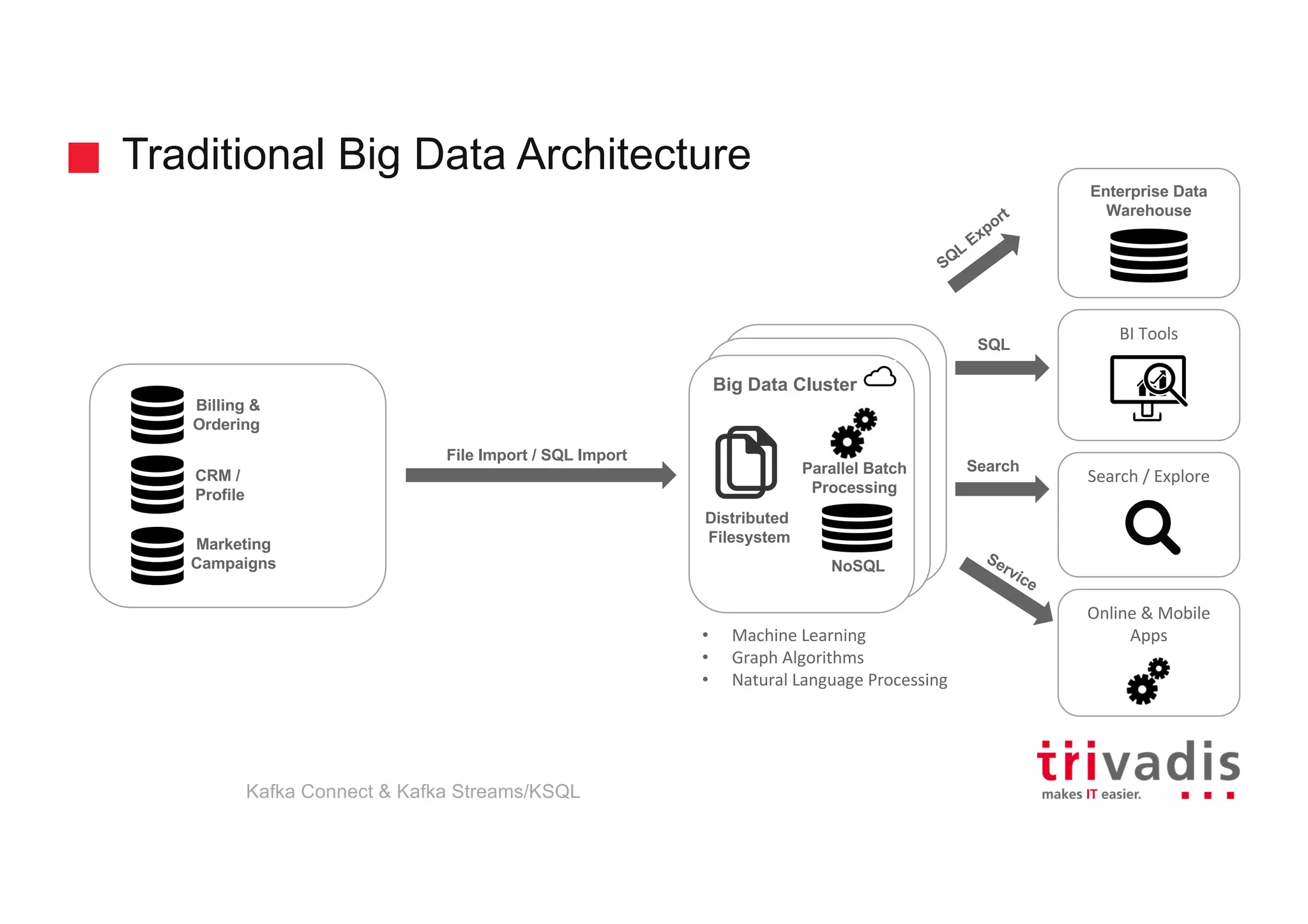

Hadoop Clusterd Hadoop Cluster Big Data Cluster Traditional Big Data Architecture BI Tools Enterprise Data Warehouse Billing & Ordering CRM / Profile Marketing Campaigns File Import / SQL Import SQL Search / Explore Online & Mobile Apps Search NoSQL Parallel Batch Processing Distributed Filesystem • Machine Learning • Graph Algorithms • Natural Language Processing Kafka Connect & Kafka Streams/KSQL

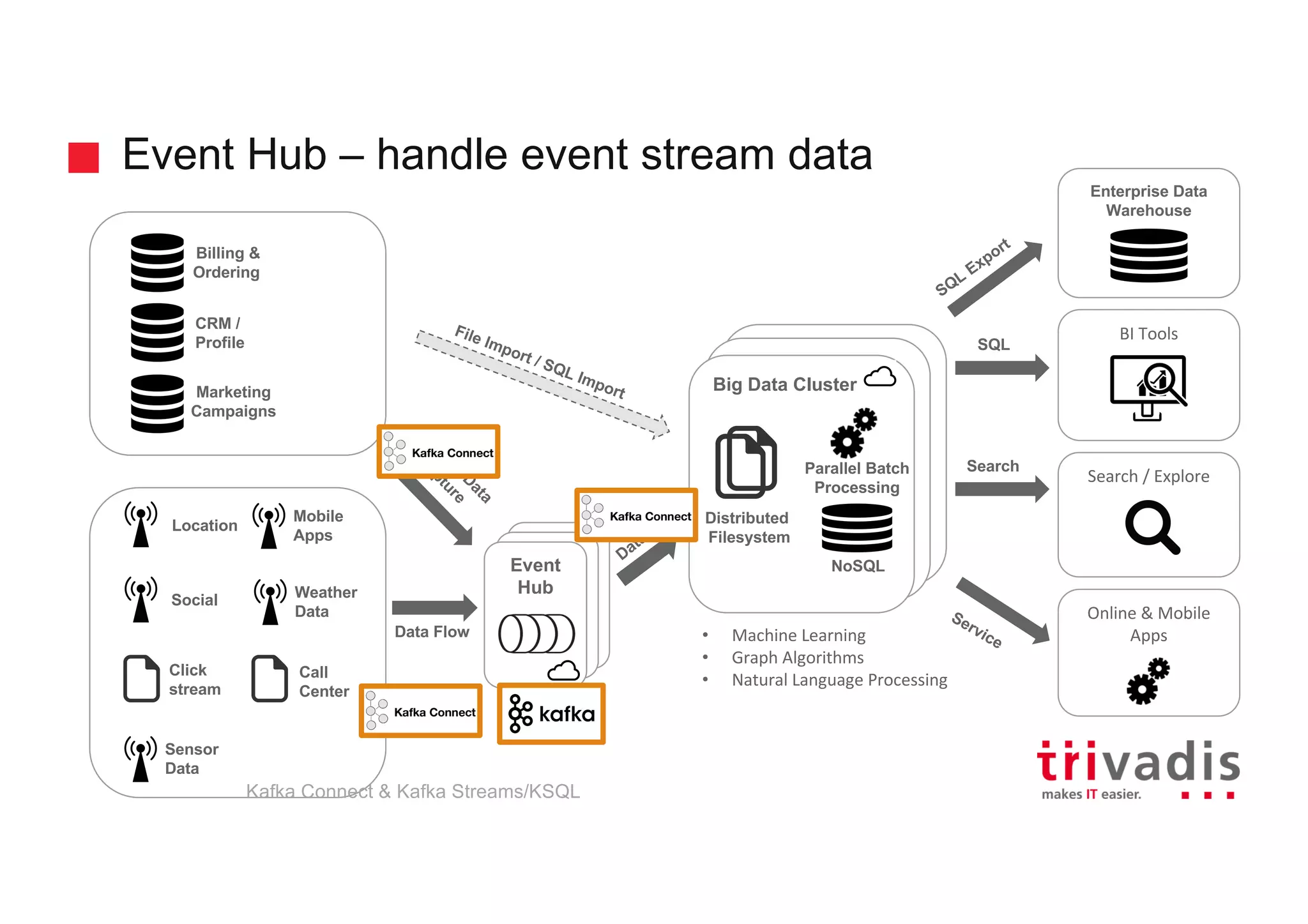

Event Hub Event Hub Hadoop Clusterd Hadoop Cluster Big Data Cluster Event Hub – handle event stream data BI Tools Enterprise Data Warehouse Location Social Click stream Sensor Data Billing & Ordering CRM / Profile Marketing Campaigns Event Hub Call Center Weather Data Mobile Apps SQL Search / Explore Online & Mobile Apps Search Data Flow NoSQL Parallel Batch Processing Distributed Filesystem • Machine Learning • Graph Algorithms • Natural Language Processing Kafka Connect & Kafka Streams/KSQL

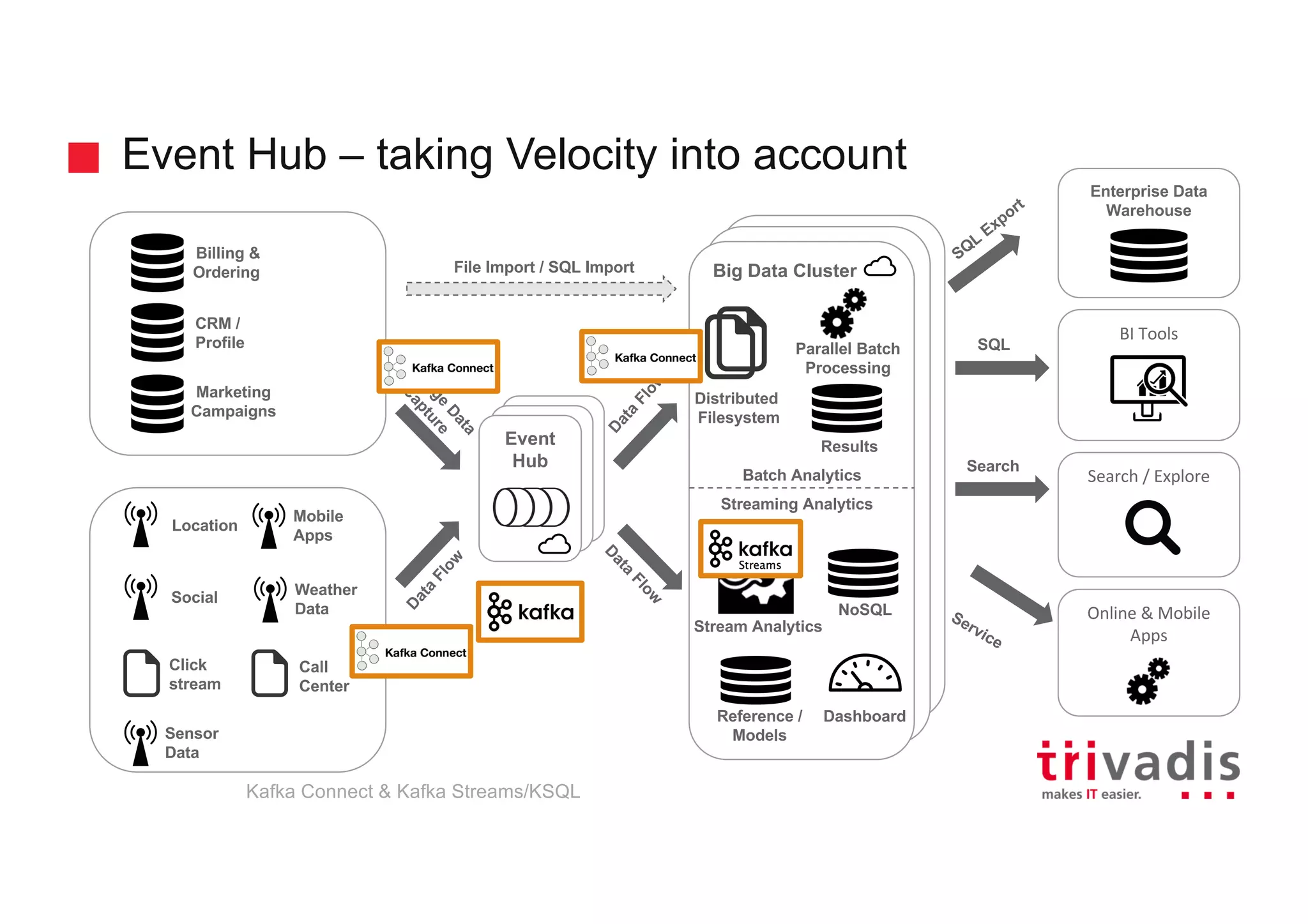

Hadoop Clusterd Hadoop Cluster Big Data Cluster Event Hub – taking Velocity into account Location Social Click stream Sensor Data Billing & Ordering CRM / Profile Marketing Campaigns Call Center Mobile Apps Batch Analytics Streaming Analytics Results Parallel Batch Processing Distributed Filesystem Stream Analytics NoSQL Reference / Models SQL Search Dashboard BI Tools Enterprise Data Warehouse Search / Explore Online & Mobile Apps File Import / SQL Import Weather Data Event Hub Event Hub Event Hub Kafka Connect & Kafka Streams/KSQL

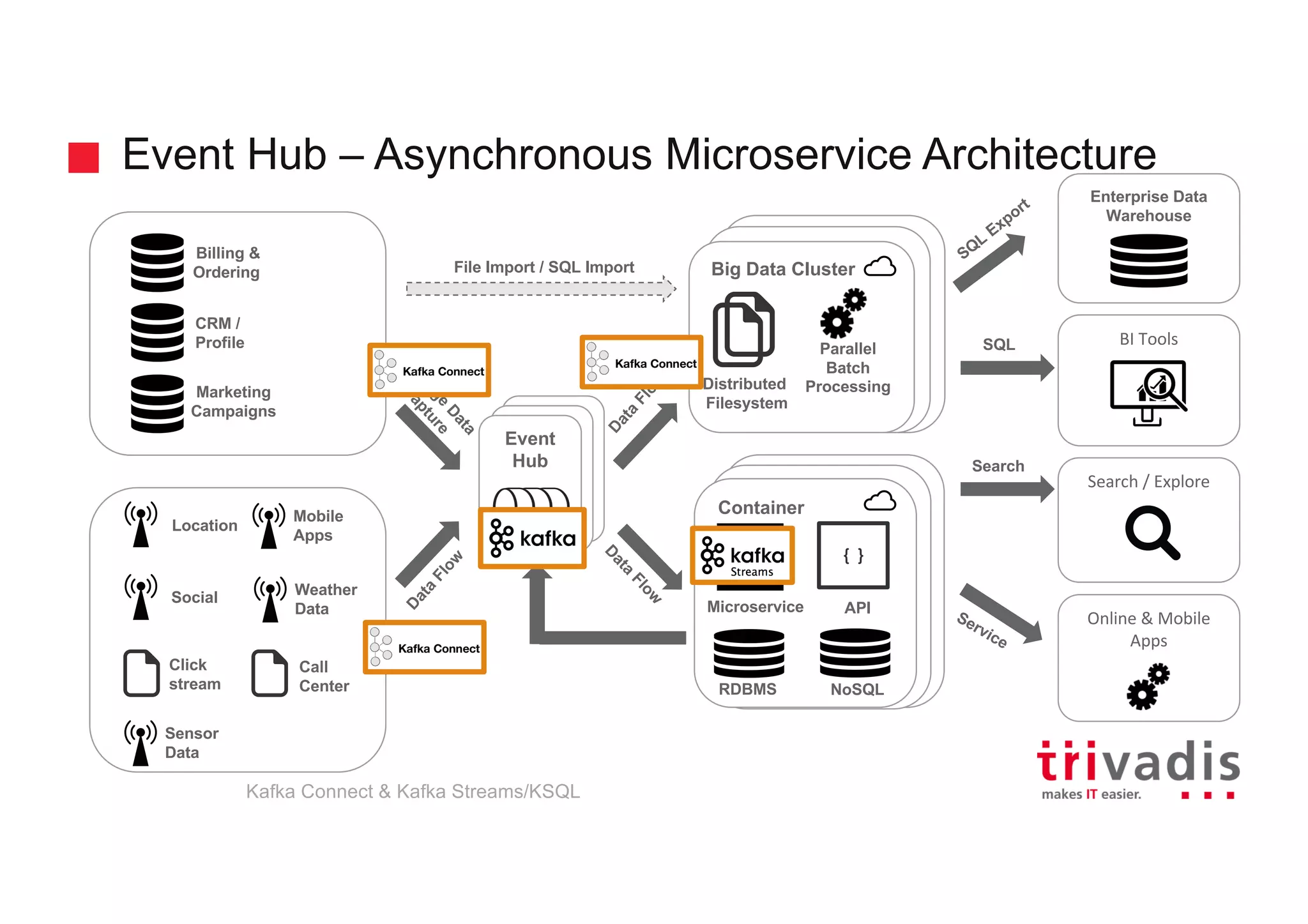

Container Hadoop Clusterd Hadoop Cluster Big Data Cluster Event Hub – Asynchronous Microservice Architecture Location Social Click stream Sensor Data Billing & Ordering CRM / Profile Marketing Campaigns Call Center Mobile Apps Parallel Batch ProcessingDistributed Filesystem Microservice NoSQLRDBMS SQL Search BI Tools Enterprise Data Warehouse Search / Explore Online & Mobile Apps File Import / SQL Import Weather Data { } API Event Hub Event Hub Event Hub Kafka Connect & Kafka Streams/KSQL
Kafka Connect & Kafka Streams/KSQL Technology on its own won't help you. You need to know how to use it properly.
