1. JVM INTERNALS
Introduction toVirtual Machines and the JVM
1
LuizTeston
www.fracta.cc

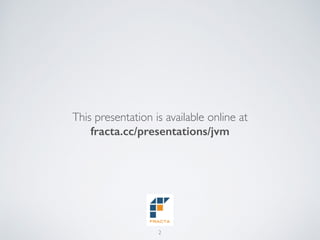

2. This presentation is available online at
fracta.cc/presentations/jvm
2

3. VIRTUAL MACHINES
3

4. Mimics a Real Machine
4

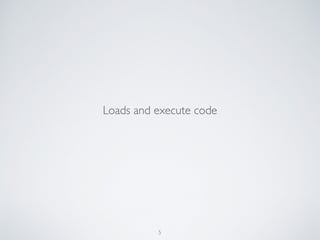

5. Loads and execute code
5

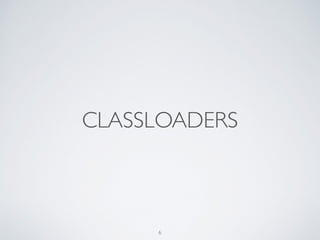

6. CLASSLOADERS
6

7. Java classes are loaded on demand
7

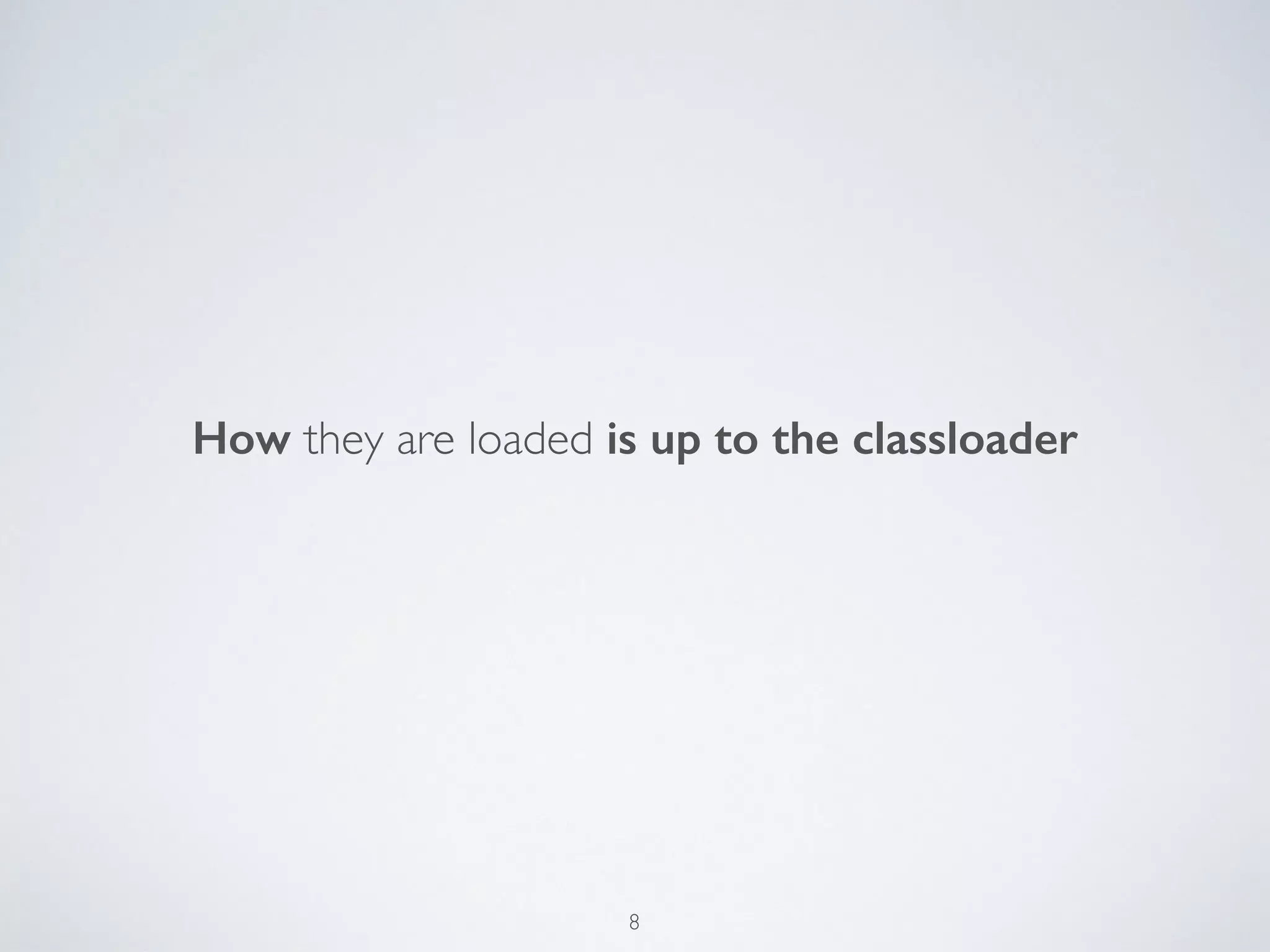

8. How they are loaded is up to the classloader
8

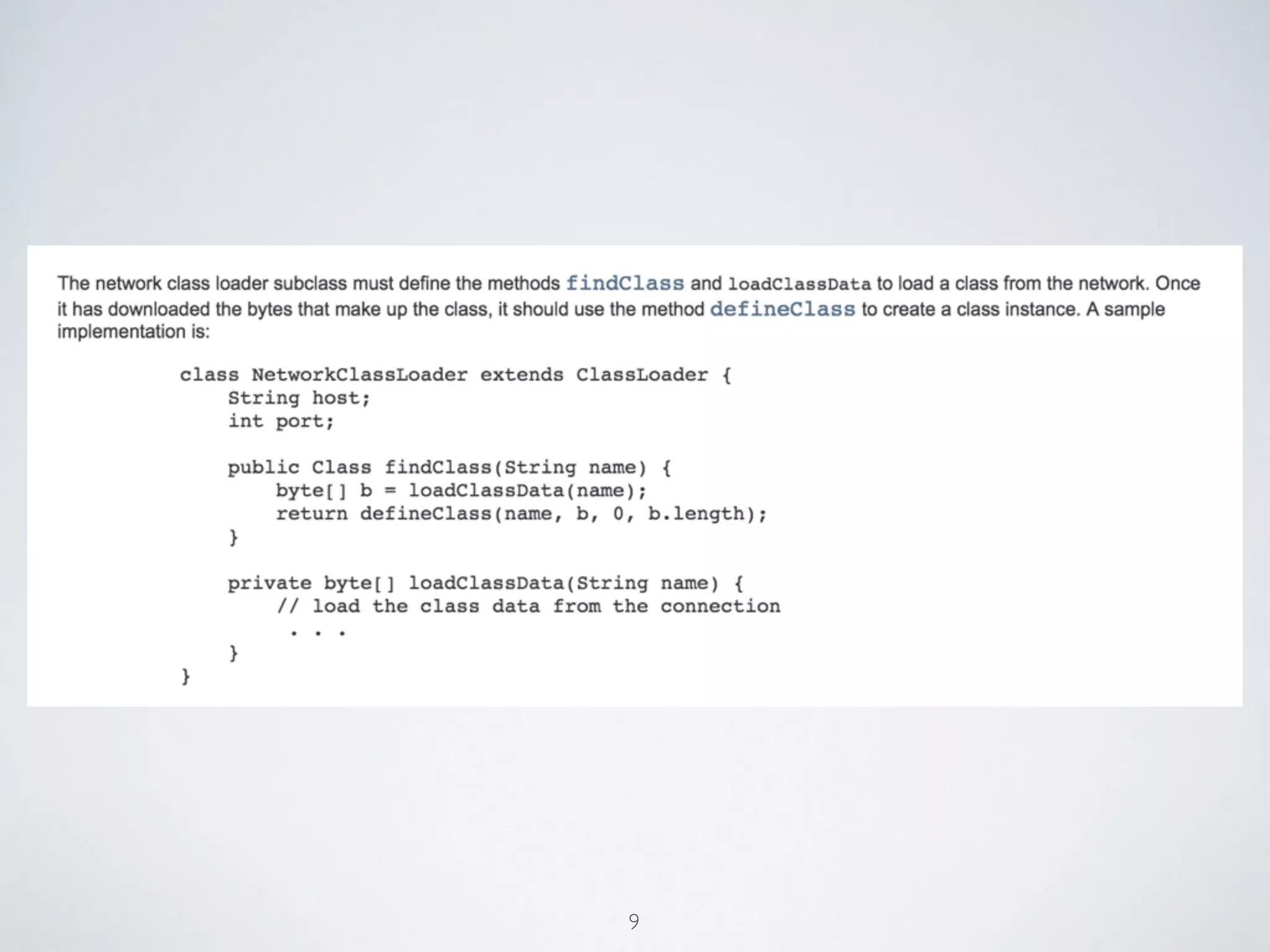

9. 9

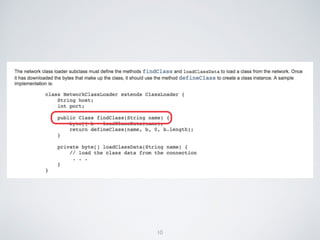

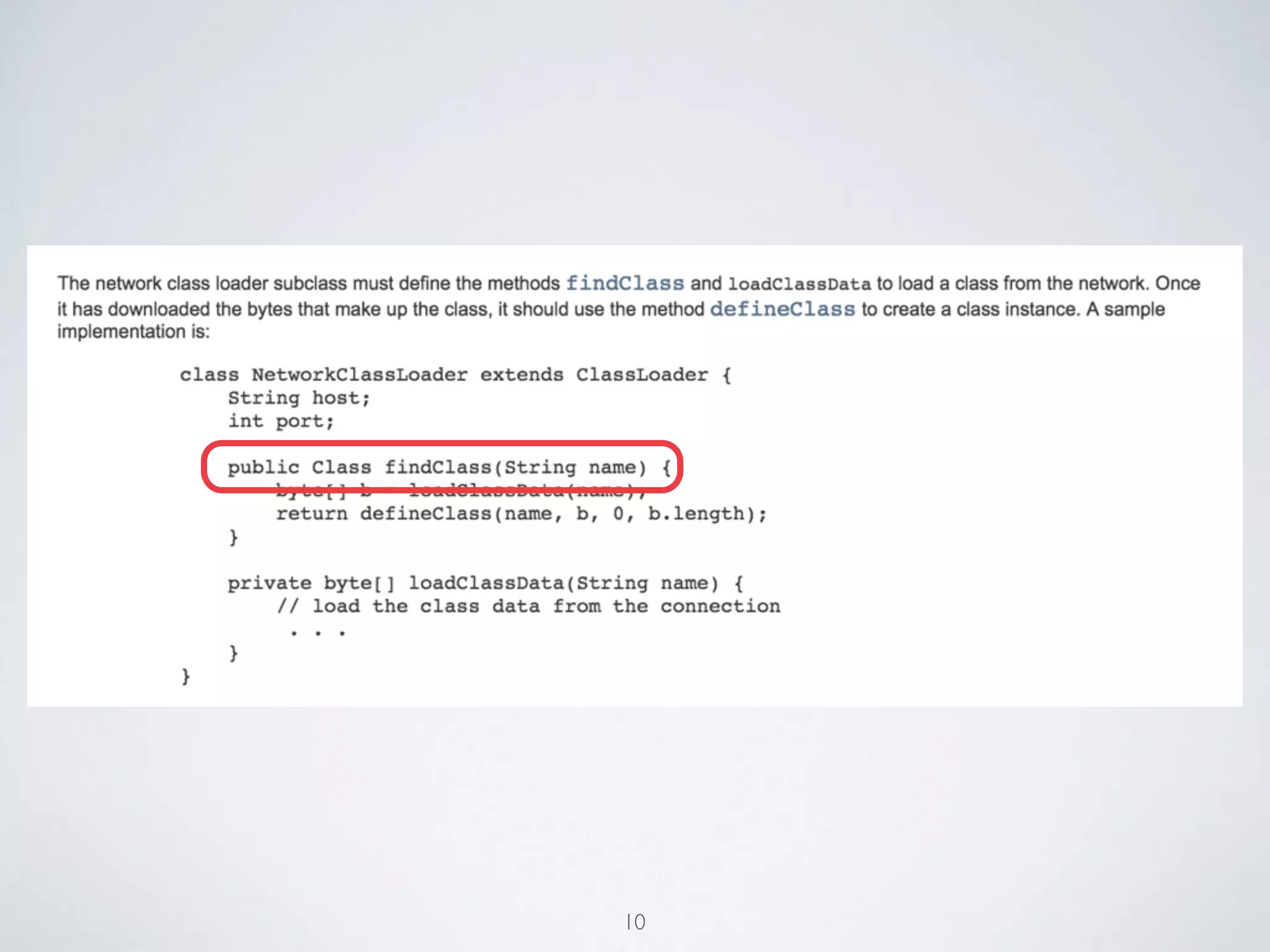

10. 10

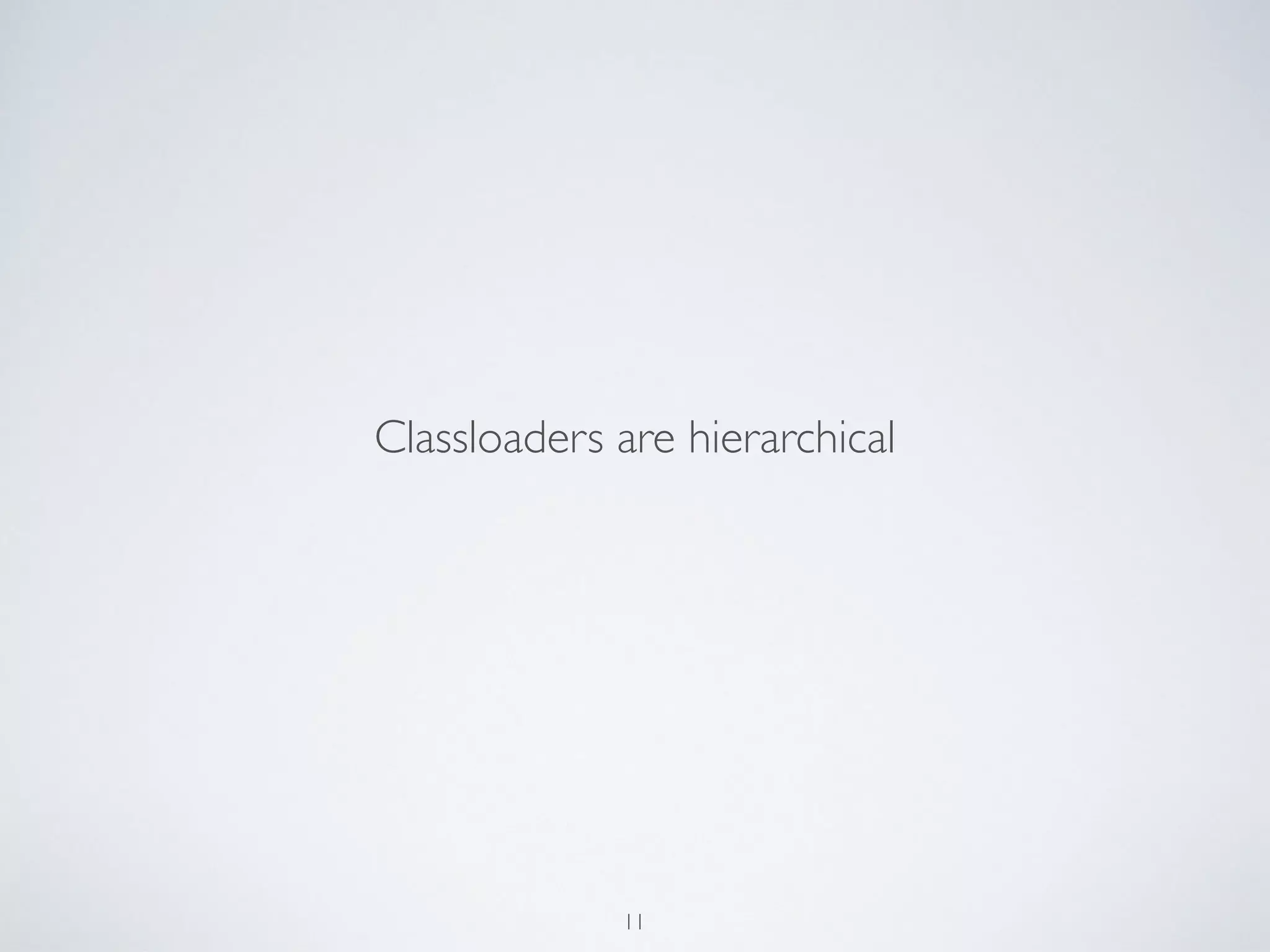

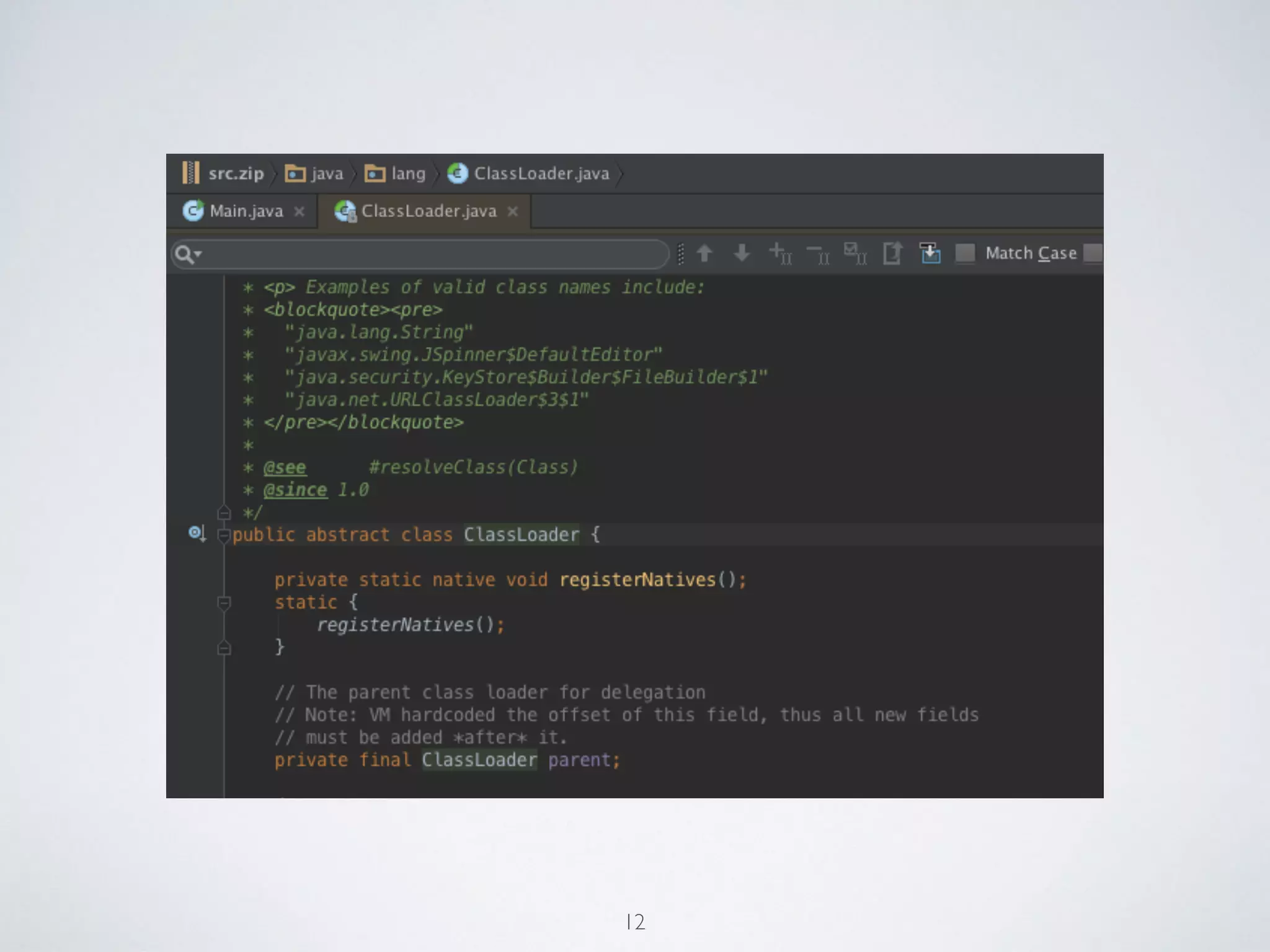

11. Classloaders are hierarchical
11

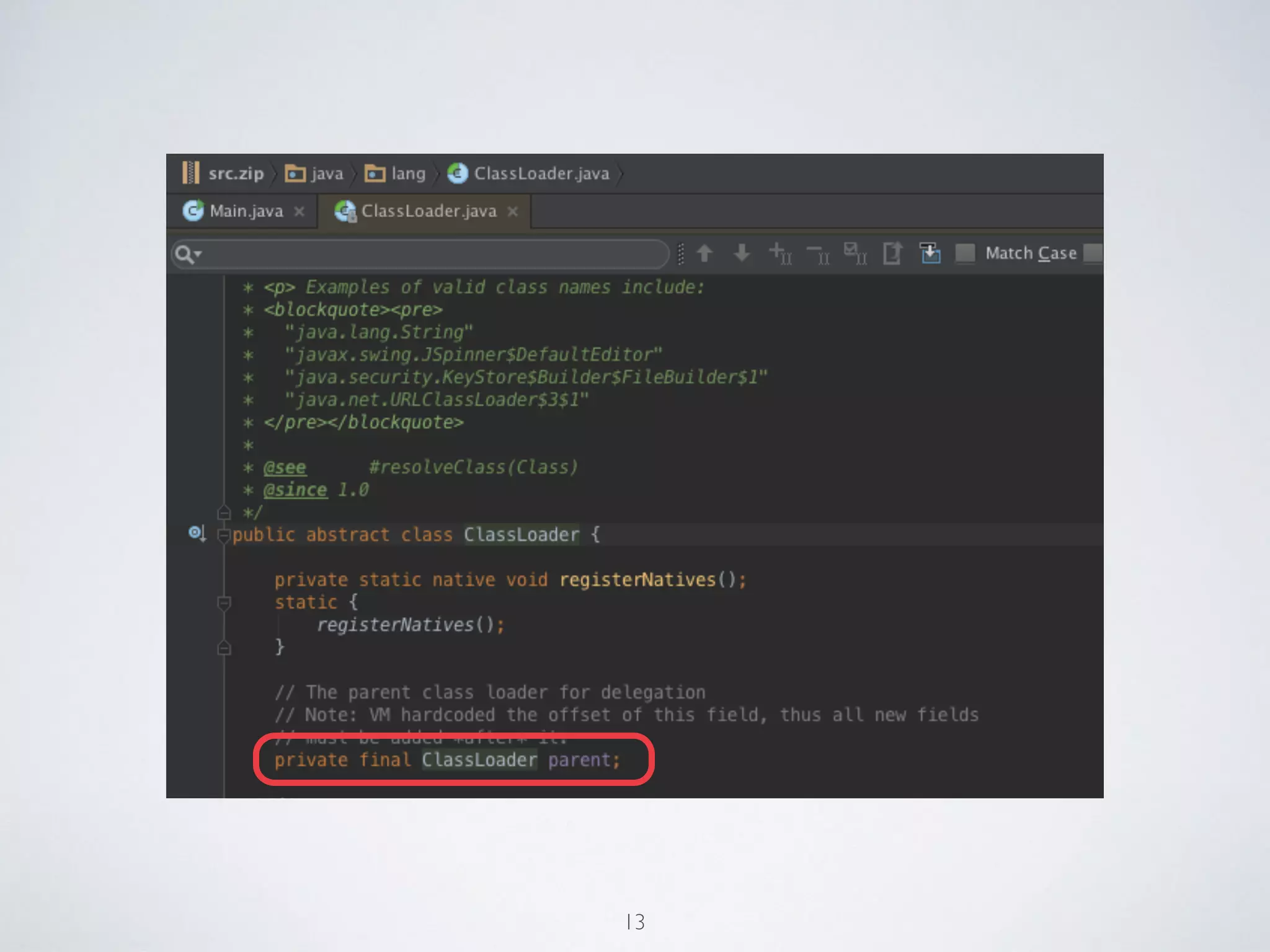

12. 12

13. 13

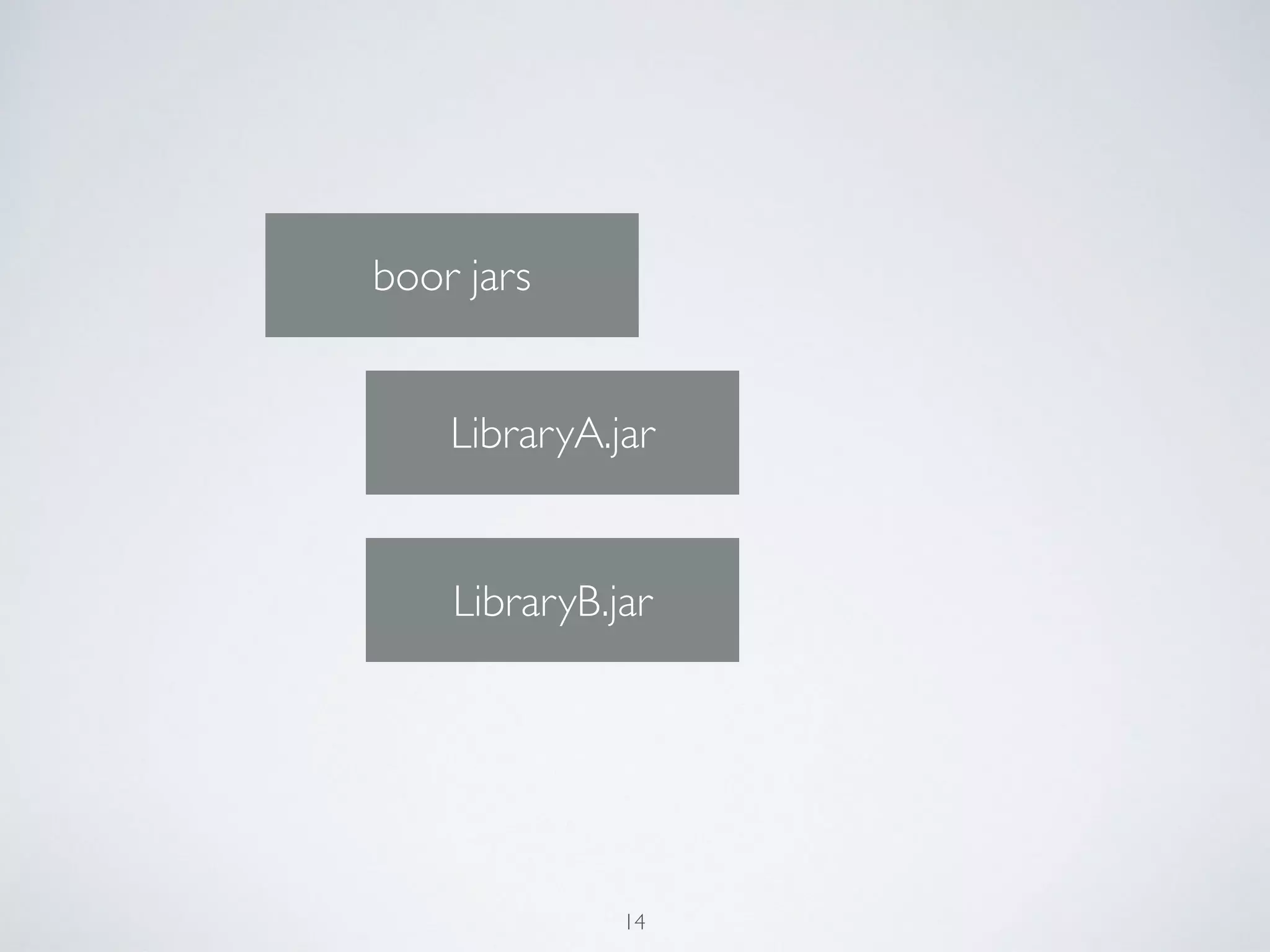

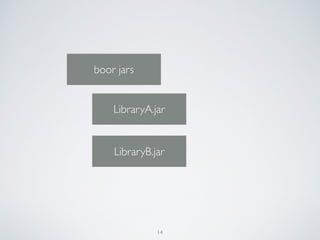

14. boor jars
LibraryA.jar
LibraryB.jar
14

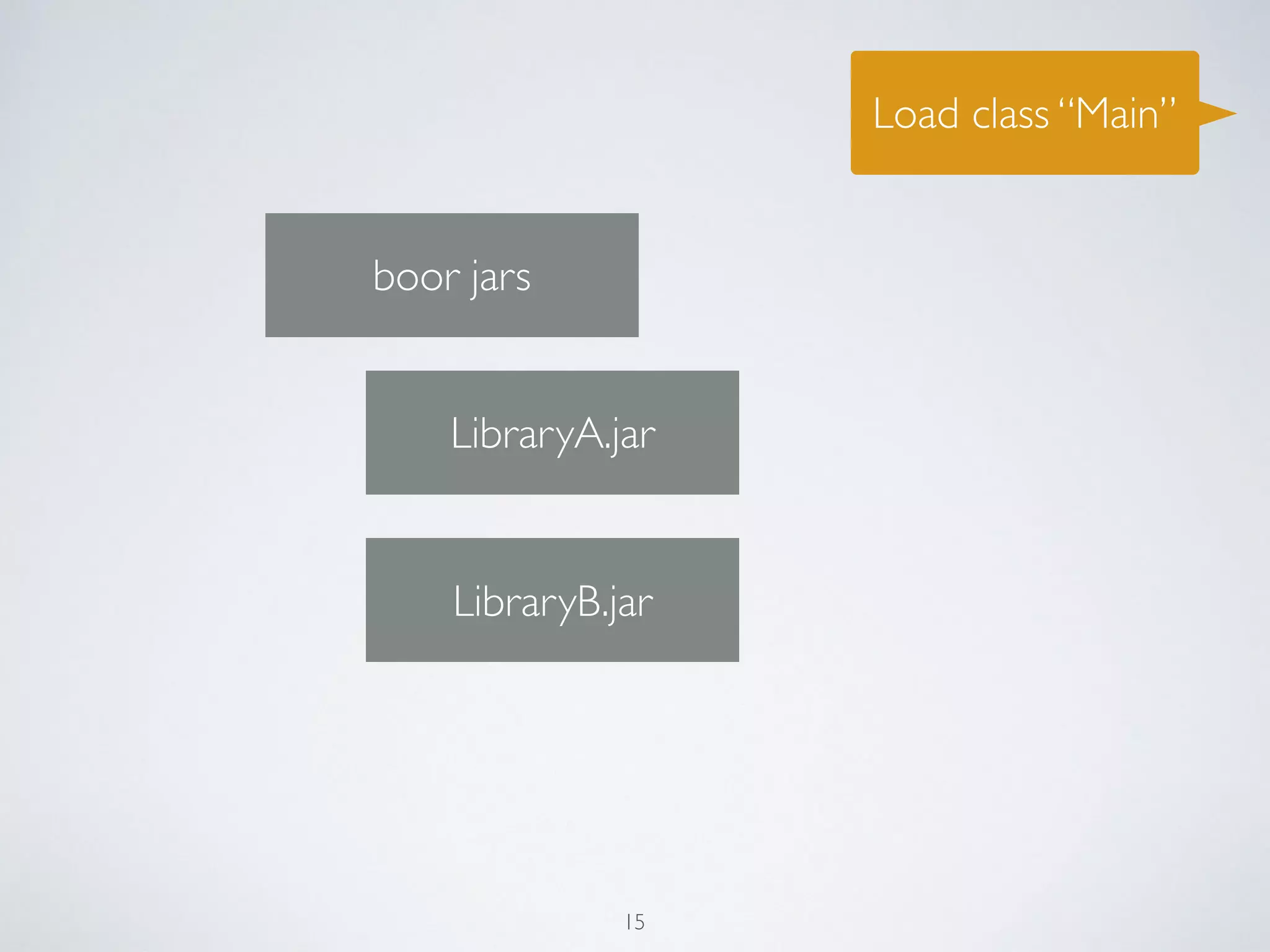

15. boor jars
LibraryA.jar
LibraryB.jar
Load class “Main”
15

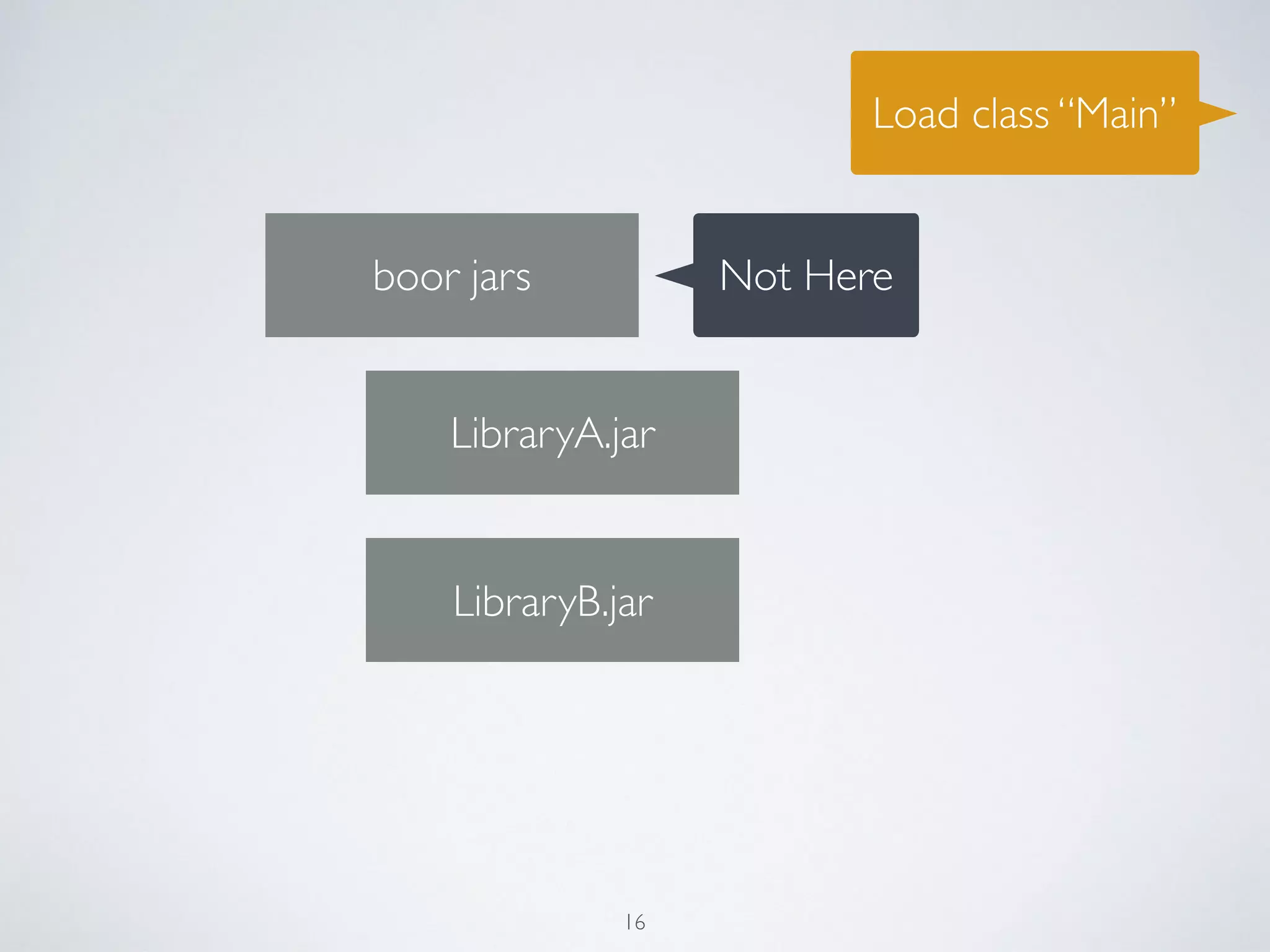

16. boor jars
LibraryA.jar
LibraryB.jar
Load class “Main”
Not Here
16

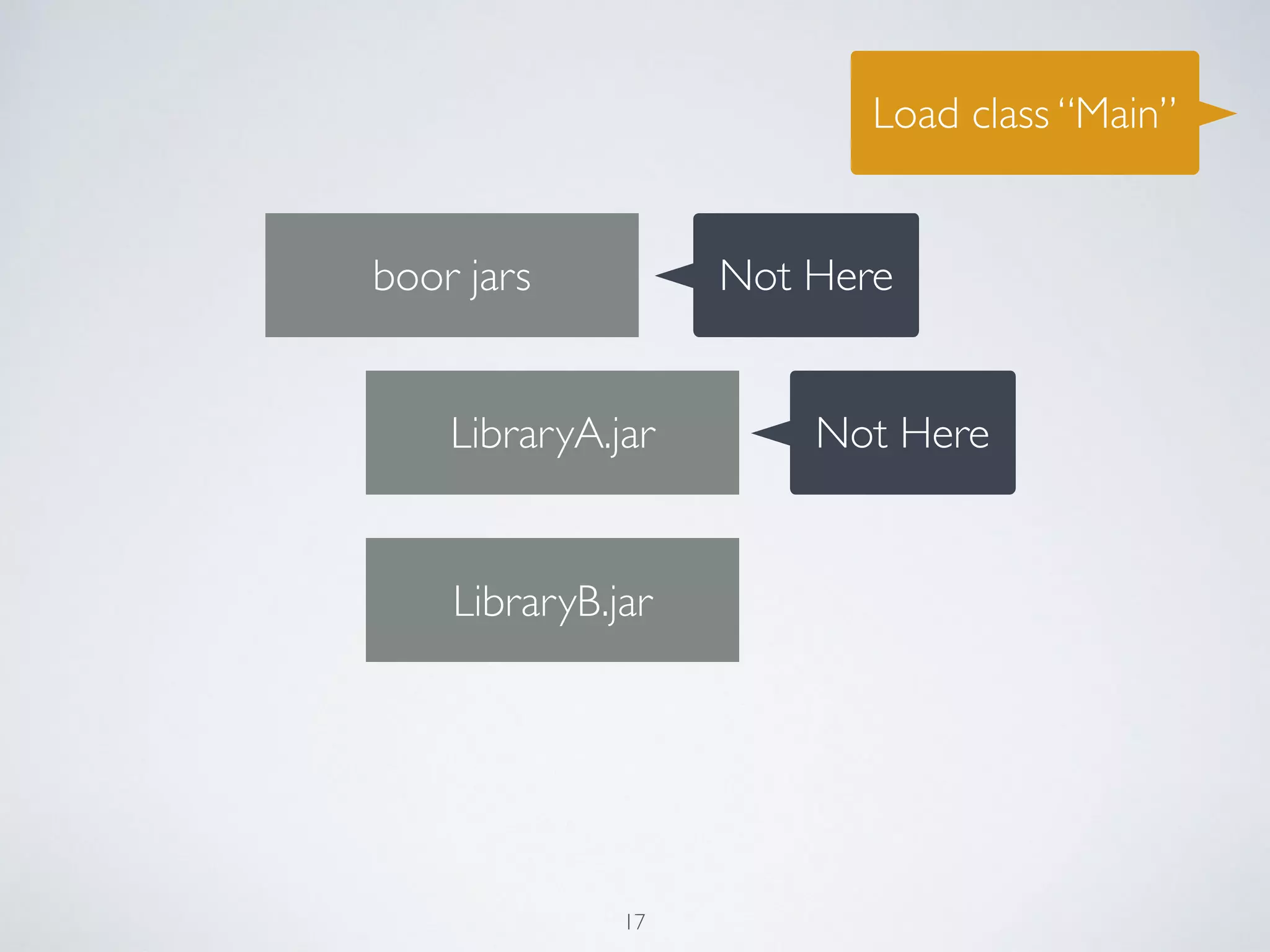

17. boor jars
LibraryA.jar
LibraryB.jar
Load class “Main”
Not Here
Not Here
17

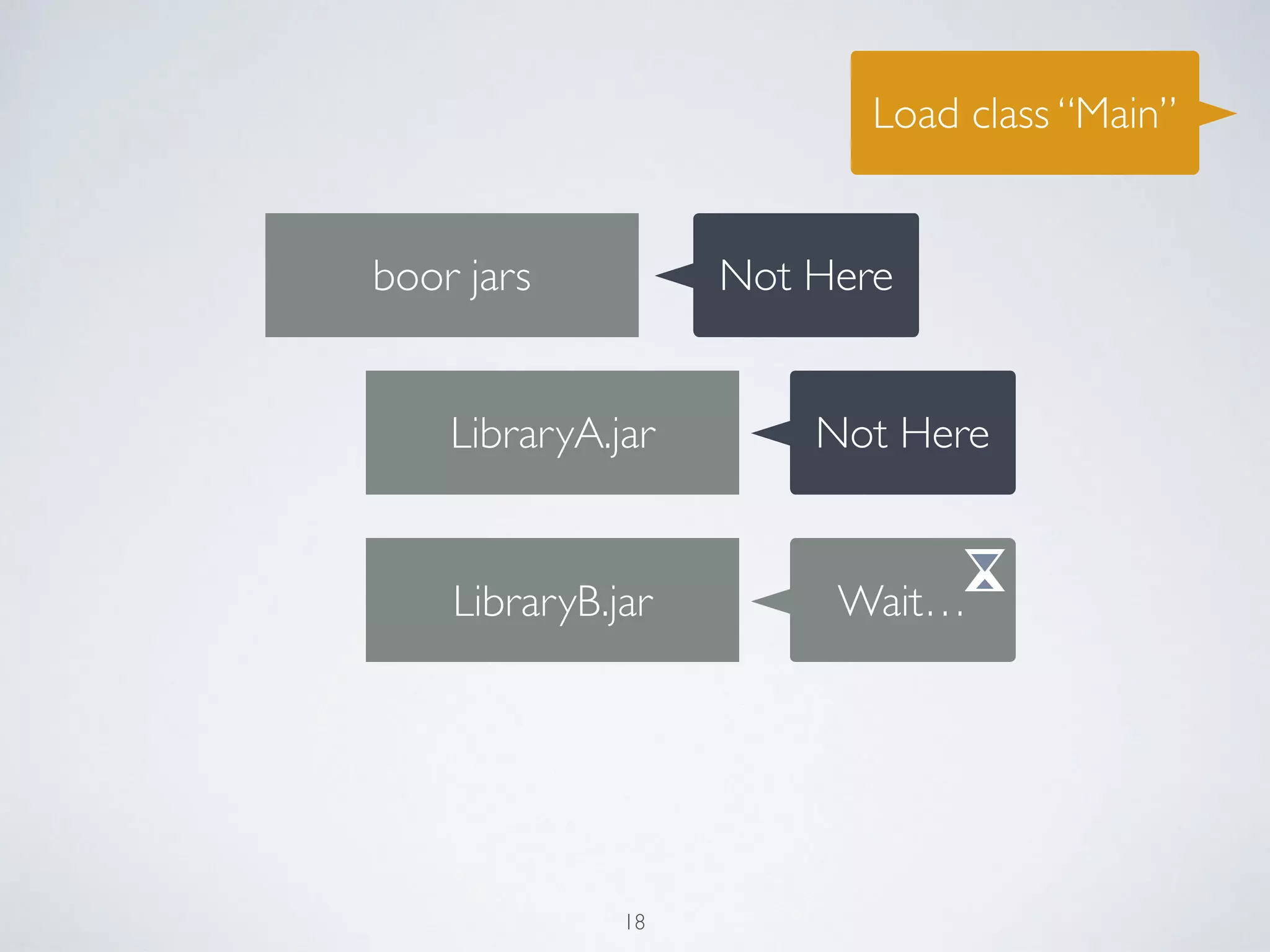

18. boor jars
LibraryA.jar
LibraryB.jar
Load class “Main”
Not Here
Not Here
Wait…
18

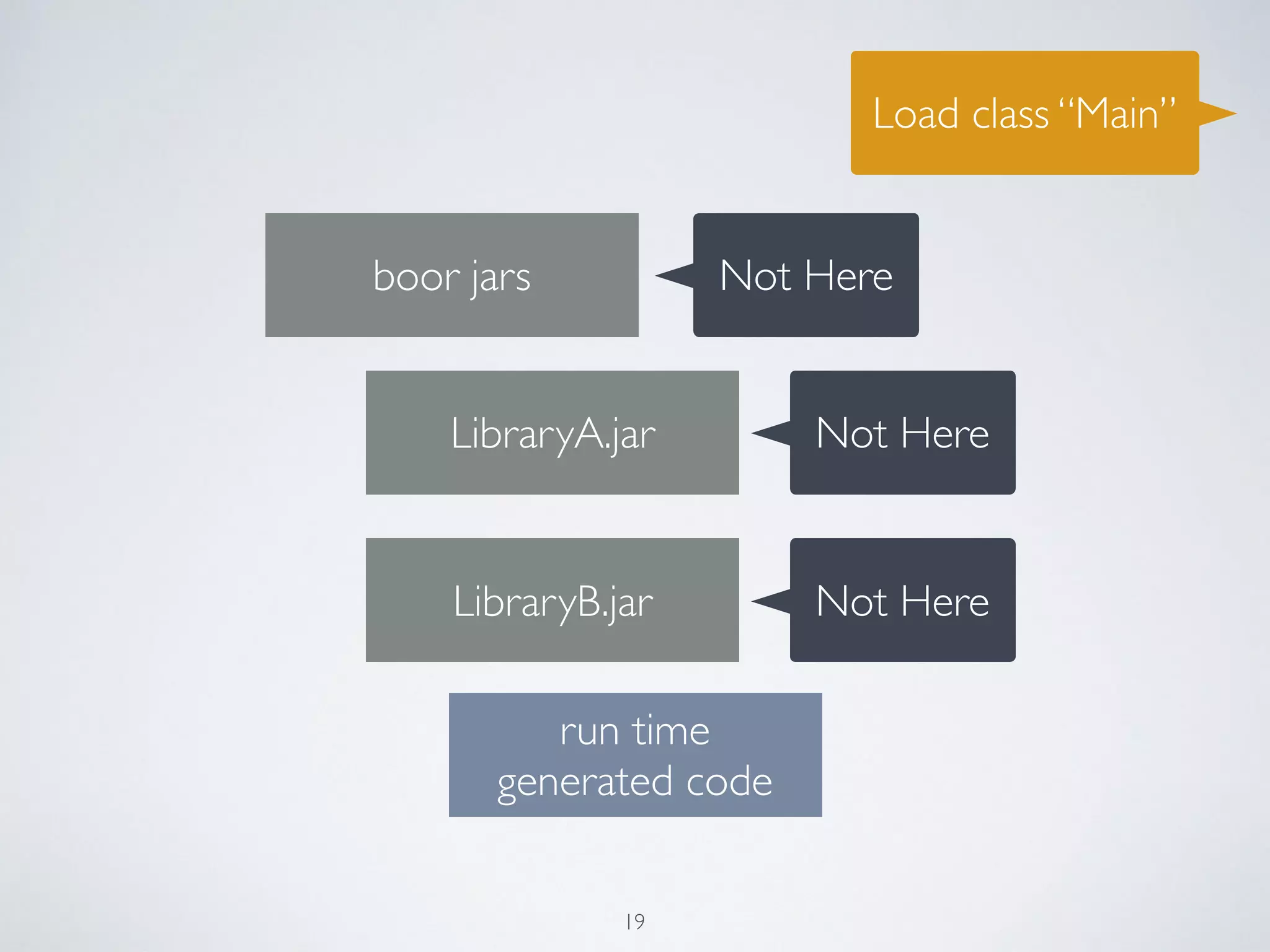

19. boor jars
LibraryA.jar
LibraryB.jar
Load class “Main”
Not Here
Not Here
Not Here
run time
generated code
19

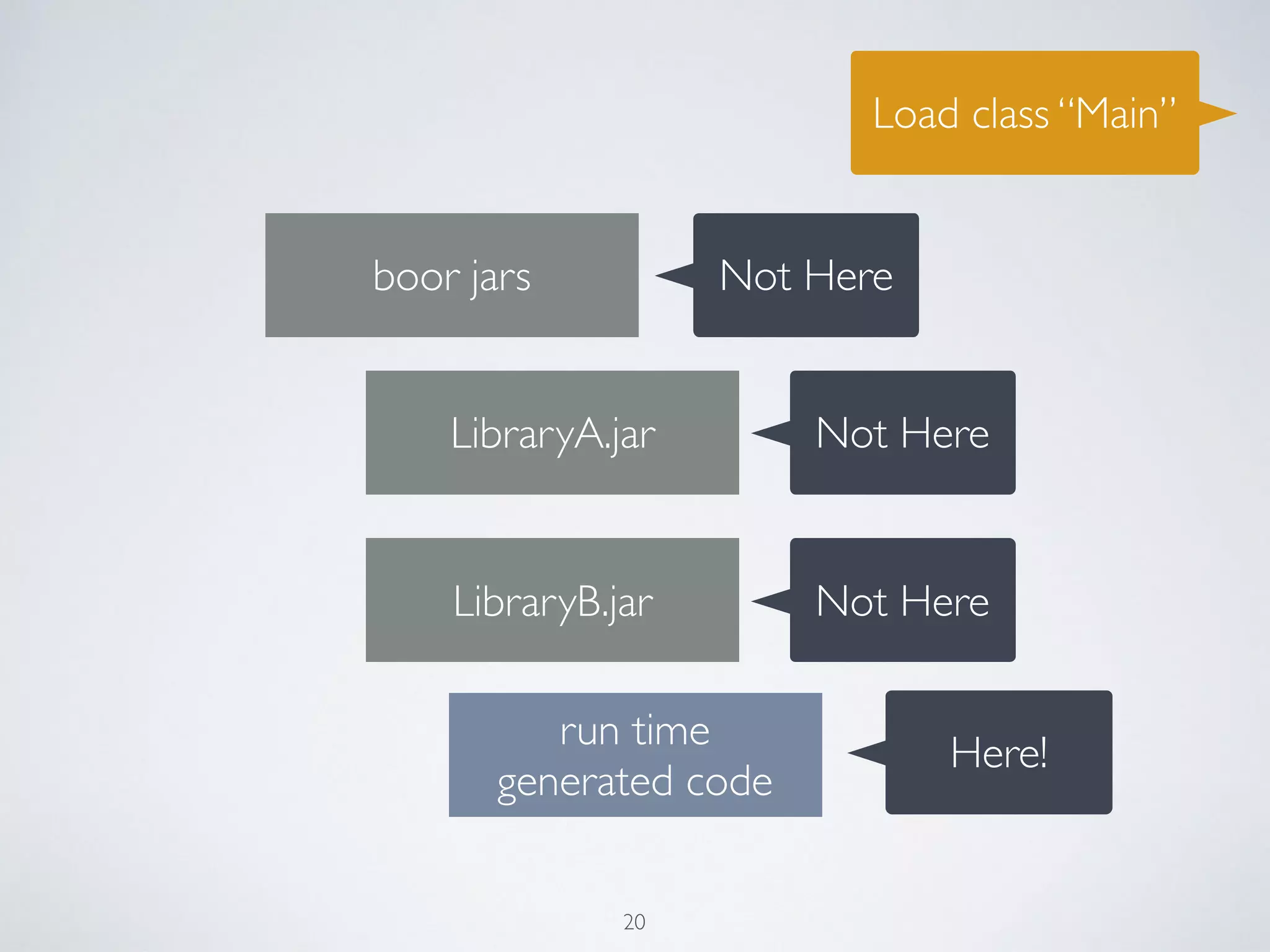

20. boor jars
LibraryA.jar
LibraryB.jar
Load class “Main”
Not Here
Not Here
Not Here
run time
generated code
Here!
20

21. HOWTO EXECUTE CODE?
21

22. INTERPRETING
22

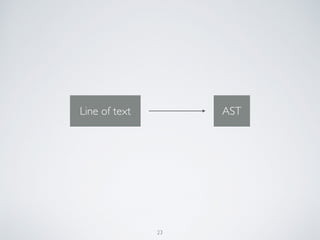

23. Line of text AST
23

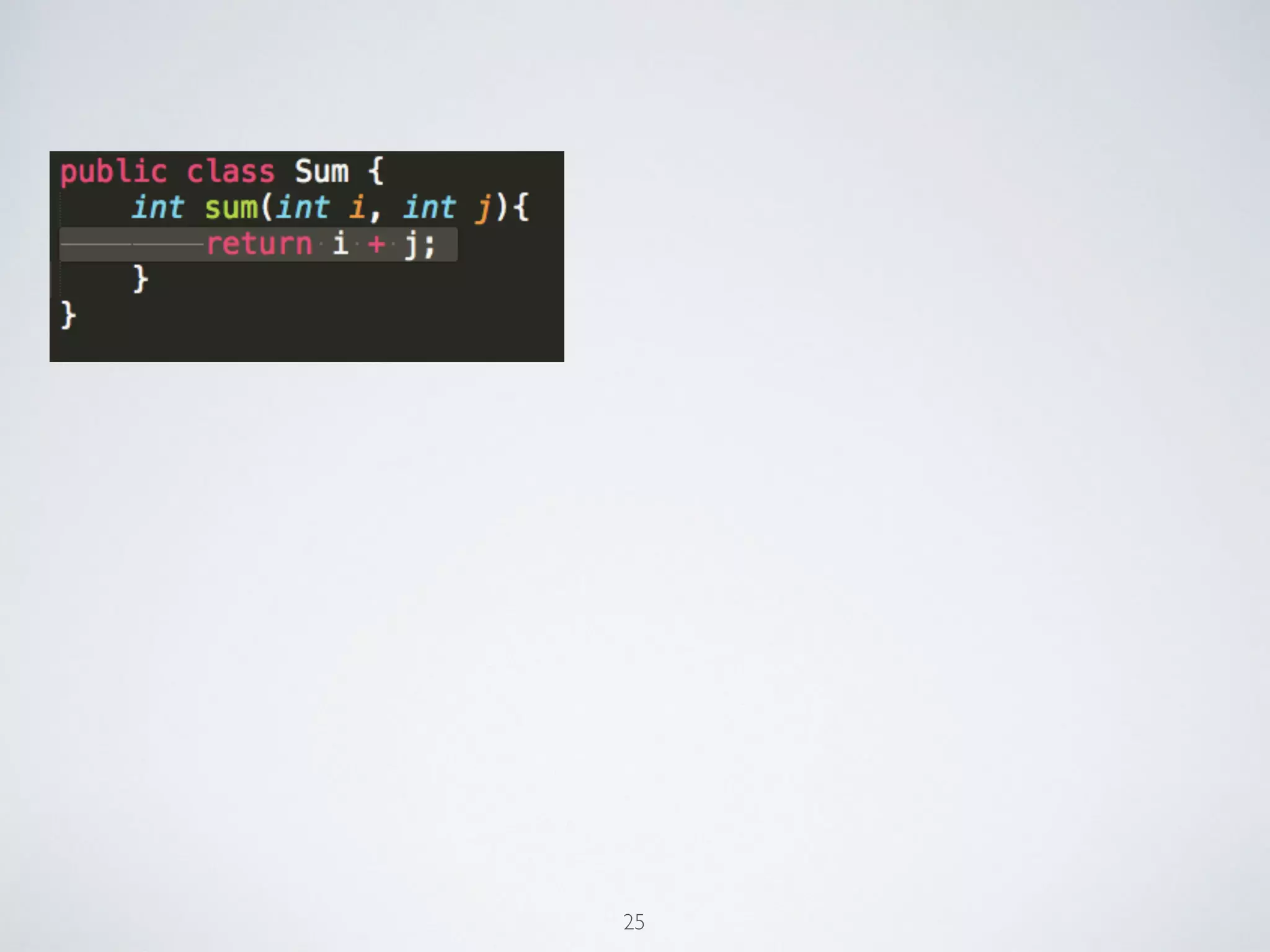

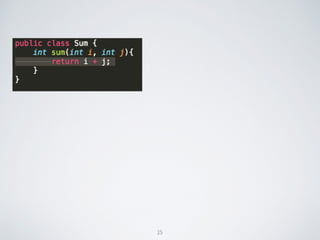

24. Simple example: sum of two numbers
24

25. 25

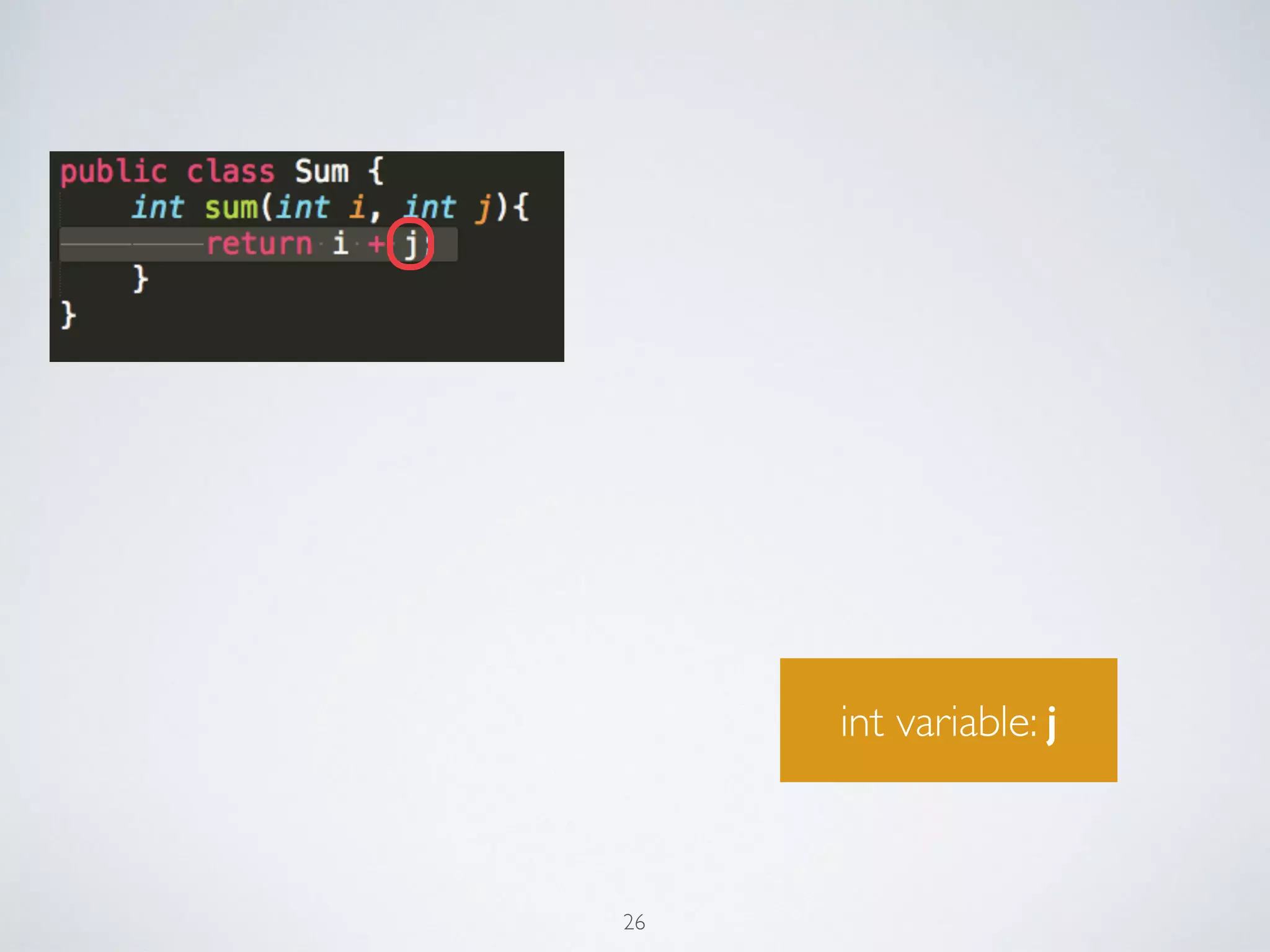

26. int variable: j
26

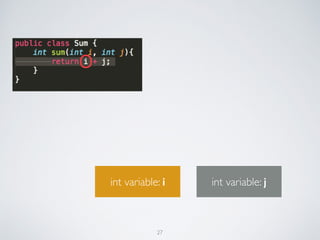

27. int variable: jint variable: i
27

28. int variable: jint variable: i
sum
28

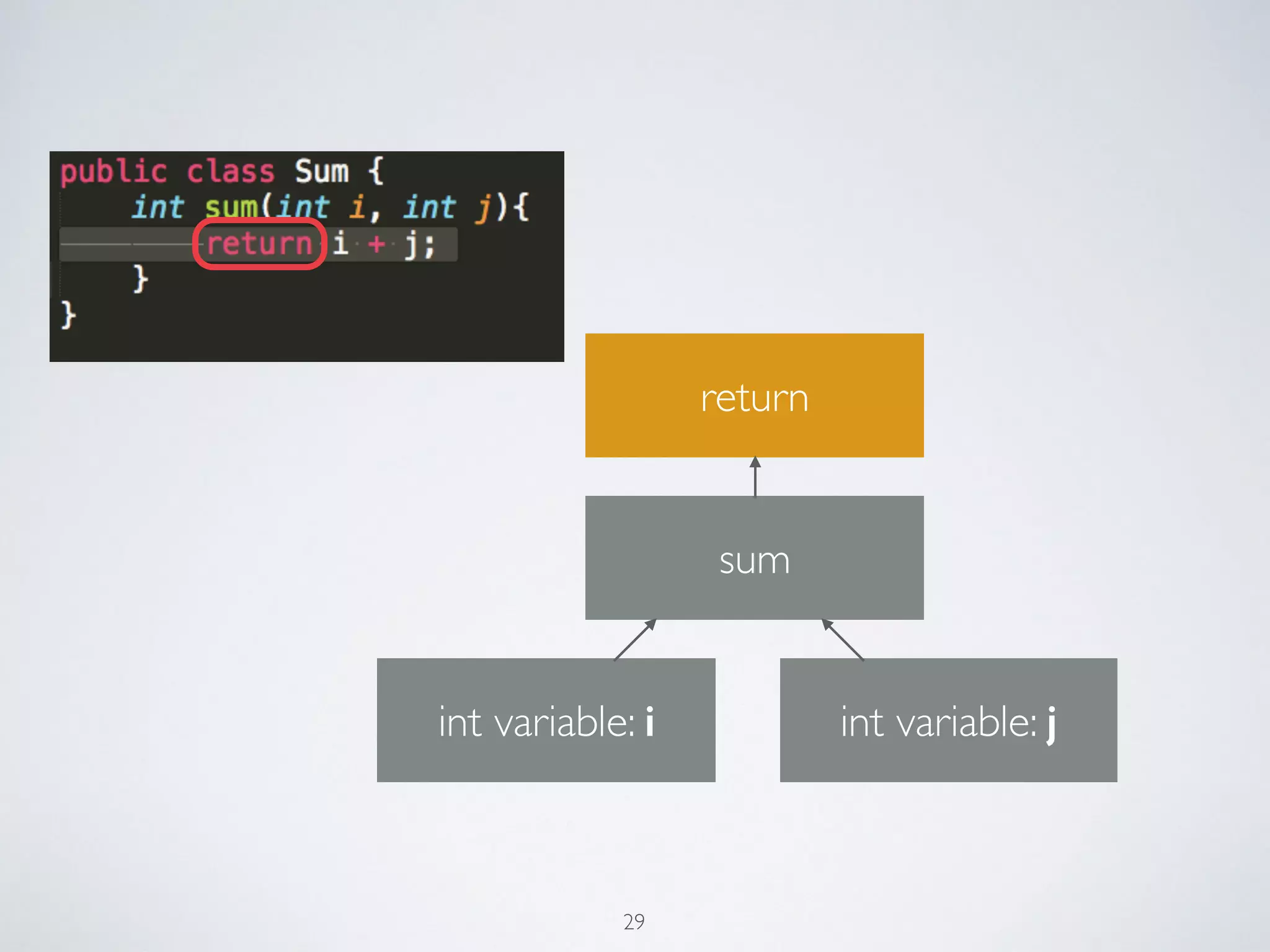

29. int variable: jint variable: i
sum
return
29

30. Errors usually are caught at runtime
30

31. COMPILING
31

32. Code compiled to binary prior to the execution.
32

33. Some errors can be caught at compile time
33

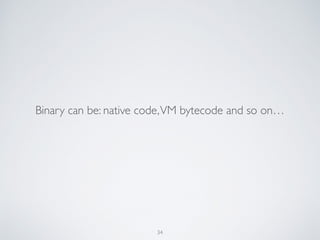

34. Binary can be: native code,VM bytecode and so on…
34

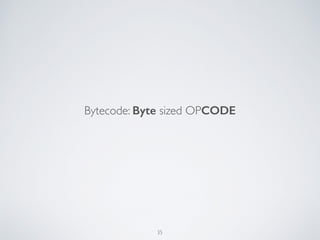

35. Bytecode: Byte sized OPCODE
35

36. REGISTER BASEDVM
36

37. Works like your processor
37

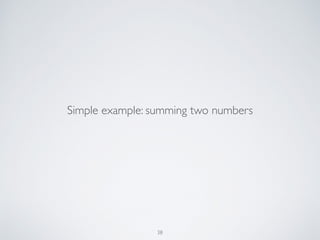

38. Simple example: summing two numbers
38

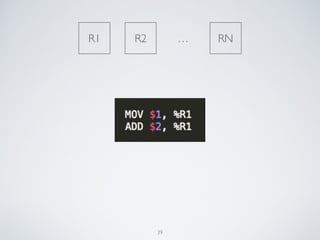

39. R1 R2 RN…
39

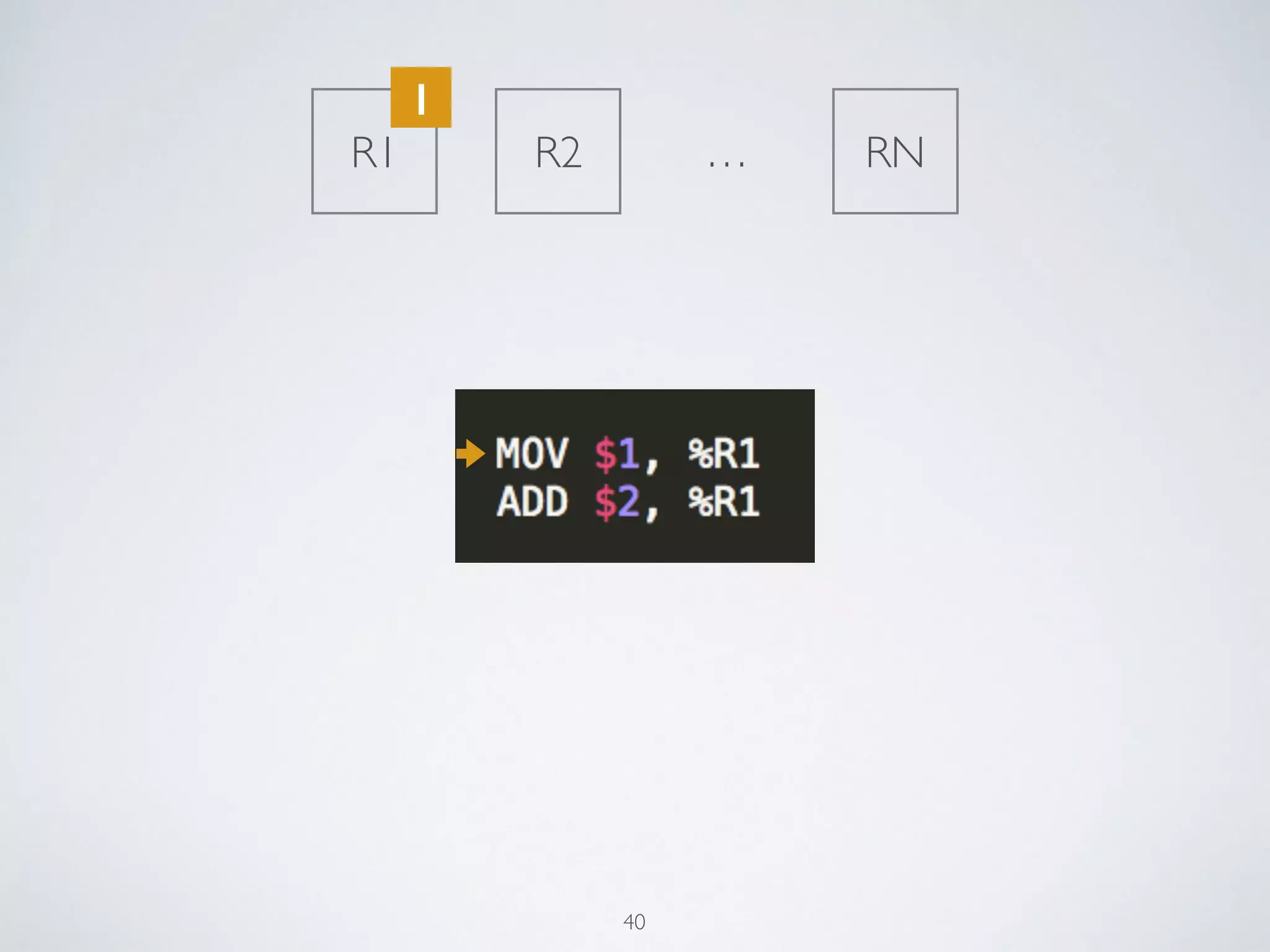

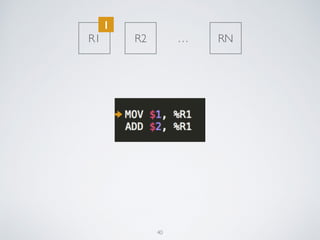

40. R1 R2 RN…
1
40

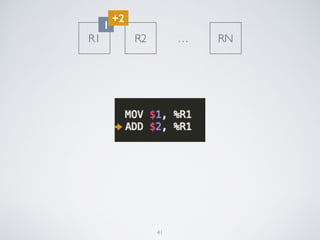

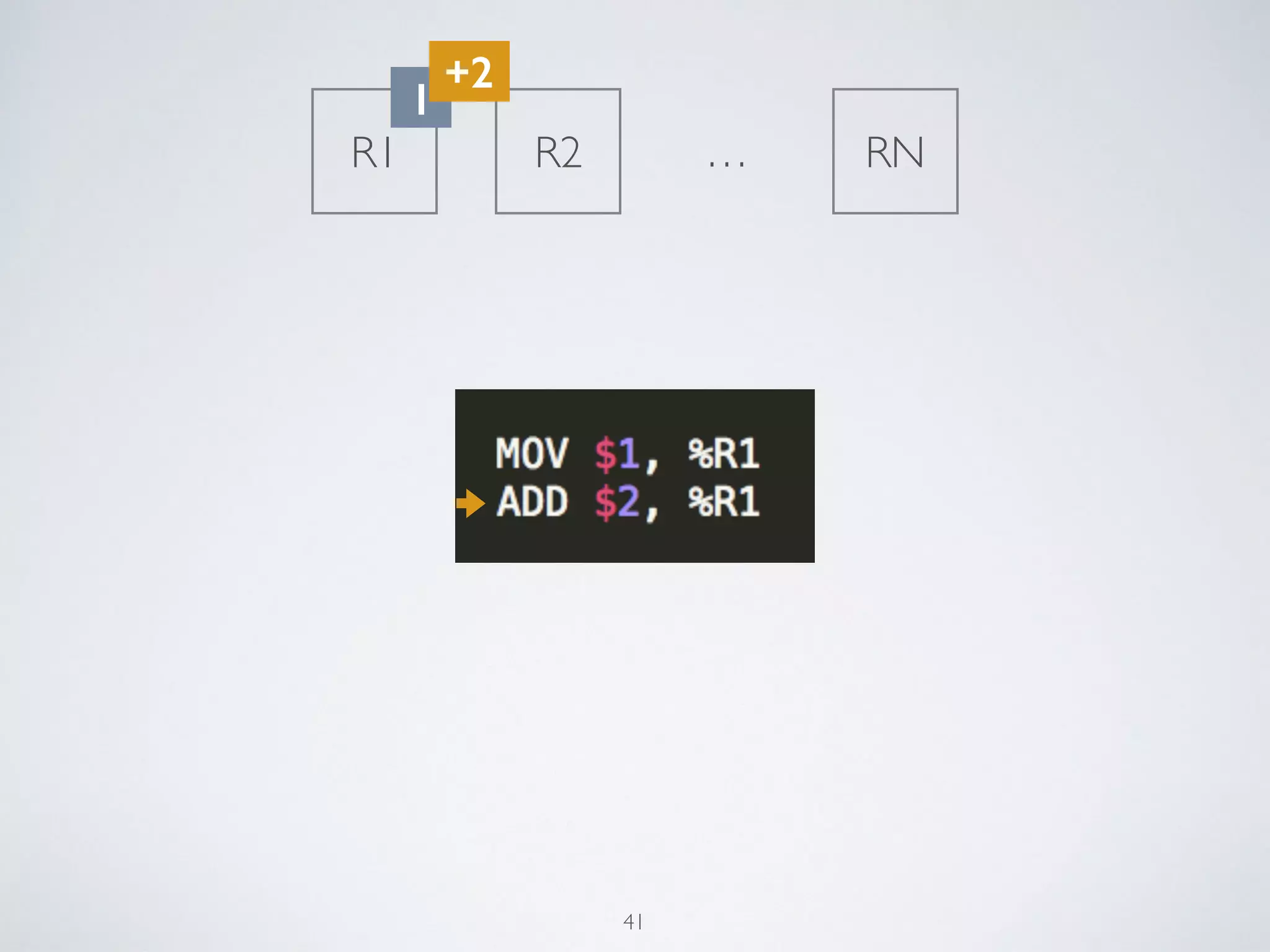

41. R1 R2 RN…
1
+2
41

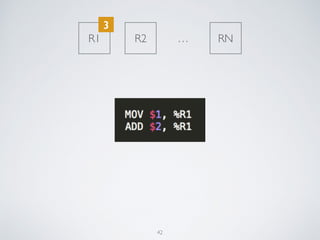

42. R1 R2 RN…
3
42

43. STACK BASEDVM
43

44. Works like you HP48G calculator
44

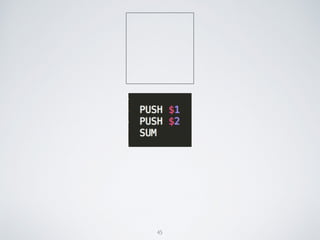

45. 45

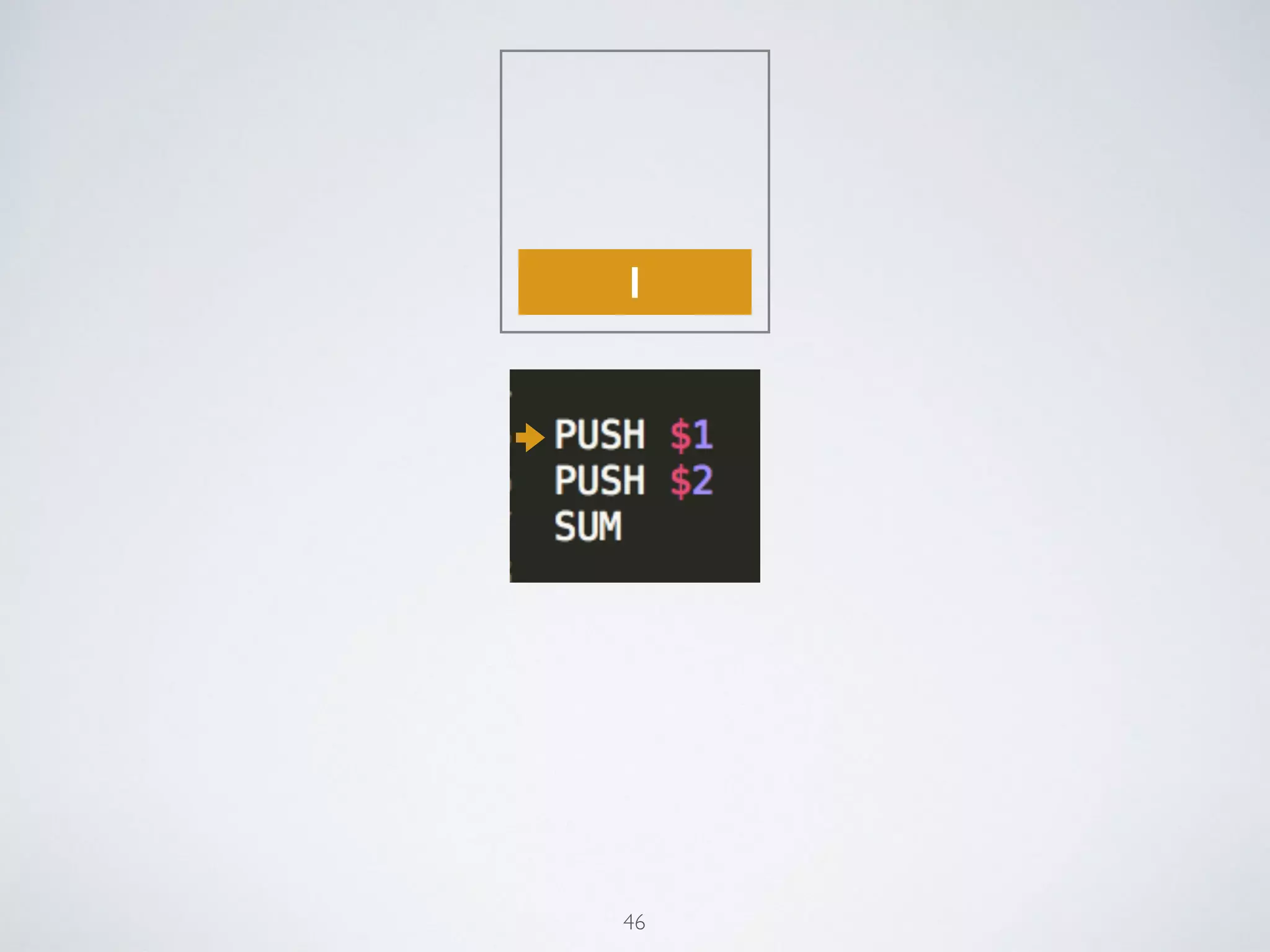

46. 1
46

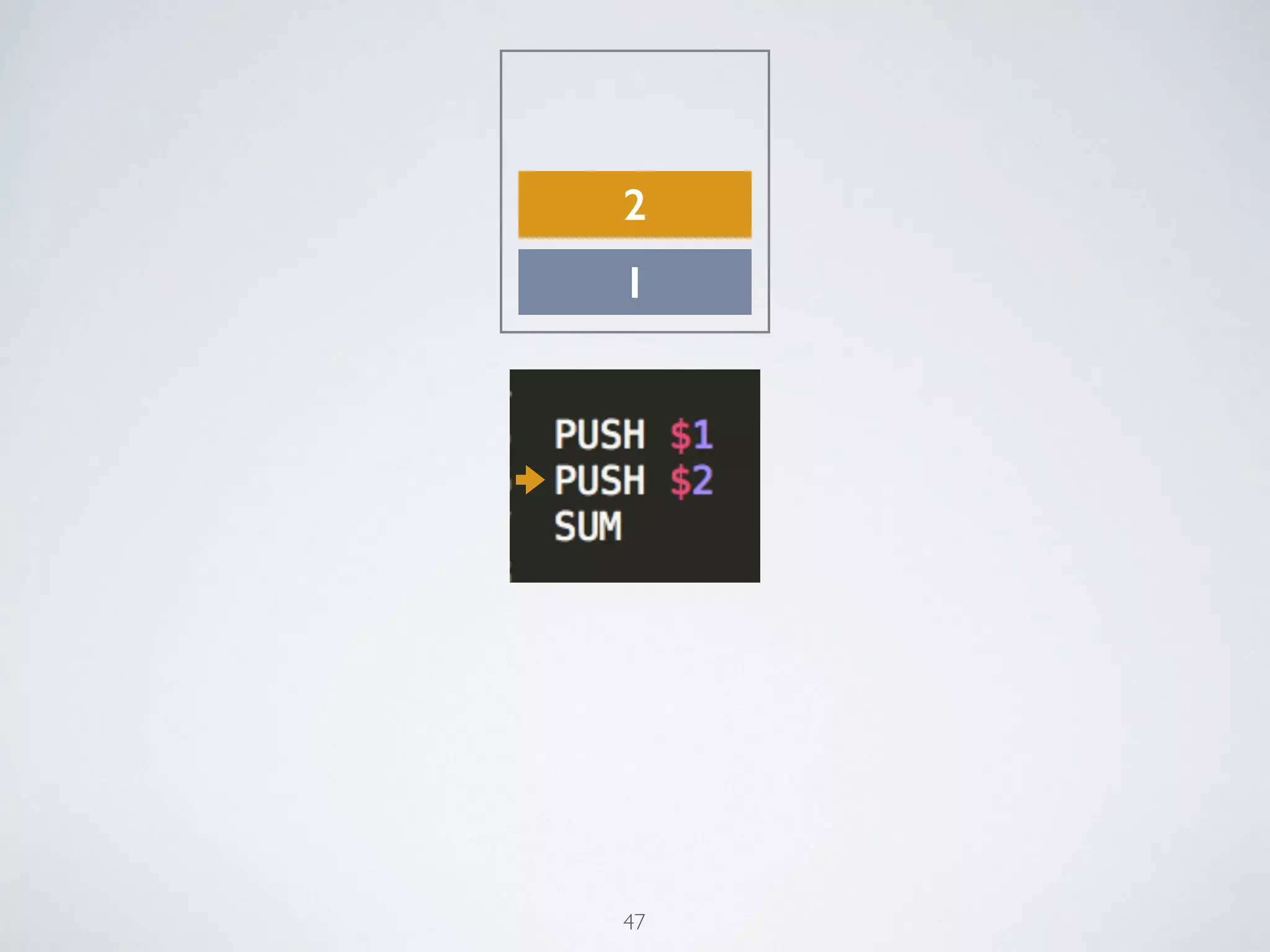

47. 1
2
47

48. 1
2
+
48

49. 3
49

50. JVM IS STACK BASED
50

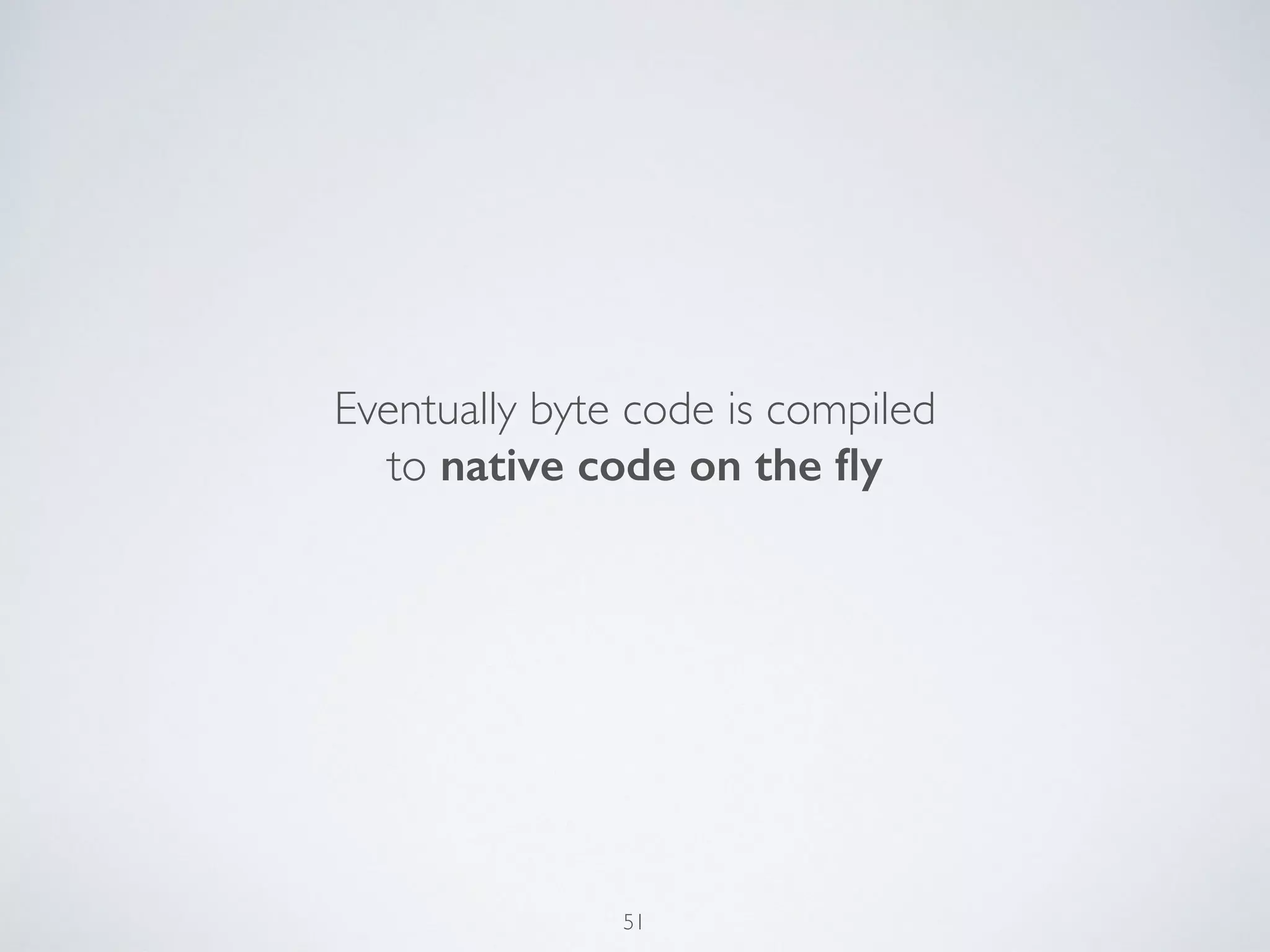

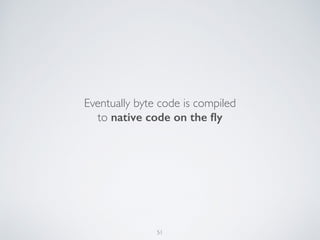

51. Eventually byte code is compiled
to native code on the fly
51

52. DYNAMIC MEMORY
52

53. C/C++ Approach: memory as a big array
53

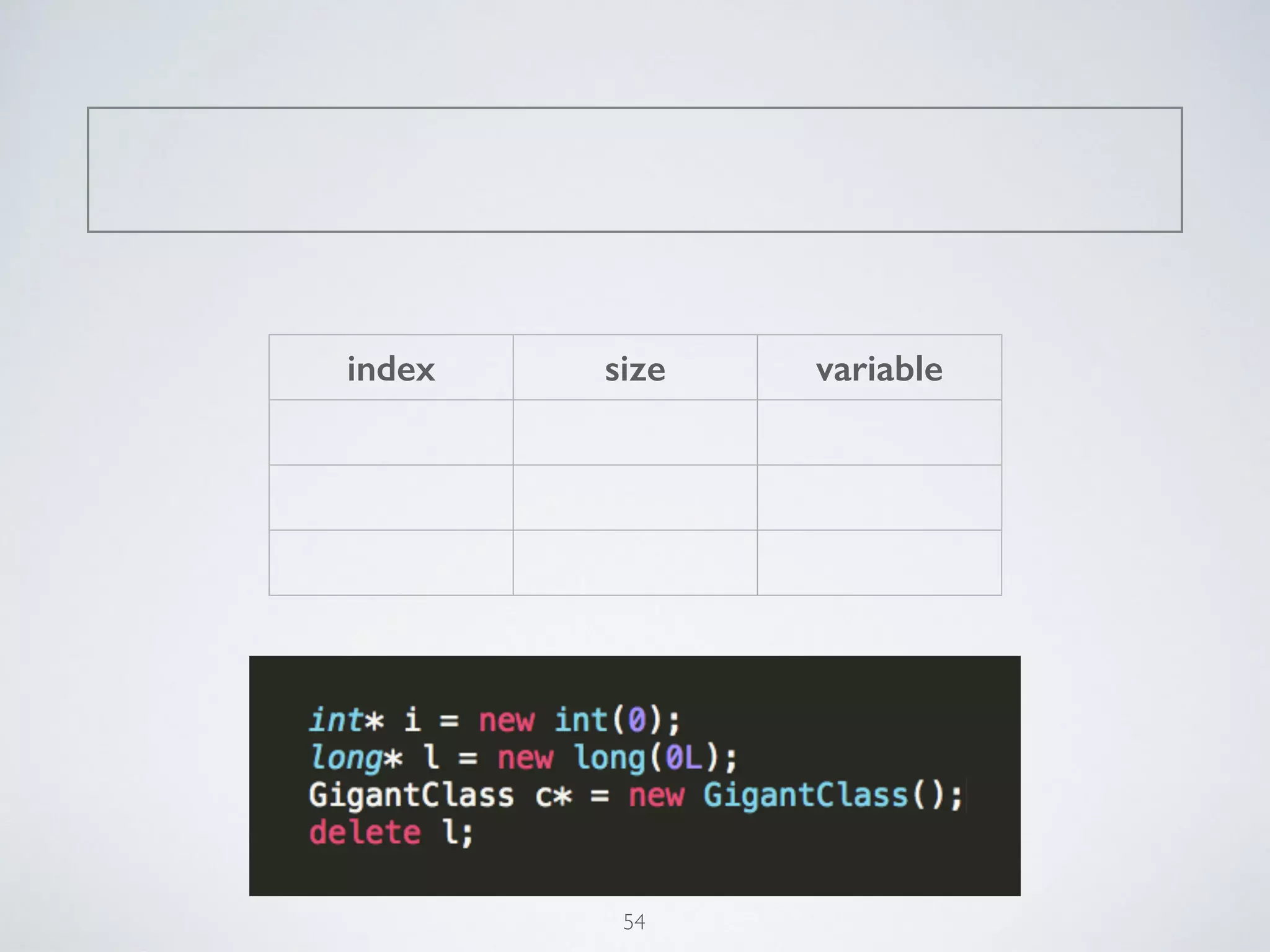

54. index size variable
54

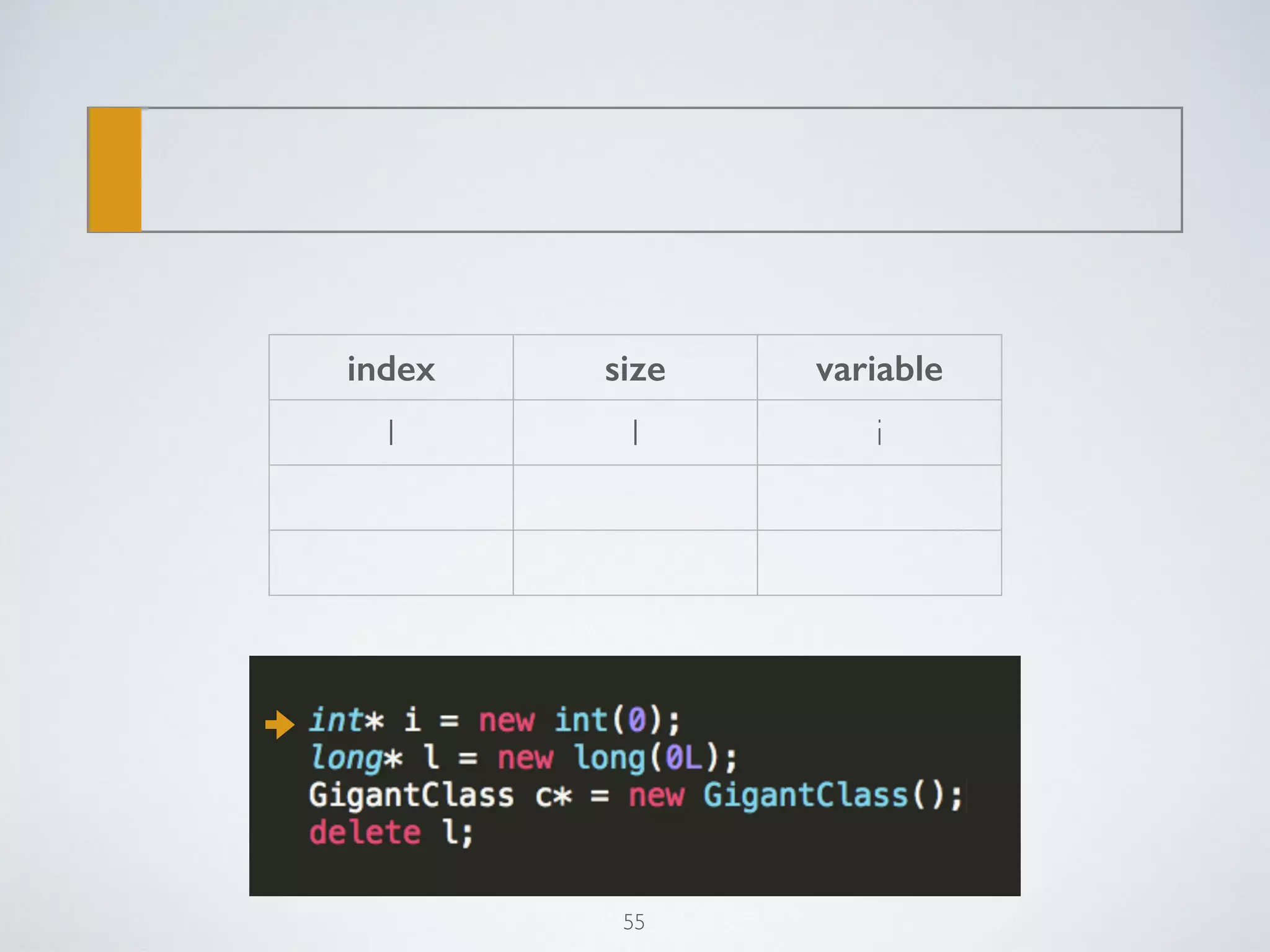

55. index size variable
1 1 i
55

56. index size variable
1 1 i
2 2 l

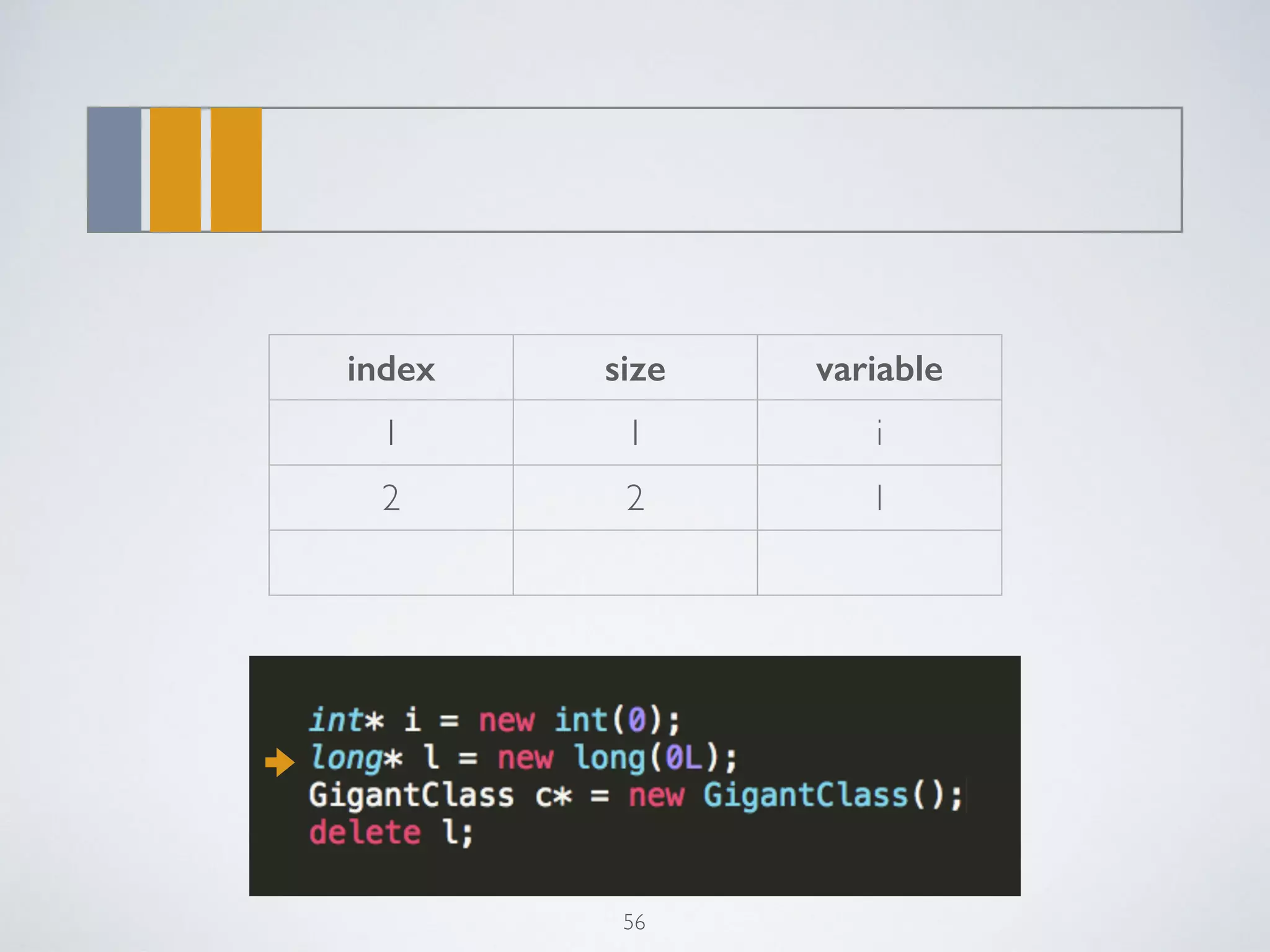

56

57. index size variable
1 1 i
2 2 l
3 4 c

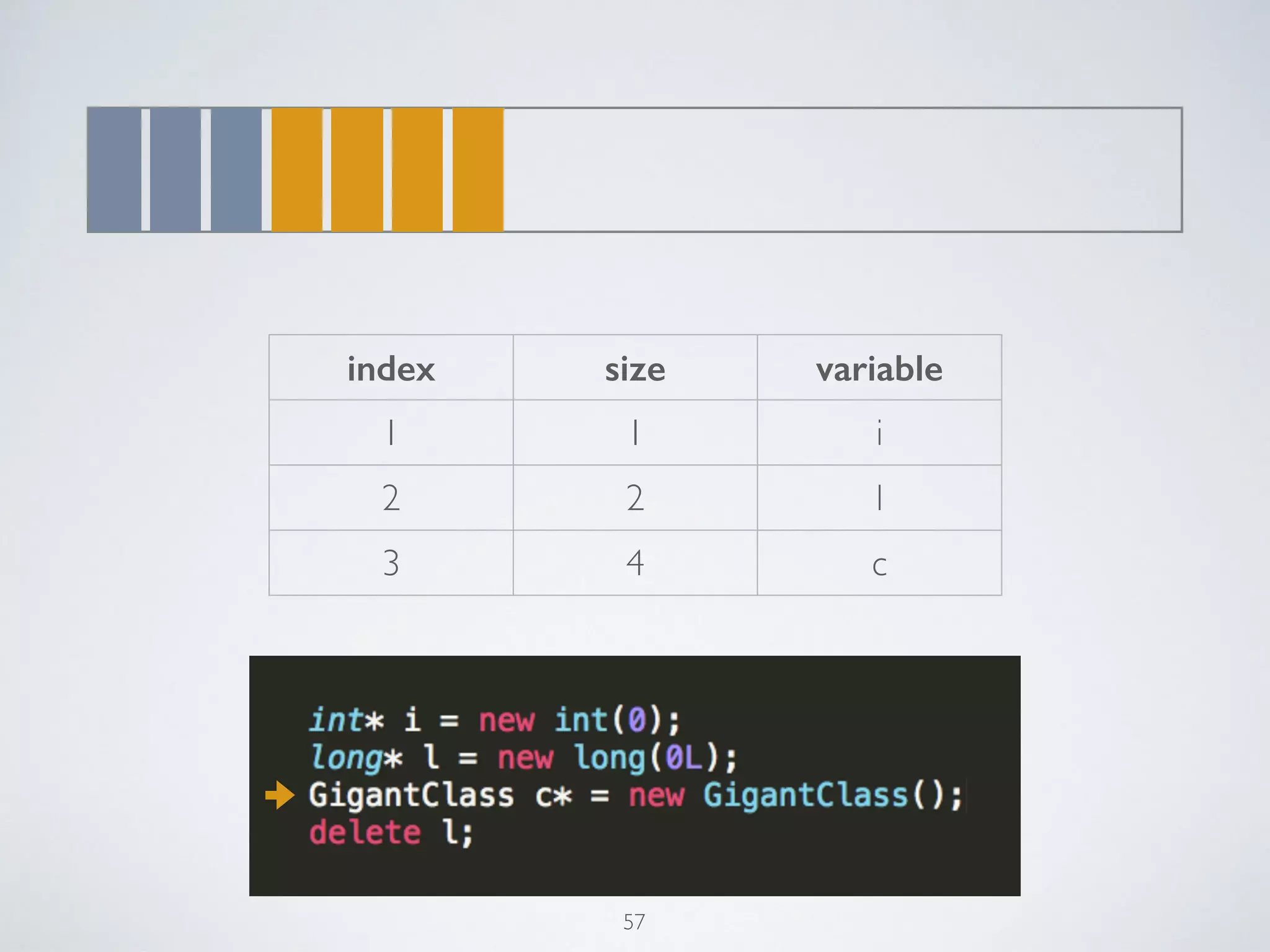

57

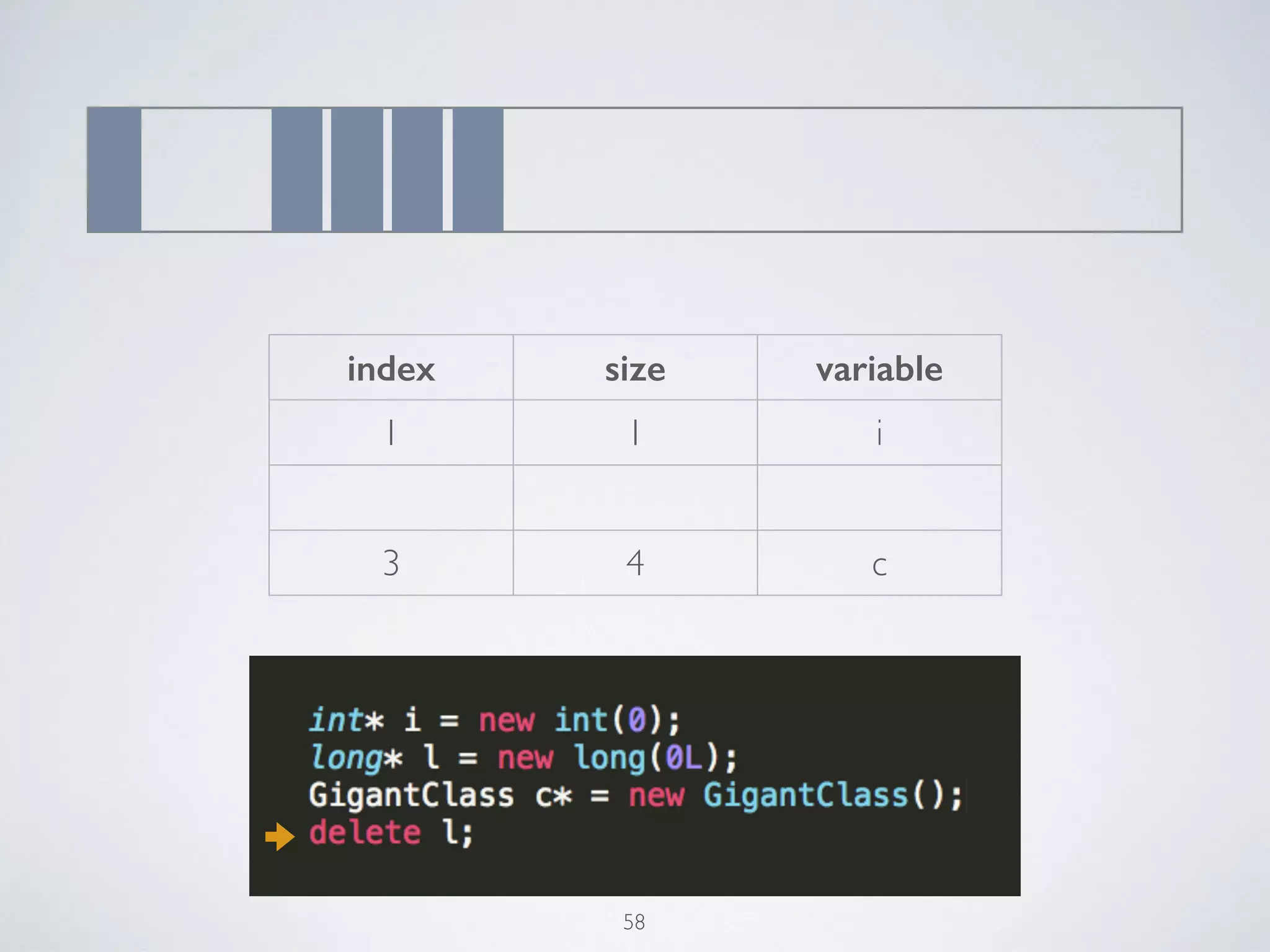

58. index size variable
1 1 i
3 4 c
58

59. Few caveats for this approach
59

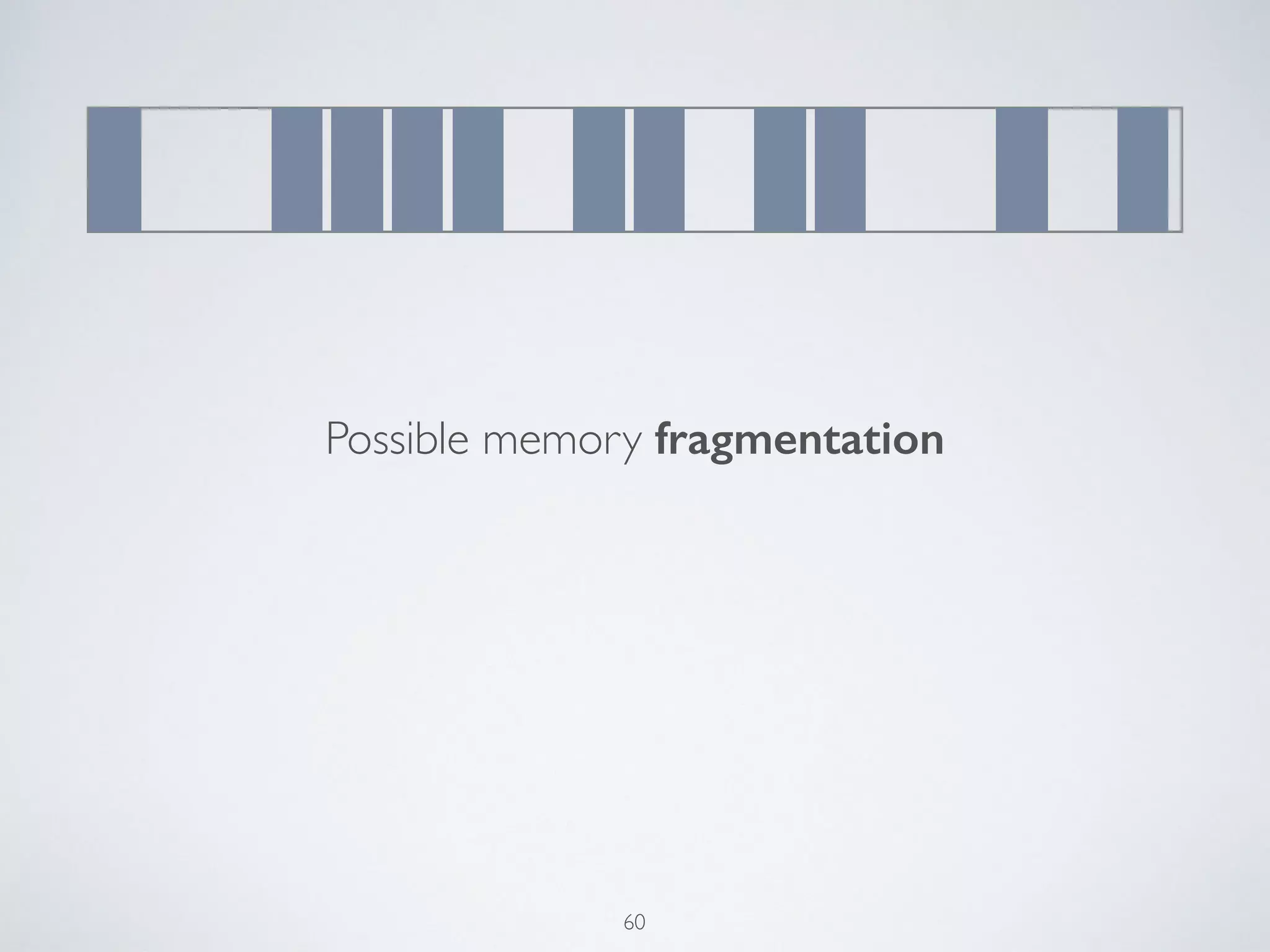

60. Possible memory fragmentation
60

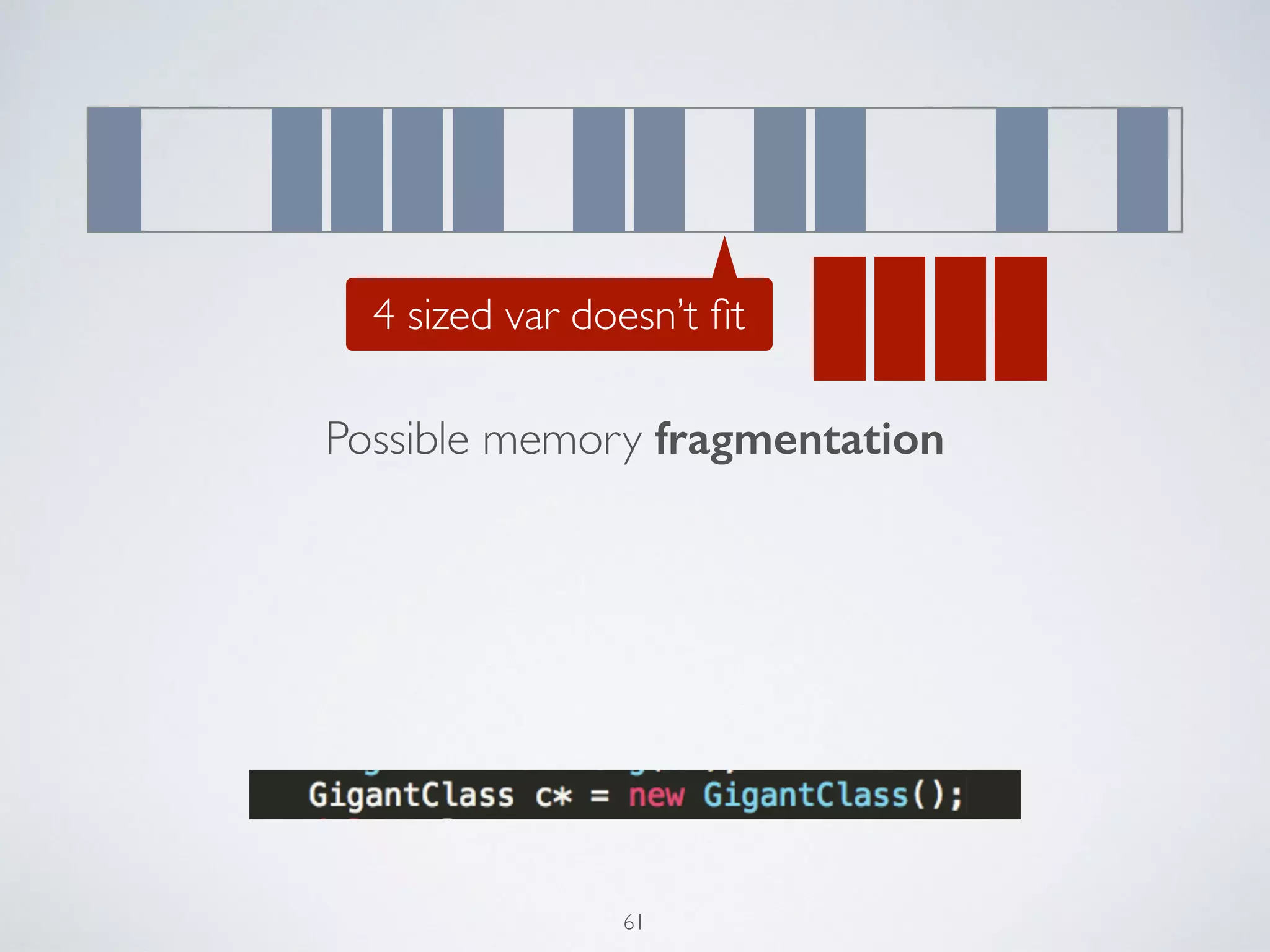

61. Possible memory fragmentation
4 sized var doesn’t fit

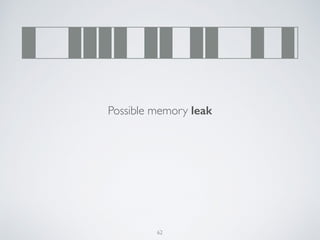

61

62. Possible memory leak

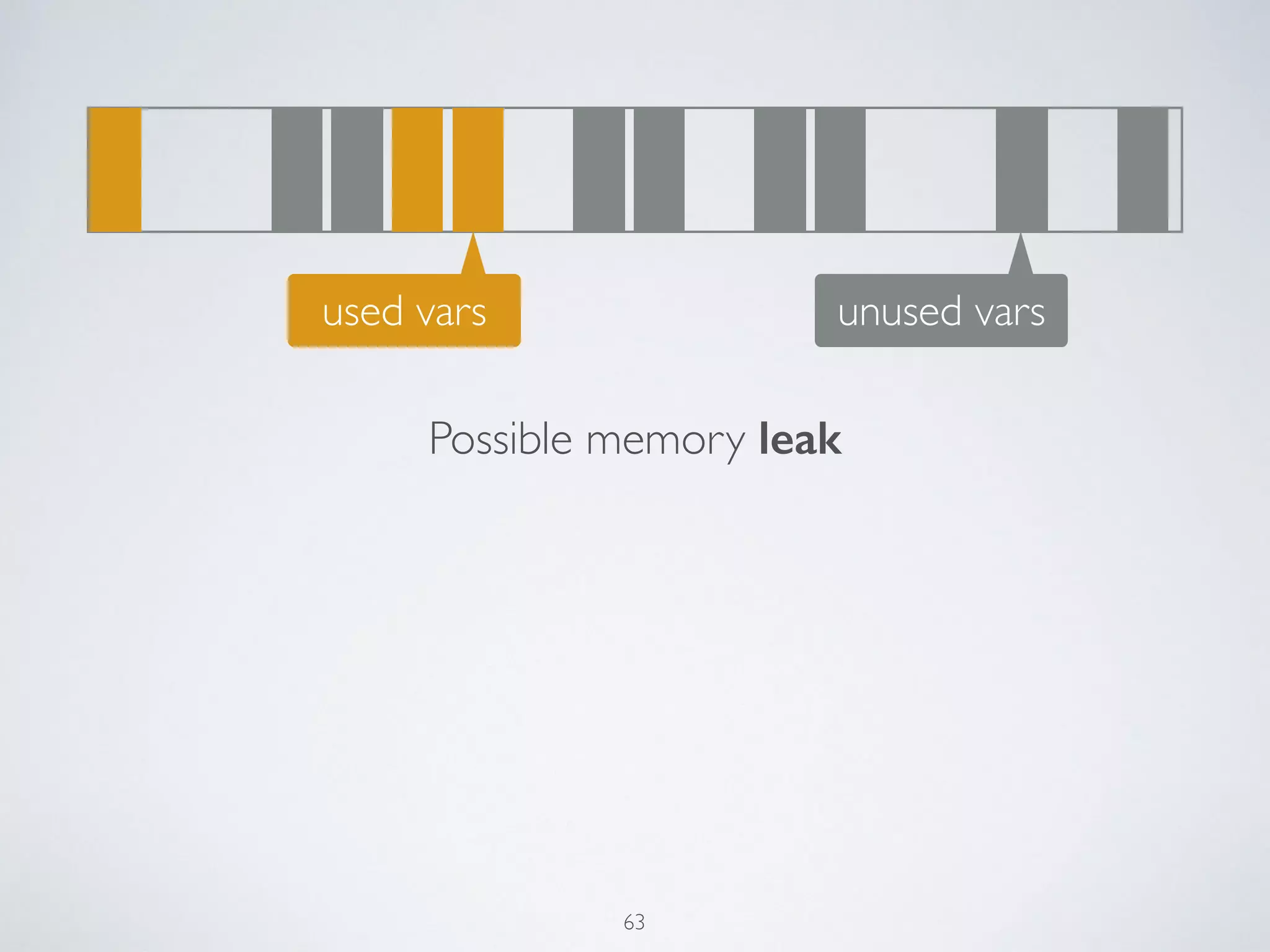

62

63. Possible memory leak
used vars unused vars
63

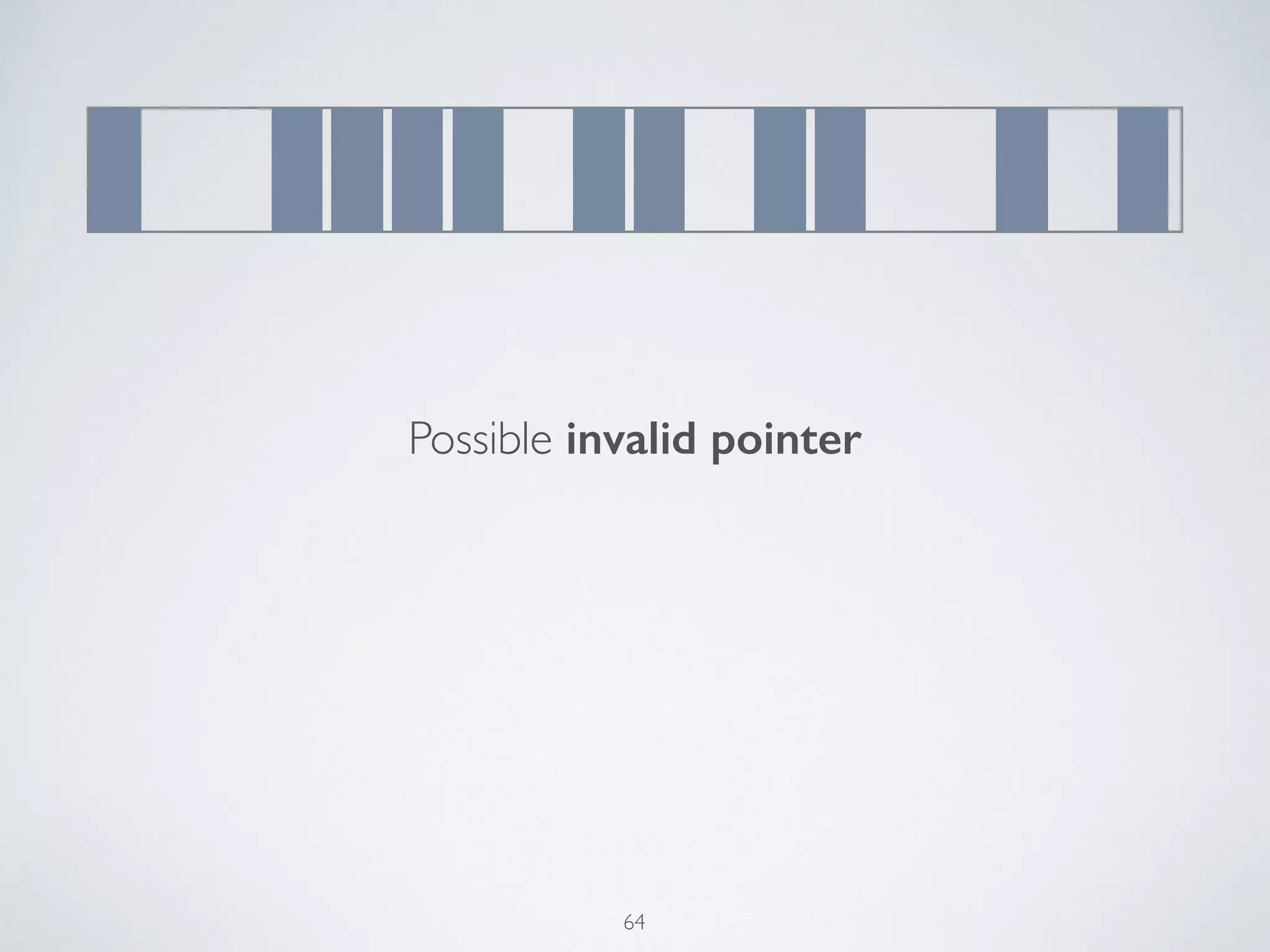

64. Possible invalid pointer
64

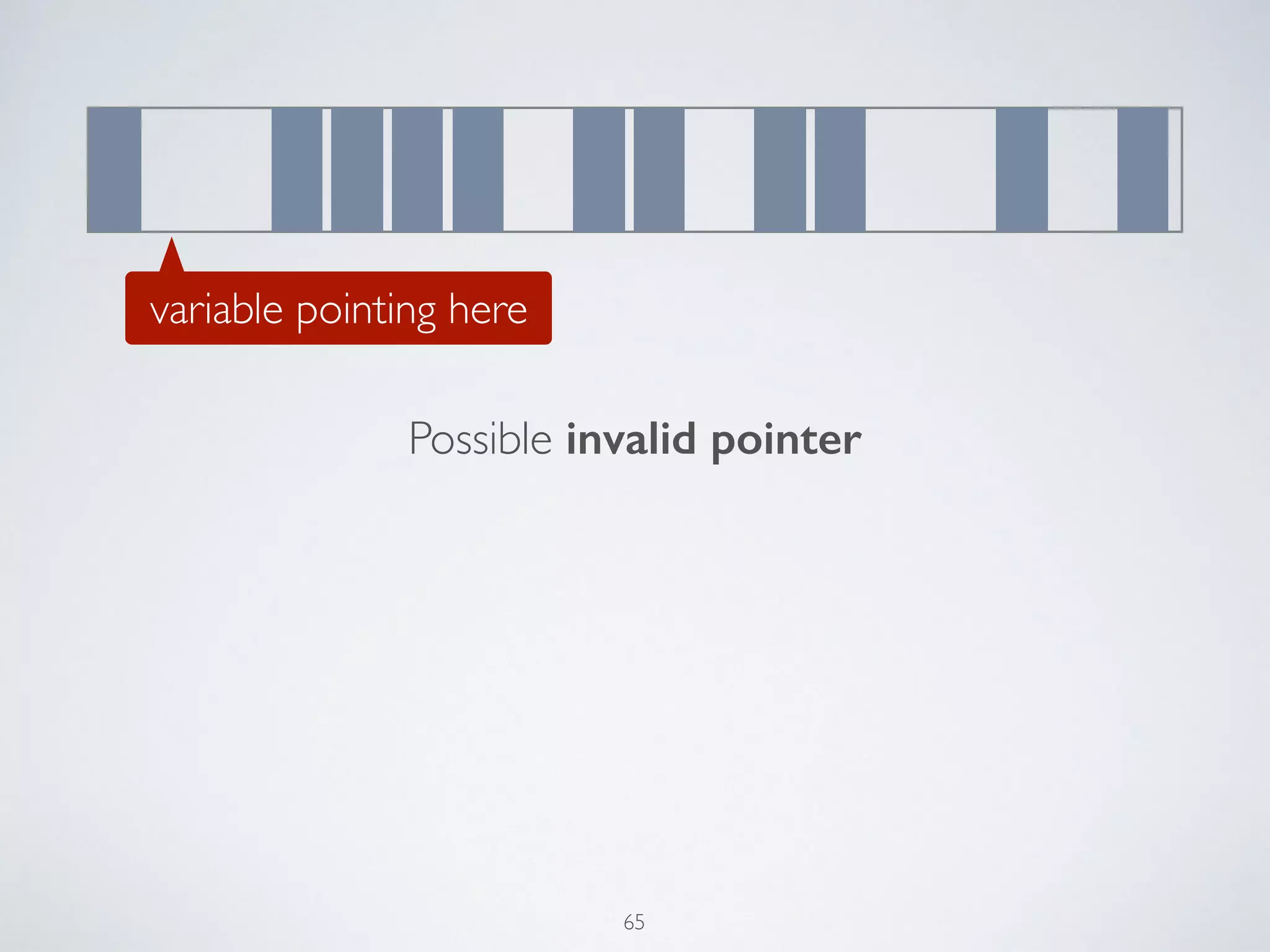

65. Possible invalid pointer
variable pointing here
65

66. JVM based approach: Garbage Collector
66

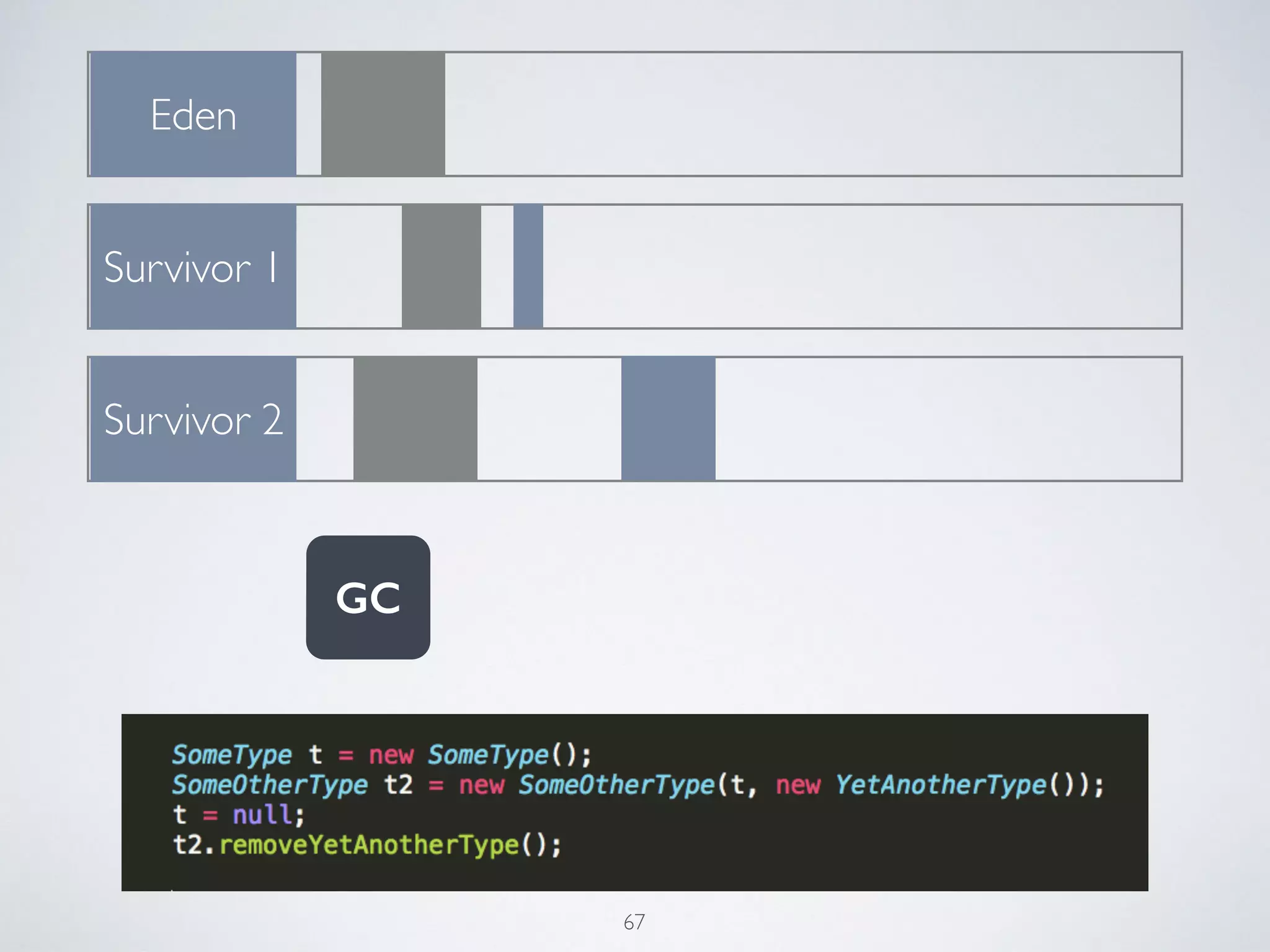

67. Eden
Survivor 1
Survivor 2
GC
67

68. Eden
Survivor 1
Survivor 2
GC
68

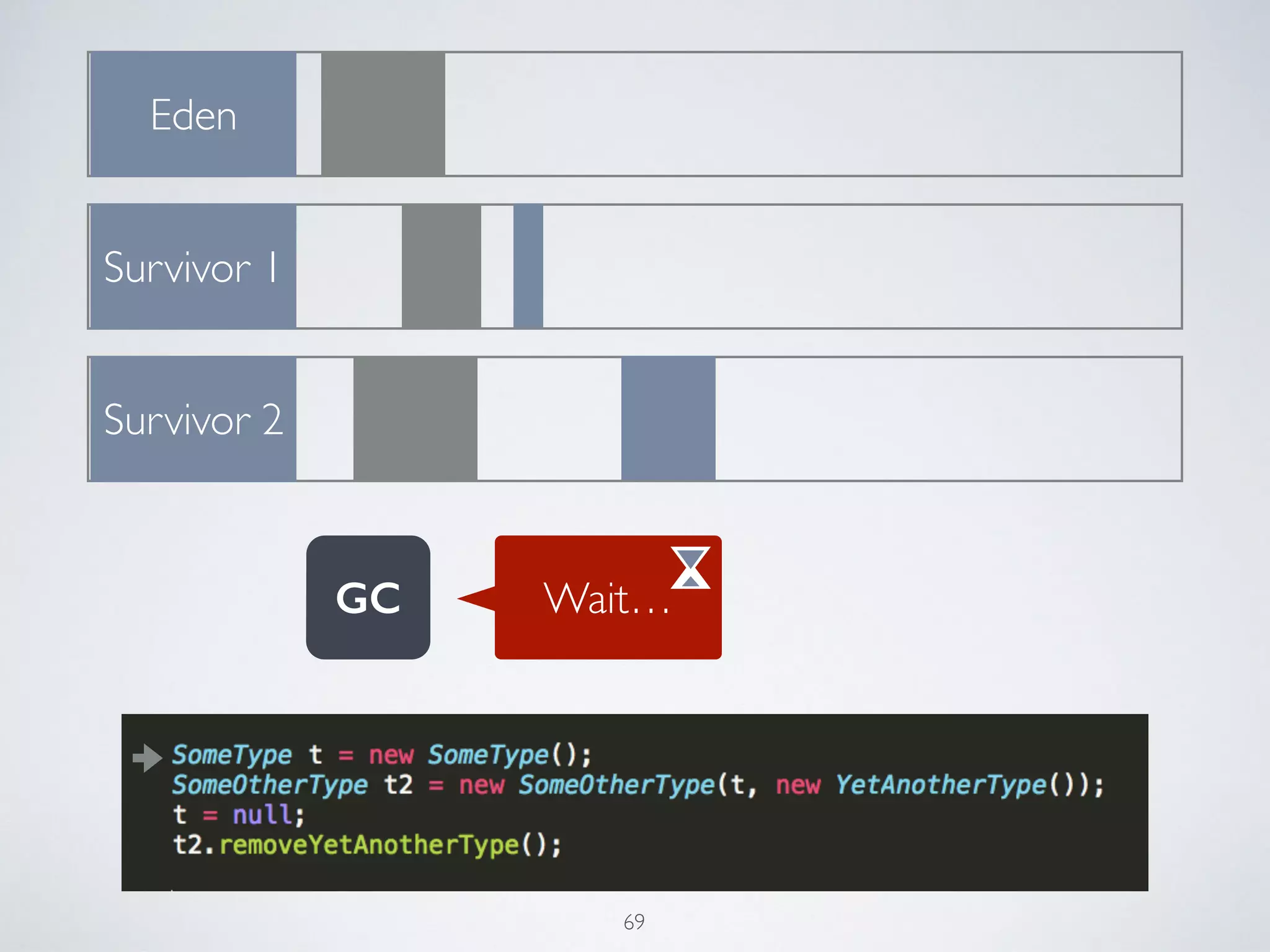

69. Eden
Survivor 1
Survivor 2
Wait…GC
69

70. Eden
Survivor 1
Survivor 2
off you goGC

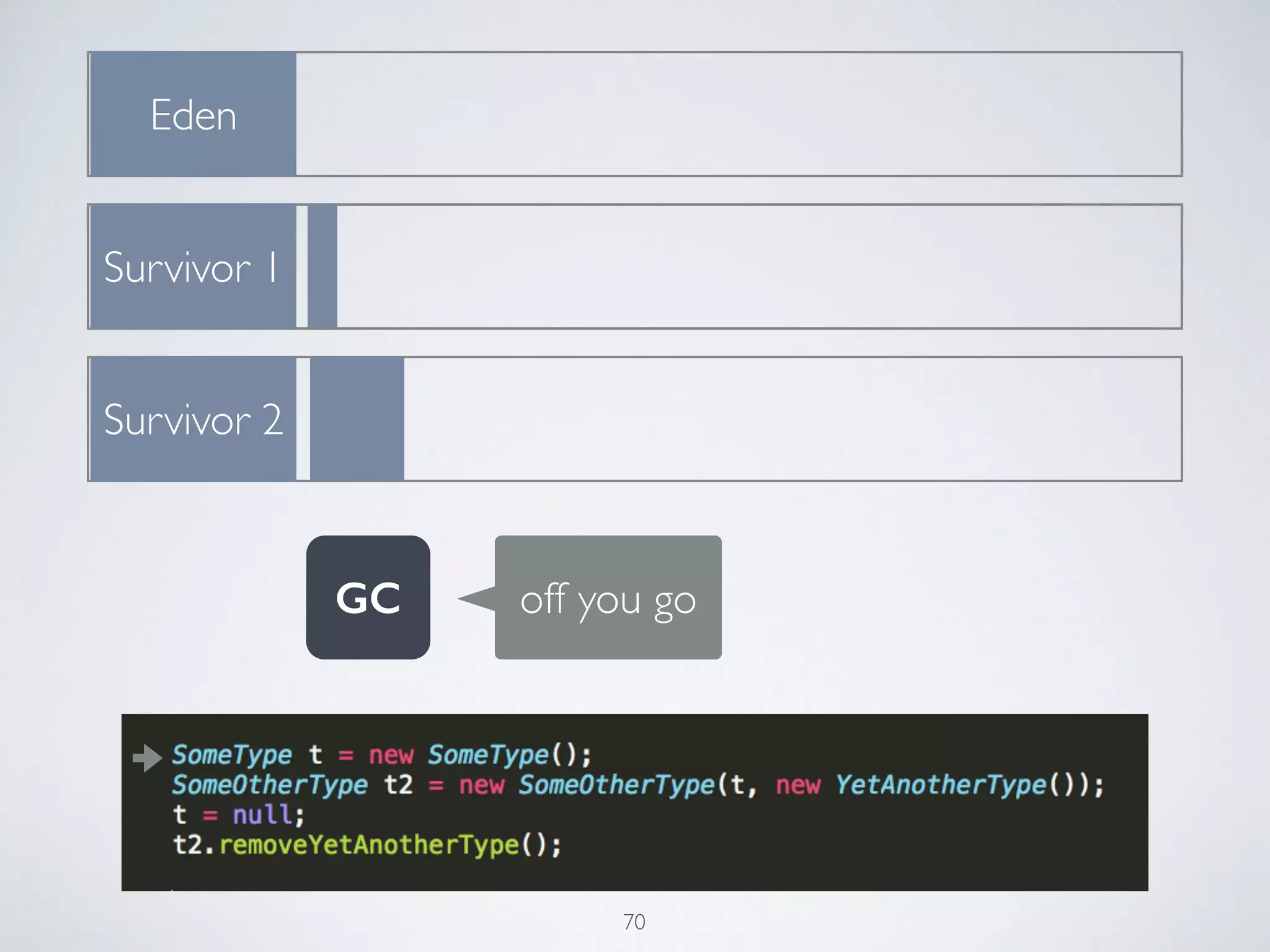

70

71. Eden
Survivor 1
Survivor 2
GC
t
71

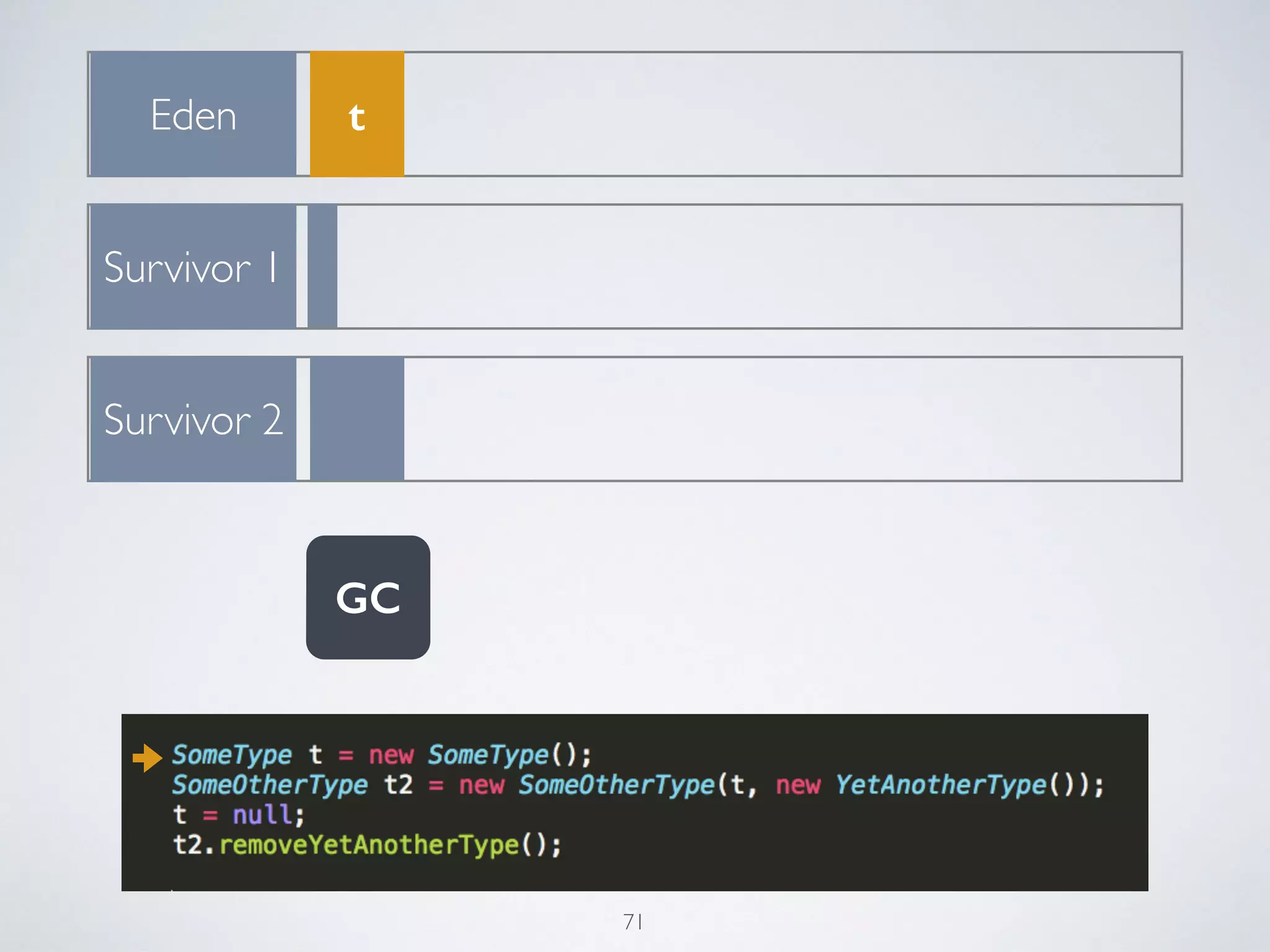

72. Eden
Survivor 1
Survivor 2
GC
t ?
72

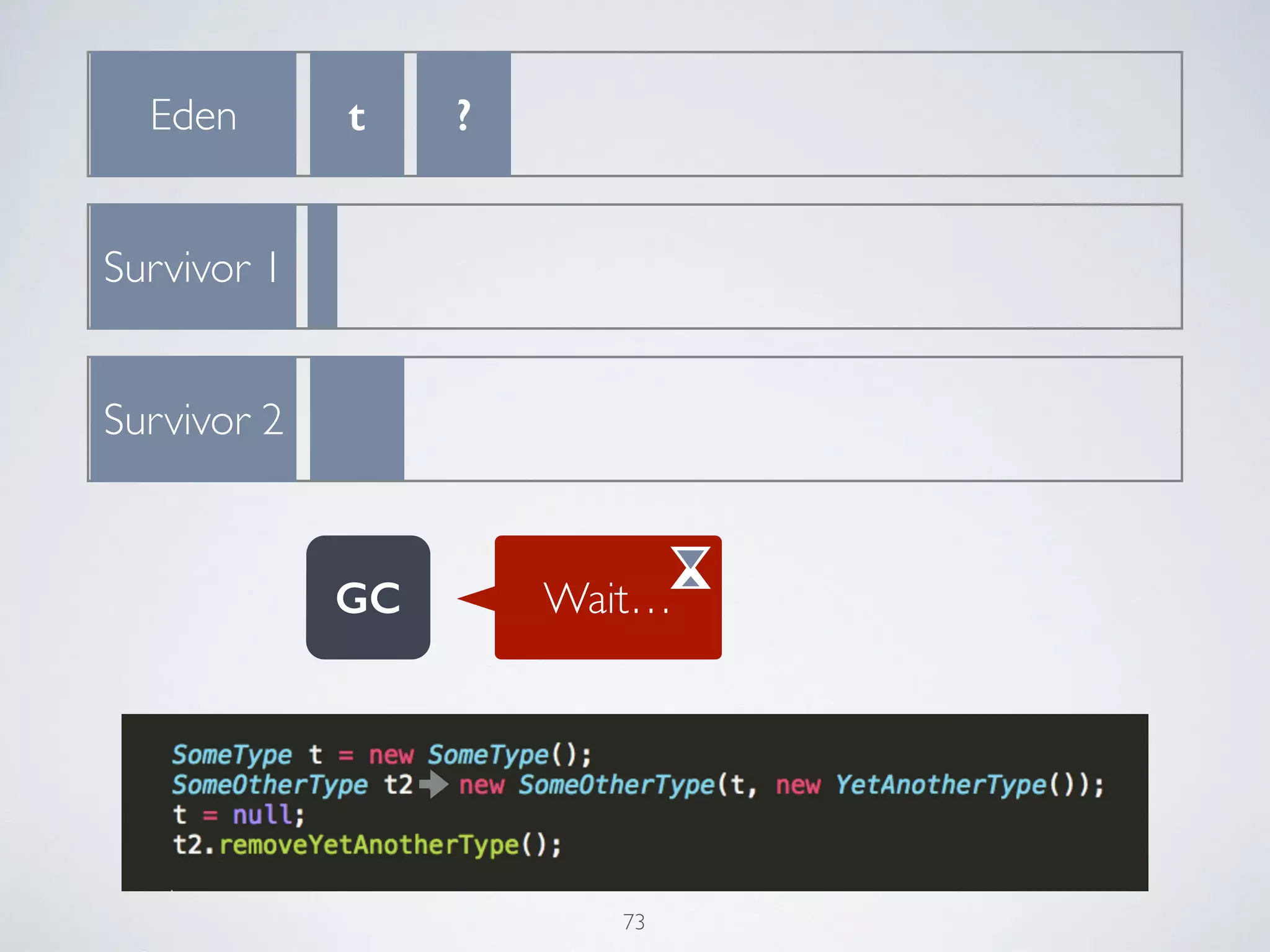

73. Eden
Survivor 1
Survivor 2
GC
t ?
Wait…
73

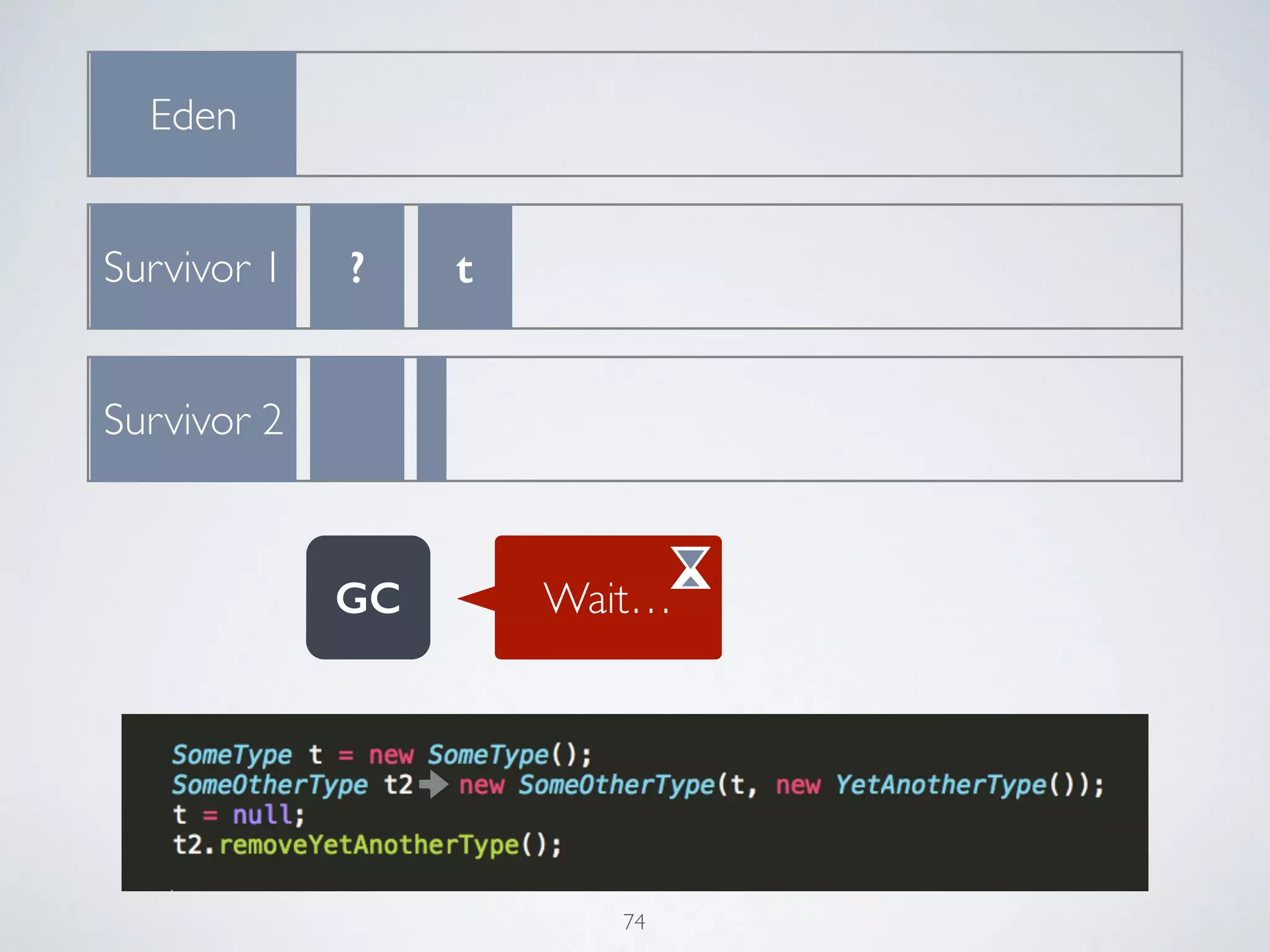

74. Eden
Survivor 1
Survivor 2
GC
? t
Wait…
74

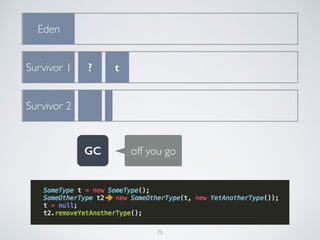

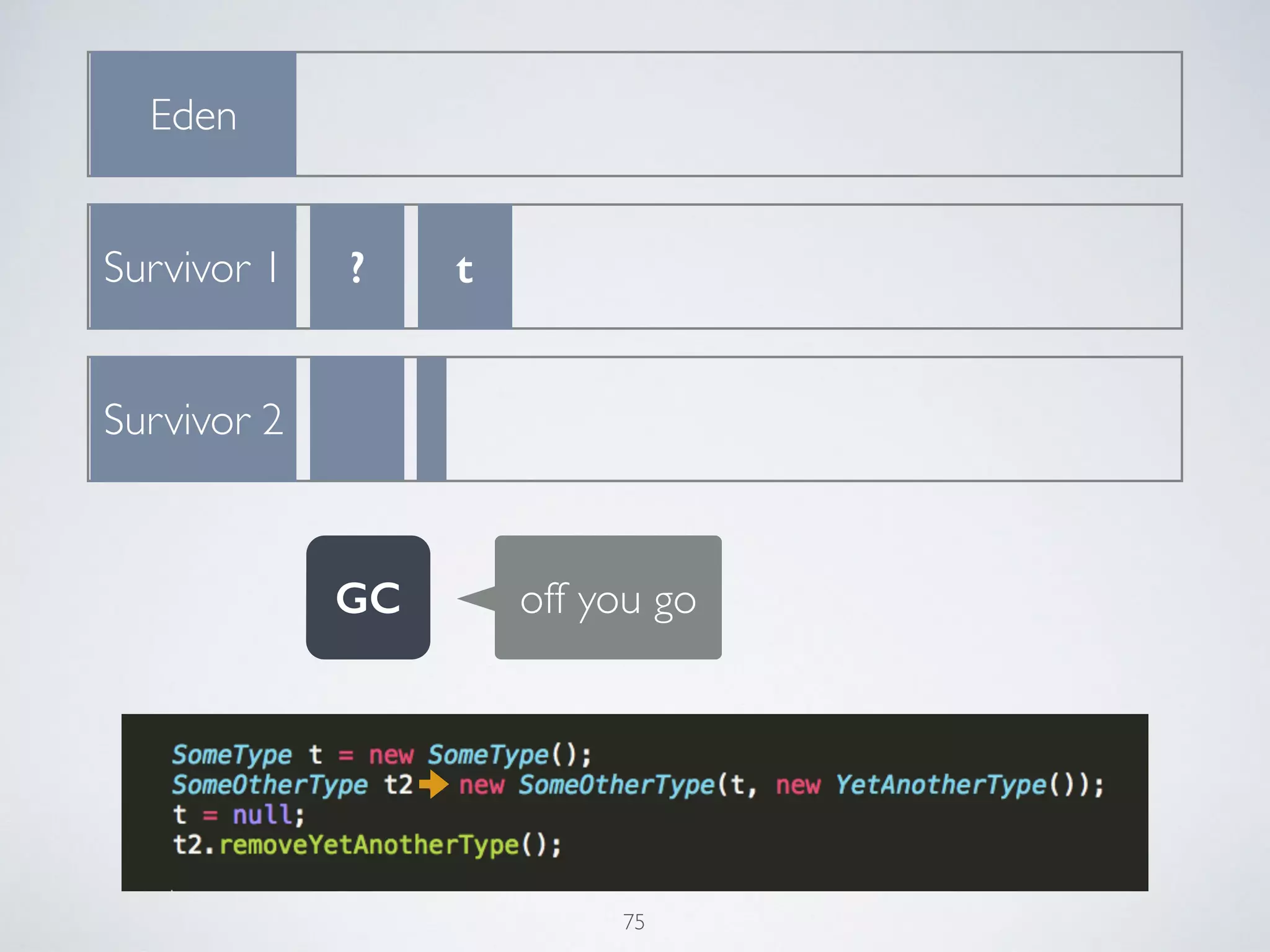

75. Eden
Survivor 1
Survivor 2
GC
? t
off you go
75

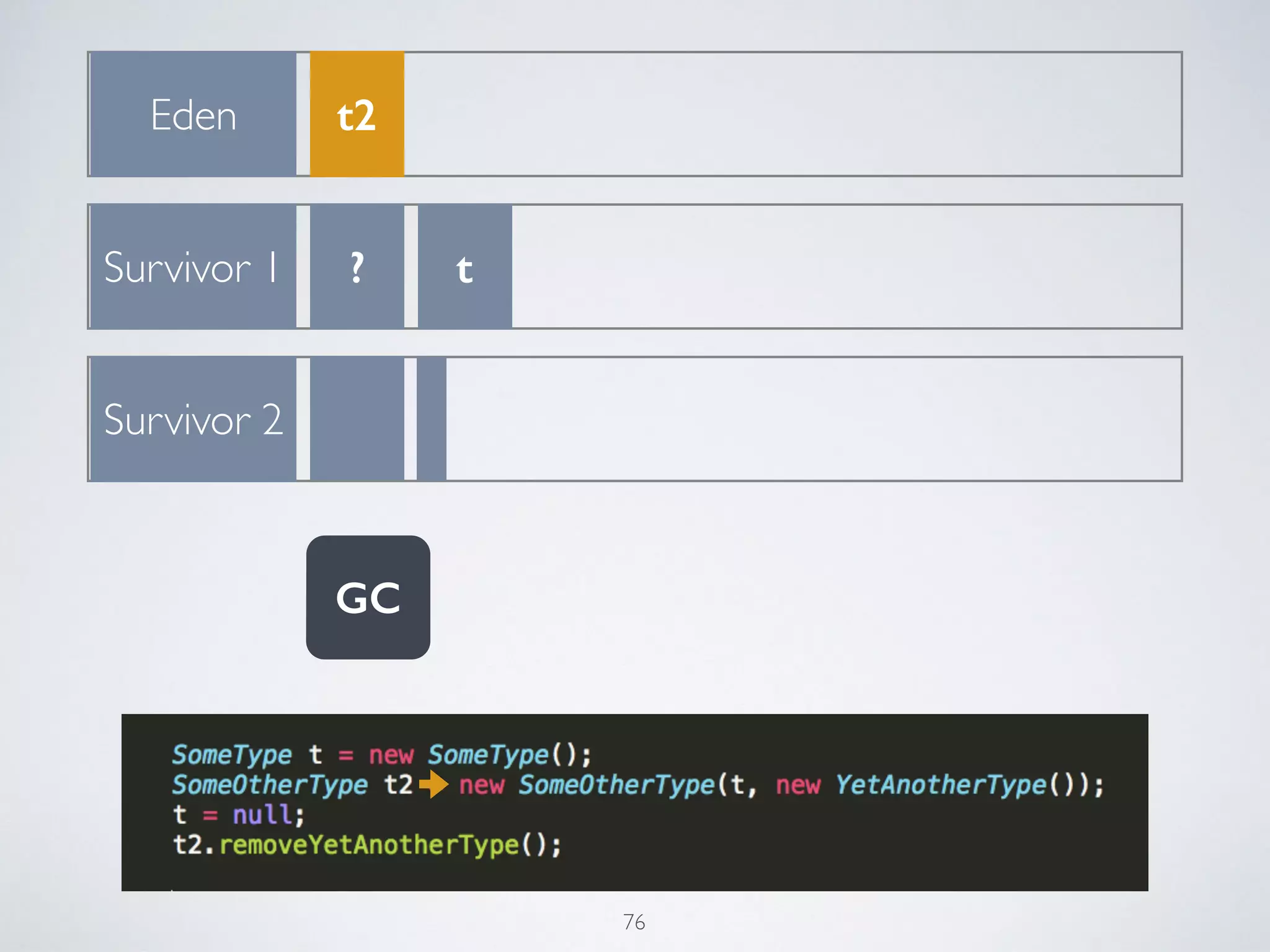

76. Eden
Survivor 1
Survivor 2
GC
? t
t2
76

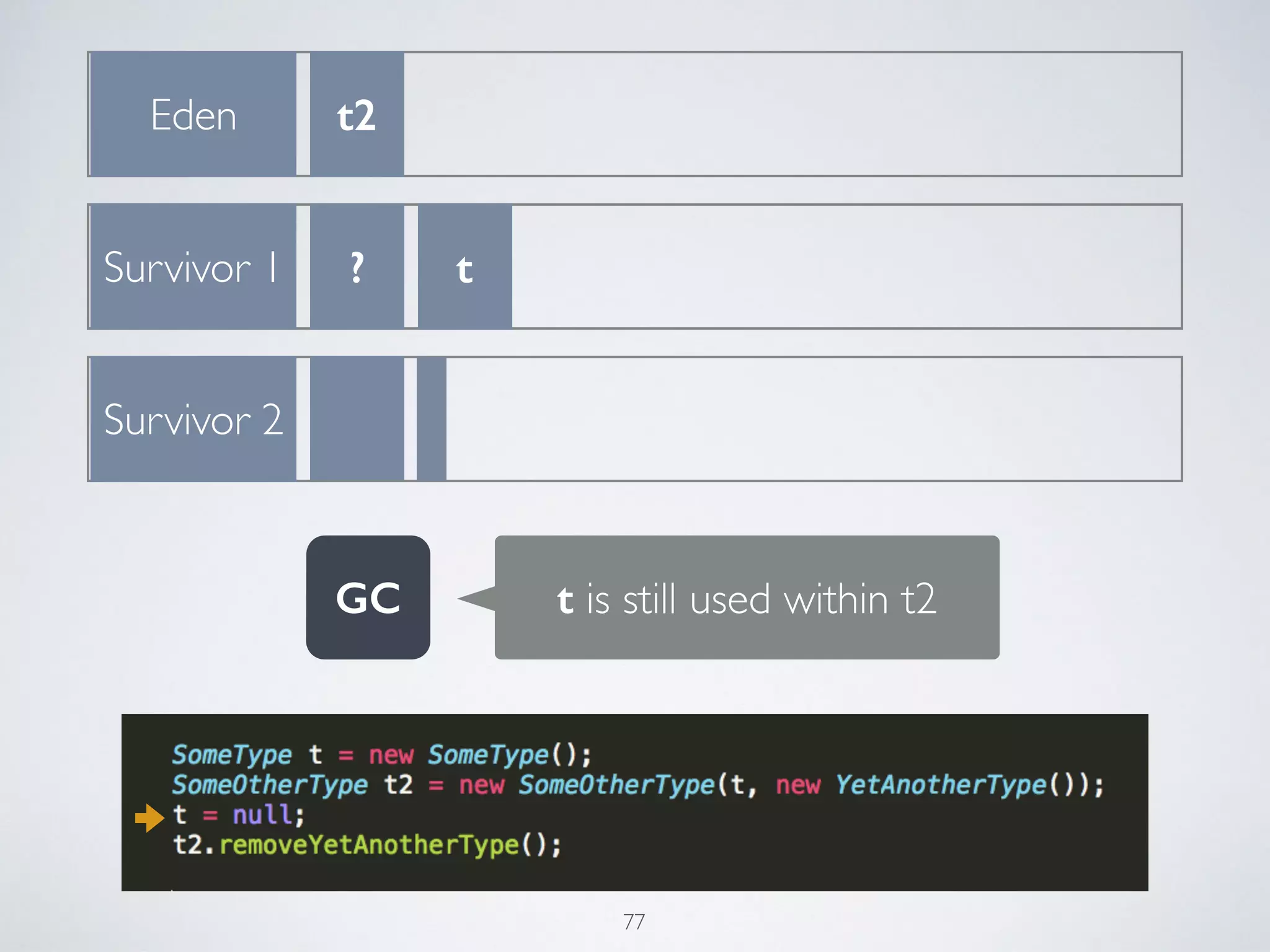

77. Eden
Survivor 1
Survivor 2
GC
? t
t2
t is still used within t2
77

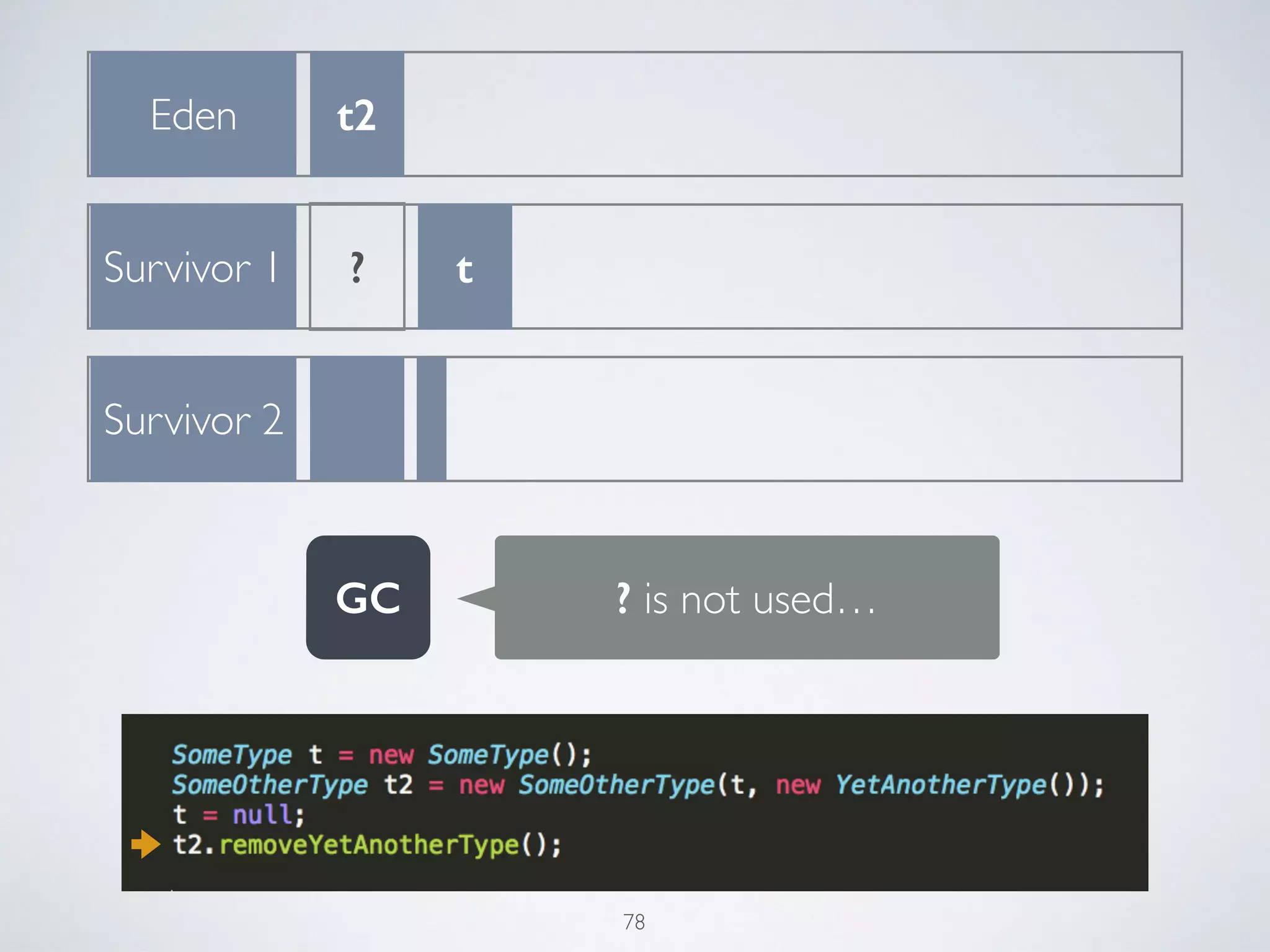

78. Eden
Survivor 1
Survivor 2
GC
? t
t2
? is not used…
78

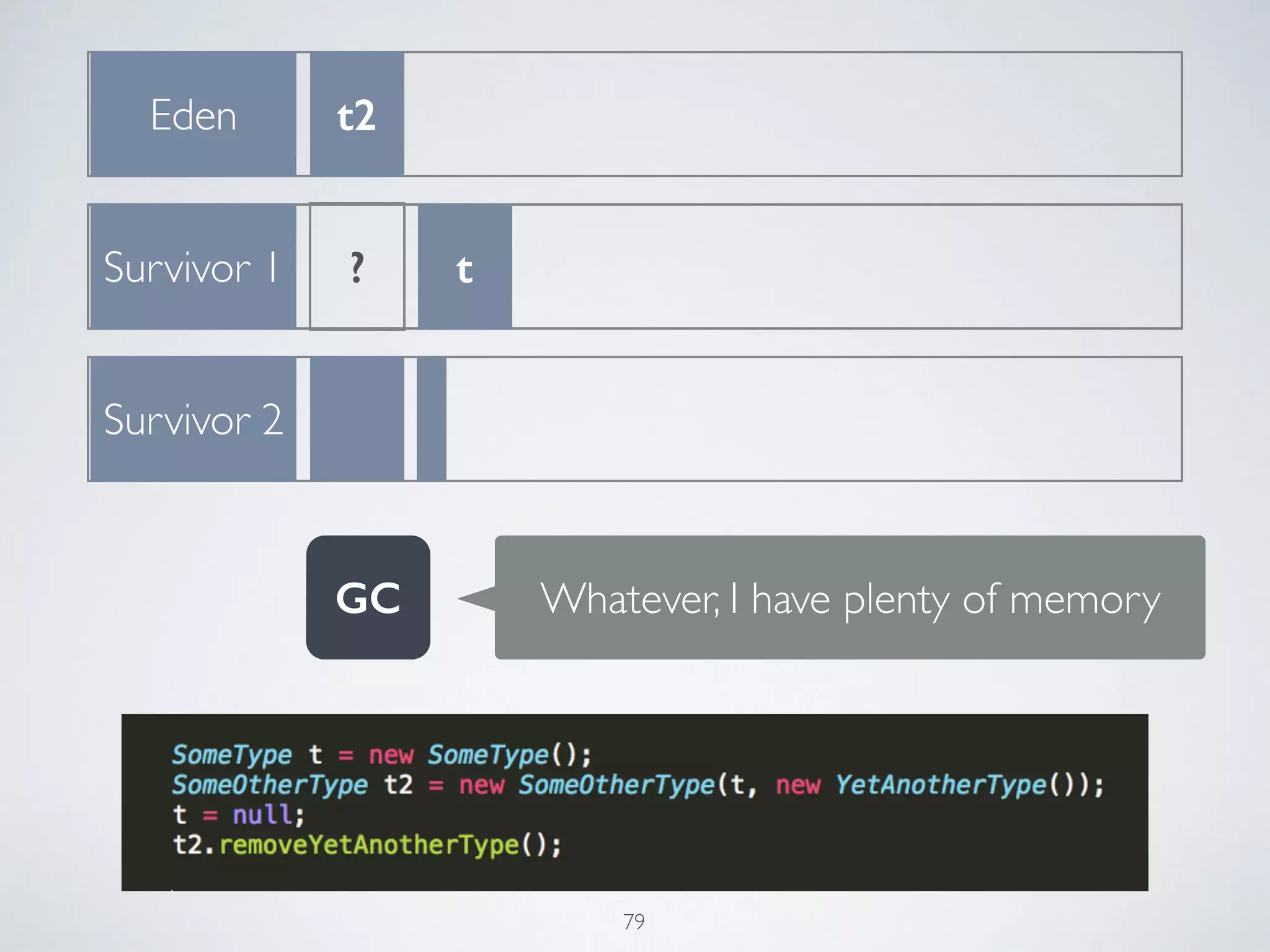

79. Eden
Survivor 1
Survivor 2
GC
? t
t2
Whatever, I have plenty of memory
79

80. Few caveats for this approach
80

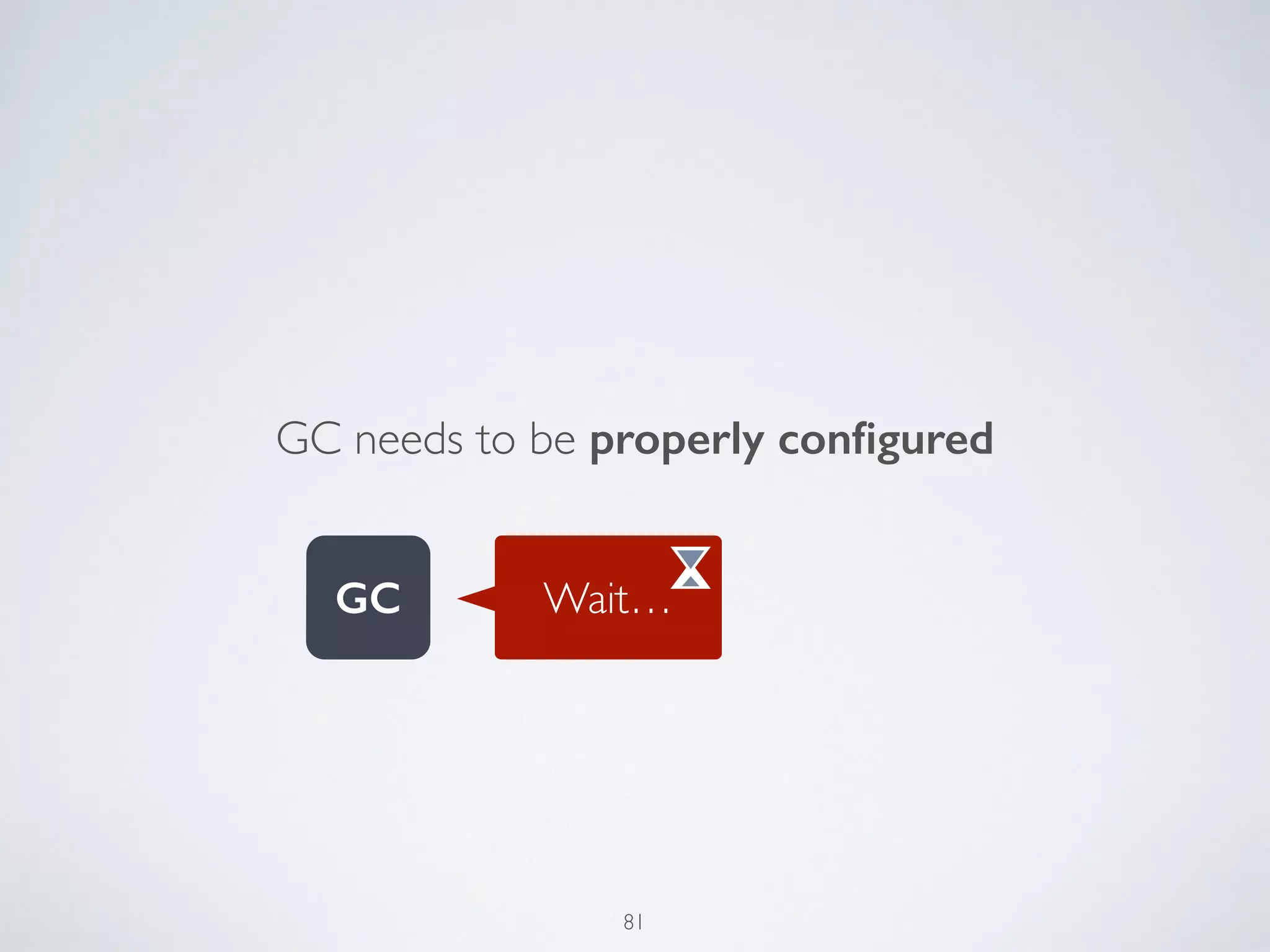

81. GC Wait…
GC needs to be properly configured
81

82. GC …
GC can be unpredictable
82

83. GC
No control over memory layout
83

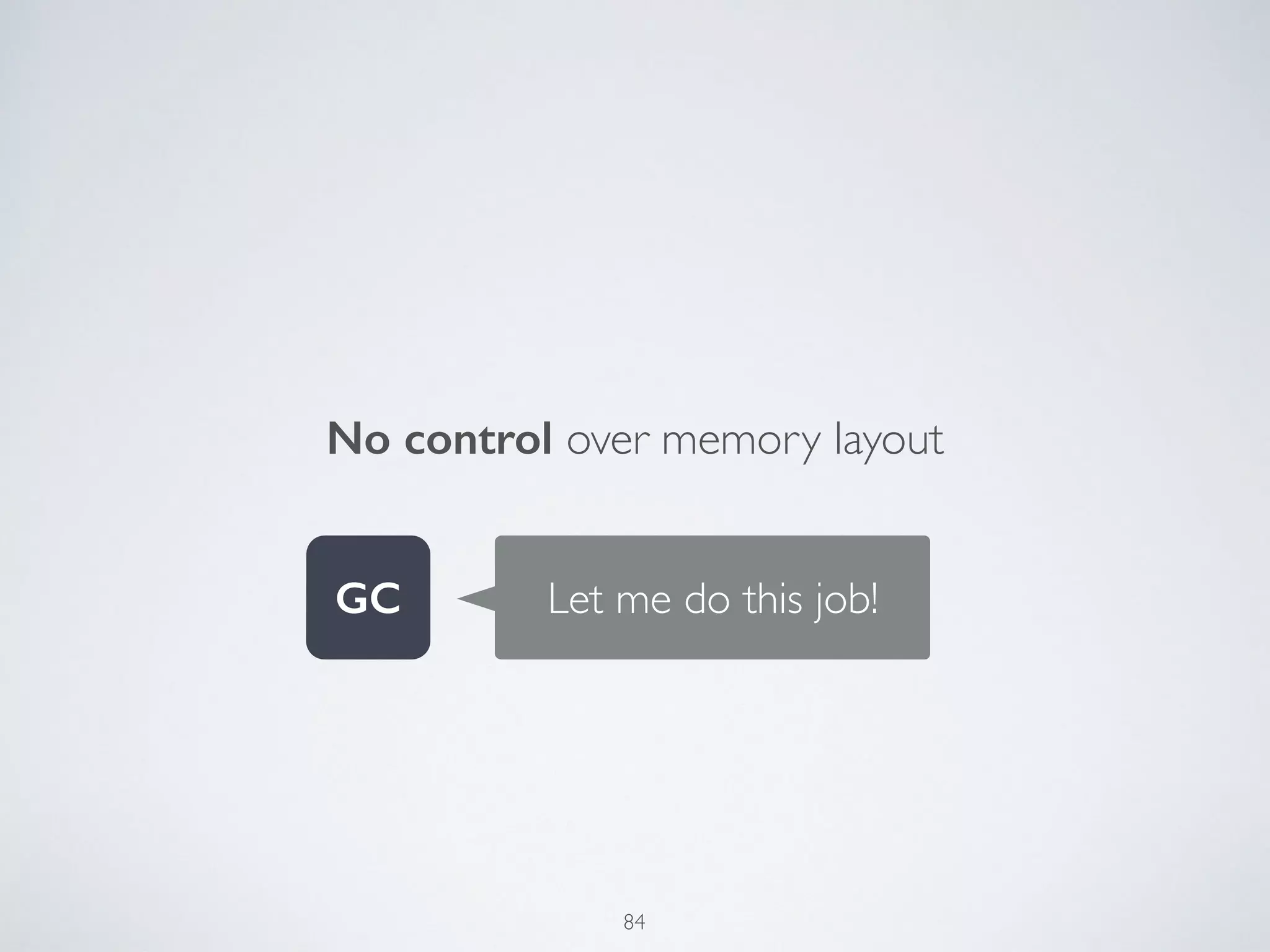

84. GC
No control over memory layout
Let me do this job!
84

85. GC
Managing memory
is hard!
85

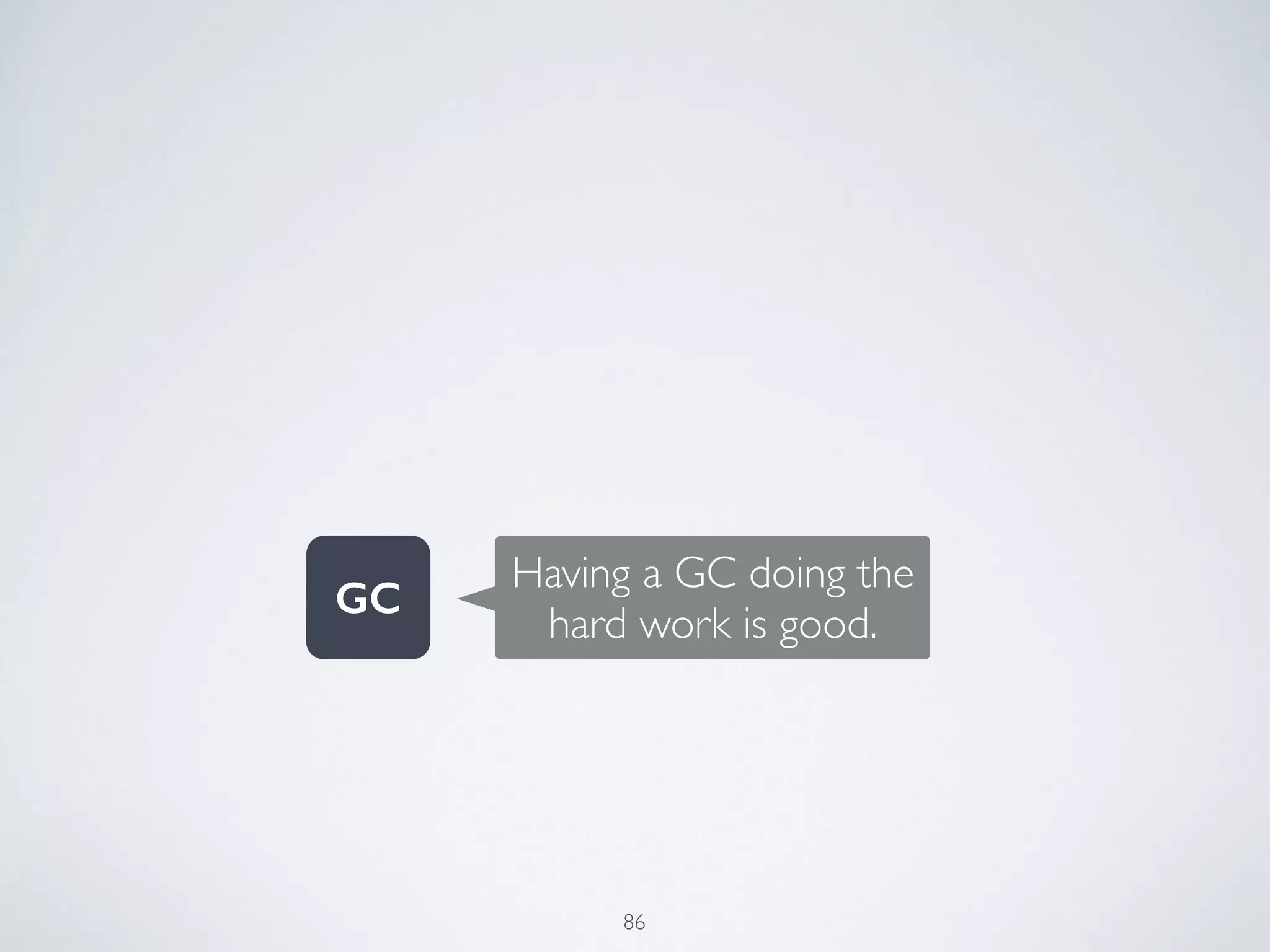

86. GC
Having a GC doing the
hard work is good.
86

87. HANDS ON
87

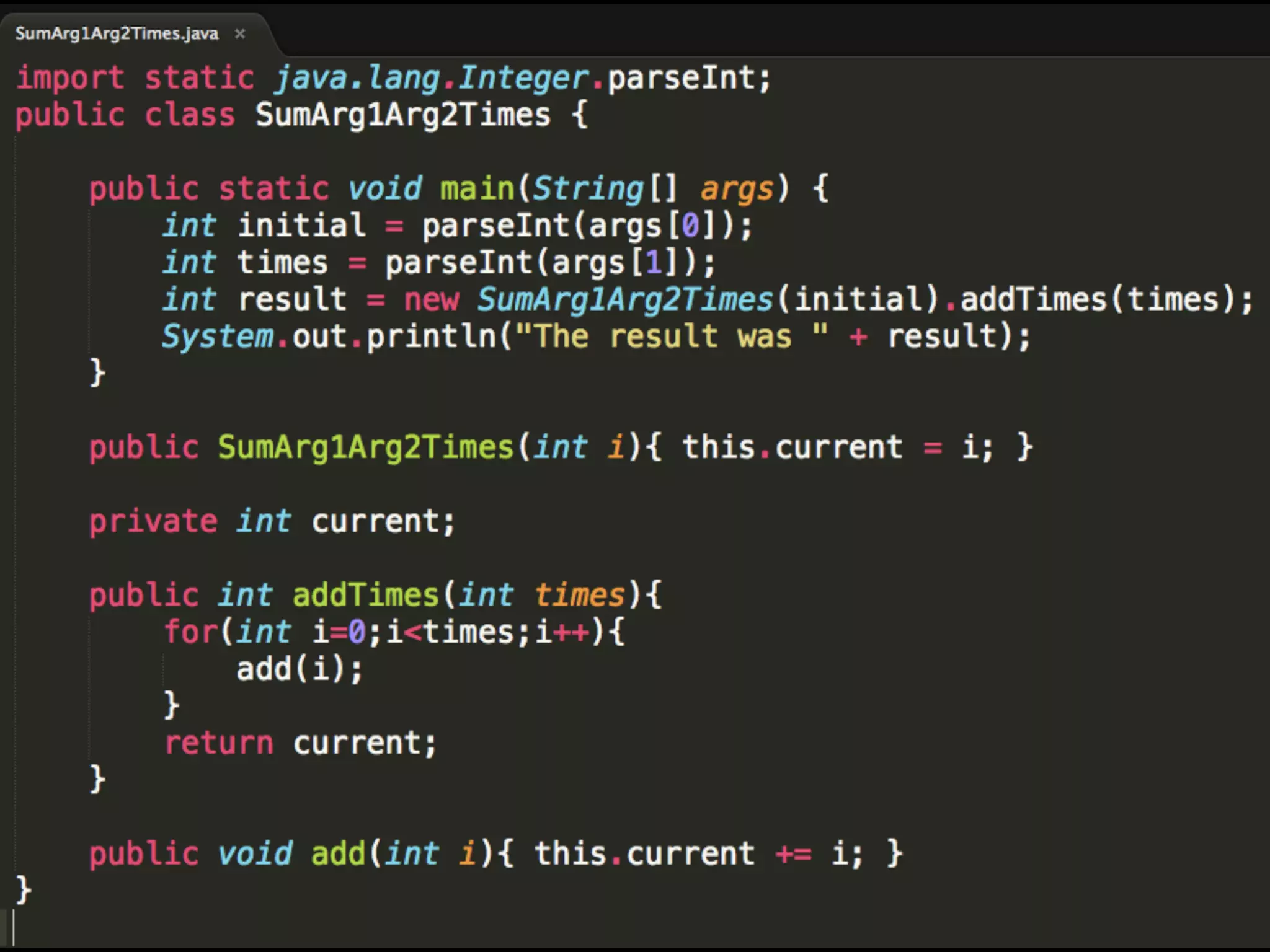

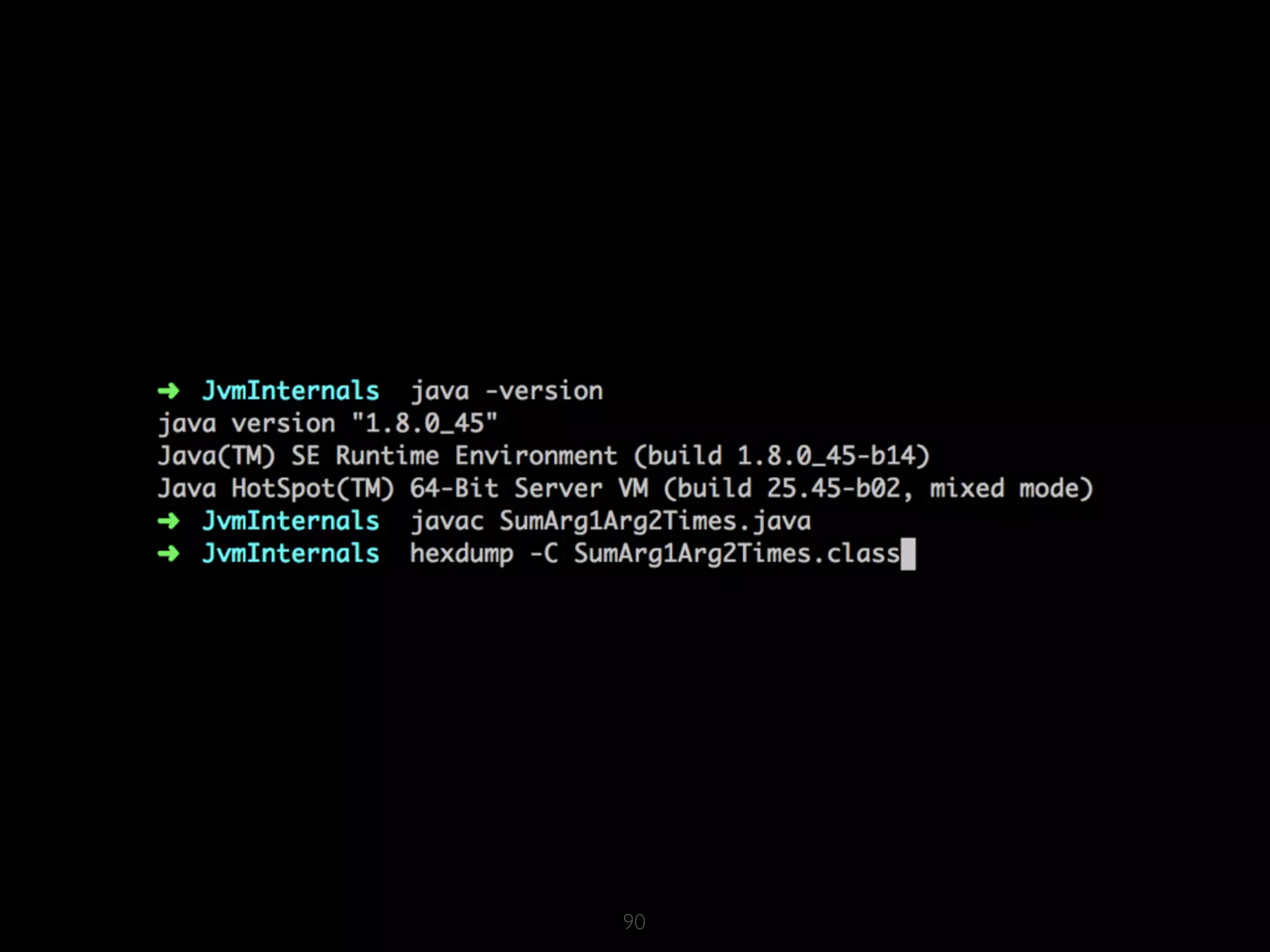

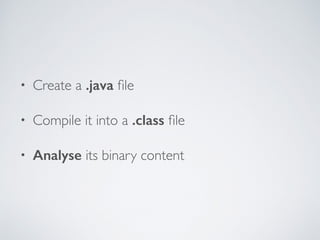

88. • Create a .java file
• Compile it into a .class file

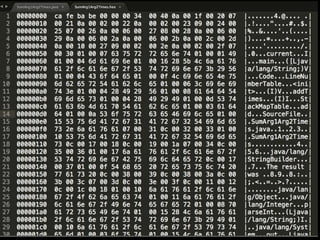

• Analyse its binary content

89. 89

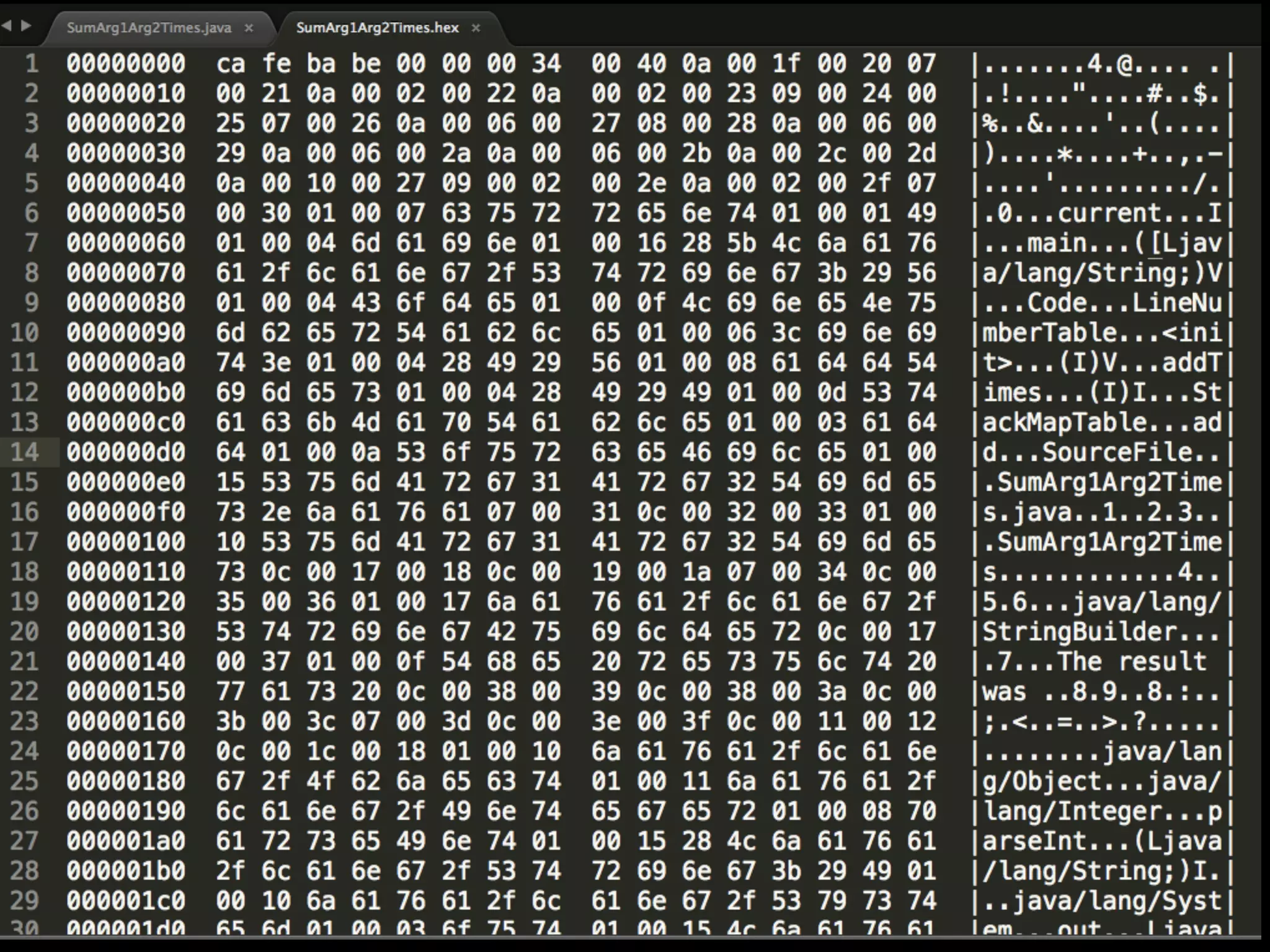

90. 90

91. 91

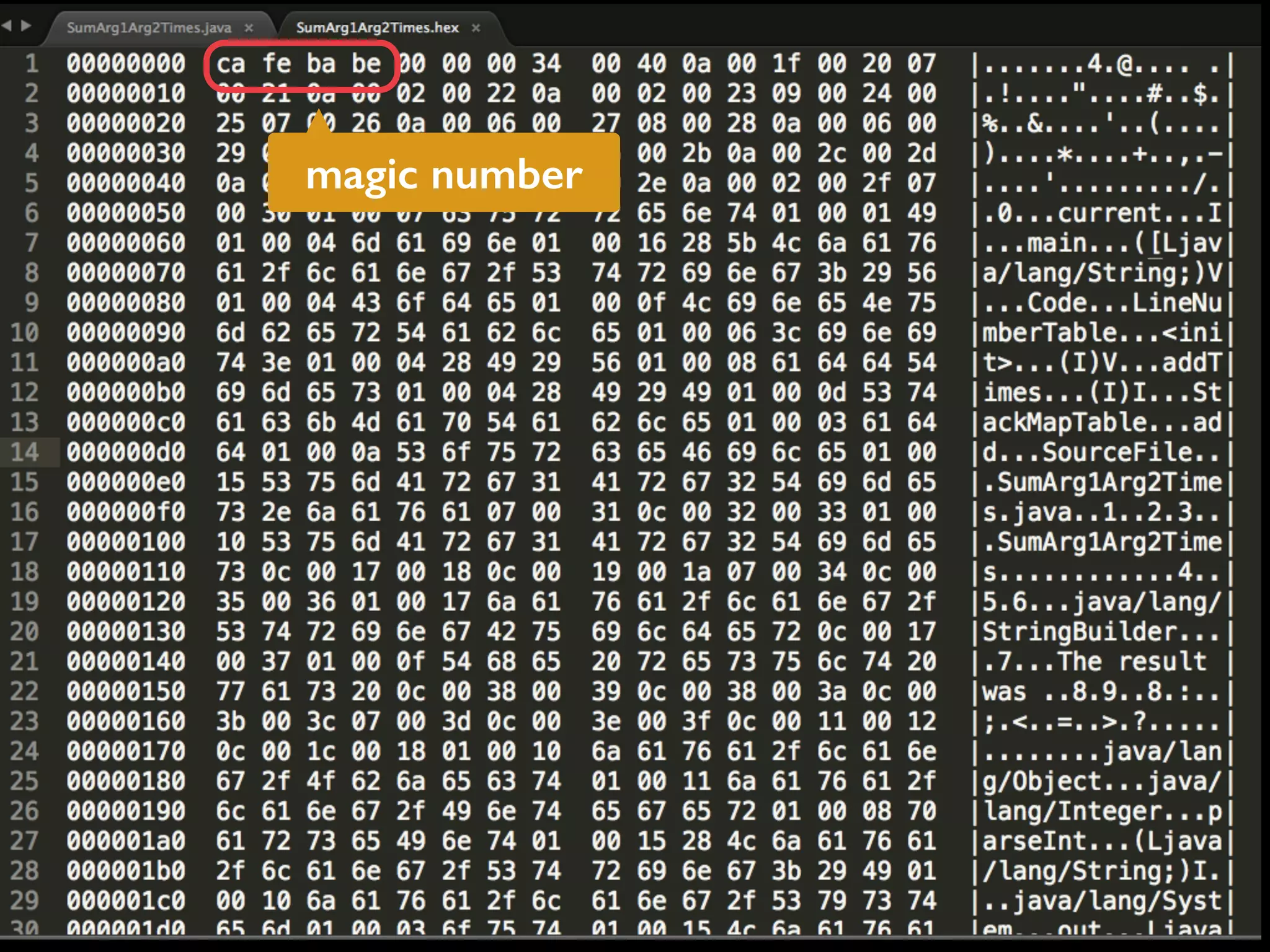

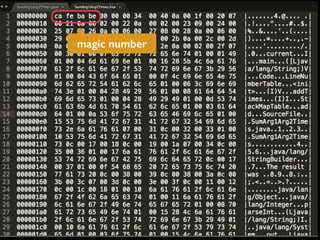

92. 92
magic number

93. 93

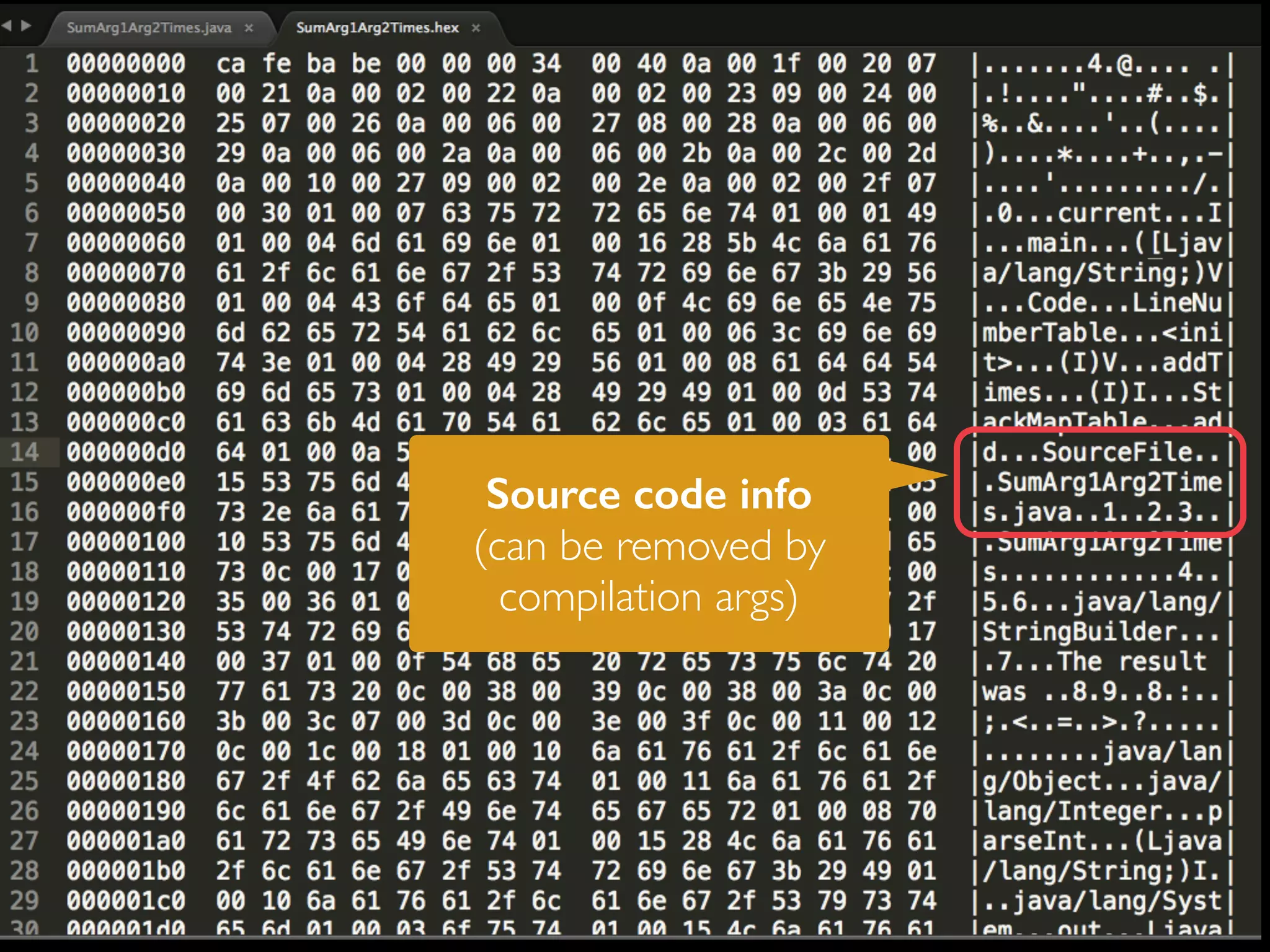

Source code info
(can be removed by
compilation args)

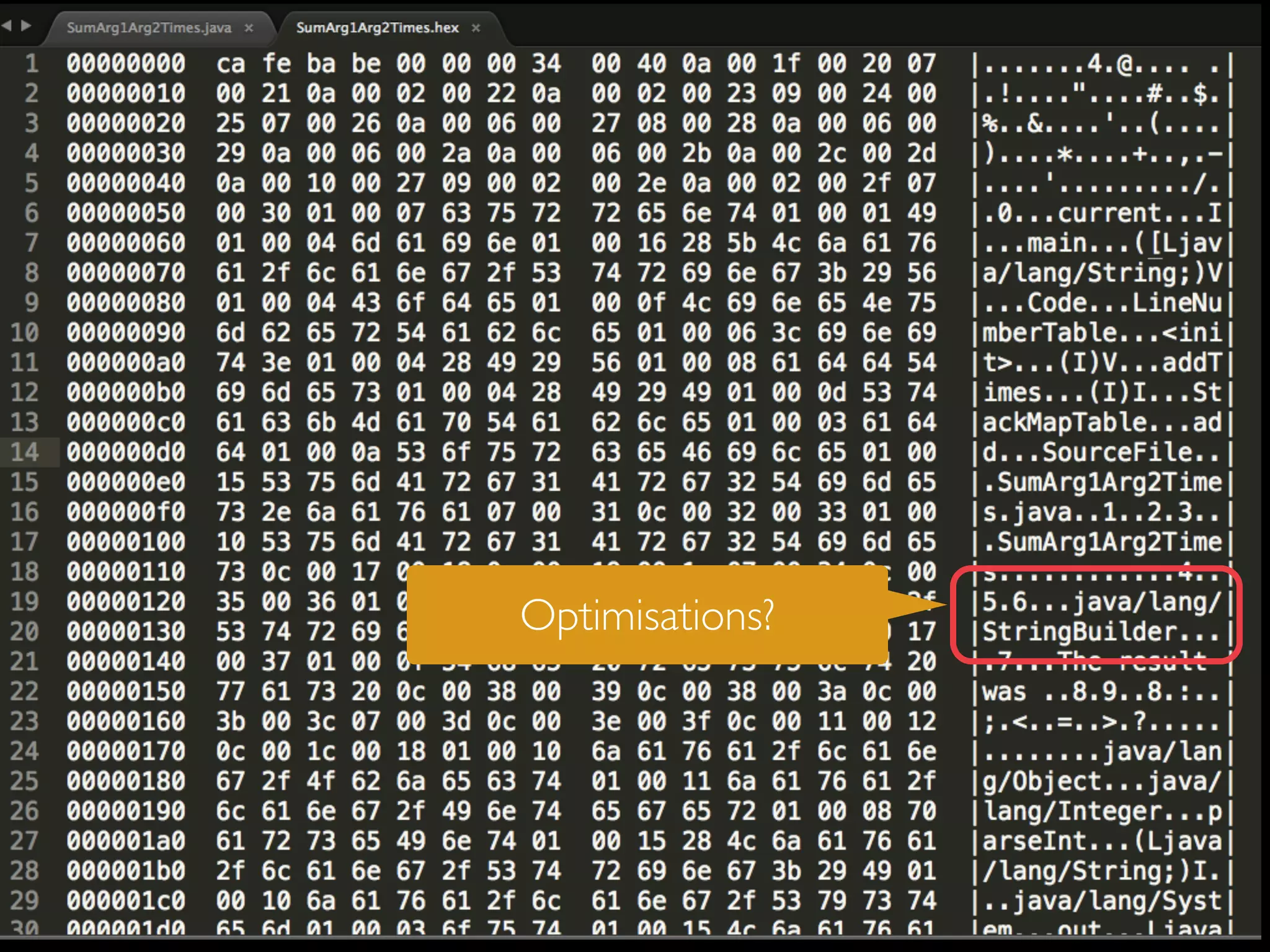

94. 94

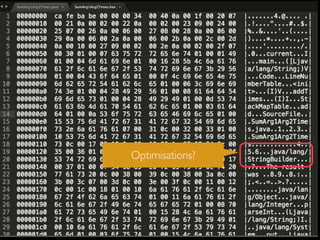

Optimisations?

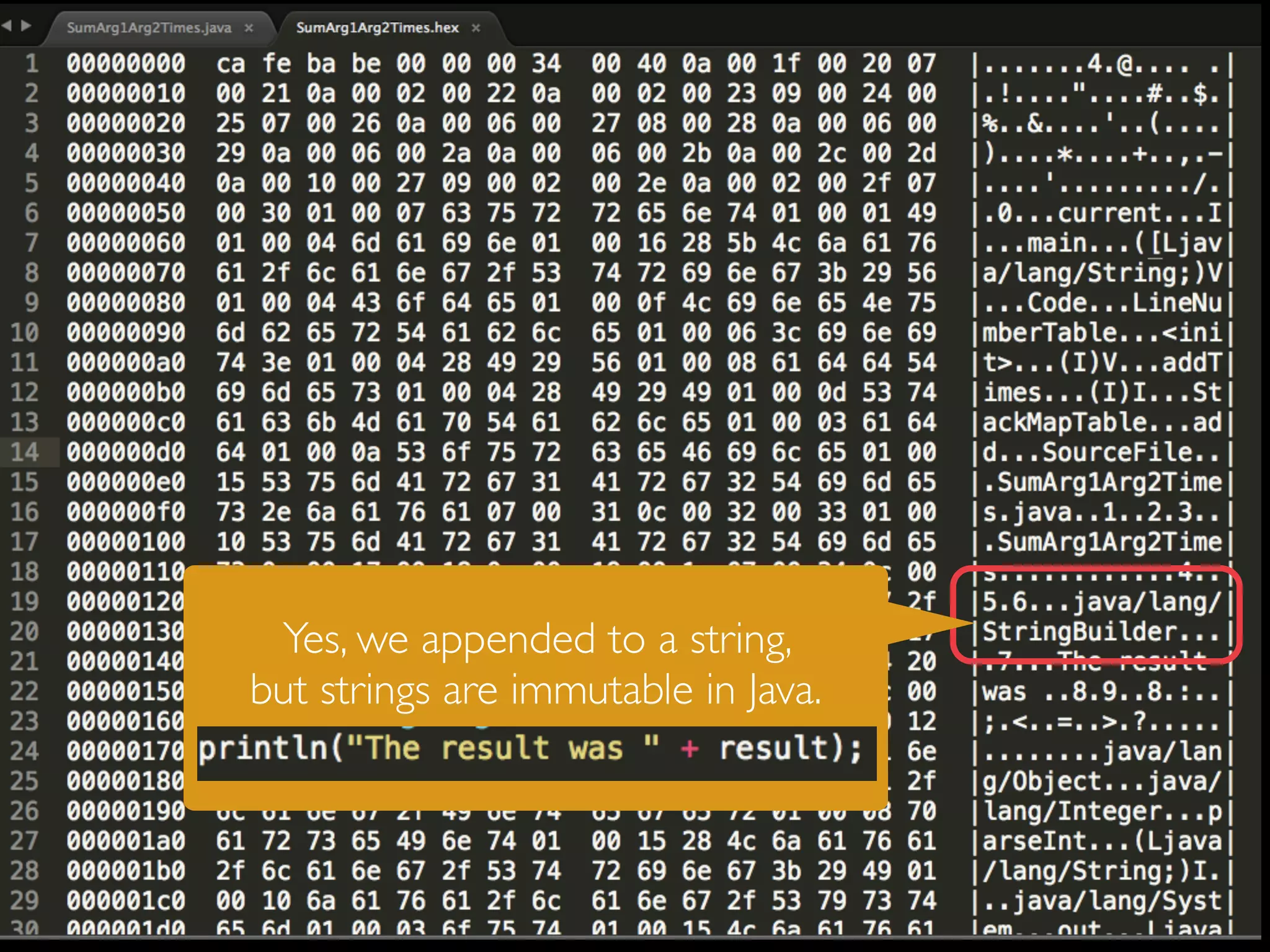

95. 95
Yes, we appended to a string,
but strings are immutable in Java.

96. 96

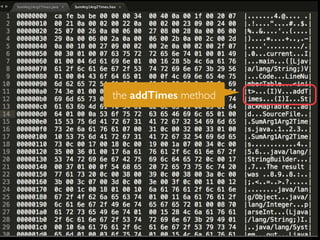

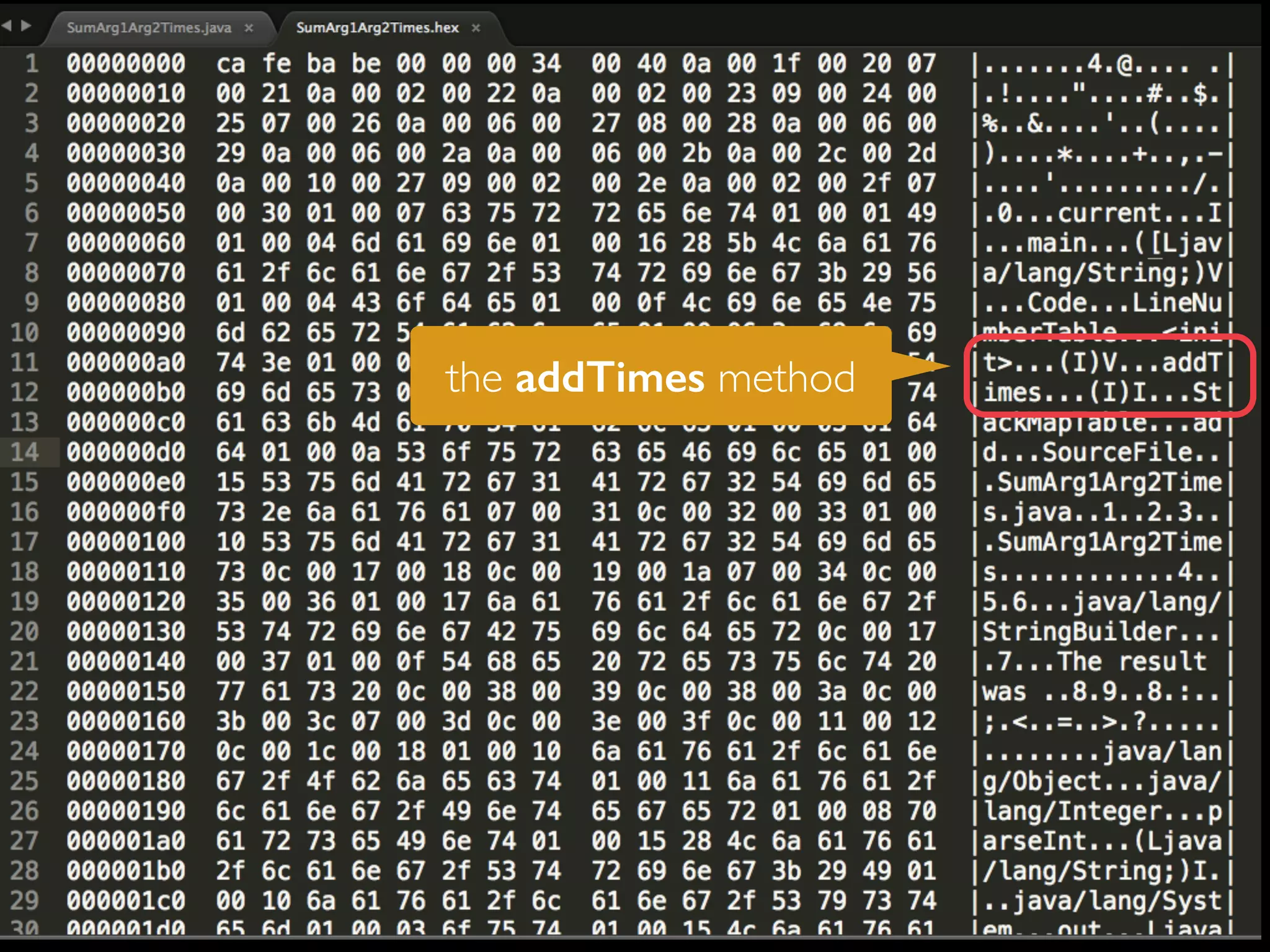

the addTimes method

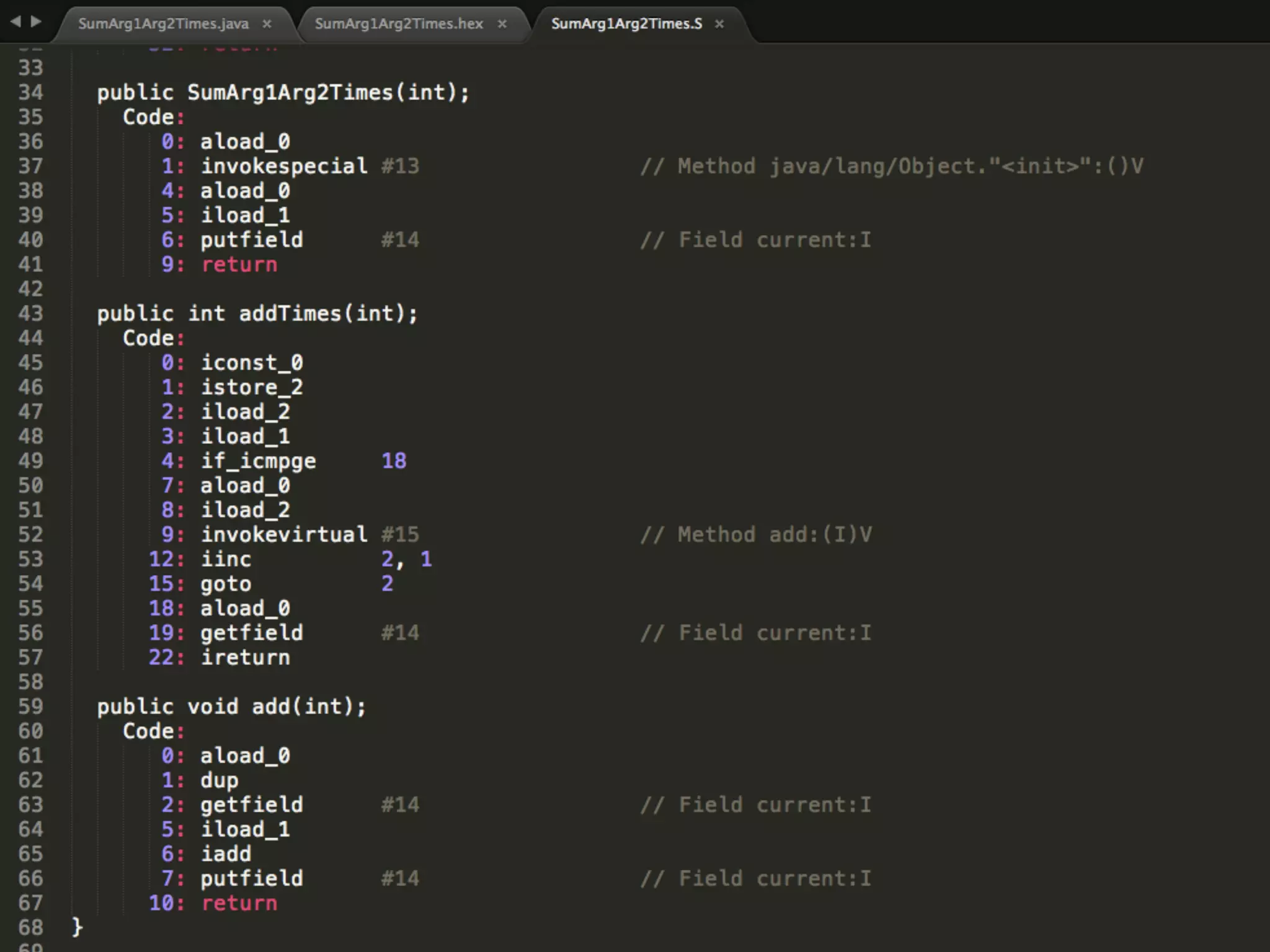

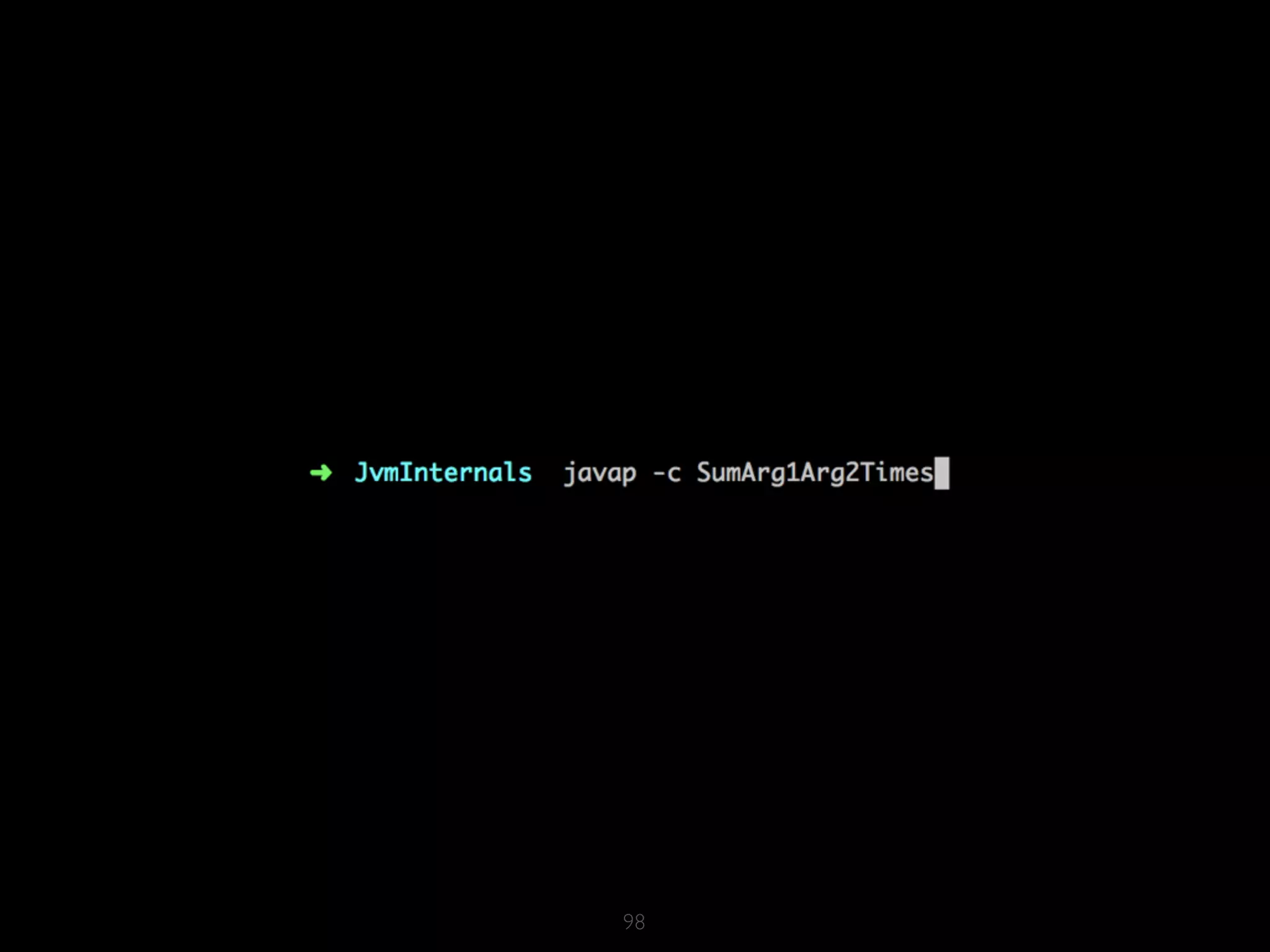

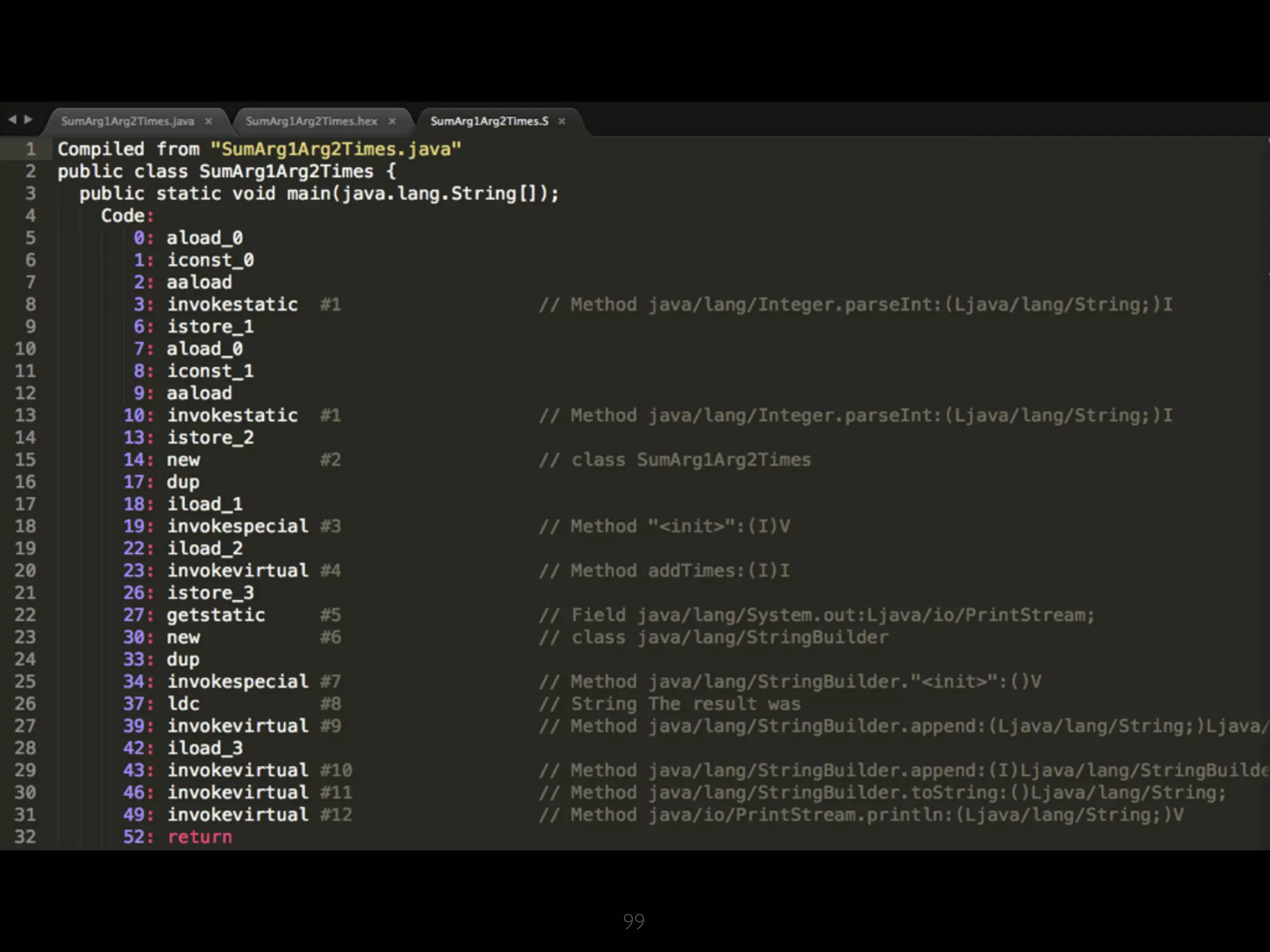

97. Time to take a look on the JVM Assembly code

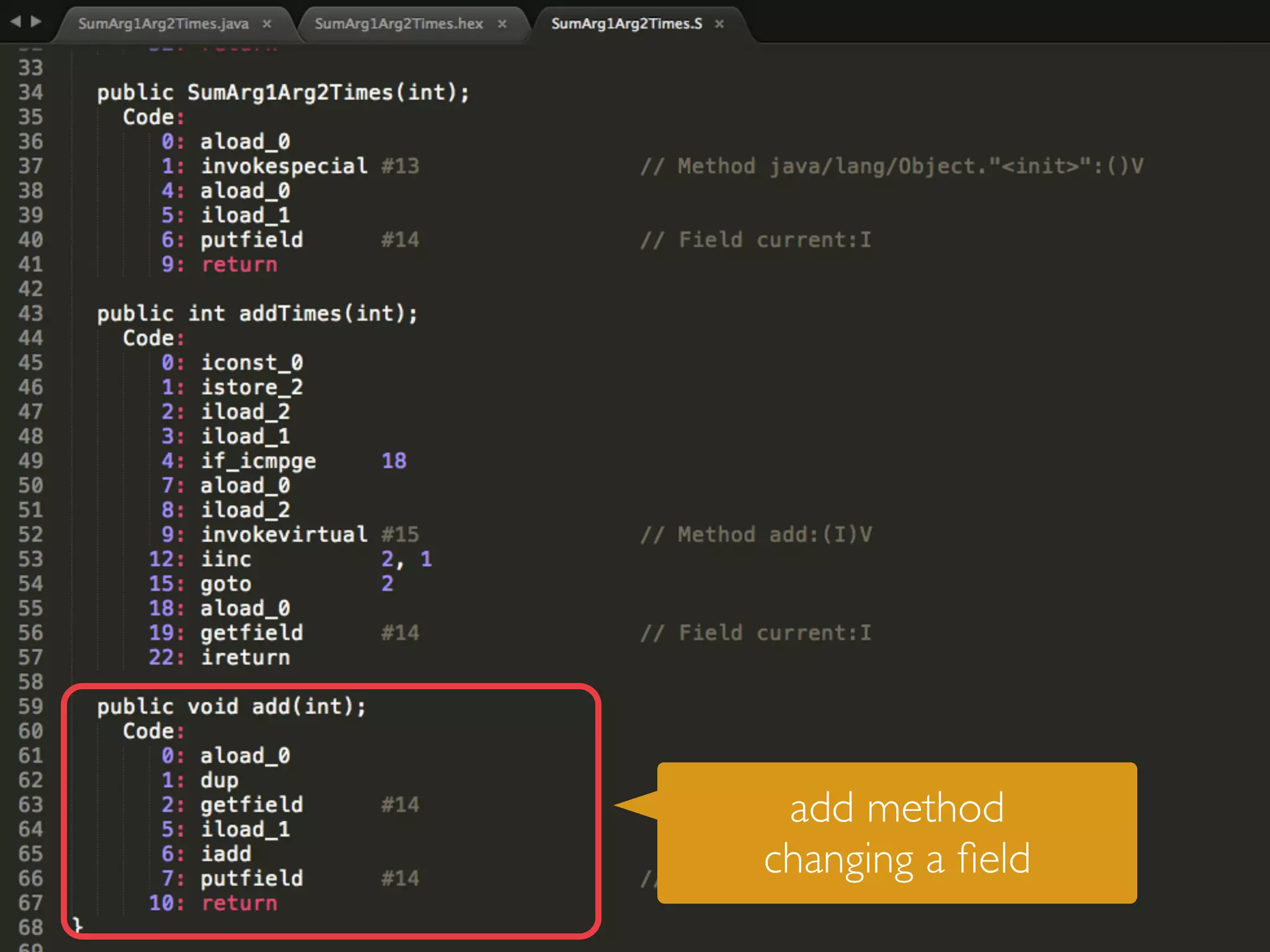

97

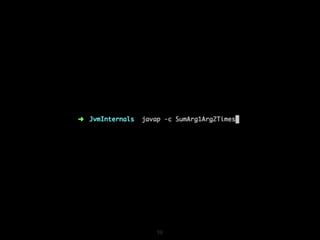

98. 98

99. 99

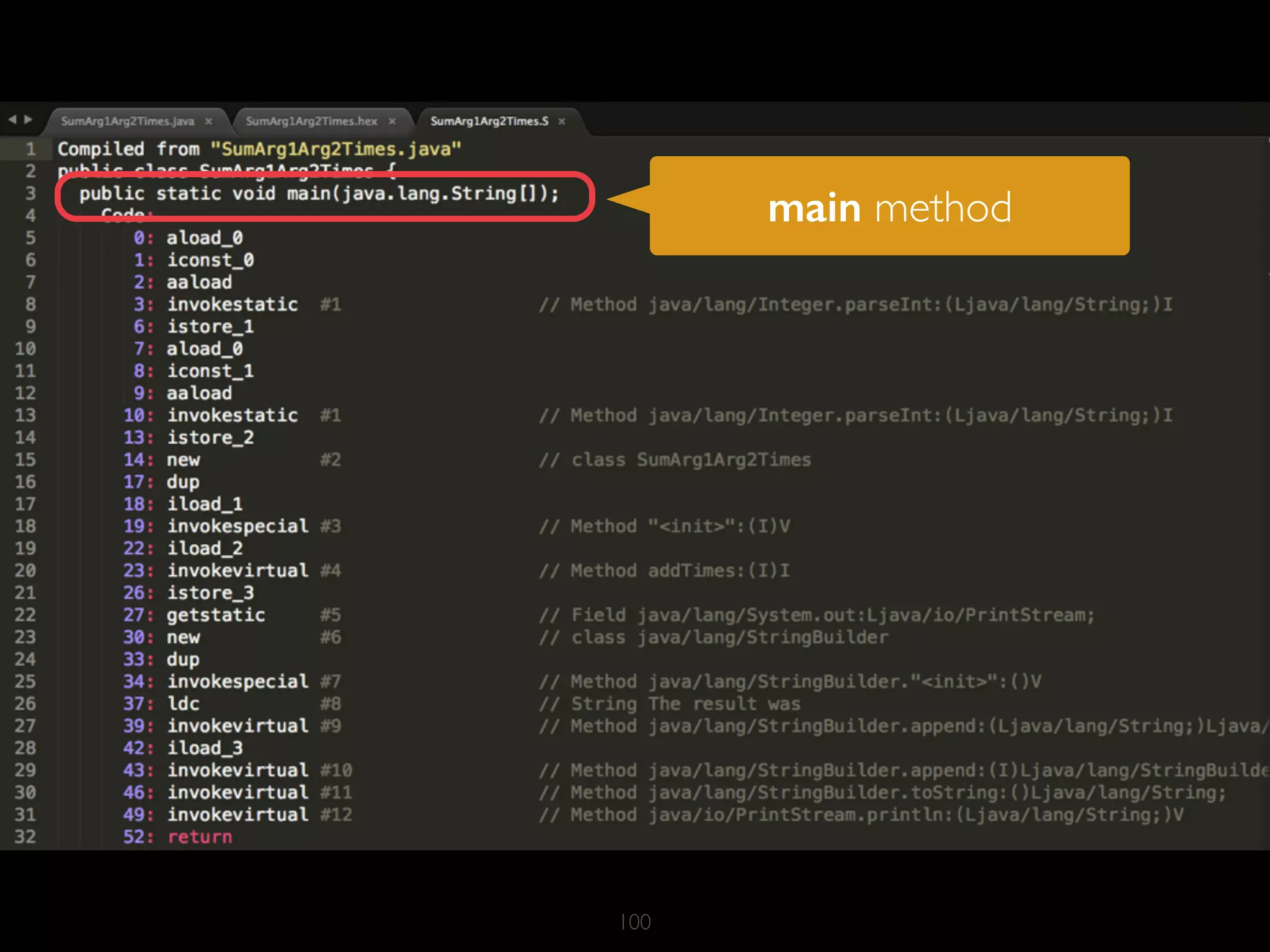

100. 100
main method

101. 101

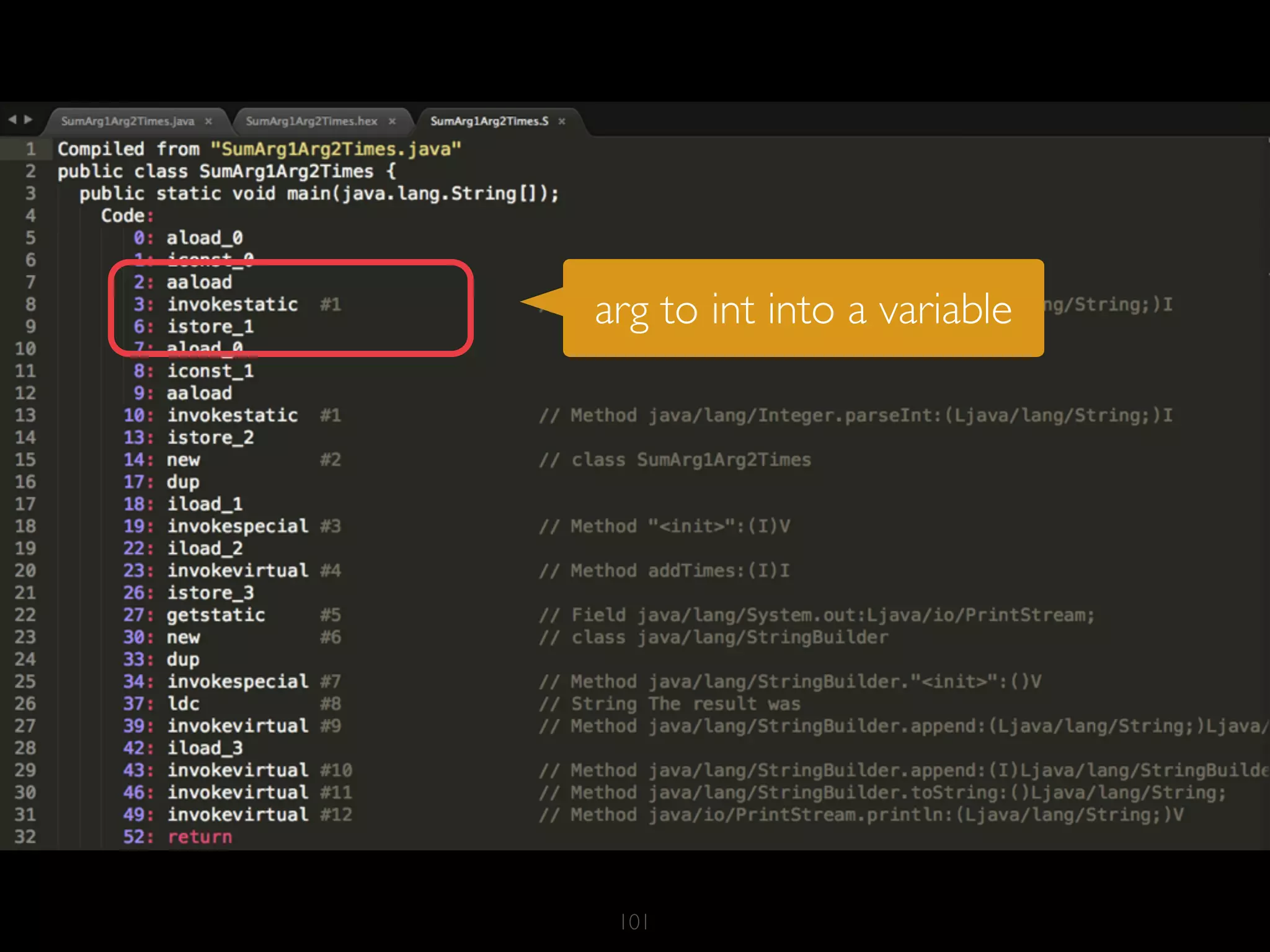

arg to int into a variable

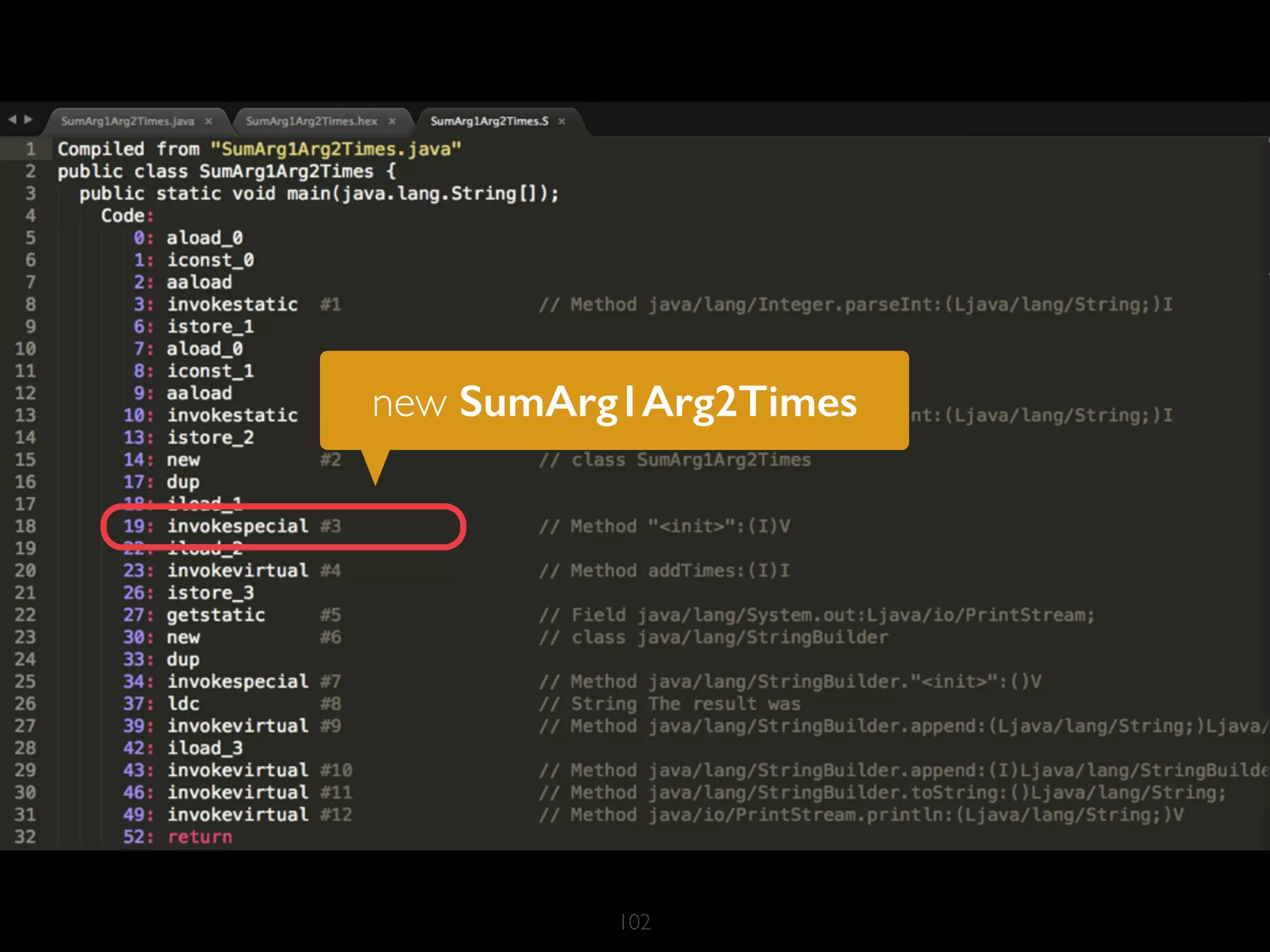

102. 102
new SumArg1Arg2Times

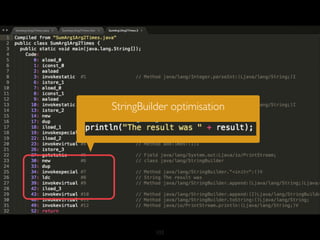

103. 103
StringBuilder optimisation

104. 104

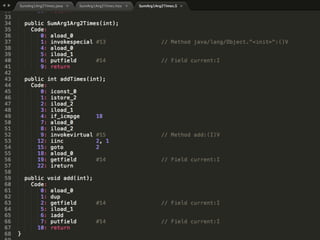

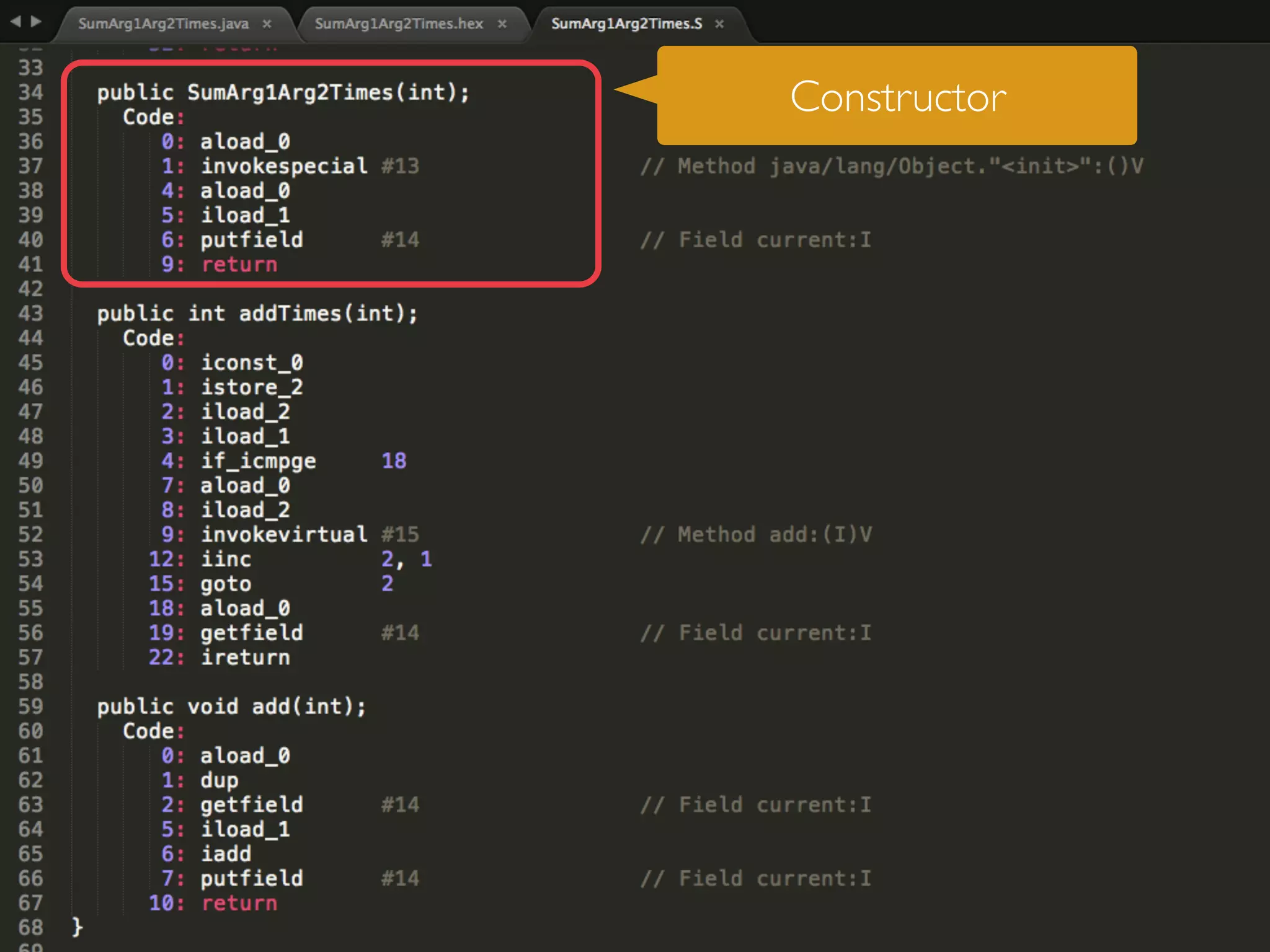

105. 105
Constructor

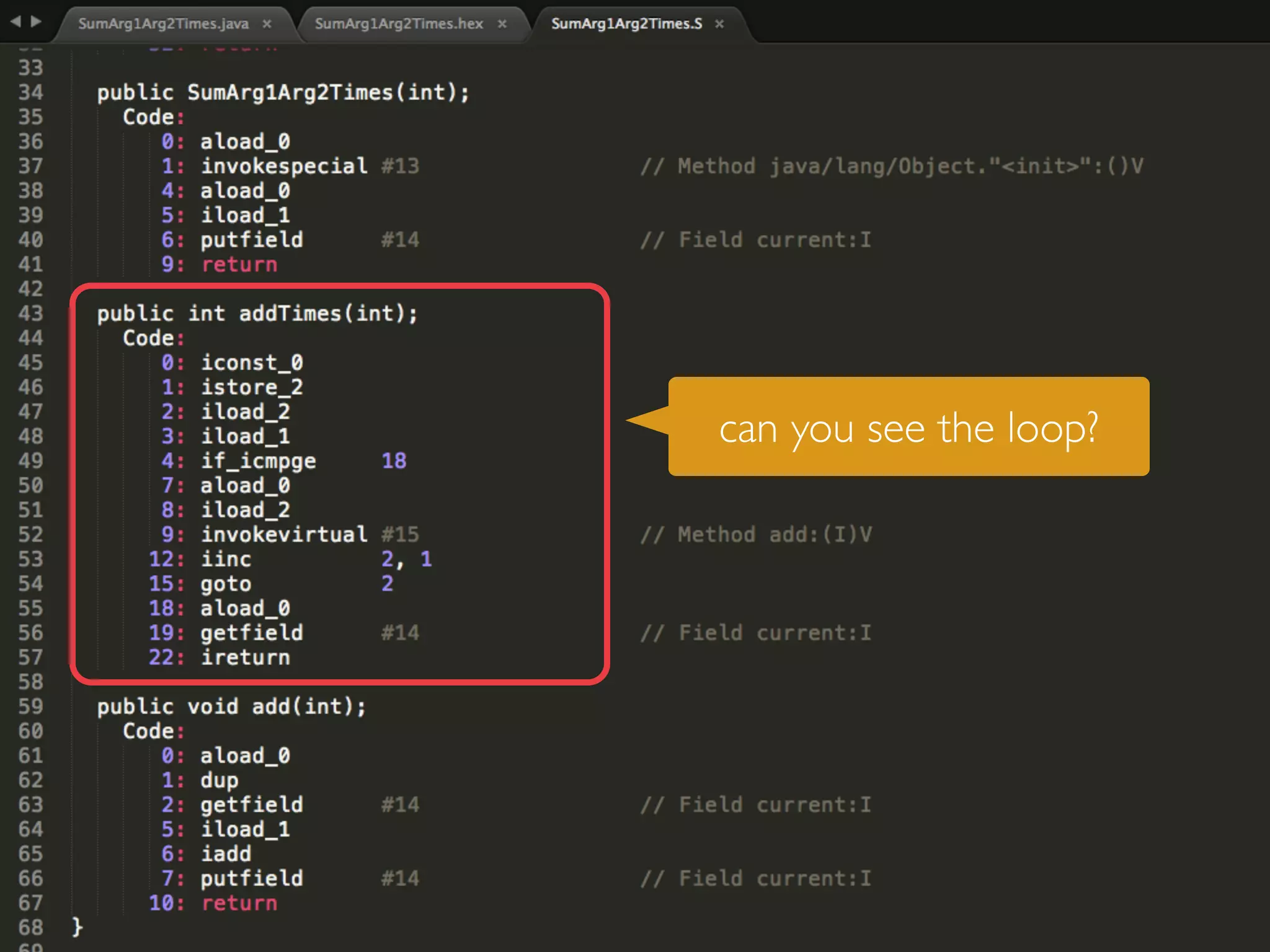

106. 106
can you see the loop?

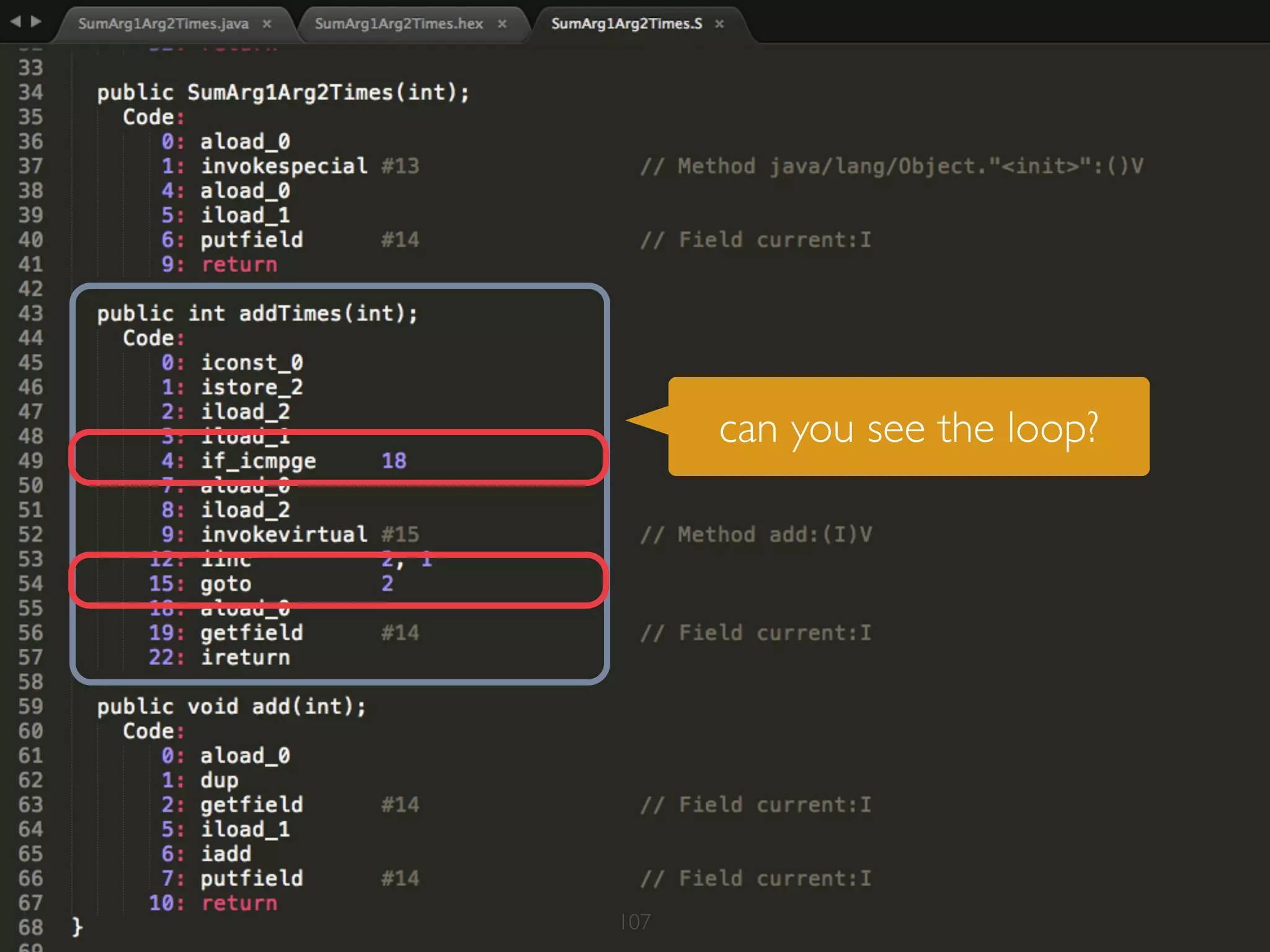

107. 107
can you see the loop?

108. 108
add method
changing a field

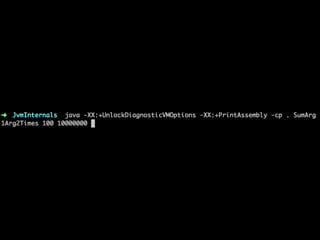

109. Going further, let’s look the native assembly code
109

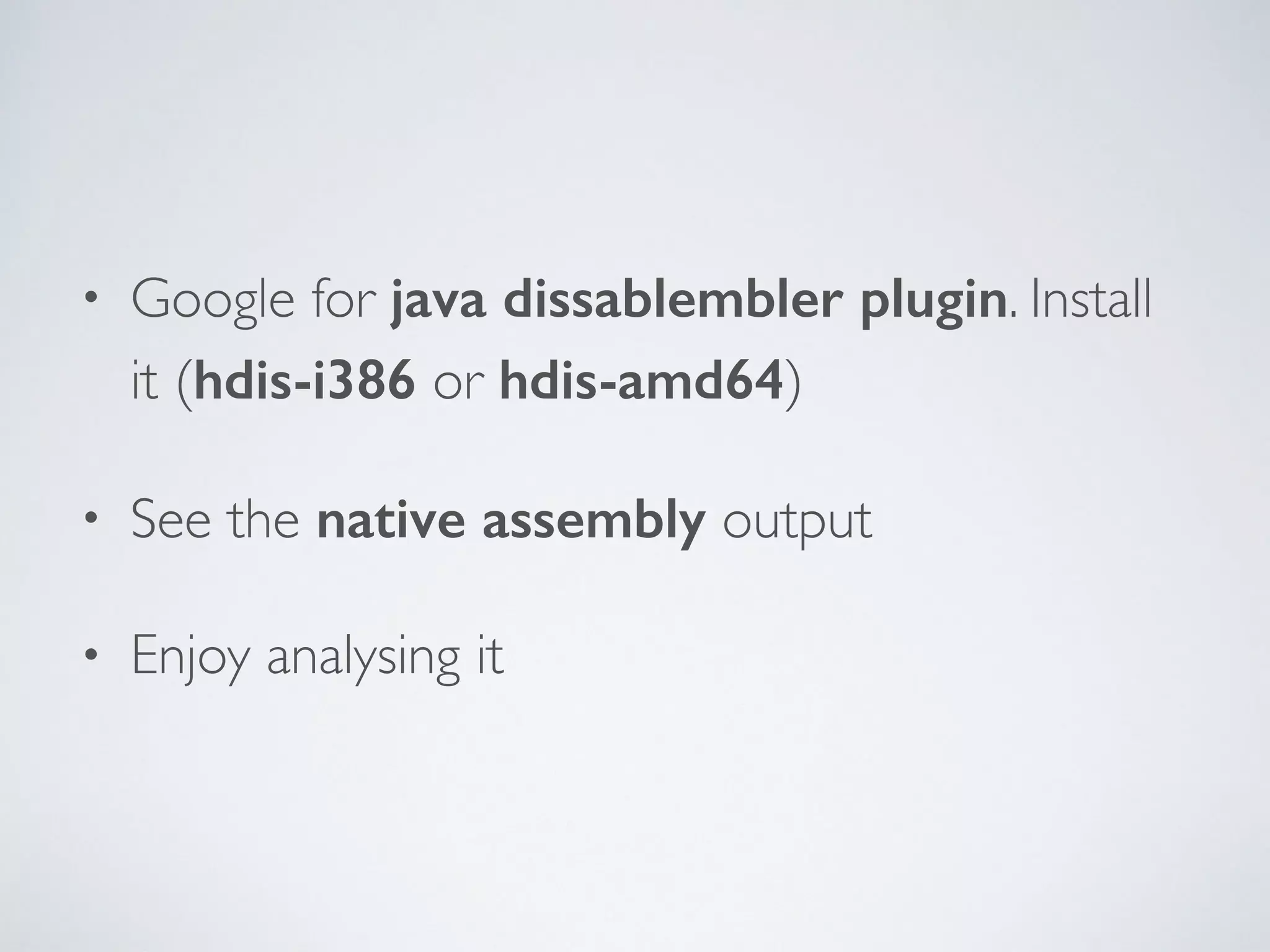

110. • Google for java dissablembler plugin. Install
it (hdis-i386 or hdis-amd64)
• See the native assembly output
• Enjoy analysing it

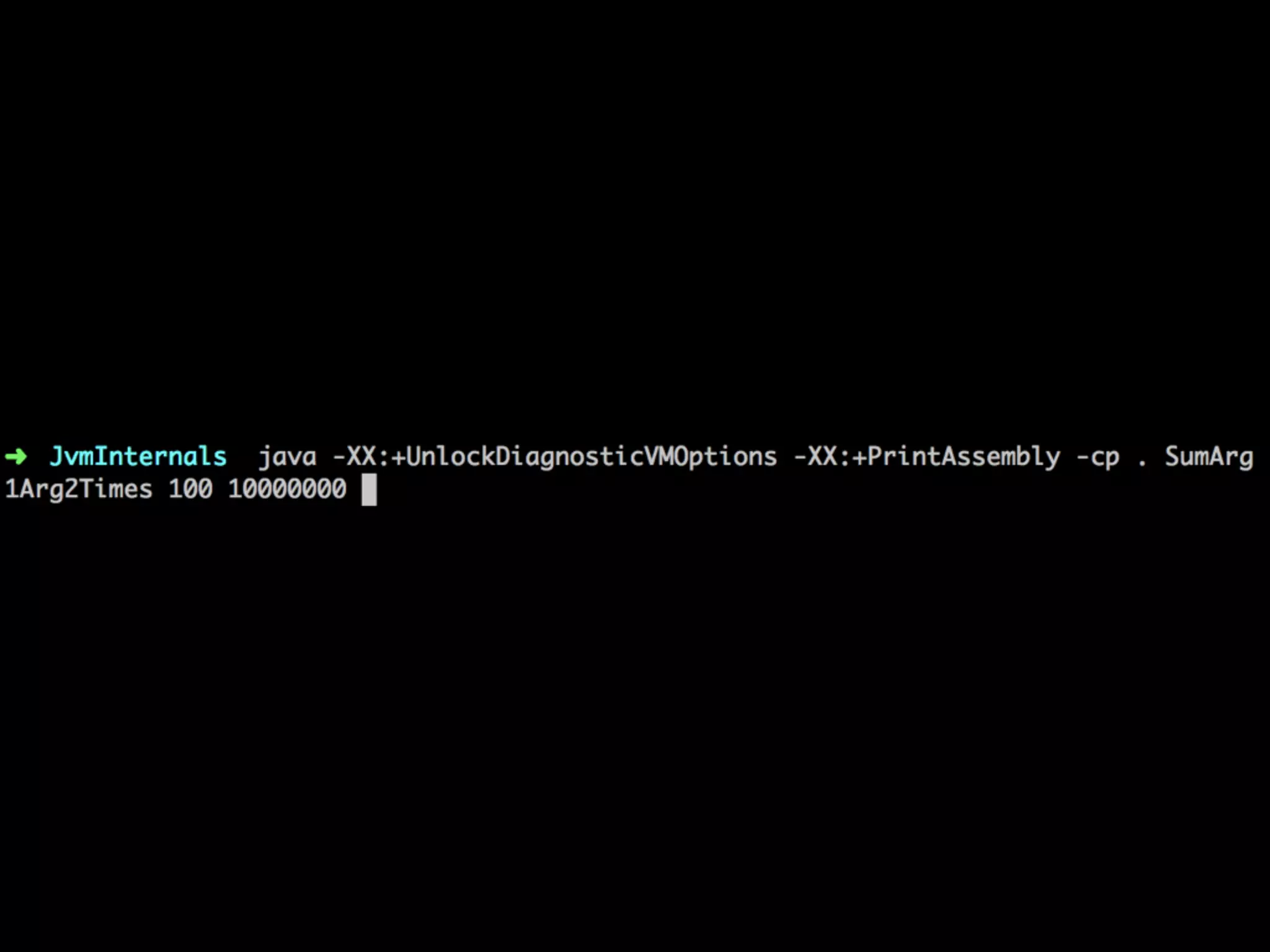

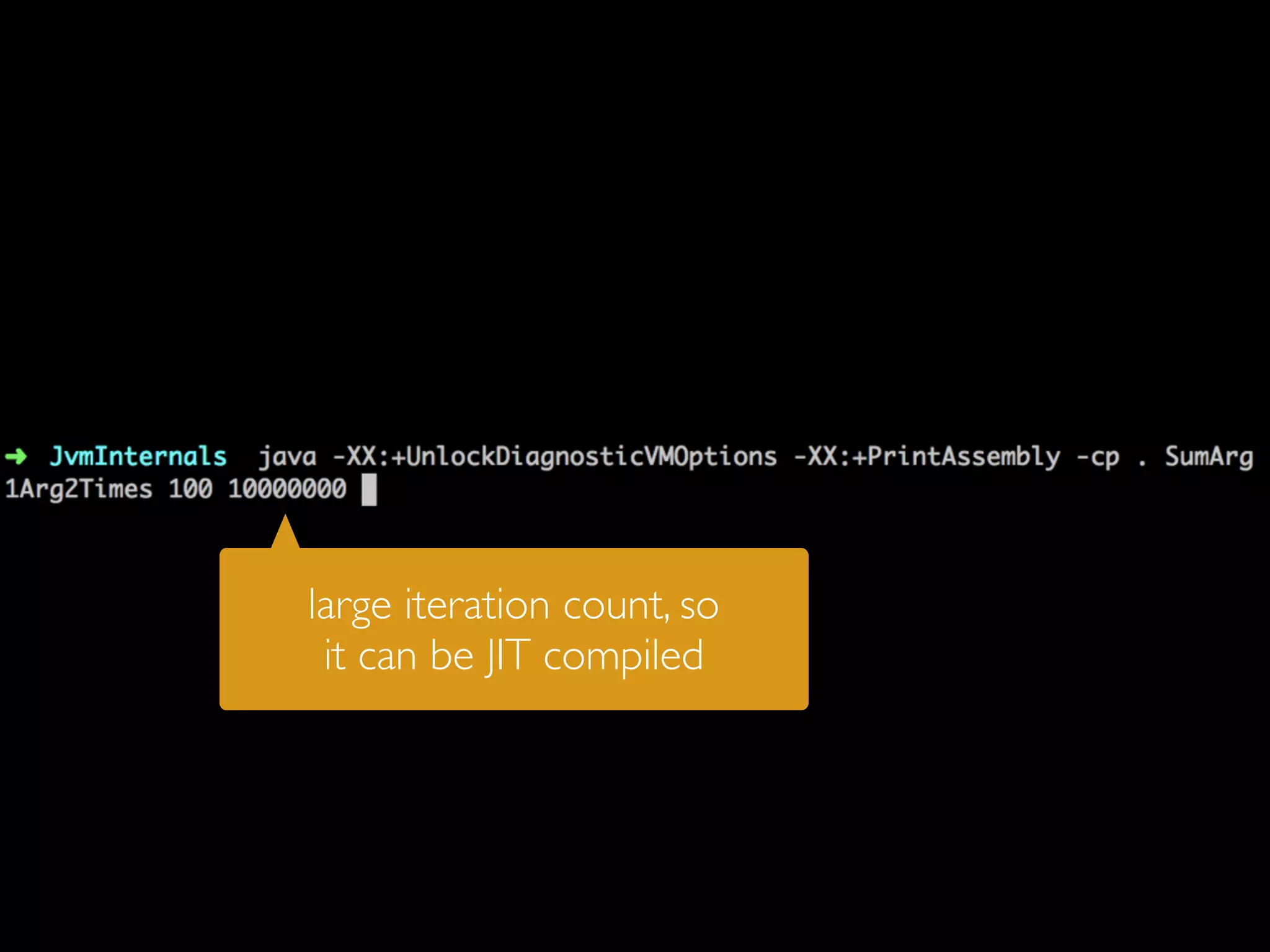

112. large iteration count, so
it can be JIT compiled

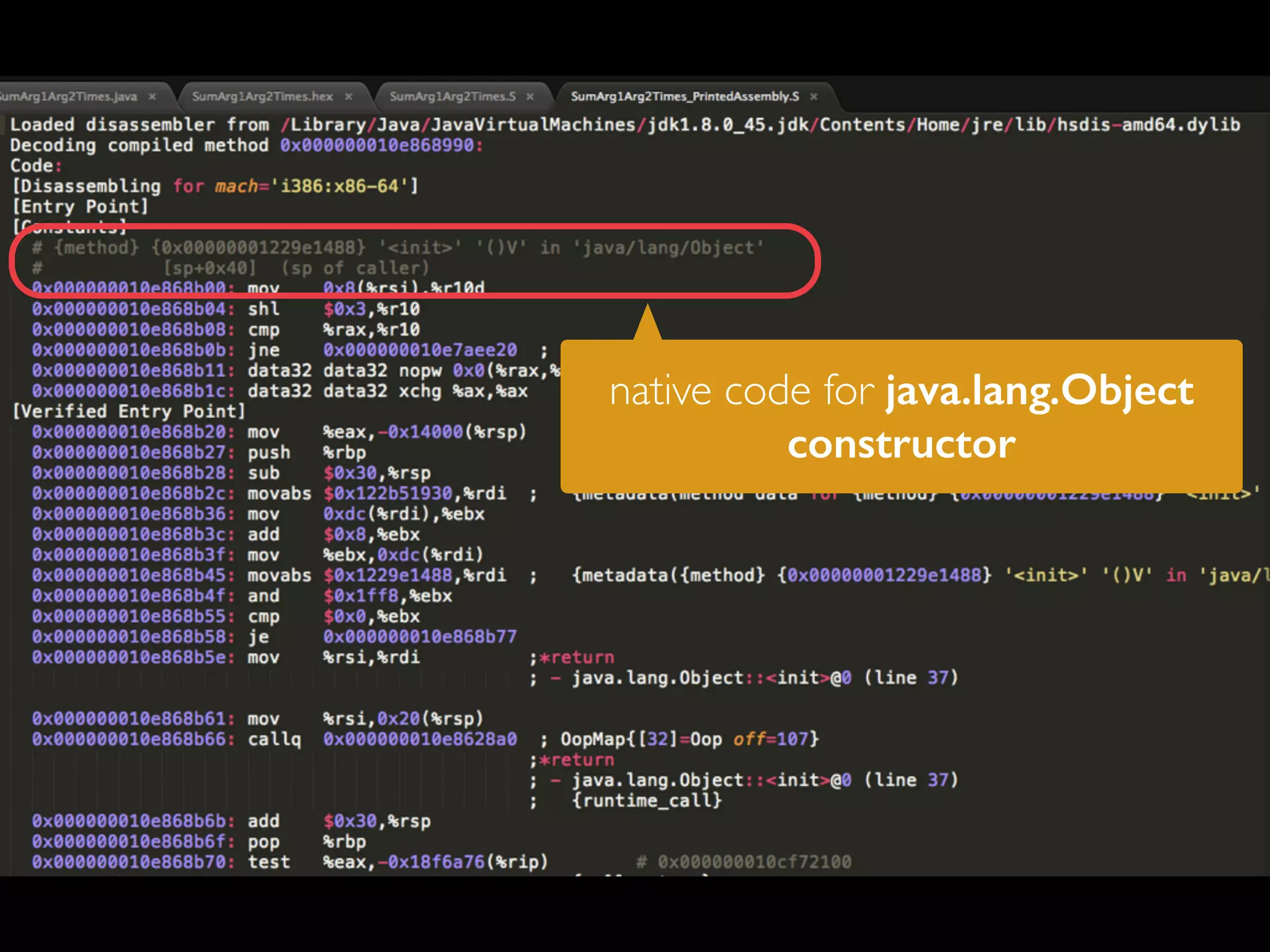

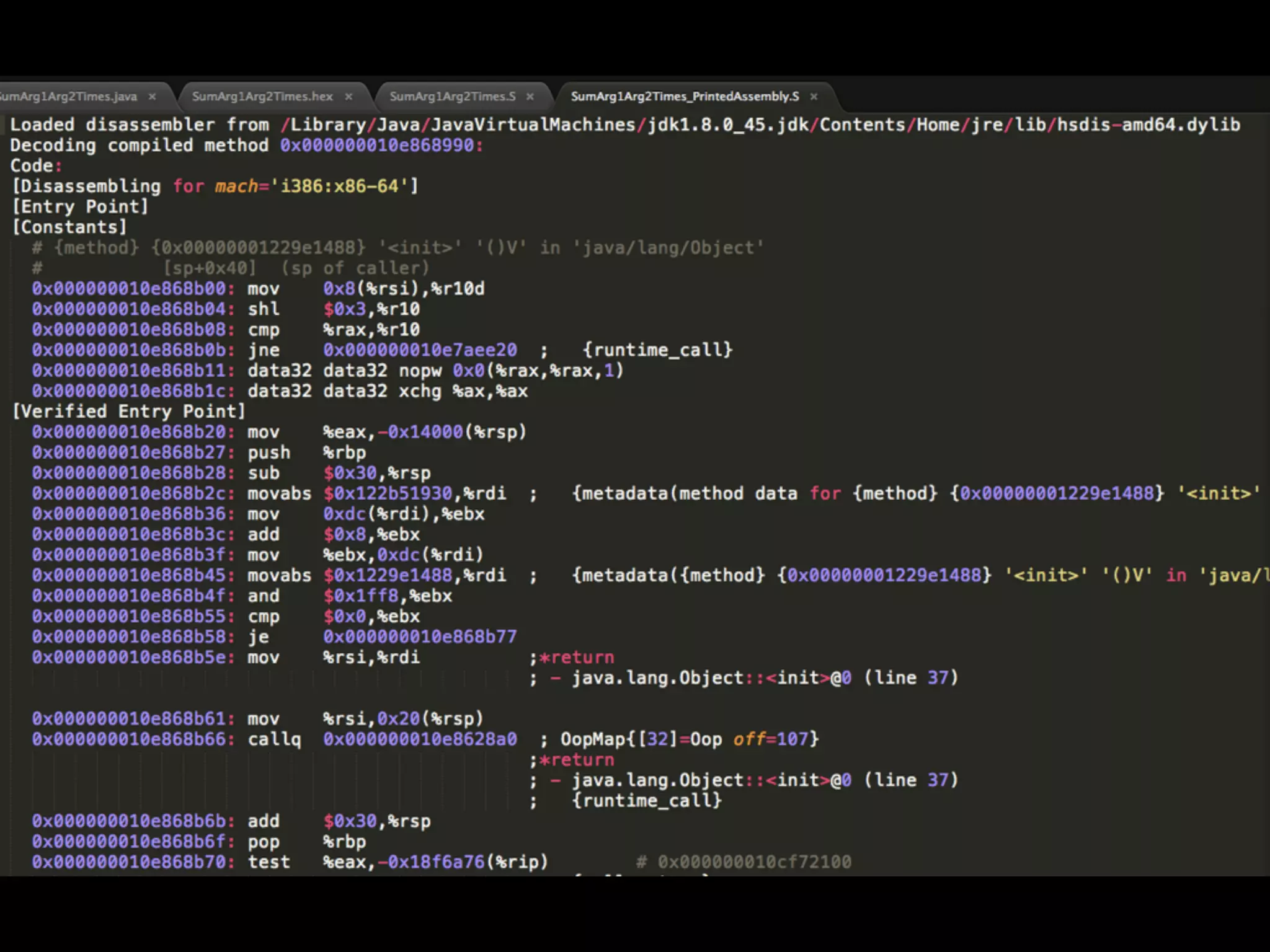

114. native code for java.lang.Object
constructor

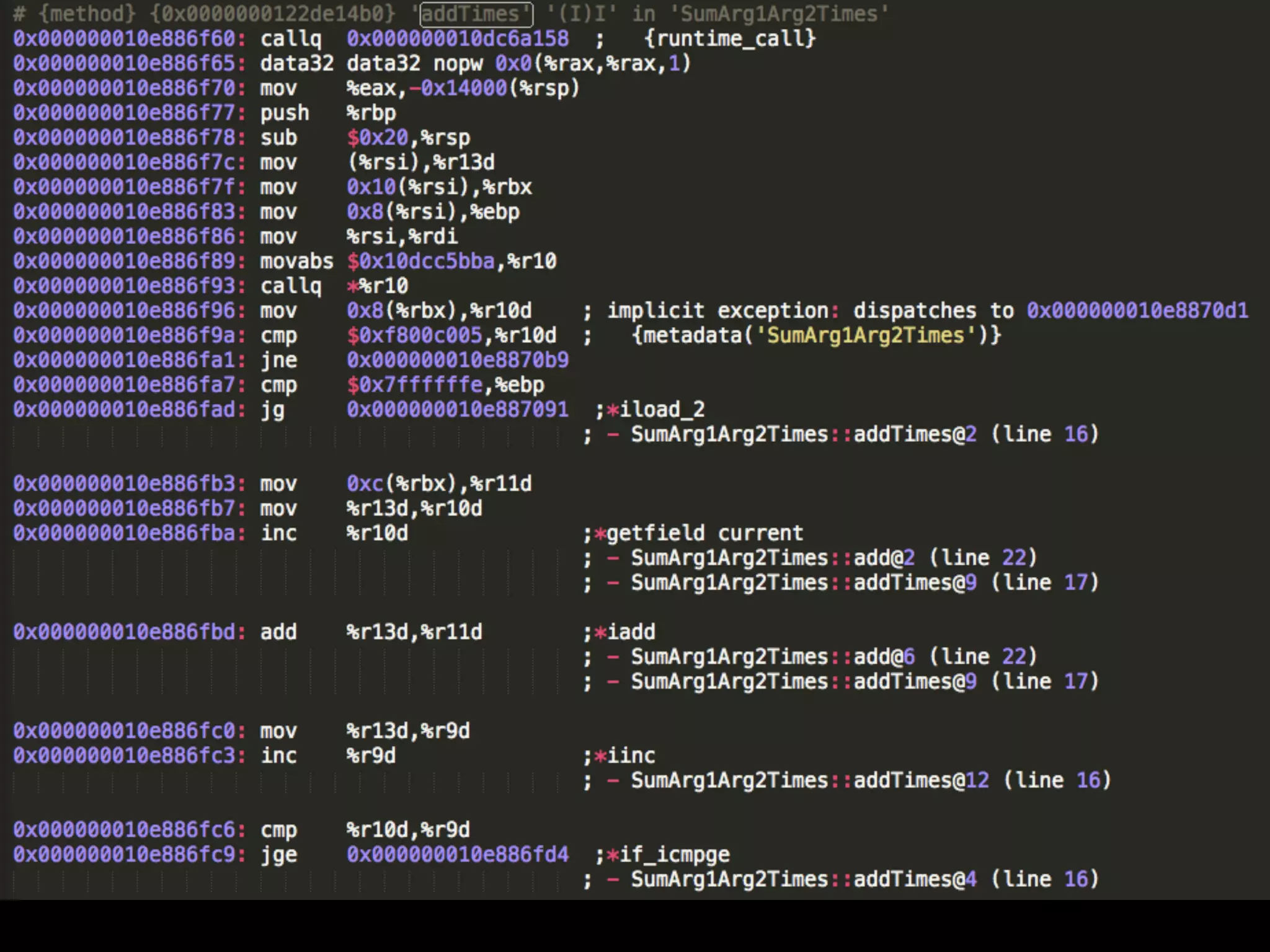

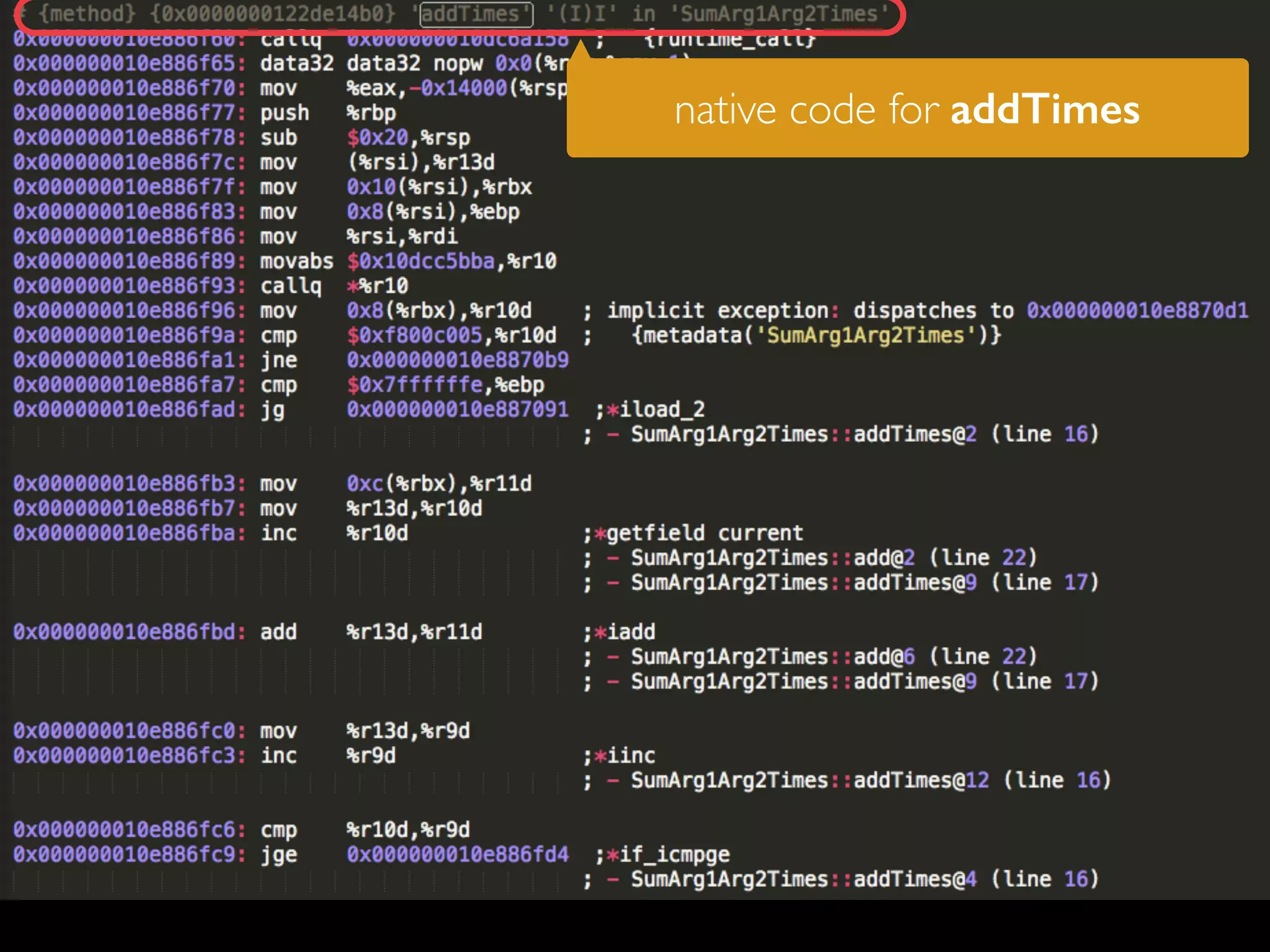

116. native code for addTimes

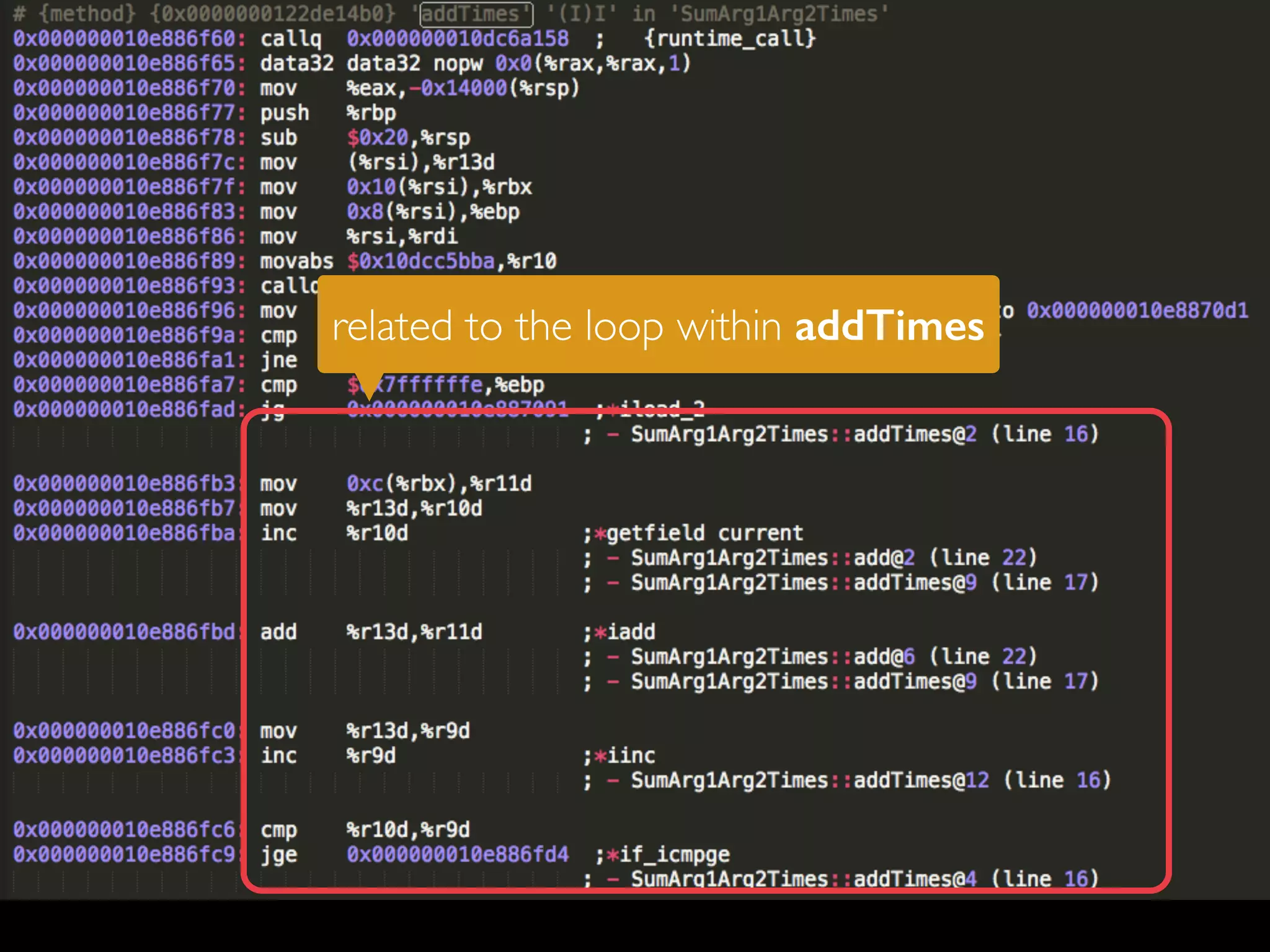

117. related to the loop within addTimes

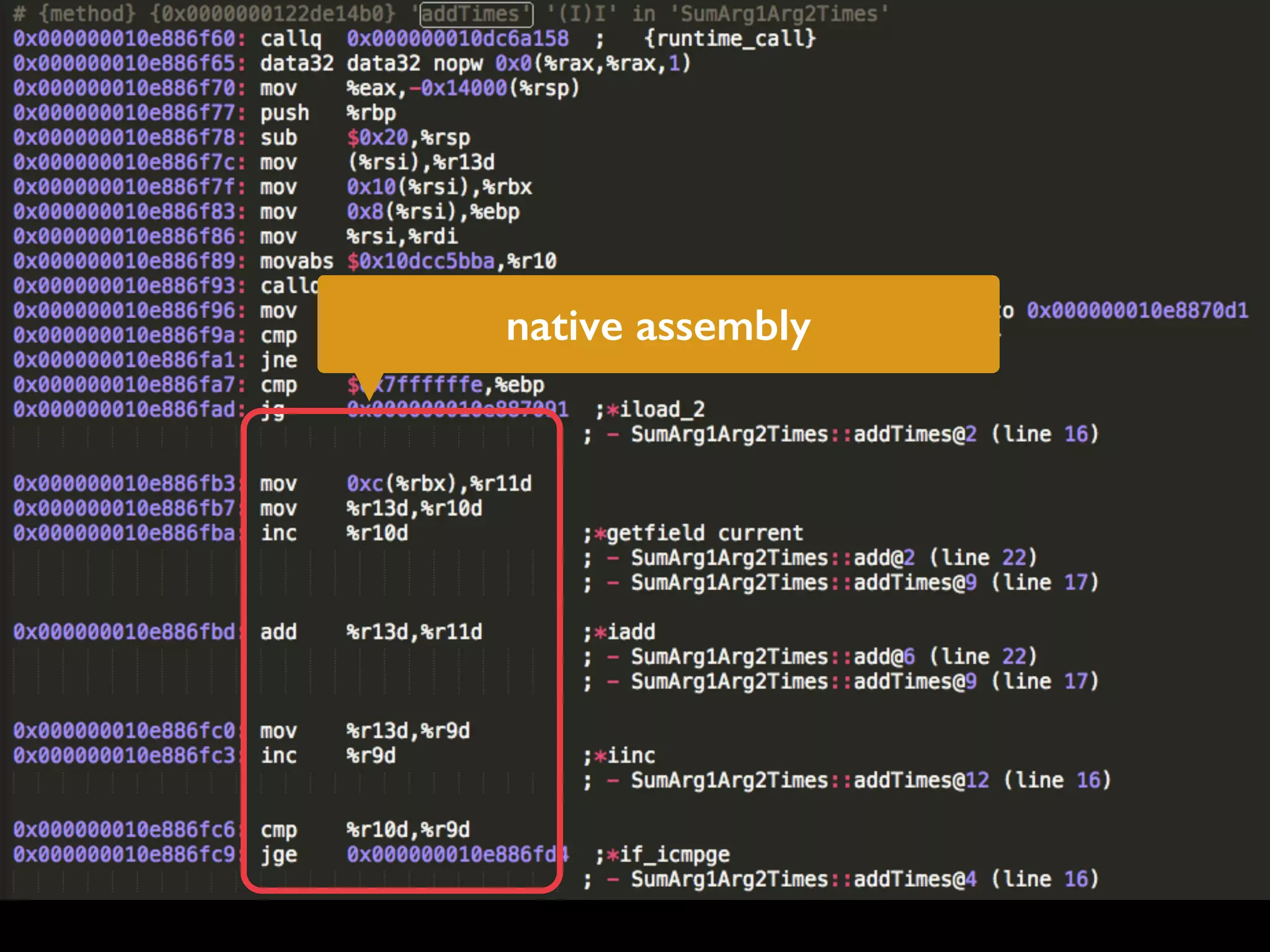

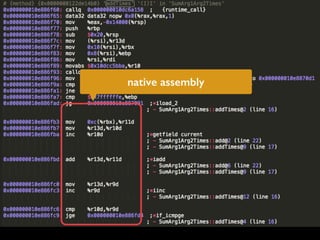

118. native assembly

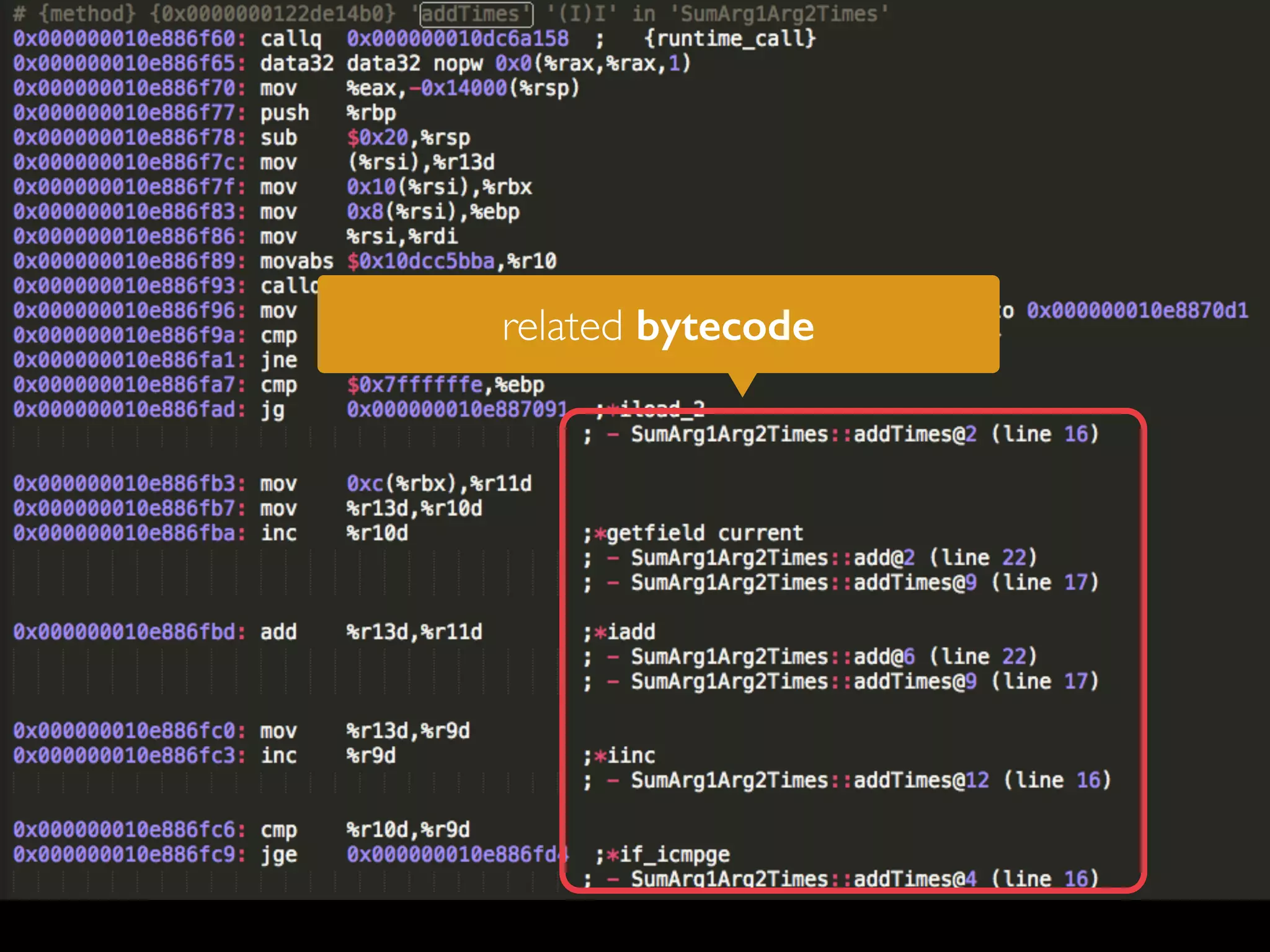

119. related bytecode

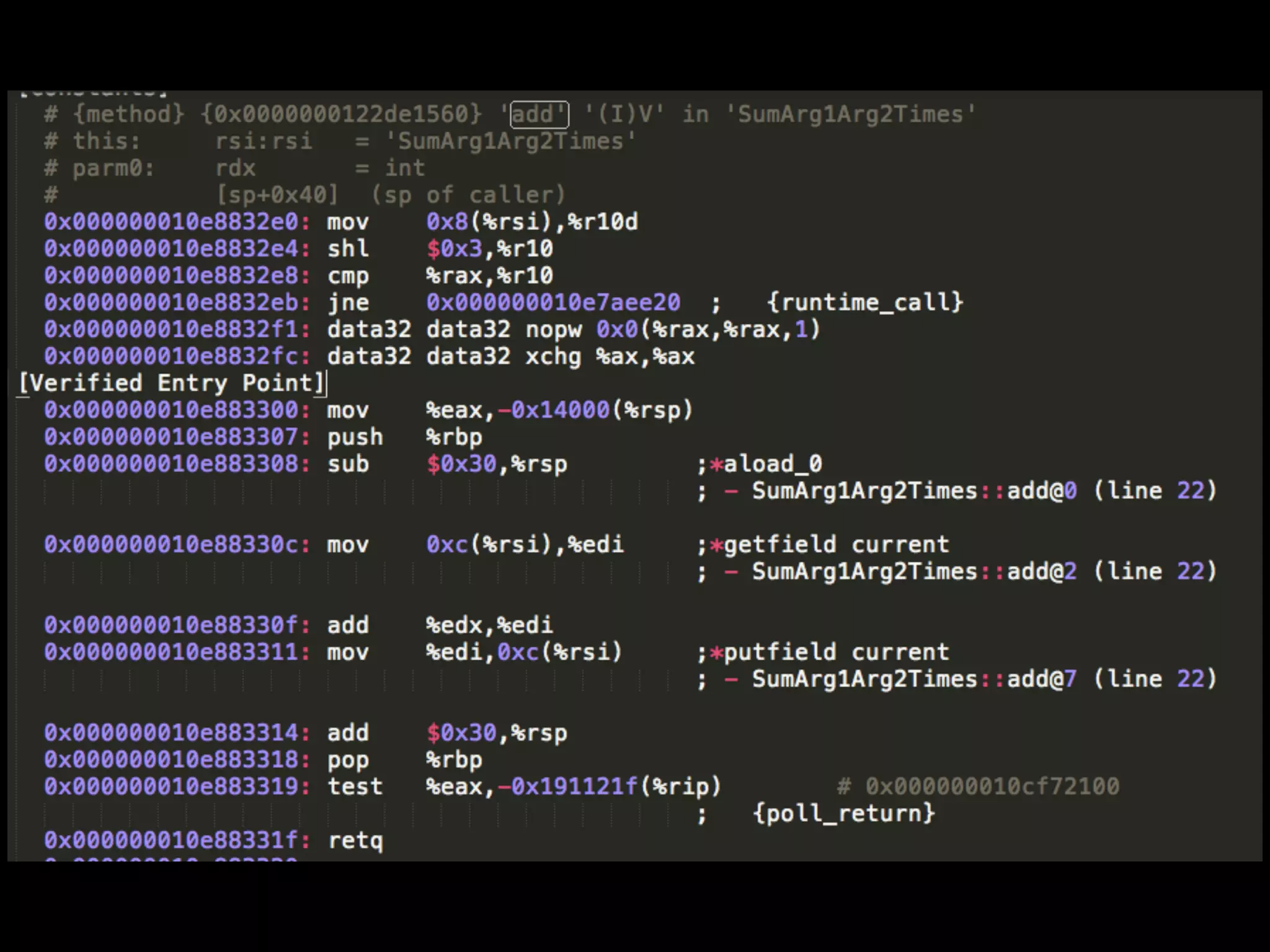

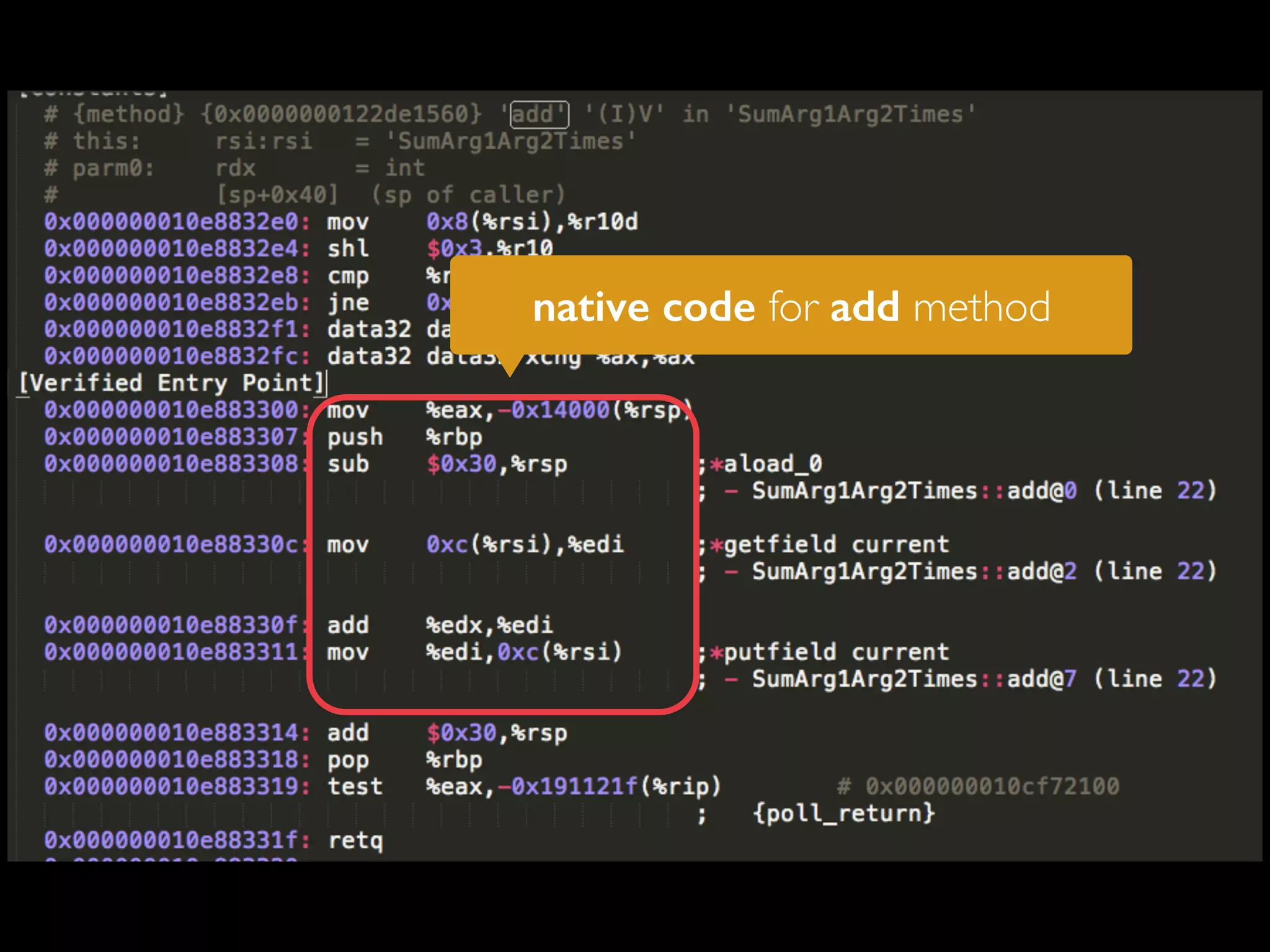

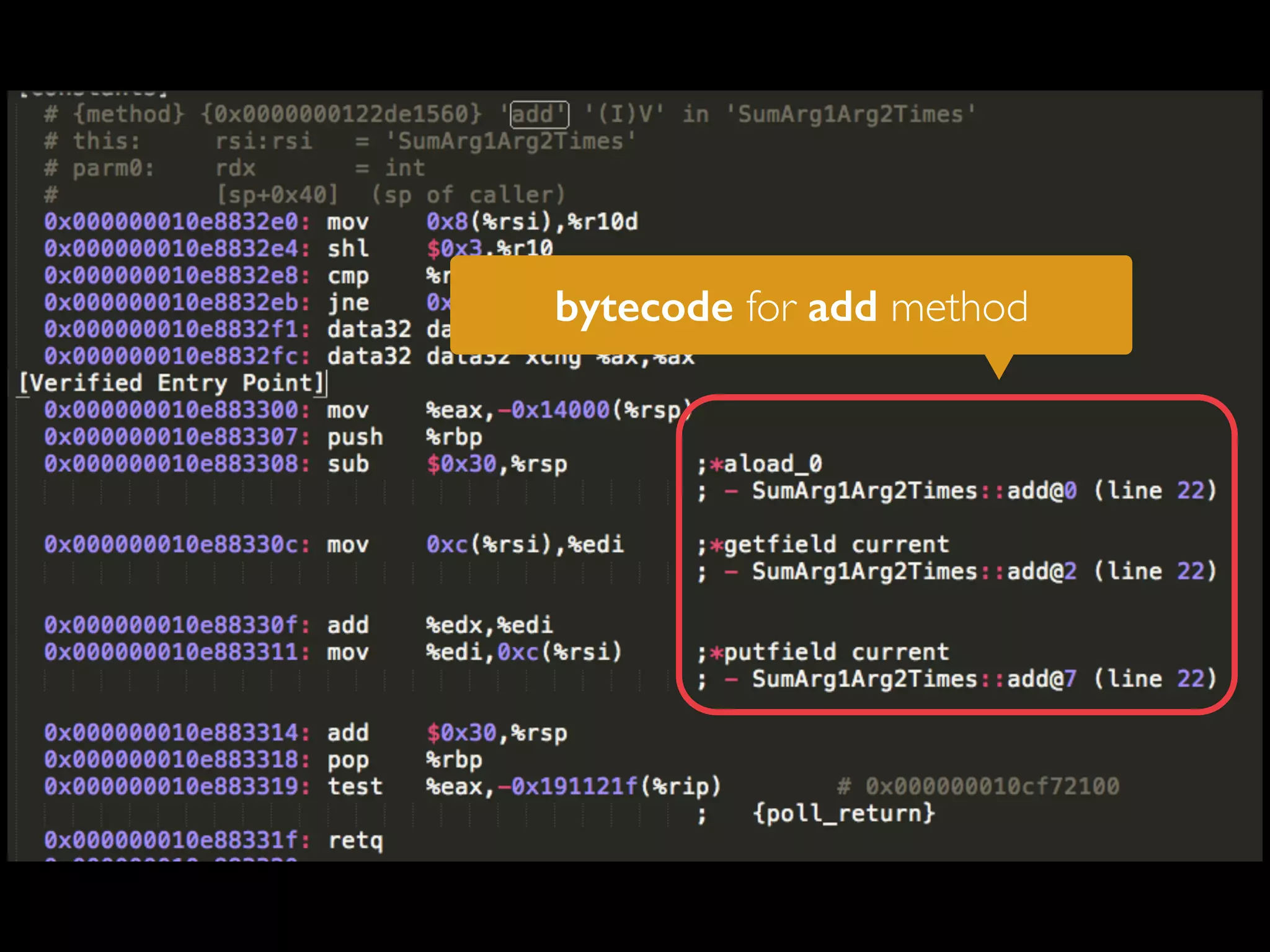

121. native code for add method

122. bytecode for add method

123. QUESTIONS?

124. WHO AM I
Luiz Teston
Principle Engineer, CTO at FRACTA
• 15 years on the field, working on non trivial projects using
Java, C++ and functional programming
• lteston@fracta.cc
• http://fracta.cc
• http://linkedin.com/in/teston
• http://twitter.com/FeuTeston

125. KEEP INTOUCH
Feedback about the presentation appreciated.
lteston@fracta.cc
www.fracta.cc

126. REFERENCES
• Garbage Collection:Algorithms for Automatic Dynamic Memory Management, by
Richard Jones and Rafael Lins.
• Virtual Machines:Versatile Platforms for Systems and Processes, by Jim Smith and Ravi
Nair.
• https://docs.oracle.com/javase/7/docs/api/java/lang/ClassLoader.html
• http://www.ibm.com/developerworks/ibm/library/it-haggar_bytecode/
• http://docs.oracle.com/javase/specs/jvms/se8/html/index.html
• http://mechanical-sympathy.blogspot.ie/2013/06/printing-generated-assembly-code-
from.html
• http://www.slideshare.net/CharlesNutter/redev-2011-jvm-jit-for-dummies-what-the-jvm-
does-with-your-bytecode-when-youre-not-looking
126
