PT. MEGACON BANGUN PERKASA

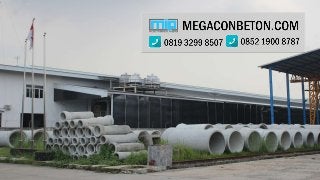

PABRIK BETON PRECAST
Kamimerupakanperusahaanpenyediamaterialbetonpracetak,yangsiapdikirimke seluruhwilayah
Indonesia.

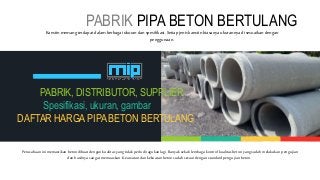

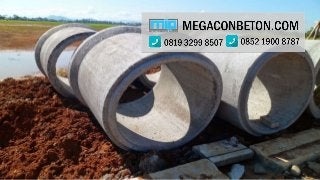

PABRIK PIPA BETON BERTULANG
Kanstin memangterdapat dalam berbagai ukurandan spesifikasi. Setiap jenis kanstin biasanya ukurannyadi sesuaikan dengan
penggunaan.
PABRIK, DISTRIBUTOR, SUPPLIER
Spesifikasi, ukuran, gambar
DAFTAR HARGA PIPA BETON BERTULANG
Perusahaan ini memastikan beton dibuat dengan kualitas yangtidak perlu diragukan lagi. Banyak sekali lembaga kontrol kualitas beton yang sudah melakukan pengujian
dan hasilnya sangat memuaskan. Keawatan dan kekuatan beton sudah sesuai dengan standardpengujian beton.
KEUNGGULAN
KAMI
PRODUK
TERLENGKAP
KIRIM
SE INDONESIA
24 JAM
FAST RESPOND
Berikut perbandingan kualitas beton precast kami
dengan pabrik-pabrik lainnya. Perusahaan kami
senantiasa memprioritaskan kepuasan konsumen
dengan memberikan produk terbaik dan pemesanan
mudah
KUALITAS
TERJAMIN
Hubungi kami
(021) 7823523
0819 3299 8507
0852 1900 8787
info@megaconperkasa.com
GD GARDENIA BOILEVARD LT III
Jln. Warung Jati Barat No.12
Jakarta Selatan, Indonesia 12540

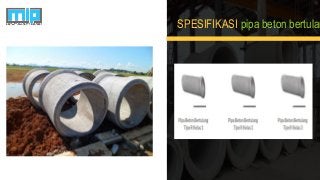

SPESIFIKASI pipa beton bertulan
Ukuran Nominal
(NominalSize)
TebalDinding (Wall
Thickness)
DiameterLuar (Outer
Diameter)
DiameterLuar Socket
(Socket Outer Diameter)
m p s
PanjangEfektif (Effective
Length)
PerkiraanBerat(Approx
Weight)
BearingLoad (KN/M)
DIA (mm) T (mm) OD (mm) OD 1 (mm) (mm) (mm) (mm) L (mm) (KG) Crack Destroy
300 37 374 461 84 2334 200 2500 256 12 16
400 42 484 583 88 2327 211 2500 376 15 22
500 46 592 706 104 2315 239 2500 509 18 28
600 55 710 840 107 2304 253 2500 732 22 33
800 65 930 1082 115 2293 272 2500 1151 29 45
1000 75 1150 1325 131 2274 307 2500 1676 36 54
1200 95 1390 1596 160 2215 395 2500 2691 41 63
1400 104 1608 1821 160 2209 401 2500 3372 45 69
1500 107 1714 1937 160 2201 409 2500 3673 49 74
Tipe r – kelas 1

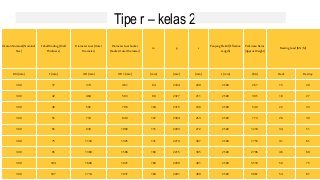

Tipe r – kelas 2
Ukuran Nominal(Nominal
Size)
TebalDinding (Wall
Thickness)
DiameterLuar (Outer
Diameter)
DiameterLuar Socket
(Socket Outer Diameter)
m p s
PanjangEfektif (Effective
Length)
PerkiraanBerat
(ApproxWeight)
BearingLoad (KN/M)
DIA (mm) T (mm) OD (mm) OD 1 (mm) (mm) (mm) (mm) L (mm) (KG) Crack Destroy
300 37 374 461 84 2334 200 2500 267 15 20
300 42 484 583 88 2327 211 2500 395 18 27
300 46 592 706 104 2315 239 2500 540 22 33
300 55 710 840 107 2304 253 2500 773 26 39
300 65 930 1082 115 2293 272 2500 1210 34 51
300 75 1150 1325 131 2274 307 2500 1755 41 61
300 95 1390 1596 160 2215 395 2500 2796 46 69
300 104 1608 1821 160 2209 401 2500 3519 50 75
300 107 1714 1937 160 2201 409 2500 3867 54 81

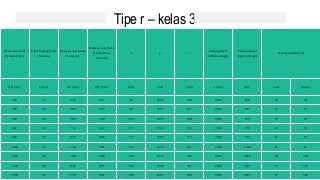

Tipe r – kelas 3
Ukuran Nominal
(NominalSize)
TebalDinding (Wall
Thickness)
DiameterLuar (Outer
Diameter)
DiameterLuar Socket
(Socket Outer
Diameter)
m p s
PanjangEfektif
(Effective Length)
PerkiraanBerat
(ApproxWeight)
BearingLoad (KN/M)
DIA (mm) T (mm) OD (mm) OD 1 (mm) (mm) (mm) (mm) L (mm) (KG) Crack Destroy
300 37 374 461 84 2334 200 2450 269 23 34
400 42 484 583 88 2327 211 2450 401 27 41
500 46 592 706 104 2315 239 2450 550 33 50
600 55 710 840 107 2304 253 2450 788 39 59
800 65 930 1082 115 2293 272 2450 1232 51 76
1000 75 1150 1325 131 2274 307 2450 1785 61 91
1200 95 1390 1596 160 2215 395 2450 2838 69 104
1400 104 1608 1821 160 2209 401 2450 3581 75 113
1500 107 1714 1937 160 2201 409 2450 3951 81 122
SIAP KIRIM ke
seluruh INdonesia
Dimanapun Anda berada!Kamisiap mengirim
produk beton yang dimiliki menuju lokasi
kebutuhan Anda. Tenaga kerja kami telah
mendukung pengiriman sampai ke daerah
pelosok Indonesia. Anda bisa penuhi
kebutuhan beton pracetak dengan mudah
melalui kami!
ProdukBetonakanlangsungkami
kirimke kotaAnda.
Produkbergaransidijaminaman
sampaike lokasiAnda.
PT. MEGACON BANGUN PERKASA
HUBUNGI KAMI
Segerahubungi kamiuntuk melihatdaftar harga terbarudan info lanjut
mengenaipemesanan
TERIMAKASIH
(021) 7823523
0819 3299 8507
0852 1900 8787
GD GARDENIA BOILEVARD LT III
Jln. Warung Jati Barat No.12
Jakarta Selatan, Indonesia 12540
