IBM Connect2014 JMP106
The document presents an overview of deploying IBM Notes Social Edition 9.0.1, focusing on integrating OpenSocial, and describes various technical components such as OpenSocial APIs, Apache Shindig, and configuration steps for credential stores and widget catalogs. It emphasizes the importance of user-centric settings, database creation, and server configurations to enable social functionalities in enterprise environments. The summary includes insights into the roles of the presenters, as well as troubleshooting and integration with IBM Connections 4.x.
More Related Content
![[Phpcamp]Shindig An OpenSocial container](https://cdn.slidesharecdn.com/ss_thumbnails/phpcampshindiganopensocialcontainer-1222280536661323-9-thumbnail.jpg?width=640&height=640&fit=bounds)
![Coded Agents – with UiPath SDK + LangGraph [Virtual Hands-on Workshop]](https://cdn.slidesharecdn.com/ss_thumbnails/codedagentsdeck-251215155422-5497c599-thumbnail.jpg?width=640&height=640&fit=bounds)
![Vibe Coding vs. Spec-Driven Development [Free Meetup]](https://cdn.slidesharecdn.com/ss_thumbnails/vibecodingvsspecdrivendevelopment-251209105622-43f455e7-thumbnail.jpg?width=640&height=640&fit=bounds)
IBM Connect2014 JMP106
- 1. JMP106 Make Your BusinessOpen and Social using IBM Notes Social Edition 9.0.1 Thomas Evans | Software Engineer | IBM Yun Zhi Lin | Software Engineer | IBM © 2014 IBM Corporation

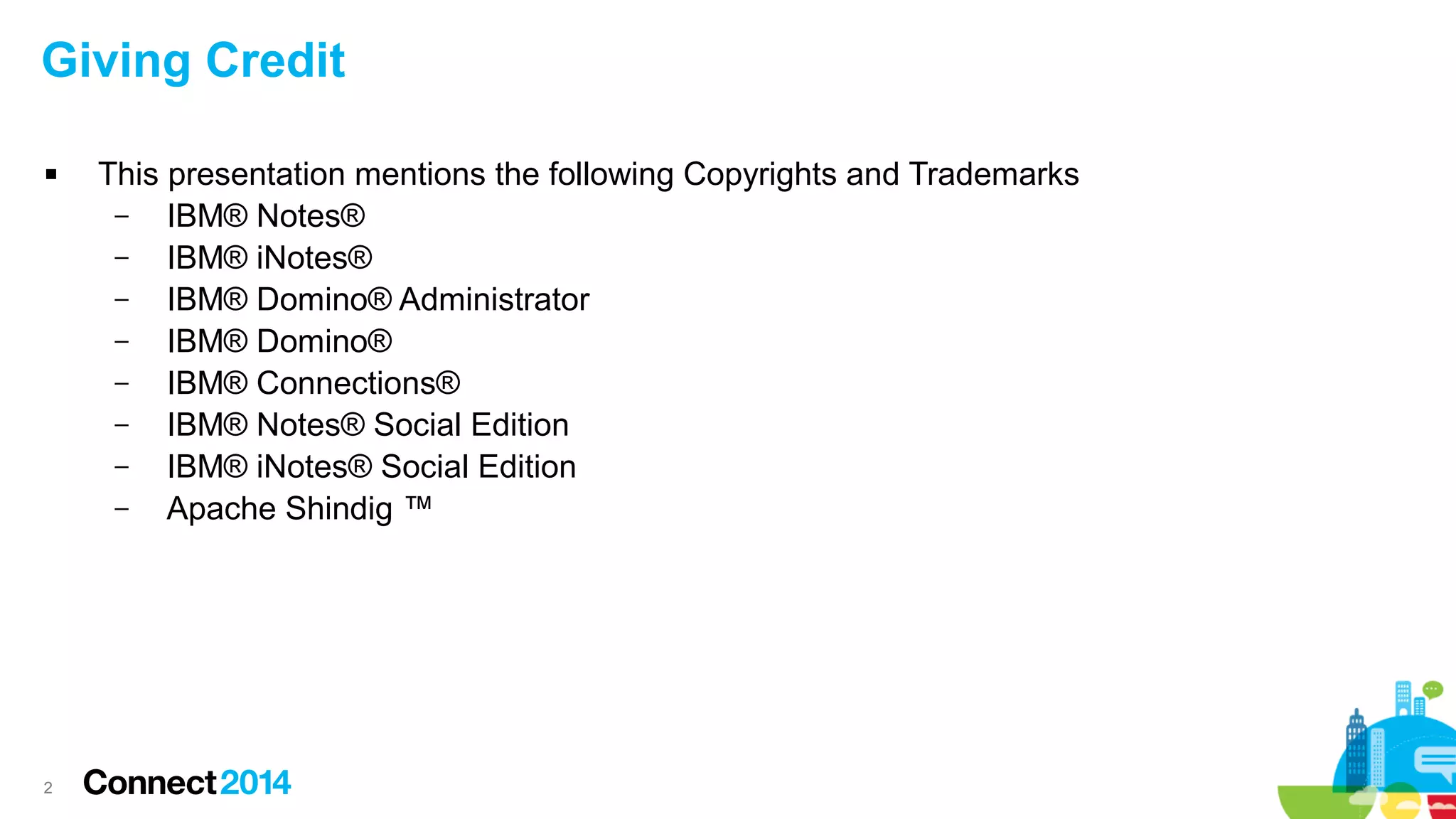

- 2. Giving Credit 2 This presentationmentions the following Copyrights and Trademarks – IBM® Notes® – IBM® iNotes® – IBM® Domino® Administrator – IBM® Domino® – IBM® Connections® – IBM® Notes® Social Edition – IBM® iNotes® Social Edition – Apache Shindig ™
- 3. About Us Yun Zhihas been working at IBM for the past 7 years. He is the lead template developer for Widget Catalog and OAuth Credential Store. He has in depth of knowledge in many technical areas, including XPages and Eclipse plugin development. Over the past year, his major focus is OpenSocial. He reaches out to help business partners and other product teams to integrate their applications with OpenSocial. Thomas worked for IBM for the past two years. From day one he has been involved with the Notes/Domino Social Edition release. Mainly focusing on managing and assisting with the deployment of the Social Edition releases internally at IBM for testing purposes. Most recently Thomas has stepped in to assist with the integration and maintenance of the OpenSocial Component into the IBM enterprise deployments of Notes and iNotes Social Edition. 3

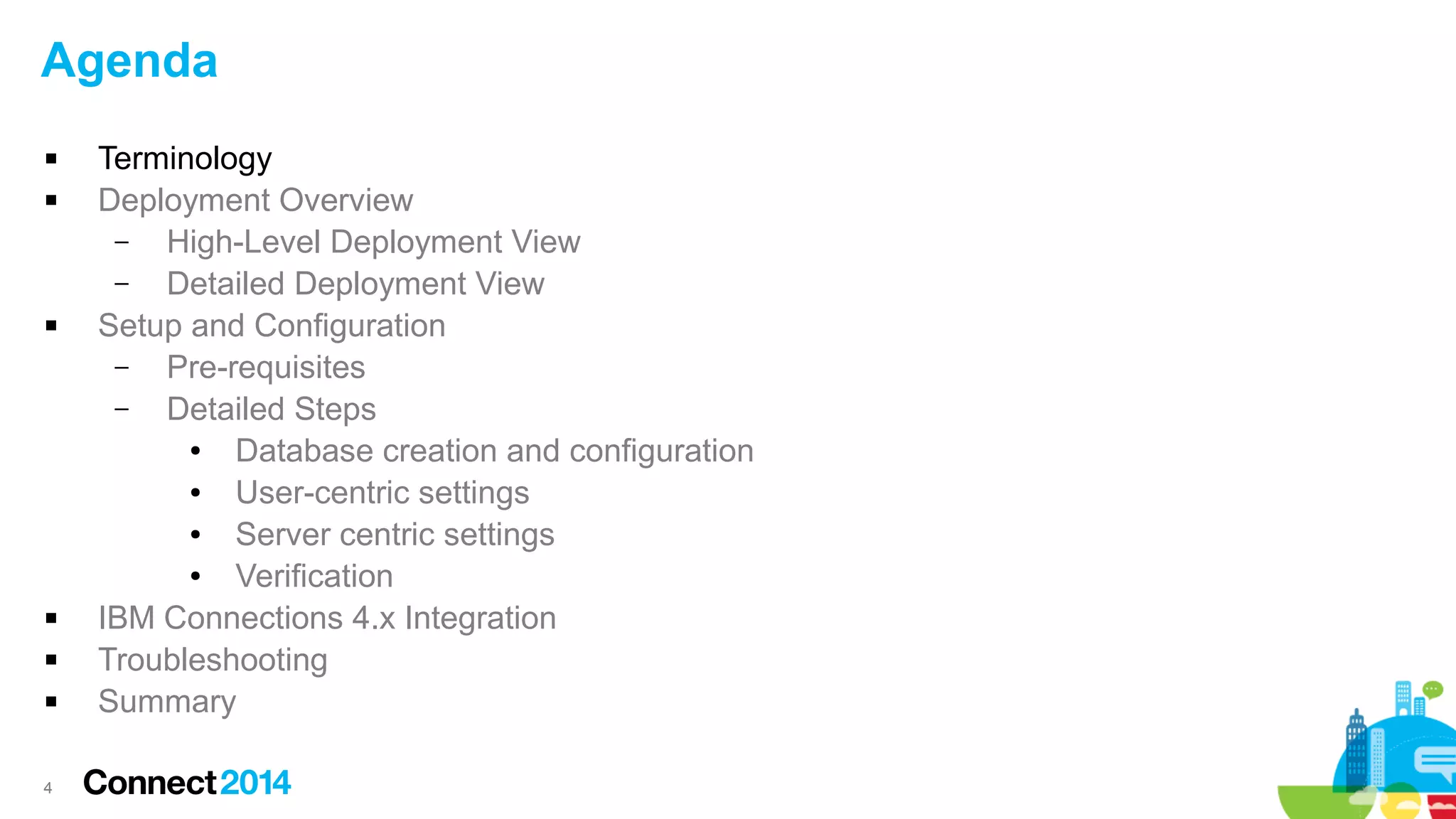

- 4. Agenda 4 Terminology Deployment Overview – High-Level DeploymentView – Detailed Deployment View Setup and Configuration – Pre-requisites – Detailed Steps ● Database creation and configuration ● User-centric settings ● Server centric settings ● Verification IBM Connections 4.x Integration Troubleshooting Summary

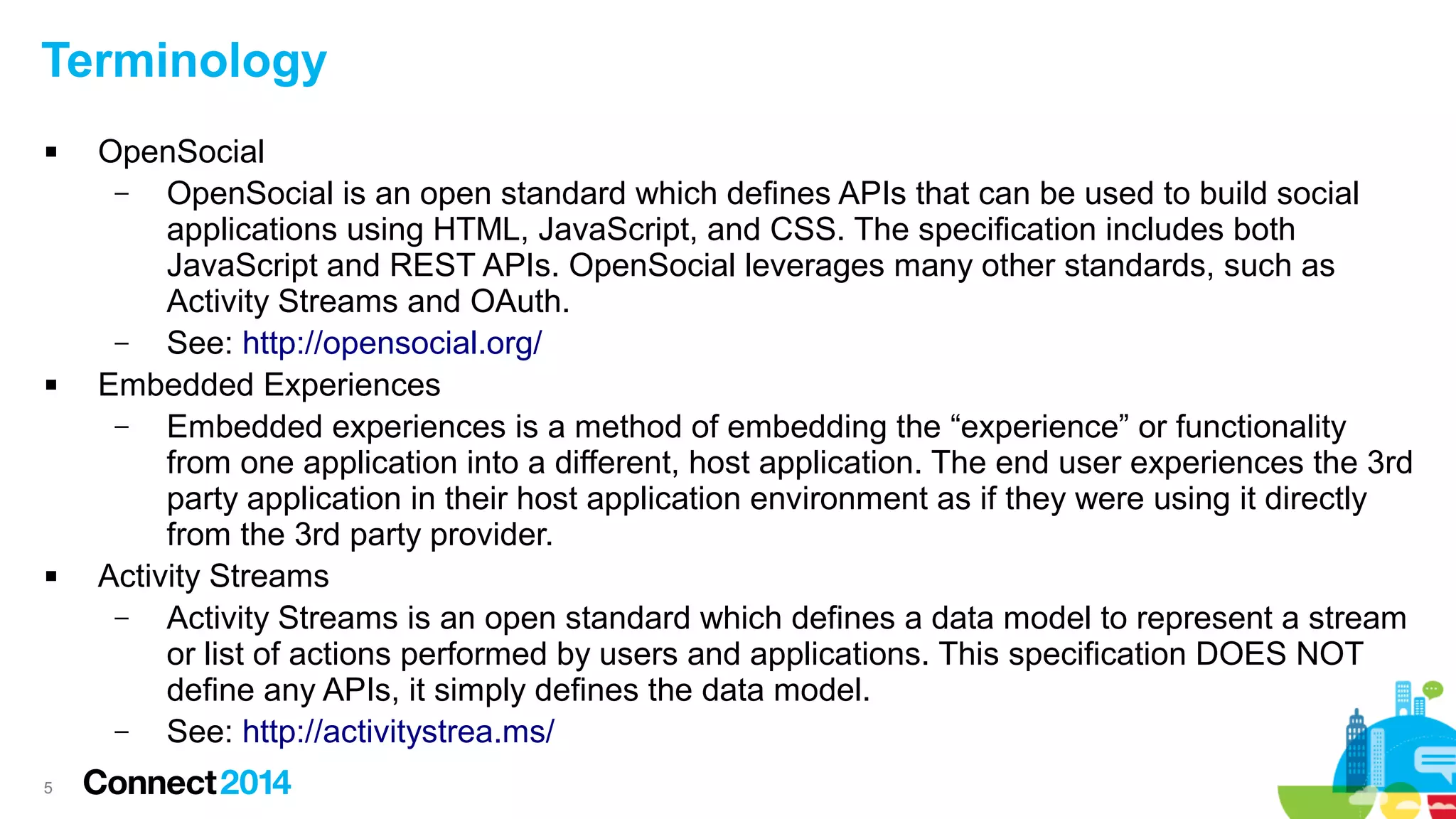

- 5. Terminology 5 OpenSocial – OpenSocial is anopen standard which defines APIs that can be used to build social applications using HTML, JavaScript, and CSS. The specification includes both JavaScript and REST APIs. OpenSocial leverages many other standards, such as Activity Streams and OAuth. – See: http://opensocial.org/ Embedded Experiences – Embedded experiences is a method of embedding the “experience” or functionality from one application into a different, host application. The end user experiences the 3rd party application in their host application environment as if they were using it directly from the 3rd party provider. Activity Streams – Activity Streams is an open standard which defines a data model to represent a stream or list of actions performed by users and applications. This specification DOES NOT define any APIs, it simply defines the data model. – See: http://activitystrea.ms/

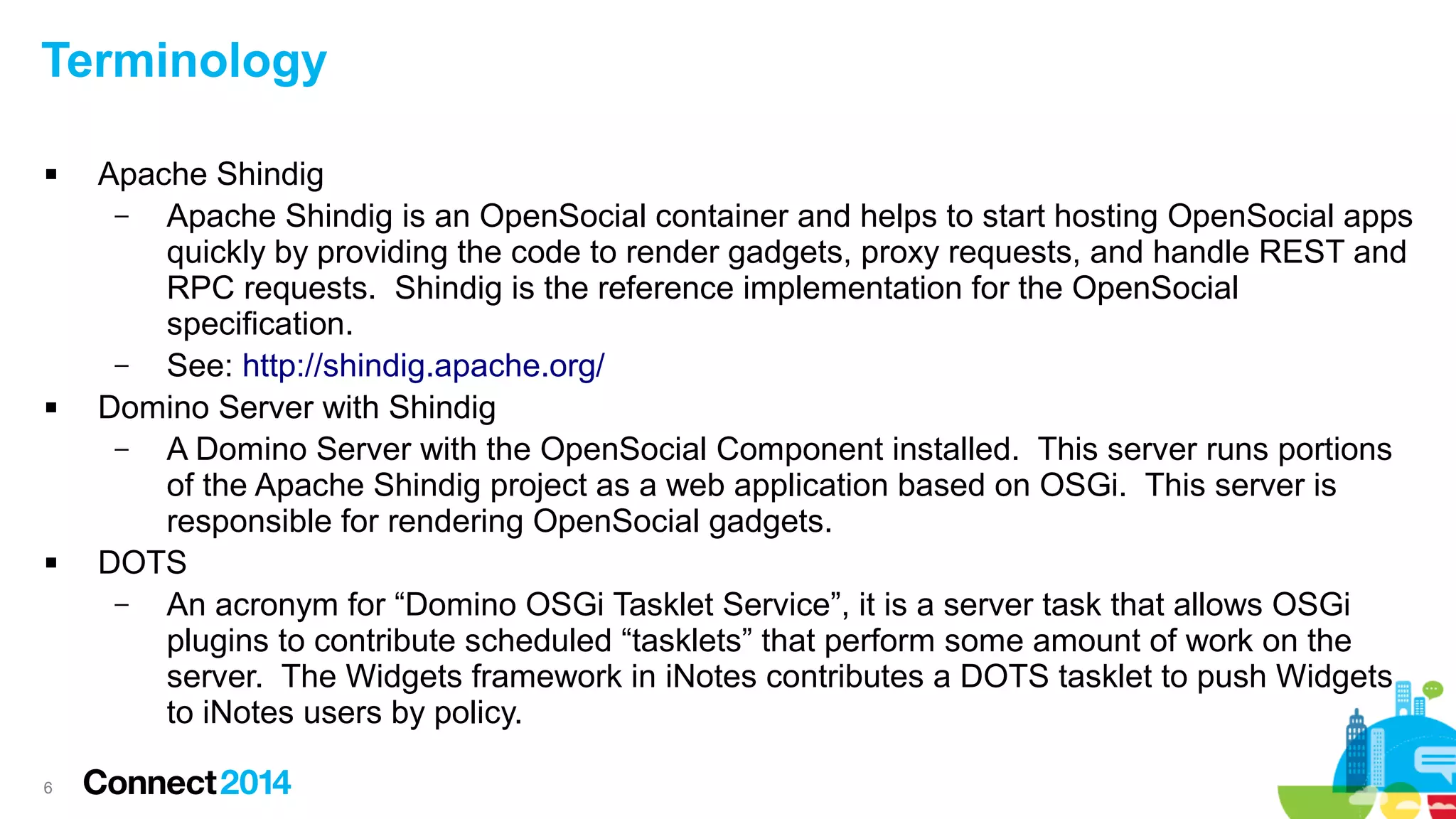

- 6. Terminology 6 Apache Shindig – Apache Shindigis an OpenSocial container and helps to start hosting OpenSocial apps quickly by providing the code to render gadgets, proxy requests, and handle REST and RPC requests. Shindig is the reference implementation for the OpenSocial specification. – See: http://shindig.apache.org/ Domino Server with Shindig – A Domino Server with the OpenSocial Component installed. This server runs portions of the Apache Shindig project as a web application based on OSGi. This server is responsible for rendering OpenSocial gadgets. DOTS – An acronym for “Domino OSGi Tasklet Service”, it is a server task that allows OSGi plugins to contribute scheduled “tasklets” that perform some amount of work on the server. The Widgets framework in iNotes contributes a DOTS tasklet to push Widgets to iNotes users by policy.

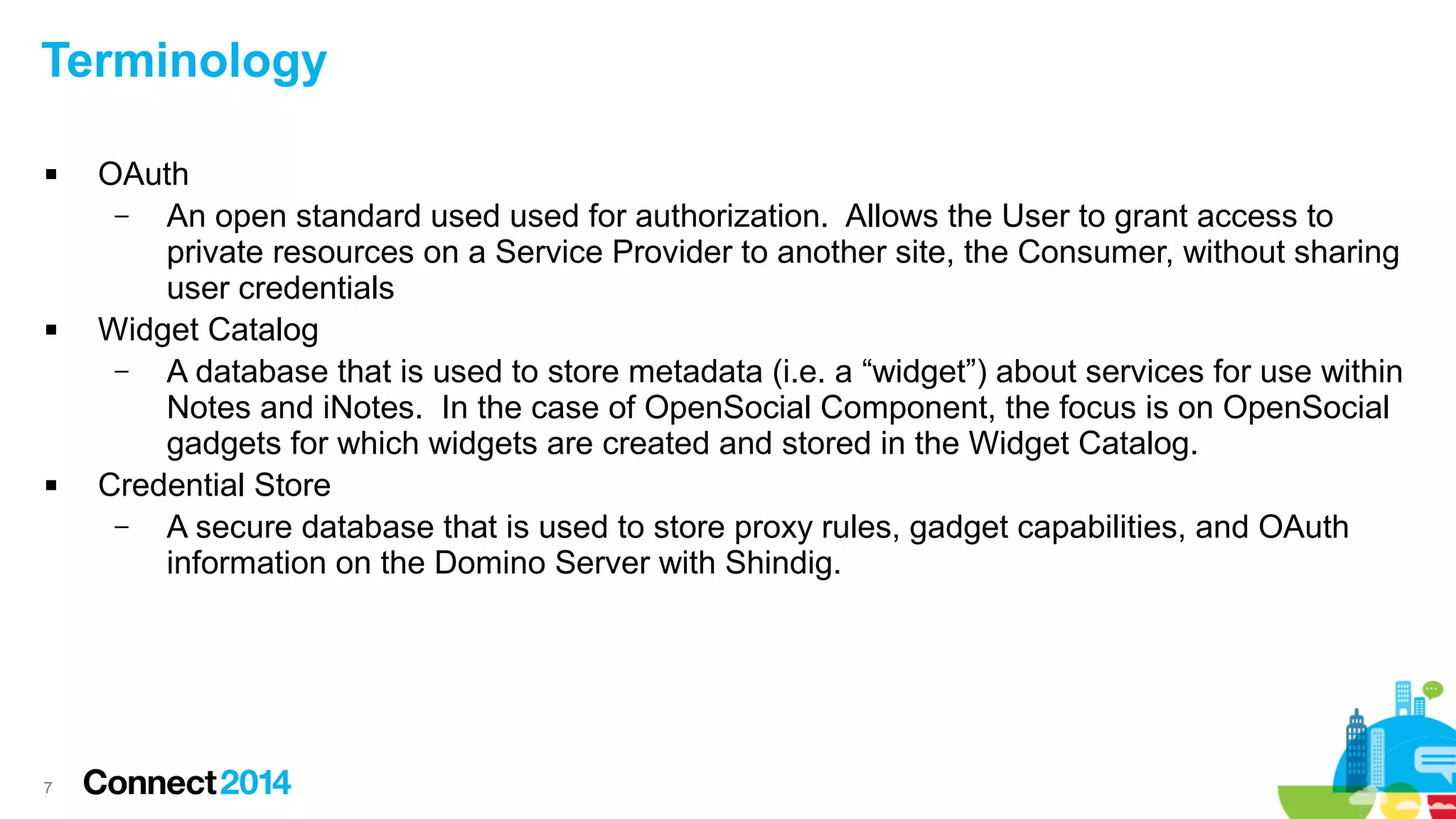

- 7. Terminology 7 OAuth – An open standardused used for authorization. Allows the User to grant access to private resources on a Service Provider to another site, the Consumer, without sharing user credentials Widget Catalog – A database that is used to store metadata (i.e. a “widget”) about services for use within Notes and iNotes. In the case of OpenSocial Component, the focus is on OpenSocial gadgets for which widgets are created and stored in the Widget Catalog. Credential Store – A secure database that is used to store proxy rules, gadget capabilities, and OAuth information on the Domino Server with Shindig.

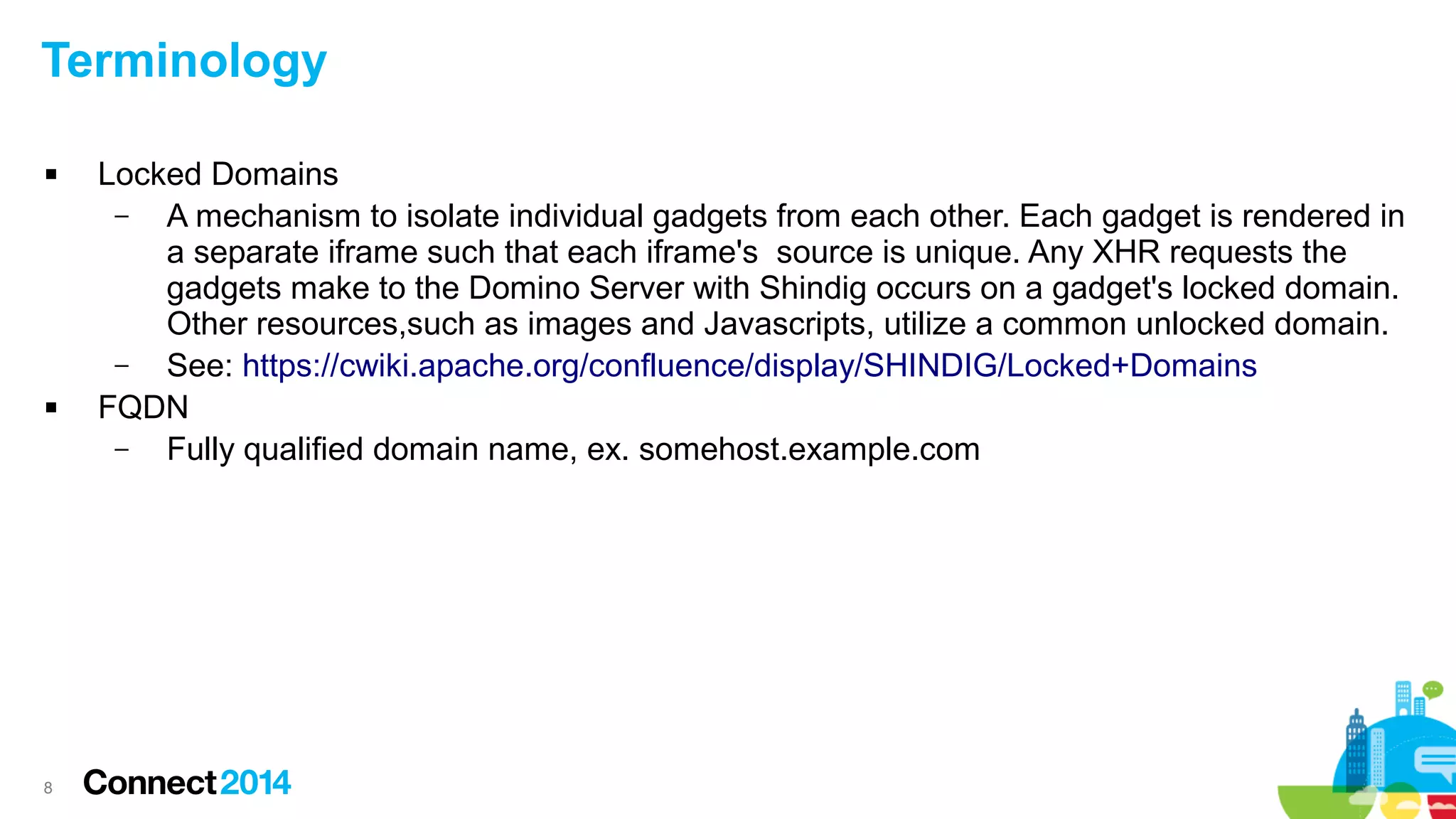

- 8. Terminology 8 Locked Domains – A mechanismto isolate individual gadgets from each other. Each gadget is rendered in a separate iframe such that each iframe's source is unique. Any XHR requests the gadgets make to the Domino Server with Shindig occurs on a gadget's locked domain. Other resources,such as images and Javascripts, utilize a common unlocked domain. – See: https://cwiki.apache.org/confluence/display/SHINDIG/Locked+Domains FQDN – Fully qualified domain name, ex. somehost.example.com
- 9. Agenda 9 Terminology Deployment Overview – High-Level DeploymentView – Detailed Deployment View Setup and Configuration – Pre-requisites – Detailed Steps ● Database creation and configuration ● User-centric settings ● Server centric settings ● Verification Troubleshooting IBM Connections 4.x Integration Summary
- 10. High-Level Deployment View SaaS/ Public Cloud Dedicated Cloud On Premises – Agility and Price Advantage Customization, Flexibility ● Pay per use, standard terms of use ● You own the license or capital ● Automatic updates ● Choice of where and how data is managed ● Shared infrastructure and ops ● Completely customizable ● Instant scale ● Dedicated infrastructure Considerations 10 How do I buy? How quickly can I get new features? Does it matter where data resides? How important is price? Do I need to scale up and down rapidly ? Who manages? Do I need to customize? Special integrations?

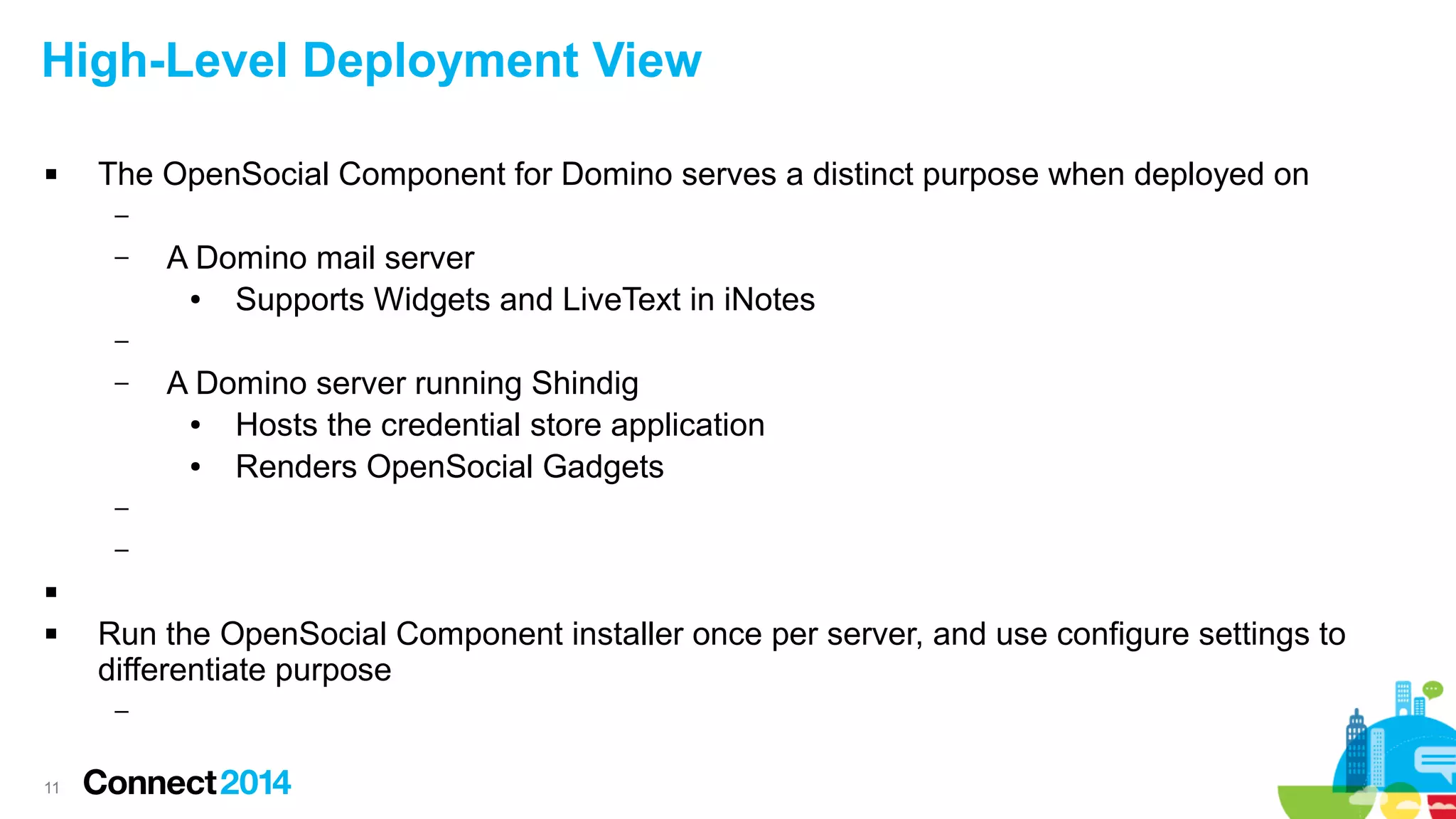

- 11. High-Level Deployment View TheOpenSocial Component for Domino serves a distinct purpose when deployed on – – A Domino mail server ● Supports Widgets and LiveText in iNotes – – A Domino server running Shindig ● Hosts the credential store application ● Renders OpenSocial Gadgets – – Run the OpenSocial Component installer once per server, and use configure settings to differentiate purpose – 11

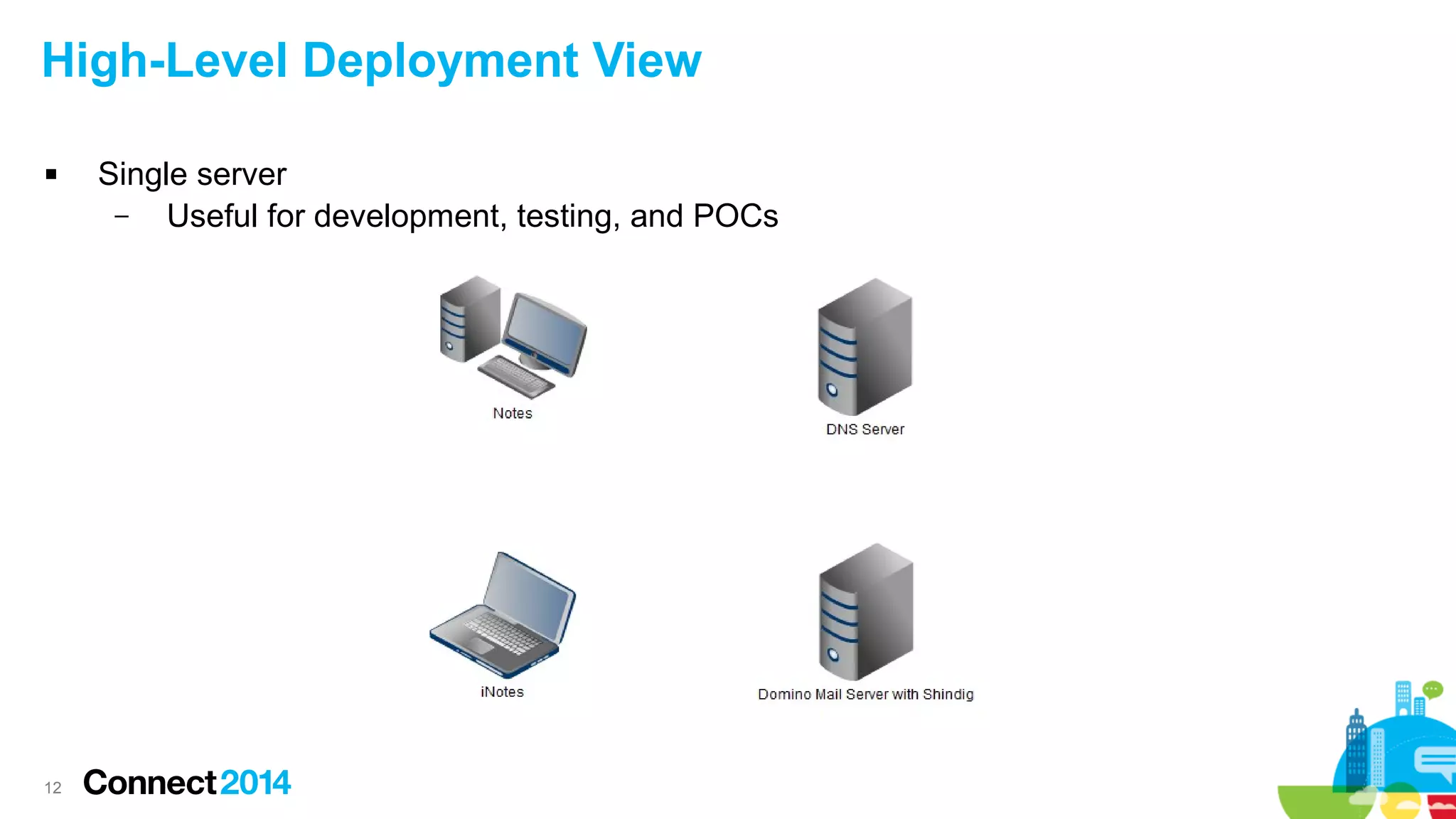

- 12. High-Level Deployment View 12 Singleserver – Useful for development, testing, and POCs

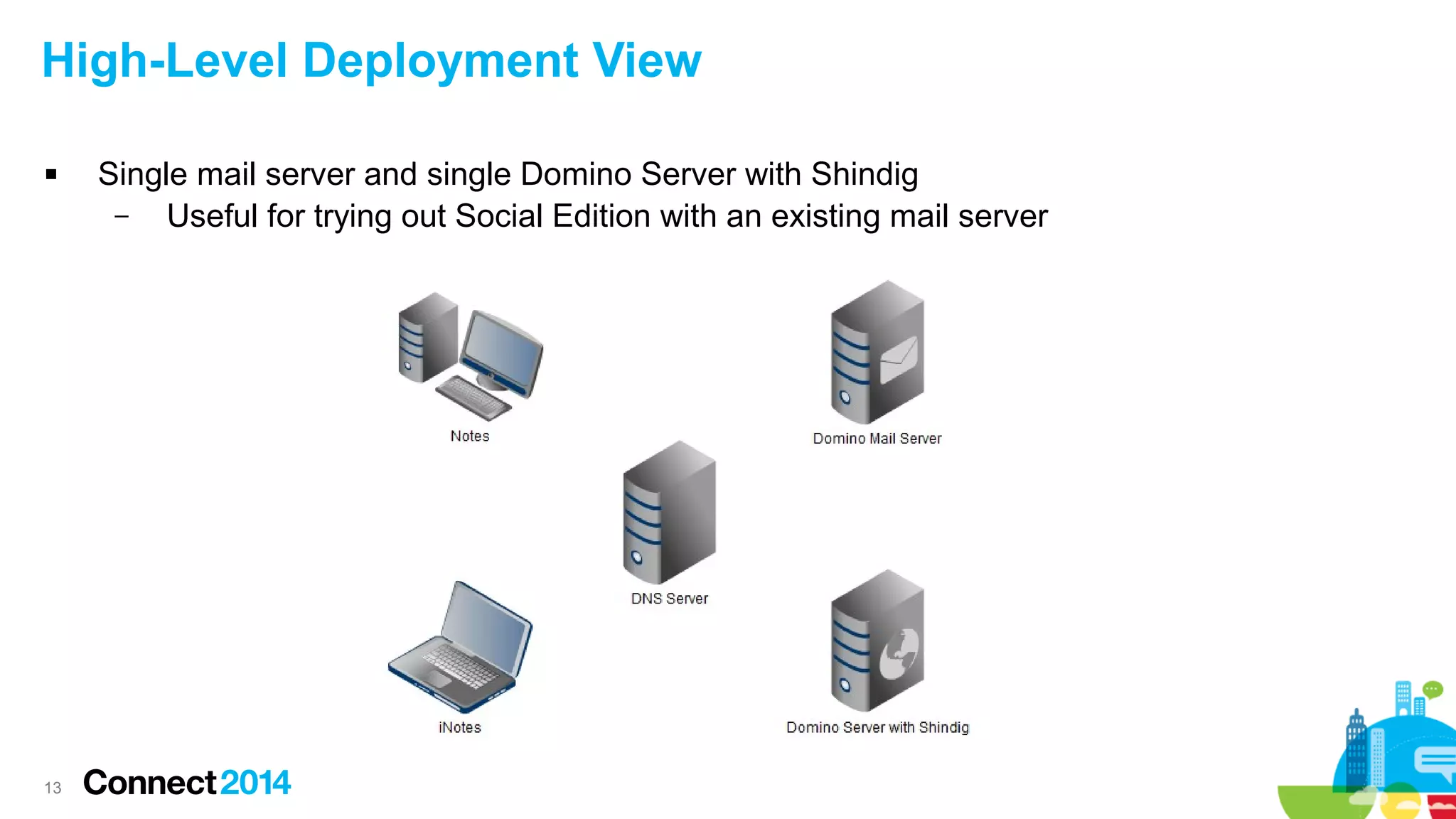

- 13. High-Level Deployment View 13 Singlemail server and single Domino Server with Shindig – Useful for trying out Social Edition with an existing mail server

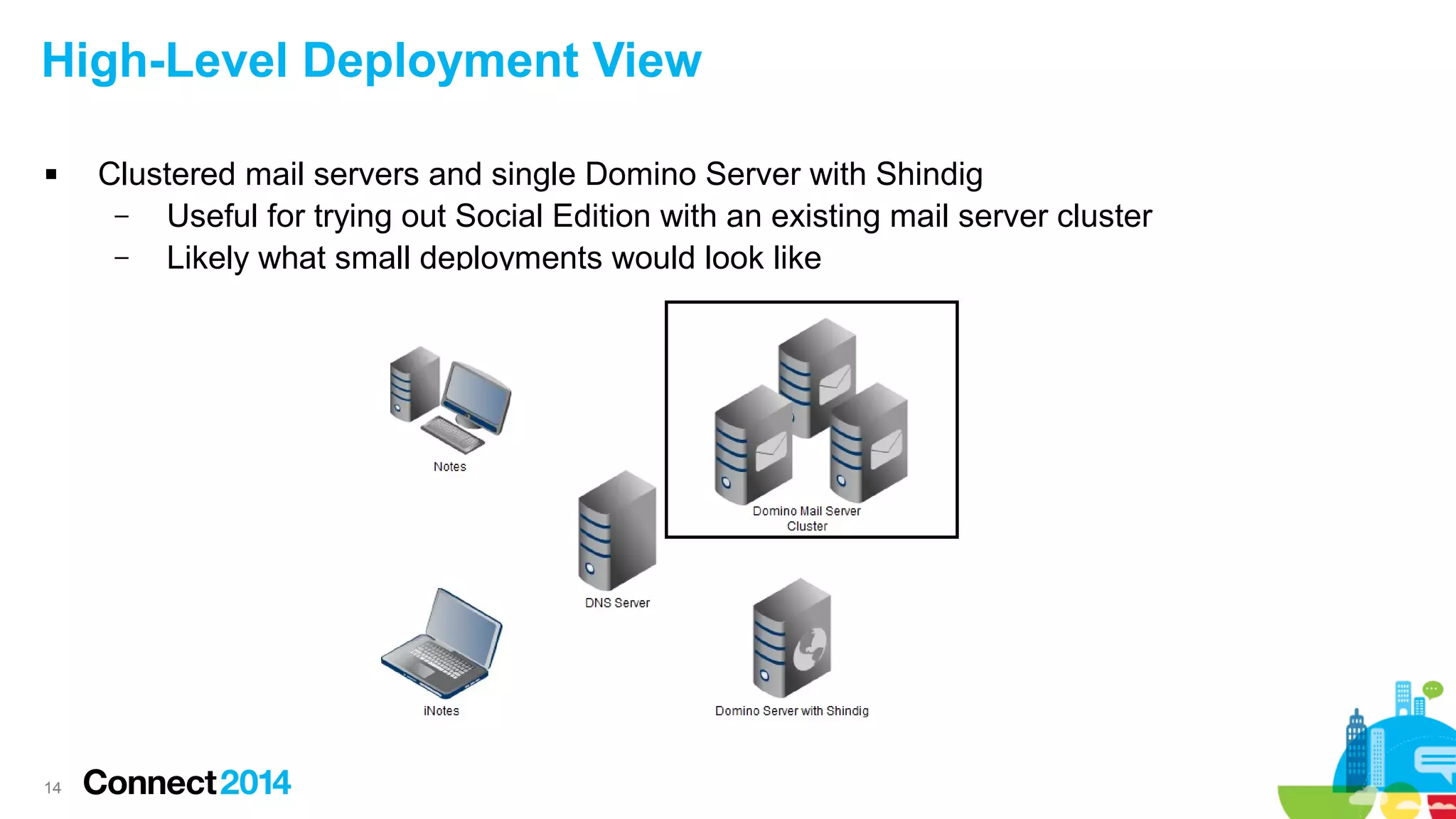

- 14. High-Level Deployment View 14 Clusteredmail servers and single Domino Server with Shindig – Useful for trying out Social Edition with an existing mail server cluster – Likely what small deployments would look like

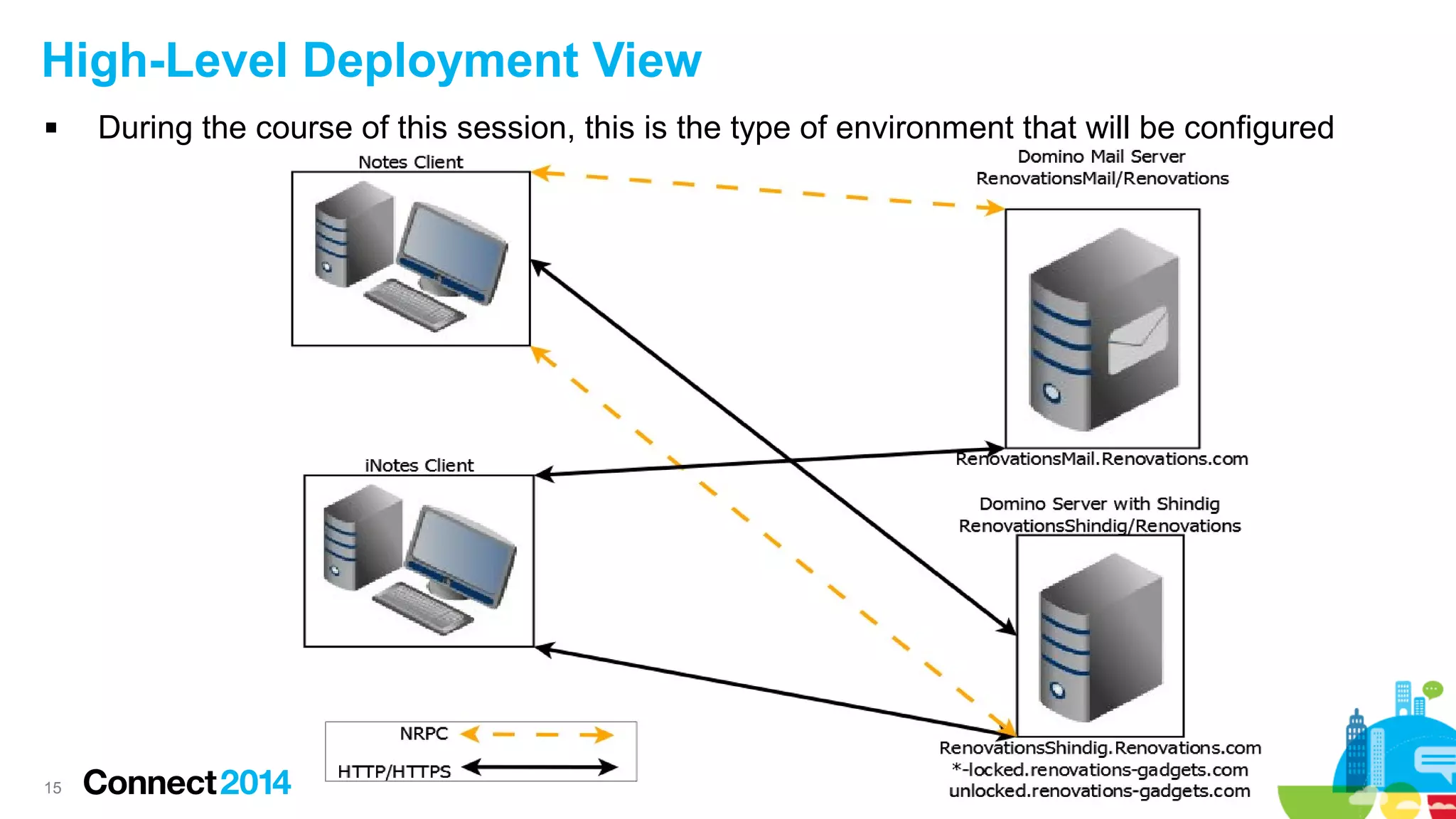

- 15. High-Level Deployment View 15 Duringthe course of this session, this is the type of environment that will be configured

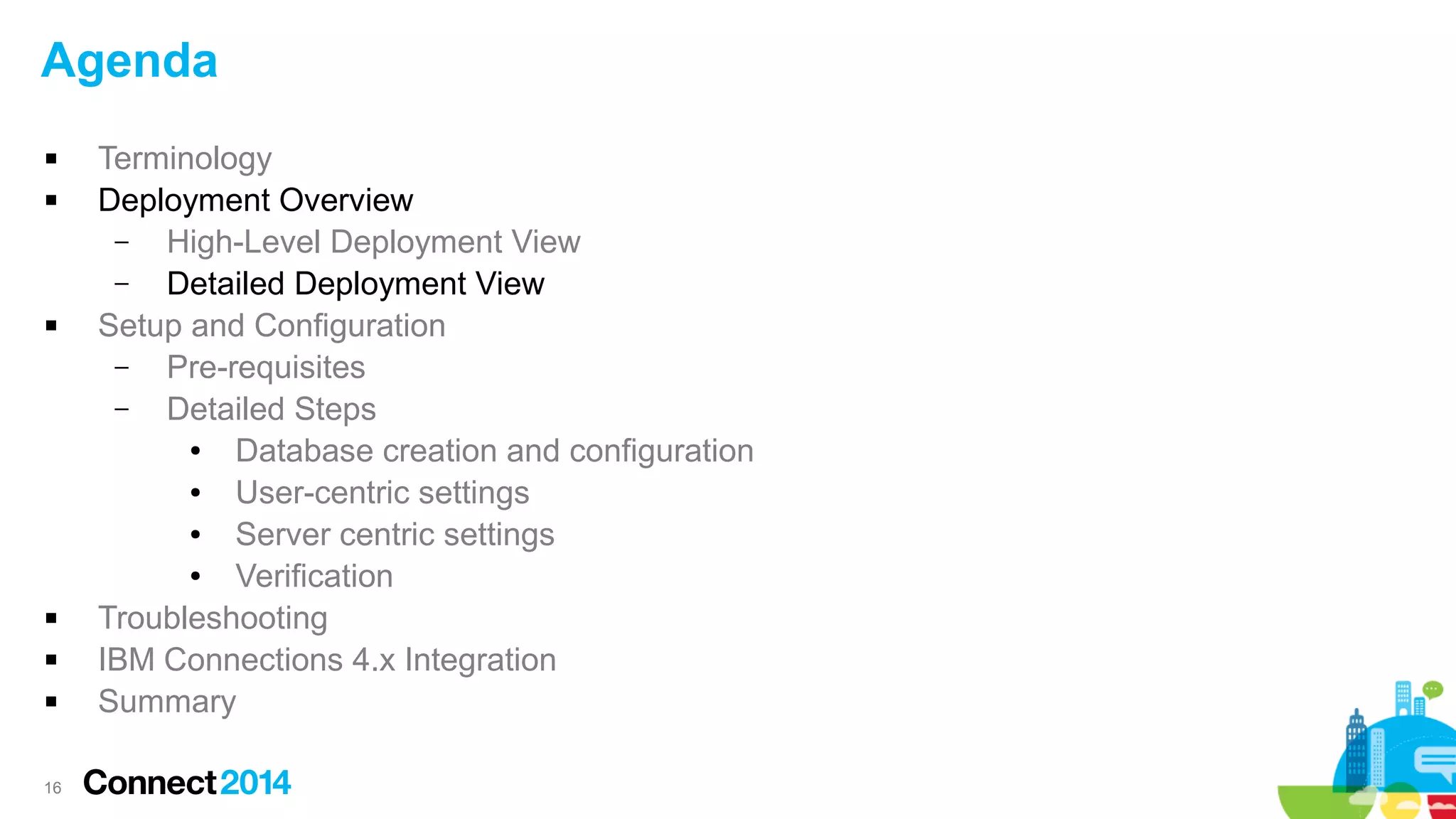

- 16. Agenda 16 Terminology Deployment Overview – High-Level DeploymentView – Detailed Deployment View Setup and Configuration – Pre-requisites – Detailed Steps ● Database creation and configuration ● User-centric settings ● Server centric settings ● Verification Troubleshooting IBM Connections 4.x Integration Summary

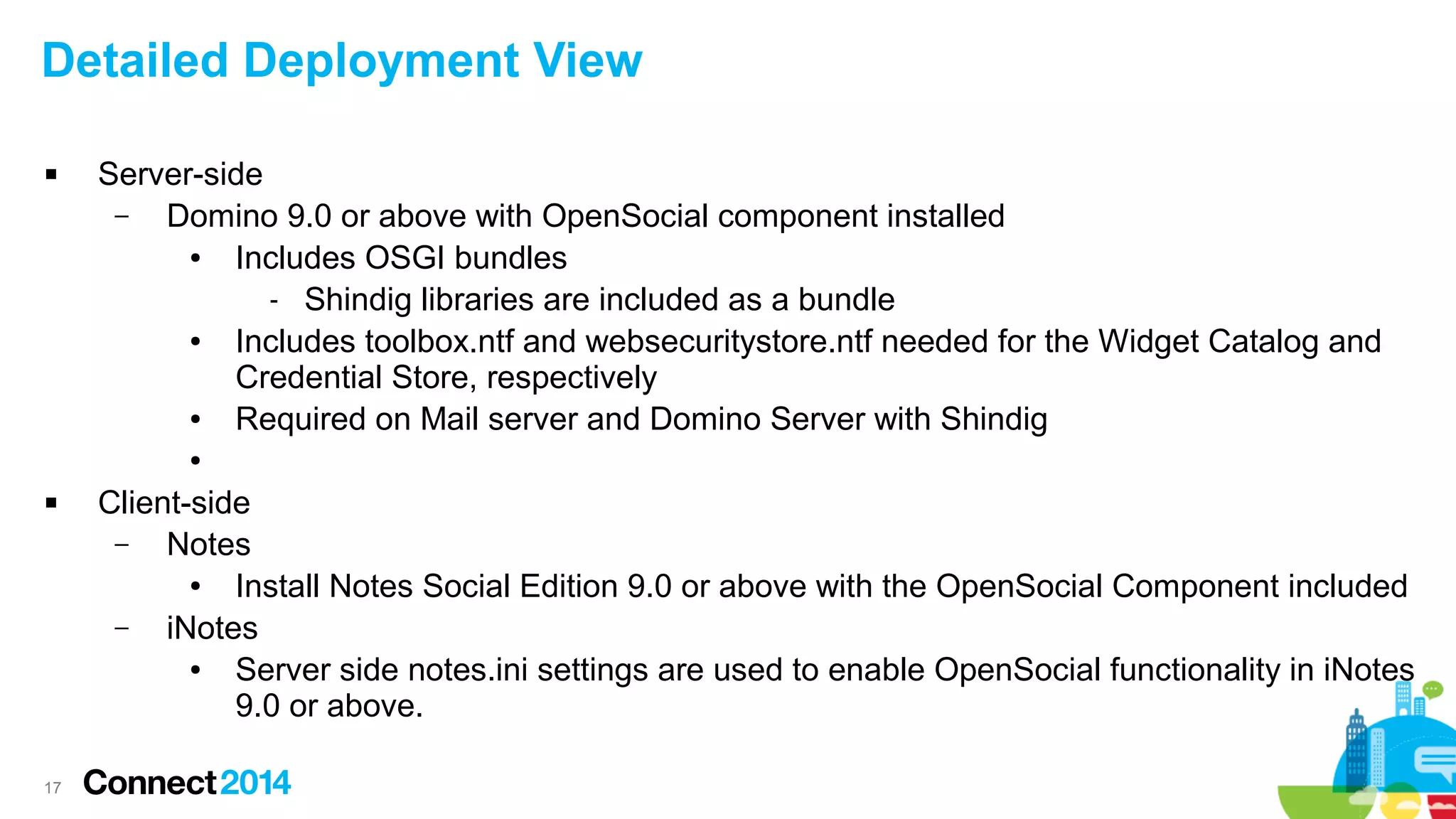

- 17. Detailed Deployment View Server-side – Domino9.0 or above with OpenSocial component installed ● Includes OSGI bundles - Shindig libraries are included as a bundle ● Includes toolbox.ntf and websecuritystore.ntf needed for the Widget Catalog and Credential Store, respectively ● Required on Mail server and Domino Server with Shindig ● 17 Client-side – Notes ● Install Notes Social Edition 9.0 or above with the OpenSocial Component included – iNotes ● Server side notes.ini settings are used to enable OpenSocial functionality in iNotes 9.0 or above.

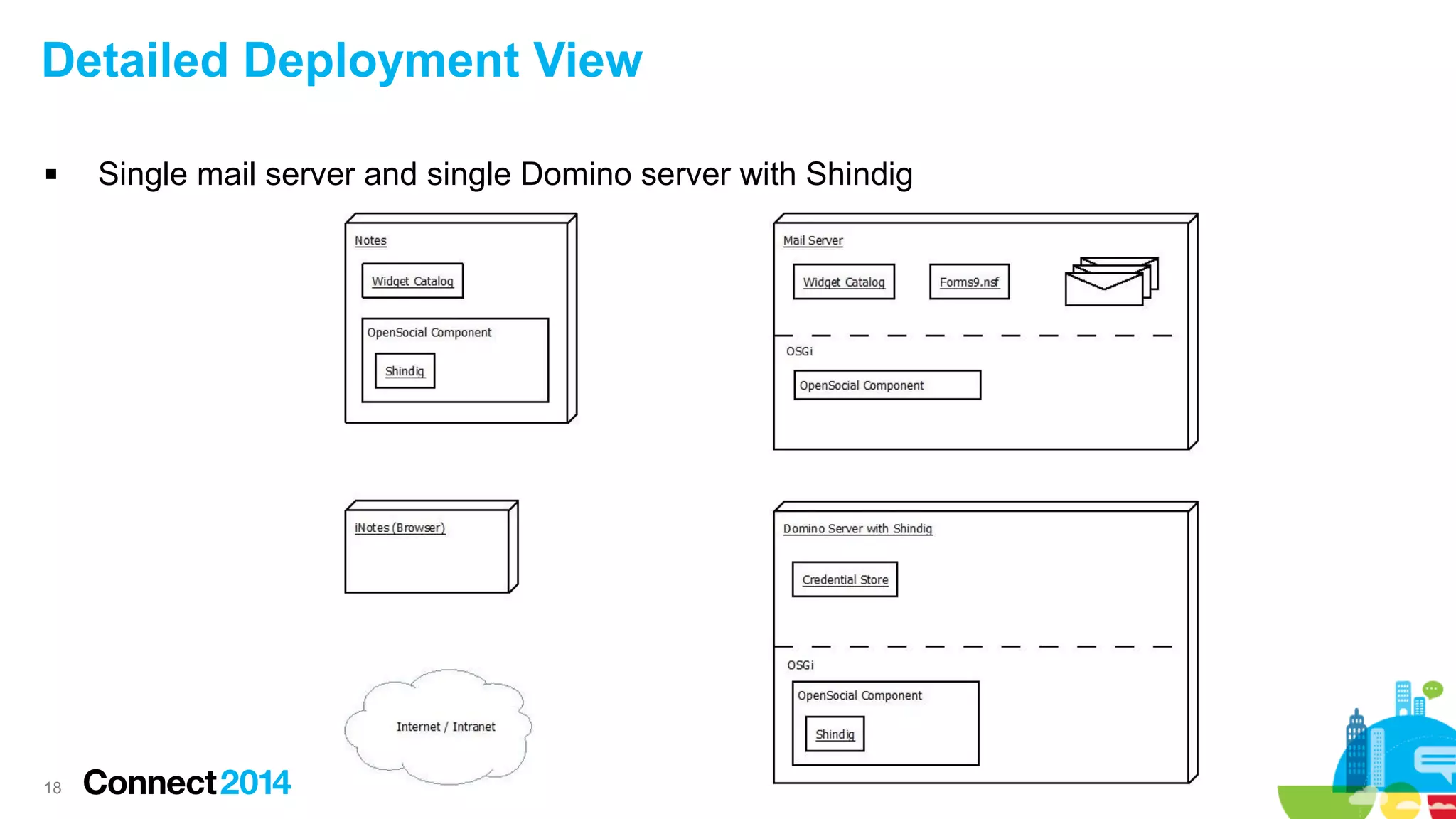

- 18. Detailed Deployment View 18 Singlemail server and single Domino server with Shindig
- 19. Gadget Rendering Process- iNotes 19

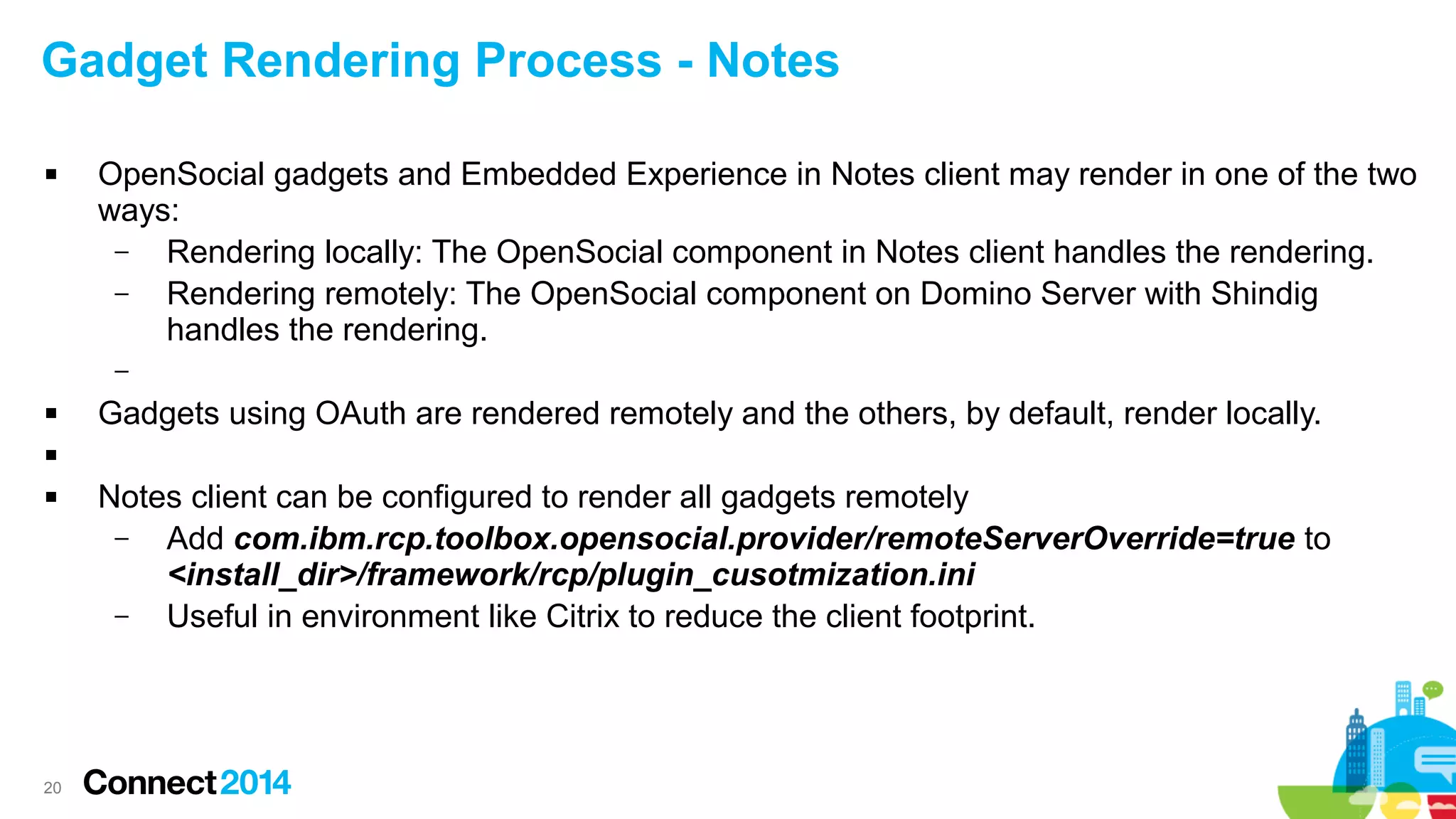

- 20. Gadget Rendering Process- Notes OpenSocial gadgets and Embedded Experience in Notes client may render in one of the two ways: – Rendering locally: The OpenSocial component in Notes client handles the rendering. – Rendering remotely: The OpenSocial component on Domino Server with Shindig handles the rendering. – Gadgets using OAuth are rendered remotely and the others, by default, render locally. 20 Notes client can be configured to render all gadgets remotely – Add com.ibm.rcp.toolbox.opensocial.provider/remoteServerOverride=true to <install_dir>/framework/rcp/plugin_cusotmization.ini – Useful in environment like Citrix to reduce the client footprint.

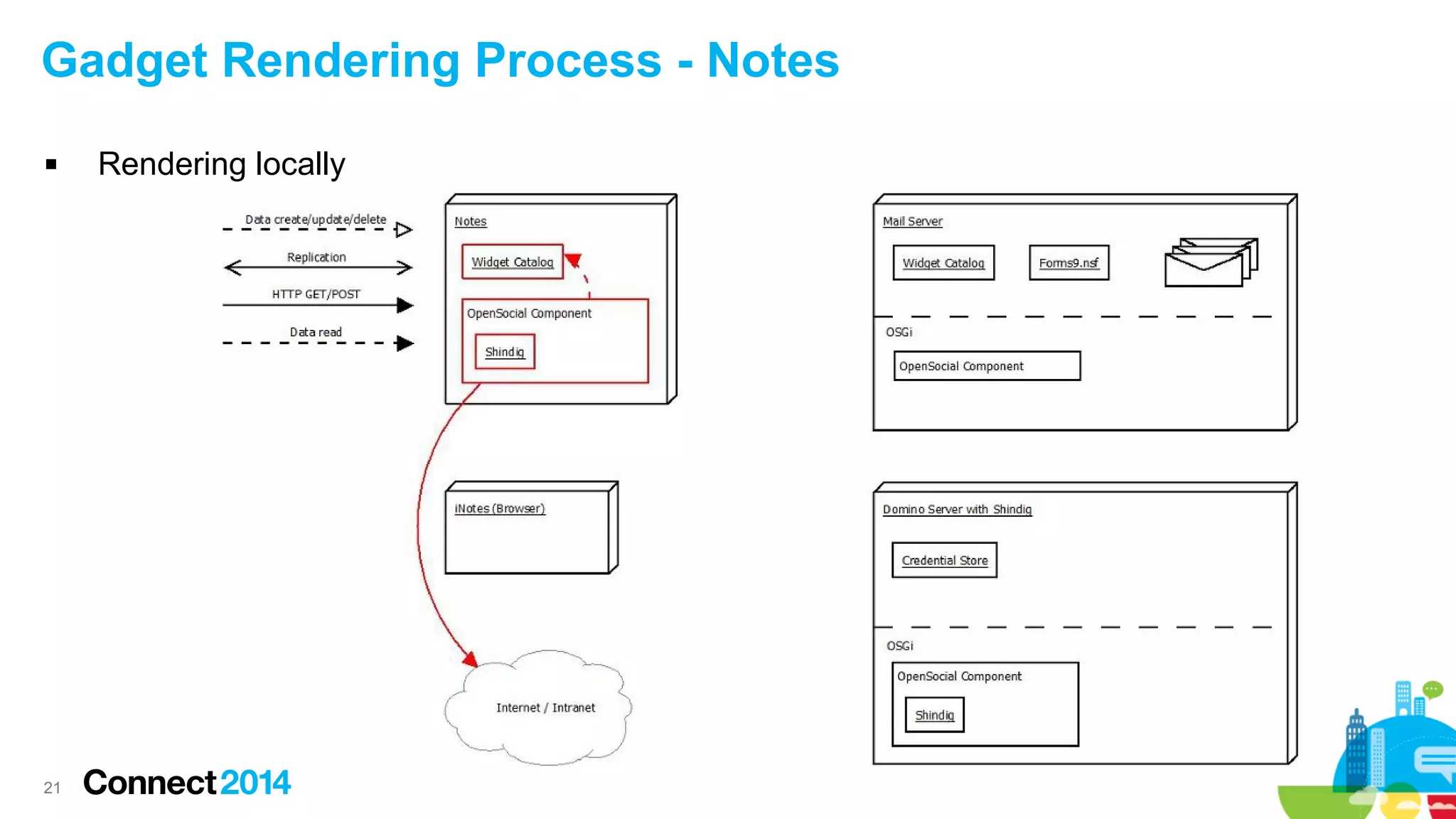

- 21. Gadget Rendering Process- Notes 21 Rendering locally

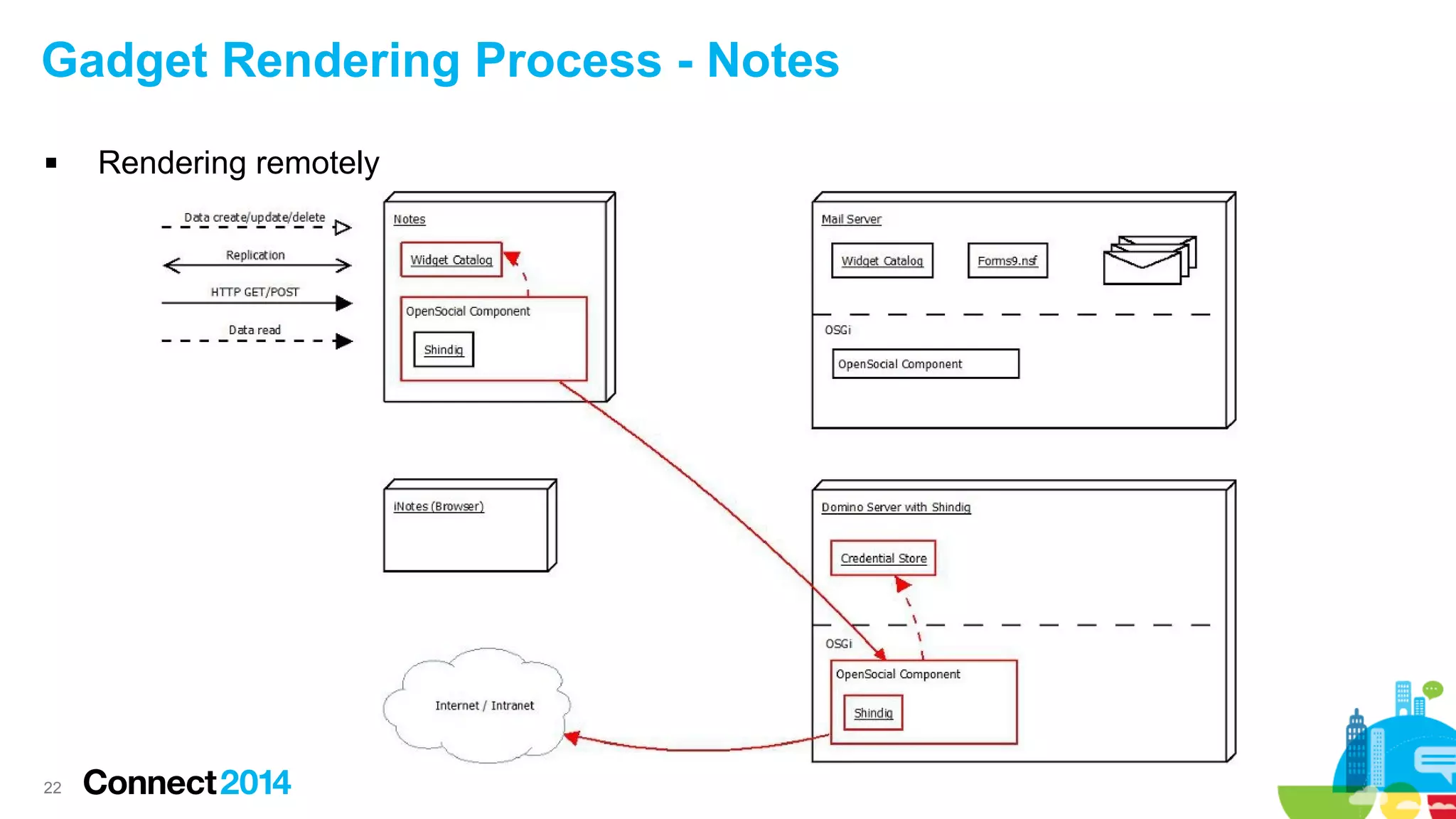

- 22. Gadget Rendering Process- Notes 22 Rendering remotely
- 23. Agenda 23 Terminology Deployment Overview – High-Level DeploymentView – Detailed Deployment View Setup and Configuration – Pre-requisites – Detailed Steps ● Database creation and configuration ● User-centric settings ● Server centric settings ● Verification Troubleshooting IBM Connections 4.x Integration Summary

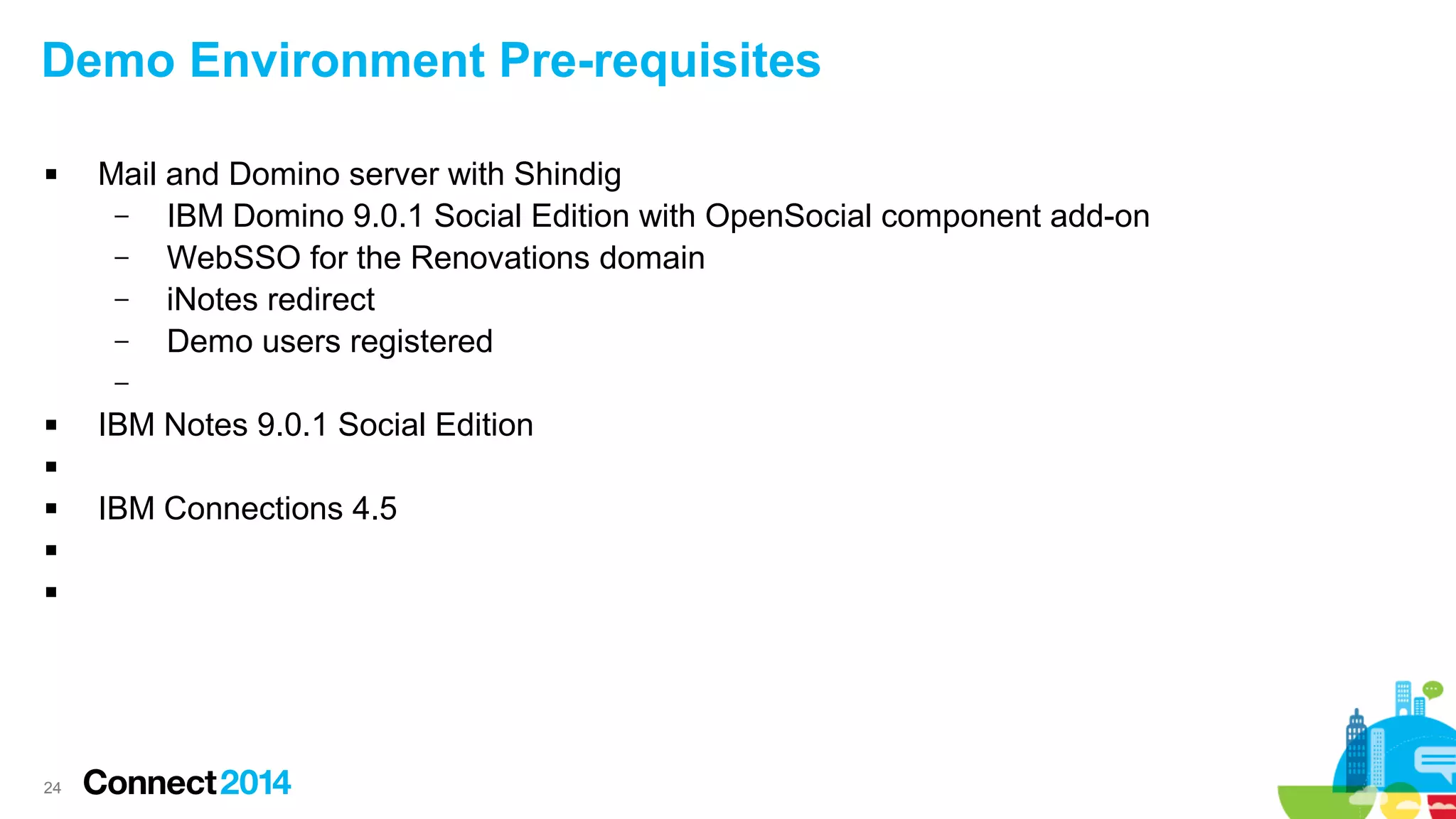

- 24. Demo Environment Pre-requisites Mailand Domino server with Shindig – IBM Domino 9.0.1 Social Edition with OpenSocial component add-on – WebSSO for the Renovations domain – iNotes redirect – Demo users registered – IBM Notes 9.0.1 Social Edition 24 IBM Connections 4.5
- 25. Agenda 25 Terminology Deployment Overview – High-Level DeploymentView – Detailed Deployment View Setup and Configuration – Pre-requisites – Detailed Steps ● Database creation and configuration ● User-centric settings ● Server centric settings ● Verification Troubleshooting IBM Connections 4.x Integration Summary

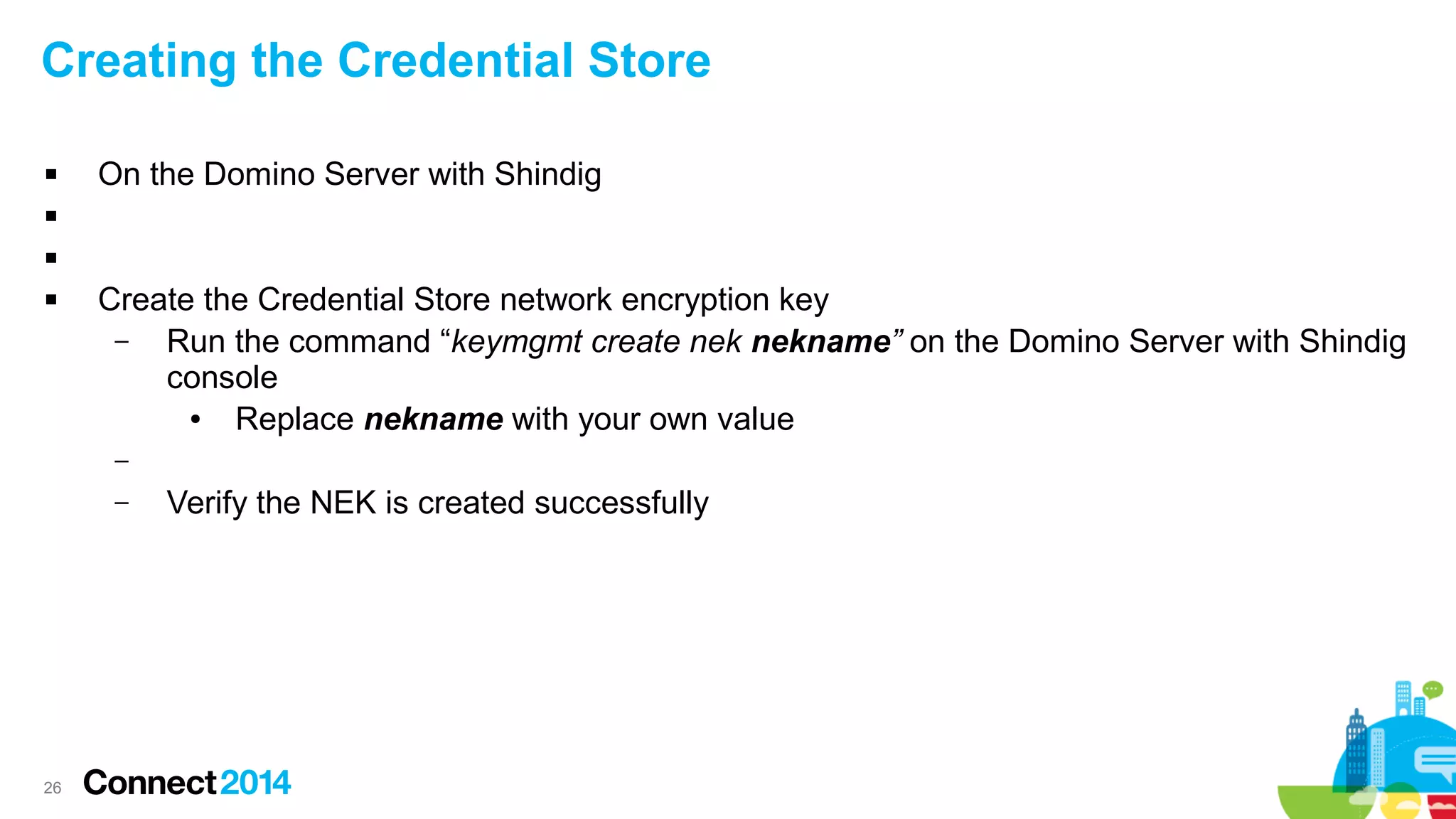

- 26. Creating the CredentialStore On the Domino Server with Shindig Create the Credential Store network encryption key – Run the command “keymgmt create nek nekname” on the Domino Server with Shindig console ● Replace nekname with your own value – – 26 Verify the NEK is created successfully

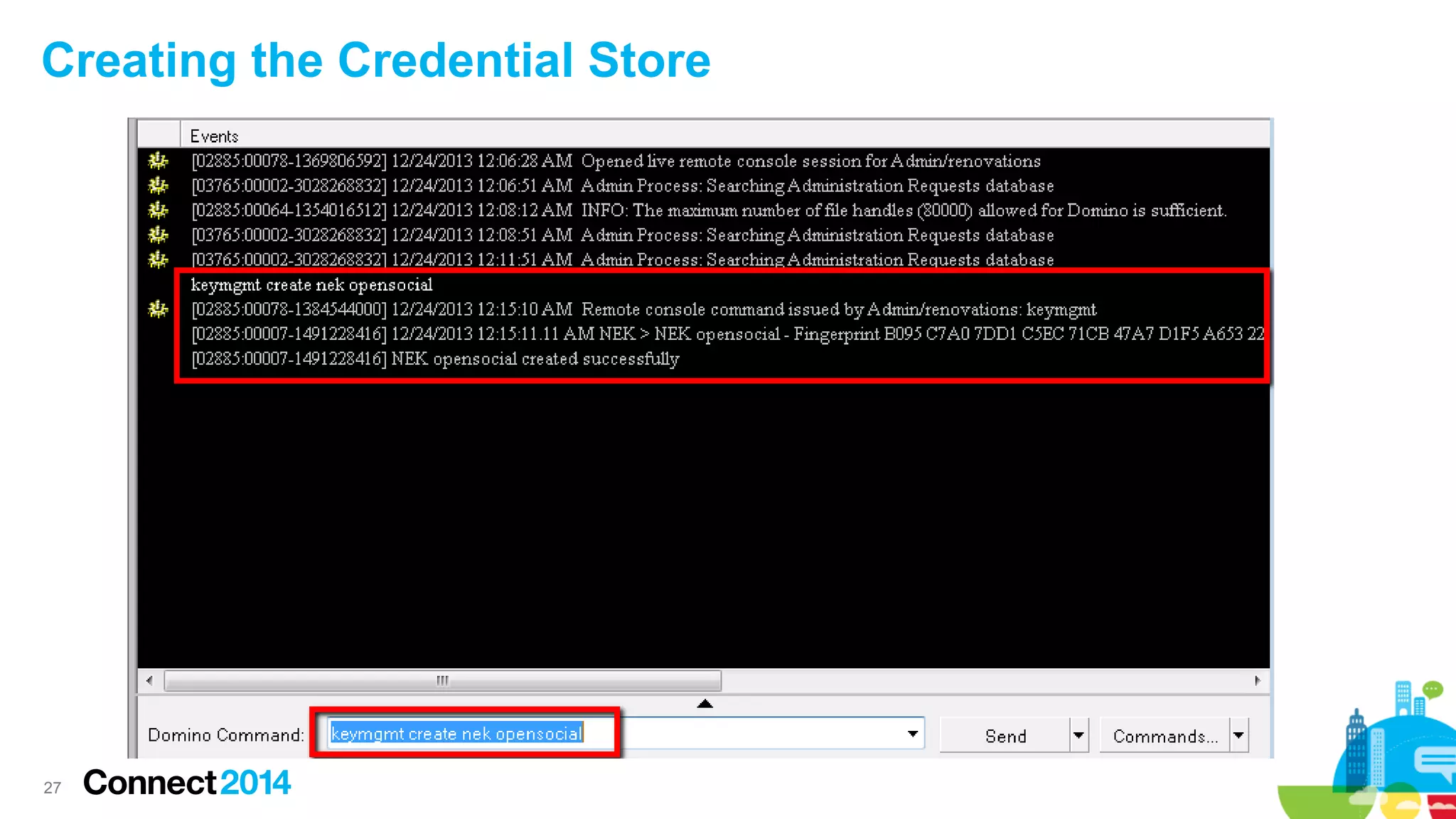

- 27. Creating the CredentialStore 27
- 28. Creating the CredentialStore Issue the command “keymgmt create credstore nekname” on the Domino Server with Shindig console – The nekname is same as previous step 28 Verify credstore.nsf is created under dataIBM_CredStore

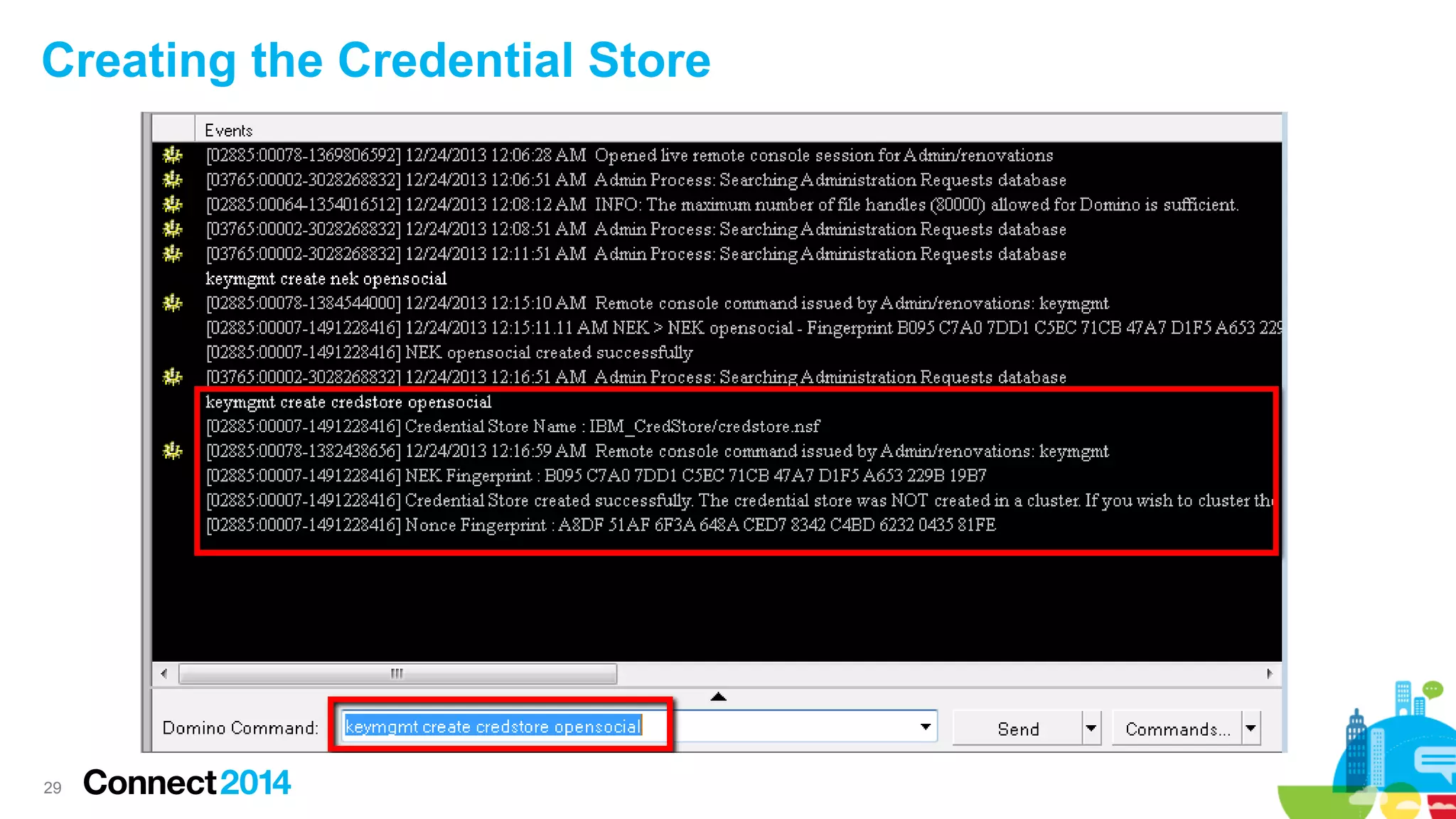

- 29. Creating the CredentialStore 29

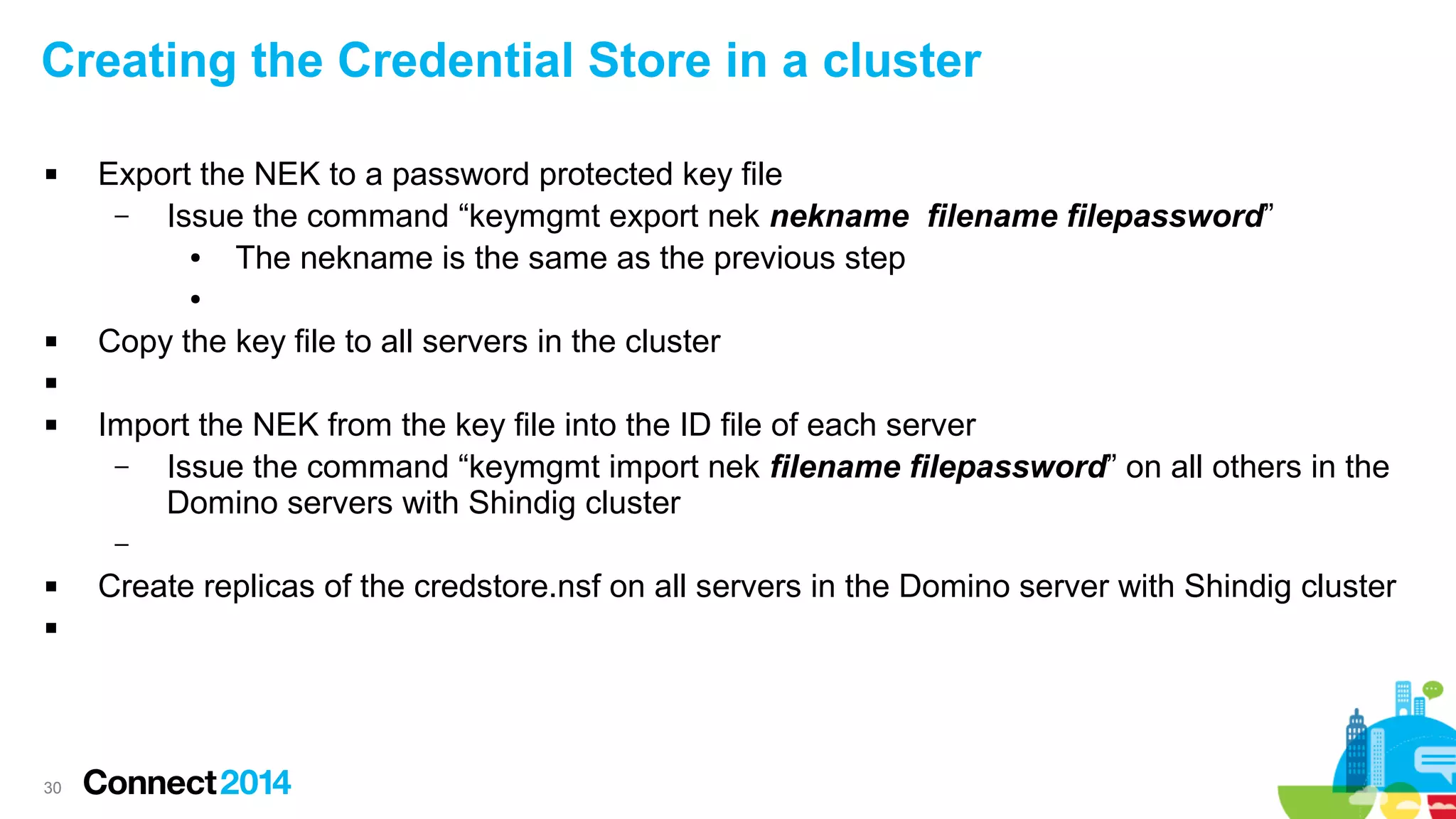

- 30. Creating the CredentialStore in a cluster Export the NEK to a password protected key file – Issue the command “keymgmt export nek nekname filename filepassword” ● The nekname is the same as the previous step ● Copy the key file to all servers in the cluster Import the NEK from the key file into the ID file of each server – Issue the command “keymgmt import nek filename filepassword” on all others in the Domino servers with Shindig cluster – 30 Create replicas of the credstore.nsf on all servers in the Domino server with Shindig cluster
- 31. Configuring the CredentialStore 31 Go to the Access Control List for the credential store database

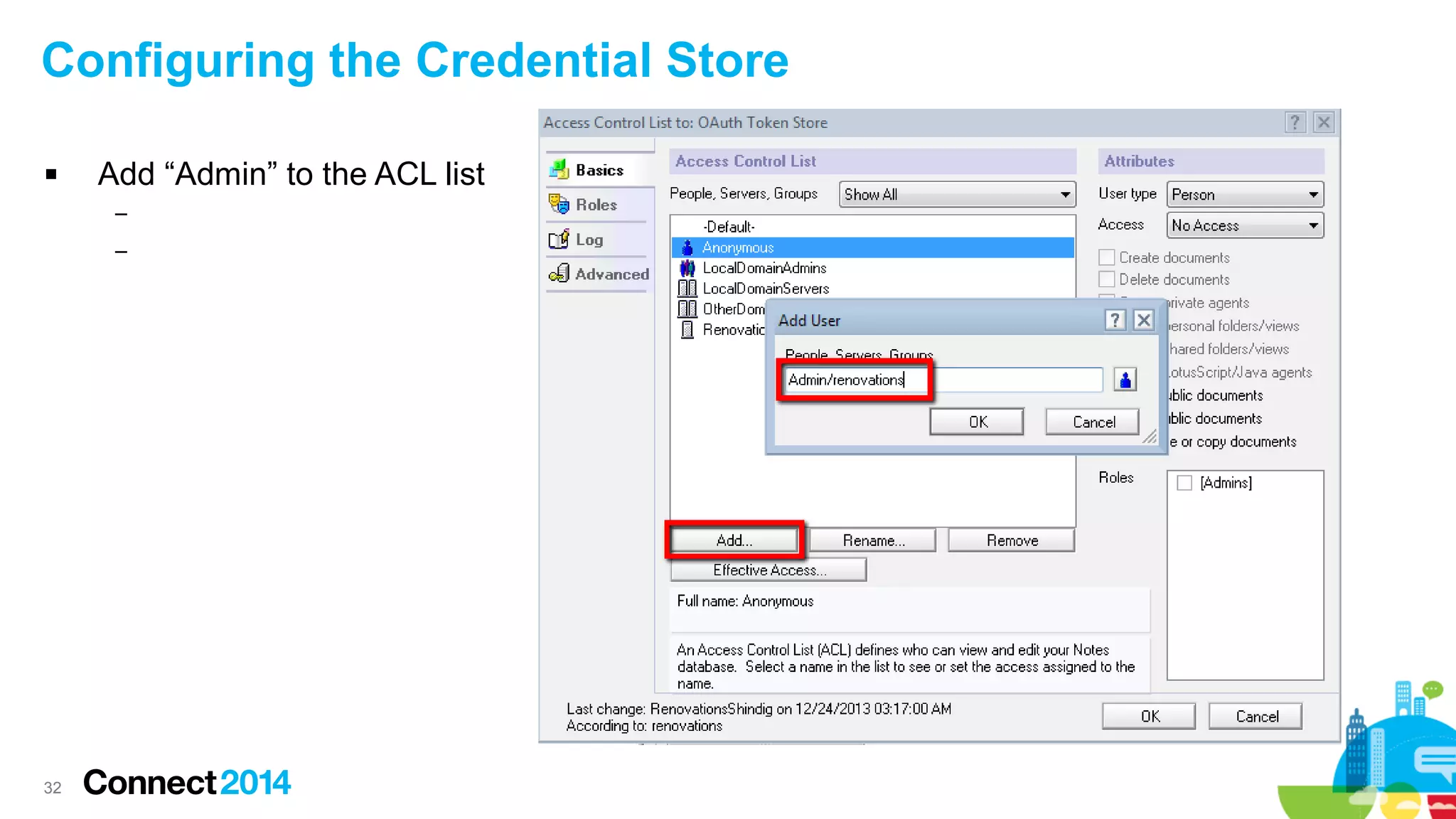

- 32. Configuring the CredentialStore Add “Admin” to the ACL list – – 32

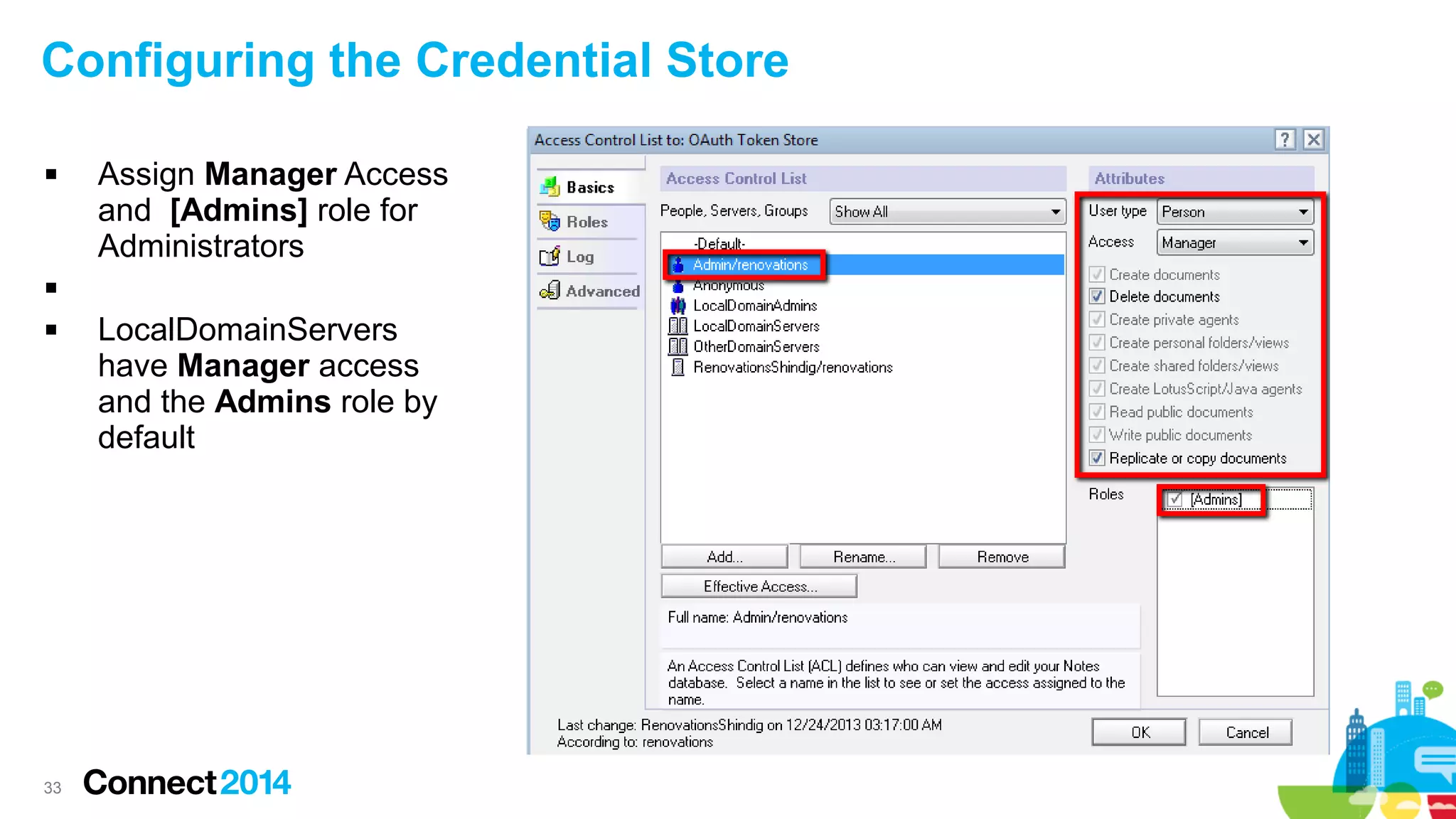

- 33. Configuring the CredentialStore Assign Manager Access and [Admins] role for Administrators 33 LocalDomainServers have Manager access and the Admins role by default
- 34. Configuring the CredentialStore Open the OAuth Token Store database (credstore.nsf) Open the Configuration view Click Create Encryption Key button Click Create new encryption key in the pop up dialog Verify the encryption key is created successfully Click OK to close all the dialogs The configuration of Credential Store is complete ! 34
- 35. Database Creation andConfiguration DEMO 35
- 36. Creating the WidgetCatalog Widget Catalog is created on the mail server 36 Inherit future design changes – If selected when catalog updates agent will need to be re-enabled

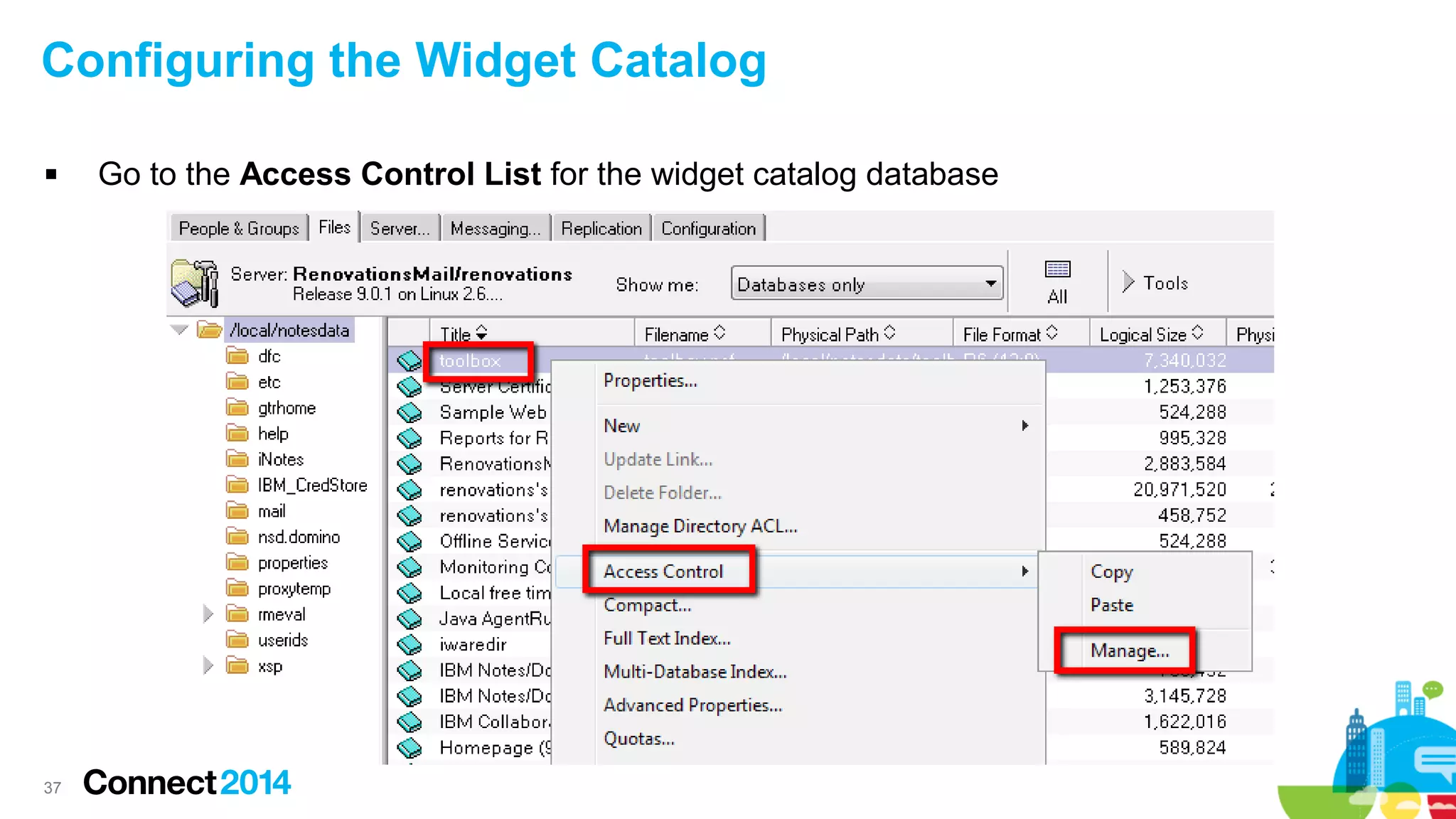

- 37. Configuring the WidgetCatalog 37 Go to the Access Control List for the widget catalog database

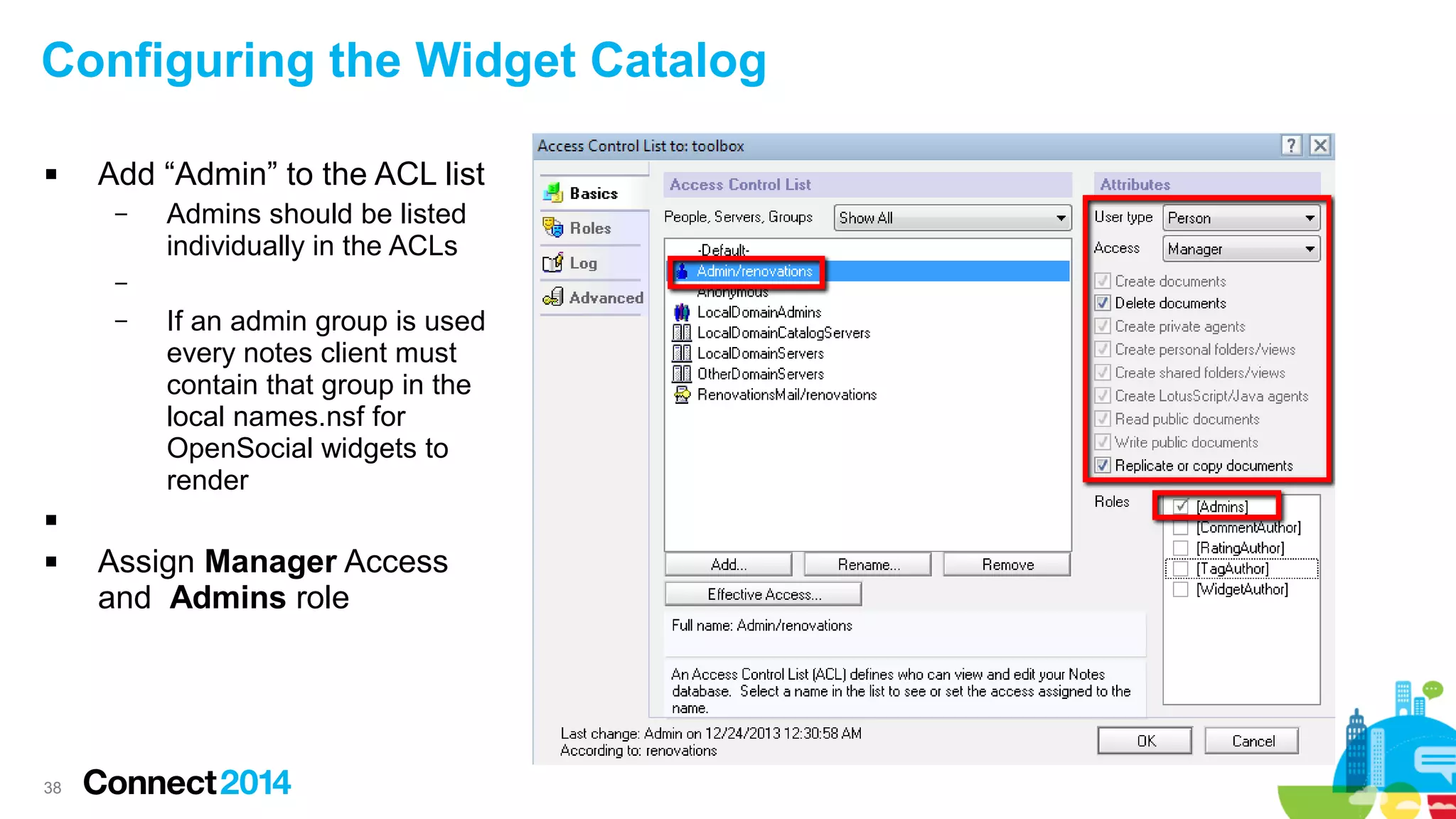

- 38. Configuring the WidgetCatalog Add “Admin” to the ACL list – Admins should be listed individually in the ACLs – – If an admin group is used every notes client must contain that group in the local names.nsf for OpenSocial widgets to render 38 Assign Manager Access and Admins role

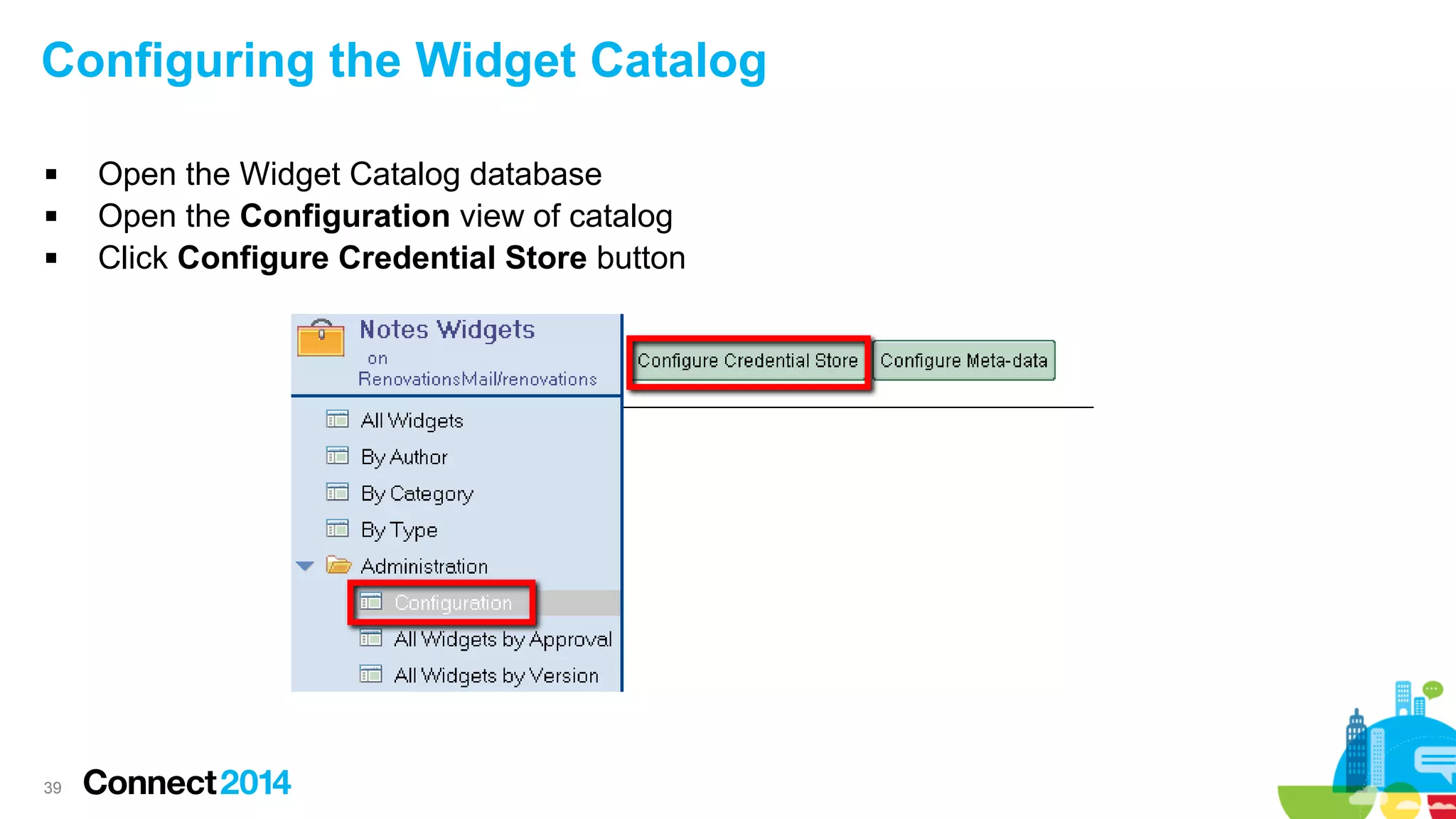

- 39. Configuring the WidgetCatalog 39 Open the Widget Catalog database Open the Configuration view of catalog Click Configure Credential Store button

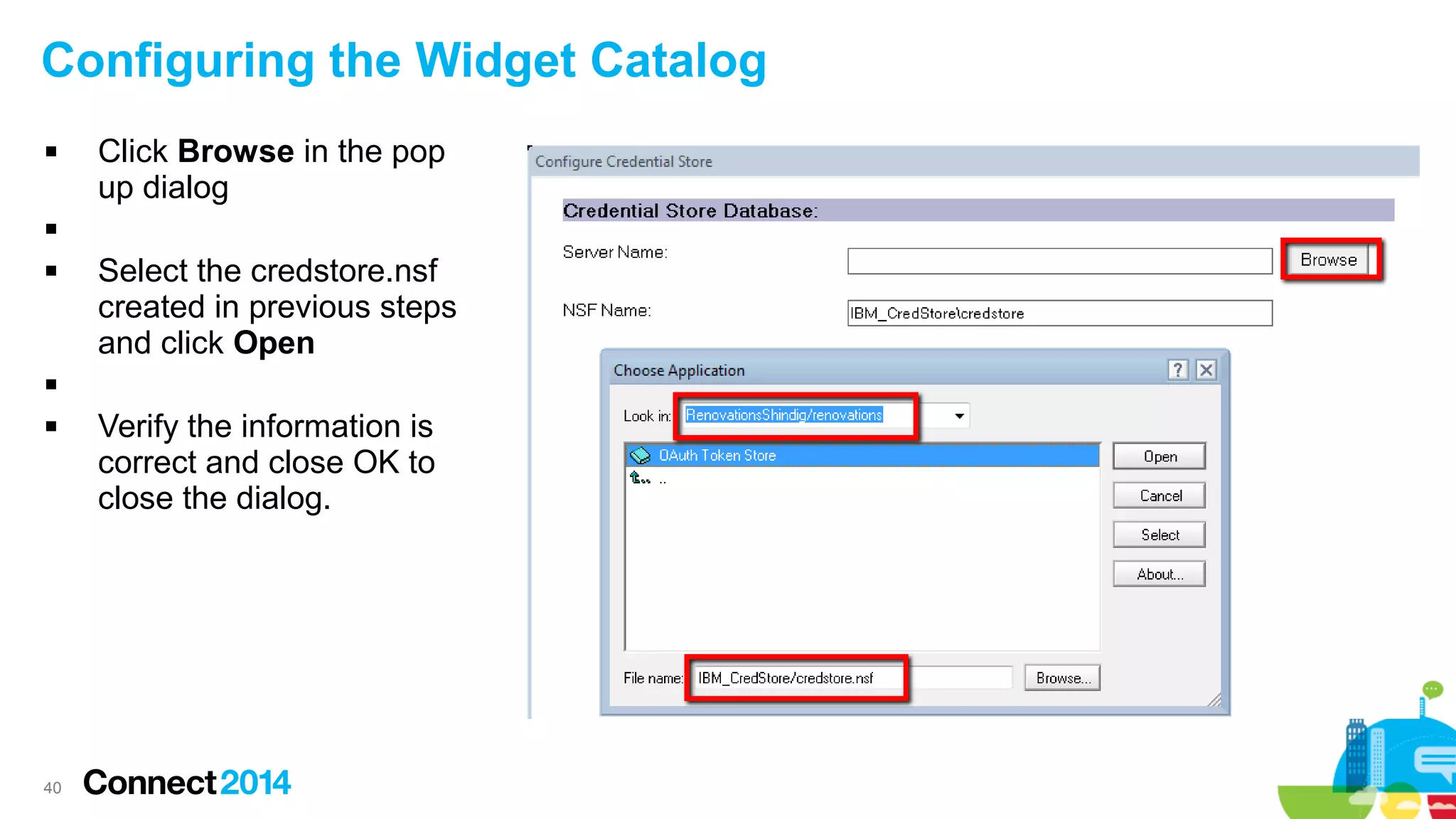

- 40. Configuring the WidgetCatalog Click Browse in the pop up dialog Select the credstore.nsf created in previous steps and click Open 40 Verify the information is correct and close OK to close the dialog.

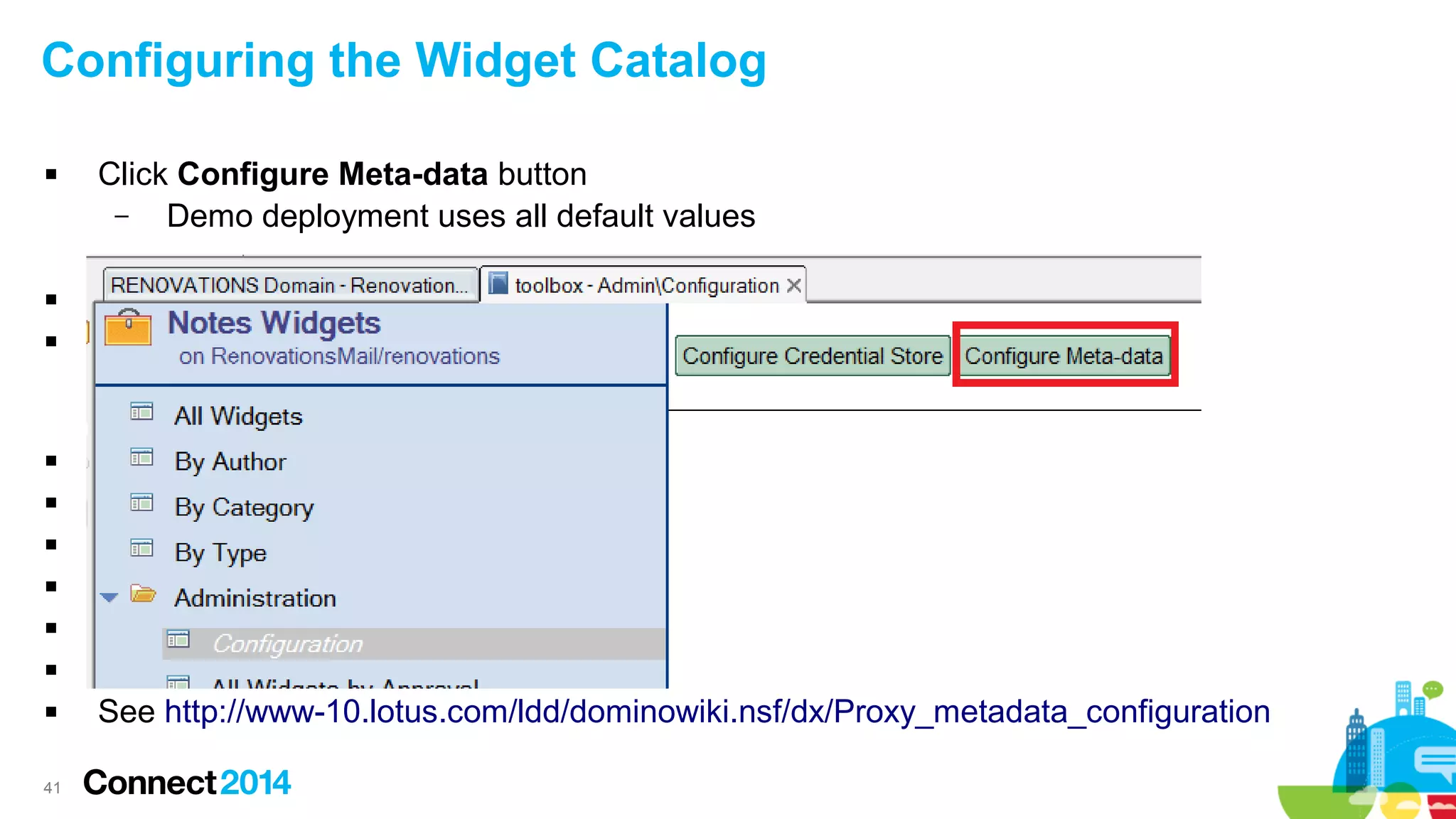

- 41. Configuring the WidgetCatalog Click Configure Meta-data button – Demo deployment uses all default values – ● ● 41 See http://www-10.lotus.com/ldd/dominowiki.nsf/dx/Proxy_metadata_configuration

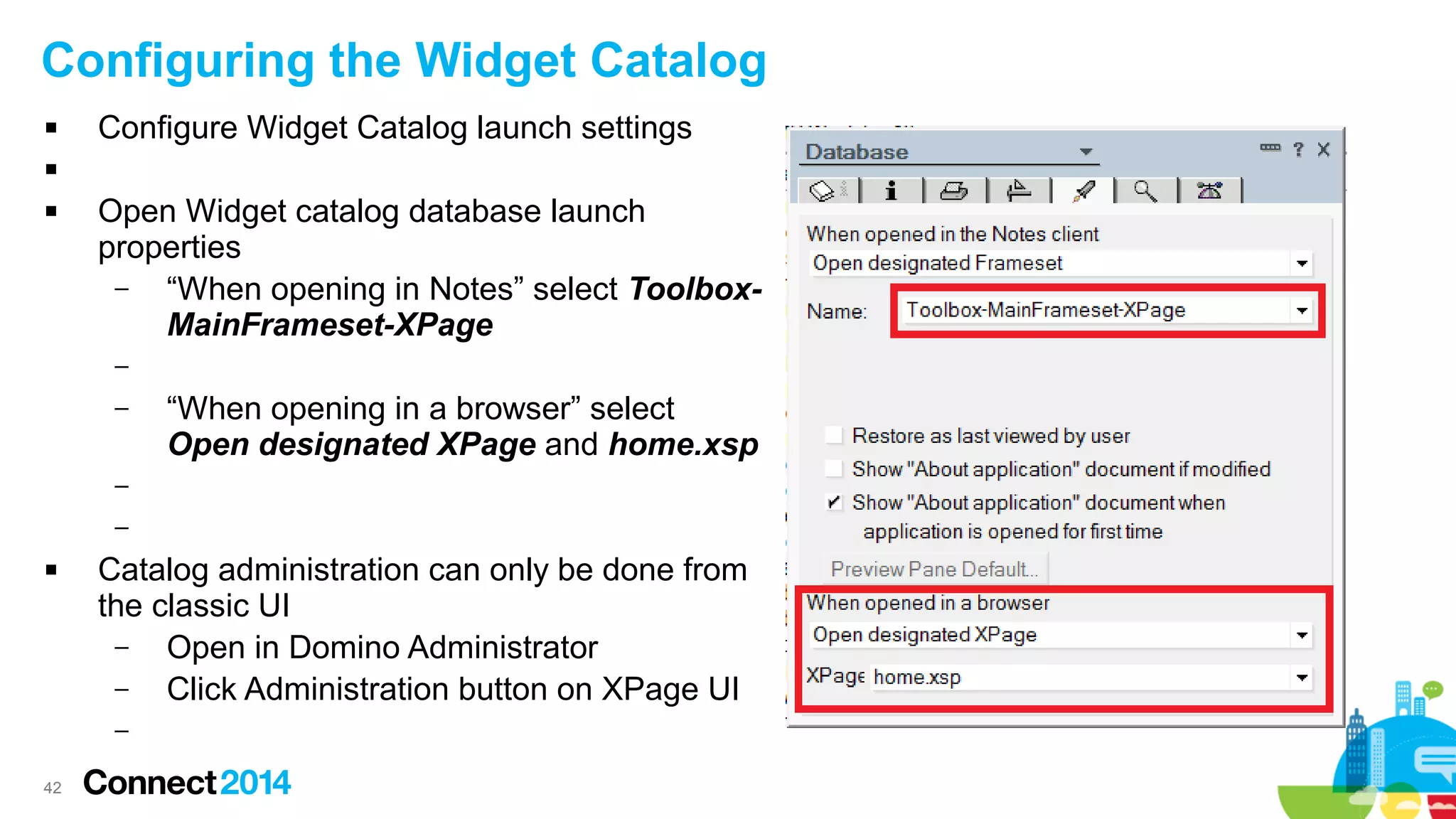

- 42. Configuring the WidgetCatalog Configure Widget Catalog launch settings Open Widget catalog database launch properties – “When opening in Notes” select ToolboxMainFrameset-XPage – – “When opening in a browser” select Open designated XPage and home.xsp – – Catalog administration can only be done from the classic UI – Open in Domino Administrator – Click Administration button on XPage UI – 42

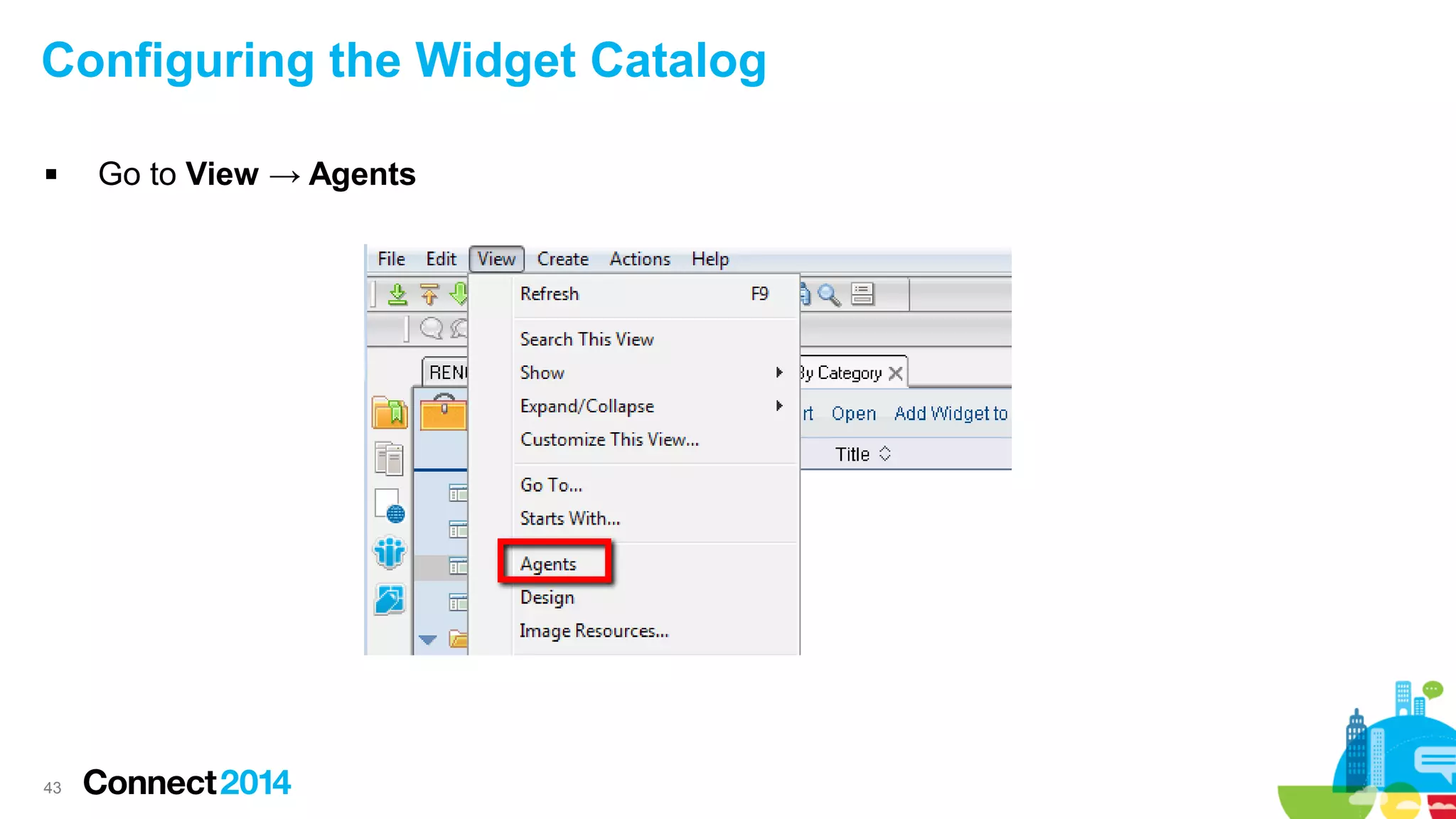

- 43. Configuring the WidgetCatalog 43 Go to View → Agents
- 44. Configuring the WidgetCatalog Enable the PushToCredStore agent – The mail server must be trusted by the Domino Server with Shindig in order for the PushToCredStore agent to function properly. More information about Roles & Agents can be found on : – http://www-01.ibm.com/support/docview.wss?rs=899&uid=swg21459846 44 The configuration of the Widget Catalog is complete!
- 45. Database Creation andConfiguration DEMO 45
- 46. Agenda 46 Terminology Deployment Overview – High-Level DeploymentView – Detailed Deployment View Setup and Configuration – Pre-requisites – Detailed Steps ● Database creation and configuration ● User-centric settings ● Server centric settings ● Verification Troubleshooting IBM Connections 4.x Integration Summary

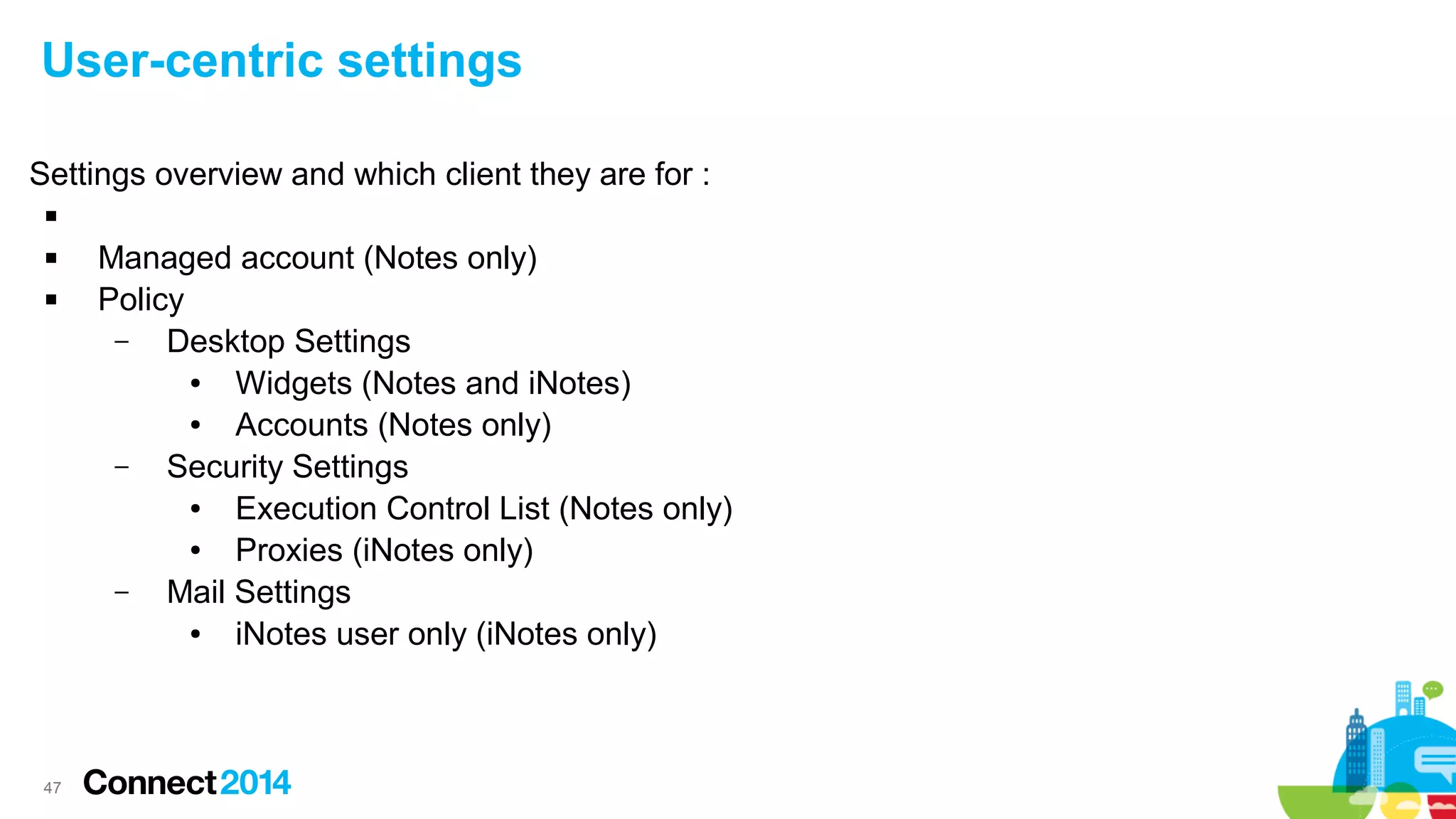

- 47. User-centric settings Settings overviewand which client they are for : 47 Managed account (Notes only) Policy – Desktop Settings ● Widgets (Notes and iNotes) ● Accounts (Notes only) – Security Settings ● Execution Control List (Notes only) ● Proxies (iNotes only) – Mail Settings ● iNotes user only (iNotes only)

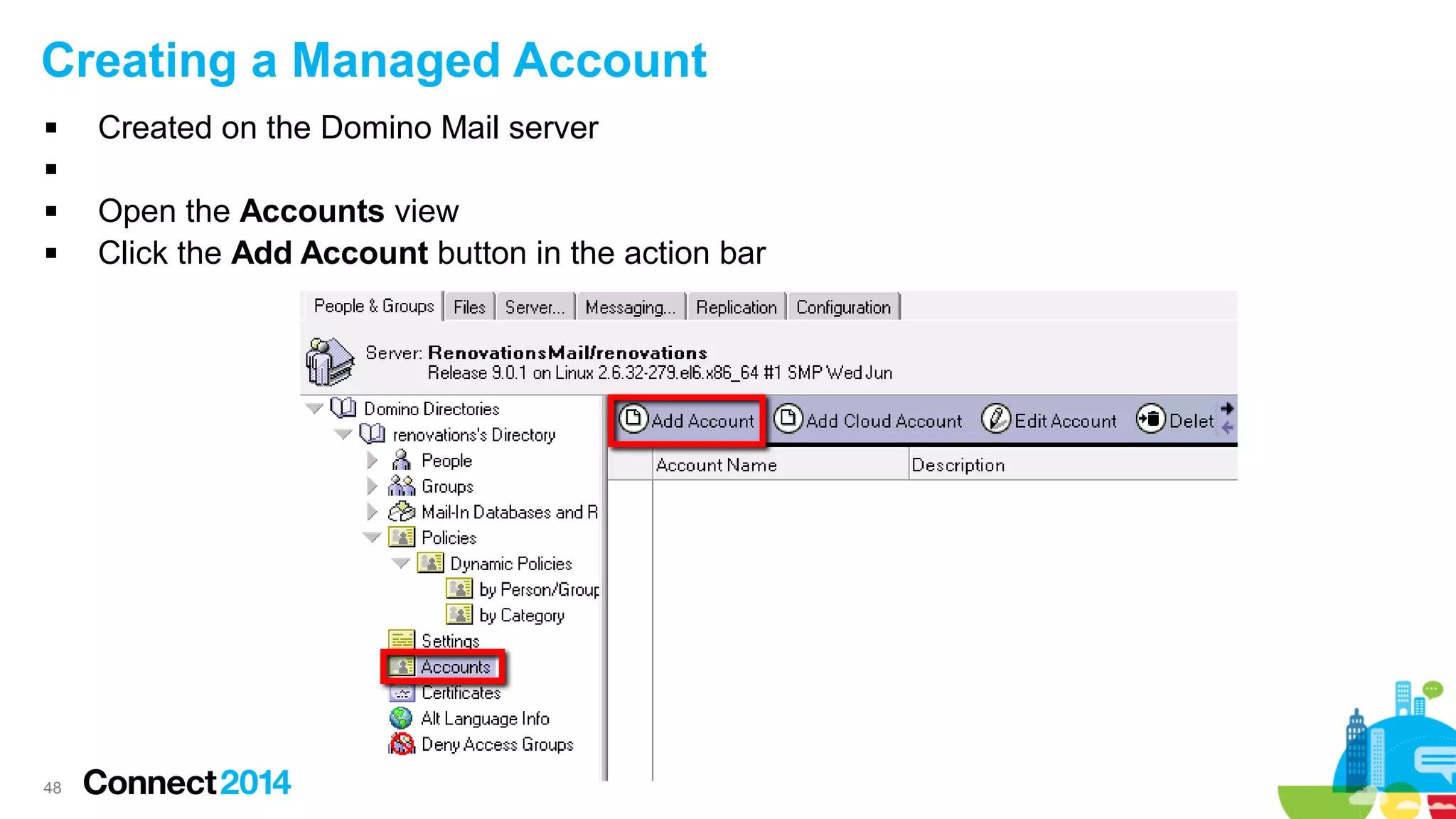

- 48. Creating a ManagedAccount Created on the Domino Mail server 48 Open the Accounts view Click the Add Account button in the action bar

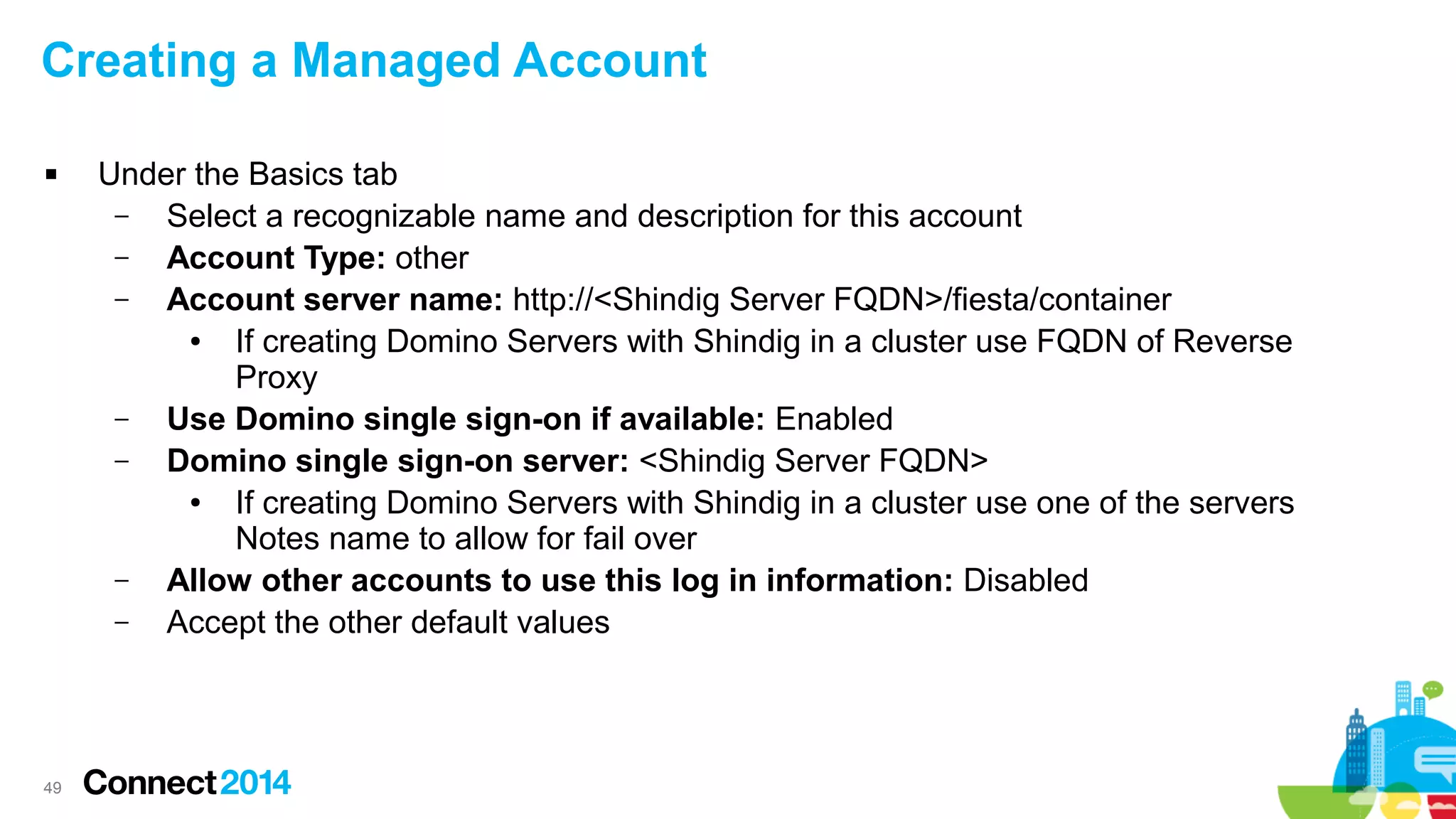

- 49. Creating a ManagedAccount 49 Under the Basics tab – Select a recognizable name and description for this account – Account Type: other – Account server name: http://<Shindig Server FQDN>/fiesta/container ● If creating Domino Servers with Shindig in a cluster use FQDN of Reverse Proxy – Use Domino single sign-on if available: Enabled – Domino single sign-on server: <Shindig Server FQDN> ● If creating Domino Servers with Shindig in a cluster use one of the servers Notes name to allow for fail over – Allow other accounts to use this log in information: Disabled – Accept the other default values

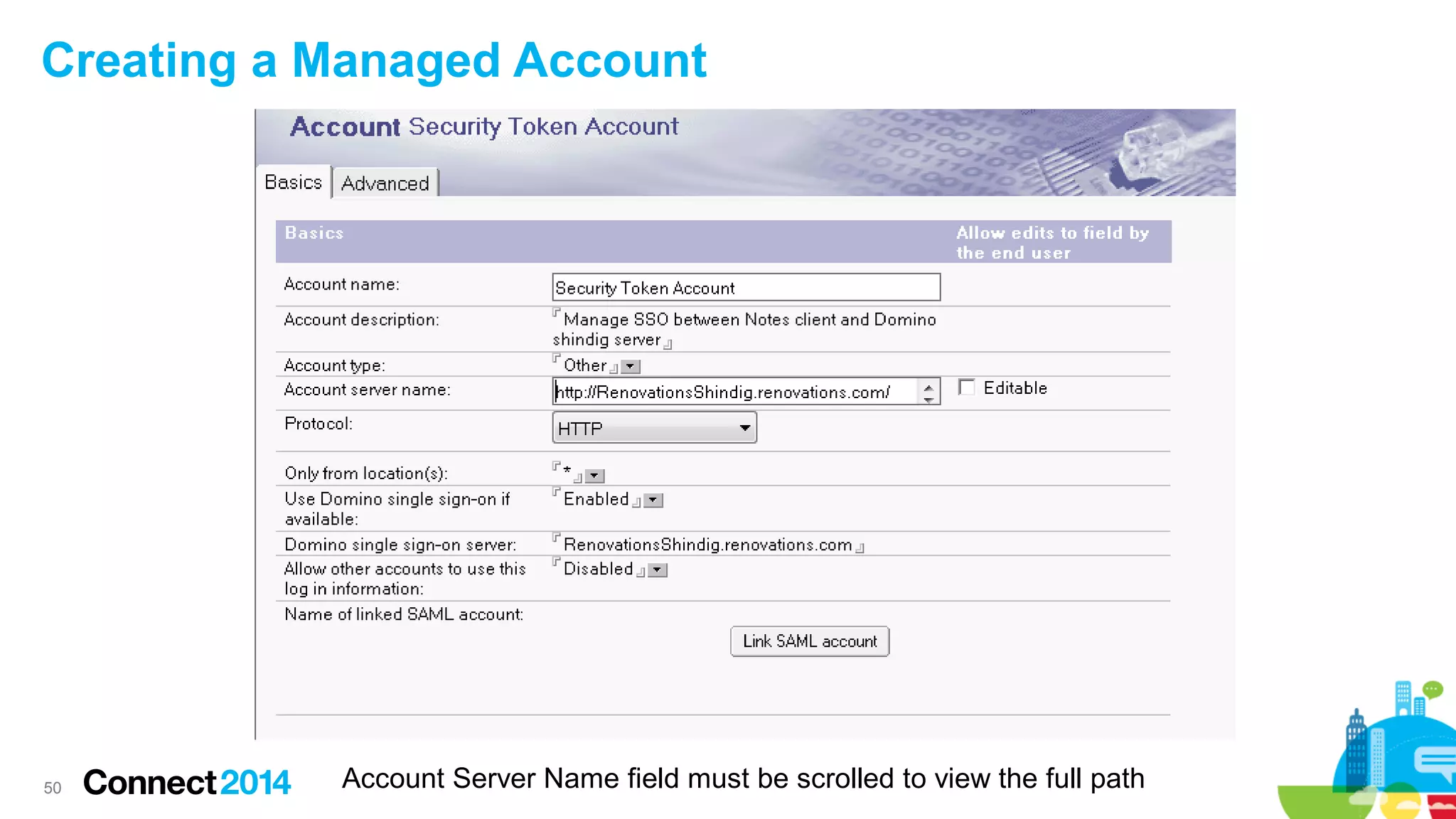

- 50. Creating a ManagedAccount 50 Account Server Name field must be scrolled to view the full path

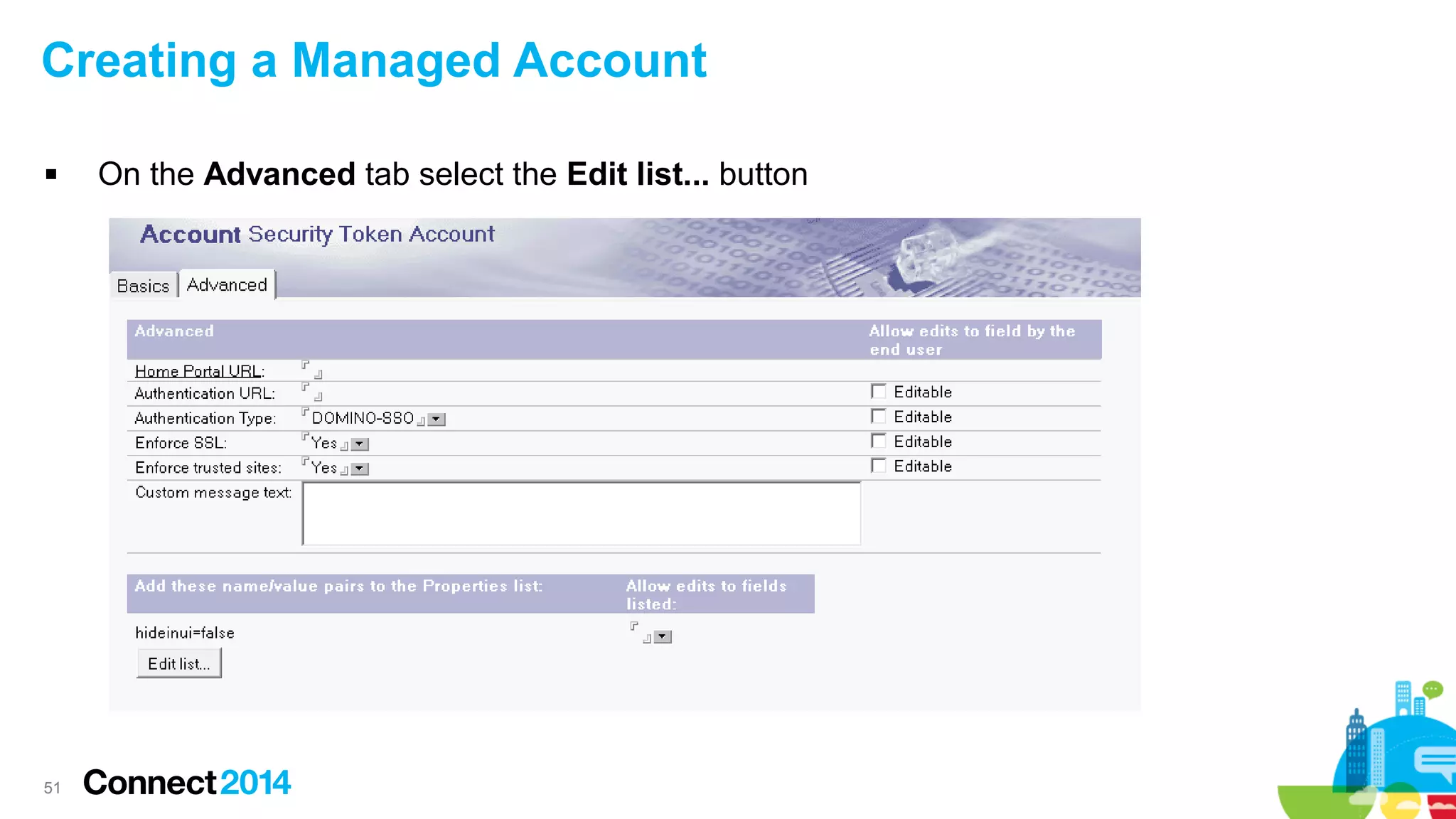

- 51. Creating a ManagedAccount 51 On the Advanced tab select the Edit list... button

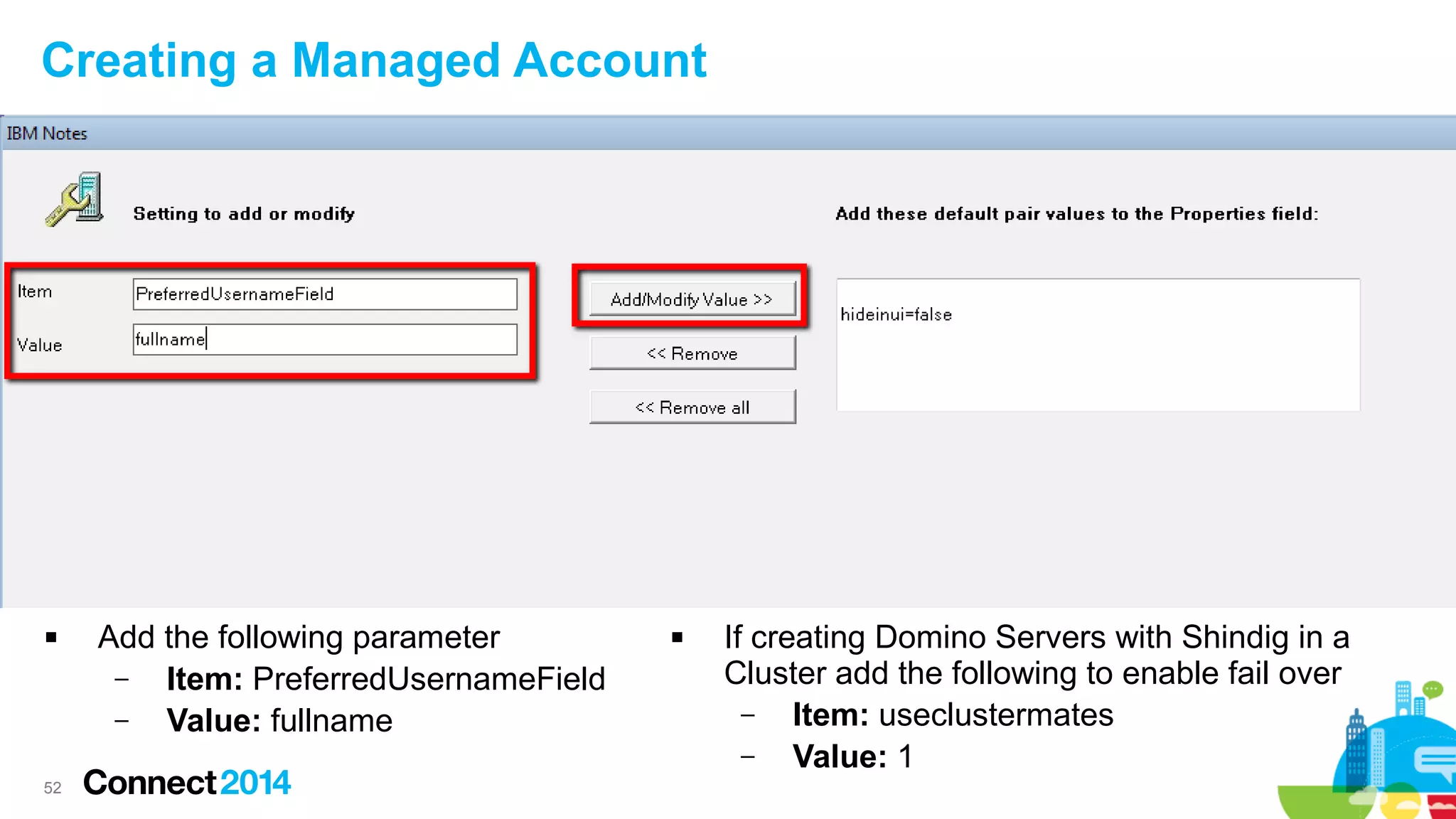

- 52. Creating a ManagedAccount 52 Add the following parameter – Item: PreferredUsernameField – Value: fullname If creating Domino Servers with Shindig in a Cluster add the following to enable fail over – Item: useclustermates – Value: 1

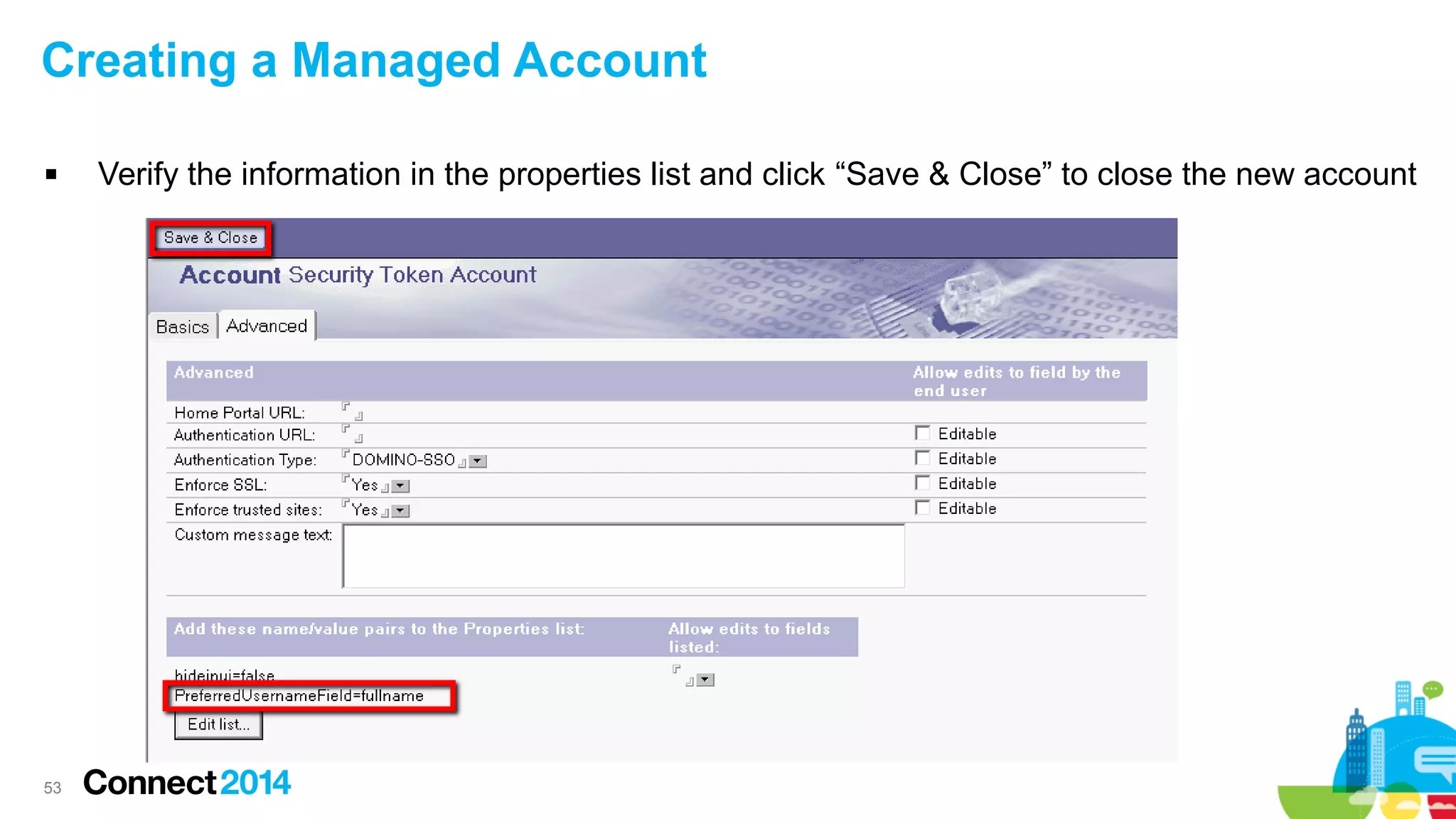

- 53. Creating a ManagedAccount 53 Verify the information in the properties list and click “Save & Close” to close the new account
- 54. Policy Settings Open themail servers Policies view – Using the Organizational policy will enable OpenSocial features for all users in the Org – – – – – – – – – – – – – 54 Explicit policies can be used to restrict the enablement of the OpenSocial features
- 55. Policy Settings The OpenSocialcomponent uses the following policy documents – Desktop settings – Security settings – Mail settings ● Required only for iNotes ● 55 Supplement existing policy or create these policy documents

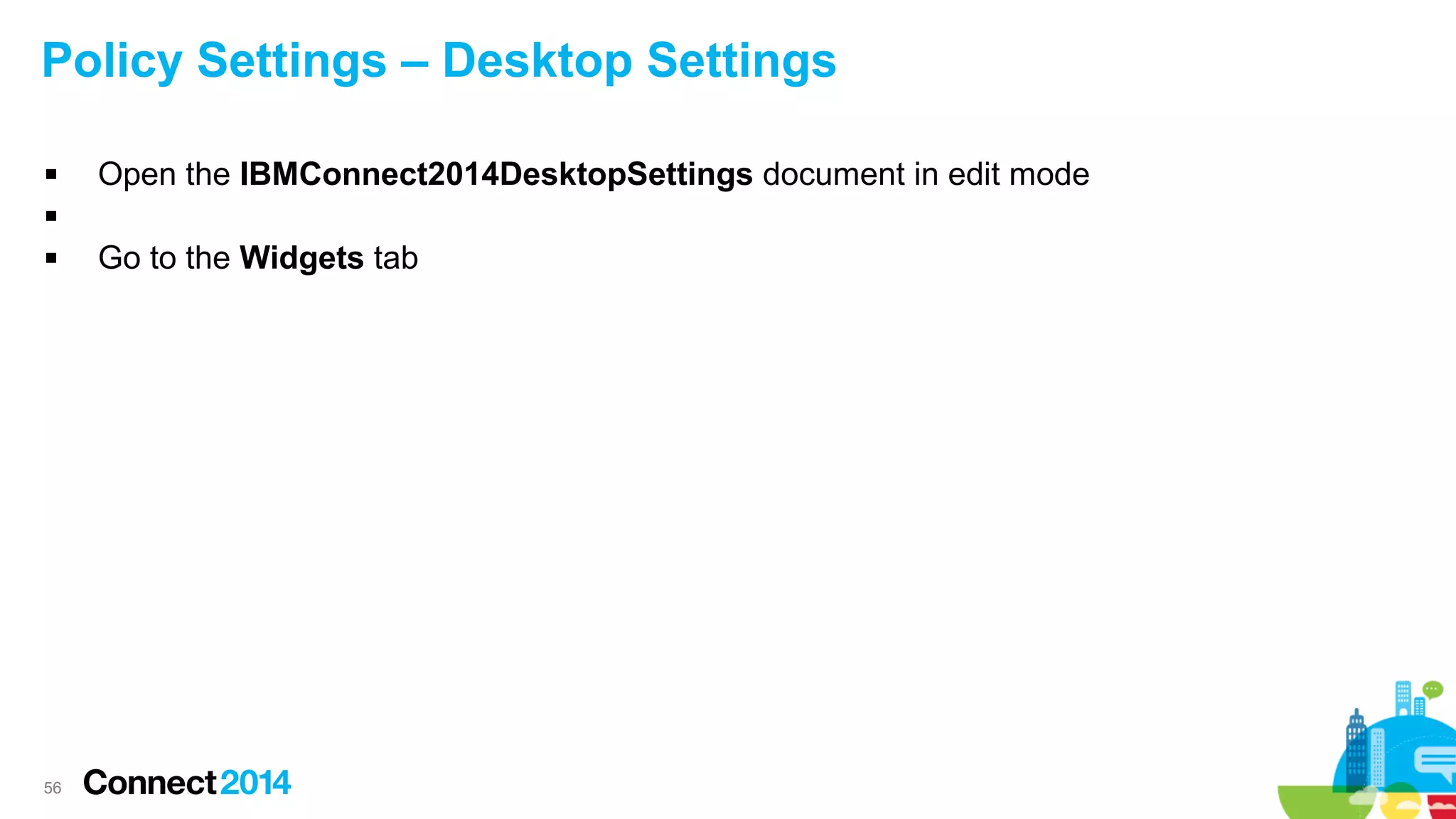

- 56. Policy Settings –Desktop Settings Open the IBMConnect2014DesktopSettings document in edit mode 56 Go to the Widgets tab

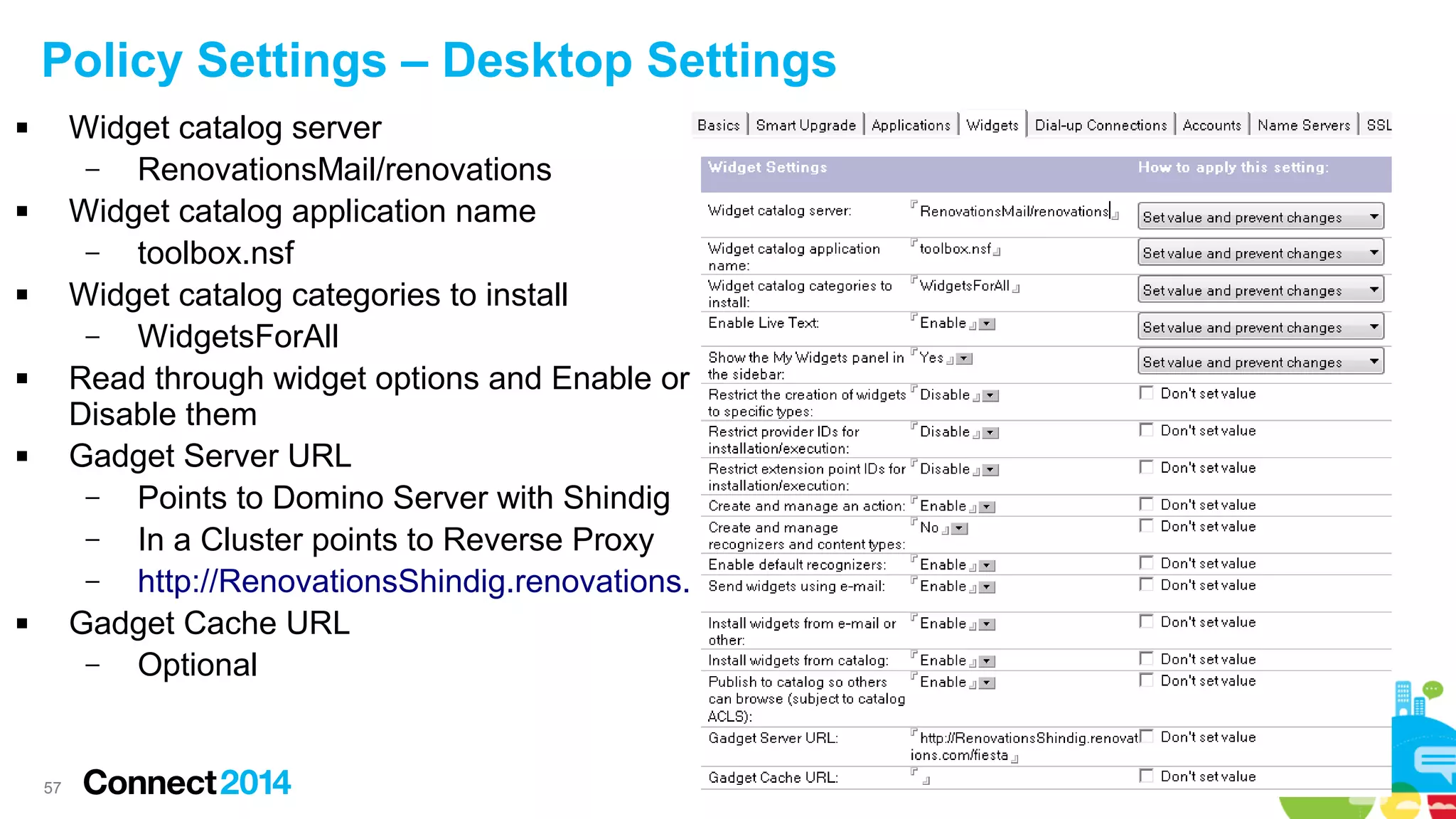

- 57. Policy Settings –Desktop Settings Widget catalog server – RenovationsMail/renovations Widget catalog application name – toolbox.nsf Widget catalog categories to install – WidgetsForAll Read through widget options and Enable or Disable them Gadget Server URL – Points to Domino Server with Shindig – In a Cluster points to Reverse Proxy – http://RenovationsShindig.renovations.com/fiesta Gadget Cache URL – Optional 57
- 58. Policy Settings –Desktop Settings Add the Managed Account – On the Accounts tab click Update Links – On the resulting dialog click Selected supported – Click OK – – 58

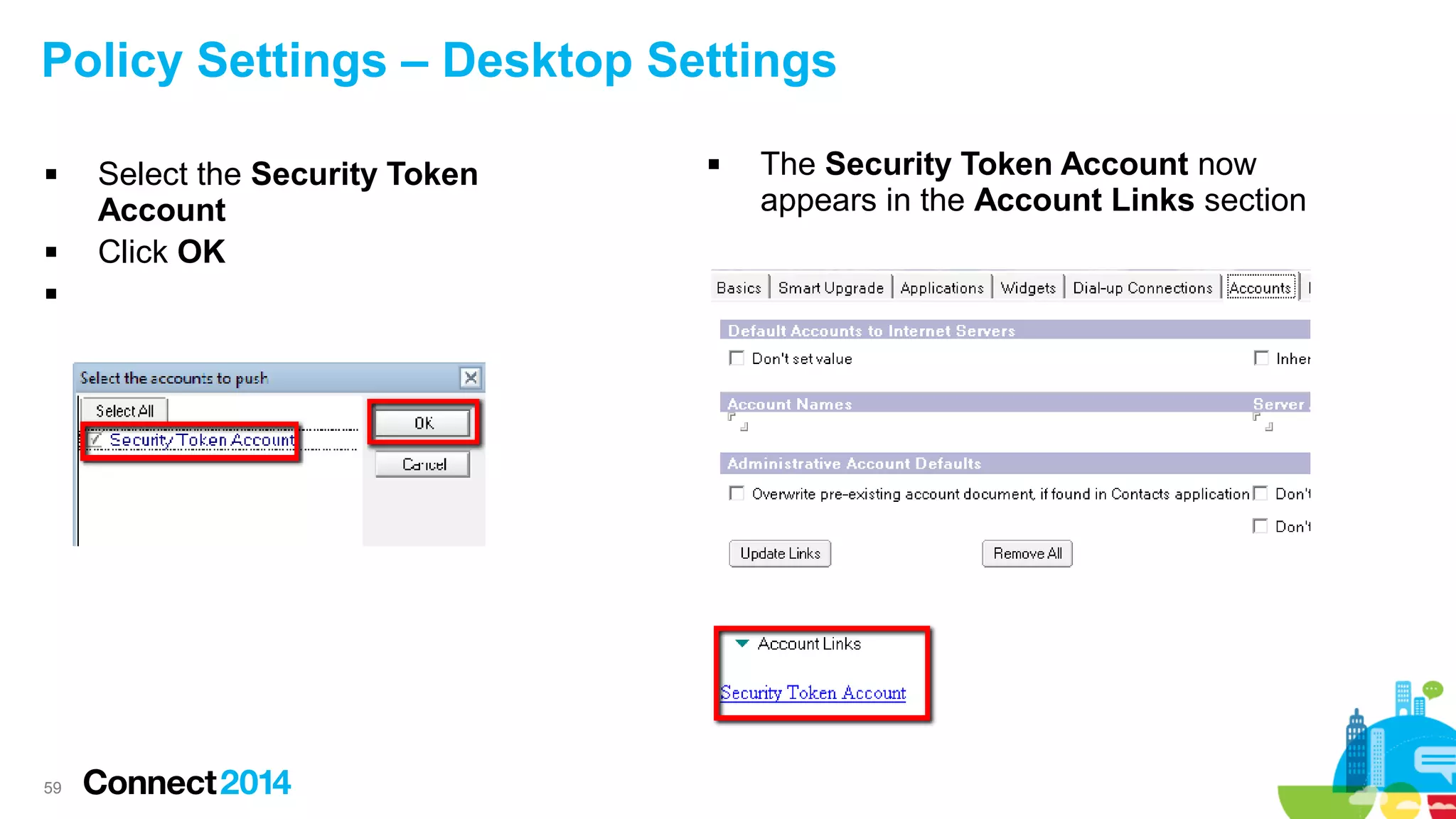

- 59. Policy Settings –Desktop Settings 59 Select the Security Token Account Click OK The Security Token Account now appears in the Account Links section
- 60. Policy Settings –Desktop Settings 60 Click “Save & Close” to save the Desktop Settings document

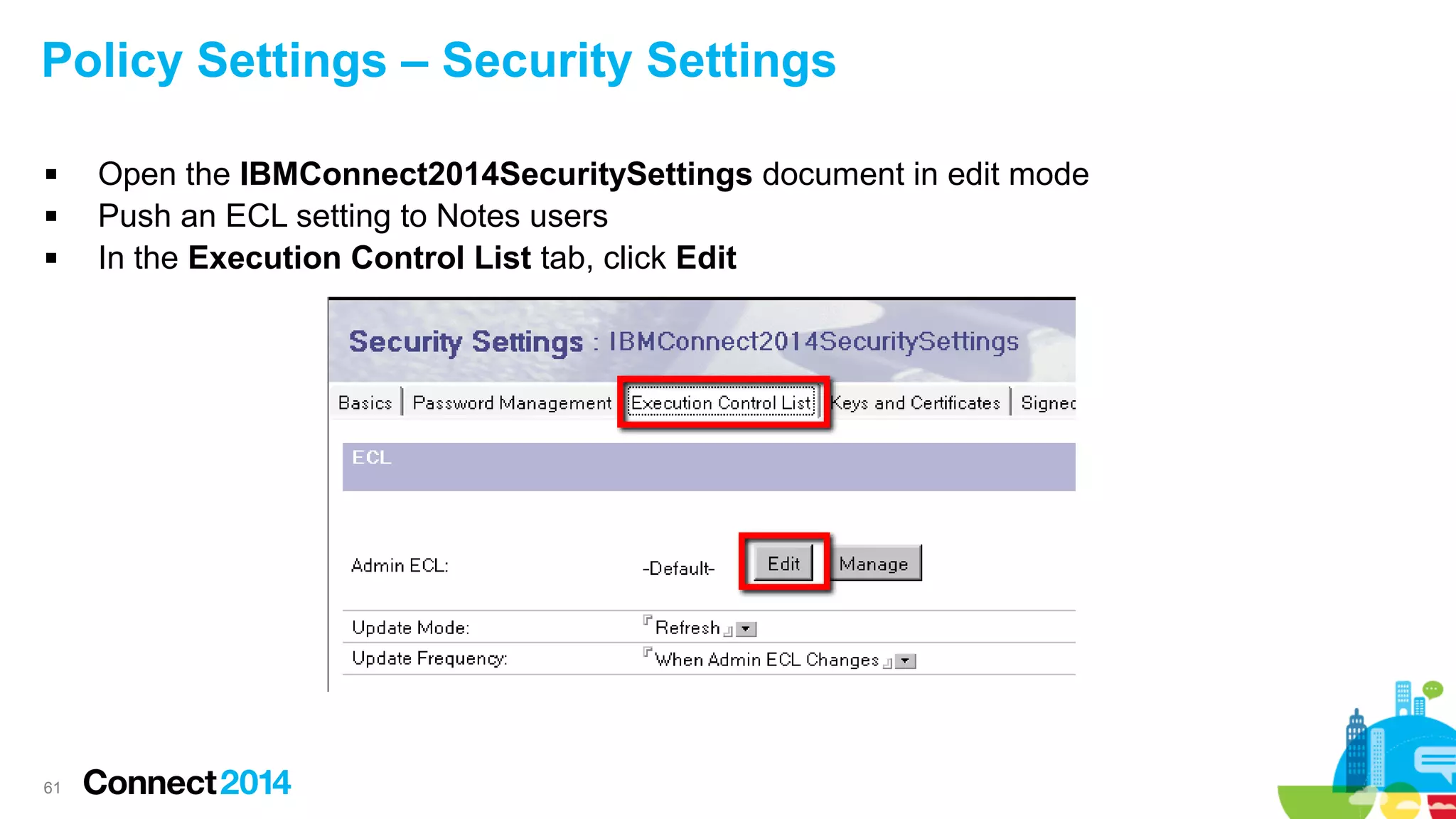

- 61. Policy Settings –Security Settings 61 Open the IBMConnect2014SecuritySettings document in edit mode Push an ECL setting to Notes users In the Execution Control List tab, click Edit
- 62. Policy Settings –Security Settings 62 In the resulting dialog, click Add...
- 63. Policy Settings –Security Settings Add “Admin” to the ECL and check the “Ability to configure Widget capabilities” checkbox – 63 Click OK

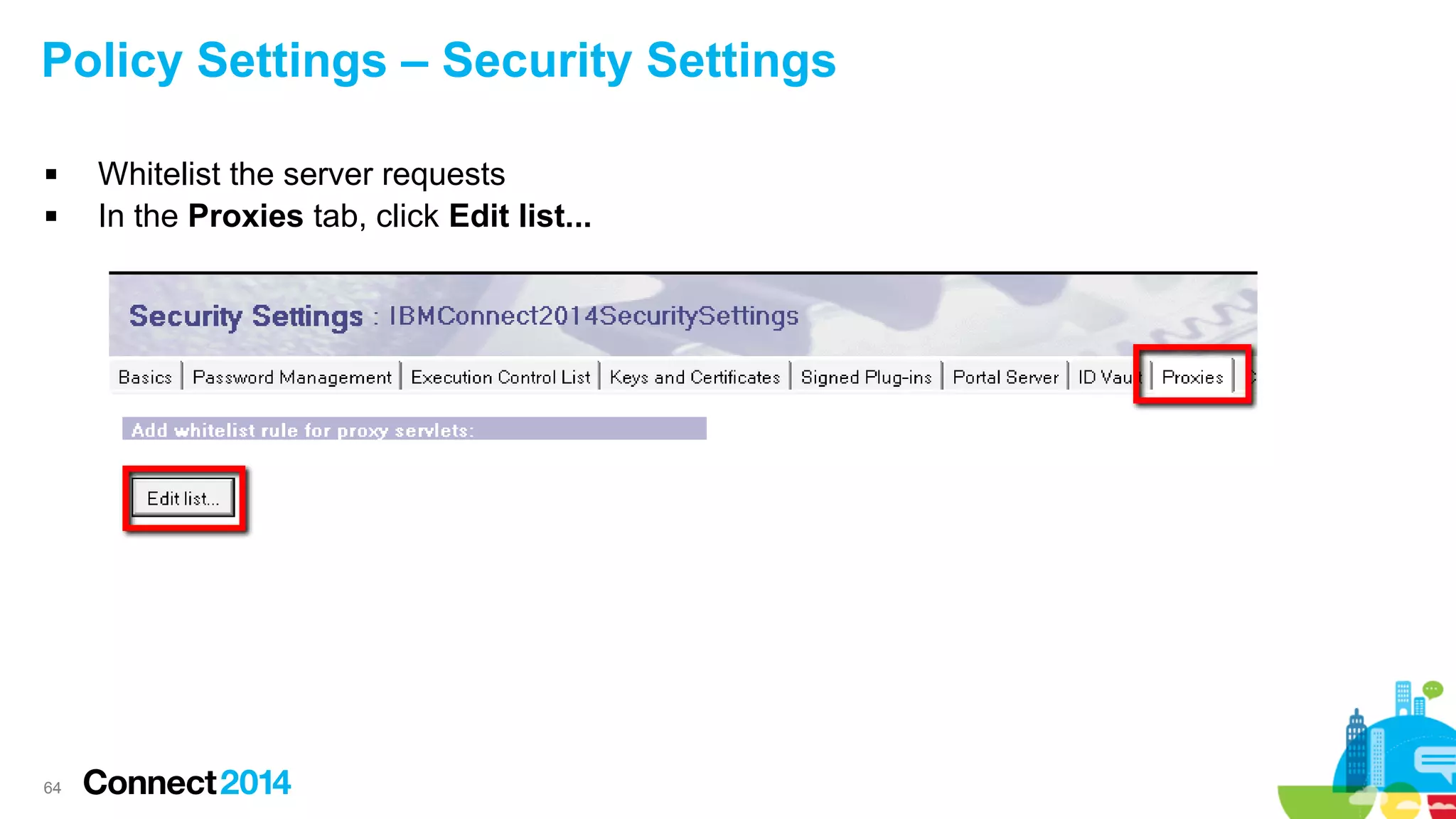

- 64. Policy Settings –Security Settings 64 Whitelist the server requests In the Proxies tab, click Edit list...

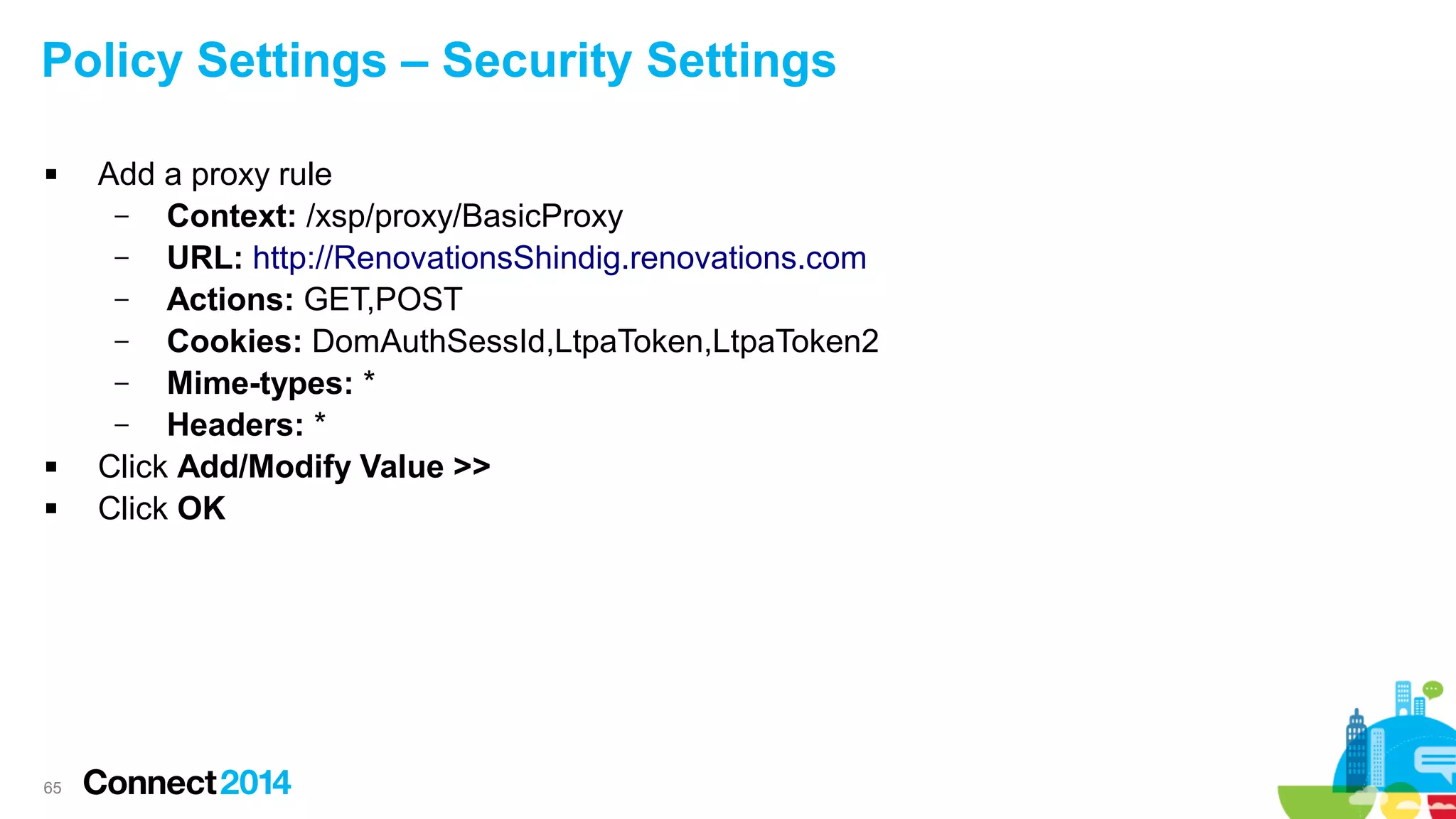

- 65. Policy Settings –Security Settings 65 Add a proxy rule – Context: /xsp/proxy/BasicProxy – URL: http://RenovationsShindig.renovations.com – Actions: GET,POST – Cookies: DomAuthSessId,LtpaToken,LtpaToken2 – Mime-types: * – Headers: * Click Add/Modify Value >> Click OK

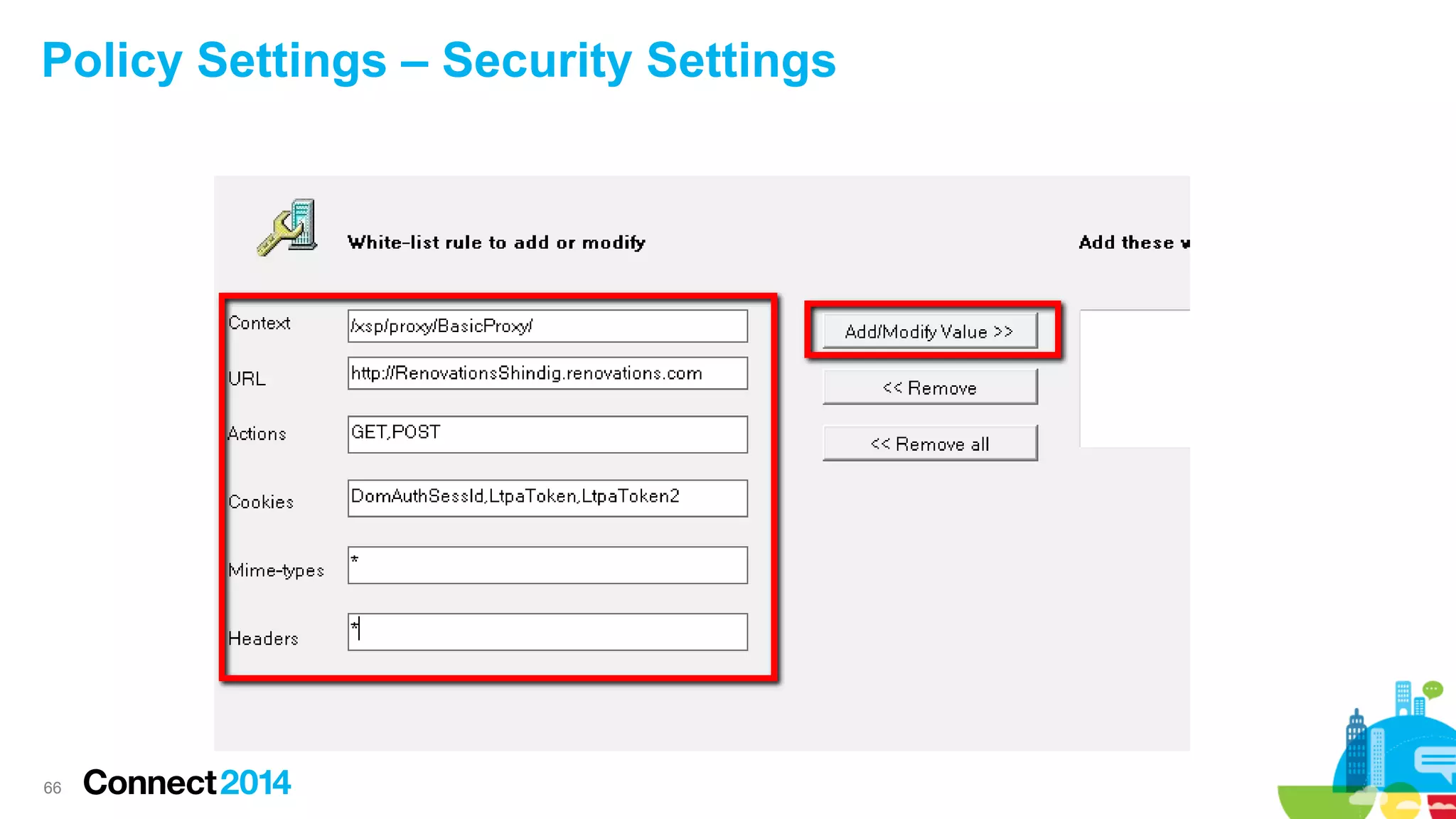

- 66. Policy Settings –Security Settings 66
- 67. Policy Settings –Security Settings Verify the proxy rule 67 Click “Save & Close” to save the Security Settings document

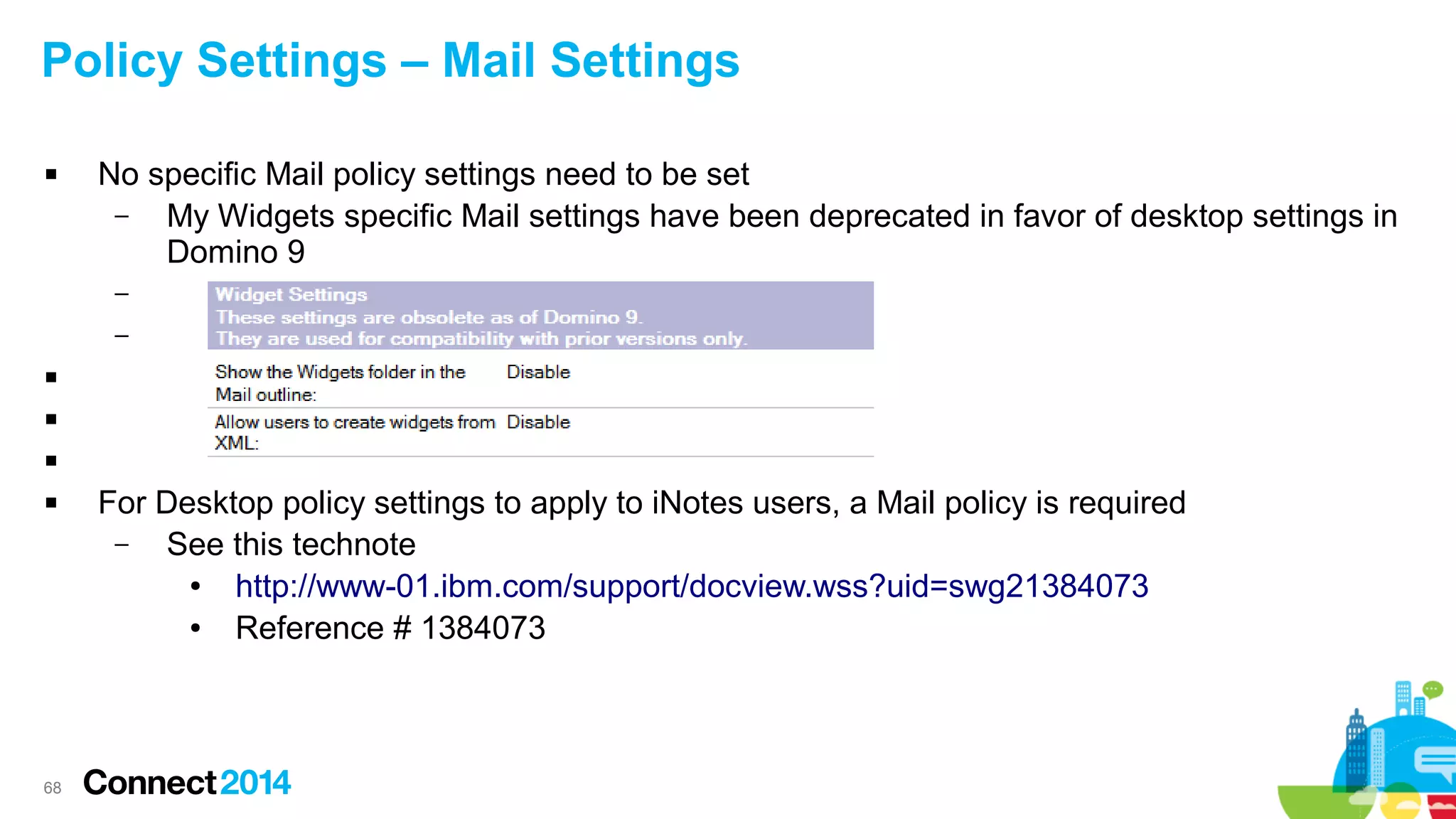

- 68. Policy Settings –Mail Settings No specific Mail policy settings need to be set – My Widgets specific Mail settings have been deprecated in favor of desktop settings in Domino 9 – – 68 For Desktop policy settings to apply to iNotes users, a Mail policy is required – See this technote ● http://www-01.ibm.com/support/docview.wss?uid=swg21384073 ● Reference # 1384073

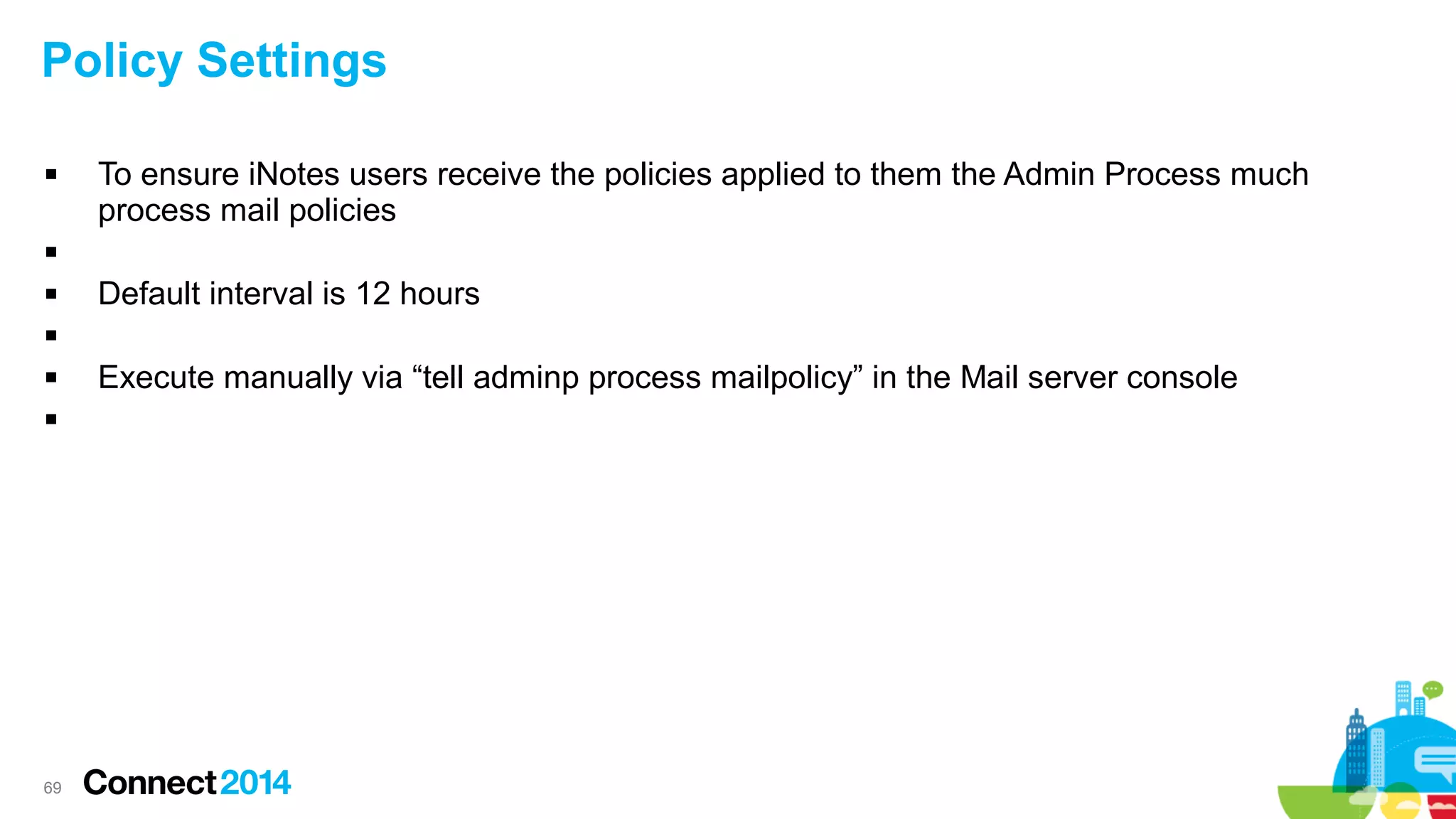

- 69. Policy Settings To ensureiNotes users receive the policies applied to them the Admin Process much process mail policies Default interval is 12 hours 69 Execute manually via “tell adminp process mailpolicy” in the Mail server console

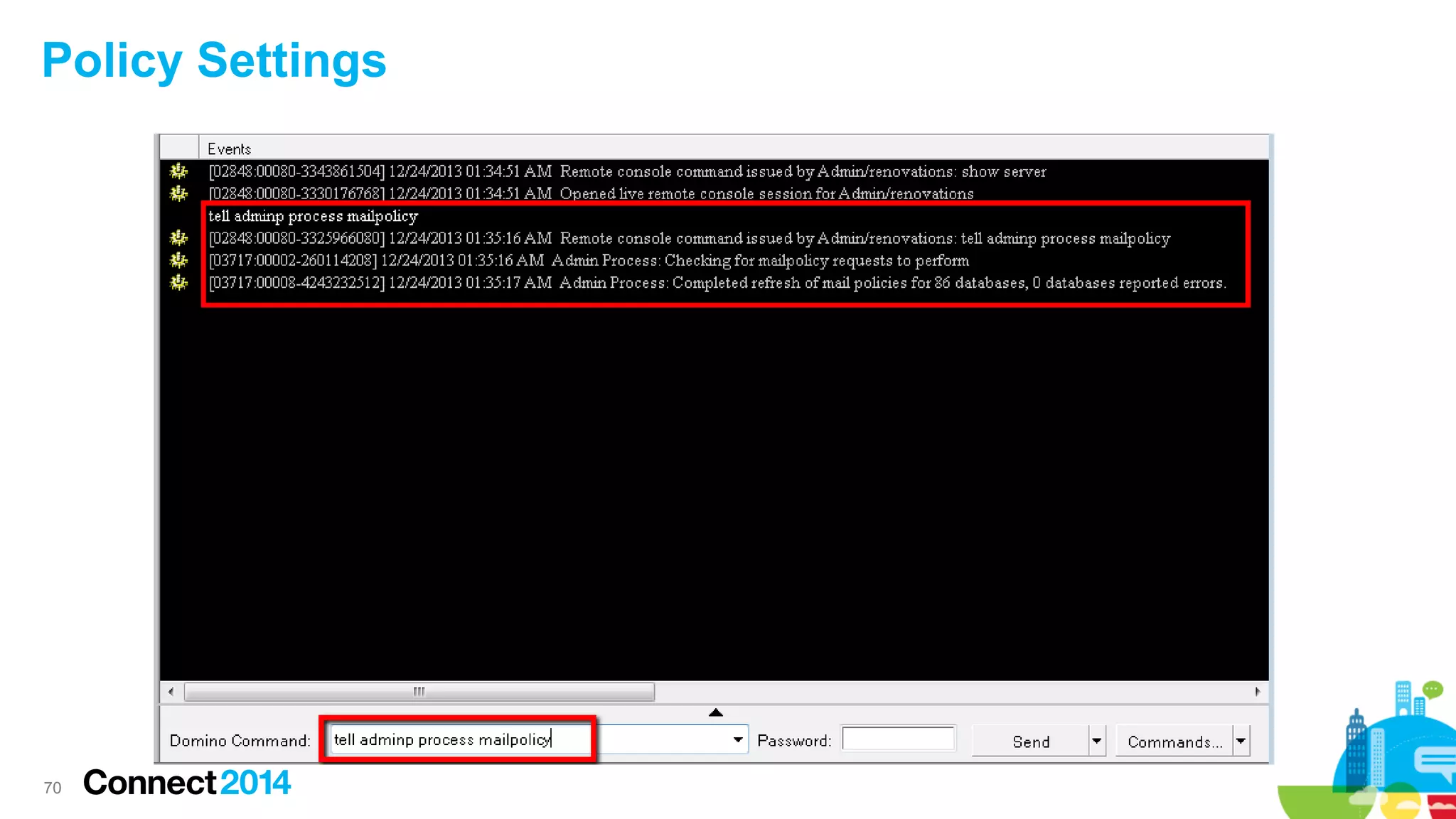

- 70.
- 71.
- 72. Agenda 72 Terminology Deployment Overview – High-Level DeploymentView – Detailed Deployment View Setup and Configuration – Pre-requisites – Detailed Steps ● Database creation and configuration ● User-centric settings ● Server centric settings ● Verification Troubleshooting IBM Connections 4.x Integration Summary

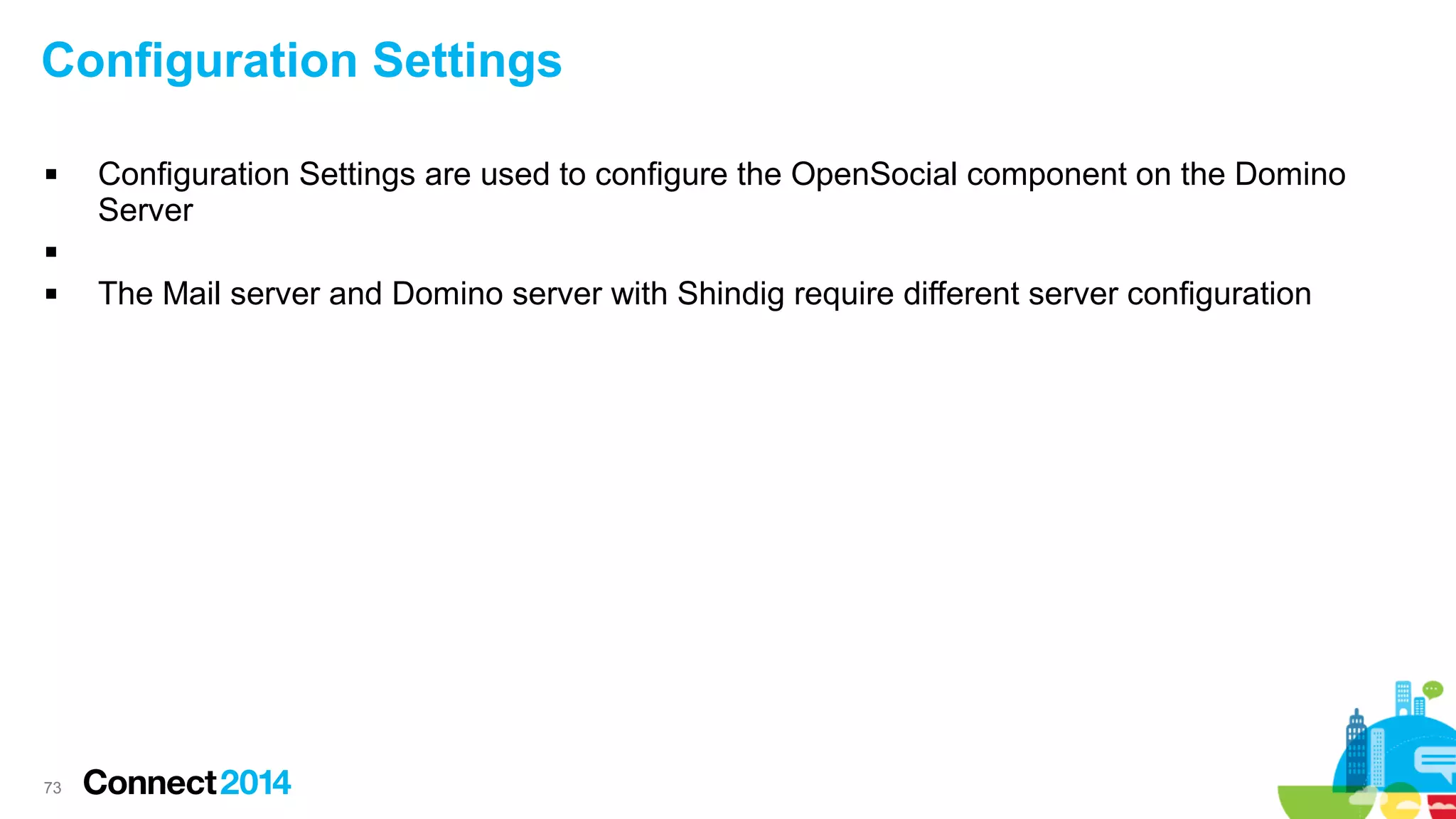

- 73. Configuration Settings Configuration Settingsare used to configure the OpenSocial component on the Domino Server 73 The Mail server and Domino server with Shindig require different server configuration

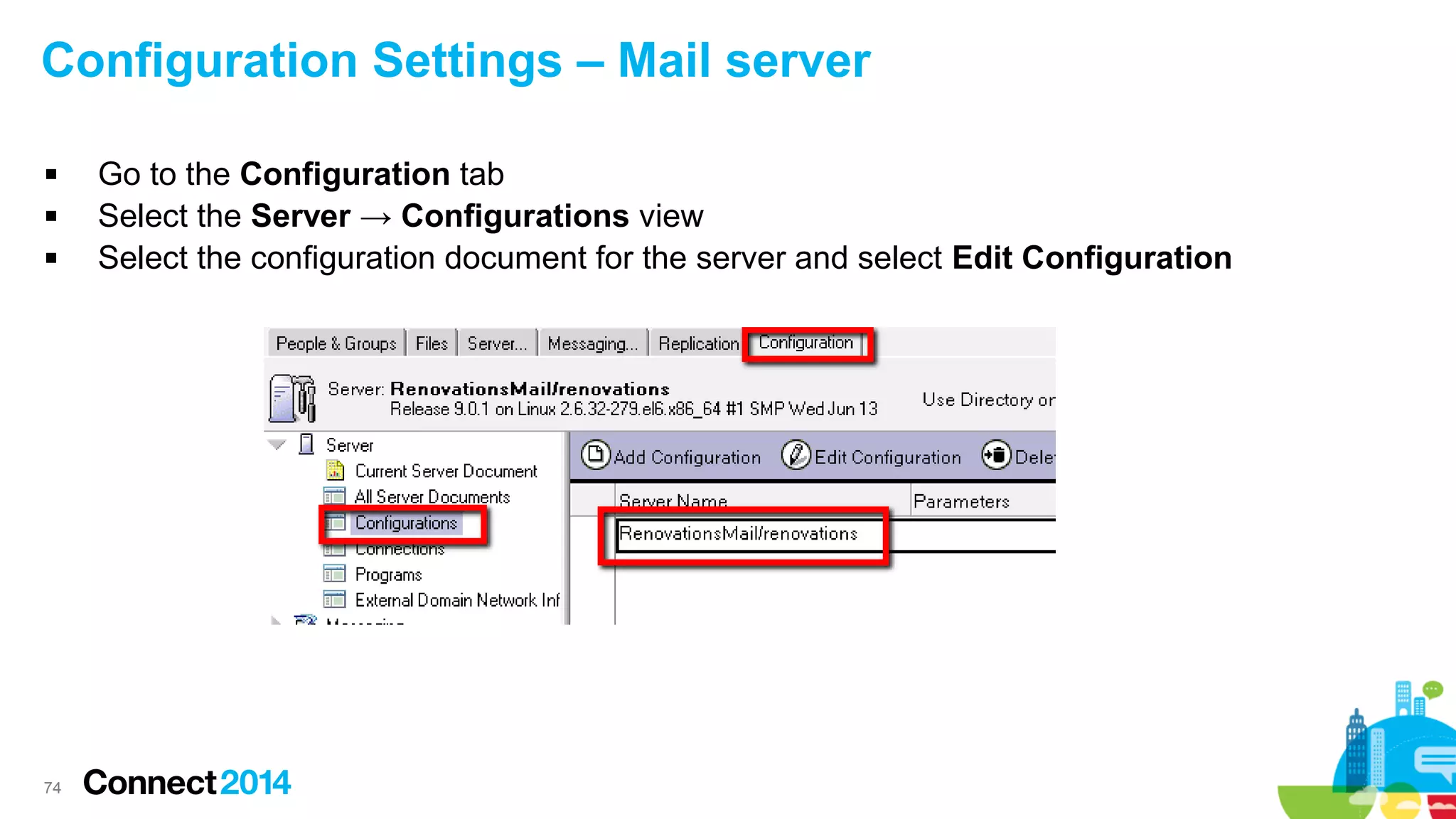

- 74. Configuration Settings –Mail server 74 Go to the Configuration tab Select the Server → Configurations view Select the configuration document for the server and select Edit Configuration
- 75. Configuration Settings –Mail server 75 Go to the NOTES.INI Settings tab Click Set/Modify Parameters

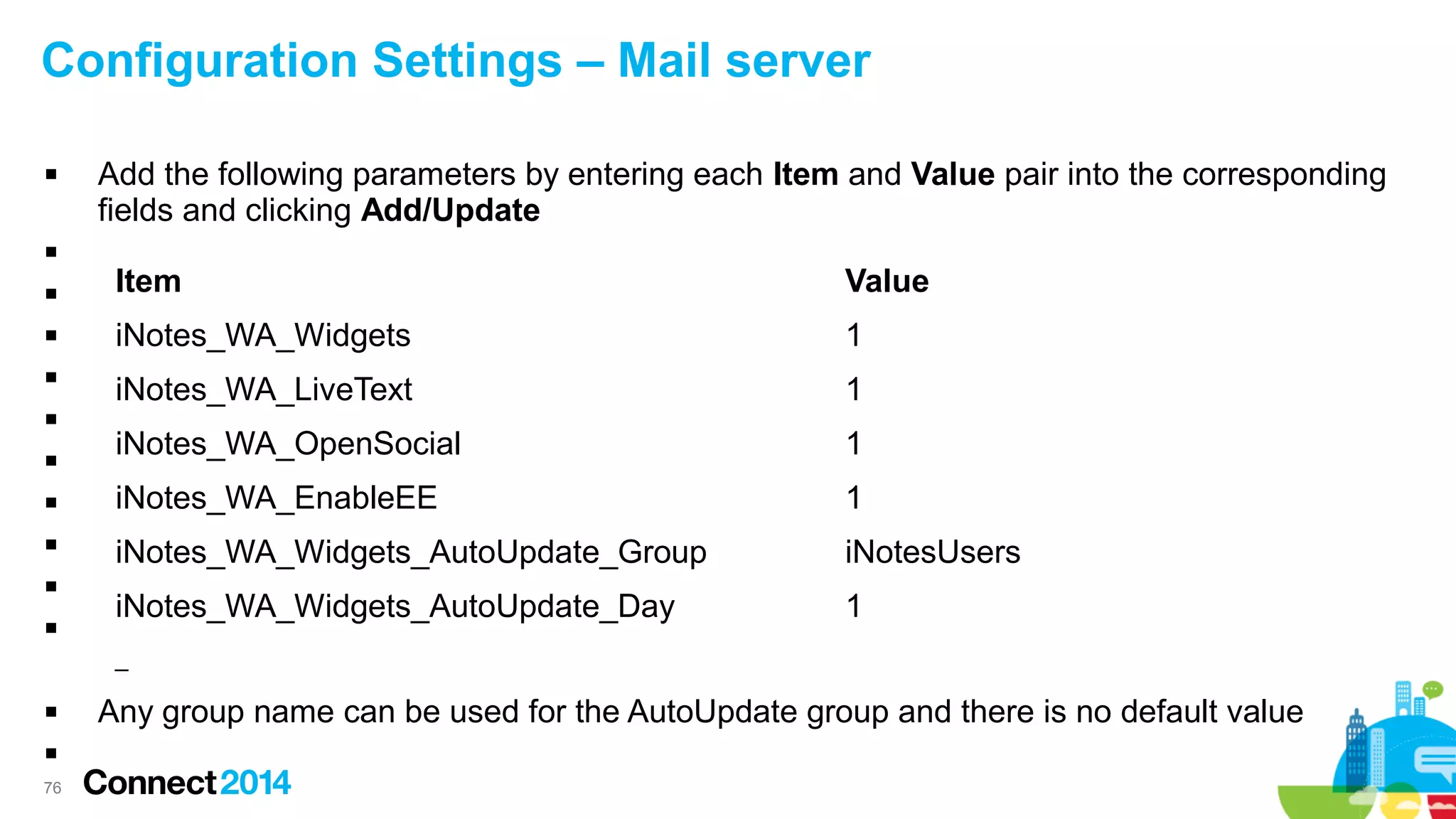

- 76. Configuration Settings –Mail server Add the following parameters by entering each Item and Value pair into the corresponding fields and clicking Add/Update Item Value iNotes_WA_Widgets 1 iNotes_WA_LiveText 1 iNotes_WA_OpenSocial 1 iNotes_WA_EnableEE 1 iNotes_WA_Widgets_AutoUpdate_Group iNotesUsers iNotes_WA_Widgets_AutoUpdate_Day 1 – 76 Any group name can be used for the AutoUpdate group and there is no default value

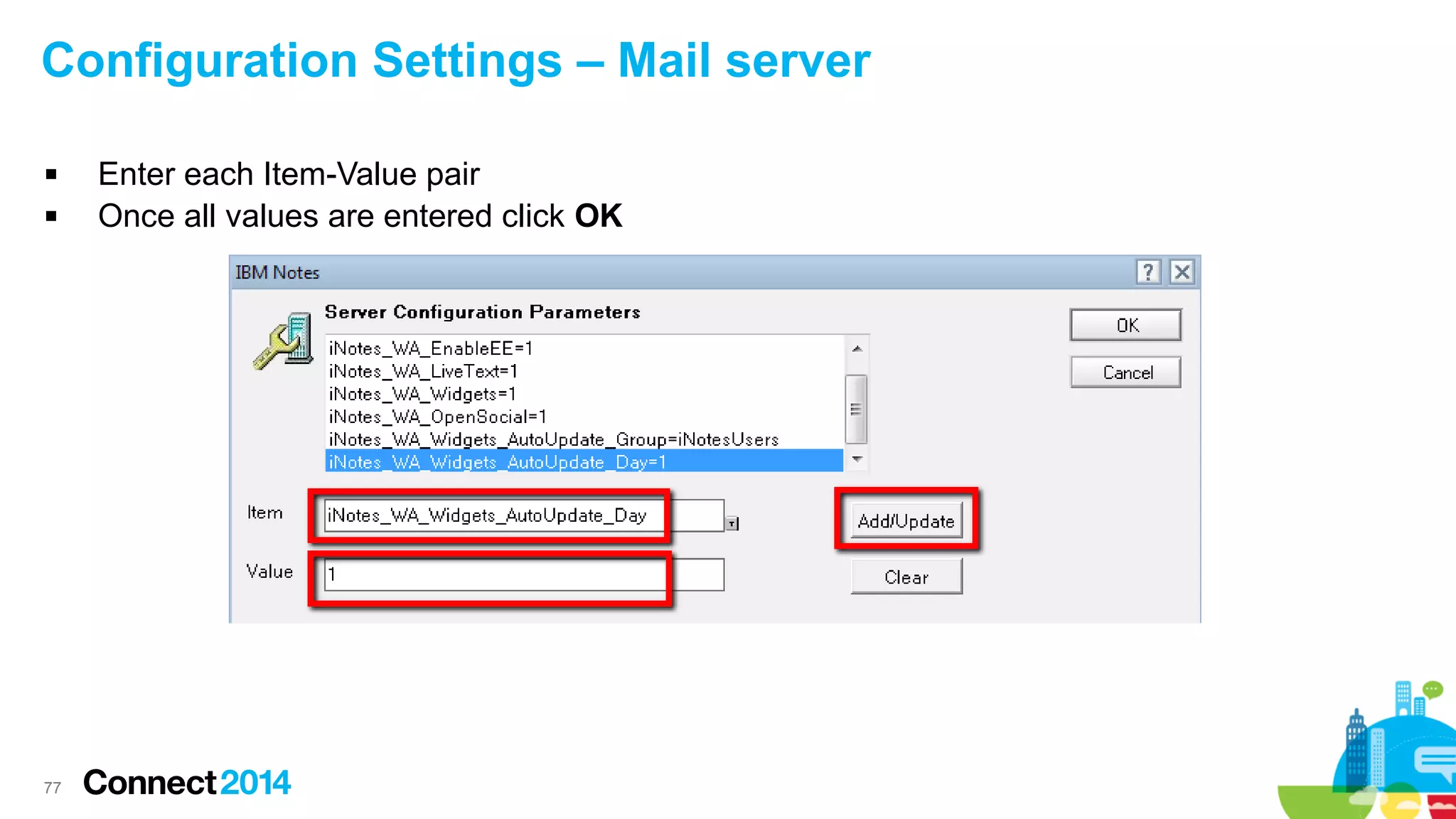

- 77. Configuration Settings –Mail server 77 Enter each Item-Value pair Once all values are entered click OK

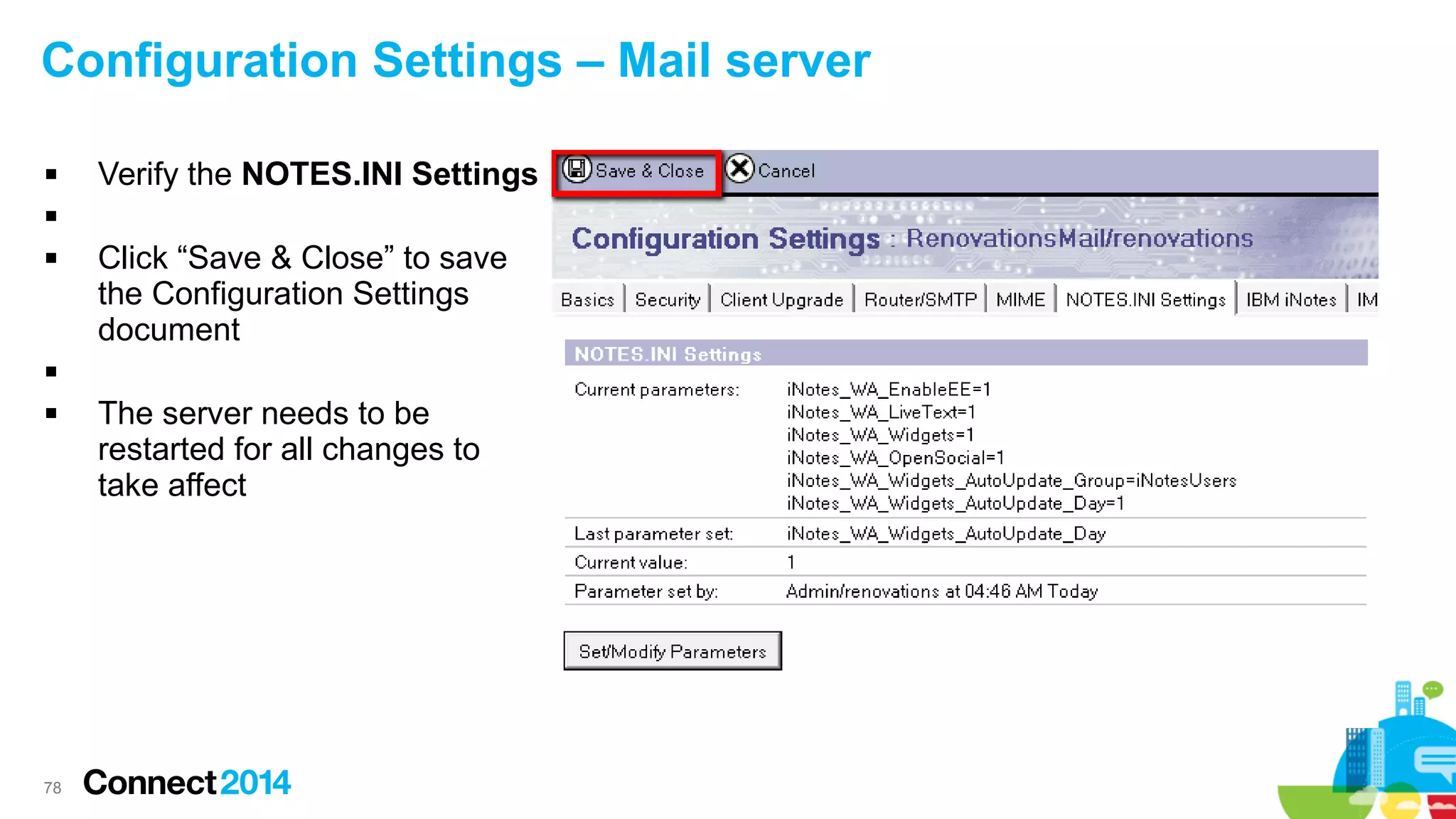

- 78. Configuration Settings –Mail server Verify the NOTES.INI Settings Click “Save & Close” to save the Configuration Settings document 78 The server needs to be restarted for all changes to take affect

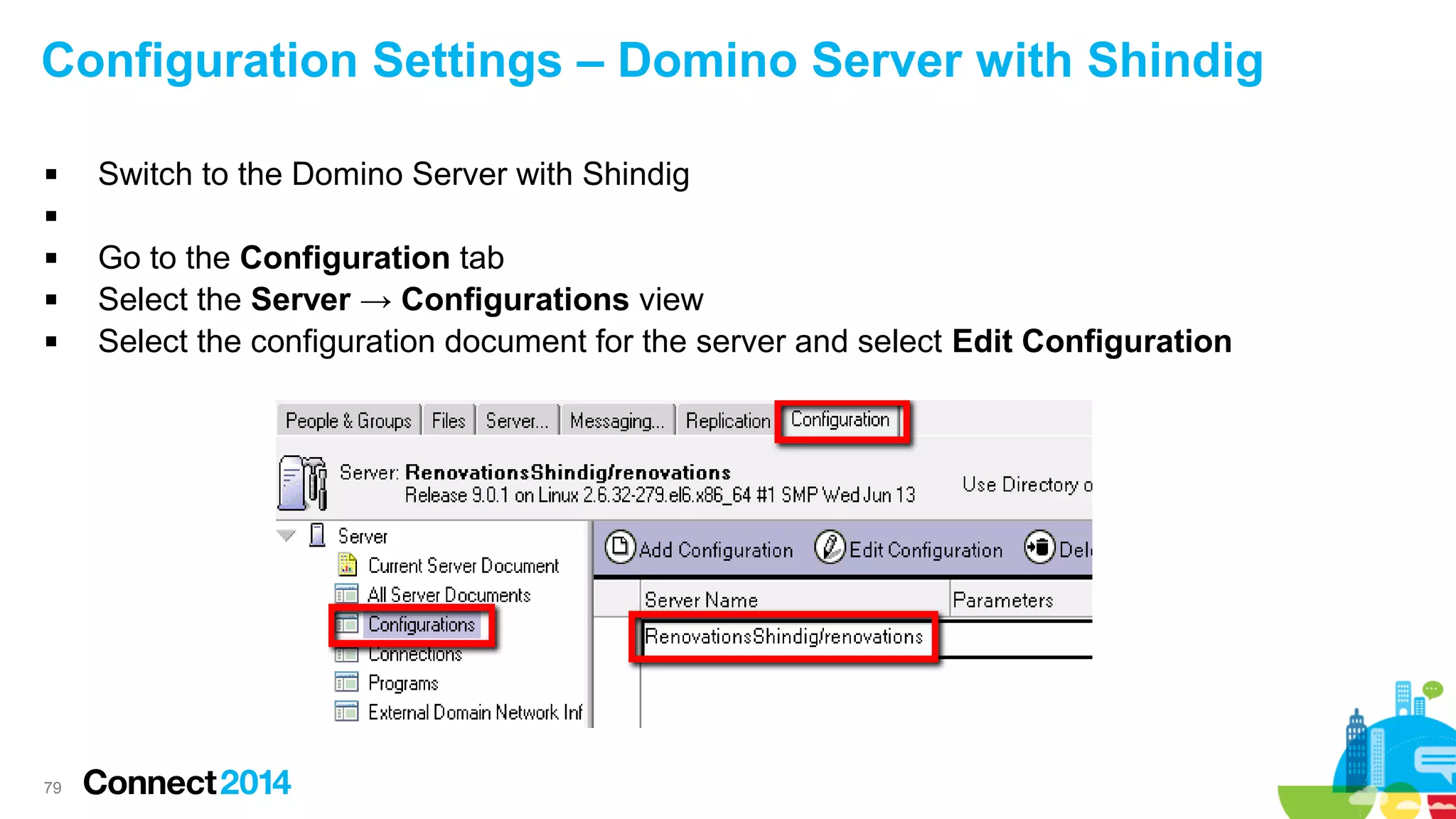

- 79. Configuration Settings –Domino Server with Shindig Switch to the Domino Server with Shindig 79 Go to the Configuration tab Select the Server → Configurations view Select the configuration document for the server and select Edit Configuration

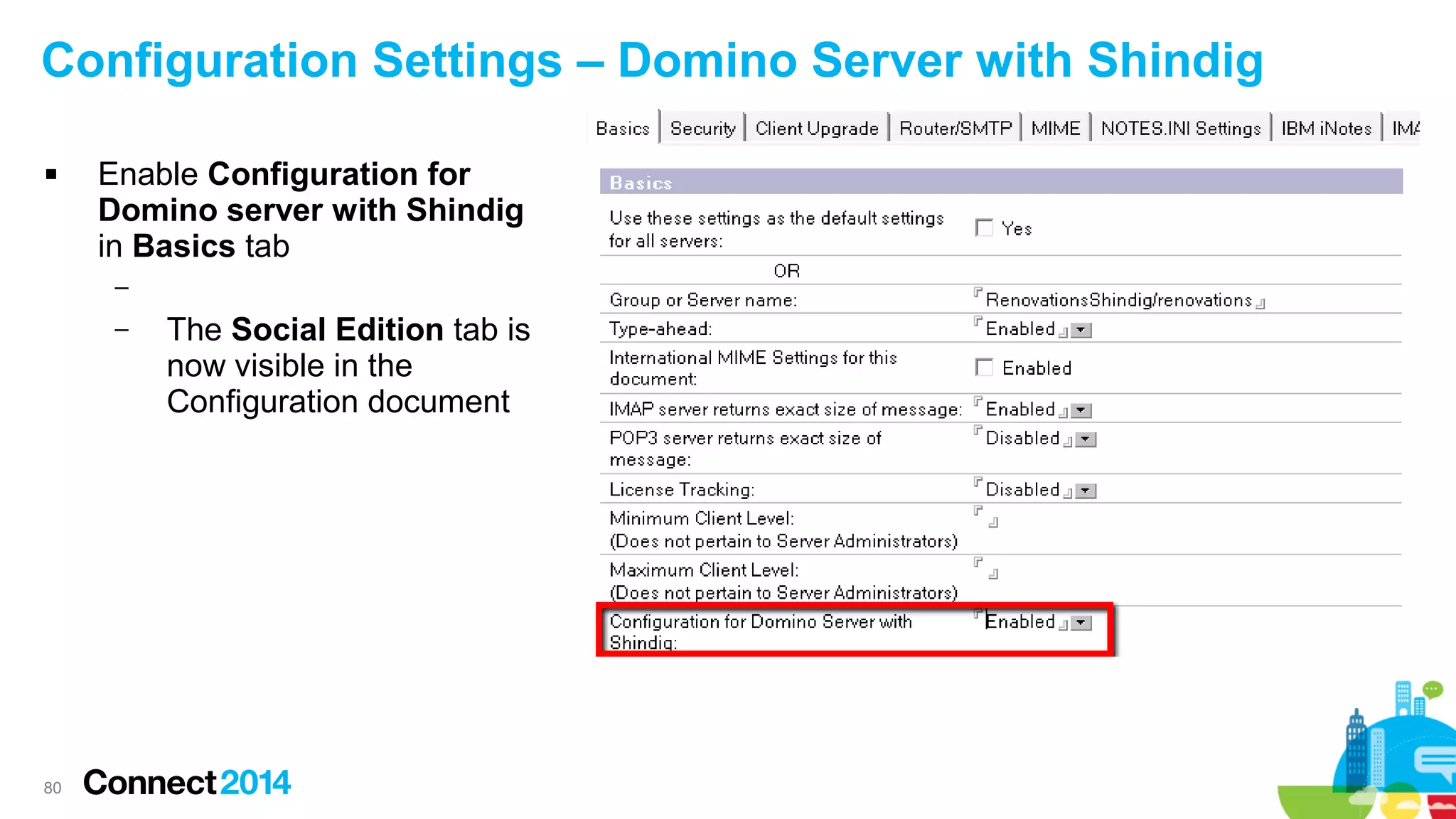

- 80. Configuration Settings –Domino Server with Shindig Enable Configuration for Domino server with Shindig in Basics tab – – 80 The Social Edition tab is now visible in the Configuration document

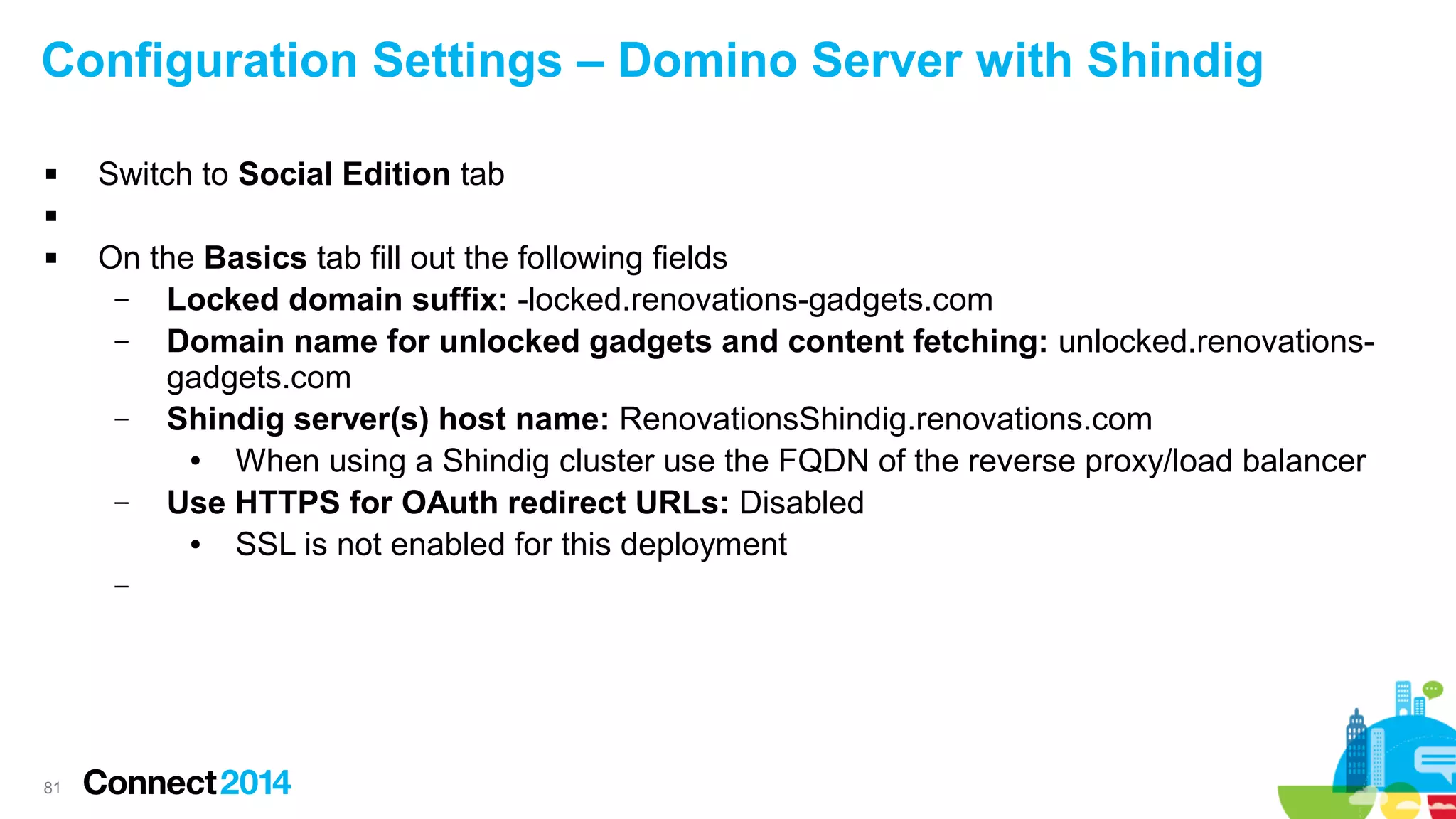

- 81. Configuration Settings –Domino Server with Shindig Switch to Social Edition tab On the Basics tab fill out the following fields – Locked domain suffix: -locked.renovations-gadgets.com – Domain name for unlocked gadgets and content fetching: unlocked.renovationsgadgets.com – Shindig server(s) host name: RenovationsShindig.renovations.com ● When using a Shindig cluster use the FQDN of the reverse proxy/load balancer – Use HTTPS for OAuth redirect URLs: Disabled ● SSL is not enabled for this deployment – 81

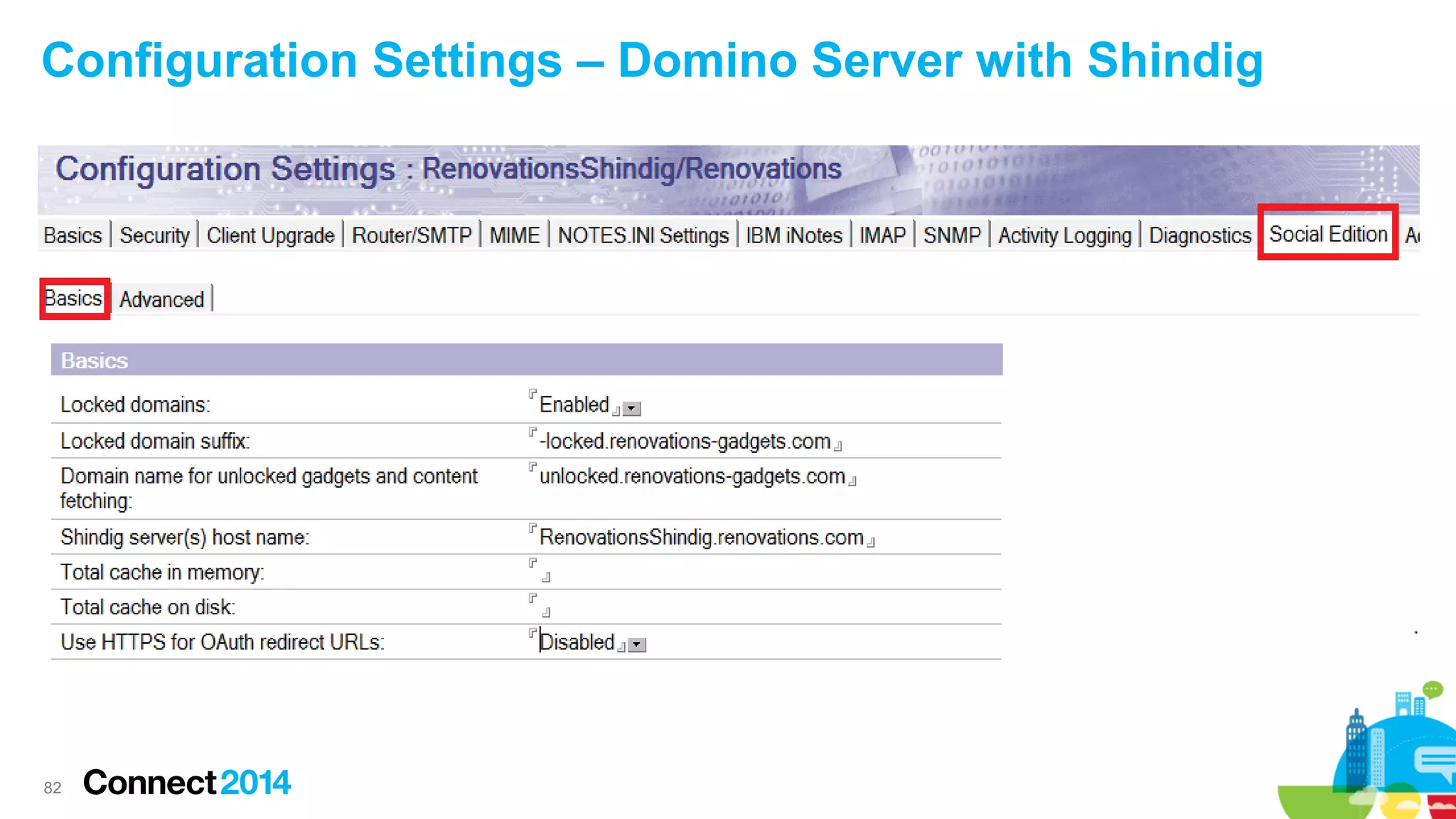

- 82. Configuration Settings –Domino Server with Shindig 82

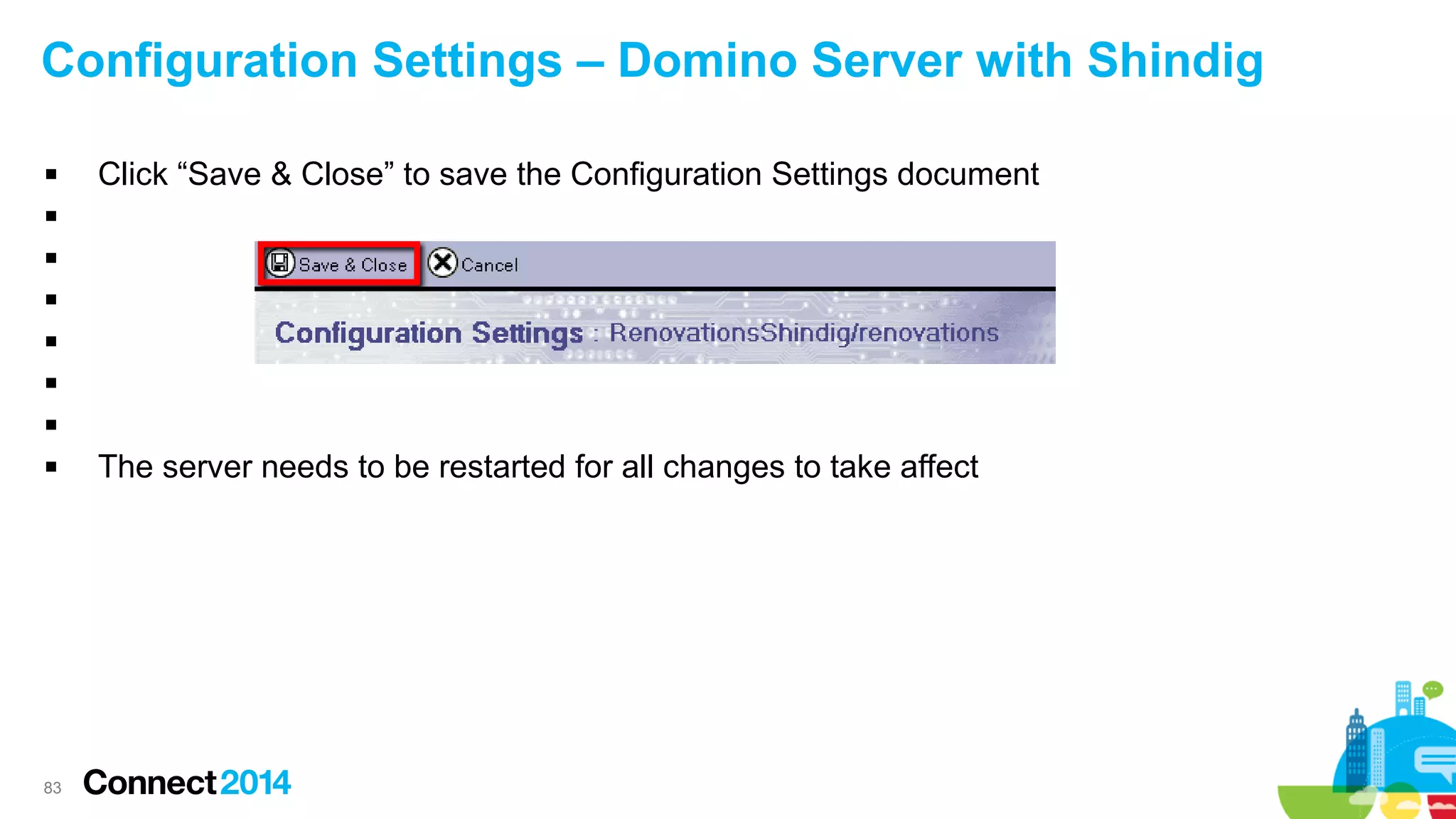

- 83. Configuration Settings –Domino Server with Shindig Click “Save & Close” to save the Configuration Settings document 83 The server needs to be restarted for all changes to take affect
- 84.

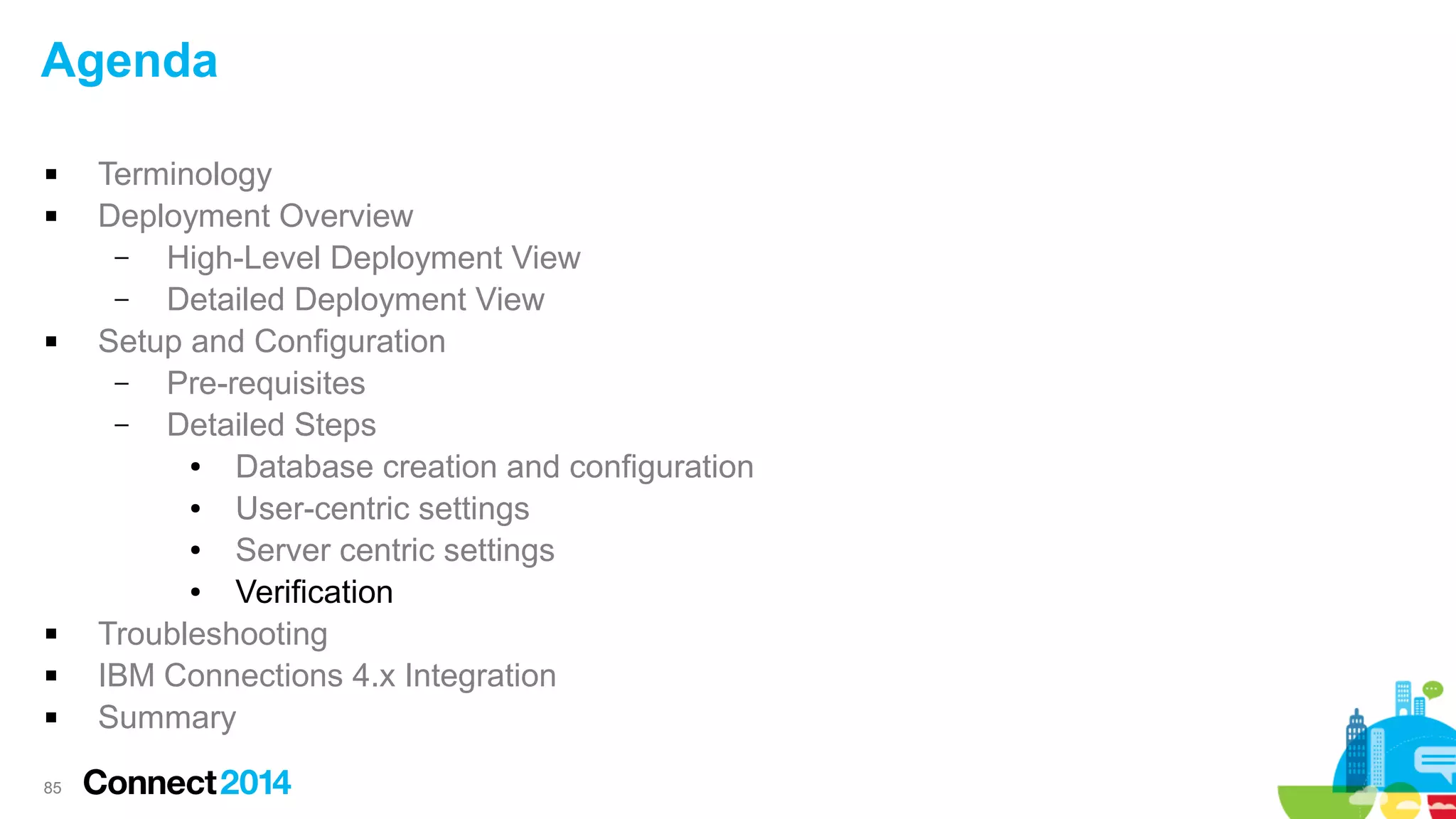

- 85. Agenda 85 Terminology Deployment Overview – High-Level DeploymentView – Detailed Deployment View Setup and Configuration – Pre-requisites – Detailed Steps ● Database creation and configuration ● User-centric settings ● Server centric settings ● Verification Troubleshooting IBM Connections 4.x Integration Summary
- 86. Verify Policy inNotes 86 In Notes, go to File → Preferences In the Accounts section, verify the “Security Token Account” configured earlier is listed
- 87. Verify Policy inNotes In the Widgets section, verify the “Catalog server” and “Catalog name” fields are populated 87 Note: The “Categories to install” field will be populated once some Widgets are added to the catalog

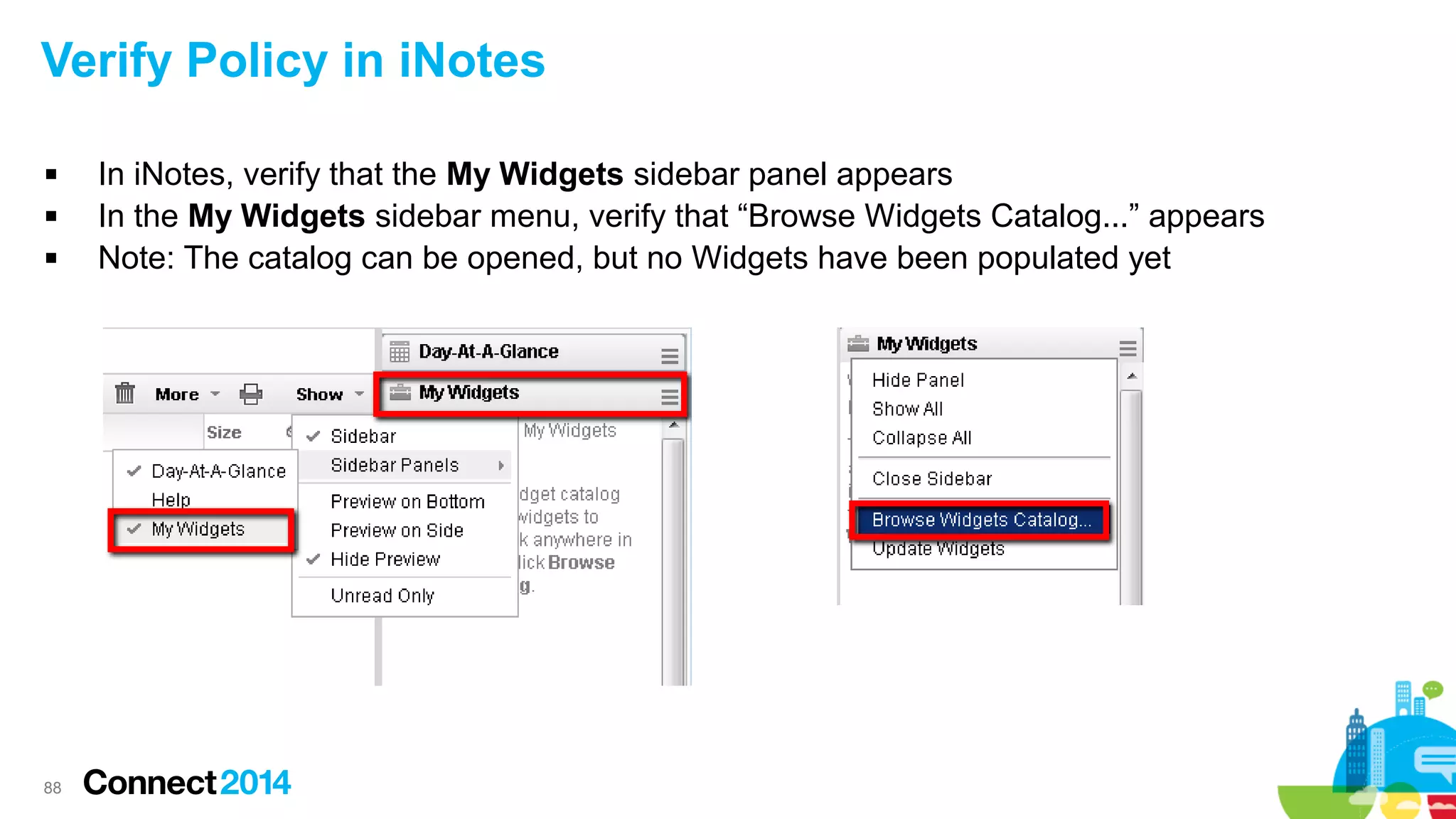

- 88. Verify Policy iniNotes 88 In iNotes, verify that the My Widgets sidebar panel appears In the My Widgets sidebar menu, verify that “Browse Widgets Catalog...” appears Note: The catalog can be opened, but no Widgets have been populated yet

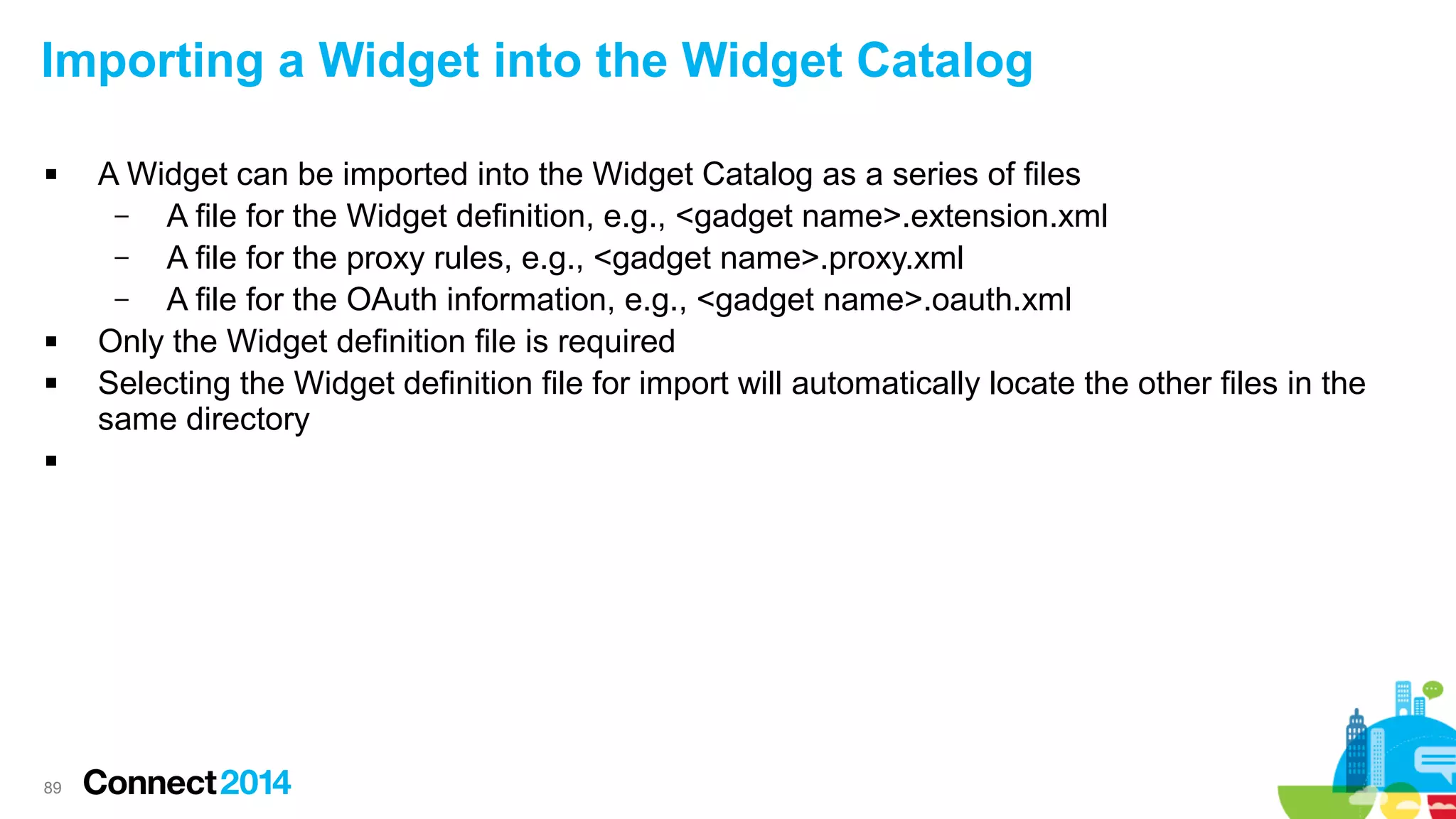

- 89. Importing a Widgetinto the Widget Catalog 89 A Widget can be imported into the Widget Catalog as a series of files – A file for the Widget definition, e.g., <gadget name>.extension.xml – A file for the proxy rules, e.g., <gadget name>.proxy.xml – A file for the OAuth information, e.g., <gadget name>.oauth.xml Only the Widget definition file is required Selecting the Widget definition file for import will automatically locate the other files in the same directory
- 90. Importing a Widgetinto the Widget Catalog 90 Open the Widget Catalog in Domino Administrator Click Import

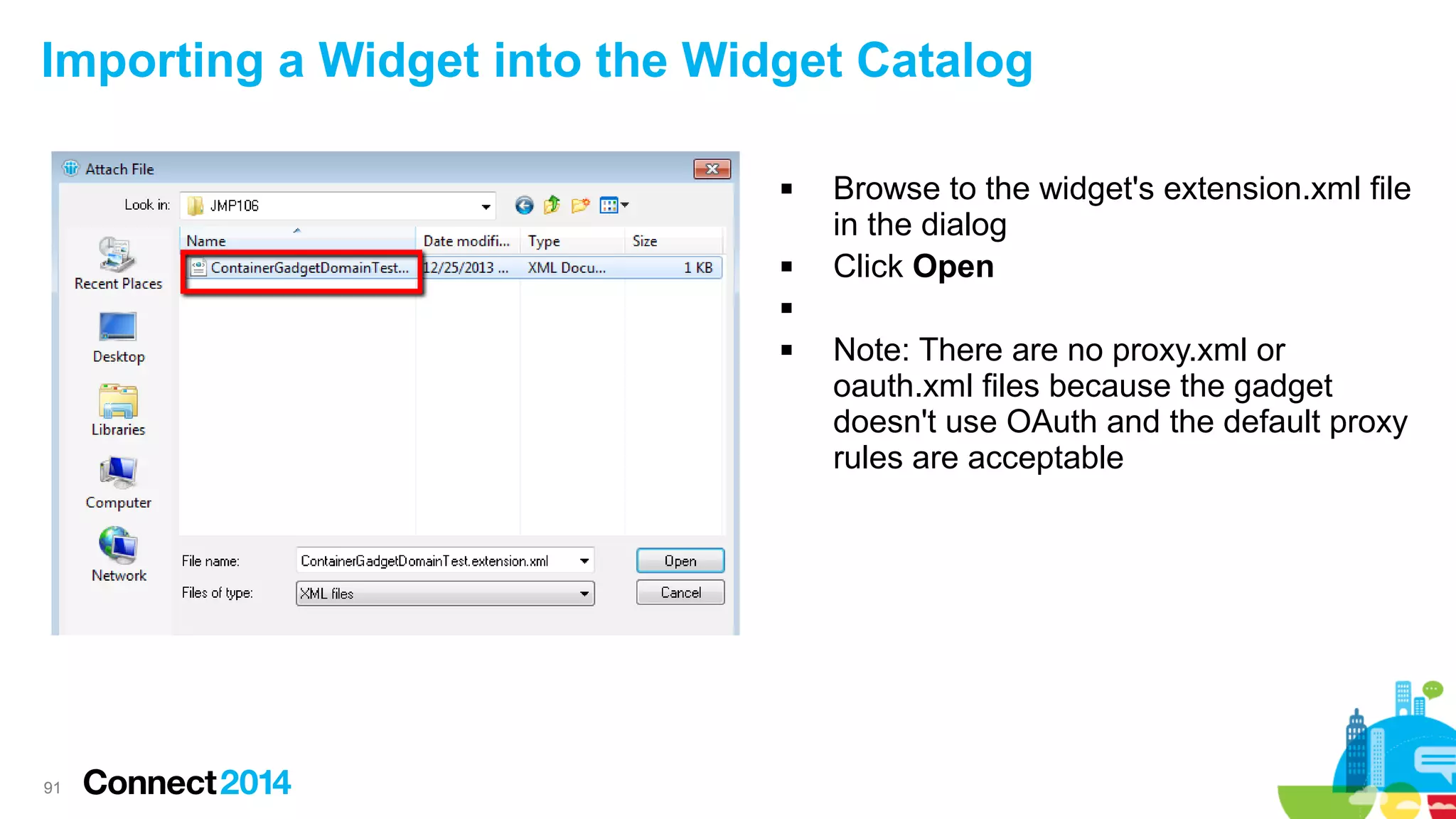

- 91. Importing a Widgetinto the Widget Catalog Browse to the widget's extension.xml file in the dialog Click Open 91 Note: There are no proxy.xml or oauth.xml files because the gadget doesn't use OAuth and the default proxy rules are acceptable

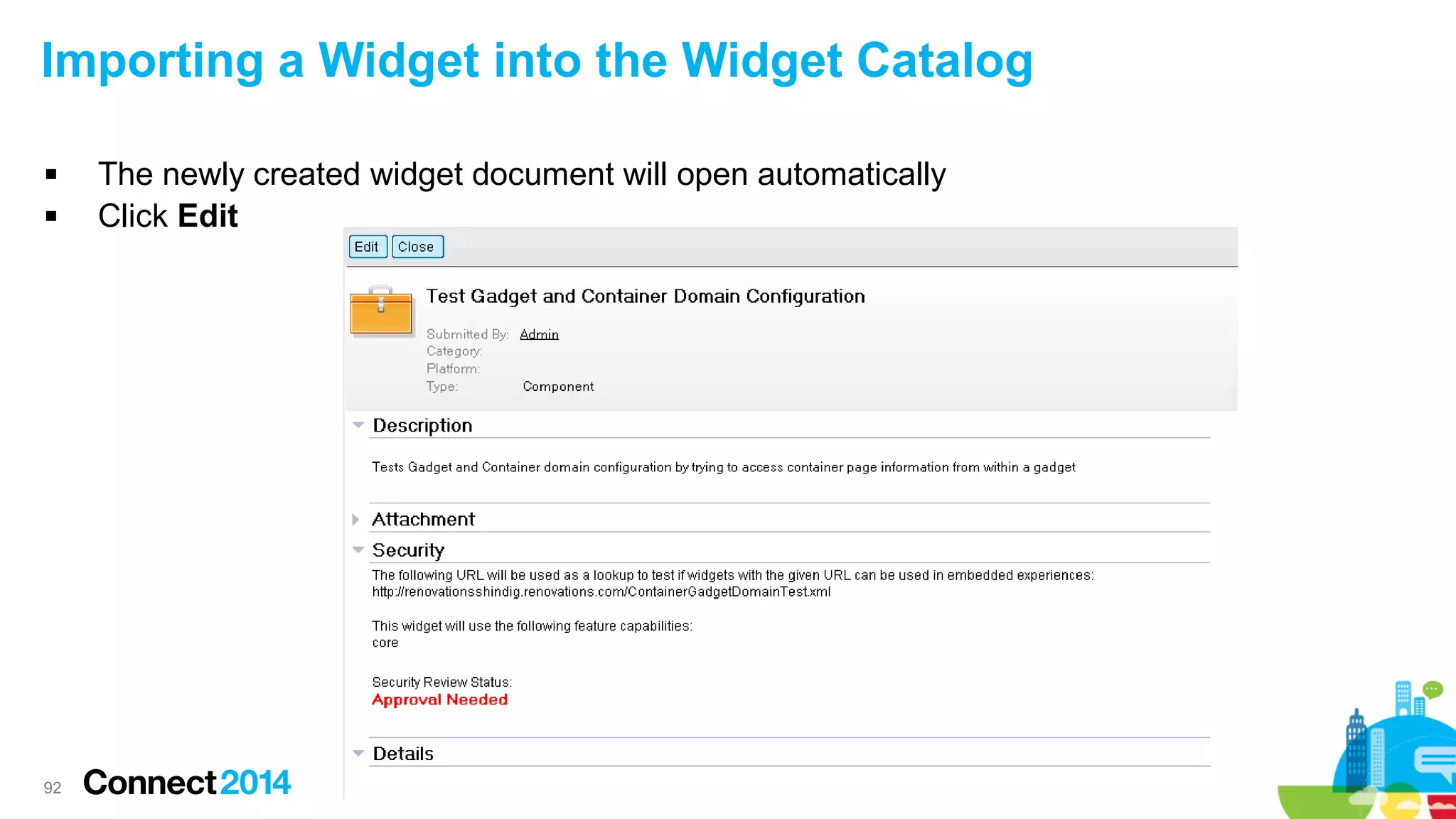

- 92. Importing a Widgetinto the Widget Catalog 92 The newly created widget document will open automatically Click Edit
- 93. Importing a Widgetinto the Widget Catalog 93 Assign this widget to the “WidgetsForAll” category Reminder: “WidgetsForAll” is the category that is setup to be pushed by policy

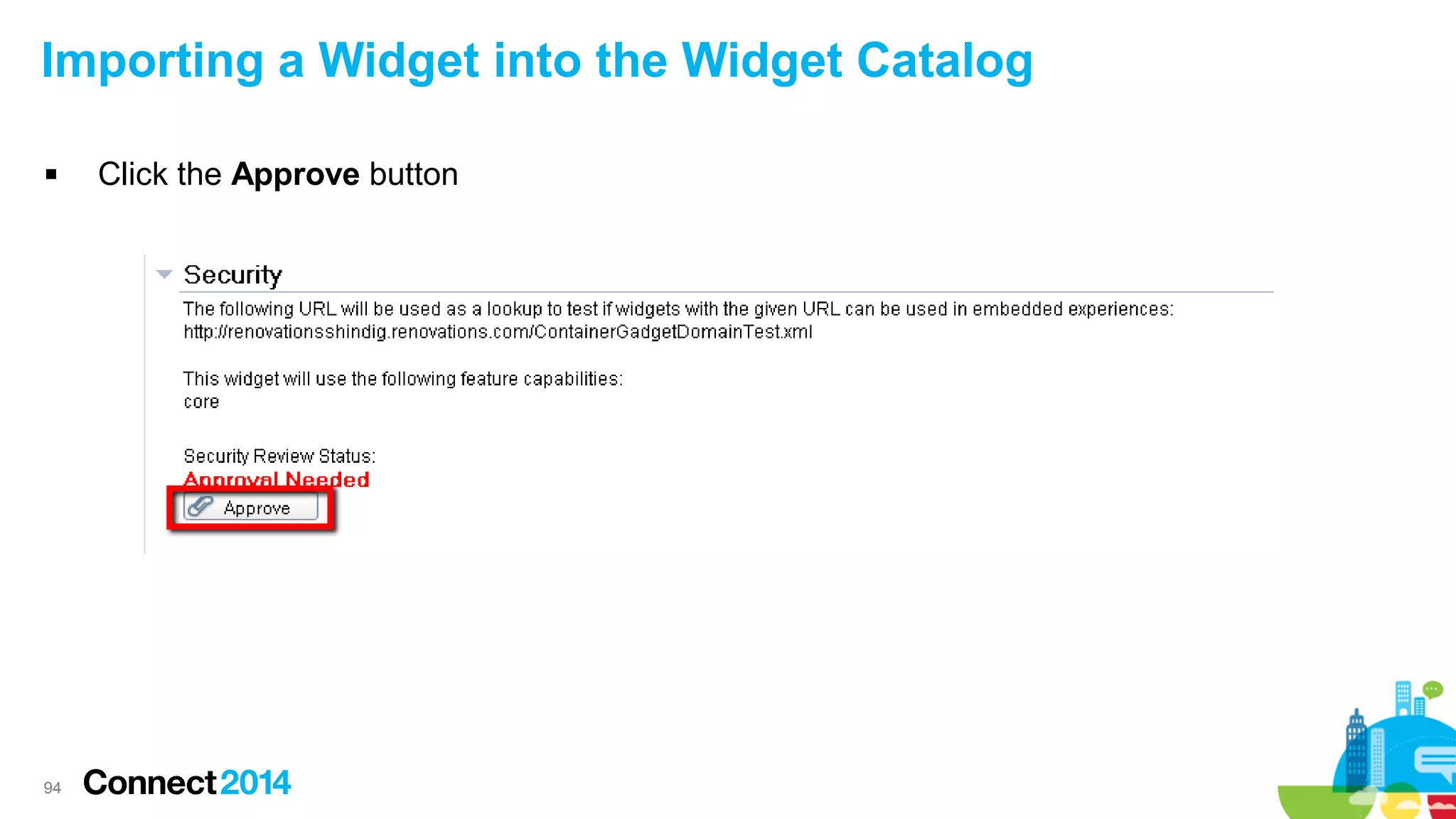

- 94. Importing a Widgetinto the Widget Catalog 94 Click the Approve button
- 95. Importing a Widgetinto the Widget Catalog Click OK to close the proxy dialog 95

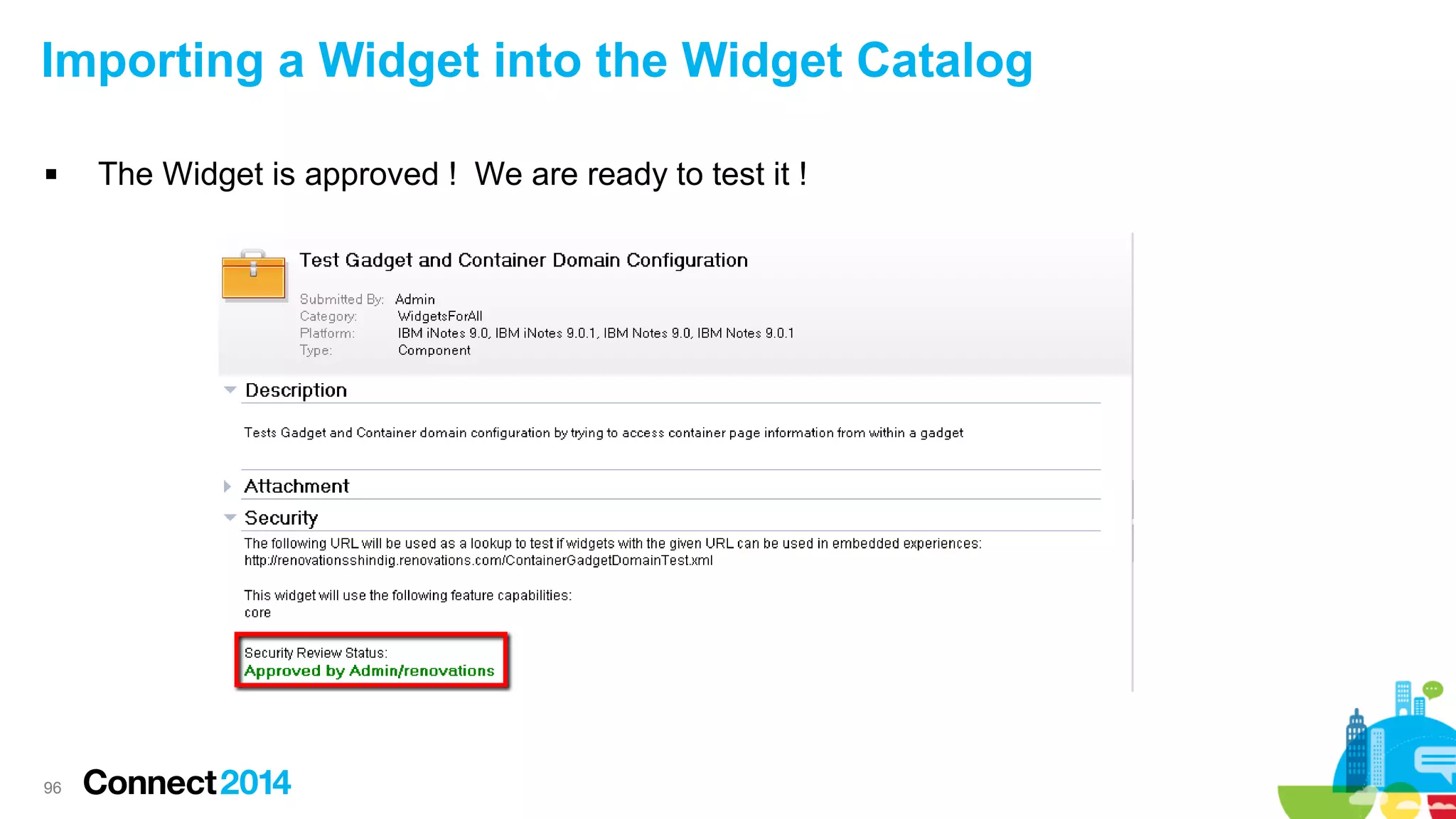

- 96. Importing a Widgetinto the Widget Catalog 96 The Widget is approved ! We are ready to test it !

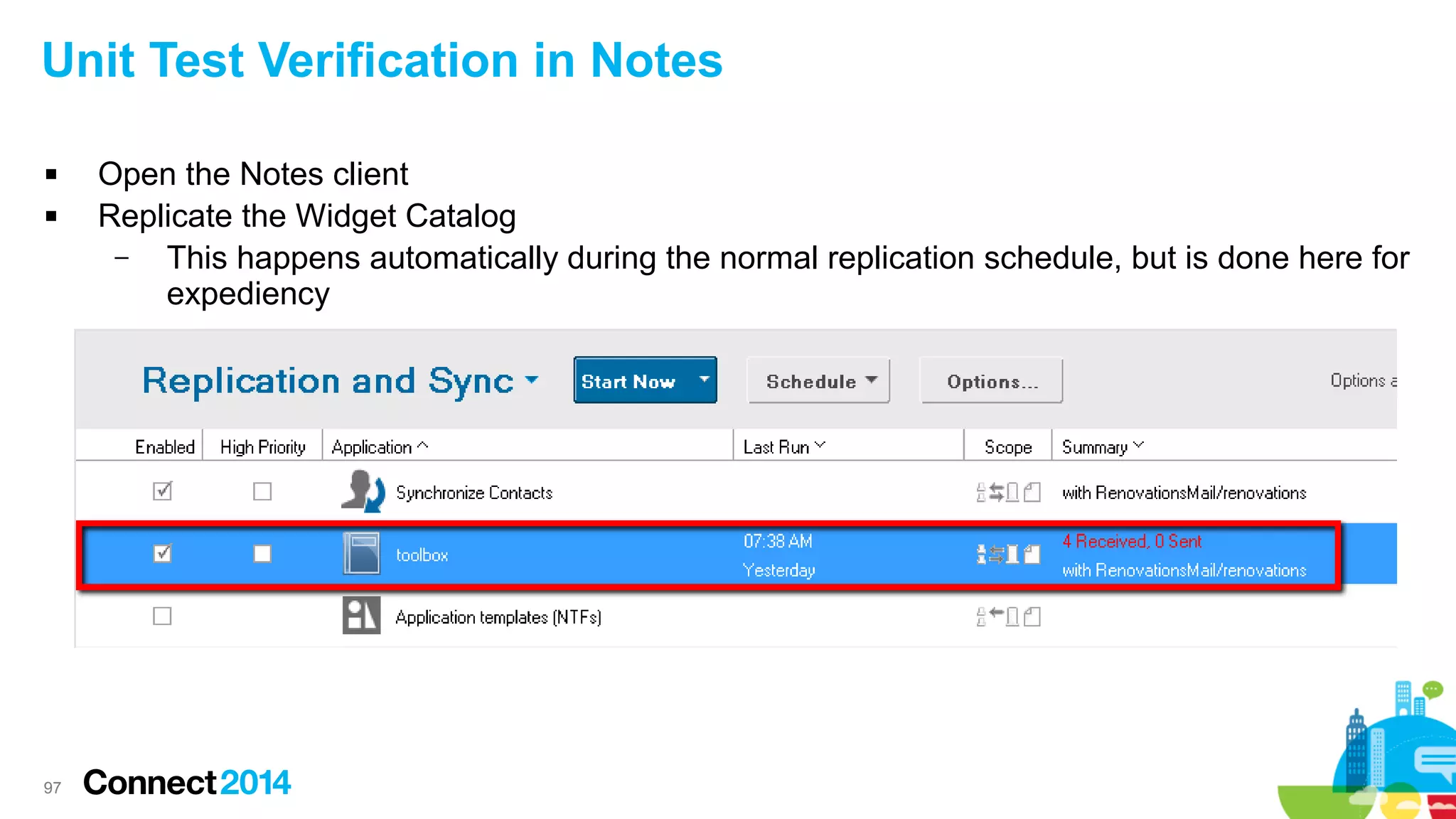

- 97. Unit Test Verificationin Notes 97 Open the Notes client Replicate the Widget Catalog – This happens automatically during the normal replication schedule, but is done here for expediency

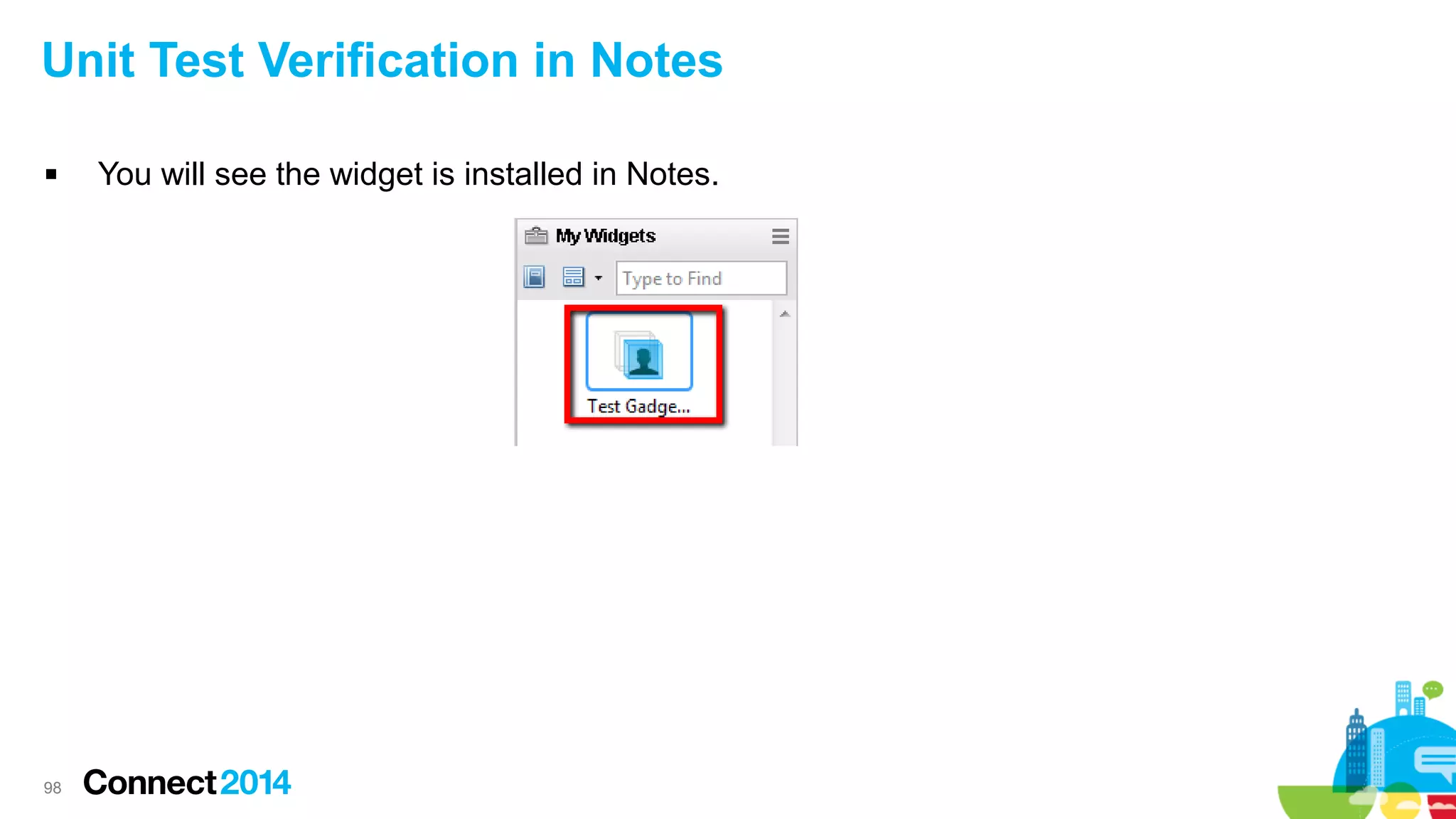

- 98. Unit Test Verificationin Notes 98 You will see the widget is installed in Notes.

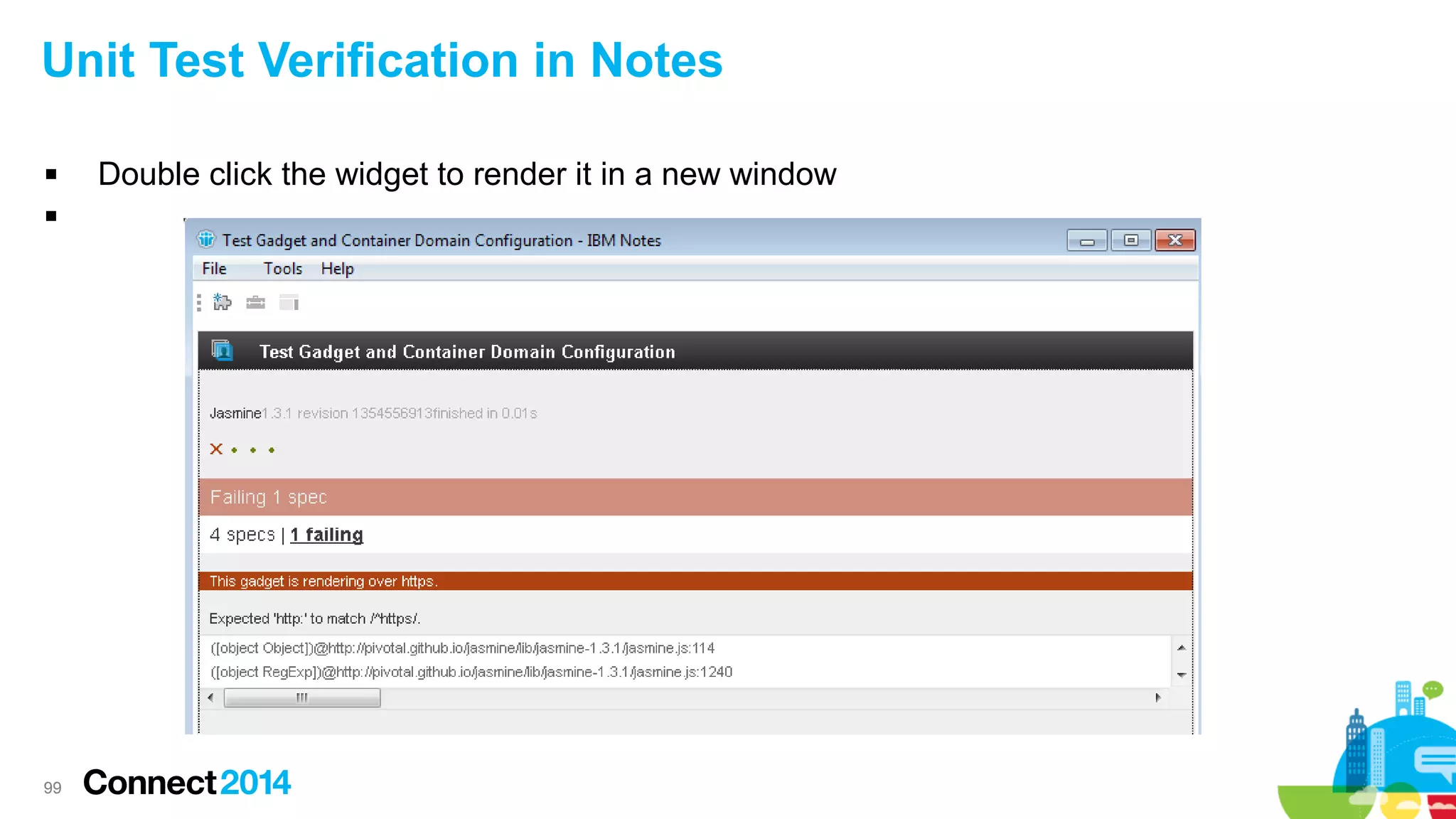

- 99. Unit Test Verificationin Notes 99 Double click the widget to render it in a new window

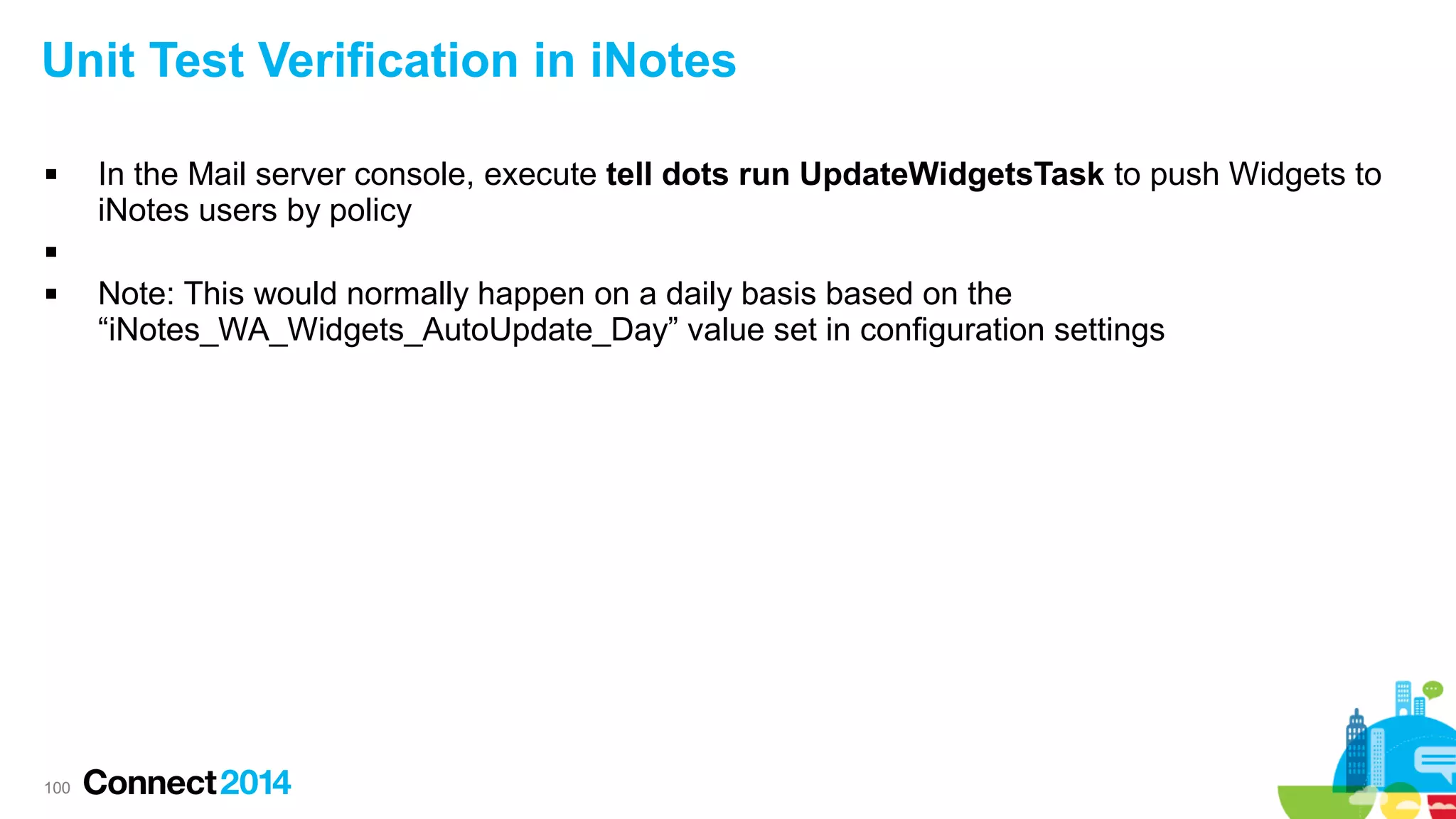

- 100. Unit Test Verificationin iNotes In the Mail server console, execute tell dots run UpdateWidgetsTask to push Widgets to iNotes users by policy 100 Note: This would normally happen on a daily basis based on the “iNotes_WA_Widgets_AutoUpdate_Day” value set in configuration settings

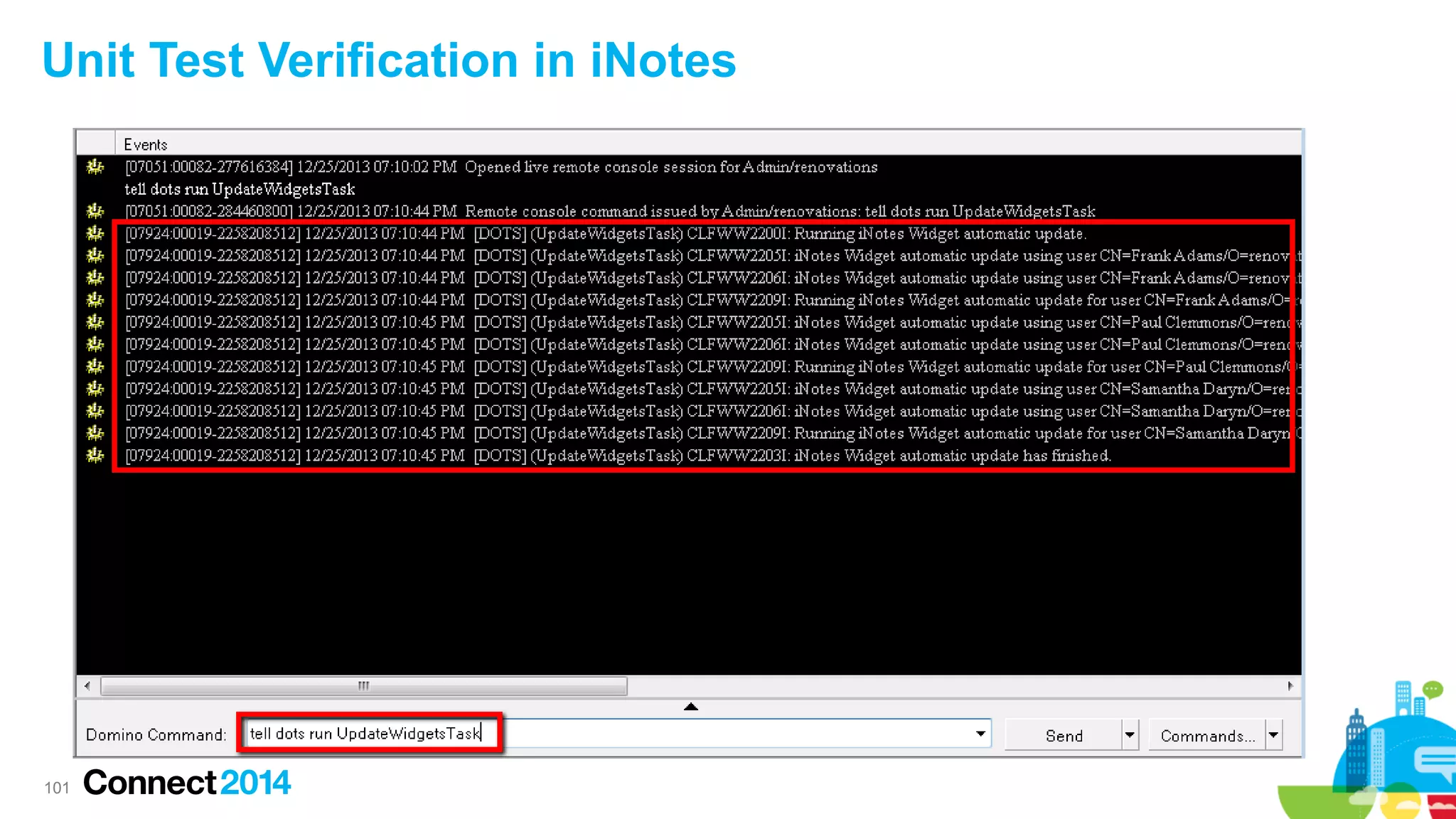

- 101. Unit Test Verificationin iNotes 101

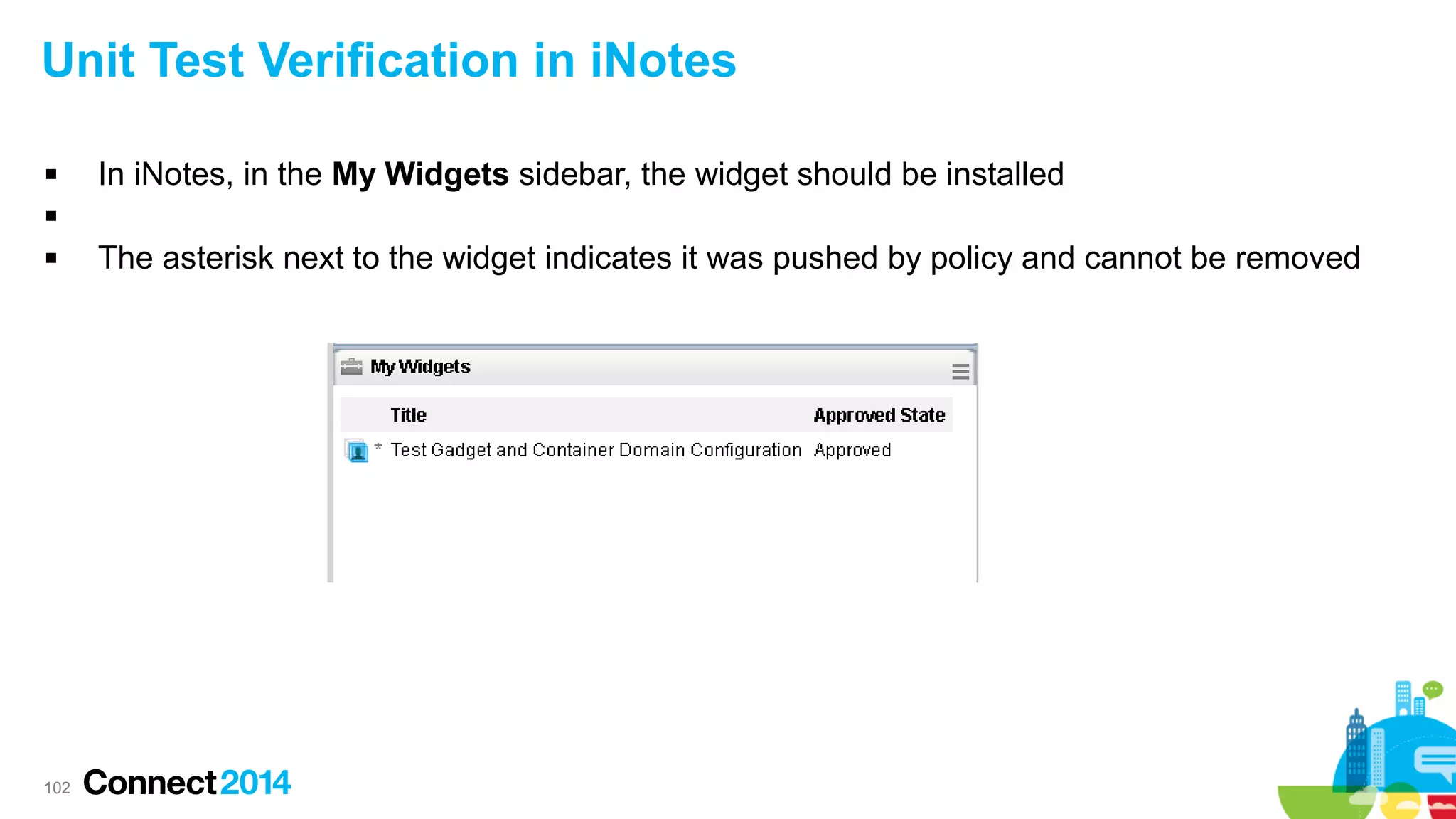

- 102. Unit Test Verificationin iNotes In iNotes, in the My Widgets sidebar, the widget should be installed 102 The asterisk next to the widget indicates it was pushed by policy and cannot be removed
- 103. Unit Test Verificationin iNotes Double-click on the widget to render it in a new Tab ● 103
- 104.

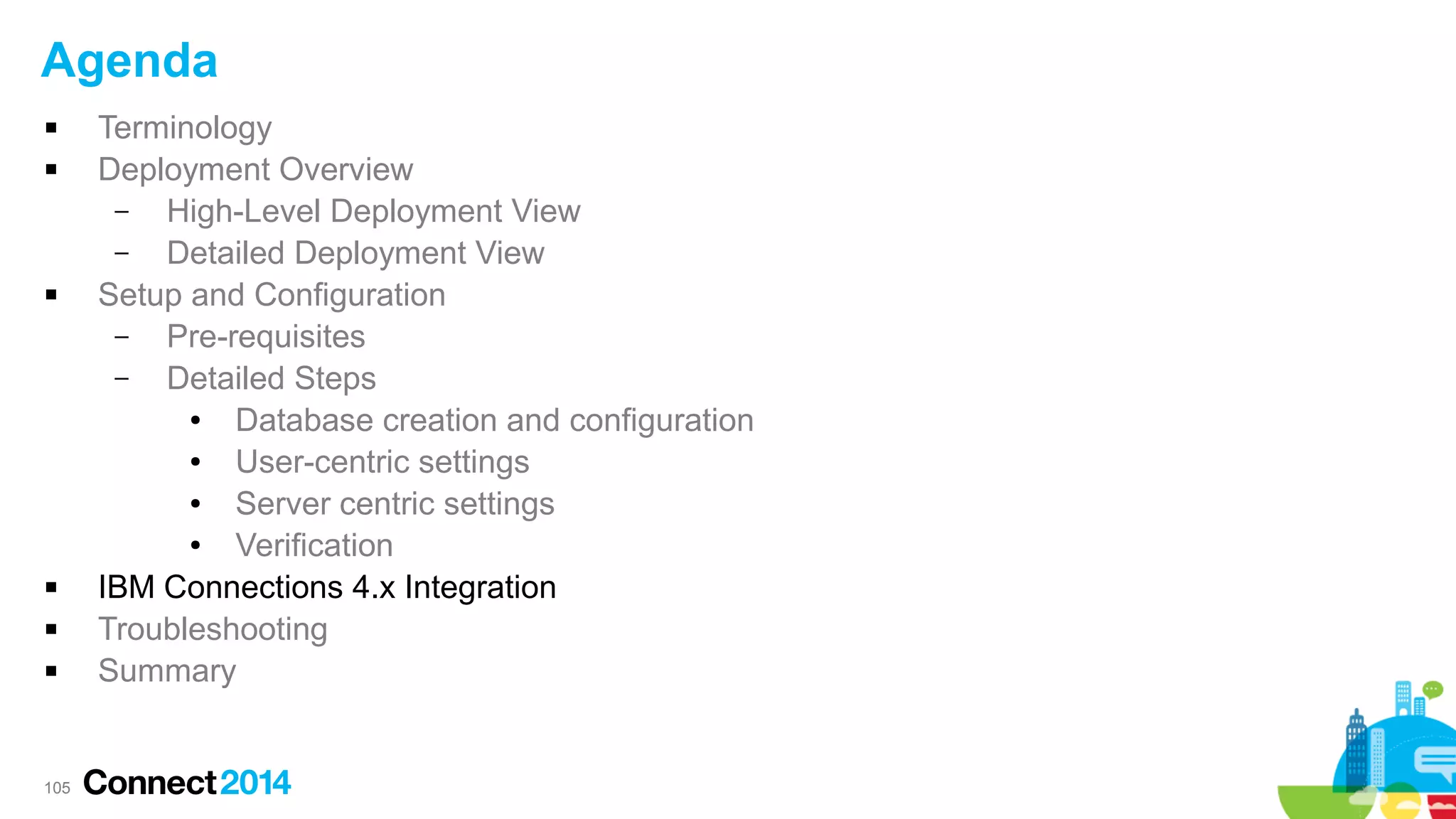

- 105. Agenda 105 Terminology Deployment Overview – High-Level DeploymentView – Detailed Deployment View Setup and Configuration – Pre-requisites – Detailed Steps ● Database creation and configuration ● User-centric settings ● Server centric settings ● Verification IBM Connections 4.x Integration Troubleshooting Summary

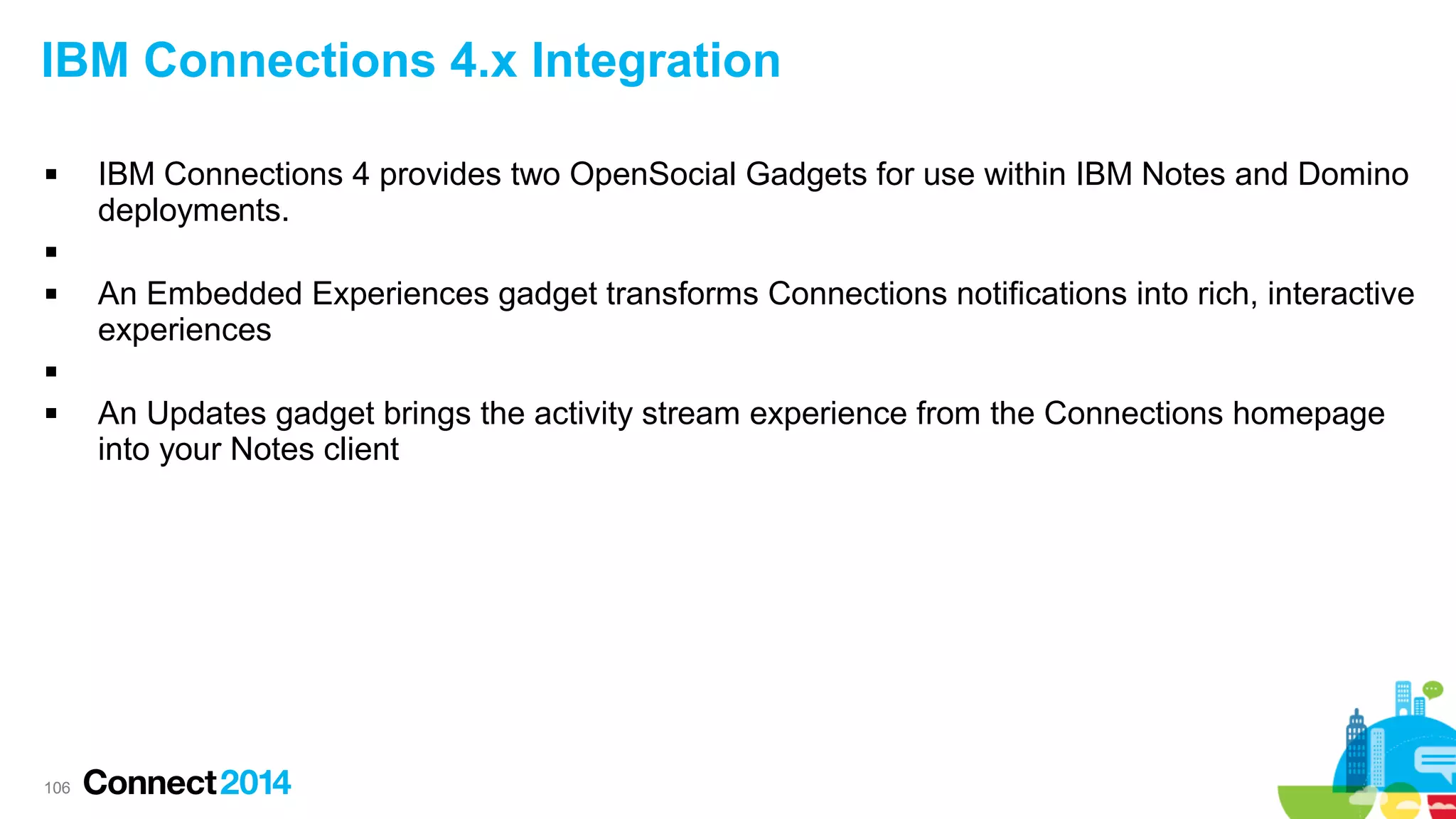

- 106. IBM Connections 4.xIntegration IBM Connections 4 provides two OpenSocial Gadgets for use within IBM Notes and Domino deployments. An Embedded Experiences gadget transforms Connections notifications into rich, interactive experiences 106 An Updates gadget brings the activity stream experience from the Connections homepage into your Notes client
- 107. IBM Connections 4.xIntegration Export the IC4 widget configuration – Launch a WSAdmin console on your connections server – – 107 Load the “gadgetAdmin.py” file

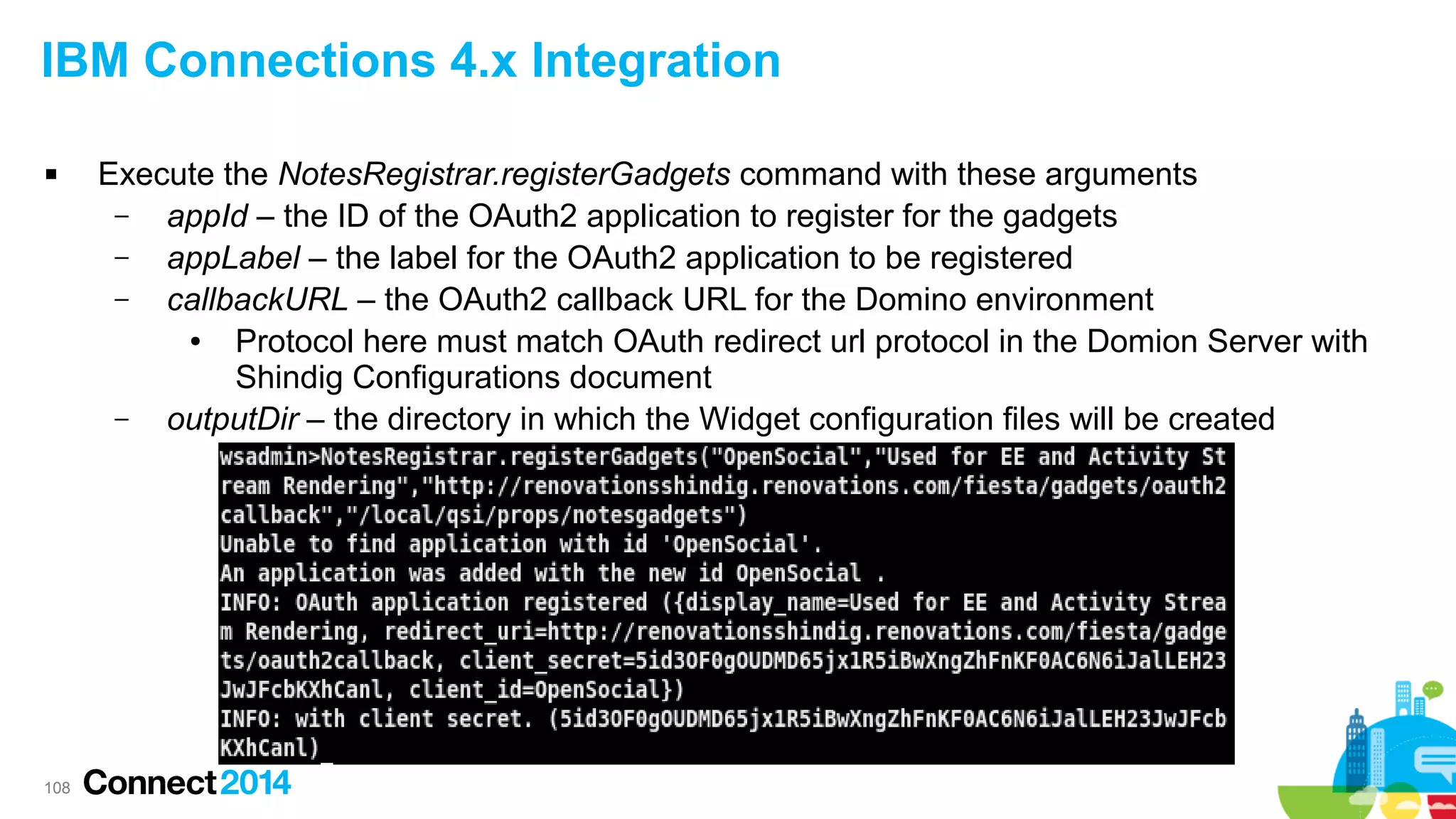

- 108. IBM Connections 4.xIntegration 108 Execute the NotesRegistrar.registerGadgets command with these arguments – appId – the ID of the OAuth2 application to register for the gadgets – appLabel – the label for the OAuth2 application to be registered – callbackURL – the OAuth2 callback URL for the Domino environment ● Protocol here must match OAuth redirect url protocol in the Domion Server with Shindig Configurations document – outputDir – the directory in which the Widget configuration files will be created

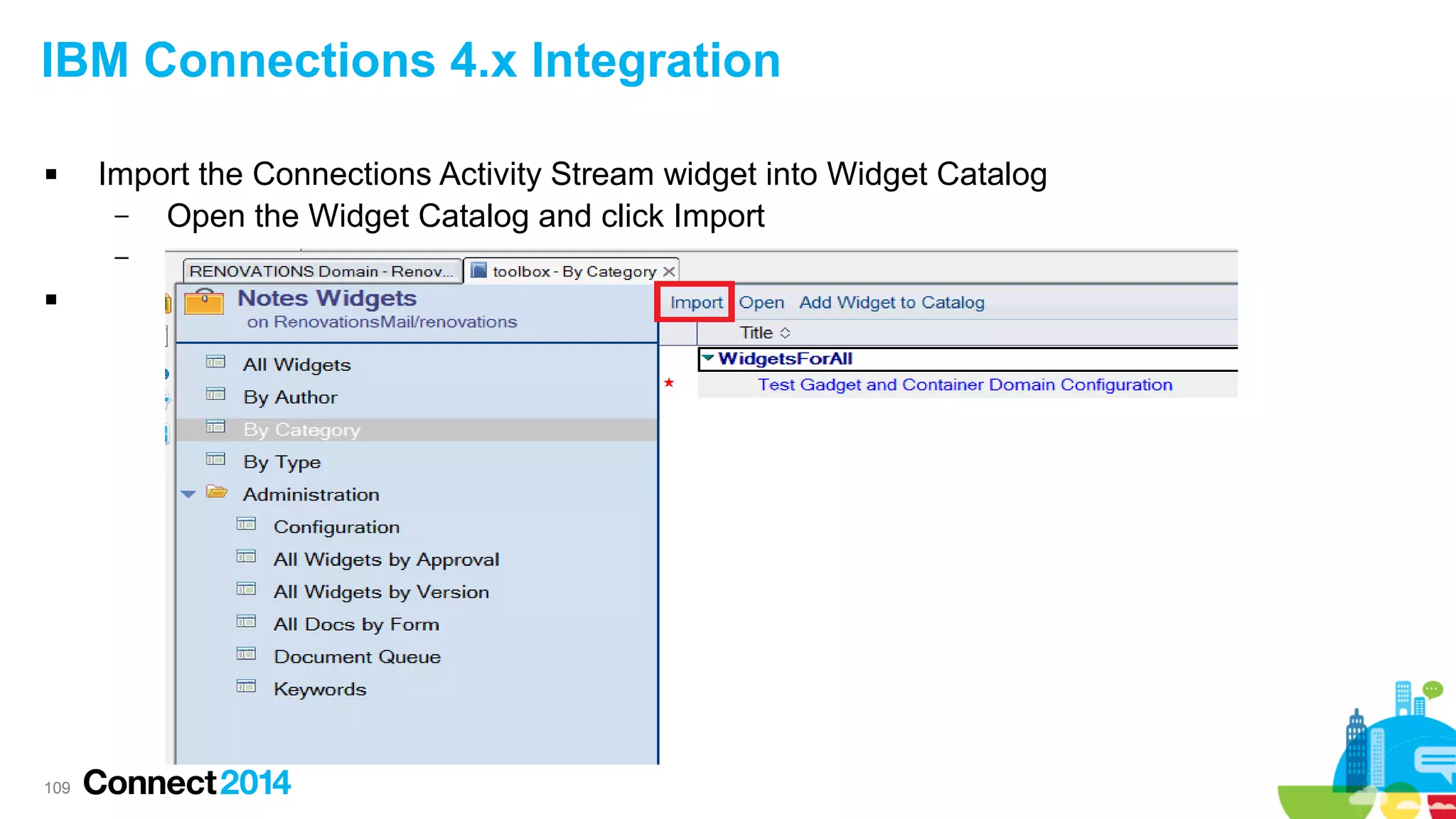

- 109. IBM Connections 4.xIntegration Import the Connections Activity Stream widget into Widget Catalog – Open the Widget Catalog and click Import – 109

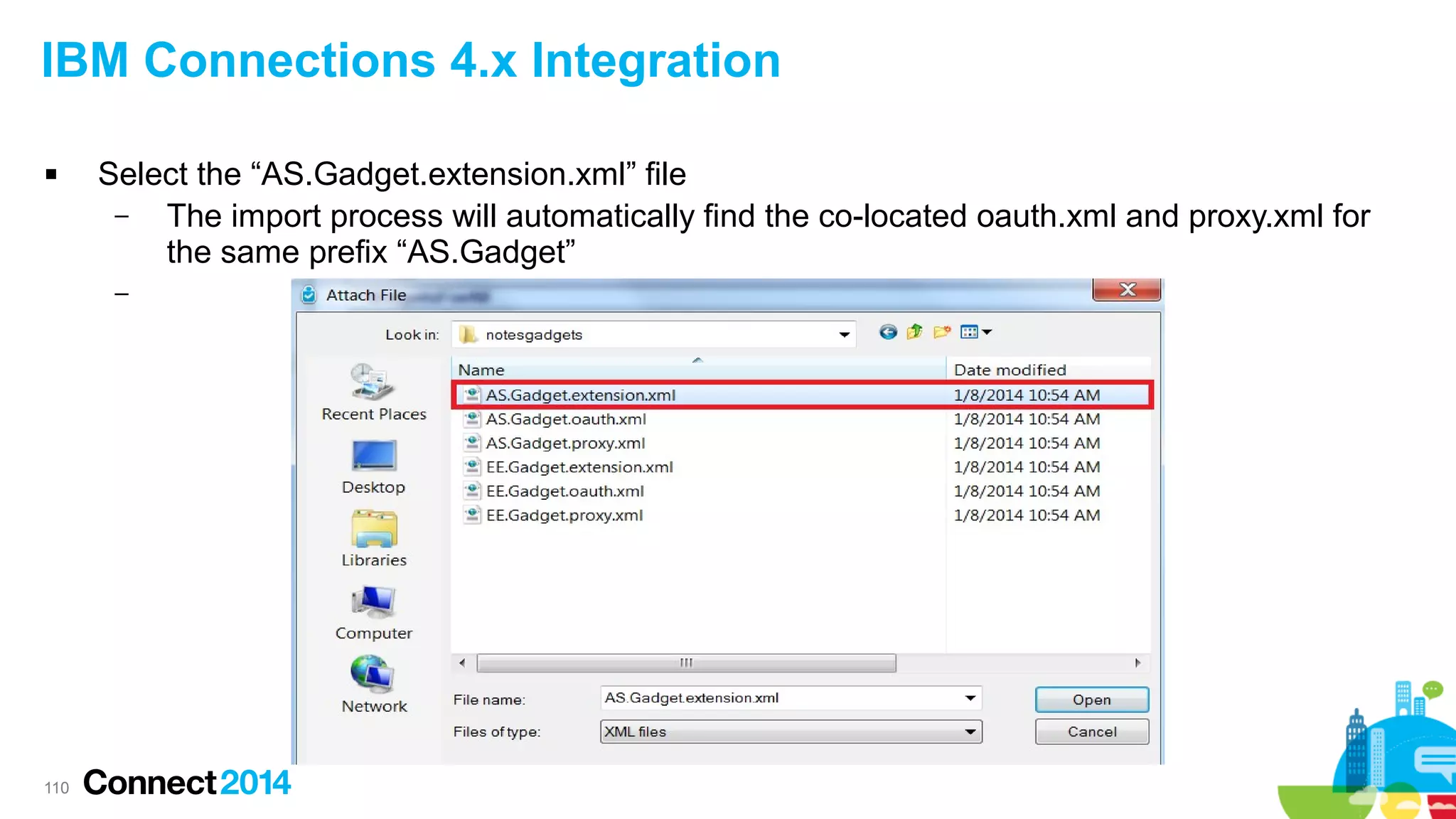

- 110. IBM Connections 4.xIntegration Select the “AS.Gadget.extension.xml” file – The import process will automatically find the co-located oauth.xml and proxy.xml for the same prefix “AS.Gadget” – 110

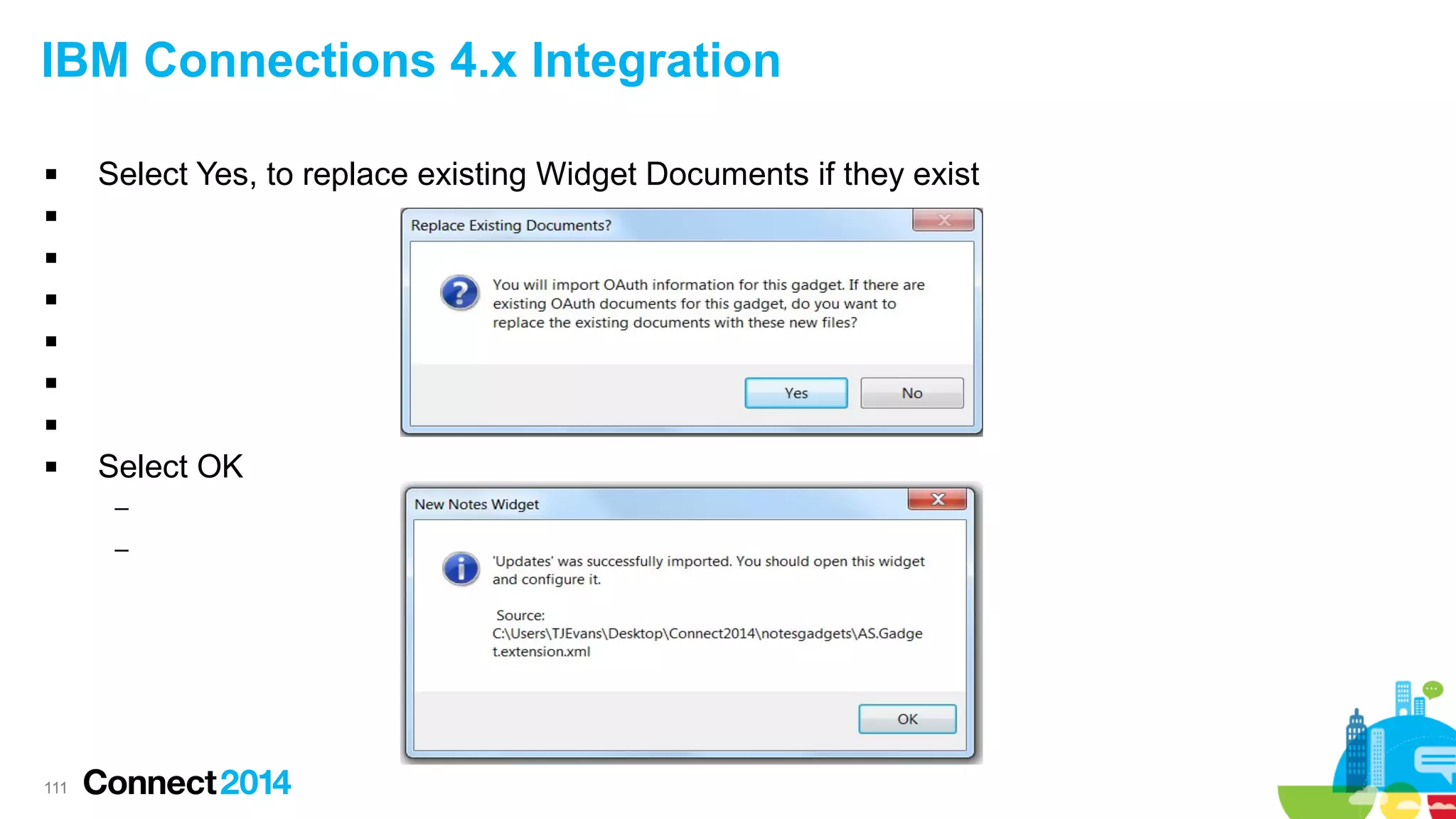

- 111. IBM Connections 4.xIntegration Select Yes, to replace existing Widget Documents if they exist Select OK – – 111

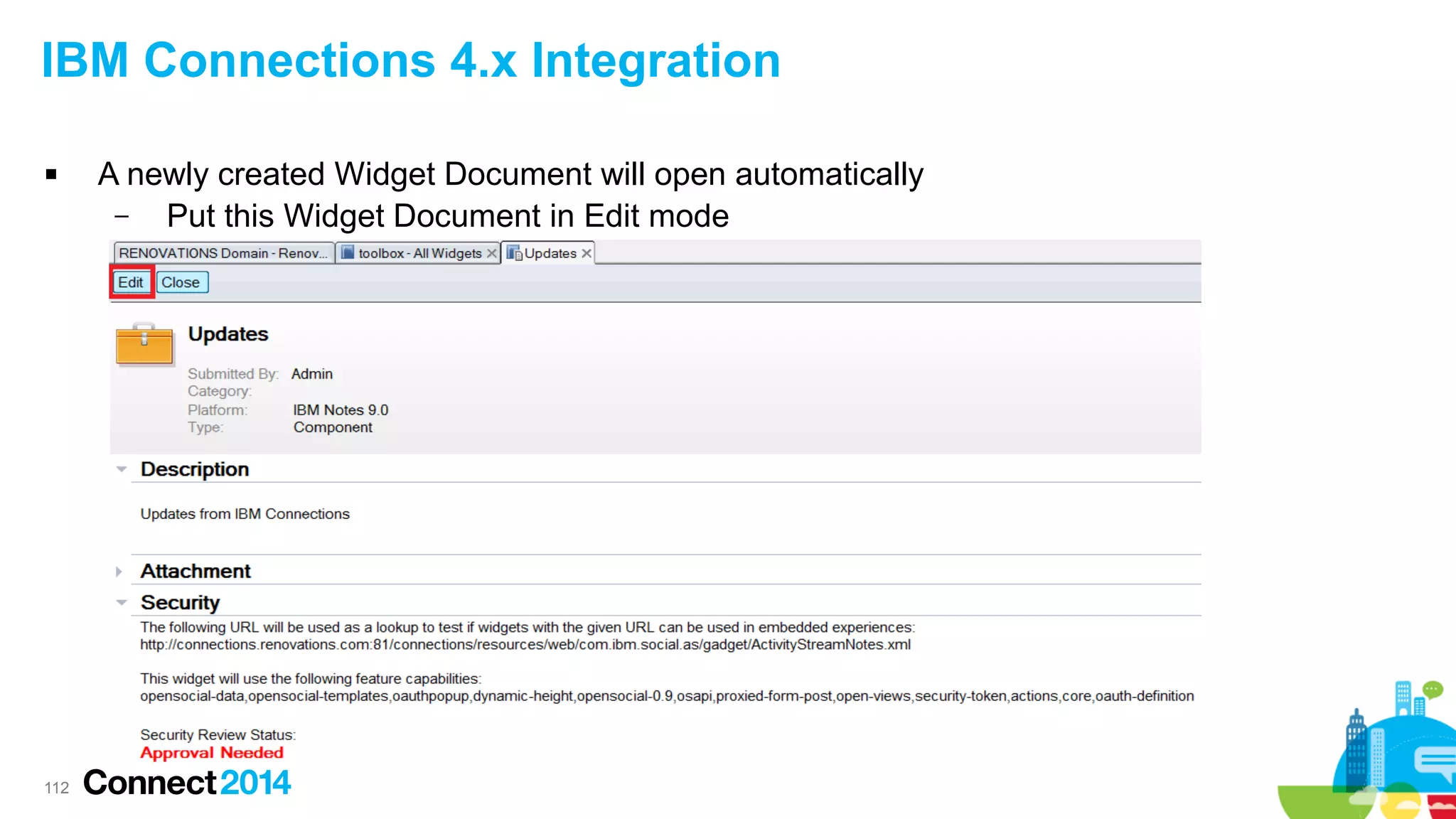

- 112. IBM Connections 4.xIntegration A newly created Widget Document will open automatically – Put this Widget Document in Edit mode – 112

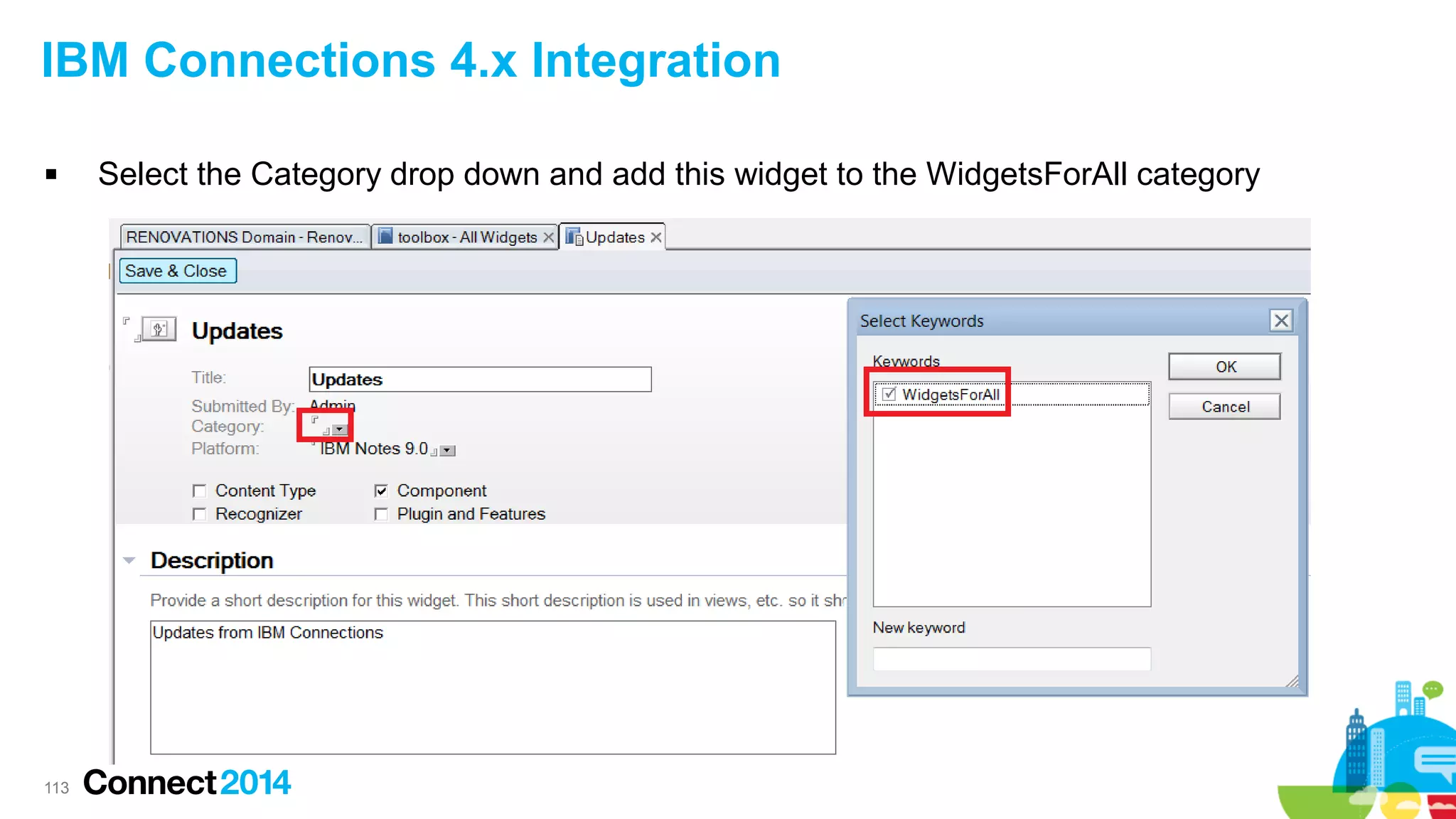

- 113. IBM Connections 4.xIntegration 113 Select the Category drop down and add this widget to the WidgetsForAll category
- 114. IBM Connections 4.xIntegration 114 Approve the Widget

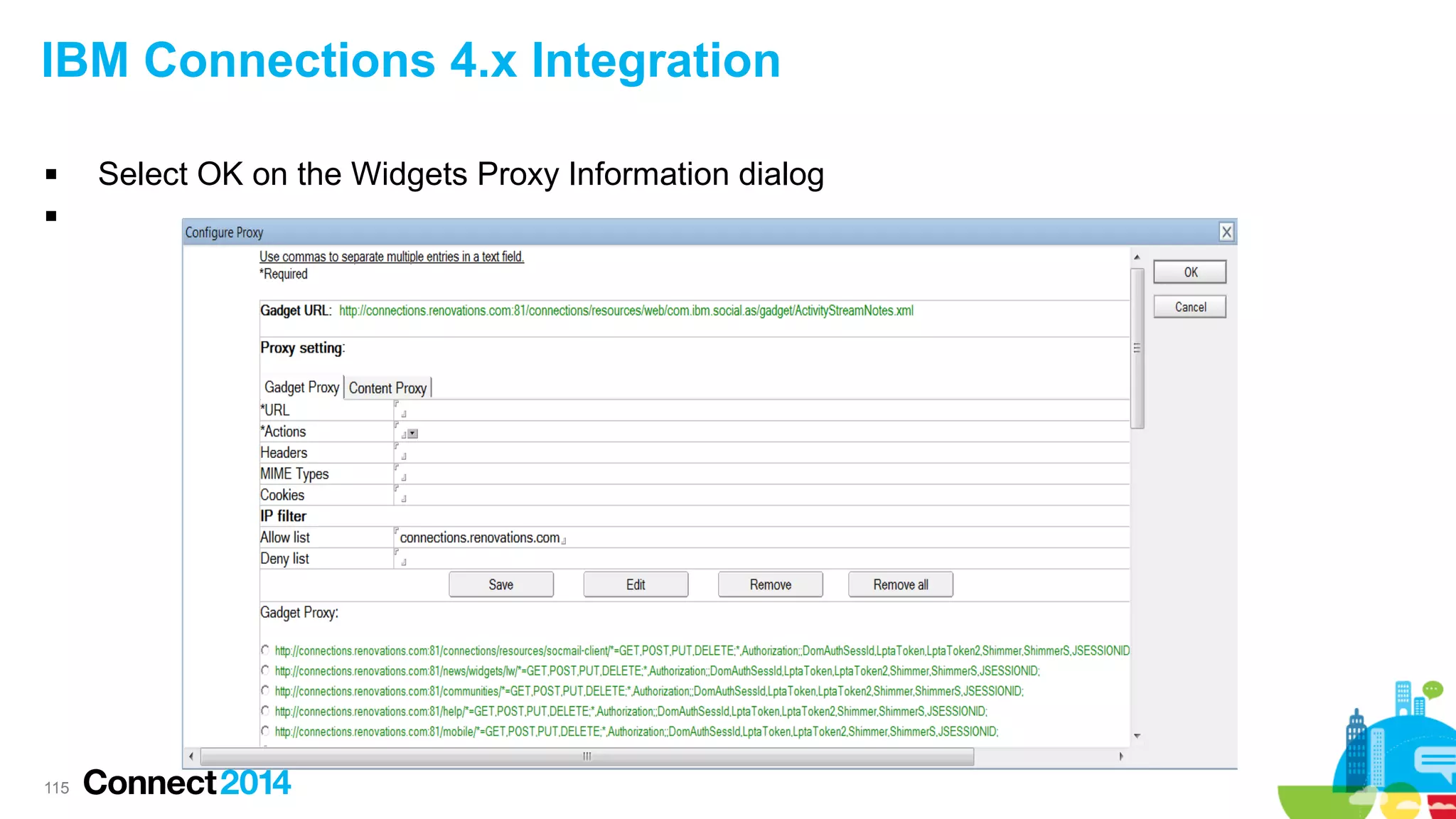

- 115. IBM Connections 4.xIntegration 115 Select OK on the Widgets Proxy Information dialog
- 116. IBM Connections 4.xIntegration Select OK on the Widgets OAuth Information dialog – Consumer Key and Consumer Secret will NOT be displayed in the UI – 116
- 117. IBM Connections 4.xIntegration 117 Confirm the Approval

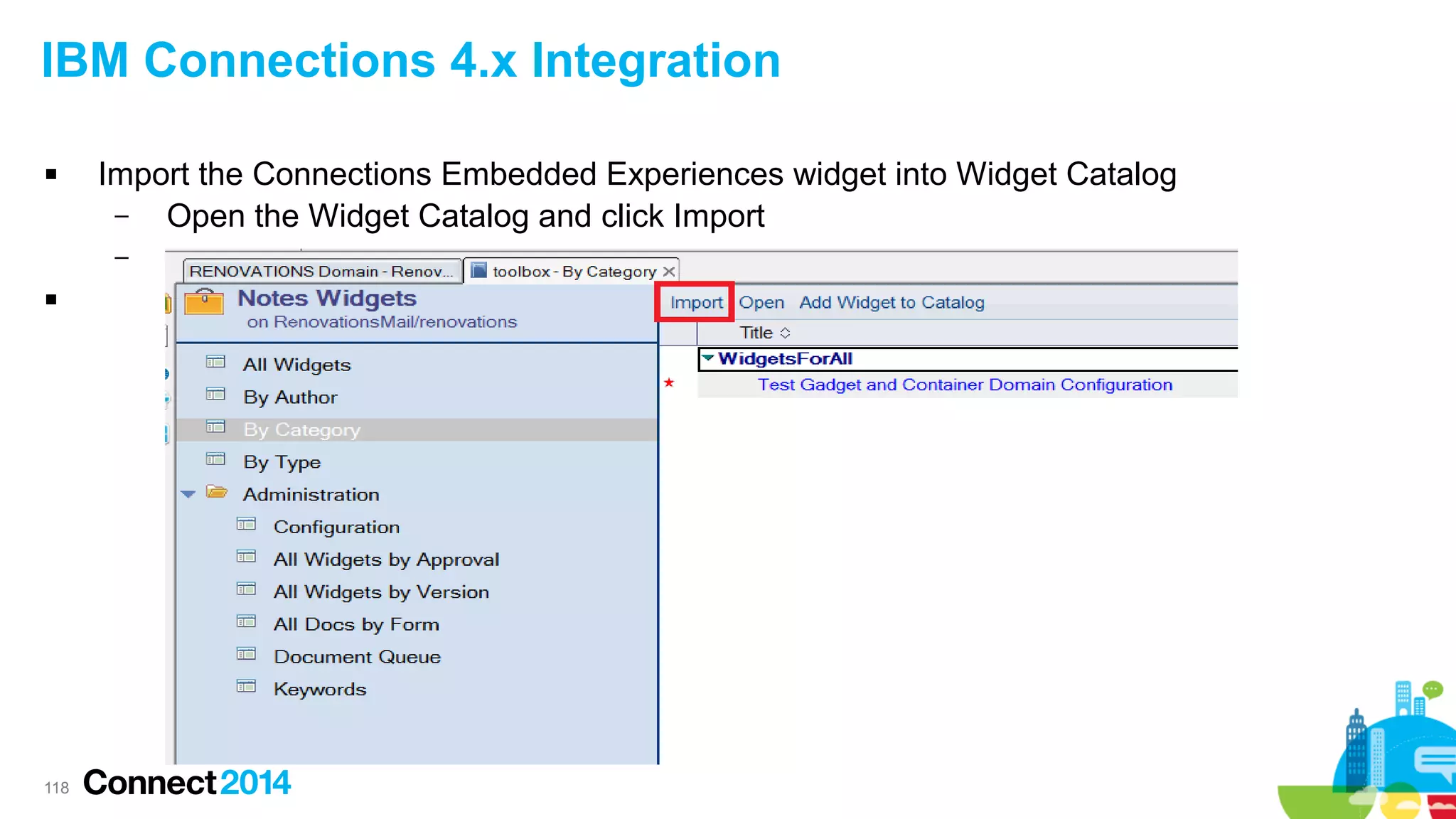

- 118. IBM Connections 4.xIntegration Import the Connections Embedded Experiences widget into Widget Catalog – Open the Widget Catalog and click Import – 118
- 119. IBM Connections 4.xIntegration Select the “EE.Gadget.extension.xml” file – The import process will automatically find the co-located oauth.xml and proxy.xml for the same prefix “EE.Gadget” – 119

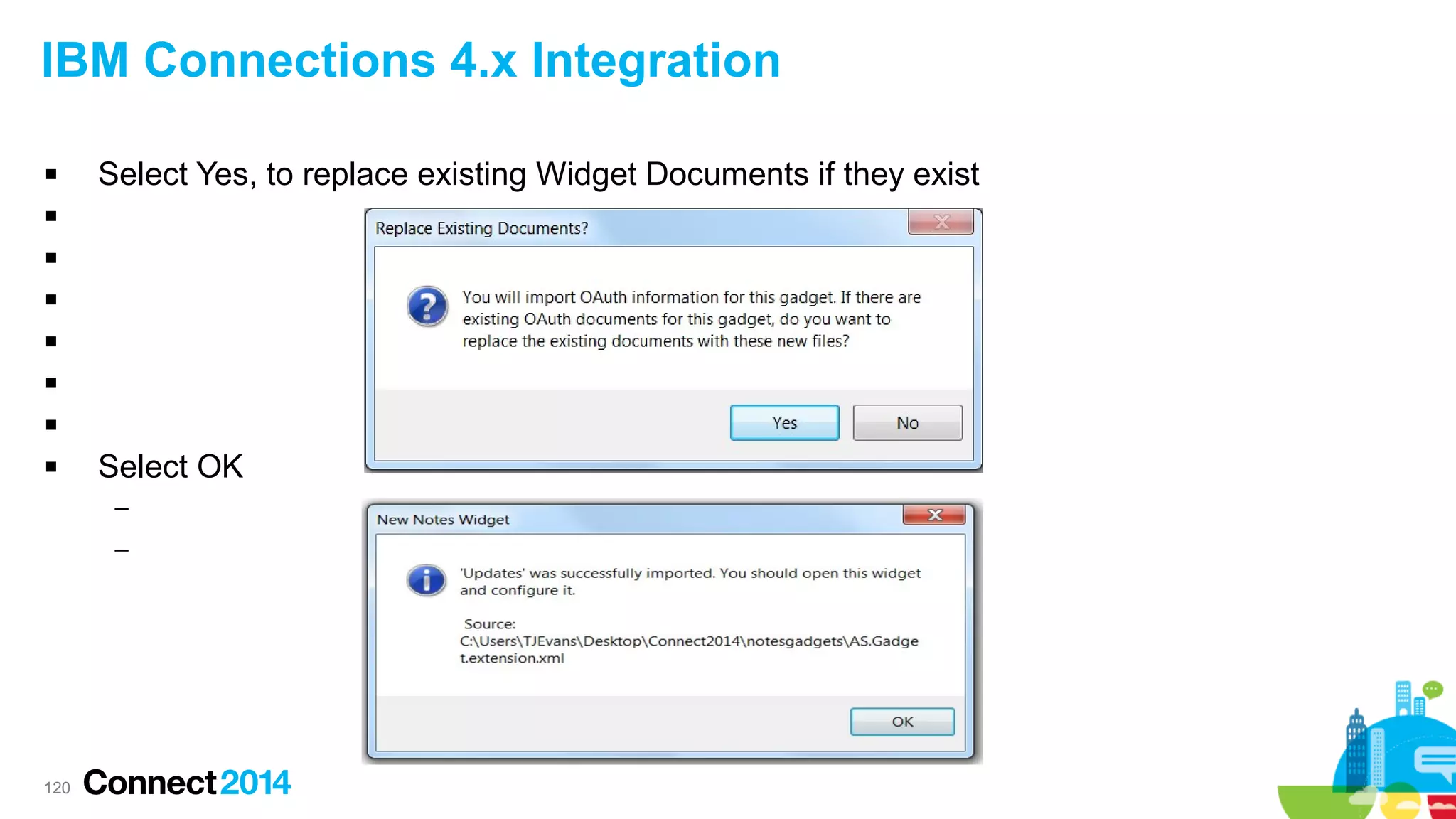

- 120. IBM Connections 4.xIntegration Select Yes, to replace existing Widget Documents if they exist Select OK – – 120

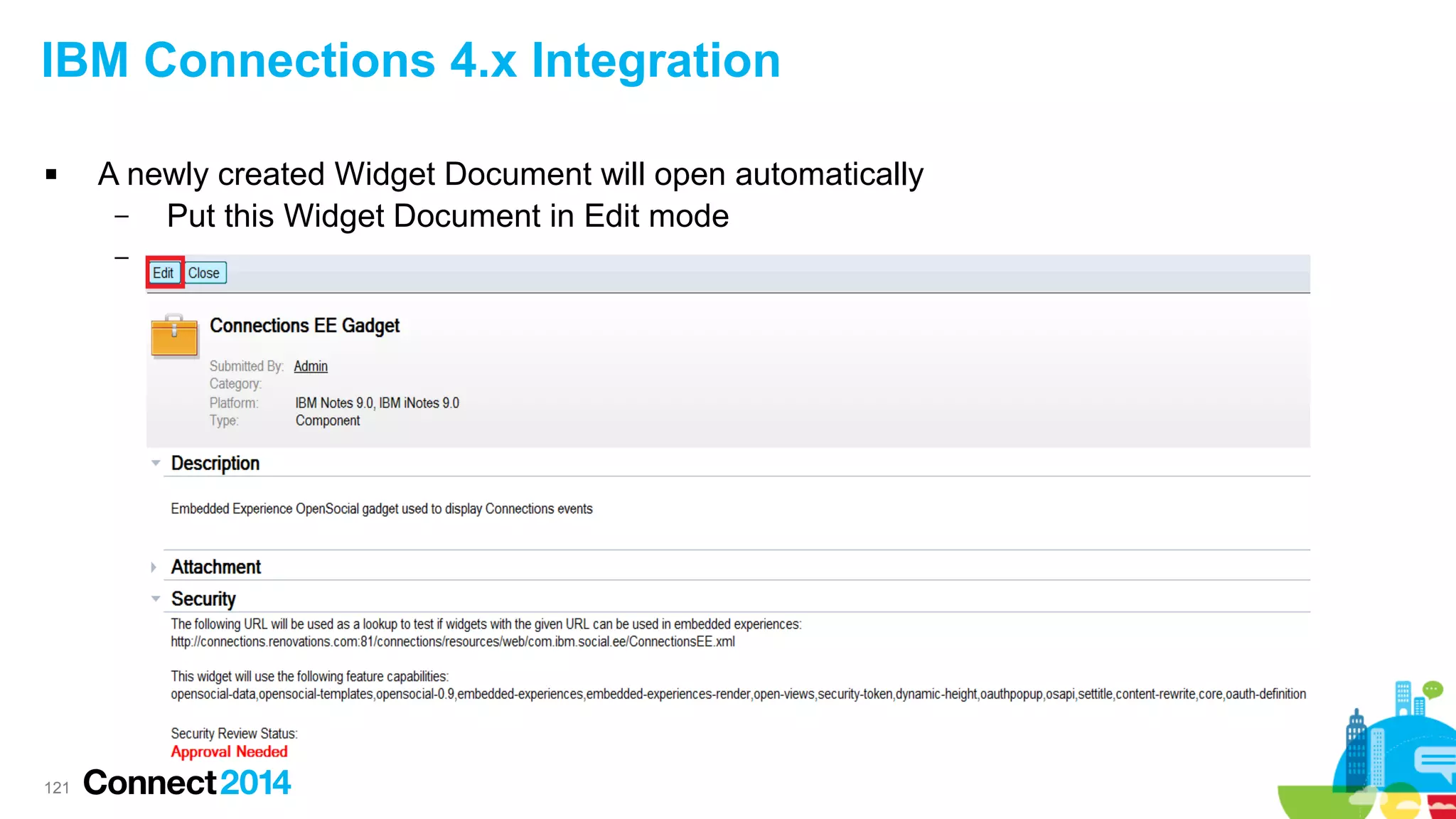

- 121. IBM Connections 4.xIntegration A newly created Widget Document will open automatically – Put this Widget Document in Edit mode – 121
- 122. IBM Connections 4.xIntegration 122 Select the Category drop down and add this widget to the WidgetsForAll category

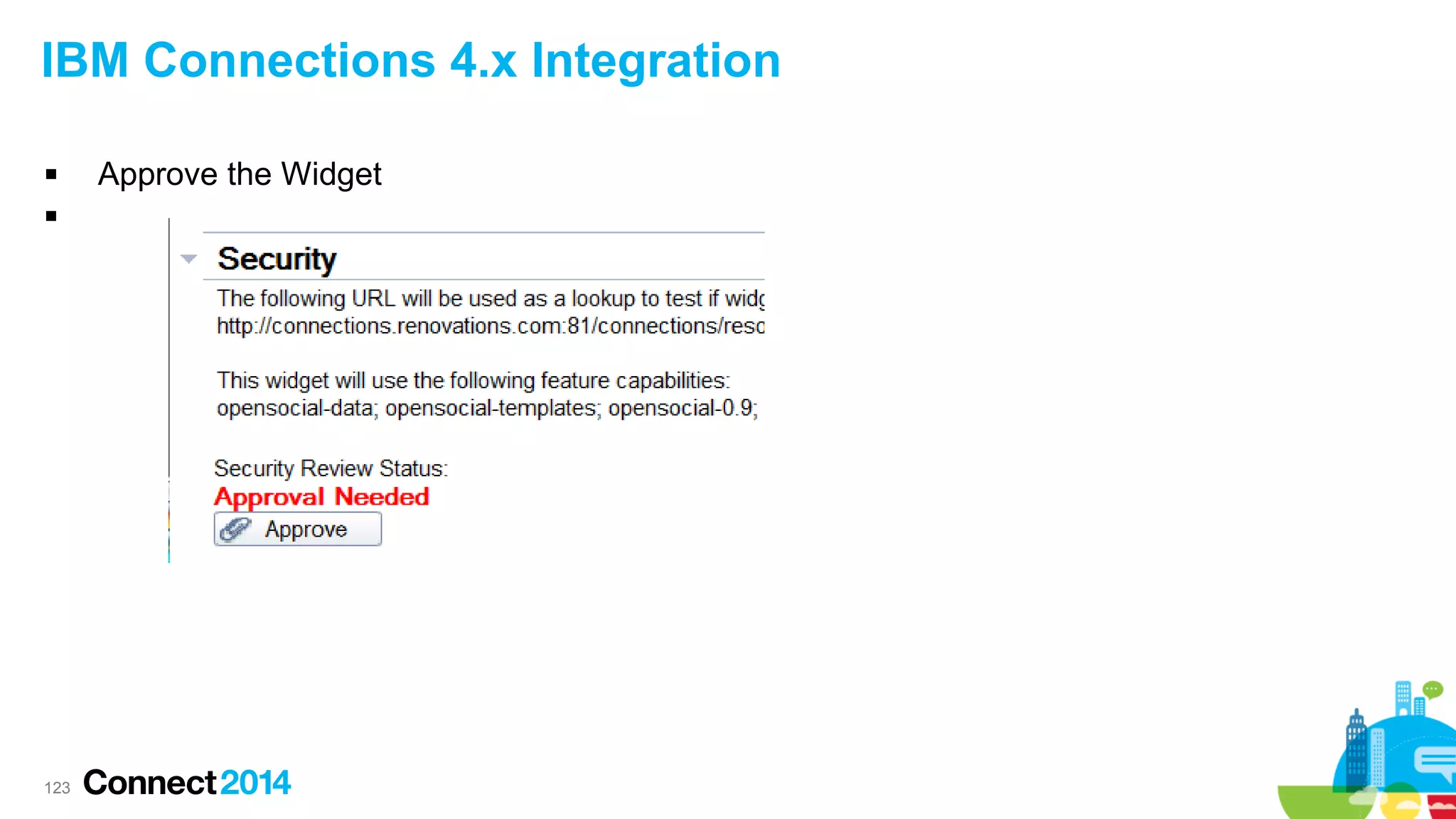

- 123. IBM Connections 4.xIntegration 123 Approve the Widget
- 124. IBM Connections 4.xIntegration 124 Select OK on the Widgets Proxy Information dialog

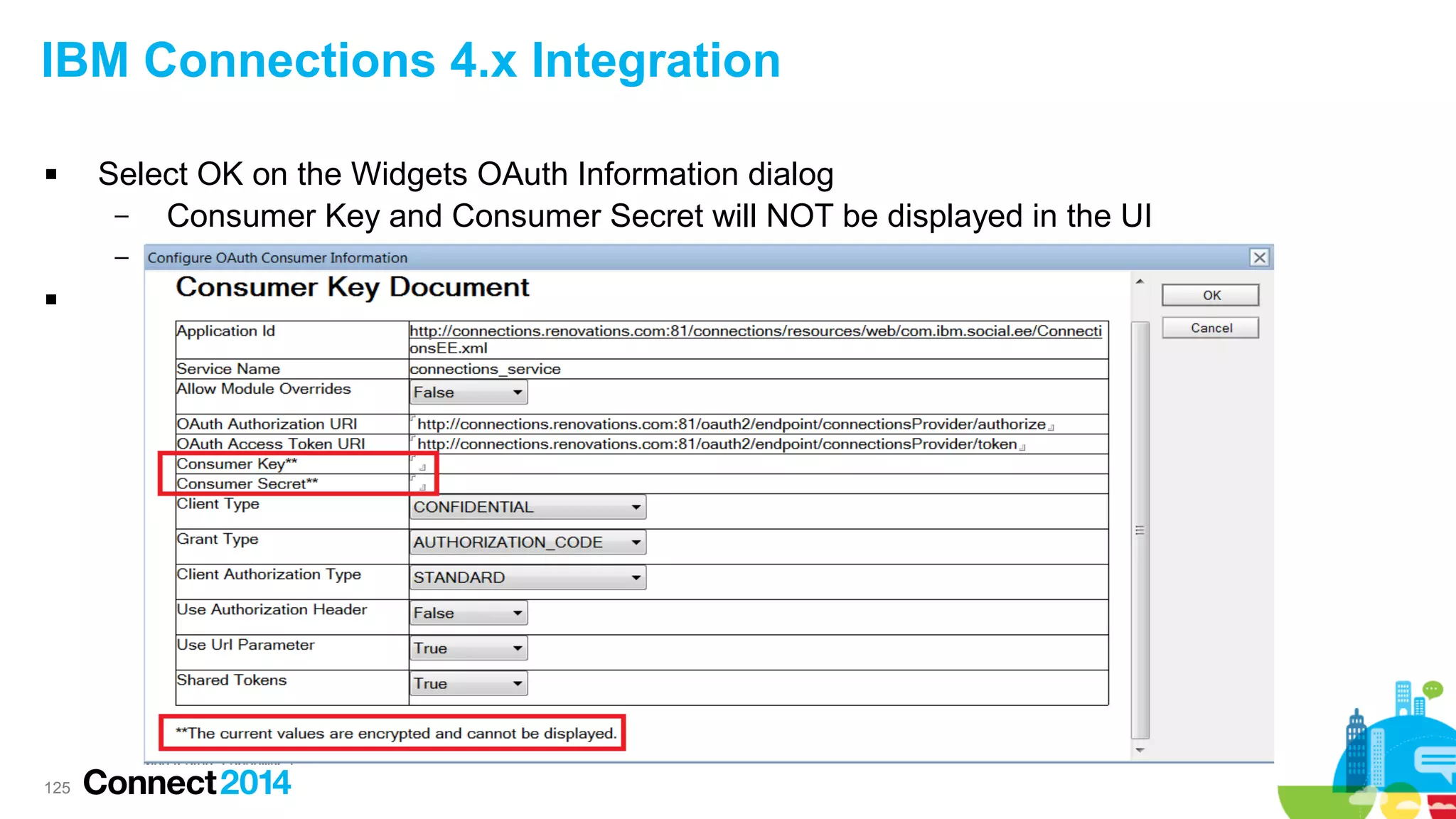

- 125. IBM Connections 4.xIntegration Select OK on the Widgets OAuth Information dialog – Consumer Key and Consumer Secret will NOT be displayed in the UI – 125

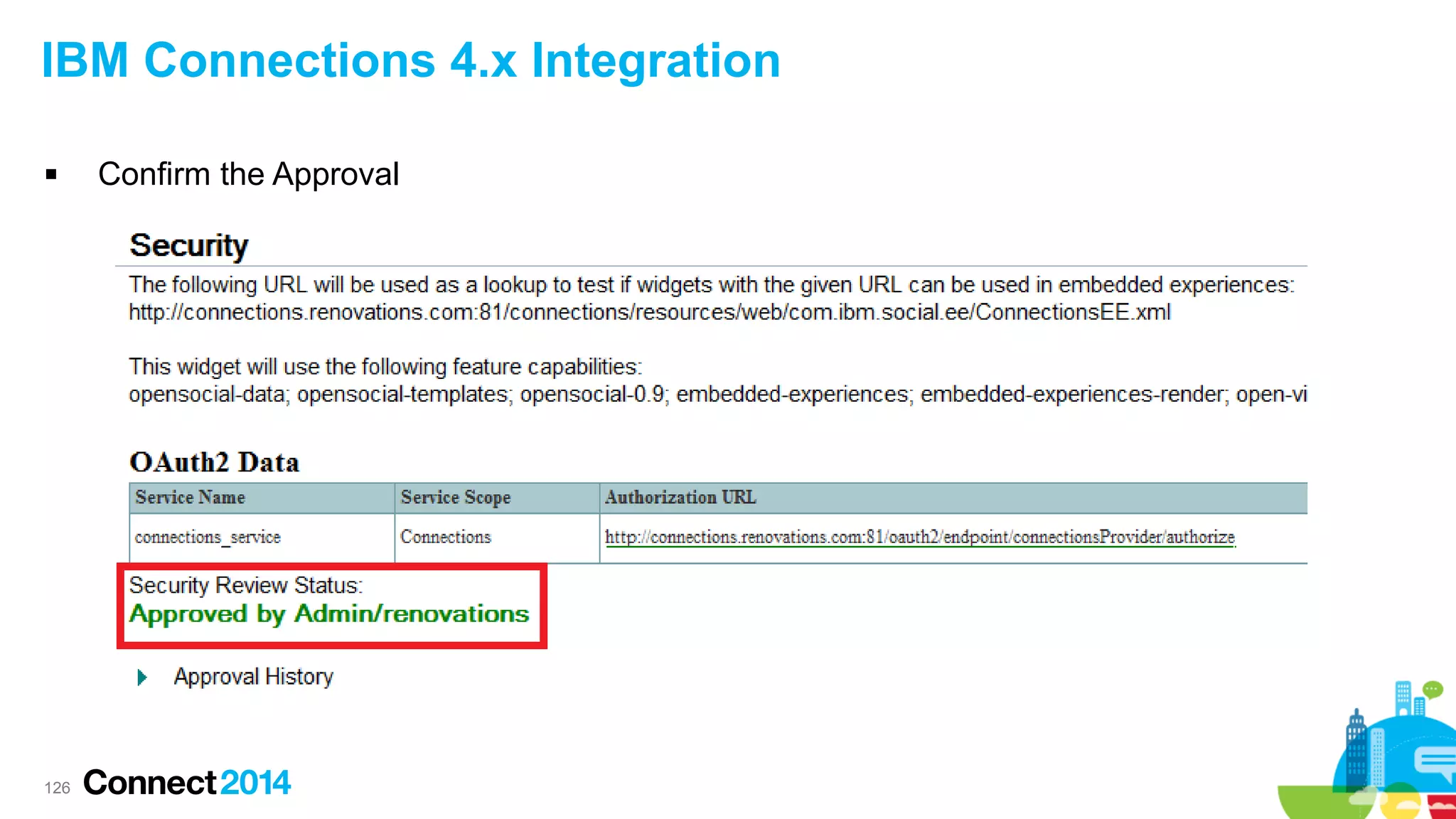

- 126. IBM Connections 4.xIntegration 126 Confirm the Approval

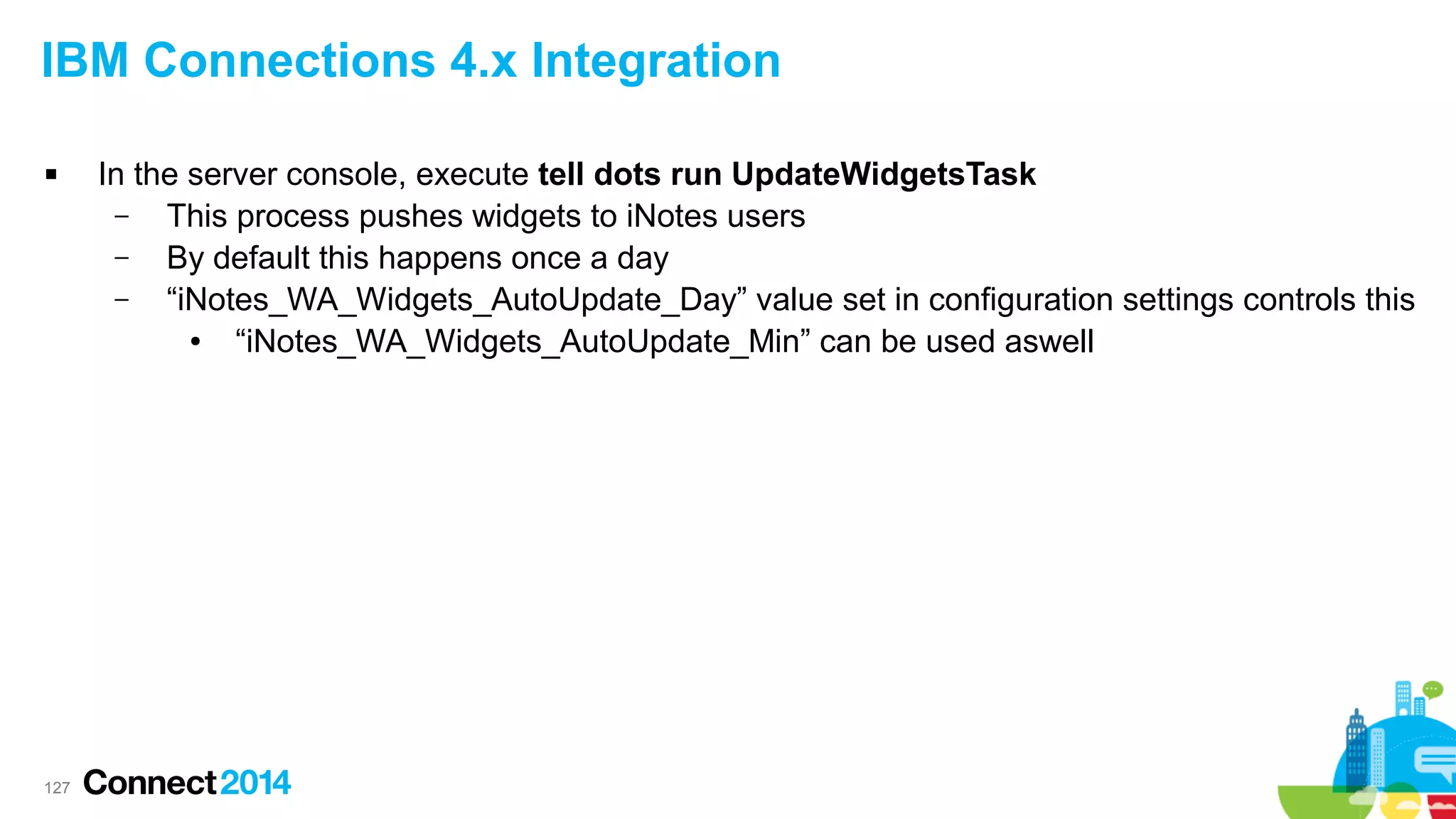

- 127. IBM Connections 4.xIntegration 127 In the server console, execute tell dots run UpdateWidgetsTask – This process pushes widgets to iNotes users – By default this happens once a day – “iNotes_WA_Widgets_AutoUpdate_Day” value set in configuration settings controls this ● “iNotes_WA_Widgets_AutoUpdate_Min” can be used aswell

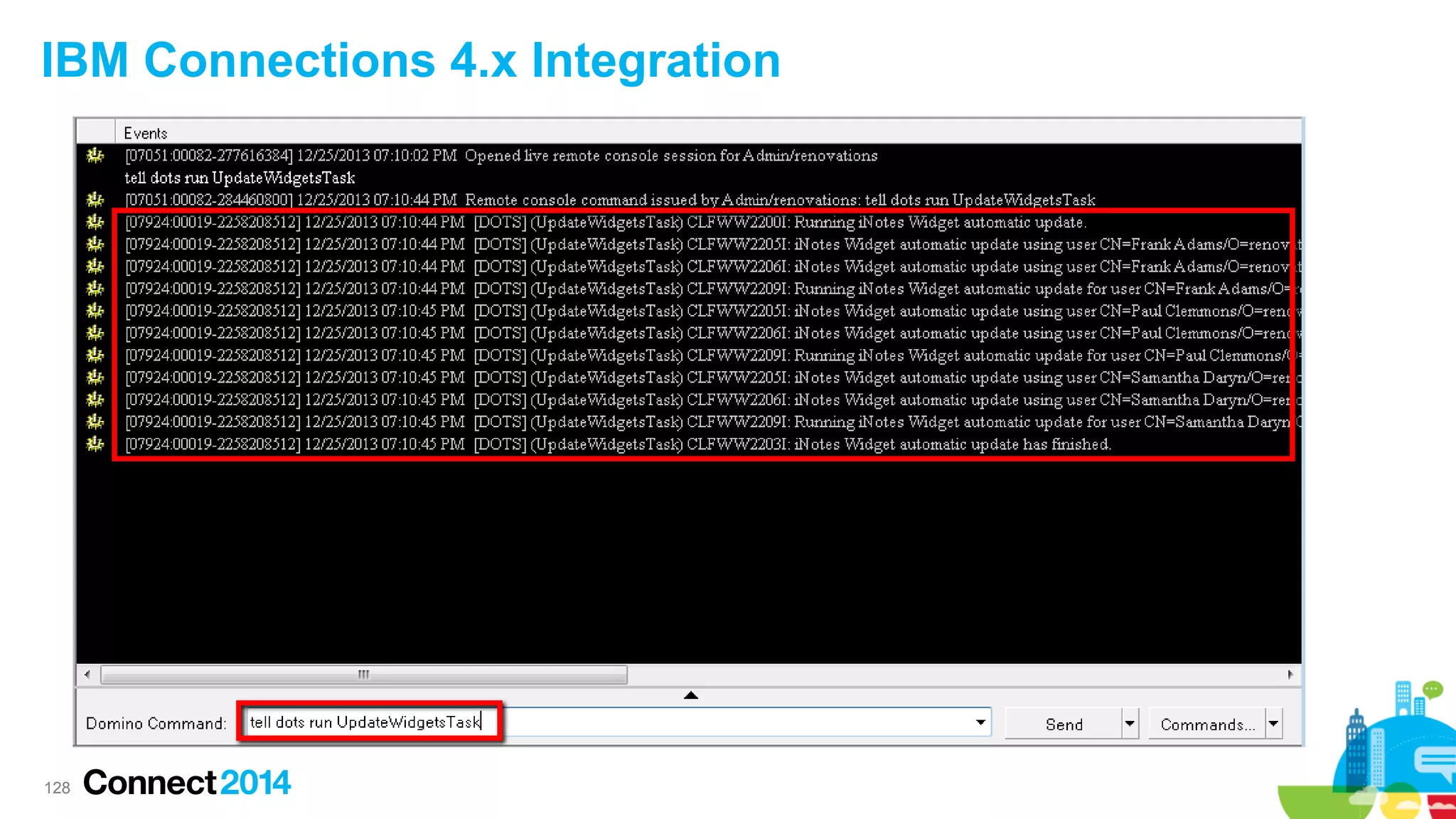

- 128. IBM Connections 4.xIntegration 128

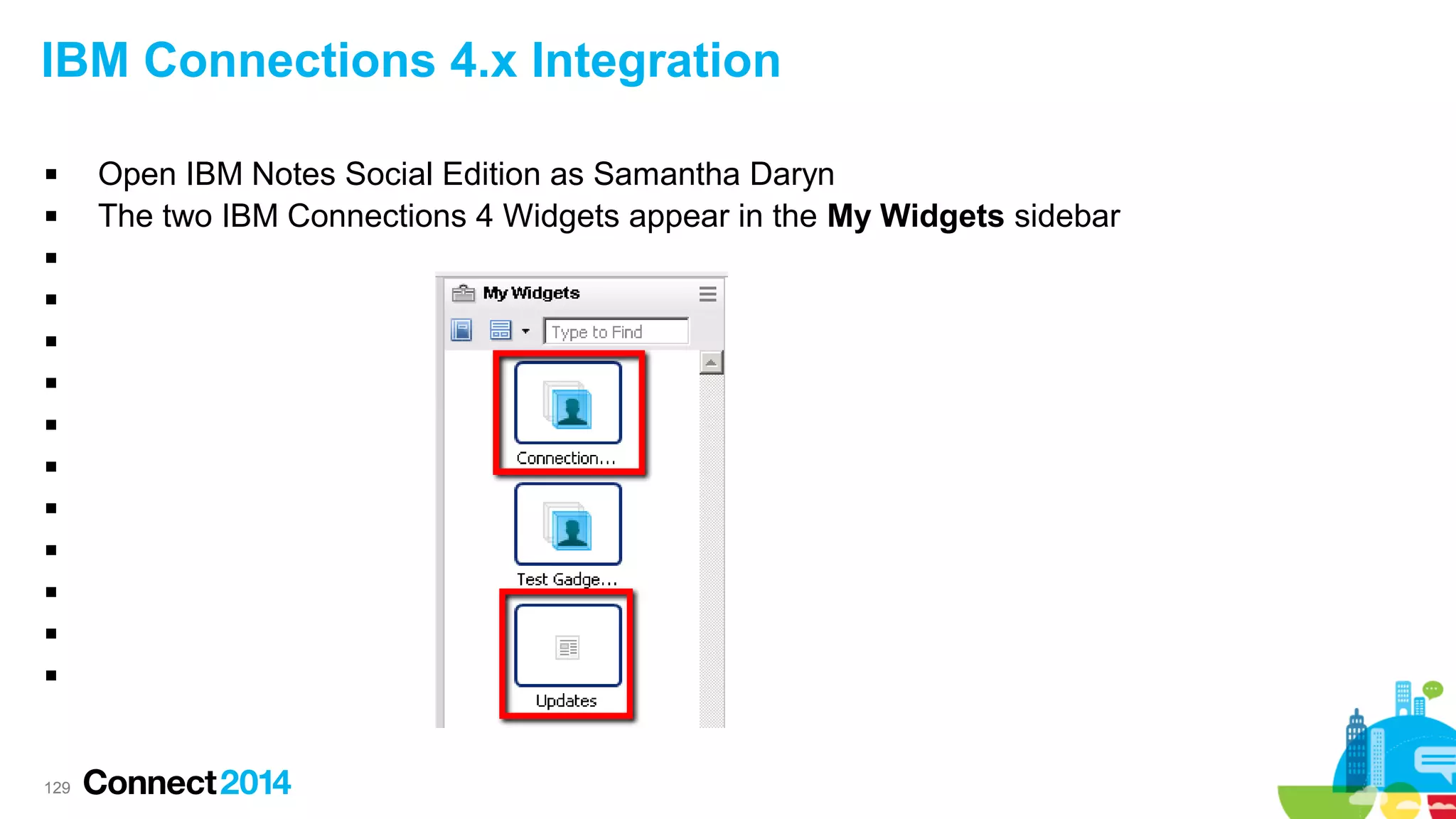

- 129. IBM Connections 4.xIntegration 129 Open IBM Notes Social Edition as Samantha Daryn The two IBM Connections 4 Widgets appear in the My Widgets sidebar

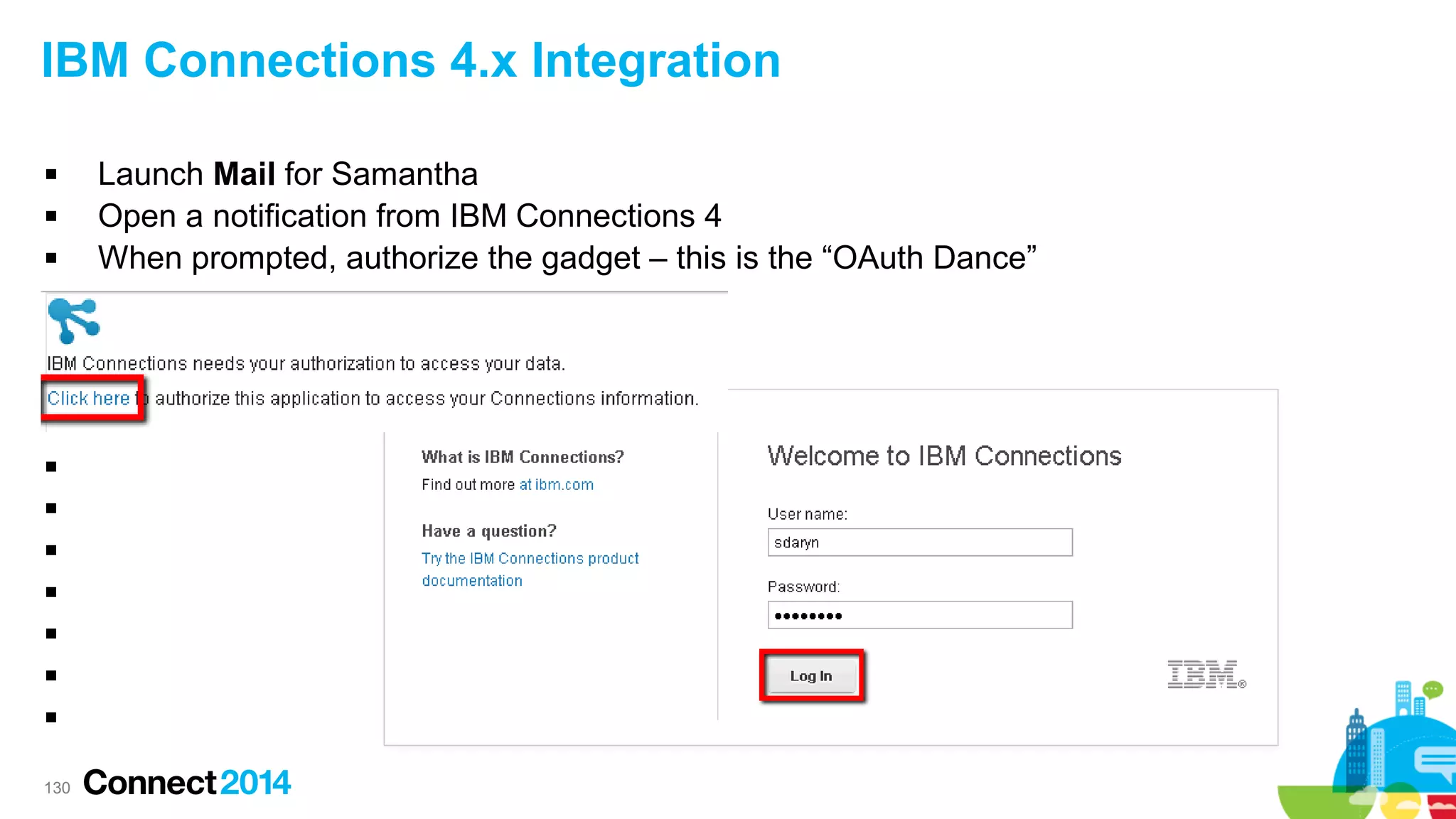

- 130. IBM Connections 4.xIntegration 130 Launch Mail for Samantha Open a notification from IBM Connections 4 When prompted, authorize the gadget – this is the “OAuth Dance”
- 131. Agenda 131 Terminology Deployment Overview – High-Level DeploymentView – Detailed Deployment View Setup and Configuration – Pre-requisites – Detailed Steps ● Database creation and configuration ● User-centric settings ● Server centric settings ● Verification IBM Connections 4.x Integration Troubleshooting Summary

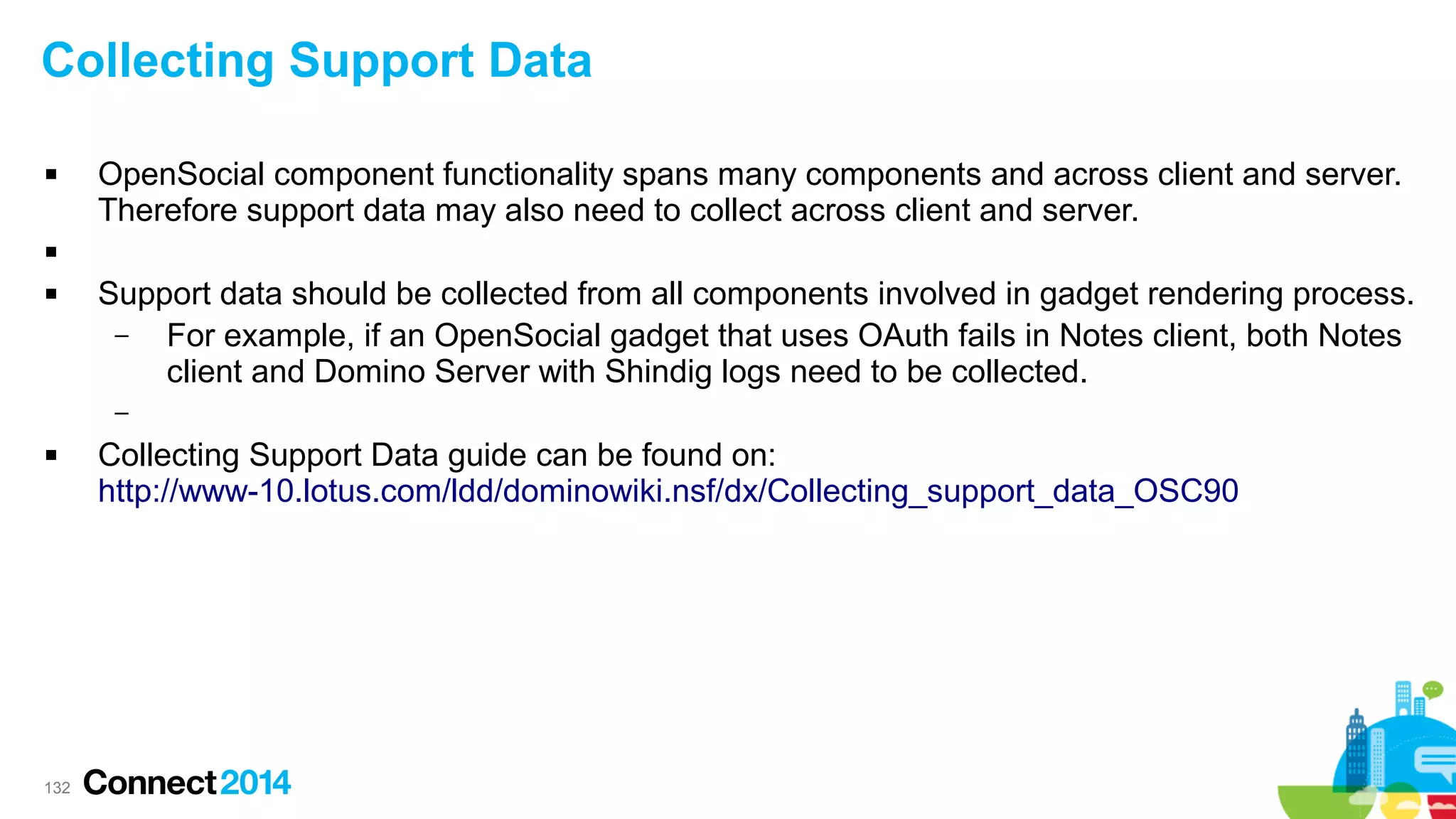

- 132. Collecting Support Data OpenSocialcomponent functionality spans many components and across client and server. Therefore support data may also need to collect across client and server. Support data should be collected from all components involved in gadget rendering process. – For example, if an OpenSocial gadget that uses OAuth fails in Notes client, both Notes client and Domino Server with Shindig logs need to be collected. – 132 Collecting Support Data guide can be found on: http://www-10.lotus.com/ldd/dominowiki.nsf/dx/Collecting_support_data_OSC90
- 133. Collecting Support Datain Notes 133 Support Data in Notes can be collected via IBM Support Assistant(ISA)
- 134. Collecting Support Datain Notes 134 Enable customized tracing for “Embedded Experience”

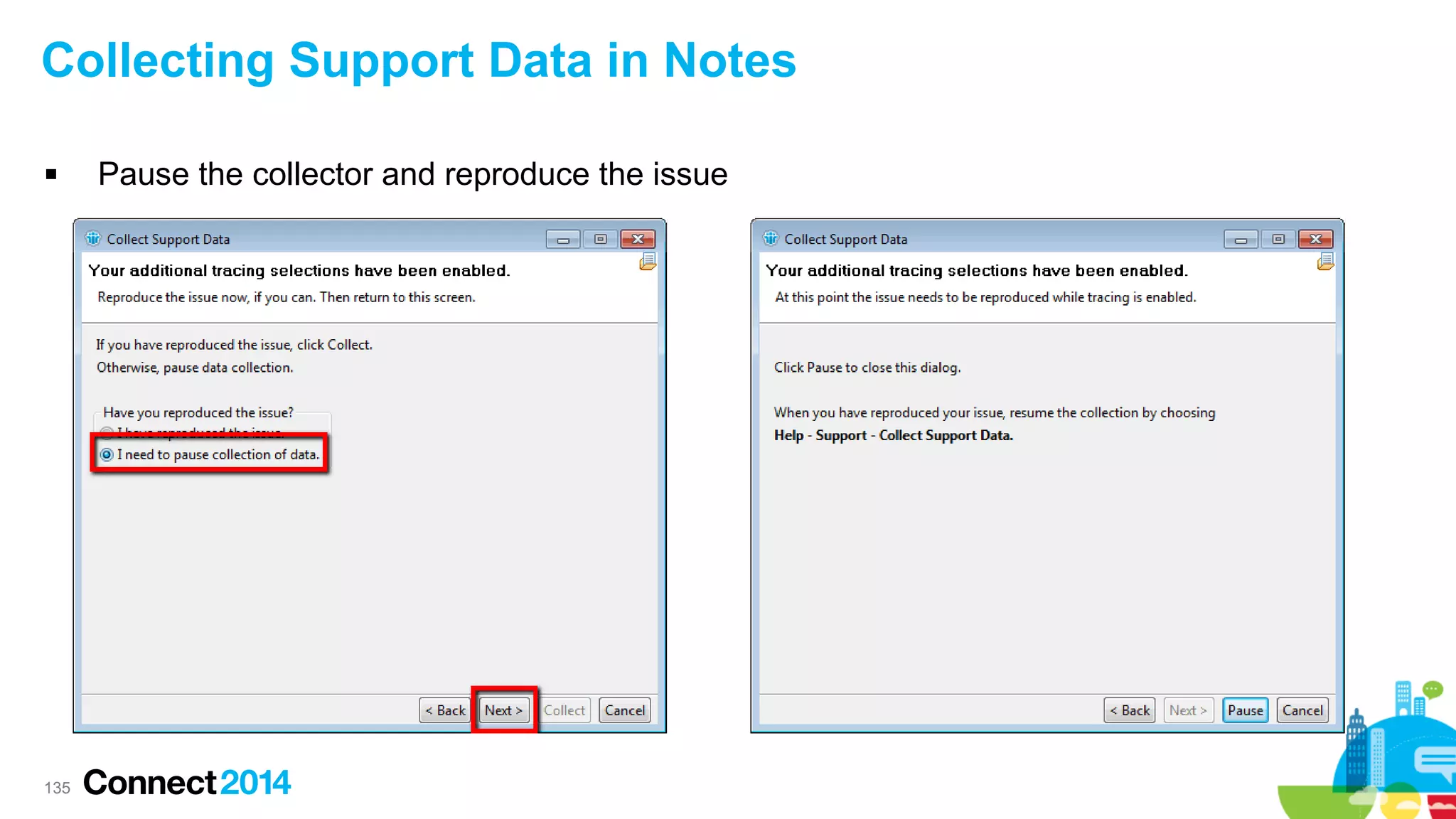

- 135. Collecting Support Datain Notes 135 Pause the collector and reproduce the issue

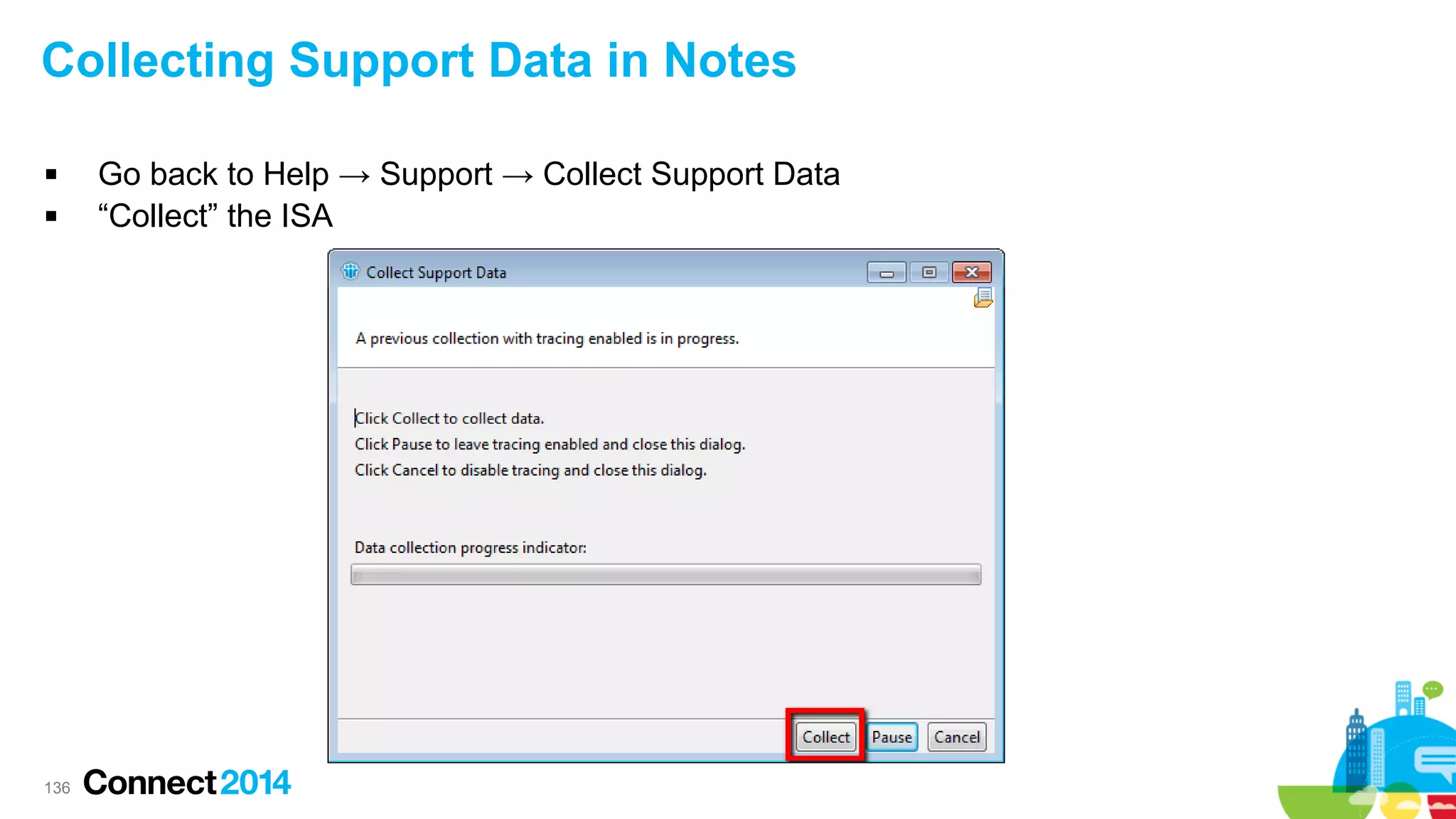

- 136. Collecting Support Datain Notes 136 Go back to Help → Support → Collect Support Data “Collect” the ISA

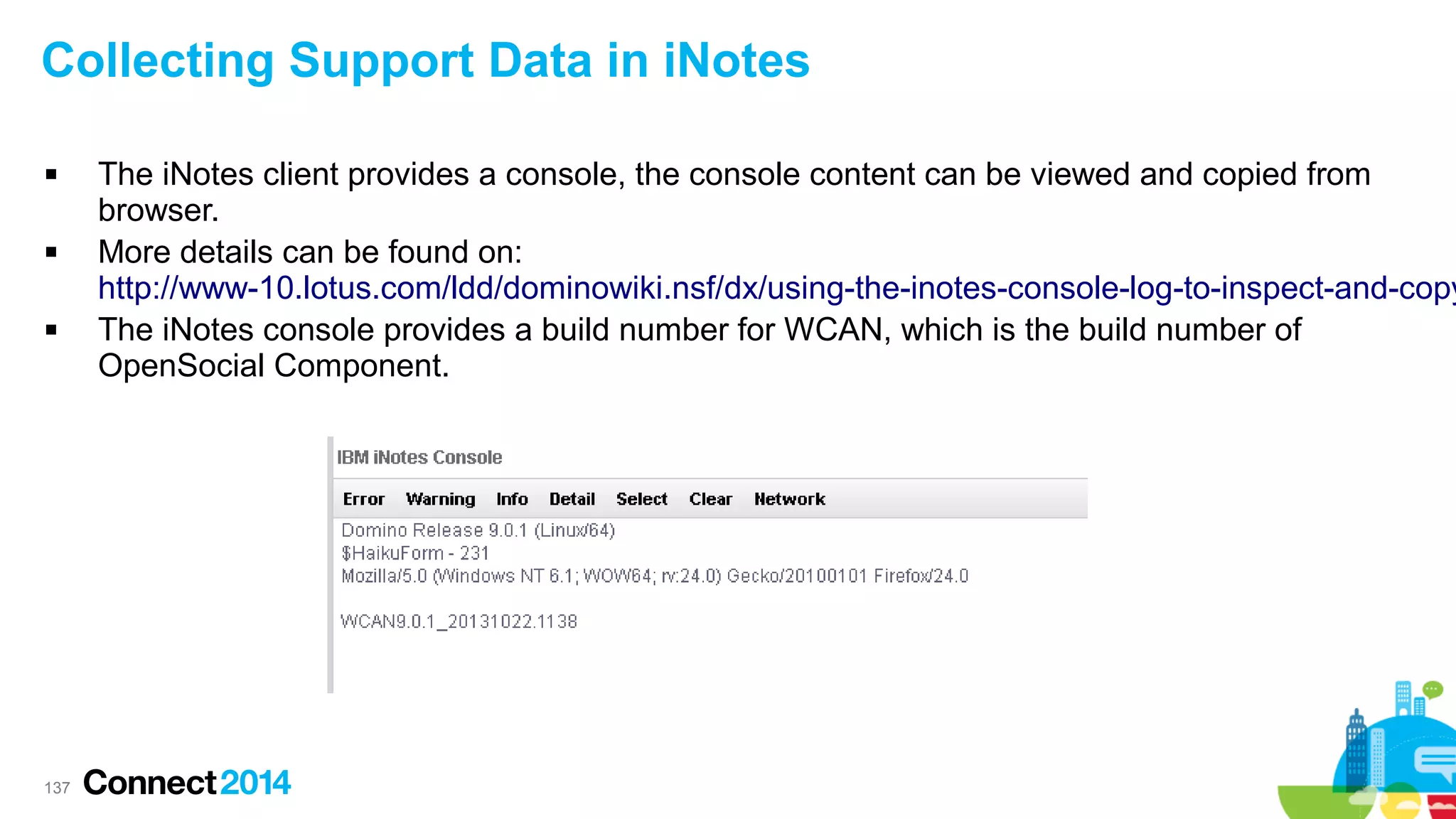

- 137. Collecting Support Datain iNotes 137 The iNotes client provides a console, the console content can be viewed and copied from browser. More details can be found on: http://www-10.lotus.com/ldd/dominowiki.nsf/dx/using-the-inotes-console-log-to-inspect-and-copy The iNotes console provides a build number for WCAN, which is the build number of OpenSocial Component.
- 138. Collecting Support Datain Domino OpenSocial component on Domino generates logs in osgi workspace. There are two workspace folders that should be checked for logs – OSGI on HTTP tasks: <Domino Data>/domino/workspace/logs – OSGI on DOTS: <Domino Data>/domino/workspace-dots/logs – Custom logging must be enabled by modifying rcpinstall.properties file, and related task need to be restarted after making changes – OSGI on HTTP tasks: <Domino Data>/domino/workspace/.config/rcpinstall.properties – OSGI on DOTS: <Domino Data>/domino/workspace-dots/.config/rcpinstall.properties – 138 Refer to the Collecting Support Data guide about what custom tracing can be enabled
- 139. Troubleshooting guide There isan online troubleshooting guide for OpenSocial Component to help to quickly identify the deployment problem: http://www-10.lotus.com/ldd/dominowiki.nsf/dx/Troubleshooting_OSC90 NOTE: Only common problems and solutions are documented in this guide. 139 How to use this guide – Determine the symptom of your environment by the collected support data or the errors on the UI – Check the guide to see what are the possible problems to this symptom – Check your environment for the possible problems and diagnose what's the root cause in your environment – Apply the possible solutions to the root cause
- 140.

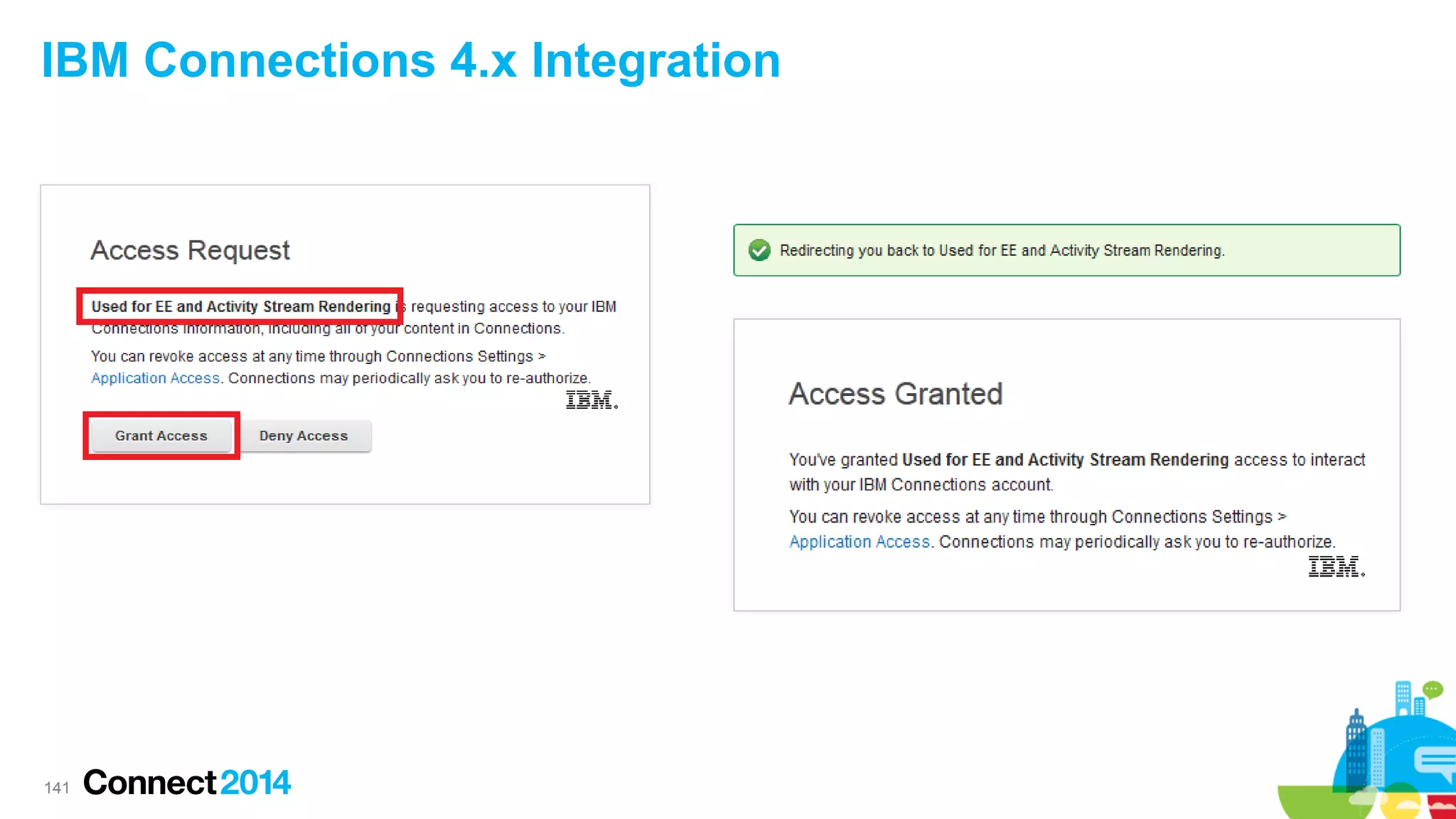

- 141. IBM Connections 4.xIntegration 141

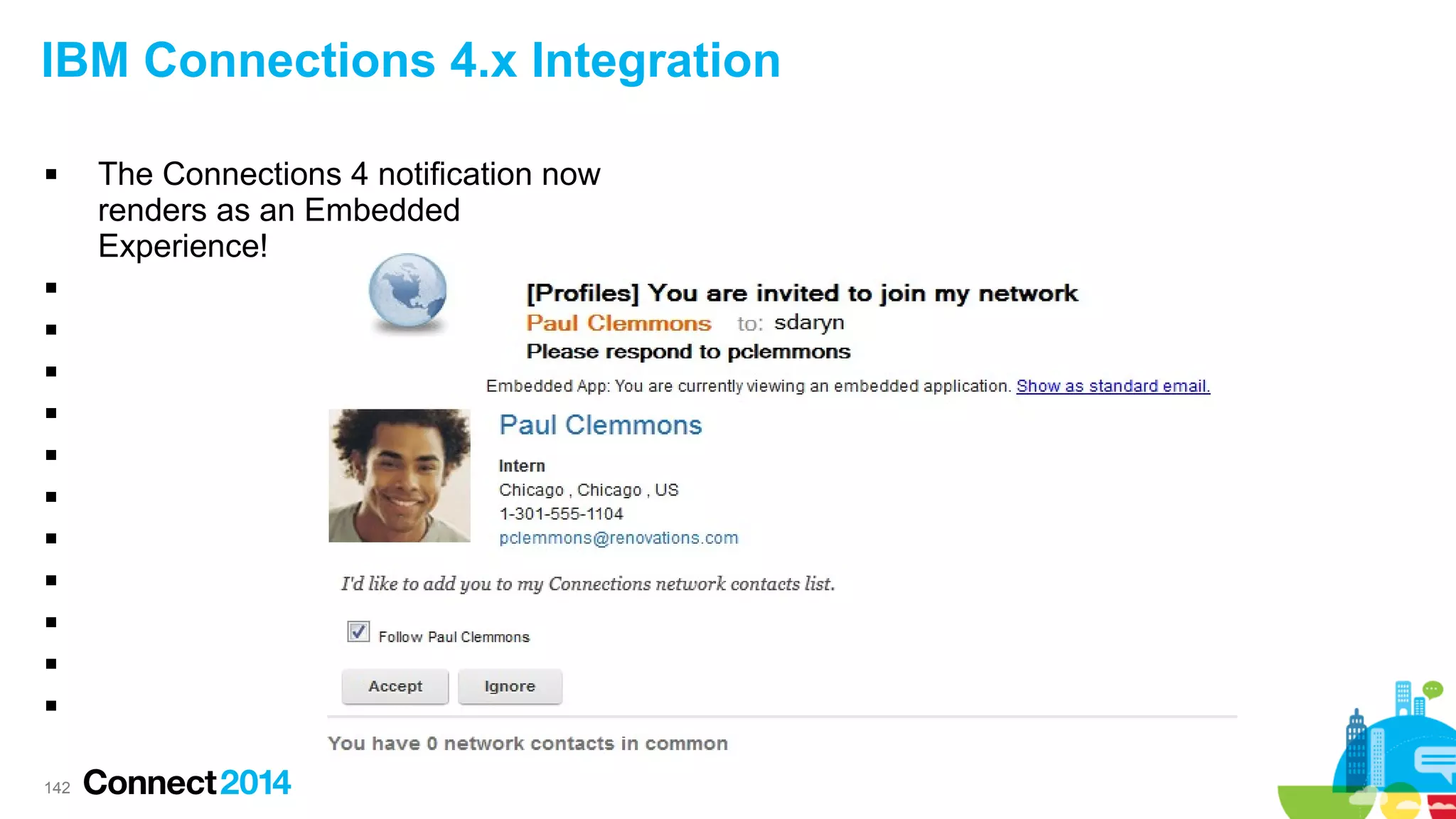

- 142. IBM Connections 4.xIntegration 142 The Connections 4 notification now renders as an Embedded Experience!

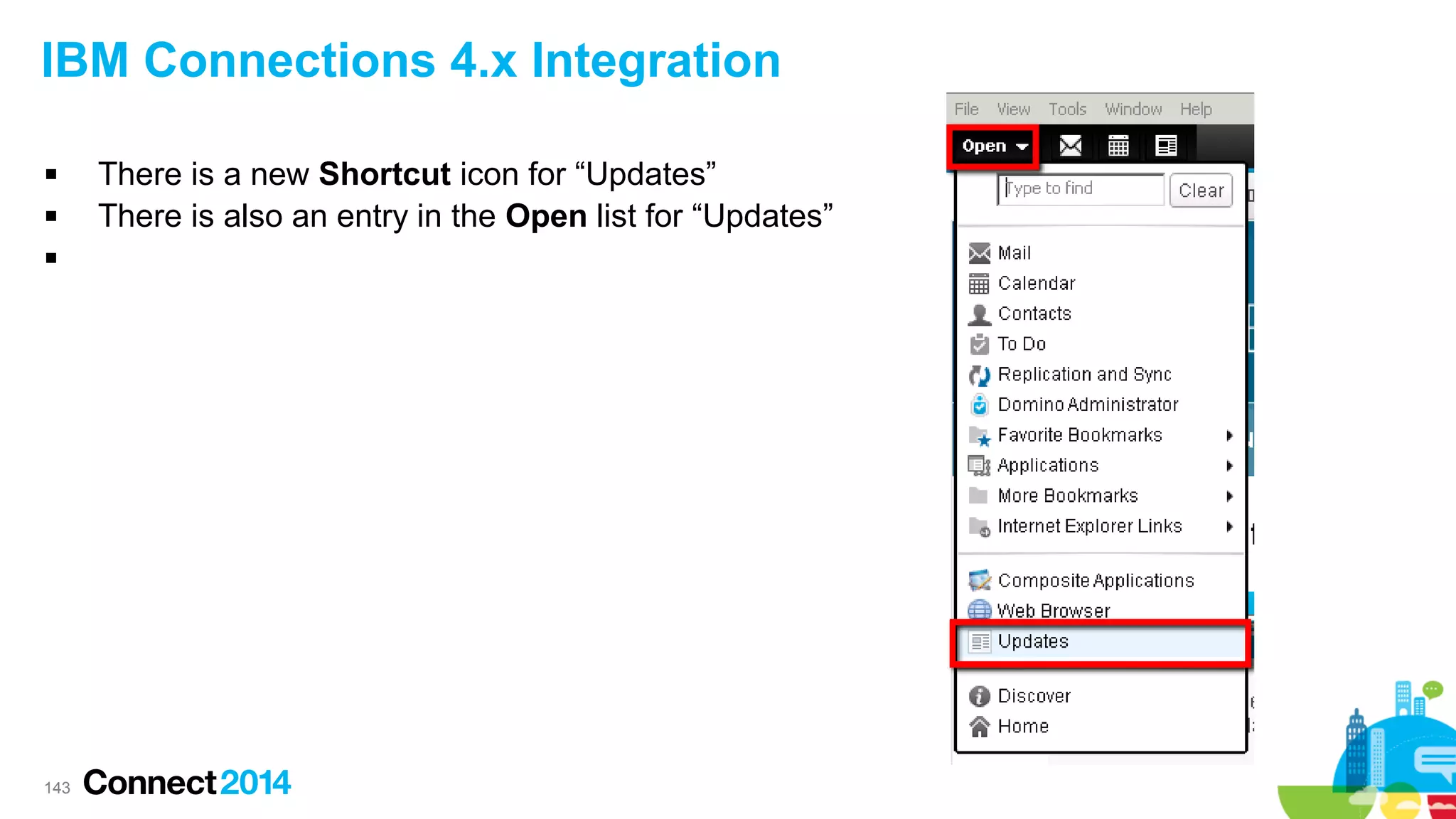

- 143. IBM Connections 4.xIntegration 143 There is a new Shortcut icon for “Updates” There is also an entry in the Open list for “Updates”
- 144. IBM Connections 4.xIntegration 144 Opening “Updates” via the Shortcut icon or the Open list will open “Updates” in a new tab – The “OAuth Dance” is not required again since OAuth is configured with Shared Tokens enabled for this service

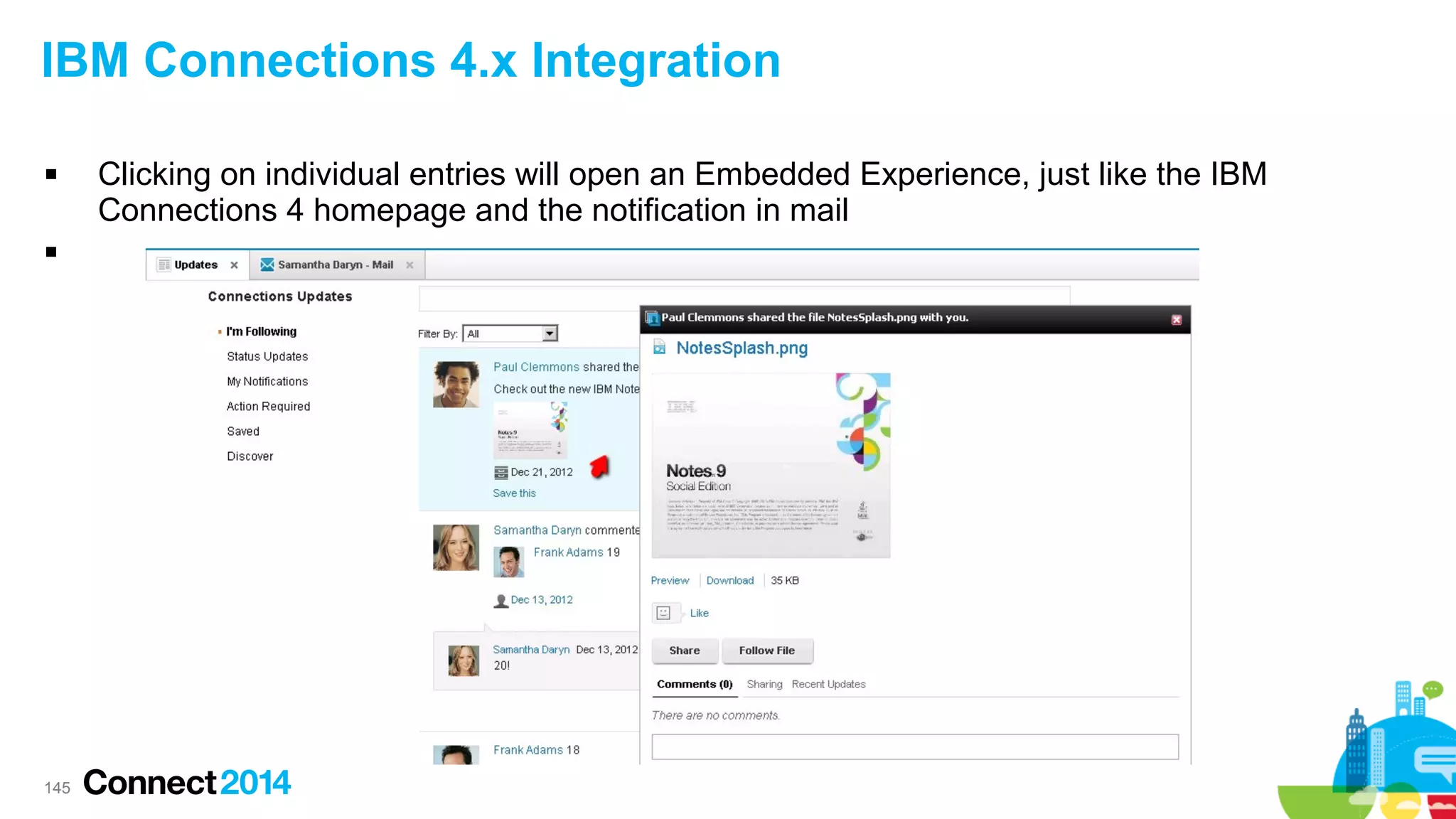

- 145. IBM Connections 4.xIntegration 145 Clicking on individual entries will open an Embedded Experience, just like the IBM Connections 4 homepage and the notification in mail

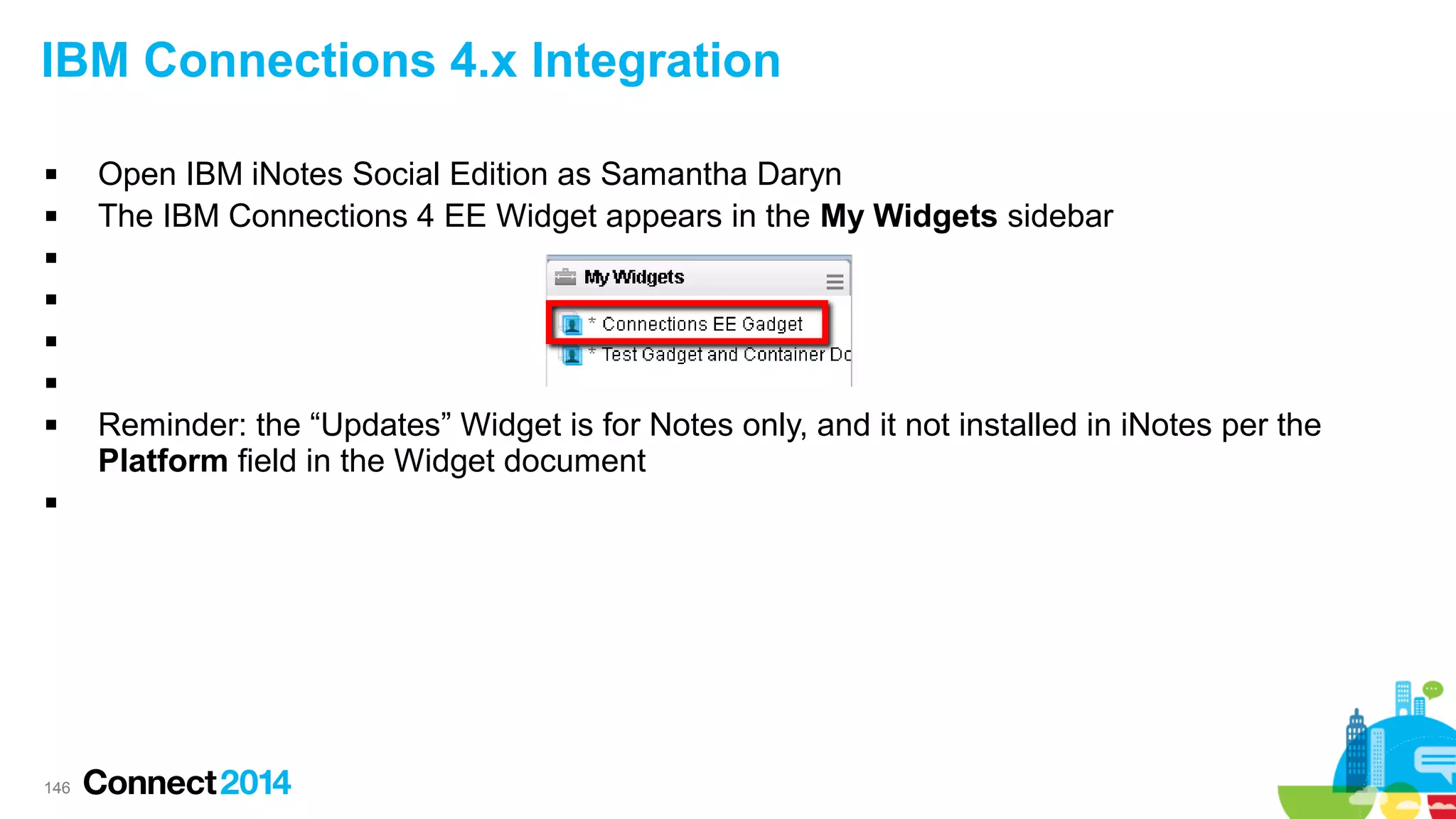

- 146. IBM Connections 4.xIntegration Open IBM iNotes Social Edition as Samantha Daryn The IBM Connections 4 EE Widget appears in the My Widgets sidebar 146 Reminder: the “Updates” Widget is for Notes only, and it not installed in iNotes per the Platform field in the Widget document
- 147. IBM Connections 4.xIntegration 147 Open a notification from IBM Connections 4 It is now renders as an Embedded Experience!

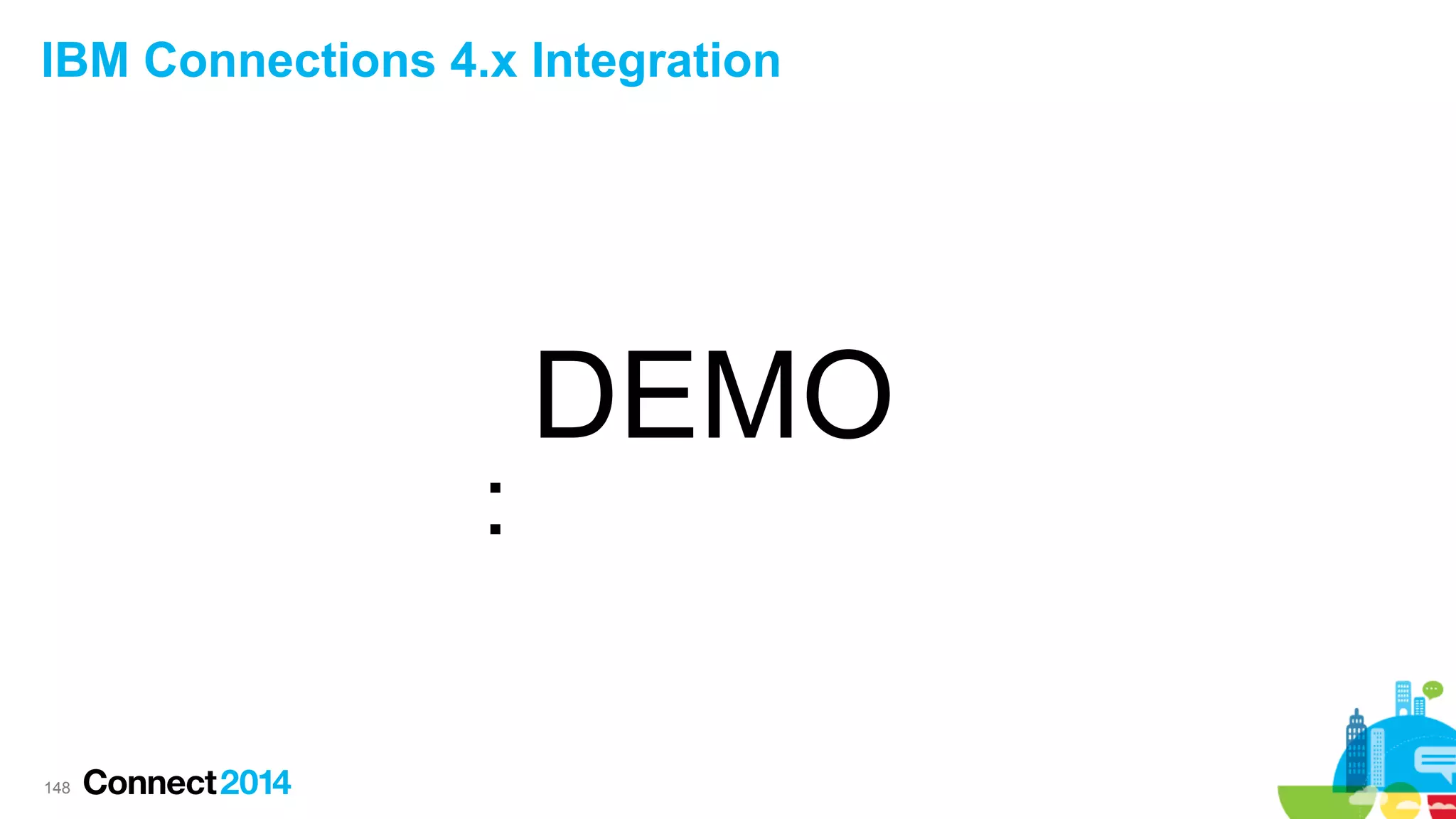

- 148. IBM Connections 4.xIntegration DEMO 148
- 149. Agenda 149 Terminology Deployment Overview – High-Level DeploymentView – Detailed Deployment View Setup and Configuration – Pre-requisites – Detailed Steps ● Database creation and configuration ● User-centric settings ● Server centric settings ● Verification Troubleshooting IBM Connections 4.x Integration Summary
- 150. Summary The OpenSocial Componentdeployed and configured as two server components – Mail server and Domino Server with Shindig – Domino 9.0 or above and OpenSocial component 9.0 or above need to be installed on the two server components. The server components are configured to be different. – The two server components can be deployed on a same Domino server or different Domino servers, or clustered Domino servers OpenSocial widgets need to be trusted and configured to render in Notes and iNotes By default, there are some intervals for certain settings (policy , DOTS, OAuth and proxy data) applied to end users or Domino server. Administrator can issue commands to apply the changes immediately. Connections gadgets can be easily exported and imported into Domino. Troubleshooting guide is helpful to identify and resolve deployment issues. – – 150
- 151.

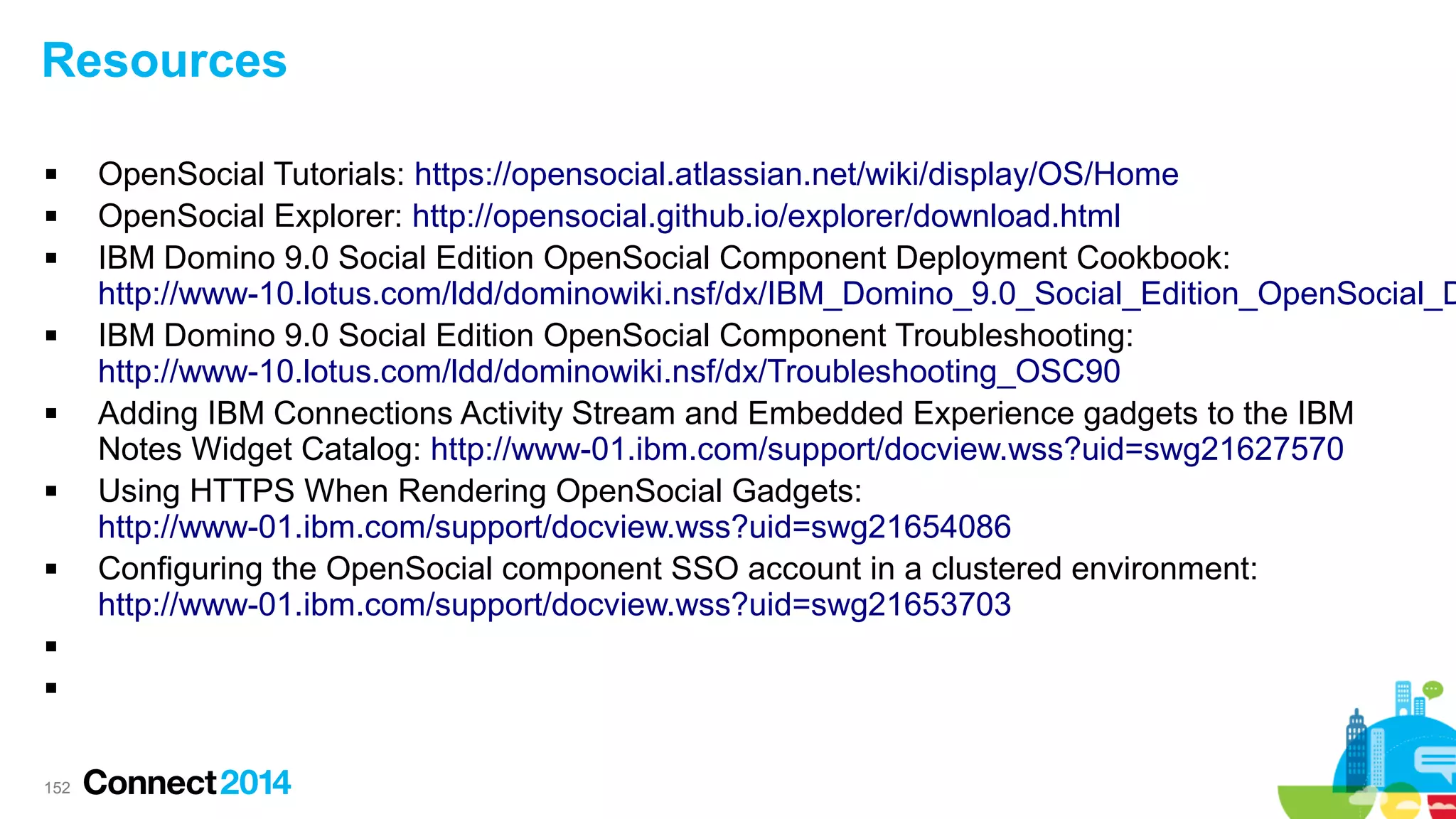

- 152. Resources 152 OpenSocial Tutorials: https://opensocial.atlassian.net/wiki/display/OS/Home OpenSocialExplorer: http://opensocial.github.io/explorer/download.html IBM Domino 9.0 Social Edition OpenSocial Component Deployment Cookbook: http://www-10.lotus.com/ldd/dominowiki.nsf/dx/IBM_Domino_9.0_Social_Edition_OpenSocial_D IBM Domino 9.0 Social Edition OpenSocial Component Troubleshooting: http://www-10.lotus.com/ldd/dominowiki.nsf/dx/Troubleshooting_OSC90 Adding IBM Connections Activity Stream and Embedded Experience gadgets to the IBM Notes Widget Catalog: http://www-01.ibm.com/support/docview.wss?uid=swg21627570 Using HTTPS When Rendering OpenSocial Gadgets: http://www-01.ibm.com/support/docview.wss?uid=swg21654086 Configuring the OpenSocial component SSO account in a clustered environment: http://www-01.ibm.com/support/docview.wss?uid=swg21653703
- 153. Engage Online SocialBiz UserGroup socialbizug.org – Join the epicenter of Notes and Collaboration user groups Follow us on Twitter Engage – @IBMConnect and @IBMSocialBiz Online LinkedIn http://bit.ly/SBComm – Participate in the IBM Social Business group on LinkedIn: Facebook https://www.facebook.com/IBMSocialBiz – Like IBM Social Business on Facebook Social Business Insights blog ibm.com/blogs/socialbusiness – Read and engage with our bloggers 153
- 154. Access ConnectOnline to complete your session surveys using any: – Web or mobile browser – Connect Online kiosk onsite 154

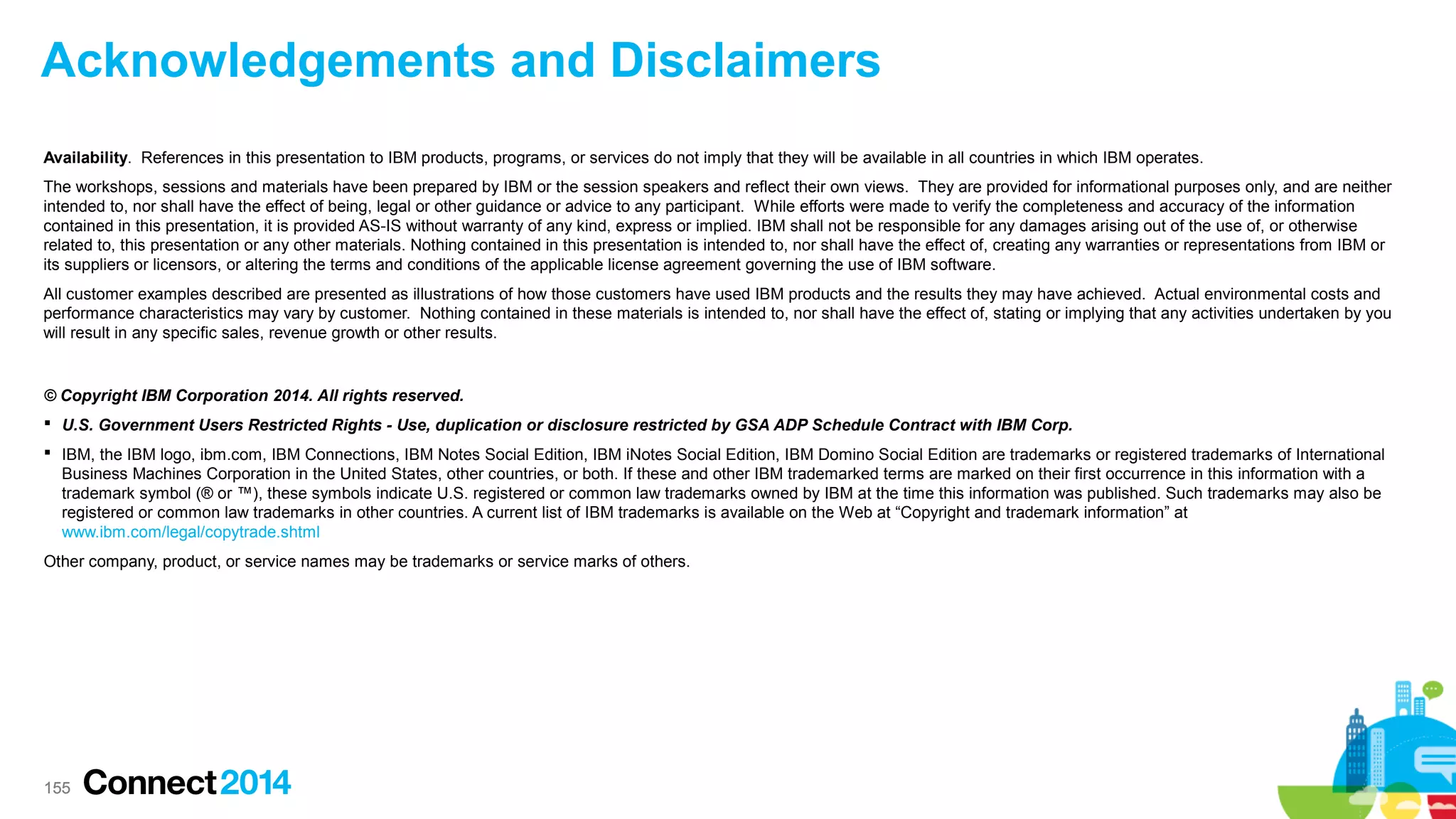

- 155. Acknowledgements and Disclaimers Availability.References in this presentation to IBM products, programs, or services do not imply that they will be available in all countries in which IBM operates. The workshops, sessions and materials have been prepared by IBM or the session speakers and reflect their own views. They are provided for informational purposes only, and are neither intended to, nor shall have the effect of being, legal or other guidance or advice to any participant. While efforts were made to verify the completeness and accuracy of the information contained in this presentation, it is provided AS-IS without warranty of any kind, express or implied. IBM shall not be responsible for any damages arising out of the use of, or otherwise related to, this presentation or any other materials. Nothing contained in this presentation is intended to, nor shall have the effect of, creating any warranties or representations from IBM or its suppliers or licensors, or altering the terms and conditions of the applicable license agreement governing the use of IBM software. All customer examples described are presented as illustrations of how those customers have used IBM products and the results they may have achieved. Actual environmental costs and performance characteristics may vary by customer. Nothing contained in these materials is intended to, nor shall have the effect of, stating or implying that any activities undertaken by you will result in any specific sales, revenue growth or other results. © Copyright IBM Corporation 2014. All rights reserved. U.S. Government Users Restricted Rights - Use, duplication or disclosure restricted by GSA ADP Schedule Contract with IBM Corp. IBM, the IBM logo, ibm.com, IBM Connections, IBM Notes Social Edition, IBM iNotes Social Edition, IBM Domino Social Edition are trademarks or registered trademarks of International Business Machines Corporation in the United States, other countries, or both. If these and other IBM trademarked terms are marked on their first occurrence in this information with a trademark symbol (® or ™), these symbols indicate U.S. registered or common law trademarks owned by IBM at the time this information was published. Such trademarks may also be registered or common law trademarks in other countries. A current list of IBM trademarks is available on the Web at “Copyright and trademark information” at www.ibm.com/legal/copytrade.shtml Other company, product, or service names may be trademarks or service marks of others. 155
