The document summarizes the capabilities of the US Strategic Command Joint Electronic Warfare Center EM OPFOR. It replicates electromagnetic environments to train DoD/USG organizations. It leverages spectrum, cyber, and space capabilities for integrated effects. The EM OPFOR provides a robust, scalable real-world target set using commercial off-the-shelf equipment for operators/systems to train against. It supports tactics, techniques and procedures development for both ground and air electronic warfare and information operations asset integration.

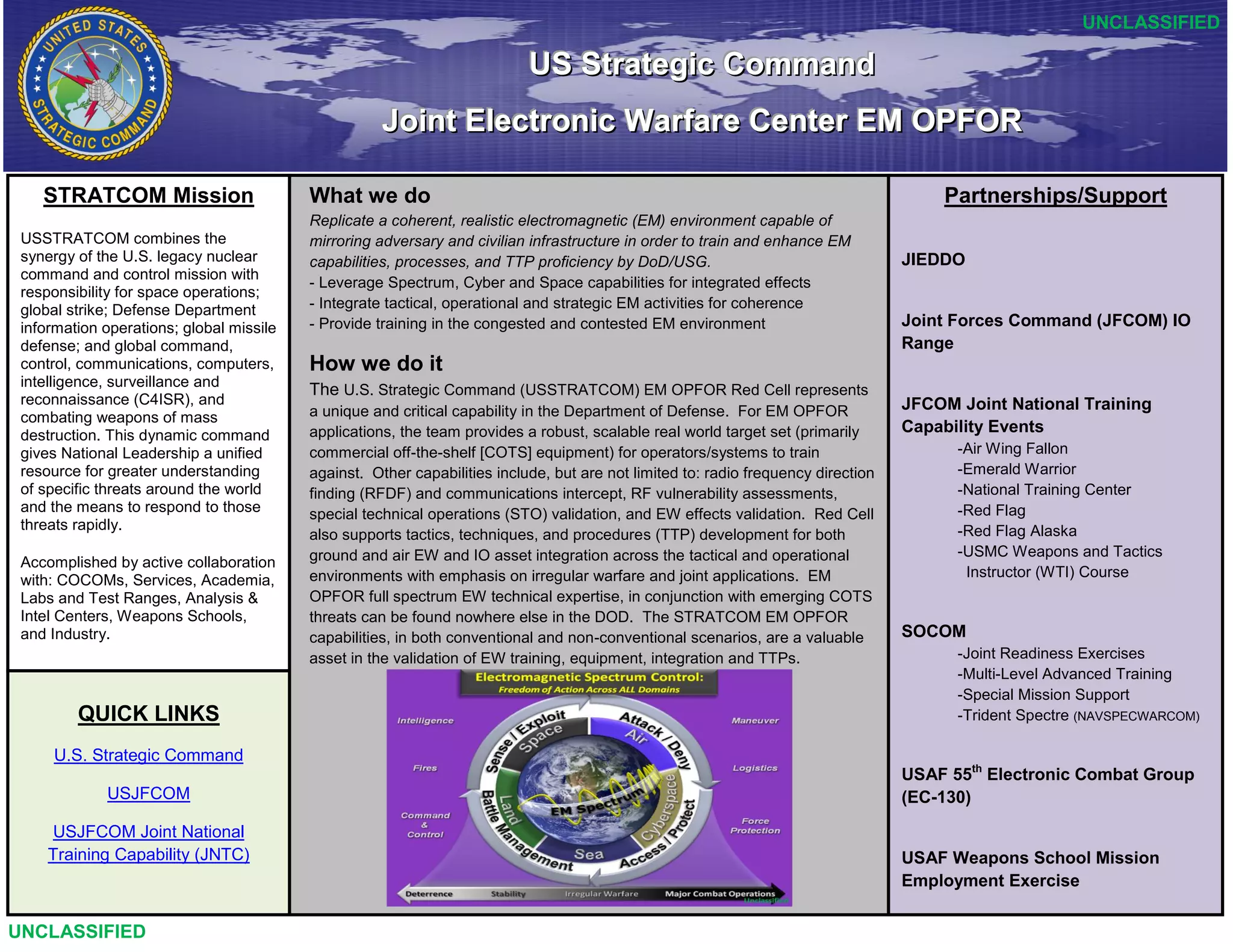

1. UNCLASSIFIED
US Strategic Command
Joint Electronic Warfare Center EM OPFOR
.
STRATCOM Mission What we do Partnerships/Support
Replicate a coherent, realistic electromagnetic (EM) environment capable of
USSTRATCOM combines the mirroring adversary and civilian infrastructure in order to train and enhance EM
synergy of the U.S. legacy nuclear capabilities, processes, and TTP proficiency by DoD/USG. JIEDDO
command and control mission with
- Leverage Spectrum, Cyber and Space capabilities for integrated effects
responsibility for space operations;
global strike; Defense Department - Integrate tactical, operational and strategic EM activities for coherence
information operations; global missile - Provide training in the congested and contested EM environment Joint Forces Command (JFCOM) IO
defense; and global command, Range
control, communications, computers, How we do it
intelligence, surveillance and
The U.S. Strategic Command (USSTRATCOM) EM OPFOR Red Cell represents
reconnaissance (C4ISR), and JFCOM Joint National Training
combating weapons of mass a unique and critical capability in the Department of Defense. For EM OPFOR
destruction. This dynamic command applications, the team provides a robust, scalable real world target set (primarily Capability Events
gives National Leadership a unified commercial off-the-shelf [COTS] equipment) for operators/systems to train -Air Wing Fallon
resource for greater understanding against. Other capabilities include, but are not limited to: radio frequency direction -Emerald Warrior
of specific threats around the world finding (RFDF) and communications intercept, RF vulnerability assessments, -National Training Center
and the means to respond to those special technical operations (STO) validation, and EW effects validation. Red Cell -Red Flag
threats rapidly. -Red Flag Alaska
also supports tactics, techniques, and procedures (TTP) development for both
ground and air EW and IO asset integration across the tactical and operational -USMC Weapons and Tactics
Accomplished by active collaboration
environments with emphasis on irregular warfare and joint applications. EM Instructor (WTI) Course
with: COCOMs, Services, Academia,
Labs and Test Ranges, Analysis & OPFOR full spectrum EW technical expertise, in conjunction with emerging COTS
Intel Centers, Weapons Schools, threats can be found nowhere else in the DOD. The STRATCOM EM OPFOR
and Industry. capabilities, in both conventional and non-conventional scenarios, are a valuable SOCOM
asset in the validation of EW training, equipment, integration and TTPs. -Joint Readiness Exercises
-Multi-Level Advanced Training
-Special Mission Support
QUICK LINKS -Trident Spectre (NAVSPECWARCOM)
U.S. Strategic Command
USAF 55th Electronic Combat Group
USJFCOM (EC-130)
USJFCOM Joint National
Training Capability (JNTC) USAF Weapons School Mission
Employment Exercise
UNCLASSIFIED

2. UNCLASSIFIED
US Strategic Command
Joint Electronic Warfare Center EM OPFOR

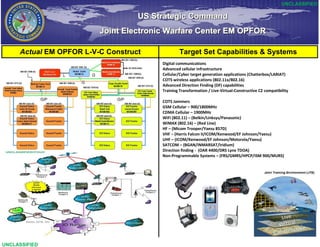

Actual EM OPFOR L-V-C Construct Target Set Capabilities & Systems
Digital communications
Advanced cellular infrastructure
Cellular/Cyber target generation applications (Chatterbox/LARIAT)
COTS wireless applications (802.11x/802.16)
Advanced Direction Finding (DF) capabilities
Training Transformation / Live-Virtual-Constructive C2 compatibility
COTS Jammers
GSM Cellular – 900/1800MHz
CDMA Cellular – 1900MHz
WiFi (802.11) – (Belkin/Linksys/Panasonic)
WiMAX (802.16) – (Red Line)
HF – (Micom Trooper/Yaesu 857D)
VHF – (Harris Falcon II/ICOM/Kenwood/EF Johnson/Yaesu)
UHF – (ICOM/Kenwood/EF Johnson/Motorola/Yaesu)
SATCOM – (BGAN/INMARSAT/Iridium)
Direction finding - (OAR 4400/DRS Lynx TDOA)
Non-Programmable Systems – (FRS/GMRS/HPCP/ISM 900/MURS)
UNCLASSIFIED

3. UNCLASSIFIED
Strategic Command JEWC EM OPFOR
Threat Replliicatiion Systems
Threat Rep cat on Systems
TARGET SET MAKE/MODEL FREQ RANGE OUTPUT POWER
HF (1) YAESU FT-817ND 100KHz-30 MHz 1.5-5 W
50-54 MHz
144/430 MHz
(5) YAESU FT-100D 100KHz-961 MHz 5-100 W (Frequency Dependant)
(2) YAESU FT-857D 100KHz-470 MHz 5-100 W (Frequency Dependant)
(2) MICOM Pathfinder (ALE) 160KHz-30 MHz 5-25 W
VHF (2) Harris FALCON Man pack 30-107.9999 MHz 1,4,10 W (User Selectable)
(6) Harris FALCON II Handheld 30-107.9999 MHz 2,5 W (User Selectable)
(4) ICOM V-82 144-148 MHz 7.0/4.0/0.5W (High/mid/low)
(9) SENAO SN-568B (HPCP) 254-382 MHz 1-25 W (User Selectable)
(6) Motorola LST-5 225-400 MHz 4-20 W (User Selectable)
(6) Kenwood TK2100 154.57 – 154.60 MHz 2W
(3) Kenwood TK780 136-174 MHz 25 W
(4) EF Johnson 5112 136-174 MHz 10-100 W (User Selectable)
Civilian Band (MURS) (4) VHF Mobile /Hand Held 156-157.5 MHz 25/5 W
UHF (6) Kenwood TK380 450-470 MHz 1-5 W
(4) Kenwood TK330 406-420 MHz 1-5 W
(16) Kenwood TK830 450-470 MHz 45 W
(12) Kenwood TK3160 450-490 MHz 4W
(4) Kenwood TK8180 403-430 MHz 30/45 W
(4) ICOM U-82 440-450 MHz 5.0/2.0/0.5W (High/mid/low)
(39) Kenwood TK930 806-824 MHz 45 W
Civilian Band (FRS/GMRS) (7) GARMIN Rino 530HCx 462 & 467 MHz 1-5 W
(14) Midland (GXT850) 462 & 467 MHz 1-4 W (Freq dependent)
UNCLASSIFIED

4. UNCLASSIFIED
Strategic Command JEWC EM OPFOR
Threat Replliicatiion Systems
Threat Rep cat on Systems

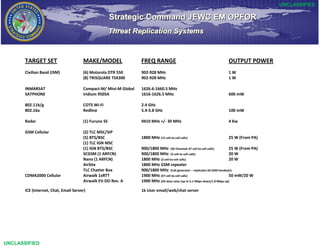

TARGET SET MAKE/MODEL FREQ RANGE OUTPUT POWER
Civilian Band (ISM) (6) Motorola DTR 550 902-928 MHz 1W
(8) TRISQUARE TSX300 902-928 MHz 1W
INMARSAT Compact-M/ Mini-M Global 1626.6-1660.5 MHz
SATPHONE Iridium 9505A 1616-1626.5 MHz 600 mW
802.11b/g COTS Wi-Fi 2.4 GHz
802.16a Redline 5.4-5.8 GHz 100 mW
Radar (1) Furuno SS 9410 MHz +/- 30 MHz 4 Kw
GSM Cellular (2) TLC MSC/SIP
(5) BTS/BSC 1800 MHz (15 cell-to-cell calls) 25 W (From PA)
(1) TLC IGN MSC
(1) IGN BTS/BSC 900/1800 MHz (96 Channels 47 cell-to-cell calls) 25 W (From PA)
SCGSM (1 ARFCN) 900/1800 MHz (3 cell-to-cell calls) 20 W
Nano (1 ARFCN) 1800 MHz (3 cell-to-cell calls) 20 W
AirSite 1800 MHz GSM repeater
TLC Chatter Box 900/1800 MHz (Call generator – replicates 64 GSM handsets)
CDMA2000 Cellular Airwalk 1xRTT 1900 MHz (47 cell-to-cell calls) 50 mW/20 W
Airwalk EV-DO Rev. A 1900 MHz (3G data rates (up to 3.1 Mbps down/1.8 Mbps up)
ICE (Internet, Chat, Email Server) 1k User email/web/chat server
